SpectrumWifiPhyBasicTest Class Reference

Spectrum Wifi Phy Basic Test. More...

Inheritance diagram for SpectrumWifiPhyBasicTest:

Collaboration diagram for SpectrumWifiPhyBasicTest:

Public Member Functions
	SpectrumWifiPhyBasicTest ()
	SpectrumWifiPhyBasicTest (std::string name)
	Constructor. More...
virtual	~SpectrumWifiPhyBasicTest ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Protected Member Functions
virtual void	DoSetup (void)
	Implementation to do any local setup required for this TestCase. More...
Ptr< SpectrumSignalParameters >	MakeSignal (double txPowerWatts)
	Make signal function. More...
void	SendSignal (double txPowerWatts)
	Send signal function. More...
void	SpectrumWifiPhyRxFailure (Ptr< Packet > p, double snr)
	Spectrum wifi receive failure function. More...
void	SpectrumWifiPhyRxSuccess (Ptr< Packet > p, double snr, WifiTxVector txVector)
	Spectrum wifi receive success function. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Protected Attributes
uint32_t	m_count
	count More...
Ptr< SpectrumWifiPhy >	m_phy
	Phy. More...

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Detailed Description

Spectrum Wifi Phy Basic Test.

Definition at line 42 of file spectrum-wifi-phy-test.cc.

Constructor & Destructor Documentation

SpectrumWifiPhyBasicTest::SpectrumWifiPhyBasicTest

(

)

Definition at line 85 of file spectrum-wifi-phy-test.cc.

SpectrumWifiPhyBasicTest::SpectrumWifiPhyBasicTest

(

std::string

name

)

Constructor.

Parameters

name	reference name

Definition at line 91 of file spectrum-wifi-phy-test.cc.

SpectrumWifiPhyBasicTest::~SpectrumWifiPhyBasicTest ( )

virtual

Definition at line 146 of file spectrum-wifi-phy-test.cc.

Member Function Documentation

void SpectrumWifiPhyBasicTest::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Reimplemented in SpectrumWifiPhyListenerTest.

Definition at line 169 of file spectrum-wifi-phy-test.cc.

References m_count, ns3::MicroSeconds(), NS_TEST_ASSERT_MSG_EQ, ns3::Seconds(), and SendSignal().

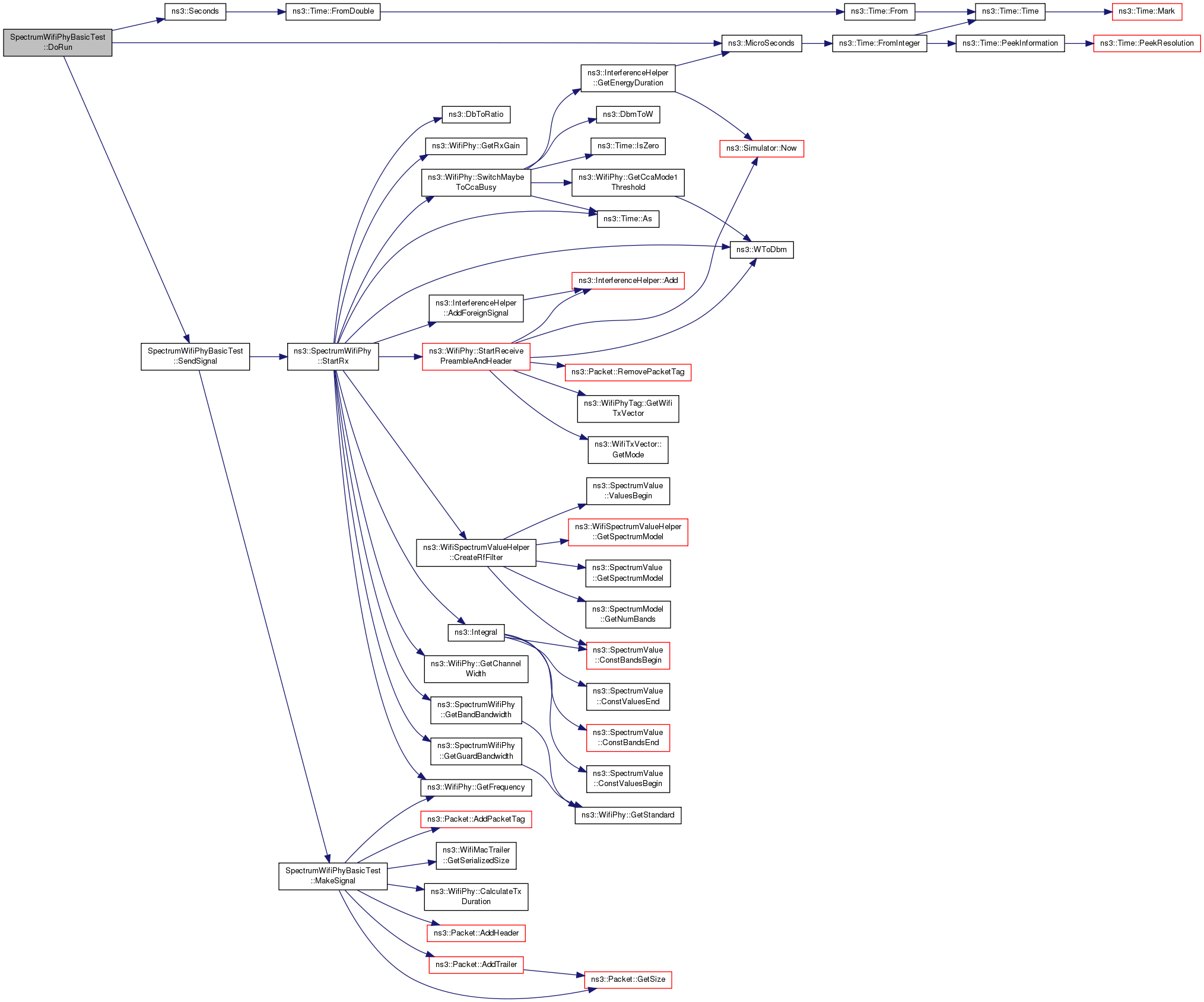

Here is the call graph for this function:

void SpectrumWifiPhyBasicTest::DoSetup ( void  )

protectedvirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Reimplemented in SpectrumWifiPhyListenerTest.

Definition at line 153 of file spectrum-wifi-phy-test.cc.

References CHANNEL_NUMBER, ns3::SpectrumWifiPhy::ConfigureStandard(), FREQUENCY, m_phy, ns3::MakeCallback(), ns3::WifiPhy::SetCcaMode1Threshold(), ns3::SpectrumWifiPhy::SetChannelNumber(), ns3::WifiPhy::SetErrorRateModel(), ns3::SpectrumWifiPhy::SetFrequency(), ns3::WifiPhy::SetReceiveErrorCallback(), ns3::WifiPhy::SetReceiveOkCallback(), SpectrumWifiPhyRxFailure(), SpectrumWifiPhyRxSuccess(), and ns3::WIFI_PHY_STANDARD_80211n_5GHZ.

Referenced by SpectrumWifiPhyListenerTest::DoSetup().

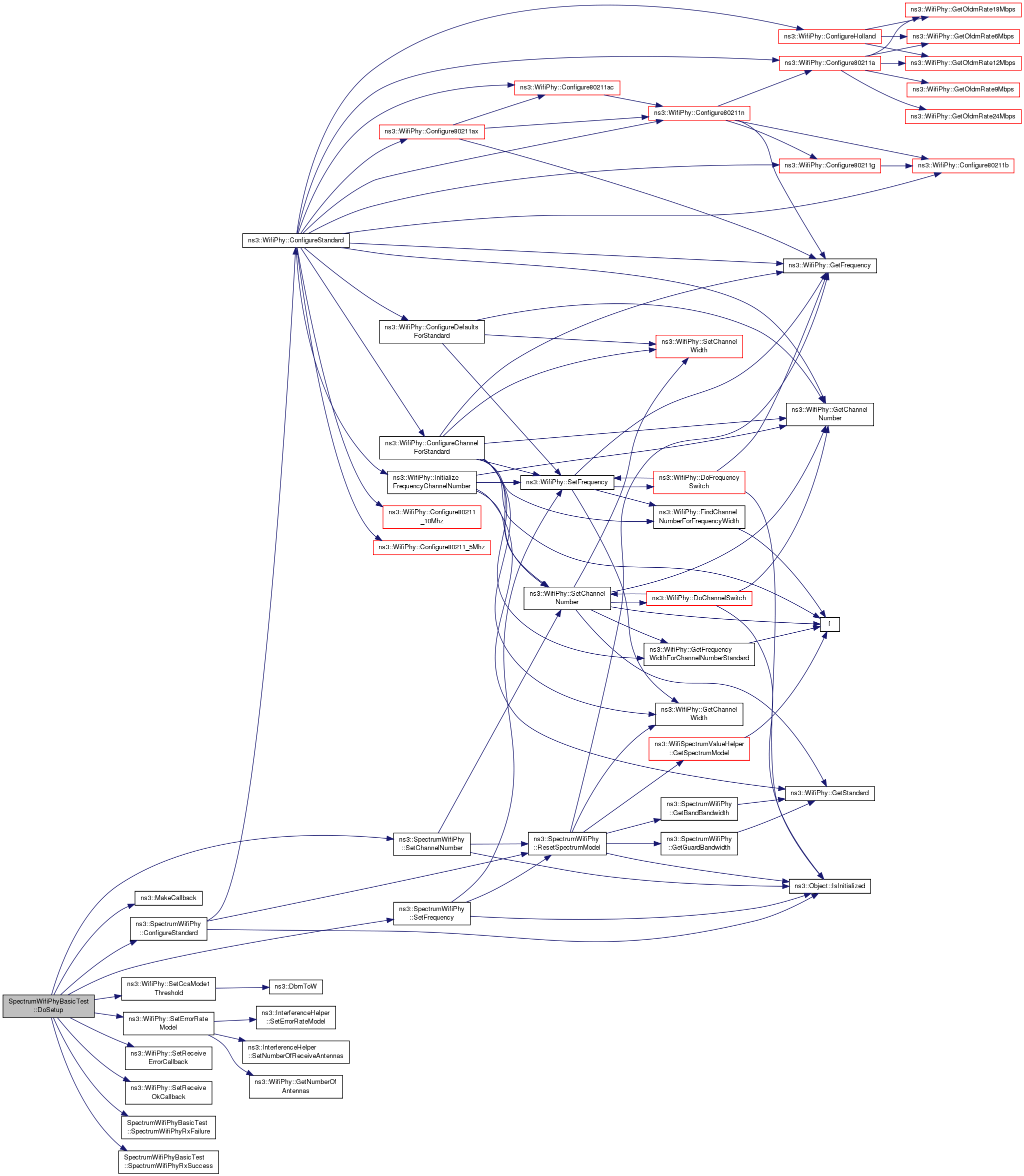

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< SpectrumSignalParameters > SpectrumWifiPhyBasicTest::MakeSignal ( double  txPowerWatts )

protected

Make signal function.

Parameters

txPowerWatts

the transmit power in watts

Returns

Ptr<SpectrumSignalParameters>

Definition at line 99 of file spectrum-wifi-phy-test.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::Packet::AddTrailer(), ns3::WifiPhy::CalculateTxDuration(), CHANNEL_WIDTH, ns3::SpectrumSignalParameters::duration, FREQUENCY, ns3::WifiPhy::GetFrequency(), ns3::WifiMacTrailer::GetSerializedSize(), ns3::Packet::GetSize(), GUARD_WIDTH, m_phy, ns3::NORMAL_MPDU, ns3::WifiSpectrumSignalParameters::packet, ns3::SpectrumSignalParameters::psd, ns3::SpectrumSignalParameters::txPhy, ns3::WIFI_MAC_QOSDATA, and ns3::WIFI_PREAMBLE_LONG.

Referenced by SendSignal().

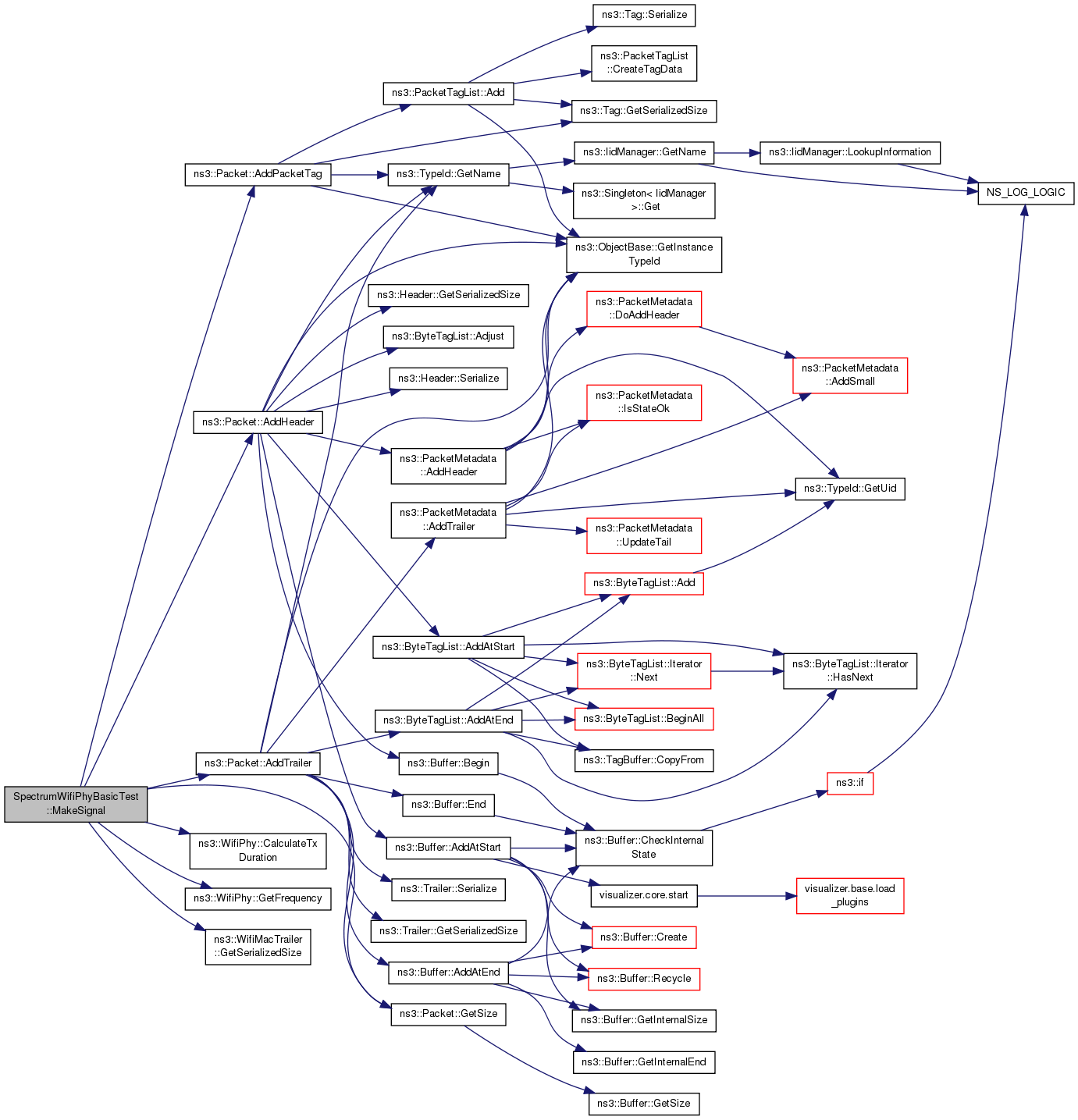

Here is the call graph for this function:

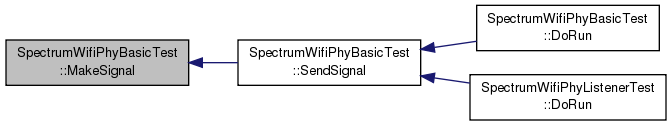

Here is the caller graph for this function:

void SpectrumWifiPhyBasicTest::SendSignal ( double  txPowerWatts )

protected

Send signal function.

Parameters

txPowerWatts

the transmit power in watts

Definition at line 129 of file spectrum-wifi-phy-test.cc.

References m_phy, MakeSignal(), and ns3::SpectrumWifiPhy::StartRx().

Referenced by DoRun(), and SpectrumWifiPhyListenerTest::DoRun().

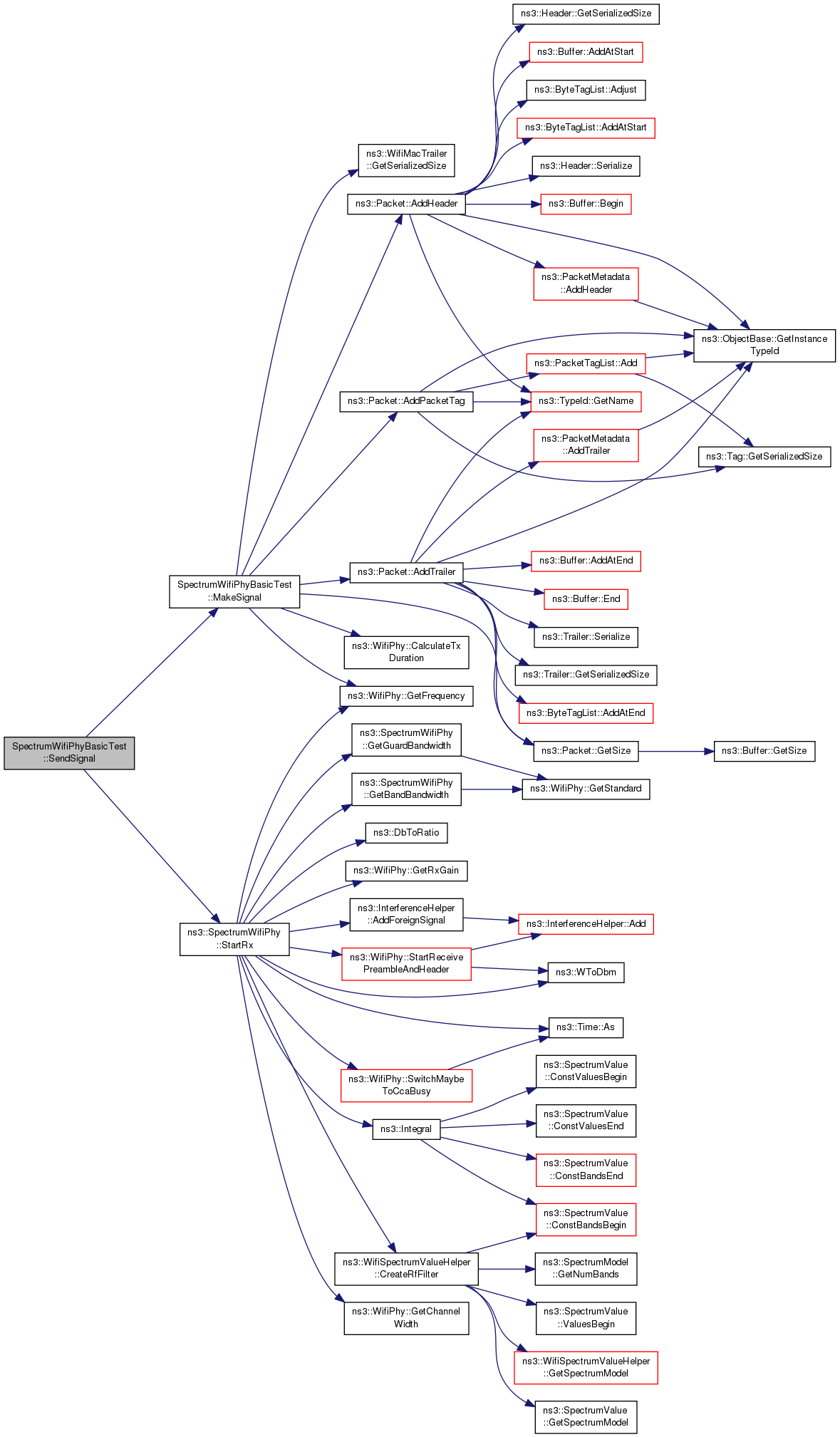

Here is the call graph for this function:

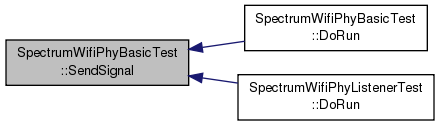

Here is the caller graph for this function:

void SpectrumWifiPhyBasicTest::SpectrumWifiPhyRxFailure ( Ptr< Packet >  p, double  snr  )

protected

Spectrum wifi receive failure function.

Parameters

p	the packet
snr	the SNR

Definition at line 141 of file spectrum-wifi-phy-test.cc.

References m_count.

Referenced by DoSetup().

Here is the caller graph for this function:

void SpectrumWifiPhyBasicTest::SpectrumWifiPhyRxSuccess ( Ptr< Packet >  p, double  snr, WifiTxVector  txVector  )

protected

Spectrum wifi receive success function.

Parameters

p	the packet
snr	the SNR
txVector	the transmit vector

Definition at line 135 of file spectrum-wifi-phy-test.cc.

References m_count.

Referenced by DoSetup().

Here is the caller graph for this function:

Member Data Documentation

uint32_t SpectrumWifiPhyBasicTest::m_count

protected

count

Definition at line 80 of file spectrum-wifi-phy-test.cc.

Referenced by DoRun(), SpectrumWifiPhyListenerTest::DoRun(), SpectrumWifiPhyRxFailure(), and SpectrumWifiPhyRxSuccess().

Ptr<SpectrumWifiPhy> SpectrumWifiPhyBasicTest::m_phy

protected

Phy.

Definition at line 55 of file spectrum-wifi-phy-test.cc.

Referenced by DoSetup(), SpectrumWifiPhyListenerTest::DoSetup(), MakeSignal(), and SendSignal().

---

The documentation for this class was generated from the following file:

• src/wifi/test/spectrum-wifi-phy-test.cc
