This class mimics the TXVECTOR which is to be passed to the PHY in order to define the parameters which are to be used for a transmission. More...

#include "wifi-tx-vector.h"

Collaboration diagram for ns3::WifiTxVector:

Public Member Functions
	WifiTxVector ()

	WifiTxVector (WifiMode mode, uint8_t powerLevel, uint8_t retries, WifiPreamble preamble, uint16_t guardInterval, uint8_t nTx, uint8_t nss, uint8_t ness, uint8_t channelWidth, bool aggregation, bool stbc)
	Create a TXVECTOR with the given parameters. More...

uint8_t	GetChannelWidth (void) const

uint16_t	GetGuardInterval (void) const

WifiMode	GetMode (void) const

uint8_t	GetNess (void) const

uint8_t	GetNss (void) const

uint8_t	GetNTx (void) const

WifiPreamble	GetPreambleType (void) const

uint8_t	GetRetries (void) const

uint8_t	GetTxPowerLevel (void) const

bool	IsAggregation (void) const
	Checks whether the PSDU contains A-MPDU. More...

bool	IsStbc (void) const
	Check if STBC is used or not. More...

void	SetAggregation (bool aggregation)
	Sets if PSDU contains A-MPDU. More...

void	SetChannelWidth (uint8_t channelWidth)
	Sets the selected channelWidth (in MHz) More...

void	SetGuardInterval (uint16_t guardInterval)
	Sets the guard interval duration (in nanoseconds) More...

void	SetMode (WifiMode mode)
	Sets the selected payload transmission mode. More...

void	SetNess (uint8_t ness)
	Sets the Ness number refer to IEEE 802.11n Table 20-6 for explanation. More...

void	SetNss (uint8_t nss)
	Sets the number of Nss refer to IEEE 802.11n Table 20-28 for explanation and range. More...

void	SetNTx (uint8_t nTx)
	Sets the number of TX antennas. More...

void	SetPreambleType (WifiPreamble preamble)
	Sets the preamble type. More...

void	SetRetries (uint8_t retries)
	Sets the number of retries. More...

void	SetStbc (bool stbc)
	Sets if STBC is being used. More...

void	SetTxPowerLevel (uint8_t powerlevel)
	Sets the selected transmission power level. More...

Private Attributes
bool	m_aggregation
	Flag whether the PSDU contains A-MPDU. More...

uint8_t	m_channelWidth
	channel width in MHz More...

uint16_t	m_guardInterval
	guard interval duration in nanoseconds More...

WifiMode	m_mode
	The DATARATE parameter in Table 15-4. More...

bool	m_modeInitialized
	Internal initialization flag. More...

uint8_t	m_ness
	number of spatial streams in beamforming More...

uint8_t	m_nss
	number of spatial streams More...

uint8_t	m_nTx
	number of TX antennas More...

WifiPreamble	m_preamble
	preamble More...

uint8_t	m_retries
	The DATA_RETRIES/RTS_RETRIES parameter for Click radiotap information. More...

bool	m_stbc
	STBC used or not. More...

uint8_t	m_txPowerLevel
	The TXPWR_LEVEL parameter in Table 15-4. More...

bool	m_txPowerLevelInitialized
	Internal initialization flag. More...

Detailed Description

This class mimics the TXVECTOR which is to be passed to the PHY in order to define the parameters which are to be used for a transmission.

See IEEE 802.11-2007 15.2.6 "Transmit PLCP", and also 15.4.4.2 "PMD_SAP peer-to-peer service primitive parameters".

If this class is constructed with the constructor that takes no arguments, then the client must explicitly set the mode and transmit power level parameters before using them. Default member initializers are provided for the other parameters, to conform to a non-MIMO/long guard configuration, although these may also be explicitly set after object construction.

When used in a infrastructure context, WifiTxVector values should be drawn from WifiRemoteStationManager parameters since rate adaptation is responsible for picking the mode, number of streams, etc., but in the case in which there is no such manager (e.g. mesh), the client still needs to initialize at least the mode and transmit power level appropriately.

Note: the above reference is valid for the DSSS PHY only (clause 15). TXVECTOR is defined also for the other PHYs, however they don't include the TXPWRLVL explicitly in the TXVECTOR. This is somewhat strange, since all PHYs actually have a PMD_TXPWRLVL.request primitive. We decide to include the power level in WifiTxVector for all PHYs, since it serves better our purposes, and furthermore it seems close to the way real devices work (e.g., madwifi).

Definition at line 61 of file wifi-tx-vector.h.

Constructor & Destructor Documentation

ns3::WifiTxVector::WifiTxVector ( )

Definition at line 26 of file wifi-tx-vector.cc.

ns3::WifiTxVector::WifiTxVector	(	WifiMode	mode,
		uint8_t	powerLevel,
		uint8_t	retries,
		WifiPreamble	preamble,
		uint16_t	guardInterval,
		uint8_t	nTx,
		uint8_t	nss,
		uint8_t	ness,
		uint8_t	channelWidth,
		bool	aggregation,
		bool	stbc
	)

Create a TXVECTOR with the given parameters.

Parameters

mode	WifiMode
powerLevel	transmission power level
retries	retries
preamble	preamble type
guardInterval	the guard interval duration in nanoseconds
nTx	the number of TX antennas
nss	the number of spatial STBC streams (NSS)
ness	the number of extension spatial streams (NESS)
channelWidth	the channel width in MHz
aggregation	enable or disable MPDU aggregation
stbc	enable or disable STBC

Definition at line 41 of file wifi-tx-vector.cc.

Member Function Documentation

uint8_t ns3::WifiTxVector::GetChannelWidth ( void ) const

Returns: the channel width (in MHz)

Definition at line 101 of file wifi-tx-vector.cc.

References m_channelWidth.

Referenced by ns3::InterferenceHelper::CalculatePlcpHeaderPer(), ns3::InterferenceHelper::CalculatePlcpPayloadPer(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::YansErrorRateModel::GetChunkSuccessRate(), ns3::WifiMode::GetDataRate(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiPhy::GetPayloadDuration(), ns3::WifiMode::GetPhyRate(), ns3::WifiPhy::GetPlcpHeaderDuration(), ns3::WifiPhy::GetPlcpHeaderMode(), ns3::WifiPhy::GetPlcpPreambleDuration(), ns3::IdealWifiManager::GetSnrThreshold(), ns3::WifiPhy::IsValidTxVector(), ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), ns3::WifiPhyHelper::PcapSniffTxEvent(), PowerRateAdaptationTest::TestAparf(), PowerRateAdaptationTest::TestParf(), and PowerRateAdaptationTest::TestRrpaa().

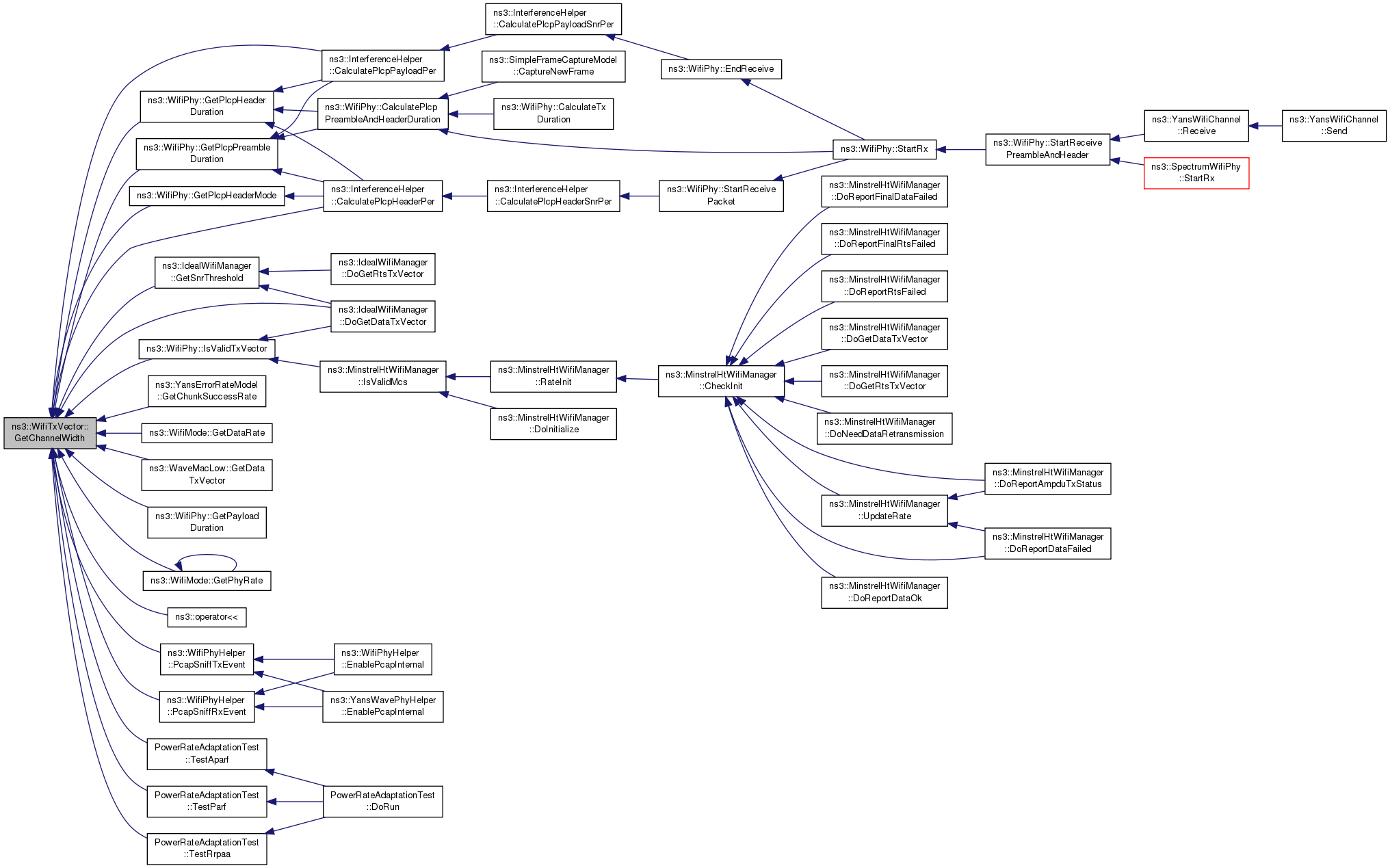

Here is the caller graph for this function:

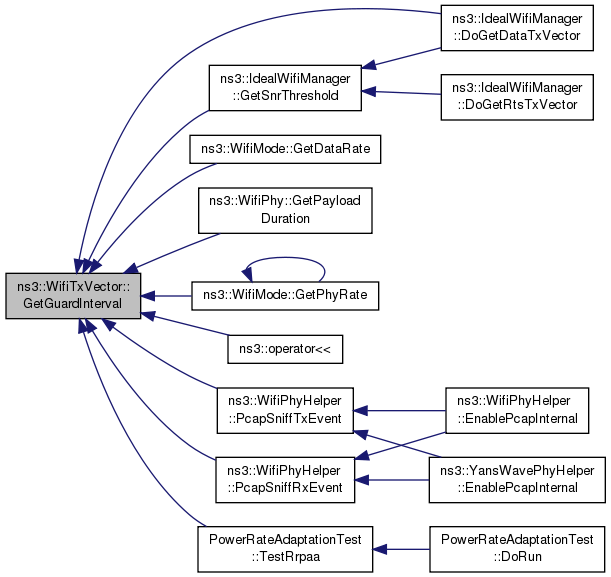

uint16_t ns3::WifiTxVector::GetGuardInterval ( void ) const

Returns: the guard interval duration (in nanoseconds)

Definition at line 107 of file wifi-tx-vector.cc.

References m_guardInterval.

Referenced by ns3::IdealWifiManager::DoGetDataTxVector(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetPayloadDuration(), ns3::WifiMode::GetPhyRate(), ns3::IdealWifiManager::GetSnrThreshold(), ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), ns3::WifiPhyHelper::PcapSniffTxEvent(), and PowerRateAdaptationTest::TestRrpaa().

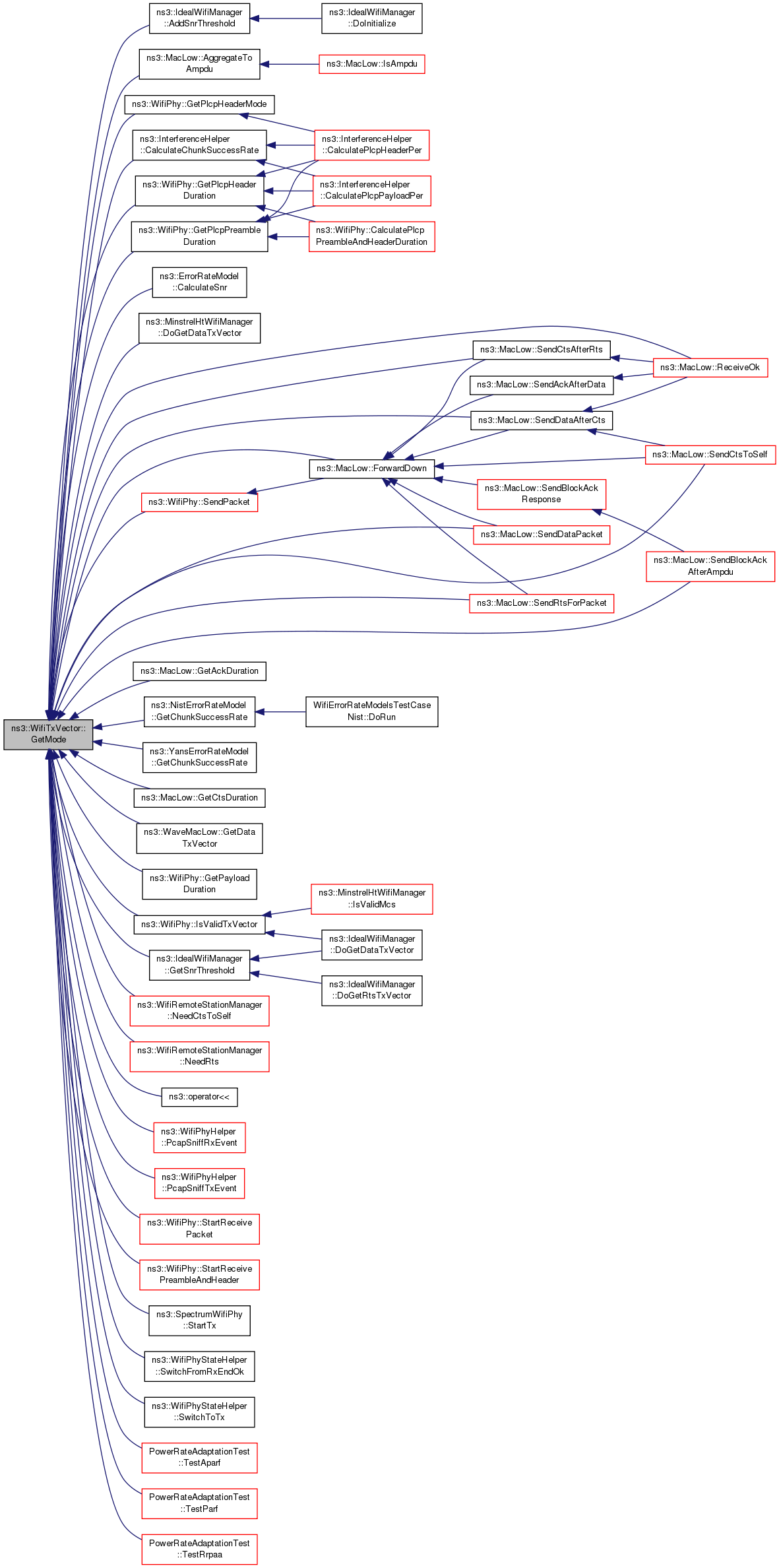

Here is the caller graph for this function:

WifiMode ns3::WifiTxVector::GetMode ( void ) const

Returns: the selected payload transmission mode

Definition at line 69 of file wifi-tx-vector.cc.

References m_mode, m_modeInitialized, and NS_FATAL_ERROR.

Referenced by ns3::IdealWifiManager::AddSnrThreshold(), ns3::MacLow::AggregateToAmpdu(), ns3::InterferenceHelper::CalculateChunkSuccessRate(), ns3::ErrorRateModel::CalculateSnr(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::MacLow::ForwardDown(), ns3::MacLow::GetAckDuration(), ns3::NistErrorRateModel::GetChunkSuccessRate(), ns3::YansErrorRateModel::GetChunkSuccessRate(), ns3::MacLow::GetCtsDuration(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiPhy::GetPayloadDuration(), ns3::WifiPhy::GetPlcpHeaderDuration(), ns3::WifiPhy::GetPlcpHeaderMode(), ns3::WifiPhy::GetPlcpPreambleDuration(), ns3::IdealWifiManager::GetSnrThreshold(), ns3::WifiPhy::IsValidTxVector(), ns3::WifiRemoteStationManager::NeedCtsToSelf(), ns3::WifiRemoteStationManager::NeedRts(), ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), ns3::WifiPhyHelper::PcapSniffTxEvent(), ns3::MacLow::ReceiveOk(), ns3::MacLow::SendBlockAckAfterAmpdu(), ns3::MacLow::SendCtsAfterRts(), ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), ns3::WifiPhy::SendPacket(), ns3::MacLow::SendRtsForPacket(), ns3::WifiPhy::StartReceivePacket(), ns3::WifiPhy::StartReceivePreambleAndHeader(), ns3::SpectrumWifiPhy::StartTx(), ns3::WifiPhyStateHelper::SwitchFromRxEndOk(), ns3::WifiPhyStateHelper::SwitchToTx(), PowerRateAdaptationTest::TestAparf(), PowerRateAdaptationTest::TestParf(), and PowerRateAdaptationTest::TestRrpaa().

Here is the caller graph for this function:

uint8_t ns3::WifiTxVector::GetNess ( void ) const

Returns: the number of Ness

Definition at line 125 of file wifi-tx-vector.cc.

References m_ness.

Referenced by ns3::WifiPhy::GetPlcpTrainingSymbolDuration(), ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), and ns3::WifiPhyHelper::PcapSniffTxEvent().

Here is the caller graph for this function:

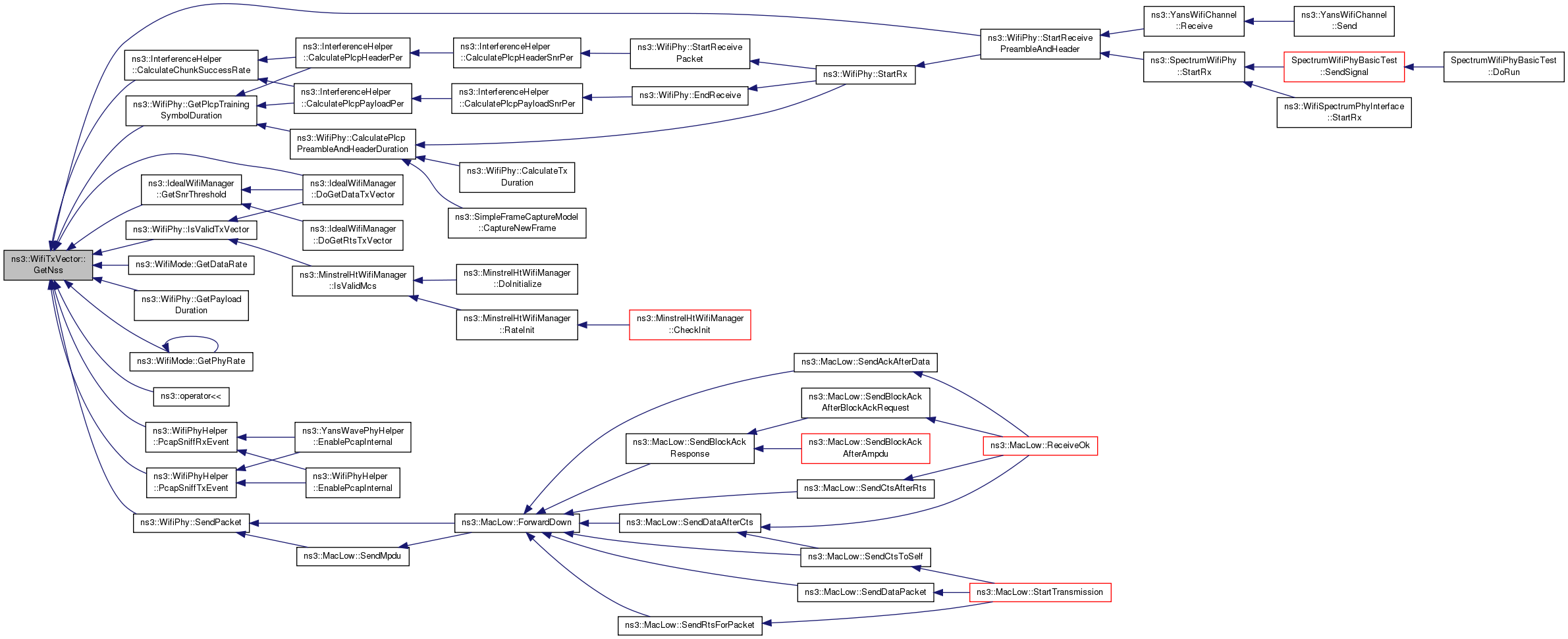

uint8_t ns3::WifiTxVector::GetNss ( void ) const

Returns: the number of Nss

Definition at line 119 of file wifi-tx-vector.cc.

References m_nss.

Referenced by ns3::InterferenceHelper::CalculateChunkSuccessRate(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetPayloadDuration(), ns3::WifiMode::GetPhyRate(), ns3::WifiPhy::GetPlcpTrainingSymbolDuration(), ns3::IdealWifiManager::GetSnrThreshold(), ns3::WifiPhy::IsValidTxVector(), ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), ns3::WifiPhyHelper::PcapSniffTxEvent(), ns3::WifiPhy::SendPacket(), and ns3::WifiPhy::StartReceivePreambleAndHeader().

Here is the caller graph for this function:

uint8_t ns3::WifiTxVector::GetNTx ( void ) const

Returns: the number of TX antennas

Definition at line 113 of file wifi-tx-vector.cc.

References m_nTx.

Referenced by ns3::InterferenceHelper::CalculateChunkSuccessRate(), and ns3::operator<<().

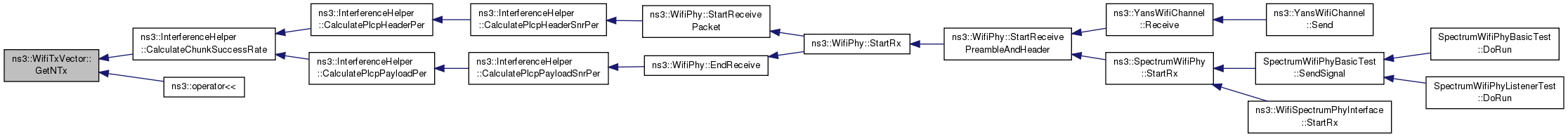

Here is the caller graph for this function:

WifiPreamble ns3::WifiTxVector::GetPreambleType ( void ) const

Returns: the preamble type

Definition at line 95 of file wifi-tx-vector.cc.

References m_preamble.

Referenced by ns3::InterferenceHelper::CalculatePlcpHeaderPer(), ns3::InterferenceHelper::CalculatePlcpPayloadPer(), ns3::WifiPhy::CalculatePlcpPreambleAndHeaderDuration(), ns3::MacLow::DeaggregateAmpduAndReceive(), ns3::MacLow::ForwardDown(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiPhy::GetPayloadDuration(), ns3::WifiPhy::GetPlcpHeaderDuration(), ns3::WifiPhy::GetPlcpHeaderMode(), ns3::WifiPhy::GetPlcpPreambleDuration(), ns3::WifiPhy::GetPlcpTrainingSymbolDuration(), ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), ns3::WifiPhyHelper::PcapSniffTxEvent(), ns3::MacLow::ReceiveOk(), ns3::WifiPhy::SendPacket(), ns3::WifiPhy::StartReceivePacket(), ns3::WifiPhy::StartRx(), ns3::WifiPhyStateHelper::SwitchFromRxEndOk(), and ns3::WifiPhyStateHelper::SwitchToTx().

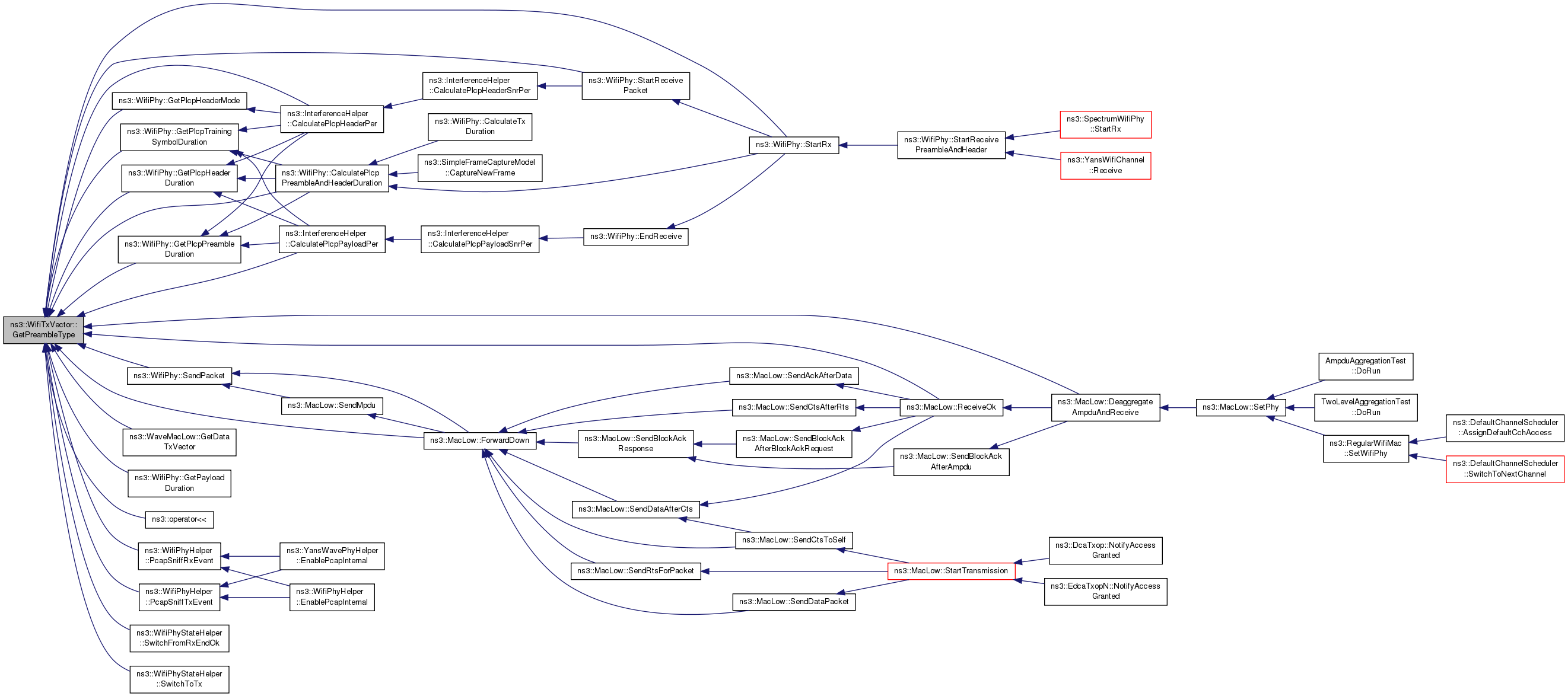

Here is the caller graph for this function:

uint8_t ns3::WifiTxVector::GetRetries ( void ) const

Returns: the number of retries

Definition at line 89 of file wifi-tx-vector.cc.

References m_retries.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

uint8_t ns3::WifiTxVector::GetTxPowerLevel ( void ) const

Returns: the transmission power level

Definition at line 79 of file wifi-tx-vector.cc.

References m_txPowerLevel, m_txPowerLevelInitialized, and NS_FATAL_ERROR.

Referenced by ns3::WaveMacLow::GetDataTxVector(), ns3::operator<<(), ns3::WifiPhy::SendPacket(), ns3::YansWifiPhy::StartTx(), ns3::SpectrumWifiPhy::StartTx(), ns3::WifiPhyStateHelper::SwitchToTx(), PowerRateAdaptationTest::TestAparf(), PowerRateAdaptationTest::TestParf(), and PowerRateAdaptationTest::TestRrpaa().

Here is the caller graph for this function:

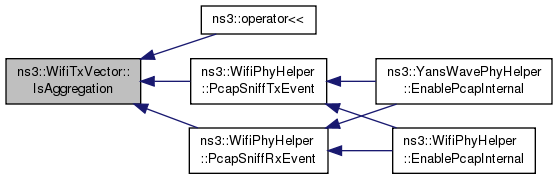

bool ns3::WifiTxVector::IsAggregation ( void ) const

Checks whether the PSDU contains A-MPDU.

Returns: true if this PSDU has A-MPDU aggregation, false otherwise.

Definition at line 131 of file wifi-tx-vector.cc.

References m_aggregation.

Referenced by ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), and ns3::WifiPhyHelper::PcapSniffTxEvent().

Here is the caller graph for this function:

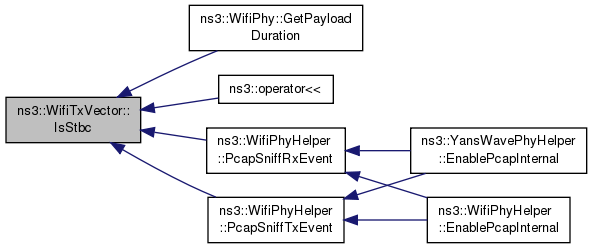

bool ns3::WifiTxVector::IsStbc ( void ) const

Check if STBC is used or not.

Returns: true if STBC is used, false otherwise

Definition at line 137 of file wifi-tx-vector.cc.

References m_stbc.

Referenced by ns3::WifiPhy::GetPayloadDuration(), ns3::operator<<(), ns3::WifiPhyHelper::PcapSniffRxEvent(), and ns3::WifiPhyHelper::PcapSniffTxEvent().

Here is the caller graph for this function:

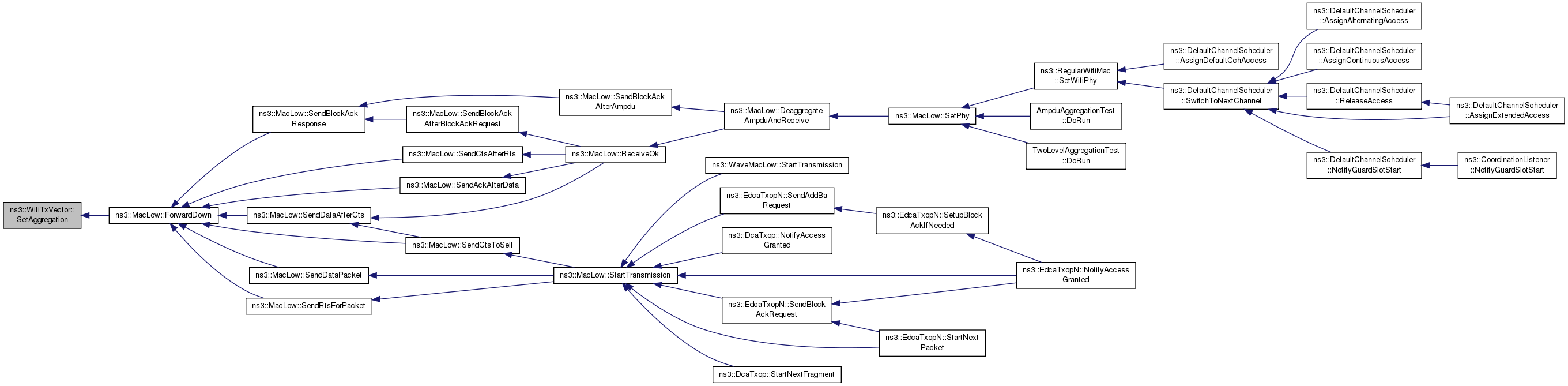

void ns3::WifiTxVector::SetAggregation ( bool aggregation )

Sets if PSDU contains A-MPDU.

Parameters

aggregation whether the PSDU contains A-MPDU or not.

Definition at line 199 of file wifi-tx-vector.cc.

References m_aggregation.

Referenced by ns3::MacLow::ForwardDown().

Here is the caller graph for this function:

void ns3::WifiTxVector::SetChannelWidth ( uint8_t channelWidth )

Sets the selected channelWidth (in MHz)

Parameters

channelWidth

Definition at line 169 of file wifi-tx-vector.cc.

References m_channelWidth.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoInitialize(), ns3::VsaManager::DoSendVsa(), ns3::WifiRemoteStationManager::GetAckTxVector(), ns3::WifiRemoteStationManager::GetBlockAckTxVector(), ns3::WifiRemoteStationManager::GetCtsTxVector(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiRemoteStationManager::GetDataTxVector(), ns3::MinstrelHtWifiManager::IsValidMcs(), ns3::WaveNetDevice::SendX(), and NodeStatistics::SetupPhy().

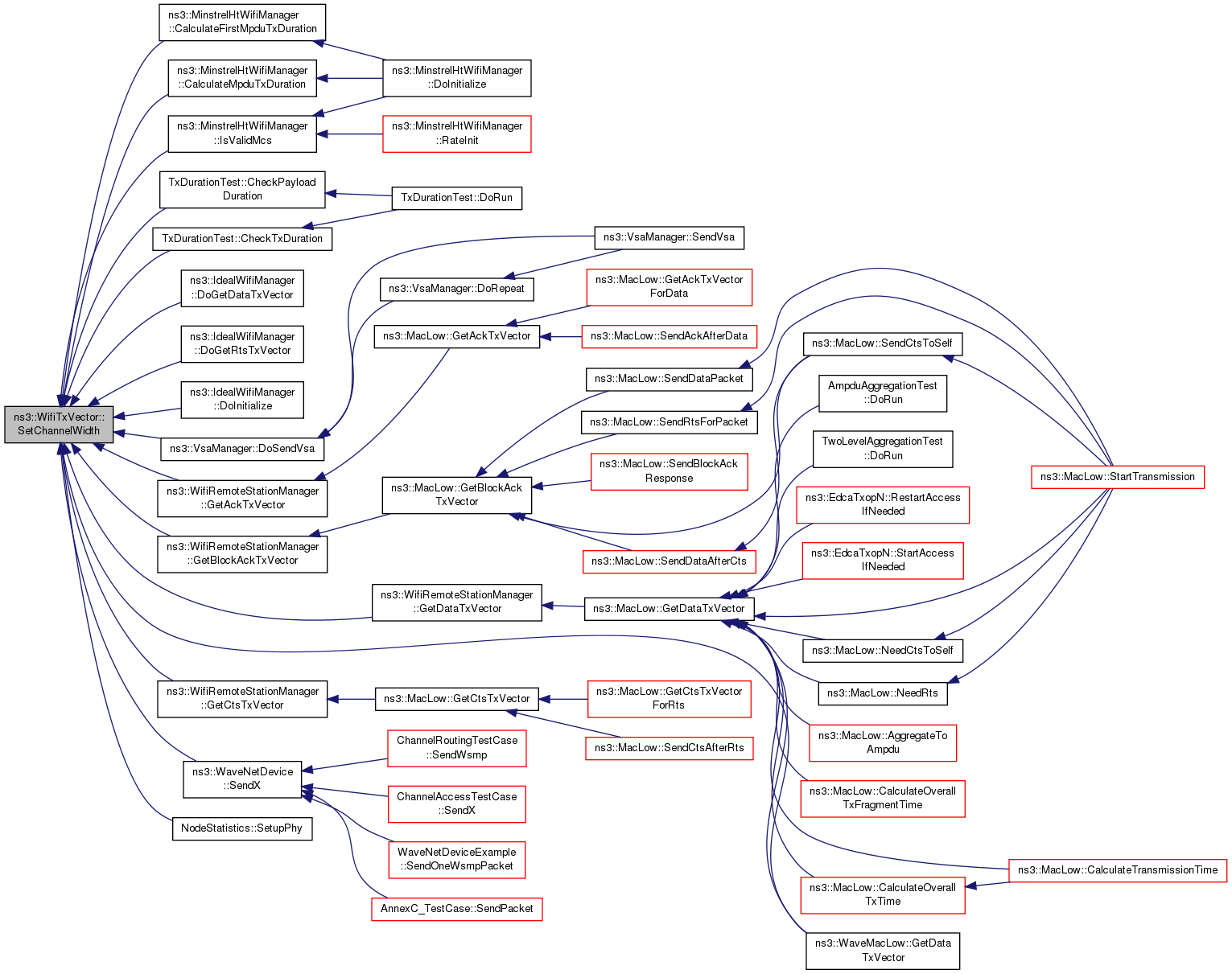

Here is the caller graph for this function:

void ns3::WifiTxVector::SetGuardInterval ( uint16_t guardInterval )

Sets the guard interval duration (in nanoseconds)

Parameters

guardInterval the guard interval duration (in nanoseconds)

Definition at line 175 of file wifi-tx-vector.cc.

References m_guardInterval.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoInitialize(), ns3::WifiRemoteStationManager::GetAckTxVector(), ns3::WifiRemoteStationManager::GetBlockAckTxVector(), ns3::WifiRemoteStationManager::GetCtsTxVector(), and ns3::WifiRemoteStationManager::GetDataTxVector().

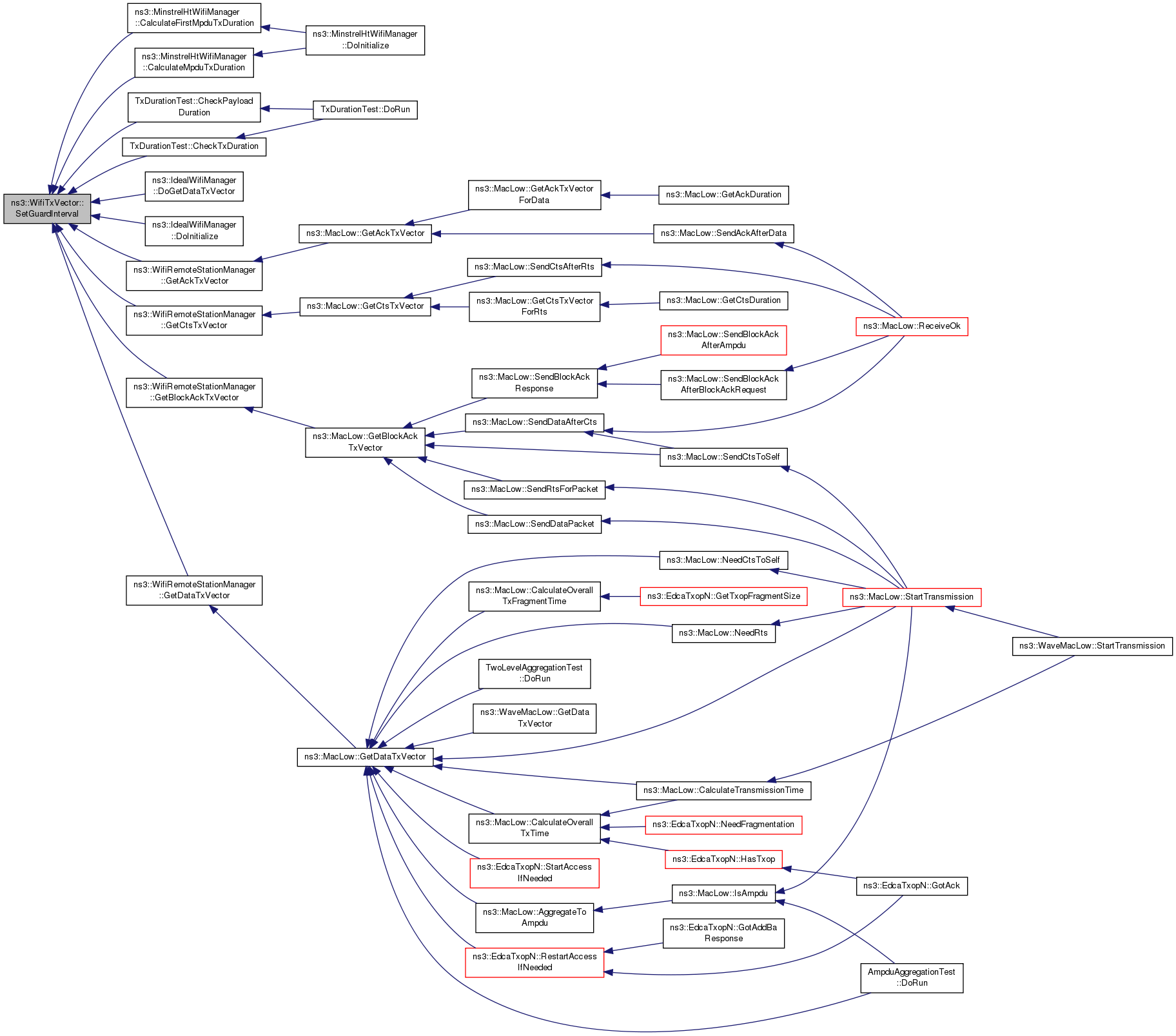

Here is the caller graph for this function:

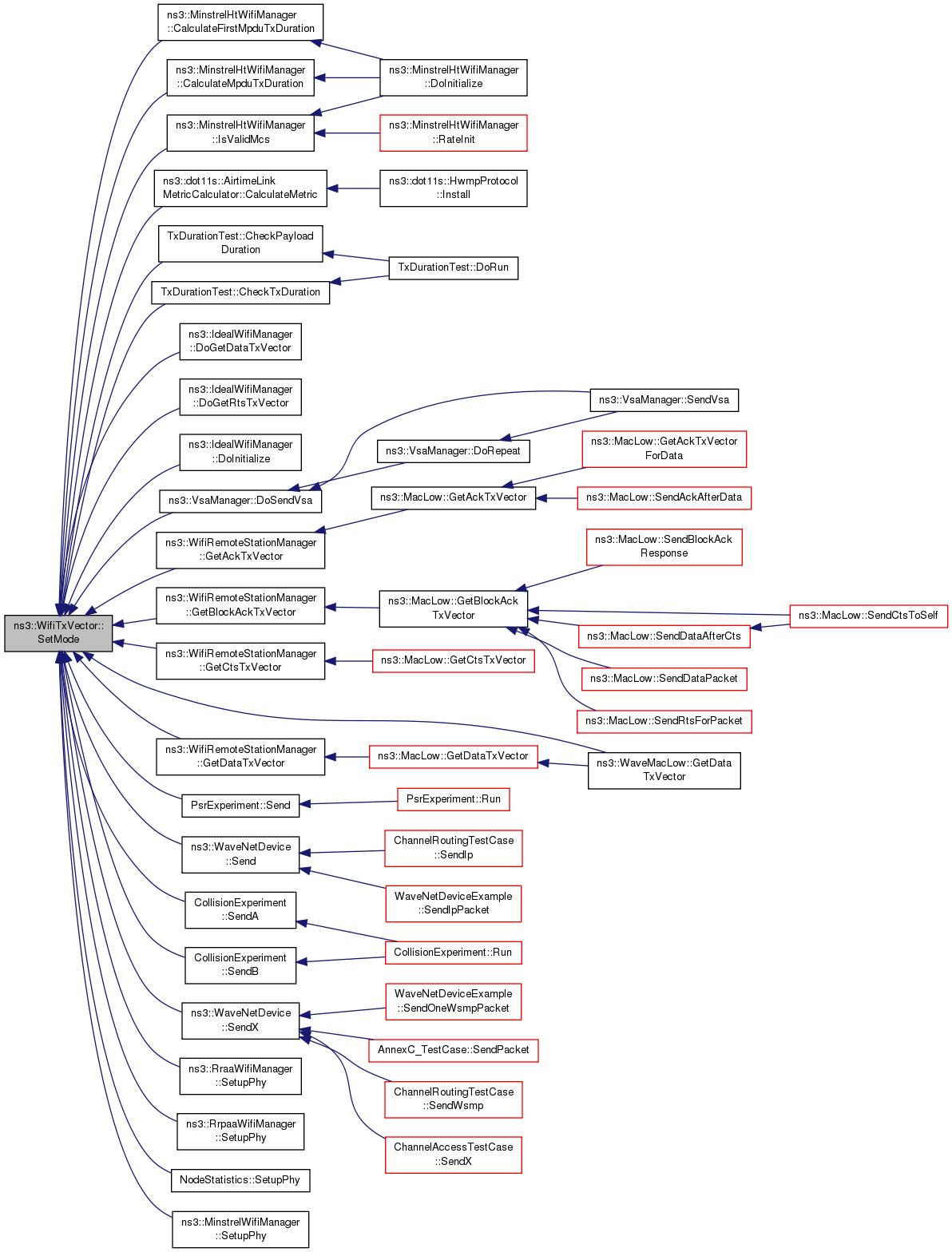

void ns3::WifiTxVector::SetMode ( WifiMode mode )

Sets the selected payload transmission mode.

Parameters

mode

Definition at line 143 of file wifi-tx-vector.cc.

References m_mode, and m_modeInitialized.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::dot11s::AirtimeLinkMetricCalculator::CalculateMetric(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoInitialize(), ns3::VsaManager::DoSendVsa(), ns3::WifiRemoteStationManager::GetAckTxVector(), ns3::WifiRemoteStationManager::GetBlockAckTxVector(), ns3::WifiRemoteStationManager::GetCtsTxVector(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiRemoteStationManager::GetDataTxVector(), ns3::MinstrelHtWifiManager::IsValidMcs(), PsrExperiment::Send(), ns3::WaveNetDevice::Send(), CollisionExperiment::SendA(), CollisionExperiment::SendB(), ns3::WaveNetDevice::SendX(), ns3::RraaWifiManager::SetupPhy(), ns3::RrpaaWifiManager::SetupPhy(), NodeStatistics::SetupPhy(), and ns3::MinstrelWifiManager::SetupPhy().

Here is the caller graph for this function:

void ns3::WifiTxVector::SetNess ( uint8_t ness )

Sets the Ness number refer to IEEE 802.11n Table 20-6 for explanation.

Parameters

ness

Definition at line 193 of file wifi-tx-vector.cc.

References m_ness.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::WifiRemoteStationManager::GetAckTxVector(), ns3::WifiRemoteStationManager::GetBlockAckTxVector(), ns3::WifiRemoteStationManager::GetCtsTxVector(), and ns3::WifiRemoteStationManager::GetDataTxVector().

Here is the caller graph for this function:

void ns3::WifiTxVector::SetNss ( uint8_t nss )

Sets the number of Nss refer to IEEE 802.11n Table 20-28 for explanation and range.

Parameters

nss

Definition at line 187 of file wifi-tx-vector.cc.

References m_nss.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoInitialize(), ns3::WifiRemoteStationManager::GetAckTxVector(), ns3::WifiRemoteStationManager::GetBlockAckTxVector(), ns3::WifiRemoteStationManager::GetCtsTxVector(), ns3::WifiRemoteStationManager::GetDataTxVector(), and ns3::MinstrelHtWifiManager::IsValidMcs().

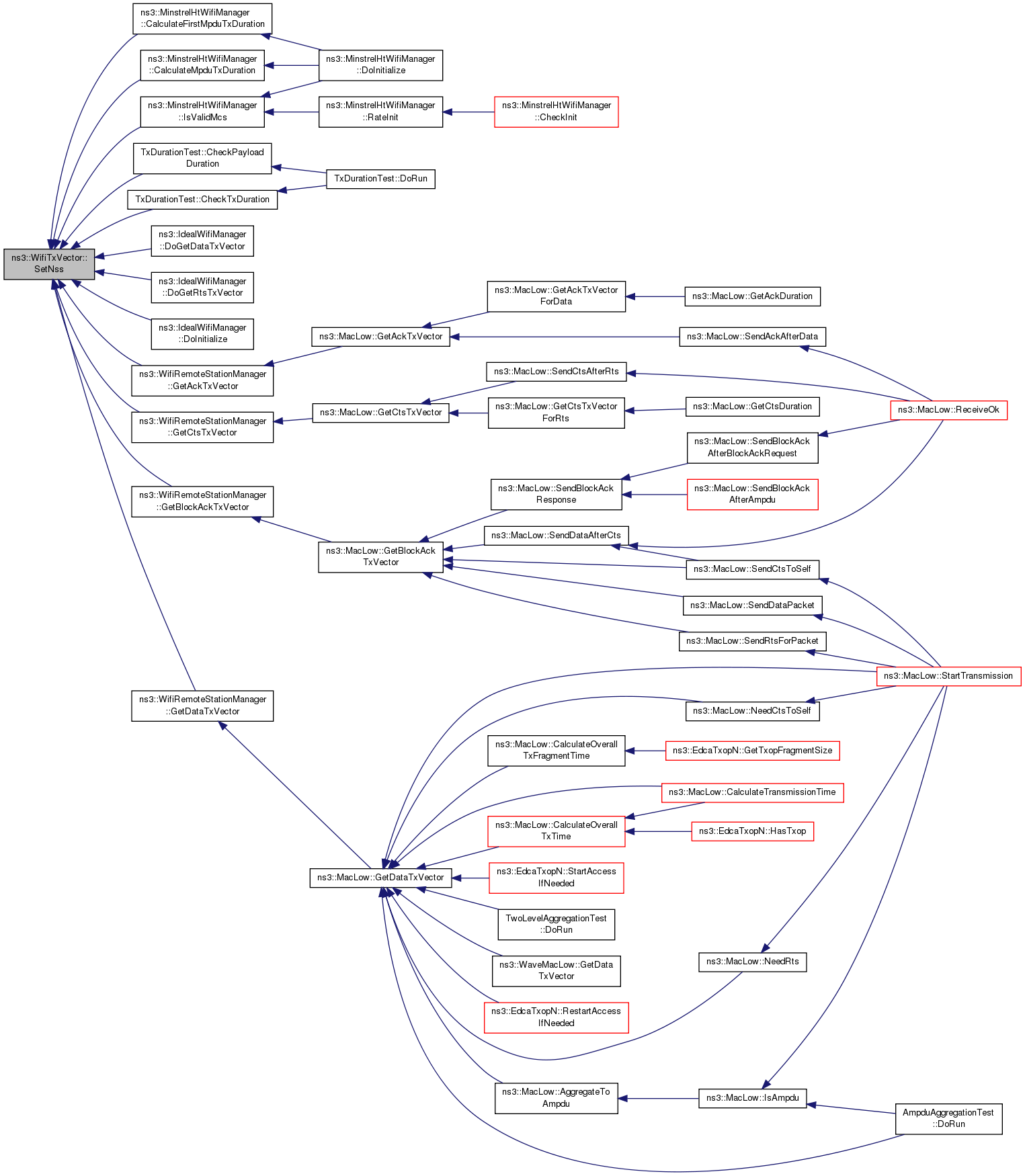

Here is the caller graph for this function:

void ns3::WifiTxVector::SetNTx ( uint8_t nTx )

Sets the number of TX antennas.

Parameters

nTx

Definition at line 181 of file wifi-tx-vector.cc.

References m_nTx.

void ns3::WifiTxVector::SetPreambleType ( WifiPreamble preamble )

Sets the preamble type.

Parameters

preamble

Definition at line 163 of file wifi-tx-vector.cc.

References m_preamble.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::dot11s::AirtimeLinkMetricCalculator::CalculateMetric(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::VsaManager::DoSendVsa(), ns3::MacLow::ForwardDown(), ns3::WifiRemoteStationManager::GetAckTxVector(), ns3::WifiRemoteStationManager::GetBlockAckTxVector(), ns3::WifiRemoteStationManager::GetCtsTxVector(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiRemoteStationManager::GetDataTxVector(), PsrExperiment::Send(), ns3::WaveNetDevice::Send(), CollisionExperiment::SendA(), CollisionExperiment::SendB(), ns3::WaveNetDevice::SendX(), ns3::RraaWifiManager::SetupPhy(), ns3::RrpaaWifiManager::SetupPhy(), NodeStatistics::SetupPhy(), and ns3::MinstrelWifiManager::SetupPhy().

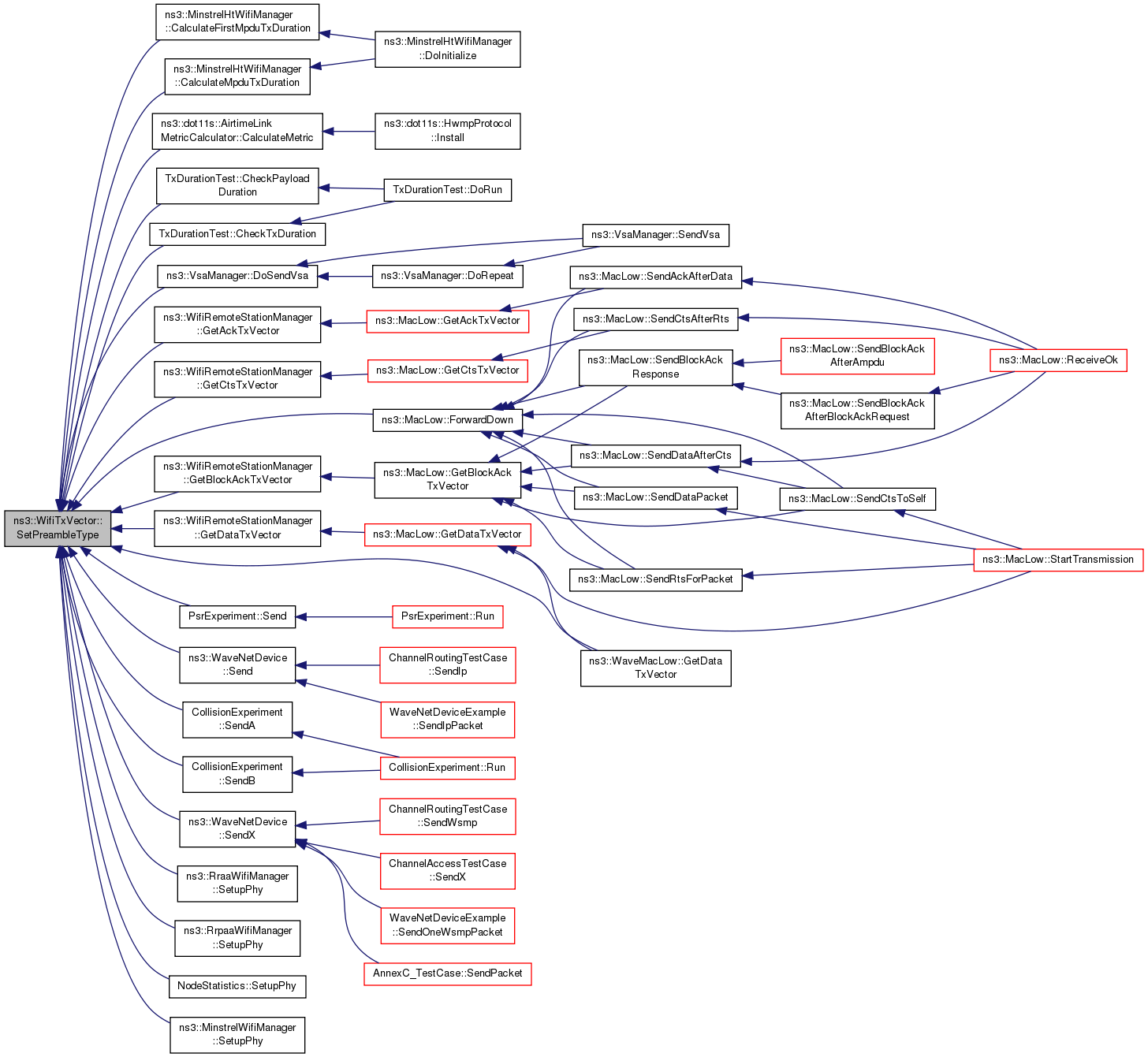

Here is the caller graph for this function:

void ns3::WifiTxVector::SetRetries ( uint8_t retries )

Sets the number of retries.

Parameters

retries

Definition at line 157 of file wifi-tx-vector.cc.

References m_retries.

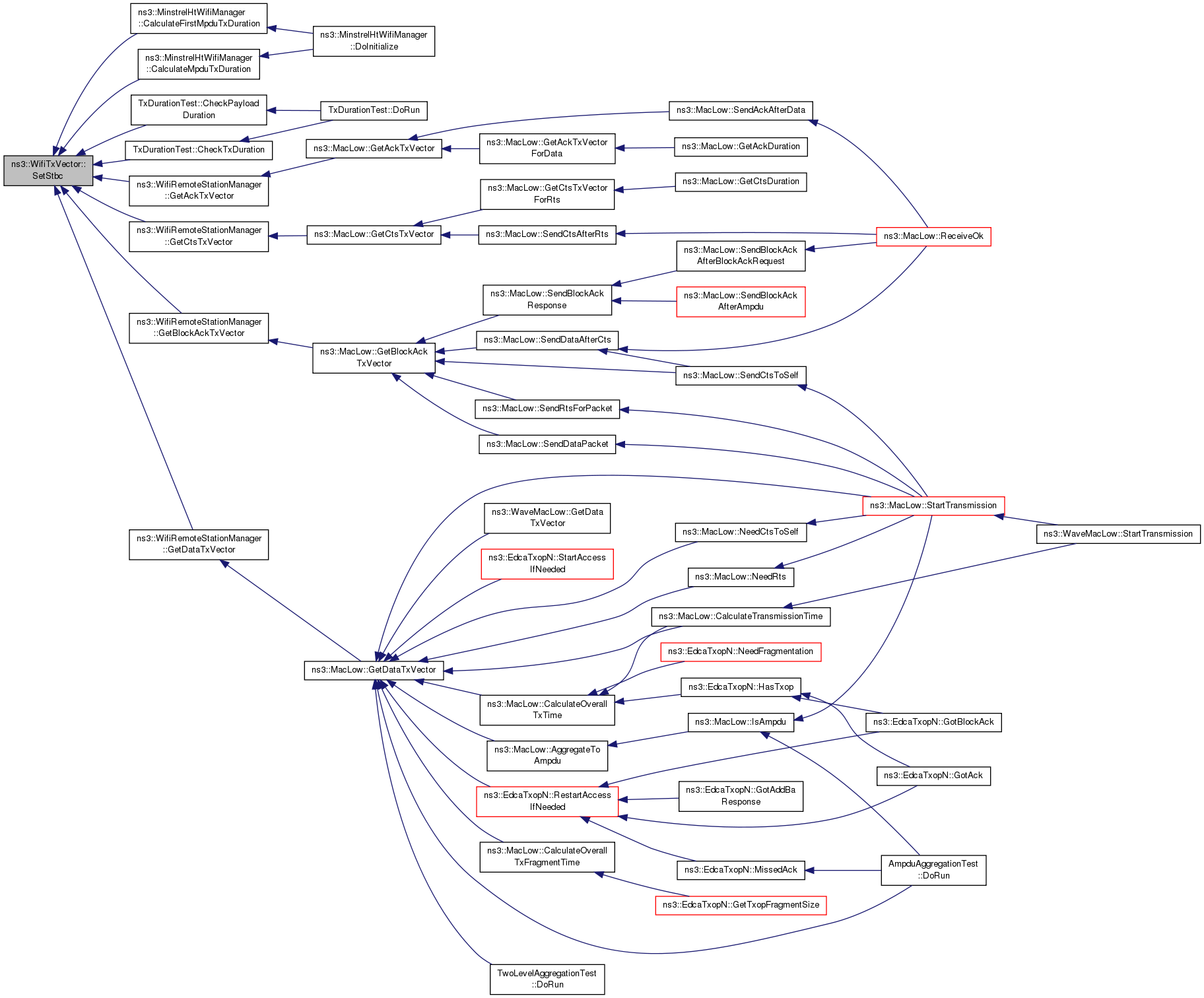

void ns3::WifiTxVector::SetStbc ( bool stbc )

Sets if STBC is being used.

Parameters

stbc	enable or disable STBC

Definition at line 205 of file wifi-tx-vector.cc.

References m_stbc.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::WifiRemoteStationManager::GetAckTxVector(), ns3::WifiRemoteStationManager::GetBlockAckTxVector(), ns3::WifiRemoteStationManager::GetCtsTxVector(), and ns3::WifiRemoteStationManager::GetDataTxVector().

Here is the caller graph for this function:

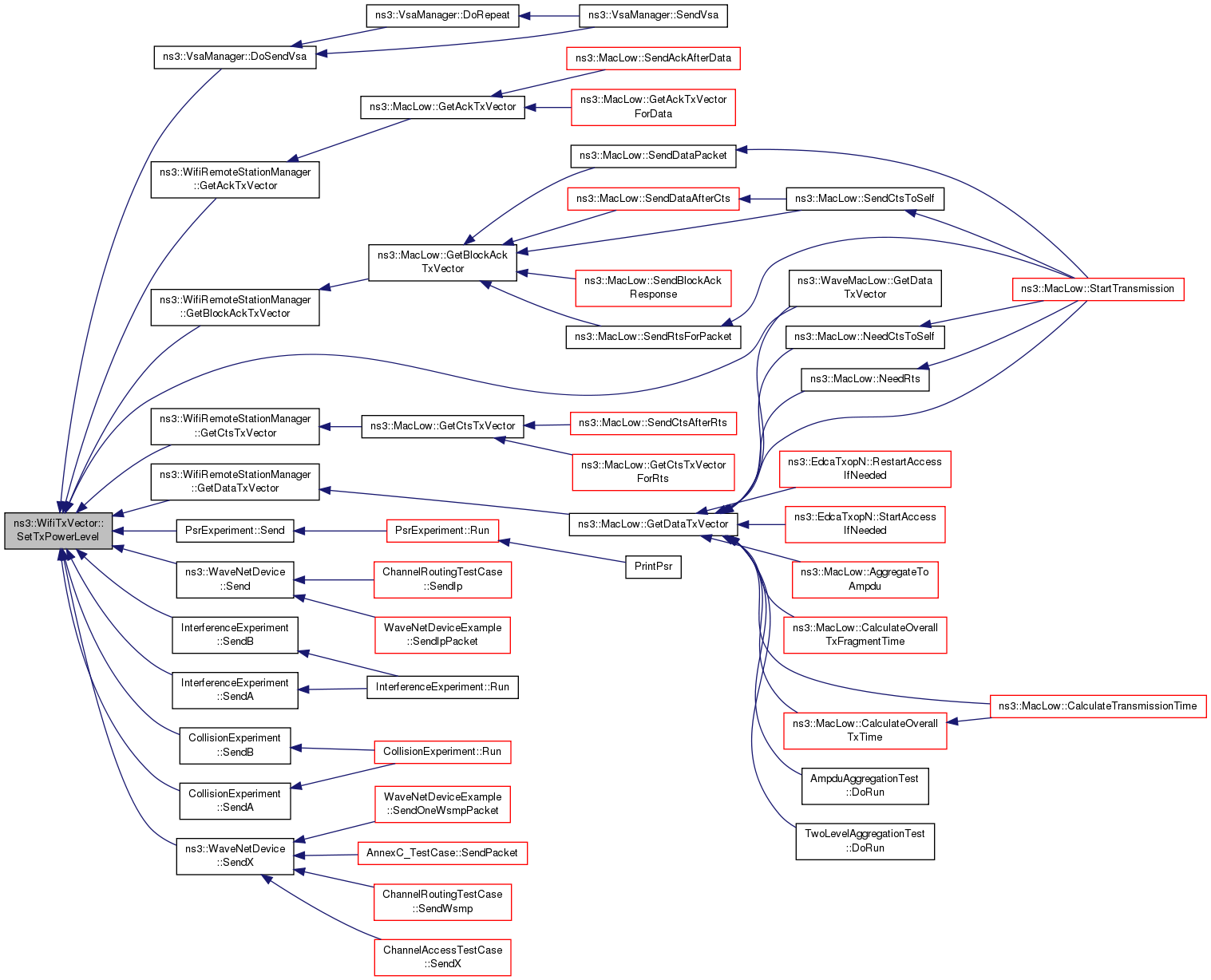

void ns3::WifiTxVector::SetTxPowerLevel ( uint8_t powerlevel )

Sets the selected transmission power level.

Parameters

powerlevel

Definition at line 150 of file wifi-tx-vector.cc.

References m_txPowerLevel, and m_txPowerLevelInitialized.

Referenced by ns3::VsaManager::DoSendVsa(), ns3::WifiRemoteStationManager::GetAckTxVector(), ns3::WifiRemoteStationManager::GetBlockAckTxVector(), ns3::WifiRemoteStationManager::GetCtsTxVector(), ns3::WaveMacLow::GetDataTxVector(), ns3::WifiRemoteStationManager::GetDataTxVector(), PsrExperiment::Send(), ns3::WaveNetDevice::Send(), InterferenceExperiment::SendA(), CollisionExperiment::SendA(), InterferenceExperiment::SendB(), CollisionExperiment::SendB(), and ns3::WaveNetDevice::SendX().

Here is the caller graph for this function:

Member Data Documentation

bool ns3::WifiTxVector::m_aggregation

private

Flag whether the PSDU contains A-MPDU.

Definition at line 223 of file wifi-tx-vector.h.

Referenced by IsAggregation(), and SetAggregation().

uint8_t ns3::WifiTxVector::m_channelWidth

private

channel width in MHz

Definition at line 218 of file wifi-tx-vector.h.

Referenced by GetChannelWidth(), and SetChannelWidth().

uint16_t ns3::WifiTxVector::m_guardInterval

private

guard interval duration in nanoseconds

Definition at line 219 of file wifi-tx-vector.h.

Referenced by GetGuardInterval(), and SetGuardInterval().

WifiMode ns3::WifiTxVector::m_mode

private

The DATARATE parameter in Table 15-4.

It is the value that will be passed to PMD_RATE.request

Definition at line 209 of file wifi-tx-vector.h.

Referenced by GetMode(), and SetMode().

bool ns3::WifiTxVector::m_modeInitialized

private

Internal initialization flag.

Definition at line 226 of file wifi-tx-vector.h.

Referenced by GetMode(), and SetMode().

uint8_t ns3::WifiTxVector::m_ness

private

number of spatial streams in beamforming

Definition at line 222 of file wifi-tx-vector.h.

Referenced by GetNess(), and SetNess().

uint8_t ns3::WifiTxVector::m_nss

private

number of spatial streams

Definition at line 221 of file wifi-tx-vector.h.

Referenced by GetNss(), and SetNss().

uint8_t ns3::WifiTxVector::m_nTx

private

number of TX antennas

Definition at line 220 of file wifi-tx-vector.h.

Referenced by GetNTx(), and SetNTx().

WifiPreamble ns3::WifiTxVector::m_preamble

private

preamble

Definition at line 217 of file wifi-tx-vector.h.

Referenced by GetPreambleType(), and SetPreambleType().

uint8_t ns3::WifiTxVector::m_retries

private

The DATA_RETRIES/RTS_RETRIES parameter for Click radiotap information.

Definition at line 215 of file wifi-tx-vector.h.

Referenced by GetRetries(), and SetRetries().

bool ns3::WifiTxVector::m_stbc

private

STBC used or not.

Definition at line 224 of file wifi-tx-vector.h.

Referenced by IsStbc(), and SetStbc().

uint8_t ns3::WifiTxVector::m_txPowerLevel

private

The TXPWR_LEVEL parameter in Table 15-4.

It is the value that will be passed to PMD_TXPWRLVL.request

Definition at line 212 of file wifi-tx-vector.h.

Referenced by GetTxPowerLevel(), and SetTxPowerLevel().

bool ns3::WifiTxVector::m_txPowerLevelInitialized

private

Internal initialization flag.

Definition at line 227 of file wifi-tx-vector.h.

Referenced by GetTxPowerLevel(), and SetTxPowerLevel().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-tx-vector.h
src/wifi/model/wifi-tx-vector.cc

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
