ns3::WifiRemoteStationManager Class Referenceabstract

hold a list of per-remote-station state. More...

#include "wifi-remote-station-manager.h"

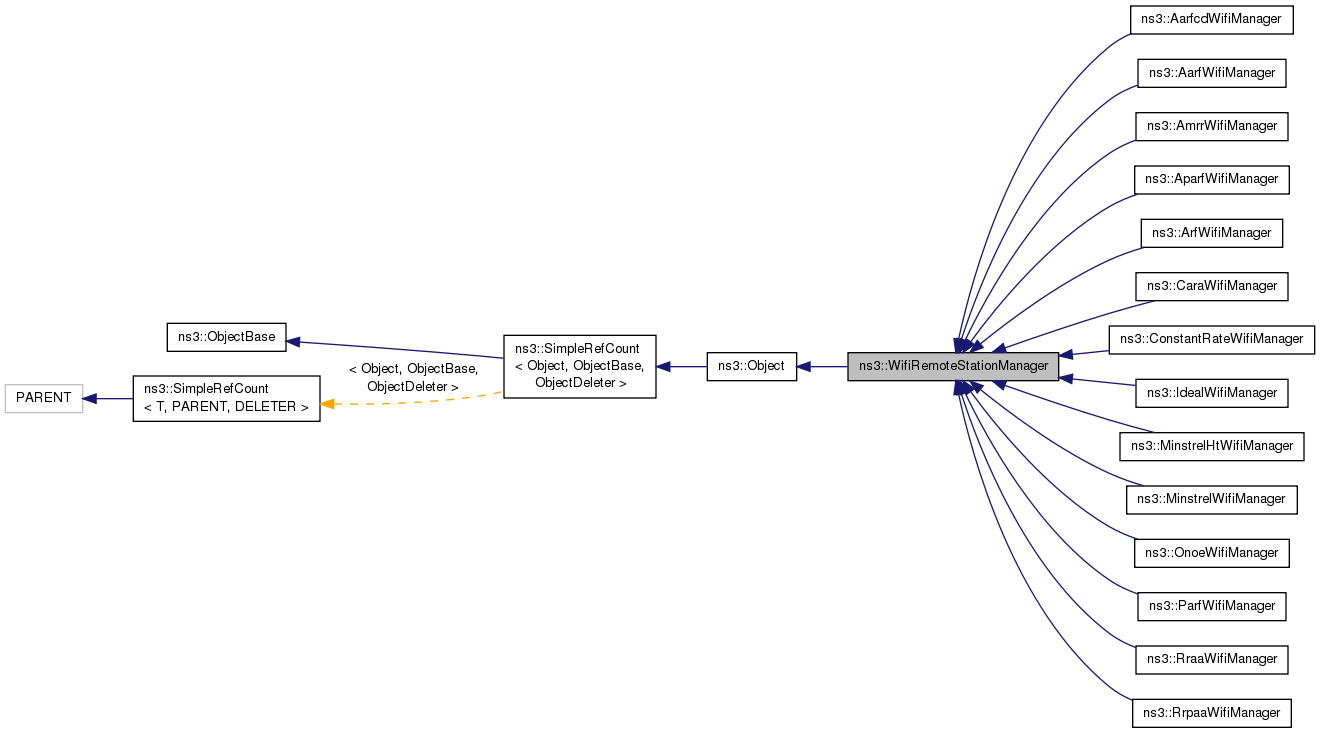

+ Inheritance diagram for ns3::WifiRemoteStationManager:

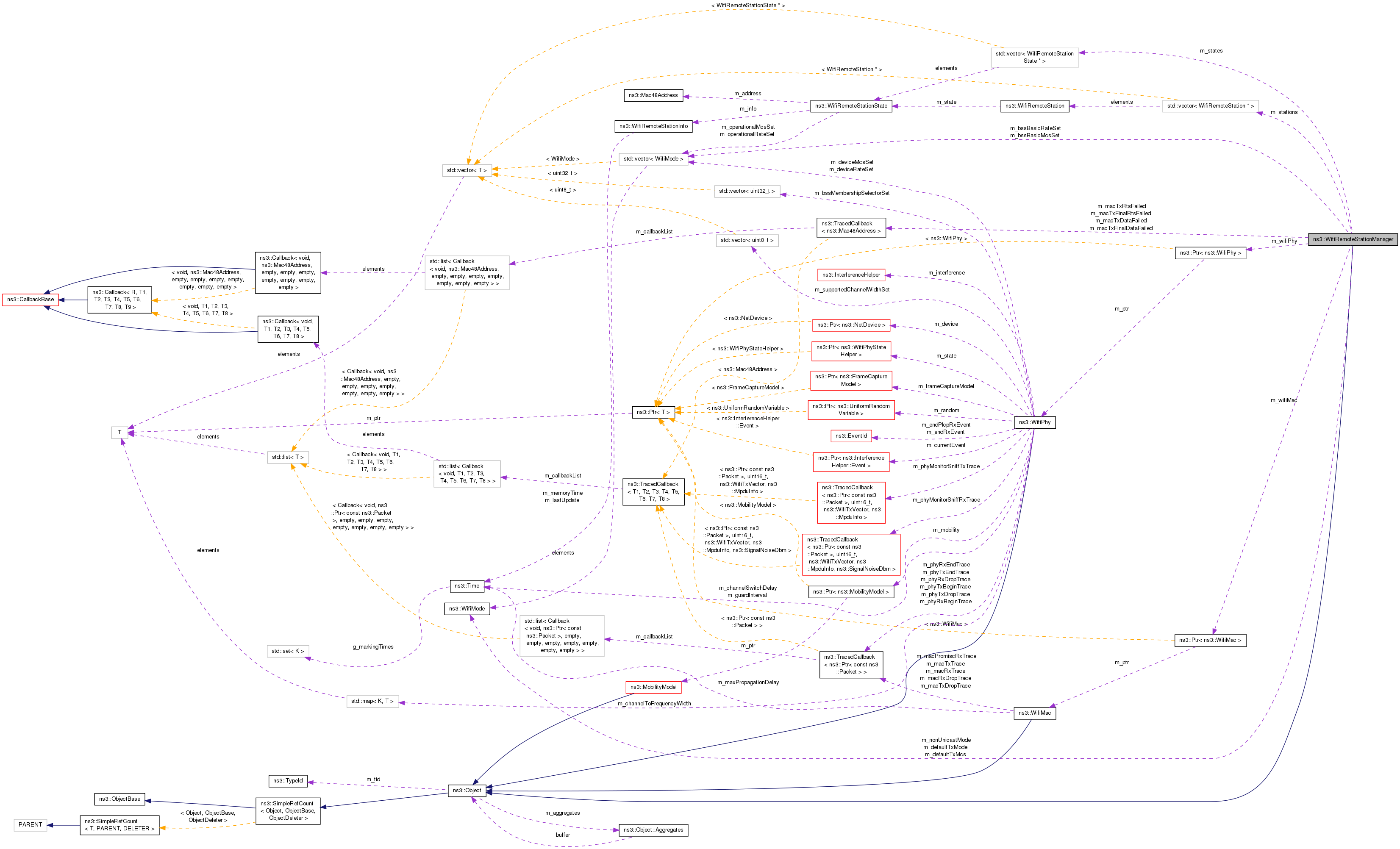

+ Collaboration diagram for ns3::WifiRemoteStationManager:

Public Types

typedef void(* PowerChangeTracedCallback) (double oldPower, double newPower, Mac48Address remoteAddress)
 TracedCallback signature for power change events. More...

enum  ProtectionMode { RTS_CTS, CTS_TO_SELF }
 ProtectionMode enumeration. More...

typedef void(* RateChangeTracedCallback) (DataRate oldRate, DataRate newRate, Mac48Address remoteAddress)
 TracedCallback signature for rate change events. More...


Public Member Functions

 WifiRemoteStationManager ()

virtual ~WifiRemoteStationManager ()

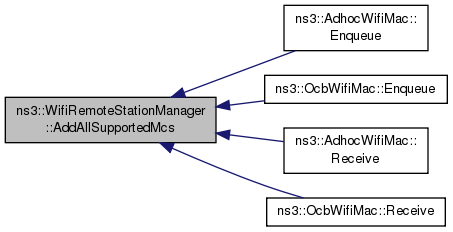

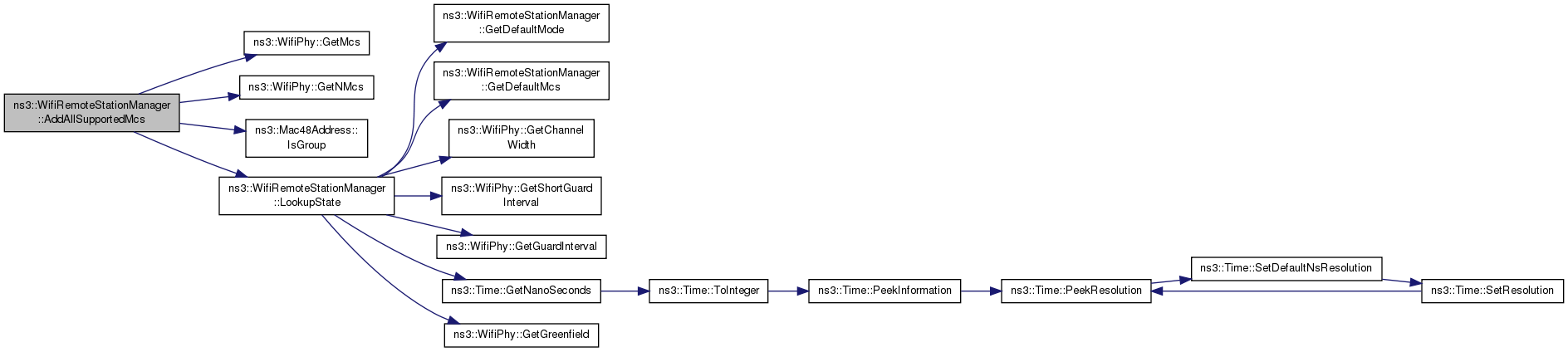

void AddAllSupportedMcs (Mac48Address address)
 Invoked in a STA or AP to store all of the MCS supported by a destination which is also supported locally. More...

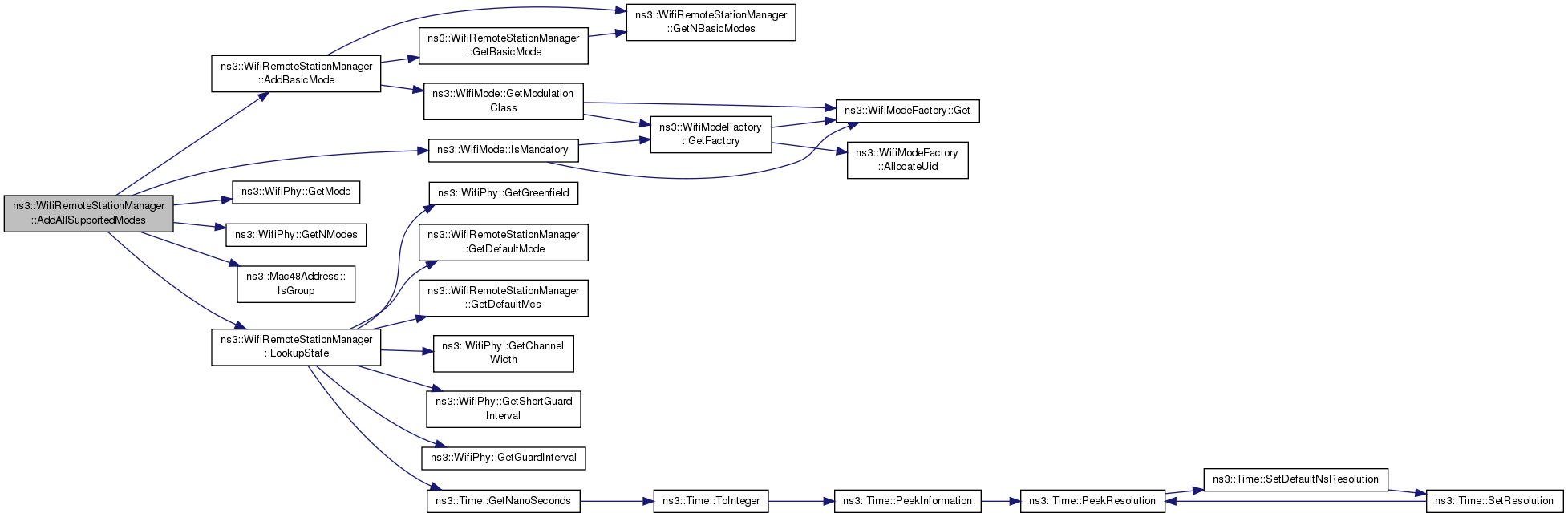

void AddAllSupportedModes (Mac48Address address)
 Invoked in a STA or AP to store all of the modes supported by a destination which is also supported locally. More...

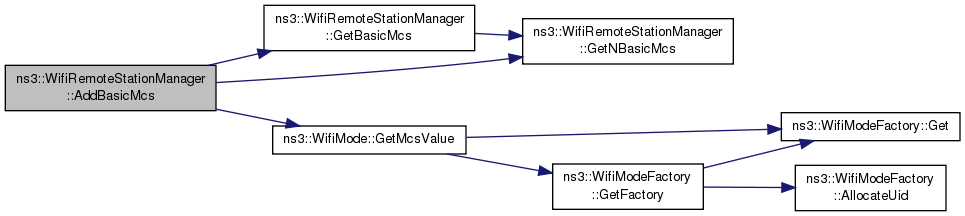

void AddBasicMcs (WifiMode mcs)
 Add a given Modulation and Coding Scheme (MCS) index to the set of basic MCS. More...

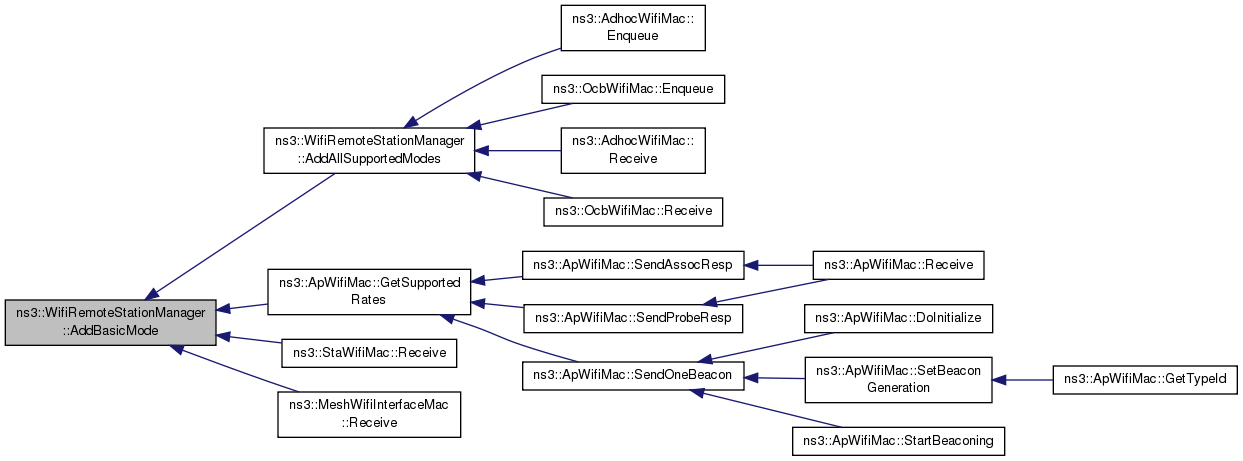

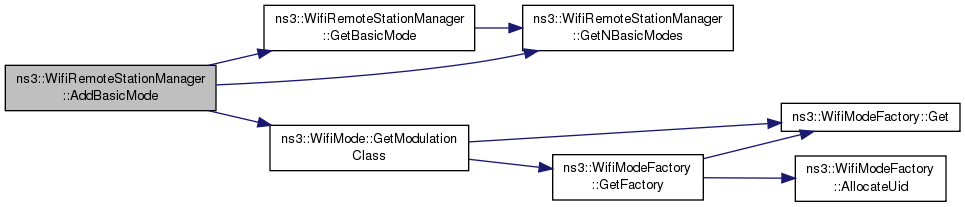

void AddBasicMode (WifiMode mode)
 Invoked in a STA upon association to store the set of rates which belong to the BSSBasicRateSet of the associated AP and which are supported locally. More...

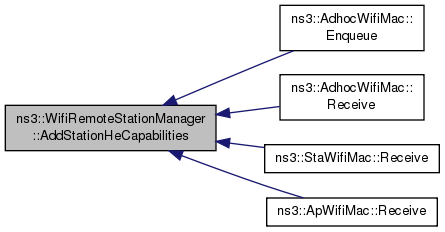

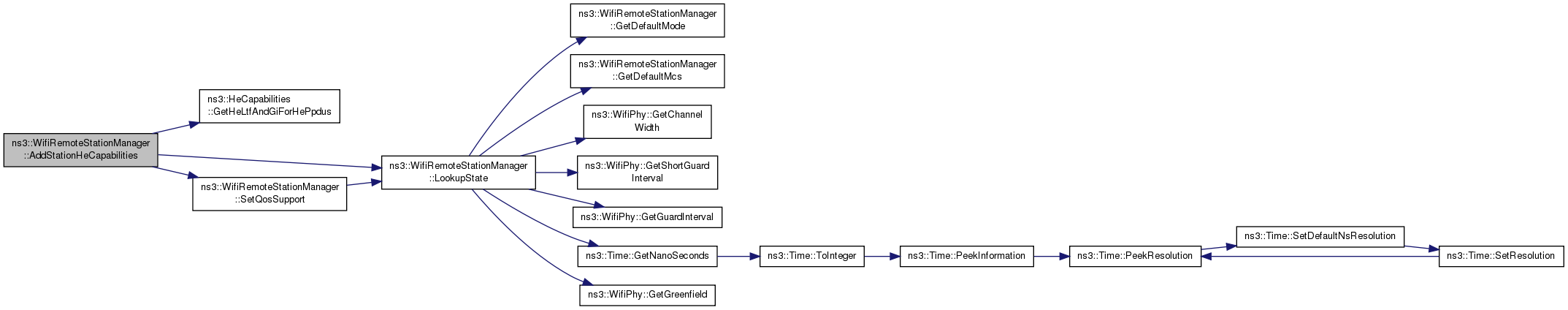

void AddStationHeCapabilities (Mac48Address from, HeCapabilities hecapabilities)
 Records HE capabilities of the remote station. More...

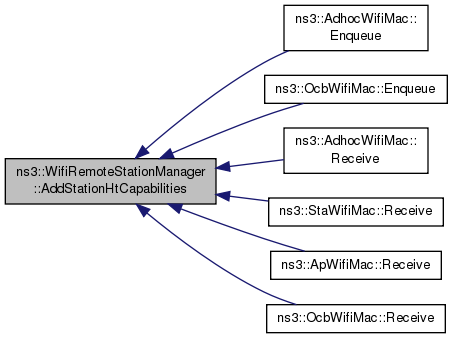

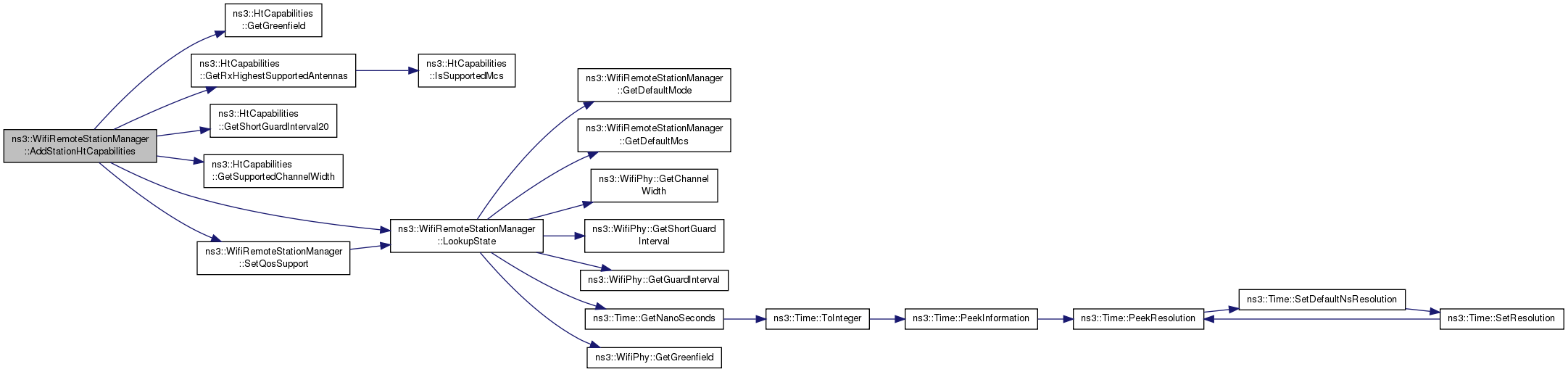

void AddStationHtCapabilities (Mac48Address from, HtCapabilities htcapabilities)
 Records HT capabilities of the remote station. More...

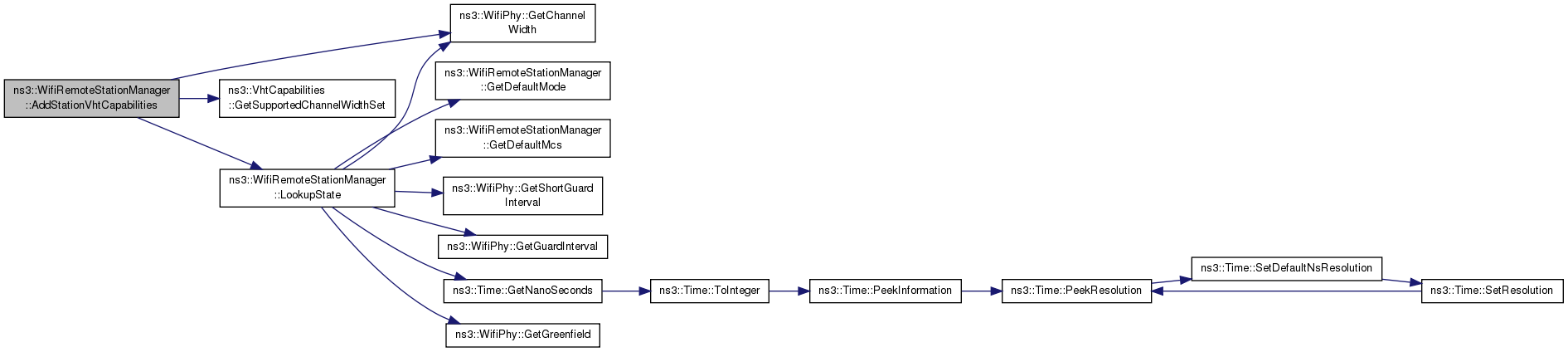

void AddStationVhtCapabilities (Mac48Address from, VhtCapabilities vhtcapabilities)
 Records VHT capabilities of the remote station. More...

void AddSupportedErpSlotTime (Mac48Address address, bool isShortSlotTimeSupported)
 Record whether the short ERP slot time is supported by the station. More...

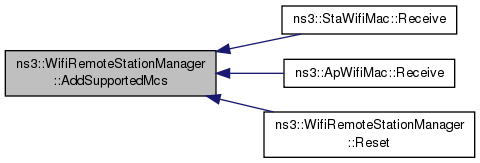

void AddSupportedMcs (Mac48Address address, WifiMode mcs)
 Record the MCS index supported by the station. More...

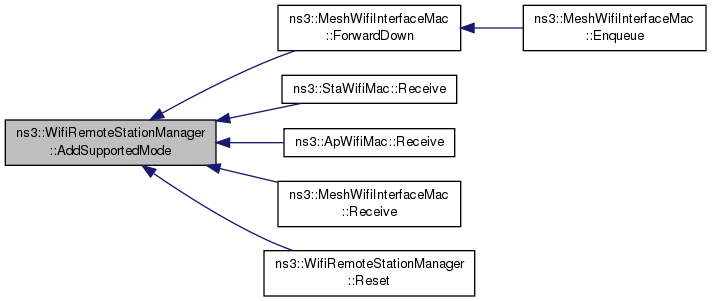

void AddSupportedMode (Mac48Address address, WifiMode mode)
 Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally. More...

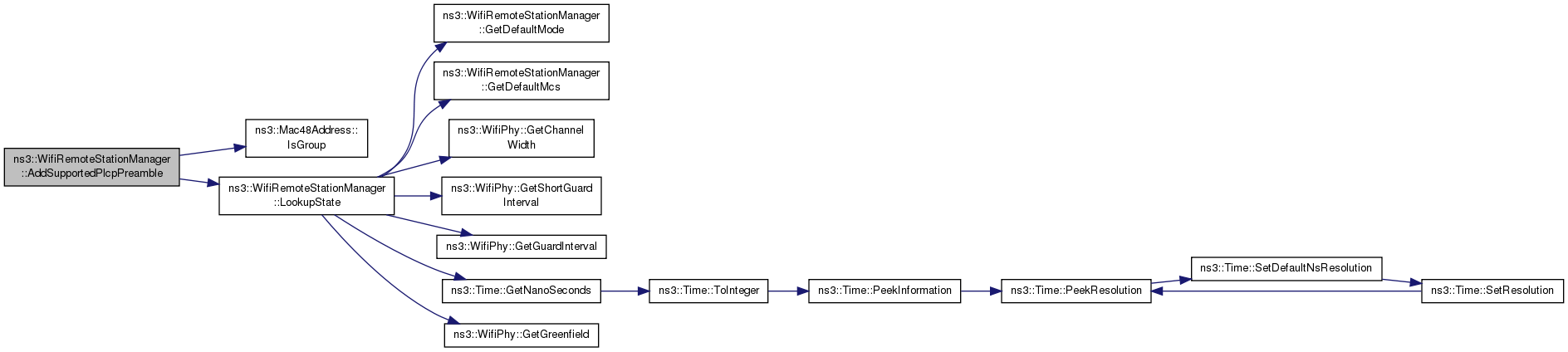

void AddSupportedPlcpPreamble (Mac48Address address, bool isShortPreambleSupported)
 Record whether the short PLCP preamble is supported by the station. More...

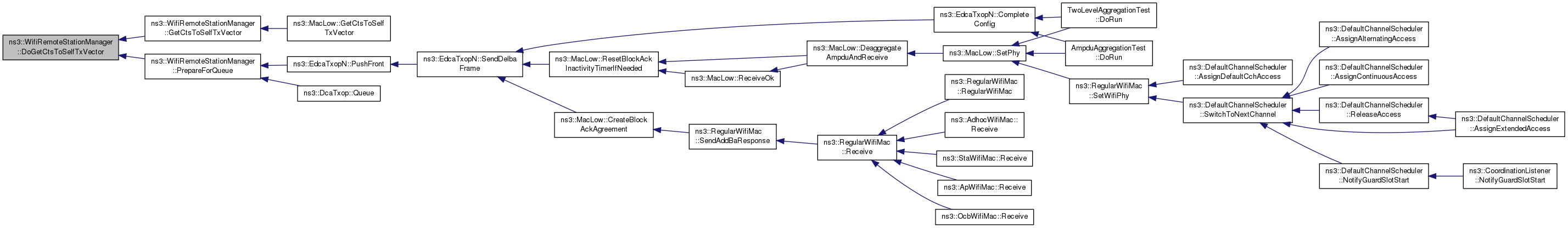

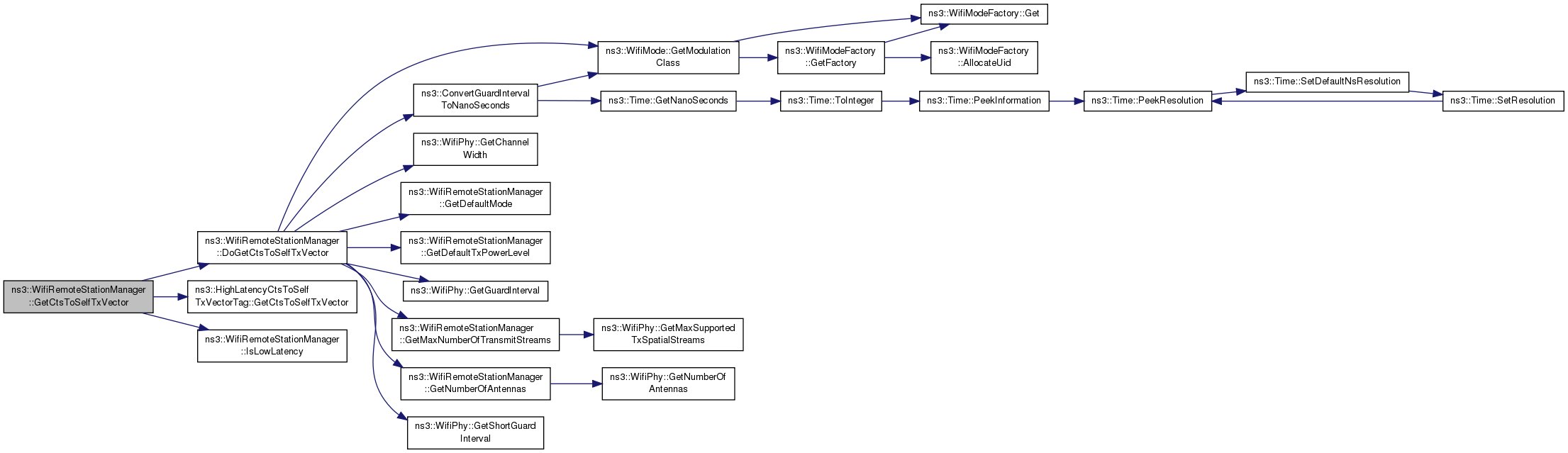

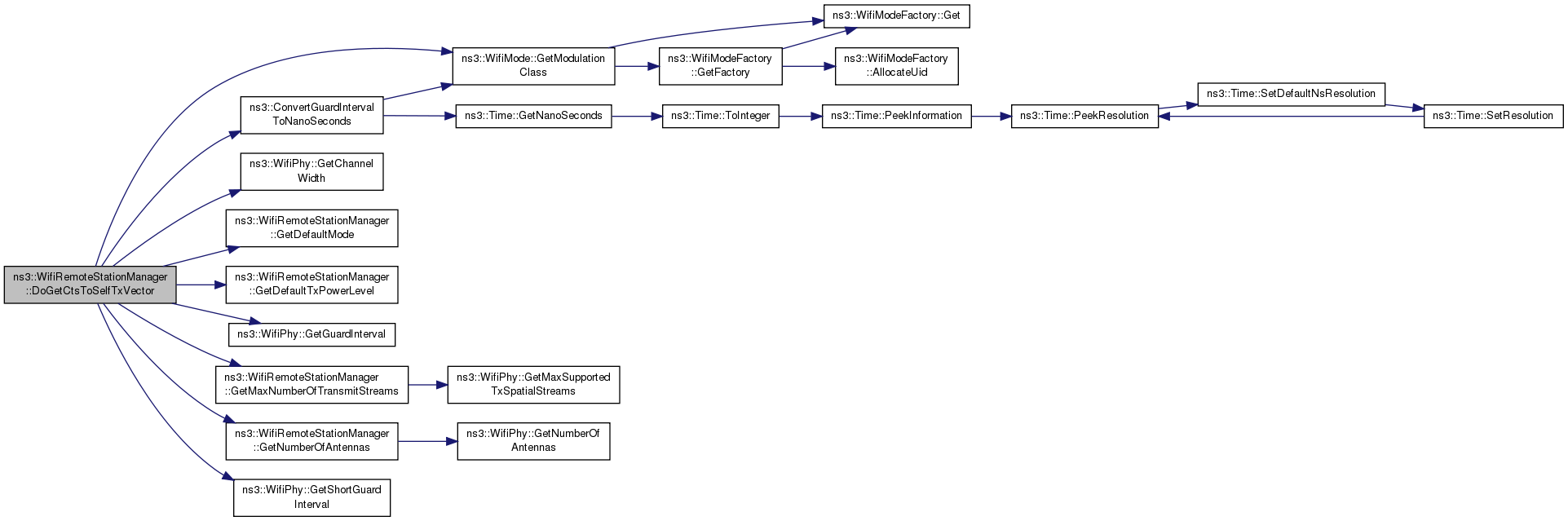

WifiTxVector DoGetCtsToSelfTxVector (void)
 Since CTS-to-self parameters are not dependent on the station, it is implemented in wifiremote station manager. More...

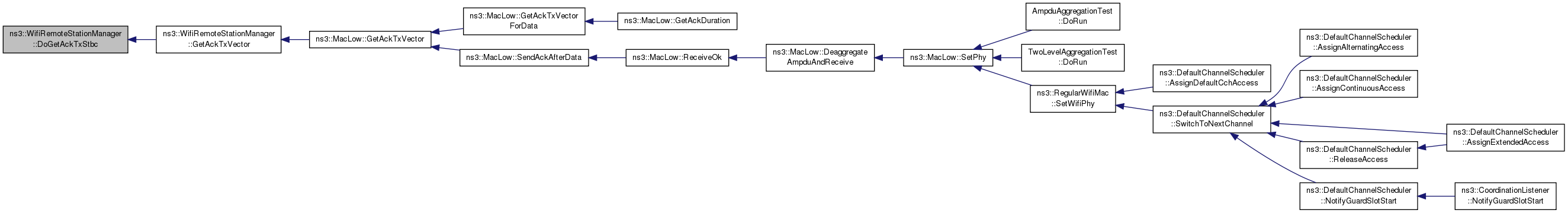

WifiTxVector GetAckTxVector (Mac48Address address, WifiMode dataMode)

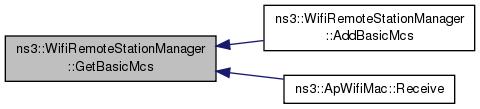

WifiMode GetBasicMcs (uint32_t i) const
 Return the MCS at the given list index. More...

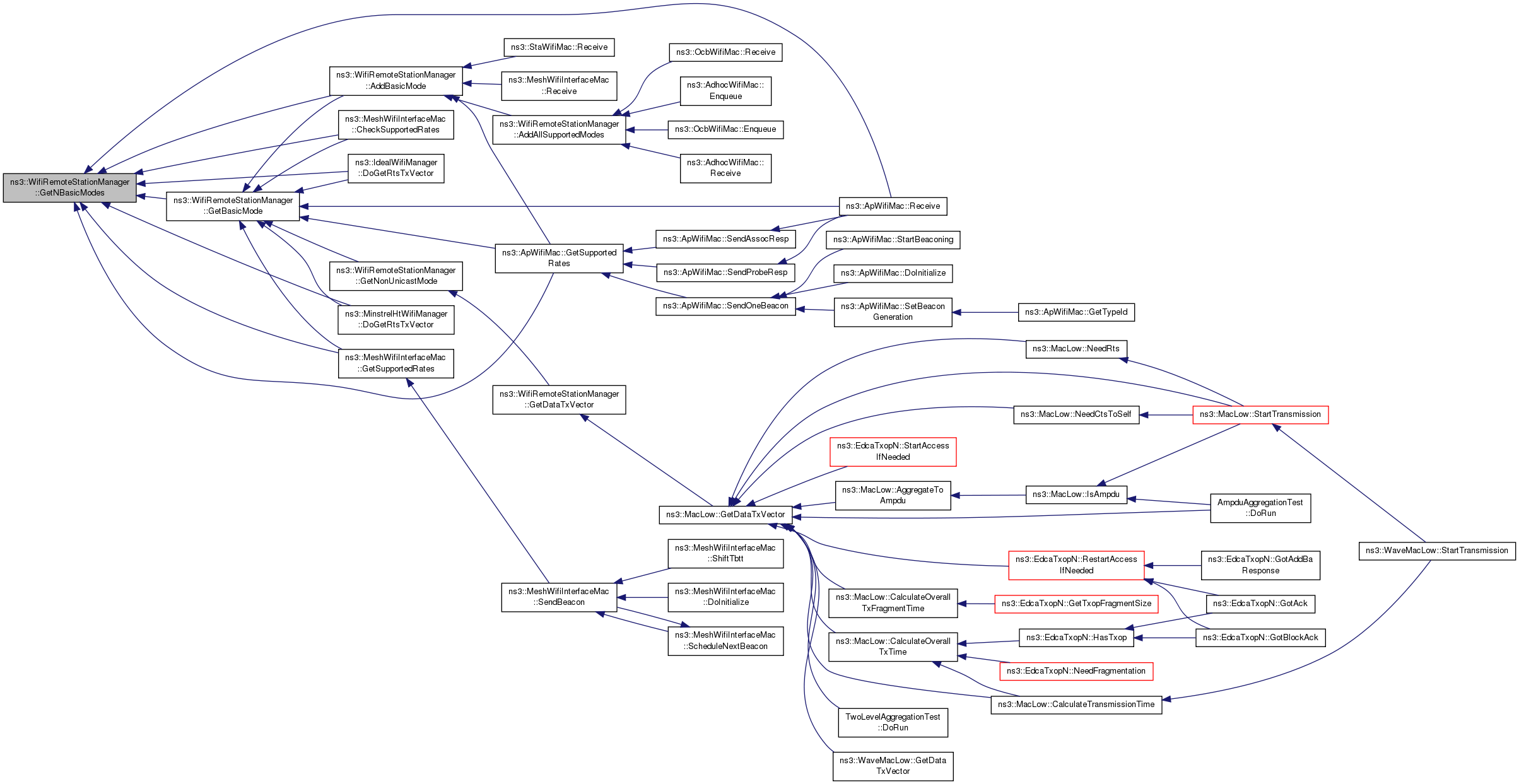

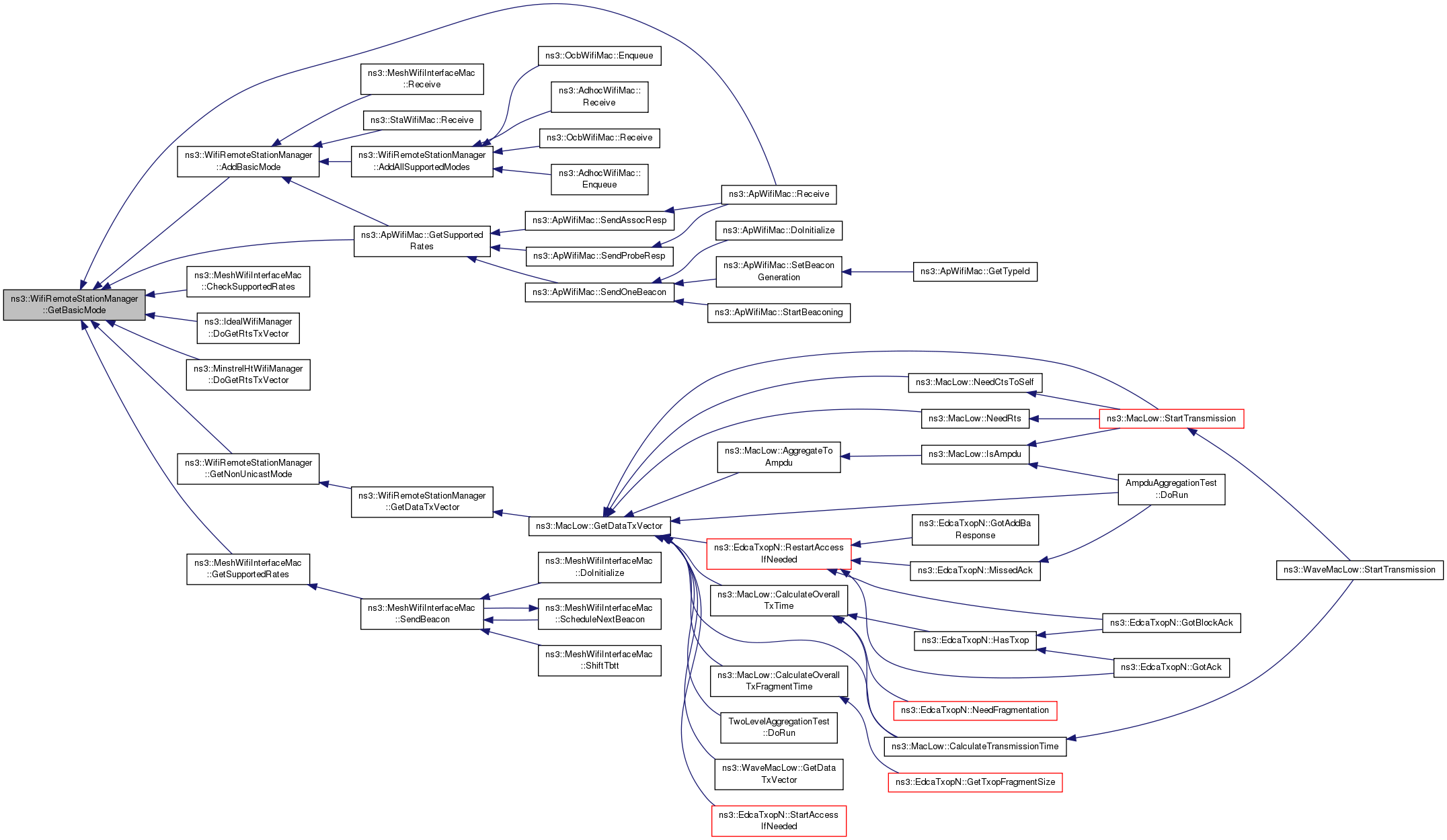

WifiMode GetBasicMode (uint32_t i) const
 Return a basic mode from the set of basic modes. More...

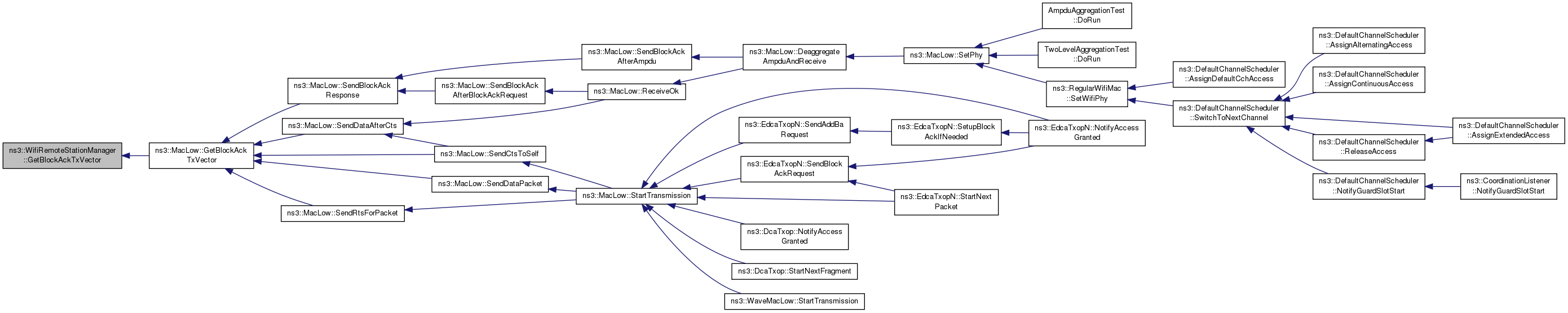

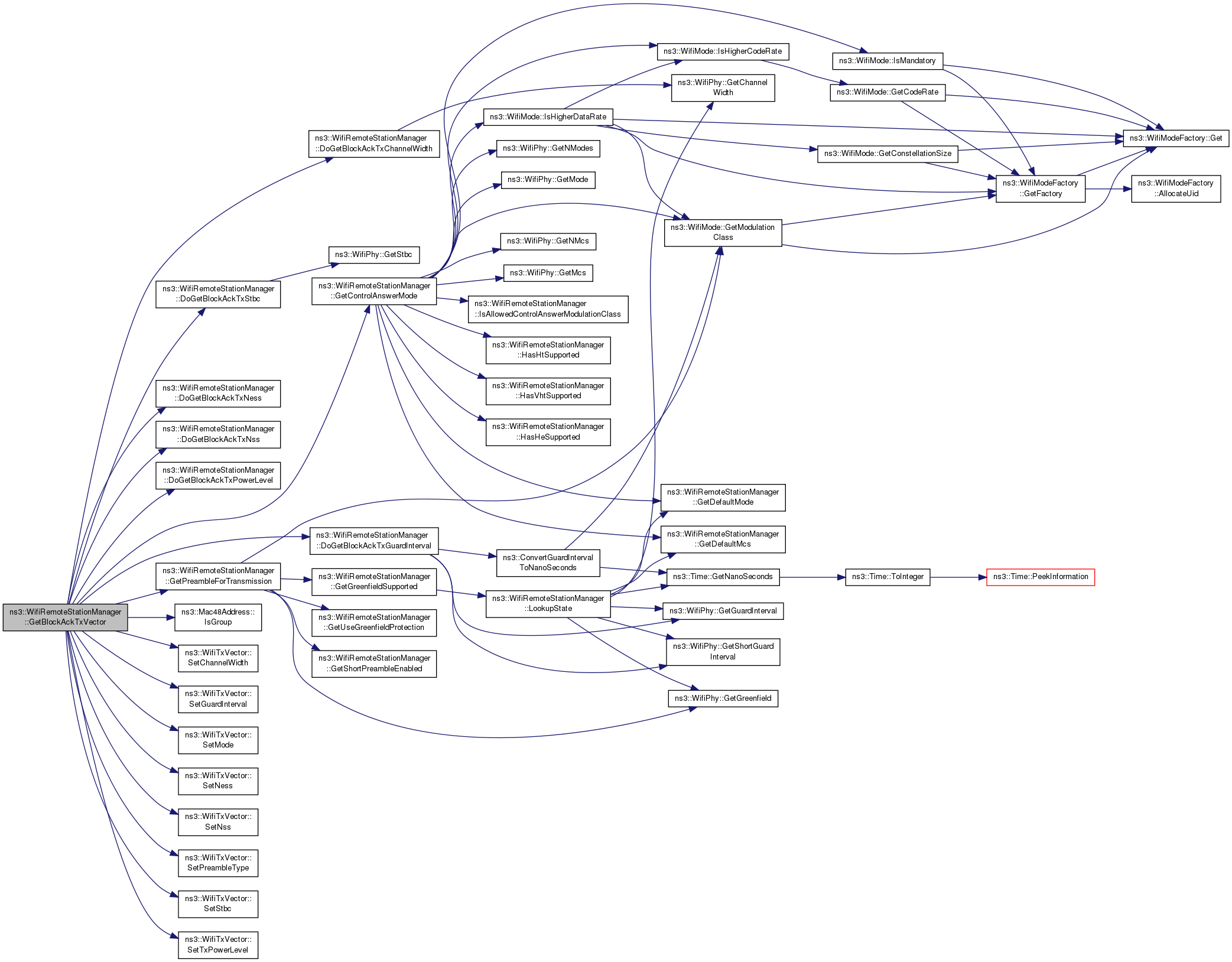

WifiTxVector GetBlockAckTxVector (Mac48Address address, WifiMode dataMode)

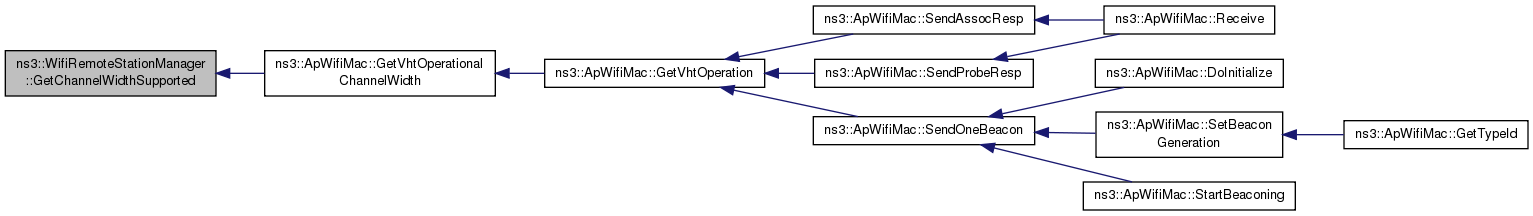

uint8_t GetChannelWidthSupported (Mac48Address address) const
 Return the channel width supported by the station. More...

WifiTxVector GetCtsToSelfTxVector (const WifiMacHeader *header, Ptr< const Packet > packet)

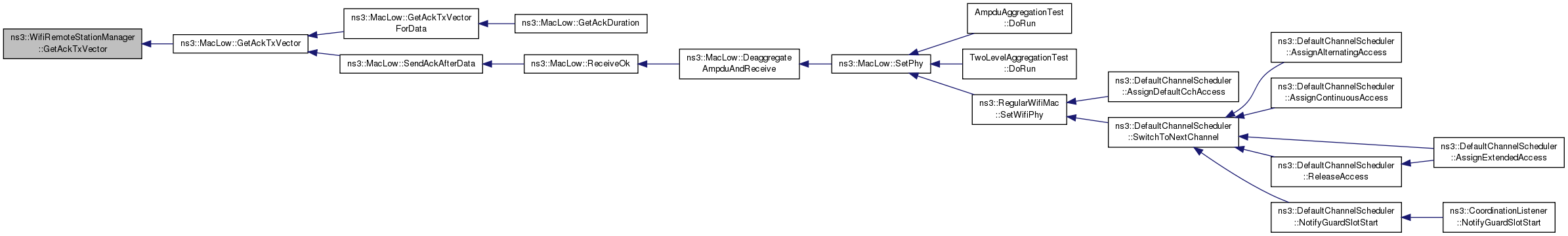

WifiTxVector GetCtsTxVector (Mac48Address address, WifiMode rtsMode)

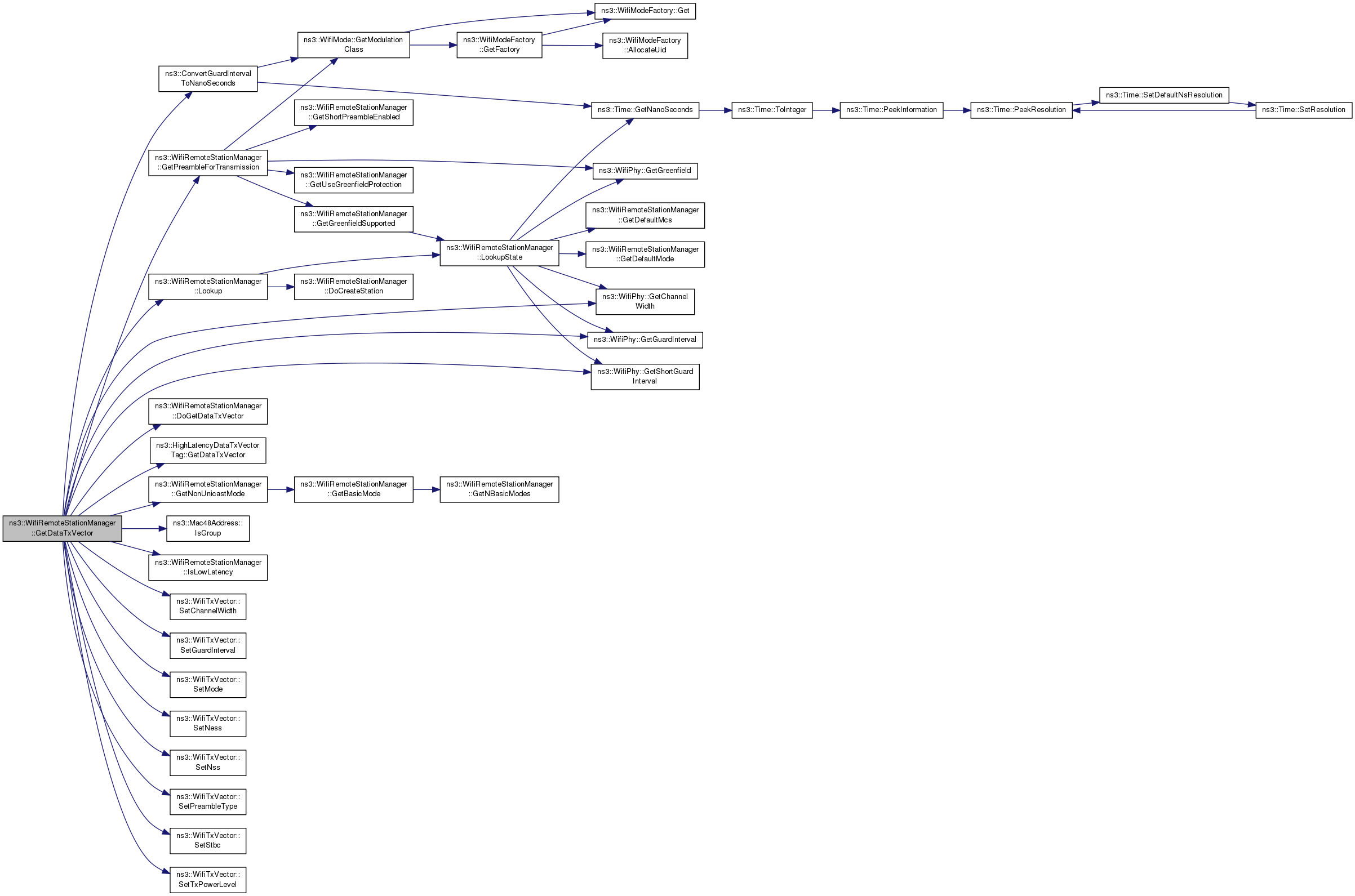

WifiTxVector GetDataTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

WifiMode GetDefaultMcs (void) const
 Return the default Modulation and Coding Scheme (MCS) index. More...

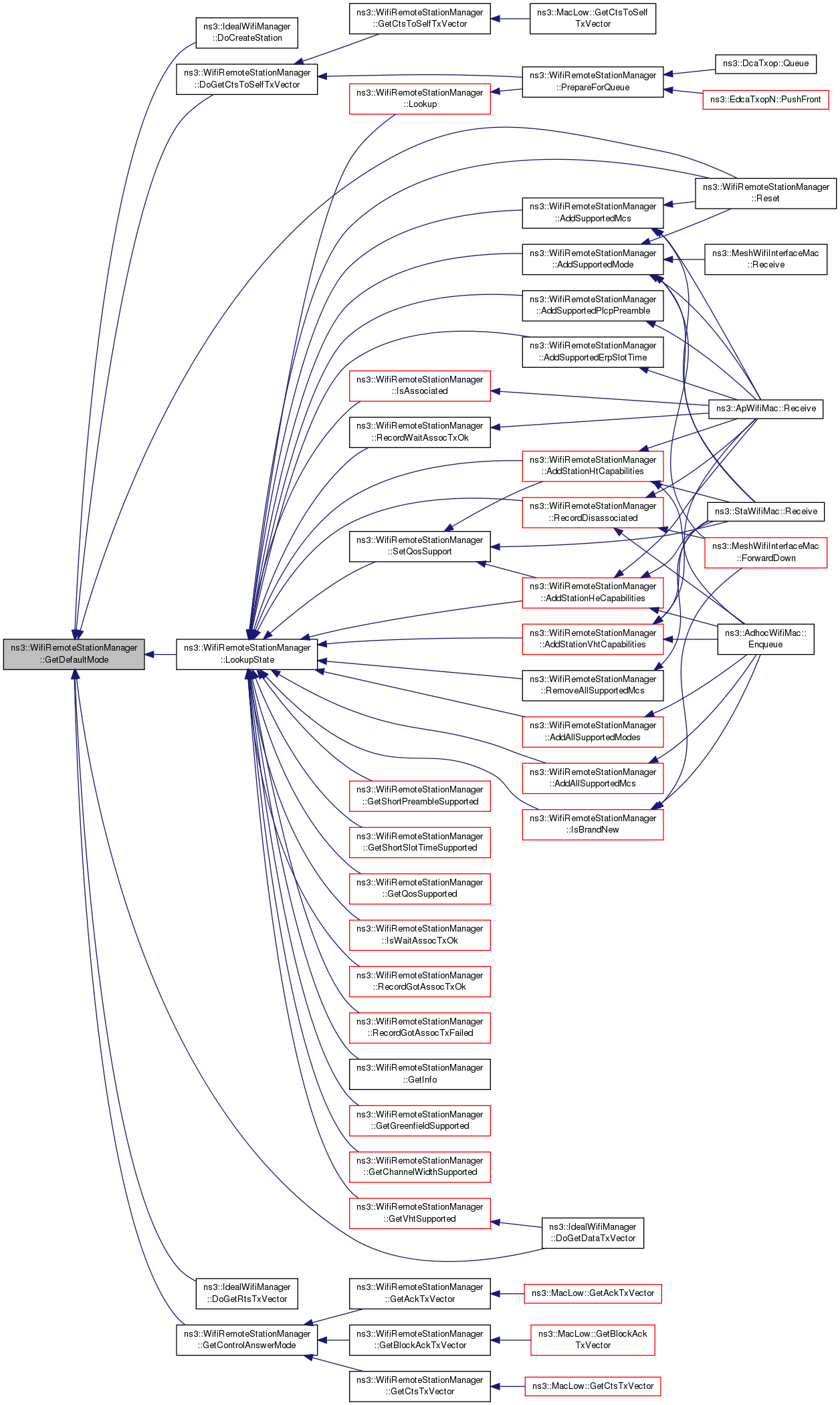

WifiMode GetDefaultMode (void) const
 Return the default transmission mode. More...

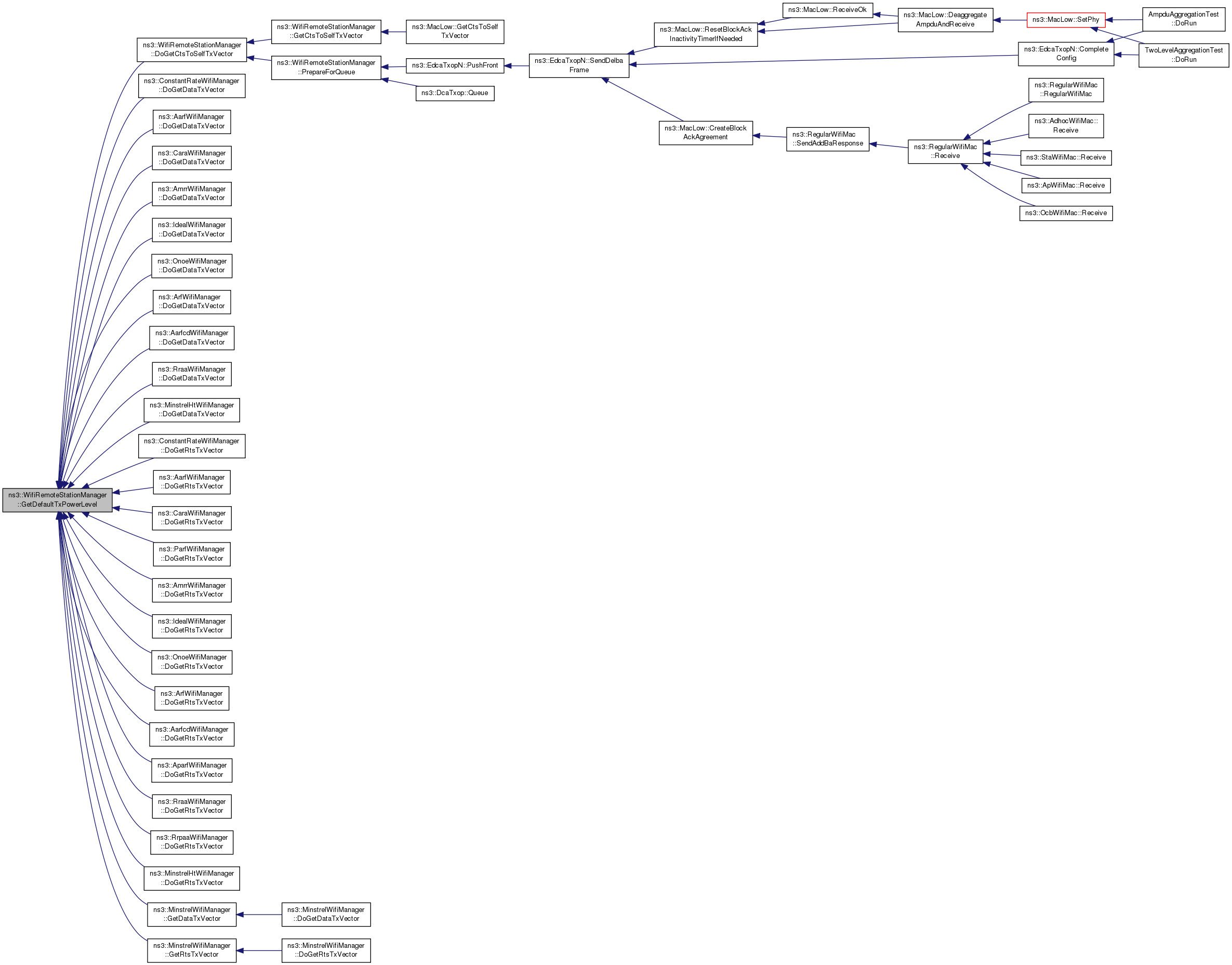

uint8_t GetDefaultTxPowerLevel (void) const

ProtectionMode GetErpProtectionMode (void) const
 Return the ERP protection mode. More...

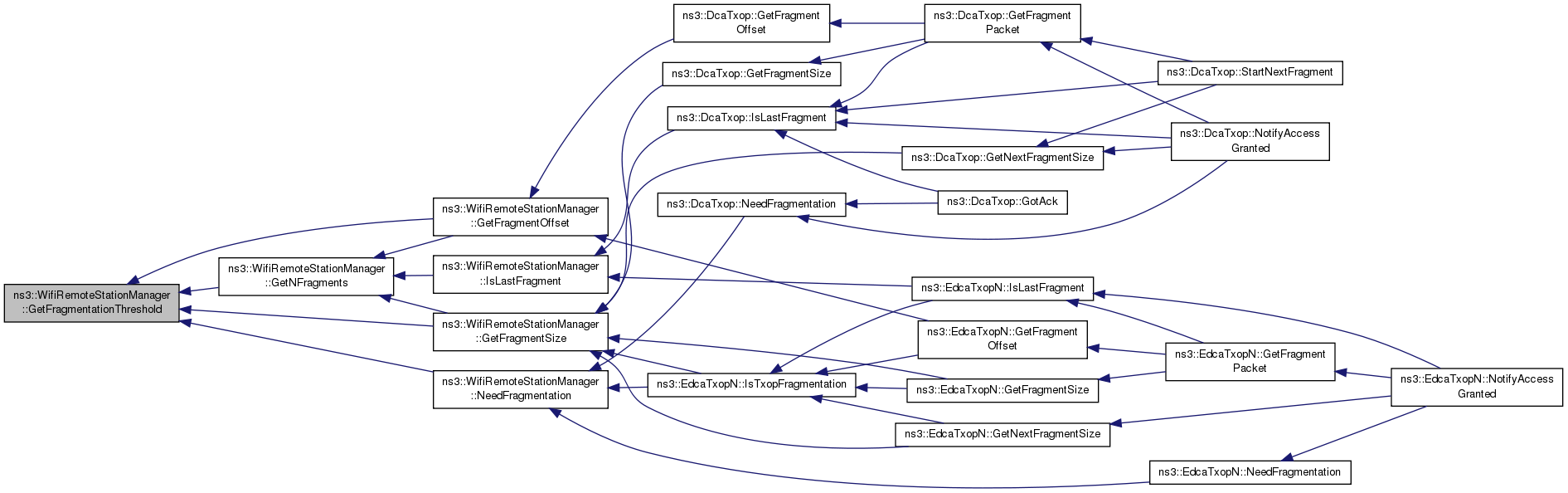

uint32_t GetFragmentationThreshold (void) const
 Return the fragmentation threshold. More...

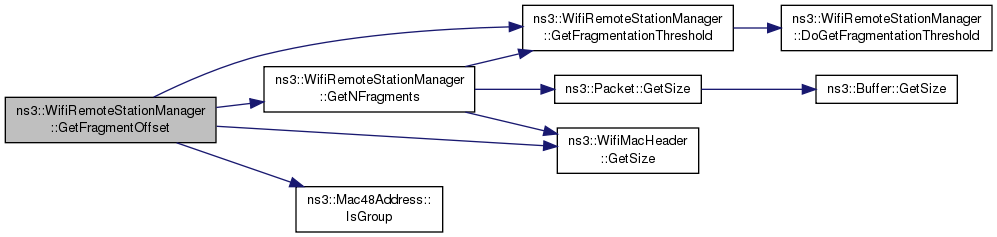

uint32_t GetFragmentOffset (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

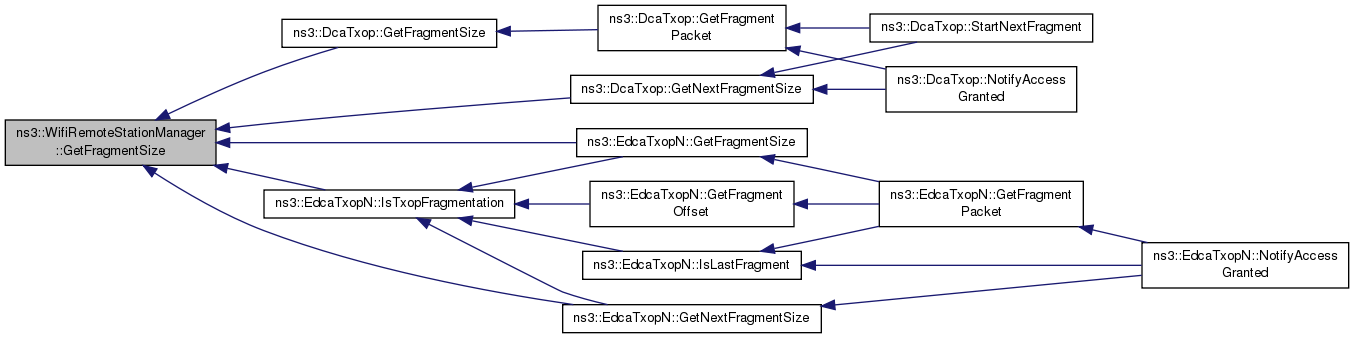

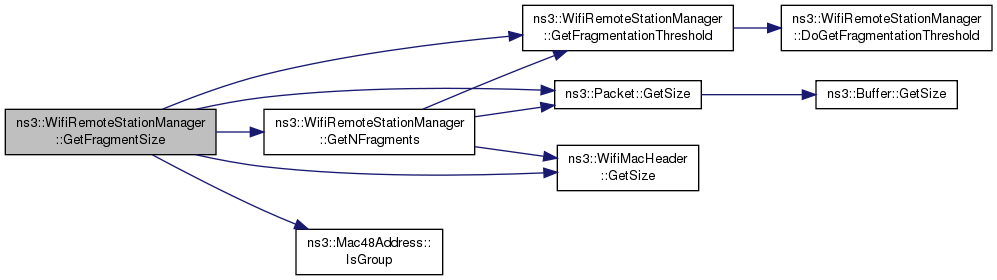

uint32_t GetFragmentSize (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

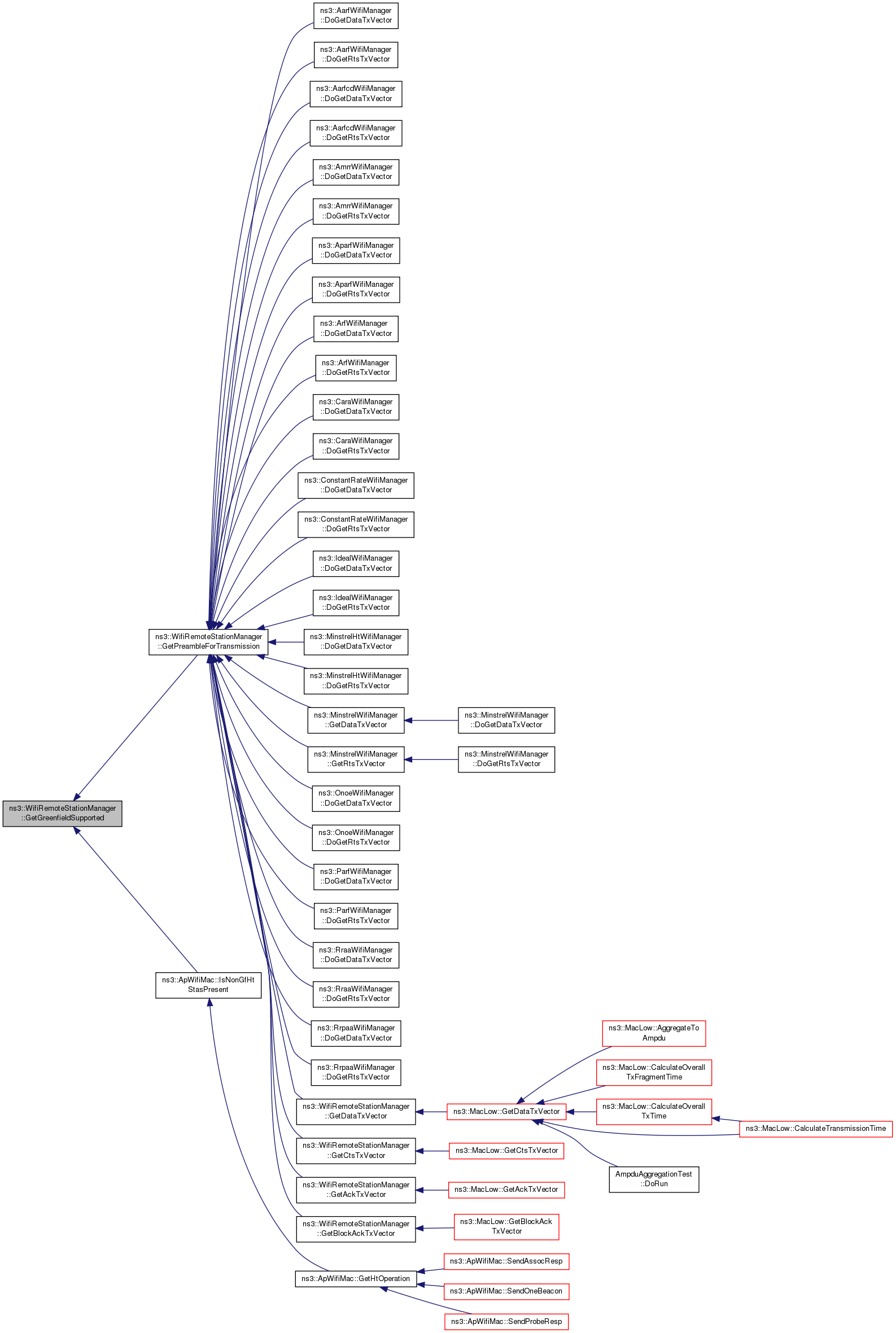

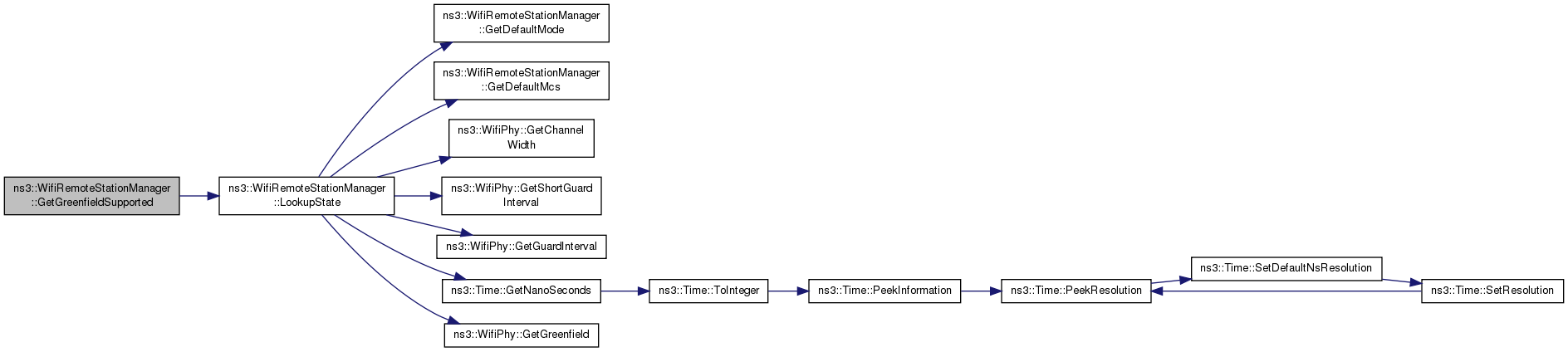

bool GetGreenfieldSupported (Mac48Address address) const
 Return whether the station supports Greenfield or not. More...

ProtectionMode GetHtProtectionMode (void) const
 Return the HT protection mode. More...

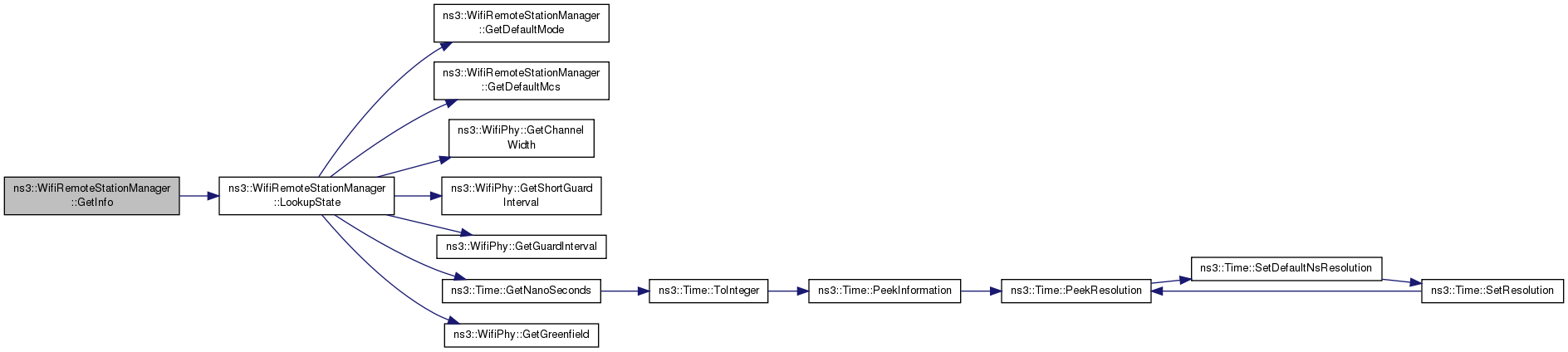

WifiRemoteStationInfo GetInfo (Mac48Address address)

uint8_t GetMaxNumberOfTransmitStreams (void)

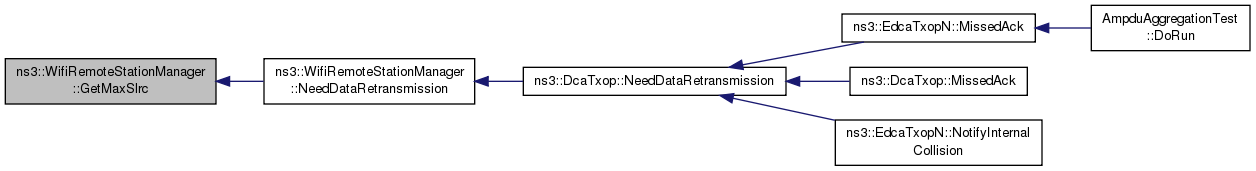

uint32_t GetMaxSlrc (void) const
 Return the maximum STA long retry count (SLRC). More...

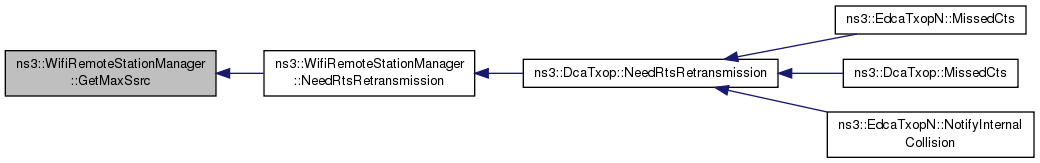

uint32_t GetMaxSsrc (void) const
 Return the maximum STA short retry count (SSRC). More...

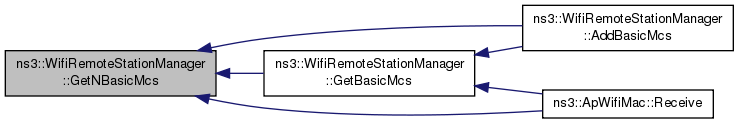

uint32_t GetNBasicMcs (void) const
 Return the number of basic MCS index. More...

uint32_t GetNBasicModes (void) const
 Return the number of basic modes we support. More...

uint32_t GetNNonErpBasicModes (void) const
 Return the number of non-ERP basic modes we support. More...

WifiMode GetNonErpBasicMode (uint32_t i) const
 Return a basic mode from the set of basic modes that is not an ERP mode. More...

WifiMode GetNonUnicastMode (void) const
 Return a mode for non-unicast packets. More...

uint8_t GetNumberOfAntennas (void)

bool GetQosSupported (Mac48Address address) const
 Return whether the given station is QoS capable. More...

bool GetRifsPermitted (void) const
 Return whether the device can use RIFS. More...

uint32_t GetRtsCtsThreshold (void) const
 Return the RTS threshold. More...

WifiTxVector GetRtsTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool GetShortPreambleEnabled (void) const
 Return whether the device uses short PLCP preambles. More...

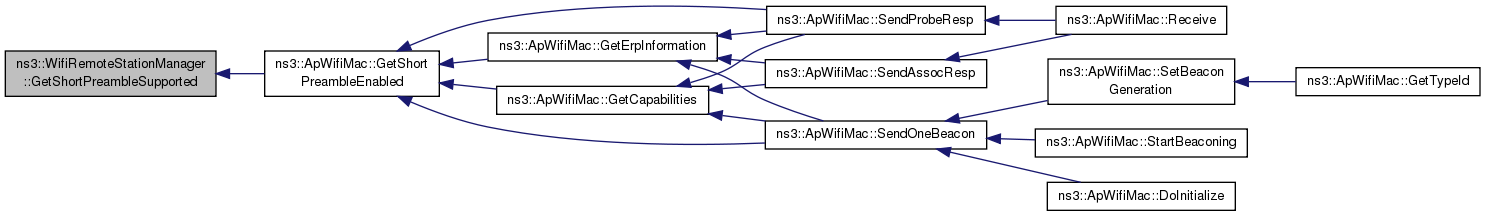

bool GetShortPreambleSupported (Mac48Address address) const
 Return whether the station supports short PLCP preamble or not. More...

bool GetShortSlotTimeEnabled (void) const
 Return whether the device uses short slot time. More...

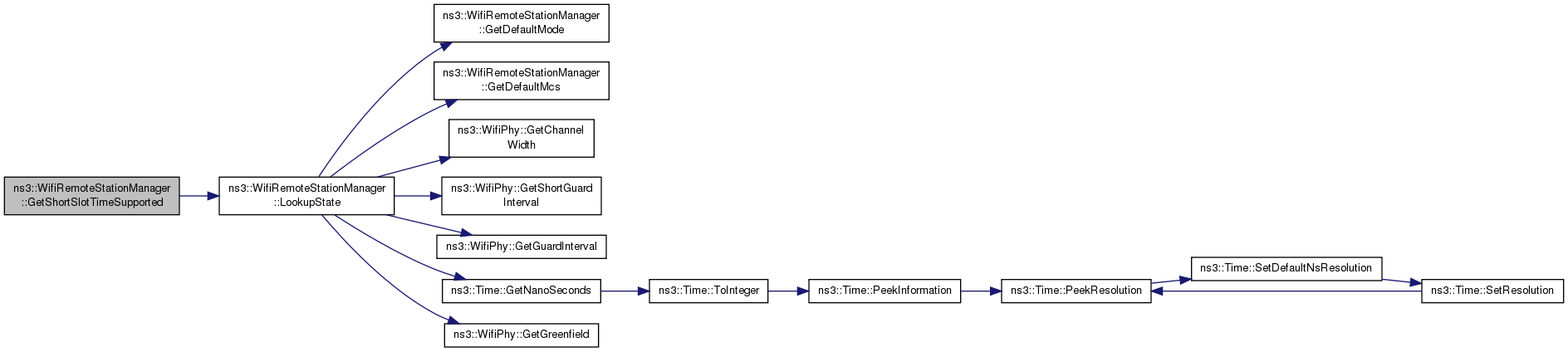

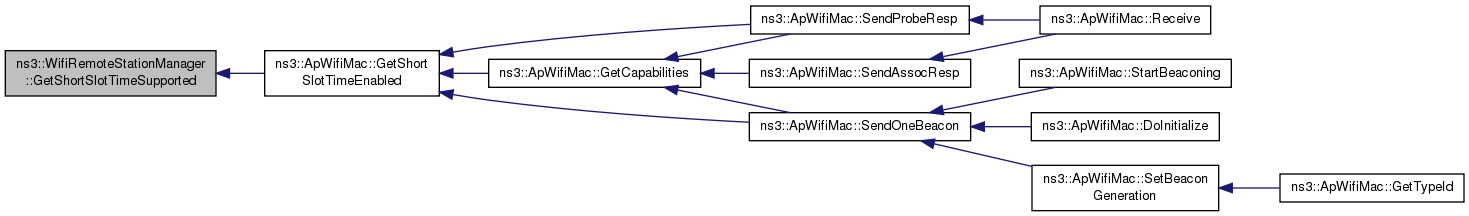

bool GetShortSlotTimeSupported (Mac48Address address) const
 Return whether the station supports short ERP slot time or not. More...

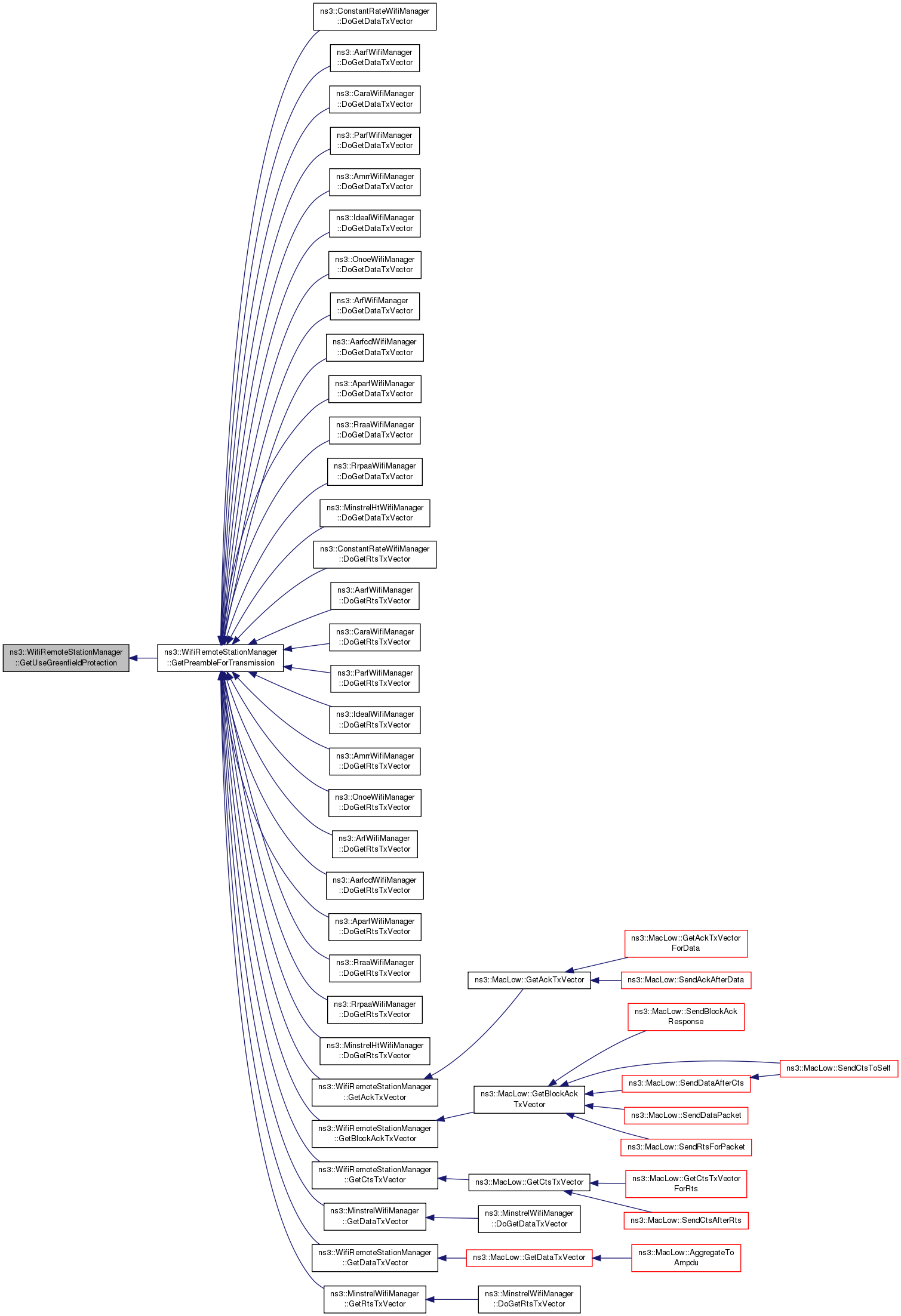

bool GetUseGreenfieldProtection (void) const
 Return whether protection for stations that do not support HT greenfield format is enabled. More...

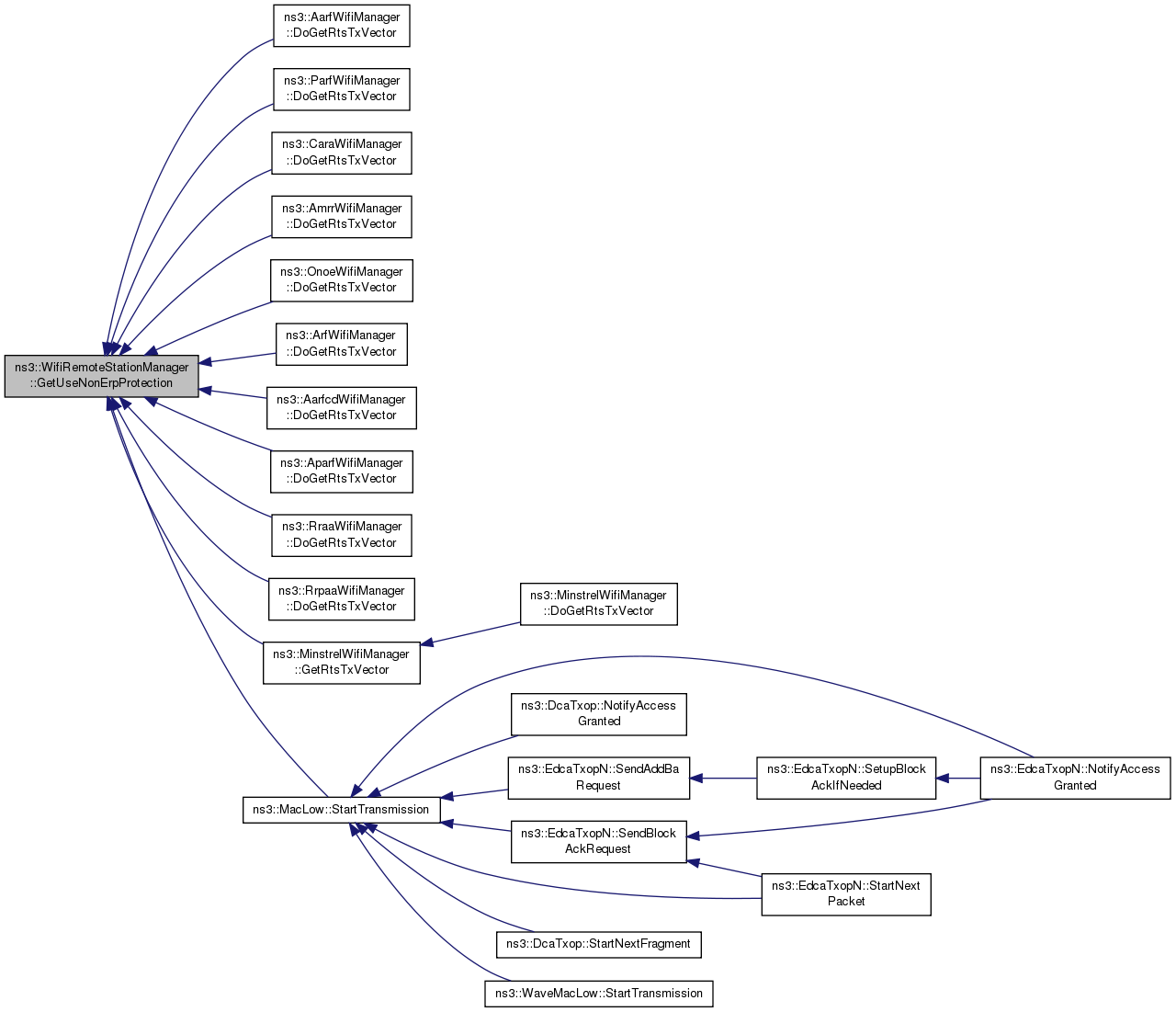

bool GetUseNonErpProtection (void) const
 Return whether the device supports protection of non-ERP stations. More...

bool GetUseNonHtProtection (void) const
 Return whether the device supports protection of non-HT stations. More...

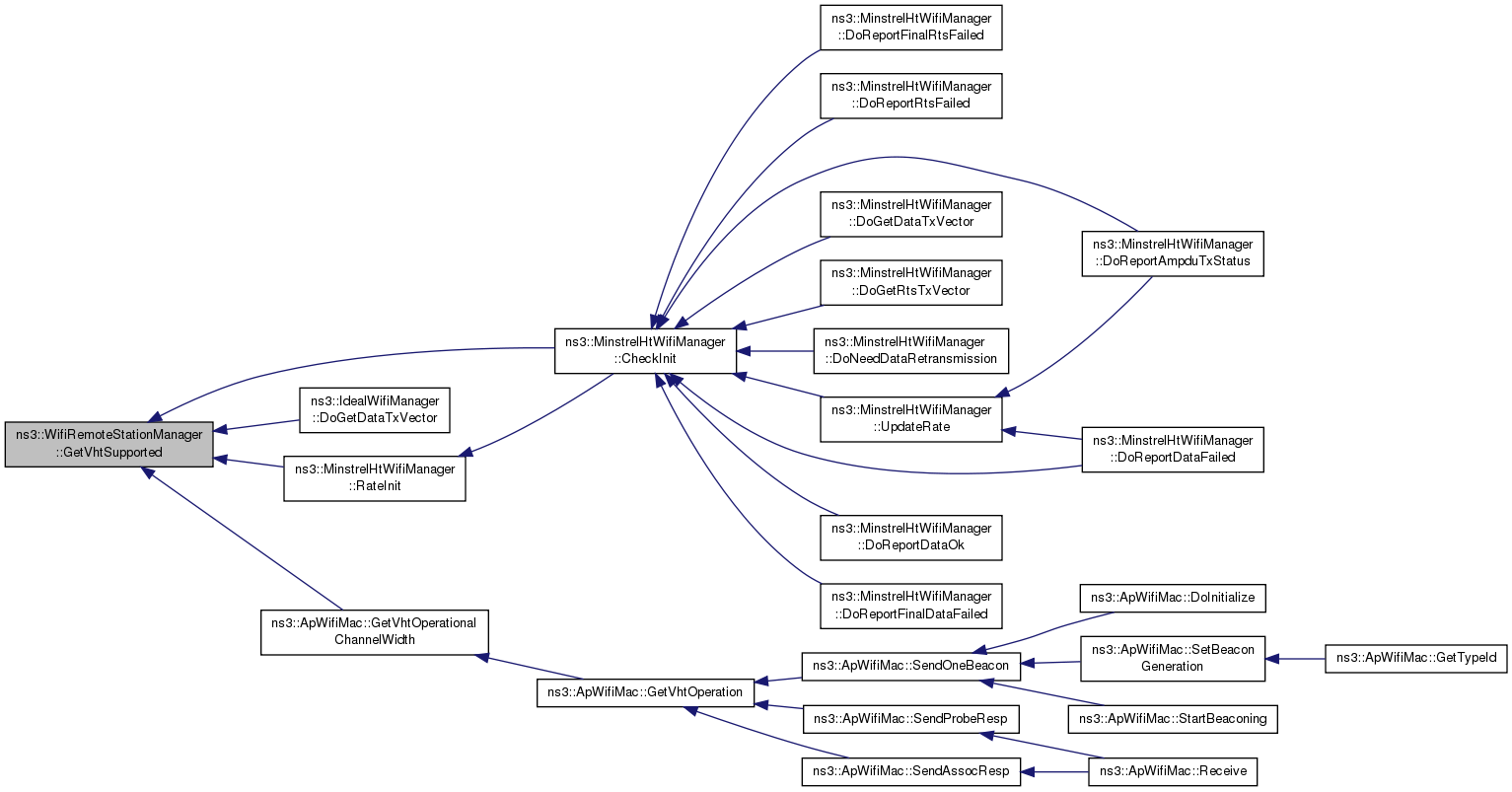

bool GetVhtSupported (Mac48Address address) const
 Return whether the station supports VHT or not. More...

bool HasHeSupported (void) const
 Return whether the device has HE capability support enabled. More...

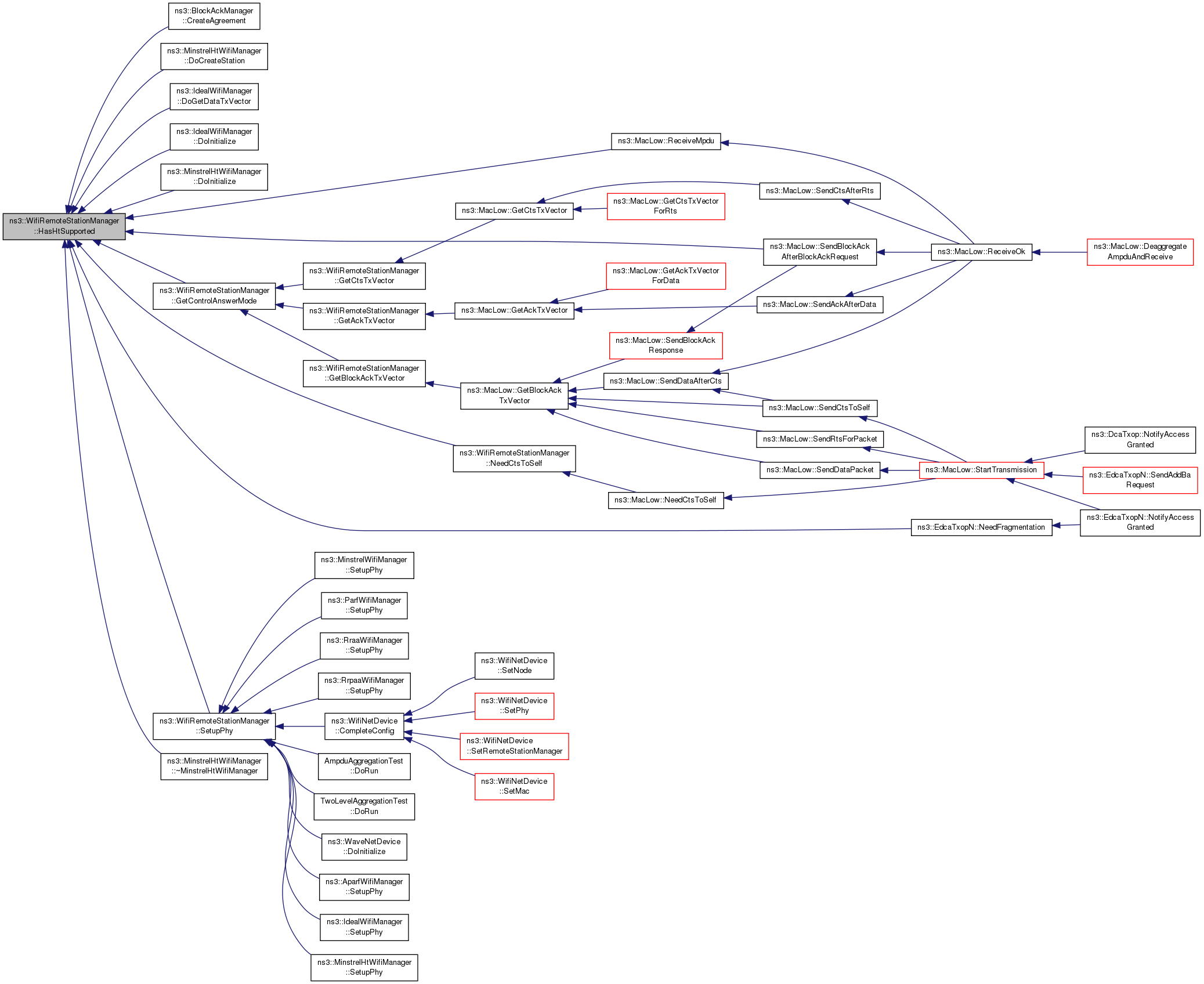

bool HasHtSupported (void) const
 Return whether the device has HT capability support enabled. More...

bool HasQosSupported (void) const
 Return whether the device has QoS support enabled. More...

bool HasVhtSupported (void) const
 Return whether the device has VHT capability support enabled. More...

bool IsAssociated (Mac48Address address) const
 Return whether the station associated. More...

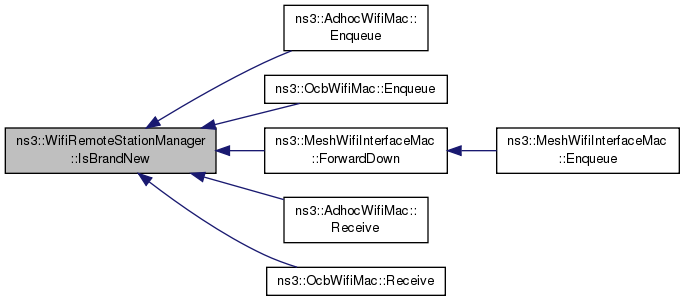

bool IsBrandNew (Mac48Address address) const
 Return whether the station state is brand new. More...

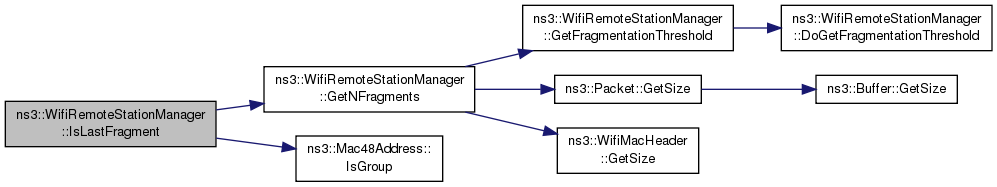

bool IsLastFragment (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

bool IsWaitAssocTxOk (Mac48Address address) const
 Return whether we are waiting for an ACK for the association response we sent. More...

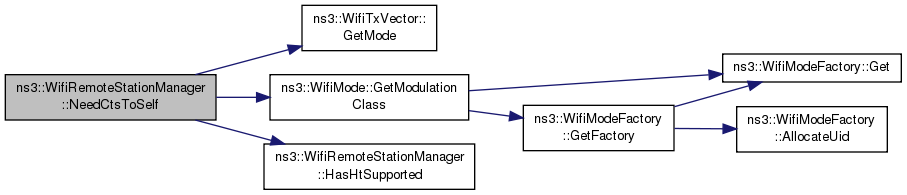

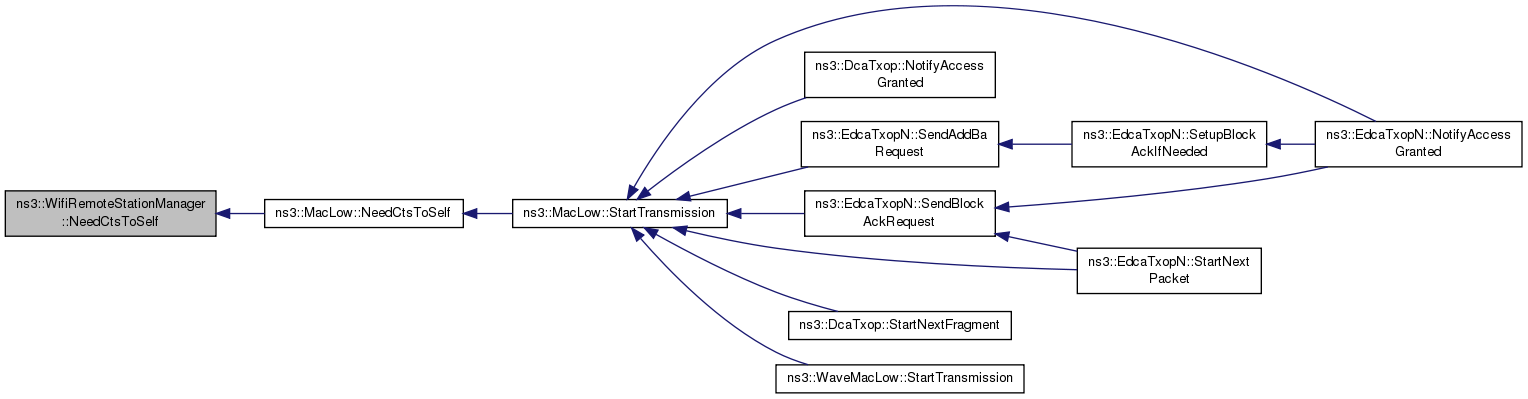

bool NeedCtsToSelf (WifiTxVector txVector)
 Return if we need to do Cts-to-self before sending a DATA. More...

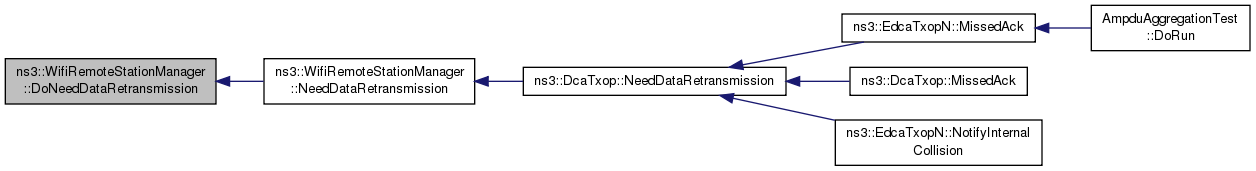

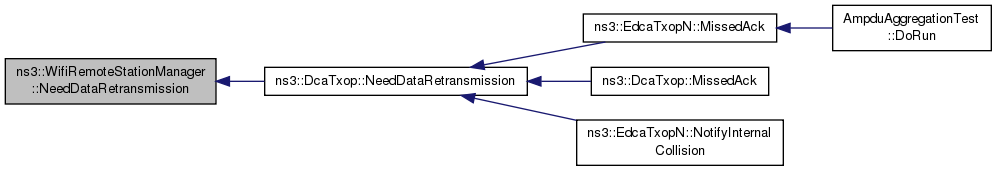

bool NeedDataRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

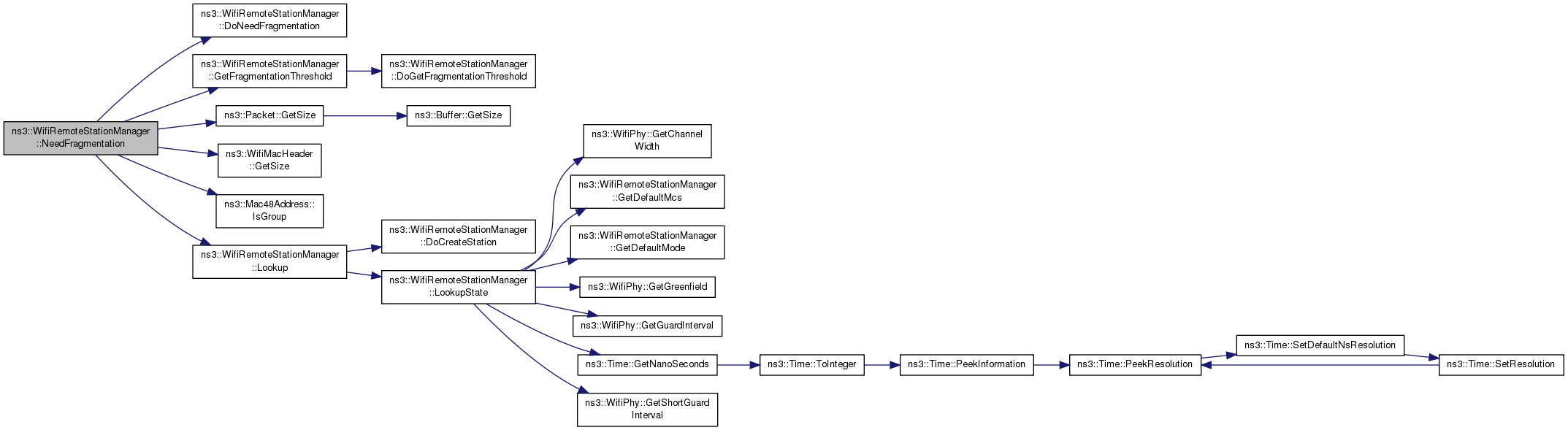

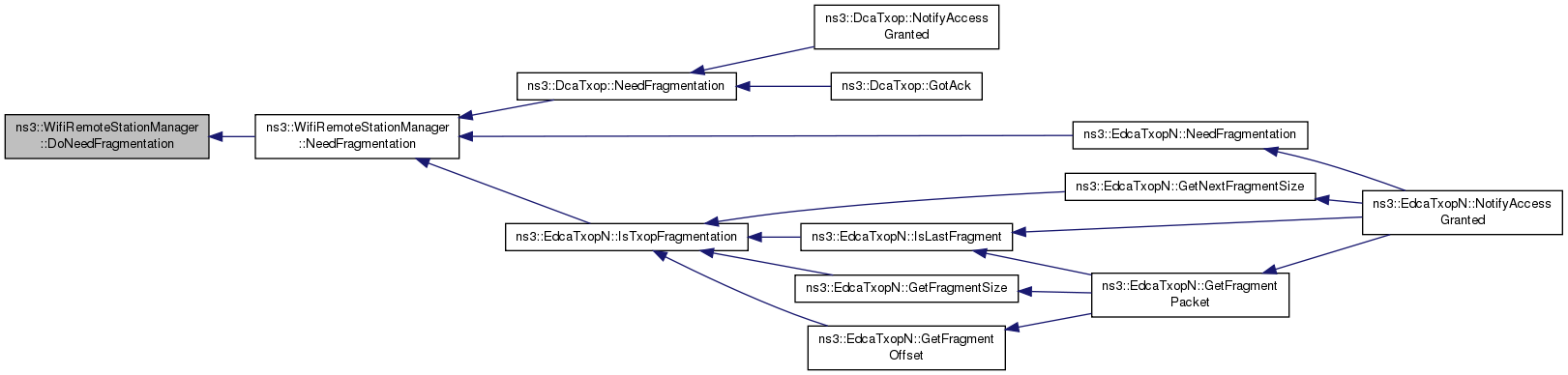

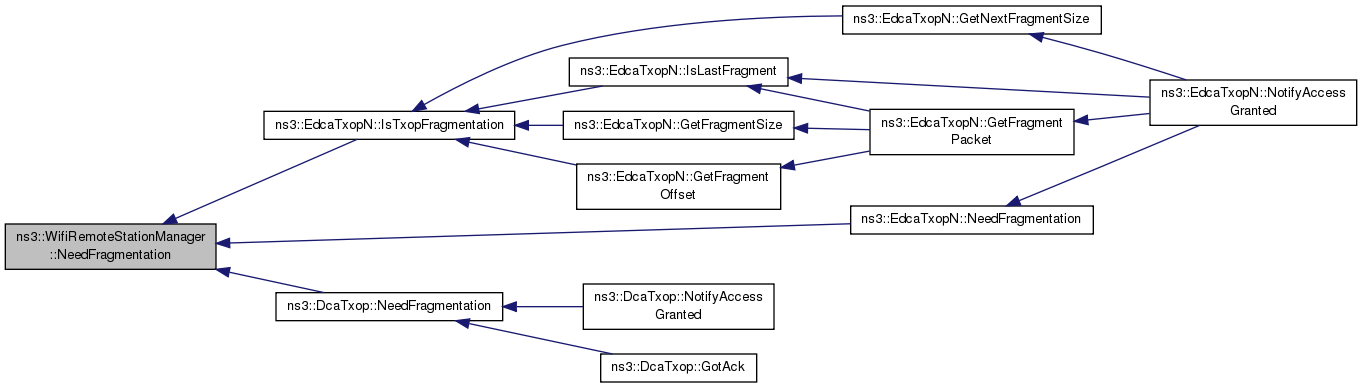

bool NeedFragmentation (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

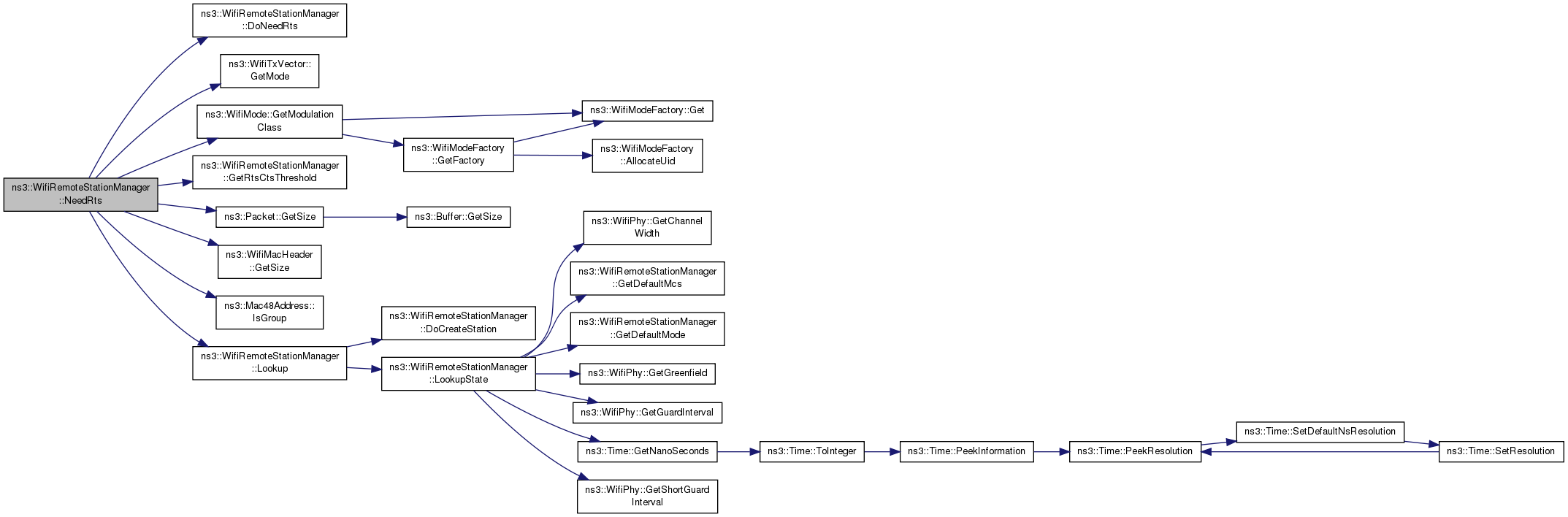

bool NeedRts (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, WifiTxVector txVector)

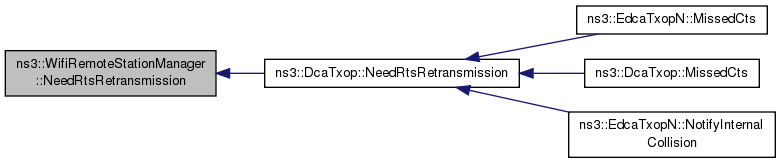

bool NeedRtsRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

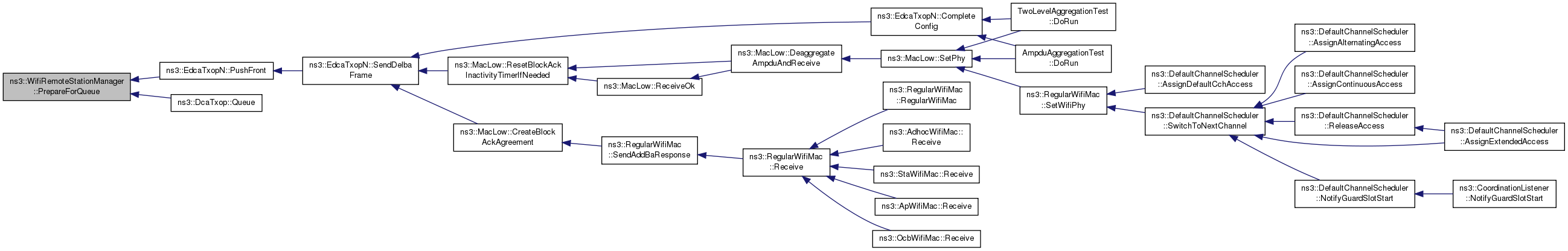

void PrepareForQueue (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

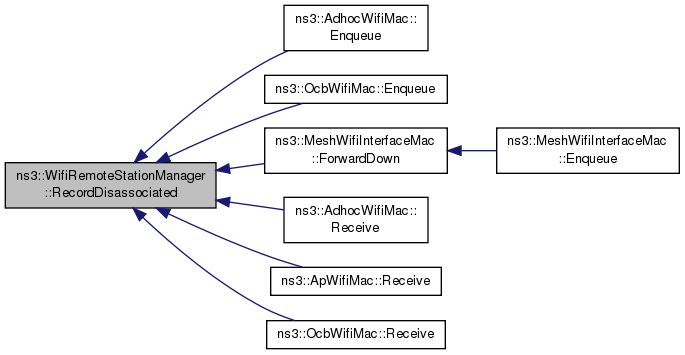

void RecordDisassociated (Mac48Address address)
 Records that the STA was disassociated. More...

void RecordGotAssocTxFailed (Mac48Address address)
 Records that we missed an ACK for the association response we sent. More...

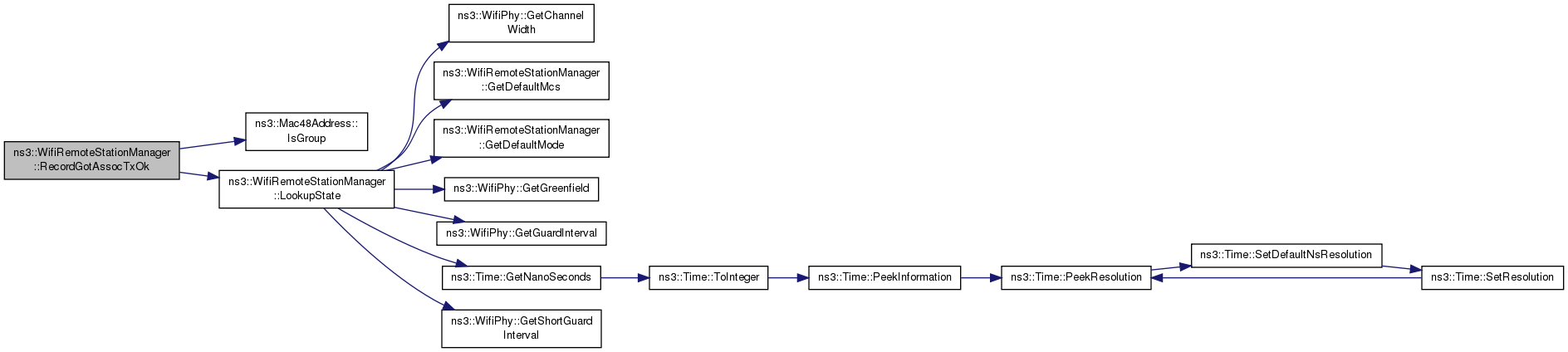

void RecordGotAssocTxOk (Mac48Address address)
 Records that we got an ACK for the association response we sent. More...

void RecordWaitAssocTxOk (Mac48Address address)
 Records that we are waiting for an ACK for the association response we sent. More...

void RemoveAllSupportedMcs (Mac48Address address)
 Invoked in a STA or AP to delete all of the suppported MCS by a destination. More...

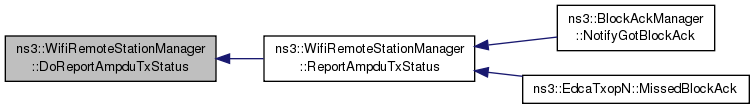

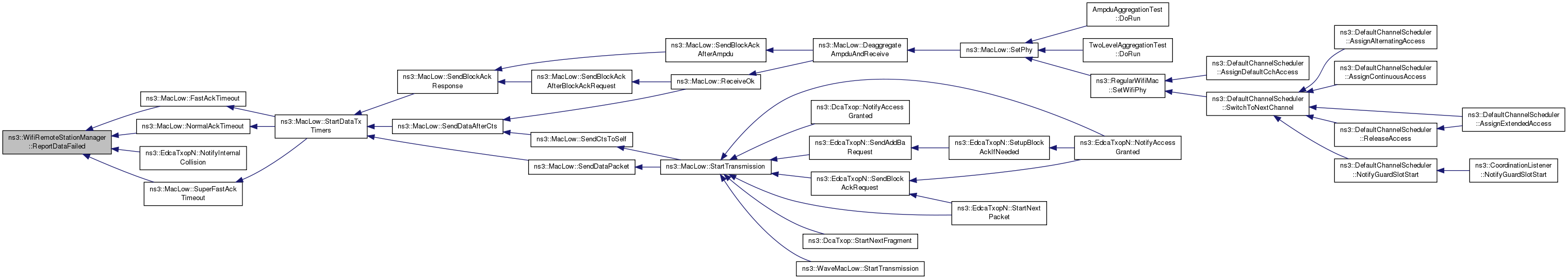

void ReportAmpduTxStatus (Mac48Address address, uint8_t tid, uint8_t nSuccessfulMpdus, uint8_t nFailedMpdus, double rxSnr, double dataSnr)
 Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed. More...

void ReportDataFailed (Mac48Address address, const WifiMacHeader *header)
 Should be invoked whenever the AckTimeout associated to a transmission attempt expires. More...

void ReportDataOk (Mac48Address address, const WifiMacHeader *header, double ackSnr, WifiMode ackMode, double dataSnr)
 Should be invoked whenever we receive the Ack associated to a data packet we just sent. More...

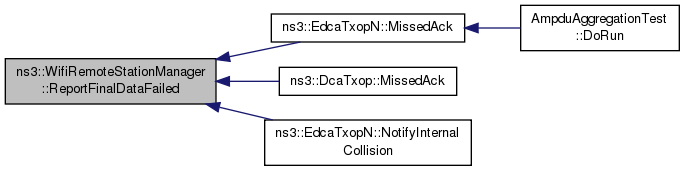

void ReportFinalDataFailed (Mac48Address address, const WifiMacHeader *header)
 Should be invoked after calling ReportDataFailed if NeedDataRetransmission returns false. More...

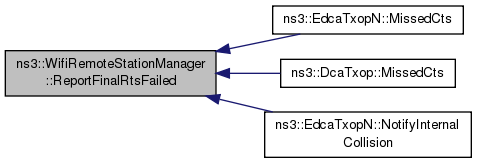

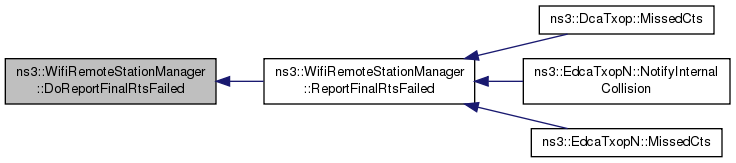

void ReportFinalRtsFailed (Mac48Address address, const WifiMacHeader *header)
 Should be invoked after calling ReportRtsFailed if NeedRtsRetransmission returns false. More...

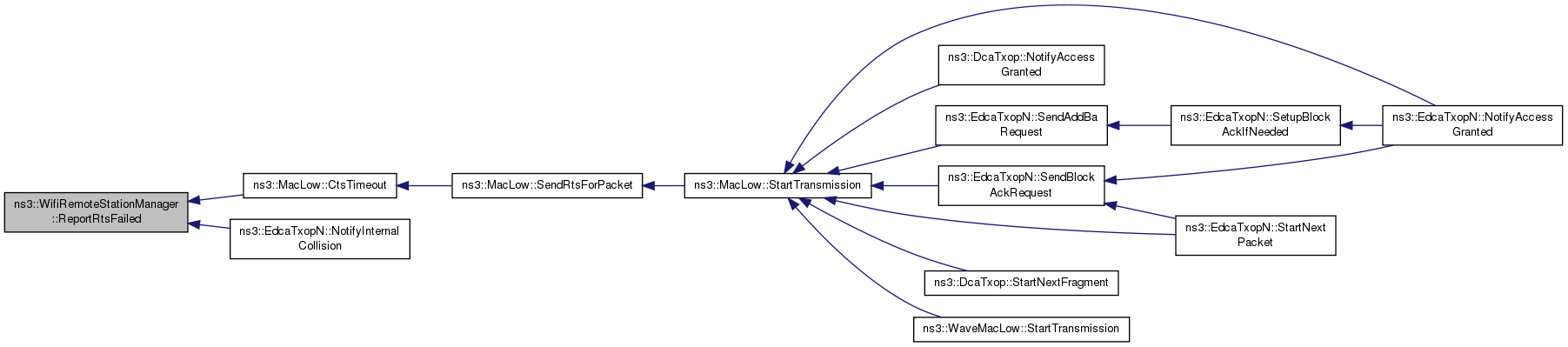

void ReportRtsFailed (Mac48Address address, const WifiMacHeader *header)
 Should be invoked whenever the RtsTimeout associated to a transmission attempt expires. More...

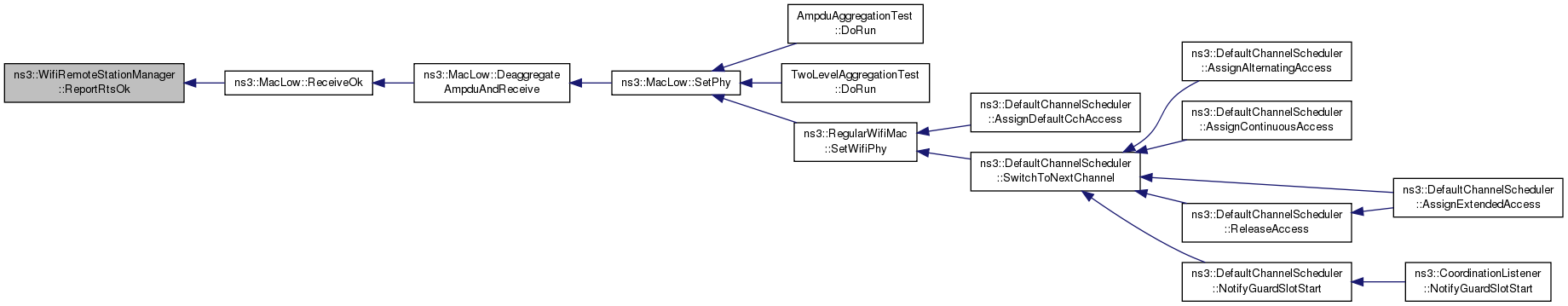

void ReportRtsOk (Mac48Address address, const WifiMacHeader *header, double ctsSnr, WifiMode ctsMode, double rtsSnr)
 Should be invoked whenever we receive the Cts associated to an RTS we just sent. More...

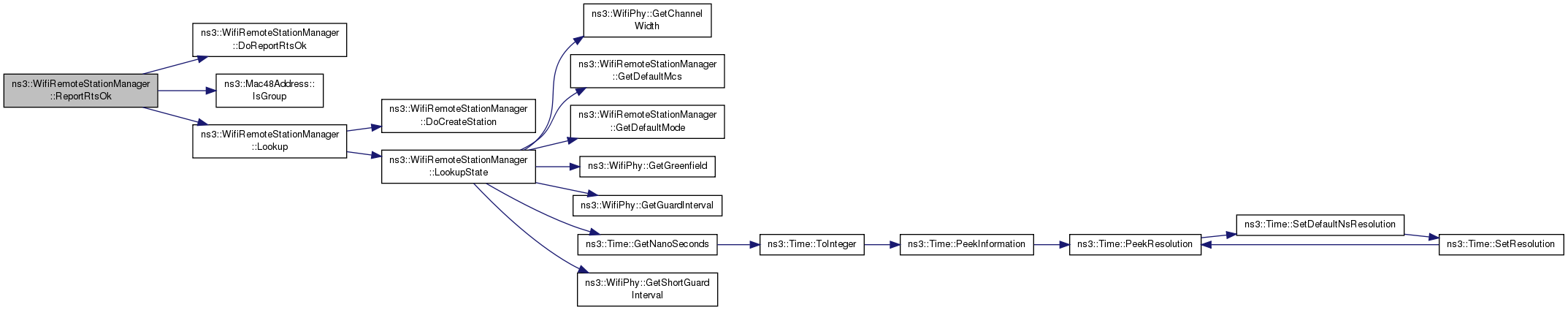

void ReportRxOk (Mac48Address address, const WifiMacHeader *header, double rxSnr, WifiMode txMode)

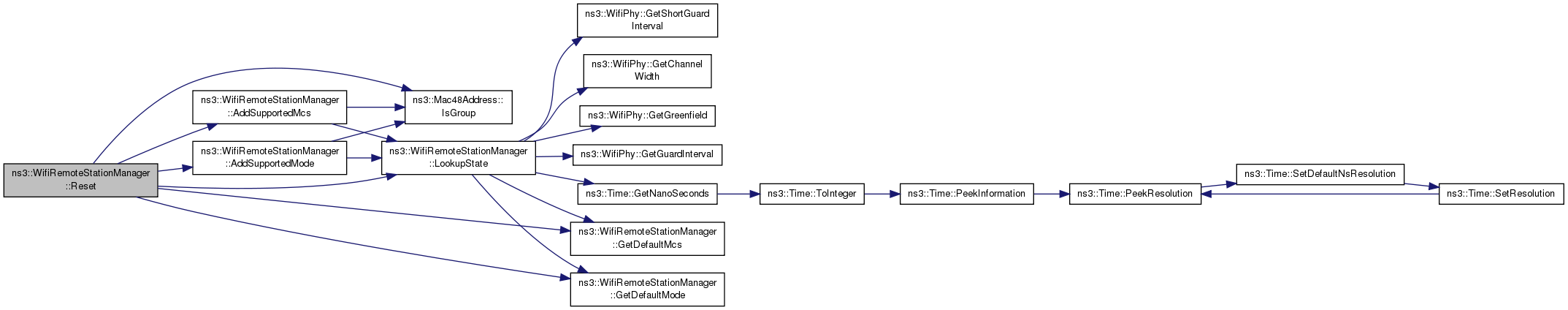

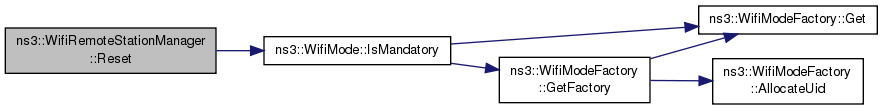

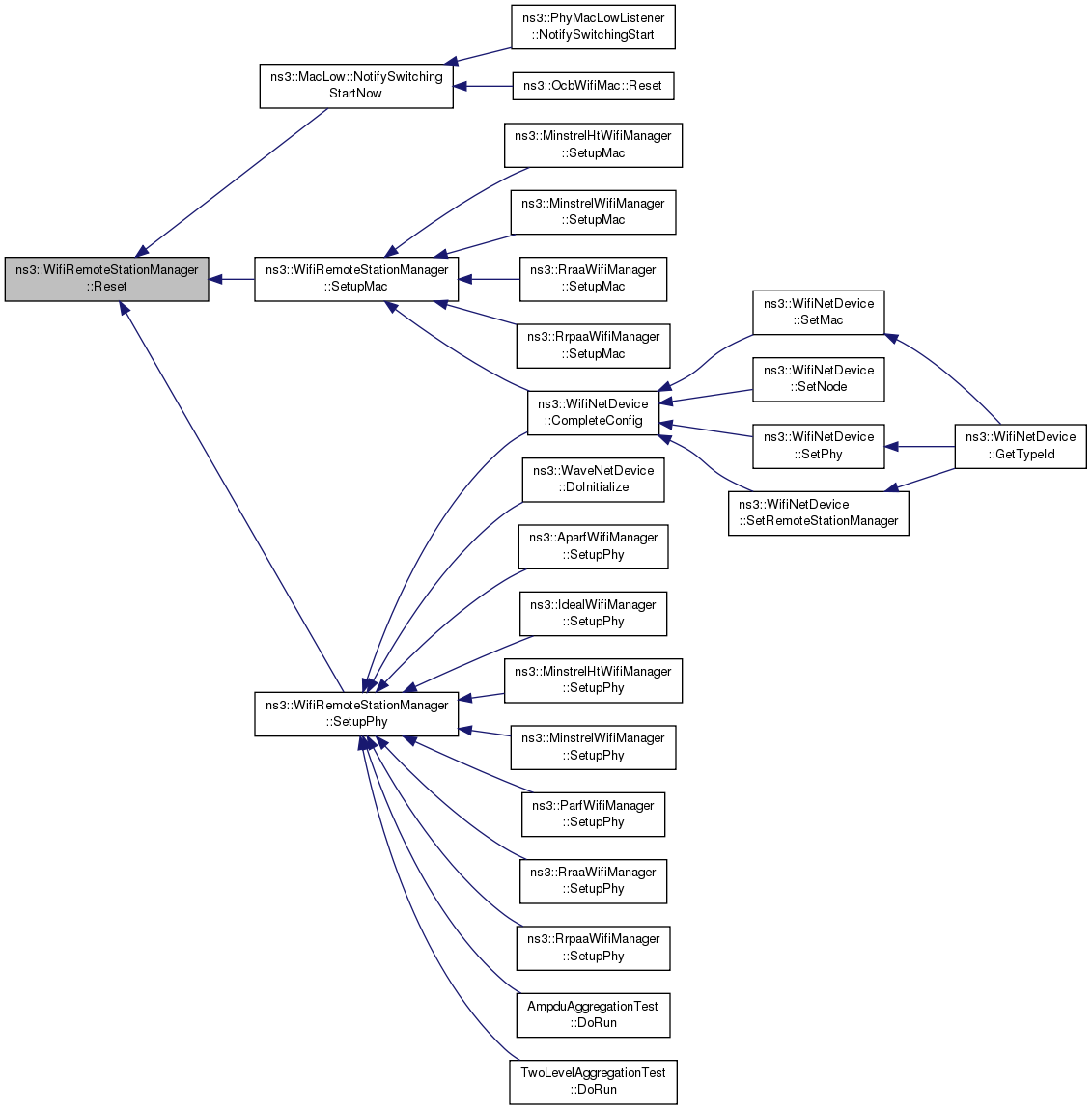

void Reset (void)
 Reset the station, invoked in a STA upon dis-association or in an AP upon reboot. More...

void Reset (Mac48Address address)
 Invoked in an AP upon disassociation of a specific STA. More...

void SetDefaultTxPowerLevel (uint8_t txPower)
 Set the default transmission power level. More...

void SetErpProtectionMode (ProtectionMode mode)
 Sets the ERP protection mode. More...

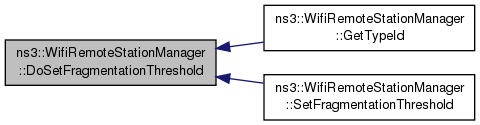

void SetFragmentationThreshold (uint32_t threshold)
 Sets a fragmentation threshold. More...

virtual void SetHeSupported (bool enable)
 Enable or disable HE capability support. More...

void SetHtProtectionMode (ProtectionMode mode)
 Sets the HT protection mode. More...

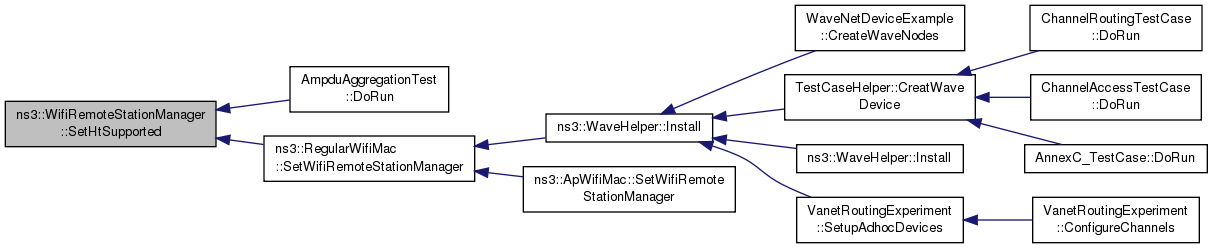

virtual void SetHtSupported (bool enable)
 Enable or disable HT capability support. More...

void SetMaxSlrc (uint32_t maxSlrc)
 Sets the maximum STA long retry count (SLRC). More...

void SetMaxSsrc (uint32_t maxSsrc)
 Sets the maximum STA short retry count (SSRC). More...

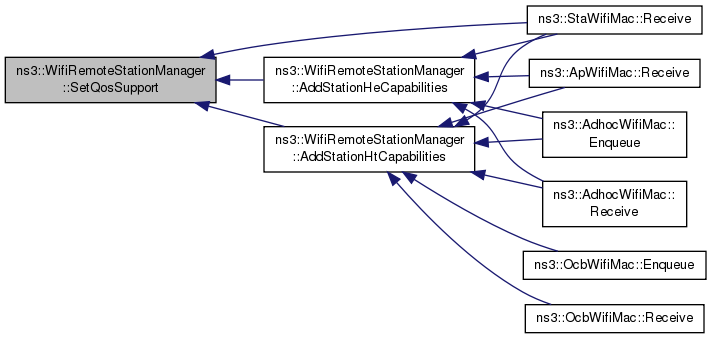

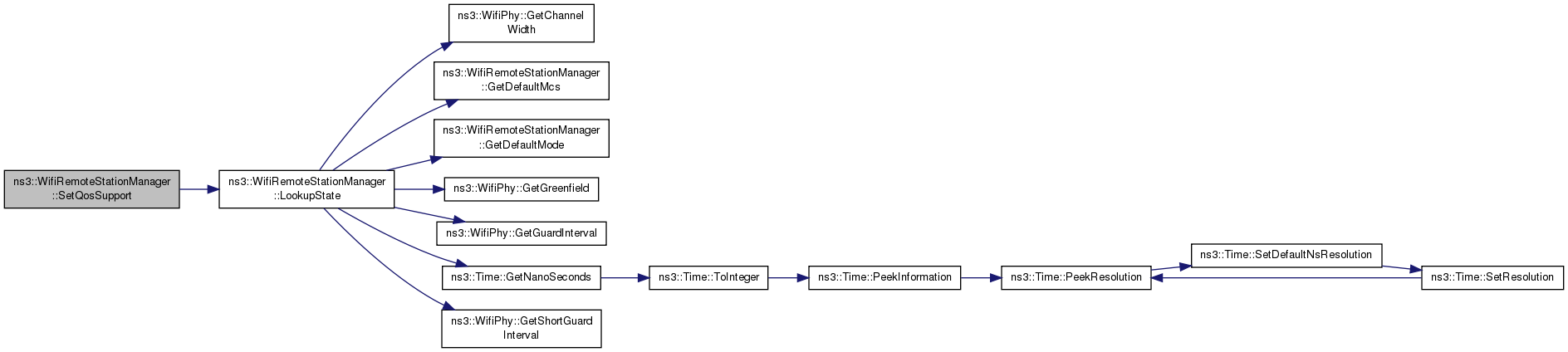

void SetQosSupport (Mac48Address from, bool qosSupported)
 Records QoS support of the remote station. More...

virtual void SetQosSupported (bool enable)
 Enable or disable QoS support. More...

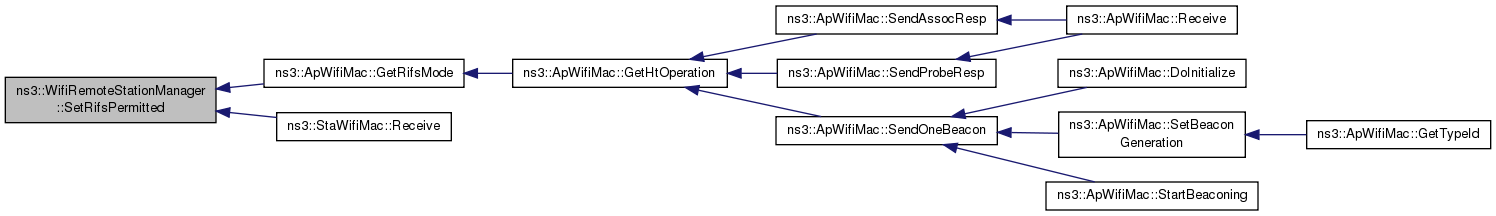

void SetRifsPermitted (bool allow)
 Permit or prohibit RIFS. More...

void SetRtsCtsThreshold (uint32_t threshold)
 Sets the RTS threshold. More...

void SetShortPreambleEnabled (bool enable)
 Enable or disable short PLCP preambles. More...

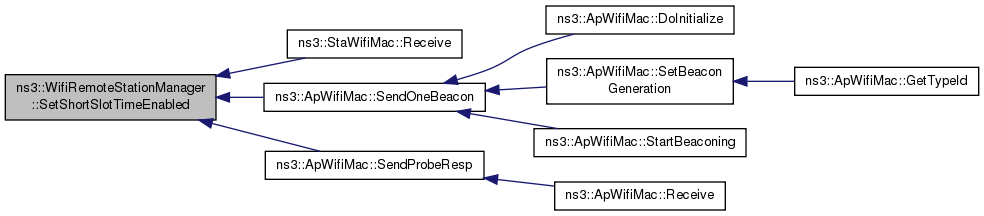

void SetShortSlotTimeEnabled (bool enable)
 Enable or disable short slot time. More...

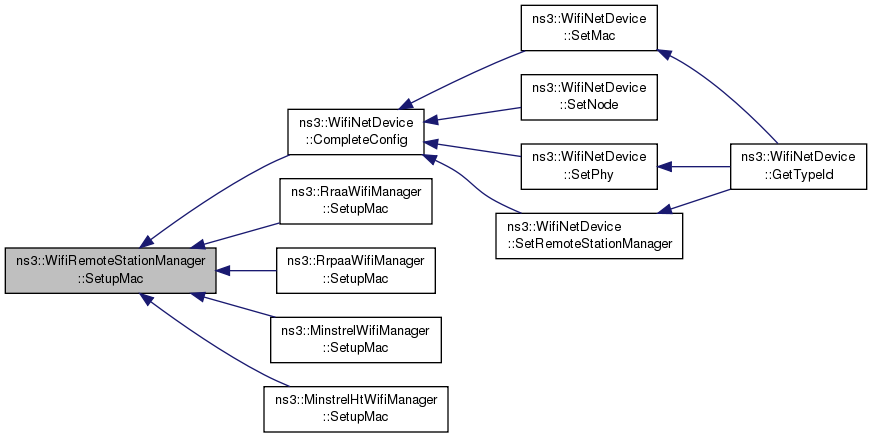

virtual void SetupMac (const Ptr< WifiMac > mac)
 Set up MAC associated with this device since it is the object that knows the full set of timing parameters (e.g. More...

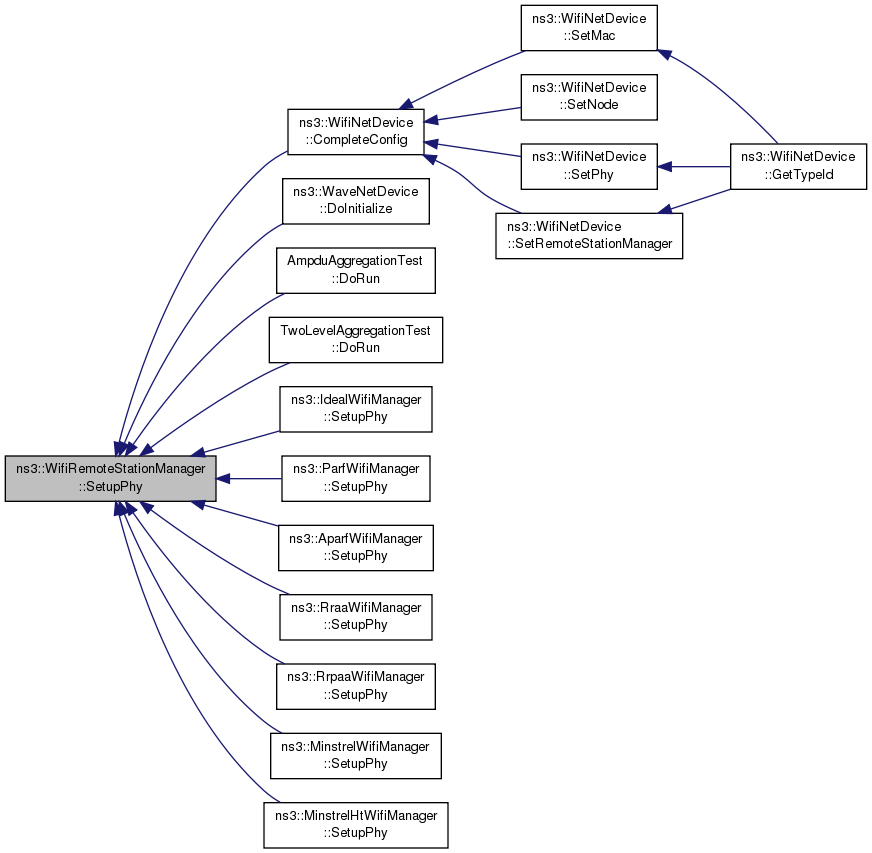

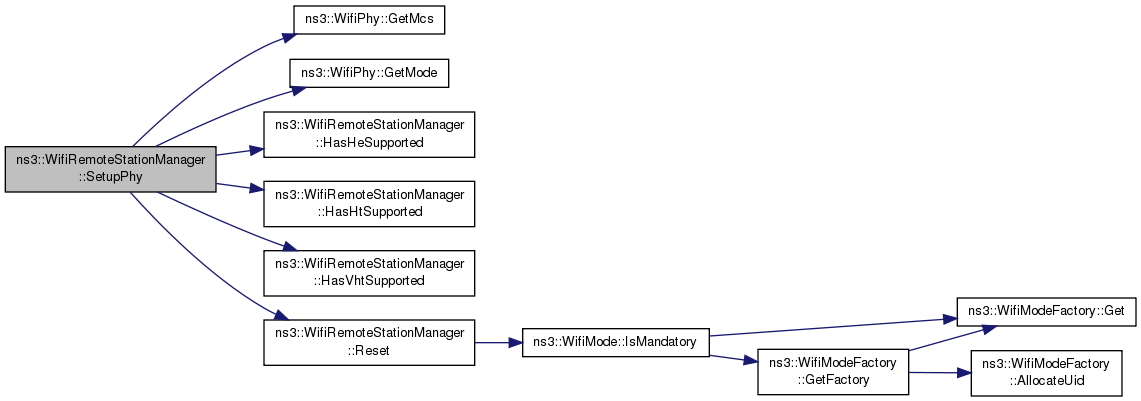

virtual void SetupPhy (const Ptr< WifiPhy > phy)
 Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported. More...

void SetUseGreenfieldProtection (bool enable)
 Enable or disable protection for stations that do not support HT greenfield format. More...

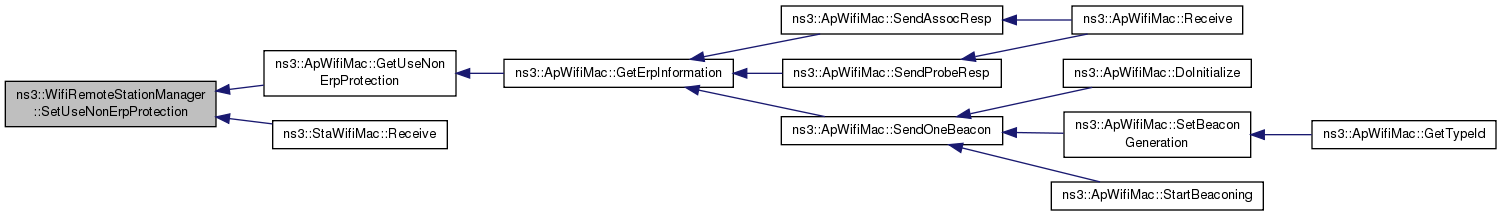

void SetUseNonErpProtection (bool enable)
 Enable or disable protection for non-ERP stations. More...

void SetUseNonHtProtection (bool enable)
 Enable or disable protection for non-HT stations. More...

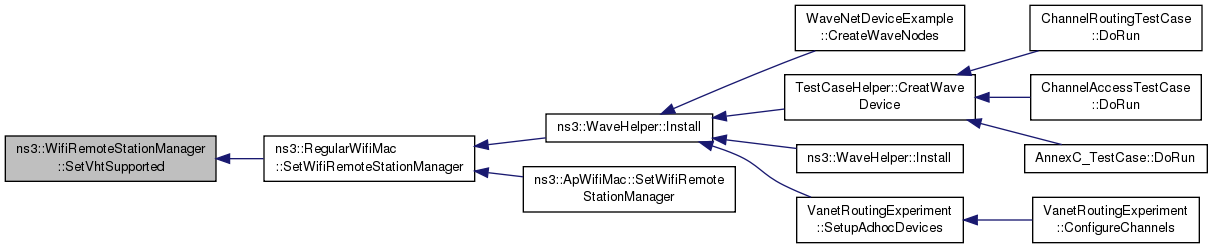

virtual void SetVhtSupported (bool enable)
 Enable or disable VHT capability support. More...

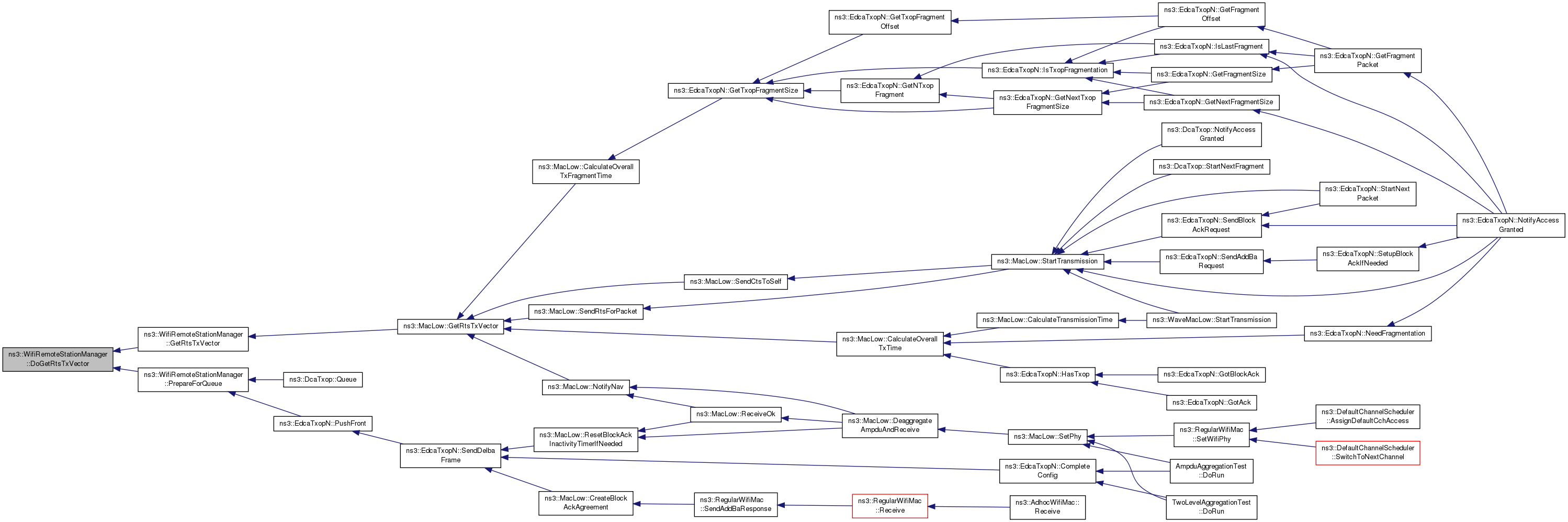

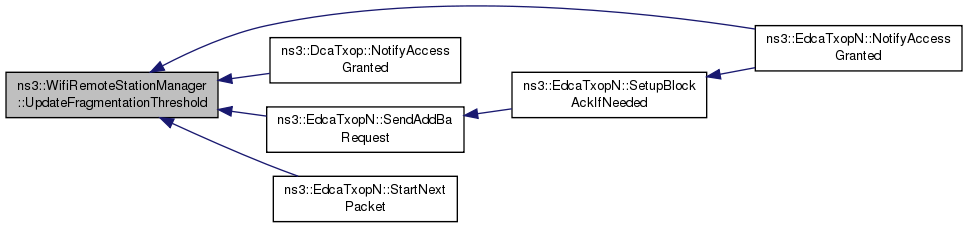

void UpdateFragmentationThreshold (void)
 Typically called to update the fragmentation threshold at the start of a new transmission. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoDispose (void)
 Destructor implementation. More...

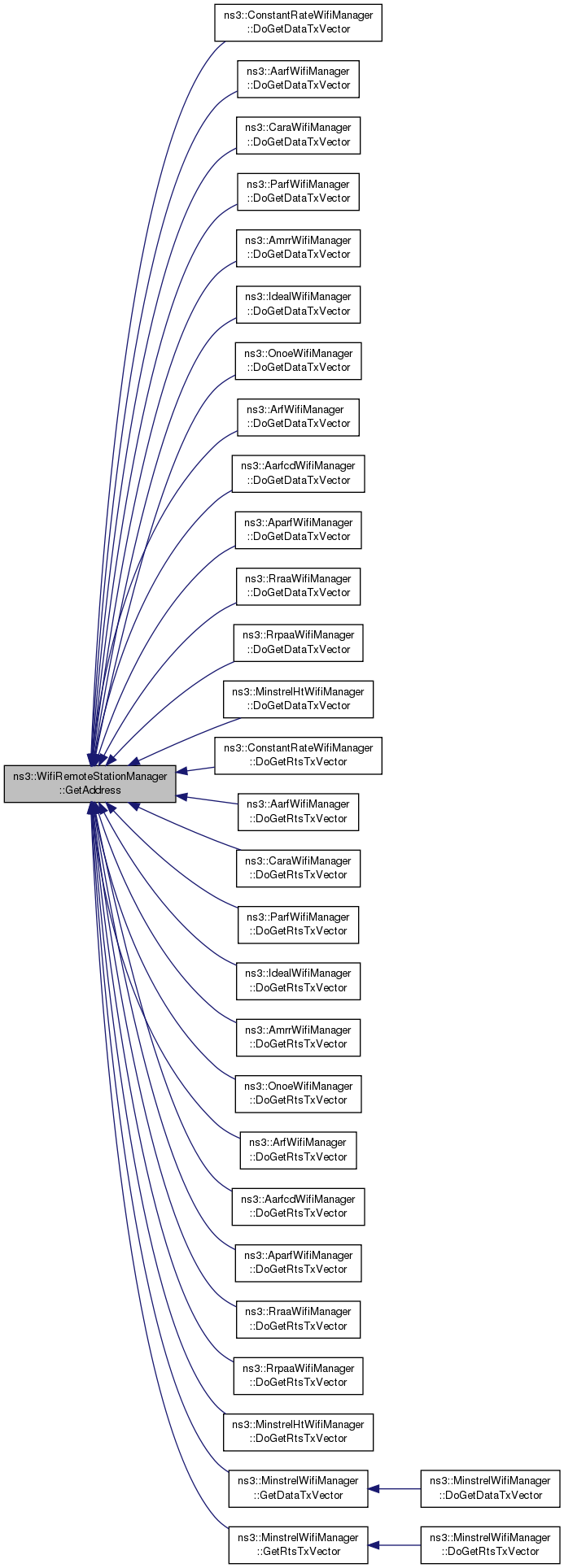

Mac48Address GetAddress (const WifiRemoteStation *station) const
 Return the address of the station. More...

bool GetAggregation (const WifiRemoteStation *station) const
 Return whether the given station supports A-MPDU. More...

uint8_t GetChannelWidth (const WifiRemoteStation *station) const
 Return the channel width supported by the station. More...

bool GetGreenfield (const WifiRemoteStation *station) const
 Return whether the station supports Greenfield or not. More...

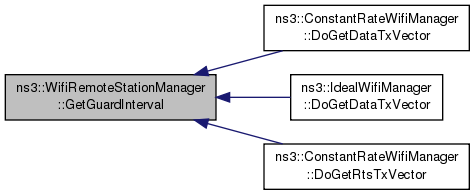

uint16_t GetGuardInterval (const WifiRemoteStation *station) const
 Return the HE guard interval duration supported by the station. More...

bool GetHeSupported (const WifiRemoteStation *station) const
 Return whether the given station is HE capable. More...

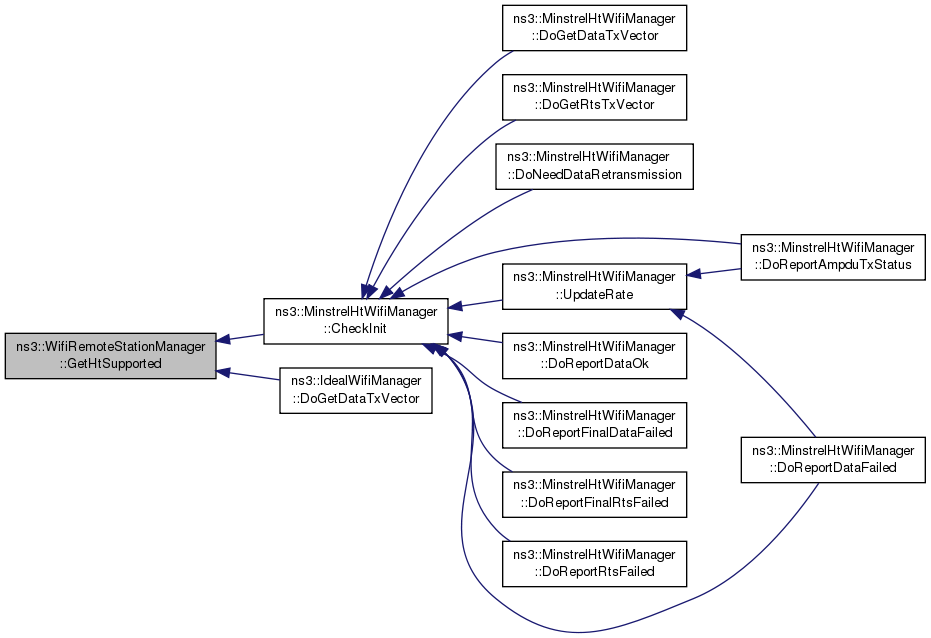

bool GetHtSupported (const WifiRemoteStation *station) const
 Return whether the given station is HT capable. More...

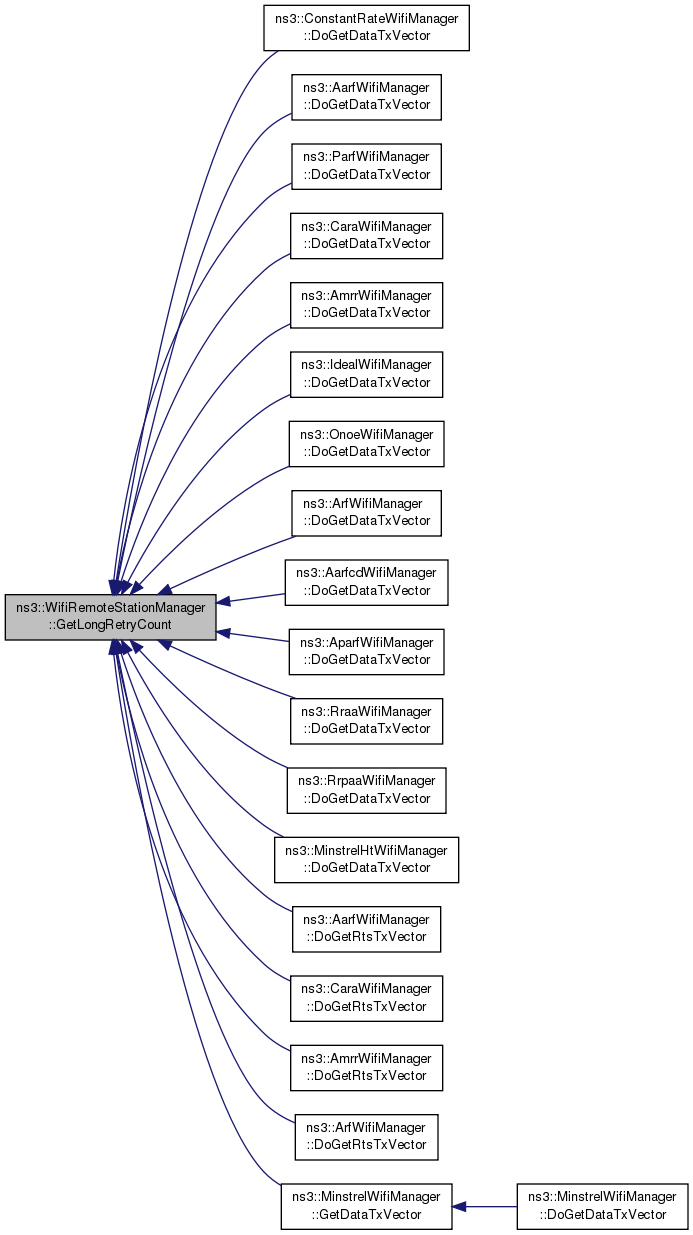

uint32_t GetLongRetryCount (const WifiRemoteStation *station) const
 Return the long retry limit of the given station. More...

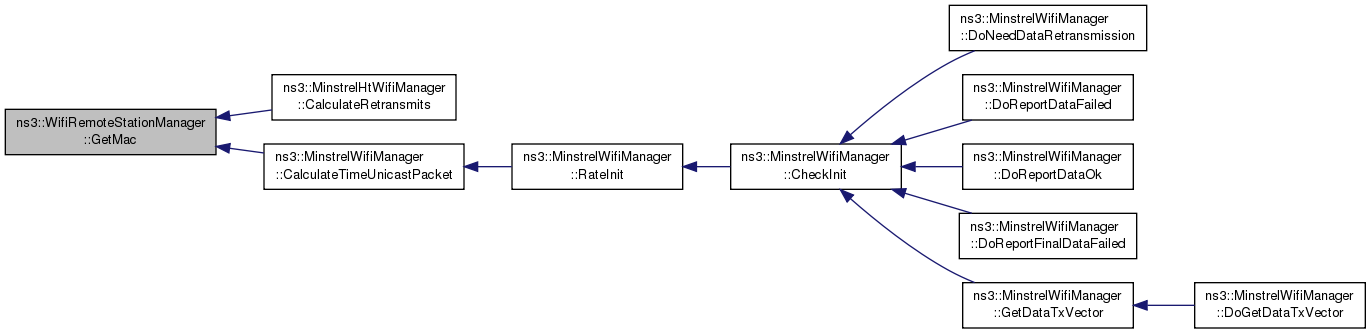

Ptr< WifiMacGetMac (void) const
 Return the WifiMac. More...

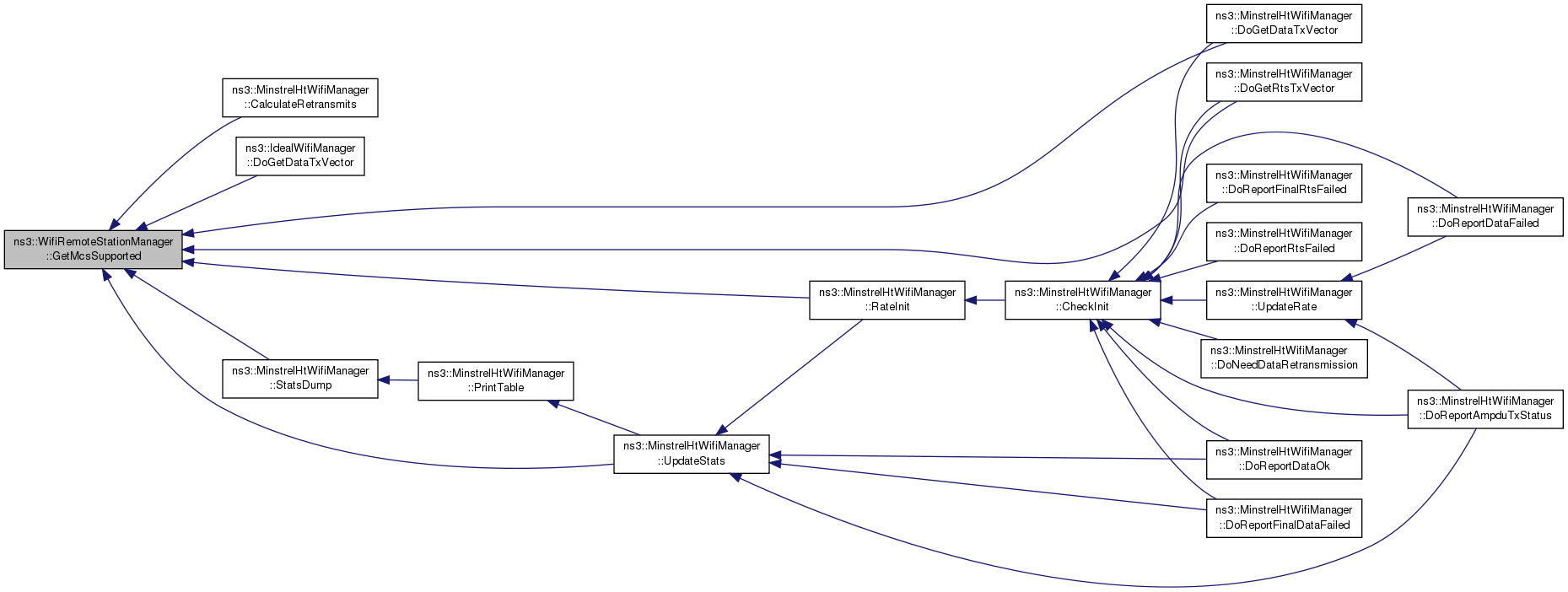

WifiMode GetMcsSupported (const WifiRemoteStation *station, uint32_t i) const
 Return the WifiMode supported by the specified station at the specified index. More...

uint32_t GetNess (const WifiRemoteStation *station) const

uint32_t GetNMcsSupported (const WifiRemoteStation *station) const
 Return the number of MCS supported by the given station. More...

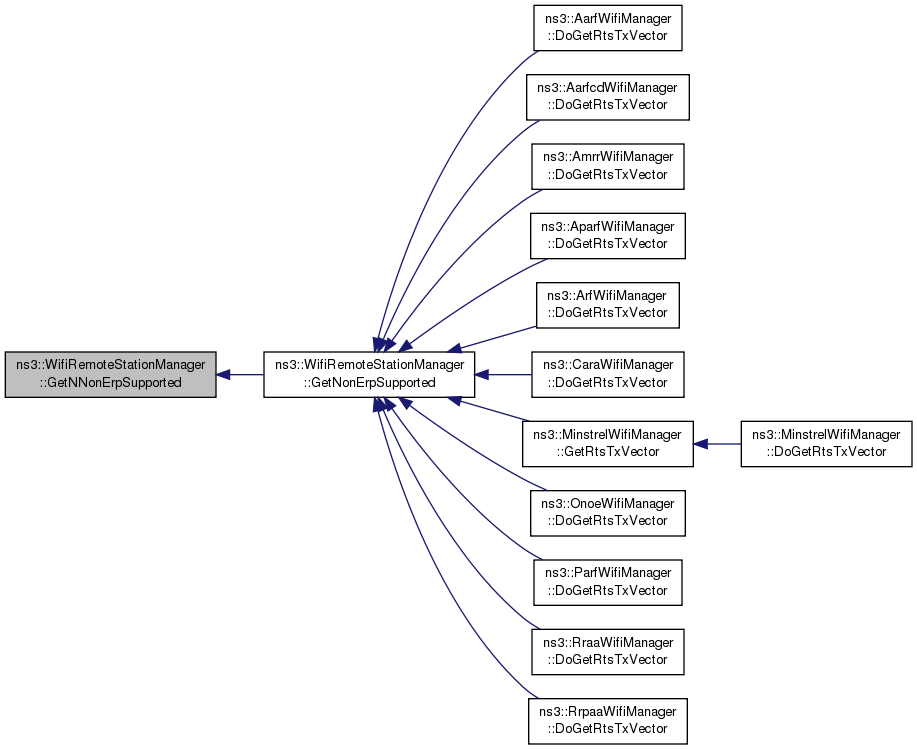

uint32_t GetNNonErpSupported (const WifiRemoteStation *station) const
 Return the number of non-ERP modes supported by the given station. More...

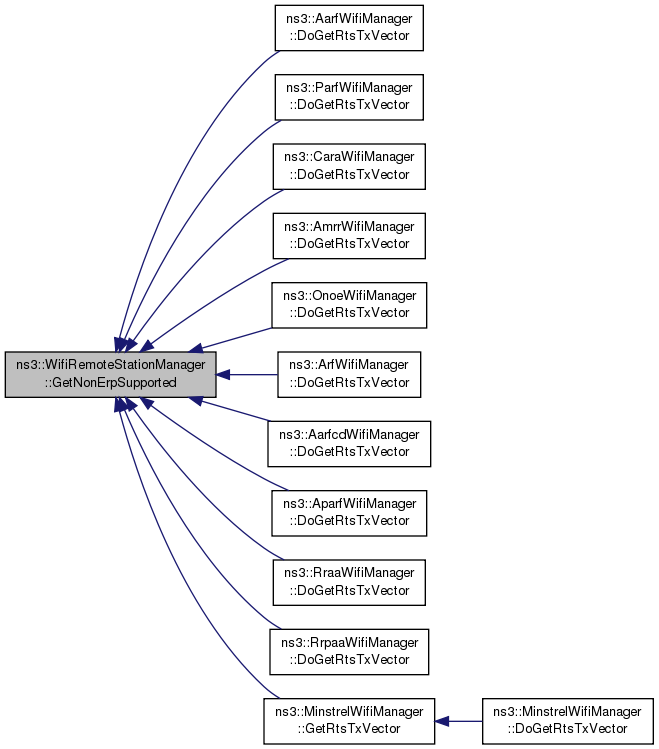

WifiMode GetNonErpSupported (const WifiRemoteStation *station, uint32_t i) const
 Return whether non-ERP mode associated with the specified station at the specified index. More...

uint32_t GetNSupported (const WifiRemoteStation *station) const
 Return the number of modes supported by the given station. More...

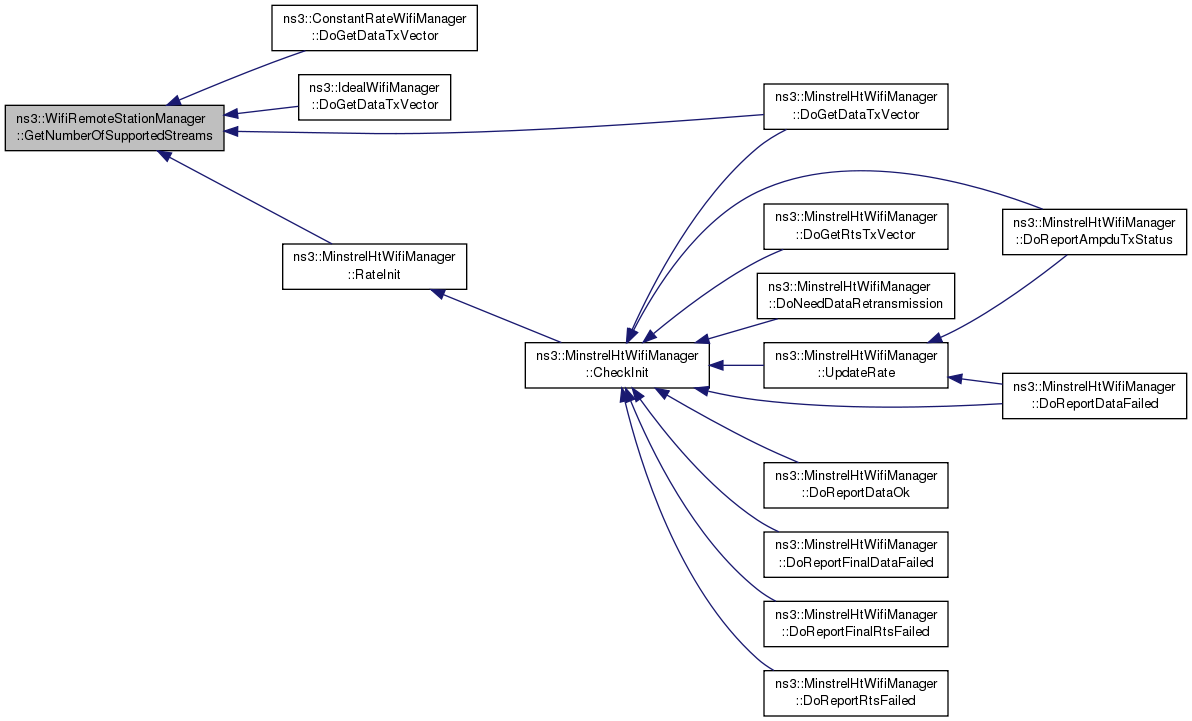

uint8_t GetNumberOfSupportedStreams (const WifiRemoteStation *station) const
 Return the number of supported streams the station has. More...

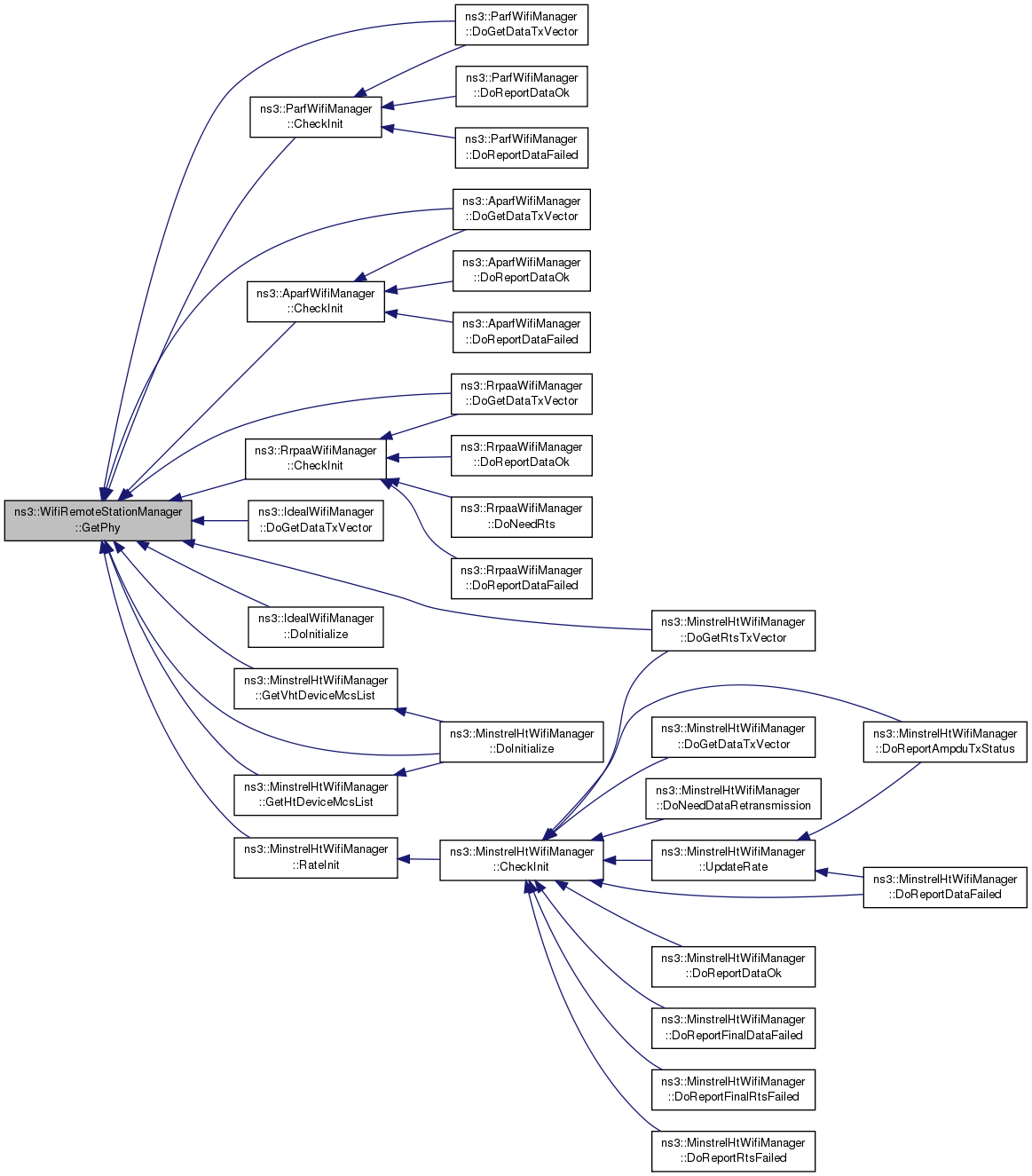

Ptr< WifiPhyGetPhy (void) const
 Return the WifiPhy. More...

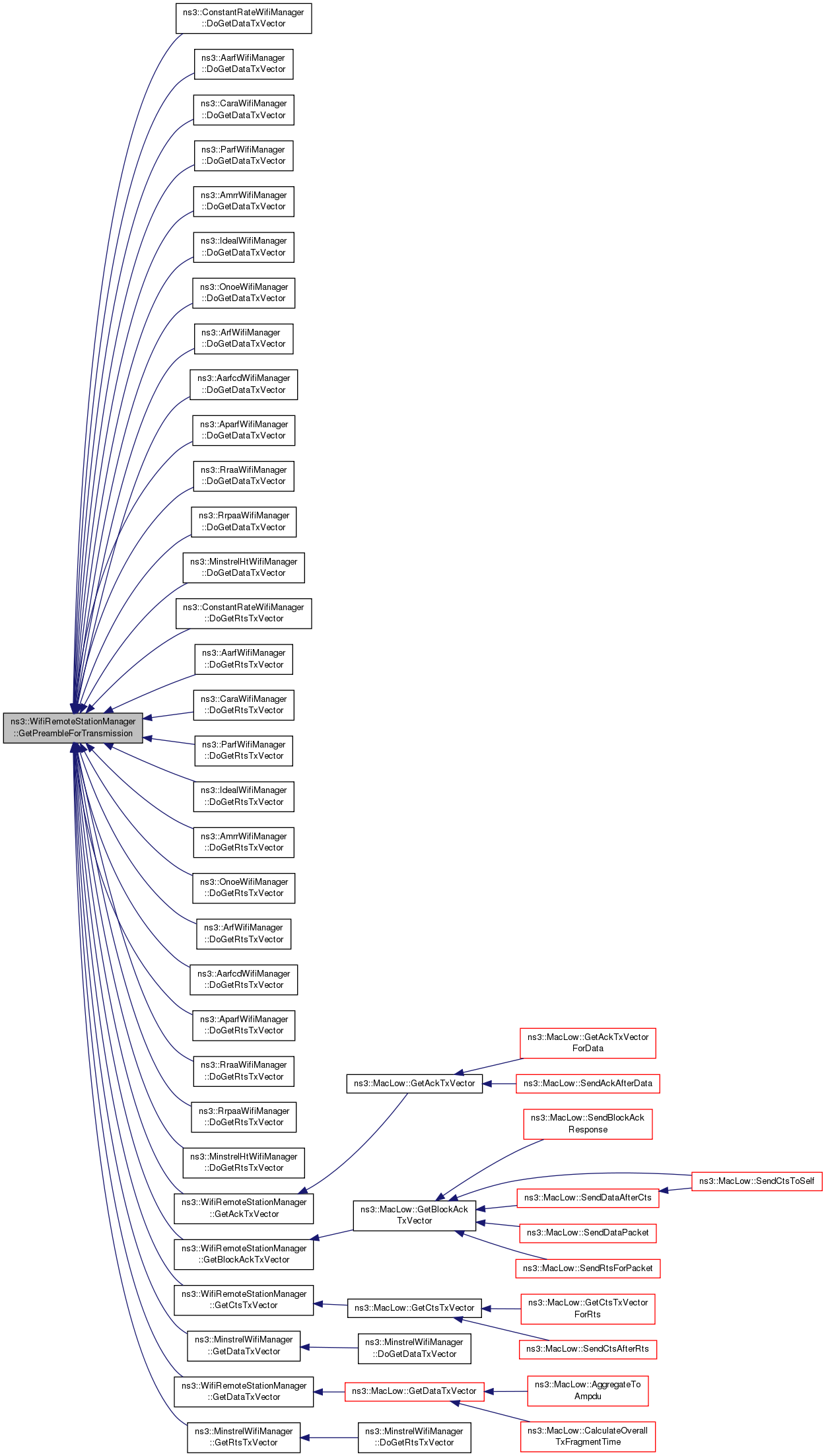

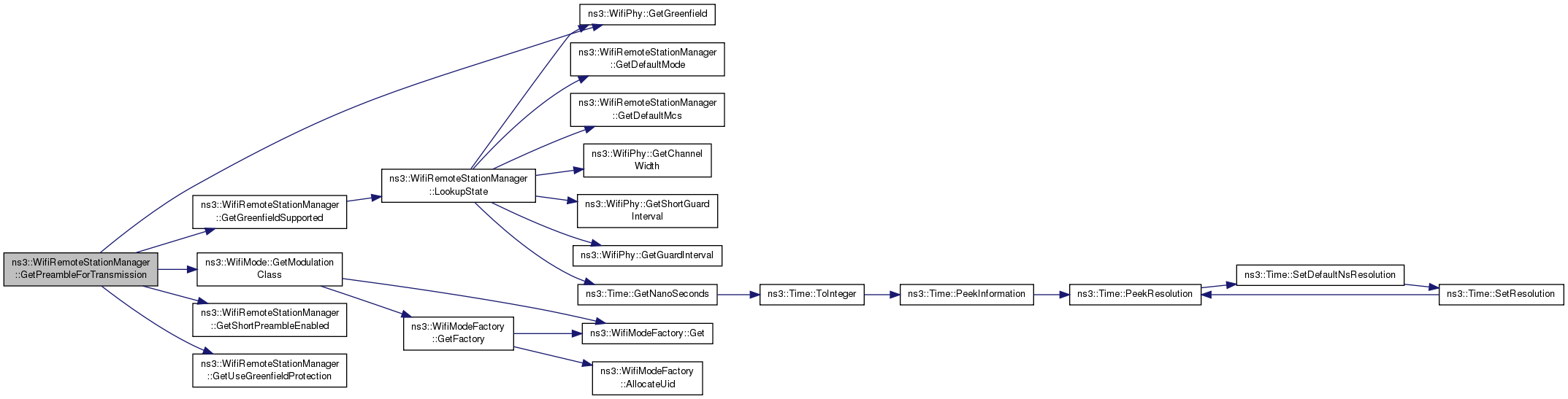

WifiPreamble GetPreambleForTransmission (WifiMode mode, Mac48Address dest)
 Return the preamble to be used for the transmission. More...

bool GetQosSupported (const WifiRemoteStation *station) const
 Return whether the given station is QoS capable. More...

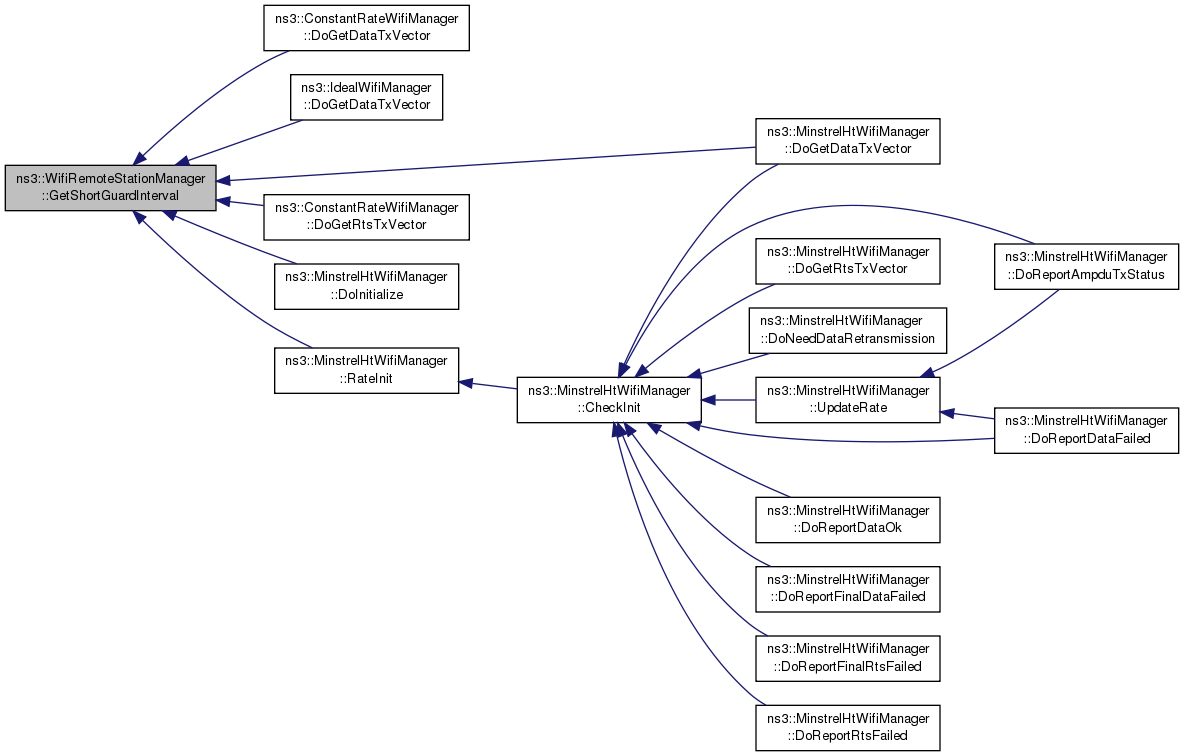

bool GetShortGuardInterval (const WifiRemoteStation *station) const
 Return whether the given station supports HT/VHT short guard interval. More...

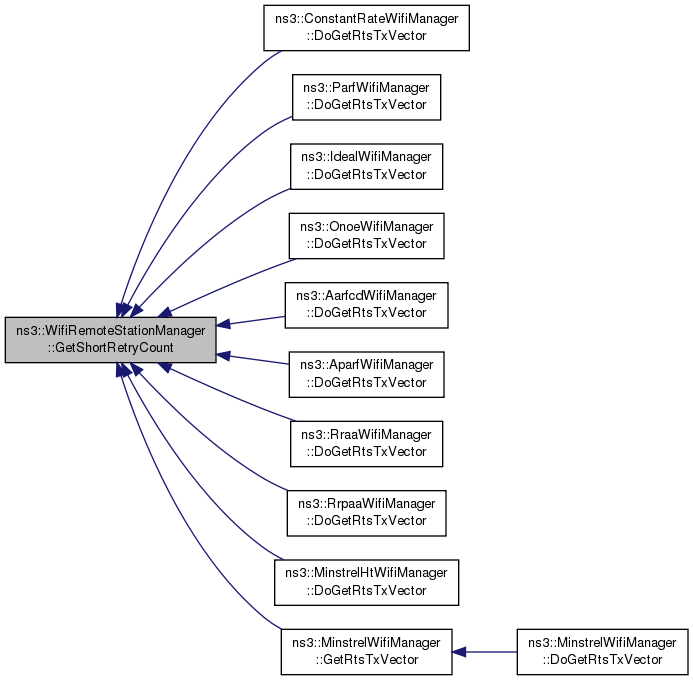

uint32_t GetShortRetryCount (const WifiRemoteStation *station) const
 Return the short retry limit of the given station. More...

bool GetStbc (const WifiRemoteStation *station) const
 Return whether the given station supports space-time block coding (STBC). More...

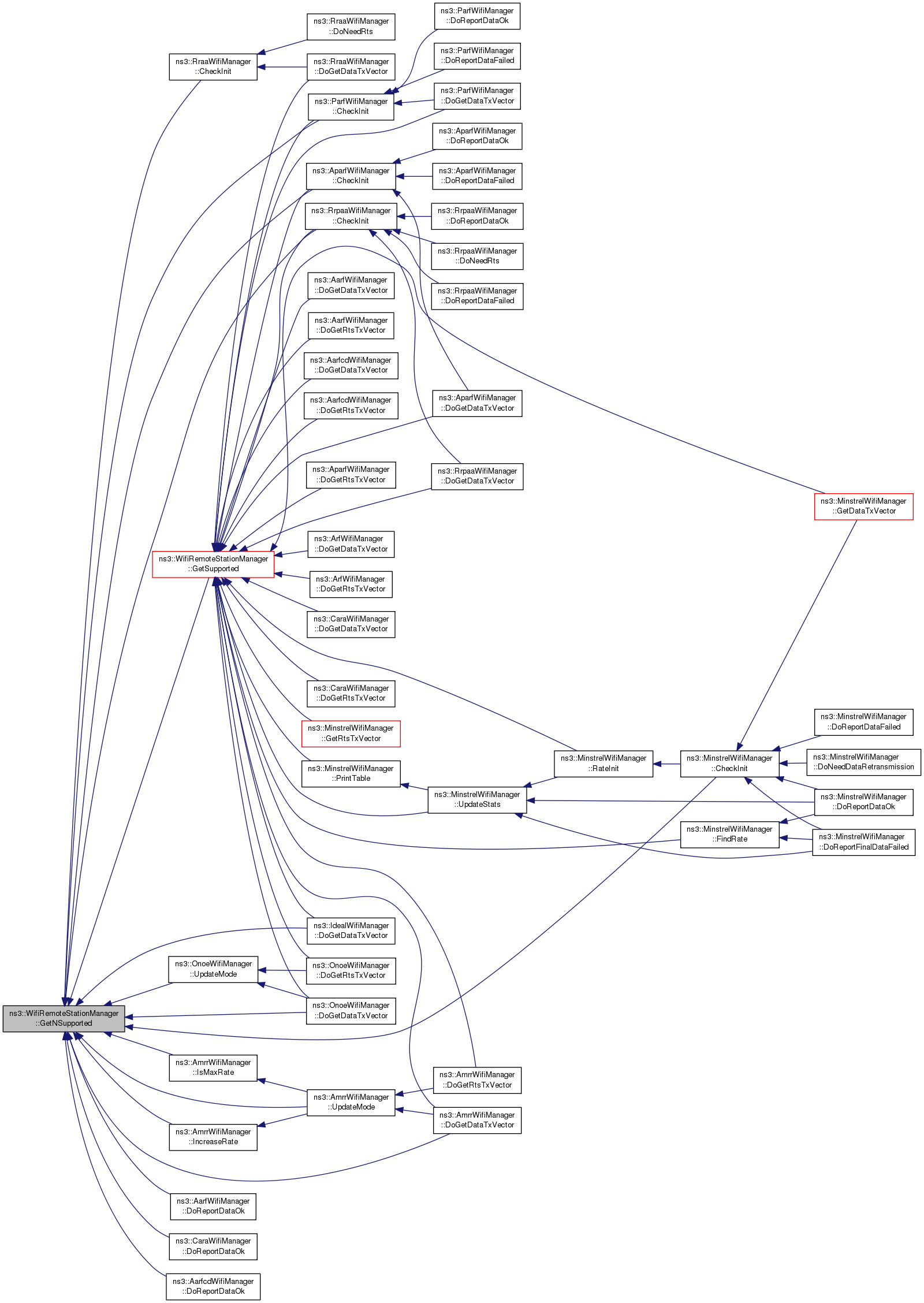

WifiMode GetSupported (const WifiRemoteStation *station, uint32_t i) const
 Return whether mode associated with the specified station at the specified index. More...

bool GetVhtSupported (const WifiRemoteStation *station) const
 Return whether the given station is VHT capable. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Types

typedef std::vector< WifiRemoteStation * > Stations
 A vector of WifiRemoteStations. More...

typedef std::vector< WifiRemoteStationState * > StationStates
 A vector of WifiRemoteStationStates. More...


Private Member Functions

virtual WifiRemoteStationDoCreateStation (void) const =0

virtual uint8_t DoGetAckTxChannelWidth (Mac48Address address, WifiMode ctsMode)

virtual uint16_t DoGetAckTxGuardInterval (Mac48Address address, WifiMode ackMode)

virtual uint8_t DoGetAckTxNess (Mac48Address address, WifiMode ackMode)

virtual uint8_t DoGetAckTxNss (Mac48Address address, WifiMode ackMode)

virtual uint8_t DoGetAckTxPowerLevel (Mac48Address address, WifiMode ackMode)

virtual bool DoGetAckTxStbc (Mac48Address address, WifiMode ackMode)

virtual uint8_t DoGetBlockAckTxChannelWidth (Mac48Address address, WifiMode ctsMode)

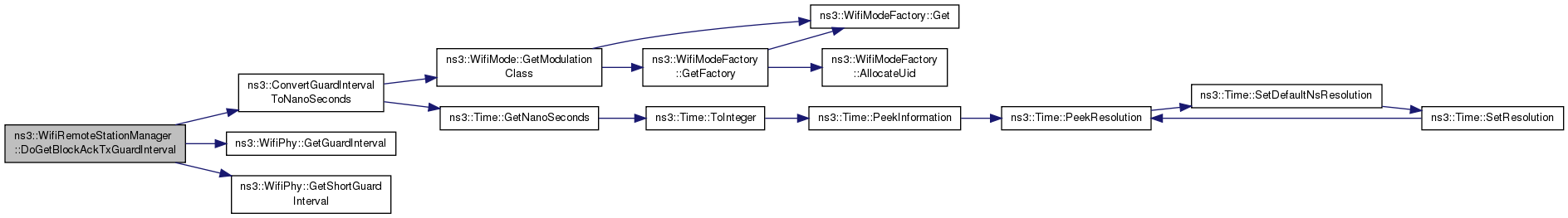

virtual uint16_t DoGetBlockAckTxGuardInterval (Mac48Address address, WifiMode blockAckMode)

virtual uint8_t DoGetBlockAckTxNess (Mac48Address address, WifiMode blockAckMode)

virtual uint8_t DoGetBlockAckTxNss (Mac48Address address, WifiMode blockAckMode)

virtual uint8_t DoGetBlockAckTxPowerLevel (Mac48Address address, WifiMode blockAckMode)

virtual bool DoGetBlockAckTxStbc (Mac48Address address, WifiMode blockAckMode)

virtual uint8_t DoGetCtsTxChannelWidth (Mac48Address address, WifiMode ctsMode)

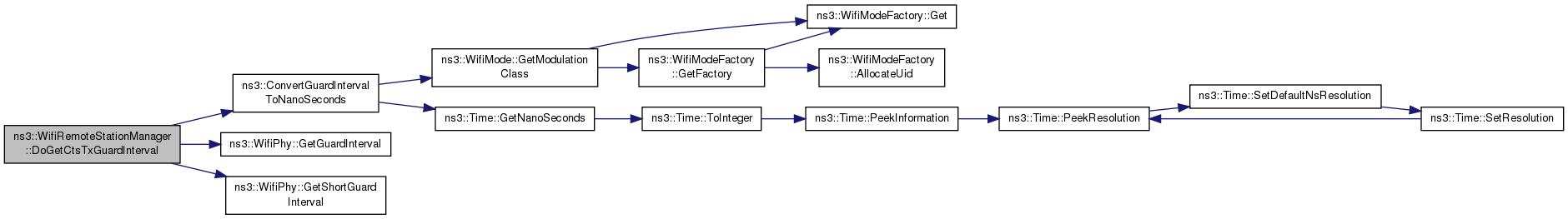

virtual uint16_t DoGetCtsTxGuardInterval (Mac48Address address, WifiMode ctsMode)

virtual uint8_t DoGetCtsTxNess (Mac48Address address, WifiMode ctsMode)

virtual uint8_t DoGetCtsTxNss (Mac48Address address, WifiMode ctsMode)

virtual uint8_t DoGetCtsTxPowerLevel (Mac48Address address, WifiMode ctsMode)

virtual bool DoGetCtsTxStbc (Mac48Address address, WifiMode ctsMode)

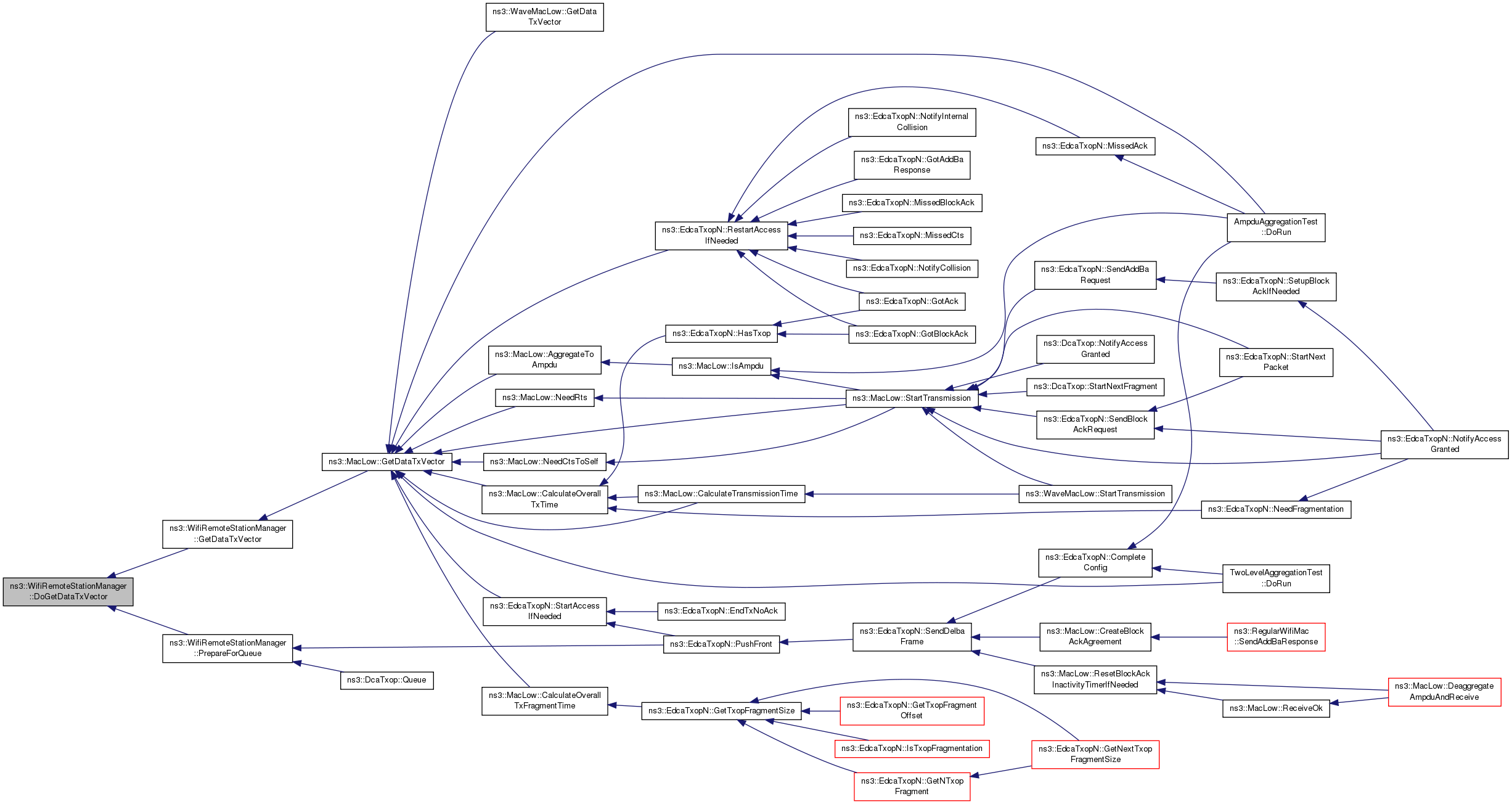

virtual WifiTxVector DoGetDataTxVector (WifiRemoteStation *station)=0

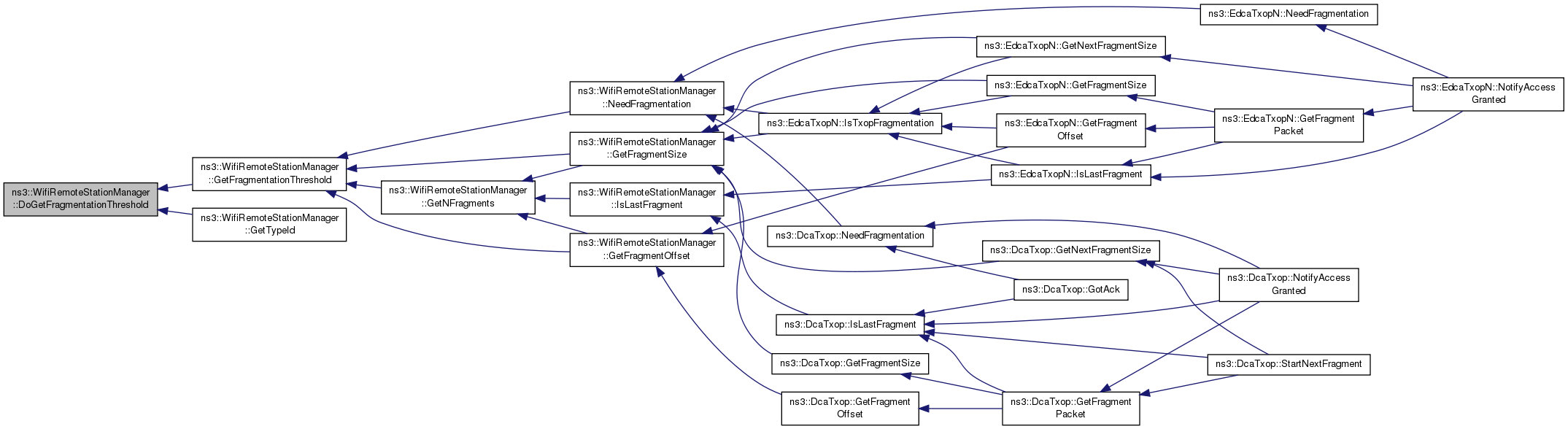

uint32_t DoGetFragmentationThreshold (void) const
 Return the current fragmentation threshold. More...

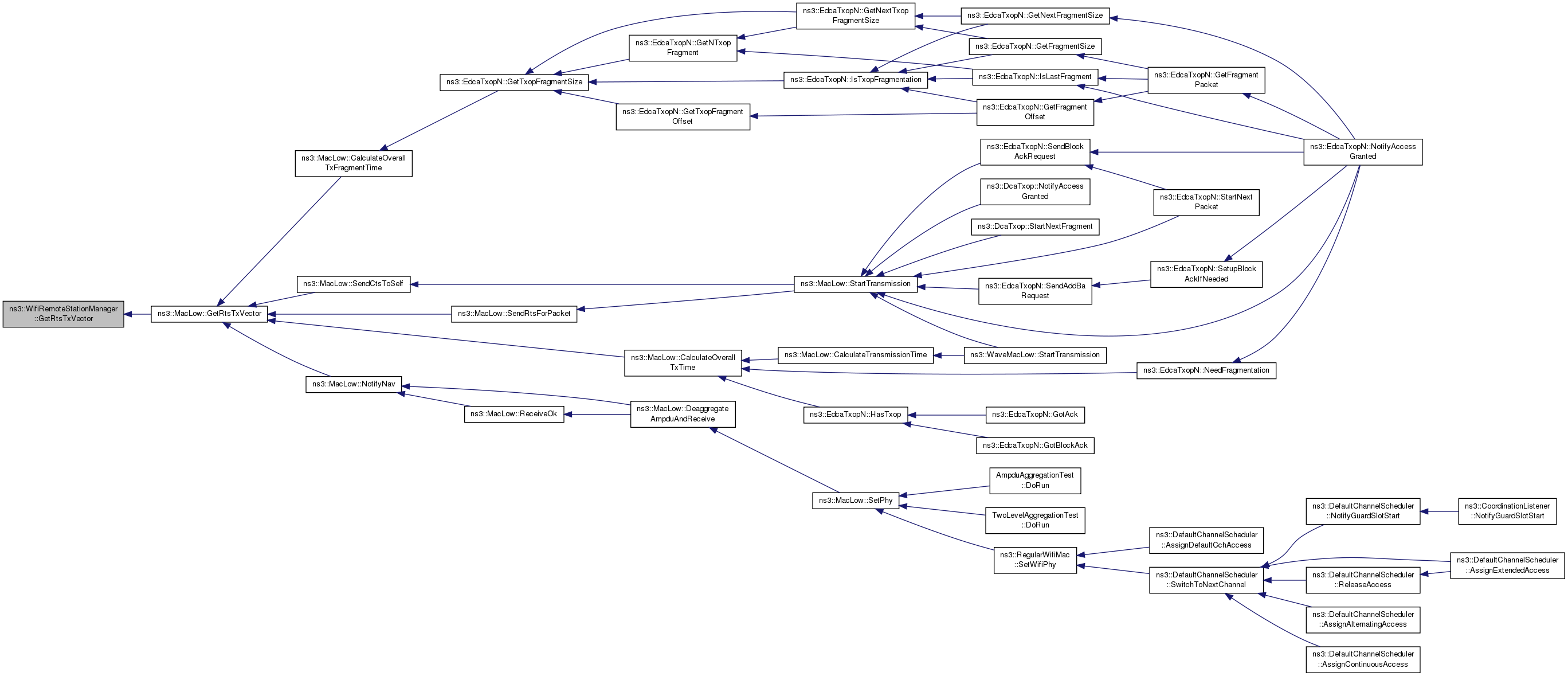

virtual WifiTxVector DoGetRtsTxVector (WifiRemoteStation *station)=0

virtual bool DoNeedDataRetransmission (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)

virtual bool DoNeedFragmentation (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)

virtual bool DoNeedRts (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)

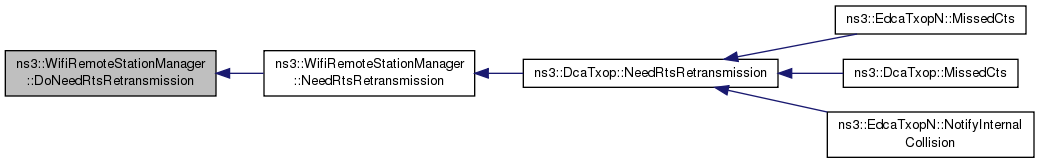

virtual bool DoNeedRtsRetransmission (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)

virtual void DoReportAmpduTxStatus (WifiRemoteStation *station, uint8_t nSuccessfulMpdus, uint8_t nFailedMpdus, double rxSnr, double dataSnr)
 Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed. More...

virtual void DoReportDataFailed (WifiRemoteStation *station)=0
 This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr)=0
 This method is a pure virtual method that must be implemented by the sub-class. More...

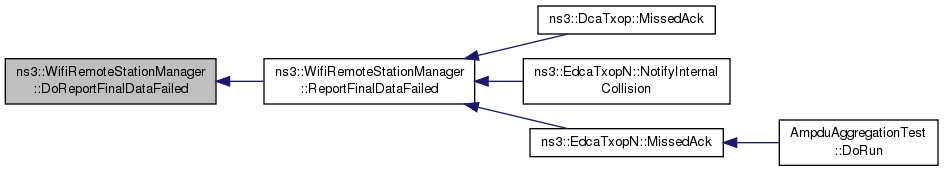

virtual void DoReportFinalDataFailed (WifiRemoteStation *station)=0
 This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void DoReportFinalRtsFailed (WifiRemoteStation *station)=0
 This method is a pure virtual method that must be implemented by the sub-class. More...

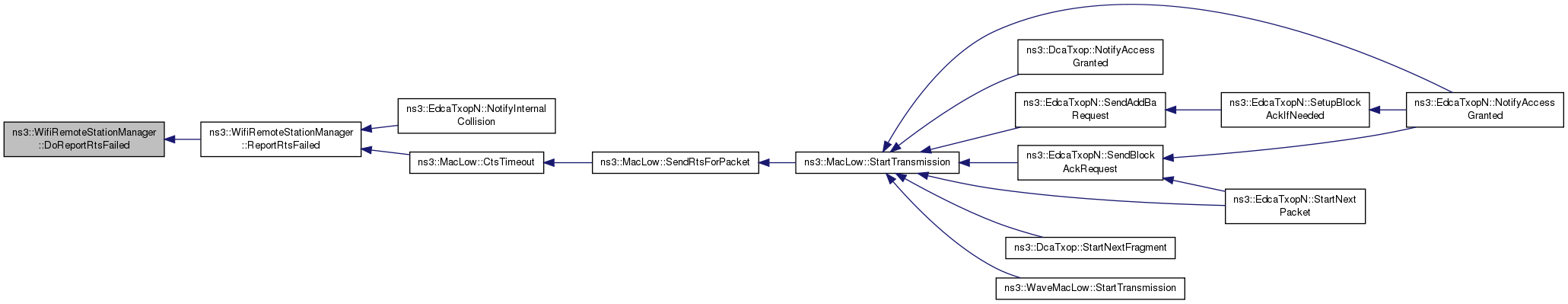

virtual void DoReportRtsFailed (WifiRemoteStation *station)=0
 This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)=0
 This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)=0
 This method is a pure virtual method that must be implemented by the sub-class. More...

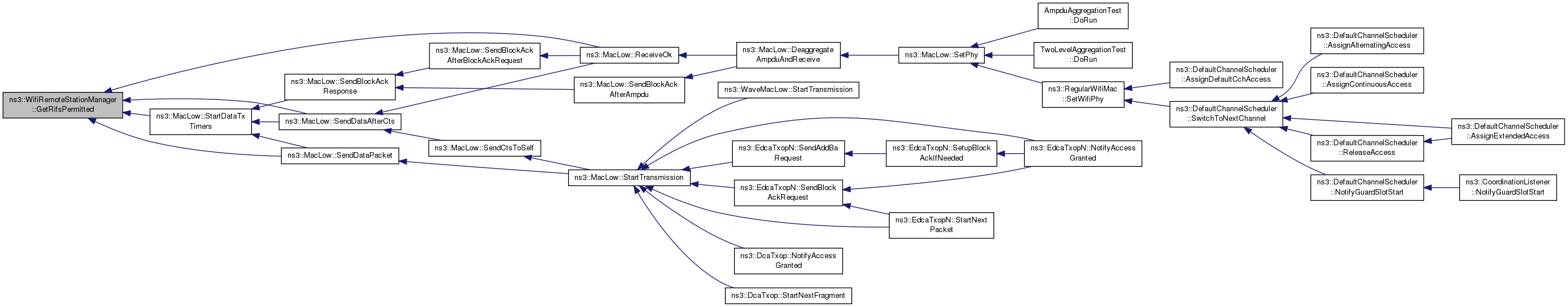

void DoSetFragmentationThreshold (uint32_t threshold)
 Actually sets the fragmentation threshold, it also checks the validity of the given threshold. More...

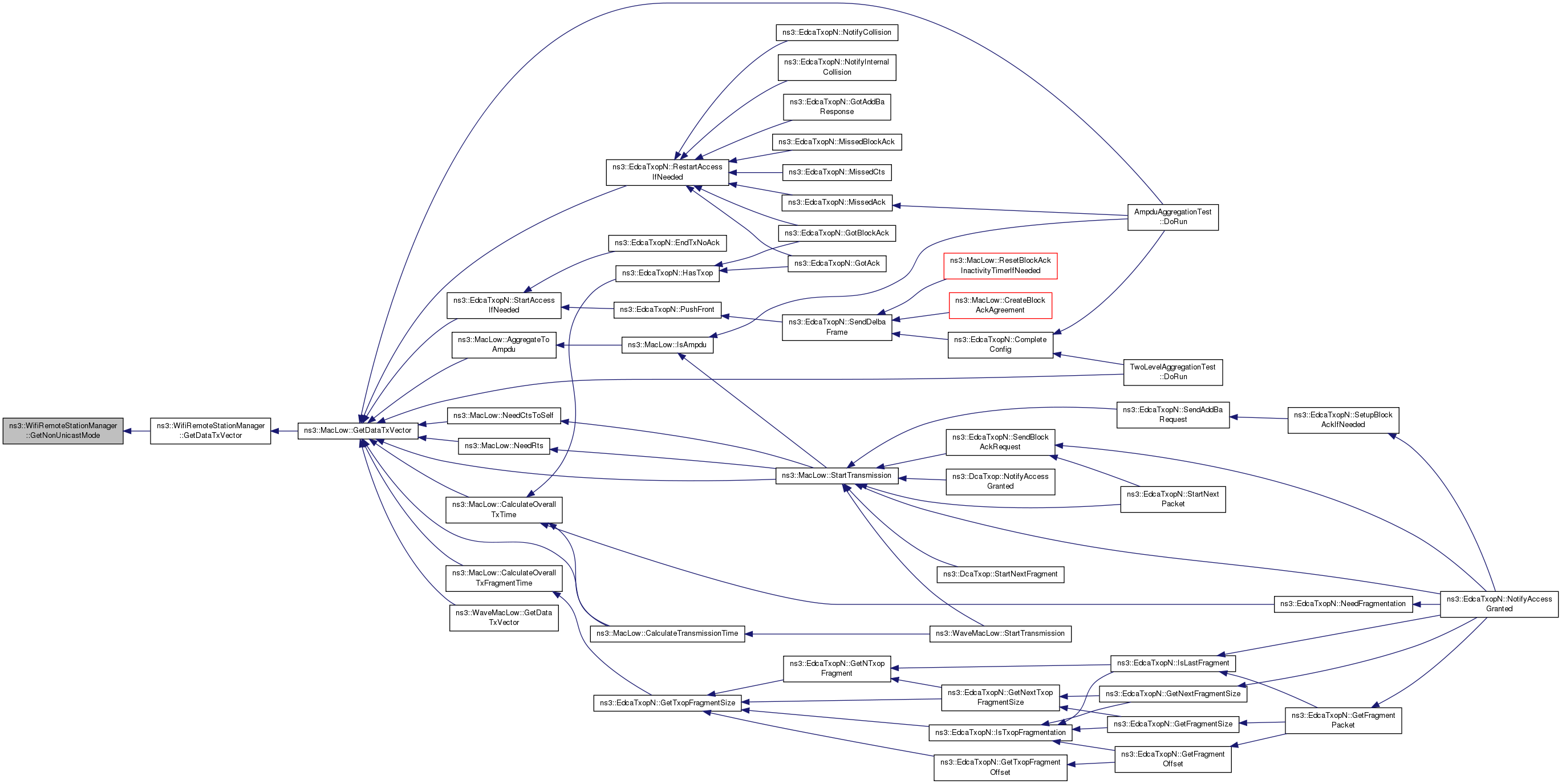

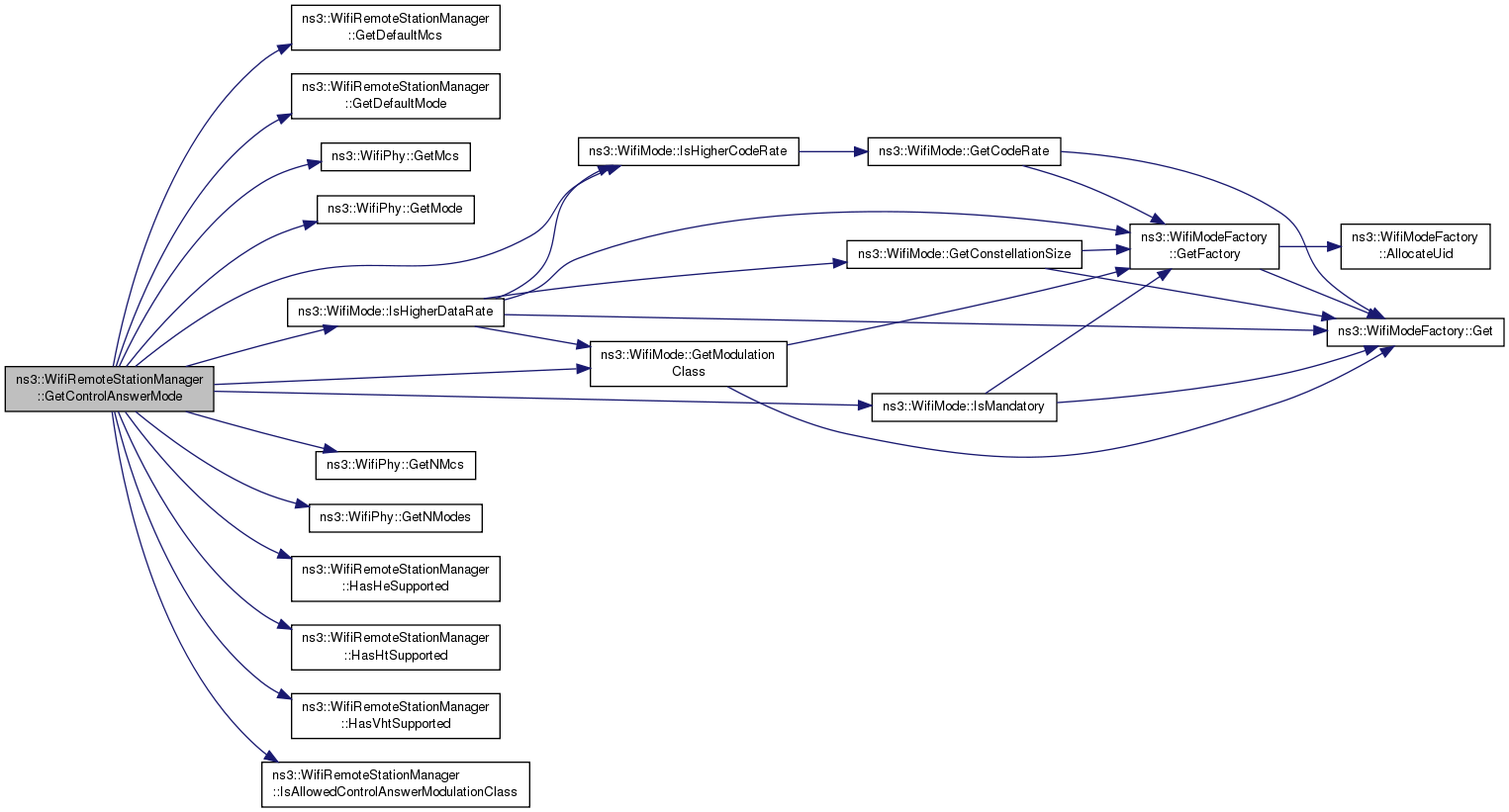

WifiMode GetControlAnswerMode (Mac48Address address, WifiMode reqMode)
 Get control answer mode function. More...

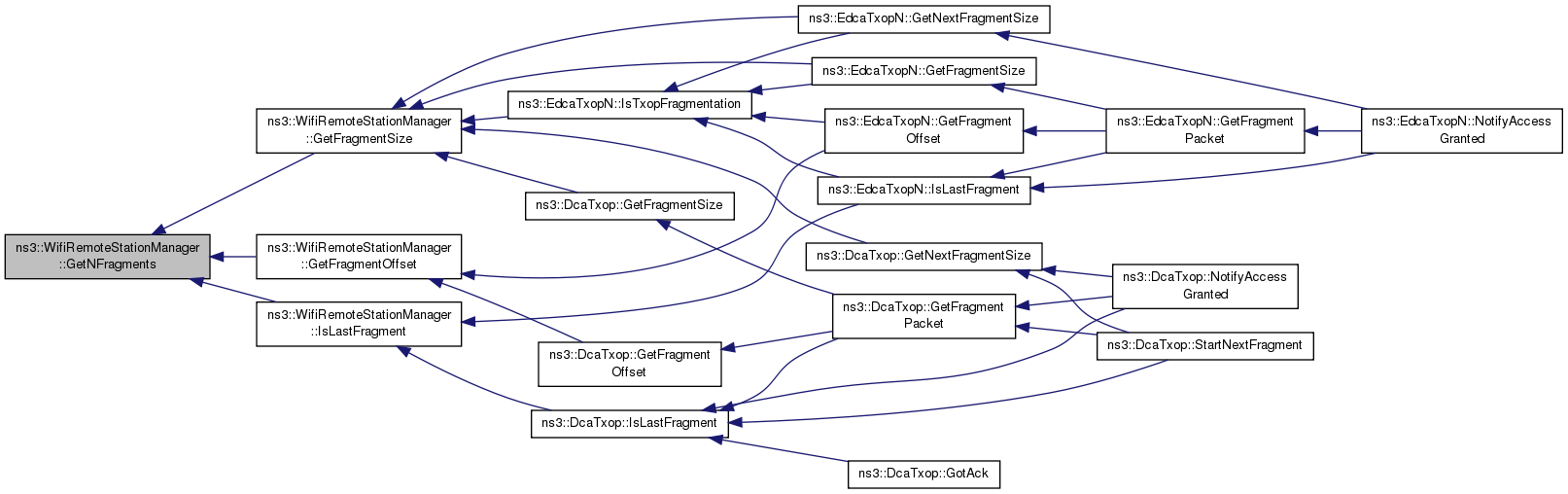

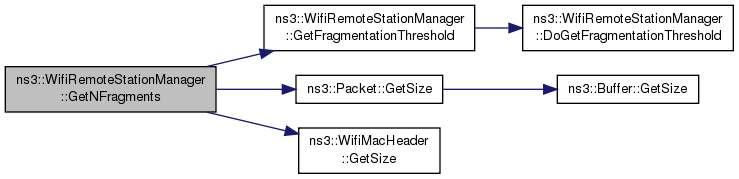

uint32_t GetNFragments (const WifiMacHeader *header, Ptr< const Packet > packet)
 Return the number of fragments needed for the given packet. More...

bool IsAllowedControlAnswerModulationClass (WifiModulationClass modClassReq, WifiModulationClass modClassAnswer) const
 Return whether the modulation class of the selected mode for the control answer frame is allowed. More...

virtual bool IsLowLatency (void) const =0

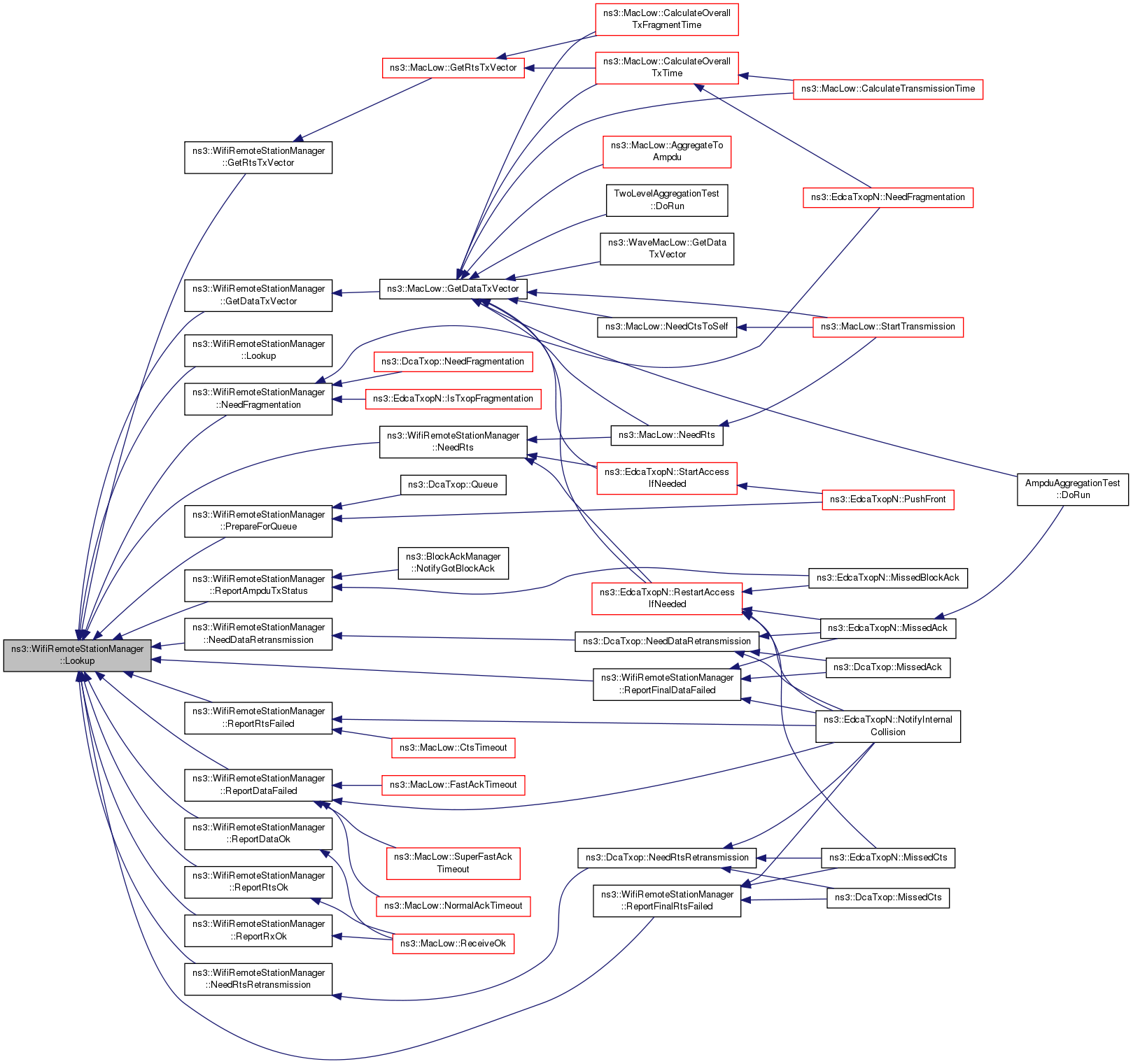

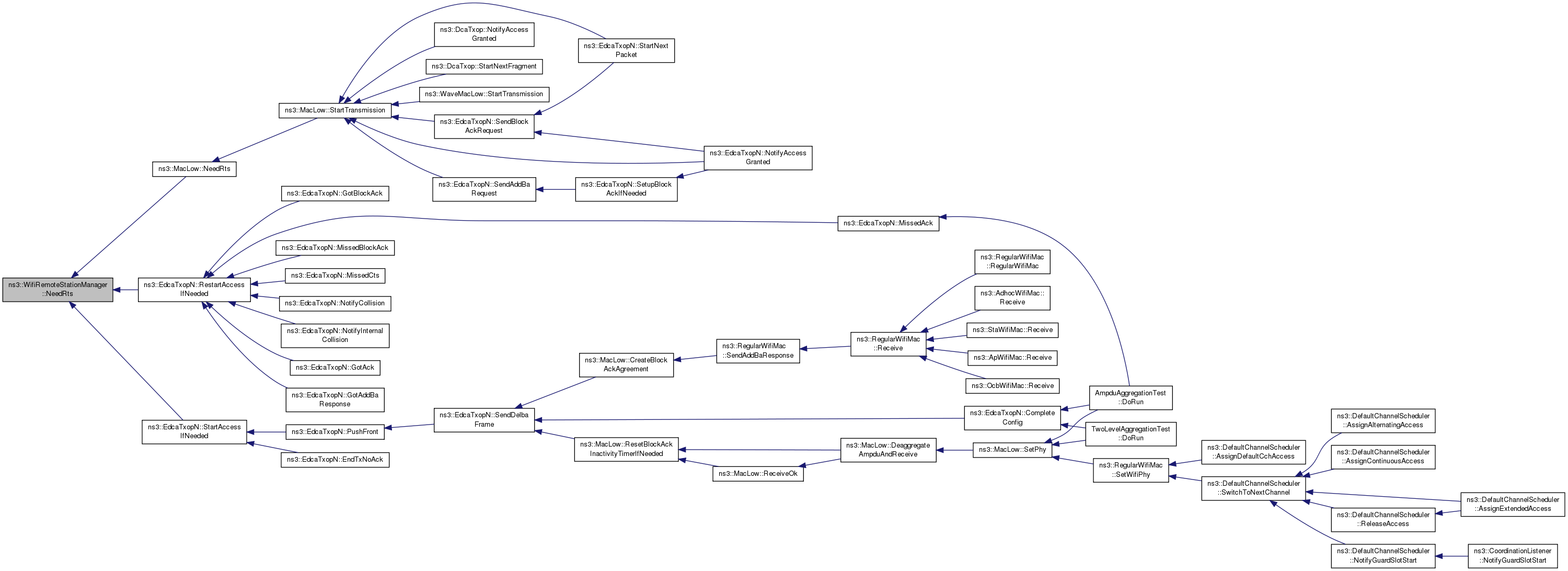

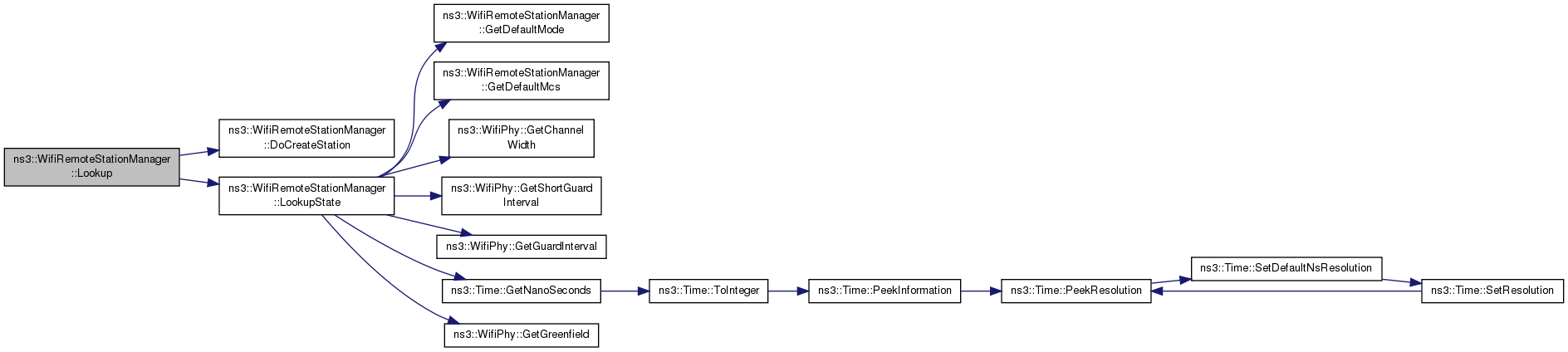

WifiRemoteStationLookup (Mac48Address address, uint8_t tid) const
 Return the station associated with the given address and TID. More...

WifiRemoteStationLookup (Mac48Address address, const WifiMacHeader *header) const
 Find a remote station by its remote address and TID taken from MAC header. More...

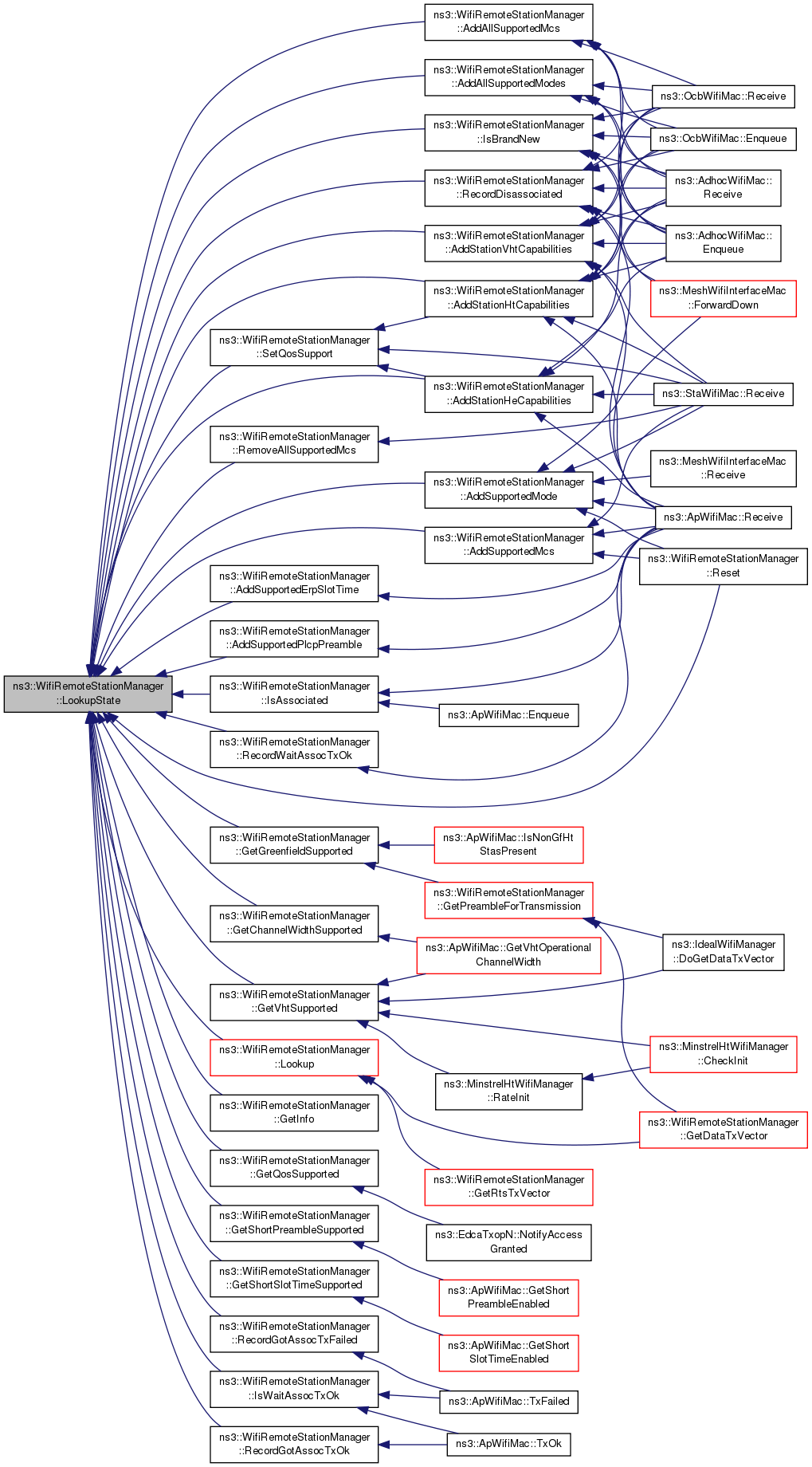

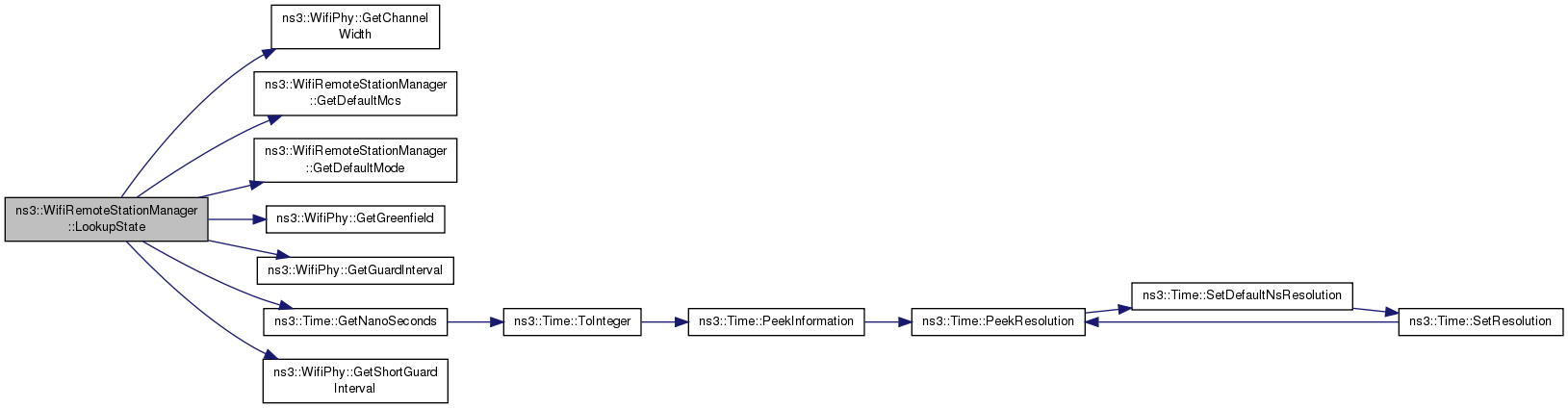

WifiRemoteStationStateLookupState (Mac48Address address) const
 Return the state of the station associated with the given address. More...


Private Attributes

WifiModeList m_bssBasicMcsSet
 basic MCS set More...

WifiModeList m_bssBasicRateSet
 This member is the list of WifiMode objects that comprise the BSSBasicRateSet parameter. More...

WifiMode m_defaultTxMcs
 The default transmission modulation-coding scheme (MCS) More...

WifiMode m_defaultTxMode
 The default transmission mode. More...

uint8_t m_defaultTxPowerLevel
 Default tranmission power level. More...

ProtectionMode m_erpProtectionMode
 Protection mode for ERP stations when non-ERP stations are detected. More...

uint32_t m_fragmentationThreshold
 Current threshold for fragmentation. More...

bool m_heSupported
 Flag if HE capability is supported. More...

ProtectionMode m_htProtectionMode
 Protection mode for HT stations when non-HT stations are detected. More...

bool m_htSupported
 Flag if HT capability is supported. More...

TracedCallback< Mac48Addressm_macTxDataFailed
 The trace source fired when the transmission of a single data packet has failed. More...

TracedCallback< Mac48Addressm_macTxFinalDataFailed
 The trace source fired when the transmission of a data packet has exceeded the maximum number of attempts. More...

TracedCallback< Mac48Addressm_macTxFinalRtsFailed
 The trace source fired when the transmission of a RTS has exceeded the maximum number of attempts. More...

TracedCallback< Mac48Addressm_macTxRtsFailed
 The trace source fired when the transmission of a single RTS has failed. More...

uint32_t m_maxSlrc
 Maximum STA long retry count (SLRC) More...

uint32_t m_maxSsrc
 Maximum STA short retry count (SSRC) More...

uint32_t m_nextFragmentationThreshold
 Threshold for fragmentation that will be used for the next transmission. More...

WifiMode m_nonUnicastMode
 Transmission mode for non-unicast DATA frames. More...

bool m_qosSupported
 Flag if HT capability is supported. More...

bool m_rifsPermitted
 flag if RIFS is enabled More...

uint32_t m_rtsCtsThreshold
 Threshold for RTS/CTS. More...

bool m_shortPreambleEnabled
 flag if short PLCP preamble is enabled More...

bool m_shortSlotTimeEnabled
 flag if short slot time is enabled More...

StationStates m_states
 States of known stations. More...

Stations m_stations
 Information for each known stations. More...

bool m_useGreenfieldProtection
 flag if protection for stations that do not support HT greenfield format is enabled More...

bool m_useNonErpProtection
 flag if protection for non-ERP stations against ERP transmissions is enabled More...

bool m_useNonHtProtection
 flag if protection for non-HT stations against HT transmissions is enabled More...

bool m_vhtSupported
 Flag if VHT capability is supported. More...

Ptr< WifiMacm_wifiMac
 This is a pointer to the WifiMac associated with this WifiRemoteStationManager that is set on call to WifiRemoteStationManager::SetupMac(). More...

Ptr< WifiPhym_wifiPhy
 This is a pointer to the WifiPhy associated with this WifiRemoteStationManager that is set on call to WifiRemoteStationManager::SetupPhy(). More...


Additional Inherited Members

Detailed Description

hold a list of per-remote-station state.

See also
ns3::WifiRemoteStation.

Config Paths

ns3::WifiRemoteStationManager is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager"

Attributes

  • IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Flags: read
  • MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 7
    • Flags: construct write read
  • MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 7
    • Flags: construct write read
  • RtsCtsThreshold: If the size of the PSDU is bigger than this value, we use an RTS/CTS handshake before sending the data frame.This value will not have any effect on some rate control algorithms.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 65535
    • Flags: construct write read
  • FragmentationThreshold: If the size of the PSDU is bigger than this value, we fragment it such that the size of the fragments are equal or smaller. This value does not apply when it is carried in an A-MPDU. This value will not have any effect on some rate control algorithms.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 2346
    • Flags: construct write read
  • NonUnicastMode: Wifi mode used for non-unicast transmissions.
    • Set with class: WifiModeValue
    • Underlying type: WifiMode
    • Initial value: Invalid-WifiMode
    • Flags: construct write read
  • DefaultTxPowerLevel: Default power level to be used for transmissions. This is the power level that is used by all those WifiManagers that do not implement TX power control.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:255
    • Initial value: 0
    • Flags: construct write read
  • ErpProtectionMode: Protection mode used when non-ERP STAs are connected to an ERP AP: Rts-Cts or Cts-To-Self
    • Set with class: ns3::EnumValue
    • Underlying type:
    • Initial value: Cts-To-Self
    • Flags: construct write read
  • HtProtectionMode: Protection mode used when non-HT STAs are connected to a HT AP: Rts-Cts or Cts-To-Self
    • Set with class: ns3::EnumValue
    • Underlying type:
    • Initial value: Cts-To-Self
    • Flags: construct write read

TraceSources

Size of this type is 264 bytes (on a 64-bit architecture).

Definition at line 89 of file wifi-remote-station-manager.h.

Member Typedef Documentation

typedef void(* ns3::WifiRemoteStationManager::PowerChangeTracedCallback) (double oldPower, double newPower, Mac48Address remoteAddress)

TracedCallback signature for power change events.

Parameters
[in]oldPowerThe previous power (in dBm).
[in]newPowerThe new power (in dBm).
[in]addressThe remote station MAC address.

Definition at line 875 of file wifi-remote-station-manager.h.

typedef void(* ns3::WifiRemoteStationManager::RateChangeTracedCallback) (DataRate oldRate, DataRate newRate, Mac48Address remoteAddress)

TracedCallback signature for rate change events.

Parameters
[in]oldRateThe previous data rate.
[in]newRateThe new data rate.
[in]addressThe remote station MAC address.

Definition at line 884 of file wifi-remote-station-manager.h.

A vector of WifiRemoteStations.

Definition at line 1456 of file wifi-remote-station-manager.h.

A vector of WifiRemoteStationStates.

Definition at line 1460 of file wifi-remote-station-manager.h.

Constructor & Destructor Documentation

ns3::WifiRemoteStationManager::WifiRemoteStationManager ( )

Definition at line 401 of file wifi-remote-station-manager.cc.

ns3::WifiRemoteStationManager::~WifiRemoteStationManager ( )
virtual

Definition at line 415 of file wifi-remote-station-manager.cc.

Member Function Documentation

void ns3::WifiRemoteStationManager::AddAllSupportedMcs ( Mac48Address  address)

Invoked in a STA or AP to store all of the MCS supported by a destination which is also supported locally.

Parameters
addressthe address of the station being recorded

Definition at line 686 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetMcs(), ns3::WifiPhy::GetNMcs(), ns3::Mac48Address::IsGroup(), LookupState(), m_wifiPhy, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), and ns3::OcbWifiMac::Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::AddAllSupportedModes ( Mac48Address  address)

Invoked in a STA or AP to store all of the modes supported by a destination which is also supported locally.

The set of supported modes includes the BSSBasicRateSet.

Parameters
addressthe address of the station being recorded

Definition at line 669 of file wifi-remote-station-manager.cc.

References AddBasicMode(), ns3::WifiPhy::GetMode(), ns3::WifiPhy::GetNModes(), ns3::Mac48Address::IsGroup(), ns3::WifiMode::IsMandatory(), LookupState(), m_wifiPhy, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), and ns3::OcbWifiMac::Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::AddBasicMcs ( WifiMode  mcs)

Add a given Modulation and Coding Scheme (MCS) index to the set of basic MCS.

Parameters
mcsthe WifiMode to be added to the basic MCS set

Definition at line 1898 of file wifi-remote-station-manager.cc.

References GetBasicMcs(), ns3::WifiMode::GetMcsValue(), GetNBasicMcs(), m_bssBasicMcsSet, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::AddBasicMode ( WifiMode  mode)

Invoked in a STA upon association to store the set of rates which belong to the BSSBasicRateSet of the associated AP and which are supported locally.

Invoked in an AP to configure the BSSBasicRateSet.

Parameters
modethe WifiMode to be added to the basic mode set

Definition at line 1827 of file wifi-remote-station-manager.cc.

References GetBasicMode(), ns3::WifiMode::GetModulationClass(), GetNBasicModes(), m_bssBasicRateSet, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by AddAllSupportedModes(), ns3::ApWifiMac::GetSupportedRates(), ns3::StaWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::AddStationHeCapabilities ( Mac48Address  from,
HeCapabilities  hecapabilities
)

Records HE capabilities of the remote station.

Parameters
fromthe address of the station being recorded
hecapabilitiesthe HE capabilities of the station

Definition at line 1770 of file wifi-remote-station-manager.cc.

References ns3::HeCapabilities::GetHeLtfAndGiForHePpdus(), LookupState(), ns3::WifiRemoteStationState::m_guardInterval, ns3::WifiRemoteStationState::m_heSupported, NS_LOG_FUNCTION, and SetQosSupport().

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), and ns3::ApWifiMac::Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::AddStationVhtCapabilities ( Mac48Address  from,
VhtCapabilities  vhtcapabilities
)

Records VHT capabilities of the remote station.

Parameters
fromthe address of the station being recorded
vhtcapabilitiesthe VHT capabilities of the station

Definition at line 1746 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetChannelWidth(), ns3::VhtCapabilities::GetSupportedChannelWidthSet(), LookupState(), ns3::WifiRemoteStationState::m_channelWidth, ns3::WifiRemoteStationState::m_vhtSupported, m_wifiPhy, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), and ns3::OcbWifiMac::Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::AddSupportedErpSlotTime ( Mac48Address  address,
bool  isShortSlotTimeSupported
)

Record whether the short ERP slot time is supported by the station.

Parameters
addressthe address of the station
isShortSlotTimeSupportedwhether or not short ERP slot time is supported by the station

Definition at line 643 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::AddSupportedMcs ( Mac48Address  address,
WifiMode  mcs
)

Record the MCS index supported by the station.

Parameters
addressthe address of the station
mcsthe WifiMode supported by the station

Definition at line 708 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), and Reset().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::AddSupportedMode ( Mac48Address  address,
WifiMode  mode
)

Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally.

The set of supported modes includes the BSSBasicRateSet.

Parameters
addressthe address of the station being recorded
modethe WifiMode supports by the station

Definition at line 652 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), and Reset().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::AddSupportedPlcpPreamble ( Mac48Address  address,
bool  isShortPreambleSupported
)

Record whether the short PLCP preamble is supported by the station.

Parameters
addressthe address of the station
isShortPreambleSupportedwhether or not short PLCP preamble is supported by the station

Definition at line 634 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

virtual WifiRemoteStation* ns3::WifiRemoteStationManager::DoCreateStation ( void  ) const
privatepure virtual
void ns3::WifiRemoteStationManager::DoDispose ( void  )
protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 420 of file wifi-remote-station-manager.cc.

References m_states, and m_stations.

uint8_t ns3::WifiRemoteStationManager::DoGetAckTxChannelWidth ( Mac48Address  address,
WifiMode  ctsMode
)
privatevirtual
Parameters
addressthe address of the recipient
ctsModethe mode to be used
Returns
the ack transmit channel width

Definition at line 1564 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetChannelWidth(), and m_wifiPhy.

Referenced by GetAckTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint16_t ns3::WifiRemoteStationManager::DoGetAckTxGuardInterval ( Mac48Address  address,
WifiMode  ackMode
)
privatevirtual
Parameters
addressthe address of the recipient
ackModethe mode to be used
Returns
the ack transmit guard interval

Definition at line 1570 of file wifi-remote-station-manager.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiPhy::GetGuardInterval(), ns3::WifiPhy::GetShortGuardInterval(), and m_wifiPhy.

Referenced by GetAckTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetAckTxNess ( Mac48Address  address,
WifiMode  ackMode
)
privatevirtual
Parameters
addressthe address of the recipient
ackModethe mode to be used
Returns
the ack transmit NESS

Definition at line 1582 of file wifi-remote-station-manager.cc.

Referenced by GetAckTxVector().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetAckTxNss ( Mac48Address  address,
WifiMode  ackMode
)
privatevirtual
Parameters
addressthe address of the recipient
ackModethe mode to be used
Returns
the ack transmit NSS

Definition at line 1576 of file wifi-remote-station-manager.cc.

Referenced by GetAckTxVector().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetAckTxPowerLevel ( Mac48Address  address,
WifiMode  ackMode
)
privatevirtual
Parameters
addressthe address of the recipient of the ACK
ackModethe mode to be used for the ACK
Returns
the power level to be used to send the ACK

Definition at line 1558 of file wifi-remote-station-manager.cc.

References m_defaultTxPowerLevel.

Referenced by GetAckTxVector().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoGetAckTxStbc ( Mac48Address  address,
WifiMode  ackMode
)
privatevirtual
Parameters
addressthe address of the recipient
ackModethe mode to be used
Returns
the ack transmit STBC

Definition at line 1588 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetStbc(), and m_wifiPhy.

Referenced by GetAckTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetBlockAckTxChannelWidth ( Mac48Address  address,
WifiMode  ctsMode
)
privatevirtual
Parameters
addressthe address of the recipient
ctsModethe mode to be used
Returns
the block ack transmit channel width

Definition at line 1600 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetChannelWidth(), and m_wifiPhy.

Referenced by GetBlockAckTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint16_t ns3::WifiRemoteStationManager::DoGetBlockAckTxGuardInterval ( Mac48Address  address,
WifiMode  blockAckMode
)
privatevirtual
Parameters
addressthe address of the recipient
blockAckModethe mode to be used
Returns
the block ack transmit guard interval

Definition at line 1606 of file wifi-remote-station-manager.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiPhy::GetGuardInterval(), ns3::WifiPhy::GetShortGuardInterval(), and m_wifiPhy.

Referenced by GetBlockAckTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetBlockAckTxNess ( Mac48Address  address,
WifiMode  blockAckMode
)
privatevirtual
Parameters
addressthe address of the recipient
blockAckModethe mode to be used
Returns
the block ack transmit NESS

Definition at line 1618 of file wifi-remote-station-manager.cc.

Referenced by GetBlockAckTxVector().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetBlockAckTxNss ( Mac48Address  address,
WifiMode  blockAckMode
)
privatevirtual
Parameters
addressthe address of the recipient
blockAckModethe mode to be used
Returns
the block ack transmit NSS

Definition at line 1612 of file wifi-remote-station-manager.cc.

Referenced by GetBlockAckTxVector().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetBlockAckTxPowerLevel ( Mac48Address  address,
WifiMode  blockAckMode
)
privatevirtual
Parameters
addressthe address of the recipient of the Block ACK
blockAckModethe mode to be used for the Block ACK
Returns
the power level to be used to send the Block ACK

Definition at line 1594 of file wifi-remote-station-manager.cc.

References m_defaultTxPowerLevel.

Referenced by GetBlockAckTxVector().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoGetBlockAckTxStbc ( Mac48Address  address,
WifiMode  blockAckMode
)
privatevirtual
Parameters
addressthe address of the recipient
blockAckModethe mode to be used
Returns
the block ack transmit STBC

Definition at line 1624 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetStbc(), and m_wifiPhy.

Referenced by GetBlockAckTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::DoGetCtsToSelfTxVector ( void  )

Since CTS-to-self parameters are not dependent on the station, it is implemented in wifiremote station manager.

Returns
the transmission mode to use to send the CTS-to-self prior to the transmission of the data packet itself.

Definition at line 880 of file wifi-remote-station-manager.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiPhy::GetChannelWidth(), GetDefaultMode(), GetDefaultTxPowerLevel(), ns3::WifiPhy::GetGuardInterval(), GetMaxNumberOfTransmitStreams(), ns3::WifiMode::GetModulationClass(), GetNumberOfAntennas(), ns3::WifiPhy::GetShortGuardInterval(), m_wifiPhy, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_VHT, ns3::WIFI_PREAMBLE_HE_SU, ns3::WIFI_PREAMBLE_HT_MF, ns3::WIFI_PREAMBLE_LONG, and ns3::WIFI_PREAMBLE_VHT.

Referenced by GetCtsToSelfTxVector(), and PrepareForQueue().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetCtsTxChannelWidth ( Mac48Address  address,
WifiMode  ctsMode
)
privatevirtual
Parameters
addressthe address of the recipient
ctsModethe mode to be used
Returns
the CTS transmit channel width

Definition at line 1528 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetChannelWidth(), and m_wifiPhy.

Referenced by GetCtsTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint16_t ns3::WifiRemoteStationManager::DoGetCtsTxGuardInterval ( Mac48Address  address,
WifiMode  ctsMode
)
privatevirtual
Parameters
addressthe address of the recipient
ctsModethe mode to be used
Returns
the CTS transmit guard interval

Definition at line 1534 of file wifi-remote-station-manager.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiPhy::GetGuardInterval(), ns3::WifiPhy::GetShortGuardInterval(), and m_wifiPhy.

Referenced by GetCtsTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetCtsTxNess ( Mac48Address  address,
WifiMode  ctsMode
)
privatevirtual
Parameters
addressthe address of the recipient
ctsModethe mode to be used
Returns
the CTS transmit NESS

Definition at line 1546 of file wifi-remote-station-manager.cc.

Referenced by GetCtsTxVector().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetCtsTxNss ( Mac48Address  address,
WifiMode  ctsMode
)
privatevirtual
Parameters
addressthe address of the recipient
ctsModethe mode to be used
Returns
the CTS transmit NSS

Definition at line 1540 of file wifi-remote-station-manager.cc.

Referenced by GetCtsTxVector().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetCtsTxPowerLevel ( Mac48Address  address,
WifiMode  ctsMode
)
privatevirtual
Parameters
addressthe address of the recipient of the CTS
ctsModethe mode to be used for the CTS
Returns
the power level to be used to send the CTS

Definition at line 1522 of file wifi-remote-station-manager.cc.

References m_defaultTxPowerLevel.

Referenced by GetCtsTxVector().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoGetCtsTxStbc ( Mac48Address  address,
WifiMode  ctsMode
)
privatevirtual
Parameters
addressthe address of the recipient
ctsModethe mode to be used
Returns
the CTS transmit STBC

Definition at line 1552 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetStbc(), and m_wifiPhy.

Referenced by GetCtsTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

virtual WifiTxVector ns3::WifiRemoteStationManager::DoGetDataTxVector ( WifiRemoteStation station)
privatepure virtual
Parameters
stationthe station that we need to communicate
Returns
the TXVECTOR to use to send a packet to the station

Note: This method is called before sending a unicast packet or a fragment of a unicast packet to decide which transmission mode to use.

Implemented in ns3::MinstrelWifiManager, ns3::MinstrelHtWifiManager, ns3::RrpaaWifiManager, ns3::RraaWifiManager, ns3::AparfWifiManager, ns3::AarfcdWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::IdealWifiManager, ns3::CaraWifiManager, ns3::ParfWifiManager, ns3::AarfWifiManager, and ns3::ConstantRateWifiManager.

Referenced by GetDataTxVector(), and PrepareForQueue().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::DoGetFragmentationThreshold ( void  ) const
private

Return the current fragmentation threshold.

Returns
the fragmentation threshold

Definition at line 1233 of file wifi-remote-station-manager.cc.

References m_fragmentationThreshold.

Referenced by GetFragmentationThreshold(), and GetTypeId().

+ Here is the caller graph for this function:

virtual WifiTxVector ns3::WifiRemoteStationManager::DoGetRtsTxVector ( WifiRemoteStation station)
privatepure virtual
Parameters
stationthe station that we need to communicate
Returns
the transmission mode to use to send an rts to the station

Note: This method is called before sending an rts to a station to decide which transmission mode to use for the rts.

Implemented in ns3::MinstrelWifiManager, ns3::MinstrelHtWifiManager, ns3::RrpaaWifiManager, ns3::RraaWifiManager, ns3::AparfWifiManager, ns3::AarfcdWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::IdealWifiManager, ns3::CaraWifiManager, ns3::ParfWifiManager, ns3::AarfWifiManager, and ns3::ConstantRateWifiManager.

Referenced by GetRtsTxVector(), and PrepareForQueue().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedDataRetransmission ( WifiRemoteStation station,
Ptr< const Packet packet,
bool  normally
)
privatevirtual
Parameters
stationthe station that we need to communicate
packetthe packet to send
normallyindicates whether the normal 802.11 data retransmission mechanism would request that the data is retransmitted or not.
Returns
true if we want to resend a packet after a failed transmission attempt, false otherwise.

Note: This method is called after a unicast packet transmission has been attempted and has failed.

Reimplemented in ns3::MinstrelWifiManager, and ns3::MinstrelHtWifiManager.

Definition at line 1952 of file wifi-remote-station-manager.cc.

Referenced by NeedDataRetransmission().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedFragmentation ( WifiRemoteStation station,
Ptr< const Packet packet,
bool  normally
)
privatevirtual
Parameters
stationthe station that we need to communicate
packetthe packet to send
normallyindicates whether the normal 802.11 data fragmentation mechanism would request that the data packet is fragmented or not.
Returns
true if this packet should be fragmented, false otherwise.

Note: This method is called before sending a unicast packet.

Definition at line 1959 of file wifi-remote-station-manager.cc.

Referenced by NeedFragmentation().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedRts ( WifiRemoteStation station,
Ptr< const Packet packet,
bool  normally
)
privatevirtual
Parameters
stationthe station that we need to communicate
packetthe packet to send
normallyindicates whether the normal 802.11 rts enable mechanism would request that the rts is sent or not.
Returns
true if we want to use an RTS/CTS handshake for this packet before sending it, false otherwise.

Note: This method is called before a unicast packet is sent on the medium.

Reimplemented in ns3::RrpaaWifiManager, ns3::RraaWifiManager, ns3::AarfcdWifiManager, and ns3::CaraWifiManager.

Definition at line 1938 of file wifi-remote-station-manager.cc.

Referenced by NeedRts().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedRtsRetransmission ( WifiRemoteStation station,
Ptr< const Packet packet,
bool  normally
)
privatevirtual
Parameters
stationthe station that we need to communicate
packetthe packet to send
normallyindicates whether the normal 802.11 rts enable mechanism would request that the rts is retransmitted or not.
Returns
true if we want to restart a failed RTS/CTS handshake, false otherwise.

Note: This method is called after an rts/cts handshake has been attempted and has failed.

Definition at line 1945 of file wifi-remote-station-manager.cc.

Referenced by NeedRtsRetransmission().

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::DoReportAmpduTxStatus ( WifiRemoteStation station,
uint8_t  nSuccessfulMpdus,
uint8_t  nFailedMpdus,
double  rxSnr,
double  dataSnr
)
privatevirtual

Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed.

This method is a virtual method that must be implemented by the sub-class intended to handle A-MPDUs. This allows different types of WifiRemoteStationManager to respond differently.

Parameters
stationthe station that sent the DATA to us
nSuccessfulMpdusnumber of successfully transmitted MPDUs. A value of 0 means that the Block ACK was missed.
nFailedMpdusnumber of unsuccessfully transmitted MPDUs.
rxSnrreceived SNR of the block ack frame itself
dataSnrdata SNR reported by remote station

Reimplemented in ns3::MinstrelHtWifiManager, and ns3::IdealWifiManager.

Definition at line 1966 of file wifi-remote-station-manager.cc.

References NS_LOG_DEBUG.

Referenced by ReportAmpduTxStatus().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportDataFailed ( WifiRemoteStation station)
privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send DATA

Implemented in ns3::MinstrelWifiManager, ns3::MinstrelHtWifiManager, ns3::RrpaaWifiManager, ns3::RraaWifiManager, ns3::AparfWifiManager, ns3::AarfcdWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::CaraWifiManager, ns3::ParfWifiManager, ns3::IdealWifiManager, ns3::AarfWifiManager, and ns3::ConstantRateWifiManager.

Referenced by ReportDataFailed().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportDataOk ( WifiRemoteStation station,
double  ackSnr,
WifiMode  ackMode,
double  dataSnr
)
privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we successfully sent RTS
ackSnrthe SNR of the ACK we received
ackModethe WifiMode the receiver used to send the ACK
dataSnrthe SNR of the DATA we sent

Implemented in ns3::MinstrelWifiManager, ns3::MinstrelHtWifiManager, ns3::RrpaaWifiManager, ns3::RraaWifiManager, ns3::AparfWifiManager, ns3::AarfcdWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::CaraWifiManager, ns3::ParfWifiManager, ns3::IdealWifiManager, ns3::AarfWifiManager, and ns3::ConstantRateWifiManager.

Referenced by ReportDataOk().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportFinalDataFailed ( WifiRemoteStation station)
privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send DATA

Implemented in ns3::MinstrelWifiManager, ns3::MinstrelHtWifiManager, ns3::RrpaaWifiManager, ns3::RraaWifiManager, ns3::AparfWifiManager, ns3::AarfcdWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::IdealWifiManager, ns3::CaraWifiManager, ns3::ParfWifiManager, ns3::AarfWifiManager, and ns3::ConstantRateWifiManager.

Referenced by ReportFinalDataFailed().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportFinalRtsFailed ( WifiRemoteStation station)
privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send RTS

Implemented in ns3::MinstrelWifiManager, ns3::MinstrelHtWifiManager, ns3::RrpaaWifiManager, ns3::RraaWifiManager, ns3::AparfWifiManager, ns3::AarfcdWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::IdealWifiManager, ns3::CaraWifiManager, ns3::ParfWifiManager, ns3::AarfWifiManager, and ns3::ConstantRateWifiManager.

Referenced by ReportFinalRtsFailed().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportRtsFailed ( WifiRemoteStation station)
privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send RTS

Implemented in ns3::MinstrelWifiManager, ns3::MinstrelHtWifiManager, ns3::RrpaaWifiManager, ns3::RraaWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::ParfWifiManager, ns3::IdealWifiManager, ns3::AarfWifiManager, and ns3::ConstantRateWifiManager.

Referenced by ReportRtsFailed().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportRtsOk ( WifiRemoteStation station,
double  ctsSnr,
WifiMode  ctsMode,
double  rtsSnr
)
privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we successfully sent RTS
ctsSnrthe SNR of the CTS we received
ctsModethe WifiMode the receiver used to send the CTS
rtsSnrthe SNR of the RTS we sent

Implemented in ns3::MinstrelWifiManager, ns3::MinstrelHtWifiManager, ns3::RrpaaWifiManager, ns3::RraaWifiManager, ns3::AparfWifiManager, ns3::AarfcdWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::CaraWifiManager, ns3::ParfWifiManager, ns3::IdealWifiManager, ns3::AarfWifiManager, and ns3::ConstantRateWifiManager.

Referenced by ReportRtsOk().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportRxOk ( WifiRemoteStation station,
double  rxSnr,
WifiMode  txMode
)
privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that sent the DATA to us
rxSnrthe SNR of the DATA we received
txModethe WifiMode the sender used to send the DATA

Implemented in ns3::MinstrelWifiManager, ns3::MinstrelHtWifiManager, ns3::RrpaaWifiManager, ns3::RraaWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::CaraWifiManager, ns3::ParfWifiManager, ns3::AarfcdWifiManager, ns3::IdealWifiManager, ns3::AarfWifiManager, and ns3::ConstantRateWifiManager.

Referenced by ReportRxOk().

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::DoSetFragmentationThreshold ( uint32_t  threshold)
private

Actually sets the fragmentation threshold, it also checks the validity of the given threshold.

Parameters
thresholdthe fragmentation threshold

Definition at line 1197 of file wifi-remote-station-manager.cc.

References m_nextFragmentationThreshold, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetTypeId(), and SetFragmentationThreshold().

+ Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetAckTxVector ( Mac48Address  address,
WifiMode  dataMode
)
Parameters
address
dataModethe transmission mode used to send an ACK we just received
Returns
the transmission mode to use for the ACK to complete the data/ACK handshake.

Definition at line 1488 of file wifi-remote-station-manager.cc.

References DoGetAckTxChannelWidth(), DoGetAckTxGuardInterval(), DoGetAckTxNess(), DoGetAckTxNss(), DoGetAckTxPowerLevel(), DoGetAckTxStbc(), GetControlAnswerMode(), GetPreambleForTransmission(), ns3::Mac48Address::IsGroup(), NS_ASSERT, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetStbc(), and ns3::WifiTxVector::SetTxPowerLevel().

Referenced by ns3::MacLow::GetAckTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Mac48Address ns3::WifiRemoteStationManager::GetAddress ( const WifiRemoteStation station) const
protected

Return the address of the station.

Parameters
stationthe station being queried
Returns
the address of the station

Definition at line 2014 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_address, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AparfWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::RrpaaWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::ParfWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::AparfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::RrpaaWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::MinstrelWifiManager::GetDataTxVector(), and ns3::MinstrelWifiManager::GetRtsTxVector().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::GetAggregation ( const WifiRemoteStation station) const
protected

Return whether the given station supports A-MPDU.

Parameters
stationthe station being queried
Returns
true if the station supports MPDU aggregation, false otherwise

Definition at line 2044 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_aggregation, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AparfWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::RrpaaWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::ParfWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::AparfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::RrpaaWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::MinstrelWifiManager::GetDataTxVector(), and ns3::MinstrelWifiManager::GetRtsTxVector().

+ Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetBasicMcs ( uint32_t  i) const

Return the MCS at the given list index.

Parameters
ithe position in the list
Returns
the basic mcs at the given list index

Definition at line 1918 of file wifi-remote-station-manager.cc.

References GetNBasicMcs(), m_bssBasicMcsSet, and NS_ASSERT.

Referenced by AddBasicMcs(), and ns3::ApWifiMac::Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetBasicMode ( uint32_t  i) const

Return a basic mode from the set of basic modes.

Parameters
iindex of the basic mode in the basic mode set
Returns
the basic mode at the given index

Definition at line 1851 of file wifi-remote-station-manager.cc.

References GetNBasicModes(), m_bssBasicRateSet, and NS_ASSERT.

Referenced by AddBasicMode(), ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), GetNonUnicastMode(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), and ns3::ApWifiMac::Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetBlockAckTxVector ( Mac48Address  address,
WifiMode  dataMode
)
uint8_t ns3::WifiRemoteStationManager::GetChannelWidth ( const WifiRemoteStation station) const
protected

Return the channel width supported by the station.

Parameters
stationthe station being queried
Returns
the channel width (in MHz) supported by the station

Definition at line 2020 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_channelWidth, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::ParfWifiManager::CheckInit(), ns3::AparfWifiManager::CheckInit(), ns3::RrpaaWifiManager::CheckInit(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AparfWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::RrpaaWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::ParfWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::AparfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::RrpaaWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoInitialize(), ns3::MinstrelWifiManager::GetDataTxVector(), ns3::MinstrelWifiManager::GetRtsTxVector(), and ns3::MinstrelHtWifiManager::RateInit().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::GetChannelWidthSupported ( Mac48Address  address) const

Return the channel width supported by the station.

Parameters
addressthe address of the station
Returns
he channel width supported by the station

Definition at line 2143 of file wifi-remote-station-manager.cc.

References LookupState(), and ns3::WifiRemoteStationState::m_channelWidth.

Referenced by ns3::ApWifiMac::GetVhtOperationalChannelWidth().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetControlAnswerMode ( Mac48Address  address,
WifiMode  reqMode
)
private

Get control answer mode function.

Parameters
addressthe address of the station
reqModerequest mode
Returns
control answer mode

The standard has relatively unambiguous rules for selecting a control response rate (the below is quoted from IEEE 802.11-2012, Section 9.7):

To allow the transmitting STA to calculate the contents of the Duration/ID field, a STA responding to a received frame shall transmit its Control Response frame (either CTS or ACK), other than the BlockAck control frame, at the highest rate in the BSSBasicRateSet parameter that is less than or equal to the rate of the immediately previous frame in the frame exchange sequence (as defined in Annex G) and that is of the same modulation class (see Section 9.7.8) as the received frame...

If no suitable basic rate was found, we search the mandatory rates. The standard (IEEE 802.11-2007, Section 9.6) says:

...If no rate contained in the BSSBasicRateSet parameter meets these conditions, then the control frame sent in response to a received frame shall be transmitted at the highest mandatory rate of the PHY that is less than or equal to the rate of the received frame, and that is of the same modulation class as the received frame. In addition, the Control Response frame shall be sent using the same PHY options as the received frame, unless they conflict with the requirement to use the BSSBasicRateSet parameter.

Todo:
Note that we're ignoring the last sentence for now, because there is not yet any manipulation here of PHY options.

If we still haven't found a suitable rate for the response then someone has messed up the simulation config. This probably means that the WifiPhyStandard is not set correctly, or that a rate that is not supported by the PHY has been explicitly requested in a WifiRemoteStationManager (or descendant) configuration.

Either way, it is serious - we can either disobey the standard or fail, and I have chosen to do the latter...

Definition at line 1329 of file wifi-remote-station-manager.cc.

References GetDefaultMcs(), GetDefaultMode(), ns3::WifiPhy::GetMcs(), ns3::WifiPhy::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiPhy::GetNMcs(), ns3::WifiPhy::GetNModes(), HasHeSupported(), HasHtSupported(), HasVhtSupported(), IsAllowedControlAnswerModulationClass(), ns3::WifiMode::IsHigherCodeRate(), ns3::WifiMode::IsHigherDataRate(), ns3::WifiMode::IsMandatory(), m_bssBasicMcsSet, m_bssBasicRateSet, m_wifiPhy, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by GetAckTxVector(), GetBlockAckTxVector(), and GetCtsTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetCtsToSelfTxVector ( const WifiMacHeader header,
Ptr< const Packet packet
)
Parameters
headerMAC header
packetthe packet to send
Returns
the transmission mode to use to send the CTS-to-self prior to the transmission of the data packet itself.

Definition at line 861 of file wifi-remote-station-manager.cc.

References DoGetCtsToSelfTxVector(), ns3::HighLatencyCtsToSelfTxVectorTag::GetCtsToSelfTxVector(), IsLowLatency(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::GetCtsToSelfTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetCtsTxVector ( Mac48Address  address,
WifiMode  rtsMode
)
Parameters
addressremote address
rtsModethe transmission mode used to send an RTS we just received
Returns
the transmission mode to use for the CTS to complete the RTS/CTS handshake.

Definition at line 1471 of file wifi-remote-station-manager.cc.

References DoGetCtsTxChannelWidth(), DoGetCtsTxGuardInterval(), DoGetCtsTxNess(), DoGetCtsTxNss(), DoGetCtsTxPowerLevel(), DoGetCtsTxStbc(), GetControlAnswerMode(), GetPreambleForTransmission(), ns3::Mac48Address::IsGroup(), NS_ASSERT, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetStbc(), and ns3::WifiTxVector::SetTxPowerLevel().

Referenced by ns3::MacLow::GetCtsTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetDefaultMcs ( void  ) const

Return the default Modulation and Coding Scheme (MCS) index.

Returns
the default WifiMode

Definition at line 1805 of file wifi-remote-station-manager.cc.

References m_defaultTxMcs.

Referenced by GetControlAnswerMode(), LookupState(), and Reset().

+ Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetDefaultMode ( void  ) const

Return the default transmission mode.

Returns
WifiMode the default transmission mode

Definition at line 1799 of file wifi-remote-station-manager.cc.

References m_defaultTxMode.

Referenced by ns3::IdealWifiManager::DoCreateStation(), DoGetCtsToSelfTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), GetControlAnswerMode(), LookupState(), and Reset().

+ Here is the caller graph for this function:

WifiRemoteStationManager::ProtectionMode ns3::WifiRemoteStationManager::GetErpProtectionMode ( void  ) const

Return the ERP protection mode.

Returns
the ERP protection mode

Definition at line 550 of file wifi-remote-station-manager.cc.

References m_erpProtectionMode.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetFragmentationThreshold ( void  ) const

Return the fragmentation threshold.

Returns
the fragmentation threshold

Definition at line 616 of file wifi-remote-station-manager.cc.

References DoGetFragmentationThreshold().

Referenced by GetFragmentOffset(), GetFragmentSize(), GetNFragments(), and NeedFragmentation().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetFragmentOffset ( Mac48Address  address,
const WifiMacHeader header,
Ptr< const Packet packet,
uint32_t  fragmentNumber
)
Parameters
addressremote address
headerMAC header
packetthe packet to send
fragmentNumberthe fragment index of the next fragment to send (starts at zero).
Returns
the offset within the original packet where this fragment starts.

Definition at line 1283 of file wifi-remote-station-manager.cc.

References GetFragmentationThreshold(), GetNFragments(), ns3::WifiMacHeader::GetSize(), ns3::Mac48Address::IsGroup(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::WIFI_MAC_FCS_LENGTH.

Referenced by ns3::DcaTxop::GetFragmentOffset(), and ns3::EdcaTxopN::GetFragmentOffset().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetFragmentSize ( Mac48Address  address,
const WifiMacHeader header,
Ptr< const Packet packet,
uint32_t  fragmentNumber
)
Parameters
addressremote address
headerMAC header
packetthe packet to send
fragmentNumberthe fragment index of the next fragment to send (starts at zero).
Returns
the size of the corresponding fragment.

Definition at line 1255 of file wifi-remote-station-manager.cc.

References GetFragmentationThreshold(), GetNFragments(), ns3::Packet::GetSize(), ns3::WifiMacHeader::GetSize(), ns3::Mac48Address::IsGroup(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::WIFI_MAC_FCS_LENGTH.

Referenced by ns3::DcaTxop::GetFragmentSize(), ns3::EdcaTxopN::GetFragmentSize(), ns3::DcaTxop::GetNextFragmentSize(), ns3::EdcaTxopN::GetNextFragmentSize(), and ns3::EdcaTxopN::IsTxopFragmentation().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::GetGreenfield ( const WifiRemoteStation station) const
protected

Return whether the station supports Greenfield or not.

Parameters
stationthe station being queried
Returns
true if Greenfield is supported by the station, false otherwise

Definition at line 2038 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_greenfield, and ns3::WifiRemoteStation::m_state.

bool ns3::WifiRemoteStationManager::GetGreenfieldSupported ( Mac48Address  address) const

Return whether the station supports Greenfield or not.

Parameters
addressthe address of the station
Returns
true if Greenfield is supported by the station, false otherwise

Definition at line 1793 of file wifi-remote-station-manager.cc.

References LookupState(), and ns3::WifiRemoteStationState::m_greenfield.

Referenced by GetPreambleForTransmission(), and ns3::ApWifiMac::IsNonGfHtStasPresent().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint16_t ns3::WifiRemoteStationManager::GetGuardInterval ( const WifiRemoteStation station) const
protected

Return the HE guard interval duration supported by the station.

Parameters
stationthe station being queried
Returns
the HE guard interval duration (in nanoseconds) supported by the station

Definition at line 2032 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_guardInterval, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), and ns3::ConstantRateWifiManager::DoGetRtsTxVector().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::GetHeSupported ( const WifiRemoteStation station) const
protected

Return whether the given station is HE capable.

Parameters
stationthe station being queried
Returns
true if the station has HE capabilities, false otherwise

Definition at line 2116 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_heSupported, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::IdealWifiManager::DoGetDataTxVector().

+ Here is the caller graph for this function:

WifiRemoteStationManager::ProtectionMode ns3::WifiRemoteStationManager::GetHtProtectionMode ( void  ) const

Return the HT protection mode.

Returns
the HT protection mode

Definition at line 556 of file wifi-remote-station-manager.cc.

References m_htProtectionMode.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::GetHtSupported ( const WifiRemoteStation station) const
protected

Return whether the given station is HT capable.

Parameters
stationthe station being queried
Returns
true if the station has HT capabilities, false otherwise

Definition at line 2104 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_htSupported, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::MinstrelHtWifiManager::CheckInit(), and ns3::IdealWifiManager::DoGetDataTxVector().

+ Here is the caller graph for this function:

WifiRemoteStationInfo ns3::WifiRemoteStationManager::GetInfo ( Mac48Address  address)
Parameters
addressof the remote station
Returns
information regarding the remote station associated with the given address

Definition at line 1636 of file wifi-remote-station-manager.cc.

References LookupState(), and ns3::WifiRemoteStationState::m_info.

+ Here is the call graph for this function:

Ptr< WifiMac > ns3::WifiRemoteStationManager::GetMac ( void  ) const
protected

Return the WifiMac.

Returns
WifiMac

Definition at line 2080 of file wifi-remote-station-manager.cc.

References m_wifiMac.

Referenced by ns3::MinstrelHtWifiManager::CalculateRetransmits(), and ns3::MinstrelWifiManager::CalculateTimeUnicastPacket().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::GetMaxNumberOfTransmitStreams ( void  )
Returns
the maximum number of spatial streams supported by the phy layer

Definition at line 2167 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetMaxSupportedTxSpatialStreams(), and m_wifiPhy.

Referenced by DoGetCtsToSelfTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), and ns3::IdealWifiManager::DoGetDataTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetMaxSlrc ( void  ) const

Return the maximum STA long retry count (SLRC).

Returns
the maximum SLRC

Definition at line 604 of file wifi-remote-station-manager.cc.

References m_maxSlrc.

Referenced by NeedDataRetransmission().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetMaxSsrc ( void  ) const

Return the maximum STA short retry count (SSRC).

Returns
the maximum SSRC

Definition at line 598 of file wifi-remote-station-manager.cc.

References m_maxSsrc.

Referenced by NeedRtsRetransmission().

+ Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetMcsSupported ( const WifiRemoteStation station,
uint32_t  i
) const
protected

Return the WifiMode supported by the specified station at the specified index.

Parameters
stationthe station being queried
ithe index
Returns
the WifiMode at the given index of the specified station

Definition at line 1979 of file wifi-remote-station-manager.cc.

References GetNMcsSupported(), ns3::WifiRemoteStationState::m_operationalMcsSet, ns3::WifiRemoteStation::m_state, and NS_ASSERT.

Referenced by ns3::MinstrelHtWifiManager::CalculateRetransmits(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::RateInit(), ns3::MinstrelHtWifiManager::StatsDump(), and ns3::MinstrelHtWifiManager::UpdateStats().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNBasicMcs ( void  ) const

Return the number of basic MCS index.

Returns
the number of basic MCS index

Definition at line 1912 of file wifi-remote-station-manager.cc.

References m_bssBasicMcsSet.

Referenced by AddBasicMcs(), GetBasicMcs(), and ns3::ApWifiMac::Receive().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNBasicModes ( void  ) const
uint32_t ns3::WifiRemoteStationManager::GetNess ( const WifiRemoteStation station) const
protected
Returns
the number of Ness the station has.
Parameters
stationthe station being queried
Returns
the number of Ness the station has

Definition at line 2062 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_ness, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::MinstrelHtWifiManager::DoGetDataTxVector().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNFragments ( const WifiMacHeader header,
Ptr< const Packet packet
)
private

Return the number of fragments needed for the given packet.

Parameters
headerMAC header
packetthe packet to be fragmented
Returns
the number of fragments needed

Definition at line 1239 of file wifi-remote-station-manager.cc.

References GetFragmentationThreshold(), ns3::Packet::GetSize(), ns3::WifiMacHeader::GetSize(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::WIFI_MAC_FCS_LENGTH.

Referenced by GetFragmentOffset(), GetFragmentSize(), and IsLastFragment().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNMcsSupported ( const WifiRemoteStation station) const
protected

Return the number of MCS supported by the given station.

Parameters
stationthe station being queried
Returns
the number of MCS supported by the given station

Definition at line 2122 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_operationalMcsSet, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::MinstrelHtWifiManager::CheckInit(), ns3::IdealWifiManager::DoGetDataTxVector(), and GetMcsSupported().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNNonErpBasicModes ( void  ) const

Return the number of non-ERP basic modes we support.

Returns
the number of basic modes we support

Definition at line 1858 of file wifi-remote-station-manager.cc.

References m_bssBasicRateSet, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by GetNonErpBasicMode().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNNonErpSupported ( const WifiRemoteStation station) const
protected

Return the number of non-ERP modes supported by the given station.

Parameters
stationthe station being queried
Returns
the number of non-ERP modes supported by the given station

Definition at line 2128 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_operationalRateSet, ns3::WifiRemoteStation::m_state, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by GetNonErpSupported().

+ Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetNonErpBasicMode ( uint32_t  i) const

Return a basic mode from the set of basic modes that is not an ERP mode.

Parameters
iindex of the basic mode in the basic mode set
Returns
the basic mode at the given index

Definition at line 1873 of file wifi-remote-station-manager.cc.

References GetNNonErpBasicModes(), m_bssBasicRateSet, NS_ASSERT, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

+ Here is the call graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetNonErpSupported ( const WifiRemoteStation station,
uint32_t  i
) const
protected
WifiMode ns3::WifiRemoteStationManager::GetNonUnicastMode ( void  ) const

Return a mode for non-unicast packets.

Returns
WifiMode for non-unicast packets

Definition at line 1925 of file wifi-remote-station-manager.cc.

References GetBasicMode(), and m_nonUnicastMode.

Referenced by GetDataTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::GetNumberOfAntennas ( void  )
Returns
the number of antennas supported by the phy layer

Definition at line 2161 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetNumberOfAntennas(), and m_wifiPhy.

Referenced by DoGetCtsToSelfTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), and ns3::IdealWifiManager::DoGetRtsTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::GetNumberOfSupportedStreams ( const WifiRemoteStation station) const
protected

Return the number of supported streams the station has.

Parameters
stationthe station being queried
Returns
the number of supported streams the station has

Definition at line 2056 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStation::m_state, and ns3::WifiRemoteStationState::m_streams.

Referenced by ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), and ns3::MinstrelHtWifiManager::RateInit().

+ Here is the caller graph for this function:

WifiPreamble ns3::WifiRemoteStationManager::GetPreambleForTransmission ( WifiMode  mode,
Mac48Address  dest
)
protected

Return the preamble to be used for the transmission.

Parameters
modethe mode selected for the transmission
destaddress of the recipient
Returns
the preamble to be used for the transmission

Definition at line 2173 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetGreenfield(), GetGreenfieldSupported(), ns3::WifiMode::GetModulationClass(), GetShortPreambleEnabled(), GetUseGreenfieldProtection(), m_wifiPhy, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_VHT, ns3::WIFI_PREAMBLE_HE_SU, ns3::WIFI_PREAMBLE_HT_GF, ns3::WIFI_PREAMBLE_HT_MF, ns3::WIFI_PREAMBLE_LONG, ns3::WIFI_PREAMBLE_SHORT, and ns3::WIFI_PREAMBLE_VHT.

Referenced by ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AparfWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::RrpaaWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::ParfWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::AparfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::RrpaaWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), GetAckTxVector(), GetBlockAckTxVector(), GetCtsTxVector(), ns3::MinstrelWifiManager::GetDataTxVector(), GetDataTxVector(), and ns3::MinstrelWifiManager::GetRtsTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::GetQosSupported ( Mac48Address  address) const

Return whether the given station is QoS capable.

Parameters
addressthe address of the station
Returns
true if the station has QoS capabilities, false otherwise

Definition at line 737 of file wifi-remote-station-manager.cc.

References LookupState(), and ns3::WifiRemoteStationState::m_qosSupported.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::GetQosSupported ( const WifiRemoteStation station) const
protected

Return whether the given station is QoS capable.

Parameters
stationthe station being queried
Returns
true if the station has QoS capabilities, false otherwise

Definition at line 2098 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_qosSupported, and ns3::WifiRemoteStation::m_state.

bool ns3::WifiRemoteStationManager::GetRifsPermitted ( void  ) const

Return whether the device can use RIFS.

Returns
true if RIFS is permitted, false otherwise

Definition at line 544 of file wifi-remote-station-manager.cc.

References m_rifsPermitted.

Referenced by ns3::MacLow::ReceiveOk(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), and ns3::MacLow::StartDataTxTimers().

+ Here is the caller graph for this function:
