ns3::WifiMac Class Referenceabstract

base class for all MAC-level wifi objects. More...

#include "wifi-mac.h"

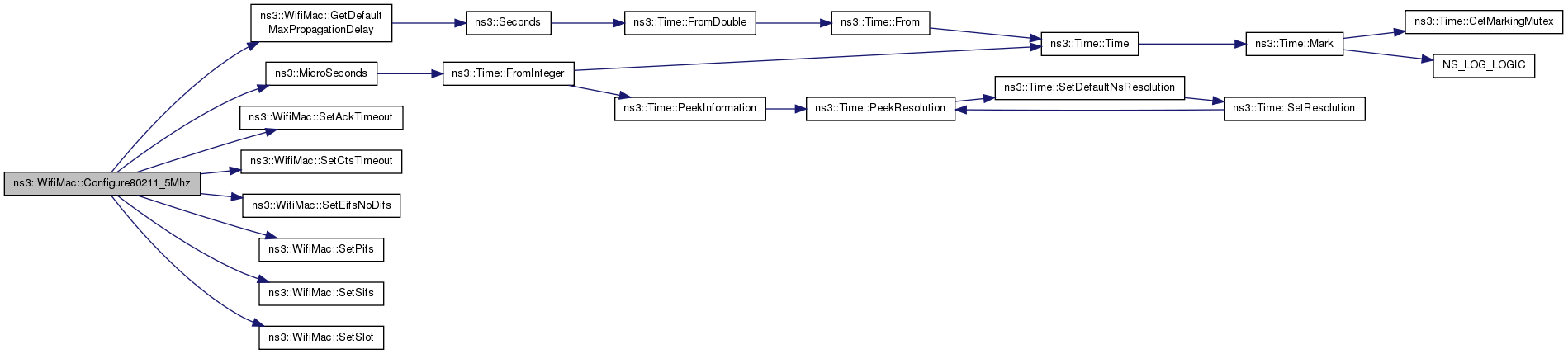

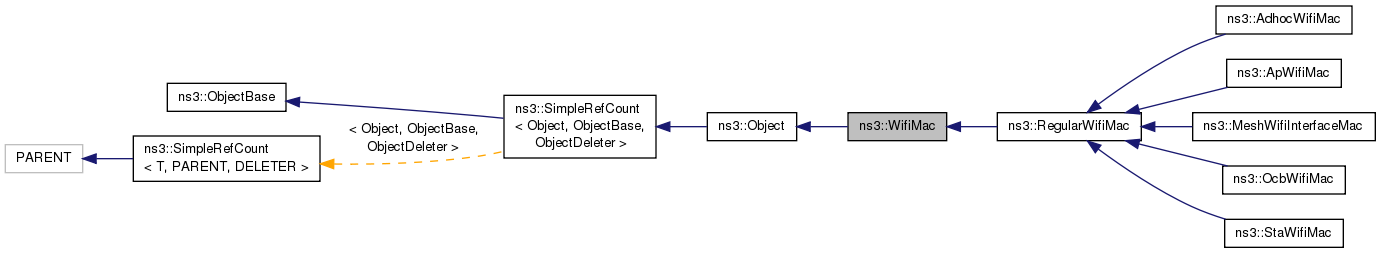

+ Inheritance diagram for ns3::WifiMac:

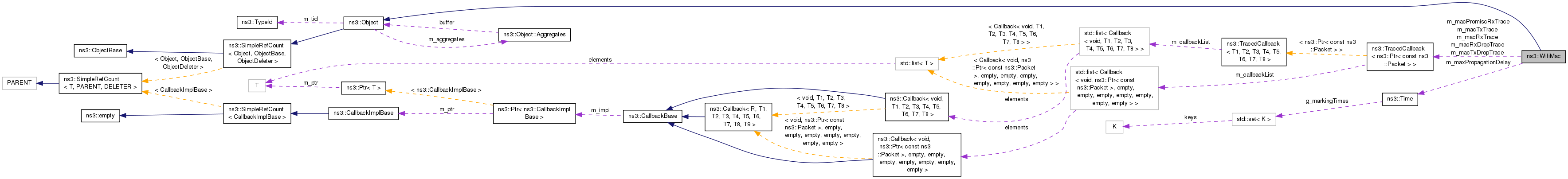

+ Collaboration diagram for ns3::WifiMac:

Public Member Functions

void ConfigureStandard (WifiPhyStandard standard)

virtual void Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)=0

virtual void Enqueue (Ptr< const Packet > packet, Mac48Address to)=0

virtual Time GetAckTimeout (void) const =0

virtual Mac48Address GetAddress (void) const =0

virtual Time GetBasicBlockAckTimeout (void) const

virtual Mac48Address GetBssid (void) const =0

virtual Time GetCompressedBlockAckTimeout (void) const

virtual Time GetCtsTimeout (void) const =0

virtual Time GetEifsNoDifs (void) const =0

Time GetMaxPropagationDelay (void) const

Time GetMsduLifetime (void) const

virtual Time GetPifs (void) const =0

virtual Time GetRifs (void) const =0

virtual bool GetRifsSupported (void) const =0

virtual bool GetShortSlotTimeSupported (void) const =0

virtual Time GetSifs (void) const =0

virtual Time GetSlot (void) const =0

virtual Ssid GetSsid (void) const =0

virtual Ptr< WifiPhyGetWifiPhy (void) const =0

virtual Ptr< WifiRemoteStationManagerGetWifiRemoteStationManager (void) const =0

void NotifyPromiscRx (Ptr< const Packet > packet)

void NotifyRx (Ptr< const Packet > packet)

void NotifyRxDrop (Ptr< const Packet > packet)

void NotifyTx (Ptr< const Packet > packet)

void NotifyTxDrop (Ptr< const Packet > packet)

virtual void ResetWifiPhy (void)=0
 remove currently attached WifiPhy device from this MAC. More...

virtual void SetAckTimeout (Time ackTimeout)=0

virtual void SetAddress (Mac48Address address)=0

virtual void SetBasicBlockAckTimeout (Time blockAckTimeout)

virtual void SetCompressedBlockAckTimeout (Time blockAckTimeout)

virtual void SetCtsTimeout (Time ctsTimeout)=0

virtual void SetEifsNoDifs (Time eifsNoDifs)=0

virtual void SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0

virtual void SetLinkDownCallback (Callback< void > linkDown)=0

virtual void SetLinkUpCallback (Callback< void > linkUp)=0

void SetMaxPropagationDelay (Time delay)

virtual void SetPifs (Time pifs)=0

virtual void SetPromisc (void)=0
 Sets the interface in promiscuous mode. More...

virtual void SetRifs (Time rifs)=0

virtual void SetShortSlotTimeSupported (bool enable)=0

virtual void SetSifs (Time sifs)=0

virtual void SetSlot (Time slotTime)=0

virtual void SetSsid (Ssid ssid)=0

virtual void SetWifiPhy (Ptr< WifiPhy > phy)=0

virtual void SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)=0

virtual bool SupportsSendFrom (void) const =0

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

void ConfigureDcf (Ptr< DcaTxop > dcf, uint32_t cwmin, uint32_t cwmax, bool isDsss, AcIndex ac)

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Member Functions

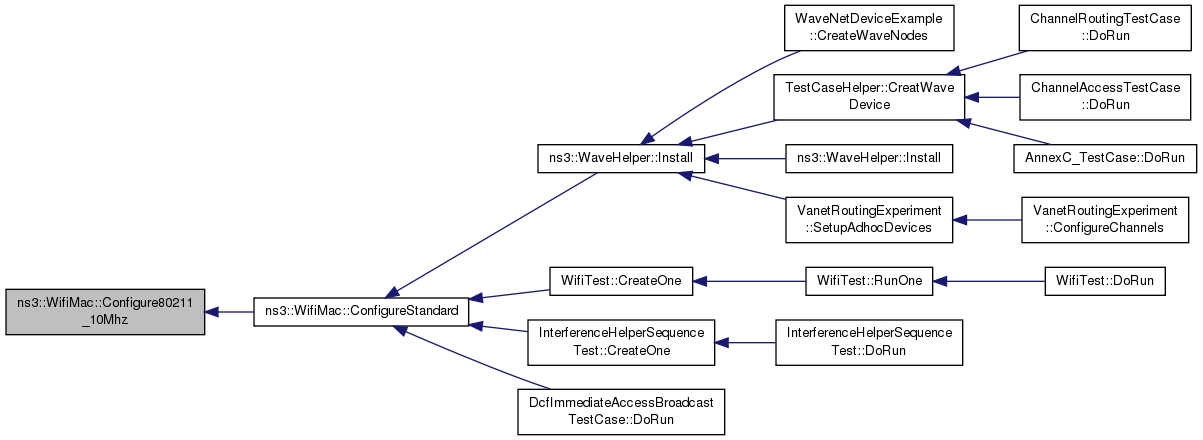

void Configure80211_10Mhz (void)
 This method sets 802.11 with 10Mhz channel spacing standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout. More...

void Configure80211_5Mhz ()
 This method sets 802.11 with 5Mhz channel spacing standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout. More...

void Configure80211a (void)
 This method sets 802.11a standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout. More...

void Configure80211ac (void)
 This method sets 802.11ac standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout. More...

void Configure80211ax_2_4Ghz (void)
 This method sets 802.11ax 2.4 GHz standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout. More...

void Configure80211ax_5Ghz (void)
 This method sets 802.11ax 5 GHz standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout. More...

void Configure80211b (void)
 This method sets 802.11b standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout. More...

void Configure80211g (void)
 This method sets 802.11g standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout. More...

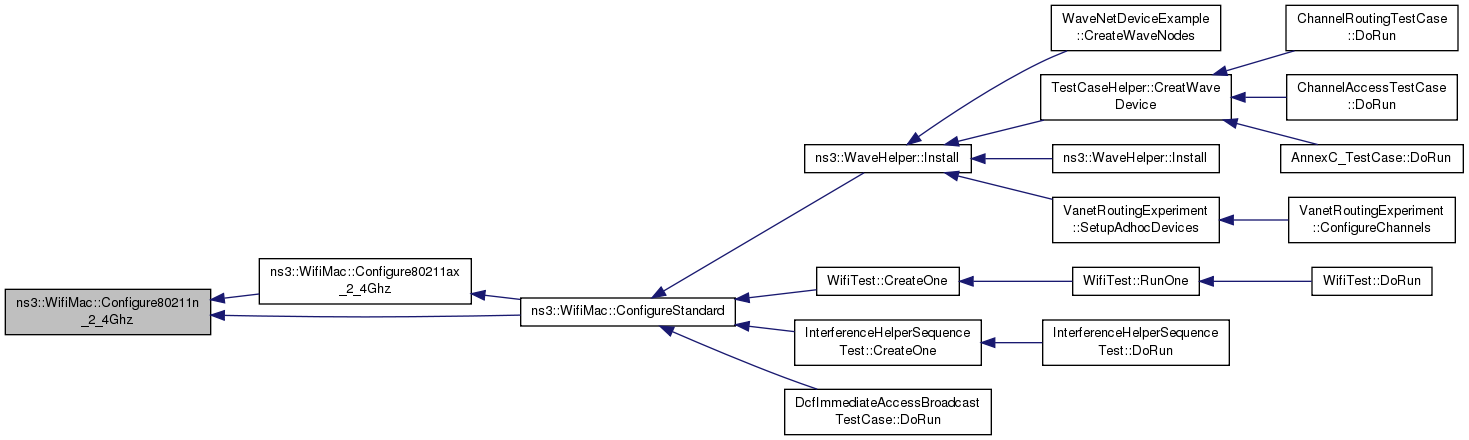

void Configure80211n_2_4Ghz (void)
 This method sets 802.11n 2.4 GHz standards-compliant defaults for following attributes: Sifs, Rifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout. More...

void Configure80211n_5Ghz (void)
 This method sets 802.11n 5 GHz standards-compliant defaults for following attributes: Sifs, Rifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout. More...

virtual void FinishConfigureStandard (WifiPhyStandard standard)=0


Static Private Member Functions

static Time GetDefaultBasicBlockAckDelay (void)
 Return the default basic block ACK delay. More...

static Time GetDefaultBasicBlockAckTimeout (void)
 Return the default basic block ACK timeout. More...

static Time GetDefaultCompressedBlockAckDelay (void)
 Return the default compressed block ACK delay. More...

static Time GetDefaultCompressedBlockAckTimeout (void)
 Return the default compressed block ACK timeout. More...

static Time GetDefaultCtsAckDelay (void)

static Time GetDefaultCtsAckTimeout (void)

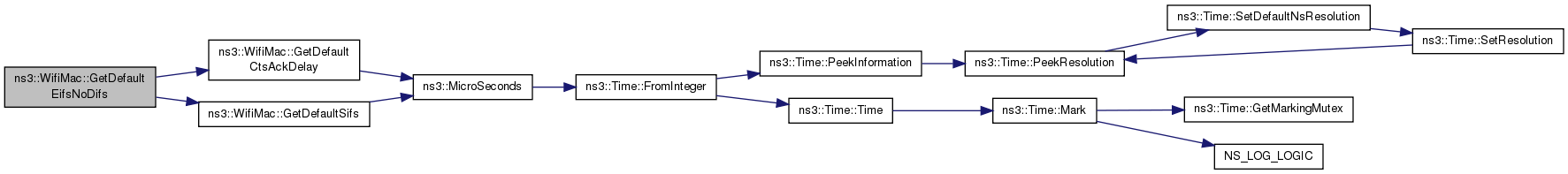

static Time GetDefaultEifsNoDifs (void)

static Time GetDefaultMaxPropagationDelay (void)

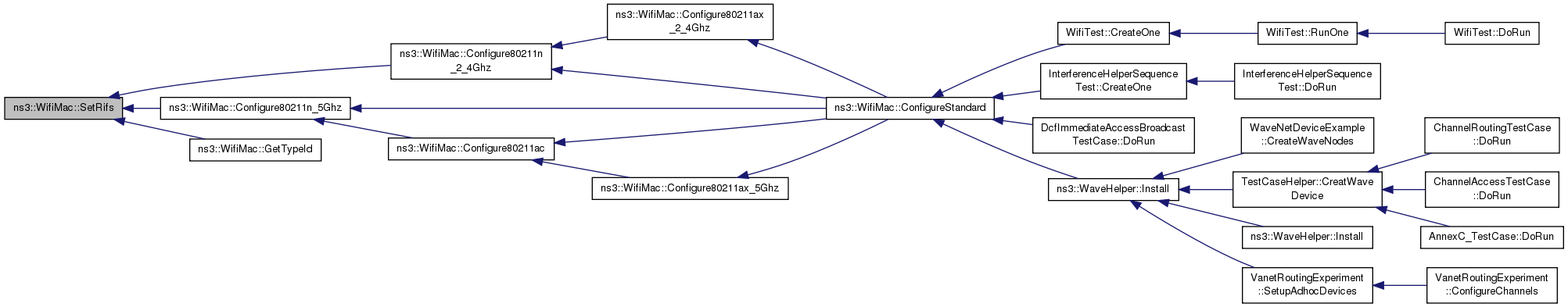

static Time GetDefaultRifs (void)

static Time GetDefaultSifs (void)

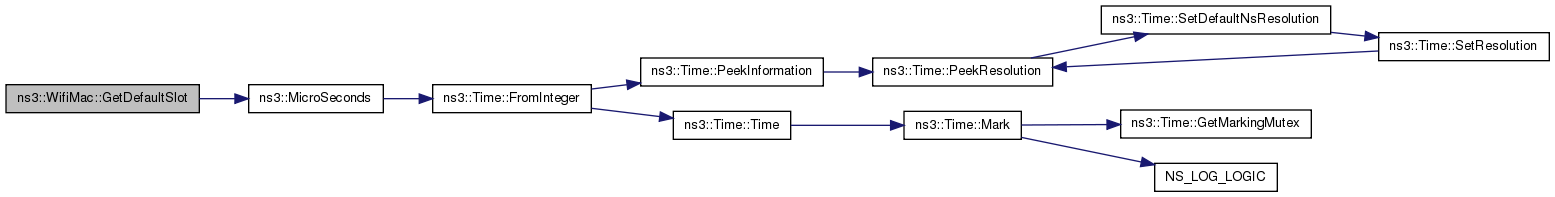

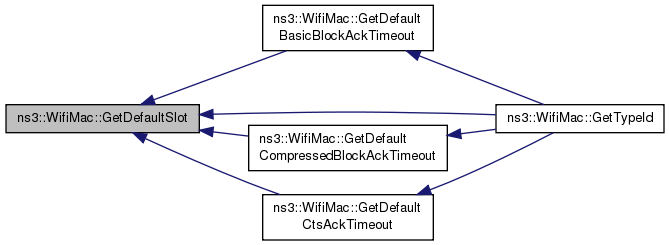

static Time GetDefaultSlot (void)


Private Attributes

TracedCallback< Ptr< const Packet > > m_macPromiscRxTrace
 The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > > m_macRxDropTrace
 The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception. More...

TracedCallback< Ptr< const Packet > > m_macRxTrace
 The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > > m_macTxDropTrace
 The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during transmission. More...

TracedCallback< Ptr< const Packet > > m_macTxTrace
 The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission. More...

Time m_maxPropagationDelay
 maximum propagation delay More...


Additional Inherited Members

Detailed Description

base class for all MAC-level wifi objects.

This class encapsulates all the low-level MAC functionality DCA, EDCA, etc) and all the high-level MAC functionality (association/disassociation state machines).

Config Paths

ns3::WifiMac is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac"

Attributes

  • CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +75000.0ns
    • Flags: construct write read
  • AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +75000.0ns
    • Flags: construct write read
  • BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +281000.0ns
    • Flags: construct write read
  • CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +107000.0ns
    • Flags: construct write read
  • Sifs: The value of the SIFS constant.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +16000.0ns
    • Flags: construct write read
  • EifsNoDifs: The value of EIFS-DIFS.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +60000.0ns
    • Flags: construct write read
  • Slot: The duration of a Slot.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +9000.0ns
    • Flags: construct write read
  • Pifs: The value of the PIFS constant.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +25000.0ns
    • Flags: construct write read
  • Rifs: The value of the RIFS constant.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +2000.0ns
    • Flags: construct write read
  • MaxPropagationDelay: The maximum propagation delay. Unused for now.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +3333.0ns
    • Flags: construct write read
  • Ssid: The ssid we want to belong to.
    • Set with class: SsidValue
    • Underlying type: Ssid
    • Initial value: default
    • Flags: construct write read

TraceSources

  • MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
    Callback signature: ns3::Packet::TracedCallback
  • MacTxDrop: A packet has been dropped in the MAC layer before transmission.
    Callback signature: ns3::Packet::TracedCallback
  • MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
    Callback signature: ns3::Packet::TracedCallback
  • MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
    Callback signature: ns3::Packet::TracedCallback
  • MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
    Callback signature: ns3::Packet::TracedCallback

Size of this type is 120 bytes (on a 64-bit architecture).

Definition at line 41 of file wifi-mac.h.

Member Function Documentation

void ns3::WifiMac::Configure80211_10Mhz ( void  )
private

This method sets 802.11 with 10Mhz channel spacing standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout.

Definition at line 376 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), ns3::MicroSeconds(), NS_LOG_FUNCTION, SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by ConfigureStandard().

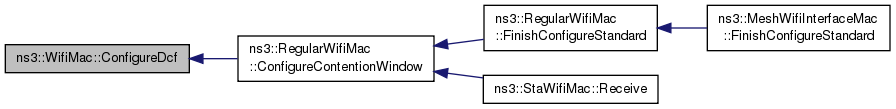

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

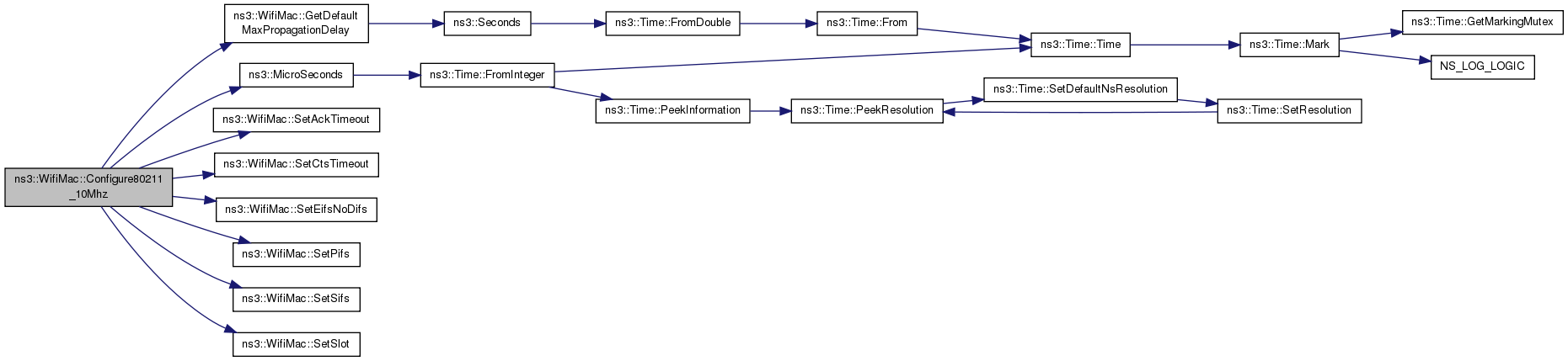

void ns3::WifiMac::Configure80211_5Mhz ( void  )
private

This method sets 802.11 with 5Mhz channel spacing standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout.

Definition at line 388 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), ns3::MicroSeconds(), NS_LOG_FUNCTION, SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by ConfigureStandard().

+ Here is the call graph for this function:

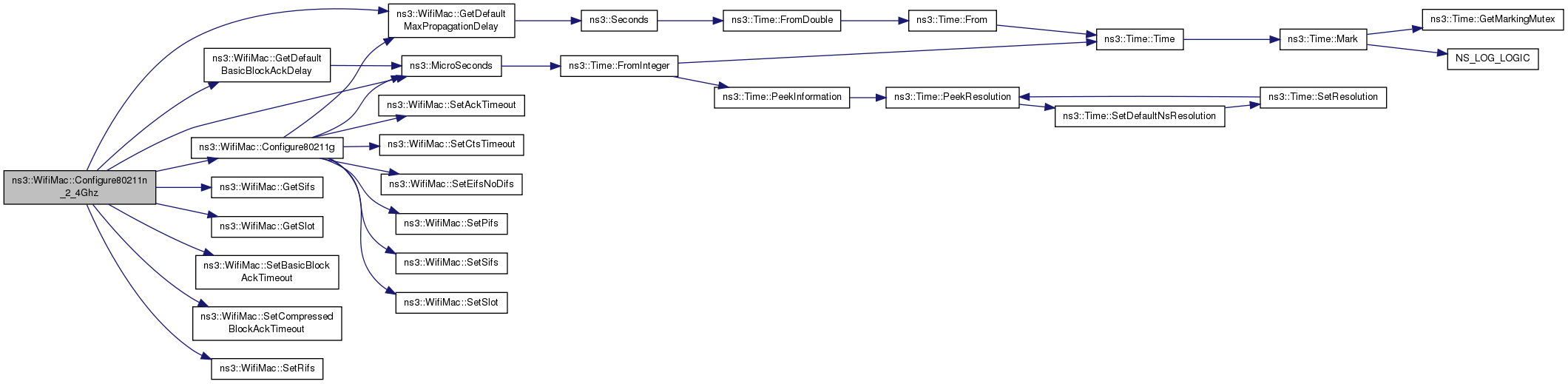

+ Here is the caller graph for this function:

void ns3::WifiMac::Configure80211a ( void  )
private

This method sets 802.11a standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout.

Definition at line 336 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), ns3::MicroSeconds(), NS_LOG_FUNCTION, SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by Configure80211n_5Ghz(), and ConfigureStandard().

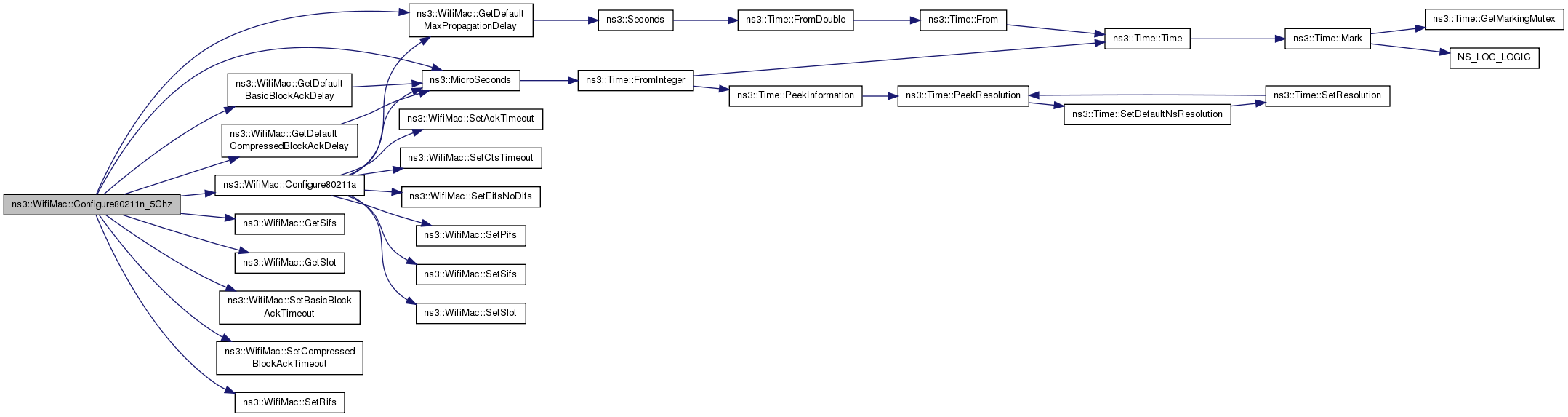

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

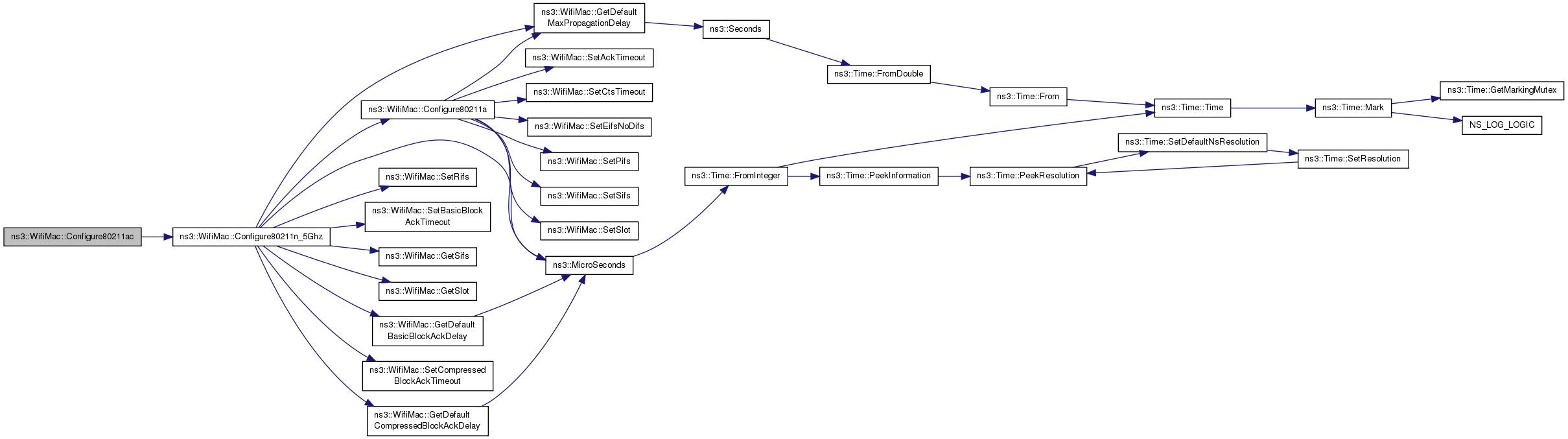

void ns3::WifiMac::Configure80211ac ( void  )
private

This method sets 802.11ac standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout.

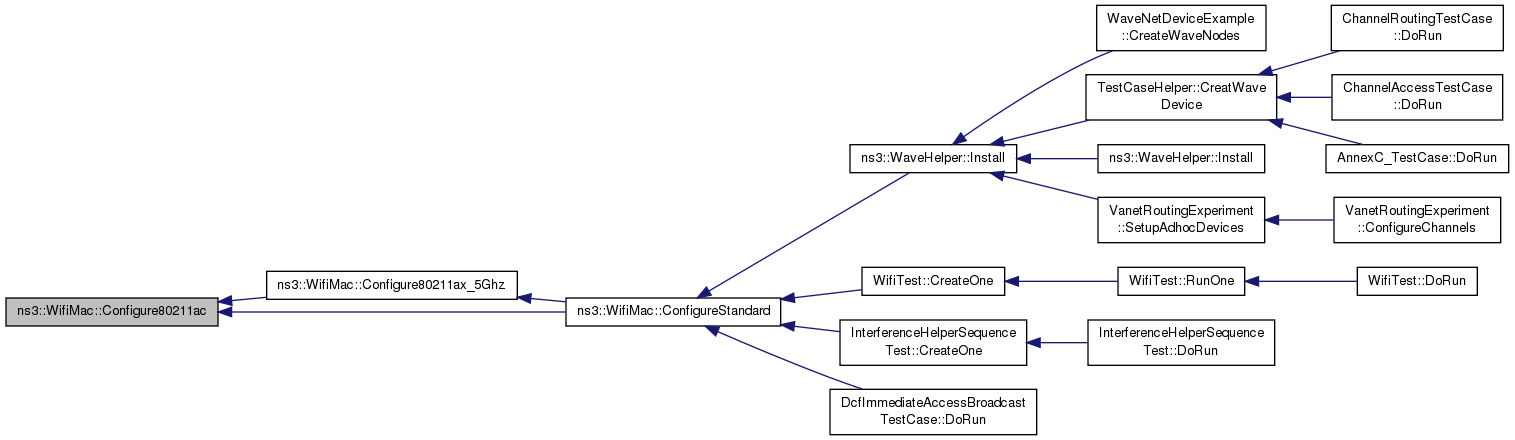

Definition at line 419 of file wifi-mac.cc.

References Configure80211n_5Ghz(), and NS_LOG_FUNCTION.

Referenced by Configure80211ax_5Ghz(), and ConfigureStandard().

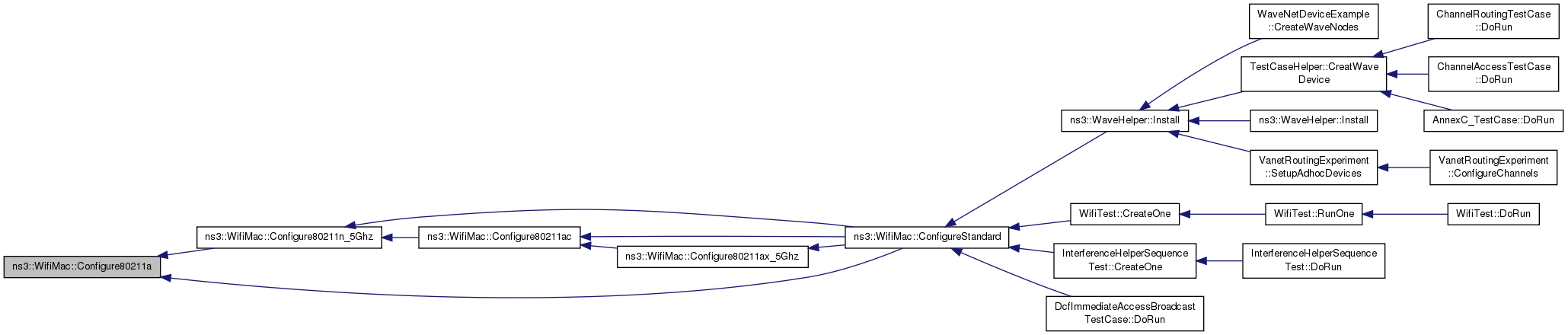

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiMac::Configure80211ax_2_4Ghz ( void  )
private

This method sets 802.11ax 2.4 GHz standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout.

There is no support for short slot time.

Definition at line 426 of file wifi-mac.cc.

References Configure80211n_2_4Ghz(), and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

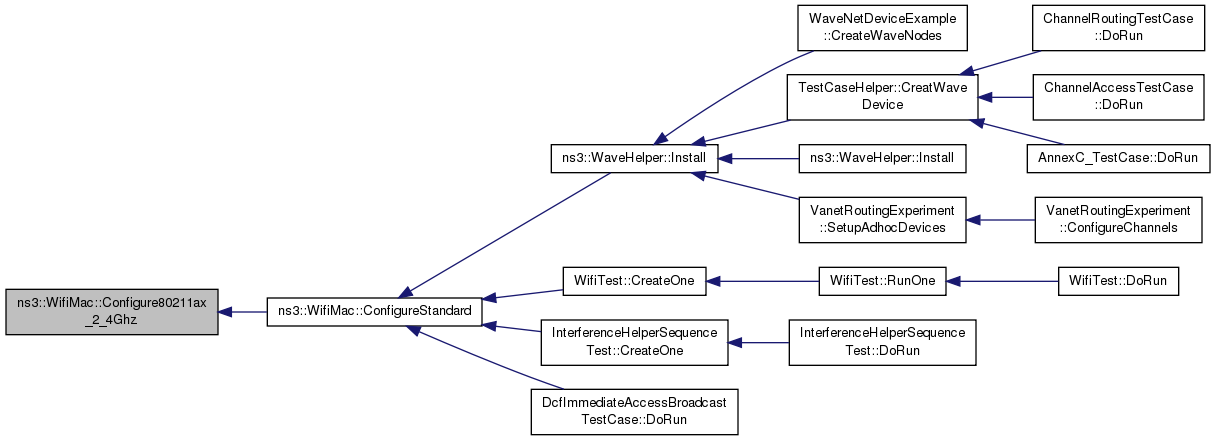

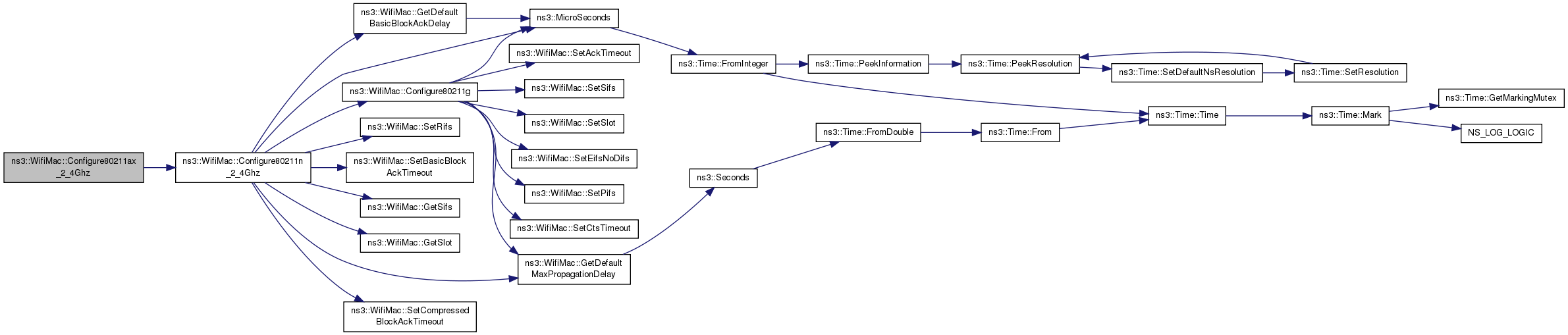

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiMac::Configure80211ax_5Ghz ( void  )
private

This method sets 802.11ax 5 GHz standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout.

Definition at line 433 of file wifi-mac.cc.

References Configure80211ac(), and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

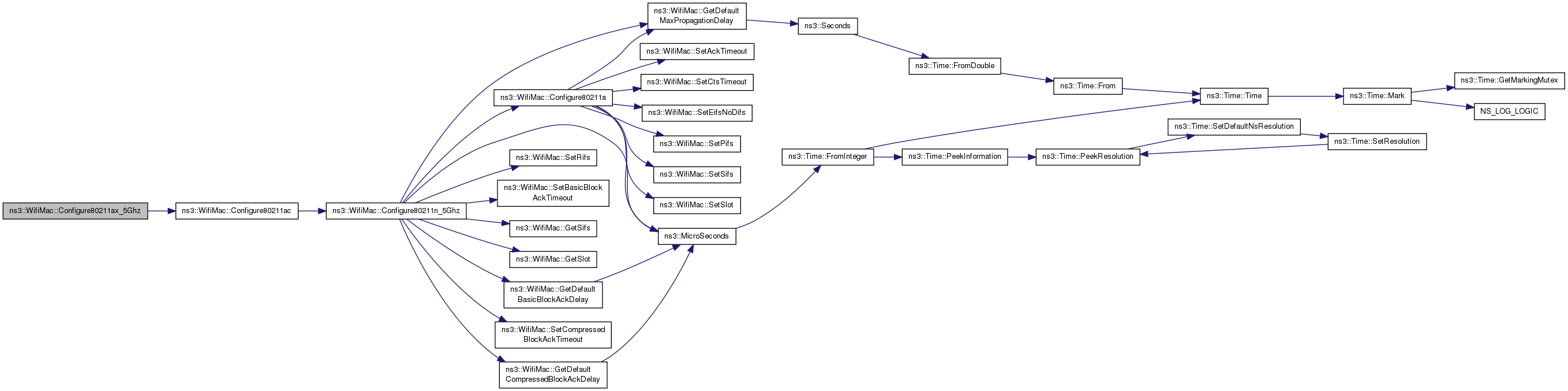

+ Here is the call graph for this function:

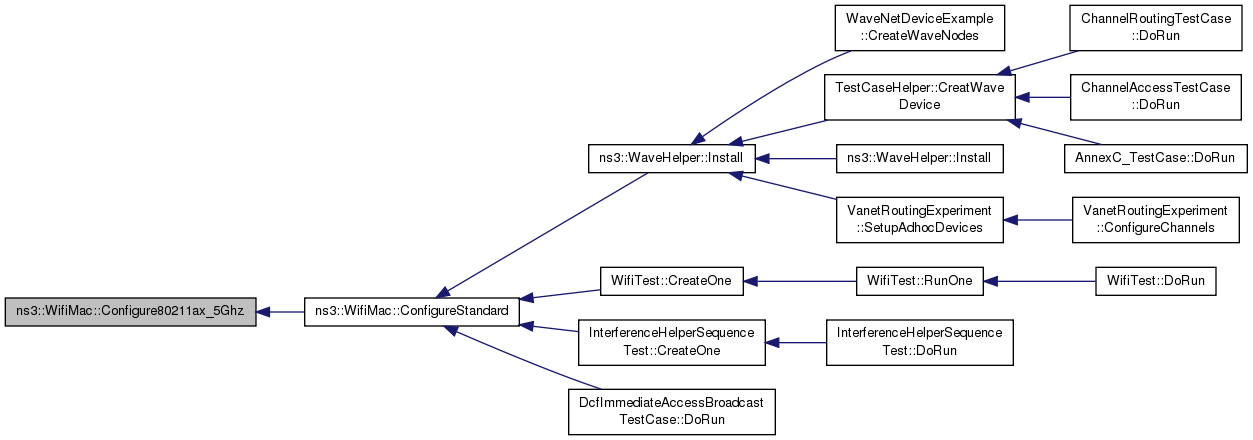

+ Here is the caller graph for this function:

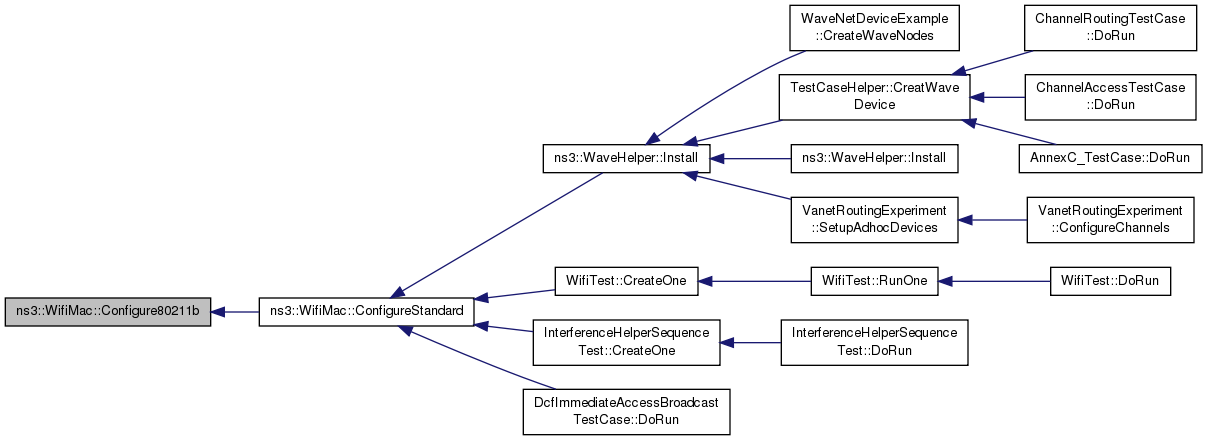

void ns3::WifiMac::Configure80211b ( void  )
private

This method sets 802.11b standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout.

Definition at line 348 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), ns3::MicroSeconds(), NS_LOG_FUNCTION, SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by ConfigureStandard().

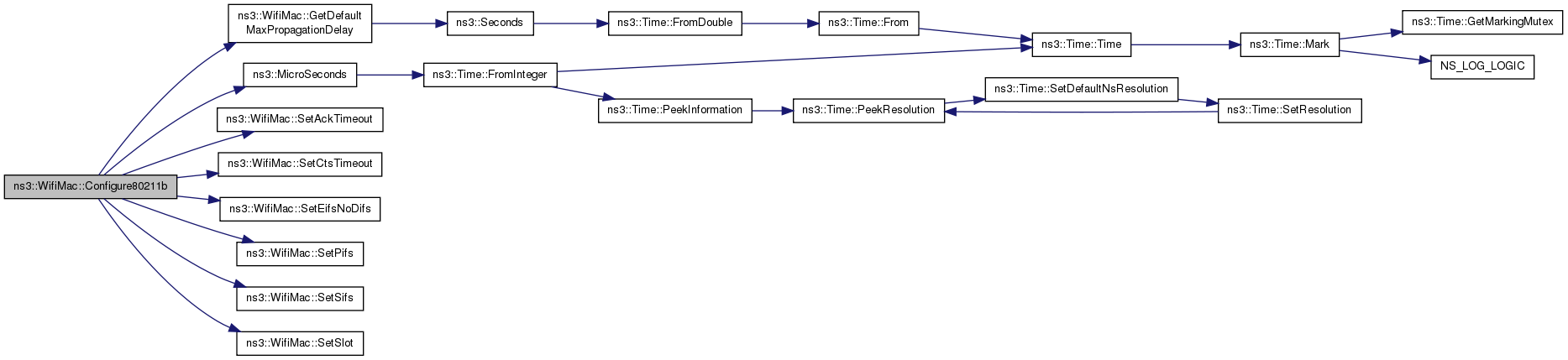

+ Here is the call graph for this function:

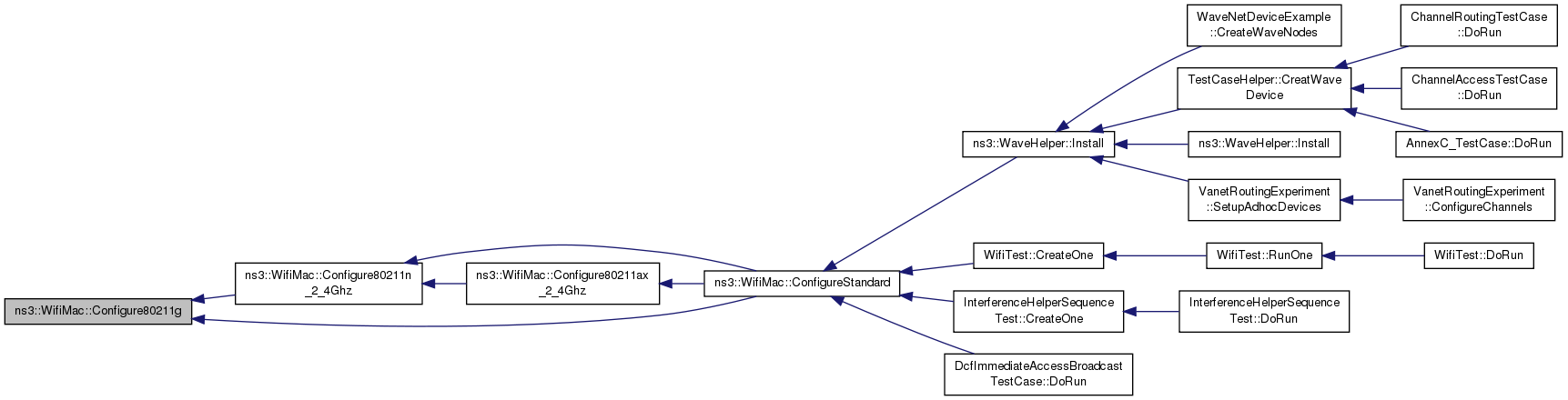

+ Here is the caller graph for this function:

void ns3::WifiMac::Configure80211g ( void  )
private

This method sets 802.11g standards-compliant defaults for following attributes: Sifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout.

There is no support for short slot time.

Definition at line 360 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), ns3::MicroSeconds(), NS_LOG_FUNCTION, SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by Configure80211n_2_4Ghz(), and ConfigureStandard().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiMac::Configure80211n_2_4Ghz ( void  )
private

This method sets 802.11n 2.4 GHz standards-compliant defaults for following attributes: Sifs, Rifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout.

There is no support for short slot time.

Definition at line 400 of file wifi-mac.cc.

References Configure80211g(), GetDefaultBasicBlockAckDelay(), GetDefaultMaxPropagationDelay(), GetSifs(), GetSlot(), ns3::MicroSeconds(), NS_LOG_FUNCTION, SetBasicBlockAckTimeout(), SetCompressedBlockAckTimeout(), and SetRifs().

Referenced by Configure80211ax_2_4Ghz(), and ConfigureStandard().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiMac::Configure80211n_5Ghz ( void  )
private

This method sets 802.11n 5 GHz standards-compliant defaults for following attributes: Sifs, Rifs, Slot, EifsNoDifs, Pifs, CtsTimeout, and AckTimeout.

Definition at line 409 of file wifi-mac.cc.

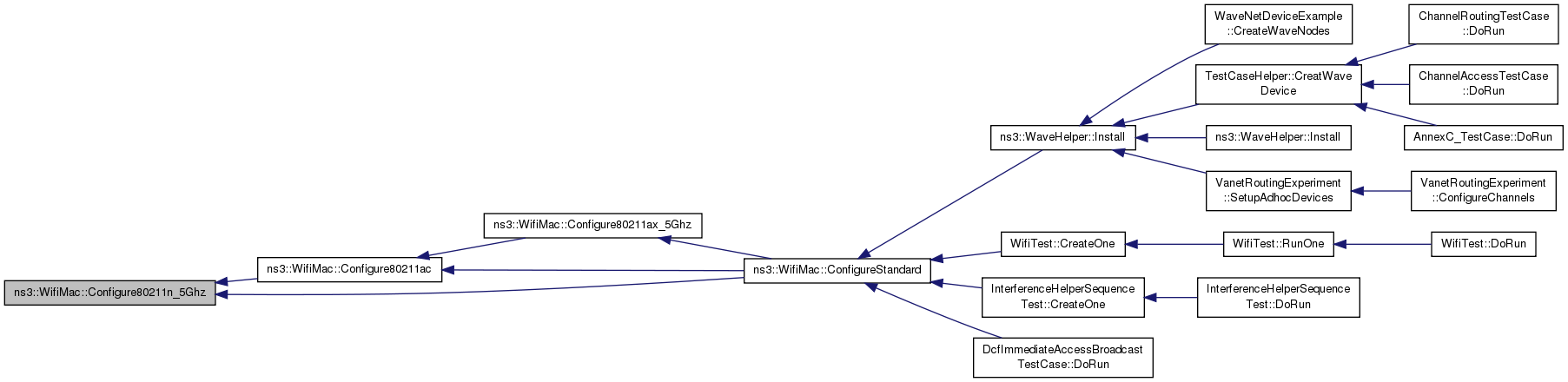

References Configure80211a(), GetDefaultBasicBlockAckDelay(), GetDefaultCompressedBlockAckDelay(), GetDefaultMaxPropagationDelay(), GetSifs(), GetSlot(), ns3::MicroSeconds(), NS_LOG_FUNCTION, SetBasicBlockAckTimeout(), SetCompressedBlockAckTimeout(), and SetRifs().

Referenced by Configure80211ac(), and ConfigureStandard().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiMac::ConfigureDcf ( Ptr< DcaTxop dcf,
uint32_t  cwmin,
uint32_t  cwmax,
bool  isDsss,
AcIndex  ac
)
protected
Parameters
dcfthe DCF to be configured
cwminthe minimum congestion window for the DCF
cwmaxthe maximum congestion window for the DCF
isDsssflag to indicate whether PHY is DSSS or HR/DSSS
acthe access category for the DCF

Configure the DCF with appropriate values depending on the given access category.

Definition at line 440 of file wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BE_NQOS, ns3::AC_BK, ns3::AC_UNDEF, ns3::AC_VI, ns3::AC_VO, ns3::MicroSeconds(), NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::RegularWifiMac::ConfigureContentionWindow().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

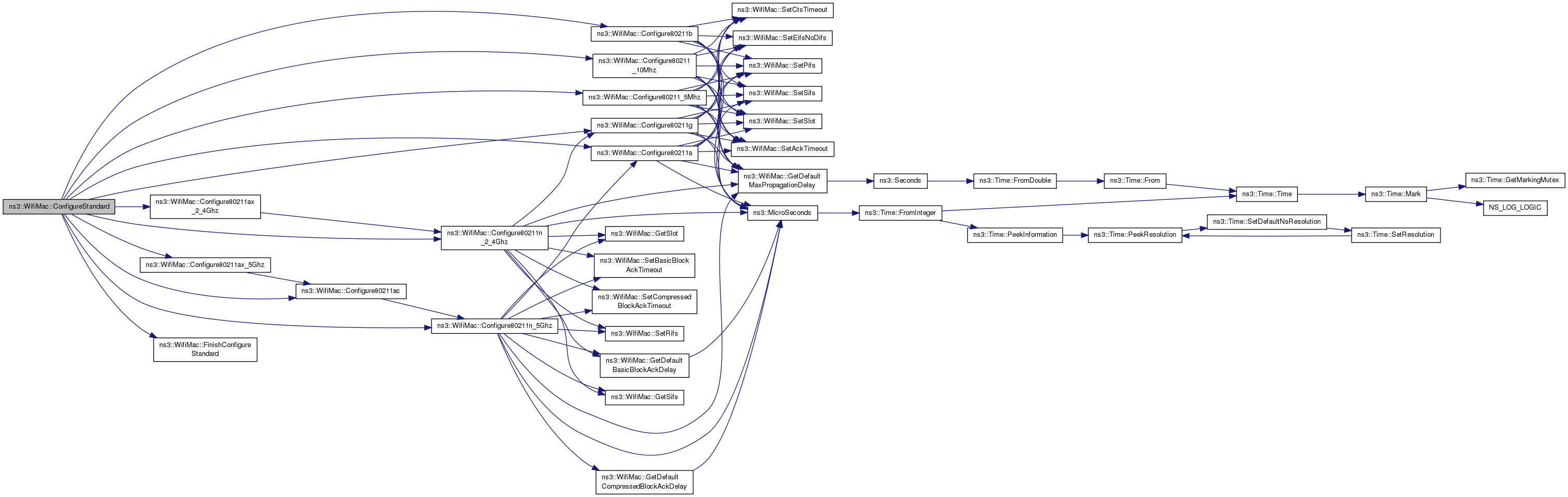

void ns3::WifiMac::ConfigureStandard ( WifiPhyStandard  standard)
Parameters
standardthe wifi standard to be configured

This method sets standards-compliant defaults for WifiMac parameters such as sifs time, slot time, timeout values, etc., based on the standard selected.

See also
WifiMac::Configure80211a
WifiMac::Configure80211b
WifiMac::Configure80211g
WifiMac::Configure80211_10Mhz
WifiMac::Configure80211_5Mhz
WifiMac::Configure80211n_2_4Ghz
WifiMac::Configure80211n_5Ghz
WifiMac::Configure80211ac
WifiMac::Configure80211ax_2_4Ghz
WifiMac::Configure80211ax_5Ghz

Definition at line 289 of file wifi-mac.cc.

References Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211ac(), Configure80211ax_2_4Ghz(), Configure80211ax_5Ghz(), Configure80211b(), Configure80211g(), Configure80211n_2_4Ghz(), Configure80211n_5Ghz(), FinishConfigureStandard(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::WIFI_PHY_STANDARD_80211_10MHZ, ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211ac, ns3::WIFI_PHY_STANDARD_80211ax_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211ax_5GHZ, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211n_5GHZ, ns3::WIFI_PHY_STANDARD_holland, and ns3::WIFI_PHY_STANDARD_UNSPECIFIED.

Referenced by WifiTest::CreateOne(), InterferenceHelperSequenceTest::CreateOne(), DcfImmediateAccessBroadcastTestCase::DoRun(), and ns3::WaveHelper::Install().

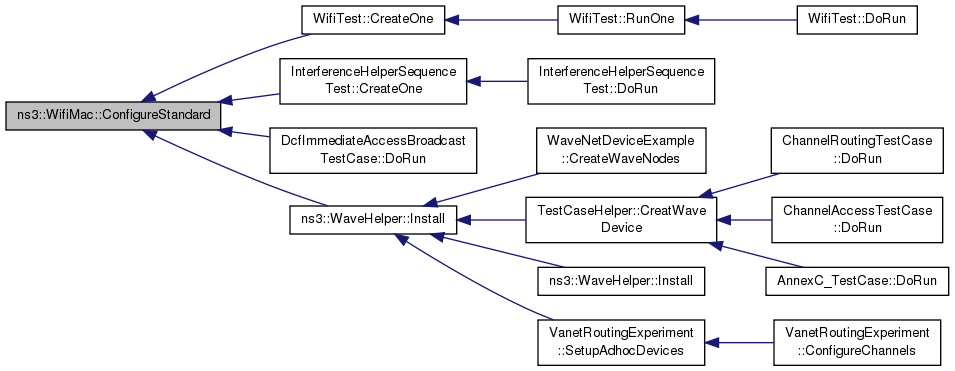

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

virtual void ns3::WifiMac::Enqueue ( Ptr< const Packet packet,
Mac48Address  to,
Mac48Address  from
)
pure virtual
Parameters
packetthe packet to send.
tothe address to which the packet should be sent.
fromthe address from which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Implemented in ns3::RegularWifiMac, ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

virtual void ns3::WifiMac::Enqueue ( Ptr< const Packet packet,
Mac48Address  to
)
pure virtual
Parameters
packetthe packet to send.
tothe address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC.

Implemented in ns3::RegularWifiMac, ns3::OcbWifiMac, ns3::ApWifiMac, ns3::MeshWifiInterfaceMac, ns3::AdhocWifiMac, and ns3::StaWifiMac.

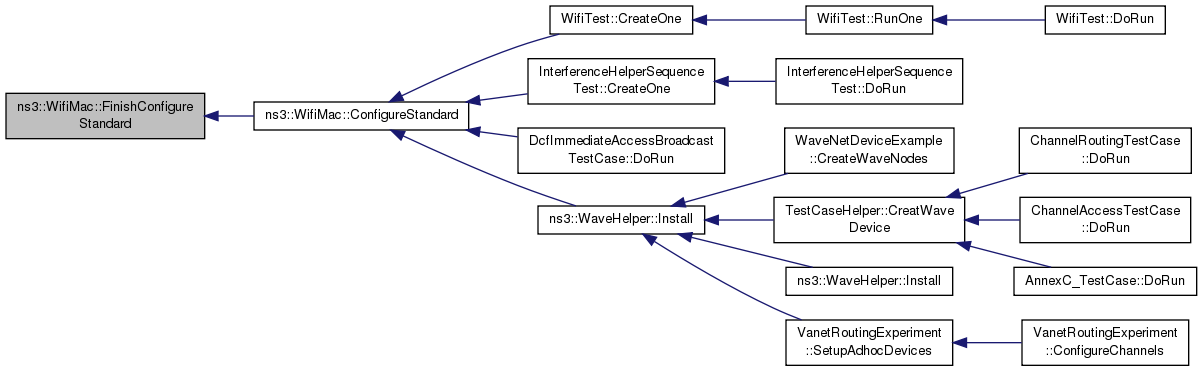

virtual void ns3::WifiMac::FinishConfigureStandard ( WifiPhyStandard  standard)
privatepure virtual
Parameters
standardthe phy standard to be used

This method is called by ns3::WifiMac::ConfigureStandard to complete the configuration process for a requested phy standard. Subclasses should implement this method to configure their dcf queues according to the requested standard.

Implemented in ns3::RegularWifiMac, ns3::OcbWifiMac, and ns3::MeshWifiInterfaceMac.

Referenced by ConfigureStandard().

+ Here is the caller graph for this function:

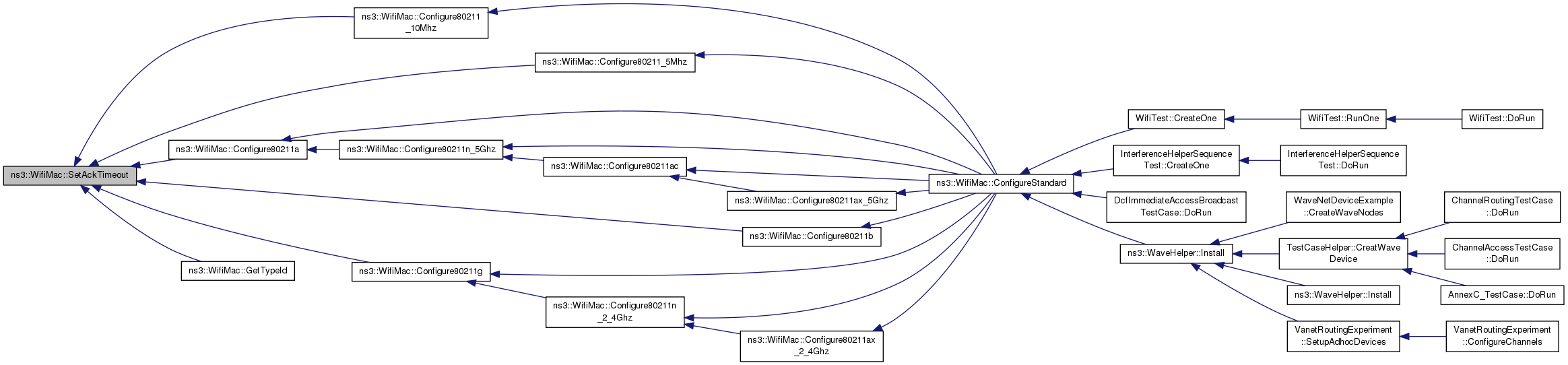

virtual Time ns3::WifiMac::GetAckTimeout ( void  ) const
pure virtual
Returns
the current ACK timeout duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

virtual Mac48Address ns3::WifiMac::GetAddress ( void  ) const
pure virtual
Returns
the MAC address associated to this MAC layer.

Implemented in ns3::RegularWifiMac.

Time ns3::WifiMac::GetBasicBlockAckTimeout ( void  ) const
virtual
Returns
the current basic block ACK timeout duration.

Reimplemented in ns3::RegularWifiMac.

Definition at line 127 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

virtual Mac48Address ns3::WifiMac::GetBssid ( void  ) const
pure virtual
Returns
the bssid of the network this device belongs to.

Implemented in ns3::RegularWifiMac, and ns3::OcbWifiMac.

Time ns3::WifiMac::GetCompressedBlockAckTimeout ( void  ) const
virtual
Returns
the current compressed block ACK timeout duration.

Reimplemented in ns3::RegularWifiMac.

Definition at line 140 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by GetTypeId().

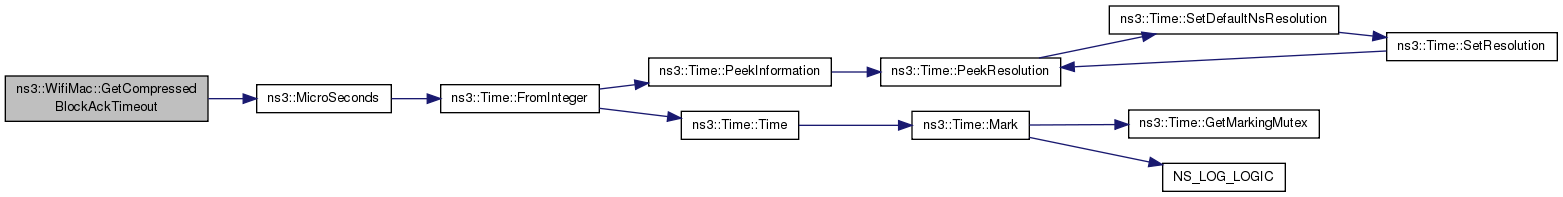

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetCtsTimeout ( void  ) const
pure virtual
Returns
the current CTS timeout duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

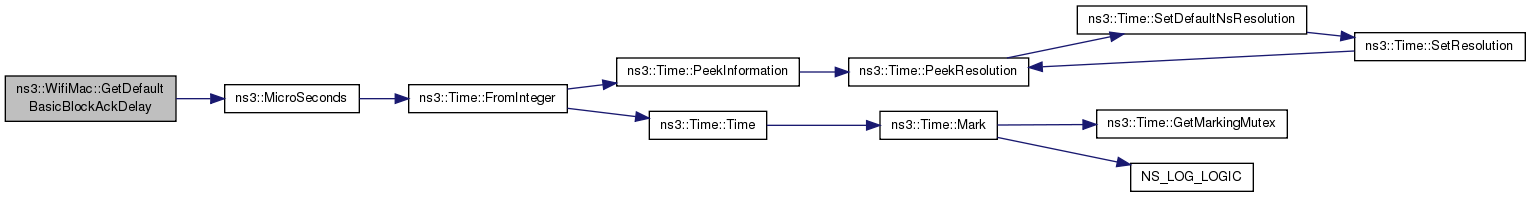

Time ns3::WifiMac::GetDefaultBasicBlockAckDelay ( void  )
staticprivate

Return the default basic block ACK delay.

Currently it returns 250 microseconds.

Returns
the default basic block ACK delay

Definition at line 86 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by Configure80211n_2_4Ghz(), Configure80211n_5Ghz(), and GetDefaultBasicBlockAckTimeout().

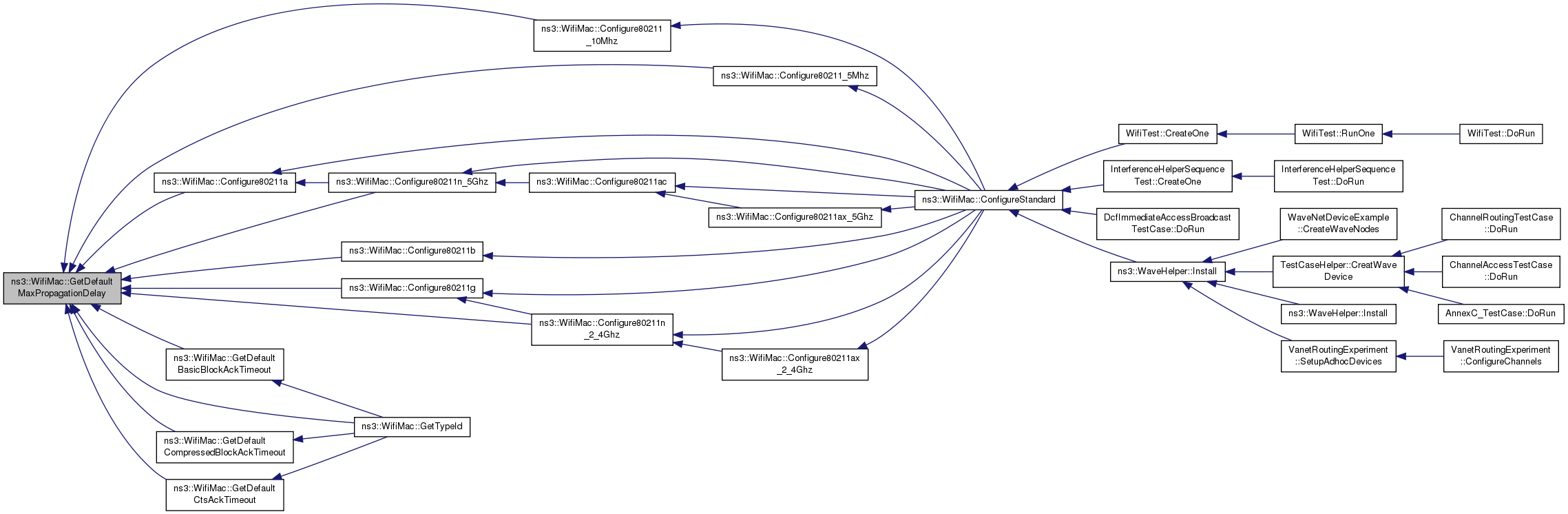

+ Here is the call graph for this function:

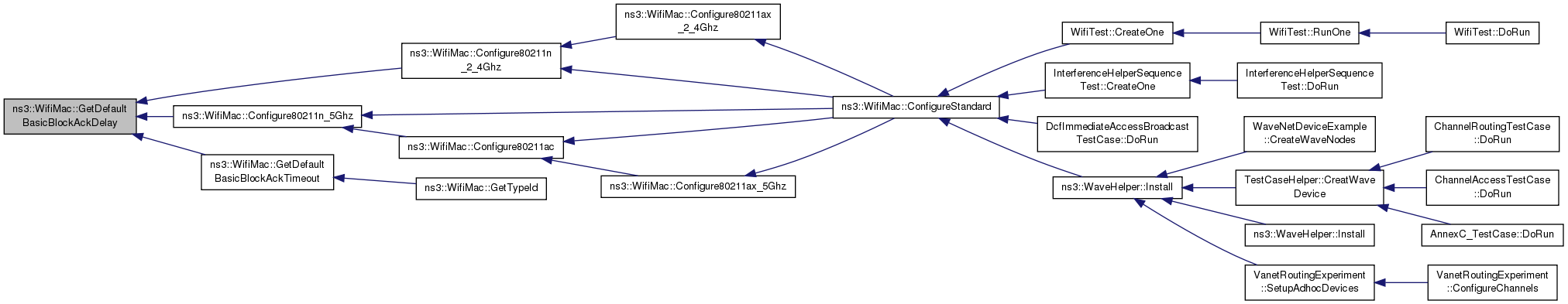

+ Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultBasicBlockAckTimeout ( void  )
staticprivate

Return the default basic block ACK timeout.

Returns
the default basic block ACK timeout

Definition at line 101 of file wifi-mac.cc.

References GetDefaultBasicBlockAckDelay(), GetDefaultMaxPropagationDelay(), GetDefaultSifs(), GetDefaultSlot(), and ns3::MicroSeconds().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultCompressedBlockAckDelay ( void  )
staticprivate

Return the default compressed block ACK delay.

Currently it returns 76 microseconds.

Returns
the default compressed block ACK delay

Definition at line 93 of file wifi-mac.cc.

References ns3::MicroSeconds().

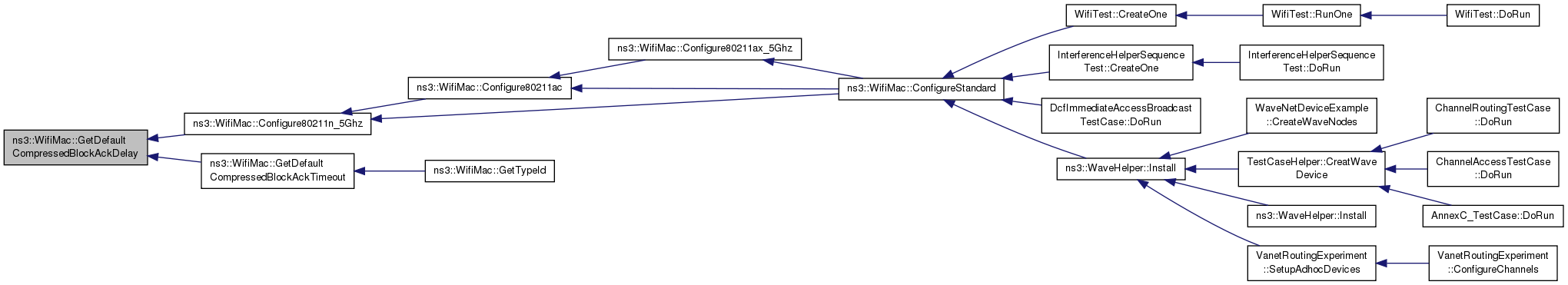

Referenced by Configure80211n_5Ghz(), and GetDefaultCompressedBlockAckTimeout().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultCompressedBlockAckTimeout ( void  )
staticprivate

Return the default compressed block ACK timeout.

Returns
the default compressed block ACK timeout

Definition at line 111 of file wifi-mac.cc.

References GetDefaultCompressedBlockAckDelay(), GetDefaultMaxPropagationDelay(), GetDefaultSifs(), GetDefaultSlot(), and ns3::MicroSeconds().

Referenced by GetTypeId().

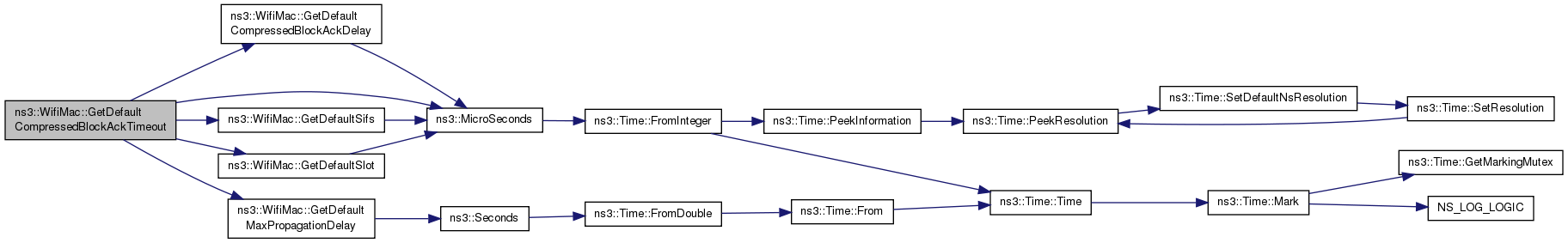

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

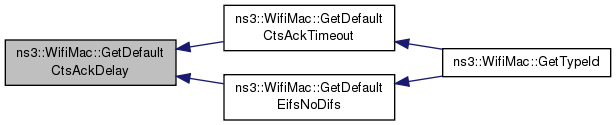

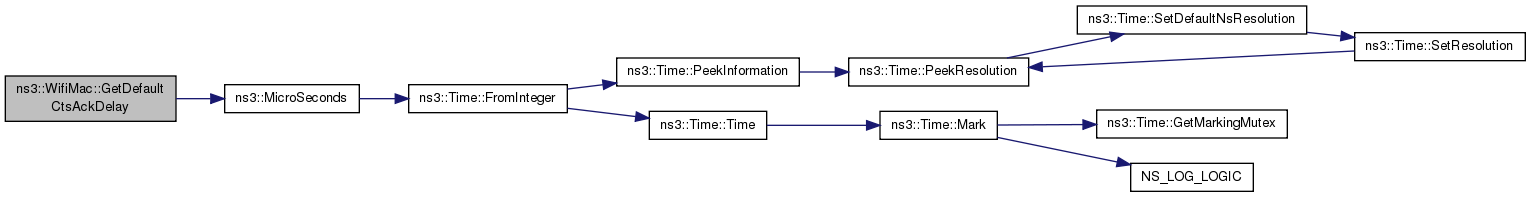

Time ns3::WifiMac::GetDefaultCtsAckDelay ( void  )
staticprivate
Returns
the default CTS-ACK delay

Return a default value for 802.11a at 6Mbps (44 microseconds)

Definition at line 65 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by GetDefaultCtsAckTimeout(), and GetDefaultEifsNoDifs().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultCtsAckTimeout ( void  )
staticprivate
Returns
the default CTS and ACK timeout

Return the default CTS and ACK timeout. Cts_Timeout and Ack_Timeout are specified in the Annex C (Formal description of MAC operation, see details on the Trsp timer setting at page 346)

Definition at line 72 of file wifi-mac.cc.

References GetDefaultCtsAckDelay(), GetDefaultMaxPropagationDelay(), GetDefaultSifs(), GetDefaultSlot(), and ns3::MicroSeconds().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultEifsNoDifs ( void  )
staticprivate
Returns
the default extended interframe space (EIFS) without DCF interframe space (DIFS)

Return default SIFS + default CTS-ACK delay

Definition at line 59 of file wifi-mac.cc.

References GetDefaultCtsAckDelay(), and GetDefaultSifs().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultMaxPropagationDelay ( void  )
staticprivate
Returns
the default maximum propagation delay

By default, we get the maximum propagation delay from 1000 m and speed of light (3e8 m/s).

Definition at line 31 of file wifi-mac.cc.

References ns3::Seconds().

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211n_2_4Ghz(), Configure80211n_5Ghz(), GetDefaultBasicBlockAckTimeout(), GetDefaultCompressedBlockAckTimeout(), GetDefaultCtsAckTimeout(), and GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultRifs ( void  )
staticprivate
Returns
the default reduced interframe space (RIFS)

Return a default RIFS value for 802.11n (2 microseconds).

Definition at line 52 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

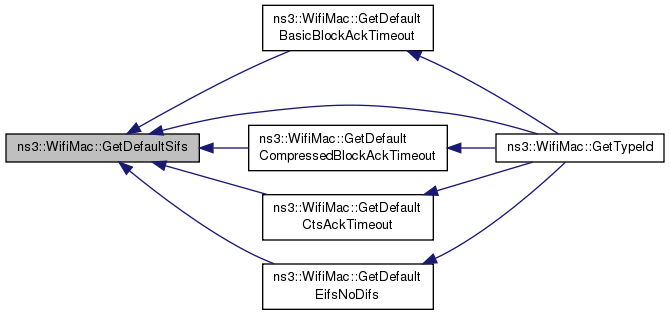

Time ns3::WifiMac::GetDefaultSifs ( void  )
staticprivate
Returns
the default short interframe space (SIFS)

Return a default SIFS value for 802.11a (16 microseconds).

Definition at line 45 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by GetDefaultBasicBlockAckTimeout(), GetDefaultCompressedBlockAckTimeout(), GetDefaultCtsAckTimeout(), GetDefaultEifsNoDifs(), and GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultSlot ( void  )
staticprivate
Returns
the default slot duration

Return a default slot value for 802.11a (9 microseconds).

Definition at line 38 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by GetDefaultBasicBlockAckTimeout(), GetDefaultCompressedBlockAckTimeout(), GetDefaultCtsAckTimeout(), and GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetEifsNoDifs ( void  ) const
pure virtual
Returns
the current EIFS minus DIFS duration

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Time ns3::WifiMac::GetMaxPropagationDelay ( void  ) const
Returns
the maximum propagation delay.

Unused for now.

Definition at line 253 of file wifi-mac.cc.

References m_maxPropagationDelay.

Time ns3::WifiMac::GetMsduLifetime ( void  ) const
Returns
the maximum lifetime of an MSDU.

Unused for now.

Definition at line 247 of file wifi-mac.cc.

References ns3::Seconds().

+ Here is the call graph for this function:

virtual Time ns3::WifiMac::GetPifs ( void  ) const
pure virtual
Returns
the current PIFS duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetRifs ( void  ) const
pure virtual
Returns
the current RIFS duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

virtual bool ns3::WifiMac::GetRifsSupported ( void  ) const
pure virtual
Returns
whether the device supports RIFS capability.

Implemented in ns3::RegularWifiMac.

virtual bool ns3::WifiMac::GetShortSlotTimeSupported ( void  ) const
pure virtual
Returns
whether the device supports short slot time capability.

Implemented in ns3::RegularWifiMac.

virtual Time ns3::WifiMac::GetSifs ( void  ) const
pure virtual
Returns
the current SIFS duration.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211n_2_4Ghz(), Configure80211n_5Ghz(), and GetTypeId().

+ Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetSlot ( void  ) const
pure virtual
Returns
the current slot duration.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211n_2_4Ghz(), Configure80211n_5Ghz(), and GetTypeId().

+ Here is the caller graph for this function:

virtual Ssid ns3::WifiMac::GetSsid ( void  ) const
pure virtual
Returns
the ssid which this MAC layer is going to try to stay in.

Implemented in ns3::RegularWifiMac, and ns3::OcbWifiMac.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

virtual Ptr<WifiPhy> ns3::WifiMac::GetWifiPhy ( void  ) const
pure virtual
Returns
currently attached WifiPhy device

Implemented in ns3::RegularWifiMac.

virtual Ptr<WifiRemoteStationManager> ns3::WifiMac::GetWifiRemoteStationManager ( void  ) const
pure virtual
Returns
the station manager attached to this MAC.

Implemented in ns3::RegularWifiMac.

void ns3::WifiMac::NotifyPromiscRx ( Ptr< const Packet packet)
Parameters
packetthe packet we received promiscuously

Public method used to fire a MacPromiscRx trace. Implemented for encapsulation purposes.

Definition at line 277 of file wifi-mac.cc.

References m_macPromiscRxTrace.

Referenced by ns3::WaveNetDevice::ForwardUp().

+ Here is the caller graph for this function:

void ns3::WifiMac::NotifyRx ( Ptr< const Packet packet)
Parameters
packetthe packet we received

Public method used to fire a MacRx trace. Implemented for encapsulation purposes.

Definition at line 271 of file wifi-mac.cc.

References m_macRxTrace.

Referenced by ns3::WaveNetDevice::ForwardUp().

+ Here is the caller graph for this function:

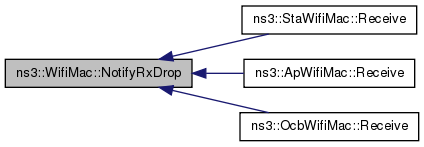

void ns3::WifiMac::NotifyRxDrop ( Ptr< const Packet packet)
Parameters
packetthe packet we received but is not destined for us

Public method used to fire a MacRxDrop trace. Implemented for encapsulation purposes.

Definition at line 283 of file wifi-mac.cc.

References m_macRxDropTrace.

Referenced by ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), and ns3::OcbWifiMac::Receive().

+ Here is the caller graph for this function:

void ns3::WifiMac::NotifyTx ( Ptr< const Packet packet)
Parameters
packetthe packet being enqueued

Public method used to fire a MacTx trace. Implemented for encapsulation purposes. Note this trace indicates that the packet was accepted by the device only. The packet may be dropped later (e.g. if the queue is full).

Definition at line 259 of file wifi-mac.cc.

References m_macTxTrace.

void ns3::WifiMac::NotifyTxDrop ( Ptr< const Packet packet)
Parameters
packetthe packet being dropped

Public method used to fire a MacTxDrop trace. Implemented for encapsulation purposes. This trace indicates that the packet was dropped before it was transmitted (e.g. when a STA is not associated with an AP).

Definition at line 265 of file wifi-mac.cc.

References m_macTxDropTrace.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::Enqueue(), ns3::RegularWifiMac::RegularWifiMac(), and ns3::RegularWifiMac::SetupEdcaQueue().

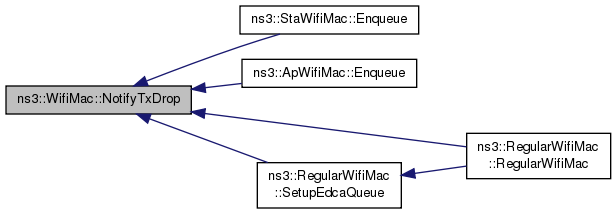

+ Here is the caller graph for this function:

virtual void ns3::WifiMac::ResetWifiPhy ( void  )
pure virtual

remove currently attached WifiPhy device from this MAC.

Implemented in ns3::RegularWifiMac.

virtual void ns3::WifiMac::SetAckTimeout ( Time  ackTimeout)
pure virtual
Parameters
ackTimeoutthe duration of an ACK timeout.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

+ Here is the caller graph for this function:

virtual void ns3::WifiMac::SetAddress ( Mac48Address  address)
pure virtual
Parameters
addressthe current address of this MAC layer.

Implemented in ns3::RegularWifiMac, ns3::ApWifiMac, and ns3::AdhocWifiMac.

void ns3::WifiMac::SetBasicBlockAckTimeout ( Time  blockAckTimeout)
virtual
Parameters
blockAckTimeoutthe duration for basic block ACK timeout.

Sets the timeout for basic block ACK.

Reimplemented in ns3::RegularWifiMac.

Definition at line 121 of file wifi-mac.cc.

Referenced by Configure80211n_2_4Ghz(), Configure80211n_5Ghz(), and GetTypeId().

+ Here is the caller graph for this function:

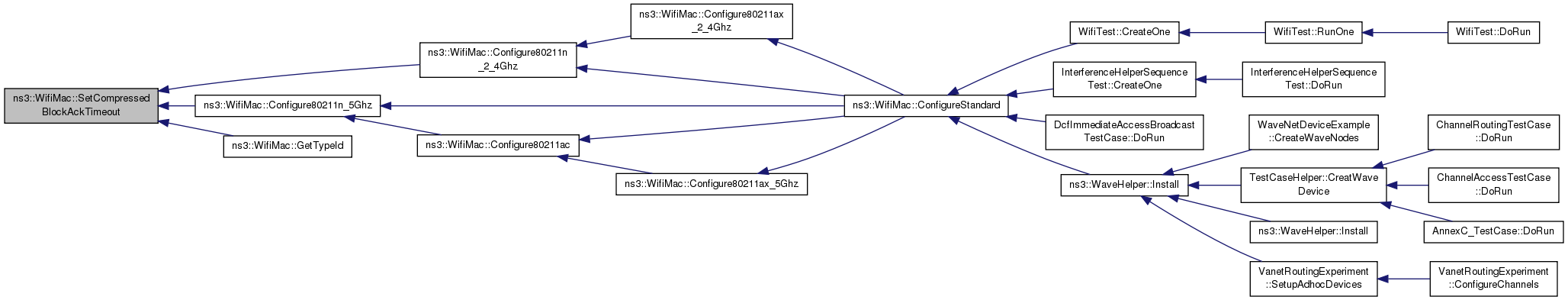

void ns3::WifiMac::SetCompressedBlockAckTimeout ( Time  blockAckTimeout)
virtual
Parameters
blockAckTimeoutSets the timeout for compressed block ACK.

Reimplemented in ns3::RegularWifiMac.

Definition at line 134 of file wifi-mac.cc.

Referenced by Configure80211n_2_4Ghz(), Configure80211n_5Ghz(), and GetTypeId().

+ Here is the caller graph for this function:

virtual void ns3::WifiMac::SetCtsTimeout ( Time  ctsTimeout)
pure virtual
Parameters
ctsTimeoutthe duration of a CTS timeout.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

+ Here is the caller graph for this function:

virtual void ns3::WifiMac::SetEifsNoDifs ( Time  eifsNoDifs)
pure virtual
Parameters
eifsNoDifsthe duration of an EIFS minus DIFS.

This value is used to calculate the EIFS depending on AIFSN.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

+ Here is the caller graph for this function:

virtual void ns3::WifiMac::SetForwardUpCallback ( Callback< void, Ptr< Packet >, Mac48Address, Mac48Address upCallback)
pure virtual
Parameters
upCallbackthe callback to invoke when a packet must be forwarded up the stack.
virtual void ns3::WifiMac::SetLinkDownCallback ( Callback< void >  linkDown)
pure virtual
Parameters
linkDownthe callback to invoke when the link becomes down.

Implemented in ns3::RegularWifiMac, and ns3::OcbWifiMac.

virtual void ns3::WifiMac::SetLinkUpCallback ( Callback< void >  linkUp)
pure virtual
Parameters
linkUpthe callback to invoke when the link becomes up.

Implemented in ns3::RegularWifiMac, ns3::OcbWifiMac, ns3::MeshWifiInterfaceMac, ns3::ApWifiMac, and ns3::AdhocWifiMac.

void ns3::WifiMac::SetMaxPropagationDelay ( Time  delay)
Parameters
delaythe max propagation delay.

Unused for now.

Definition at line 240 of file wifi-mac.cc.

References m_maxPropagationDelay, and NS_LOG_FUNCTION.

virtual void ns3::WifiMac::SetPifs ( Time  pifs)
pure virtual
Parameters
pifsthe pifs duration.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

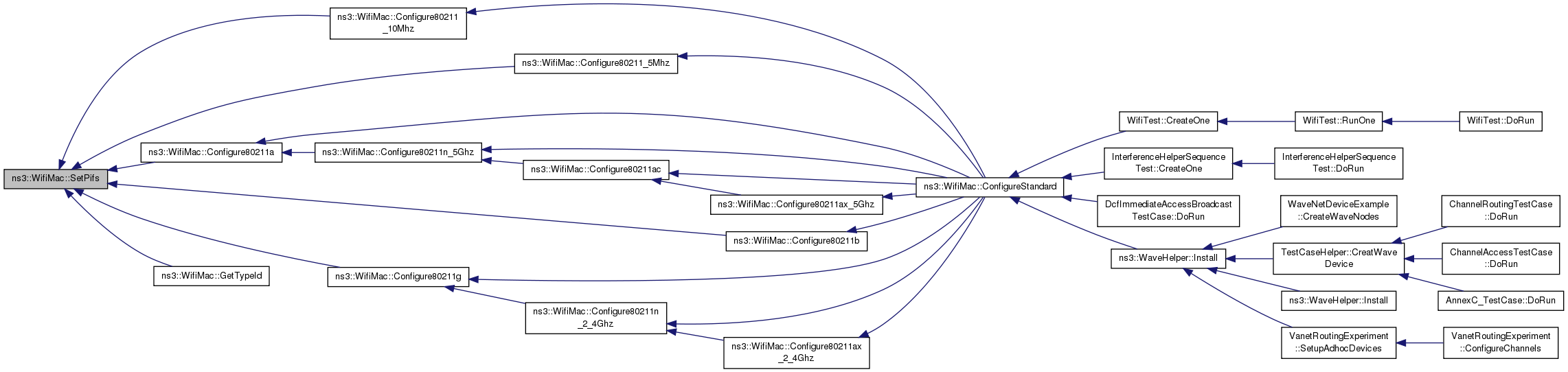

+ Here is the caller graph for this function:

virtual void ns3::WifiMac::SetPromisc ( void  )
pure virtual

Sets the interface in promiscuous mode.

Enables promiscuous mode on the interface. Note that any further filtering on the incoming frame path may affect the overall behavior.

Implemented in ns3::RegularWifiMac.

virtual void ns3::WifiMac::SetRifs ( Time  rifs)
pure virtual
Parameters
rifsthe rifs duration.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211n_2_4Ghz(), Configure80211n_5Ghz(), and GetTypeId().

+ Here is the caller graph for this function:

virtual void ns3::WifiMac::SetShortSlotTimeSupported ( bool  enable)
pure virtual
Parameters
enabletrue if short slot time is to be supported, false otherwise

Implemented in ns3::RegularWifiMac.

virtual void ns3::WifiMac::SetSifs ( Time  sifs)
pure virtual
Parameters
sifsthe sifs duration

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

+ Here is the caller graph for this function:

virtual void ns3::WifiMac::SetSlot ( Time  slotTime)
pure virtual
Parameters
slotTimethe slot duration

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

+ Here is the caller graph for this function:

virtual void ns3::WifiMac::SetSsid ( Ssid  ssid)
pure virtual
Parameters
ssidthe current ssid of this MAC layer.

Implemented in ns3::RegularWifiMac, and ns3::OcbWifiMac.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

virtual void ns3::WifiMac::SetWifiPhy ( Ptr< WifiPhy phy)
pure virtual
Parameters
phythe physical layer attached to this MAC.

Implemented in ns3::RegularWifiMac.

virtual void ns3::WifiMac::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager stationManager)
pure virtual
Parameters
stationManagerthe station manager attached to this MAC.

Implemented in ns3::RegularWifiMac, and ns3::ApWifiMac.

virtual bool ns3::WifiMac::SupportsSendFrom ( void  ) const
pure virtual
Returns
if this MAC supports sending from arbitrary address.

The interface may or may not support sending from arbitrary address. This function returns true if sending from arbitrary address is supported, false otherwise.

Implemented in ns3::RegularWifiMac, ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Member Data Documentation

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macPromiscRxTrace
private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a promiscuous trace.

See also
class CallBackTraceSource

Definition at line 488 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyPromiscRx().

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macRxDropTrace
private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception.

See also
class CallBackTraceSource

Definition at line 503 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyRxDrop().

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macRxTrace
private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a non- promiscuous trace.

See also
class CallBackTraceSource

Definition at line 496 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyRx().

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macTxDropTrace
private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during transmission.

See also
class CallBackTraceSource

Definition at line 480 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyTxDrop().

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macTxTrace
private

The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission.

See also
class CallBackTraceSource

Definition at line 473 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyTx().

Time ns3::WifiMac::m_maxPropagationDelay
private

maximum propagation delay

Definition at line 411 of file wifi-mac.h.

Referenced by GetMaxPropagationDelay(), GetTypeId(), and SetMaxPropagationDelay().


The documentation for this class was generated from the following files:
