Basic MAC of mesh point Wi-Fi interface. More...

#include "mesh-wifi-interface-mac.h"

Inheritance diagram for ns3::MeshWifiInterfaceMac:

Collaboration diagram for ns3::MeshWifiInterfaceMac:

Classes
struct	Statistics
	Statistics: More...

Public Member Functions
	MeshWifiInterfaceMac ()
	C-tor. More...

virtual	~MeshWifiInterfaceMac ()
	D-tor. More...

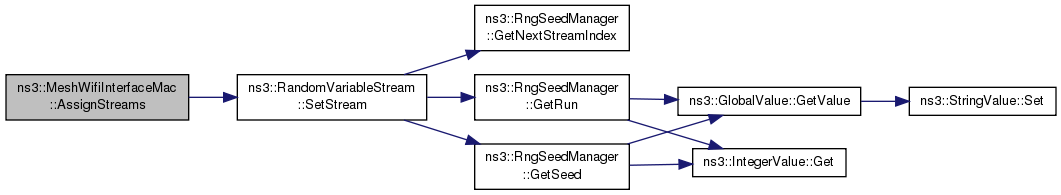

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

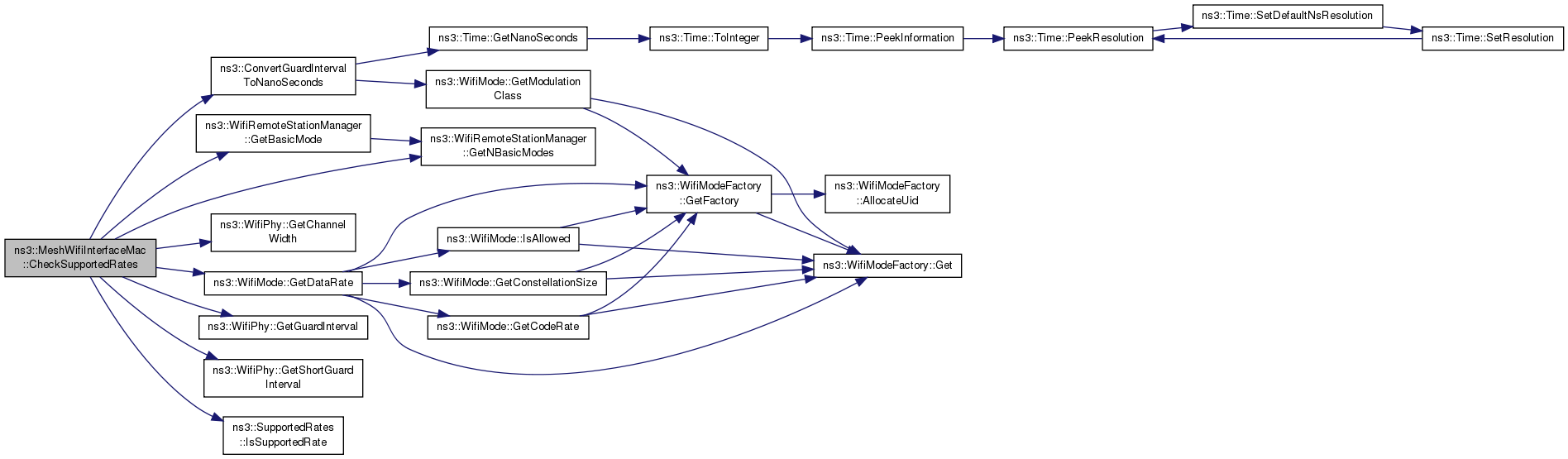

bool	CheckSupportedRates (SupportedRates rates) const
	Check supported rates. More...

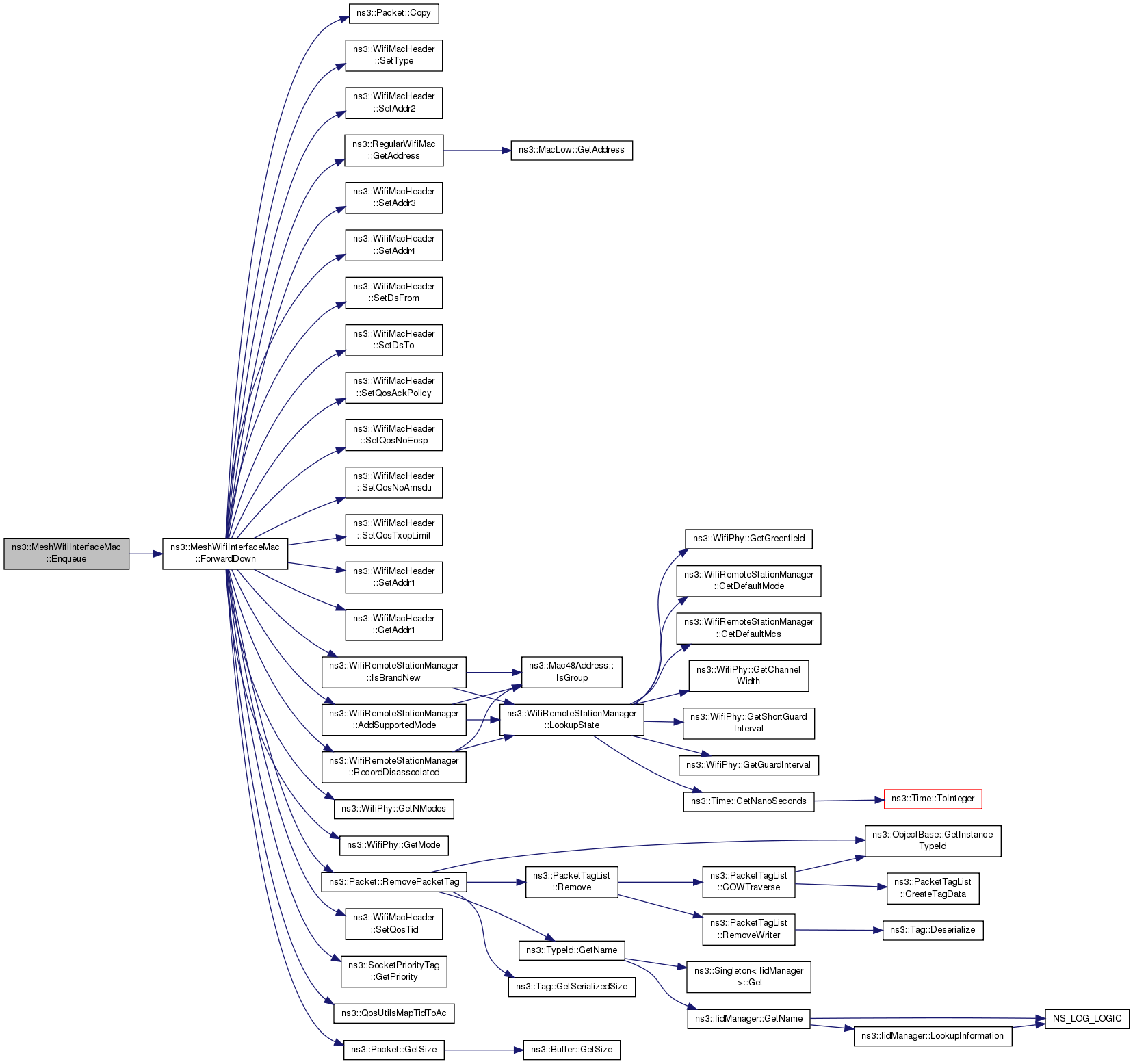

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to)

virtual void	FinishConfigureStandard (enum WifiPhyStandard standard)
	Finish configuration based on the WifiPhyStandard being provided. More...

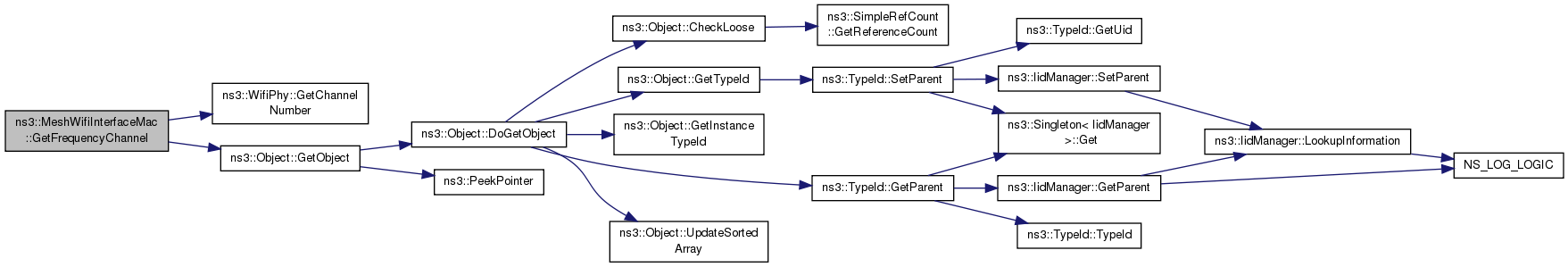

uint16_t	GetFrequencyChannel () const
	Current channel Id. More...

WifiPhyStandard	GetPhyStandard () const
	Get phy standard in use. More...

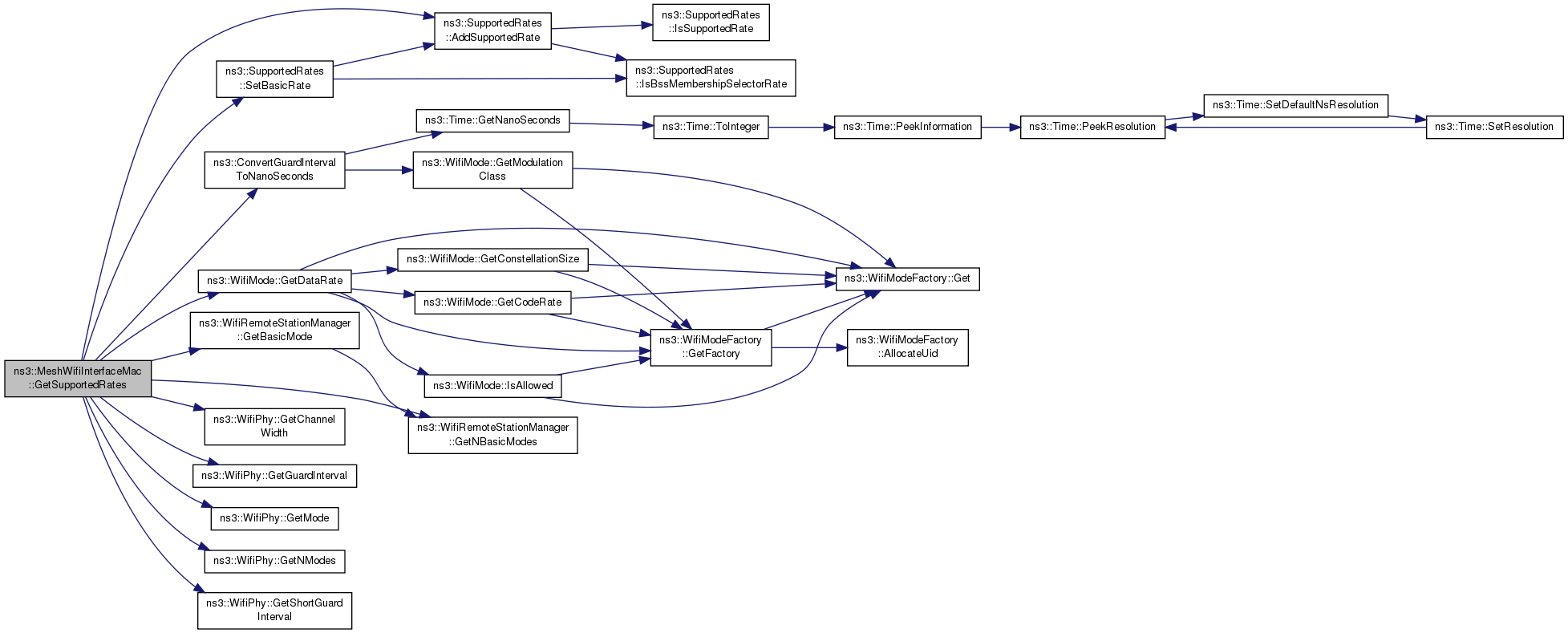

SupportedRates	GetSupportedRates () const

void	InstallPlugin (Ptr< MeshWifiInterfaceMacPlugin > plugin)
	Install plugin. More...

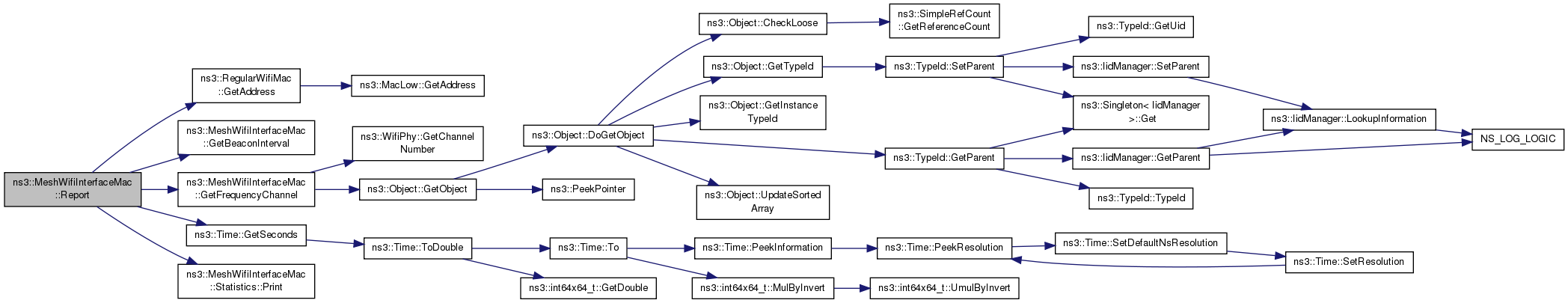

void	Report (std::ostream &) const
	Statistics: More...

void	ResetStats ()
	Reset statistics. More...

void	SendManagementFrame (Ptr< Packet > frame, const WifiMacHeader &hdr)
	To be used by plugins sending management frames. More...

void	SetBeaconGeneration (bool enable)
	Enable/disable beacons. More...

virtual void	SetLinkUpCallback (Callback< void > linkUp)

virtual bool	SupportsSendFrom () const

void	SwitchFrequencyChannel (uint16_t new_id)
	Switch frequency channel. More...

Each mesh point interface must know the mesh point address
void	SetMeshPointAddress (Mac48Address)

Mac48Address	GetMeshPointAddress () const

Beacons
void	SetRandomStartDelay (Time interval)
	Set maximum initial random delay before first beacon. More...

void	SetBeaconInterval (Time interval)
	Set interval between two successive beacons. More...

Time	GetBeaconInterval () const

Time	GetTbtt () const
	Next beacon frame time. More...

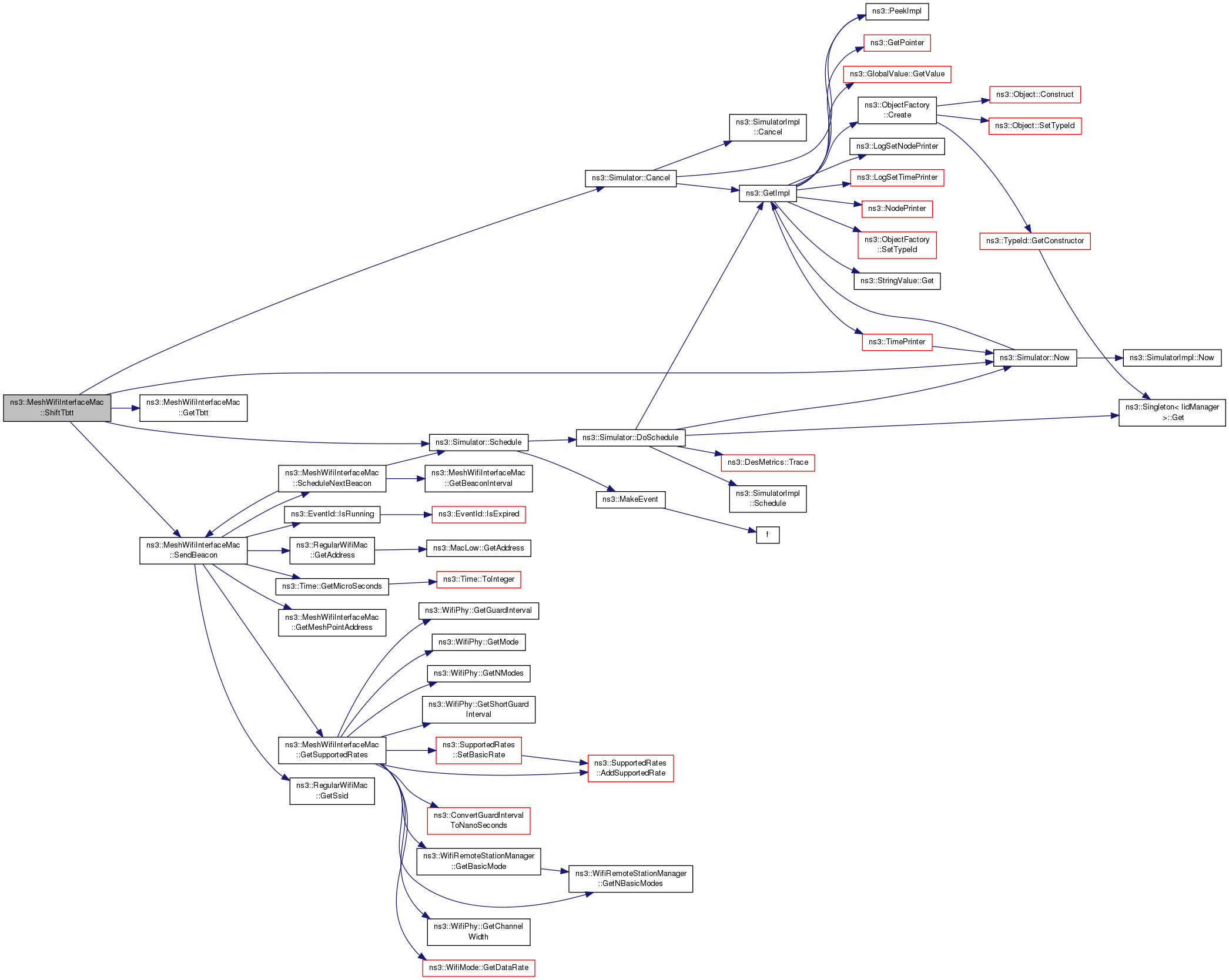

void	ShiftTbtt (Time shift)
	Shift TBTT. More...

Metric Calculation routines:
void	SetLinkMetricCallback (Callback< uint32_t, Mac48Address, Ptr< MeshWifiInterfaceMac > > cb)

uint32_t	GetLinkMetric (Mac48Address peerAddress)

Public Member Functions inherited from ns3::RegularWifiMac
	RegularWifiMac ()

virtual	~RegularWifiMac ()

Time	GetAckTimeout (void) const

Mac48Address	GetAddress (void) const

Time	GetBasicBlockAckTimeout (void) const

Mac48Address	GetBssid (void) const

Time	GetCompressedBlockAckTimeout (void) const

Time	GetCtsTimeout (void) const

bool	GetCtsToSelfSupported () const
	Return whether the device supports CTS-to-self capability. More...

Time	GetEifsNoDifs (void) const

HeCapabilities	GetHeCapabilities (void) const
	Return the HE capability of the device. More...

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capability of the device. More...

Time	GetPifs (void) const

Time	GetRifs (void) const

bool	GetRifsSupported (void) const

bool	GetShortSlotTimeSupported (void) const

Time	GetSifs (void) const

Time	GetSlot (void) const

Ssid	GetSsid (void) const

VhtCapabilities	GetVhtCapabilities (void) const
	Return the VHT capability of the device. More...

Ptr< WifiPhy >	GetWifiPhy (void) const

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (void) const

void	ResetWifiPhy (void)
	removes attached WifiPhy device from this MAC. More...

void	SetAckTimeout (Time ackTimeout)

void	SetAddress (Mac48Address address)

void	SetBasicBlockAckTimeout (Time blockAckTimeout)

void	SetBssid (Mac48Address bssid)

void	SetCompressedBlockAckTimeout (Time blockAckTimeout)

void	SetCtsTimeout (Time ctsTimeout)

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...

void	SetEifsNoDifs (Time eifsNoDifs)

void	SetForwardUpCallback (ForwardUpCallback upCallback)

void	SetLinkDownCallback (Callback< void > linkDown)

void	SetLinkUpCallback (Callback< void > linkUp)

void	SetPifs (Time pifs)

void	SetPromisc (void)
	Sets the interface in promiscuous mode. More...

void	SetRifs (Time rifs)

void	SetRifsSupported (bool enable)
	Enable or disable RIFS feature. More...

void	SetShortSlotTimeSupported (bool enable)
	Enable or disable short slot time feature. More...

void	SetSifs (Time sifs)

void	SetSlot (Time slotTime)

void	SetSsid (Ssid ssid)

void	SetWifiPhy (const Ptr< WifiPhy > phy)

virtual void	SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > stationManager)

Public Member Functions inherited from ns3::WifiMac
void	ConfigureStandard (WifiPhyStandard standard)

Time	GetMaxPropagationDelay (void) const

Time	GetMsduLifetime (void) const

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

virtual void	SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0

void	SetMaxPropagationDelay (Time delay)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

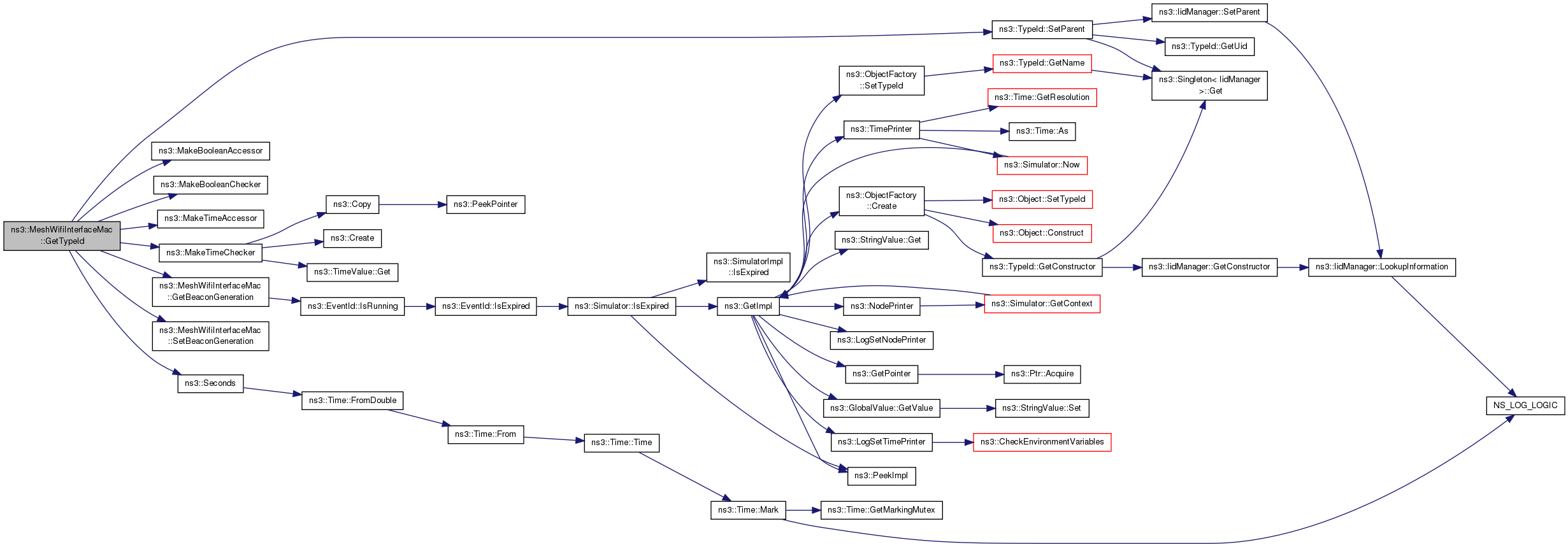

static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::RegularWifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::vector< Ptr< MeshWifiInterfaceMacPlugin > >	PluginList
	PluginList typedef. More...

Private Member Functions

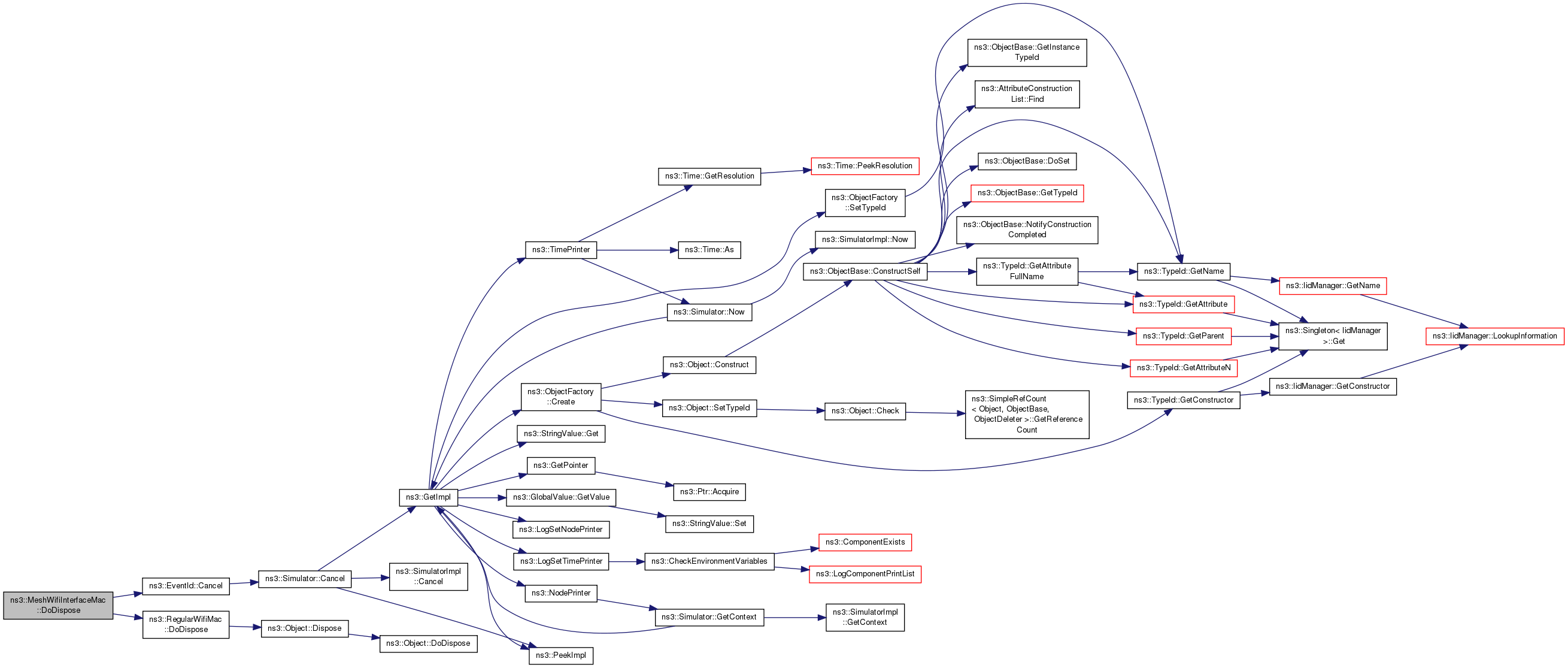

virtual void	DoDispose ()
	Real d-tor. More...

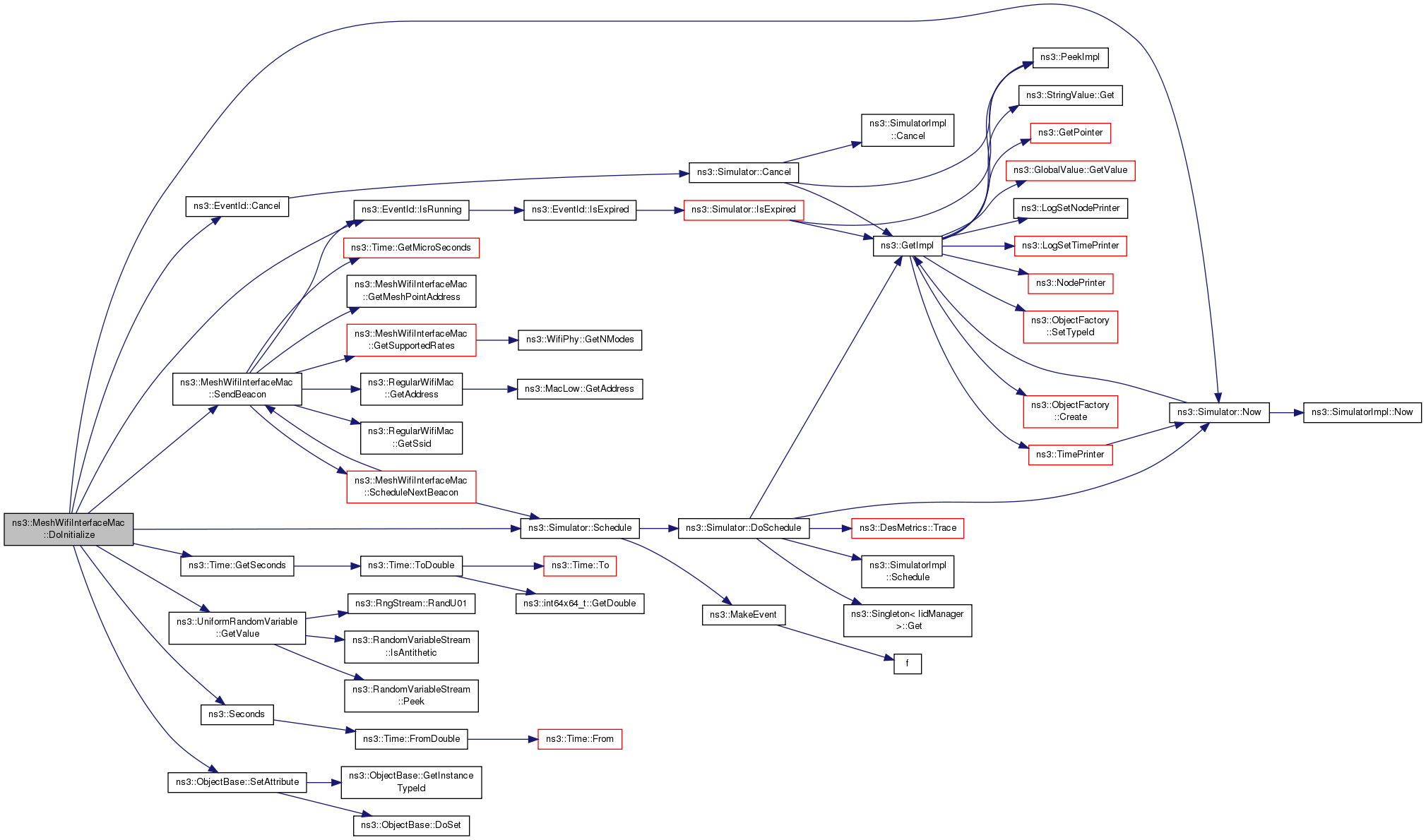

virtual void	DoInitialize ()
	Initialize() implementation. More...

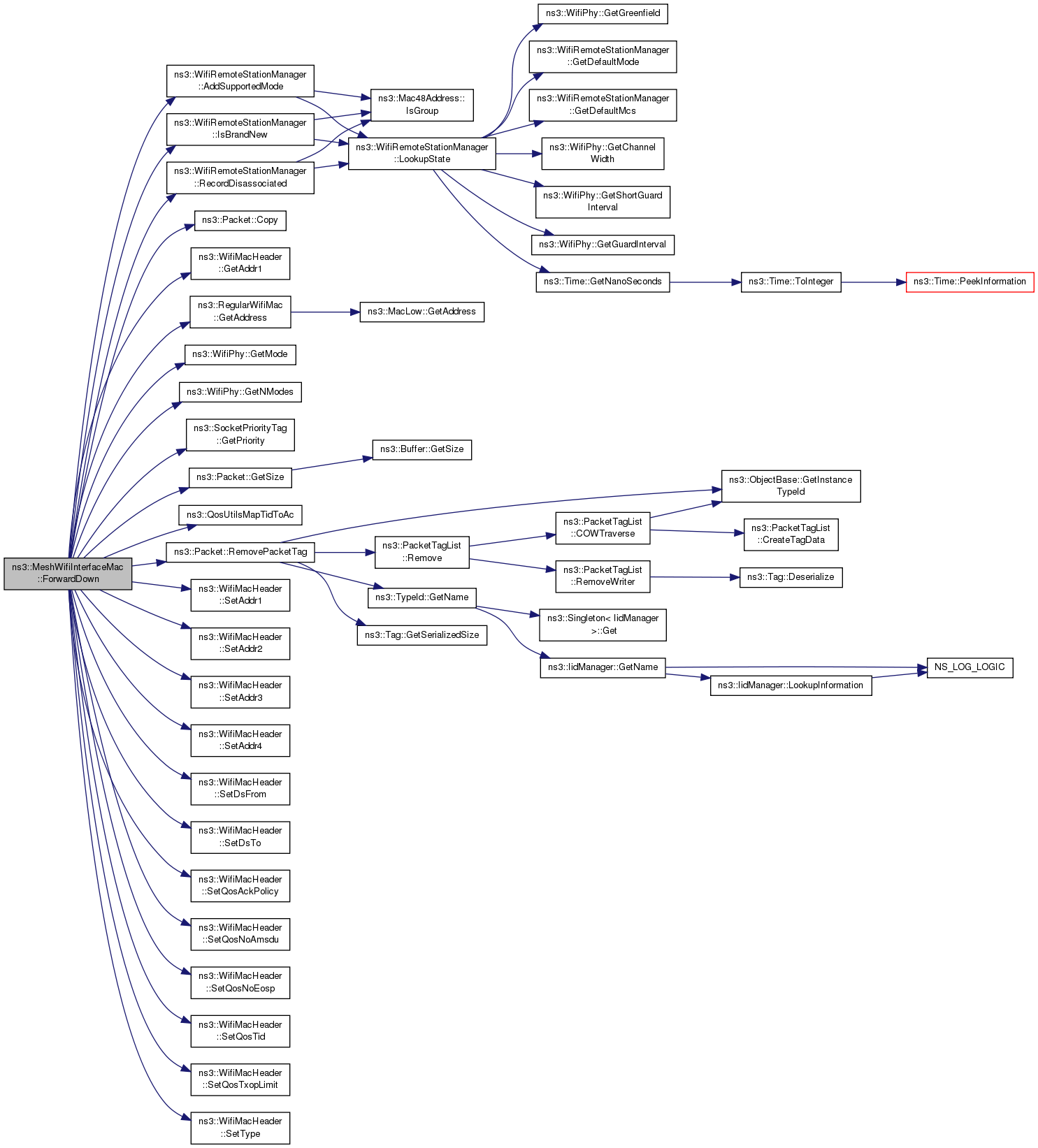

void	ForwardDown (Ptr< const Packet > packet, Mac48Address from, Mac48Address to)
	Send frame. More...

bool	GetBeaconGeneration () const
	Get current beaconing status. More...

void	Receive (Ptr< Packet > packet, WifiMacHeader const *hdr)

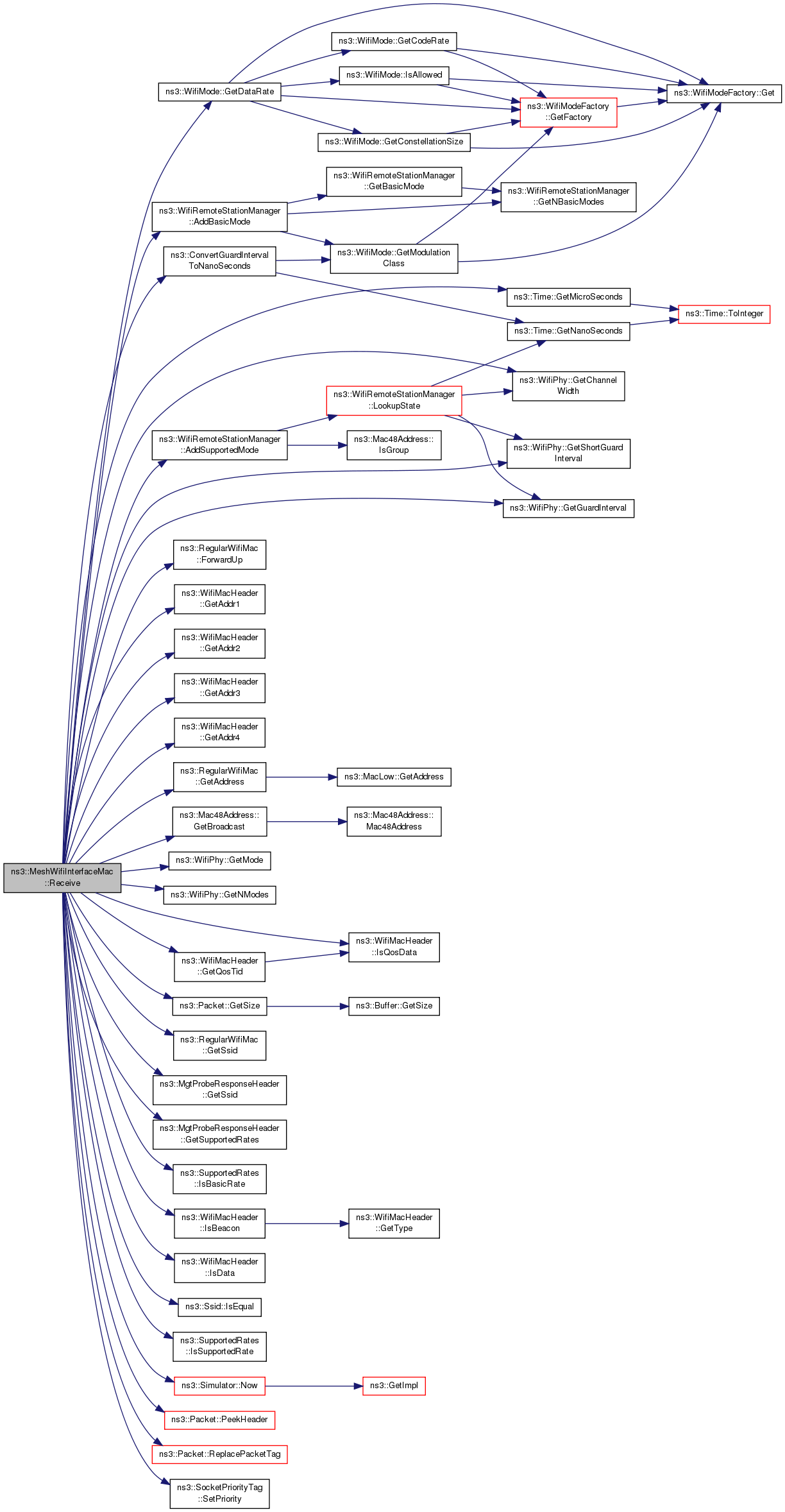

	Frame receive handler. More...

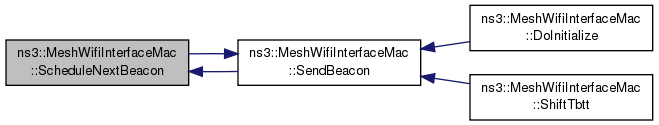

void	ScheduleNextBeacon ()
	Schedule next beacon. More...

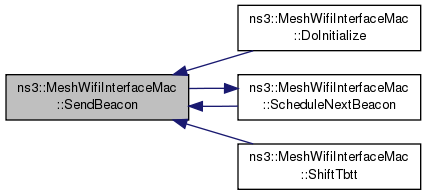

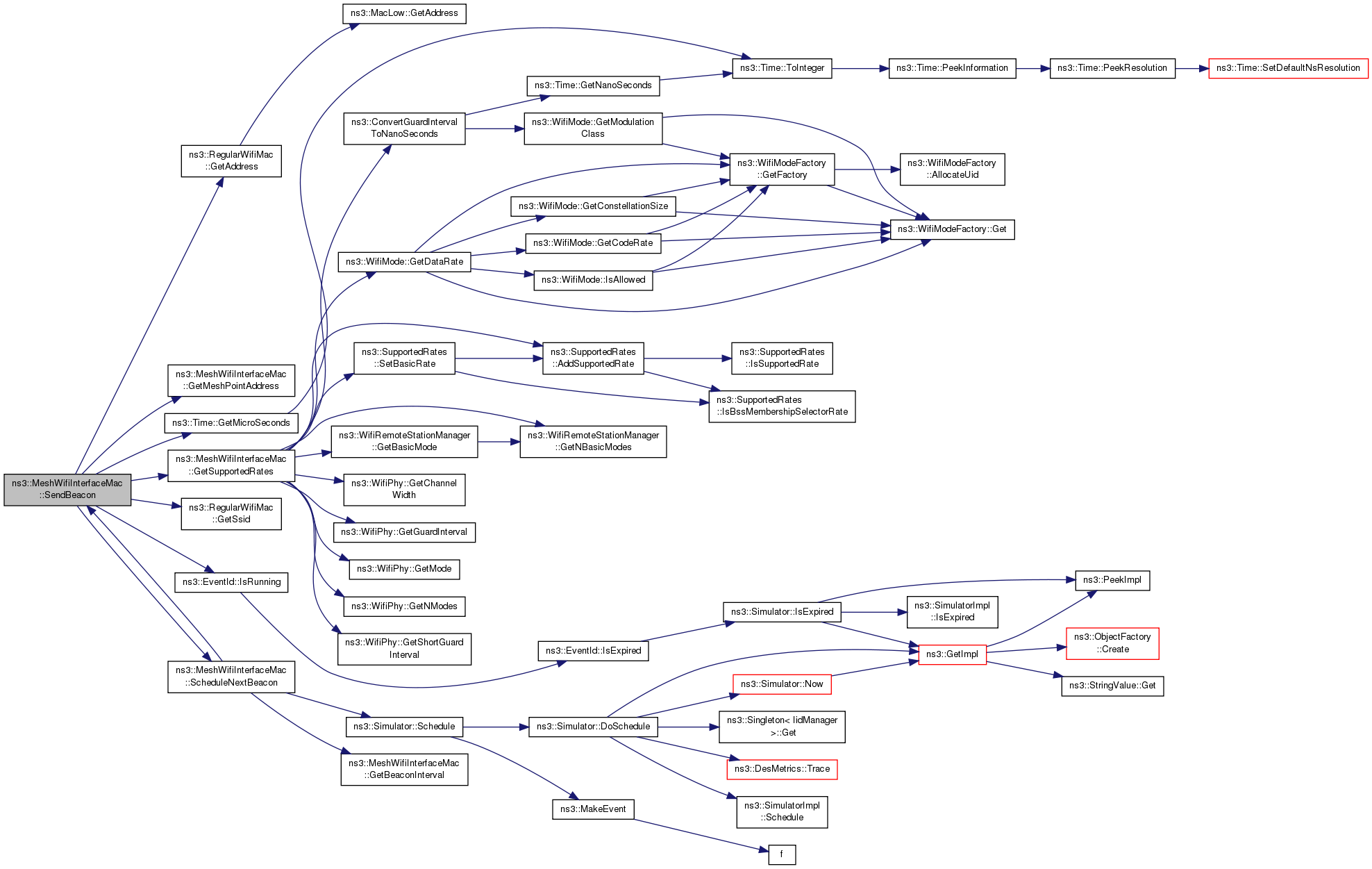

void	SendBeacon ()
	Send beacon. More...

Private Attributes
EventId	m_beaconSendEvent
	"Timer" for the next beacon More...

Ptr< UniformRandomVariable >	m_coefficient
	Add randomness to beacon generation. More...

Callback< uint32_t, Mac48Address, Ptr< MeshWifiInterfaceMac > >	m_linkMetricCallback
	linkMetricCallback More...

Mac48Address	m_mpAddress
	Mesh point address. More...

PluginList	m_plugins
	List of all installed plugins. More...

WifiPhyStandard	m_standard
	Current PHY standard: needed to configure metric. More...

Statistics	m_stats
	statistics More...

Mesh timing intervals
bool	m_beaconEnable
	whether beaconing is enabled More...

Time	m_beaconInterval
	Beaconing interval. More...

Time	m_randomStart
	Maximum delay before first beacon. More...

Time	m_tbtt
	Time for the next frame. More...

Additional Inherited Members
Public Types inherited from ns3::RegularWifiMac
typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

Protected Types inherited from ns3::RegularWifiMac
typedef std::map< AcIndex, Ptr< EdcaTxopN > >	EdcaQueues
	This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function. More...

Protected Member Functions inherited from ns3::RegularWifiMac
void	ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

virtual void	DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
	This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

void	FinishConfigureStandard (WifiPhyStandard standard)

void	ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

Ptr< EdcaTxopN >	GetBEQueue (void) const
	Accessor for the AC_BE channel access function. More...

Ptr< EdcaTxopN >	GetBKQueue (void) const
	Accessor for the AC_BK channel access function. More...

Ptr< DcaTxop >	GetDcaTxop (void) const
	Accessor for the DCF object. More...

bool	GetDsssSupported () const
	Return whether the device supports DSSS. More...

bool	GetErpSupported () const
	Return whether the device supports ERP. More...

bool	GetHeSupported () const
	Return whether the device supports HE. More...

bool	GetHtSupported () const
	Return whether the device supports HT. More...

bool	GetQosSupported () const
	Return whether the device supports QoS. More...

bool	GetVhtSupported () const
	Return whether the device supports VHT. More...

Ptr< EdcaTxopN >	GetVIQueue (void) const
	Accessor for the AC_VI channel access function. More...

Ptr< EdcaTxopN >	GetVOQueue (void) const
	Accessor for the AC_VO channel access function. More...

void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
	This method can be called to accept a received ADDBA Request. More...

void	SetDsssSupported (bool enable)
	Enable or disable DSSS support for the device. More...

void	SetErpSupported (bool enable)
	Enable or disable ERP support for the device. More...

void	SetHeSupported (bool enable)
	Enable or disable HE support for the device. More...

void	SetHtSupported (bool enable)
	Enable or disable HT support for the device. More...

void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

void	SetTypeOfStation (TypeOfStation type)
	This method is invoked by a subclass to specify what type of station it is implementing. More...

void	SetVhtSupported (bool enable)
	Enable or disable VHT support for the device. More...

virtual void	TxFailed (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

virtual void	TxOk (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

Protected Member Functions inherited from ns3::WifiMac
void	ConfigureDcf (Ptr< DcaTxop > dcf, uint32_t cwmin, uint32_t cwmax, bool isDsss, AcIndex ac)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::RegularWifiMac
Ptr< DcaTxop >	m_dca
	This holds a pointer to the DCF instance for this WifiMac - used for transmission of frames to non-QoS peers. More...

Ptr< DcfManager >	m_dcfManager
	DCF manager (access to channel) More...

bool	m_dsssSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11b. More...

EdcaQueues	m_edca
	This is a map from Access Category index to the corresponding channel access function. More...

bool	m_erpSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11g. More...

ForwardUpCallback	m_forwardUp
	Callback to forward packet up the stack. More...

bool	m_heSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11ax. More...

bool	m_htSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11n. More...

Callback< void >	m_linkDown
	Callback when a link is down. More...

Callback< void >	m_linkUp
	Callback when a link is up. More...

Ptr< MacLow >	m_low
	MacLow (RTS, CTS, DATA, ACK etc.) More...

Ptr< WifiPhy >	m_phy
	Wifi PHY. More...

bool	m_qosSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11e/WMM style Quality of Service. More...

Ptr< MacRxMiddle >	m_rxMiddle
	RX middle (de-fragmentation etc.) More...

Ssid	m_ssid
	Service Set ID (SSID) More...

Ptr< WifiRemoteStationManager >	m_stationManager
	Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.) More...

Ptr< MacTxMiddle >	m_txMiddle
	TX middle (aggregation etc.) More...

bool	m_vhtSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11ac. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Basic MAC of mesh point Wi-Fi interface.

Its function is extendable through plugins mechanism.

Now only three output queues are used:

beacons (PIFS and no backoff),
background traffic,
management and priority traffic.

Config Paths

ns3::MeshWifiInterfaceMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::MeshWifiInterfaceMac"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::MeshWifiInterfaceMac"

Attributes

BeaconInterval: Beacon Interval
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read
RandomStart: Window when beacon generating starts (uniform random) in seconds
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read
BeaconGeneration: Enable/Disable Beaconing.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

Attributes defined in parent class ns3::RegularWifiMac

QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
HtSupported: This Boolean attribute is set to enable 802.11n support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
VhtSupported: This Boolean attribute is set to enable 802.11ac support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
HeSupported: This Boolean attribute is set to enable 802.11ax support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic rate set.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
VO_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VO access class. Value 0 means A-MSDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:11426
- Initial value: 0
- Flags: construct write
VI_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VI access class.Value 0 means A-MSDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:11426
- Initial value: 0
- Flags: construct write
BE_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BE access class.Value 0 means A-MSDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:11426
- Initial value: 0
- Flags: construct write
BK_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BK access class.Value 0 means A-MSDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:11426
- Initial value: 0
- Flags: construct write
VO_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VO access class.Value 0 means A-MPDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:65535
- Initial value: 0
- Flags: construct write
VI_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VI access class.Value 0 means A-MPDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:65535
- Initial value: 65535
- Flags: construct write
BE_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BE access class.Value 0 means A-MPDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:65535
- Initial value: 65535
- Flags: construct write
BK_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BK access class.Value 0 means A-MPDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:65535
- Initial value: 0
- Flags: construct write
VO_BlockAckThreshold: If number of packets in VO queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VI_BlockAckThreshold: If number of packets in VI queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BE_BlockAckThreshold: If number of packets in BE queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BK_BlockAckThreshold: If number of packets in BK queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VO_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_VO. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
VI_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_VI. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BE_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_BE. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BK_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_BK. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
ShortSlotTimeSupported: Whether or not short slot time is supported (only used by ERP APs or STAs).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
RifsSupported: Whether or not RIFS is supported (only used by HT APs or STAs).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
DcaTxop: The DcaTxop object.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::DcaTxop>
- Flags: read
VO_EdcaTxopN: Queue that manages packets belonging to AC_VO access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN>
- Flags: read
VI_EdcaTxopN: Queue that manages packets belonging to AC_VI access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN>
- Flags: read
BE_EdcaTxopN: Queue that manages packets belonging to AC_BE access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN>
- Flags: read
BK_EdcaTxopN: Queue that manages packets belonging to AC_BK access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN>
- Flags: read

Attributes defined in parent class ns3::WifiMac

CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +75000.0ns
- Flags: construct write read
AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +75000.0ns
- Flags: construct write read
BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +281000.0ns
- Flags: construct write read
CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +107000.0ns
- Flags: construct write read
Sifs: The value of the SIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +16000.0ns
- Flags: construct write read
EifsNoDifs: The value of EIFS-DIFS.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +60000.0ns
- Flags: construct write read
Slot: The duration of a Slot.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +9000.0ns
- Flags: construct write read
Pifs: The value of the PIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +25000.0ns
- Flags: construct write read
Rifs: The value of the RIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +2000.0ns
- Flags: construct write read
MaxPropagationDelay: The maximum propagation delay. Unused for now.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +3333.0ns
- Flags: construct write read
Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::RegularWifiMac

TxOkHeader: The header of successfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback
TxErrHeader: The header of unsuccessfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
Callback signature: ns3::Packet::TracedCallback
MacTxDrop: A packet has been dropped in the MAC layer before transmission.
Callback signature: ns3::Packet::TracedCallback
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
Callback signature: ns3::Packet::TracedCallback

Size of this type is 496 bytes (on a 64-bit architecture).

Definition at line 54 of file mesh-wifi-interface-mac.h.

Member Typedef Documentation

typedef std::vector<Ptr<MeshWifiInterfaceMacPlugin> > ns3::MeshWifiInterfaceMac::PluginList

private

PluginList typedef.

Definition at line 213 of file mesh-wifi-interface-mac.h.

Constructor & Destructor Documentation

ns3::MeshWifiInterfaceMac::MeshWifiInterfaceMac ( )

C-tor.

Definition at line 78 of file mesh-wifi-interface-mac.cc.

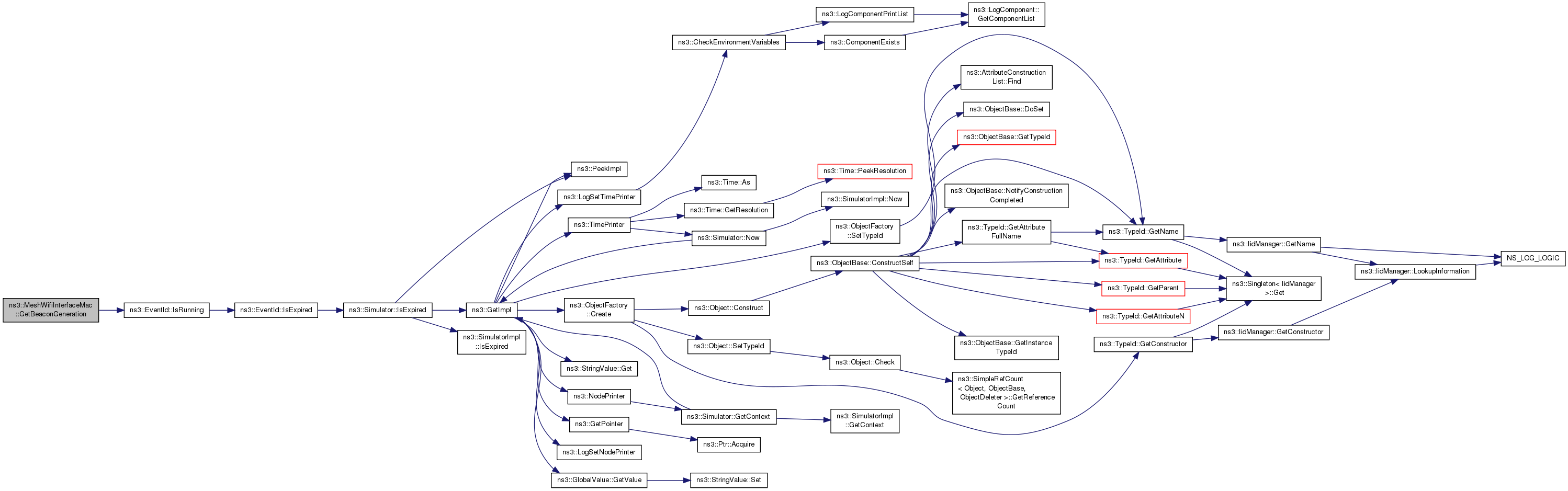

References m_coefficient, ns3::MESH, NS_LOG_FUNCTION, and ns3::RegularWifiMac::SetTypeOfStation().

Here is the call graph for this function:

ns3::MeshWifiInterfaceMac::~MeshWifiInterfaceMac ( )

virtual

D-tor.

Definition at line 87 of file mesh-wifi-interface-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::MeshWifiInterfaceMac::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 152 of file mesh-wifi-interface-mac.cc.

References m_coefficient, m_plugins, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

bool ns3::MeshWifiInterfaceMac::CheckSupportedRates ( SupportedRates rates ) const

Check supported rates.

Parameters

rates

Returns: true if rates are supported

Definition at line 336 of file mesh-wifi-interface-mac.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiRemoteStationManager::GetBasicMode(), ns3::WifiPhy::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetGuardInterval(), ns3::WifiRemoteStationManager::GetNBasicModes(), ns3::WifiPhy::GetShortGuardInterval(), ns3::SupportedRates::IsSupportedRate(), ns3::RegularWifiMac::m_phy, and ns3::RegularWifiMac::m_stationManager.

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::DoDispose ( void )

privatevirtual

Real d-tor.

Reimplemented from ns3::RegularWifiMac.

Definition at line 123 of file mesh-wifi-interface-mac.cc.

References ns3::EventId::Cancel(), ns3::RegularWifiMac::DoDispose(), m_beaconSendEvent, m_plugins, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::DoInitialize ( void )

privatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::RegularWifiMac.

Definition at line 132 of file mesh-wifi-interface-mac.cc.

References ns3::EventId::Cancel(), ns3::Time::GetSeconds(), ns3::UniformRandomVariable::GetValue(), ns3::EventId::IsRunning(), m_beaconEnable, m_beaconSendEvent, m_coefficient, m_randomStart, m_tbtt, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::Seconds(), SendBeacon(), and ns3::ObjectBase::SetAttribute().

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to,
		Mac48Address	from
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.
from	the address from which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Reimplemented from ns3::RegularWifiMac.

Definition at line 95 of file mesh-wifi-interface-mac.cc.

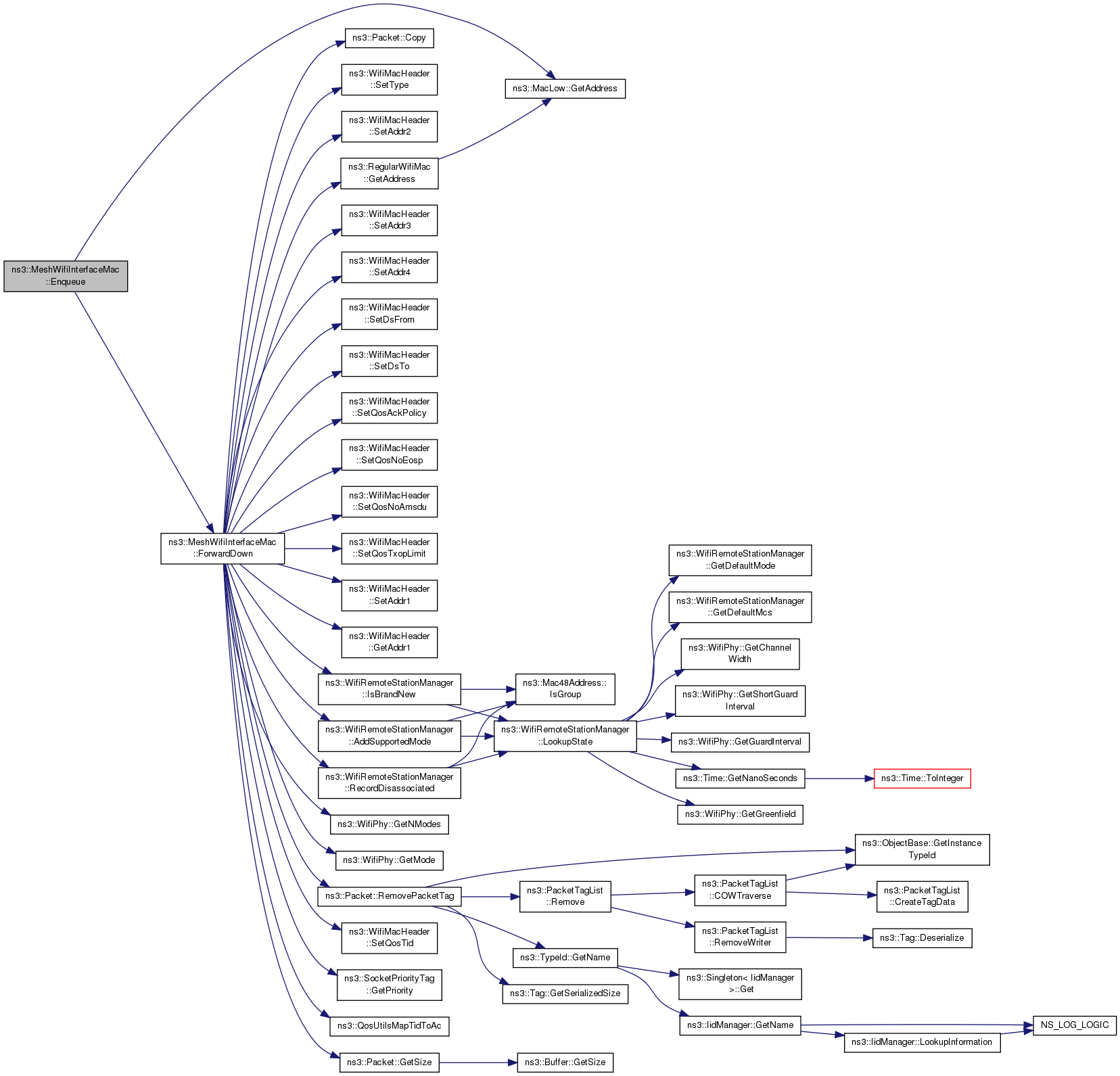

References ForwardDown(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::RegularWifiMac.

Definition at line 101 of file mesh-wifi-interface-mac.cc.

References ForwardDown(), ns3::MacLow::GetAddress(), ns3::RegularWifiMac::m_low, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::FinishConfigureStandard ( enum WifiPhyStandard standard )

virtual

Finish configuration based on the WifiPhyStandard being provided.

Parameters

standard the WifiPhyStandard being configured

Implements ns3::WifiMac.

Definition at line 555 of file mesh-wifi-interface-mac.cc.

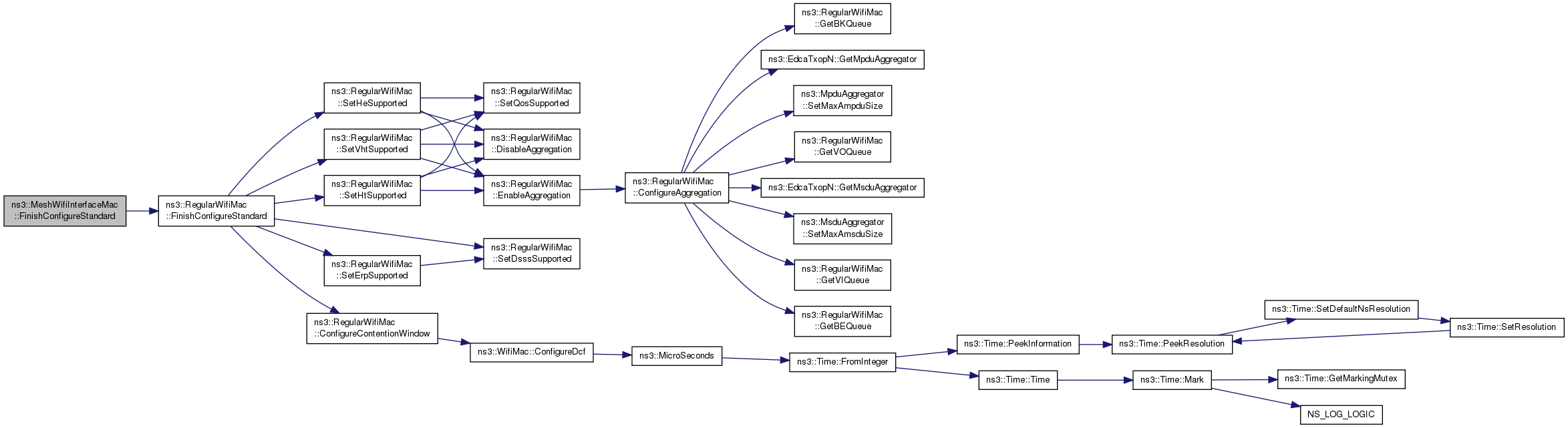

References ns3::RegularWifiMac::FinishConfigureStandard(), ns3::RegularWifiMac::m_dca, and m_standard.

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::ForwardDown	(	Ptr< const Packet >	packet,
		Mac48Address	from,
		Mac48Address	to
	)

private

Send frame.

Frame is supposed to be tagged by routing information.

Parameters

packet	the packet to forward
from	the from address
to	the to address

Definition at line 219 of file mesh-wifi-interface-mac.cc.

Referenced by Enqueue().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::MeshWifiInterfaceMac::GetBeaconGeneration ( ) const

private

Get current beaconing status.

Returns: true if beacon active

Definition at line 376 of file mesh-wifi-interface-mac.cc.

References ns3::EventId::IsRunning(), and m_beaconSendEvent.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::MeshWifiInterfaceMac::GetBeaconInterval ( ) const

Returns: interval between two beacons

Definition at line 365 of file mesh-wifi-interface-mac.cc.

References m_beaconInterval.

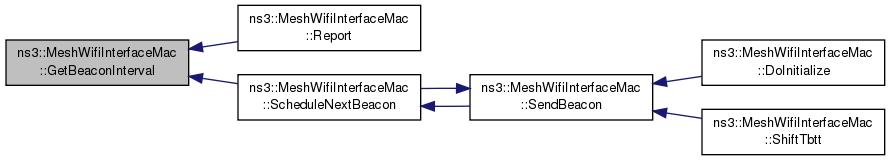

Referenced by Report(), and ScheduleNextBeacon().

Here is the caller graph for this function:

uint16_t ns3::MeshWifiInterfaceMac::GetFrequencyChannel ( ) const

Current channel Id.

Returns: the frequency channel

Definition at line 179 of file mesh-wifi-interface-mac.cc.

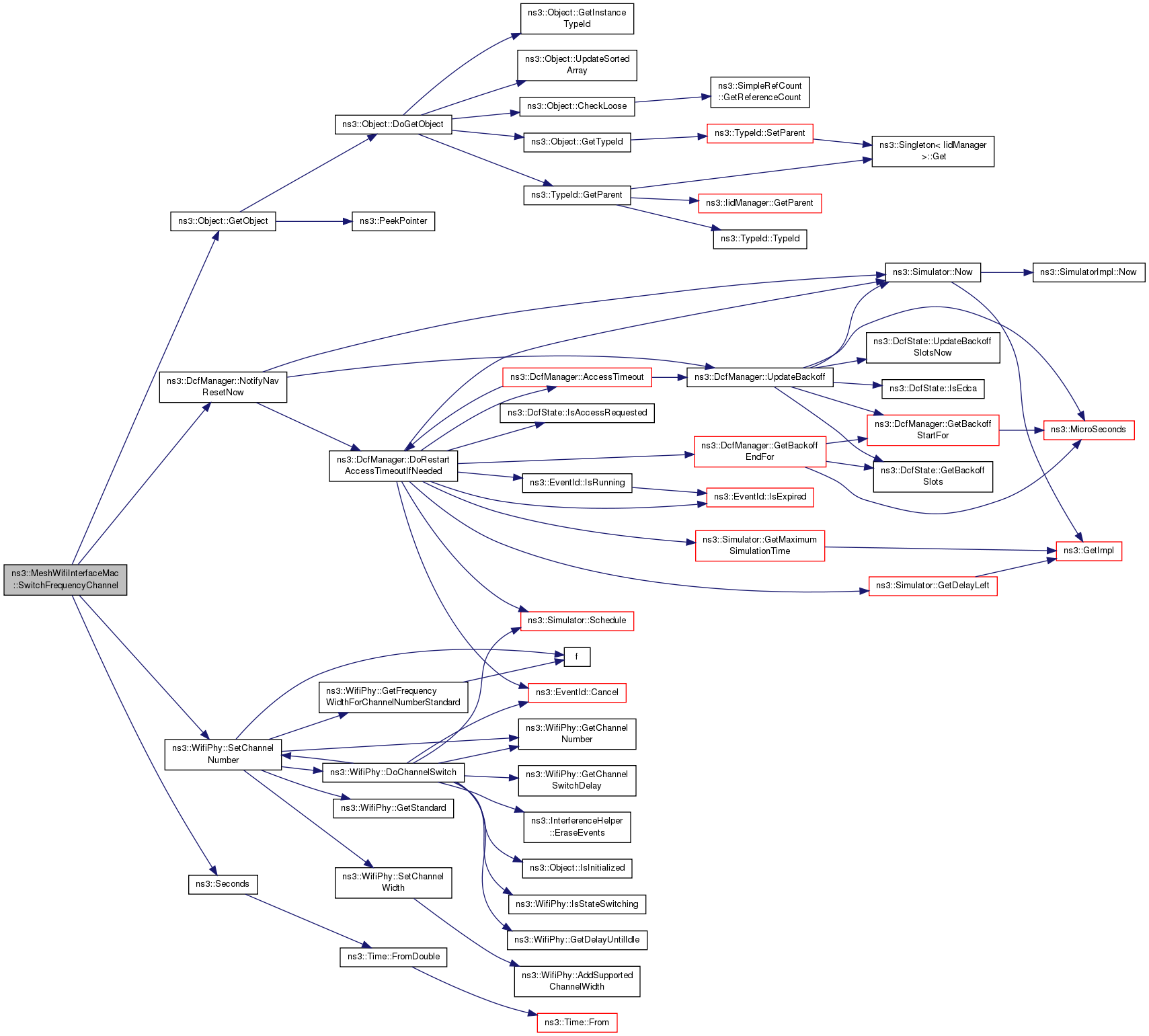

References ns3::WifiPhy::GetChannelNumber(), ns3::Object::GetObject(), ns3::RegularWifiMac::m_phy, NS_ASSERT, NS_LOG_FUNCTION, and third::phy.

Referenced by Report().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::MeshWifiInterfaceMac::GetLinkMetric ( Mac48Address peerAddress )

Definition at line 494 of file mesh-wifi-interface-mac.cc.

References m_linkMetricCallback.

Mac48Address ns3::MeshWifiInterfaceMac::GetMeshPointAddress ( ) const

Definition at line 514 of file mesh-wifi-interface-mac.cc.

References m_mpAddress.

Referenced by SendBeacon().

Here is the caller graph for this function:

WifiPhyStandard ns3::MeshWifiInterfaceMac::GetPhyStandard ( ) const

Get phy standard in use.

Returns: the wifi phy standard

Definition at line 568 of file mesh-wifi-interface-mac.cc.

References m_standard.

SupportedRates ns3::MeshWifiInterfaceMac::GetSupportedRates ( ) const

Returns: list of supported bitrates

Definition at line 315 of file mesh-wifi-interface-mac.cc.

References ns3::SupportedRates::AddSupportedRate(), ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiRemoteStationManager::GetBasicMode(), ns3::WifiPhy::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetGuardInterval(), ns3::WifiPhy::GetMode(), ns3::WifiRemoteStationManager::GetNBasicModes(), ns3::WifiPhy::GetNModes(), ns3::WifiPhy::GetShortGuardInterval(), ns3::RegularWifiMac::m_phy, ns3::RegularWifiMac::m_stationManager, and ns3::SupportedRates::SetBasicRate().

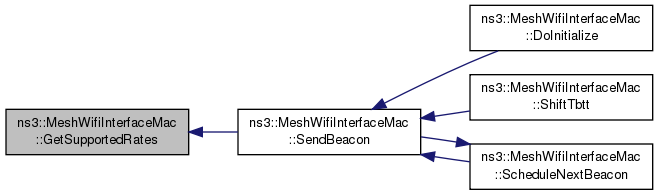

Referenced by SendBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::MeshWifiInterfaceMac::GetTbtt ( ) const

Next beacon frame time.

Returns: TBTT time

This is supposed to be used by any entity managing beacon collision avoidance (e.g. Peer management protocol in 802.11s)

Definition at line 381 of file mesh-wifi-interface-mac.cc.

References m_tbtt.

Referenced by ShiftTbtt().

Here is the caller graph for this function:

TypeId ns3::MeshWifiInterfaceMac::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 47 of file mesh-wifi-interface-mac.cc.

References GetBeaconGeneration(), m_beaconInterval, m_randomStart, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::Seconds(), SetBeaconGeneration(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::InstallPlugin ( Ptr< MeshWifiInterfaceMacPlugin > plugin )

Install plugin.

Parameters

plugin

Todo:: return unique ID to allow user to unregister plugins

Definition at line 168 of file mesh-wifi-interface-mac.cc.

References m_plugins, NS_LOG_FUNCTION, and ns3::MeshWifiInterfaceMacPlugin::SetParent().

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::Receive	(	Ptr< Packet >	packet,
		WifiMacHeader const *	hdr
	)

privatevirtual

Frame receive handler.

Parameters

packet	the received packet
hdr	the wifi MAC header

Reimplemented from ns3::RegularWifiMac.

Definition at line 424 of file mesh-wifi-interface-mac.cc.

References ns3::WifiRemoteStationManager::AddBasicMode(), ns3::WifiRemoteStationManager::AddSupportedMode(), ns3::ConvertGuardIntervalToNanoSeconds(), ns3::RegularWifiMac::ForwardUp(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetAddr3(), ns3::WifiMacHeader::GetAddr4(), ns3::RegularWifiMac::GetAddress(), ns3::Mac48Address::GetBroadcast(), ns3::WifiPhy::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetGuardInterval(), ns3::Time::GetMicroSeconds(), ns3::WifiPhy::GetMode(), ns3::WifiPhy::GetNModes(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiPhy::GetShortGuardInterval(), ns3::Packet::GetSize(), ns3::RegularWifiMac::GetSsid(), ns3::MgtProbeResponseHeader::GetSsid(), ns3::MgtProbeResponseHeader::GetSupportedRates(), ns3::SupportedRates::IsBasicRate(), ns3::WifiMacHeader::IsBeacon(), ns3::WifiMacHeader::IsData(), ns3::Ssid::IsEqual(), ns3::WifiMacHeader::IsQosData(), ns3::SupportedRates::IsSupportedRate(), ns3::RegularWifiMac::m_phy, m_plugins, ns3::RegularWifiMac::m_stationManager, m_stats, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::Packet::PeekHeader(), ns3::MeshWifiInterfaceMac::Statistics::recvBeacons, ns3::MeshWifiInterfaceMac::Statistics::recvBytes, ns3::MeshWifiInterfaceMac::Statistics::recvFrames, ns3::Packet::ReplacePacketTag(), and ns3::SocketPriorityTag::SetPriority().

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::Report ( std::ostream & os ) const

Statistics:

Definition at line 539 of file mesh-wifi-interface-mac.cc.

References ns3::RegularWifiMac::GetAddress(), GetBeaconInterval(), GetFrequencyChannel(), ns3::Time::GetSeconds(), m_stats, and ns3::MeshWifiInterfaceMac::Statistics::Print().

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::ResetStats ( )

Reset statistics.

Definition at line 549 of file mesh-wifi-interface-mac.cc.

References m_stats.

void ns3::MeshWifiInterfaceMac::ScheduleNextBeacon ( )

private

Schedule next beacon.

Definition at line 398 of file mesh-wifi-interface-mac.cc.

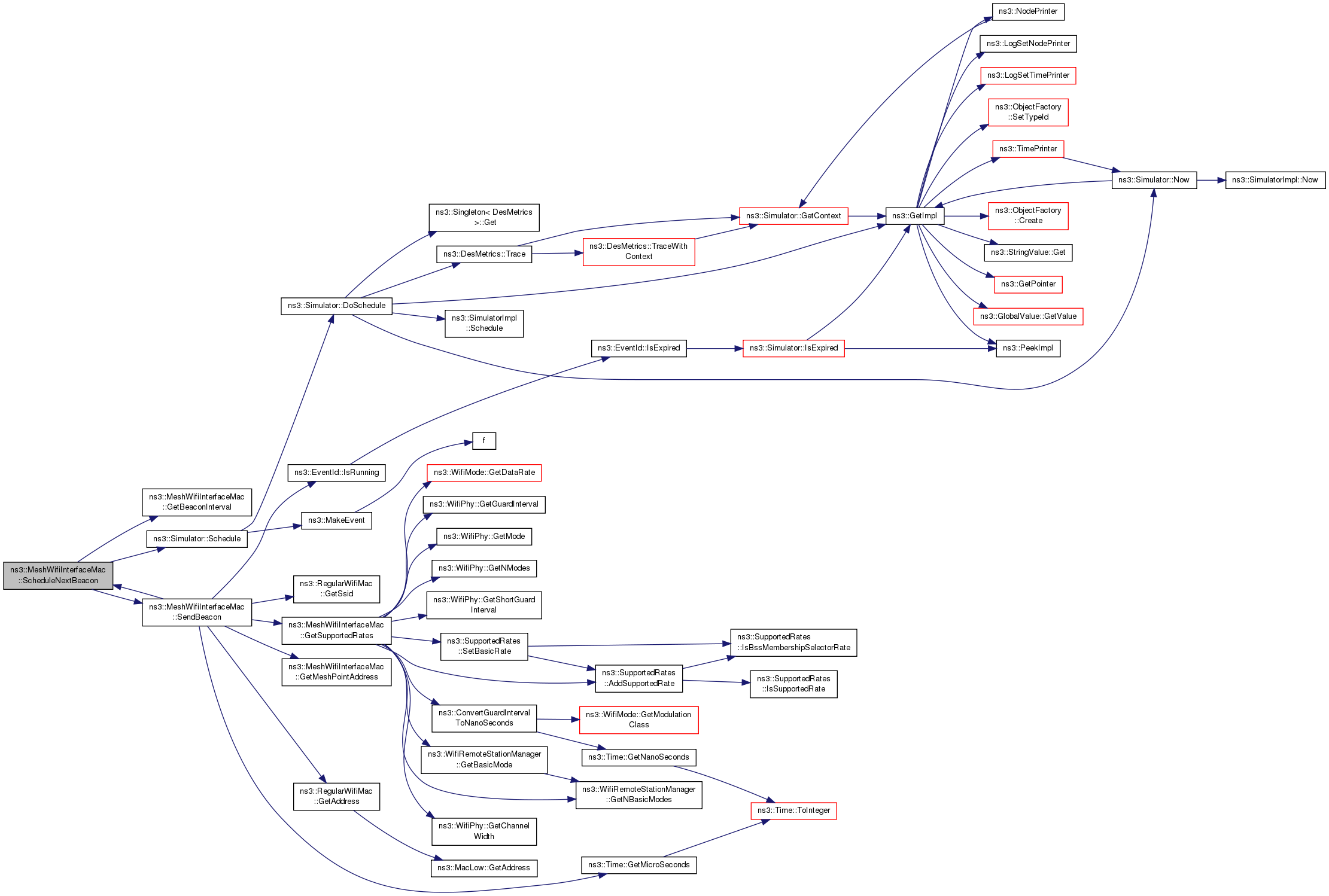

References GetBeaconInterval(), m_beaconSendEvent, m_tbtt, ns3::Simulator::Schedule(), and SendBeacon().

Referenced by SendBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MeshWifiInterfaceMac::SendBeacon ( )

private

Send beacon.

Definition at line 404 of file mesh-wifi-interface-mac.cc.

References ns3::RegularWifiMac::GetAddress(), GetMeshPointAddress(), ns3::Time::GetMicroSeconds(), ns3::RegularWifiMac::GetSsid(), GetSupportedRates(), ns3::EventId::IsRunning(), m_beaconInterval, m_beaconSendEvent, ns3::RegularWifiMac::m_dca, m_plugins, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ScheduleNextBeacon().

Referenced by DoInitialize(), ScheduleNextBeacon(), and ShiftTbtt().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MeshWifiInterfaceMac::SendManagementFrame	(	Ptr< Packet >	frame,
		const WifiMacHeader &	hdr
	)

To be used by plugins sending management frames.

Parameters

frame	the management frame
hdr	the wifi MAC header

Definition at line 279 of file mesh-wifi-interface-mac.cc.

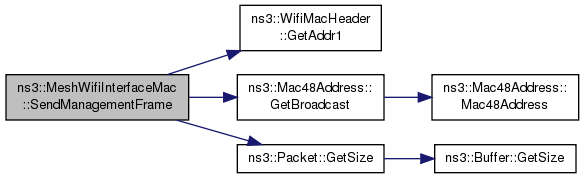

References ns3::AC_BK, ns3::AC_VO, ns3::WifiMacHeader::GetAddr1(), ns3::Mac48Address::GetBroadcast(), ns3::Packet::GetSize(), ns3::RegularWifiMac::m_edca, m_plugins, m_stats, NS_FATAL_ERROR, ns3::MeshWifiInterfaceMac::Statistics::sentBytes, and ns3::MeshWifiInterfaceMac::Statistics::sentFrames.

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::SetBeaconGeneration ( bool enable )

Enable/disable beacons.

Parameters

enable enable / disable flag

Definition at line 370 of file mesh-wifi-interface-mac.cc.

References m_beaconEnable, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::MeshWifiInterfaceMac::SetBeaconInterval ( Time interval )

Set interval between two successive beacons.

Definition at line 359 of file mesh-wifi-interface-mac.cc.

References m_beaconInterval, and NS_LOG_FUNCTION.

void ns3::MeshWifiInterfaceMac::SetLinkMetricCallback ( Callback< uint32_t, Mac48Address, Ptr< MeshWifiInterfaceMac > > cb )

Definition at line 504 of file mesh-wifi-interface-mac.cc.

References m_linkMetricCallback.

void ns3::MeshWifiInterfaceMac::SetLinkUpCallback ( Callback< void > linkUp )

virtual

Parameters

linkUp the callback to invoke when the link becomes up.

Implements ns3::WifiMac.

Definition at line 112 of file mesh-wifi-interface-mac.cc.

References NS_LOG_FUNCTION, and ns3::RegularWifiMac::SetLinkUpCallback().

Here is the call graph for this function:

void ns3::MeshWifiInterfaceMac::SetMeshPointAddress ( Mac48Address a )

Definition at line 509 of file mesh-wifi-interface-mac.cc.

References m_mpAddress.

void ns3::MeshWifiInterfaceMac::SetRandomStartDelay ( Time interval )

Set maximum initial random delay before first beacon.

Definition at line 353 of file mesh-wifi-interface-mac.cc.

References m_randomStart, and NS_LOG_FUNCTION.

void ns3::MeshWifiInterfaceMac::ShiftTbtt ( Time shift )

Shift TBTT.

Parameters

shift This is supposed to be used by any entity managing beacon collision avoidance (e.g. Peer management protocol in 802.11s)

Attention: User of ShiftTbtt () must take care to not shift it to the past.

Definition at line 386 of file mesh-wifi-interface-mac.cc.

References ns3::Simulator::Cancel(), GetTbtt(), m_beaconSendEvent, m_tbtt, ns3::Simulator::Now(), NS_ASSERT, ns3::Simulator::Schedule(), and SendBeacon().

Here is the call graph for this function:

bool ns3::MeshWifiInterfaceMac::SupportsSendFrom ( ) const

virtual

Returns: if this MAC supports sending from arbitrary address.

The interface may or may not support sending from arbitrary address. This function returns true if sending from arbitrary address is supported, false otherwise.

Reimplemented from ns3::RegularWifiMac.

Definition at line 107 of file mesh-wifi-interface-mac.cc.

void ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel ( uint16_t new_id )

Switch frequency channel.

Parameters

new_id
