#include "rrpaa-wifi-manager.h"

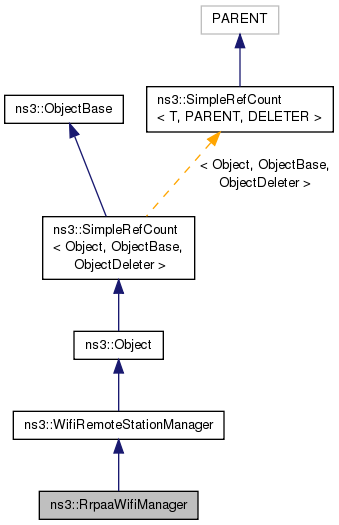

Inheritance diagram for ns3::RrpaaWifiManager:

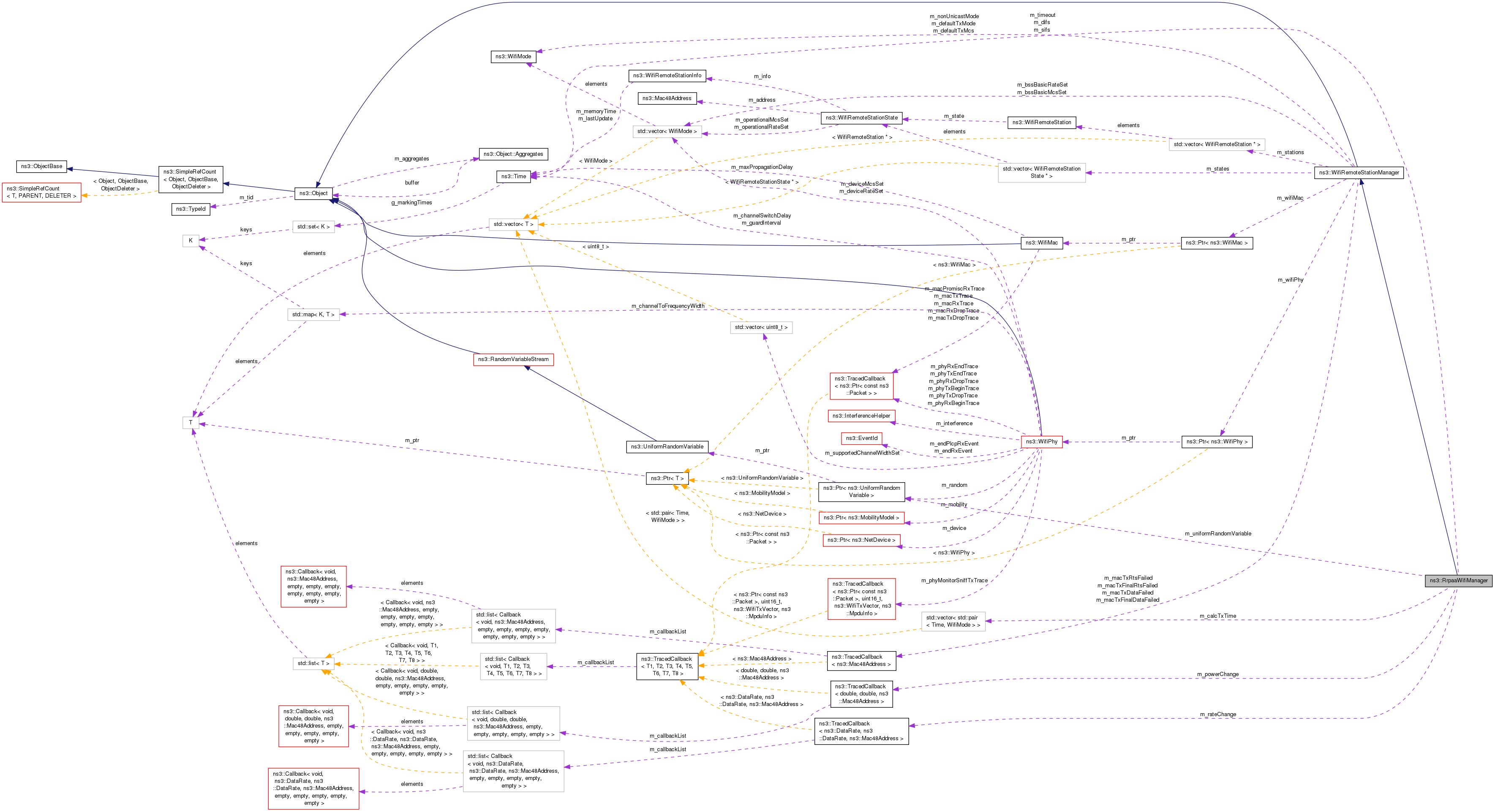

Collaboration diagram for ns3::RrpaaWifiManager:

Public Member Functions
	RrpaaWifiManager ()

virtual	~RrpaaWifiManager ()

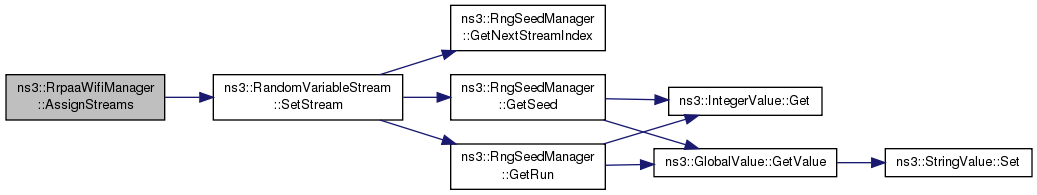

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void	SetHeSupported (bool enable)
	Enable or disable HE capability support. More...

virtual void	SetHtSupported (bool enable)
	Enable or disable HT capability support. More...

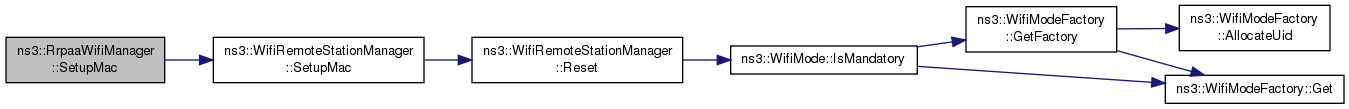

virtual void	SetupMac (const Ptr< WifiMac > mac)
	Set up MAC associated with this device since it is the object that knows the full set of timing parameters (e.g. More...

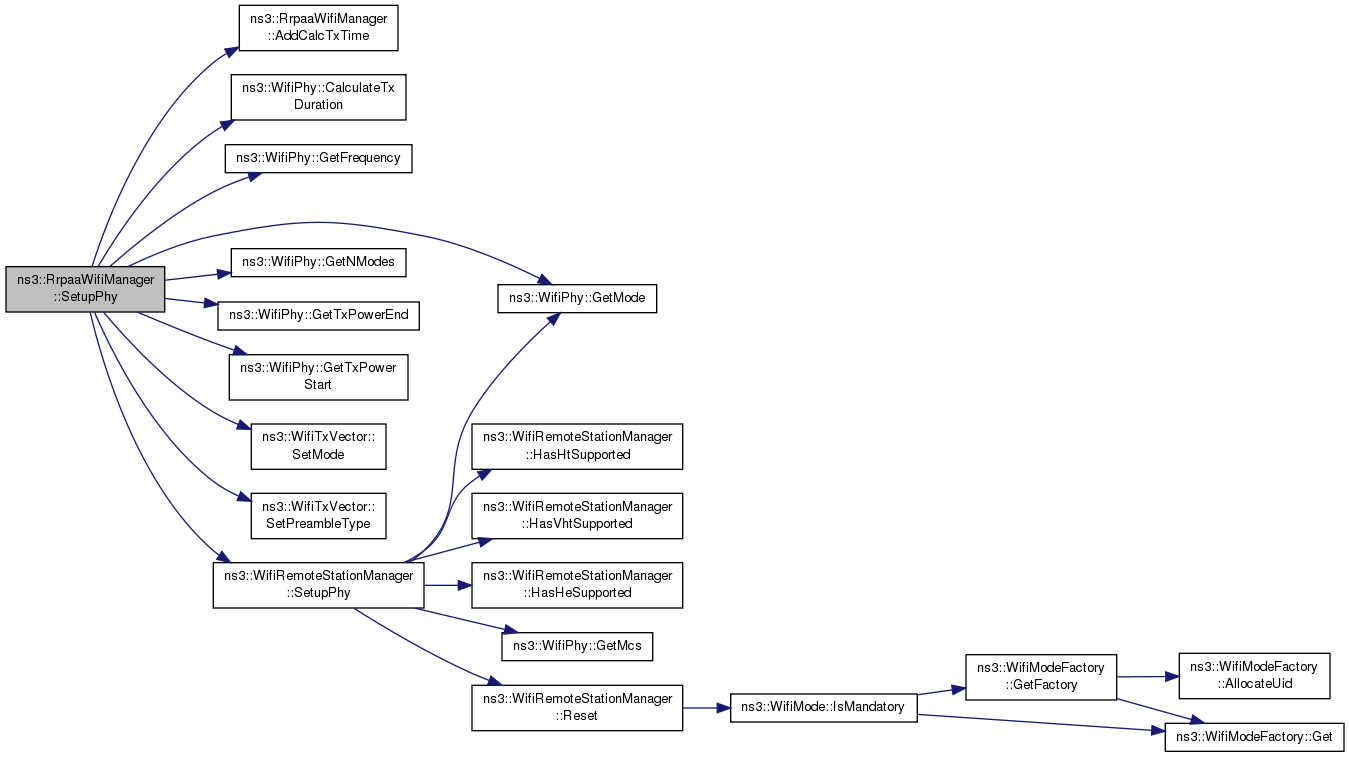

virtual void	SetupPhy (const Ptr< WifiPhy > phy)
	Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported. More...

virtual void	SetVhtSupported (bool enable)
	Enable or disable VHT capability support. More...

Public Member Functions inherited from ns3::WifiRemoteStationManager
	WifiRemoteStationManager ()

virtual	~WifiRemoteStationManager ()

void	AddAllSupportedMcs (Mac48Address address)
	Invoked in a STA or AP to store all of the MCS supported by a destination which is also supported locally. More...

void	AddAllSupportedModes (Mac48Address address)
	Invoked in a STA or AP to store all of the modes supported by a destination which is also supported locally. More...

void	AddBasicMcs (WifiMode mcs)
	Add a given Modulation and Coding Scheme (MCS) index to the set of basic MCS. More...

void	AddBasicMode (WifiMode mode)
	Invoked in a STA upon association to store the set of rates which belong to the BSSBasicRateSet of the associated AP and which are supported locally. More...

void	AddStationHeCapabilities (Mac48Address from, HeCapabilities hecapabilities)
	Records HE capabilities of the remote station. More...

void	AddStationHtCapabilities (Mac48Address from, HtCapabilities htcapabilities)
	Records HT capabilities of the remote station. More...

void	AddStationVhtCapabilities (Mac48Address from, VhtCapabilities vhtcapabilities)
	Records VHT capabilities of the remote station. More...

void	AddSupportedErpSlotTime (Mac48Address address, bool isShortSlotTimeSupported)
	Record whether the short ERP slot time is supported by the station. More...

void	AddSupportedMcs (Mac48Address address, WifiMode mcs)
	Record the MCS index supported by the station. More...

void	AddSupportedMode (Mac48Address address, WifiMode mode)
	Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally. More...

void	AddSupportedPlcpPreamble (Mac48Address address, bool isShortPreambleSupported)
	Record whether the short PLCP preamble is supported by the station. More...

WifiTxVector	DoGetCtsToSelfTxVector (void)
	Since CTS-to-self parameters are not dependent on the station, it is implemented in wifiremote station manager. More...

WifiTxVector	GetAckTxVector (Mac48Address address, WifiMode dataMode)

WifiMode	GetBasicMcs (uint32_t i) const
	Return the MCS at the given list index. More...

WifiMode	GetBasicMode (uint32_t i) const
	Return a basic mode from the set of basic modes. More...

WifiTxVector	GetBlockAckTxVector (Mac48Address address, WifiMode dataMode)

uint8_t	GetChannelWidthSupported (Mac48Address address) const
	Return the channel width supported by the station. More...

WifiTxVector	GetCtsToSelfTxVector (const WifiMacHeader *header, Ptr< const Packet > packet)

WifiTxVector	GetCtsTxVector (Mac48Address address, WifiMode rtsMode)

WifiTxVector	GetDataTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

WifiMode	GetDefaultMcs (void) const
	Return the default Modulation and Coding Scheme (MCS) index. More...

WifiMode	GetDefaultMode (void) const
	Return the default transmission mode. More...

uint8_t	GetDefaultTxPowerLevel (void) const

ProtectionMode	GetErpProtectionMode (void) const
	Return the ERP protection mode. More...

uint32_t	GetFragmentationThreshold (void) const
	Return the fragmentation threshold. More...

uint32_t	GetFragmentOffset (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

uint32_t	GetFragmentSize (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

bool	GetGreenfieldSupported (Mac48Address address) const
	Return whether the station supports Greenfield or not. More...

ProtectionMode	GetHtProtectionMode (void) const
	Return the HT protection mode. More...

WifiRemoteStationInfo	GetInfo (Mac48Address address)

uint8_t	GetMaxNumberOfTransmitStreams (void)

uint32_t	GetMaxSlrc (void) const
	Return the maximum STA long retry count (SLRC). More...

uint32_t	GetMaxSsrc (void) const
	Return the maximum STA short retry count (SSRC). More...

uint32_t	GetNBasicMcs (void) const
	Return the number of basic MCS index. More...

uint32_t	GetNBasicModes (void) const
	Return the number of basic modes we support. More...

uint32_t	GetNNonErpBasicModes (void) const
	Return the number of non-ERP basic modes we support. More...

WifiMode	GetNonErpBasicMode (uint32_t i) const
	Return a basic mode from the set of basic modes that is not an ERP mode. More...

WifiMode	GetNonUnicastMode (void) const
	Return a mode for non-unicast packets. More...

uint8_t	GetNumberOfAntennas (void)

bool	GetQosSupported (Mac48Address address) const
	Return whether the given station is QoS capable. More...

bool	GetRifsPermitted (void) const
	Return whether the device can use RIFS. More...

uint32_t	GetRtsCtsThreshold (void) const
	Return the RTS threshold. More...

WifiTxVector	GetRtsTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	GetShortPreambleEnabled (void) const
	Return whether the device uses short PLCP preambles. More...

bool	GetShortPreambleSupported (Mac48Address address) const
	Return whether the station supports short PLCP preamble or not. More...

bool	GetShortSlotTimeEnabled (void) const
	Return whether the device uses short slot time. More...

bool	GetShortSlotTimeSupported (Mac48Address address) const
	Return whether the station supports short ERP slot time or not. More...

bool	GetUseGreenfieldProtection (void) const
	Return whether protection for stations that do not support HT greenfield format is enabled. More...

bool	GetUseNonErpProtection (void) const
	Return whether the device supports protection of non-ERP stations. More...

bool	GetUseNonHtProtection (void) const
	Return whether the device supports protection of non-HT stations. More...

bool	GetVhtSupported (Mac48Address address) const
	Return whether the station supports VHT or not. More...

bool	HasHeSupported (void) const
	Return whether the device has HE capability support enabled. More...

bool	HasHtSupported (void) const
	Return whether the device has HT capability support enabled. More...

bool	HasQosSupported (void) const
	Return whether the device has QoS support enabled. More...

bool	HasVhtSupported (void) const
	Return whether the device has VHT capability support enabled. More...

bool	IsAssociated (Mac48Address address) const
	Return whether the station associated. More...

bool	IsBrandNew (Mac48Address address) const
	Return whether the station state is brand new. More...

bool	IsLastFragment (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

bool	IsWaitAssocTxOk (Mac48Address address) const
	Return whether we are waiting for an ACK for the association response we sent. More...

bool	NeedCtsToSelf (WifiTxVector txVector)
	Return if we need to do Cts-to-self before sending a DATA. More...

bool	NeedDataRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	NeedFragmentation (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	NeedRts (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, WifiTxVector txVector)

bool	NeedRtsRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

void	PrepareForQueue (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

void	RecordDisassociated (Mac48Address address)
	Records that the STA was disassociated. More...

void	RecordGotAssocTxFailed (Mac48Address address)
	Records that we missed an ACK for the association response we sent. More...

void	RecordGotAssocTxOk (Mac48Address address)
	Records that we got an ACK for the association response we sent. More...

void	RecordWaitAssocTxOk (Mac48Address address)
	Records that we are waiting for an ACK for the association response we sent. More...

void	RemoveAllSupportedMcs (Mac48Address address)
	Invoked in a STA or AP to delete all of the suppported MCS by a destination. More...

void	ReportAmpduTxStatus (Mac48Address address, uint8_t tid, uint8_t nSuccessfulMpdus, uint8_t nFailedMpdus, double rxSnr, double dataSnr)
	Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed. More...

void	ReportDataFailed (Mac48Address address, const WifiMacHeader *header)
	Should be invoked whenever the AckTimeout associated to a transmission attempt expires. More...

void	ReportDataOk (Mac48Address address, const WifiMacHeader *header, double ackSnr, WifiMode ackMode, double dataSnr)
	Should be invoked whenever we receive the Ack associated to a data packet we just sent. More...

void	ReportFinalDataFailed (Mac48Address address, const WifiMacHeader *header)
	Should be invoked after calling ReportDataFailed if NeedDataRetransmission returns false. More...

void	ReportFinalRtsFailed (Mac48Address address, const WifiMacHeader *header)
	Should be invoked after calling ReportRtsFailed if NeedRtsRetransmission returns false. More...

void	ReportRtsFailed (Mac48Address address, const WifiMacHeader *header)
	Should be invoked whenever the RtsTimeout associated to a transmission attempt expires. More...

void	ReportRtsOk (Mac48Address address, const WifiMacHeader *header, double ctsSnr, WifiMode ctsMode, double rtsSnr)
	Should be invoked whenever we receive the Cts associated to an RTS we just sent. More...

void	ReportRxOk (Mac48Address address, const WifiMacHeader *header, double rxSnr, WifiMode txMode)

void	Reset (void)
	Reset the station, invoked in a STA upon dis-association or in an AP upon reboot. More...

void	Reset (Mac48Address address)
	Invoked in an AP upon disassociation of a specific STA. More...

void	SetDefaultTxPowerLevel (uint8_t txPower)
	Set the default transmission power level. More...

void	SetErpProtectionMode (ProtectionMode mode)
	Sets the ERP protection mode. More...

void	SetFragmentationThreshold (uint32_t threshold)
	Sets a fragmentation threshold. More...

void	SetHtProtectionMode (ProtectionMode mode)
	Sets the HT protection mode. More...

void	SetMaxSlrc (uint32_t maxSlrc)
	Sets the maximum STA long retry count (SLRC). More...

void	SetMaxSsrc (uint32_t maxSsrc)
	Sets the maximum STA short retry count (SSRC). More...

void	SetQosSupport (Mac48Address from, bool qosSupported)
	Records QoS support of the remote station. More...

virtual void	SetQosSupported (bool enable)
	Enable or disable QoS support. More...

void	SetRifsPermitted (bool allow)
	Permit or prohibit RIFS. More...

void	SetRtsCtsThreshold (uint32_t threshold)
	Sets the RTS threshold. More...

void	SetShortPreambleEnabled (bool enable)
	Enable or disable short PLCP preambles. More...

void	SetShortSlotTimeEnabled (bool enable)
	Enable or disable short slot time. More...

void	SetUseGreenfieldProtection (bool enable)
	Enable or disable protection for stations that do not support HT greenfield format. More...

void	SetUseNonErpProtection (bool enable)
	Enable or disable protection for non-ERP stations. More...

void	SetUseNonHtProtection (bool enable)
	Enable or disable protection for non-HT stations. More...

void	UpdateFragmentationThreshold (void)
	Typically called to update the fragmentation threshold at the start of a new transmission. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::WifiRemoteStationManager
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::vector< std::pair< Time, WifiMode > >	TxTime
	typedef for a vector of a pair of Time, WifiMode. More...

Private Member Functions
void	AddCalcTxTime (WifiMode mode, Time t)
	Add transmission time for the given mode to an internal list. More...

void	CheckInit (RrpaaWifiRemoteStation *station)
	Check for initializations. More...

void	CheckTimeout (RrpaaWifiRemoteStation *station)
	Check if the counter should be reseted. More...

virtual WifiRemoteStation *	DoCreateStation (void) const

virtual WifiTxVector	DoGetDataTxVector (WifiRemoteStation *station)

virtual WifiTxVector	DoGetRtsTxVector (WifiRemoteStation *station)

virtual bool	DoNeedRts (WifiRemoteStation *st, Ptr< const Packet > packet, bool normally)

virtual void	DoReportDataFailed (WifiRemoteStation *station)
	This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void	DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr)
	This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void	DoReportFinalDataFailed (WifiRemoteStation *station)
	This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void	DoReportFinalRtsFailed (WifiRemoteStation *station)
	This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void	DoReportRtsFailed (WifiRemoteStation *station)
	This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void	DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)
	This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void	DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)
	This method is a pure virtual method that must be implemented by the sub-class. More...

Time	GetCalcTxTime (WifiMode mode) const
	Get the estimated TxTime of a packet with a given mode. More...

WifiRrpaaThresholds	GetThresholds (RrpaaWifiRemoteStation *station, WifiMode mode) const
	Get the thresholds for the given station and mode. More...

WifiRrpaaThresholds	GetThresholds (RrpaaWifiRemoteStation *station, uint32_t rate) const
	Get the thresholds for the given station and mode index. More...

void	InitThresholds (RrpaaWifiRemoteStation *station)
	Initialize the thresholds internal list for the given station. More...

virtual bool	IsLowLatency (void) const

void	ResetCountersBasic (RrpaaWifiRemoteStation *station)
	Reset the counters of the given station. More...

void	RunAdaptiveRtsAlgorithm (RrpaaWifiRemoteStation *station)
	Run an enhanced algorithm which activates the use of RTS for the given station if the conditions are met. More...

void	RunBasicAlgorithm (RrpaaWifiRemoteStation *station)
	Find an appropriate rate and power for the given station, using a basic algorithm. More...

Private Attributes
uint32_t	m_ackLength
	Ack frame length used for calculate mode TxTime. More...

double	m_alpha
	Alpha value for RRPAA (value for calculating MTL threshold) More...

bool	m_basic
	If using the basic algorithm (without RTS/CTS). More...

double	m_beta
	Beta value for RRPAA (value for calculating ORI threshold). More...

TxTime	m_calcTxTime
	To hold all the calculated TxTime for all modes. More...

double	m_delta
	Delta value for RRPAA (value for pdTable increments). More...

Time	m_difs
	Value of DIFS configured in the device. More...

uint32_t	m_frameLength
	Data frame length used for calculate mode TxTime. More...

double	m_gamma
	Gamma value for RRPAA (value for pdTable decrements). More...

uint32_t	m_maxPower
	Maximal power level. More...

uint32_t	m_minPower
	Differently form rate, power levels do not depend on the remote station. More...

uint32_t	m_nPower
	Number of power levels. More...

TracedCallback< double, double, Mac48Address >	m_powerChange
	The trace source fired when the transmission power change. More...

TracedCallback< DataRate, DataRate, Mac48Address >	m_rateChange
	The trace source fired when the transmission rate change. More...

Time	m_sifs
	Value of SIFS configured in the device. More...

double	m_tau
	Tau value for RRPAA (value for calculating EWND size). More...

Time	m_timeout
	Timeout for the RRAA BASIC loss estimation block. More...

Ptr< UniformRandomVariable >	m_uniformRandomVariable
	Provides uniform random variables for probabilistic changes. More...

Additional Inherited Members
Public Types inherited from ns3::WifiRemoteStationManager
typedef void(*	PowerChangeTracedCallback) (double oldPower, double newPower, Mac48Address remoteAddress)
	TracedCallback signature for power change events. More...

enum	ProtectionMode { RTS_CTS, CTS_TO_SELF }
	ProtectionMode enumeration. More...

typedef void(*	RateChangeTracedCallback) (DataRate oldRate, DataRate newRate, Mac48Address remoteAddress)
	TracedCallback signature for rate change events. More...

Protected Member Functions inherited from ns3::WifiRemoteStationManager
virtual void	DoDispose (void)
	Destructor implementation. More...

Mac48Address	GetAddress (const WifiRemoteStation *station) const
	Return the address of the station. More...

bool	GetAggregation (const WifiRemoteStation *station) const
	Return whether the given station supports A-MPDU. More...

uint8_t	GetChannelWidth (const WifiRemoteStation *station) const
	Return the channel width supported by the station. More...

bool	GetGreenfield (const WifiRemoteStation *station) const
	Return whether the station supports Greenfield or not. More...

uint16_t	GetGuardInterval (const WifiRemoteStation *station) const
	Return the HE guard interval duration supported by the station. More...

bool	GetHeSupported (const WifiRemoteStation *station) const
	Return whether the given station is HE capable. More...

bool	GetHtSupported (const WifiRemoteStation *station) const
	Return whether the given station is HT capable. More...

uint32_t	GetLongRetryCount (const WifiRemoteStation *station) const
	Return the long retry limit of the given station. More...

Ptr< WifiMac >	GetMac (void) const
	Return the WifiMac. More...

WifiMode	GetMcsSupported (const WifiRemoteStation *station, uint32_t i) const
	Return the WifiMode supported by the specified station at the specified index. More...

uint32_t	GetNess (const WifiRemoteStation *station) const

uint32_t	GetNMcsSupported (const WifiRemoteStation *station) const
	Return the number of MCS supported by the given station. More...

uint32_t	GetNNonErpSupported (const WifiRemoteStation *station) const
	Return the number of non-ERP modes supported by the given station. More...

WifiMode	GetNonErpSupported (const WifiRemoteStation *station, uint32_t i) const
	Return whether non-ERP mode associated with the specified station at the specified index. More...

uint32_t	GetNSupported (const WifiRemoteStation *station) const
	Return the number of modes supported by the given station. More...

uint8_t	GetNumberOfSupportedStreams (const WifiRemoteStation *station) const
	Return the number of supported streams the station has. More...

Ptr< WifiPhy >	GetPhy (void) const
	Return the WifiPhy. More...

WifiPreamble	GetPreambleForTransmission (WifiMode mode, Mac48Address dest)
	Return the preamble to be used for the transmission. More...

bool	GetQosSupported (const WifiRemoteStation *station) const
	Return whether the given station is QoS capable. More...

bool	GetShortGuardInterval (const WifiRemoteStation *station) const
	Return whether the given station supports HT/VHT short guard interval. More...

uint32_t	GetShortRetryCount (const WifiRemoteStation *station) const
	Return the short retry limit of the given station. More...

bool	GetStbc (const WifiRemoteStation *station) const
	Return whether the given station supports space-time block coding (STBC). More...

WifiMode	GetSupported (const WifiRemoteStation *station, uint32_t i) const
	Return whether mode associated with the specified station at the specified index. More...

bool	GetVhtSupported (const WifiRemoteStation *station) const
	Return whether the given station is VHT capable. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Config Paths

ns3::RrpaaWifiManager is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RrpaaWifiManager"

Attributes

Basic: If true the RRAA-BASIC algorithm will be used, otherwise the RRAA will be used.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
Timeout: Timeout for the RRAA-BASIC loss estimation block (s).
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read
FrameLength: The data frame length (in bytes) used for calculating mode TxTime.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1420
- Flags: construct write read
AckFrameLength: The ACK frame length (in bytes) used for calculating mode TxTime.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 14
- Flags: construct write read
Alpha: Constant for calculating the MTL threshold.
- Set with class: ns3::DoubleValue
- Underlying type: double 1:1.79769e+308
- Initial value: 1.25
- Flags: construct write read
Beta: Constant for calculating the ORI threshold.
- Set with class: ns3::DoubleValue
- Underlying type: double 1:1.79769e+308
- Initial value: 2
- Flags: construct write read
Tau: Constant for calculating the EWND size.
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1.79769e+308
- Initial value: 0.015
- Flags: construct write read
Gamma: Constant for Probabilistic Decision Table decrements.
- Set with class: ns3::DoubleValue
- Underlying type: double 1:1.79769e+308
- Initial value: 2
- Flags: construct write read
Delta: Constant for Probabilistic Decision Table increments.
- Set with class: ns3::DoubleValue
- Underlying type: double 1:1.79769e+308
- Initial value: 1.0905
- Flags: construct write read

Attributes defined in parent class ns3::WifiRemoteStationManager

IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
- Set with class: BooleanValue
- Underlying type: bool
- Flags: read
MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7
- Flags: construct write read
MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7
- Flags: construct write read
RtsCtsThreshold: If the size of the PSDU is bigger than this value, we use an RTS/CTS handshake before sending the data frame.This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 65535
- Flags: construct write read
FragmentationThreshold: If the size of the PSDU is bigger than this value, we fragment it such that the size of the fragments are equal or smaller. This value does not apply when it is carried in an A-MPDU. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2346
- Flags: construct write read
NonUnicastMode: Wifi mode used for non-unicast transmissions.
- Set with class: WifiModeValue
- Underlying type: WifiMode
- Initial value: Invalid-WifiMode
- Flags: construct write read
DefaultTxPowerLevel: Default power level to be used for transmissions. This is the power level that is used by all those WifiManagers that do not implement TX power control.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write read
ErpProtectionMode: Protection mode used when non-ERP STAs are connected to an ERP AP: Rts-Cts or Cts-To-Self
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: Cts-To-Self
- Flags: construct write read
HtProtectionMode: Protection mode used when non-HT STAs are connected to a HT AP: Rts-Cts or Cts-To-Self
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: Cts-To-Self
- Flags: construct write read

TraceSources

RateChange: The transmission rate has change.
Callback signature: ns3::WifiRemoteStationManager::RateChangeTracedCallback
PowerChange: The transmission power has change.
Callback signature: ns3::WifiRemoteStationManager::PowerChangeTracedCallback

TraceSources defined in parent class ns3::WifiRemoteStationManager

MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
Callback signature: ns3::Mac48Address::TracedCallback
MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
Callback signature: ns3::Mac48Address::TracedCallback
MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
Callback signature: ns3::Mac48Address::TracedCallback
MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts
Callback signature: ns3::Mac48Address::TracedCallback

Size of this type is 424 bytes (on a 64-bit architecture).

Definition at line 71 of file rrpaa-wifi-manager.h.

Member Typedef Documentation

typedef std::vector<std::pair<Time,WifiMode> > ns3::RrpaaWifiManager::TxTime

private

typedef for a vector of a pair of Time, WifiMode.

Essentially a list for WifiMode and its corresponding transmission time to transmit a reference packet.

Definition at line 200 of file rrpaa-wifi-manager.h.

Constructor & Destructor Documentation

ns3::RrpaaWifiManager::RrpaaWifiManager ( )

Definition at line 134 of file rrpaa-wifi-manager.cc.

References m_uniformRandomVariable, and NS_LOG_FUNCTION.

ns3::RrpaaWifiManager::~RrpaaWifiManager ( )

virtual

Definition at line 140 of file rrpaa-wifi-manager.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::RrpaaWifiManager::AddCalcTxTime	(	WifiMode	mode,
		Time	t
	)

private

Add transmission time for the given mode to an internal list.

Parameters

mode	Wi-Fi mode
t	transmission time

Definition at line 201 of file rrpaa-wifi-manager.cc.

References m_calcTxTime, and NS_LOG_FUNCTION.

Referenced by SetupPhy().

Here is the caller graph for this function:

int64_t ns3::RrpaaWifiManager::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 146 of file rrpaa-wifi-manager.cc.

References m_uniformRandomVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

void ns3::RrpaaWifiManager::CheckInit ( RrpaaWifiRemoteStation * station )

private

Check for initializations.

Parameters

station The remote station.

Definition at line 237 of file rrpaa-wifi-manager.cc.

Referenced by DoGetDataTxVector(), DoNeedRts(), DoReportDataFailed(), and DoReportDataOk().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RrpaaWifiManager::CheckTimeout ( RrpaaWifiRemoteStation * station )

private

Check if the counter should be reseted.

Parameters

station

Definition at line 452 of file rrpaa-wifi-manager.cc.

References ns3::RrpaaWifiRemoteStation::m_counter, ns3::RrpaaWifiRemoteStation::m_lastReset, m_timeout, ns3::Simulator::Now(), NS_LOG_FUNCTION, and ResetCountersBasic().

Referenced by DoReportDataFailed(), and DoReportDataOk().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiRemoteStation * ns3::RrpaaWifiManager::DoCreateStation ( void ) const

privatevirtual

Returns: a new station data structure

Implements ns3::WifiRemoteStationManager.

Definition at line 224 of file rrpaa-wifi-manager.cc.

References ns3::RrpaaWifiRemoteStation::m_adaptiveRtsOn, ns3::RrpaaWifiRemoteStation::m_adaptiveRtsWnd, ns3::RrpaaWifiRemoteStation::m_initialized, ns3::RrpaaWifiRemoteStation::m_lastFrameFail, ns3::RrpaaWifiRemoteStation::m_rtsCounter, and NS_LOG_FUNCTION.

WifiTxVector ns3::RrpaaWifiManager::DoGetDataTxVector ( WifiRemoteStation * station )

privatevirtual

Parameters

station the station that we need to communicate

Returns: the TXVECTOR to use to send a packet to the station

Note: This method is called before sending a unicast packet or a fragment of a unicast packet to decide which transmission mode to use.

Implements ns3::WifiRemoteStationManager.

Definition at line 383 of file rrpaa-wifi-manager.cc.

Here is the call graph for this function:

WifiTxVector ns3::RrpaaWifiManager::DoGetRtsTxVector ( WifiRemoteStation * station )

privatevirtual

Parameters

station the station that we need to communicate

Returns: the transmission mode to use to send an rts to the station

Note: This method is called before sending an rts to a station to decide which transmission mode to use for the rts.

Implements ns3::WifiRemoteStationManager.

Definition at line 412 of file rrpaa-wifi-manager.cc.

Here is the call graph for this function:

bool ns3::RrpaaWifiManager::DoNeedRts	(	WifiRemoteStation *	station,
		Ptr< const Packet >	packet,
		bool	normally
	)

privatevirtual

Parameters

station	the station that we need to communicate
packet	the packet to send
normally	indicates whether the normal 802.11 rts enable mechanism would request that the rts is sent or not.

Returns: true if we want to use an RTS/CTS handshake for this packet before sending it, false otherwise.

Note: This method is called before a unicast packet is sent on the medium.

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 437 of file rrpaa-wifi-manager.cc.

References CheckInit(), ns3::RrpaaWifiRemoteStation::m_adaptiveRtsOn, m_basic, NS_LOG_FUNCTION, and RunAdaptiveRtsAlgorithm().

Here is the call graph for this function:

void ns3::RrpaaWifiManager::DoReportDataFailed ( WifiRemoteStation * station )

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station the station that we failed to send DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 332 of file rrpaa-wifi-manager.cc.

References CheckInit(), CheckTimeout(), ns3::RrpaaWifiRemoteStation::m_counter, ns3::RrpaaWifiRemoteStation::m_lastFrameFail, ns3::RrpaaWifiRemoteStation::m_nFailed, NS_LOG_FUNCTION, and RunBasicAlgorithm().

Here is the call graph for this function:

void ns3::RrpaaWifiManager::DoReportDataOk	(	WifiRemoteStation *	station,
		double	ackSnr,
		WifiMode	ackMode,
		double	dataSnr
	)

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station	the station that we successfully sent RTS
ackSnr	the SNR of the ACK we received
ackMode	the WifiMode the receiver used to send the ACK
dataSnr	the SNR of the DATA we sent

Implements ns3::WifiRemoteStationManager.

Definition at line 360 of file rrpaa-wifi-manager.cc.

References CheckInit(), CheckTimeout(), ns3::RrpaaWifiRemoteStation::m_counter, ns3::RrpaaWifiRemoteStation::m_lastFrameFail, NS_LOG_FUNCTION, and RunBasicAlgorithm().

Here is the call graph for this function:

void ns3::RrpaaWifiManager::DoReportFinalDataFailed ( WifiRemoteStation * station )

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station the station that we failed to send DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 377 of file rrpaa-wifi-manager.cc.

References NS_LOG_FUNCTION.

void ns3::RrpaaWifiManager::DoReportFinalRtsFailed ( WifiRemoteStation * station )

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station the station that we failed to send RTS

Implements ns3::WifiRemoteStationManager.

Definition at line 372 of file rrpaa-wifi-manager.cc.

References NS_LOG_FUNCTION.

void ns3::RrpaaWifiManager::DoReportRtsFailed ( WifiRemoteStation * station )

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station the station that we failed to send RTS

Implements ns3::WifiRemoteStationManager.

Definition at line 326 of file rrpaa-wifi-manager.cc.

References NS_LOG_FUNCTION.

void ns3::RrpaaWifiManager::DoReportRtsOk	(	WifiRemoteStation *	station,
		double	ctsSnr,
		WifiMode	ctsMode,
		double	rtsSnr
	)

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station	the station that we successfully sent RTS
ctsSnr	the SNR of the CTS we received
ctsMode	the WifiMode the receiver used to send the CTS
rtsSnr	the SNR of the RTS we sent

Implements ns3::WifiRemoteStationManager.

Definition at line 352 of file rrpaa-wifi-manager.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

void ns3::RrpaaWifiManager::DoReportRxOk	(	WifiRemoteStation *	station,
		double	rxSnr,
		WifiMode	txMode
	)

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station	the station that sent the DATA to us
rxSnr	the SNR of the DATA we received
txMode	the WifiMode the sender used to send the DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 345 of file rrpaa-wifi-manager.cc.

References NS_LOG_FUNCTION.

Time ns3::RrpaaWifiManager::GetCalcTxTime ( WifiMode mode ) const

private

Get the estimated TxTime of a packet with a given mode.

Parameters

mode

Returns: time

Definition at line 186 of file rrpaa-wifi-manager.cc.

References m_calcTxTime, NS_ASSERT, NS_LOG_FUNCTION, and ns3::Seconds().

Referenced by InitThresholds().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiRrpaaThresholds ns3::RrpaaWifiManager::GetThresholds	(	RrpaaWifiRemoteStation *	station,
		WifiMode	mode
	)		const

private

Get the thresholds for the given station and mode.

Parameters

station
mode

Returns: threshold

Definition at line 208 of file rrpaa-wifi-manager.cc.

References ns3::RrpaaWifiRemoteStation::m_thresholds, NS_ABORT_MSG, and NS_LOG_FUNCTION.

Referenced by GetThresholds(), ResetCountersBasic(), and RunBasicAlgorithm().

Here is the caller graph for this function:

WifiRrpaaThresholds ns3::RrpaaWifiManager::GetThresholds	(	RrpaaWifiRemoteStation *	station,
		uint32_t	rate
	)		const

private

Get the thresholds for the given station and mode index.

Parameters

station
rate

Returns: threshold

Definition at line 599 of file rrpaa-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetSupported(), GetThresholds(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

TypeId ns3::RrpaaWifiManager::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 70 of file rrpaa-wifi-manager.cc.

References m_ackLength, m_alpha, m_basic, m_beta, m_delta, m_frameLength, m_gamma, m_powerChange, m_rateChange, m_tau, m_timeout, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeDoubleAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::MilliSeconds(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::RrpaaWifiManager::InitThresholds ( RrpaaWifiRemoteStation * station )

private

Initialize the thresholds internal list for the given station.

Parameters

station

Definition at line 277 of file rrpaa-wifi-manager.cc.

References GetCalcTxTime(), ns3::Time::GetSeconds(), ns3::WifiRemoteStationManager::GetSupported(), m_alpha, m_beta, m_difs, ns3::WifiRrpaaThresholds::m_ewnd, ns3::WifiRrpaaThresholds::m_mtl, ns3::RrpaaWifiRemoteStation::m_nRate, ns3::WifiRrpaaThresholds::m_ori, m_sifs, m_tau, ns3::RrpaaWifiRemoteStation::m_thresholds, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by CheckInit().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::RrpaaWifiManager::IsLowLatency ( void ) const

privatevirtual

Returns: whether this manager is a manager designed to work in low-latency environments.

Note: In this context, low vs high latency is defined in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. Lacage, M.H. Manshaei, and T. Turletti.

Implements ns3::WifiRemoteStationManager.

Definition at line 608 of file rrpaa-wifi-manager.cc.

References NS_LOG_FUNCTION.

void ns3::RrpaaWifiManager::ResetCountersBasic ( RrpaaWifiRemoteStation * station )

private

Reset the counters of the given station.

Parameters

station

Definition at line 317 of file rrpaa-wifi-manager.cc.

References GetThresholds(), ns3::RrpaaWifiRemoteStation::m_counter, ns3::WifiRrpaaThresholds::m_ewnd, ns3::RrpaaWifiRemoteStation::m_lastReset, ns3::RrpaaWifiRemoteStation::m_nFailed, ns3::RrpaaWifiRemoteStation::m_rateIndex, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by CheckInit(), CheckTimeout(), and RunBasicAlgorithm().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RrpaaWifiManager::RunAdaptiveRtsAlgorithm ( RrpaaWifiRemoteStation * station )

private

Run an enhanced algorithm which activates the use of RTS for the given station if the conditions are met.

Parameters

station

Definition at line 572 of file rrpaa-wifi-manager.cc.

References ns3::RrpaaWifiRemoteStation::m_adaptiveRtsOn, ns3::RrpaaWifiRemoteStation::m_adaptiveRtsWnd, ns3::RrpaaWifiRemoteStation::m_lastFrameFail, ns3::RrpaaWifiRemoteStation::m_rtsCounter, and NS_LOG_FUNCTION.

Referenced by DoNeedRts().

Here is the caller graph for this function:

void ns3::RrpaaWifiManager::RunBasicAlgorithm ( RrpaaWifiRemoteStation * station )

private

Find an appropriate rate and power for the given station, using a basic algorithm.

Parameters

station

Definition at line 463 of file rrpaa-wifi-manager.cc.

References GetThresholds(), ns3::UniformRandomVariable::GetValue(), ns3::RrpaaWifiRemoteStation::m_counter, m_delta, ns3::WifiRrpaaThresholds::m_ewnd, m_gamma, m_maxPower, m_minPower, ns3::WifiRrpaaThresholds::m_mtl, ns3::RrpaaWifiRemoteStation::m_nFailed, ns3::RrpaaWifiRemoteStation::m_nRate, ns3::WifiRrpaaThresholds::m_ori, ns3::RrpaaWifiRemoteStation::m_pdTable, ns3::RrpaaWifiRemoteStation::m_powerLevel, ns3::RrpaaWifiRemoteStation::m_rateIndex, m_uniformRandomVariable, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ResetCountersBasic().

Referenced by DoReportDataFailed(), and DoReportDataOk().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RrpaaWifiManager::SetHeSupported ( bool enable )

virtual

Enable or disable HE capability support.

Parameters

enable enable or disable HE capability support

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 637 of file rrpaa-wifi-manager.cc.

References NS_FATAL_ERROR.

void ns3::RrpaaWifiManager::SetHtSupported ( bool enable )

virtual

Enable or disable HT capability support.

Parameters

enable enable or disable HT capability support

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 617 of file rrpaa-wifi-manager.cc.

References NS_FATAL_ERROR.

void ns3::RrpaaWifiManager::SetupMac ( const Ptr< WifiMac > mac )

virtual

Set up MAC associated with this device since it is the object that knows the full set of timing parameters (e.g.

IFS).

Parameters

mac	the MAC of this device

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 177 of file rrpaa-wifi-manager.cc.

References m_difs, m_sifs, NS_LOG_FUNCTION, and ns3::WifiRemoteStationManager::SetupMac().

Here is the call graph for this function:

void ns3::RrpaaWifiManager::SetupPhy ( const Ptr< WifiPhy > phy )

virtual

Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported.

Parameters

phy	the PHY of this device

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 154 of file rrpaa-wifi-manager.cc.

References AddCalcTxTime(), ns3::WifiPhy::CalculateTxDuration(), ns3::WifiPhy::GetFrequency(), ns3::WifiPhy::GetMode(), ns3::WifiPhy::GetNModes(), ns3::WifiPhy::GetTxPowerEnd(), ns3::WifiPhy::GetTxPowerStart(), m_ackLength, m_frameLength, m_maxPower, m_minPower, m_nPower, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiRemoteStationManager::SetupPhy(), and ns3::WIFI_PREAMBLE_LONG.

Here is the call graph for this function:

void ns3::RrpaaWifiManager::SetVhtSupported ( bool enable )

virtual

Enable or disable VHT capability support.

Parameters

enable enable or disable VHT capability support

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 627 of file rrpaa-wifi-manager.cc.

References NS_FATAL_ERROR.

Member Data Documentation

uint32_t ns3::RrpaaWifiManager::m_ackLength

private

Ack frame length used for calculate mode TxTime.

Definition at line 207 of file rrpaa-wifi-manager.h.

Referenced by GetTypeId(), and SetupPhy().

double ns3::RrpaaWifiManager::m_alpha

private

Alpha value for RRPAA (value for calculating MTL threshold)

Definition at line 211 of file rrpaa-wifi-manager.h.

Referenced by GetTypeId(), and InitThresholds().

bool ns3::RrpaaWifiManager::m_basic

private

If using the basic algorithm (without RTS/CTS).

Definition at line 209 of file rrpaa-wifi-manager.h.

Referenced by DoNeedRts(), and GetTypeId().

double ns3::RrpaaWifiManager::m_beta

private

Beta value for RRPAA (value for calculating ORI threshold).

Definition at line 212 of file rrpaa-wifi-manager.h.

Referenced by GetTypeId(), and InitThresholds().

TxTime ns3::RrpaaWifiManager::m_calcTxTime

private

To hold all the calculated TxTime for all modes.

Definition at line 202 of file rrpaa-wifi-manager.h.

Referenced by AddCalcTxTime(), and GetCalcTxTime().

double ns3::RrpaaWifiManager::m_delta

private

Delta value for RRPAA (value for pdTable increments).

Definition at line 215 of file rrpaa-wifi-manager.h.

Referenced by GetTypeId(), and RunBasicAlgorithm().

Time ns3::RrpaaWifiManager::m_difs

private

Value of DIFS configured in the device.

Definition at line 204 of file rrpaa-wifi-manager.h.

Referenced by InitThresholds(), and SetupMac().

uint32_t ns3::RrpaaWifiManager::m_frameLength

private

Data frame length used for calculate mode TxTime.

Definition at line 206 of file rrpaa-wifi-manager.h.

Referenced by GetTypeId(), and SetupPhy().

double ns3::RrpaaWifiManager::m_gamma

private

Gamma value for RRPAA (value for pdTable decrements).

Definition at line 214 of file rrpaa-wifi-manager.h.

Referenced by GetTypeId(), and RunBasicAlgorithm().

uint32_t ns3::RrpaaWifiManager::m_maxPower

private

Maximal power level.

Definition at line 222 of file rrpaa-wifi-manager.h.

Referenced by CheckInit(), RunBasicAlgorithm(), and SetupPhy().

uint32_t ns3::RrpaaWifiManager::m_minPower

private

Differently form rate, power levels do not depend on the remote station.

The levels depend only on the physical layer of the device.Minimal power level.

Definition at line 221 of file rrpaa-wifi-manager.h.

Referenced by RunBasicAlgorithm(), and SetupPhy().

uint32_t ns3::RrpaaWifiManager::m_nPower

private

Number of power levels.

Definition at line 223 of file rrpaa-wifi-manager.h.

Referenced by CheckInit(), and SetupPhy().

TracedCallback<double, double, Mac48Address> ns3::RrpaaWifiManager::m_powerChange

private

The trace source fired when the transmission power change.

Definition at line 228 of file rrpaa-wifi-manager.h.

Referenced by CheckInit(), DoGetDataTxVector(), and GetTypeId().

TracedCallback<DataRate, DataRate, Mac48Address> ns3::RrpaaWifiManager::m_rateChange

private

The trace source fired when the transmission rate change.

Definition at line 232 of file rrpaa-wifi-manager.h.

Referenced by CheckInit(), DoGetDataTxVector(), and GetTypeId().

Time ns3::RrpaaWifiManager::m_sifs

private

Value of SIFS configured in the device.

Definition at line 203 of file rrpaa-wifi-manager.h.

Referenced by InitThresholds(), and SetupMac().

double ns3::RrpaaWifiManager::m_tau

private

Tau value for RRPAA (value for calculating EWND size).

Definition at line 213 of file rrpaa-wifi-manager.h.

Referenced by GetTypeId(), and InitThresholds().

Time ns3::RrpaaWifiManager::m_timeout

private

Timeout for the RRAA BASIC loss estimation block.

Definition at line 210 of file rrpaa-wifi-manager.h.

Referenced by CheckTimeout(), and GetTypeId().

Ptr<UniformRandomVariable> ns3::RrpaaWifiManager::m_uniformRandomVariable

private

Provides uniform random variables for probabilistic changes.

Definition at line 234 of file rrpaa-wifi-manager.h.

Referenced by AssignStreams(), RrpaaWifiManager(), and RunBasicAlgorithm().

The documentation for this class was generated from the following files:

src/wifi/model/rrpaa-wifi-manager.h
src/wifi/model/rrpaa-wifi-manager.cc

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::WifiRemoteStationManager

TraceSources

TraceSources defined in parent class ns3::WifiRemoteStationManager

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
