WifiAcMappingTest Class Reference

Inheritance diagram for WifiAcMappingTest:

Collaboration diagram for WifiAcMappingTest:

Public Member Functions
	WifiAcMappingTest (uint8_t tos, uint8_t expectedQueue)
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Static Private Member Functions
static void	PacketEnqueuedInQueueDisc (uint8_t tos, uint8_t *count, Ptr< const QueueDiscItem > item)
static void	PacketEnqueuedInWifiMacQueue (uint8_t tos, uint8_t *count, Ptr< const WifiMacQueueItem > item)

Private Attributes
uint8_t	m_expectedQueue
uint8_t	m_QueueDiscCount [4]
uint8_t	m_tos
uint8_t	m_WifiMacQueueCount [4]

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Definition at line 52 of file wifi-ac-mapping-test-suite.cc.

Constructor & Destructor Documentation

WifiAcMappingTest::WifiAcMappingTest	(	uint8_t	tos,
		uint8_t	expectedQueue
	)

Definition at line 67 of file wifi-ac-mapping-test-suite.cc.

References m_QueueDiscCount, and m_WifiMacQueueCount.

Member Function Documentation

void WifiAcMappingTest::DoRun ( void  )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 110 of file wifi-ac-mapping-test-suite.cc.

References ns3::TrafficControlHelper::AddChildQueueDiscs(), ns3::TrafficControlHelper::AddPacketFilter(), ns3::TrafficControlHelper::AddQueueDiscClasses(), first::address, ns3::Ipv4AddressHelper::Assign(), ns3::YansWifiChannelHelper::Create(), ns3::NodeContainer::Create(), ns3::PointerValue::Get(), ns3::ApplicationContainer::Get(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::ObjectBase::GetAttribute(), ns3::QueueDisc::GetNQueueDiscClasses(), ns3::Object::GetObject(), ns3::QueueDisc::GetQueueDiscClass(), ns3::PacketSinkHelper::Install(), ns3::OnOffHelper::Install(), ns3::InternetStackHelper::Install(), ns3::MobilityHelper::Install(), ns3::WifiHelper::Install(), ns3::TrafficControlHelper::Install(), m_expectedQueue, m_QueueDiscCount, m_tos, m_WifiMacQueueCount, ns3::MakeBoundCallback(), third::mobility, NS_TEST_ASSERT_MSG_EQ, NS_TEST_ASSERT_MSG_GT_OR_EQ, PacketEnqueuedInQueueDisc(), PacketEnqueuedInWifiMacQueue(), ns3::Seconds(), ns3::Ipv4AddressHelper::SetBase(), ns3::YansWifiPhyHelper::SetChannel(), ns3::OnOffHelper::SetConstantRate(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityHelper::SetPositionAllocator(), ns3::WifiHelper::SetRemoteStationManager(), ns3::TrafficControlHelper::SetRootQueueDisc(), ns3::InetSocketAddress::SetTos(), ns3::WifiMacHelper::SetType(), third::ssid, first::stack, ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), ns3::ObjectBase::TraceConnectWithoutContext(), and third::wifi.

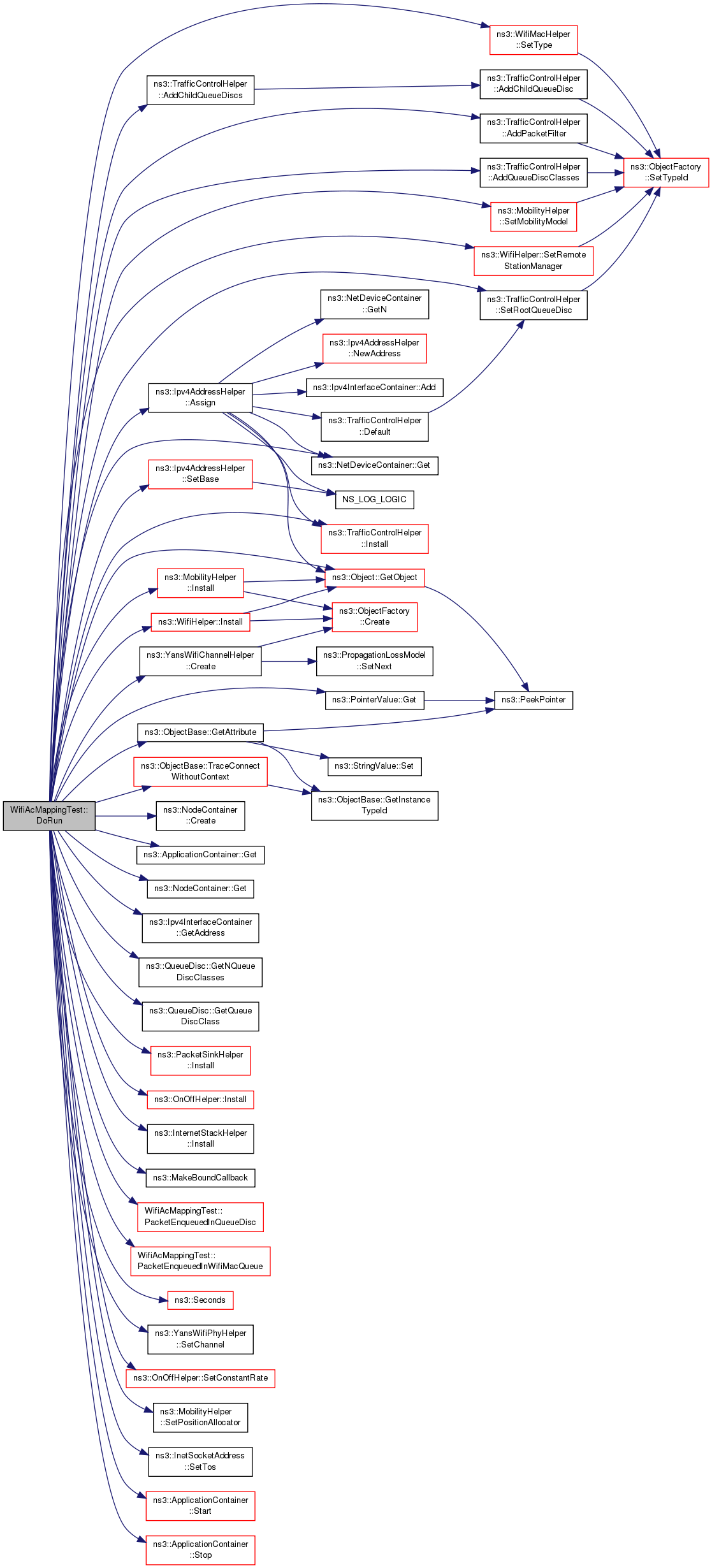

Here is the call graph for this function:

void WifiAcMappingTest::PacketEnqueuedInQueueDisc ( uint8_t  tos, uint8_t *  count, Ptr< const QueueDiscItem >  item  )

staticprivate

Definition at line 82 of file wifi-ac-mapping-test-suite.cc.

References ns3::QueueItem::GetUint8Value().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

void WifiAcMappingTest::PacketEnqueuedInWifiMacQueue ( uint8_t  tos, uint8_t *  count, Ptr< const WifiMacQueueItem >  item  )

staticprivate

Definition at line 92 of file wifi-ac-mapping-test-suite.cc.

References ns3::Packet::Copy(), ns3::WifiMacQueueItem::GetPacket(), ns3::Ipv4Header::GetTos(), ns3::LlcSnapHeader::GetType(), ns3::Packet::PeekHeader(), and ns3::Packet::RemoveHeader().

Referenced by DoRun().

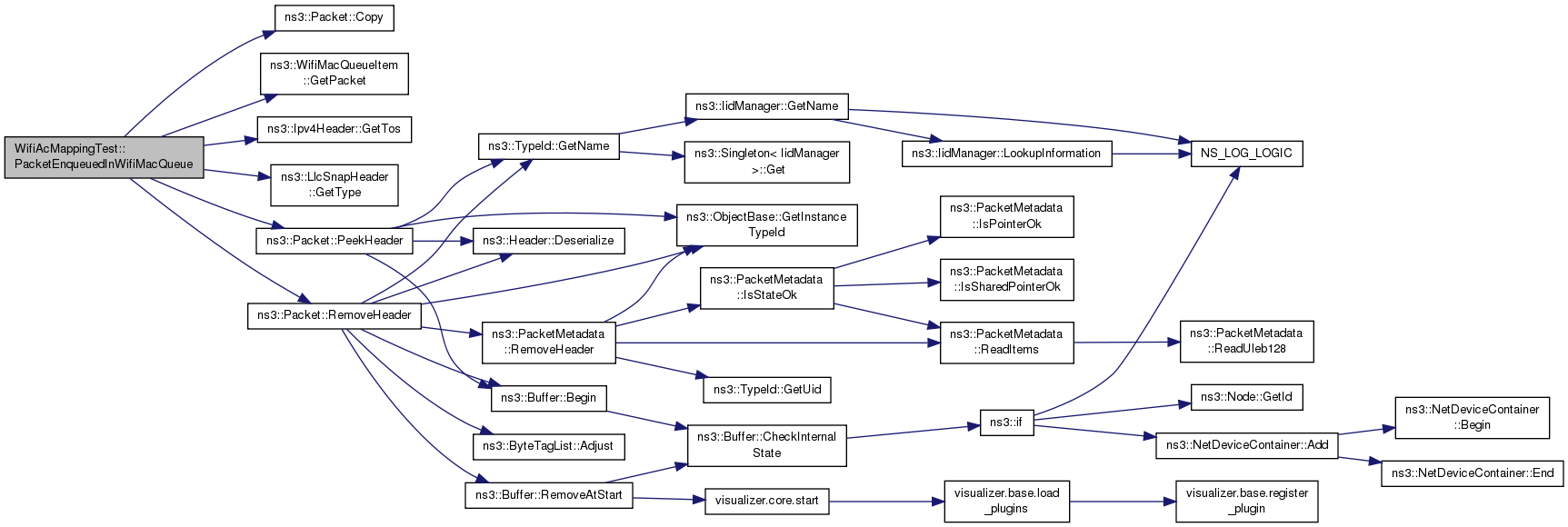

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint8_t WifiAcMappingTest::m_expectedQueue

private

Definition at line 62 of file wifi-ac-mapping-test-suite.cc.

Referenced by DoRun().

uint8_t WifiAcMappingTest::m_QueueDiscCount[4]

private

Definition at line 63 of file wifi-ac-mapping-test-suite.cc.

Referenced by DoRun(), and WifiAcMappingTest().

uint8_t WifiAcMappingTest::m_tos

private

Definition at line 61 of file wifi-ac-mapping-test-suite.cc.

Referenced by DoRun().

uint8_t WifiAcMappingTest::m_WifiMacQueueCount[4]

private

Definition at line 64 of file wifi-ac-mapping-test-suite.cc.

Referenced by DoRun(), and WifiAcMappingTest().

---

The documentation for this class was generated from the following file:

• src/test/ns3wifi/wifi-ac-mapping-test-suite.cc
