ns3::FileConfig Class Reference

base class for ConfigStore classes using files More...

#include "file-config.h"

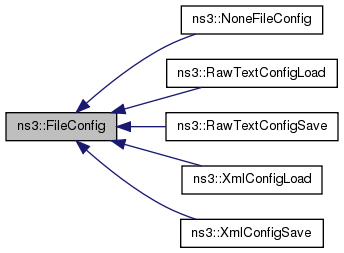

Inheritance diagram for ns3::FileConfig:

Public Member Functions
virtual	~FileConfig ()
virtual void	Attributes (void)=0
	Load or save the attributes values. More...
virtual void	Default (void)=0
	Load or save the default values. More...
virtual void	Global (void)=0
	Load or save the global values. More...
virtual void	SetFilename (std::string filename)=0
	Set the file name. More...

Detailed Description

base class for ConfigStore classes using files

Definition at line 33 of file file-config.h.

Constructor & Destructor Documentation

ns3::FileConfig::~FileConfig ( )

virtual

Definition at line 25 of file file-config.cc.

Member Function Documentation

virtual void ns3::FileConfig::Attributes ( void  )

pure virtual

Load or save the attributes values.

Implemented in ns3::NoneFileConfig, ns3::XmlConfigLoad, ns3::RawTextConfigLoad, ns3::XmlConfigSave, and ns3::RawTextConfigSave.

Referenced by ns3::ConfigStore::ConfigureAttributes().

Here is the caller graph for this function:

virtual void ns3::FileConfig::Default ( void  )

pure virtual

Load or save the default values.

Implemented in ns3::NoneFileConfig, ns3::XmlConfigLoad, ns3::RawTextConfigLoad, ns3::XmlConfigSave, and ns3::RawTextConfigSave.

Referenced by ns3::ConfigStore::ConfigureDefaults().

Here is the caller graph for this function:

virtual void ns3::FileConfig::Global ( void  )

pure virtual

Load or save the global values.

Implemented in ns3::NoneFileConfig, ns3::XmlConfigLoad, ns3::RawTextConfigLoad, ns3::XmlConfigSave, and ns3::RawTextConfigSave.

Referenced by ns3::ConfigStore::ConfigureDefaults().

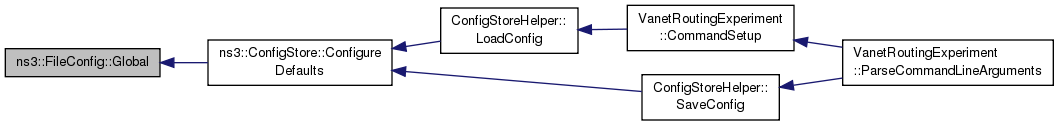

Here is the caller graph for this function:

virtual void ns3::FileConfig::SetFilename ( std::string  filename )

pure virtual

Set the file name.

Parameters

filename

the filename

Implemented in ns3::NoneFileConfig, ns3::XmlConfigLoad, ns3::RawTextConfigLoad, ns3::XmlConfigSave, and ns3::RawTextConfigSave.

Referenced by ns3::ConfigStore::ConfigStore().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/config-store/model/file-config.h
• src/config-store/model/file-config.cc
