ns3::RawTextConfigSave Class Reference

A class to enable saving of configuration store in a raw text file. More...

#include "raw-text-config.h"

Inheritance diagram for ns3::RawTextConfigSave:

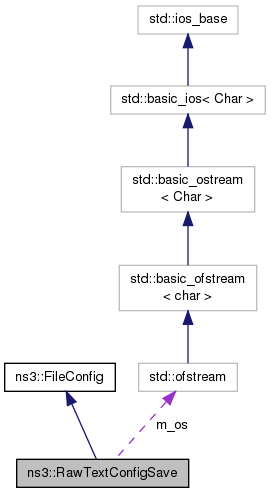

Collaboration diagram for ns3::RawTextConfigSave:

Public Member Functions
	RawTextConfigSave ()
virtual	~RawTextConfigSave ()
virtual void	Attributes (void)
	Load or save the attributes values. More...
virtual void	Default (void)
	Load or save the default values. More...
virtual void	Global (void)
	Load or save the global values. More...
virtual void	SetFilename (std::string filename)
	Set the file name. More...
Public Member Functions inherited from ns3::FileConfig
virtual	~FileConfig ()

Private Attributes
std::ofstream *	m_os
	Config store output stream. More...

Detailed Description

A class to enable saving of configuration store in a raw text file.

Definition at line 35 of file raw-text-config.h.

Constructor & Destructor Documentation

ns3::RawTextConfigSave::RawTextConfigSave

(

)

Definition at line 33 of file raw-text-config.cc.

References NS_LOG_FUNCTION.

ns3::RawTextConfigSave::~RawTextConfigSave ( )

virtual

Definition at line 38 of file raw-text-config.cc.

References m_os, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::RawTextConfigSave::Attributes ( void  )

virtual

Load or save the attributes values.

Implements ns3::FileConfig.

Definition at line 93 of file raw-text-config.cc.

References ns3::StringValue::Get(), m_os, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::save_clicked().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RawTextConfigSave::Default ( void  )

virtual

Load or save the default values.

Implements ns3::FileConfig.

Definition at line 56 of file raw-text-config.cc.

References m_os, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::save_clicked_default().

Here is the caller graph for this function:

void ns3::RawTextConfigSave::Global ( void  )

virtual

Load or save the global values.

Implements ns3::FileConfig.

Definition at line 81 of file raw-text-config.cc.

References ns3::GlobalValue::Begin(), ns3::GlobalValue::End(), ns3::StringValue::Get(), m_os, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

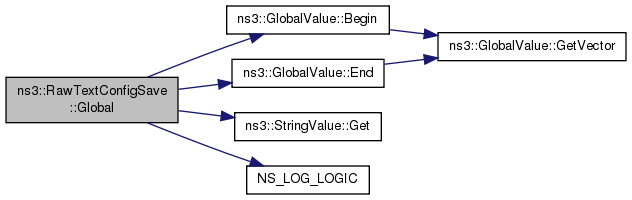

Here is the call graph for this function:

void ns3::RawTextConfigSave::SetFilename ( std::string  filename )

virtual

Set the file name.

Parameters

filename

the filename

Implements ns3::FileConfig.

Definition at line 49 of file raw-text-config.cc.

References m_os, and NS_LOG_FUNCTION.

Referenced by ns3::save_clicked(), and ns3::save_clicked_default().

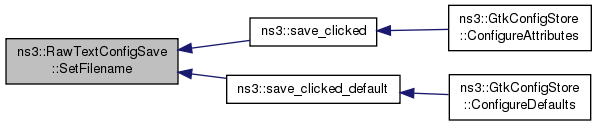

Here is the caller graph for this function:

Member Data Documentation

std::ofstream* ns3::RawTextConfigSave::m_os

private

Config store output stream.

Definition at line 46 of file raw-text-config.h.

Referenced by Attributes(), Default(), Global(), SetFilename(), and ~RawTextConfigSave().

---

The documentation for this class was generated from the following files:

• src/config-store/model/raw-text-config.h
• src/config-store/model/raw-text-config.cc
