HighLatencyDataTxVectorTag class. More...

Inheritance diagram for ns3::HighLatencyDataTxVectorTag:

Collaboration diagram for ns3::HighLatencyDataTxVectorTag:

Public Member Functions
	HighLatencyDataTxVectorTag ()

	HighLatencyDataTxVectorTag (WifiTxVector dataTxVector)
	Constructor. More...

virtual void	Deserialize (TagBuffer i)

WifiTxVector	GetDataTxVector (void) const

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

virtual uint32_t	GetSerializedSize (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (TagBuffer i) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
WifiTxVector	m_dataTxVector
	TXVECTOR for data frames. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

HighLatencyDataTxVectorTag class.

Definition at line 43 of file wifi-remote-station-manager.cc.

Constructor & Destructor Documentation

ns3::HighLatencyDataTxVectorTag::HighLatencyDataTxVectorTag ( )

Definition at line 73 of file wifi-remote-station-manager.cc.

ns3::HighLatencyDataTxVectorTag::HighLatencyDataTxVectorTag ( WifiTxVector dataTxVector )

Constructor.

Parameters

dataTxVector TXVECTOR for data frames

Definition at line 77 of file wifi-remote-station-manager.cc.

Member Function Documentation

void ns3::HighLatencyDataTxVectorTag::Deserialize ( TagBuffer i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 118 of file wifi-remote-station-manager.cc.

References m_dataTxVector, and ns3::TagBuffer::Read().

Here is the call graph for this function:

WifiTxVector ns3::HighLatencyDataTxVectorTag::GetDataTxVector ( void ) const

Returns: the transmission mode to use to send this packet

Definition at line 83 of file wifi-remote-station-manager.cc.

References m_dataTxVector.

Referenced by ns3::WifiRemoteStationManager::GetDataTxVector().

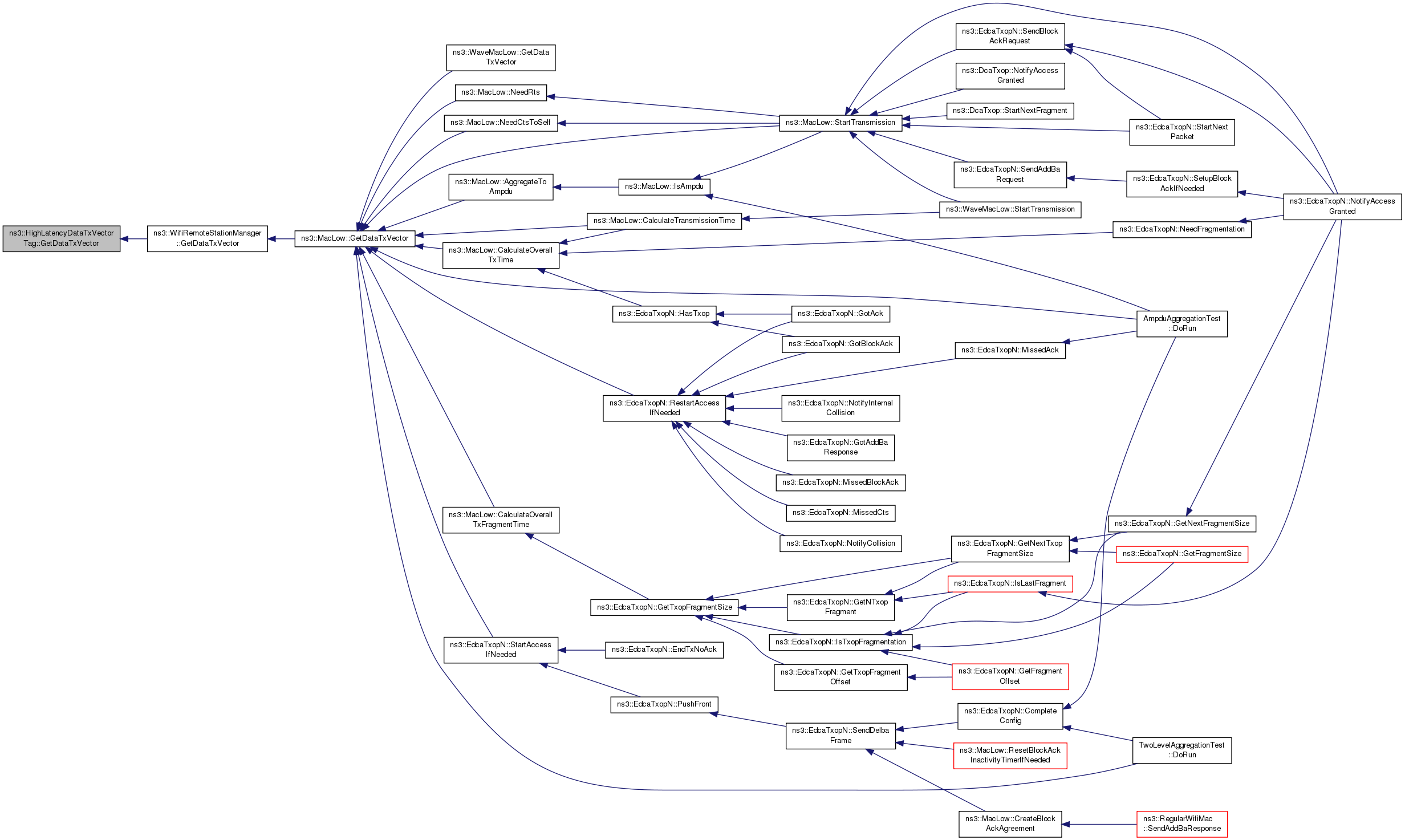

Here is the caller graph for this function:

TypeId ns3::HighLatencyDataTxVectorTag::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
