An implementation of the ICMPv6 protocol. More...

#include "icmpv6-l4-protocol.h"

Inheritance diagram for ns3::Icmpv6L4Protocol:

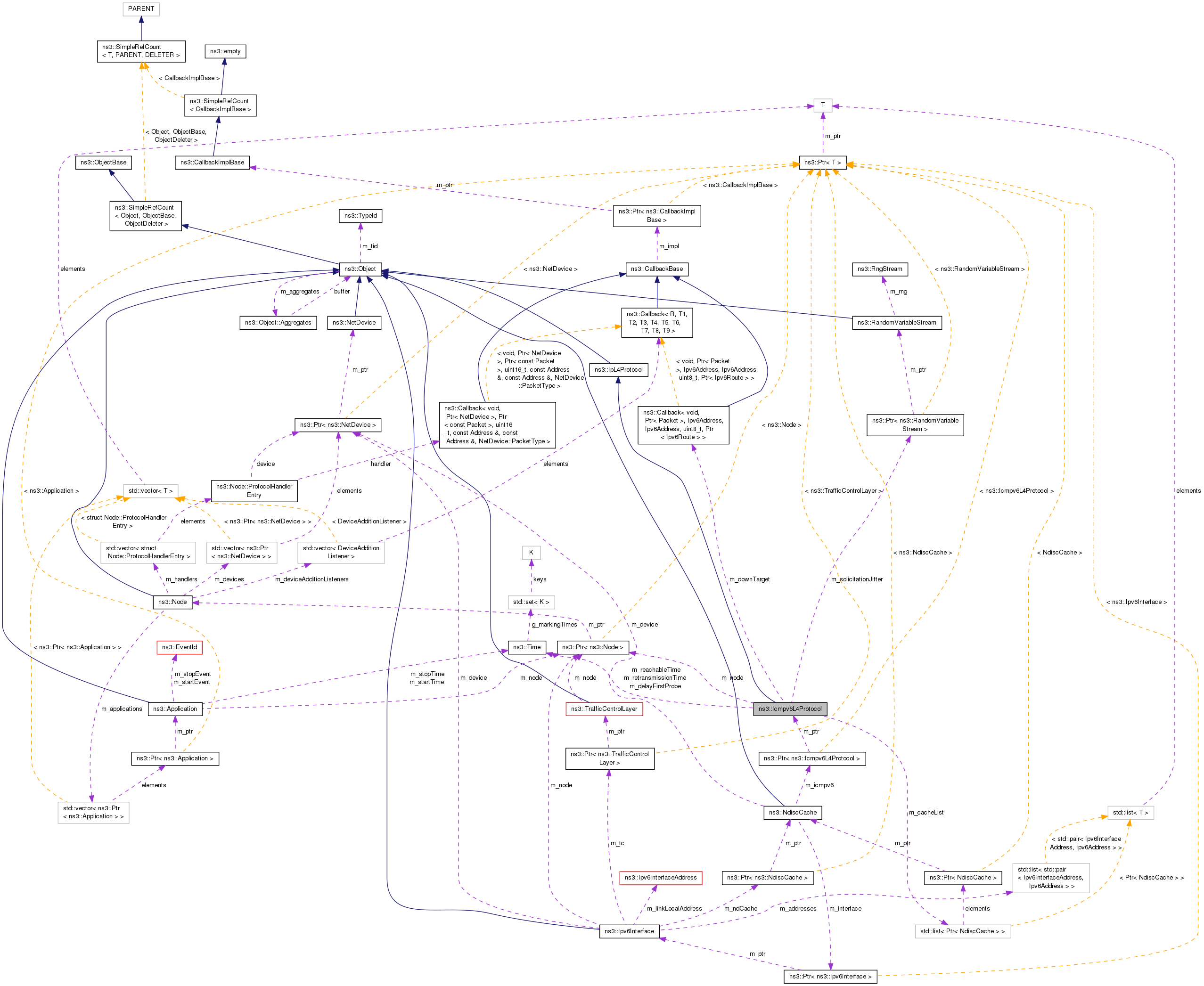

Collaboration diagram for ns3::Icmpv6L4Protocol:

Public Member Functions
	Icmpv6L4Protocol ()
	Constructor. More...

virtual	~Icmpv6L4Protocol ()
	Destructor. More...

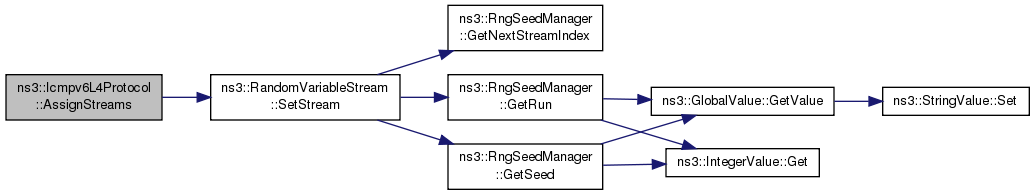

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

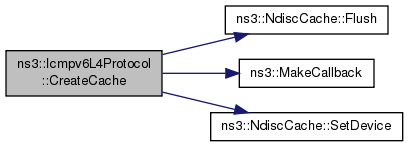

Ptr< NdiscCache >	CreateCache (Ptr< NetDevice > device, Ptr< Ipv6Interface > interface)
	Create a neighbor cache. More...

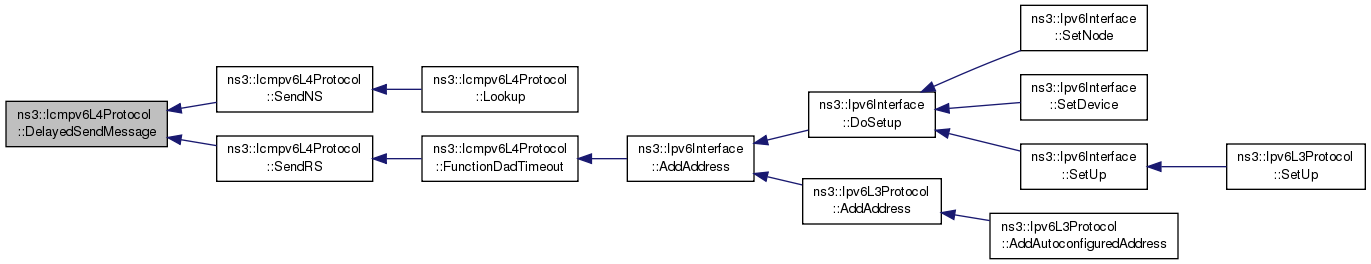

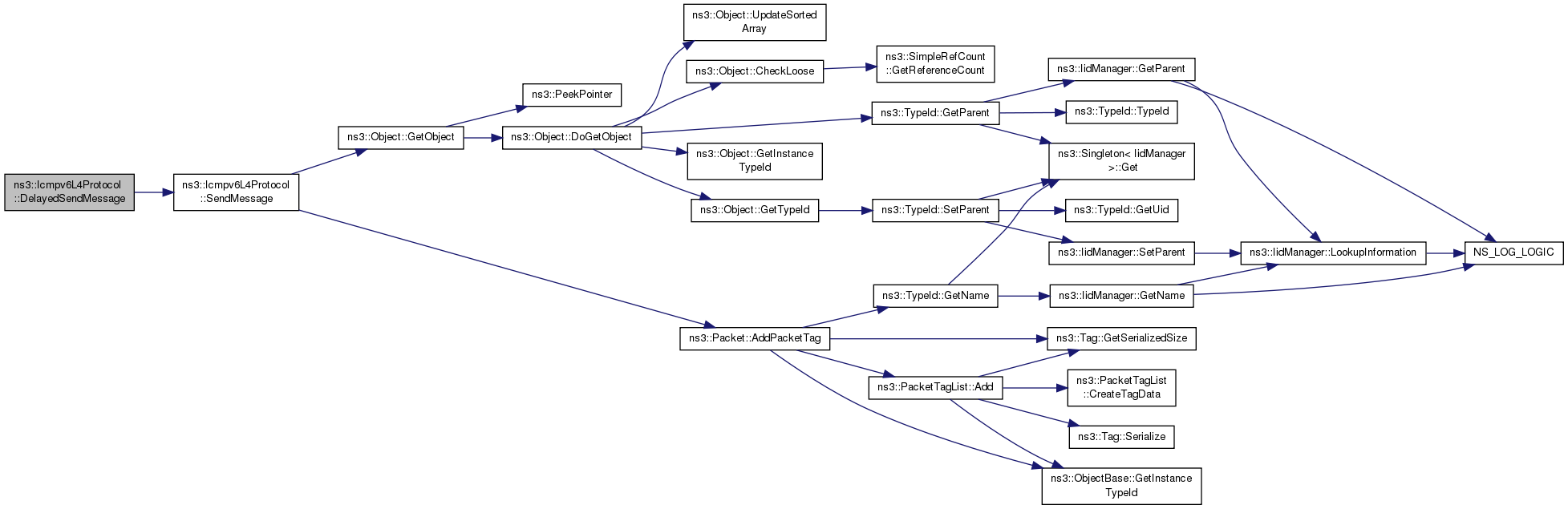

void	DelayedSendMessage (Ptr< Packet > packet, Ipv6Address src, Ipv6Address dst, uint8_t ttl)
	Helper function used during delayed solicitation. More...

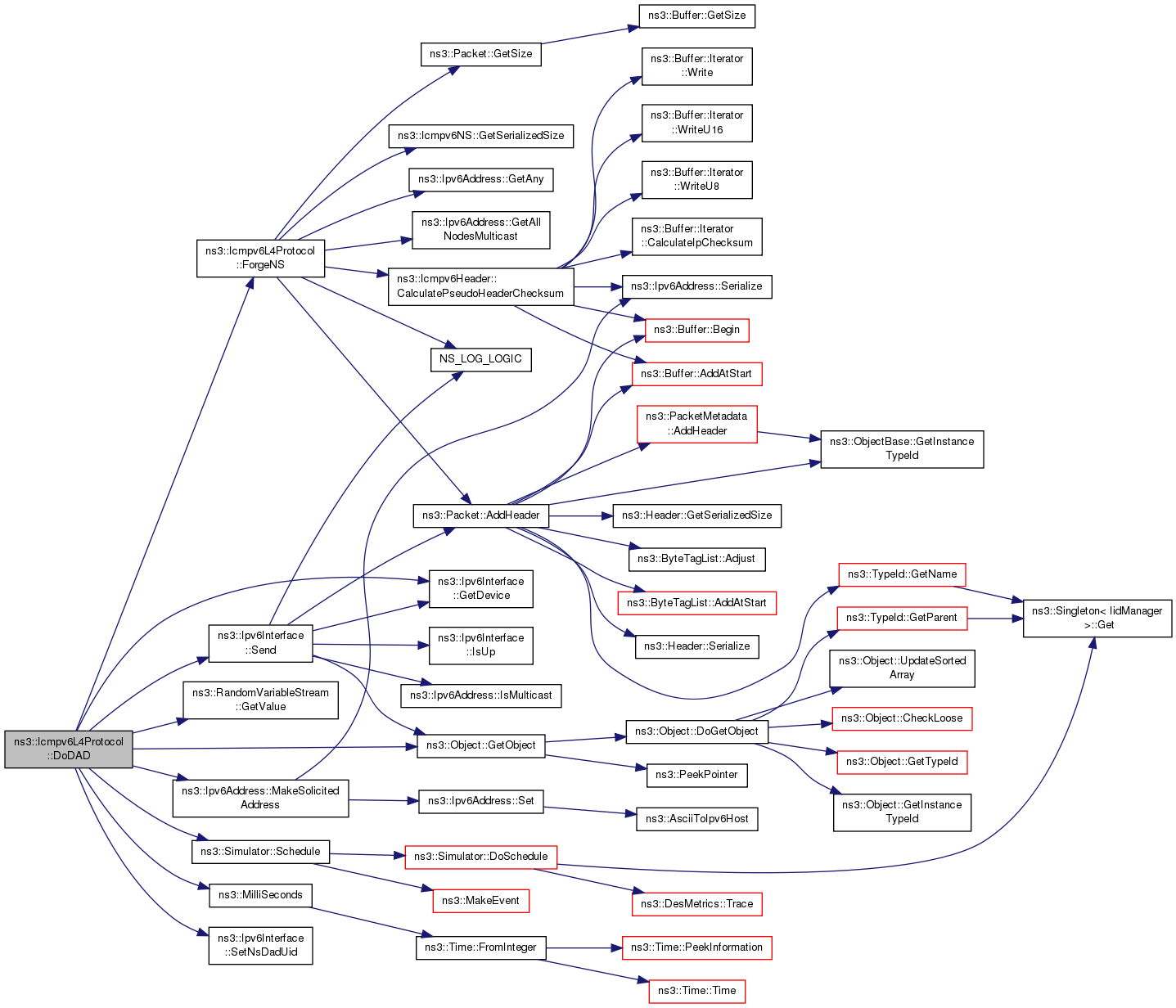

void	DoDAD (Ipv6Address target, Ptr< Ipv6Interface > interface)
	Do the Duplication Address Detection (DAD). More...

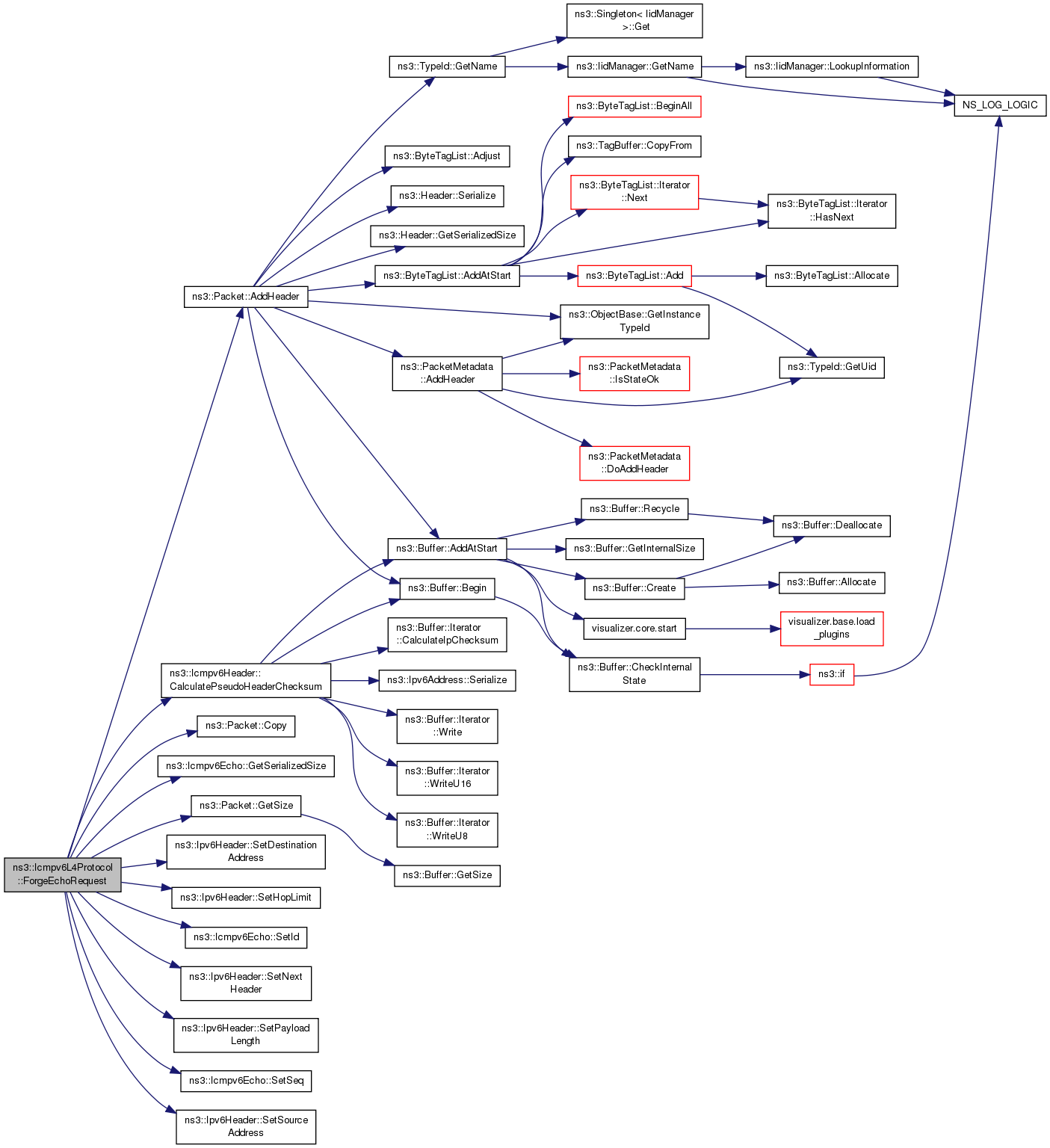

NdiscCache::Ipv6PayloadHeaderPair	ForgeEchoRequest (Ipv6Address src, Ipv6Address dst, uint16_t id, uint16_t seq, Ptr< Packet > data)
	Forge an Echo Request. More...

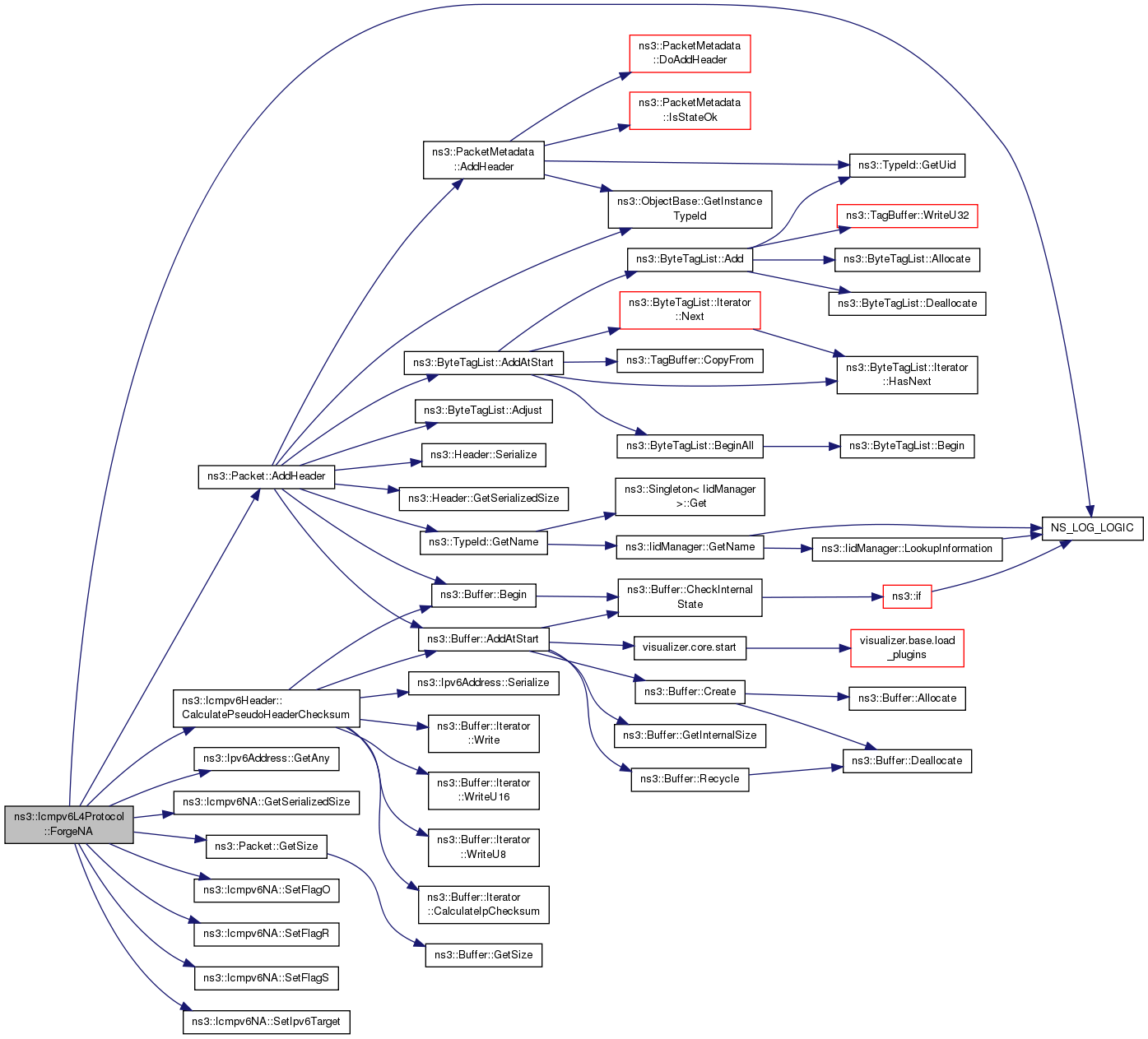

NdiscCache::Ipv6PayloadHeaderPair	ForgeNA (Ipv6Address src, Ipv6Address dst, Address *hardwareAddress, uint8_t flags)
	Forge a Neighbor Advertisement. More...

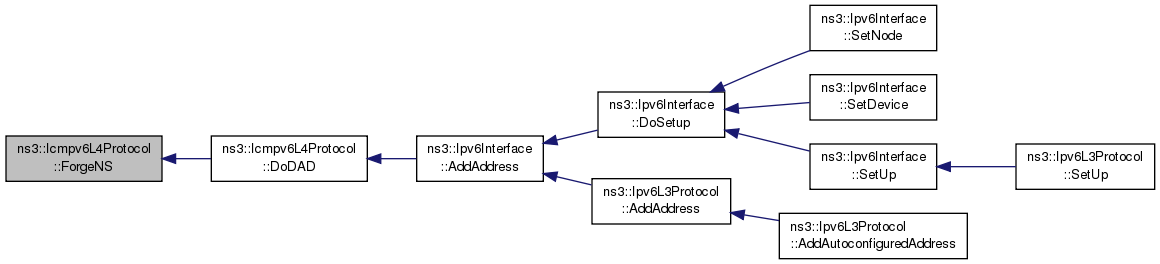

NdiscCache::Ipv6PayloadHeaderPair	ForgeNS (Ipv6Address src, Ipv6Address dst, Ipv6Address target, Address hardwareAddress)
	Forge a Neighbor Solicitation. More...

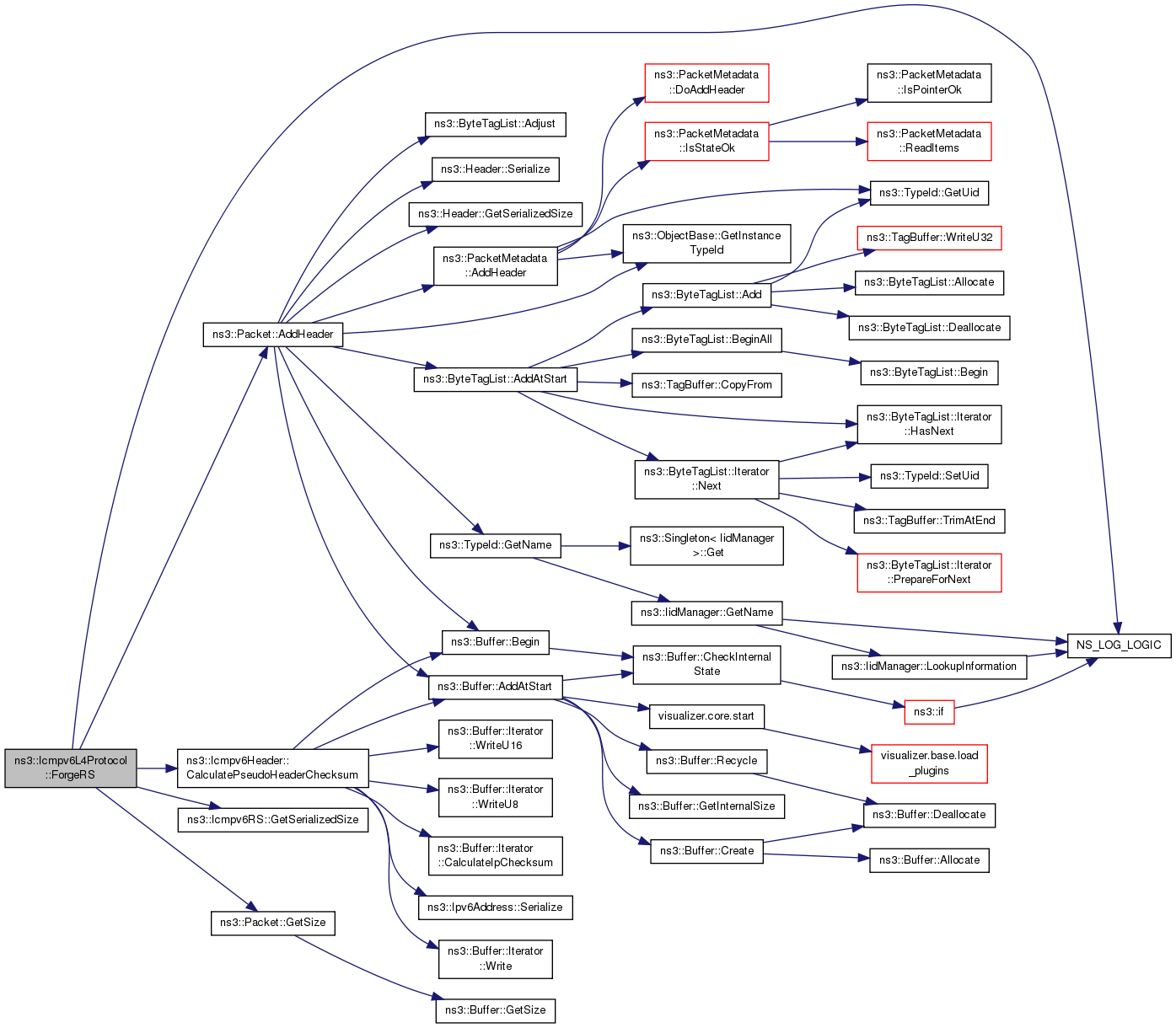

NdiscCache::Ipv6PayloadHeaderPair	ForgeRS (Ipv6Address src, Ipv6Address dst, Address hardwareAddress)
	Forge a Router Solicitation. More...

Time	GetDelayFirstProbe () const
	Neighbor Discovery node constants : delay for the first probe. More...

uint8_t	GetMaxMulticastSolicit () const
	Neighbor Discovery node constants: max multicast solicitations. More...

uint8_t	GetMaxUnicastSolicit () const
	Neighbor Discovery node constants: max unicast solicitations. More...

virtual int	GetProtocolNumber () const
	Get the protocol number. More...

Time	GetReachableTime () const
	Neighbor Discovery node constants: reachable time. More...

Time	GetRetransmissionTime () const
	Neighbor Discovery node constants: retransmission timer. More...

virtual int	GetVersion () const
	Get the version of the protocol. More...

bool	IsAlwaysDad () const
	Is the node must do DAD. More...

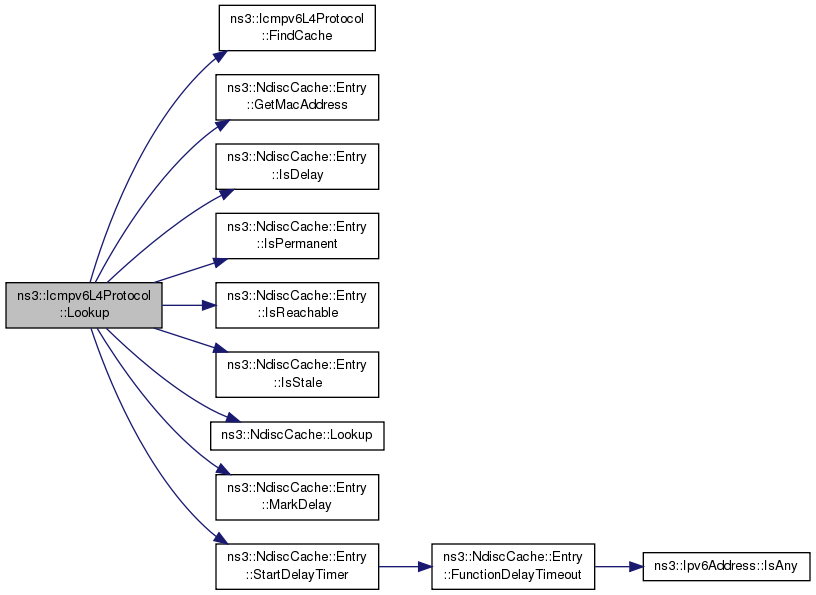

bool	Lookup (Ipv6Address dst, Ptr< NetDevice > device, Ptr< NdiscCache > cache, Address *hardwareDestination)
	Lookup in the ND cache for the IPv6 address. More...

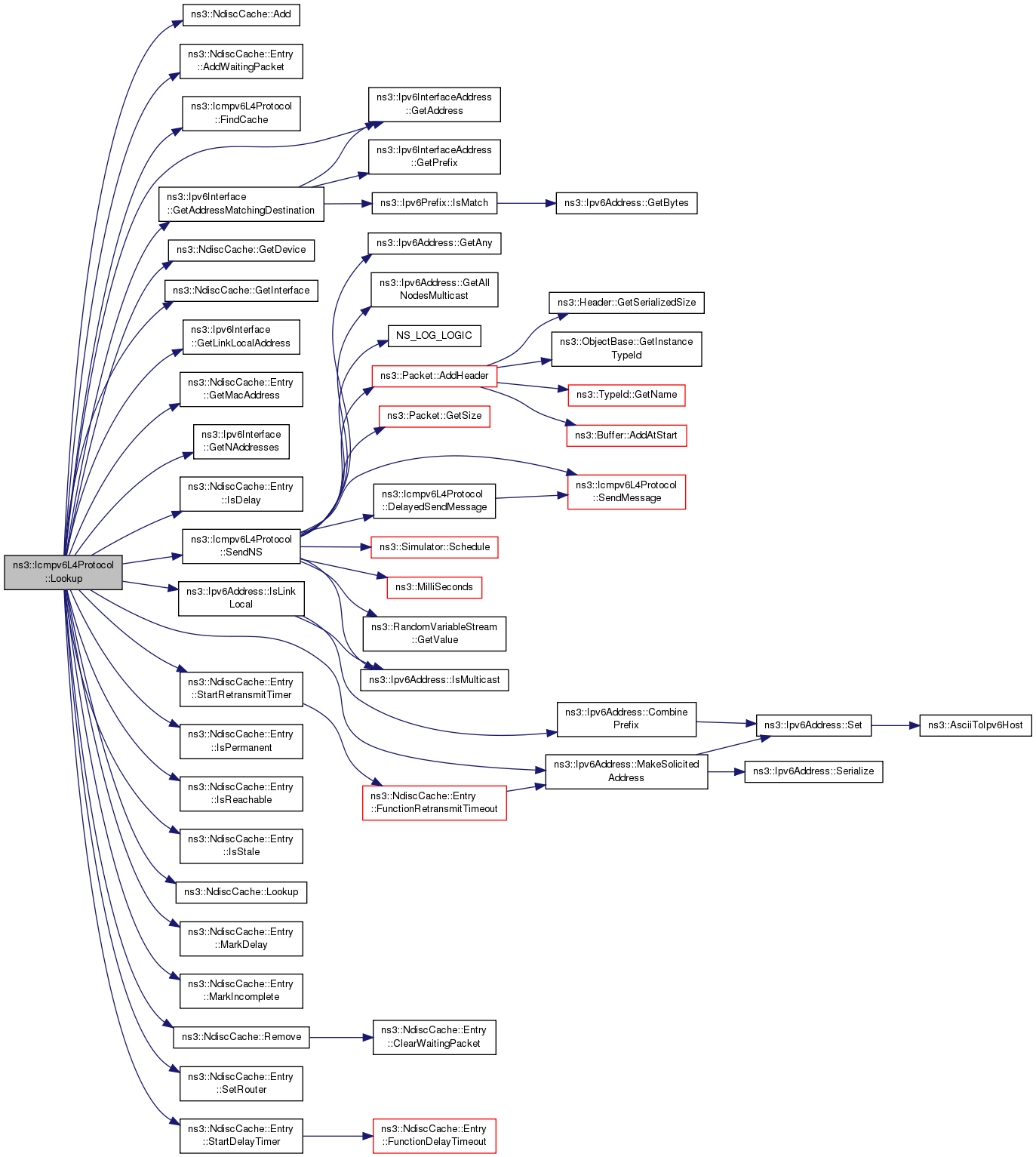

bool	Lookup (Ptr< Packet > p, const Ipv6Header &ipHeader, Ipv6Address dst, Ptr< NetDevice > device, Ptr< NdiscCache > cache, Address *hardwareDestination)
	Lookup in the ND cache for the IPv6 address (similar as ARP protocol). More...

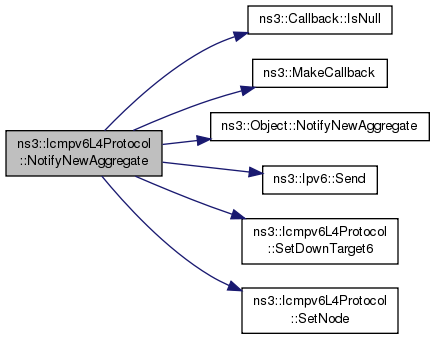

void	NotifyNewAggregate ()
	This method is called by AddAgregate and completes the aggregation by setting the node in the ICMPv6 stack and adding ICMPv6 factory to IPv6 stack connected to the node. More...

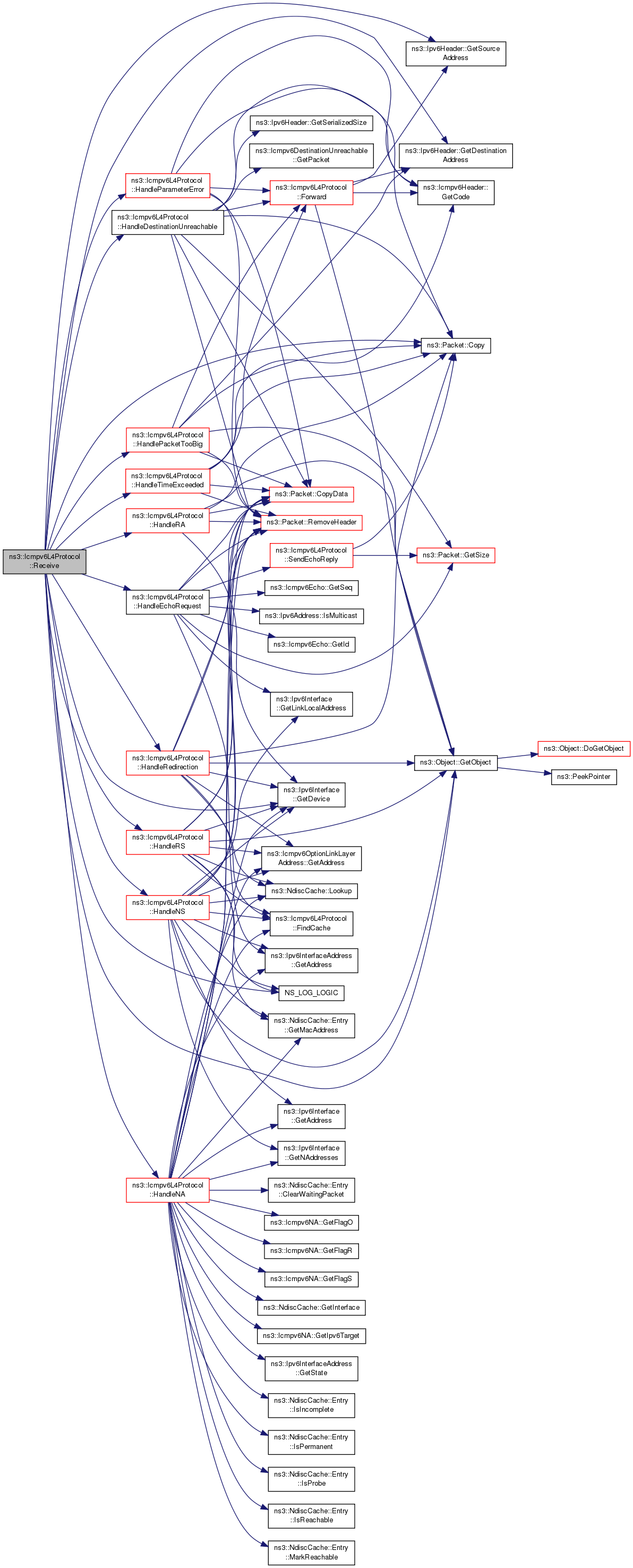

virtual enum IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, Ipv6Header const &header, Ptr< Ipv6Interface > interface)
	Receive method. More...

virtual enum IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, Ipv4Header const &header, Ptr< Ipv4Interface > interface)
	Receive method. More...

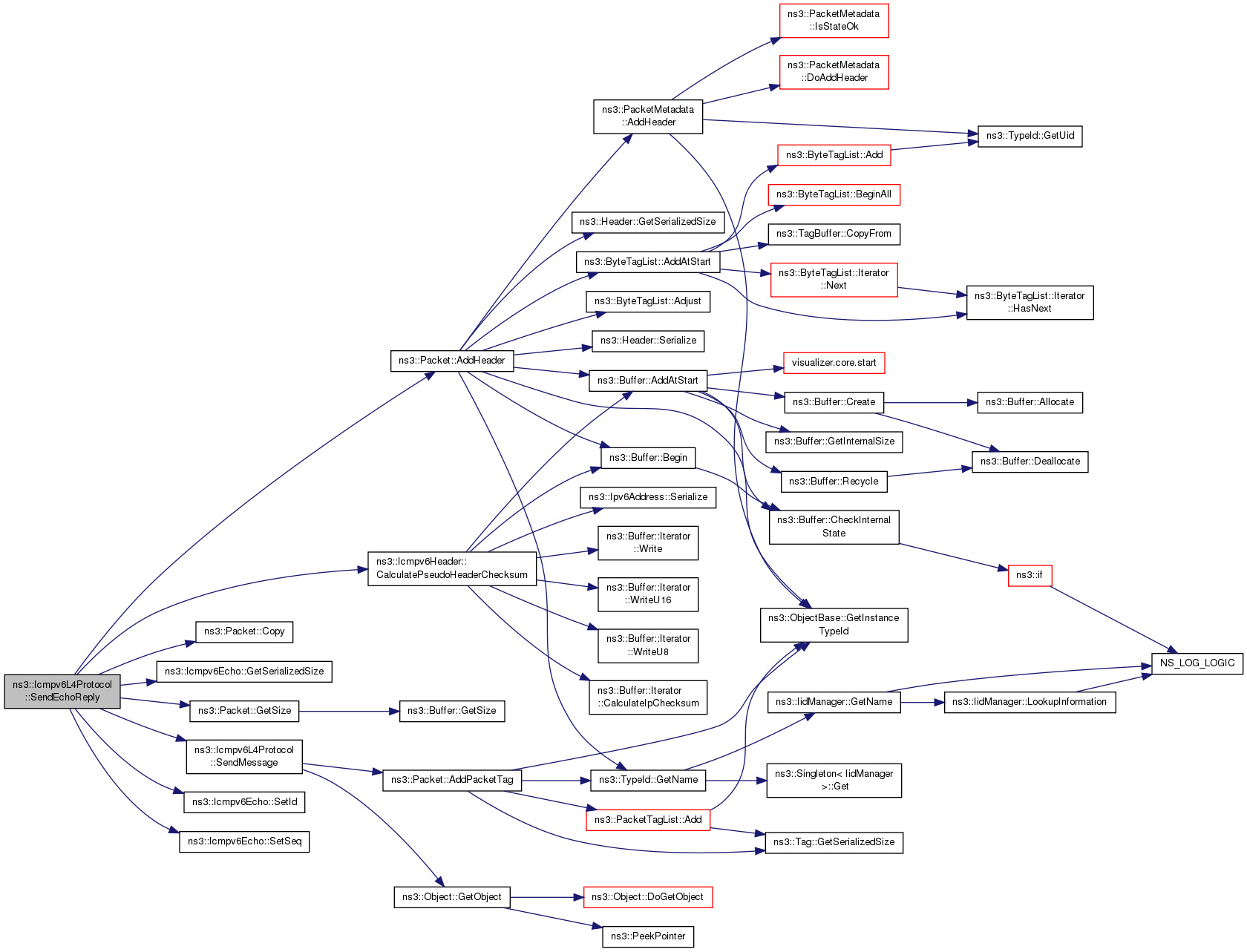

void	SendEchoReply (Ipv6Address src, Ipv6Address dst, uint16_t id, uint16_t seq, Ptr< Packet > data)
	Send a Echo Reply. More...

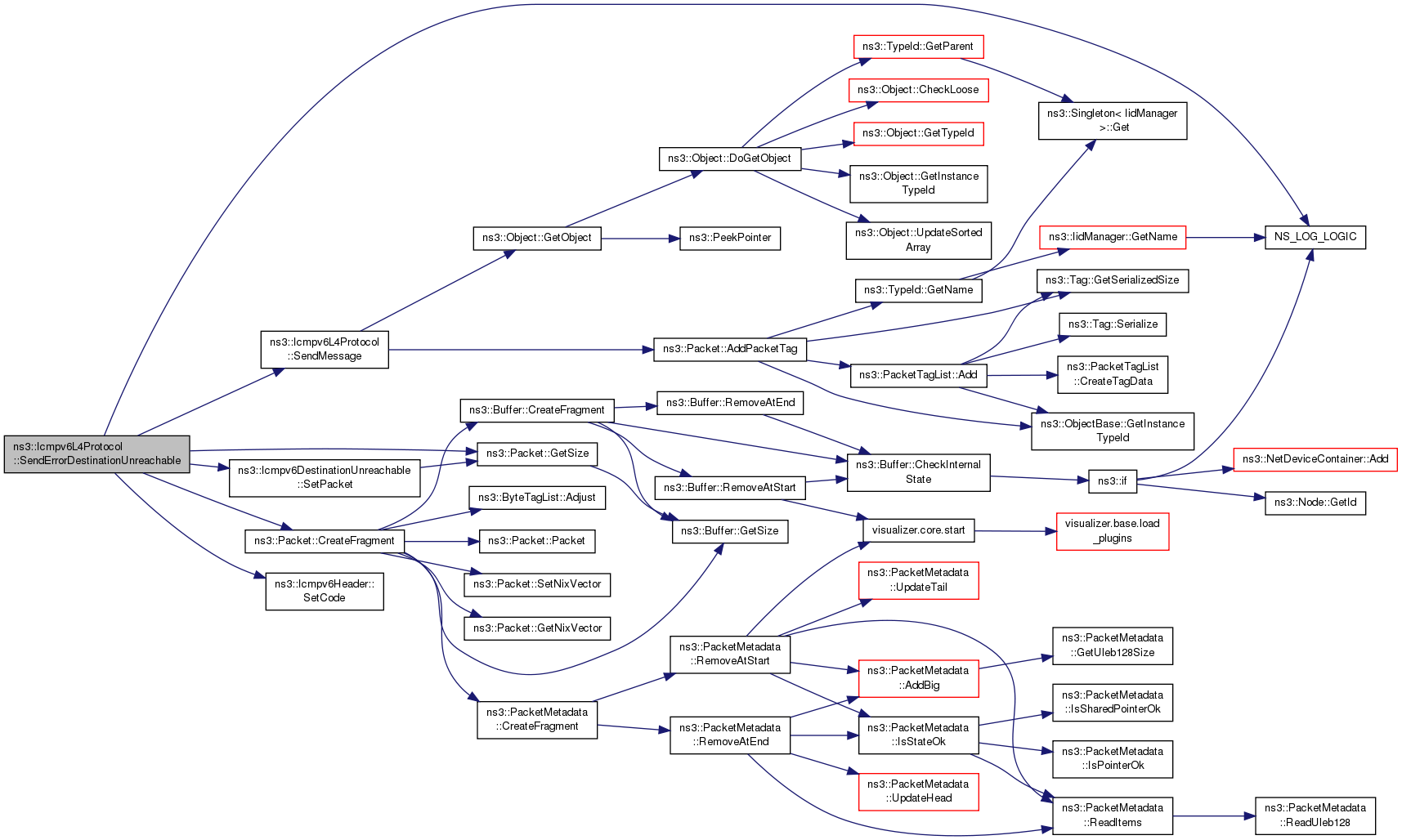

void	SendErrorDestinationUnreachable (Ptr< Packet > malformedPacket, Ipv6Address dst, uint8_t code)
	Send an error Destination Unreachable. More...

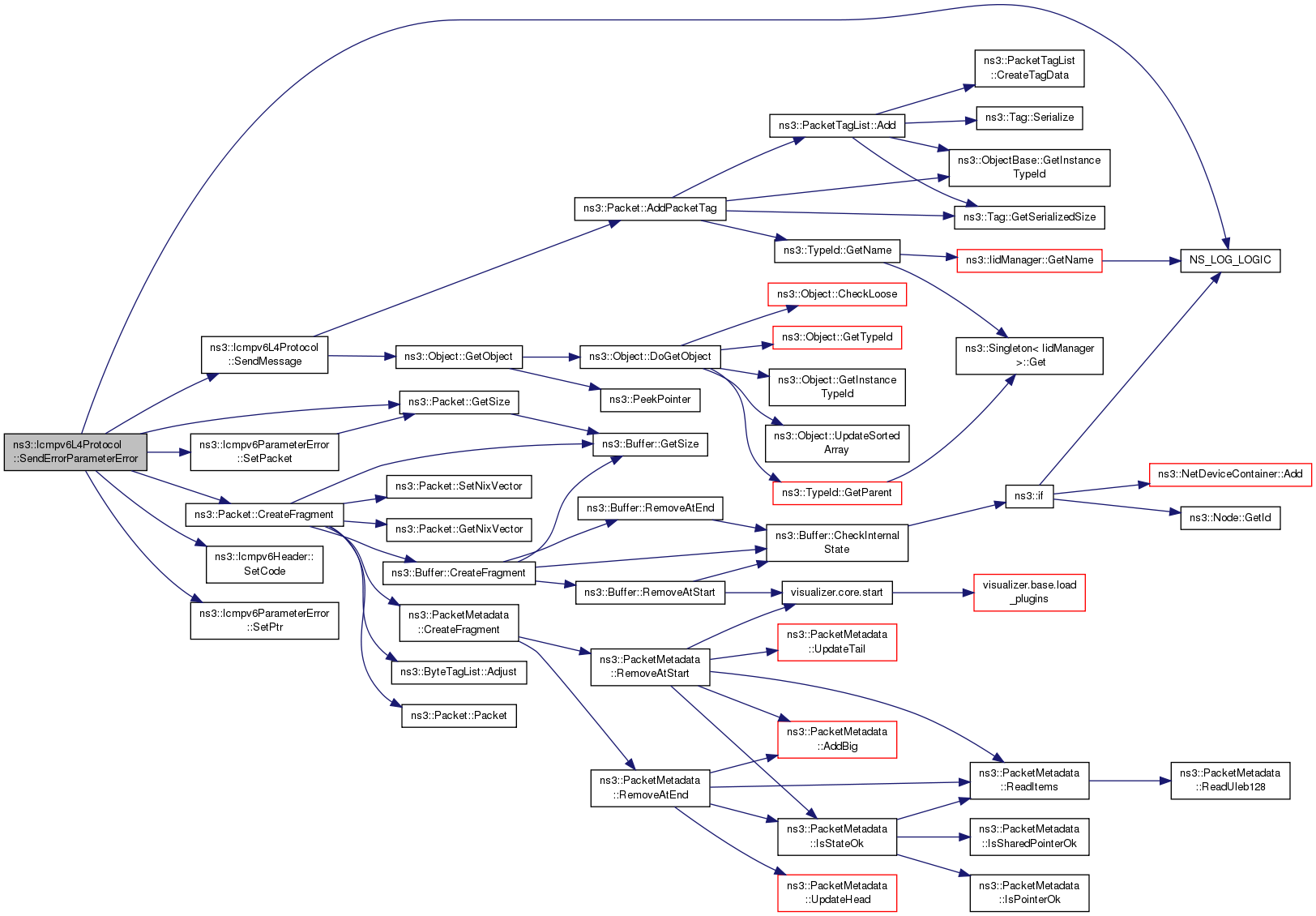

void	SendErrorParameterError (Ptr< Packet > malformedPacket, Ipv6Address dst, uint8_t code, uint32_t ptr)
	Send an error Parameter Error. More...

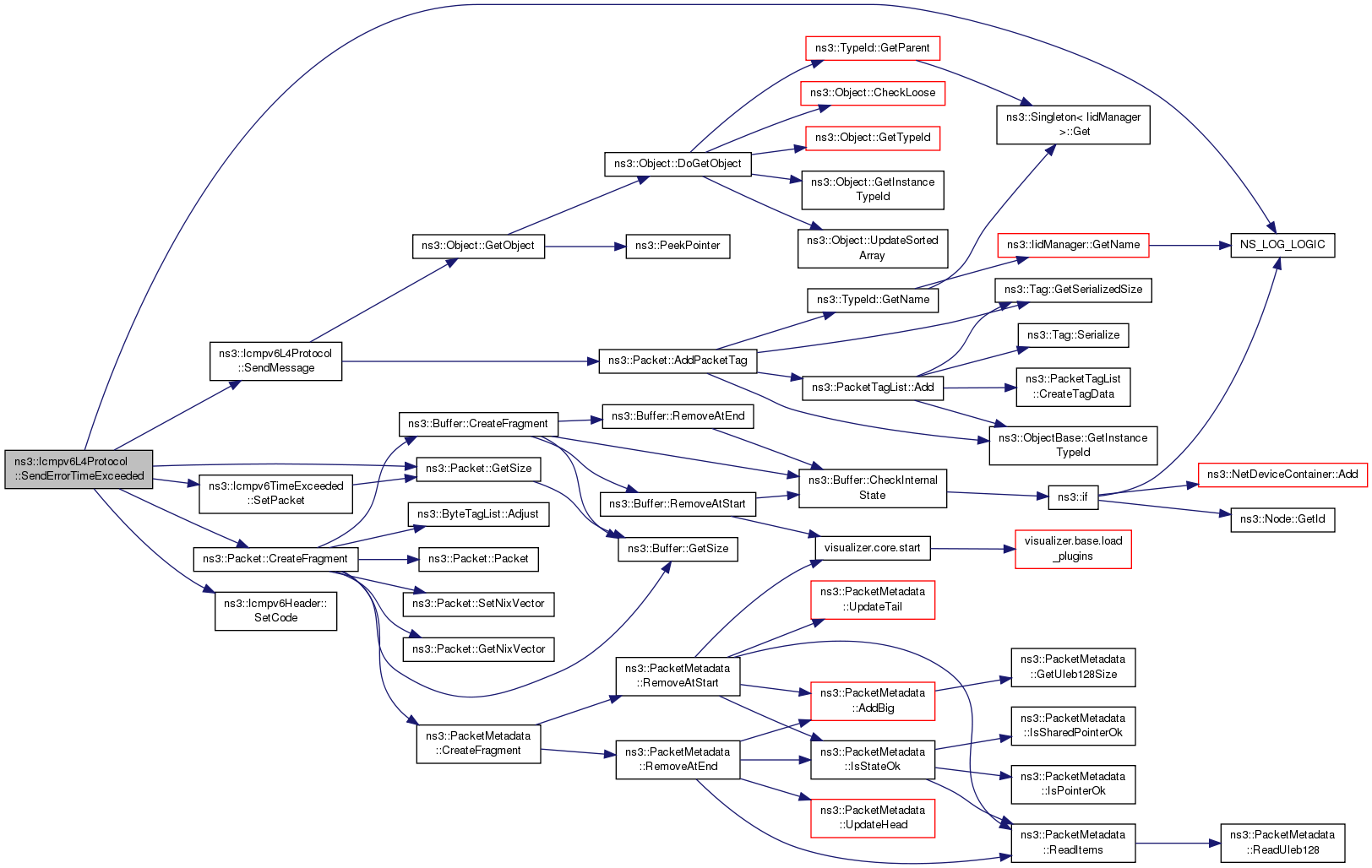

void	SendErrorTimeExceeded (Ptr< Packet > malformedPacket, Ipv6Address dst, uint8_t code)
	Send an error Time Exceeded. More...

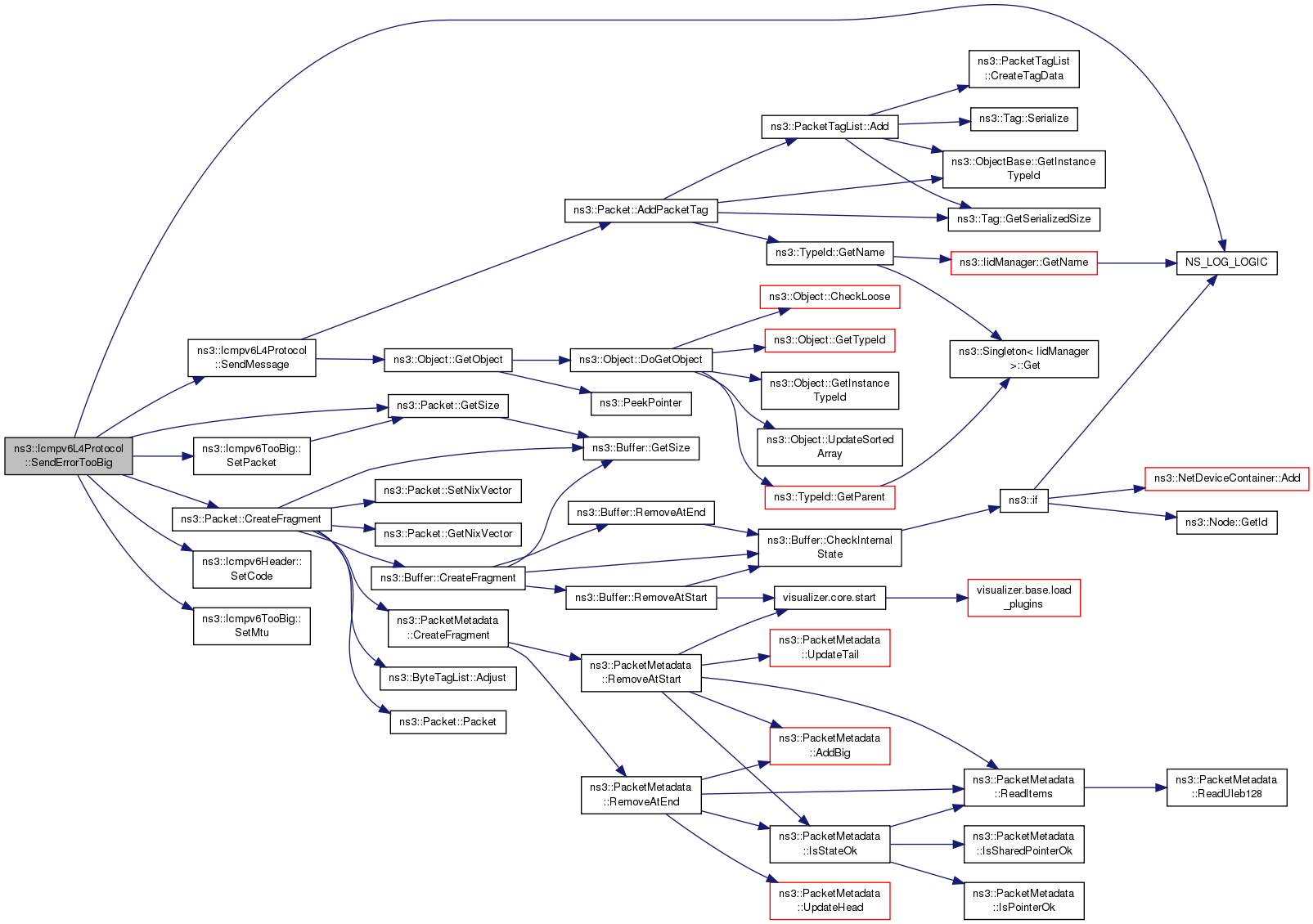

void	SendErrorTooBig (Ptr< Packet > malformedPacket, Ipv6Address dst, uint32_t mtu)
	Send an error Too Big. More...

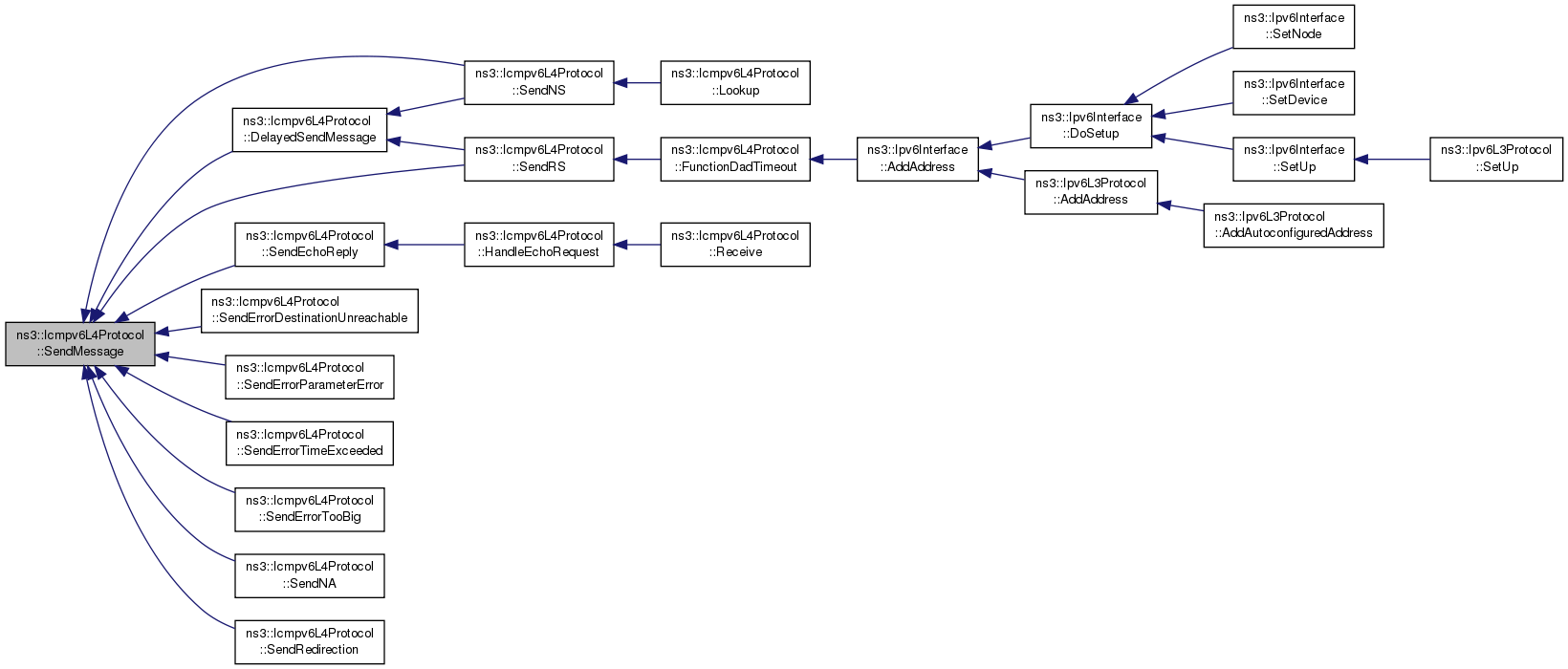

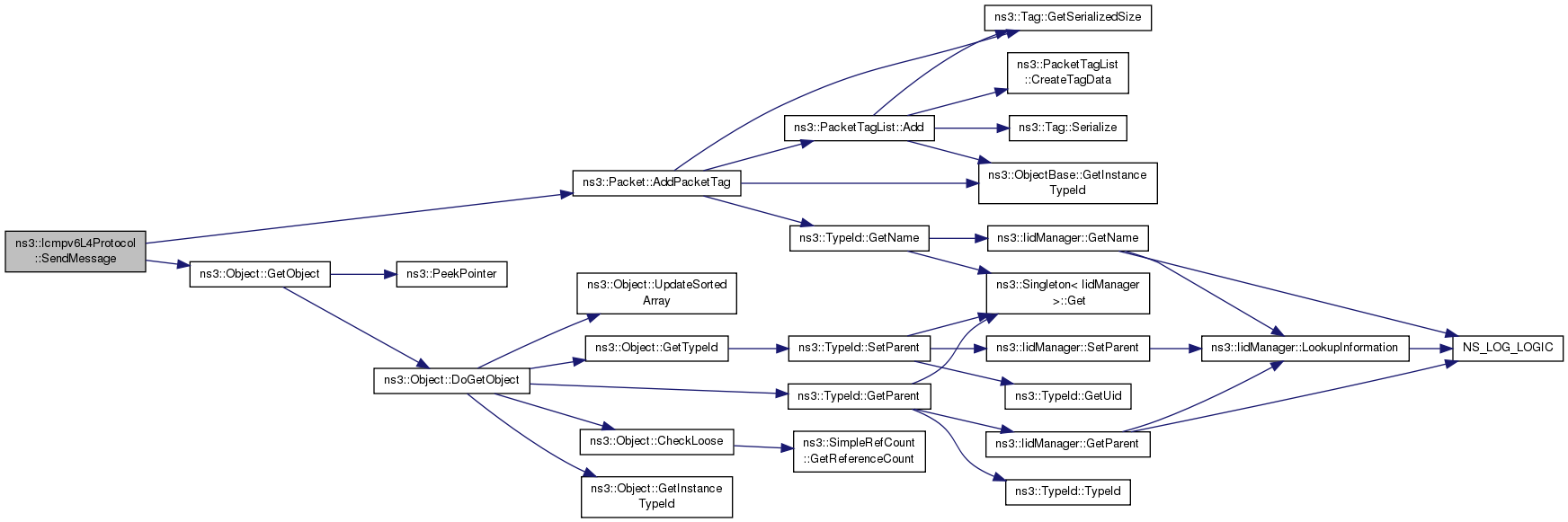

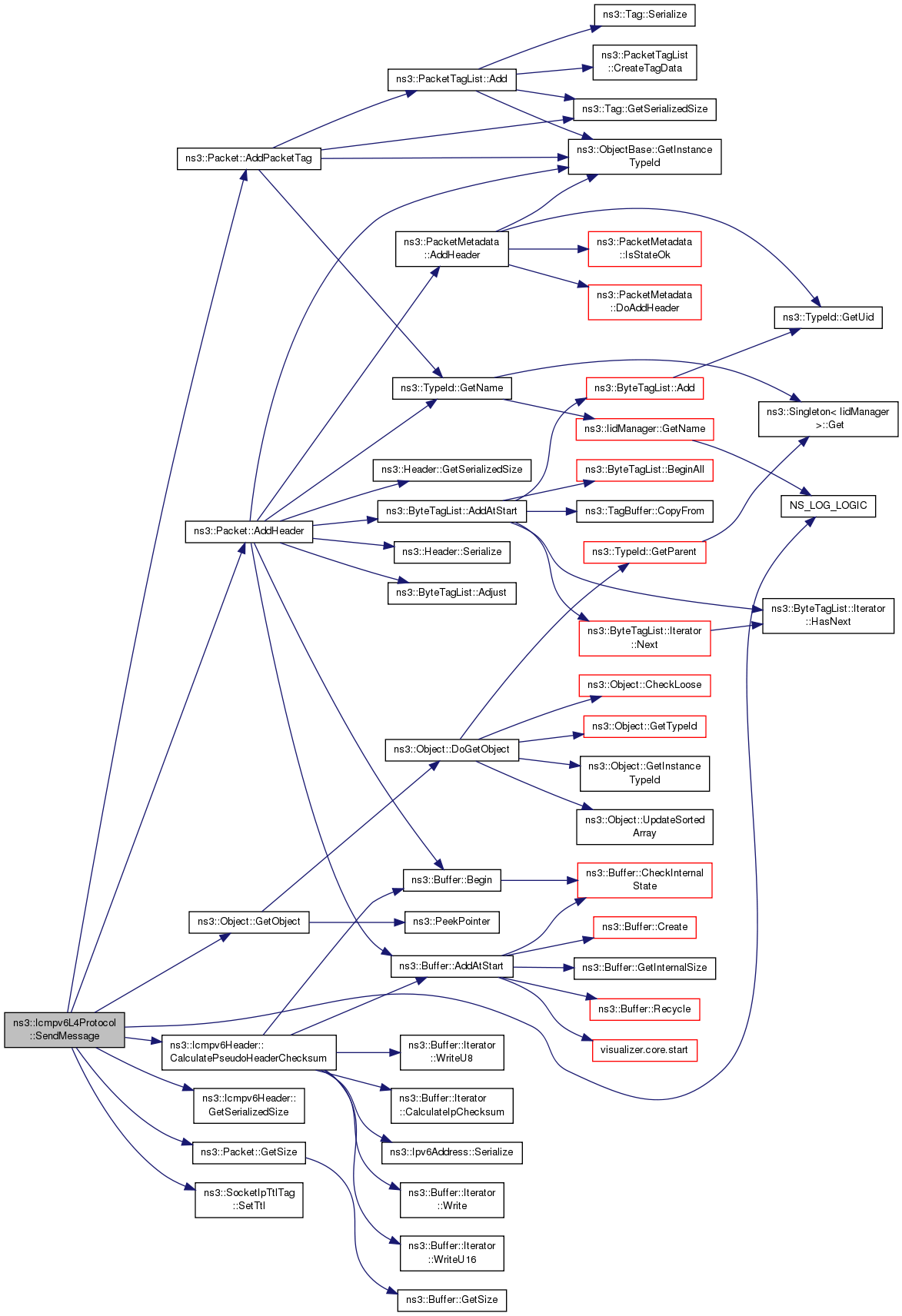

void	SendMessage (Ptr< Packet > packet, Ipv6Address src, Ipv6Address dst, uint8_t ttl)
	Send a packet via ICMPv6, note that packet already contains ICMPv6 header. More...

void	SendMessage (Ptr< Packet > packet, Ipv6Address dst, Icmpv6Header &icmpv6Hdr, uint8_t ttl)
	Send a packet via ICMPv6. More...

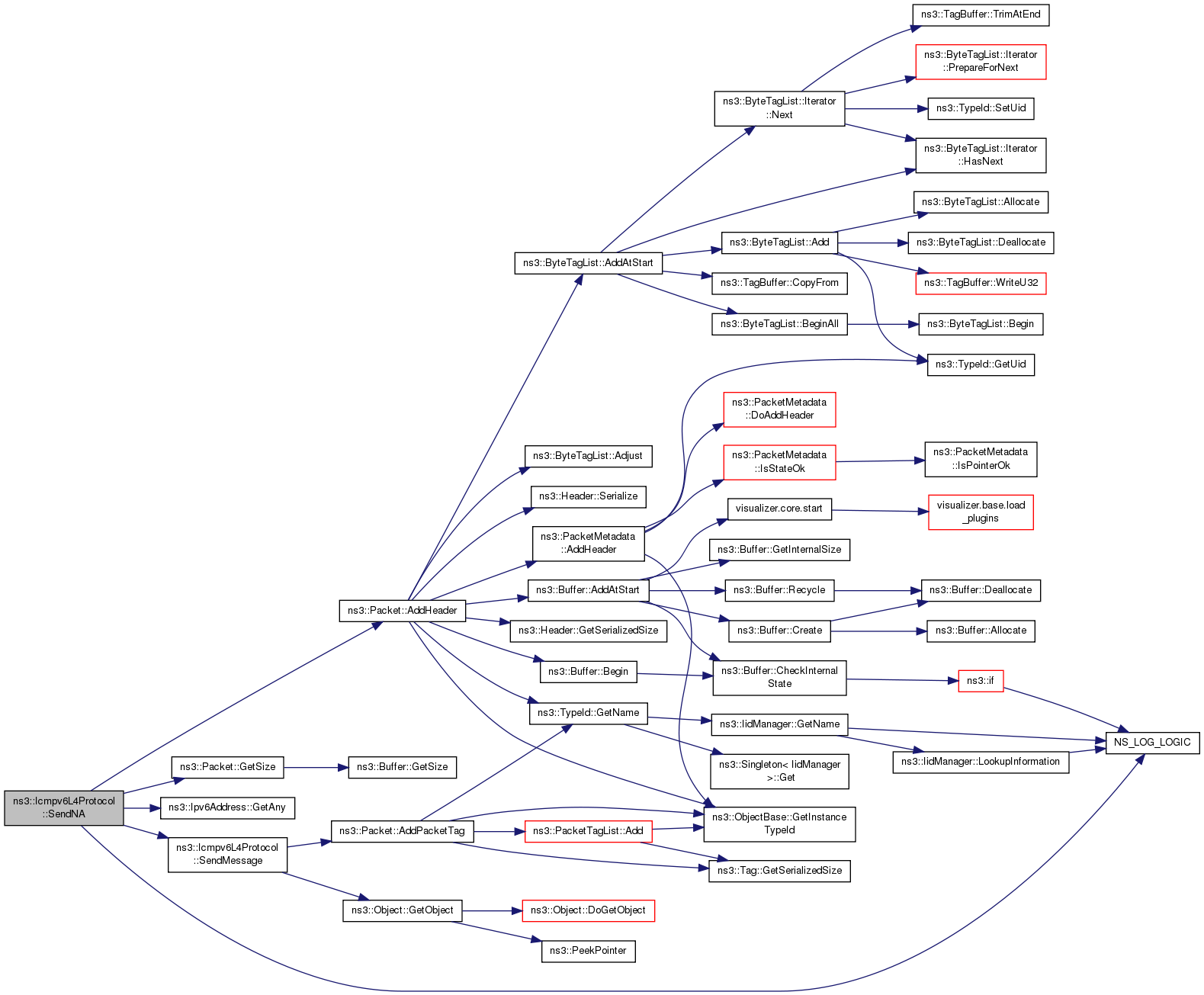

void	SendNA (Ipv6Address src, Ipv6Address dst, Address *hardwareAddress, uint8_t flags)
	Send a Neighbor Adverstisement. More...

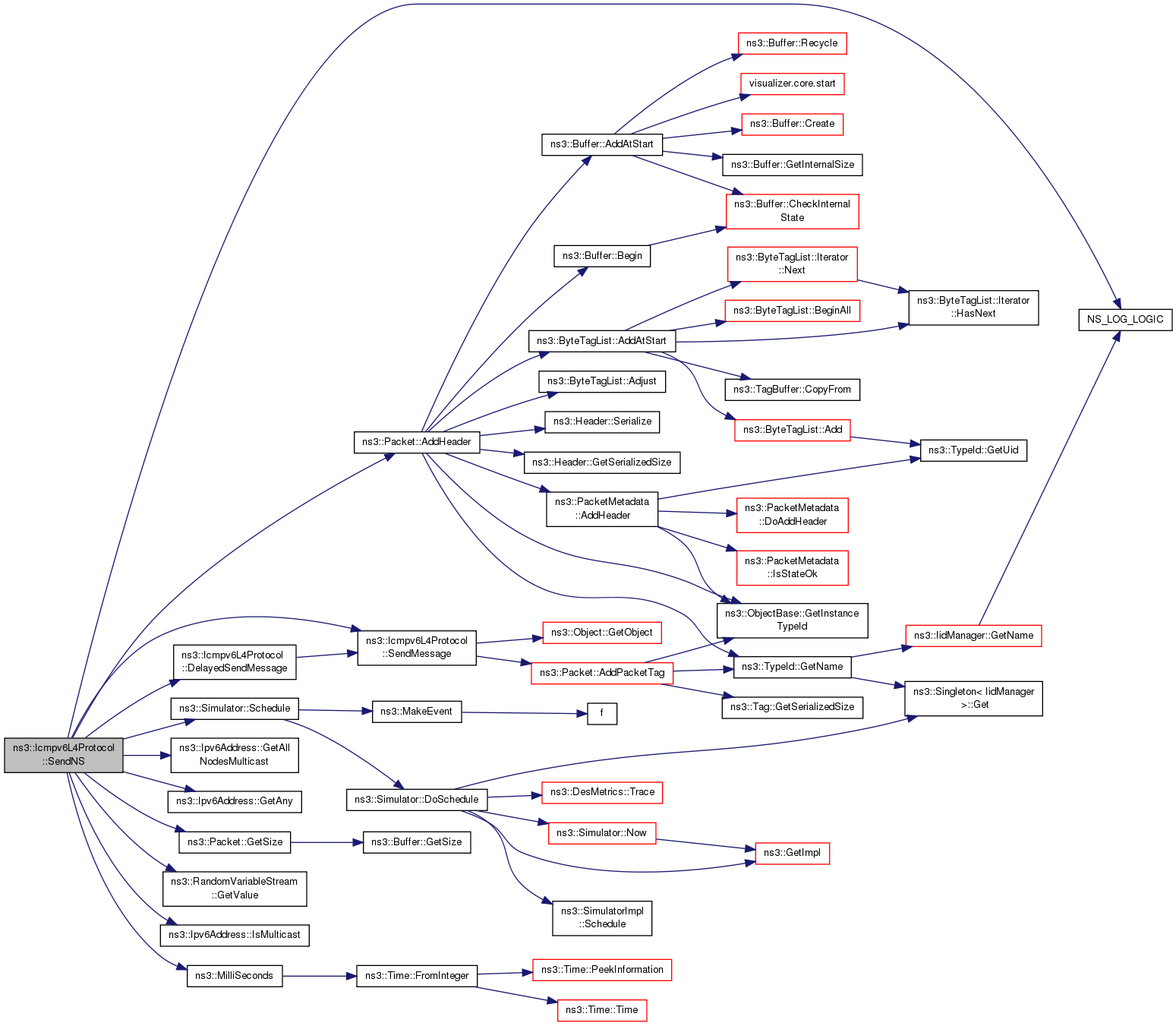

void	SendNS (Ipv6Address src, Ipv6Address dst, Ipv6Address target, Address hardwareAddress)
	Send a Neighbor Solicitation. More...

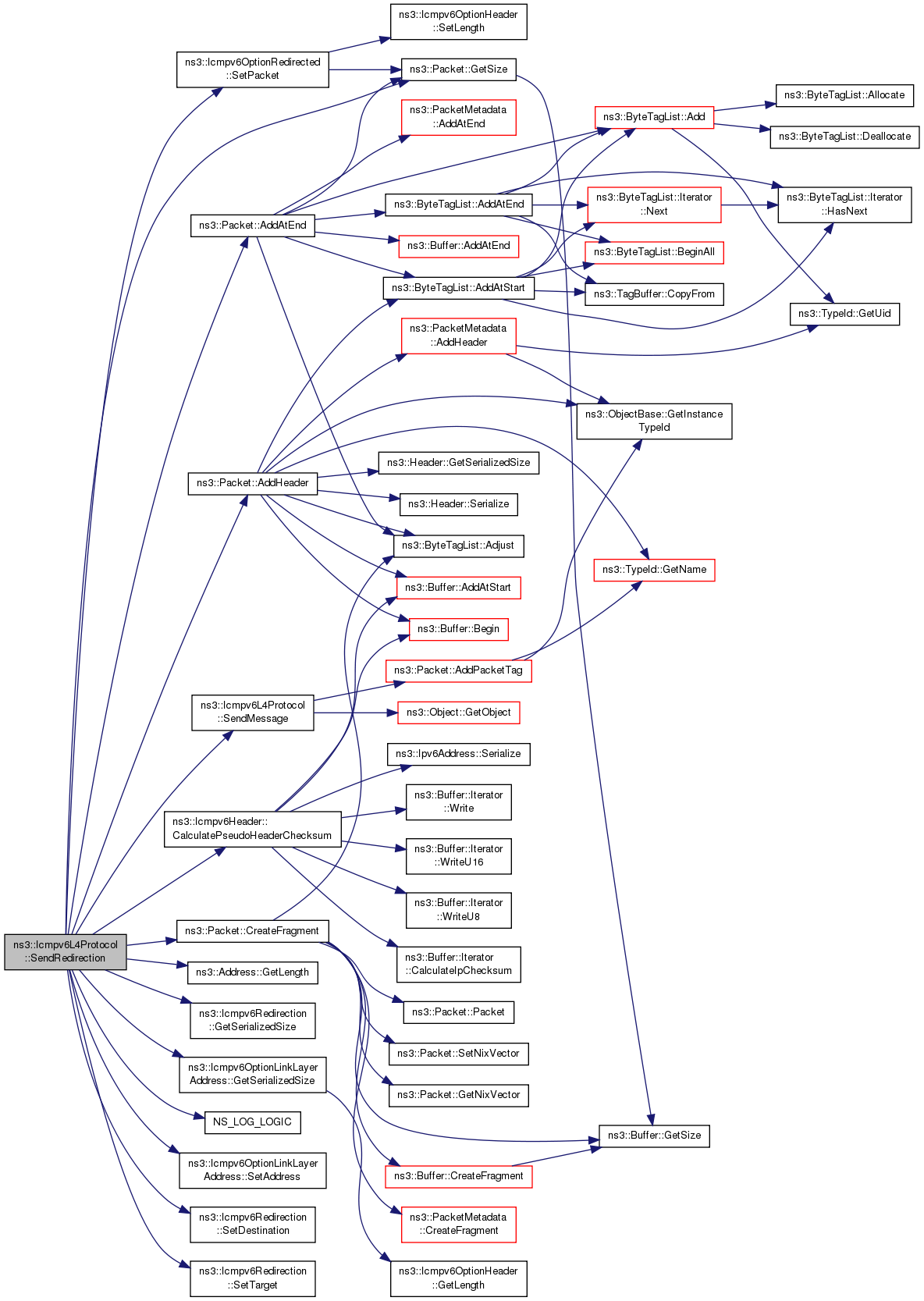

void	SendRedirection (Ptr< Packet > redirectedPacket, Ipv6Address src, Ipv6Address dst, Ipv6Address redirTarget, Ipv6Address redirDestination, Address redirHardwareTarget)
	Send an ICMPv6 Redirection. More...

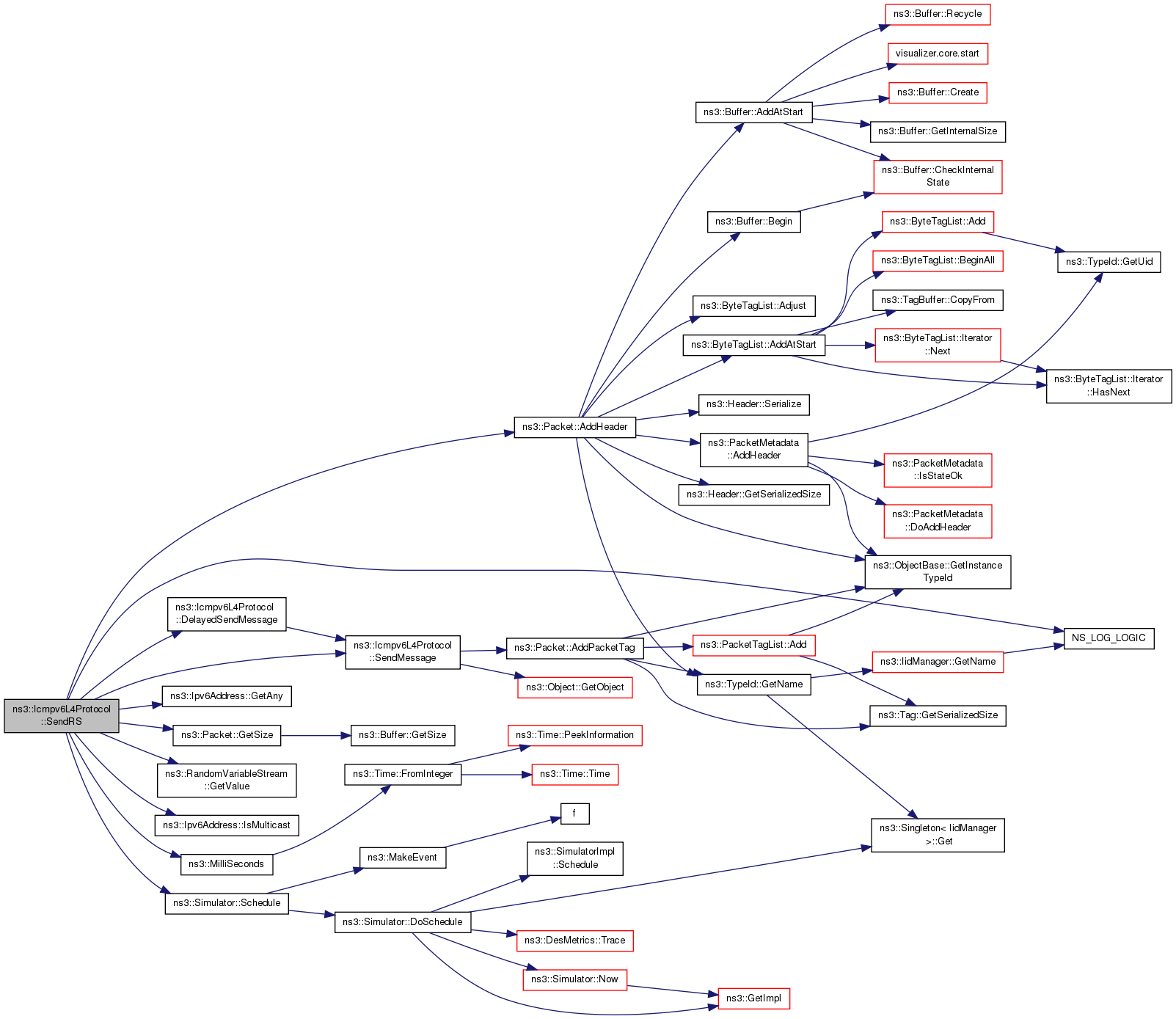

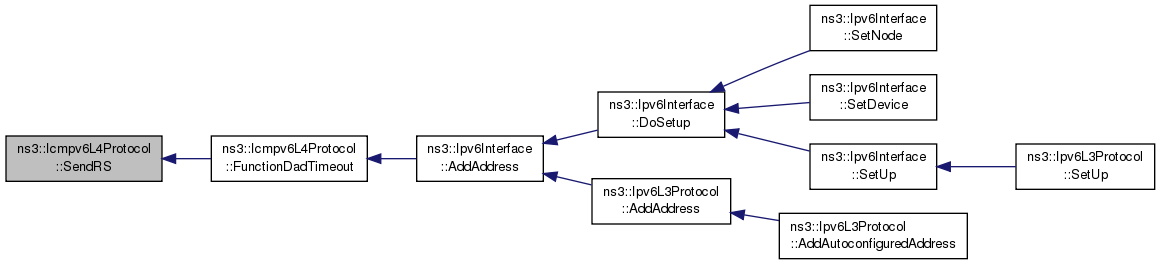

void	SendRS (Ipv6Address src, Ipv6Address dst, Address hardwareAddress)
	Send a Router Solicitation. More...

void	SetNode (Ptr< Node > node)
	Set the node. More...

Public Member Functions inherited from ns3::IpL4Protocol
virtual	~IpL4Protocol ()

virtual void	ReceiveIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv4Address payloadSource, Ipv4Address payloadDestination, const uint8_t payload[8])
	Called from lower-level layers to send the ICMP packet up in the stack. More...

virtual void	ReceiveIcmp (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv6Address payloadSource, Ipv6Address payloadDestination, const uint8_t payload[8])
	Called from lower-level layers to send the ICMPv6 packet up in the stack. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

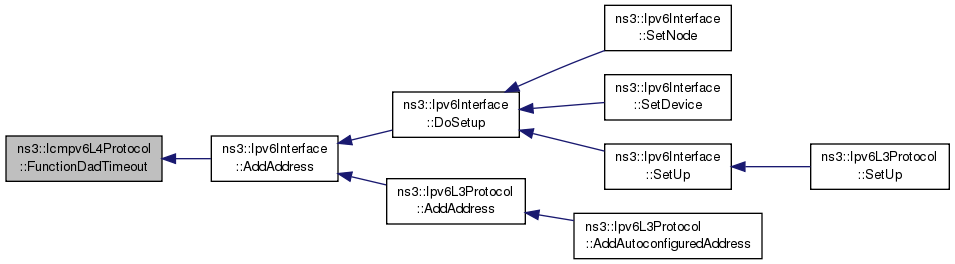

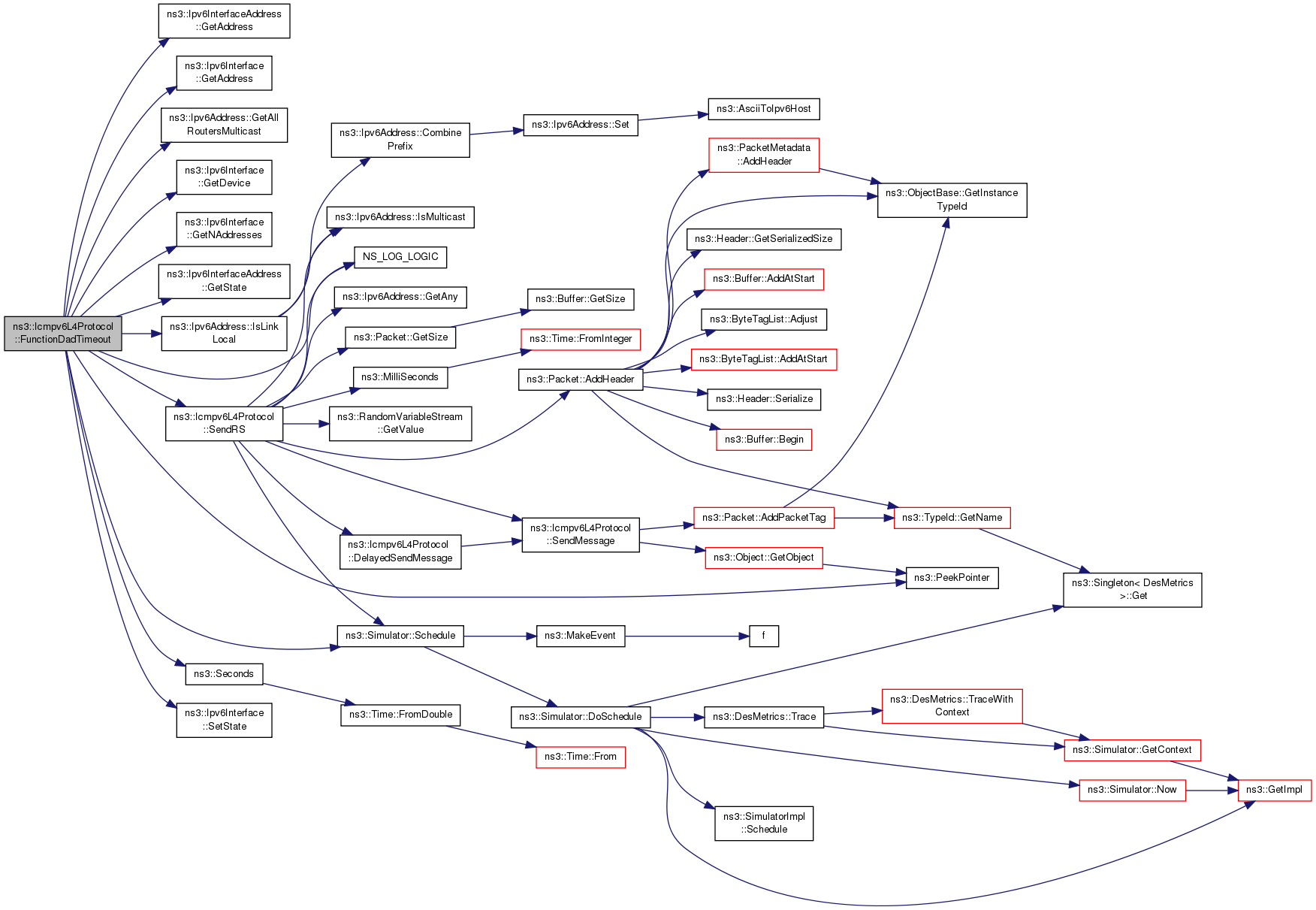

static void	FunctionDadTimeout (Ptr< Icmpv6L4Protocol > icmpv6, Ipv6Interface *interface, Ipv6Address addr)
	Function called when DAD timeout. More...

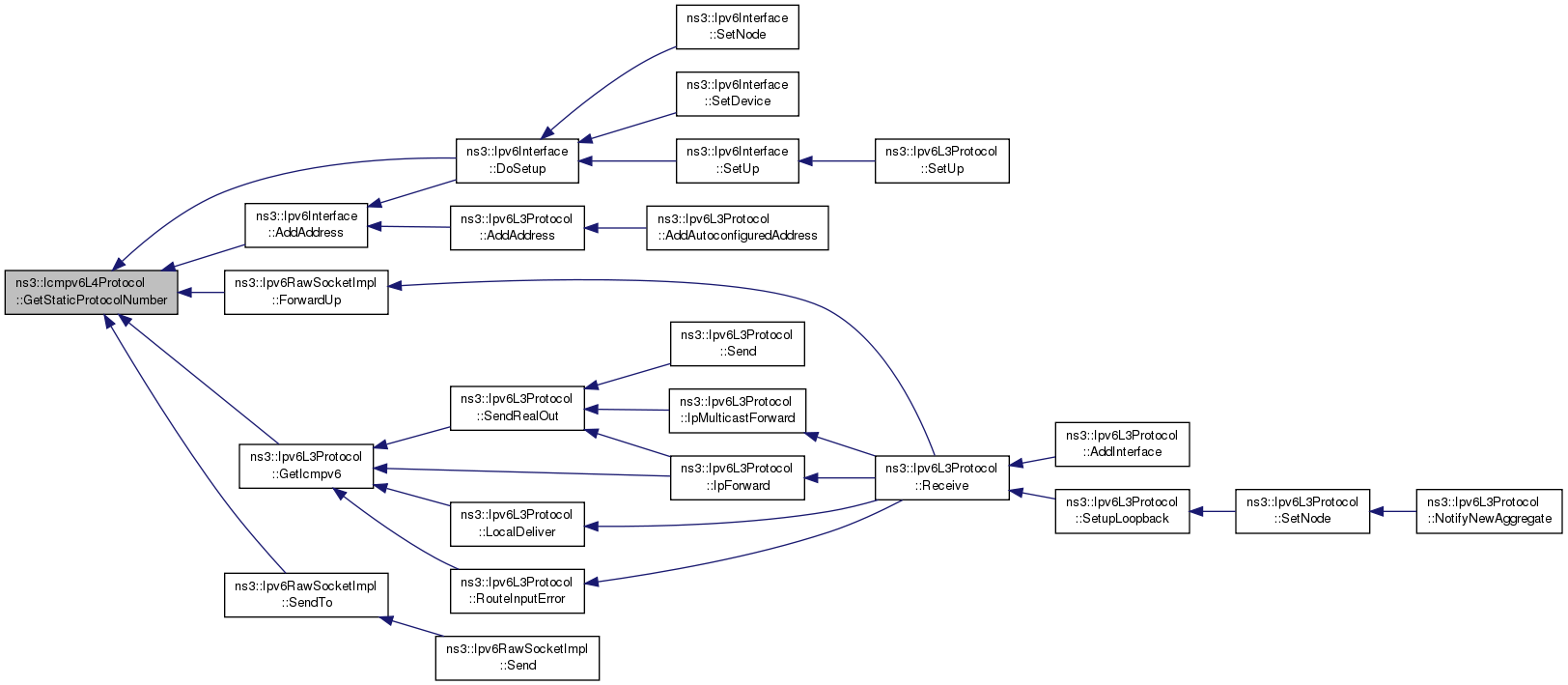

static uint16_t	GetStaticProtocolNumber ()
	Get ICMPv6 protocol number. More...

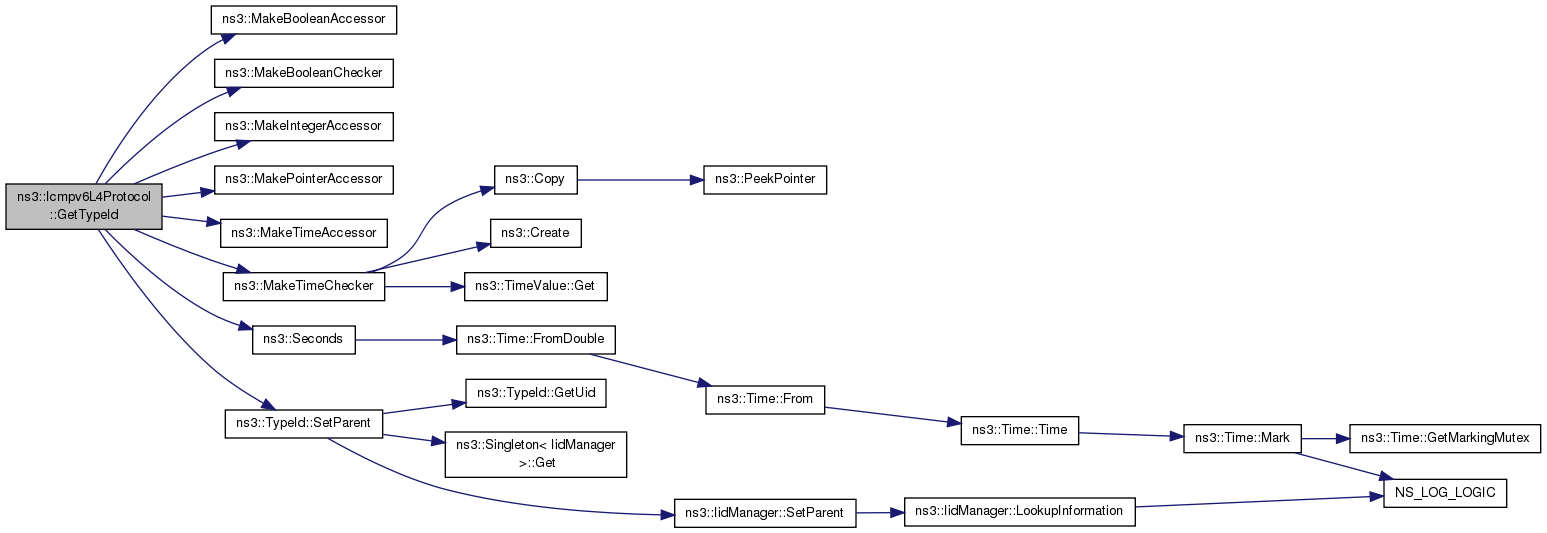

static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::IpL4Protocol
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static const uint8_t	PROT_NUMBER = 58
	ICMPv6 protocol number (58). More...

Protected Member Functions

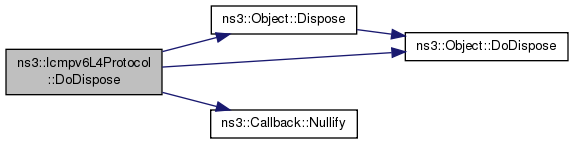

virtual void	DoDispose ()
	Dispose this object. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::list< Ptr< NdiscCache > >	CacheList
	container of NdiscCaches More...

Private Member Functions

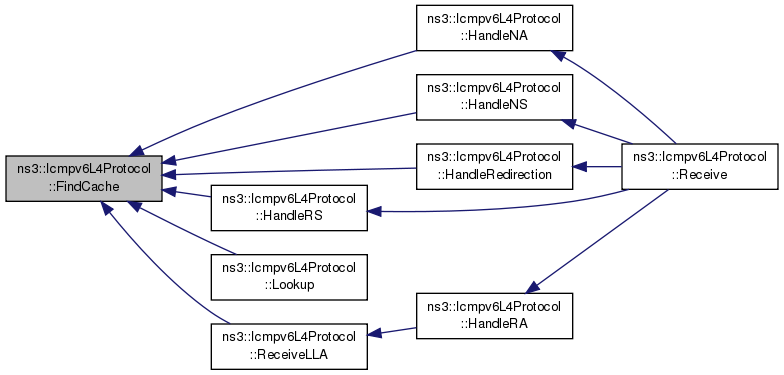

Ptr< NdiscCache >	FindCache (Ptr< NetDevice > device)
	Get the cache corresponding to the device. More...

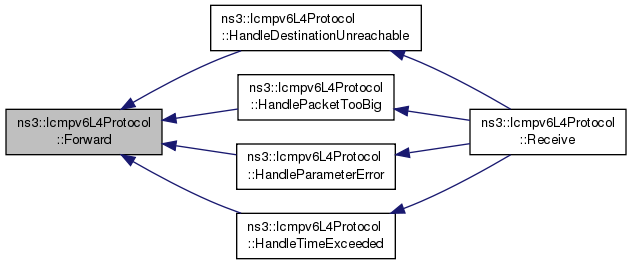

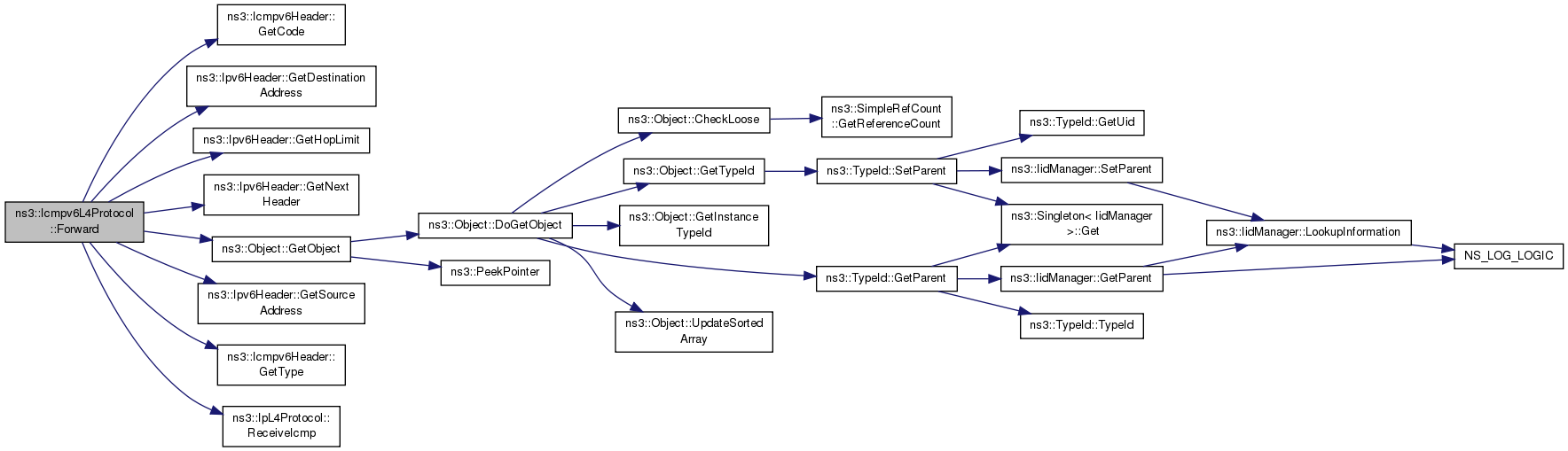

void	Forward (Ipv6Address source, Icmpv6Header icmp, uint32_t info, Ipv6Header ipHeader, const uint8_t payload[8])
	Notify an ICMPv6 reception to upper layers (if requested). More...

virtual IpL4Protocol::DownTargetCallback	GetDownTarget (void) const
	This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case) More...

virtual IpL4Protocol::DownTargetCallback6	GetDownTarget6 (void) const
	This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case) More...

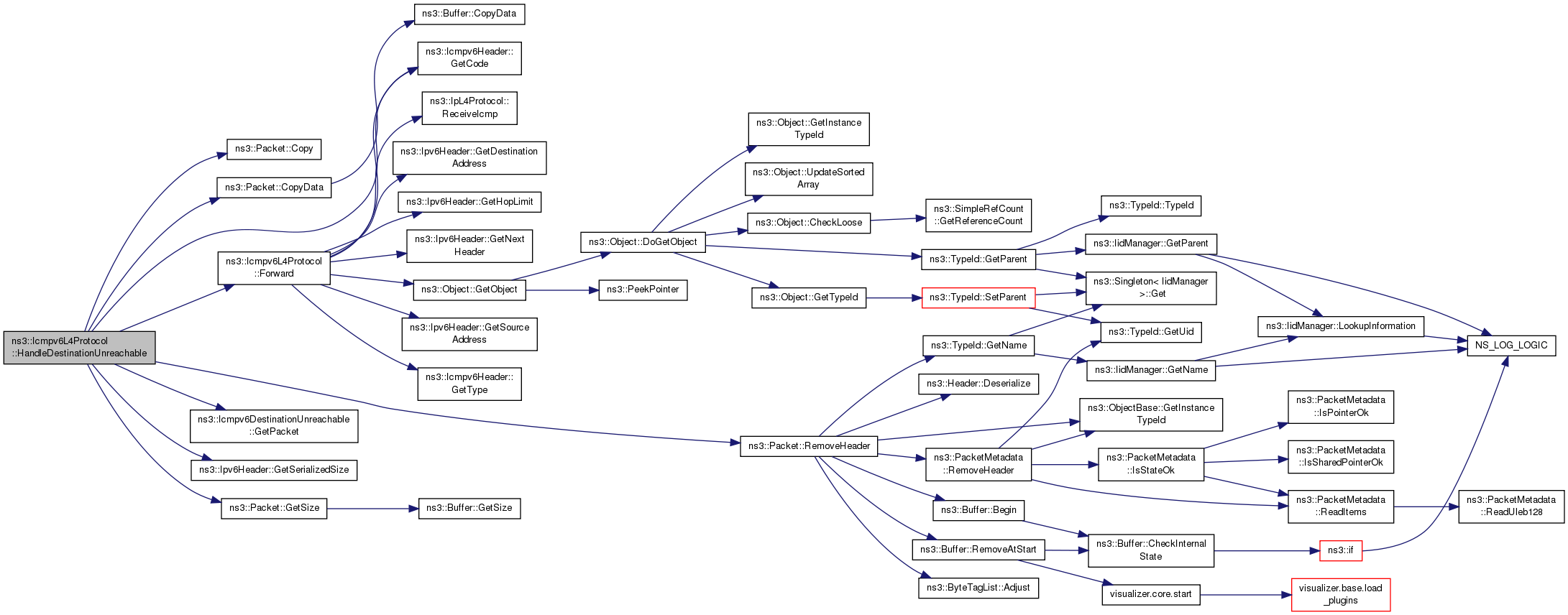

void	HandleDestinationUnreachable (Ptr< Packet > p, Ipv6Address const &src, Ipv6Address const &dst, Ptr< Ipv6Interface > interface)
	Receive Destination Unreachable method. More...

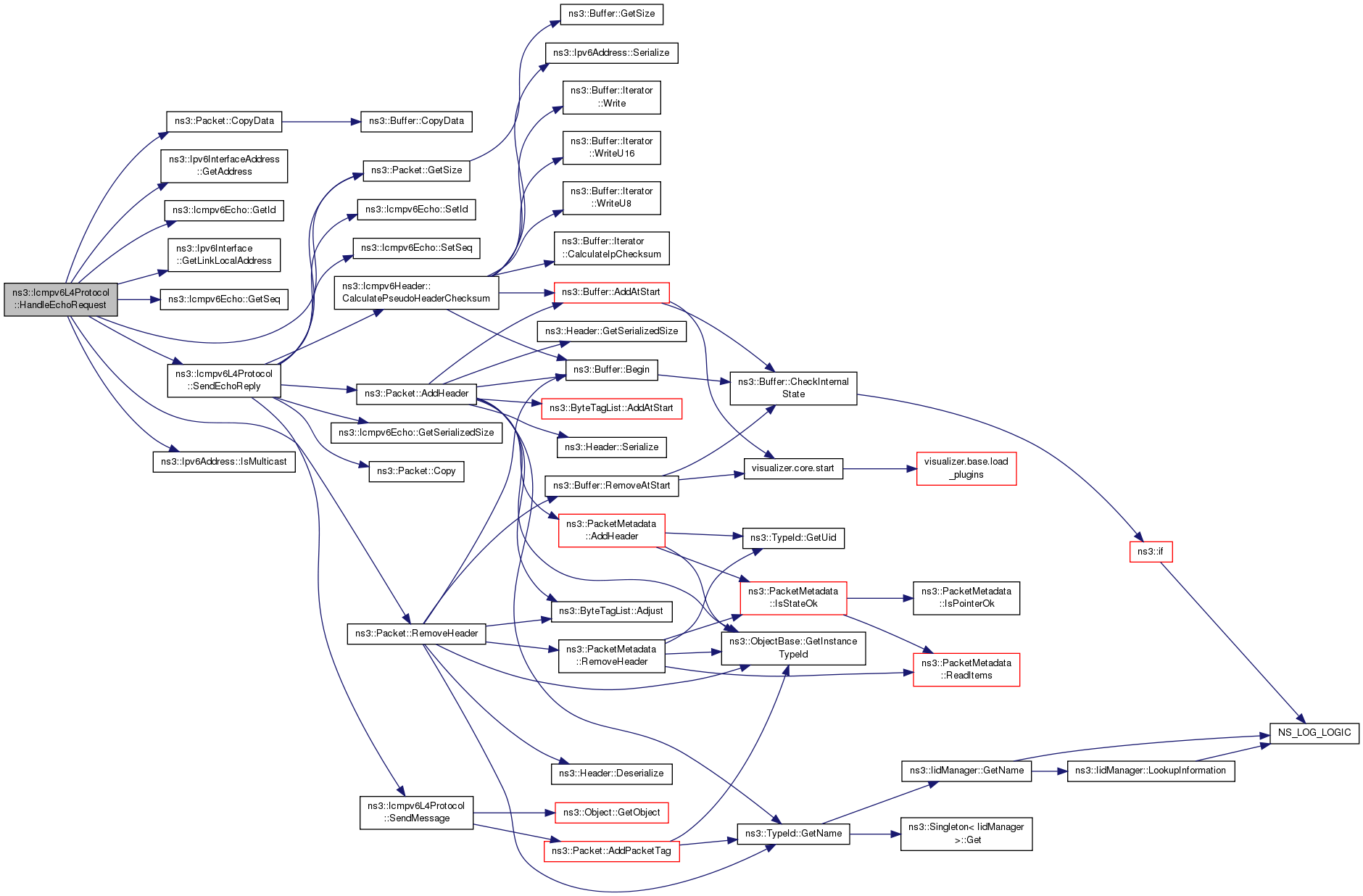

void	HandleEchoRequest (Ptr< Packet > p, Ipv6Address const &src, Ipv6Address const &dst, Ptr< Ipv6Interface > interface)
	Receive Echo Request method. More...

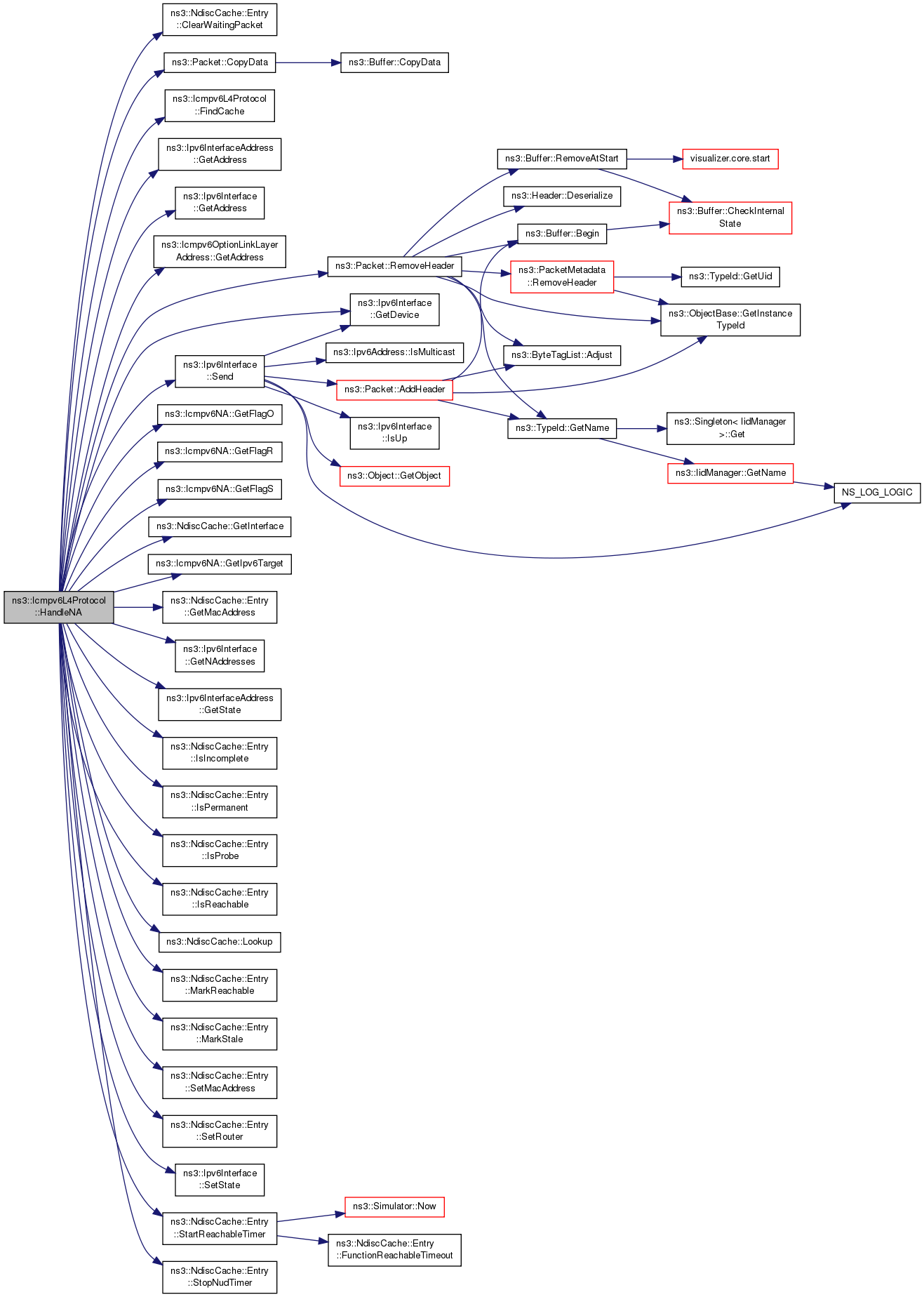

void	HandleNA (Ptr< Packet > p, Ipv6Address const &src, Ipv6Address const &dst, Ptr< Ipv6Interface > interface)
	Receive Neighbor Advertisement method. More...

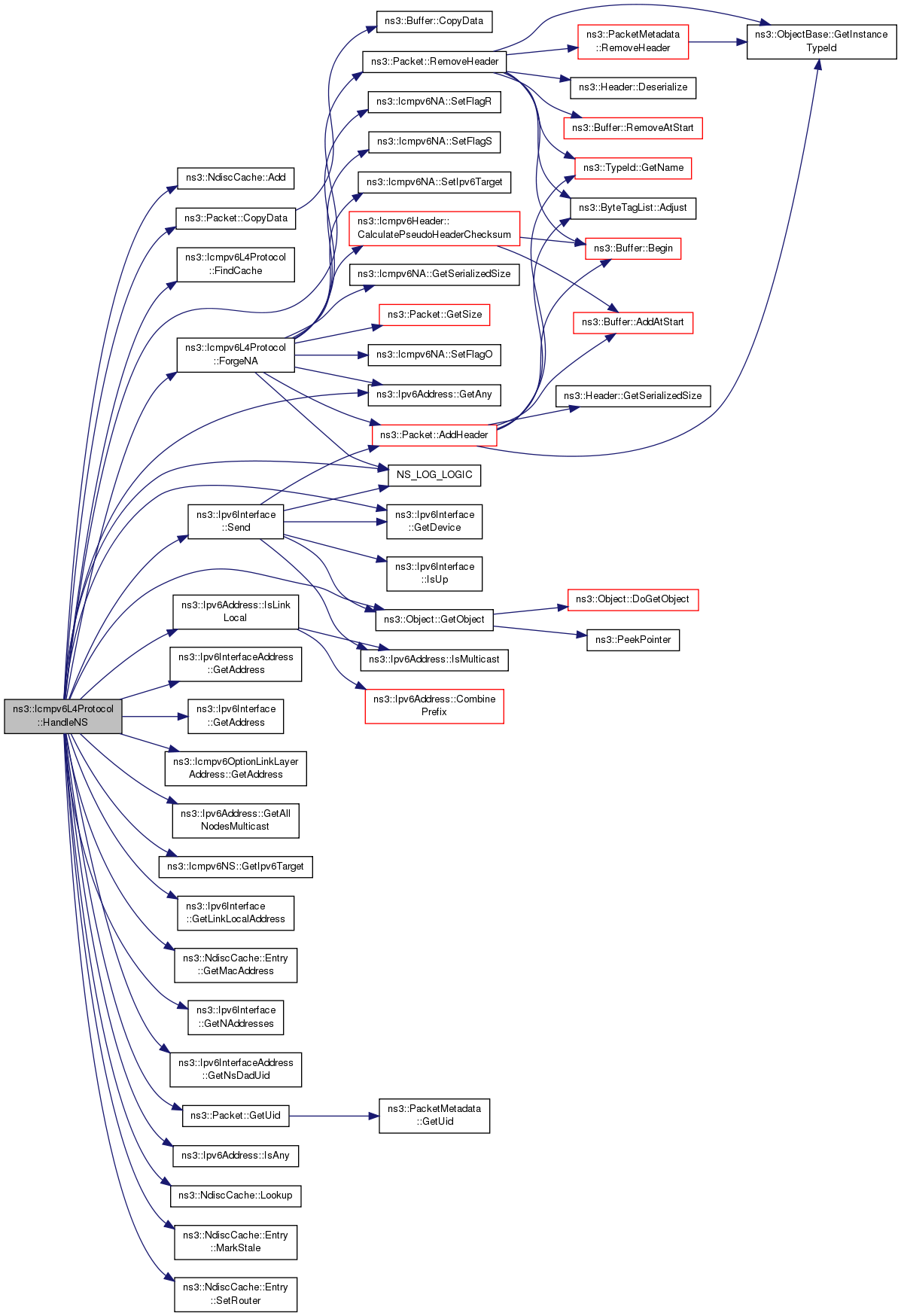

void	HandleNS (Ptr< Packet > p, Ipv6Address const &src, Ipv6Address const &dst, Ptr< Ipv6Interface > interface)
	Receive Neighbor Solicitation method. More...

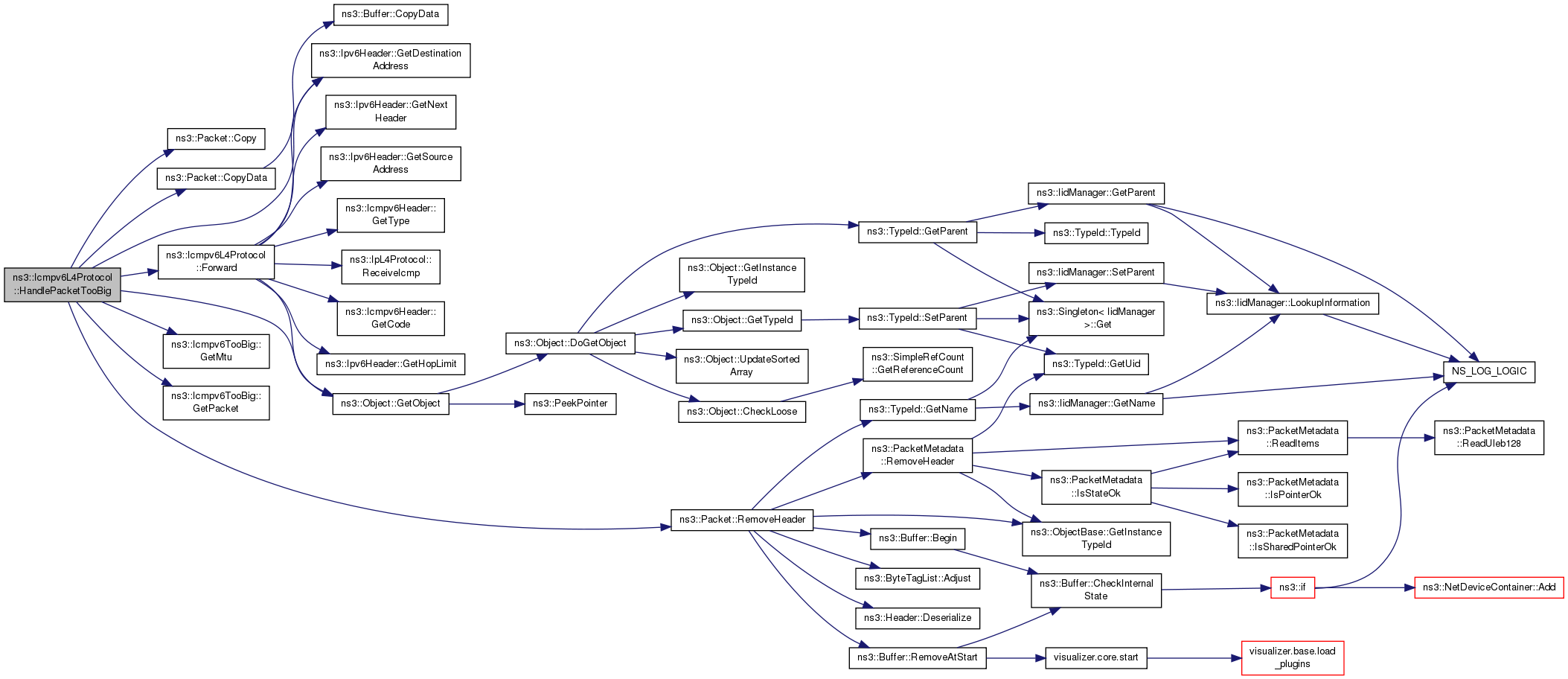

void	HandlePacketTooBig (Ptr< Packet > p, Ipv6Address const &src, Ipv6Address const &dst, Ptr< Ipv6Interface > interface)
	Receive Packet Too Big method. More...

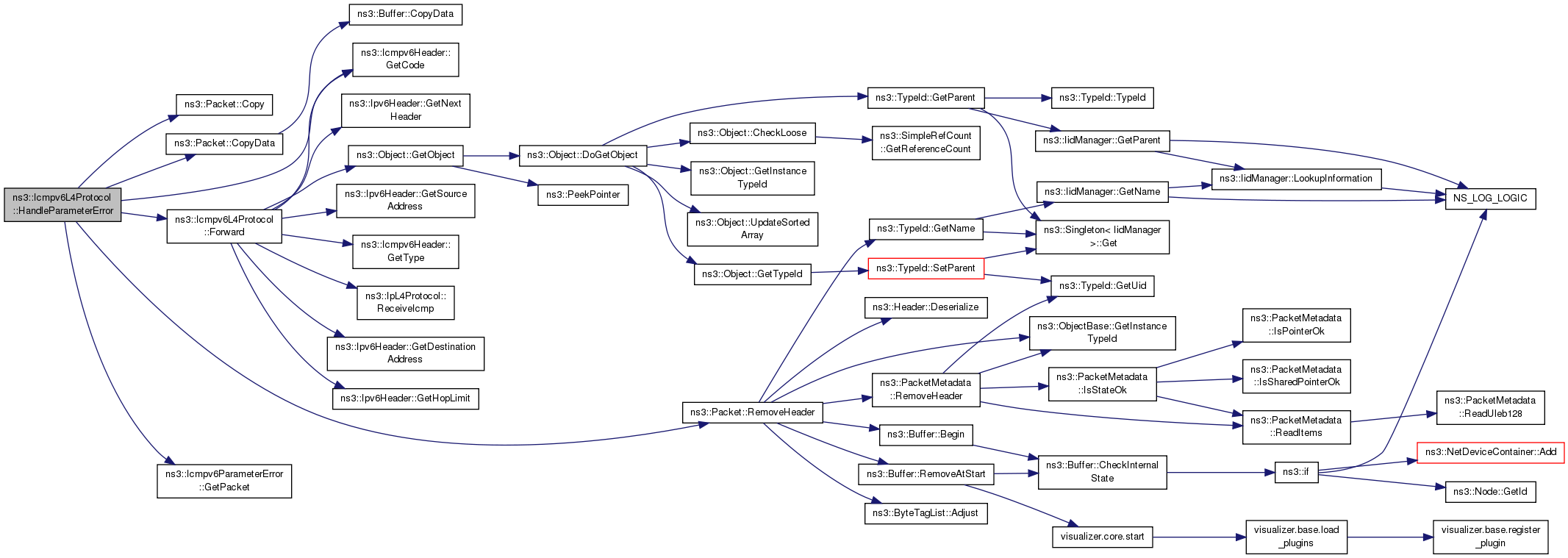

void	HandleParameterError (Ptr< Packet > p, Ipv6Address const &src, Ipv6Address const &dst, Ptr< Ipv6Interface > interface)
	Receive Parameter Error method. More...

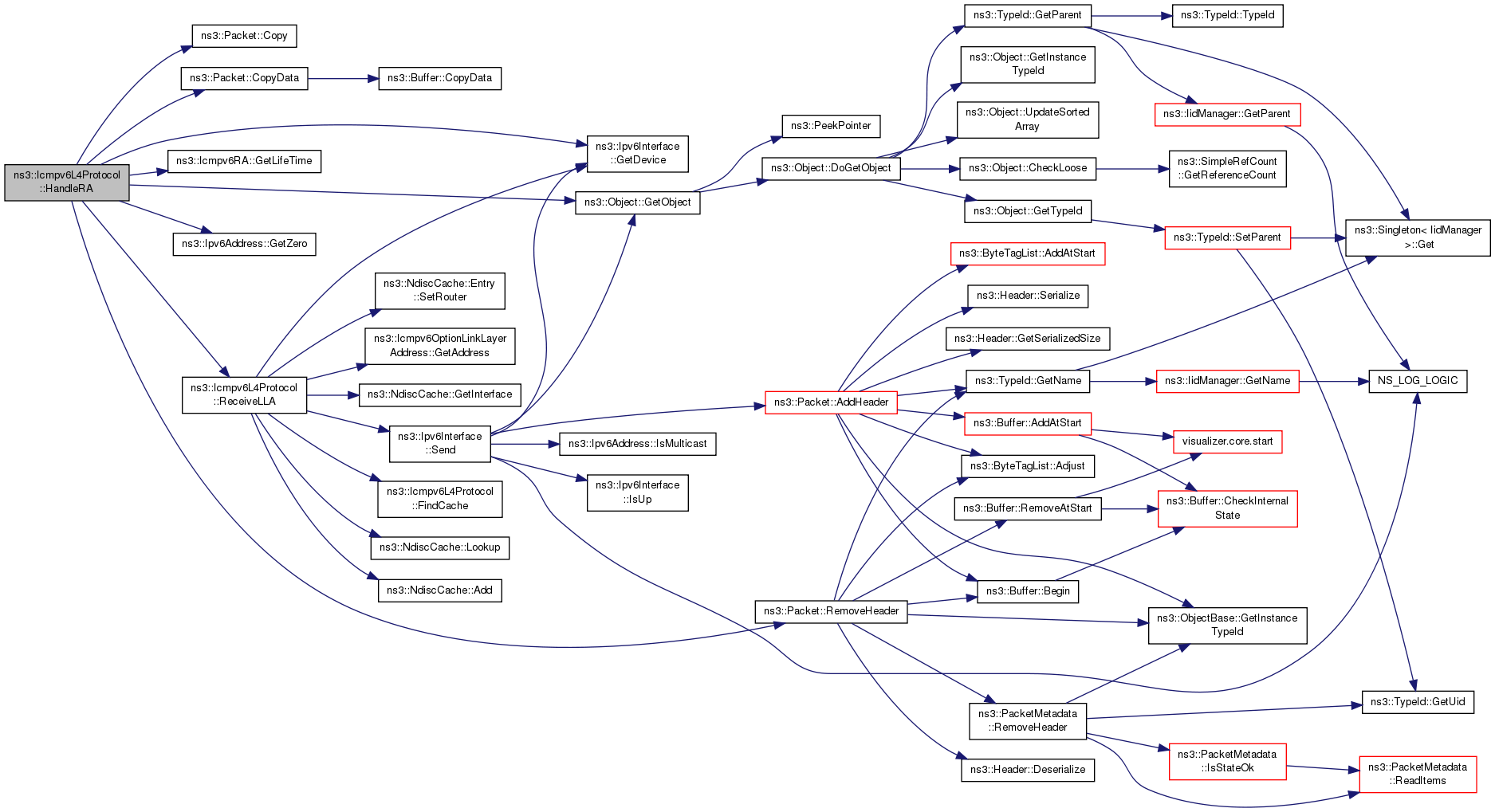

void	HandleRA (Ptr< Packet > p, Ipv6Address const &src, Ipv6Address const &dst, Ptr< Ipv6Interface > interface)
	Receive Router Advertisement method. More...

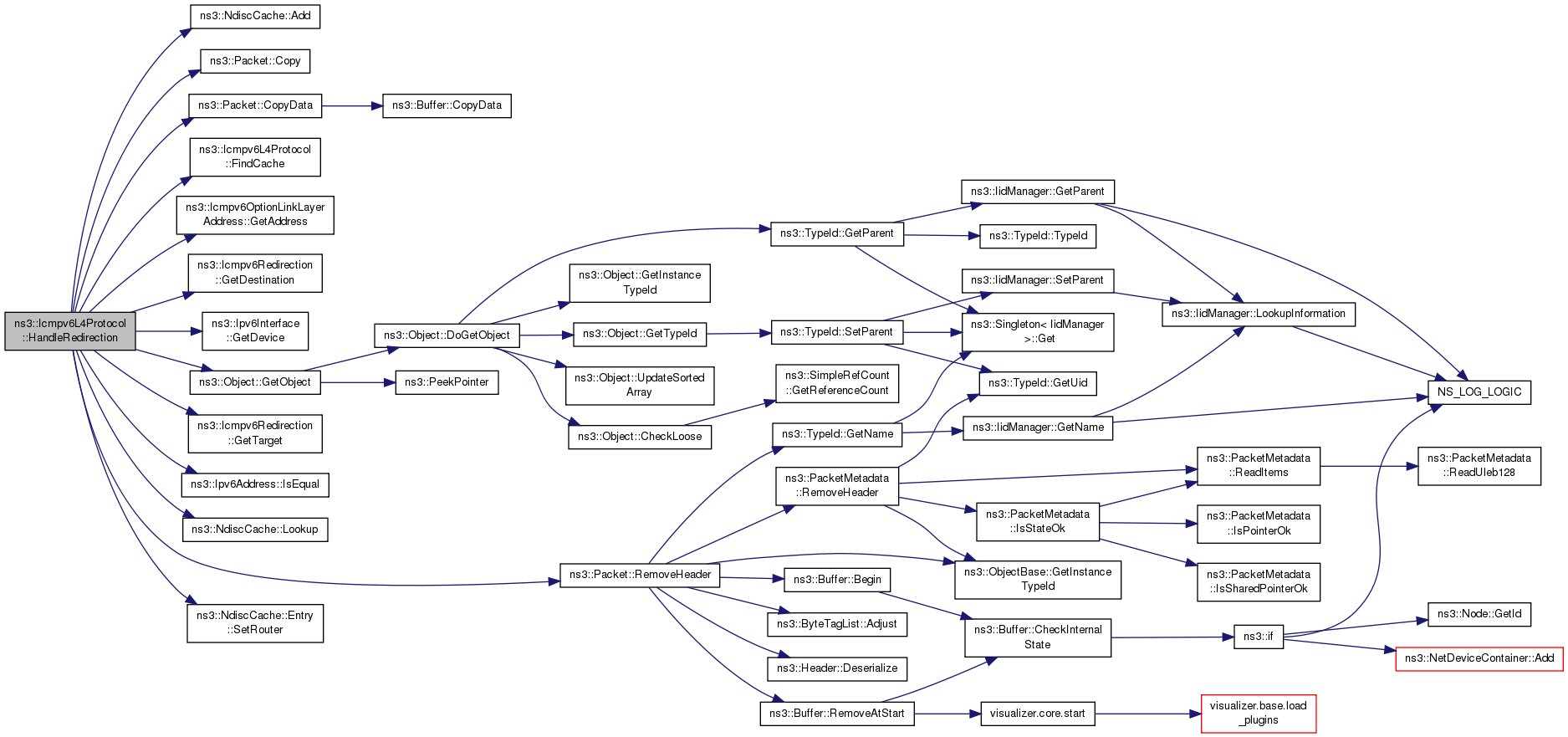

void	HandleRedirection (Ptr< Packet > p, Ipv6Address const &src, Ipv6Address const &dst, Ptr< Ipv6Interface > interface)
	Receive Redirection method. More...

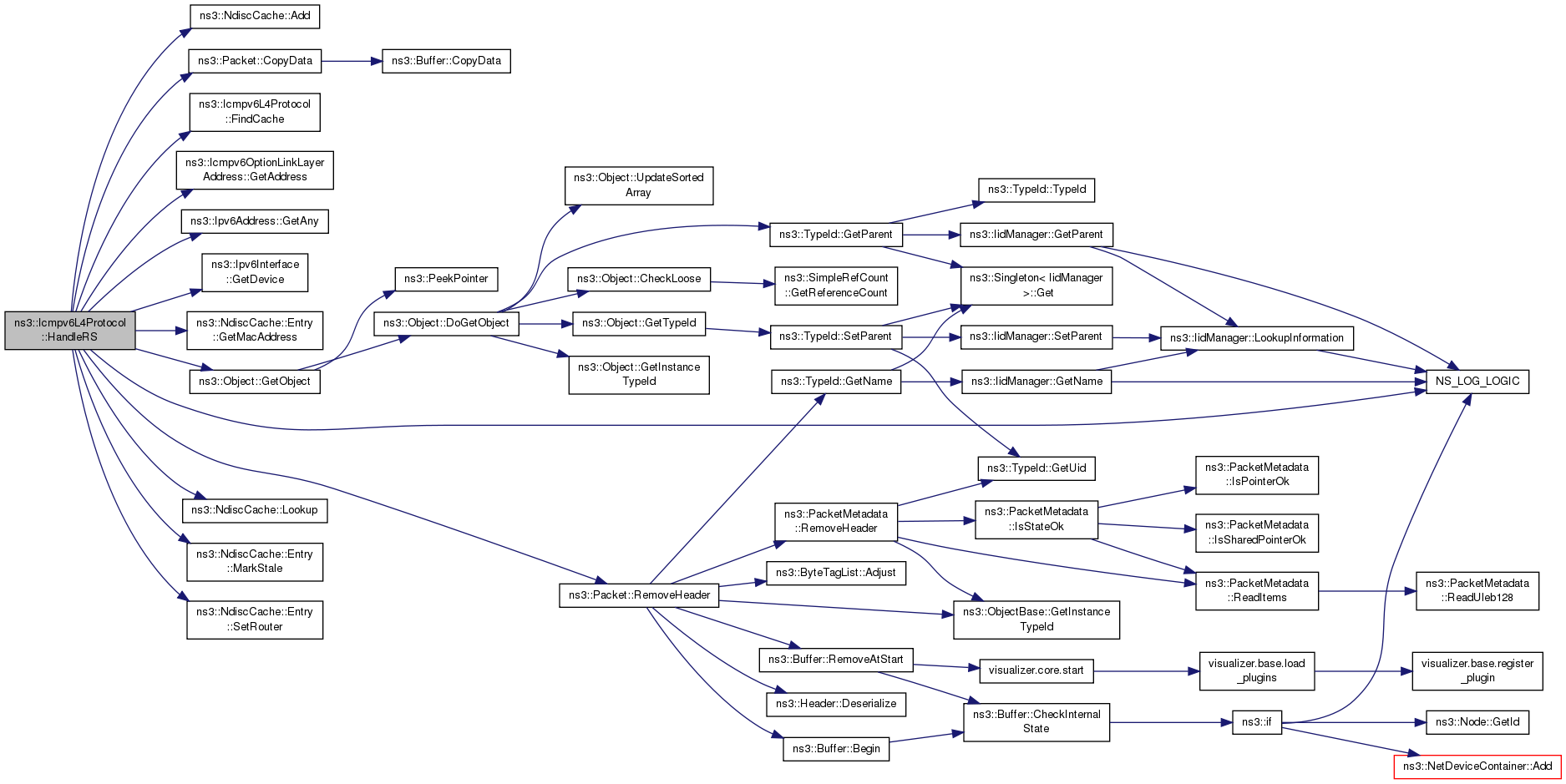

void	HandleRS (Ptr< Packet > p, Ipv6Address const &src, Ipv6Address const &dst, Ptr< Ipv6Interface > interface)
	Receive Router Solicitation method. More...

void	HandleTimeExceeded (Ptr< Packet > p, Ipv6Address const &src, Ipv6Address const &dst, Ptr< Ipv6Interface > interface)
	Receive Time Exceeded method. More...

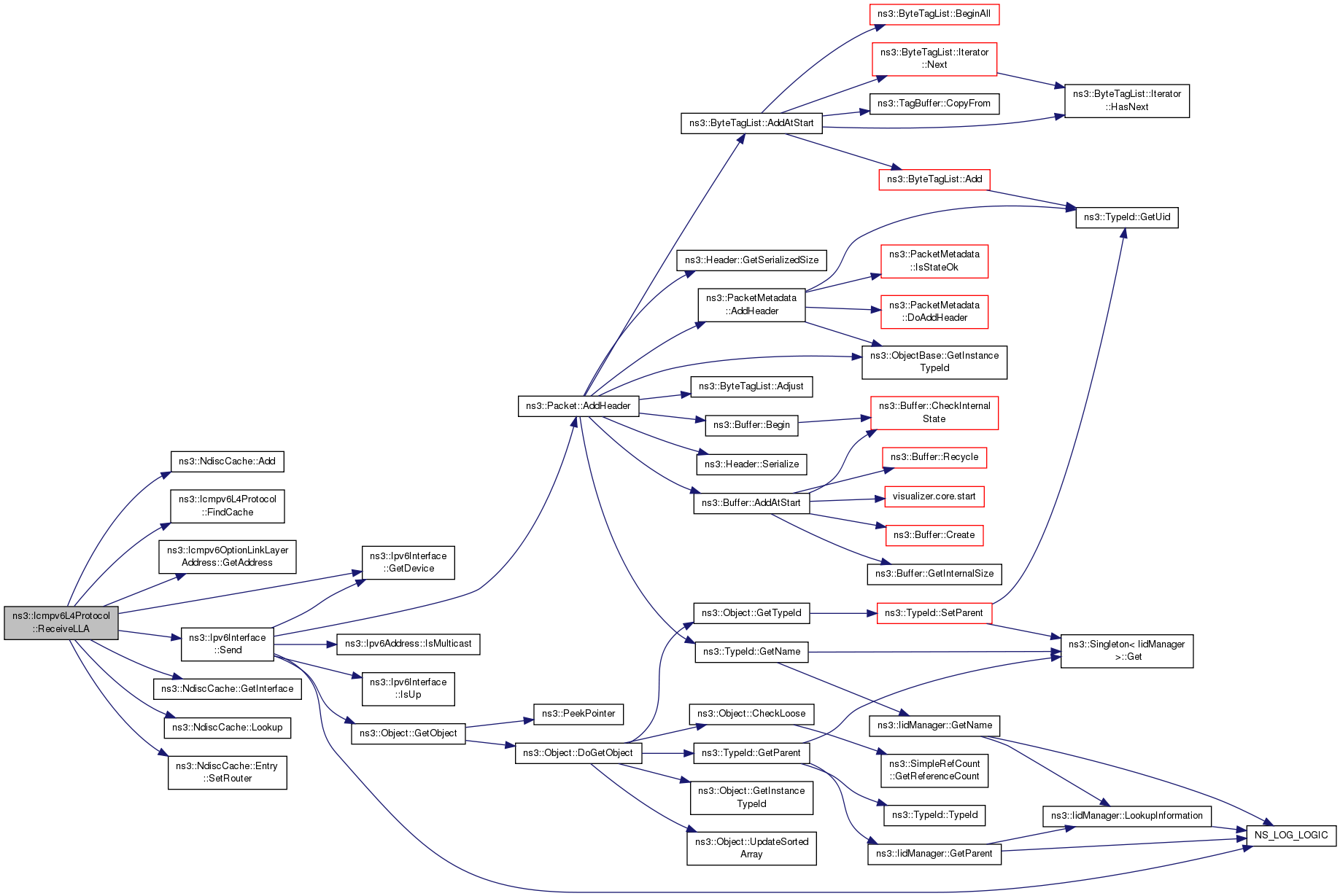

void	ReceiveLLA (Icmpv6OptionLinkLayerAddress lla, Ipv6Address const &src, Ipv6Address const &dst, Ptr< Ipv6Interface > interface)
	Link layer address option processing. More...

virtual void	SetDownTarget (IpL4Protocol::DownTargetCallback cb)
	This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case) More...

virtual void	SetDownTarget6 (IpL4Protocol::DownTargetCallback6 cb)
	This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case) More...

Private Attributes
bool	m_alwaysDad
	Always do DAD ? More...

CacheList	m_cacheList
	A list of cache by device. More...

Time	m_delayFirstProbe
	Neighbor Discovery node constants: delay for the first probe. More...

IpL4Protocol::DownTargetCallback6	m_downTarget
	callback to Ipv6::Send More...

uint8_t	m_maxMulticastSolicit
	Neighbor Discovery node constants: max multicast solicitations. More...

uint8_t	m_maxUnicastSolicit
	Neighbor Discovery node constants: max unicast solicitations. More...

Ptr< Node >	m_node
	The node. More...

Time	m_reachableTime
	Neighbor Discovery node constants: reachable time. More...

Time	m_retransmissionTime
	Neighbor Discovery node constants: retransmission timer. More...

Ptr< RandomVariableStream >	m_solicitationJitter
	Random jitter before sending solicitations. More...

Additional Inherited Members
Public Types inherited from ns3::IpL4Protocol
typedef Callback< void, Ptr< Packet >, Ipv4Address, Ipv4Address, uint8_t, Ptr< Ipv4Route > >	DownTargetCallback
	callback to send packets over IPv4 More...

typedef Callback< void, Ptr< Packet >, Ipv6Address, Ipv6Address, uint8_t, Ptr< Ipv6Route > >	DownTargetCallback6
	callback to send packets over IPv6 More...

enum	RxStatus { RX_OK, RX_CSUM_FAILED, RX_ENDPOINT_CLOSED, RX_ENDPOINT_UNREACH }
	Rx status codes. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

An implementation of the ICMPv6 protocol.

Config Paths

ns3::Icmpv6L4Protocol is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/$ns3::Icmpv6L4Protocol"

Attributes

DAD: Always do DAD check.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
SolicitationJitter: The jitter in ms a node is allowed to wait before sending any solicitation. Some jitter aims to prevent collisions. By default, the model will wait for a duration in ms defined by a uniform random-variable between 0 and SolicitationJitter
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream>
- Initial value: ns3::UniformRandomVariable[Min=0.0|Max=10.0]
- Flags: construct write read
MaxMulticastSolicit: Neighbor Discovery node constants: max multicast solicitations.
- Set with class: ns3::IntegerValue
- Underlying type: uint8_t 0:255
- Initial value: 3
- Flags: construct write read
MaxUnicastSolicit: Neighbor Discovery node constants: max unicast solicitations.
- Set with class: ns3::IntegerValue
- Underlying type: uint8_t 0:255
- Initial value: 3
- Flags: construct write read
ReachableTime: Neighbor Discovery node constants: reachable time.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +30000000000.0ns
- Flags: construct write read
RetransmissionTime: Neighbor Discovery node constants: retransmission timer.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read
DelayFirstProbe: Neighbor Discovery node constants: delay for the first probe.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +5000000000.0ns
- Flags: construct write read

Attributes defined in parent class ns3::IpL4Protocol

ProtocolNumber: The IP protocol number.
- Set with class: ns3::IntegerValue
- Underlying type: int32_t 0:255
- Flags: read

No TraceSources are defined for this type.
Size of this type is 104 bytes (on a 64-bit architecture).

Definition at line 52 of file icmpv6-l4-protocol.h.

Member Typedef Documentation

typedef std::list<Ptr<NdiscCache> > ns3::Icmpv6L4Protocol::CacheList

private

container of NdiscCaches

Definition at line 384 of file icmpv6-l4-protocol.h.

Constructor & Destructor Documentation

ns3::Icmpv6L4Protocol::Icmpv6L4Protocol ( )

Constructor.

Definition at line 102 of file icmpv6-l4-protocol.cc.

References NS_LOG_FUNCTION.

ns3::Icmpv6L4Protocol::~Icmpv6L4Protocol ( )

virtual

Destructor.

Definition at line 108 of file icmpv6-l4-protocol.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::Icmpv6L4Protocol::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 129 of file icmpv6-l4-protocol.cc.

References m_solicitationJitter, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

Ptr< NdiscCache > ns3::Icmpv6L4Protocol::CreateCache	(	Ptr< NetDevice >	device,
		Ptr< Ipv6Interface >	interface
	)

Create a neighbor cache.

Parameters

device	thet NetDevice
interface	the IPv6 interface

Returns: a smart pointer of NdCache or 0 if problem

Definition at line 1285 of file icmpv6-l4-protocol.cc.

References ns3::NdiscCache::Flush(), m_cacheList, ns3::MakeCallback(), NS_LOG_FUNCTION, and ns3::NdiscCache::SetDevice().

Here is the call graph for this function:

void ns3::Icmpv6L4Protocol::DelayedSendMessage	(	Ptr< Packet >	packet,
		Ipv6Address	src,
		Ipv6Address	dst,
		uint8_t	ttl
	)

Helper function used during delayed solicitation.

Calls SendMessage internally

Parameters

packet	the packet to send which contains ICMPv6 header
src	source address
dst	destination address
ttl	next hop limit

Definition at line 911 of file icmpv6-l4-protocol.cc.

References NS_LOG_FUNCTION, and SendMessage().

Referenced by SendNS(), and SendRS().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::DoDAD	(	Ipv6Address	target,
		Ptr< Ipv6Interface >	interface
	)

Do the Duplication Address Detection (DAD).

It consists in sending a NS with our IPv6 as target. If we received a NA with matched target address, we could not use the address, else the address pass from TENTATIVE to PERMANENT.

Parameters

target	target address
interface	interface

Todo:: disable multicast loopback to prevent NS probing to be received by the sender

Definition at line 188 of file icmpv6-l4-protocol.cc.

References ForgeNS(), ns3::Ipv6Interface::GetDevice(), ns3::Object::GetObject(), ns3::RandomVariableStream::GetValue(), m_alwaysDad, m_node, m_solicitationJitter, ns3::Ipv6Address::MakeSolicitedAddress(), ns3::MilliSeconds(), NS_ASSERT, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::Ipv6Interface::Send(), and ns3::Ipv6Interface::SetNsDadUid().

Referenced by ns3::Ipv6Interface::AddAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::DoDispose ( void )

protectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 113 of file icmpv6-l4-protocol.cc.

References ns3::Object::Dispose(), ns3::Object::DoDispose(), m_cacheList, m_downTarget, m_node, NS_LOG_FUNCTION, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

Here is the call graph for this function:

Ptr< NdiscCache > ns3::Icmpv6L4Protocol::FindCache ( Ptr< NetDevice > device )

private

Get the cache corresponding to the device.

Parameters

device the device

Returns: the NdiscCache associated with the device

Definition at line 1268 of file icmpv6-l4-protocol.cc.

References m_cacheList, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by HandleNA(), HandleNS(), HandleRedirection(), HandleRS(), Lookup(), and ReceiveLLA().

Here is the caller graph for this function:

NdiscCache::Ipv6PayloadHeaderPair ns3::Icmpv6L4Protocol::ForgeEchoRequest	(	Ipv6Address	src,
		Ipv6Address	dst,
		uint16_t	id,
		uint16_t	seq,
		Ptr< Packet >	data
	)

Forge an Echo Request.

Parameters

src	source address
dst	destination address
id	ID of the packet
seq	sequence number
data	the data

Returns: Echo Request packet (with IPv6 header)

Definition at line 595 of file icmpv6-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Icmpv6Header::CalculatePseudoHeaderChecksum(), ns3::Packet::Copy(), ns3::Icmpv6Echo::GetSerializedSize(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, PROT_NUMBER, ns3::Ipv6Header::SetDestinationAddress(), ns3::Ipv6Header::SetHopLimit(), ns3::Icmpv6Echo::SetId(), ns3::Ipv6Header::SetNextHeader(), ns3::Ipv6Header::SetPayloadLength(), ns3::Icmpv6Echo::SetSeq(), and ns3::Ipv6Header::SetSourceAddress().

Here is the call graph for this function:

NdiscCache::Ipv6PayloadHeaderPair ns3::Icmpv6L4Protocol::ForgeNA	(	Ipv6Address	src,
		Ipv6Address	dst,
		Address *	hardwareAddress,
		uint8_t	flags
	)

Forge a Neighbor Advertisement.

Parameters

src	source IPv6 address
dst	destination IPv6 address
hardwareAddress	our mac address
flags	flags (bitfield => R (4), S (2), O (1))

Returns: NA packet (with IPv6 header)

Definition at line 1199 of file icmpv6-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Icmpv6Header::CalculatePseudoHeaderChecksum(), ns3::Ipv6Address::GetAny(), ns3::Icmpv6NA::GetSerializedSize(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), PROT_NUMBER, ns3::Icmpv6NA::SetFlagO(), ns3::Icmpv6NA::SetFlagR(), ns3::Icmpv6NA::SetFlagS(), and ns3::Icmpv6NA::SetIpv6Target().

Referenced by HandleNS().

Here is the call graph for this function:

Here is the caller graph for this function:

NdiscCache::Ipv6PayloadHeaderPair ns3::Icmpv6L4Protocol::ForgeNS	(	Ipv6Address	src,
		Ipv6Address	dst,
		Ipv6Address	target,
		Address	hardwareAddress
	)

Forge a Neighbor Solicitation.

Parameters

src	source IPv6 address
dst	destination IPv6 address
target	target IPv6 address
hardwareAddress	our mac address

Returns: NS packet (with IPv6 header)

Definition at line 1239 of file icmpv6-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Icmpv6Header::CalculatePseudoHeaderChecksum(), ns3::Ipv6Address::GetAllNodesMulticast(), ns3::Ipv6Address::GetAny(), ns3::Icmpv6NS::GetSerializedSize(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), and PROT_NUMBER.

Referenced by DoDAD().

Here is the call graph for this function:

Here is the caller graph for this function:

NdiscCache::Ipv6PayloadHeaderPair ns3::Icmpv6L4Protocol::ForgeRS	(	Ipv6Address	src,
		Ipv6Address	dst,
		Address	hardwareAddress
	)

Forge a Router Solicitation.

Parameters

src	source IPv6 address
dst	destination IPv6 address
hardwareAddress	our mac address

Returns: RS packet (with IPv6 header)

Definition at line 572 of file icmpv6-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Icmpv6Header::CalculatePseudoHeaderChecksum(), ns3::Icmpv6RS::GetSerializedSize(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), and PROT_NUMBER.

Here is the call graph for this function:

void ns3::Icmpv6L4Protocol::Forward	(	Ipv6Address	source,
		Icmpv6Header	icmp,
		uint32_t	info,
		Ipv6Header	ipHeader,
		const uint8_t	payload[8]
	)

private

Notify an ICMPv6 reception to upper layers (if requested).

Parameters

source	the ICMP source
icmp	the ICMP header
info	information about the ICMP
ipHeader	the IP header carried by the ICMP
payload	the data carried by the ICMP

Todo:: assuming the ICMP is carrying a extensionless IP packet

Definition at line 277 of file icmpv6-l4-protocol.cc.

References ns3::Icmpv6Header::GetCode(), ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Header::GetHopLimit(), ns3::Ipv6Header::GetNextHeader(), ns3::Object::GetObject(), ns3::Ipv6Header::GetSourceAddress(), ns3::Icmpv6Header::GetType(), m_node, NS_LOG_FUNCTION, and ns3::IpL4Protocol::ReceiveIcmp().

Referenced by HandleDestinationUnreachable(), HandlePacketTooBig(), HandleParameterError(), and HandleTimeExceeded().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::FunctionDadTimeout	(	Ptr< Icmpv6L4Protocol >	icmpv6,
		Ipv6Interface *	interface,
		Ipv6Address	addr
	)

static

Function called when DAD timeout.

Parameters

icmpv6	Icmpv6L4Protocol instance
interface	the interface
addr	the IPv6 address

Definition at line 1403 of file icmpv6-l4-protocol.cc.

References ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6Interface::GetAddress(), ns3::Ipv6Address::GetAllRoutersMulticast(), ns3::Ipv6Interface::GetDevice(), ns3::Ipv6Interface::GetNAddresses(), ns3::Ipv6InterfaceAddress::GetState(), ns3::Ipv6InterfaceAddress::INVALID, ns3::Ipv6Address::IsLinkLocal(), NS_LOG_FUNCTION_NOARGS, NS_LOG_LOGIC(), ns3::PeekPointer(), ns3::Ipv6InterfaceAddress::PREFERRED, ns3::Simulator::Schedule(), ns3::Seconds(), SendRS(), and ns3::Ipv6Interface::SetState().

Referenced by ns3::Ipv6Interface::AddAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::Icmpv6L4Protocol::GetDelayFirstProbe ( ) const

Neighbor Discovery node constants : delay for the first probe.

Returns: The time before a first probe for an Neighbor cache entry.

Definition at line 1498 of file icmpv6-l4-protocol.cc.

References m_delayFirstProbe.

IpL4Protocol::DownTargetCallback ns3::Icmpv6L4Protocol::GetDownTarget ( void ) const

privatevirtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case)

Returns: current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 1460 of file icmpv6-l4-protocol.cc.

References NS_LOG_FUNCTION.

IpL4Protocol::DownTargetCallback6 ns3::Icmpv6L4Protocol::GetDownTarget6 ( void ) const

privatevirtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case)

Returns: current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 1467 of file icmpv6-l4-protocol.cc.

References m_downTarget, and NS_LOG_FUNCTION.

uint8_t ns3::Icmpv6L4Protocol::GetMaxMulticastSolicit ( ) const

Neighbor Discovery node constants: max multicast solicitations.

Returns: The max multicast solicitations number.

Definition at line 1474 of file icmpv6-l4-protocol.cc.

References m_maxMulticastSolicit.

uint8_t ns3::Icmpv6L4Protocol::GetMaxUnicastSolicit ( ) const

Neighbor Discovery node constants: max unicast solicitations.

Returns: The max unicast solicitations number.

Definition at line 1480 of file icmpv6-l4-protocol.cc.

References m_maxUnicastSolicit.

int ns3::Icmpv6L4Protocol::GetProtocolNumber ( void ) const

virtual

Get the protocol number.

Returns: protocol number

Implements ns3::IpL4Protocol.

Definition at line 170 of file icmpv6-l4-protocol.cc.

References NS_LOG_FUNCTION, and PROT_NUMBER.

Time ns3::Icmpv6L4Protocol::GetReachableTime ( ) const

Neighbor Discovery node constants: reachable time.

Returns: The Reachable time for an Neighbor cache entry.

Definition at line 1486 of file icmpv6-l4-protocol.cc.

References m_reachableTime.

Time ns3::Icmpv6L4Protocol::GetRetransmissionTime ( ) const

Neighbor Discovery node constants: retransmission timer.

Returns: The Retransmission time for an Neighbor cache entry probe.

Definition at line 1492 of file icmpv6-l4-protocol.cc.

References m_retransmissionTime.

uint16_t ns3::Icmpv6L4Protocol::GetStaticProtocolNumber ( void )

static

Get ICMPv6 protocol number.

Returns: protocol number

Definition at line 164 of file icmpv6-l4-protocol.cc.

References NS_LOG_FUNCTION_NOARGS, and PROT_NUMBER.

Referenced by ns3::Ipv6Interface::AddAddress(), ns3::Ipv6Interface::DoSetup(), ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::Ipv6L3Protocol::GetIcmpv6(), and ns3::Ipv6RawSocketImpl::SendTo().

Here is the caller graph for this function:

TypeId ns3::Icmpv6L4Protocol::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 64 of file icmpv6-l4-protocol.cc.

References m_alwaysDad, m_delayFirstProbe, m_maxMulticastSolicit, m_maxUnicastSolicit, m_reachableTime, m_retransmissionTime, m_solicitationJitter, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeIntegerAccessor(), ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::Seconds(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

int ns3::Icmpv6L4Protocol::GetVersion ( ) const

virtual

Get the version of the protocol.

Returns: version

Definition at line 176 of file icmpv6-l4-protocol.cc.

References NS_LOG_FUNCTION.

void ns3::Icmpv6L4Protocol::HandleDestinationUnreachable	(	Ptr< Packet >	p,
		Ipv6Address const &	src,
		Ipv6Address const &	dst,
		Ptr< Ipv6Interface >	interface
	)

private

Receive Destination Unreachable method.

Parameters

p	the packet
src	source address
dst	destination address
interface	the interface from which the packet is coming

Definition at line 828 of file icmpv6-l4-protocol.cc.

References ns3::Packet::Copy(), ns3::Packet::CopyData(), Forward(), ns3::Icmpv6Header::GetCode(), ns3::Icmpv6DestinationUnreachable::GetPacket(), ns3::Ipv6Header::GetSerializedSize(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, and ns3::Packet::RemoveHeader().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::HandleEchoRequest	(	Ptr< Packet >	p,
		Ipv6Address const &	src,
		Ipv6Address const &	dst,
		Ptr< Ipv6Interface >	interface
	)

private

Receive Echo Request method.

Parameters

p	the packet
src	source address
dst	destination address
interface	the interface from which the packet is coming

Definition at line 300 of file icmpv6-l4-protocol.cc.

References ns3::Packet::CopyData(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Icmpv6Echo::GetId(), ns3::Ipv6Interface::GetLinkLocalAddress(), ns3::Icmpv6Echo::GetSeq(), ns3::Packet::GetSize(), ns3::Ipv6Address::IsMulticast(), NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), and SendEchoReply().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::HandleNA	(	Ptr< Packet >	p,
		Ipv6Address const &	src,
		Ipv6Address const &	dst,
		Ptr< Ipv6Interface >	interface
	)

private

Receive Neighbor Advertisement method.

Parameters

p	the packet
src	source address
dst	destination address
interface	the interface from which the packet is coming

Definition at line 617 of file icmpv6-l4-protocol.cc.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::HandleNS	(	Ptr< Packet >	p,
		Ipv6Address const &	src,
		Ipv6Address const &	dst,
		Ptr< Ipv6Interface >	interface
	)

private

Receive Neighbor Solicitation method.

Parameters

p	the packet
src	source address
dst	destination address
interface	the interface from which the packet is coming

Definition at line 479 of file icmpv6-l4-protocol.cc.

References ns3::NdiscCache::Add(), ns3::Packet::CopyData(), FindCache(), ForgeNA(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6Interface::GetAddress(), ns3::Icmpv6OptionLinkLayerAddress::GetAddress(), ns3::Ipv6Address::GetAllNodesMulticast(), ns3::Ipv6Address::GetAny(), ns3::Ipv6Interface::GetDevice(), ns3::Icmpv6NS::GetIpv6Target(), ns3::Ipv6Interface::GetLinkLocalAddress(), ns3::NdiscCache::Entry::GetMacAddress(), ns3::Ipv6Interface::GetNAddresses(), ns3::Ipv6InterfaceAddress::GetNsDadUid(), ns3::Object::GetObject(), ns3::Packet::GetUid(), ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_SOURCE, ns3::Ipv6Address::IsAny(), ns3::Ipv6Address::IsLinkLocal(), ns3::NdiscCache::Lookup(), m_node, ns3::NdiscCache::Entry::MarkStale(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), ns3::Packet::RemoveHeader(), ns3::Ipv6Interface::Send(), and ns3::NdiscCache::Entry::SetRouter().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::HandlePacketTooBig	(	Ptr< Packet >	p,
		Ipv6Address const &	src,
		Ipv6Address const &	dst,
		Ptr< Ipv6Interface >	interface
	)

private

Receive Packet Too Big method.

Parameters

p	the packet
src	source address
dst	destination address
interface	the interface from which the packet is coming

Definition at line 863 of file icmpv6-l4-protocol.cc.

References ns3::Packet::Copy(), ns3::Packet::CopyData(), Forward(), ns3::Ipv6Header::GetDestinationAddress(), ns3::Icmpv6TooBig::GetMtu(), ns3::Object::GetObject(), ns3::Icmpv6TooBig::GetPacket(), m_node, NS_LOG_FUNCTION, and ns3::Packet::RemoveHeader().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::HandleParameterError	(	Ptr< Packet >	p,
		Ipv6Address const &	src,
		Ipv6Address const &	dst,
		Ptr< Ipv6Interface >	interface
	)

private

Receive Parameter Error method.

Parameters

p	the packet
src	source address
dst	destination address
interface	the interface from which the packet is coming

Definition at line 883 of file icmpv6-l4-protocol.cc.

References ns3::Packet::Copy(), ns3::Packet::CopyData(), Forward(), ns3::Icmpv6Header::GetCode(), ns3::Icmpv6ParameterError::GetPacket(), NS_LOG_FUNCTION, and ns3::Packet::RemoveHeader().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::HandleRA	(	Ptr< Packet >	p,
		Ipv6Address const &	src,
		Ipv6Address const &	dst,
		Ptr< Ipv6Interface >	interface
	)

private

Receive Router Advertisement method.

Parameters

p	the packet
src	source address
dst	destination address
interface	the interface from which the packet is coming

Todo:: case of multiple prefix on single interface

Definition at line 316 of file icmpv6-l4-protocol.cc.

References ns3::Packet::Copy(), ns3::Packet::CopyData(), ns3::Ipv6Interface::GetDevice(), ns3::Icmpv6RA::GetLifeTime(), ns3::Object::GetObject(), ns3::Ipv6Address::GetZero(), ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_SOURCE, ns3::Icmpv6Header::ICMPV6_OPT_MTU, ns3::Icmpv6Header::ICMPV6_OPT_PREFIX, m_node, NS_LOG_FUNCTION, ReceiveLLA(), and ns3::Packet::RemoveHeader().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::HandleRedirection	(	Ptr< Packet >	p,
		Ipv6Address const &	src,
		Ipv6Address const &	dst,
		Ptr< Ipv6Interface >	interface
	)

private

Receive Redirection method.

Parameters

p	the packet
src	source address
dst	destination address
interface	the interface from which the packet is coming

Definition at line 756 of file icmpv6-l4-protocol.cc.

References ns3::NdiscCache::Add(), ns3::Packet::Copy(), ns3::Packet::CopyData(), FindCache(), ns3::Icmpv6OptionLinkLayerAddress::GetAddress(), ns3::Icmpv6Redirection::GetDestination(), ns3::Ipv6Interface::GetDevice(), ns3::Object::GetObject(), ns3::Icmpv6Redirection::GetTarget(), ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_TARGET, ns3::Ipv6Address::IsEqual(), ns3::NdiscCache::Lookup(), m_node, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), and ns3::NdiscCache::Entry::SetRouter().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::HandleRS	(	Ptr< Packet >	p,
		Ipv6Address const &	src,
		Ipv6Address const &	dst,
		Ptr< Ipv6Interface >	interface
	)

private

Receive Router Solicitation method.

Parameters

p	the packet
src	source address
dst	destination address
interface	the interface from which the packet is coming

Definition at line 440 of file icmpv6-l4-protocol.cc.

References ns3::NdiscCache::Add(), ns3::Packet::CopyData(), FindCache(), ns3::Icmpv6OptionLinkLayerAddress::GetAddress(), ns3::Ipv6Address::GetAny(), ns3::Ipv6Interface::GetDevice(), ns3::NdiscCache::Entry::GetMacAddress(), ns3::Object::GetObject(), ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_SOURCE, ns3::NdiscCache::Lookup(), m_node, ns3::NdiscCache::Entry::MarkStale(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), ns3::Packet::RemoveHeader(), and ns3::NdiscCache::Entry::SetRouter().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::HandleTimeExceeded	(	Ptr< Packet >	p,
		Ipv6Address const &	src,
		Ipv6Address const &	dst,
		Ptr< Ipv6Interface >	interface
	)

private

Receive Time Exceeded method.

Parameters

p	the packet
src	source address
dst	destination address
interface	the interface from which the packet is coming

Definition at line 847 of file icmpv6-l4-protocol.cc.

References ns3::Packet::Copy(), ns3::Packet::CopyData(), Forward(), ns3::Icmpv6Header::GetCode(), ns3::Icmpv6TimeExceeded::GetPacket(), NS_LOG_FUNCTION, and ns3::Packet::RemoveHeader().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Icmpv6L4Protocol::IsAlwaysDad ( ) const

Is the node must do DAD.

Returns: true if node has to do DAD.

Definition at line 182 of file icmpv6-l4-protocol.cc.

References m_alwaysDad, and NS_LOG_FUNCTION.

bool ns3::Icmpv6L4Protocol::Lookup	(	Ipv6Address	dst,
		Ptr< NetDevice >	device,
		Ptr< NdiscCache >	cache,
		Address *	hardwareDestination
	)

Lookup in the ND cache for the IPv6 address.

Note: Unlike other Lookup method, it does not send NS request!

Parameters

dst	destination address
device	device
cache	the neighbor cache
hardwareDestination	hardware address

Returns: true if the address is in the ND cache, the hardwareDestination is updated.

Definition at line 1297 of file icmpv6-l4-protocol.cc.

References FindCache(), ns3::NdiscCache::Entry::GetMacAddress(), ns3::NdiscCache::Entry::IsDelay(), ns3::NdiscCache::Entry::IsPermanent(), ns3::NdiscCache::Entry::IsReachable(), ns3::NdiscCache::Entry::IsStale(), ns3::NdiscCache::Lookup(), ns3::NdiscCache::Entry::MarkDelay(), NS_LOG_FUNCTION, and ns3::NdiscCache::Entry::StartDelayTimer().

Here is the call graph for this function:

bool ns3::Icmpv6L4Protocol::Lookup	(	Ptr< Packet >	p,
		const Ipv6Header &	ipHeader,
		Ipv6Address	dst,
		Ptr< NetDevice >	device,
		Ptr< NdiscCache >	cache,
		Address *	hardwareDestination
	)

Lookup in the ND cache for the IPv6 address (similar as ARP protocol).

It also send NS request to target and store the waiting packet.

Parameters

p	the packet
ipHeader	IPv6 header
dst	destination address
device	device
cache	the neighbor cache
hardwareDestination	hardware address

Returns: true if the address is in the ND cache, the hardwareDestination is updated.

Definition at line 1328 of file icmpv6-l4-protocol.cc.

Here is the call graph for this function:

void ns3::Icmpv6L4Protocol::NotifyNewAggregate ( void )

virtual

This method is called by AddAgregate and completes the aggregation by setting the node in the ICMPv6 stack and adding ICMPv6 factory to IPv6 stack connected to the node.

Reimplemented from ns3::Object.

Definition at line 136 of file icmpv6-l4-protocol.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_downTarget, m_node, ns3::MakeCallback(), ns3::Object::NotifyNewAggregate(), NS_LOG_FUNCTION, ns3::Ipv6::Send(), SetDownTarget6(), and SetNode().

Here is the call graph for this function:

enum IpL4Protocol::RxStatus ns3::Icmpv6L4Protocol::Receive	(	Ptr< Packet >	p,
		Ipv6Header const &	header,
		Ptr< Ipv6Interface >	interface
	)

virtual

Receive method.

Parameters

p	the packet
header	the IPv6 header
interface	the interface from which the packet is coming

Returns: the receive status

Todo:: implement request / reply consistency check.

Implements ns3::IpL4Protocol.

Definition at line 216 of file icmpv6-l4-protocol.cc.

Here is the call graph for this function:

enum IpL4Protocol::RxStatus ns3::Icmpv6L4Protocol::Receive	(	Ptr< Packet >	p,
		Ipv4Header const &	header,
		Ptr< Ipv4Interface >	interface
	)

virtual

Receive method.

Parameters

p	the packet
header	the IPv4 header
interface	the interface from which the packet is coming

Returns: the receive status

Implements ns3::IpL4Protocol.

Definition at line 210 of file icmpv6-l4-protocol.cc.

References NS_LOG_FUNCTION, and ns3::IpL4Protocol::RX_ENDPOINT_UNREACH.

void ns3::Icmpv6L4Protocol::ReceiveLLA	(	Icmpv6OptionLinkLayerAddress	lla,
		Ipv6Address const &	src,
		Ipv6Address const &	dst,
		Ptr< Ipv6Interface >	interface
	)

private

Link layer address option processing.

Parameters

lla	LLA option
src	source address
dst	destination address
interface	the interface from which the packet is coming

Definition at line 375 of file icmpv6-l4-protocol.cc.

References ns3::NdiscCache::Add(), FindCache(), ns3::Icmpv6OptionLinkLayerAddress::GetAddress(), ns3::Ipv6Interface::GetDevice(), ns3::NdiscCache::GetInterface(), ns3::NdiscCache::Lookup(), NS_LOG_FUNCTION, ns3::Ipv6Interface::Send(), and ns3::NdiscCache::Entry::SetRouter().

Referenced by HandleRA().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::SendEchoReply	(	Ipv6Address	src,
		Ipv6Address	dst,
		uint16_t	id,
		uint16_t	seq,
		Ptr< Packet >	data
	)

Send a Echo Reply.

Parameters

src	source IPv6 address
dst	destination IPv6 address
id	id of the packet
seq	sequence number
data	auxiliary data

Definition at line 978 of file icmpv6-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Icmpv6Header::CalculatePseudoHeaderChecksum(), ns3::Packet::Copy(), ns3::Icmpv6Echo::GetSerializedSize(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, PROT_NUMBER, SendMessage(), ns3::Icmpv6Echo::SetId(), and ns3::Icmpv6Echo::SetSeq().

Referenced by HandleEchoRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::SendErrorDestinationUnreachable	(	Ptr< Packet >	malformedPacket,
		Ipv6Address	dst,
		uint8_t	code
	)

Send an error Destination Unreachable.

Parameters

malformedPacket	the malformed packet
dst	destination IPv6 address
code	code of the error

Definition at line 1050 of file icmpv6-l4-protocol.cc.

References ns3::Packet::CreateFragment(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), SendMessage(), ns3::Icmpv6Header::SetCode(), and ns3::Icmpv6DestinationUnreachable::SetPacket().

Here is the call graph for this function:

void ns3::Icmpv6L4Protocol::SendErrorParameterError	(	Ptr< Packet >	malformedPacket,
		Ipv6Address	dst,
		uint8_t	code,
		uint32_t	ptr
	)

Send an error Parameter Error.

Parameters

malformedPacket	the malformed packet
dst	destination IPv6 address
code	code of the error
ptr	byte of p where the error is located

Definition at line 1123 of file icmpv6-l4-protocol.cc.

References ns3::Packet::CreateFragment(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), SendMessage(), ns3::Icmpv6Header::SetCode(), ns3::Icmpv6ParameterError::SetPacket(), and ns3::Icmpv6ParameterError::SetPtr().

Here is the call graph for this function:

void ns3::Icmpv6L4Protocol::SendErrorTimeExceeded	(	Ptr< Packet >	malformedPacket,
		Ipv6Address	dst,
		uint8_t	code
	)

Send an error Time Exceeded.

Parameters

malformedPacket	the malformed packet
dst	destination IPv6 address
code	code of the error

Definition at line 1099 of file icmpv6-l4-protocol.cc.

References ns3::Packet::CreateFragment(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), SendMessage(), ns3::Icmpv6Header::SetCode(), and ns3::Icmpv6TimeExceeded::SetPacket().

Here is the call graph for this function:

void ns3::Icmpv6L4Protocol::SendErrorTooBig	(	Ptr< Packet >	malformedPacket,
		Ipv6Address	dst,
		uint32_t	mtu
	)

Send an error Too Big.

Parameters

malformedPacket	the malformed packet
dst	destination IPv6 address
mtu	the mtu

Definition at line 1074 of file icmpv6-l4-protocol.cc.

References ns3::Packet::CreateFragment(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), SendMessage(), ns3::Icmpv6Header::SetCode(), ns3::Icmpv6TooBig::SetMtu(), and ns3::Icmpv6TooBig::SetPacket().

Here is the call graph for this function:

void ns3::Icmpv6L4Protocol::SendMessage	(	Ptr< Packet >	packet,
		Ipv6Address	src,
		Ipv6Address	dst,
		uint8_t	ttl
	)

Send a packet via ICMPv6, note that packet already contains ICMPv6 header.

Parameters

packet	the packet to send which contains ICMPv6 header
src	source address
dst	destination address
ttl	next hop limit

Definition at line 899 of file icmpv6-l4-protocol.cc.

References ns3::Packet::AddPacketTag(), ns3::Object::GetObject(), m_downTarget, m_node, NS_ASSERT, NS_LOG_FUNCTION, and PROT_NUMBER.

Referenced by DelayedSendMessage(), SendEchoReply(), SendErrorDestinationUnreachable(), SendErrorParameterError(), SendErrorTimeExceeded(), SendErrorTooBig(), SendNA(), SendNS(), SendRedirection(), and SendRS().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::SendMessage	(	Ptr< Packet >	packet,
		Ipv6Address	dst,
		Icmpv6Header &	icmpv6Hdr,
		uint8_t	ttl
	)

Send a packet via ICMPv6.

Parameters

packet	the packet to send
dst	destination address
icmpv6Hdr	ICMPv6 header (needed to calculate checksum after source address is determined by routing stuff
ttl	next hop limit

Definition at line 917 of file icmpv6-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::Icmpv6Header::CalculatePseudoHeaderChecksum(), ns3::Object::GetObject(), ns3::Icmpv6Header::GetSerializedSize(), ns3::Packet::GetSize(), m_downTarget, m_node, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC(), NS_LOG_WARN, PROT_NUMBER, and ns3::SocketIpTtlTag::SetTtl().

Here is the call graph for this function:

void ns3::Icmpv6L4Protocol::SendNA	(	Ipv6Address	src,
		Ipv6Address	dst,
		Address *	hardwareAddress,
		uint8_t	flags
	)

Send a Neighbor Adverstisement.

Parameters

src	source IPv6 address
dst	destination IPv6 address
hardwareAddress	our MAC address
flags	to set (4 = flag R, 2 = flag S, 3 = flag O)

Definition at line 948 of file icmpv6-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Ipv6Address::GetAny(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), PROT_NUMBER, and SendMessage().

Here is the call graph for this function:

void ns3::Icmpv6L4Protocol::SendNS	(	Ipv6Address	src,
		Ipv6Address	dst,
		Ipv6Address	target,
		Address	hardwareAddress
	)

Send a Neighbor Solicitation.

Parameters

src	source IPv6 address
dst	destination IPv6 address
target	target IPv6 address
hardwareAddress	our mac address

Definition at line 992 of file icmpv6-l4-protocol.cc.

References ns3::Packet::AddHeader(), DelayedSendMessage(), ns3::Ipv6Address::GetAllNodesMulticast(), ns3::Ipv6Address::GetAny(), ns3::Packet::GetSize(), ns3::RandomVariableStream::GetValue(), ns3::Ipv6Address::IsMulticast(), m_solicitationJitter, ns3::MilliSeconds(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), PROT_NUMBER, ns3::Simulator::Schedule(), and SendMessage().

Referenced by Lookup().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6L4Protocol::SendRedirection	(	Ptr< Packet >	redirectedPacket,
		Ipv6Address	src,
		Ipv6Address	dst,
		Ipv6Address	redirTarget,
		Ipv6Address	redirDestination,
		Address	redirHardwareTarget
	)

Send an ICMPv6 Redirection.

Parameters

redirectedPacket	the redirected packet
src	IPv6 address to send the redirect from
dst	IPv6 address to send the redirect to
redirTarget	IPv6 target address for Icmpv6Redirection
redirDestination	IPv6 destination address for Icmpv6Redirection
redirHardwareTarget	L2 target address for Icmpv6OptionRdirected

Definition at line 1148 of file icmpv6-l4-protocol.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddHeader(), ns3::Icmpv6Header::CalculatePseudoHeaderChecksum(), ns3::Packet::CreateFragment(), ns3::Address::GetLength(), ns3::Icmpv6Redirection::GetSerializedSize(), ns3::Icmpv6OptionLinkLayerAddress::GetSerializedSize(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), PROT_NUMBER, SendMessage(), ns3::Icmpv6OptionLinkLayerAddress::SetAddress(), ns3::Icmpv6Redirection::SetDestination(), ns3::Icmpv6OptionRedirected::SetPacket(), and ns3::Icmpv6Redirection::SetTarget().

Here is the call graph for this function:

void ns3::Icmpv6L4Protocol::SendRS	(	Ipv6Address	src,
		Ipv6Address	dst,
		Address	hardwareAddress
	)

Send a Router Solicitation.

Parameters

src	link-local source address
dst	destination address (usealy ff02::2 i.e all-routers)
hardwareAddress	link-layer address (SHOULD be included if src is not ::)

Definition at line 1022 of file icmpv6-l4-protocol.cc.

References ns3::Packet::AddHeader(), DelayedSendMessage(), ns3::Ipv6Address::GetAny(), ns3::Packet::GetSize(), ns3::RandomVariableStream::GetValue(), ns3::Ipv6Address::IsMulticast(), m_solicitationJitter, ns3::MilliSeconds(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), PROT_NUMBER, ns3::Simulator::Schedule(), and SendMessage().
