This class is a helper for the LrWpanMac to manage the Csma/CA state machine according to IEEE 802.15.4-2006, section 7.5.1.4. More...

#include "lr-wpan-csmaca.h"

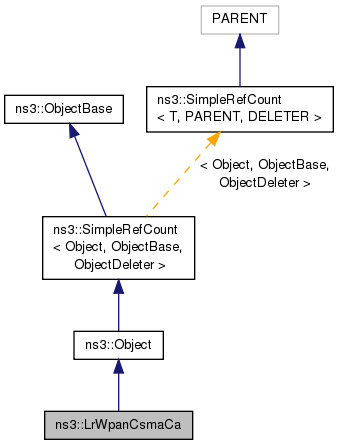

Inheritance diagram for ns3::LrWpanCsmaCa:

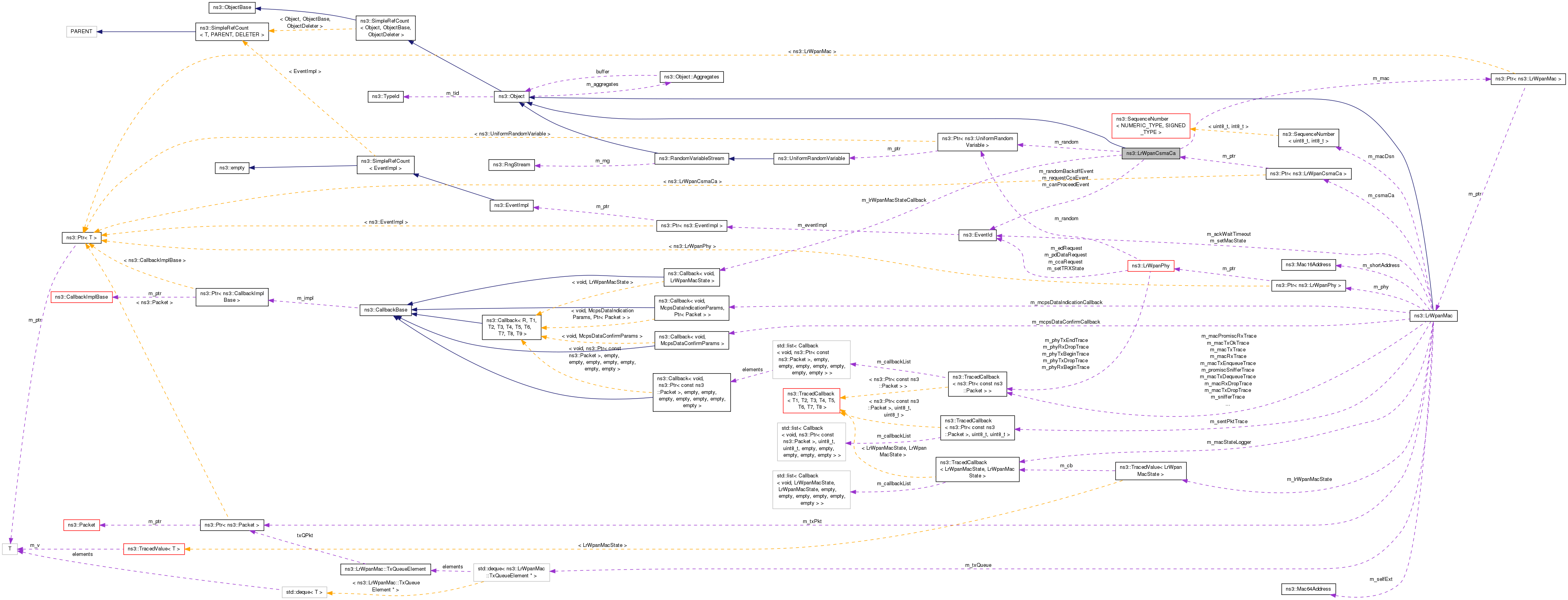

Collaboration diagram for ns3::LrWpanCsmaCa:

Public Member Functions
	LrWpanCsmaCa (void)
	Default constructor. More...

virtual	~LrWpanCsmaCa (void)

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	Cancel (void)
	Cancel CSMA-CA algorithm. More...

void	CanProceed (void)
	In the slotted CSMA-CA, after random backoff, determine if the remaining CSMA-CA operation can proceed, i.e. More...

Ptr< LrWpanMac >	GetMac (void) const
	Get the MAC to which this CSMA/CA implementation is attached to. More...

uint8_t	GetMacMaxBE (void) const
	Get the maximum backoff exponent value. More...

uint8_t	GetMacMaxCSMABackoffs (void) const
	Get the maximum number of backoffs. More...

uint8_t	GetMacMinBE (void) const
	Get the minimum backoff exponent value. More...

uint8_t	GetNB (void)
	Get the number of CSMA retries. More...

Time	GetTimeToNextSlot (void) const
	Get the amount of time from now to the beginning of the next slot. More...

uint64_t	GetUnitBackoffPeriod (void) const
	Get the number of symbols forming the basic time period used by the CSMA-CA algorithm. More...

bool	IsSlottedCsmaCa (void) const
	Check if the slotted CSMA/CA version is being used. More...

bool	IsUnSlottedCsmaCa (void) const
	Check if the unslotted CSMA/CA version is being used. More...

void	PlmeCcaConfirm (LrWpanPhyEnumeration status)
	IEEE 802.15.4-2006 section 6.2.2.2 PLME-CCA.confirm status. More...

void	RandomBackoffDelay (void)
	In step 2 of the CSMA-CA, perform a random backoff in the range of 0 to 2^BE -1. More...

void	RequestCCA (void)
	Request the Phy to perform CCA (Step 3) More...

void	SetLrWpanMacStateCallback (LrWpanMacStateCallback macState)
	Set the callback function to the MAC. More...

void	SetMac (Ptr< LrWpanMac > mac)
	Set the MAC to which this CSMA/CA implementation is attached to. More...

void	SetMacMaxBE (uint8_t macMaxBE)
	Set the maximum backoff exponent value. More...

void	SetMacMaxCSMABackoffs (uint8_t macMaxCSMABackoffs)
	Set the maximum number of backoffs. More...

void	SetMacMinBE (uint8_t macMinBE)
	Set the minimum backoff exponent value. More...

void	SetSlottedCsmaCa (void)
	Configure for the use of the slotted CSMA/CA version. More...

void	SetUnitBackoffPeriod (uint64_t unitBackoffPeriod)
	Set the number of symbols forming the basic time period used by the CSMA-CA algorithm. More...

void	SetUnSlottedCsmaCa (void)
	Configure for the use of the unslotted CSMA/CA version. More...

void	Start (void)
	Start CSMA-CA algorithm (step 1), initialize NB, BE for both slotted and unslotted CSMA-CA. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
	LrWpanCsmaCa (LrWpanCsmaCa const &)
	Copy constructor - defined and not implemented. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

LrWpanCsmaCa &	operator= (LrWpanCsmaCa const &)
	Copy constructor - defined and not implemented. More...

Private Attributes
uint64_t	m_aUnitBackoffPeriod
	Number of symbols per CSMA/CA time unit, default 20 symbols. More...

uint8_t	m_BE
	Backoff exponent. More...

bool	m_BLE
	Battery Life Extension. More...

EventId	m_canProceedEvent
	Scheduler event for checking if we can complete the transmission before the end of the CAP. More...

bool	m_ccaRequestRunning
	Flag indicating that the PHY is currently running a CCA. More...

uint8_t	m_CW
	Contention window length (used in slotted ver only). More...

bool	m_isSlotted
	Beacon-enabled slotted or nonbeacon-enabled unslotted CSMA-CA. More...

LrWpanMacStateCallback	m_lrWpanMacStateCallback
	The callback to inform the configured MAC of the CSMA/CA result. More...

Ptr< LrWpanMac >	m_mac
	The MAC instance for which this CSMAÄ/CA implemenation is configured. More...

uint8_t	m_macMaxBE
	Maximum backoff exponent. More...

uint8_t	m_macMaxCSMABackoffs
	Maximum number of backoffs. More...

uint8_t	m_macMinBE
	Minimum backoff exponent. More...

uint8_t	m_NB
	Number of backoffs for the current transmission. More...

Ptr< UniformRandomVariable >	m_random
	Uniform random variable stream. More...

EventId	m_randomBackoffEvent
	Scheduler event for the start of the next random backoff/slot. More...

EventId	m_requestCcaEvent
	Scheduler event when to start the CCA after a random backoff. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class is a helper for the LrWpanMac to manage the Csma/CA state machine according to IEEE 802.15.4-2006, section 7.5.1.4.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 160 bytes (on a 64-bit architecture).

Definition at line 47 of file lr-wpan-csmaca.h.

Constructor & Destructor Documentation

ns3::LrWpanCsmaCa::LrWpanCsmaCa ( void )

Default constructor.

Definition at line 46 of file lr-wpan-csmaca.cc.

References m_aUnitBackoffPeriod, m_BE, m_BLE, m_ccaRequestRunning, m_CW, m_isSlotted, m_macMaxBE, m_macMaxCSMABackoffs, m_macMinBE, m_NB, and m_random.

ns3::LrWpanCsmaCa::~LrWpanCsmaCa ( void )

virtual

Definition at line 63 of file lr-wpan-csmaca.cc.

References m_mac.

ns3::LrWpanCsmaCa::LrWpanCsmaCa ( LrWpanCsmaCa const & )

private

Copy constructor - defined and not implemented.

Member Function Documentation

int64_t ns3::LrWpanCsmaCa::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 375 of file lr-wpan-csmaca.cc.

References m_random, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

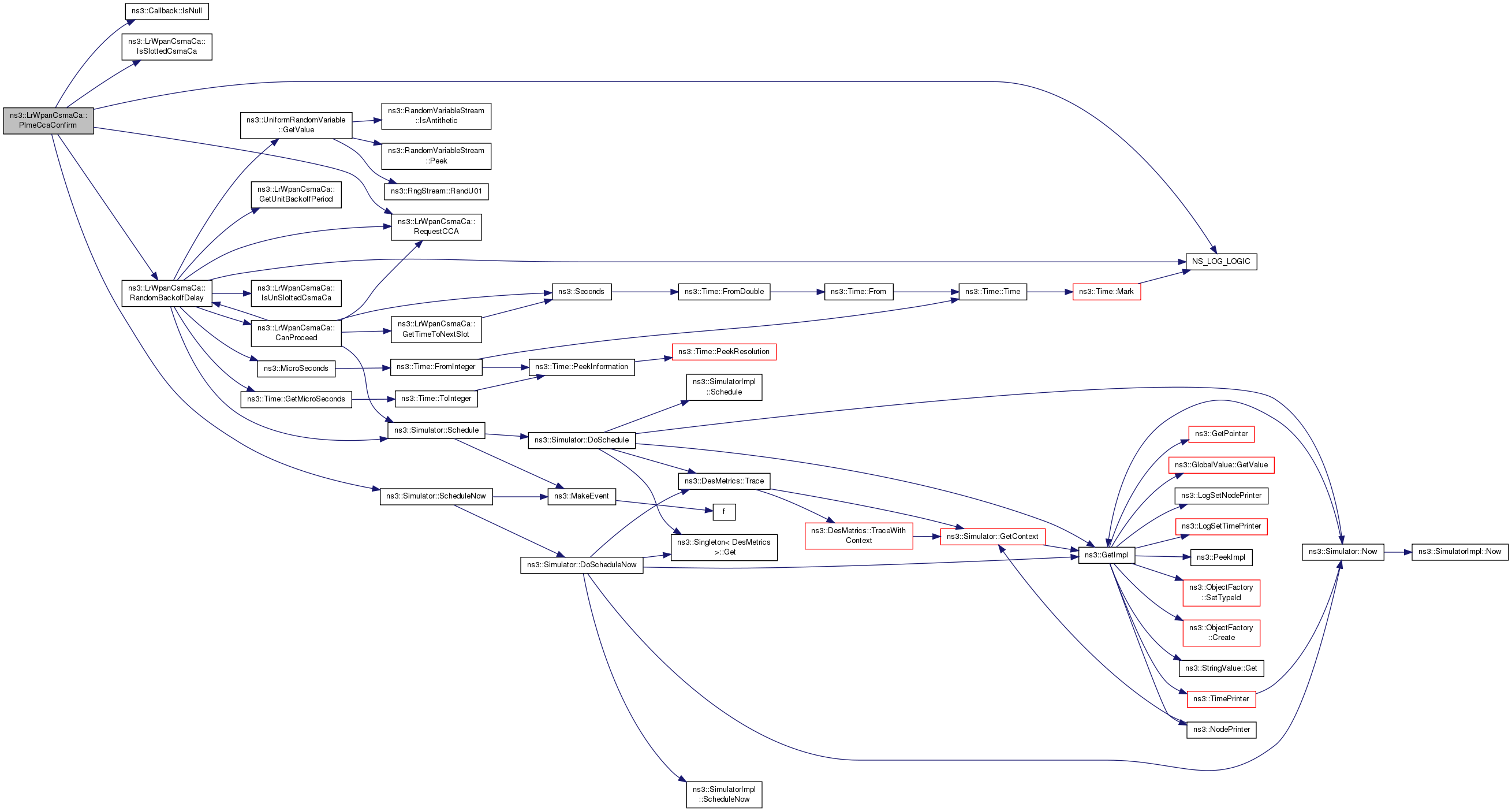

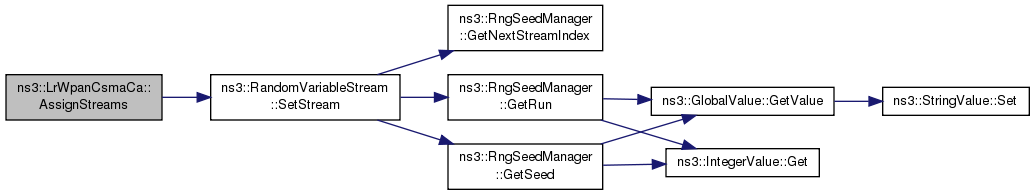

Here is the call graph for this function:

void ns3::LrWpanCsmaCa::Cancel ( void )

Cancel CSMA-CA algorithm.

Definition at line 219 of file lr-wpan-csmaca.cc.

References ns3::EventId::Cancel(), m_canProceedEvent, m_randomBackoffEvent, and m_requestCcaEvent.

Referenced by DoDispose().

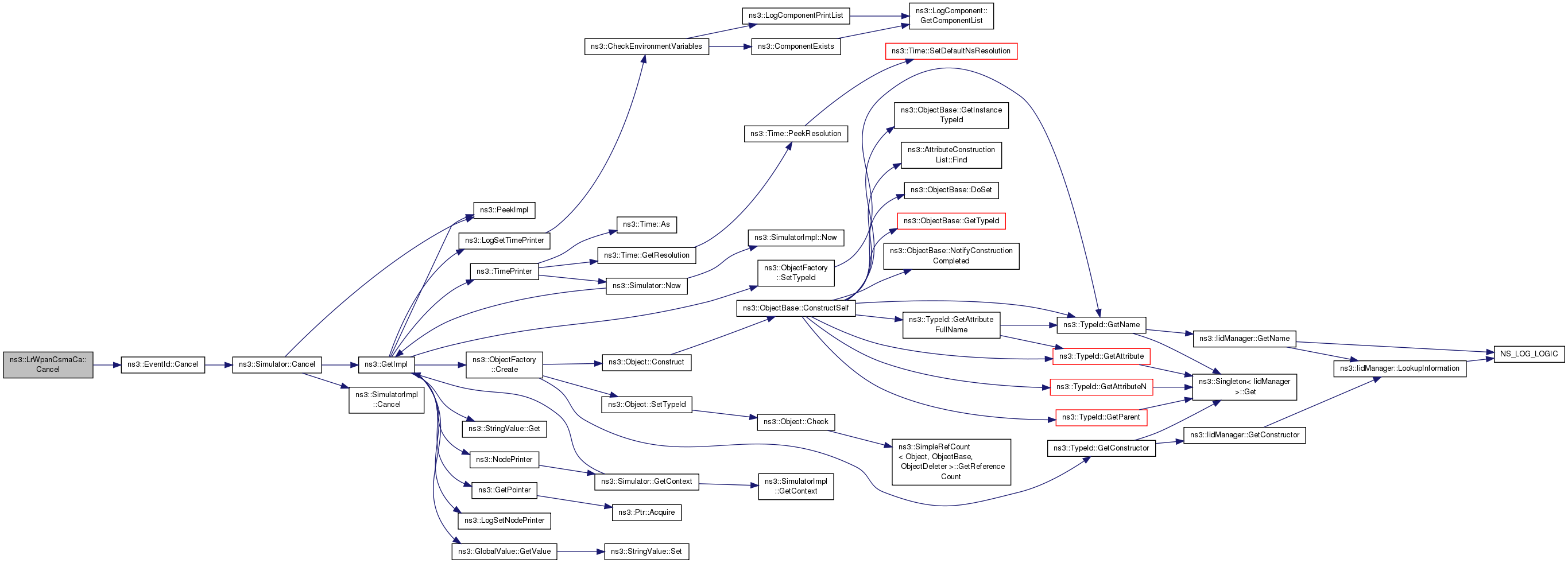

Here is the call graph for this function:

Here is the caller graph for this function:

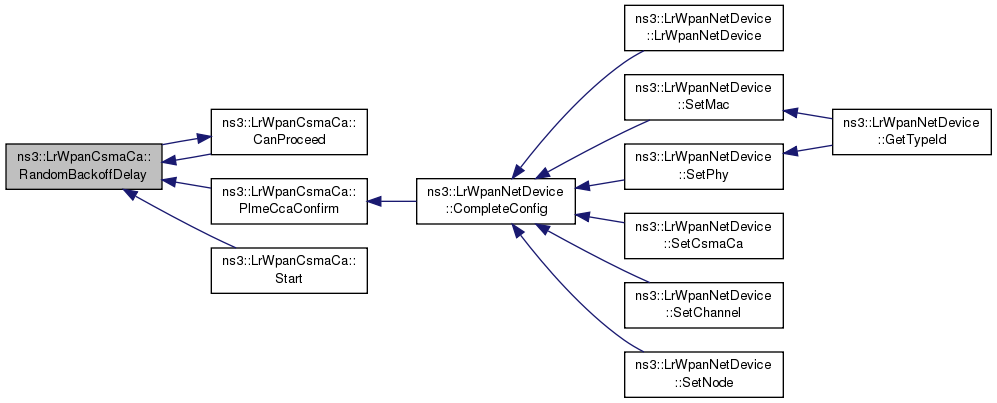

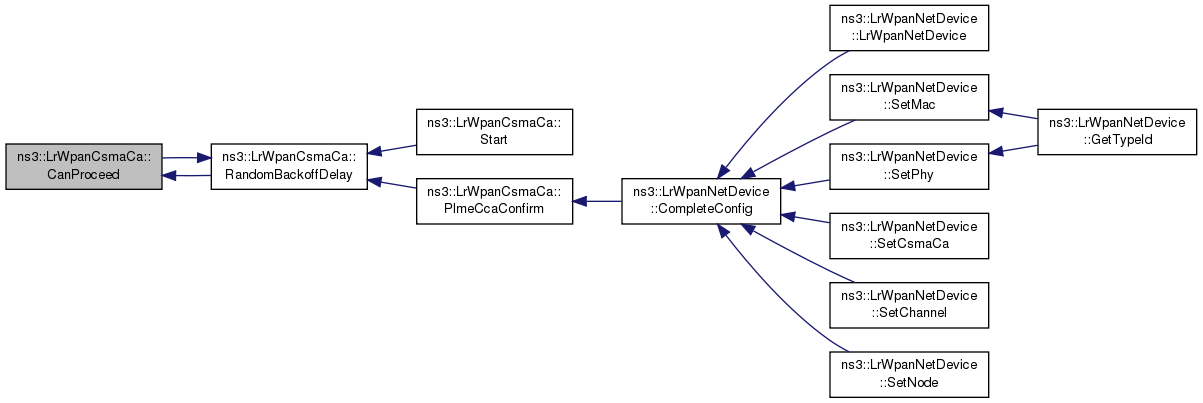

void ns3::LrWpanCsmaCa::CanProceed ( void )

In the slotted CSMA-CA, after random backoff, determine if the remaining CSMA-CA operation can proceed, i.e.

can the entire transactions can be transmitted before the end of the CAP. This step is performed between step 2 and 3. This step is NOT performed for the unslotted CSMA-CA. If it can proceed function RequestCCA() is called.

Definition at line 261 of file lr-wpan-csmaca.cc.

References GetTimeToNextSlot(), m_BLE, m_randomBackoffEvent, m_requestCcaEvent, NS_LOG_FUNCTION, RandomBackoffDelay(), RequestCCA(), ns3::Simulator::Schedule(), and ns3::Seconds().

Referenced by RandomBackoffDelay().

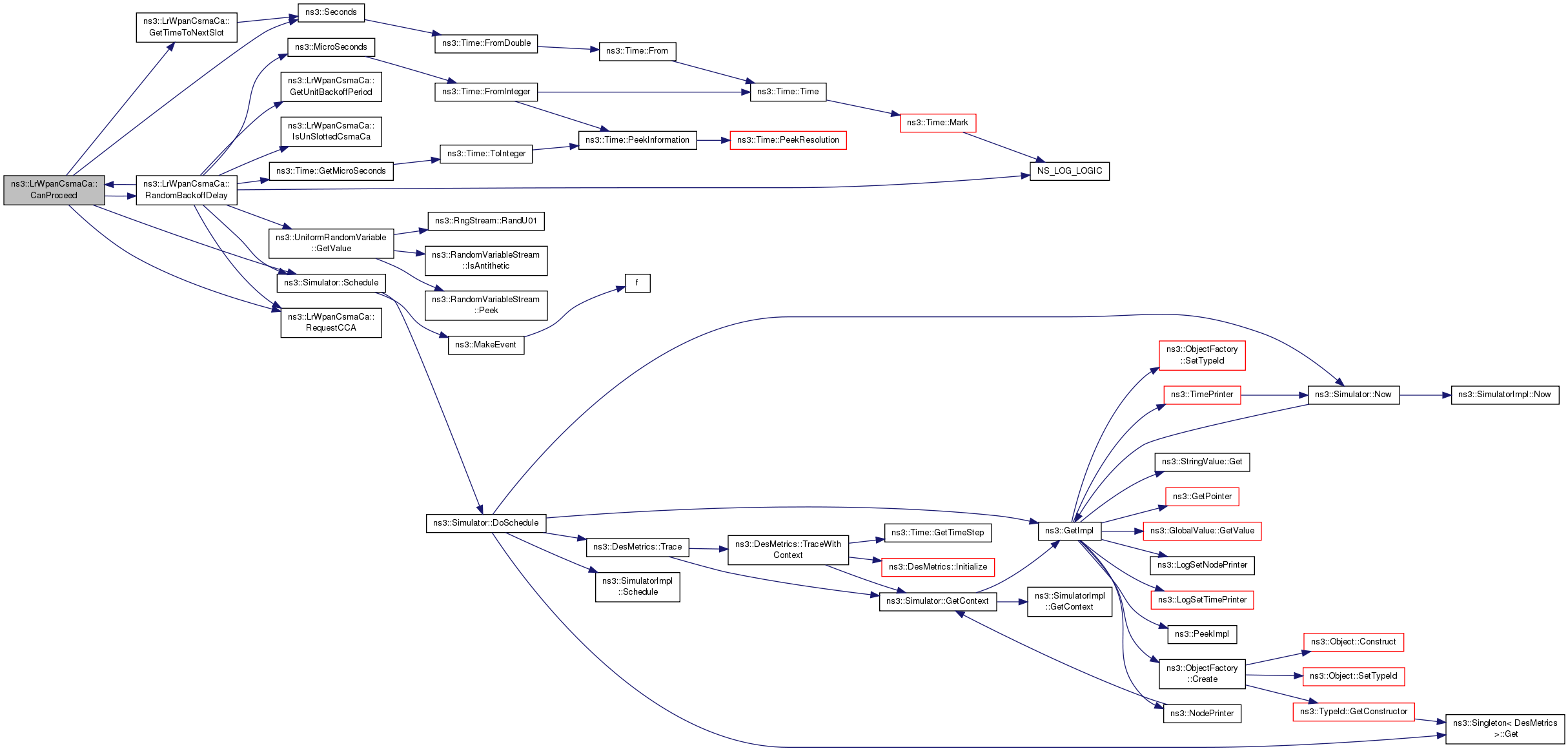

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LrWpanCsmaCa::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 69 of file lr-wpan-csmaca.cc.

References Cancel(), m_lrWpanMacStateCallback, and m_mac.

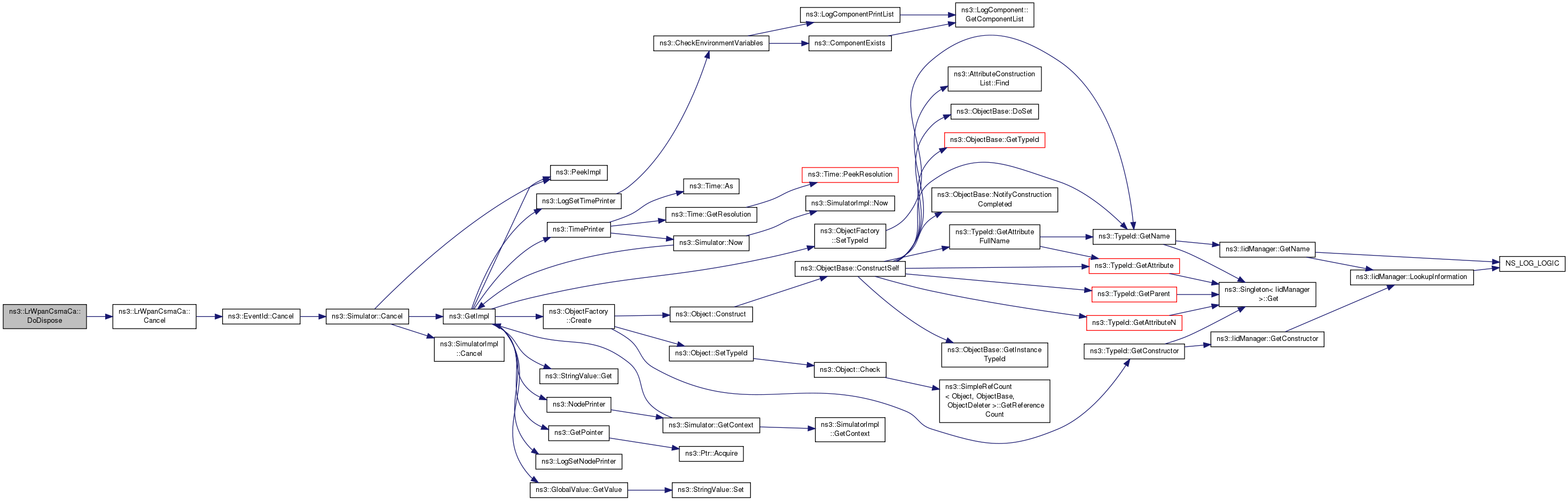

Here is the call graph for this function:

Ptr< LrWpanMac > ns3::LrWpanCsmaCa::GetMac ( void ) const

Get the MAC to which this CSMA/CA implementation is attached to.

Returns: the used MAC

Definition at line 83 of file lr-wpan-csmaca.cc.

References m_mac.

uint8_t ns3::LrWpanCsmaCa::GetMacMaxBE ( void ) const

Get the maximum backoff exponent value.

See IEEE 802.15.4-2006, section 7.4.2, Table 86.

Returns: the maximum backoff exponent value

Definition at line 138 of file lr-wpan-csmaca.cc.

References m_macMaxBE, and NS_LOG_FUNCTION.

uint8_t ns3::LrWpanCsmaCa::GetMacMaxCSMABackoffs ( void ) const

Get the maximum number of backoffs.

See IEEE 802.15.4-2006, section 7.4.2, Table 86.

Returns: the maximum number of backoffs

Definition at line 152 of file lr-wpan-csmaca.cc.

References m_macMaxCSMABackoffs, and NS_LOG_FUNCTION.

uint8_t ns3::LrWpanCsmaCa::GetMacMinBE ( void ) const

Get the minimum backoff exponent value.

See IEEE 802.15.4-2006, section 7.4.2, Table 86.

Returns: the minimum backoff exponent value

Definition at line 124 of file lr-wpan-csmaca.cc.

References m_macMinBE, and NS_LOG_FUNCTION.

uint8_t ns3::LrWpanCsmaCa::GetNB ( void )

Get the number of CSMA retries.

Returns: the number of CSMA retries

Definition at line 383 of file lr-wpan-csmaca.cc.

References m_NB.

Time ns3::LrWpanCsmaCa::GetTimeToNextSlot ( void ) const

Get the amount of time from now to the beginning of the next slot.

Returns: time offset to the next slot

Definition at line 173 of file lr-wpan-csmaca.cc.

References NS_LOG_FUNCTION, and ns3::Seconds().

Referenced by CanProceed(), and Start().

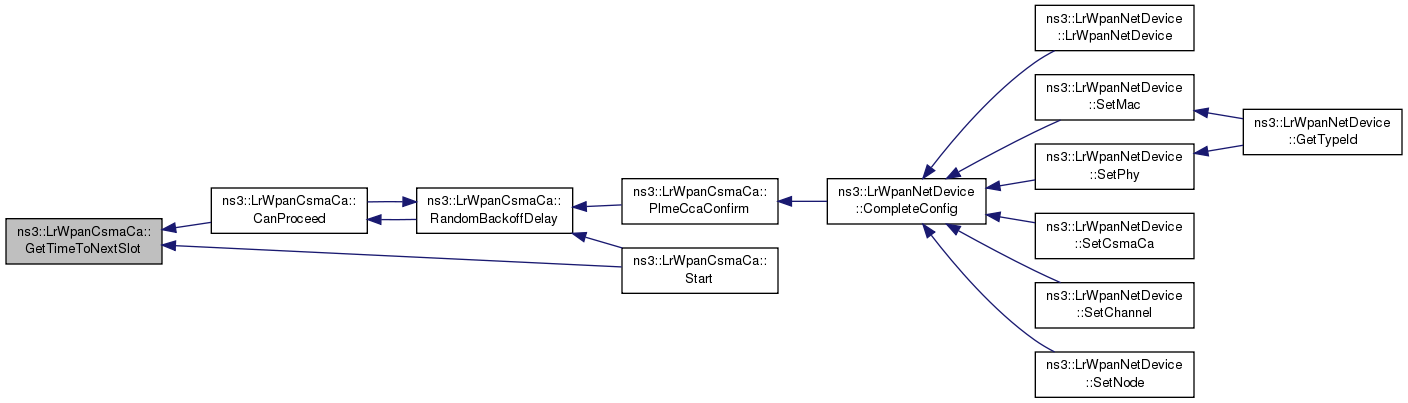

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::LrWpanCsmaCa::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 36 of file lr-wpan-csmaca.cc.

References ns3::TypeId::SetParent().

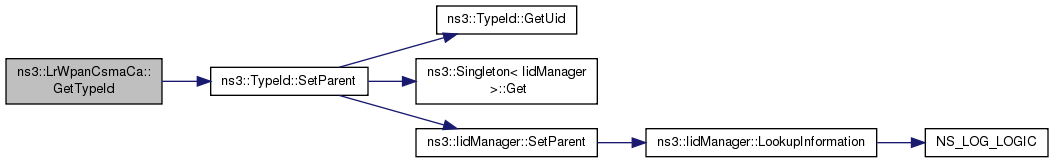

Here is the call graph for this function:

uint64_t ns3::LrWpanCsmaCa::GetUnitBackoffPeriod ( void ) const

Get the number of symbols forming the basic time period used by the CSMA-CA algorithm.

See IEEE 802.15.4-2006, section 7.4.1, Table 85.

Returns: the period length in symbols

Definition at line 166 of file lr-wpan-csmaca.cc.

References m_aUnitBackoffPeriod, and NS_LOG_FUNCTION.

Referenced by RandomBackoffDelay().

Here is the caller graph for this function:

bool ns3::LrWpanCsmaCa::IsSlottedCsmaCa ( void ) const

Check if the slotted CSMA/CA version is being used.

Returns: true, if slotted CSMA/CA is used, false otherwise.

Definition at line 103 of file lr-wpan-csmaca.cc.

References m_isSlotted, and NS_LOG_FUNCTION.

Referenced by PlmeCcaConfirm(), and Start().

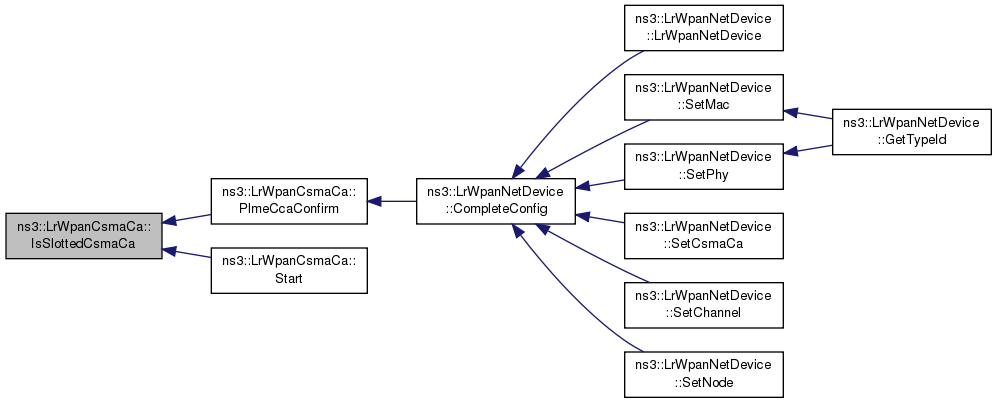

Here is the caller graph for this function:

bool ns3::LrWpanCsmaCa::IsUnSlottedCsmaCa ( void ) const

Check if the unslotted CSMA/CA version is being used.

Returns: true, if unslotted CSMA/CA is used, false otherwise.

Definition at line 110 of file lr-wpan-csmaca.cc.

References m_isSlotted, and NS_LOG_FUNCTION.

Referenced by RandomBackoffDelay().

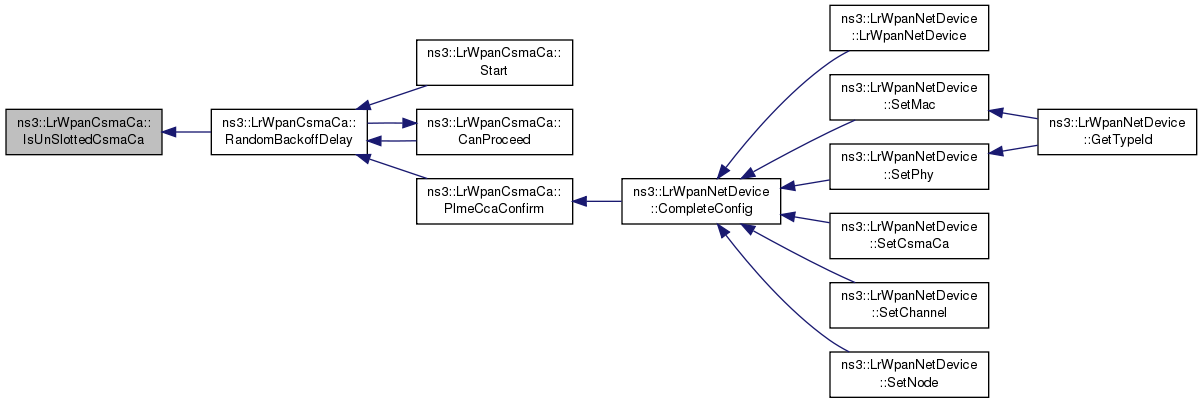

Here is the caller graph for this function:

LrWpanCsmaCa& ns3::LrWpanCsmaCa::operator= ( LrWpanCsmaCa const & )

private

Copy constructor - defined and not implemented.

Returns

void ns3::LrWpanCsmaCa::PlmeCcaConfirm ( LrWpanPhyEnumeration status )

IEEE 802.15.4-2006 section 6.2.2.2 PLME-CCA.confirm status.

Parameters

status TRX_OFF, BUSY or IDLE

When Phy has completed CCA, it calls back here which in turn execute the final steps of the CSMA-CA algorithm. It checks to see if the Channel is idle, if so check the Contention window before permitting transmission (step 5). If channel is busy, either backoff and perform CCA again or treat as channel access failure (step 4).

Definition at line 299 of file lr-wpan-csmaca.cc.

References ns3::CHANNEL_ACCESS_FAILURE, ns3::CHANNEL_IDLE, ns3::IEEE_802_15_4_PHY_IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), IsSlottedCsmaCa(), m_BE, m_ccaRequestRunning, m_CW, m_lrWpanMacStateCallback, m_macMaxBE, m_macMaxCSMABackoffs, m_NB, m_randomBackoffEvent, m_requestCcaEvent, min, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC(), RandomBackoffDelay(), RequestCCA(), and ns3::Simulator::ScheduleNow().

Referenced by ns3::LrWpanNetDevice::CompleteConfig().

Here is the call graph for this function:

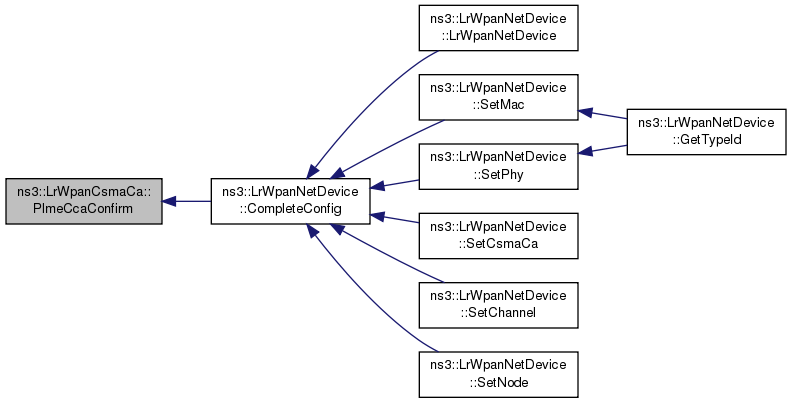

Here is the caller graph for this function:

void ns3::LrWpanCsmaCa::RandomBackoffDelay ( void )

In step 2 of the CSMA-CA, perform a random backoff in the range of 0 to 2^BE -1.

Definition at line 231 of file lr-wpan-csmaca.cc.

References CanProceed(), ns3::Time::GetMicroSeconds(), GetUnitBackoffPeriod(), ns3::UniformRandomVariable::GetValue(), IsUnSlottedCsmaCa(), m_BE, m_canProceedEvent, m_mac, m_random, m_requestCcaEvent, ns3::MicroSeconds(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), RequestCCA(), and ns3::Simulator::Schedule().

Referenced by CanProceed(), PlmeCcaConfirm(), and Start().

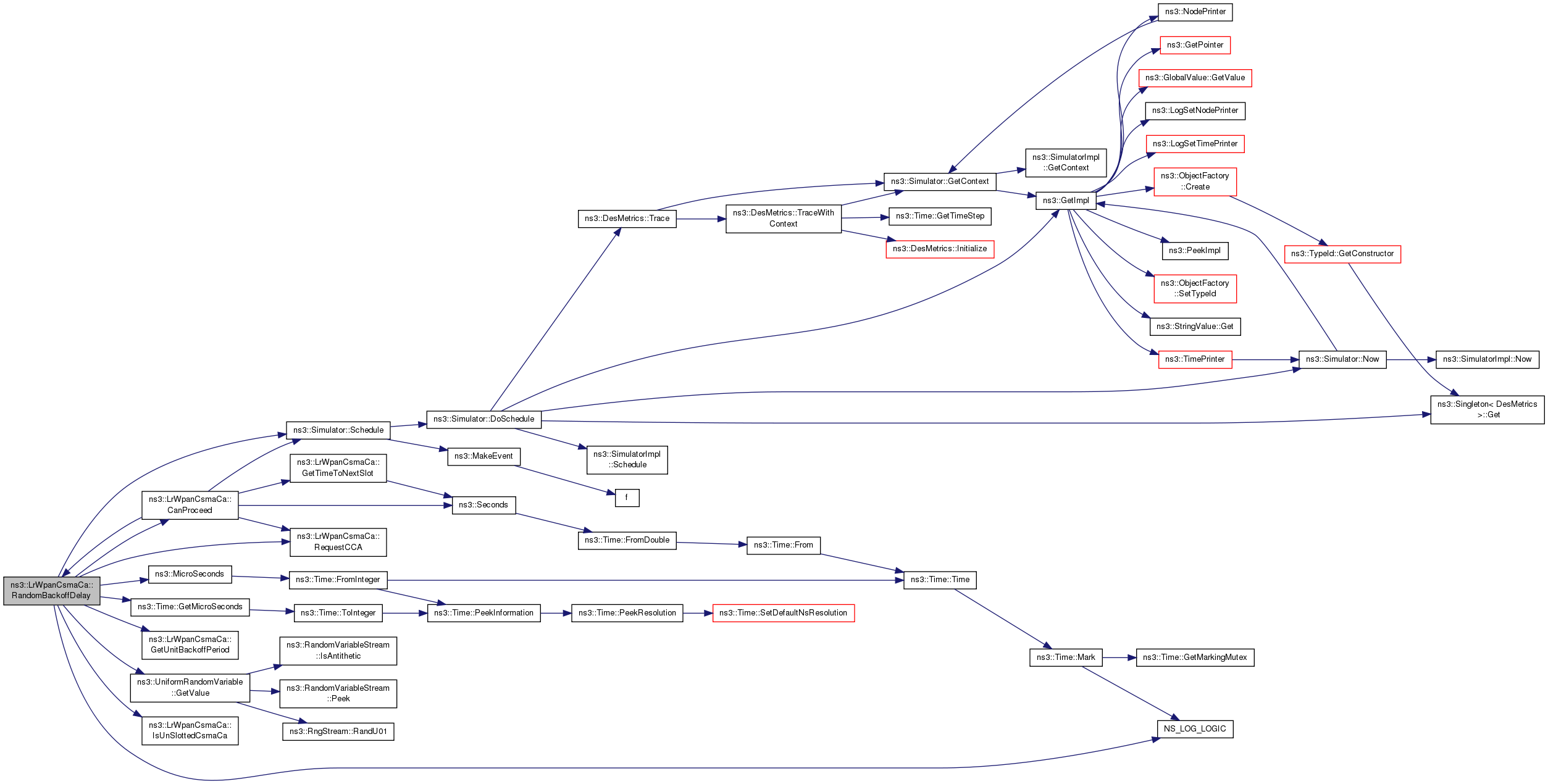

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LrWpanCsmaCa::RequestCCA ( void )

Request the Phy to perform CCA (Step 3)

Definition at line 288 of file lr-wpan-csmaca.cc.

References m_ccaRequestRunning, m_mac, and NS_LOG_FUNCTION.

Referenced by CanProceed(), PlmeCcaConfirm(), and RandomBackoffDelay().

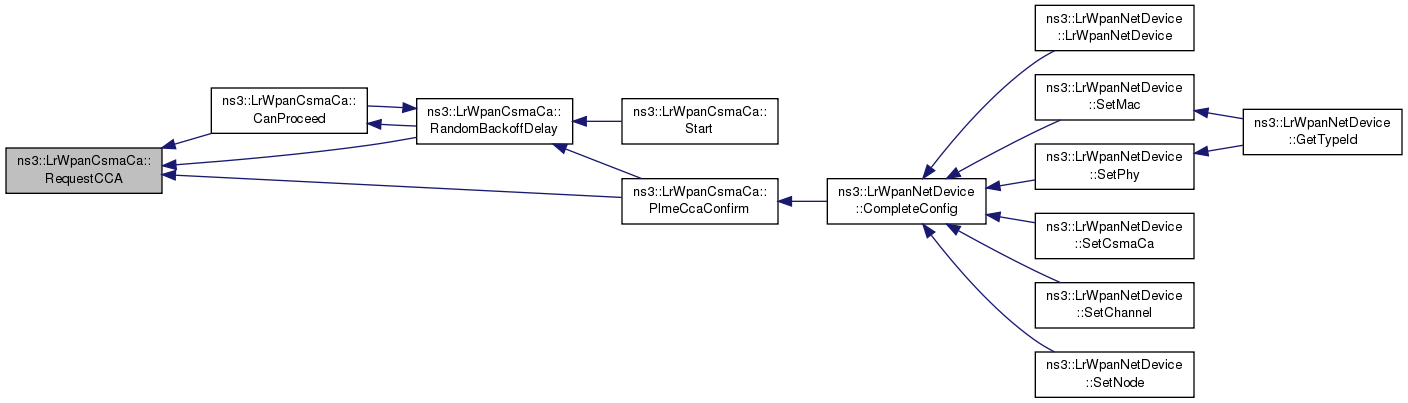

Here is the caller graph for this function:

void ns3::LrWpanCsmaCa::SetLrWpanMacStateCallback ( LrWpanMacStateCallback macState )

Set the callback function to the MAC.

Used at the end of a Channel Assessment, as part of the interconnections between the CSMA-CA and the MAC. The callback lets MAC know a channel is either idle or busy.

Parameters

macState the mac state callback

Definition at line 368 of file lr-wpan-csmaca.cc.

References m_lrWpanMacStateCallback, and NS_LOG_FUNCTION.

void ns3::LrWpanCsmaCa::SetMac ( Ptr< LrWpanMac > mac )

Set the MAC to which this CSMA/CA implementation is attached to.

Parameters

mac	the used MAC

Definition at line 77 of file lr-wpan-csmaca.cc.

References m_mac, and third::mac.

void ns3::LrWpanCsmaCa::SetMacMaxBE ( uint8_t macMaxBE )

Set the maximum backoff exponent value.

See IEEE 802.15.4-2006, section 7.4.2, Table 86.

Parameters

macMaxBE the maximum backoff exponent value

Definition at line 131 of file lr-wpan-csmaca.cc.

References m_macMinBE, and NS_LOG_FUNCTION.

void ns3::LrWpanCsmaCa::SetMacMaxCSMABackoffs ( uint8_t macMaxCSMABackoffs )

Set the maximum number of backoffs.

See IEEE 802.15.4-2006, section 7.4.2, Table 86.

Parameters

macMaxCSMABackoffs the maximum number of backoffs

Definition at line 145 of file lr-wpan-csmaca.cc.

References m_macMaxCSMABackoffs, and NS_LOG_FUNCTION.

void ns3::LrWpanCsmaCa::SetMacMinBE ( uint8_t macMinBE )

Set the minimum backoff exponent value.

See IEEE 802.15.4-2006, section 7.4.2, Table 86.

Parameters

macMinBE the minimum backoff exponent value

Definition at line 117 of file lr-wpan-csmaca.cc.

References m_macMinBE, and NS_LOG_FUNCTION.

void ns3::LrWpanCsmaCa::SetSlottedCsmaCa ( void )

Configure for the use of the slotted CSMA/CA version.

Definition at line 89 of file lr-wpan-csmaca.cc.

References m_isSlotted, and NS_LOG_FUNCTION.

void ns3::LrWpanCsmaCa::SetUnitBackoffPeriod ( uint64_t unitBackoffPeriod )

Set the number of symbols forming the basic time period used by the CSMA-CA algorithm.

See IEEE 802.15.4-2006, section 7.4.1, Table 85.

Parameters

unitBackoffPeriod the period length in symbols

Definition at line 159 of file lr-wpan-csmaca.cc.

References m_aUnitBackoffPeriod, and NS_LOG_FUNCTION.

void ns3::LrWpanCsmaCa::SetUnSlottedCsmaCa ( void )

Configure for the use of the unslotted CSMA/CA version.

Definition at line 96 of file lr-wpan-csmaca.cc.

References m_isSlotted, and NS_LOG_FUNCTION.

void ns3::LrWpanCsmaCa::Start ( void )

Start CSMA-CA algorithm (step 1), initialize NB, BE for both slotted and unslotted CSMA-CA.

For the slotted intialize CW plus also start on the backoff boundary

Definition at line 183 of file lr-wpan-csmaca.cc.

References GetTimeToNextSlot(), IsSlottedCsmaCa(), m_BE, m_BLE, m_CW, m_macMinBE, m_NB, m_randomBackoffEvent, min, NS_LOG_FUNCTION, RandomBackoffDelay(), ns3::Simulator::Schedule(), and ns3::Simulator::ScheduleNow().

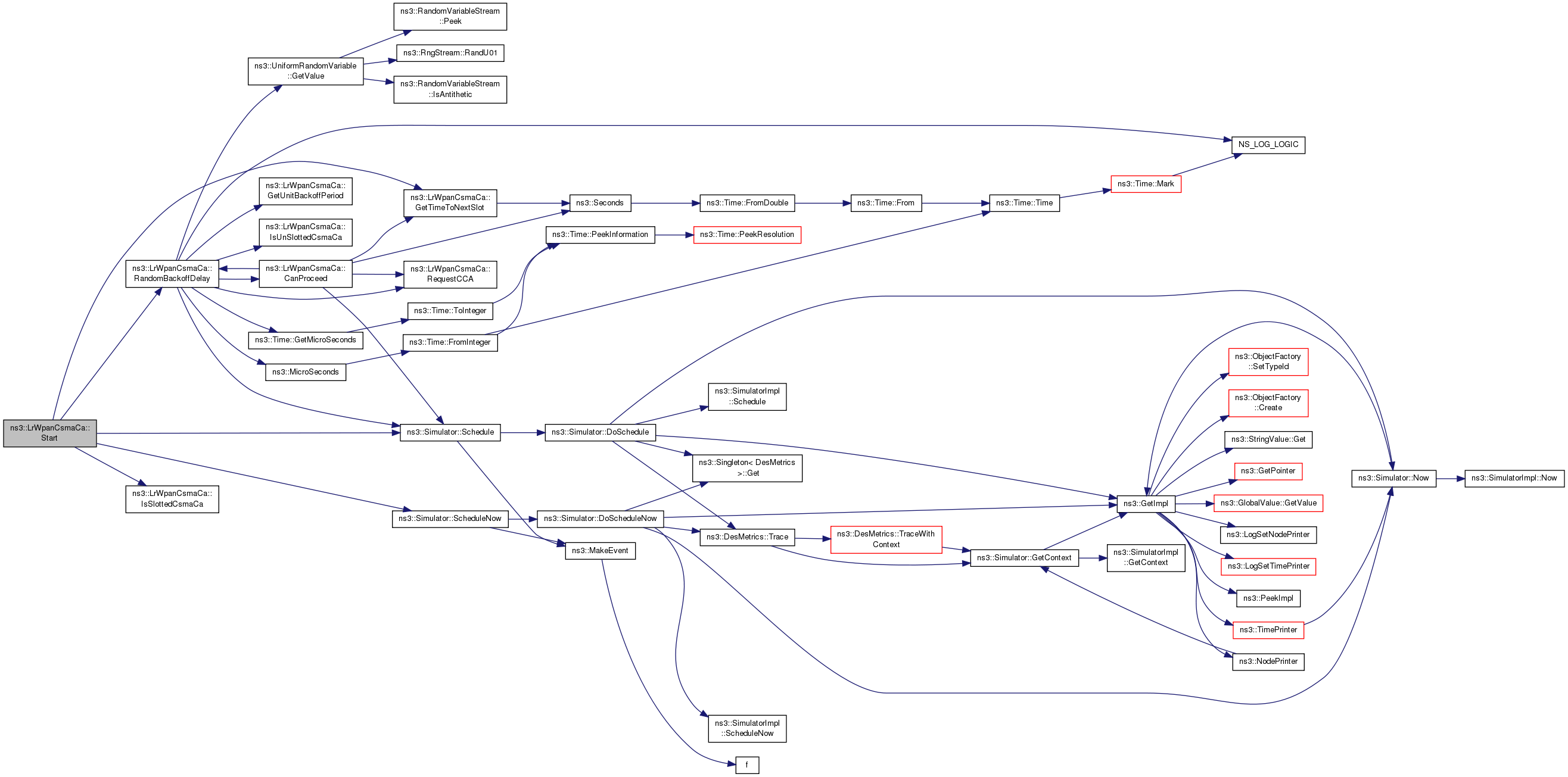

Here is the call graph for this function:

Member Data Documentation

uint64_t ns3::LrWpanCsmaCa::m_aUnitBackoffPeriod

private

Number of symbols per CSMA/CA time unit, default 20 symbols.

Definition at line 310 of file lr-wpan-csmaca.h.

Referenced by GetUnitBackoffPeriod(), LrWpanCsmaCa(), and SetUnitBackoffPeriod().

uint8_t ns3::LrWpanCsmaCa::m_BE

private

Backoff exponent.

Definition at line 285 of file lr-wpan-csmaca.h.

Referenced by LrWpanCsmaCa(), PlmeCcaConfirm(), RandomBackoffDelay(), and Start().

bool ns3::LrWpanCsmaCa::m_BLE

private

Battery Life Extension.

Definition at line 290 of file lr-wpan-csmaca.h.

Referenced by CanProceed(), LrWpanCsmaCa(), and Start().

EventId ns3::LrWpanCsmaCa::m_canProceedEvent

private

Scheduler event for checking if we can complete the transmission before the end of the CAP.

Definition at line 331 of file lr-wpan-csmaca.h.

Referenced by Cancel(), and RandomBackoffDelay().

bool ns3::LrWpanCsmaCa::m_ccaRequestRunning

private

Flag indicating that the PHY is currently running a CCA.

Used to prevent reporting the channel status to the MAC while canceling the CSMA algorithm.

Definition at line 337 of file lr-wpan-csmaca.h.

Referenced by LrWpanCsmaCa(), PlmeCcaConfirm(), and RequestCCA().

uint8_t ns3::LrWpanCsmaCa::m_CW

private

Contention window length (used in slotted ver only).

Definition at line 280 of file lr-wpan-csmaca.h.

Referenced by LrWpanCsmaCa(), PlmeCcaConfirm(), and Start().

bool ns3::LrWpanCsmaCa::m_isSlotted

private

Beacon-enabled slotted or nonbeacon-enabled unslotted CSMA-CA.

Definition at line 265 of file lr-wpan-csmaca.h.

Referenced by IsSlottedCsmaCa(), IsUnSlottedCsmaCa(), LrWpanCsmaCa(), SetSlottedCsmaCa(), and SetUnSlottedCsmaCa().

LrWpanMacStateCallback ns3::LrWpanCsmaCa::m_lrWpanMacStateCallback

private

The callback to inform the configured MAC of the CSMA/CA result.

Definition at line 260 of file lr-wpan-csmaca.h.

Referenced by DoDispose(), PlmeCcaConfirm(), and SetLrWpanMacStateCallback().

Ptr<LrWpanMac> ns3::LrWpanCsmaCa::m_mac

private

The MAC instance for which this CSMAÄ/CA implemenation is configured.

Definition at line 270 of file lr-wpan-csmaca.h.

Referenced by DoDispose(), GetMac(), RandomBackoffDelay(), RequestCCA(), SetMac(), and ~LrWpanCsmaCa().

uint8_t ns3::LrWpanCsmaCa::m_macMaxBE

private

Maximum backoff exponent.

3 - 8, default 5

Definition at line 300 of file lr-wpan-csmaca.h.

Referenced by GetMacMaxBE(), LrWpanCsmaCa(), and PlmeCcaConfirm().

uint8_t ns3::LrWpanCsmaCa::m_macMaxCSMABackoffs

private

Maximum number of backoffs.

0 - 5, default 4

Definition at line 305 of file lr-wpan-csmaca.h.

Referenced by GetMacMaxCSMABackoffs(), LrWpanCsmaCa(), PlmeCcaConfirm(), and SetMacMaxCSMABackoffs().

uint8_t ns3::LrWpanCsmaCa::m_macMinBE

private

Minimum backoff exponent.

0 - macMaxBE, default 3

Definition at line 295 of file lr-wpan-csmaca.h.

Referenced by GetMacMinBE(), LrWpanCsmaCa(), SetMacMaxBE(), SetMacMinBE(), and Start().

uint8_t ns3::LrWpanCsmaCa::m_NB

private

Number of backoffs for the current transmission.

Definition at line 275 of file lr-wpan-csmaca.h.

Referenced by GetNB(), LrWpanCsmaCa(), PlmeCcaConfirm(), and Start().

Ptr<UniformRandomVariable> ns3::LrWpanCsmaCa::m_random

private

Uniform random variable stream.

Definition at line 315 of file lr-wpan-csmaca.h.

Referenced by AssignStreams(), LrWpanCsmaCa(), and RandomBackoffDelay().

EventId ns3::LrWpanCsmaCa::m_randomBackoffEvent

private

Scheduler event for the start of the next random backoff/slot.

Definition at line 320 of file lr-wpan-csmaca.h.

Referenced by Cancel(), CanProceed(), PlmeCcaConfirm(), and Start().

EventId ns3::LrWpanCsmaCa::m_requestCcaEvent

private

Scheduler event when to start the CCA after a random backoff.

Definition at line 325 of file lr-wpan-csmaca.h.

Referenced by Cancel(), CanProceed(), PlmeCcaConfirm(), and RandomBackoffDelay().

The documentation for this class was generated from the following files:

src/lr-wpan/model/lr-wpan-csmaca.h
src/lr-wpan/model/lr-wpan-csmaca.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
