#include "lte-ue-mac.h"

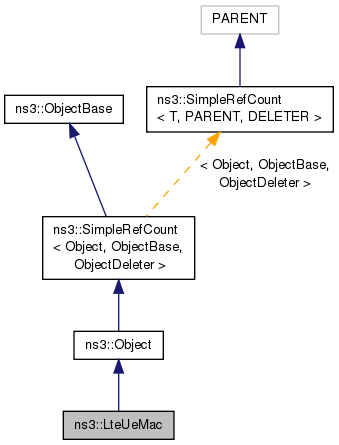

Inheritance diagram for ns3::LteUeMac:

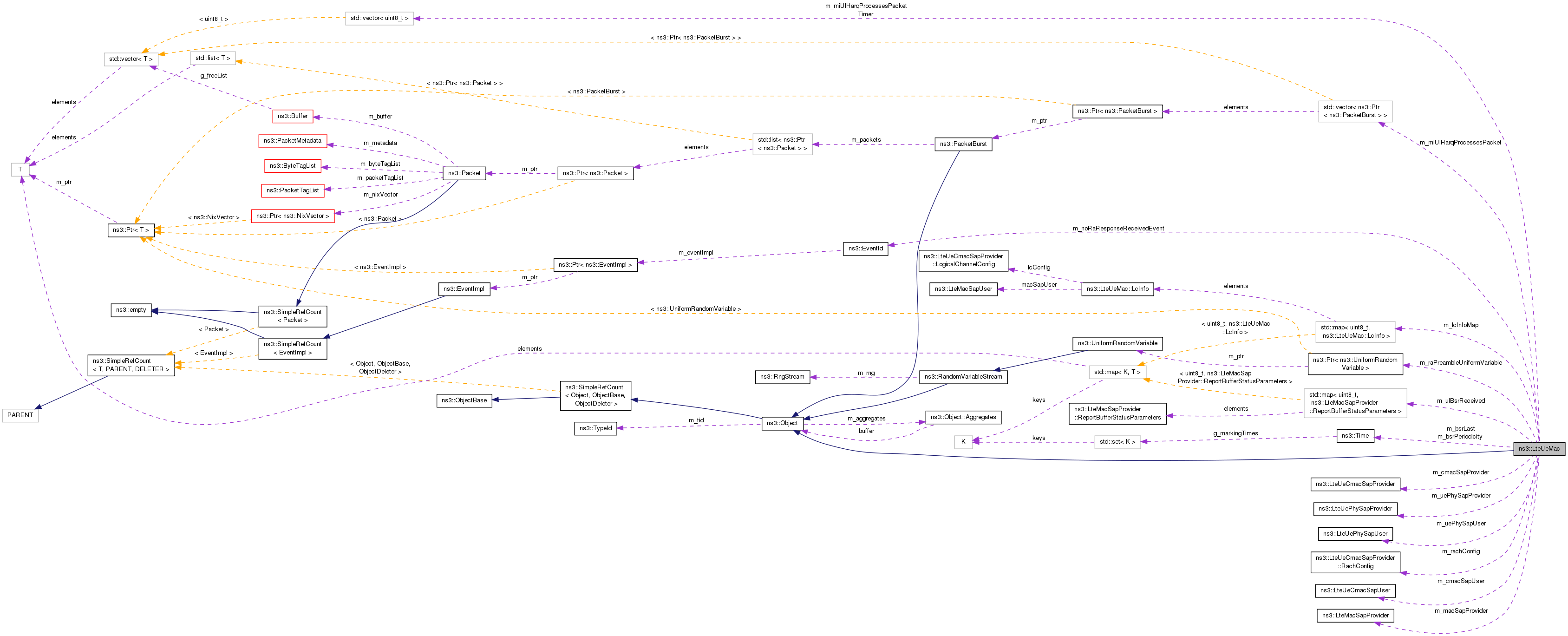

Collaboration diagram for ns3::LteUeMac:

Classes
struct	LcInfo
	LcInfo structure. More...

Public Member Functions
	LteUeMac ()

virtual	~LteUeMac ()

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

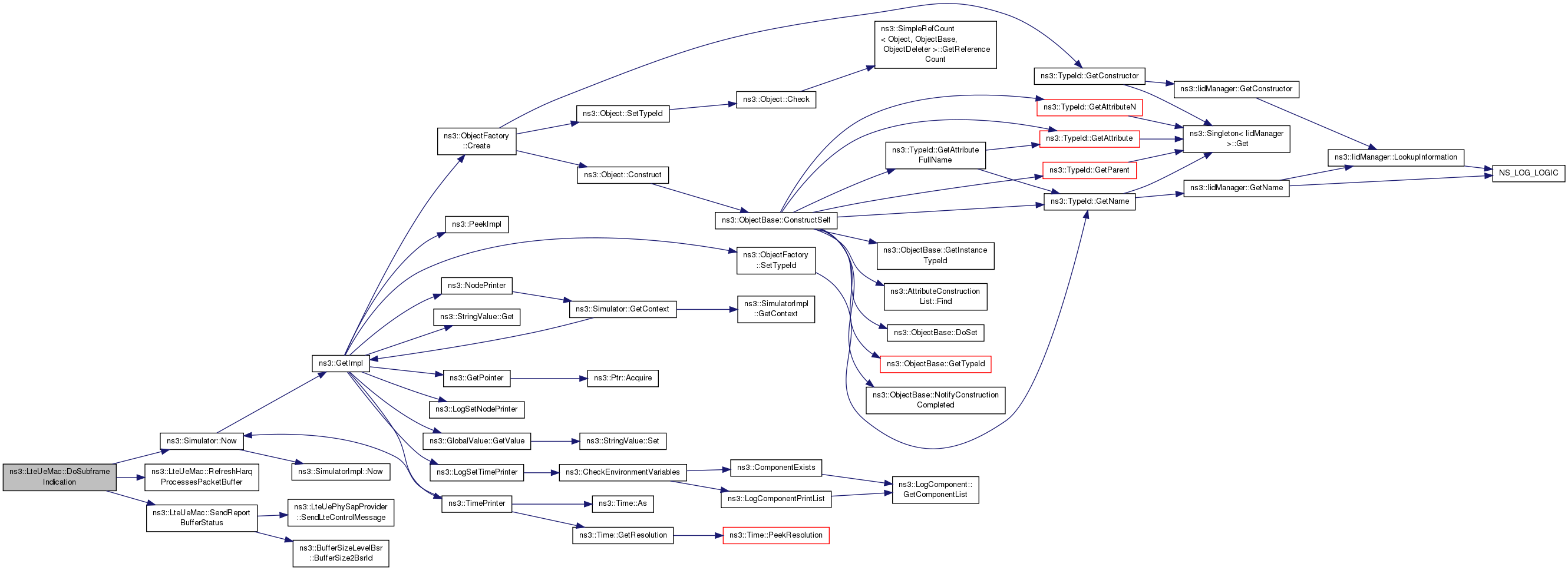

void	DoSubframeIndication (uint32_t frameNo, uint32_t subframeNo)
	Forwarded from LteUePhySapUser: trigger the start from a new frame. More...

LteMacSapProvider *	GetLteMacSapProvider (void)
	Get the LTE MAC SAP provider. More...

LteUeCmacSapProvider *	GetLteUeCmacSapProvider (void)
	Get the LTE CMAC SAP provider. More...

LteUePhySapUser *	GetLteUePhySapUser ()
	Get the PHY SAP user. More...

void	SetComponentCarrierId (uint8_t index)
	Set the component carried ID. More...

void	SetLteUeCmacSapUser (LteUeCmacSapUser *s)
	Set the LTE UE CMAC SAP user. More...

void	SetLteUePhySapProvider (LteUePhySapProvider *s)
	Set the PHY SAP Provider. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

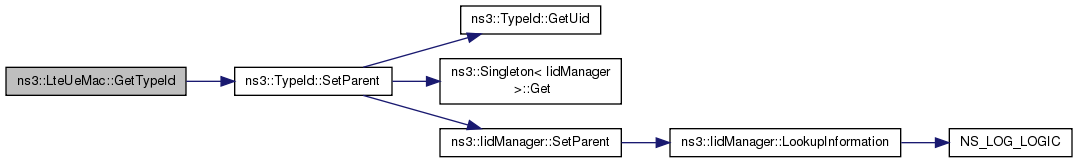

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoAddLc (uint8_t lcId, LteUeCmacSapProvider::LogicalChannelConfig lcConfig, LteMacSapUser *msu)
	Add LC function. More...

void	DoConfigureRach (LteUeCmacSapProvider::RachConfig rc)
	Configure RACH function. More...

void	DoReceiveLteControlMessage (Ptr< LteControlMessage > msg)
	Receive LTE control message function. More...

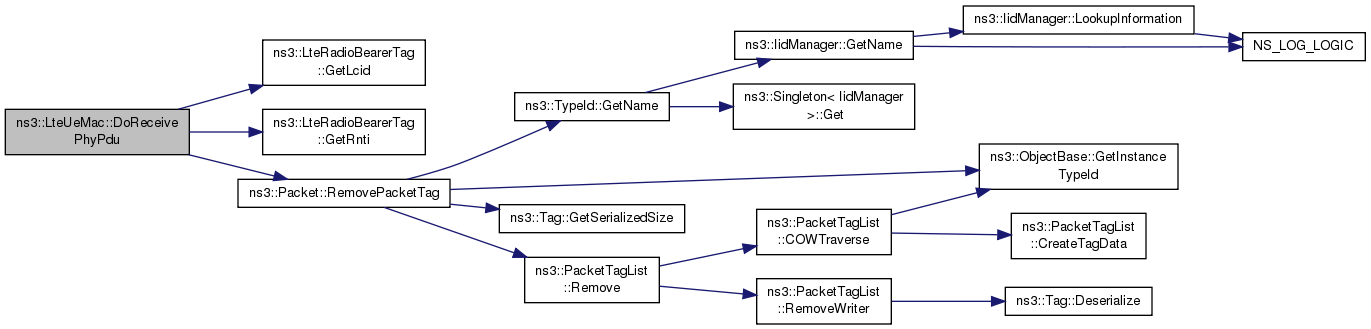

void	DoReceivePhyPdu (Ptr< Packet > p)
	Receive Phy PDU function. More...

void	DoRemoveLc (uint8_t lcId)
	Remove LC function. More...

void	DoReportBufferStatus (LteMacSapProvider::ReportBufferStatusParameters params)
	Report buffers status function. More...

void	DoReset ()
	Reset function. More...

void	DoSetRnti (uint16_t rnti)
	Set RNTI. More...

void	DoStartContentionBasedRandomAccessProcedure ()
	Start contention based random access procedure function. More...

void	DoStartNonContentionBasedRandomAccessProcedure (uint16_t rnti, uint8_t rapId, uint8_t prachMask)
	Start non contention based random access procedure function. More...

void	DoTransmitPdu (LteMacSapProvider::TransmitPduParameters params)
	Transmit PDU function. More...

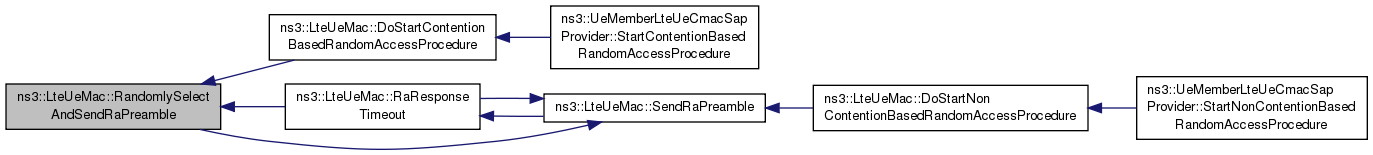

void	RandomlySelectAndSendRaPreamble ()
	Randomly sleect and send RA preamble function. More...

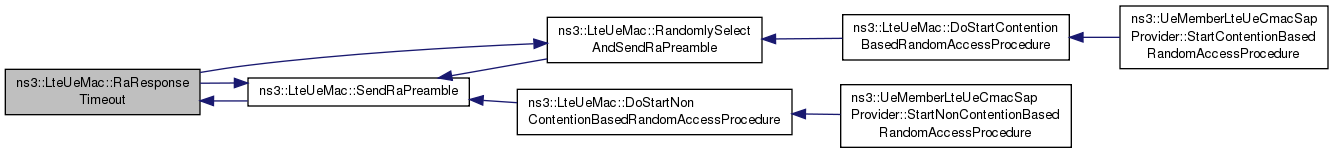

void	RaResponseTimeout (bool contention)
	RA response timeout function. More...

void	RecvRaResponse (BuildRarListElement_s raResponse)
	Receive the RA response function. More...

void	RefreshHarqProcessesPacketBuffer (void)
	Refresh HARQ processes packet buffer function. More...

void	SendRaPreamble (bool contention)
	Send RA preamble function. More...

void	SendReportBufferStatus (void)
	Send report buffer status. More...

void	StartWaitingForRaResponse ()
	Start waiting for RA response function. More...

Private Attributes
uint16_t	m_backoffParameter
	backoff parameter More...

Time	m_bsrLast
	BSR last. More...

Time	m_bsrPeriodicity
	BSR periodicity. More...

LteUeCmacSapProvider *	m_cmacSapProvider
	CMAC SAP provider. More...

LteUeCmacSapUser *	m_cmacSapUser
	CMAC SAP user. More...

uint8_t	m_componentCarrierId
	component carrier Id –> used to address sap More...

uint32_t	m_frameNo
	frame number More...

bool	m_freshUlBsr
	true when a BSR has been received in the last TTI More...

uint8_t	m_harqProcessId
	HARQ process ID. More...

std::map< uint8_t, LcInfo >	m_lcInfoMap
	logical channel info map More...

LteMacSapProvider *	m_macSapProvider
	MAC SAP provider. More...

std::vector< Ptr< PacketBurst > >	m_miUlHarqProcessesPacket
	Packets under trasmission of the UL HARQ processes. More...

std::vector< uint8_t >	m_miUlHarqProcessesPacketTimer
	timer for packet life in the buffer More...

EventId	m_noRaResponseReceivedEvent
	no RA response received event ID More...

uint8_t	m_preambleTransmissionCounter
	preamble tranamission counter More...

LteUeCmacSapProvider::RachConfig	m_rachConfig
	RACH configuration. More...

bool	m_rachConfigured
	is RACH configured? More...

uint8_t	m_raPreambleId
	RA preamble ID. More...

Ptr< UniformRandomVariable >	m_raPreambleUniformVariable
	RA preamble random variable. More...

uint8_t	m_raRnti
	RA RNTI. More...

uint16_t	m_rnti
	RNTI. More...

uint32_t	m_subframeNo
	subframe number More...

LteUePhySapProvider *	m_uePhySapProvider
	UE Phy SAP provider. More...

LteUePhySapUser *	m_uePhySapUser
	UE Phy SAP user. More...

std::map< uint8_t, LteMacSapProvider::ReportBufferStatusParameters >	m_ulBsrReceived
	BSR received from RLC (the last one) More...

bool	m_waitingForRaResponse
	waiting for RA response More...

Friends
class	UeMemberLteMacSapProvider
	allow UeMemberLteMacSapProvider class friend access More...

class	UeMemberLteUeCmacSapProvider
	allow UeMemberLteUeCmacSapProvider class friend access More...

class	UeMemberLteUePhySapUser
	allow UeMemberLteUePhySapUser class friend access More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Config Paths

ns3::LteUeMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/ComponentCarrierMapUe/[i]/LteUeMac"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/ComponentCarrierMapUe/[i]/LteUeMac"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 304 bytes (on a 64-bit architecture).

Definition at line 43 of file lte-ue-mac.h.

Constructor & Destructor Documentation

ns3::LteUeMac::LteUeMac ( )

Definition at line 228 of file lte-ue-mac.cc.

References HARQ_PERIOD, m_cmacSapProvider, m_componentCarrierId, m_macSapProvider, m_miUlHarqProcessesPacket, m_miUlHarqProcessesPacketTimer, m_raPreambleUniformVariable, m_uePhySapUser, NS_LOG_FUNCTION, UeMemberLteMacSapProvider, UeMemberLteUeCmacSapProvider, and UeMemberLteUePhySapUser.

ns3::LteUeMac::~LteUeMac ( )

virtual

Definition at line 255 of file lte-ue-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::LteUeMac::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 834 of file lte-ue-mac.cc.

References m_raPreambleUniformVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

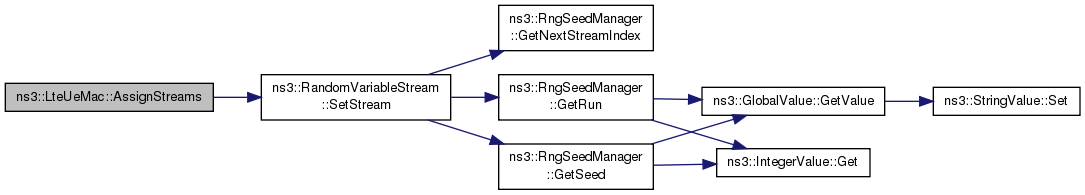

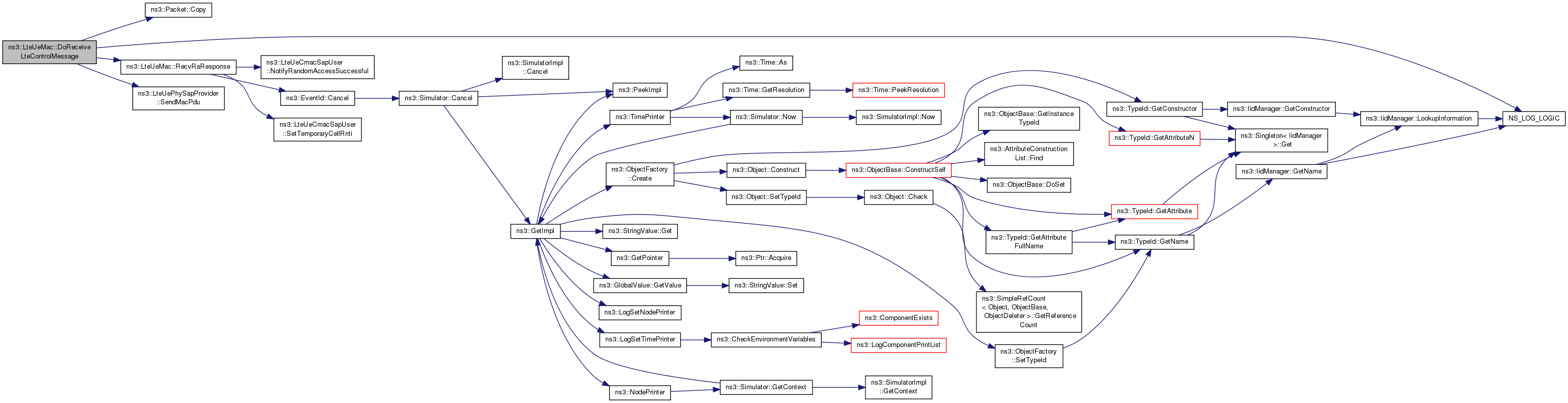

Here is the call graph for this function:

void ns3::LteUeMac::DoAddLc	(	uint8_t	lcId,
		LteUeCmacSapProvider::LogicalChannelConfig	lcConfig,
		LteMacSapUser *	msu
	)

private

Add LC function.

Parameters

lcId	the LCID
lcConfig	the logical channel config
msu	the MSU

Definition at line 537 of file lte-ue-mac.cc.

References ns3::LteUeMac::LcInfo::lcConfig, m_lcInfoMap, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::AddLc().

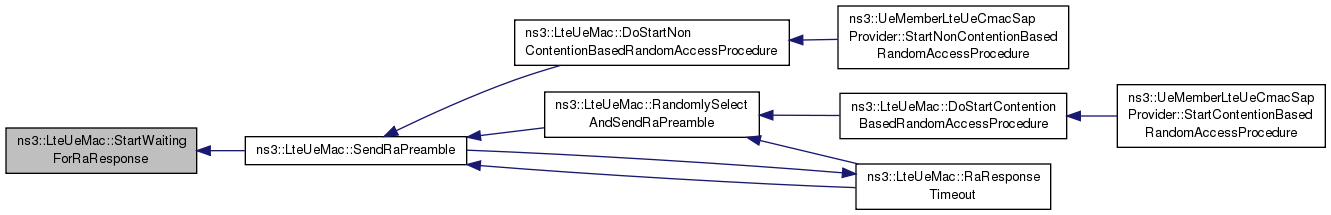

Here is the caller graph for this function:

void ns3::LteUeMac::DoConfigureRach ( LteUeCmacSapProvider::RachConfig rc )

private

Configure RACH function.

Parameters

rc	LteUeCmacSapProvider::RachConfig

Definition at line 498 of file lte-ue-mac.cc.

References m_rachConfig, m_rachConfigured, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::ConfigureRach().

Here is the caller graph for this function:

void ns3::LteUeMac::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 261 of file lte-ue-mac.cc.

References ns3::Object::DoDispose(), m_cmacSapProvider, m_macSapProvider, m_miUlHarqProcessesPacket, m_uePhySapUser, and NS_LOG_FUNCTION.

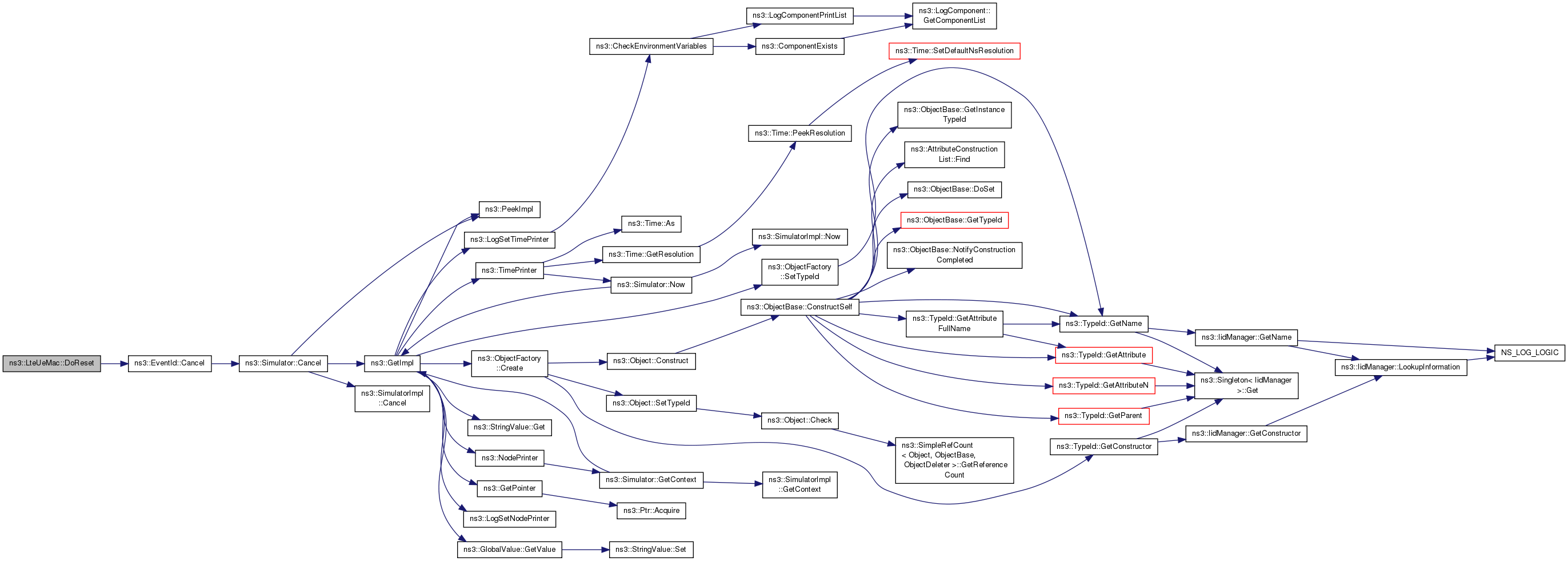

Here is the call graph for this function:

void ns3::LteUeMac::DoReceiveLteControlMessage ( Ptr< LteControlMessage > msg )

private

Receive LTE control message function.

Parameters

msg	the LTE control message

Todo:: RRC generates the RecvRaResponse messaged for avoiding holes in transmission at PHY layer (which produce erroneous UL CQI evaluation)

Definition at line 603 of file lte-ue-mac.cc.

References ns3::Packet::Copy(), HARQ_PERIOD, list, m_componentCarrierId, m_freshUlBsr, m_harqProcessId, m_lcInfoMap, m_miUlHarqProcessesPacket, m_miUlHarqProcessesPacketTimer, m_raPreambleId, m_raRnti, m_rnti, m_uePhySapProvider, m_ulBsrReceived, m_waitingForRaResponse, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC(), NS_LOG_WARN, ns3::LteControlMessage::RAR, RecvRaResponse(), ns3::LteUePhySapProvider::SendMacPdu(), and ns3::LteControlMessage::UL_DCI.

Referenced by ns3::UeMemberLteUePhySapUser::ReceiveLteControlMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::DoReceivePhyPdu ( Ptr< Packet > p )

private

Receive Phy PDU function.

Parameters

p	the packet

Definition at line 582 of file lte-ue-mac.cc.

References ns3::LteRadioBearerTag::GetLcid(), ns3::LteRadioBearerTag::GetRnti(), m_lcInfoMap, m_rnti, NS_LOG_WARN, and ns3::Packet::RemovePacketTag().

Referenced by ns3::UeMemberLteUePhySapUser::ReceivePhyPdu().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::DoRemoveLc ( uint8_t lcId )

private

Remove LC function.

Parameters

lcId the LCID

Definition at line 549 of file lte-ue-mac.cc.

References m_lcInfoMap, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::RemoveLc().

Here is the caller graph for this function:

void ns3::LteUeMac::DoReportBufferStatus ( LteMacSapProvider::ReportBufferStatusParameters params )

private

Report buffers status function.

Parameters

params LteMacSapProvider::ReportBufferStatusParameters

Definition at line 323 of file lte-ue-mac.cc.

References ns3::LteMacSapProvider::ReportBufferStatusParameters::lcid, m_freshUlBsr, m_ulBsrReceived, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteMacSapProvider::ReportBufferStatus().

Here is the caller graph for this function:

void ns3::LteUeMac::DoReset ( void )

private

Reset function.

Definition at line 557 of file lte-ue-mac.cc.

References ns3::EventId::Cancel(), m_freshUlBsr, m_lcInfoMap, m_noRaResponseReceivedEvent, m_rachConfigured, m_ulBsrReceived, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::Reset().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::DoSetRnti ( uint16_t rnti )

private

Set RNTI.

Parameters

rnti the RNTI

Definition at line 518 of file lte-ue-mac.cc.

References m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::SetRnti().

Here is the caller graph for this function:

void ns3::LteUeMac::DoStartContentionBasedRandomAccessProcedure ( )

private

Start contention based random access procedure function.

Definition at line 506 of file lte-ue-mac.cc.

References m_backoffParameter, m_preambleTransmissionCounter, m_rachConfigured, NS_ASSERT_MSG, NS_LOG_FUNCTION, and RandomlySelectAndSendRaPreamble().

Referenced by ns3::UeMemberLteUeCmacSapProvider::StartContentionBasedRandomAccessProcedure().

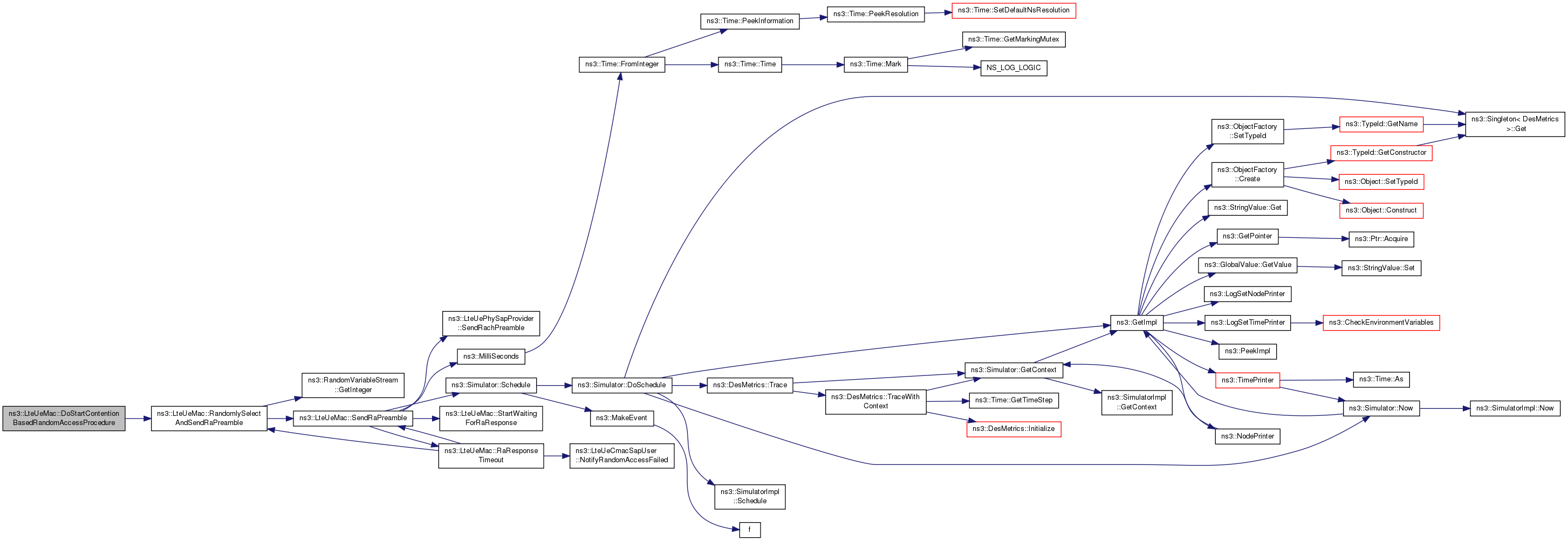

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::DoStartNonContentionBasedRandomAccessProcedure	(	uint16_t	rnti,
		uint8_t	rapId,
		uint8_t	prachMask
	)

private

Start non contention based random access procedure function.

Parameters

rnti	the RNTI
rapId	the RAPID
prachMask	the PRACH mask

Definition at line 526 of file lte-ue-mac.cc.

References m_raPreambleId, m_rnti, NS_ASSERT_MSG, NS_LOG_FUNCTION, and SendRaPreamble().

Referenced by ns3::UeMemberLteUeCmacSapProvider::StartNonContentionBasedRandomAccessProcedure().

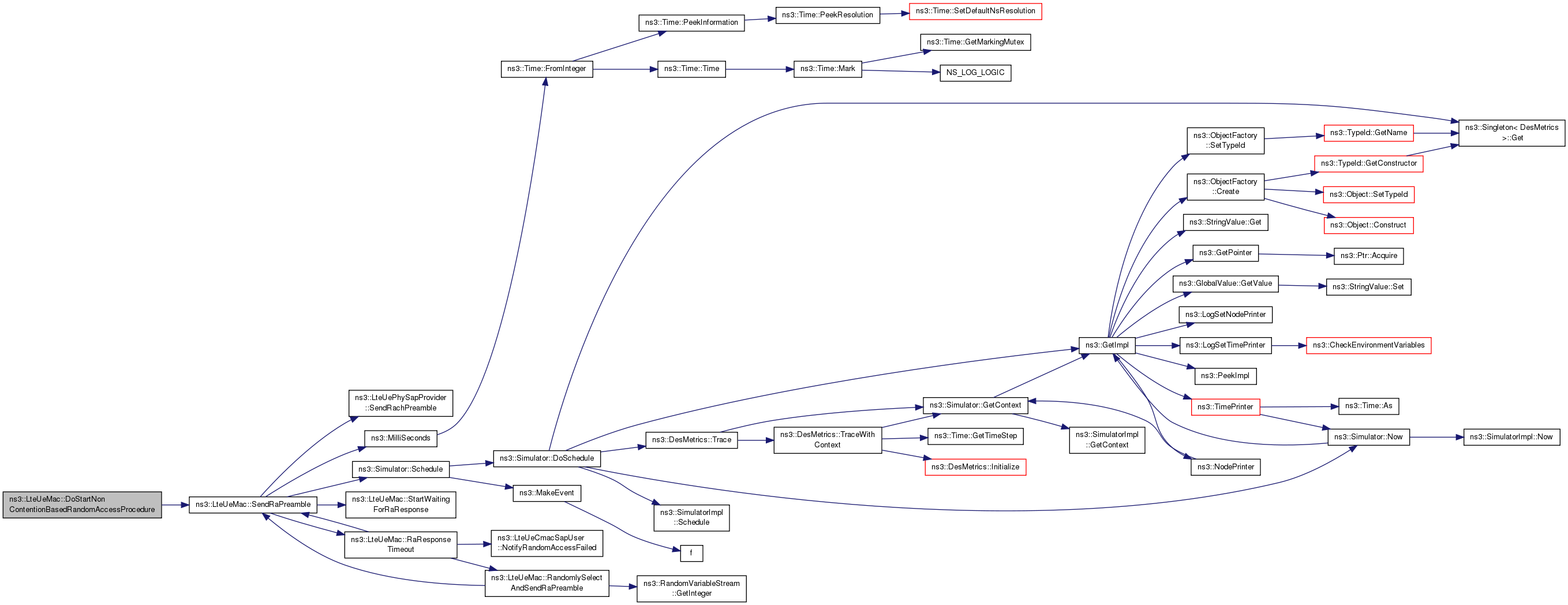

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::DoSubframeIndication	(	uint32_t	frameNo,
		uint32_t	subframeNo
	)

Forwarded from LteUePhySapUser: trigger the start from a new frame.

Parameters

frameNo	frame number
subframeNo	subframe number

Definition at line 818 of file lte-ue-mac.cc.

References HARQ_PERIOD, m_bsrLast, m_bsrPeriodicity, m_frameNo, m_freshUlBsr, m_harqProcessId, m_subframeNo, ns3::Simulator::Now(), NS_LOG_FUNCTION, RefreshHarqProcessesPacketBuffer(), and SendReportBufferStatus().

Referenced by ns3::UeMemberLteUePhySapUser::SubframeIndication().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::DoTransmitPdu ( LteMacSapProvider::TransmitPduParameters params )

private

Transmit PDU function.

Parameters

params LteMacSapProvider::TransmitPduParameters

Definition at line 310 of file lte-ue-mac.cc.

References ns3::Packet::AddPacketTag(), HARQ_PERIOD, ns3::LteMacSapProvider::TransmitPduParameters::lcid, m_harqProcessId, m_miUlHarqProcessesPacket, m_miUlHarqProcessesPacketTimer, m_rnti, m_uePhySapProvider, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::LteMacSapProvider::TransmitPduParameters::pdu, ns3::LteMacSapProvider::TransmitPduParameters::rnti, and ns3::LteUePhySapProvider::SendMacPdu().

Referenced by ns3::UeMemberLteMacSapProvider::TransmitPdu().

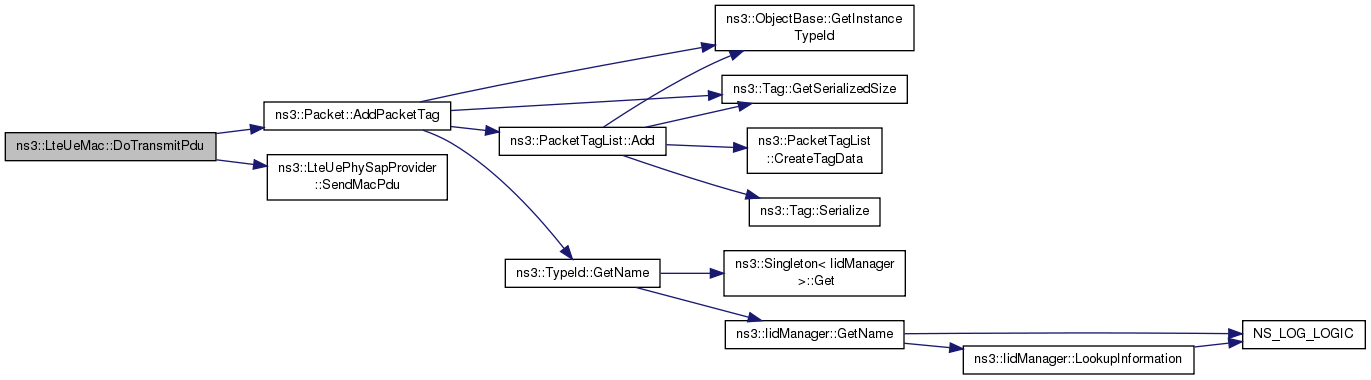

Here is the call graph for this function:

Here is the caller graph for this function:

LteMacSapProvider * ns3::LteUeMac::GetLteMacSapProvider ( void )

Get the LTE MAC SAP provider.

Returns: a pointer to the LTE MAC SAP provider

Definition at line 286 of file lte-ue-mac.cc.

References m_macSapProvider.

LteUeCmacSapProvider * ns3::LteUeMac::GetLteUeCmacSapProvider ( void )

Get the LTE CMAC SAP provider.

Returns: a pointer to the LTE CMAC SAP provider

Definition at line 298 of file lte-ue-mac.cc.

References m_cmacSapProvider.

LteUePhySapUser * ns3::LteUeMac::GetLteUePhySapUser ( void )

Get the PHY SAP user.

Returns: a pointer to the SAP user of the PHY

Definition at line 273 of file lte-ue-mac.cc.

References m_uePhySapUser.

TypeId ns3::LteUeMac::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 218 of file lte-ue-mac.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::LteUeMac::RandomlySelectAndSendRaPreamble ( )

private

Randomly sleect and send RA preamble function.

Definition at line 395 of file lte-ue-mac.cc.

References ns3::RandomVariableStream::GetInteger(), m_rachConfig, m_rachConfigured, m_raPreambleId, m_raPreambleUniformVariable, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::RachConfig::numberOfRaPreambles, and SendRaPreamble().

Referenced by DoStartContentionBasedRandomAccessProcedure(), and RaResponseTimeout().

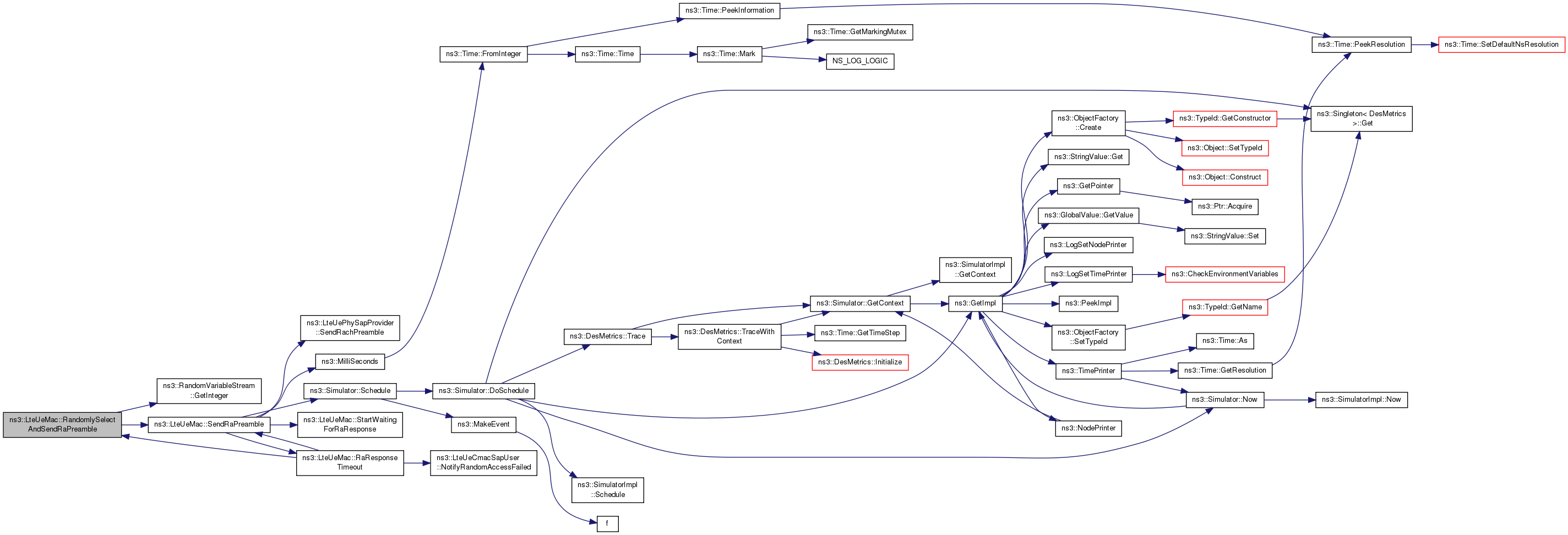

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::RaResponseTimeout ( bool contention )

private

RA response timeout function.

Parameters

contention if true randomly select and send te RA preamble

Definition at line 472 of file lte-ue-mac.cc.

References m_cmacSapUser, m_preambleTransmissionCounter, m_rachConfig, m_waitingForRaResponse, ns3::LteUeCmacSapUser::NotifyRandomAccessFailed(), NS_LOG_FUNCTION, NS_LOG_INFO, ns3::LteUeCmacSapProvider::RachConfig::preambleTransMax, RandomlySelectAndSendRaPreamble(), and SendRaPreamble().

Referenced by SendRaPreamble().

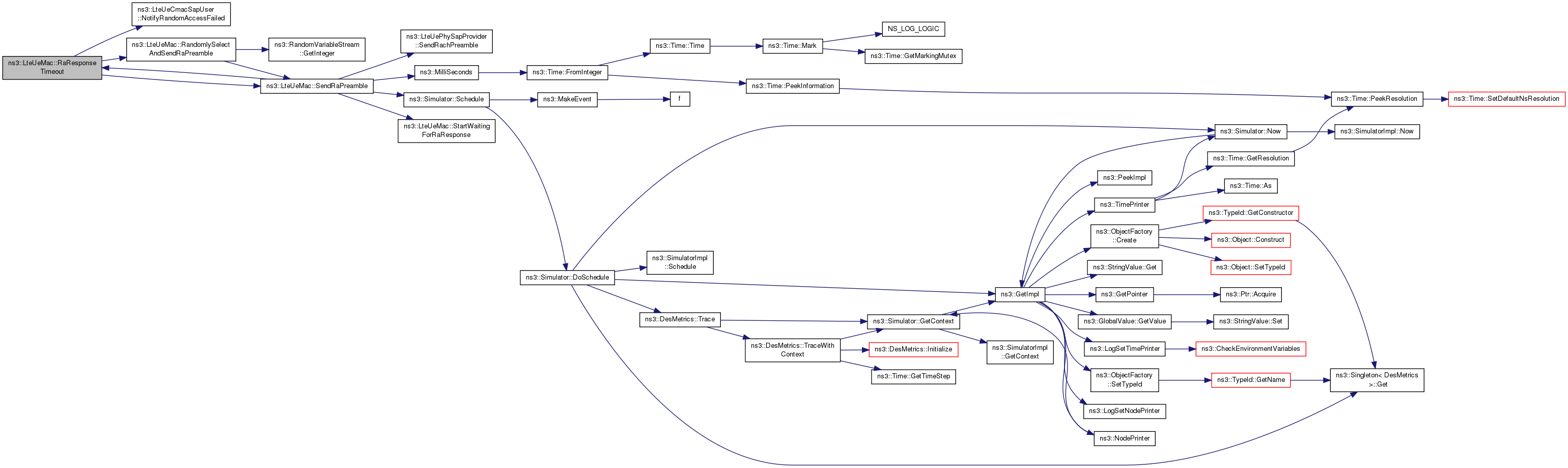

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::RecvRaResponse ( BuildRarListElement_s raResponse )

private

Receive the RA response function.

Parameters

raResponse RA response received

Definition at line 436 of file lte-ue-mac.cc.

References ns3::EventId::Cancel(), m_cmacSapUser, m_componentCarrierId, ns3::BuildRarListElement_s::m_grant, m_lcInfoMap, m_noRaResponseReceivedEvent, m_raPreambleId, m_rnti, ns3::BuildRarListElement_s::m_rnti, ns3::UlGrant_s::m_tbSize, m_ulBsrReceived, m_waitingForRaResponse, ns3::LteUeCmacSapUser::NotifyRandomAccessSuccessful(), NS_ASSERT, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::LteUeCmacSapUser::SetTemporaryCellRnti().

Referenced by DoReceiveLteControlMessage().

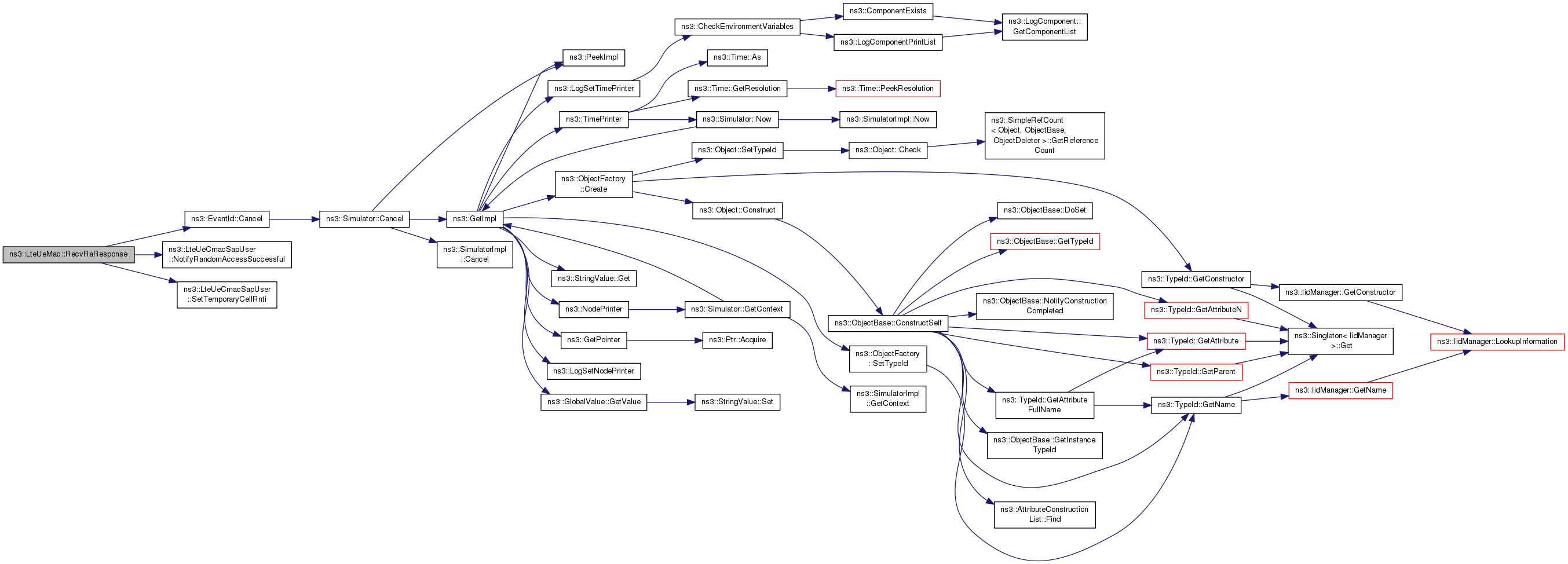

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::RefreshHarqProcessesPacketBuffer ( void )

private

Refresh HARQ processes packet buffer function.

Definition at line 793 of file lte-ue-mac.cc.

References m_miUlHarqProcessesPacket, m_miUlHarqProcessesPacketTimer, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by DoSubframeIndication().

Here is the caller graph for this function:

void ns3::LteUeMac::SendRaPreamble ( bool contention )

private

Send RA preamble function.

Parameters

contention if true randomly select and send te RA preamble

Definition at line 407 of file lte-ue-mac.cc.

References m_noRaResponseReceivedEvent, m_rachConfig, m_raPreambleId, m_raRnti, m_subframeNo, m_uePhySapProvider, ns3::MilliSeconds(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, RaResponseTimeout(), ns3::LteUeCmacSapProvider::RachConfig::raResponseWindowSize, ns3::Simulator::Schedule(), ns3::LteUePhySapProvider::SendRachPreamble(), and StartWaitingForRaResponse().

Referenced by DoStartNonContentionBasedRandomAccessProcedure(), RandomlySelectAndSendRaPreamble(), and RaResponseTimeout().

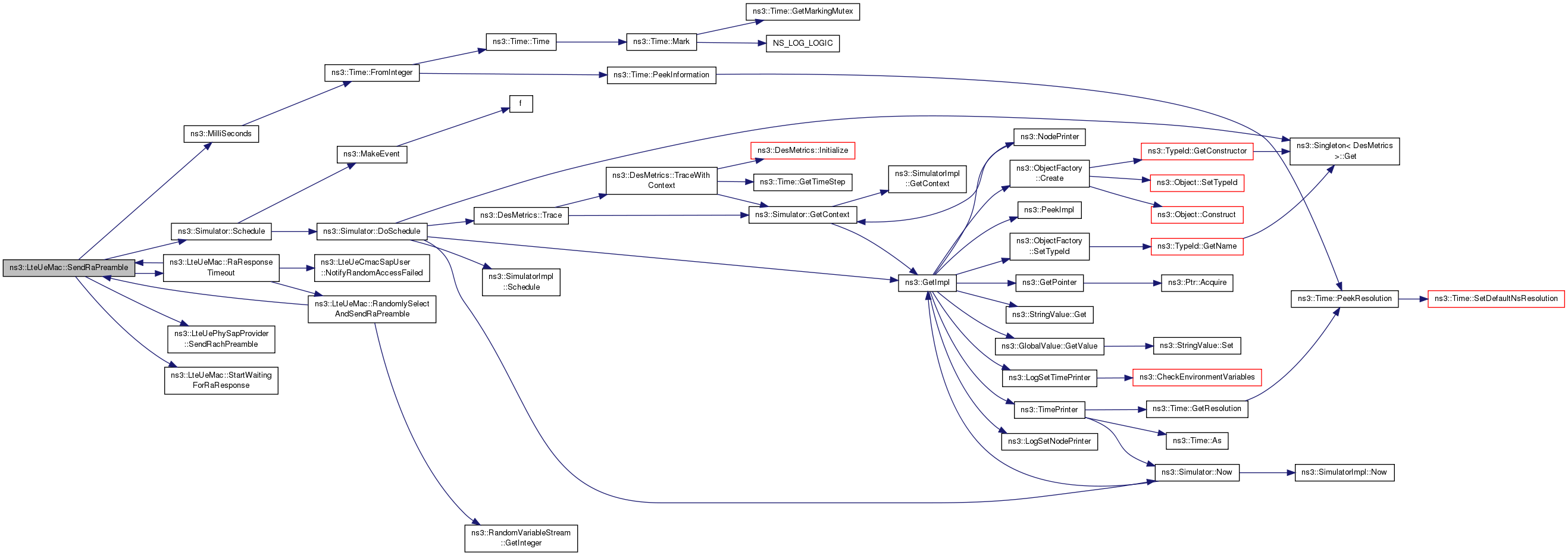

Here is the call graph for this function:

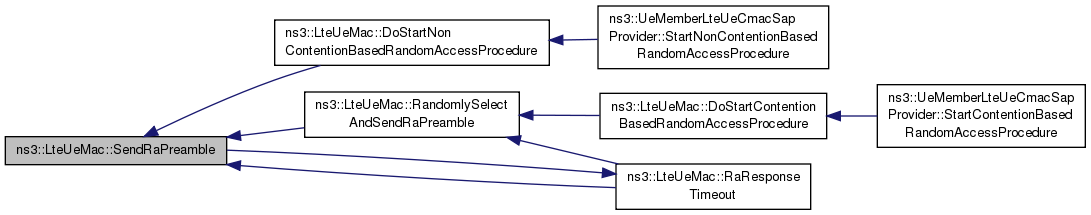

Here is the caller graph for this function:

void ns3::LteUeMac::SendReportBufferStatus ( void )

private

Send report buffer status.

Definition at line 345 of file lte-ue-mac.cc.

References ns3::MacCeListElement_s::BSR, ns3::BufferSizeLevelBsr::BufferSize2BsrId(), ns3::MacCeValue_u::m_bufferStatus, m_lcInfoMap, ns3::MacCeListElement_s::m_macCeType, ns3::MacCeListElement_s::m_macCeValue, m_rnti, ns3::MacCeListElement_s::m_rnti, m_uePhySapProvider, m_ulBsrReceived, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::LteUePhySapProvider::SendLteControlMessage().

Referenced by DoSubframeIndication().

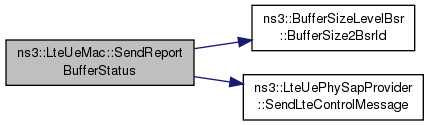

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::SetComponentCarrierId ( uint8_t index )

Set the component carried ID.

Parameters

index the component carrier ID

Definition at line 304 of file lte-ue-mac.cc.

References m_componentCarrierId.

void ns3::LteUeMac::SetLteUeCmacSapUser ( LteUeCmacSapUser * s )

Set the LTE UE CMAC SAP user.

Parameters

s	the LTE UE CMAC SAP User

Definition at line 292 of file lte-ue-mac.cc.

References m_cmacSapUser.

void ns3::LteUeMac::SetLteUePhySapProvider ( LteUePhySapProvider * s )

Set the PHY SAP Provider.

Parameters

s	a pointer to the PHY SAP Provider

Definition at line 279 of file lte-ue-mac.cc.

References m_uePhySapProvider.

void ns3::LteUeMac::StartWaitingForRaResponse ( )

private

Start waiting for RA response function.

Definition at line 429 of file lte-ue-mac.cc.

References m_waitingForRaResponse, and NS_LOG_FUNCTION.

Referenced by SendRaPreamble().

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class UeMemberLteMacSapProvider

friend

allow UeMemberLteMacSapProvider class friend access

Definition at line 48 of file lte-ue-mac.h.

Referenced by LteUeMac().

friend class UeMemberLteUeCmacSapProvider

friend

allow UeMemberLteUeCmacSapProvider class friend access

Definition at line 46 of file lte-ue-mac.h.

Referenced by LteUeMac().

friend class UeMemberLteUePhySapUser

friend

allow UeMemberLteUePhySapUser class friend access

Definition at line 50 of file lte-ue-mac.h.

Referenced by LteUeMac().

Member Data Documentation

uint16_t ns3::LteUeMac::m_backoffParameter

private

backoff parameter

Definition at line 254 of file lte-ue-mac.h.

Referenced by DoStartContentionBasedRandomAccessProcedure().

Time ns3::LteUeMac::m_bsrLast

private

BSR last.

Definition at line 240 of file lte-ue-mac.h.

Referenced by DoSubframeIndication().

Time ns3::LteUeMac::m_bsrPeriodicity

private

BSR periodicity.

Definition at line 239 of file lte-ue-mac.h.

Referenced by DoSubframeIndication().

LteUeCmacSapProvider* ns3::LteUeMac::m_cmacSapProvider

private

CMAC SAP provider.

Definition at line 231 of file lte-ue-mac.h.

Referenced by DoDispose(), GetLteUeCmacSapProvider(), and LteUeMac().

LteUeCmacSapUser* ns3::LteUeMac::m_cmacSapUser

private

CMAC SAP user.

Definition at line 230 of file lte-ue-mac.h.

Referenced by RaResponseTimeout(), RecvRaResponse(), and SetLteUeCmacSapUser().

uint8_t ns3::LteUeMac::m_componentCarrierId

private

component carrier Id –> used to address sap

Definition at line 215 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), LteUeMac(), RecvRaResponse(), and SetComponentCarrierId().

uint32_t ns3::LteUeMac::m_frameNo

private

frame number

Definition at line 258 of file lte-ue-mac.h.

Referenced by DoSubframeIndication().

bool ns3::LteUeMac::m_freshUlBsr

private

true when a BSR has been received in the last TTI

Definition at line 242 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoReportBufferStatus(), DoReset(), and DoSubframeIndication().

uint8_t ns3::LteUeMac::m_harqProcessId

private

HARQ process ID.

Definition at line 244 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoSubframeIndication(), and DoTransmitPdu().

std::map<uint8_t, LcInfo> ns3::LteUeMac::m_lcInfoMap

private

logical channel info map

Definition at line 226 of file lte-ue-mac.h.

Referenced by DoAddLc(), DoReceiveLteControlMessage(), DoReceivePhyPdu(), DoRemoveLc(), DoReset(), RecvRaResponse(), and SendReportBufferStatus().

LteMacSapProvider* ns3::LteUeMac::m_macSapProvider

private

MAC SAP provider.

Definition at line 228 of file lte-ue-mac.h.

Referenced by DoDispose(), GetLteMacSapProvider(), and LteUeMac().

std::vector< Ptr<PacketBurst> > ns3::LteUeMac::m_miUlHarqProcessesPacket

private

Packets under trasmission of the UL HARQ processes.

Definition at line 245 of file lte-ue-mac.h.

Referenced by DoDispose(), DoReceiveLteControlMessage(), DoTransmitPdu(), LteUeMac(), and RefreshHarqProcessesPacketBuffer().

std::vector< uint8_t > ns3::LteUeMac::m_miUlHarqProcessesPacketTimer

private

timer for packet life in the buffer

Definition at line 246 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoTransmitPdu(), LteUeMac(), and RefreshHarqProcessesPacketBuffer().

EventId ns3::LteUeMac::m_noRaResponseReceivedEvent

private

no RA response received event ID

Definition at line 255 of file lte-ue-mac.h.

Referenced by DoReset(), RecvRaResponse(), and SendRaPreamble().

uint8_t ns3::LteUeMac::m_preambleTransmissionCounter

private

preamble tranamission counter

Definition at line 253 of file lte-ue-mac.h.

Referenced by DoStartContentionBasedRandomAccessProcedure(), and RaResponseTimeout().

LteUeCmacSapProvider::RachConfig ns3::LteUeMac::m_rachConfig

private

RACH configuration.

Definition at line 251 of file lte-ue-mac.h.

Referenced by DoConfigureRach(), RandomlySelectAndSendRaPreamble(), RaResponseTimeout(), and SendRaPreamble().

bool ns3::LteUeMac::m_rachConfigured

private

is RACH configured?

Definition at line 250 of file lte-ue-mac.h.

Referenced by DoConfigureRach(), DoReset(), DoStartContentionBasedRandomAccessProcedure(), and RandomlySelectAndSendRaPreamble().

uint8_t ns3::LteUeMac::m_raPreambleId

private

RA preamble ID.

Definition at line 252 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoStartNonContentionBasedRandomAccessProcedure(), RandomlySelectAndSendRaPreamble(), RecvRaResponse(), and SendRaPreamble().

Ptr<UniformRandomVariable> ns3::LteUeMac::m_raPreambleUniformVariable

private

RA preamble random variable.

Definition at line 256 of file lte-ue-mac.h.

Referenced by AssignStreams(), LteUeMac(), and RandomlySelectAndSendRaPreamble().

uint8_t ns3::LteUeMac::m_raRnti

private

RA RNTI.

Definition at line 260 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), and SendRaPreamble().

uint16_t ns3::LteUeMac::m_rnti

private

RNTI.

Definition at line 248 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoReceivePhyPdu(), DoSetRnti(), DoStartNonContentionBasedRandomAccessProcedure(), DoTransmitPdu(), RecvRaResponse(), and SendReportBufferStatus().

uint32_t ns3::LteUeMac::m_subframeNo

private

subframe number

Definition at line 259 of file lte-ue-mac.h.

Referenced by DoSubframeIndication(), and SendRaPreamble().

LteUePhySapProvider* ns3::LteUeMac::m_uePhySapProvider

private

UE Phy SAP provider.

Definition at line 233 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoTransmitPdu(), SendRaPreamble(), SendReportBufferStatus(), and SetLteUePhySapProvider().

LteUePhySapUser* ns3::LteUeMac::m_uePhySapUser

private

UE Phy SAP user.

Definition at line 234 of file lte-ue-mac.h.

Referenced by DoDispose(), GetLteUePhySapUser(), and LteUeMac().

std::map<uint8_t, LteMacSapProvider::ReportBufferStatusParameters> ns3::LteUeMac::m_ulBsrReceived

private

BSR received from RLC (the last one)

Definition at line 236 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoReportBufferStatus(), DoReset(), RecvRaResponse(), and SendReportBufferStatus().

bool ns3::LteUeMac::m_waitingForRaResponse

private

waiting for RA response

Definition at line 261 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), RaResponseTimeout(), RecvRaResponse(), and StartWaitingForRaResponse().

The documentation for this class was generated from the following files:

src/lte/model/lte-ue-mac.h
src/lte/model/lte-ue-mac.cc

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
