ns3::SimpleUeCcmMacSapUser Class Reference

SimpleUeCcmMacSapUser class. More...

Inheritance diagram for ns3::SimpleUeCcmMacSapUser:

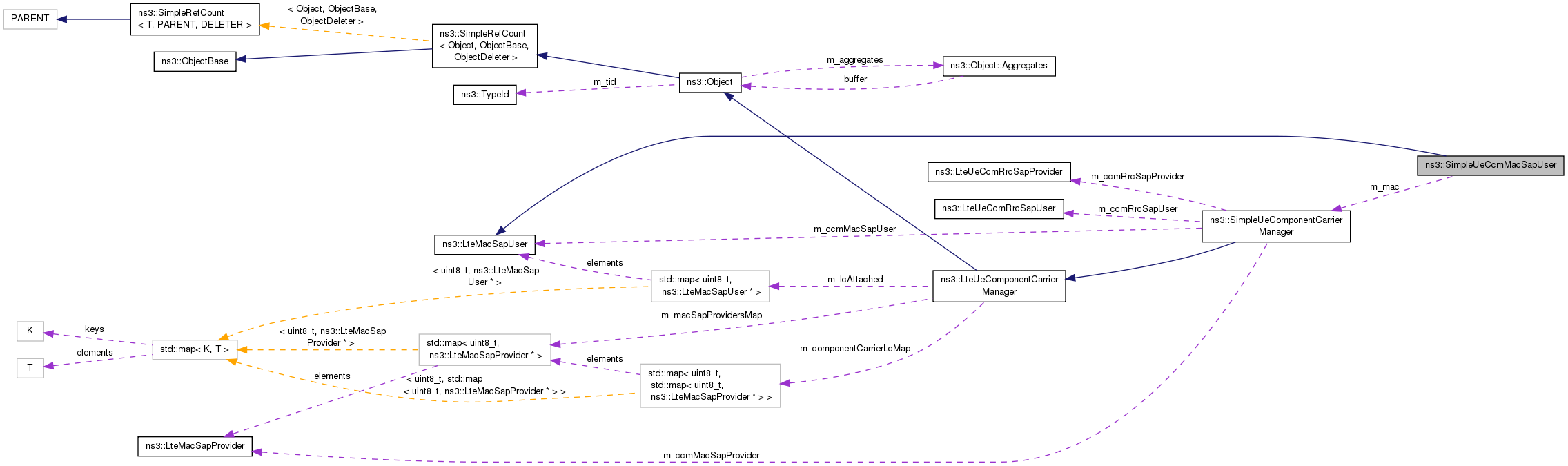

Collaboration diagram for ns3::SimpleUeCcmMacSapUser:

Public Member Functions
	SimpleUeCcmMacSapUser (SimpleUeComponentCarrierManager *mac)
	Constructor. More...
virtual void	NotifyHarqDeliveryFailure ()
	Called by the MAC to notify the RLC that an HARQ process related to this RLC instance has failed. More...
virtual void	NotifyTxOpportunity (uint32_t bytes, uint8_t layer, uint8_t harqId, uint8_t componentCarrierId, uint16_t rnti, uint8_t lcid)
	Called by the MAC to notify the RLC that the scheduler granted a transmission opportunity to this RLC instance. More...
virtual void	ReceivePdu (Ptr< Packet > p, uint16_t rnti, uint8_t lcid)
	Called by the MAC to notify the RLC of the reception of a new PDU. More...
Public Member Functions inherited from ns3::LteMacSapUser
virtual	~LteMacSapUser ()

Private Attributes
SimpleUeComponentCarrierManager *	m_mac
	the component carrier manager More...

Detailed Description

SimpleUeCcmMacSapUser class.

Definition at line 82 of file simple-ue-component-carrier-manager.cc.

Constructor & Destructor Documentation

ns3::SimpleUeCcmMacSapUser::SimpleUeCcmMacSapUser

(

SimpleUeComponentCarrierManager *

mac

)

Constructor.

Parameters

mac	the component carrier manager

Definition at line 102 of file simple-ue-component-carrier-manager.cc.

Member Function Documentation

void ns3::SimpleUeCcmMacSapUser::NotifyHarqDeliveryFailure ( )

virtual

Called by the MAC to notify the RLC that an HARQ process related to this RLC instance has failed.

Todo:

eventual parameters to be defined

Implements ns3::LteMacSapUser.

Definition at line 122 of file simple-ue-component-carrier-manager.cc.

References ns3::SimpleUeComponentCarrierManager::DoNotifyHarqDeliveryFailure(), and m_mac.

Here is the call graph for this function:

void ns3::SimpleUeCcmMacSapUser::NotifyTxOpportunity ( uint32_t  bytes, uint8_t  layer, uint8_t  harqId, uint8_t  componentCarrierId, uint16_t  rnti, uint8_t  lcid  )

virtual

Called by the MAC to notify the RLC that the scheduler granted a transmission opportunity to this RLC instance.

Parameters

bytes	the number of bytes to transmit
layer	the layer of transmission (MIMO)
harqId	the HARQ ID
componentCarrierId	component carrier ID
rnti	the RNTI
lcid	the LCID

Implements ns3::LteMacSapUser.

Definition at line 108 of file simple-ue-component-carrier-manager.cc.

References ns3::SimpleUeComponentCarrierManager::DoNotifyTxOpportunity(), m_mac, and NS_LOG_INFO.

Here is the call graph for this function:

void ns3::SimpleUeCcmMacSapUser::ReceivePdu ( Ptr< Packet >  p, uint16_t  rnti, uint8_t  lcid  )

virtual

Called by the MAC to notify the RLC of the reception of a new PDU.

Parameters

p	the packet
rnti	the RNTI
lcid	the LCID

Implements ns3::LteMacSapUser.

Definition at line 116 of file simple-ue-component-carrier-manager.cc.

References ns3::SimpleUeComponentCarrierManager::DoReceivePdu(), and m_mac.

Here is the call graph for this function:

Member Data Documentation

SimpleUeComponentCarrierManager* ns3::SimpleUeCcmMacSapUser::m_mac

private

the component carrier manager

Definition at line 99 of file simple-ue-component-carrier-manager.cc.

Referenced by NotifyHarqDeliveryFailure(), NotifyTxOpportunity(), and ReceivePdu().

---

The documentation for this class was generated from the following file:

• src/lte/model/simple-ue-component-carrier-manager.cc
