Component carrier manager implementation which simply does nothing. More...

#include "simple-ue-component-carrier-manager.h"

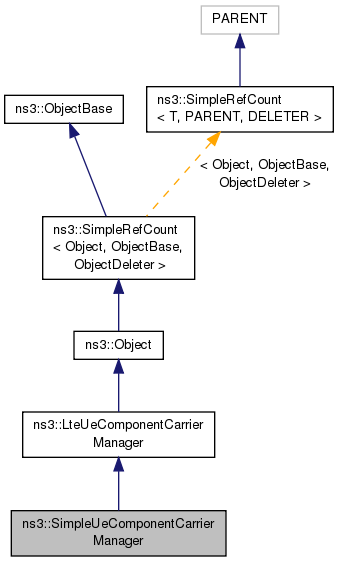

Inheritance diagram for ns3::SimpleUeComponentCarrierManager:

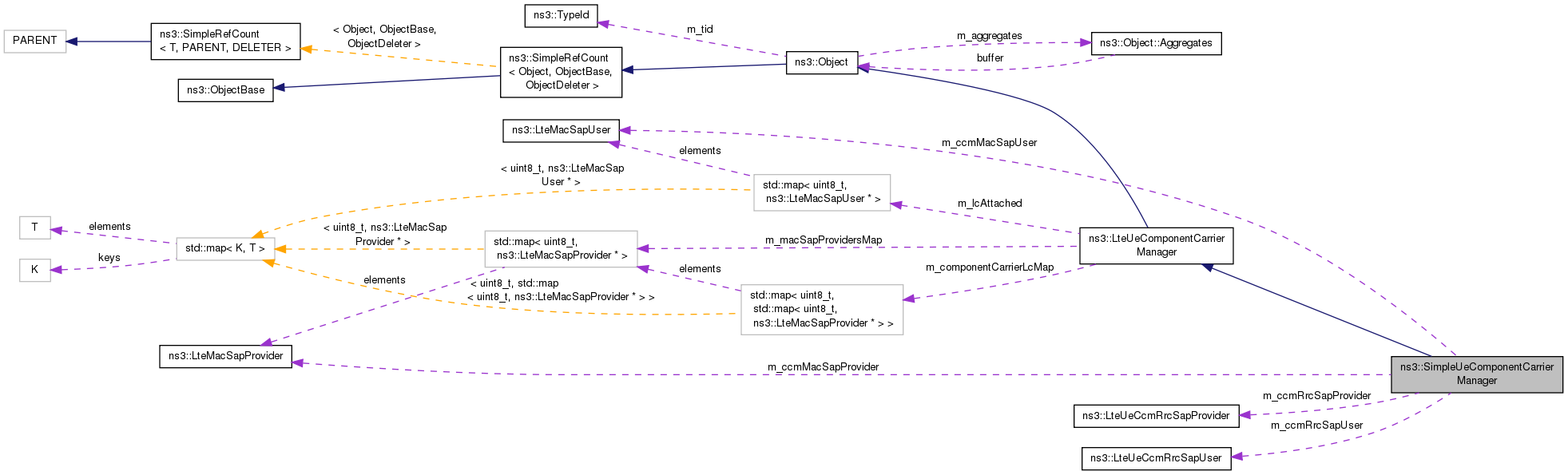

Collaboration diagram for ns3::SimpleUeComponentCarrierManager:

Public Member Functions
	SimpleUeComponentCarrierManager ()
	Creates a No-op CCS algorithm instance. More...

virtual	~SimpleUeComponentCarrierManager ()

virtual LteUeCcmRrcSapProvider *	GetLteCcmRrcSapProvider ()
	Exports the "provider" part of the ComponentCarrier Management SAP interface. More...

virtual LteMacSapProvider *	GetLteMacSapProvider ()
	Returns the MAC sap provider interface that if forwarding calls to the instance of the LteUeComponentCarrierManager. More...

virtual void	SetLteCcmRrcSapUser (LteUeCcmRrcSapUser *s)
	Set the "user" part of the ComponentCarrier Management SAP interface that this UE component carrier manager will interact with. More...

Public Member Functions inherited from ns3::LteUeComponentCarrierManager
	LteUeComponentCarrierManager ()

virtual	~LteUeComponentCarrierManager ()

bool	SetComponentCarrierMacSapProviders (uint8_t componentCarrierId, LteMacSapProvider *sap)
	Sets a pointer to SAP interface of MAC instance for the specified carrier. More...

void	SetNumberOfComponentCarriers (uint8_t noOfComponentCarriers)
	Sets number of component carriers that are supported by this UE. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::LteUeComponentCarrierManager
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
std::vector< LteUeCcmRrcSapProvider::LcsConfig >	DoAddLc (uint8_t lcId, LteUeCmacSapProvider::LogicalChannelConfig lcConfig, LteMacSapUser *msu)
	Add LC function. More...

LteMacSapUser *	DoConfigureSignalBearer (uint8_t lcId, LteUeCmacSapProvider::LogicalChannelConfig lcConfig, LteMacSapUser *msu)
	Configure signal bearer function. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

void	DoNotifyConnectionReconfigurationMsg ()
	Notify connection reconfiguration message. More...

void	DoNotifyHarqDeliveryFailure ()
	Notify HARQ deliver failure. More...

void	DoNotifyTxOpportunity (uint32_t bytes, uint8_t layer, uint8_t harqId, uint8_t componentCarrierId, uint16_t rnti, uint8_t lcid)
	Notify TX opportunity function. More...

void	DoReceivePdu (Ptr< Packet > p, uint16_t rnti, uint8_t lcid)
	Receive PDU function. More...

std::vector< uint16_t >	DoRemoveLc (uint8_t lcid)
	Remove LC function. More...

void	DoReportBufferStatus (LteMacSapProvider::ReportBufferStatusParameters params)
	Report buffer status function. More...

void	DoReportUeMeas (uint16_t rnti, LteRrcSap::MeasResults measResults)
	Report Ue Measure function. More...

void	DoTransmitPdu (LteMacSapProvider::TransmitPduParameters params)
	Transmit PDU function. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Attributes
LteMacSapProvider *	m_ccmMacSapProvider
	Receive API calls from the eNodeB RLC instance. More...

LteMacSapUser *	m_ccmMacSapUser
	Interface to the eNodeB RLC instance. More...

LteUeCcmRrcSapProvider *	m_ccmRrcSapProvider
	Receive API calls from the eNodeB RRC instance. More...

LteUeCcmRrcSapUser *	m_ccmRrcSapUser
	Interface to the eNodeB RRC instance. More...

Friends
class	MemberLteUeCcmRrcSapProvider< SimpleUeComponentCarrierManager >
	let the forwarder class access the protected and private members More...

class	SimpleUeCcmMacSapProvider
	allow SimpleUeCcmMacSapProvider class friend access More...

class	SimpleUeCcmMacSapUser
	allow SimpleUeCcmMacSapUser class friend access More...

Additional Inherited Members
Protected Attributes inherited from ns3::LteUeComponentCarrierManager
std::map< uint8_t, std::map< uint8_t, LteMacSapProvider * > >	m_componentCarrierLcMap
	Flow configuration per flow Id of this UE. More...

std::map< uint8_t, LteMacSapUser * >	m_lcAttached
	Map of pointers to SAP interfaces of the RLC instance of the flows of this UE. More...

std::map< uint8_t, LteMacSapProvider * >	m_macSapProvidersMap
	Map of pointers to SAP to interfaces of the MAC instance if the flows of this UE. More...

uint16_t	m_noOfComponentCarriers
	// The number of component carriers that this UE can support. More...

uint16_t	m_noOfComponentCarriersEnabled
	The number of enabled component carriers that are enabled for this UE. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Component carrier manager implementation which simply does nothing.

Selecting this component carrier selection algorithm is equivalent to disabling automatic triggering of component carrier selection. This is the default choice.

Config Paths

ns3::SimpleUeComponentCarrierManager is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeComponentCarrierManager/$ns3::SimpleUeComponentCarrierManager"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeComponentCarrierManager/$ns3::SimpleUeComponentCarrierManager"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 216 bytes (on a 64-bit architecture).

Definition at line 40 of file simple-ue-component-carrier-manager.h.

Constructor & Destructor Documentation

ns3::SimpleUeComponentCarrierManager::SimpleUeComponentCarrierManager ( )

Creates a No-op CCS algorithm instance.

Definition at line 131 of file simple-ue-component-carrier-manager.cc.

References m_ccmMacSapProvider, m_ccmMacSapUser, m_ccmRrcSapProvider, ns3::LteUeComponentCarrierManager::m_noOfComponentCarriersEnabled, NS_LOG_FUNCTION, SimpleUeCcmMacSapProvider, and SimpleUeCcmMacSapUser.

ns3::SimpleUeComponentCarrierManager::~SimpleUeComponentCarrierManager ( )

virtual

Definition at line 142 of file simple-ue-component-carrier-manager.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

std::vector< LteUeCcmRrcSapProvider::LcsConfig > ns3::SimpleUeComponentCarrierManager::DoAddLc	(	uint8_t	lcId,
		LteUeCmacSapProvider::LogicalChannelConfig	lcConfig,
		LteMacSapUser *	msu
	)

protected

Add LC function.

Parameters

lcId	the LCID
lcConfig	the logical channel config
msu	the MSU

Returns: updated LC config list

Definition at line 283 of file simple-ue-component-carrier-manager.cc.

References ns3::LteUeCcmRrcSapProvider::LcsConfig::componentCarrierId, ns3::LteUeCcmRrcSapProvider::LcsConfig::lcConfig, m_ccmMacSapUser, ns3::LteUeComponentCarrierManager::m_componentCarrierLcMap, ns3::LteUeComponentCarrierManager::m_lcAttached, ns3::LteUeComponentCarrierManager::m_macSapProvidersMap, ns3::LteUeComponentCarrierManager::m_noOfComponentCarriersEnabled, ns3::LteUeCcmRrcSapProvider::LcsConfig::msu, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

LteMacSapUser * ns3::SimpleUeComponentCarrierManager::DoConfigureSignalBearer	(	uint8_t	lcId,
		LteUeCmacSapProvider::LogicalChannelConfig	lcConfig,
		LteMacSapUser *	msu
	)

protected

Configure signal bearer function.

Parameters

lcId	the LCID
lcConfig	the logical channel config
msu	the MSU

Returns: LteMacSapUser *

Definition at line 337 of file simple-ue-component-carrier-manager.cc.

References m_ccmMacSapUser, ns3::LteUeComponentCarrierManager::m_lcAttached, and NS_LOG_FUNCTION.

void ns3::SimpleUeComponentCarrierManager::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::LteUeComponentCarrierManager.

Definition at line 150 of file simple-ue-component-carrier-manager.cc.

References m_ccmMacSapProvider, m_ccmMacSapUser, m_ccmRrcSapProvider, and NS_LOG_FUNCTION.

void ns3::SimpleUeComponentCarrierManager::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 194 of file simple-ue-component-carrier-manager.cc.

References ns3::Object::DoInitialize(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::SimpleUeComponentCarrierManager::DoNotifyConnectionReconfigurationMsg ( )

protected

Notify connection reconfiguration message.

Definition at line 320 of file simple-ue-component-carrier-manager.cc.

References ns3::LteUeCcmRrcSapUser::ComponentCarrierEnabling(), m_ccmRrcSapUser, ns3::LteUeComponentCarrierManager::m_noOfComponentCarriers, ns3::LteUeComponentCarrierManager::m_noOfComponentCarriersEnabled, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::SimpleUeComponentCarrierManager::DoNotifyHarqDeliveryFailure ( )

protected

Notify HARQ deliver failure.

Definition at line 229 of file simple-ue-component-carrier-manager.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::SimpleUeCcmMacSapUser::NotifyHarqDeliveryFailure().

Here is the caller graph for this function:

void ns3::SimpleUeComponentCarrierManager::DoNotifyTxOpportunity	(	uint32_t	bytes,
		uint8_t	layer,
		uint8_t	harqId,
		uint8_t	componentCarrierId,
		uint16_t	rnti,
		uint8_t	lcid
	)
