Introspection did not find any typical Config paths. More...

#include "traffic-control-layer.h"

Inheritance diagram for ns3::TrafficControlLayer:

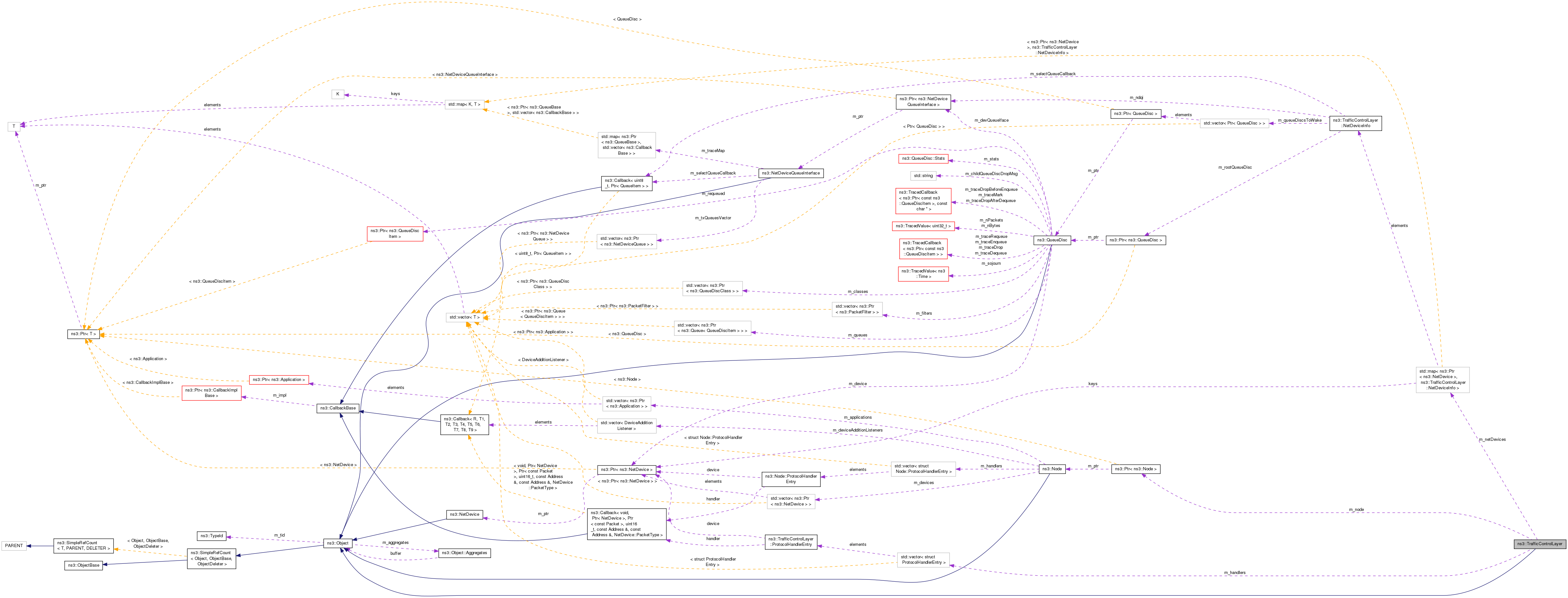

Collaboration diagram for ns3::TrafficControlLayer:

Classes
class	NetDeviceInfo
	Information to store for each device. More...

struct	ProtocolHandlerEntry
	Protocol handler entry. More...

Public Types
typedef std::vector< Ptr< QueueDisc > >	QueueDiscVector
	Typedef for queue disc vector. More...

typedef Callback< uint8_t, Ptr< QueueItem > >	SelectQueueCallback
	Callback invoked to determine the tx queue selected for a given packet. More...

Public Member Functions
	TrafficControlLayer ()
	Constructor. More...

virtual	~TrafficControlLayer ()

virtual void	DeleteRootQueueDiscOnDevice (Ptr< NetDevice > device)
	This method can be used to remove the root queue disc (and associated filters, classes and queues) installed on a device. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the type ID for the instance. More...

virtual Ptr< QueueDisc >	GetRootQueueDiscOnDevice (Ptr< NetDevice > device) const
	This method can be used to get the root queue disc installed on a device. More...

virtual void	Receive (Ptr< NetDevice > device, Ptr< const Packet > p, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType)
	Called by NetDevices, incoming packet. More...

void	RegisterProtocolHandler (Node::ProtocolHandler handler, uint16_t protocolType, Ptr< NetDevice > device)
	Register an IN handler. More...

virtual void	Send (Ptr< NetDevice > device, Ptr< QueueDiscItem > item)
	Called from upper layer to queue a packet for the transmission. More...

void	SetNode (Ptr< Node > node)
	Set node associated with this stack. More...

virtual void	SetRootQueueDiscOnDevice (Ptr< NetDevice > device, Ptr< QueueDisc > qDisc)
	This method can be used to set the root queue disc installed on a device. More...

virtual void	SetupDevice (Ptr< NetDevice > device)
	Perform the operations that the traffic control layer needs to do when an IPv4/v6 interface is added to a device. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::vector< struct ProtocolHandlerEntry >	ProtocolHandlerList
	Typedef for protocol handlers container. More...

Private Member Functions
	TrafficControlLayer (TrafficControlLayer const &)
	Copy constructor Disable default implementation to avoid misuse. More...

uint32_t	GetNDevices (void) const
	Required by the object map accessor. More...

Ptr< QueueDisc >	GetRootQueueDiscOnDeviceByIndex (uint32_t index) const
	Required by the object map accessor. More...

TrafficControlLayer &	operator= (TrafficControlLayer const &)
	Assignment operator. More...

Private Attributes
ProtocolHandlerList	m_handlers
	List of upper-layer handlers. More...

std::map< Ptr< NetDevice >, NetDeviceInfo >	m_netDevices
	Map storing the required information for each device with a queue disc installed. More...

Ptr< Node >	m_node
	The node this TrafficControlLayer object is aggregated to. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Introspection did not find any typical Config paths.

Attributes

RootQueueDiscList: The list of root queue discs associated to this Traffic Control layer.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::QueueDisc>
- Flags: read

No TraceSources are defined for this type.
Size of this type is 112 bytes (on a 64-bit architecture).

Definition at line 89 of file traffic-control-layer.h.

Member Typedef Documentation

typedef std::vector<struct ProtocolHandlerEntry> ns3::TrafficControlLayer::ProtocolHandlerList

private

Typedef for protocol handlers container.

Definition at line 268 of file traffic-control-layer.h.

typedef std::vector<Ptr<QueueDisc> > ns3::TrafficControlLayer::QueueDiscVector

Typedef for queue disc vector.

Definition at line 133 of file traffic-control-layer.h.

typedef Callback< uint8_t, Ptr<QueueItem> > ns3::TrafficControlLayer::SelectQueueCallback

Callback invoked to determine the tx queue selected for a given packet.

Definition at line 199 of file traffic-control-layer.h.

Constructor & Destructor Documentation

ns3::TrafficControlLayer::TrafficControlLayer ( )

Constructor.

Definition at line 57 of file traffic-control-layer.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::TrafficControlLayer::~TrafficControlLayer ( )

virtual

Definition at line 63 of file traffic-control-layer.cc.

References NS_LOG_FUNCTION.

ns3::TrafficControlLayer::TrafficControlLayer ( TrafficControlLayer const & )

private

Copy constructor Disable default implementation to avoid misuse.

Member Function Documentation

void ns3::TrafficControlLayer::DeleteRootQueueDiscOnDevice ( Ptr< NetDevice > device )

virtual

This method can be used to remove the root queue disc (and associated filters, classes and queues) installed on a device.

Parameters

device the device on which the installed queue disc will be deleted

Definition at line 236 of file traffic-control-layer.cc.

References m_netDevices, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

void ns3::TrafficControlLayer::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 69 of file traffic-control-layer.cc.

References ns3::Object::DoDispose(), m_handlers, m_netDevices, m_node, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::TrafficControlLayer::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 95 of file traffic-control-layer.cc.

References ns3::Object::DoInitialize(), m_netDevices, ns3::MakeCallback(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::QueueDisc::Run(), ns3::QueueDisc::WAKE_CHILD, and ns3::QueueDisc::WAKE_ROOT.

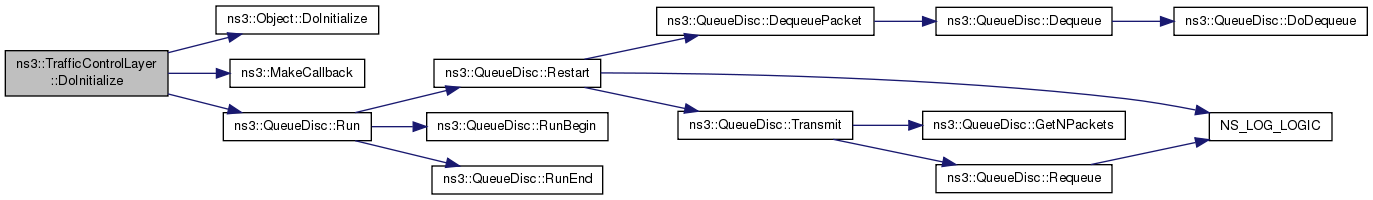

Here is the call graph for this function:

TypeId ns3::TrafficControlLayer::GetInstanceTypeId ( void ) const

virtual

Get the type ID for the instance.

Returns: the instance TypeId

Reimplemented from ns3::Object.

Definition at line 52 of file traffic-control-layer.cc.

References GetTypeId().

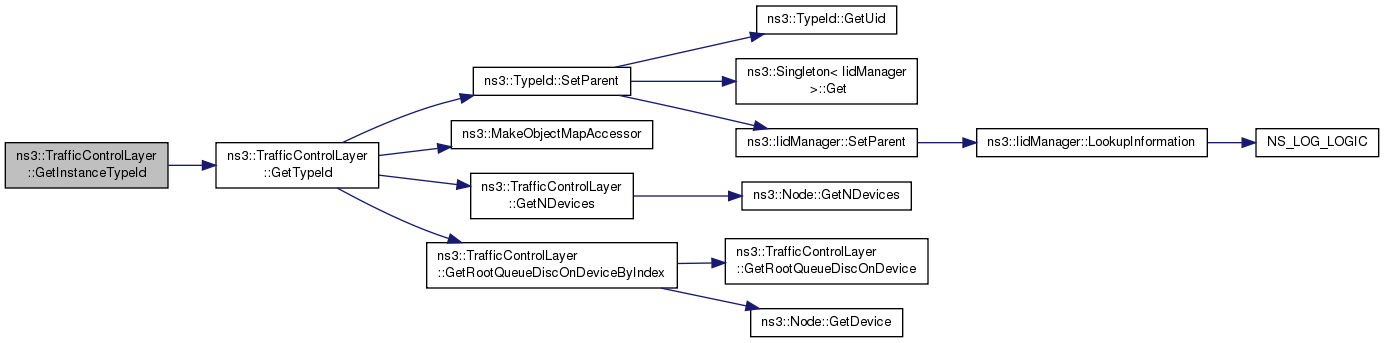

Here is the call graph for this function:

uint32_t ns3::TrafficControlLayer::GetNDevices ( void ) const

private

Required by the object map accessor.

Returns: the number of devices in the m_netDevices map

Definition at line 275 of file traffic-control-layer.cc.

References ns3::Node::GetNDevices(), and m_node.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< QueueDisc > ns3::TrafficControlLayer::GetRootQueueDiscOnDevice ( Ptr< NetDevice > device ) const

virtual

This method can be used to get the root queue disc installed on a device.

Parameters

device the device on which the requested root queue disc is installed

Returns: the root queue disc installed on the given device

Definition at line 215 of file traffic-control-layer.cc.

References m_netDevices, and NS_LOG_FUNCTION.

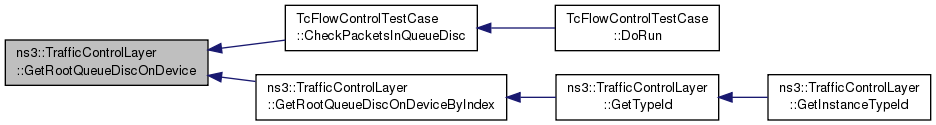

Referenced by TcFlowControlTestCase::CheckPacketsInQueueDisc(), and GetRootQueueDiscOnDeviceByIndex().

Here is the caller graph for this function:

Ptr< QueueDisc > ns3::TrafficControlLayer::GetRootQueueDiscOnDeviceByIndex ( uint32_t index ) const

private

Required by the object map accessor.

Parameters

index the index of the device in the node's device list

Returns: the root queue disc installed on the specified device

Definition at line 229 of file traffic-control-layer.cc.

References ns3::Node::GetDevice(), GetRootQueueDiscOnDevice(), m_node, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

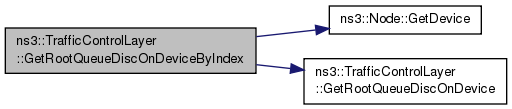

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::TrafficControlLayer::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 36 of file traffic-control-layer.cc.

References GetNDevices(), GetRootQueueDiscOnDeviceByIndex(), ns3::MakeObjectMapAccessor(), and ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

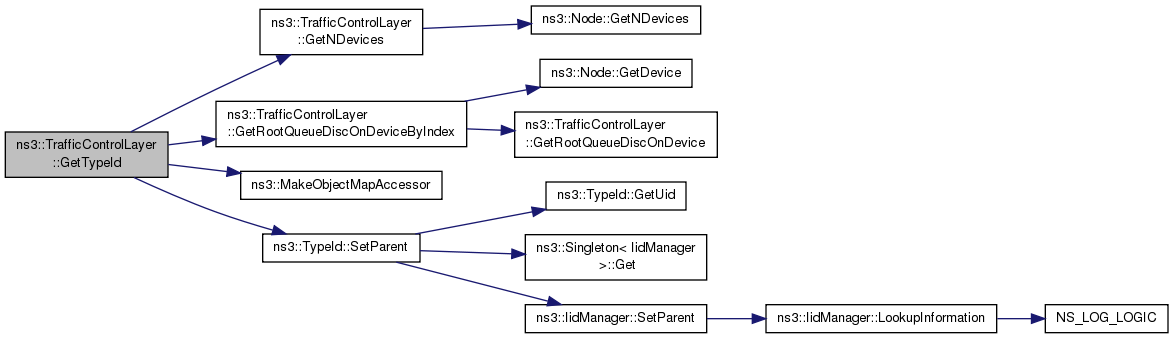

Here is the call graph for this function:

Here is the caller graph for this function:

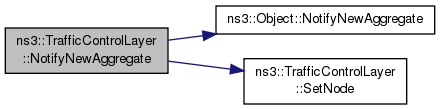

void ns3::TrafficControlLayer::NotifyNewAggregate ( void )

protectedvirtual

Notify all Objects aggregated to this one of a new Object being aggregated.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

This method is invoked whenever two sets of Objects are aggregated together. It is invoked exactly once for each Object in both sets. This method can be overriden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate() method.

It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 258 of file traffic-control-layer.cc.

References m_node, ns3::Object::NotifyNewAggregate(), NS_LOG_FUNCTION, and SetNode().

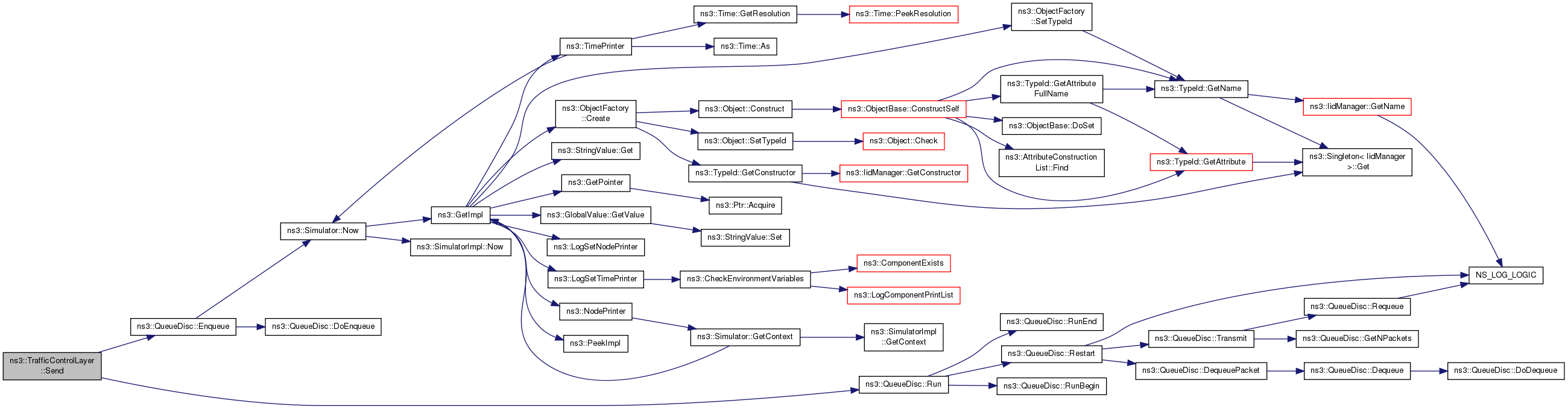

Here is the call graph for this function:

TrafficControlLayer& ns3::TrafficControlLayer::operator= ( TrafficControlLayer const & )

private

Assignment operator.

Returns: this object Disable default implementation to avoid misuse

void ns3::TrafficControlLayer::Receive	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	p,
		uint16_t	protocol,
		const Address &	from,
		const Address &	to,
		NetDevice::PacketType	packetType
	)

virtual

Called by NetDevices, incoming packet.

After analyses and scheduling, this method will call the right handler to pass the packet up in the stack.

Parameters

device	network device
p	the packet
protocol	next header value
from	address of the correspondant
to	address of the destination
packetType	type of the packet

Definition at line 282 of file traffic-control-layer.cc.

References m_handlers, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::AddInterface(), and ns3::Ipv4L3Protocol::AddInterface().

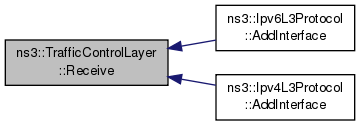

Here is the caller graph for this function:

void ns3::TrafficControlLayer::RegisterProtocolHandler	(	Node::ProtocolHandler	handler,
		uint16_t	protocolType,
		Ptr< NetDevice >	device
	)

Register an IN handler.

The handler will be invoked when a packet is received to pass it to upper layers.

Parameters

handler	the handler to register
protocolType	the type of protocol this handler is interested in. This protocol type is a so-called EtherType, as registered here: http://standards.ieee.org/regauth/ethertype/eth.txt the value zero is interpreted as matching all protocols.
device	the device attached to this handler. If the value is zero, the handler is attached to all devices.

Definition at line 174 of file traffic-control-layer.cc.

References ns3::TrafficControlLayer::ProtocolHandlerEntry::device, ns3::TrafficControlLayer::ProtocolHandlerEntry::handler, m_handlers, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::TrafficControlLayer::ProtocolHandlerEntry::promiscuous, and ns3::TrafficControlLayer::ProtocolHandlerEntry::protocol.
