QueueDisc is an abstract base class providing the interface and implementing the operations common to all the queueing disciplines. More...

#include "queue-disc.h"

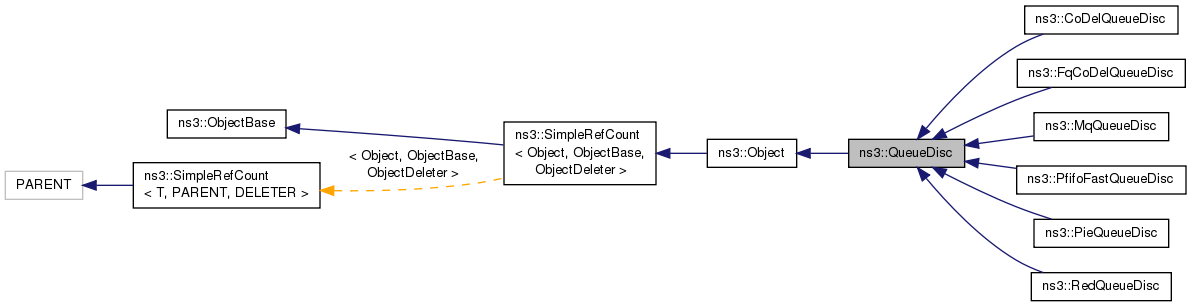

Inheritance diagram for ns3::QueueDisc:

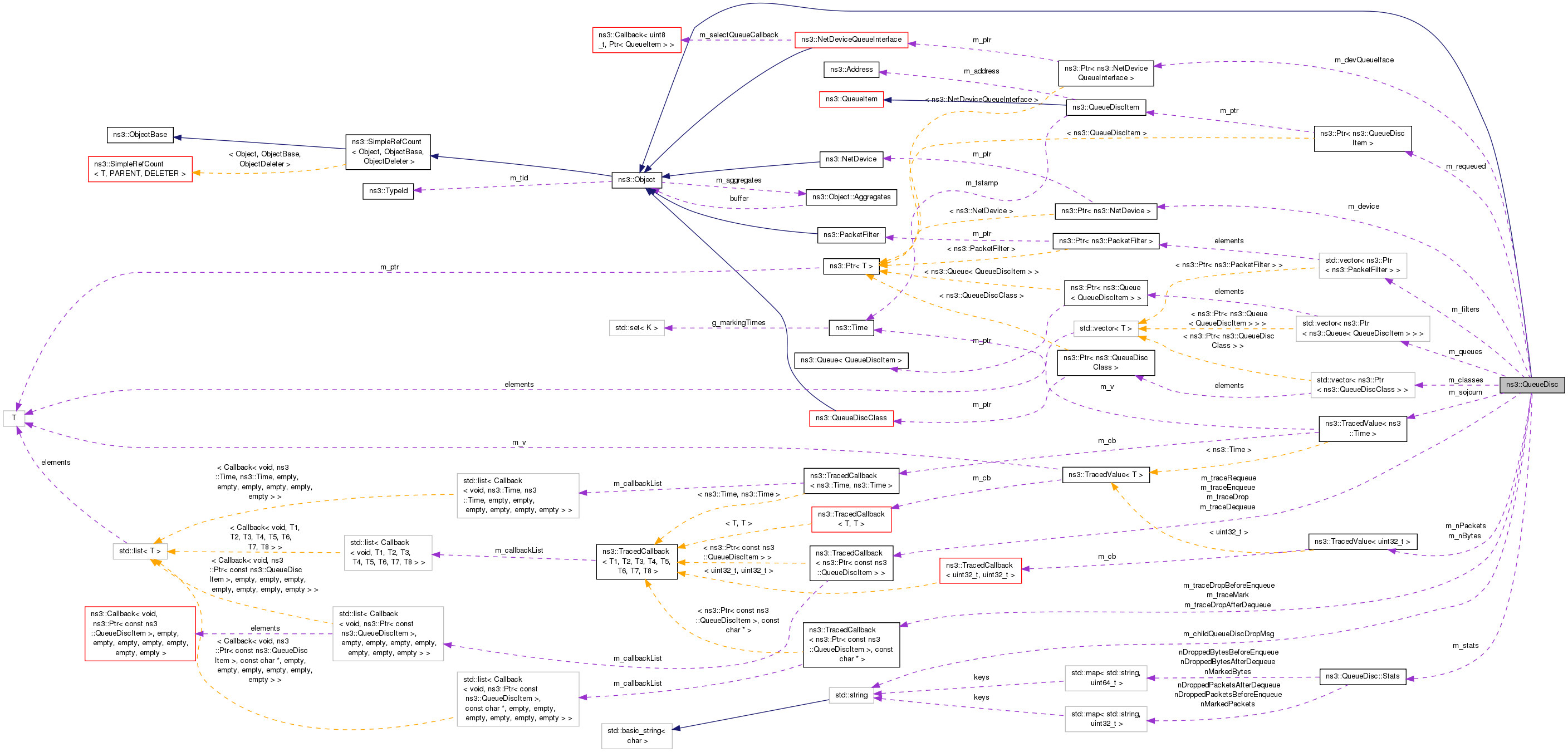

Collaboration diagram for ns3::QueueDisc:

Classes
struct	Stats
	Structure that keeps the queue disc statistics. More...

Public Types
typedef Queue< QueueDiscItem >	InternalQueue
	Internal queues store QueueDiscItem objects. More...

enum	WakeMode { WAKE_ROOT = 0x00, WAKE_CHILD = 0x01 }
	Used to determine whether the queue disc itself or its children must be activated when a netdevice wakes a transmission queue. More...

Public Member Functions

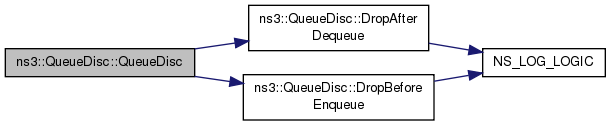

	QueueDisc ()

virtual	~QueueDisc ()

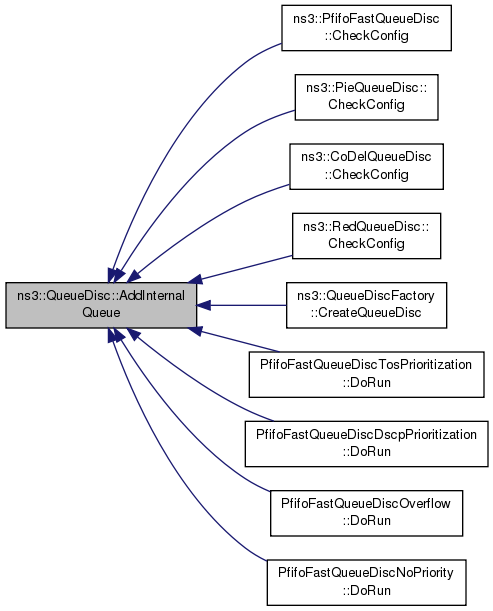

void	AddInternalQueue (Ptr< InternalQueue > queue)
	Add an internal queue to the tail of the list of queues. More...

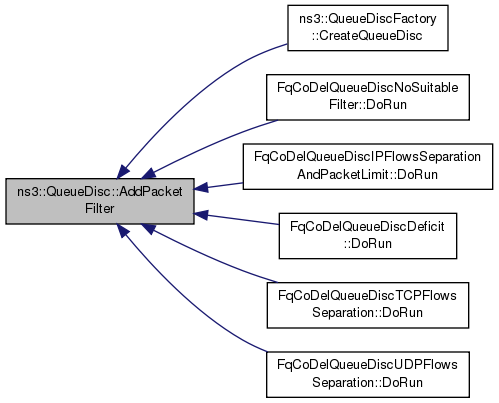

void	AddPacketFilter (Ptr< PacketFilter > filter)
	Add a packet filter to the tail of the list of filters used to classify packets. More...

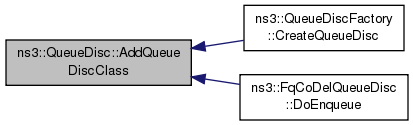

void	AddQueueDiscClass (Ptr< QueueDiscClass > qdClass)
	Add a queue disc class to the tail of the list of classes. More...

int32_t	Classify (Ptr< QueueDiscItem > item)
	Classify a packet by calling the packet filters, one at a time, until either a filter able to classify the packet is found or all the filters have been processed. More...

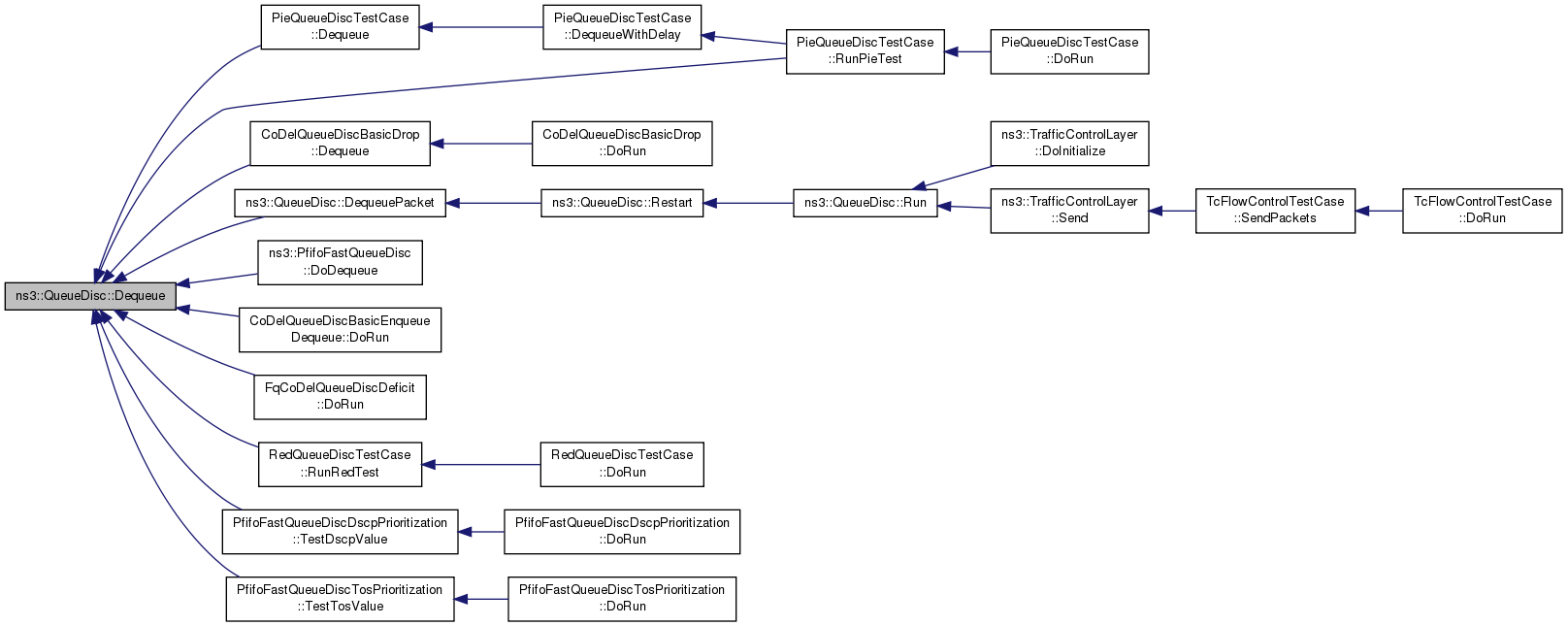

Ptr< QueueDiscItem >	Dequeue (void)
	Request the queue discipline to extract a packet. More...

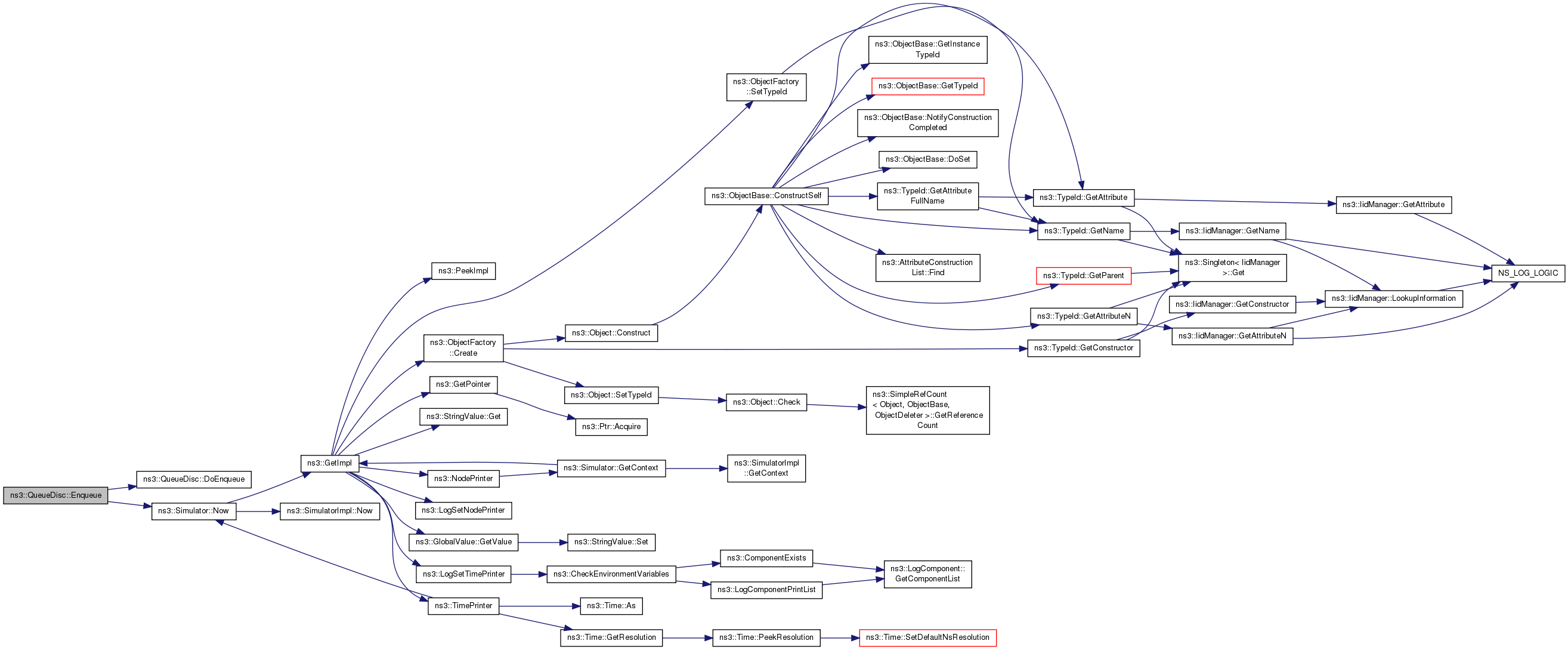

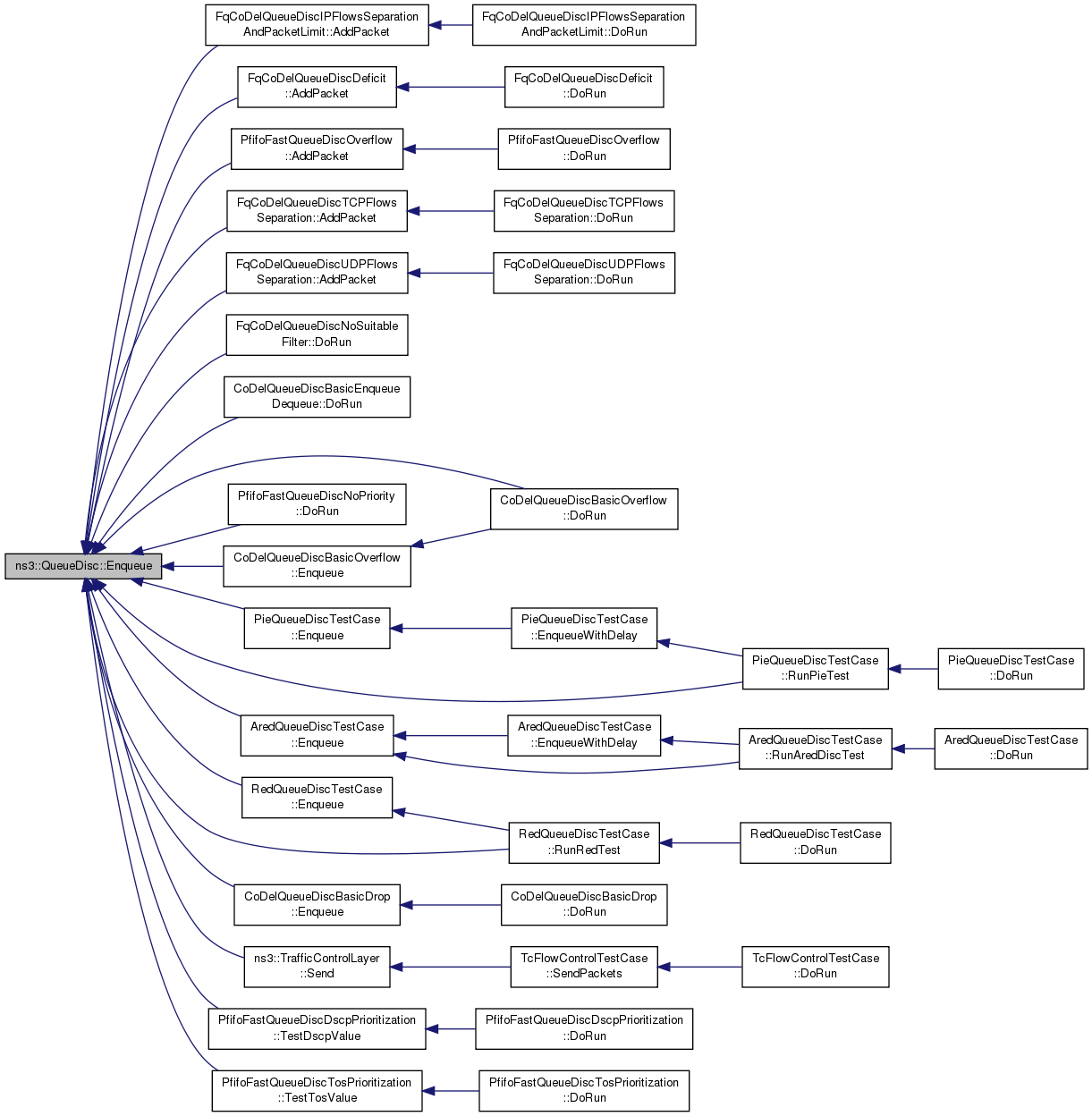

bool	Enqueue (Ptr< QueueDiscItem > item)
	Pass a packet to store to the queue discipline. More...

Ptr< InternalQueue >	GetInternalQueue (uint32_t i) const
	Get the i-th internal queue. More...

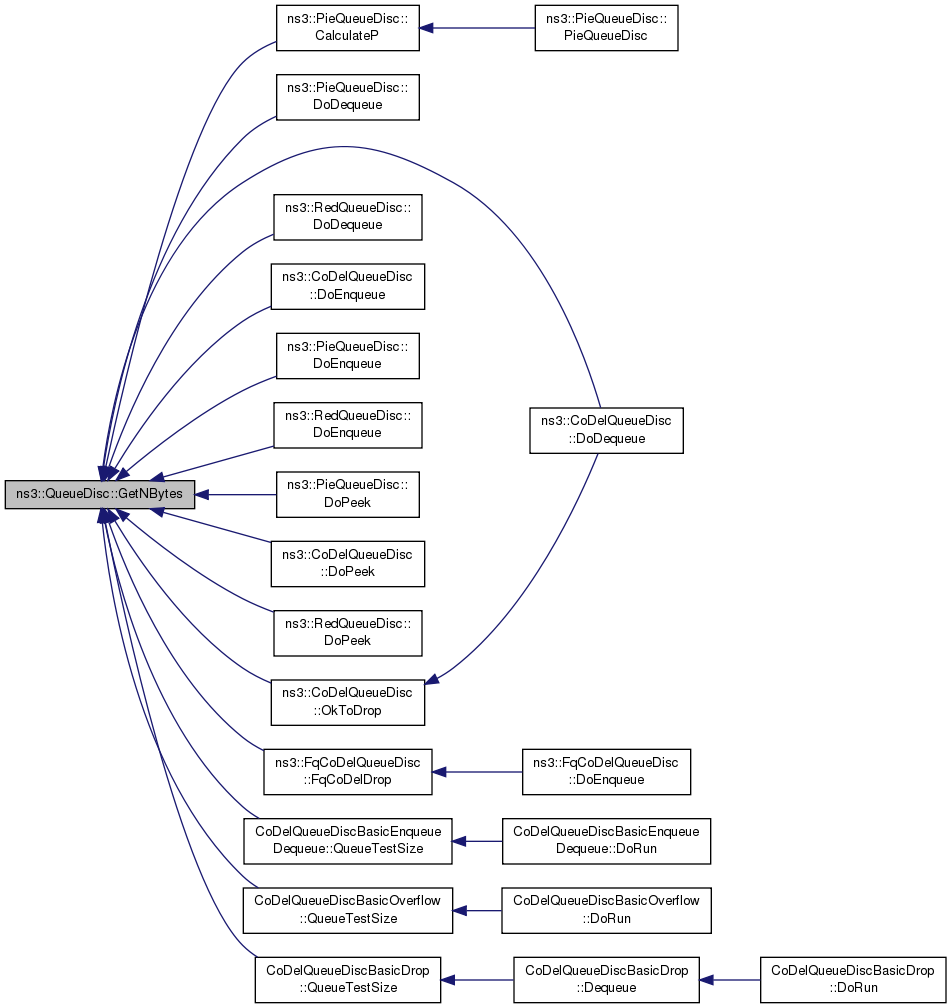

uint32_t	GetNBytes (void) const
	Get the amount of bytes stored by the queue disc. More...

Ptr< NetDevice >	GetNetDevice (void) const
	Get the NetDevice on which this queue discipline is installed. More...

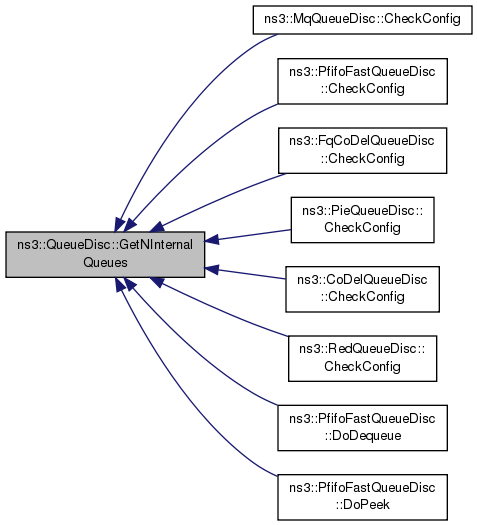

uint32_t	GetNInternalQueues (void) const
	Get the number of internal queues. More...

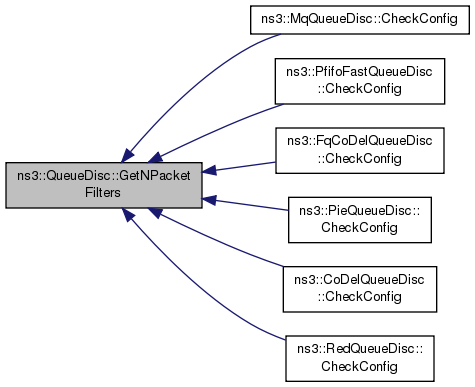

uint32_t	GetNPacketFilters (void) const
	Get the number of packet filters. More...

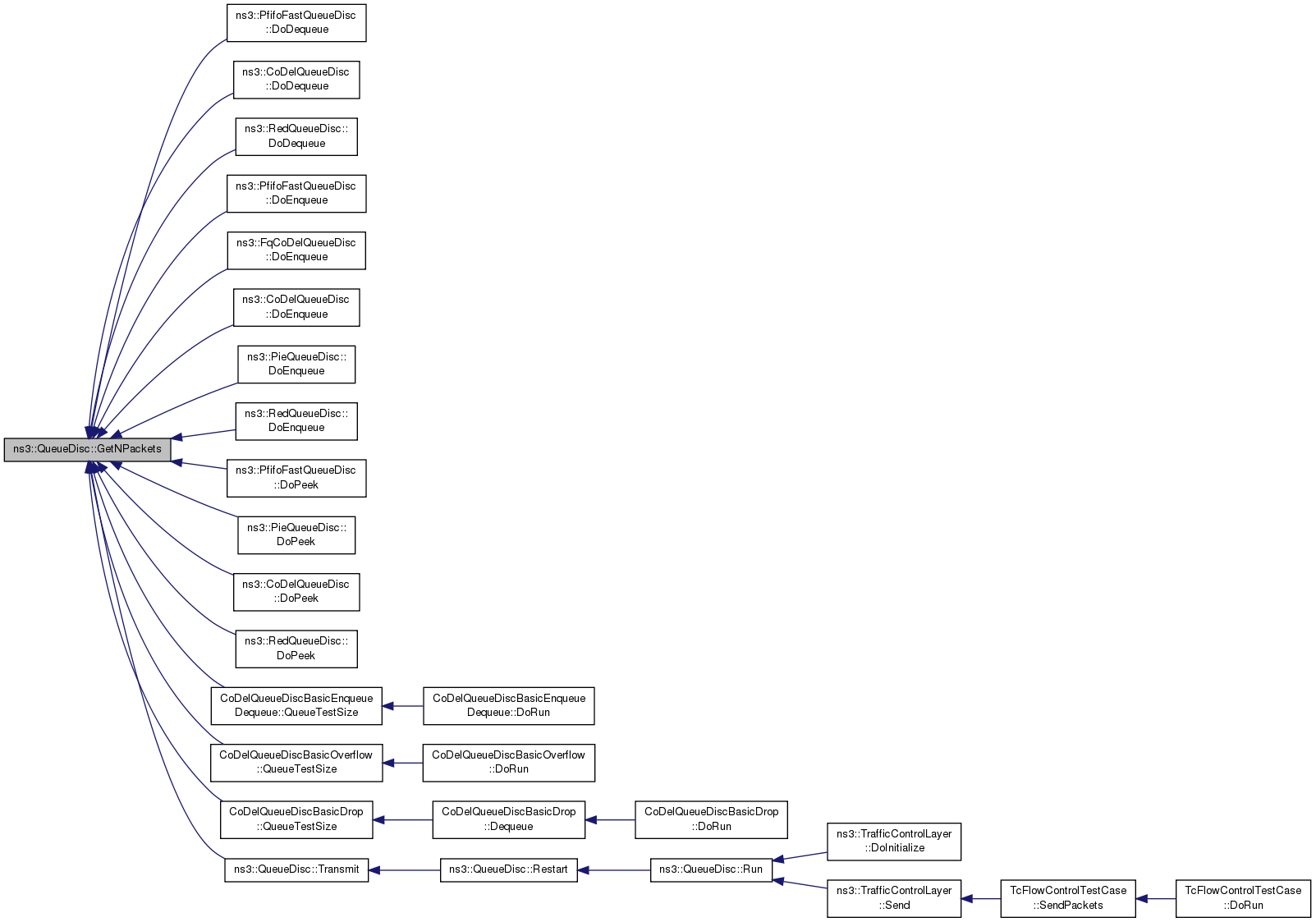

uint32_t	GetNPackets (void) const
	Get the number of packets stored by the queue disc. More...

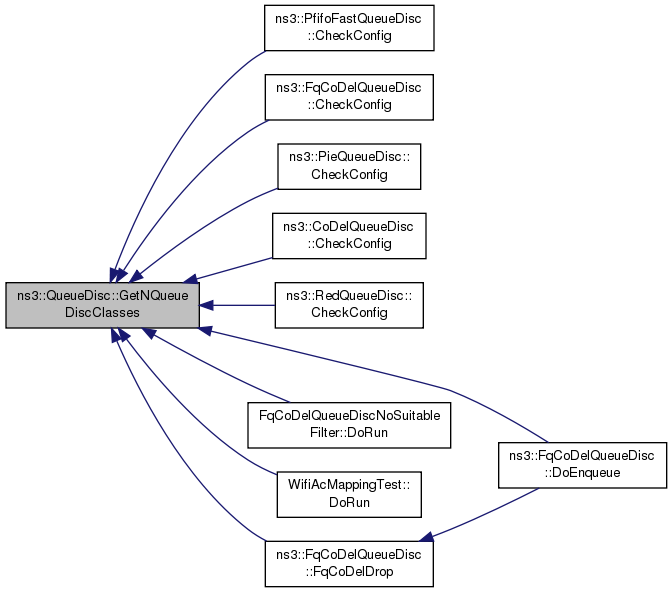

uint32_t	GetNQueueDiscClasses (void) const
	Get the number of queue disc classes. More...

Ptr< PacketFilter >	GetPacketFilter (uint32_t i) const
	Get the i-th packet filter. More...

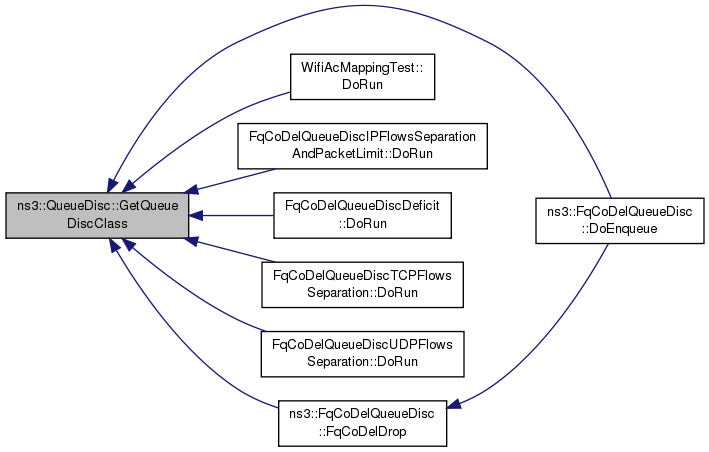

Ptr< QueueDiscClass >	GetQueueDiscClass (uint32_t i) const
	Get the i-th queue disc class. More...

virtual uint32_t	GetQuota (void) const
	Get the maximum number of dequeue operations following a packet enqueue. More...

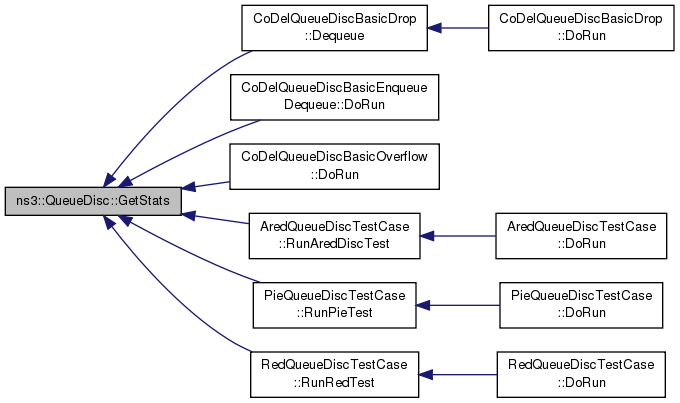

const Stats &	GetStats (void)
	Retrieve all the collected statistics. More...

virtual WakeMode	GetWakeMode (void) const
	When setting up the wake callbacks on the netdevice queues, it is necessary to determine which queue disc (the root queue disc or one of its children) should be activated when the netdevice wakes one of its transmission queues. More...

Ptr< const QueueDiscItem >	Peek (void) const
	Get a copy of the next packet the queue discipline will extract, without actually extracting the packet. More...

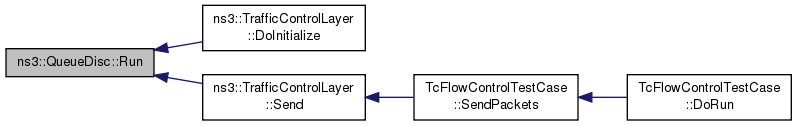

void	Run (void)
	Modelled after the Linux function __qdisc_run (net/sched/sch_generic.c) Dequeues multiple packets, until a quota is exceeded or sending a packet to the device failed. More...

void	SetNetDevice (Ptr< NetDevice > device)
	Set the NetDevice on which this queue discipline is installed. More...

virtual void	SetQuota (const uint32_t quota)
	Set the maximum number of dequeue operations following a packet enqueue. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static constexpr const char *	CHILD_QUEUE_DISC_DROP = "(Dropped by child queue disc) "
	Packet dropped by a child queue disc. More...

static constexpr const char *	INTERNAL_QUEUE_DROP = "Dropped by internal queue"
	Packet dropped by an internal queue. More...

Protected Member Functions
virtual void	DoDispose (void)
	Dispose of the object. More...

void	DoInitialize (void)
	Check whether the configuration is correct and initialize parameters. More...

void	DropAfterDequeue (Ptr< const QueueDiscItem > item, const char *reason)
	Perform the actions required when the queue disc is notified of a packet dropped after dequeue. More...

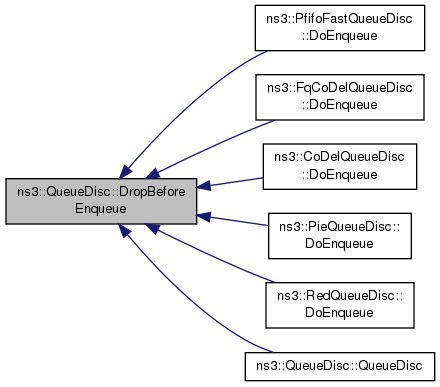

void	DropBeforeEnqueue (Ptr< const QueueDiscItem > item, const char *reason)
	Perform the actions required when the queue disc is notified of a packet dropped before enqueue. More...

bool	Mark (Ptr< QueueDiscItem > item, const char *reason)
	Marks the given packet and, if successful, updates the counters associated with the given reason. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::function< void(Ptr< const QueueDiscItem >, const char *)>	ChildQueueDiscDropFunctor
	Type for the function objects notifying that a packet has been dropped by a child queue disc. More...

typedef std::function< void(Ptr< const QueueDiscItem >)>	InternalQueueDropFunctor
	Type for the function objects notifying that a packet has been dropped by an internal queue. More...

Private Member Functions
	QueueDisc (const QueueDisc &o)
	Copy constructor. More...

virtual bool	CheckConfig (void)=0
	Check whether the current configuration is correct. More...

Ptr< QueueDiscItem >	DequeuePacket (void)
	Modelled after the Linux function dequeue_skb (net/sched/sch_generic.c) More...

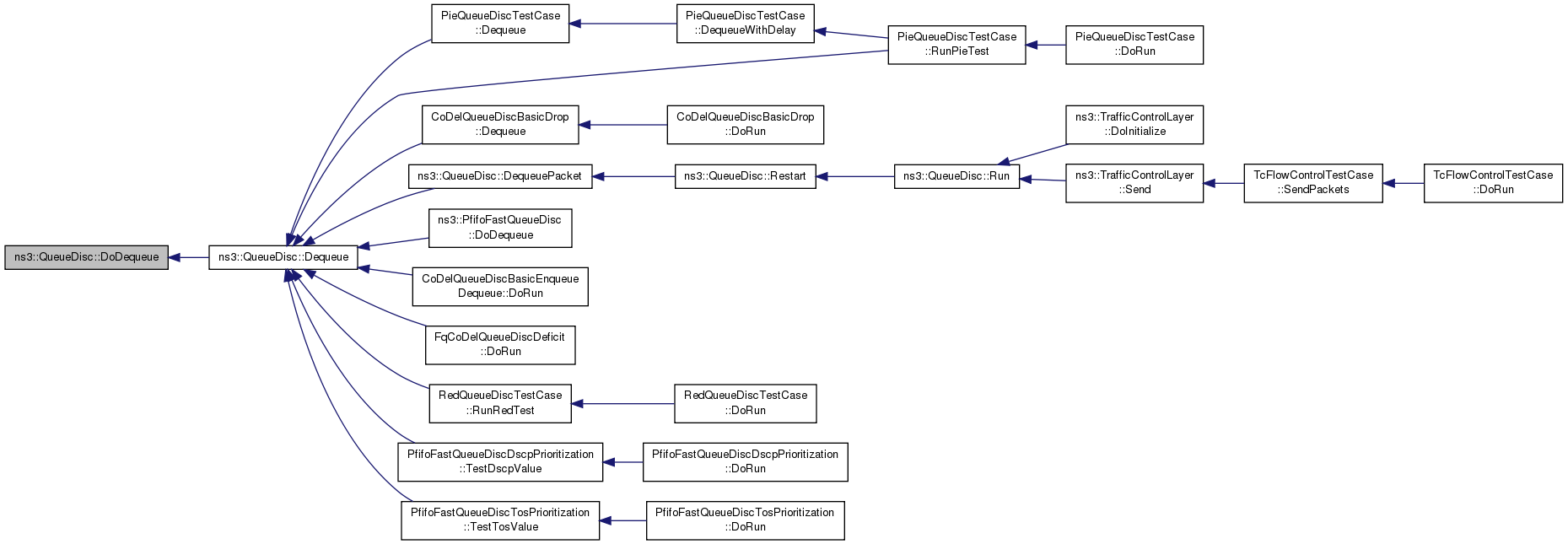

virtual Ptr< QueueDiscItem >	DoDequeue (void)=0
	This function actually extracts a packet from the queue disc. More...

virtual bool	DoEnqueue (Ptr< QueueDiscItem > item)=0
	This function actually enqueues a packet into the queue disc. More...

virtual Ptr< const QueueDiscItem >	DoPeek (void) const =0
	This function returns a copy of the next packet the queue disc will extract. More...

virtual void	InitializeParams (void)=0
	Initialize parameters (if any) before the first packet is enqueued. More...

QueueDisc &	operator= (const QueueDisc &o)
	Assignment operator. More...

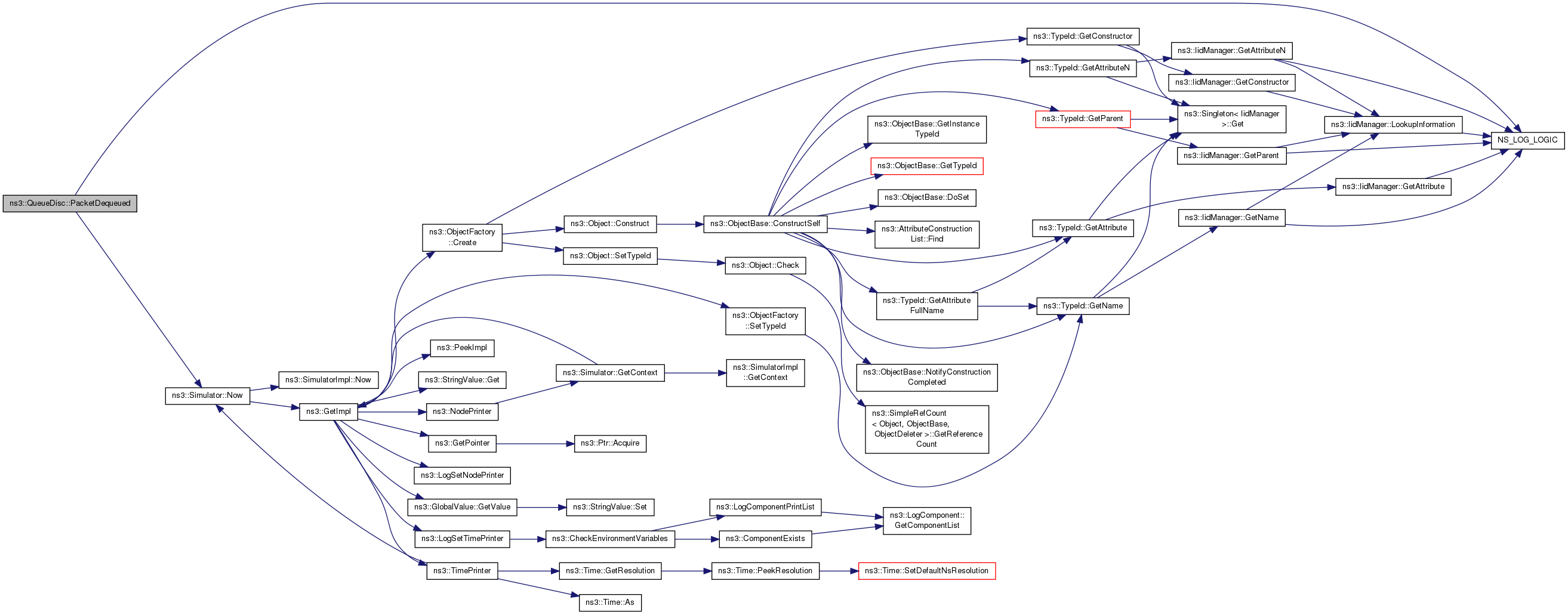

void	PacketDequeued (Ptr< const QueueDiscItem > item)
	Perform the actions required when the queue disc is notified of a packet dequeue. More...

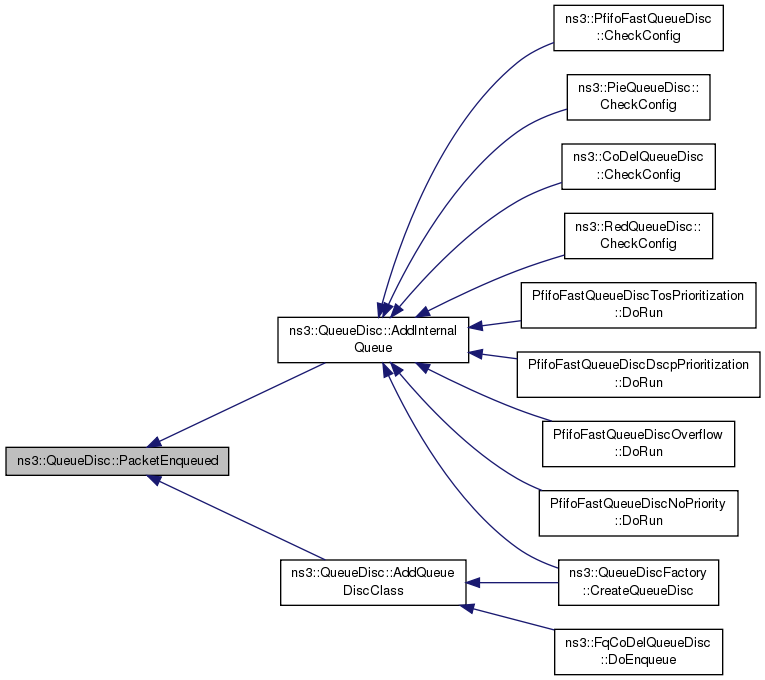

void	PacketEnqueued (Ptr< const QueueDiscItem > item)
	Perform the actions required when the queue disc is notified of a packet enqueue. More...

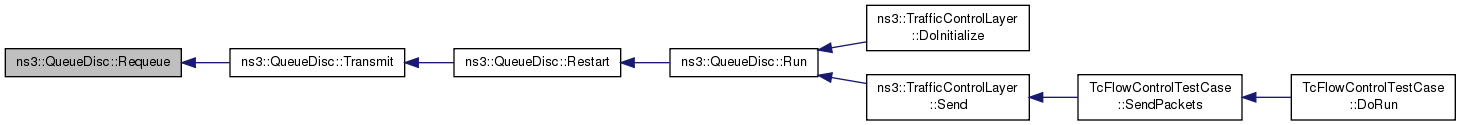

void	Requeue (Ptr< QueueDiscItem > item)
	Modelled after the Linux function dev_requeue_skb (net/sched/sch_generic.c) Requeues a packet whose transmission failed. More...

bool	Restart (void)
	Modelled after the Linux function qdisc_restart (net/sched/sch_generic.c) Dequeue a packet (by calling DequeuePacket) and send it to the device (by calling Transmit). More...

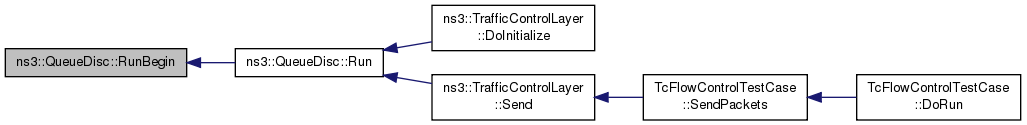

bool	RunBegin (void)
	Modelled after the Linux function qdisc_run_begin (include/net/sch_generic.h). More...

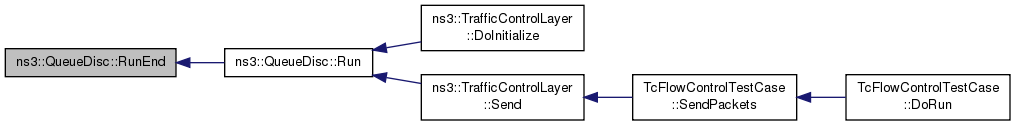

void	RunEnd (void)
	Modelled after the Linux function qdisc_run_end (include/net/sch_generic.h). More...

bool	Transmit (Ptr< QueueDiscItem > item)
	Modelled after the Linux function sch_direct_xmit (net/sched/sch_generic.c) Sends a packet to the device if the device queue is not stopped, and requeues it otherwise. More...

Private Attributes
ChildQueueDiscDropFunctor	m_childQueueDiscDadFunctor
	Function object called when a child queue disc dropped a packet after dequeue. More...

ChildQueueDiscDropFunctor	m_childQueueDiscDbeFunctor
	Function object called when a child queue disc dropped a packet before enqueue. More...

std::string	m_childQueueDiscDropMsg
	Reason why a packet was dropped by a child queue disc. More...

std::vector< Ptr< QueueDiscClass > >	m_classes
	Classes. More...

Ptr< NetDevice >	m_device
	The NetDevice on which this queue discipline is installed. More...

Ptr< NetDeviceQueueInterface >	m_devQueueIface
	NetDevice queue interface. More...

std::vector< Ptr< PacketFilter > >	m_filters
	Packet filters. More...

InternalQueueDropFunctor	m_internalQueueDadFunctor
	Function object called when an internal queue dropped a packet after dequeue. More...

InternalQueueDropFunctor	m_internalQueueDbeFunctor
	Function object called when an internal queue dropped a packet before enqueue. More...

TracedValue< uint32_t >	m_nBytes
	Number of bytes in the queue. More...

TracedValue< uint32_t >	m_nPackets
	Number of packets in the queue. More...

std::vector< Ptr< InternalQueue > >	m_queues
	Internal queues. More...

uint32_t	m_quota
	Maximum number of packets dequeued in a qdisc run. More...

Ptr< QueueDiscItem >	m_requeued
	The last packet that failed to be transmitted. More...

bool	m_running
	The queue disc is performing multiple dequeue operations. More...

TracedValue< Time >	m_sojourn
	Sojourn time of the latest dequeued packet. More...

Stats	m_stats
	The collected statistics. More...

TracedCallback< Ptr< const QueueDiscItem > >	m_traceDequeue
	Traced callback: fired when a packet is dequeued. More...

TracedCallback< Ptr< const QueueDiscItem > >	m_traceDrop
	Traced callback: fired when a packet is dropped. More...

TracedCallback< Ptr< const QueueDiscItem >, const char * >	m_traceDropAfterDequeue
	Traced callback: fired when a packet is dropped after dequeue. More...

TracedCallback< Ptr< const QueueDiscItem >, const char * >	m_traceDropBeforeEnqueue
	Traced callback: fired when a packet is dropped before enqueue. More...

TracedCallback< Ptr< const QueueDiscItem > >	m_traceEnqueue
	Traced callback: fired when a packet is enqueued. More...

TracedCallback< Ptr< const QueueDiscItem >, const char * >	m_traceMark
	Traced callback: fired when a packet is marked. More...

TracedCallback< Ptr< const QueueDiscItem > >	m_traceRequeue
	Traced callback: fired when a packet is requeued. More...

Static Private Attributes
static const uint32_t	DEFAULT_QUOTA = 64
	Default quota (as in /proc/sys/net/core/dev_weight) More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

QueueDisc is an abstract base class providing the interface and implementing the operations common to all the queueing disciplines.

Introspection did not find any typical Config paths.

Child classes need to implement the methods used to enqueue a packet (DoEnqueue), dequeue a single packet (DoDequeue), get a copy of the next packet to extract (DoPeek), check whether the current configuration is correct (CheckConfig).

As in Linux, a queue disc may contain distinct elements:

queues, which actually store the packets waiting for transmission
classes, which allow to reserve a different treatment to different packets
filters, which determine the queue or class which a packet is destined to

Notice that a child queue disc must be attached to every class and a packet filter is only able to classify packets of a single protocol. Also, while in Linux some queue discs (e.g., fq-codel) use an internal classifier and do not make use of packet filters, in ns-3 every queue disc including multiple queues or multiple classes needs an external filter to classify packets (this is to avoid having the traffic-control module depend on other modules such as internet).

Queue disc configuration vary from queue disc to queue disc. A typical taxonomy divides queue discs in classful (i.e., support classes) and classless (i.e., do not support classes). More recently, after the appearance of multi-queue devices (such as Wifi), some multi-queue aware queue discs have been introduced. Multi-queue aware queue discs handle as many queues (or queue discs – without using classes) as the number of transmission queues used by the device on which the queue disc is installed. An attempt is made, also, to enqueue each packet in the "same" queue both within the queue disc and within the device.

The traffic control layer interacts with a queue disc in a simple manner: after requesting to enqueue a packet, the traffic control layer requests the qdisc to "run", i.e., to dequeue a set of packets, until a predefined number ("quota") of packets is dequeued or the netdevice stops the queue disc. A netdevice shall stop the queue disc when its transmission queue does not have room for another packet. Also, a netdevice shall wake the queue disc when it detects that there is room for another packet in its transmission queue, but the transmission queue is stopped. Waking a queue disc is equivalent to make it run.

Every queue disc collects statistics about the total number of packets/bytes received from the upper layers (in case of root queue disc) or from the parent queue disc (in case of child queue disc), enqueued, dequeued, requeued, dropped, dropped before enqueue, dropped after dequeue, queued in the queue disc and sent to the netdevice or to the parent queue disc. Note that packets that are dequeued may be requeued, i.e., retained by the traffic control infrastructure, if the netdevice is not ready to receive them. Requeued packets are not part of the queue disc. The following identities hold:

dropped = dropped before enqueue + dropped after dequeue
received = dropped before enqueue + enqueued
queued = enqueued - dequeued
sent = dequeued - dropped after dequeue (- 1 if there is a requeued packet)

Separate counters are also kept for each possible reason to drop a packet. When a packet is dropped by an internal queue, e.g., because the queue is full, the reason is "Dropped by internal queue". When a packet is dropped by a child queue disc, the reason is "(Dropped by child queue disc) " followed by the reason why the child queue disc dropped the packet.

The QueueDisc base class provides the SojournTime trace source, which provides the sojourn time of every packet dequeued from a queue disc, including packets that are dropped or requeued after being dequeued. The sojourn time is taken when the packet is dequeued from the queue disc, hence it does not account for the additional time the packet is retained within the traffic control infrastructure in case it is requeued.

The design and implementation of this class is heavily inspired by Linux. For more details, see the traffic-control model page.

Attributes

Quota: The maximum number of packets dequeued in a qdisc run
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 64
- Flags: construct write read
InternalQueueList: The list of internal queues.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::Queue<QueueDiscItem>>
- Flags: read
PacketFilterList: The list of packet filters.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::PacketFilter>
- Flags: read
QueueDiscClassList: The list of queue disc classes.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::QueueDiscClass>
- Flags: read

TraceSources

Enqueue: Enqueue a packet in the queue disc
Callback signature: ns3::QueueDiscItem::TracedCallback
Dequeue: Dequeue a packet from the queue disc
Callback signature: ns3::QueueDiscItem::TracedCallback
Requeue: Requeue a packet in the queue disc
Callback signature: ns3::QueueDiscItem::TracedCallback
Drop: Drop a packet stored in the queue disc
Callback signature: ns3::QueueDiscItem::TracedCallback
DropBeforeEnqueue: Drop a packet before enqueue
Callback signature: ns3::QueueDiscItem::TracedCallback
DropAfterDequeue: Drop a packet after dequeue
Callback signature: ns3::QueueDiscItem::TracedCallback
Mark: Mark a packet stored in the queue disc
Callback signature: ns3::QueueDiscItem::TracedCallback
PacketsInQueue: Number of packets currently stored in the queue disc
Callback signature: ns3::TracedValueCallback::Uint32
BytesInQueue: Number of bytes currently stored in the queue disc
Callback signature: ns3::TracedValueCallback::Uint32
SojournTime: Sojourn time of the last packet dequeued from the queue disc
Callback signature: ns3::Time::TracedValueCallback

Size of this type is 888 bytes (on a 64-bit architecture).

Definition at line 151 of file queue-disc.h.

Member Typedef Documentation

typedef std::function<void (Ptr<const QueueDiscItem>, const char*)> ns3::QueueDisc::ChildQueueDiscDropFunctor

private

Type for the function objects notifying that a packet has been dropped by a child queue disc.

Definition at line 610 of file queue-disc.h.

typedef Queue<QueueDiscItem> ns3::QueueDisc::InternalQueue

Internal queues store QueueDiscItem objects.

Definition at line 328 of file queue-disc.h.

typedef std::function<void (Ptr<const QueueDiscItem>)> ns3::QueueDisc::InternalQueueDropFunctor

private

Type for the function objects notifying that a packet has been dropped by an internal queue.

Definition at line 608 of file queue-disc.h.

Constructor & Destructor Documentation

ns3::QueueDisc::QueueDisc ( )

Definition at line 325 of file queue-disc.cc.

References CHILD_QUEUE_DISC_DROP, DropAfterDequeue(), DropBeforeEnqueue(), INTERNAL_QUEUE_DROP, m_childQueueDiscDadFunctor, m_childQueueDiscDbeFunctor, m_childQueueDiscDropMsg, m_internalQueueDadFunctor, m_internalQueueDbeFunctor, and NS_LOG_FUNCTION.

Here is the call graph for this function:

ns3::QueueDisc::~QueueDisc ( )

virtual

Definition at line 365 of file queue-disc.cc.

References NS_LOG_FUNCTION.

ns3::QueueDisc::QueueDisc ( const QueueDisc & o )

private

Copy constructor.

Parameters

o	object to copy

Defined and unimplemented to avoid misuse

Member Function Documentation

void ns3::QueueDisc::AddInternalQueue ( Ptr< InternalQueue > queue )

Add an internal queue to the tail of the list of queues.

Parameters

queue the queue to be added

Definition at line 472 of file queue-disc.cc.

References m_internalQueueDadFunctor, m_internalQueueDbeFunctor, m_queues, ns3::MakeCallback(), NS_LOG_FUNCTION, PacketDequeued(), and PacketEnqueued().

Referenced by ns3::PfifoFastQueueDisc::CheckConfig(), ns3::PieQueueDisc::CheckConfig(), ns3::CoDelQueueDisc::CheckConfig(), ns3::RedQueueDisc::CheckConfig(), ns3::QueueDiscFactory::CreateQueueDisc(), PfifoFastQueueDiscTosPrioritization::DoRun(), PfifoFastQueueDiscDscpPrioritization::DoRun(), PfifoFastQueueDiscOverflow::DoRun(), and PfifoFastQueueDiscNoPriority::DoRun().

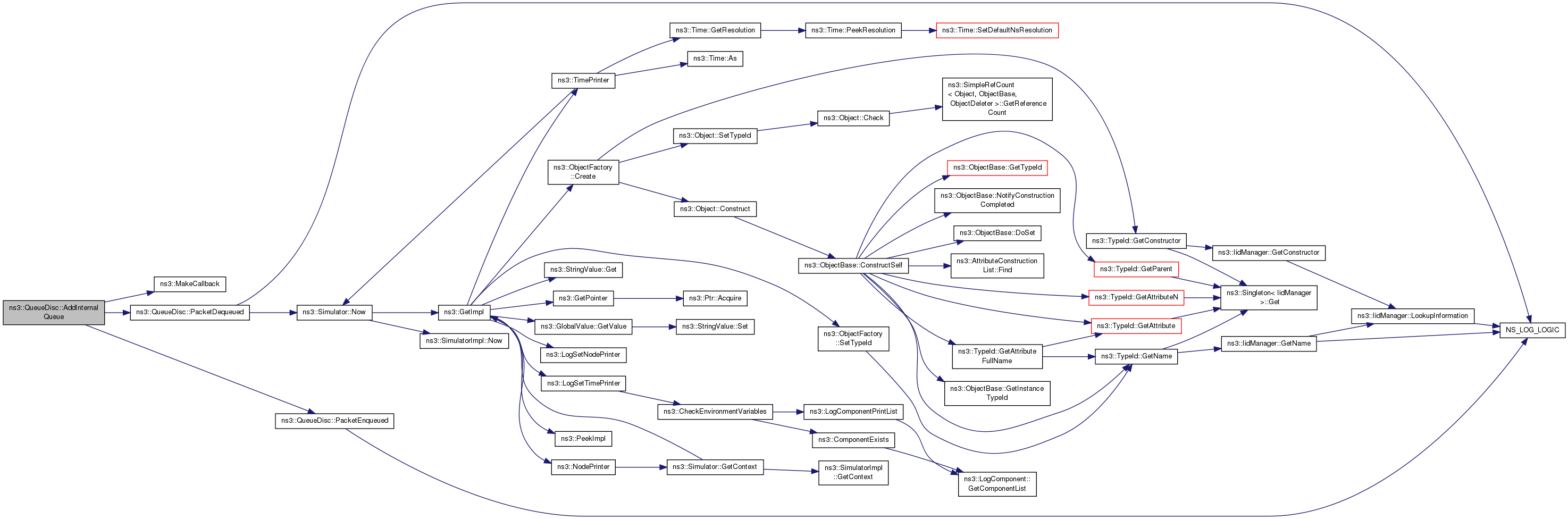

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::QueueDisc::AddPacketFilter ( Ptr< PacketFilter > filter )

Add a packet filter to the tail of the list of filters used to classify packets.

Parameters

filter the packet filter to be added

Definition at line 505 of file queue-disc.cc.

References m_filters, and NS_LOG_FUNCTION.

Referenced by ns3::QueueDiscFactory::CreateQueueDisc(), FqCoDelQueueDiscNoSuitableFilter::DoRun(), FqCoDelQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqCoDelQueueDiscDeficit::DoRun(), FqCoDelQueueDiscTCPFlowsSeparation::DoRun(), and FqCoDelQueueDiscUDPFlowsSeparation::DoRun().

Here is the caller graph for this function:

void ns3::QueueDisc::AddQueueDiscClass ( Ptr< QueueDiscClass > qdClass )

Add a queue disc class to the tail of the list of classes.

Parameters

qdClass the queue disc class to be added

Definition at line 525 of file queue-disc.cc.

References m_childQueueDiscDadFunctor, m_childQueueDiscDbeFunctor, m_classes, ns3::MakeCallback(), NS_ABORT_MSG_IF, NS_LOG_FUNCTION, PacketDequeued(), PacketEnqueued(), and WAKE_CHILD.

Referenced by ns3::QueueDiscFactory::CreateQueueDisc(), and ns3::FqCoDelQueueDisc::DoEnqueue().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual bool ns3::QueueDisc::CheckConfig ( void )

privatepure virtual

Check whether the current configuration is correct.

Default objects (such as internal queues) might be created by this method to ensure the configuration is correct.

Returns: true if the configuration is correct, false otherwise

Implemented in ns3::RedQueueDisc, ns3::CoDelQueueDisc, ns3::PieQueueDisc, ns3::FqCoDelQueueDisc, ns3::PfifoFastQueueDisc, and ns3::MqQueueDisc.

Referenced by DoInitialize().

Here is the caller graph for this function:

int32_t ns3::QueueDisc::Classify ( Ptr< QueueDiscItem > item )

Classify a packet by calling the packet filters, one at a time, until either a filter able to classify the packet is found or all the filters have been processed.

Parameters

item	item to classify

Returns: -1 if no filter able to classify the packet has been found, the value returned by first filter found to be able to classify the packet otherwise.

Definition at line 563 of file queue-disc.cc.

References f(), m_filters, NS_LOG_FUNCTION, and ns3::PacketFilter::PF_NO_MATCH.

Referenced by ns3::FqCoDelQueueDisc::DoEnqueue().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< QueueDiscItem > ns3::QueueDisc::Dequeue ( void )

Request the queue discipline to extract a packet.

This function only updates the statistics and calls the (private) DoDequeue function, which must be implemented by derived classes.

Returns: 0 if the operation was not successful; the item otherwise.

Definition at line 765 of file queue-disc.cc.

References DoDequeue(), m_nBytes, m_nPackets, m_stats, NS_ASSERT, NS_LOG_FUNCTION, ns3::QueueDisc::Stats::nTotalDequeuedBytes, ns3::QueueDisc::Stats::nTotalDequeuedPackets, ns3::QueueDisc::Stats::nTotalEnqueuedBytes, and ns3::QueueDisc::Stats::nTotalEnqueuedPackets.

Referenced by PieQueueDiscTestCase::Dequeue(), CoDelQueueDiscBasicDrop::Dequeue(), DequeuePacket(), ns3::PfifoFastQueueDisc::DoDequeue(), CoDelQueueDiscBasicEnqueueDequeue::DoRun(), FqCoDelQueueDiscDeficit::DoRun(), PieQueueDiscTestCase::RunPieTest(), RedQueueDiscTestCase::RunRedTest(), PfifoFastQueueDiscDscpPrioritization::TestDscpValue(), and PfifoFastQueueDiscTosPrioritization::TestTosValue().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< QueueDiscItem > ns3::QueueDisc::DequeuePacket ( void )

private

Modelled after the Linux function dequeue_skb (net/sched/sch_generic.c)

Returns: the requeued packet, if any, or the packet dequeued by the queue disc, otherwise.

Definition at line 840 of file queue-disc.cc.

References Dequeue(), m_devQueueIface, m_requeued, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by Restart().

Here is the call graph for this function:

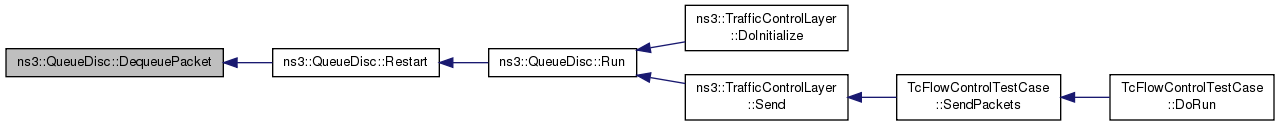

Here is the caller graph for this function:

virtual Ptr<QueueDiscItem> ns3::QueueDisc::DoDequeue ( void )

privatepure virtual

This function actually extracts a packet from the queue disc.

Returns: 0 if the operation was not successful; the item otherwise.

Implemented in ns3::RedQueueDisc, ns3::CoDelQueueDisc, ns3::PieQueueDisc, ns3::FqCoDelQueueDisc, ns3::PfifoFastQueueDisc, and ns3::MqQueueDisc.

Referenced by Dequeue().

Here is the caller graph for this function:

void ns3::QueueDisc::DoDispose ( void )

protectedvirtual

Dispose of the object.

Reimplemented from ns3::Object.

Reimplemented in ns3::RedQueueDisc, and ns3::PieQueueDisc.

Definition at line 371 of file queue-disc.cc.

References ns3::Object::DoDispose(), m_classes, m_device, m_devQueueIface, m_filters, m_queues, m_requeued, and NS_LOG_FUNCTION.

Referenced by ns3::PieQueueDisc::DoDispose(), and ns3::RedQueueDisc::DoDispose().

Here is the call graph for this function:

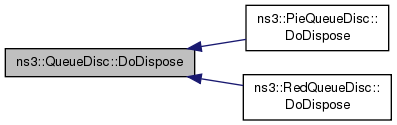

Here is the caller graph for this function:

virtual bool ns3::QueueDisc::DoEnqueue ( Ptr< QueueDiscItem > item )

privatepure virtual

This function actually enqueues a packet into the queue disc.

Parameters

item	item to enqueue

Returns: True if the operation was successful; false otherwise

Implemented in ns3::RedQueueDisc, ns3::PieQueueDisc, ns3::CoDelQueueDisc, ns3::FqCoDelQueueDisc, ns3::PfifoFastQueueDisc, and ns3::MqQueueDisc.

Referenced by Enqueue().

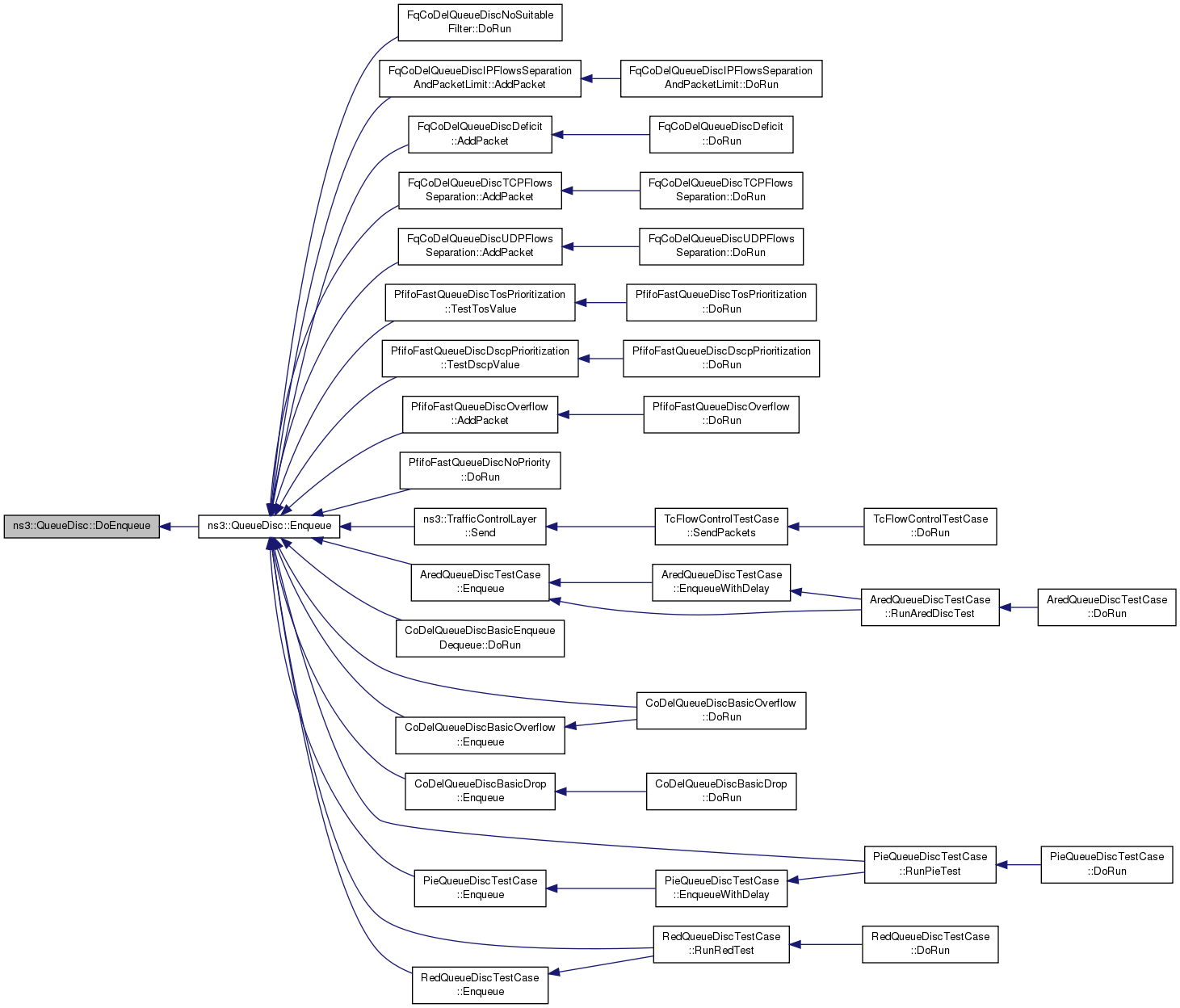

Here is the caller graph for this function:

void ns3::QueueDisc::DoInitialize ( void )

protectedvirtual

Check whether the configuration is correct and initialize parameters.

This method is not virtual to prevent subclasses from redefining it. Subclasses must instead provide the implementation of the CheckConfig and InitializeParams methods (which are called by this method).

Reimplemented from ns3::Object.

Definition at line 384 of file queue-disc.cc.

References CheckConfig(), ns3::Object::DoInitialize(), InitializeParams(), m_classes, m_device, m_devQueueIface, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_UNUSED.

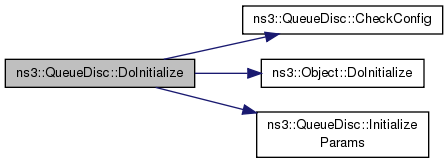

Here is the call graph for this function:

virtual Ptr<const QueueDiscItem> ns3::QueueDisc::DoPeek ( void ) const

privatepure virtual

This function returns a copy of the next packet the queue disc will extract.

Returns: 0 if the operation was not successful; the packet otherwise.

Implemented in ns3::RedQueueDisc, ns3::CoDelQueueDisc, ns3::PieQueueDisc, ns3::FqCoDelQueueDisc, ns3::PfifoFastQueueDisc, and ns3::MqQueueDisc.

Referenced by Peek().

Here is the caller graph for this function:

void ns3::QueueDisc::DropAfterDequeue	(	Ptr< const QueueDiscItem >	item,
		const char *	reason
	)

protected

Perform the actions required when the queue disc is notified of a packet dropped after dequeue.

Parameters

item	item that was dropped
reason	the reason why the item was dropped This method must be called by subclasses to record that a packet was dropped after dequeue for the specified reason

Definition at line 648 of file queue-disc.cc.

References m_stats, m_traceDrop, m_traceDropAfterDequeue, ns3::QueueDisc::Stats::nDroppedBytesAfterDequeue, ns3::QueueDisc::Stats::nDroppedPacketsAfterDequeue, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC(), ns3::QueueDisc::Stats::nTotalDroppedBytes, ns3::QueueDisc::Stats::nTotalDroppedBytesAfterDequeue, ns3::QueueDisc::Stats::nTotalDroppedPackets, and ns3::QueueDisc::Stats::nTotalDroppedPacketsAfterDequeue.

Referenced by ns3::CoDelQueueDisc::DoDequeue(), ns3::FqCoDelQueueDisc::FqCoDelDrop(), and QueueDisc().

Here is the call graph for this function:

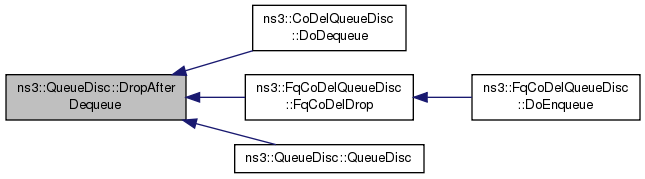

Here is the caller graph for this function:

void ns3::QueueDisc::DropBeforeEnqueue	(	Ptr< const QueueDiscItem >	item,
		const char *	reason
	)

protected

Perform the actions required when the queue disc is notified of a packet dropped before enqueue.

Parameters

item	item that was dropped
reason	the reason why the item was dropped This method must be called by subclasses to record that a packet was dropped before enqueue for the specified reason

Definition at line 609 of file queue-disc.cc.

References m_stats, m_traceDrop, m_traceDropBeforeEnqueue, ns3::QueueDisc::Stats::nDroppedBytesBeforeEnqueue, ns3::QueueDisc::Stats::nDroppedPacketsBeforeEnqueue, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC(), ns3::QueueDisc::Stats::nTotalDroppedBytes, ns3::QueueDisc::Stats::nTotalDroppedBytesBeforeEnqueue, ns3::QueueDisc::Stats::nTotalDroppedPackets, and ns3::QueueDisc::Stats::nTotalDroppedPacketsBeforeEnqueue.

Referenced by ns3::PfifoFastQueueDisc::DoEnqueue(), ns3::FqCoDelQueueDisc::DoEnqueue(), ns3::CoDelQueueDisc::DoEnqueue(), ns3::PieQueueDisc::DoEnqueue(), ns3::RedQueueDisc::DoEnqueue(), and QueueDisc().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::QueueDisc::Enqueue ( Ptr< QueueDiscItem > item )

Pass a packet to store to the queue discipline.

This function only updates the statistics and calls the (private) DoEnqueue function, which must be implemented by derived classes.

Parameters

item	item to enqueue

Returns: True if the operation was successful; false otherwise

Definition at line 730 of file queue-disc.cc.

References DoEnqueue(), m_stats, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, ns3::QueueDisc::Stats::nTotalDroppedBytesBeforeEnqueue, ns3::QueueDisc::Stats::nTotalDroppedPacketsBeforeEnqueue, ns3::QueueDisc::Stats::nTotalEnqueuedBytes, ns3::QueueDisc::Stats::nTotalEnqueuedPackets, ns3::QueueDisc::Stats::nTotalReceivedBytes, and ns3::QueueDisc::Stats::nTotalReceivedPackets.

Referenced by FqCoDelQueueDiscIPFlowsSeparationAndPacketLimit::AddPacket(), FqCoDelQueueDiscDeficit::AddPacket(), PfifoFastQueueDiscOverflow::AddPacket(), FqCoDelQueueDiscTCPFlowsSeparation::AddPacket(), FqCoDelQueueDiscUDPFlowsSeparation::AddPacket(), FqCoDelQueueDiscNoSuitableFilter::DoRun(), CoDelQueueDiscBasicEnqueueDequeue::DoRun(), CoDelQueueDiscBasicOverflow::DoRun(), PfifoFastQueueDiscNoPriority::DoRun(), PieQueueDiscTestCase::Enqueue(), AredQueueDiscTestCase::Enqueue(), RedQueueDiscTestCase::Enqueue(), CoDelQueueDiscBasicOverflow::Enqueue(), CoDelQueueDiscBasicDrop::Enqueue(), PieQueueDiscTestCase::RunPieTest(), RedQueueDiscTestCase::RunRedTest(), ns3::TrafficControlLayer::Send(), PfifoFastQueueDiscDscpPrioritization::TestDscpValue(), and PfifoFastQueueDiscTosPrioritization::TestTosValue().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< QueueDisc::InternalQueue > ns3::QueueDisc::GetInternalQueue ( uint32_t i ) const

Get the i-th internal queue.

Parameters

i	the index of the queue

Returns: the i-th internal queue.

Definition at line 492 of file queue-disc.cc.

References m_queues, and NS_ASSERT.

Referenced by ns3::PieQueueDisc::CalculateP(), ns3::PfifoFastQueueDisc::CheckConfig(), ns3::PieQueueDisc::CheckConfig(), ns3::CoDelQueueDisc::CheckConfig(), ns3::RedQueueDisc::CheckConfig(), ns3::PfifoFastQueueDisc::DoDequeue(), ns3::PieQueueDisc::DoDequeue(), ns3::CoDelQueueDisc::DoDequeue(), ns3::RedQueueDisc::DoDequeue(), ns3::PfifoFastQueueDisc::DoEnqueue(), ns3::CoDelQueueDisc::DoEnqueue(), ns3::PieQueueDisc::DoEnqueue(), ns3::RedQueueDisc::DoEnqueue(), ns3::PfifoFastQueueDisc::DoPeek(), ns3::PieQueueDisc::DoPeek(), ns3::CoDelQueueDisc::DoPeek(), ns3::RedQueueDisc::DoPeek(), PfifoFastQueueDiscTosPrioritization::DoRun(), PfifoFastQueueDiscDscpPrioritization::DoRun(), PfifoFastQueueDiscOverflow::DoRun(), PfifoFastQueueDiscNoPriority::DoRun(), ns3::FqCoDelQueueDisc::FqCoDelDrop(), ns3::PieQueueDisc::GetQueueSize(), ns3::CoDelQueueDisc::GetQueueSize(), ns3::RedQueueDisc::GetQueueSize(), ns3::CoDelQueueDisc::OkToDrop(), PfifoFastQueueDiscDscpPrioritization::TestDscpValue(), and PfifoFastQueueDiscTosPrioritization::TestTosValue().

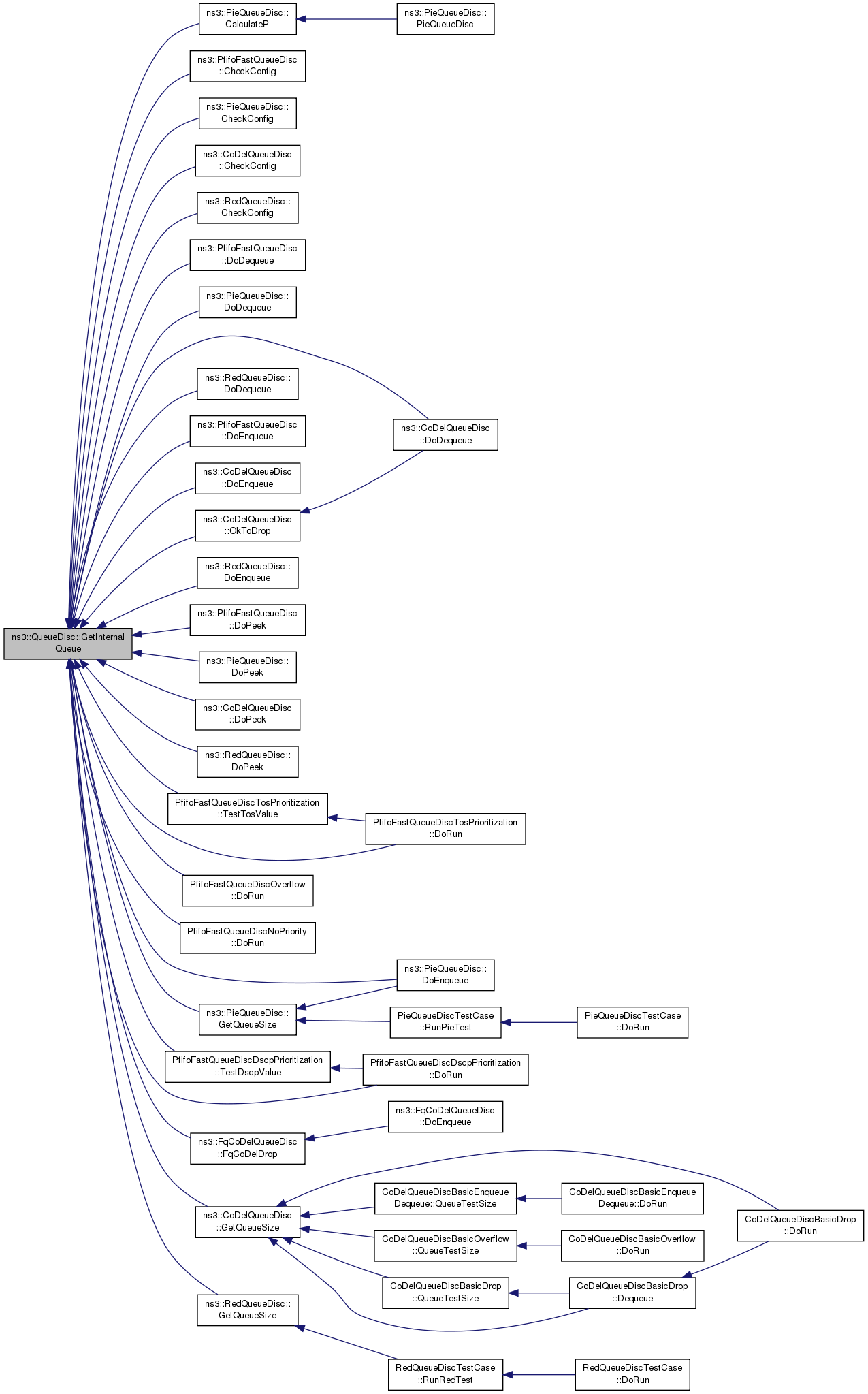

Here is the caller graph for this function:

uint32_t ns3::QueueDisc::GetNBytes ( void ) const

Get the amount of bytes stored by the queue disc.

Returns: the amount of bytes stored by the queue disc.

The requeued packet, if any, is counted.

Definition at line 437 of file queue-disc.cc.

References m_nBytes, and NS_LOG_FUNCTION.

Referenced by ns3::PieQueueDisc::CalculateP(), ns3::PieQueueDisc::DoDequeue(), ns3::CoDelQueueDisc::DoDequeue(), ns3::RedQueueDisc::DoDequeue(), ns3::CoDelQueueDisc::DoEnqueue(), ns3::PieQueueDisc::DoEnqueue(), ns3::RedQueueDisc::DoEnqueue(), ns3::PieQueueDisc::DoPeek(), ns3::CoDelQueueDisc::DoPeek(), ns3::RedQueueDisc::DoPeek(), ns3::FqCoDelQueueDisc::FqCoDelDrop(), ns3::CoDelQueueDisc::OkToDrop(), CoDelQueueDiscBasicEnqueueDequeue::QueueTestSize(), CoDelQueueDiscBasicOverflow::QueueTestSize(), and CoDelQueueDiscBasicDrop::QueueTestSize().

Here is the caller graph for this function:

Ptr< NetDevice > ns3::QueueDisc::GetNetDevice ( void ) const

Get the NetDevice on which this queue discipline is installed.

Returns: the NetDevice on which this queue discipline is installed.

Definition at line 451 of file queue-disc.cc.

References m_device, and NS_LOG_FUNCTION.

Referenced by ns3::FqCoDelQueueDisc::InitializeParams().

Here is the caller graph for this function:

uint32_t ns3::QueueDisc::GetNInternalQueues ( void ) const

Get the number of internal queues.

Returns: the number of internal queues.

Definition at line 499 of file queue-disc.cc.

References m_queues.

Referenced by ns3::MqQueueDisc::CheckConfig(), ns3::PfifoFastQueueDisc::CheckConfig(), ns3::FqCoDelQueueDisc::CheckConfig(), ns3::PieQueueDisc::CheckConfig(), ns3::CoDelQueueDisc::CheckConfig(), ns3::RedQueueDisc::CheckConfig(), ns3::PfifoFastQueueDisc::DoDequeue(), and ns3::PfifoFastQueueDisc::DoPeek().

Here is the caller graph for this function:

uint32_t ns3::QueueDisc::GetNPacketFilters ( void ) const

Get the number of packet filters.

Returns: the number of packet filters.

Definition at line 519 of file queue-disc.cc.

References m_filters.

Referenced by ns3::MqQueueDisc::CheckConfig(), ns3::PfifoFastQueueDisc::CheckConfig(), ns3::FqCoDelQueueDisc::CheckConfig(), ns3::PieQueueDisc::CheckConfig(), ns3::CoDelQueueDisc::CheckConfig(), and ns3::RedQueueDisc::CheckConfig().

Here is the caller graph for this function:

uint32_t ns3::QueueDisc::GetNPackets ( void ) const

Get the number of packets stored by the queue disc.

Returns: the number of packets stored by the queue disc.

The requeued packet, if any, is counted.

Definition at line 430 of file queue-disc.cc.

References m_nPackets, and NS_LOG_FUNCTION.

Referenced by ns3::PfifoFastQueueDisc::DoDequeue(), ns3::CoDelQueueDisc::DoDequeue(), ns3::RedQueueDisc::DoDequeue(), ns3::PfifoFastQueueDisc::DoEnqueue(), ns3::FqCoDelQueueDisc::DoEnqueue(), ns3::CoDelQueueDisc::DoEnqueue(), ns3::PieQueueDisc::DoEnqueue(), ns3::RedQueueDisc::DoEnqueue(), ns3::PfifoFastQueueDisc::DoPeek(), ns3::PieQueueDisc::DoPeek(), ns3::CoDelQueueDisc::DoPeek(), ns3::RedQueueDisc::DoPeek(), CoDelQueueDiscBasicEnqueueDequeue::QueueTestSize(), CoDelQueueDiscBasicOverflow::QueueTestSize(), CoDelQueueDiscBasicDrop::QueueTestSize(), and Transmit().

Here is the caller graph for this function:

uint32_t ns3::QueueDisc::GetNQueueDiscClasses ( void ) const

Get the number of queue disc classes.

Returns: the number of queue disc classes.

Definition at line 557 of file queue-disc.cc.

References m_classes.

Referenced by ns3::PfifoFastQueueDisc::CheckConfig(), ns3::FqCoDelQueueDisc::CheckConfig(), ns3::PieQueueDisc::CheckConfig(), ns3::CoDelQueueDisc::CheckConfig(), ns3::RedQueueDisc::CheckConfig(), ns3::FqCoDelQueueDisc::DoEnqueue(), FqCoDelQueueDiscNoSuitableFilter::DoRun(), WifiAcMappingTest::DoRun(), and ns3::FqCoDelQueueDisc::FqCoDelDrop().

Here is the caller graph for this function:

Ptr< PacketFilter > ns3::QueueDisc::GetPacketFilter ( uint32_t i ) const

Get the i-th packet filter.

Parameters

i	the index of the packet filter

Returns: the i-th packet filter.

Definition at line 512 of file queue-disc.cc.

References m_filters, and NS_ASSERT.

Ptr< QueueDiscClass > ns3::QueueDisc::GetQueueDiscClass ( uint32_t i ) const

Get the i-th queue disc class.

Parameters

i	the index of the queue disc class

Returns: the i-th queue disc class.

Definition at line 550 of file queue-disc.cc.

References m_classes, and NS_ASSERT.

Referenced by ns3::FqCoDelQueueDisc::DoEnqueue(), WifiAcMappingTest::DoRun(), FqCoDelQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqCoDelQueueDiscDeficit::DoRun(), FqCoDelQueueDiscTCPFlowsSeparation::DoRun(), FqCoDelQueueDiscUDPFlowsSeparation::DoRun(), and ns3::FqCoDelQueueDisc::FqCoDelDrop().

Here is the caller graph for this function:

uint32_t ns3::QueueDisc::GetQuota ( void ) const

virtual

Get the maximum number of dequeue operations following a packet enqueue.

Returns: the maximum number of dequeue operations following a packet enqueue.

Definition at line 465 of file queue-disc.cc.

References m_quota, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

const QueueDisc::Stats & ns3::QueueDisc::GetStats ( void )

Retrieve all the collected statistics.

Returns: the collected statistics.

Definition at line 411 of file queue-disc.cc.

Referenced by CoDelQueueDiscBasicDrop::Dequeue(), CoDelQueueDiscBasicEnqueueDequeue::DoRun(), CoDelQueueDiscBasicOverflow::DoRun(), AredQueueDiscTestCase::RunAredDiscTest(), PieQueueDiscTestCase::RunPieTest(), and RedQueueDiscTestCase::RunRedTest().

Here is the caller graph for this function:

TypeId ns3::QueueDisc::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 266 of file queue-disc.cc.

References DEFAULT_QUOTA, GetQuota(), m_classes, m_filters, m_nBytes, m_nPackets, m_queues, m_sojourn, m_traceDequeue, m_traceDrop, m_traceDropAfterDequeue, m_traceDropBeforeEnqueue, m_traceEnqueue, m_traceMark, m_traceRequeue, ns3::MakeObjectVectorAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::TypeId::SetParent(), and SetQuota().

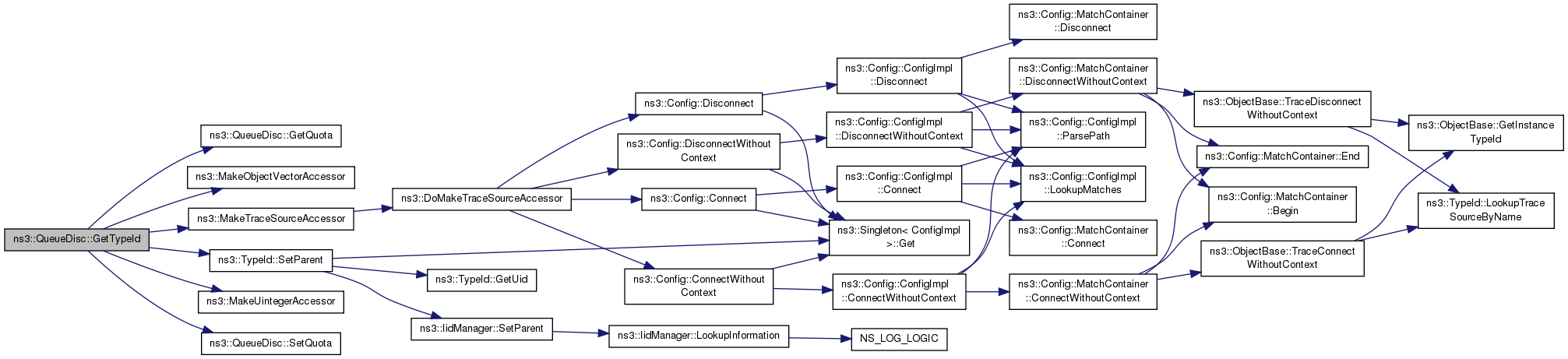

Here is the call graph for this function:

QueueDisc::WakeMode ns3::QueueDisc::GetWakeMode ( void ) const

virtual

When setting up the wake callbacks on the netdevice queues, it is necessary to determine which queue disc (the root queue disc or one of its children) should be activated when the netdevice wakes one of its transmission queues.

The implementation of this method for the base class returns WAKE_ROOT, i.e., the root queue disc is activated. Subclasses implementing queue discs adopting a different strategy (e.g., multi-queue aware queue discs such as mq) have to redefine this method.

Returns: the wake mode adopted by this queue disc.

Reimplemented in ns3::MqQueueDisc.

Definition at line 577 of file queue-disc.cc.

References WAKE_ROOT.

virtual void ns3::QueueDisc::InitializeParams ( void )

privatepure virtual

Initialize parameters (if any) before the first packet is enqueued.

Implemented in ns3::RedQueueDisc, ns3::CoDelQueueDisc, ns3::PieQueueDisc, ns3::FqCoDelQueueDisc, ns3::PfifoFastQueueDisc, and ns3::MqQueueDisc.

Referenced by DoInitialize().

Here is the caller graph for this function:

bool ns3::QueueDisc::Mark	(	Ptr< QueueDiscItem >	item,
		const char *	reason
	)

protected

Marks the given packet and, if successful, updates the counters associated with the given reason.

Parameters

item	item that has to be marked
reason	the reason why the item has to be marked

Returns: true if the item was successfully marked, false otherwise

Definition at line 687 of file queue-disc.cc.

References m_stats, m_traceMark, ns3::QueueDisc::Stats::nMarkedBytes, ns3::QueueDisc::Stats::nMarkedPackets, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QueueDisc::Stats::nTotalMarkedBytes, and ns3::QueueDisc::Stats::nTotalMarkedPackets.

Referenced by ns3::RedQueueDisc::DoEnqueue().

Here is the caller graph for this function:

QueueDisc& ns3::QueueDisc::operator= ( const QueueDisc & o )

private

Assignment operator.

Parameters

o	object to copy

Returns: the copied object

Defined and unimplemented to avoid misuse

void ns3::QueueDisc::PacketDequeued ( Ptr< const QueueDiscItem > item )

private

Perform the actions required when the queue disc is notified of a packet dequeue.

Parameters

item	item that was dequeued

Definition at line 595 of file queue-disc.cc.

References m_nBytes, m_nPackets, m_sojourn, m_stats, m_traceDequeue, ns3::Simulator::Now(), NS_LOG_LOGIC(), ns3::QueueDisc::Stats::nTotalDequeuedBytes, and ns3::QueueDisc::Stats::nTotalDequeuedPackets.

Referenced by AddInternalQueue(), and AddQueueDiscClass().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::QueueDisc::PacketEnqueued ( Ptr< const QueueDiscItem > item )

private

Perform the actions required when the queue disc is notified of a packet enqueue.

Parameters

item	item that was enqueued

Definition at line 583 of file queue-disc.cc.

References m_nBytes, m_nPackets, m_stats, m_traceEnqueue, NS_LOG_LOGIC(), ns3::QueueDisc::Stats::nTotalEnqueuedBytes, and ns3::QueueDisc::Stats::nTotalEnqueuedPackets.

Referenced by AddInternalQueue(), and AddQueueDiscClass().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< const QueueDiscItem > ns3::QueueDisc::Peek ( void ) const

Get a copy of the next packet the queue discipline will extract, without actually extracting the packet.

This function only calls the (private) DoPeek function, which must be implemented by derived classes.

Returns: 0 if the operation was not successful; the item otherwise.

Definition at line 778 of file queue-disc.cc.

References DoPeek(), and NS_LOG_FUNCTION.

Referenced by ns3::PfifoFastQueueDisc::DoPeek().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::QueueDisc::Requeue ( Ptr< QueueDiscItem > item )

private

Modelled after the Linux function dev_requeue_skb (net/sched/sch_generic.c) Requeues a packet whose transmission failed.

Parameters

item	the packet to requeue

Todo:: netif_schedule (q);

Definition at line 880 of file queue-disc.cc.

References m_requeued, m_stats, m_traceRequeue, NS_LOG_FUNCTION, NS_LOG_LOGIC(), ns3::QueueDisc::Stats::nTotalRequeuedBytes, and ns3::QueueDisc::Stats::nTotalRequeuedPackets.

Referenced by Transmit().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::QueueDisc::Restart ( void )

private

Modelled after the Linux function qdisc_restart (net/sched/sch_generic.c) Dequeue a packet (by calling DequeuePacket) and send it to the device (by calling Transmit).

Returns: true if a packet is successfully sent to the device.

Definition at line 826 of file queue-disc.cc.

References DequeuePacket(), NS_LOG_FUNCTION, NS_LOG_LOGIC(), and Transmit().

Referenced by Run().

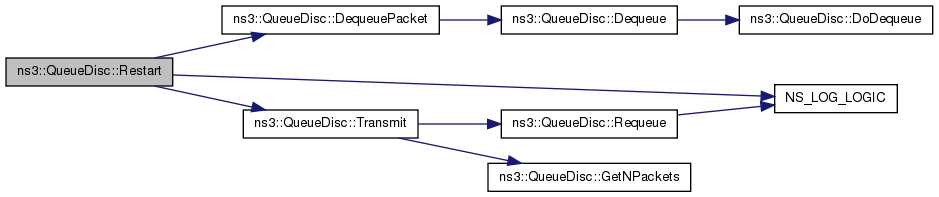

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::QueueDisc::Run ( void )

Modelled after the Linux function __qdisc_run (net/sched/sch_generic.c) Dequeues multiple packets, until a quota is exceeded or sending a packet to the device failed.

Todo:: netif_schedule (q);

Definition at line 785 of file queue-disc.cc.

References m_quota, NS_LOG_FUNCTION, Restart(), RunBegin(), and RunEnd().

Referenced by ns3::TrafficControlLayer::DoInitialize(), and ns3::TrafficControlLayer::Send().

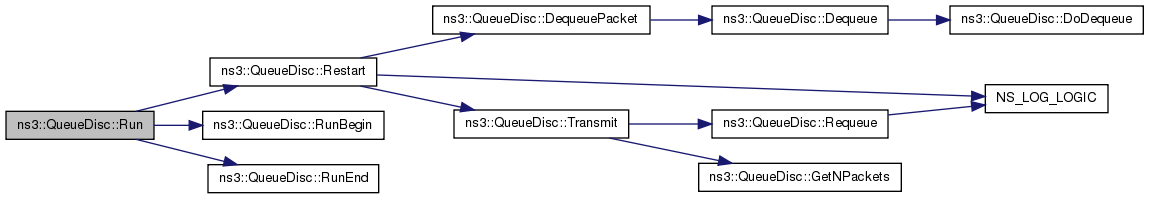

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::QueueDisc::RunBegin ( void )

private

Modelled after the Linux function qdisc_run_begin (include/net/sch_generic.h).

Returns: false if the qdisc is already running; otherwise, set the qdisc as running and return true.

Definition at line 806 of file queue-disc.cc.

References m_running, and NS_LOG_FUNCTION.

Referenced by Run().

Here is the caller graph for this function:

void ns3::QueueDisc::RunEnd ( void )

private

Modelled after the Linux function qdisc_run_end (include/net/sch_generic.h).

Set the qdisc as not running.

Definition at line 819 of file queue-disc.cc.

References m_running, and NS_LOG_FUNCTION.

Referenced by Run().

Here is the caller graph for this function:

void ns3::QueueDisc::SetNetDevice ( Ptr< NetDevice > device )

Set the NetDevice on which this queue discipline is installed.

Parameters

device the NetDevice on which this queue discipline is installed.

Definition at line 444 of file queue-disc.cc.

References m_device, and NS_LOG_FUNCTION.

Referenced by ns3::TrafficControlHelper::Install().

Here is the caller graph for this function:

void ns3::QueueDisc::SetQuota ( const uint32_t quota )

virtual

Set the maximum number of dequeue operations following a packet enqueue.

Parameters

quota the maximum number of dequeue operations following a packet enqueue.

Definition at line 458 of file queue-disc.cc.

References m_quota, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

bool ns3::QueueDisc::Transmit ( Ptr< QueueDiscItem > item )

private

Modelled after the Linux function sch_direct_xmit (net/sched/sch_generic.c) Sends a packet to the device if the device queue is not stopped, and requeues it otherwise.

Parameters

item	the packet to transmit

Returns: true if the device queue is not stopped and the queue disc is not empty

Definition at line 894 of file queue-disc.cc.

References GetNPackets(), m_device, m_devQueueIface, NS_ASSERT, NS_LOG_FUNCTION, and Requeue().

Referenced by Restart().

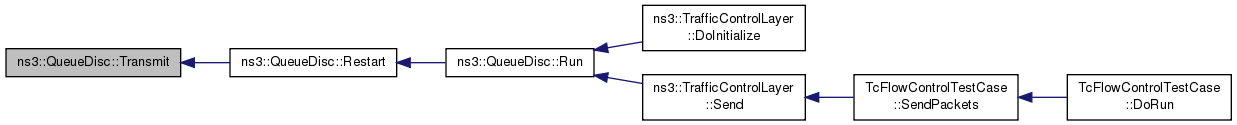

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

constexpr const char* ns3::QueueDisc::CHILD_QUEUE_DISC_DROP = "(Dropped by child queue disc) "

static

Packet dropped by a child queue disc.

Definition at line 423 of file queue-disc.h.

Referenced by QueueDisc().

const uint32_t ns3::QueueDisc::DEFAULT_QUOTA = 64

staticprivate

Default quota (as in /proc/sys/net/core/dev_weight)

Definition at line 574 of file queue-disc.h.

Referenced by GetTypeId().

constexpr const char* ns3::QueueDisc::INTERNAL_QUEUE_DROP = "Dropped by internal queue"

static

Packet dropped by an internal queue.

Definition at line 422 of file queue-disc.h.

Referenced by QueueDisc().

ChildQueueDiscDropFunctor ns3::QueueDisc::m_childQueueDiscDadFunctor

private

Function object called when a child queue disc dropped a packet after dequeue.

Definition at line 619 of file queue-disc.h.

Referenced by AddQueueDiscClass(), and QueueDisc().

ChildQueueDiscDropFunctor ns3::QueueDisc::m_childQueueDiscDbeFunctor

private

Function object called when a child queue disc dropped a packet before enqueue.

Definition at line 617 of file queue-disc.h.

Referenced by AddQueueDiscClass(), and QueueDisc().

std::string ns3::QueueDisc::m_childQueueDiscDropMsg

private

Reason why a packet was dropped by a child queue disc.

Definition at line 590 of file queue-disc.h.

Referenced by QueueDisc().

std::vector<Ptr<QueueDiscClass> > ns3::QueueDisc::m_classes

private

Classes.

Definition at line 578 of file queue-disc.h.

Referenced by AddQueueDiscClass(), DoDispose(), DoInitialize(), GetNQueueDiscClasses(), GetQueueDiscClass(), and GetTypeId().

Ptr<NetDevice> ns3::QueueDisc::m_device

private

The NetDevice on which this queue discipline is installed.

Definition at line 586 of file queue-disc.h.

Referenced by DoDispose(), DoInitialize(), GetNetDevice(), SetNetDevice(), and Transmit().

Ptr<NetDeviceQueueInterface> ns3::QueueDisc::m_devQueueIface

private

NetDevice queue interface.

Definition at line 587 of file queue-disc.h.

Referenced by DequeuePacket(), DoDispose(), DoInitialize(), and Transmit().

std::vector<Ptr<PacketFilter> > ns3::QueueDisc::m_filters

private

Packet filters.

Definition at line 577 of file queue-disc.h.

Referenced by AddPacketFilter(), Classify(), DoDispose(), GetNPacketFilters(), GetPacketFilter(), and GetTypeId().

InternalQueueDropFunctor ns3::QueueDisc::m_internalQueueDadFunctor

private

Function object called when an internal queue dropped a packet after dequeue.

Definition at line 615 of file queue-disc.h.

Referenced by AddInternalQueue(), and QueueDisc().

InternalQueueDropFunctor ns3::QueueDisc::m_internalQueueDbeFunctor

private

Function object called when an internal queue dropped a packet before enqueue.

Definition at line 613 of file queue-disc.h.

Referenced by AddInternalQueue(), and QueueDisc().

TracedValue<uint32_t> ns3::QueueDisc::m_nBytes

private

Number of bytes in the queue.

Definition at line 581 of file queue-disc.h.

Referenced by Dequeue(), GetNBytes(), GetTypeId(), PacketDequeued(), and PacketEnqueued().

TracedValue<uint32_t> ns3::QueueDisc::m_nPackets

private

Number of packets in the queue.

Definition at line 580 of file queue-disc.h.

Referenced by Dequeue(), GetNPackets(), GetTypeId(), PacketDequeued(), and PacketEnqueued().

std::vector<Ptr<InternalQueue> > ns3::QueueDisc::m_queues

private

Internal queues.

Definition at line 576 of file queue-disc.h.

Referenced by AddInternalQueue(), DoDispose(), GetInternalQueue(), GetNInternalQueues(), and GetTypeId().

uint32_t ns3::QueueDisc::m_quota

private

Maximum number of packets dequeued in a qdisc run.

Definition at line 585 of file queue-disc.h.

Referenced by GetQuota(), Run(), and SetQuota().

Ptr<QueueDiscItem> ns3::QueueDisc::m_requeued

private

The last packet that failed to be transmitted.

Definition at line 589 of file queue-disc.h.

Referenced by DequeuePacket(), DoDispose(), GetStats(), and Requeue().

bool ns3::QueueDisc::m_running

private

The queue disc is performing multiple dequeue operations.

Definition at line 588 of file queue-disc.h.

Referenced by RunBegin(), and RunEnd().

TracedValue<Time> ns3::QueueDisc::m_sojourn

private

Sojourn time of the latest dequeued packet.

Definition at line 582 of file queue-disc.h.

Referenced by GetTypeId(), and PacketDequeued().

Stats ns3::QueueDisc::m_stats

private

The collected statistics.

Definition at line 584 of file queue-disc.h.

Referenced by Dequeue(), DropAfterDequeue(), DropBeforeEnqueue(), Enqueue(), GetStats(), Mark(), PacketDequeued(), PacketEnqueued(), and Requeue().

TracedCallback<Ptr<const QueueDiscItem> > ns3::QueueDisc::m_traceDequeue

private

Traced callback: fired when a packet is dequeued.

Definition at line 595 of file queue-disc.h.

Referenced by GetTypeId(), and PacketDequeued().

TracedCallback<Ptr<const QueueDiscItem> > ns3::QueueDisc::m_traceDrop

private

Traced callback: fired when a packet is dropped.

Definition at line 599 of file queue-disc.h.

Referenced by DropAfterDequeue(), DropBeforeEnqueue(), and GetTypeId().

TracedCallback<Ptr<const QueueDiscItem>, const char* > ns3::QueueDisc::m_traceDropAfterDequeue

private

Traced callback: fired when a packet is dropped after dequeue.

Definition at line 603 of file queue-disc.h.

Referenced by DropAfterDequeue(), and GetTypeId().

TracedCallback<Ptr<const QueueDiscItem>, const char* > ns3::QueueDisc::m_traceDropBeforeEnqueue

private

Traced callback: fired when a packet is dropped before enqueue.

Definition at line 601 of file queue-disc.h.

Referenced by DropBeforeEnqueue(), and GetTypeId().

TracedCallback<Ptr<const QueueDiscItem> > ns3::QueueDisc::m_traceEnqueue

private

Traced callback: fired when a packet is enqueued.

Definition at line 593 of file queue-disc.h.

Referenced by GetTypeId(), and PacketEnqueued().

TracedCallback<Ptr<const QueueDiscItem>, const char* > ns3::QueueDisc::m_traceMark

private

Traced callback: fired when a packet is marked.

Definition at line 605 of file queue-disc.h.

Referenced by GetTypeId(), and Mark().

TracedCallback<Ptr<const QueueDiscItem> > ns3::QueueDisc::m_traceRequeue

private

Traced callback: fired when a packet is requeued.

Definition at line 597 of file queue-disc.h.

Referenced by GetTypeId(), and Requeue().

The documentation for this class was generated from the following files:

src/traffic-control/model/queue-disc.h
src/traffic-control/model/queue-disc.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Attributes

TraceSources

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
