ns3::RedQueueDisc Class Reference

A RED packet queue disc. More...

#include "red-queue-disc.h"

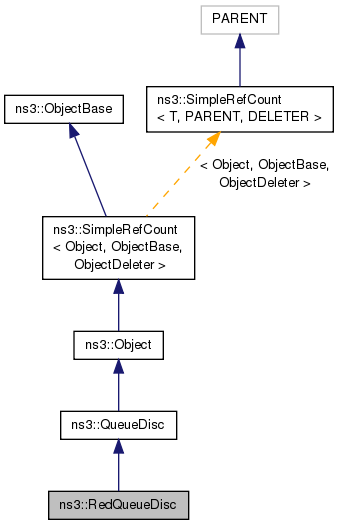

+ Inheritance diagram for ns3::RedQueueDisc:

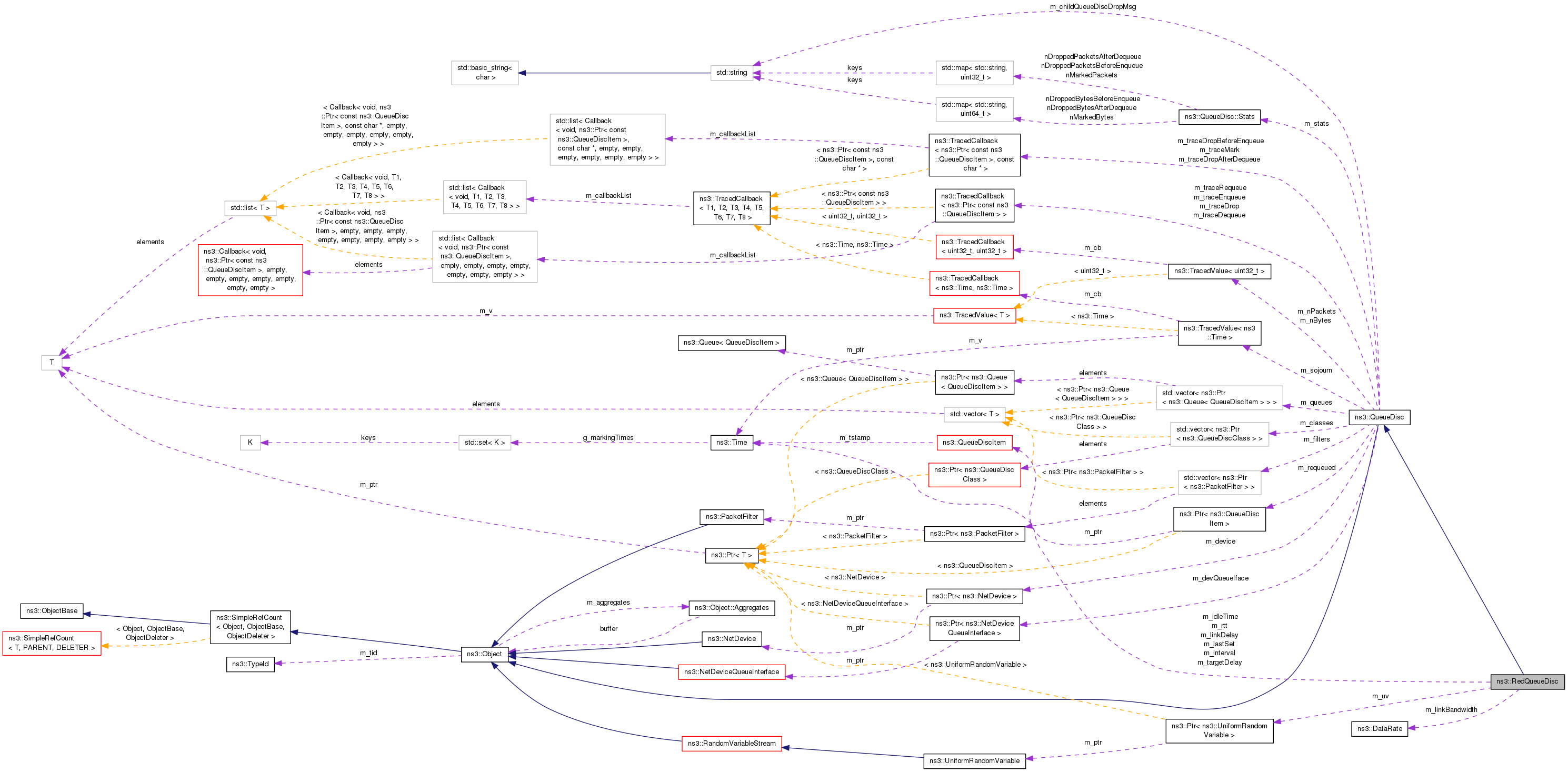

+ Collaboration diagram for ns3::RedQueueDisc:

Public Types

enum  { DTYPE_NONE, DTYPE_FORCED, DTYPE_UNFORCED }
 Drop types. More...

enum  FengStatus { Above, Between, Below }
 Used in Feng's Adaptive RED. More...

enum  QueueDiscMode { QUEUE_DISC_MODE_PACKETS, QUEUE_DISC_MODE_BYTES }
 Enumeration of the modes supported in the class. More...

- Public Types inherited from ns3::QueueDisc
typedef Queue< QueueDiscItemInternalQueue
 Internal queues store QueueDiscItem objects. More...

enum  WakeMode { WAKE_ROOT = 0x00, WAKE_CHILD = 0x01 }
 Used to determine whether the queue disc itself or its children must be activated when a netdevice wakes a transmission queue. More...


Public Member Functions

 RedQueueDisc ()
 RedQueueDisc Constructor. More...

virtual ~RedQueueDisc ()
 Destructor. More...

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

double GetAredAlpha (void)
 Get the alpha value to adapt m_curMaxP. More...

double GetAredBeta (void)
 Get the beta value to adapt m_curMaxP. More...

double GetFengAdaptiveA (void)
 Get the alpha value to adapt m_curMaxP in Feng's Adaptive RED. More...

double GetFengAdaptiveB (void)
 Get the beta value to adapt m_curMaxP in Feng's Adaptive RED. More...

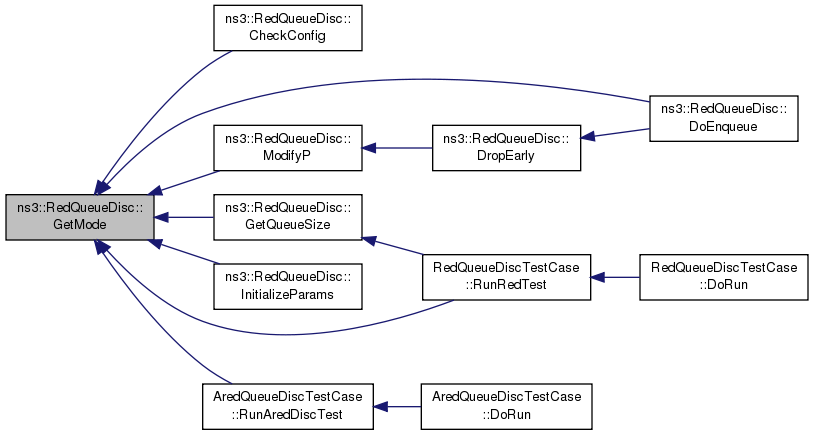

QueueDiscMode GetMode (void)
 Get the operating mode of this queue disc. More...

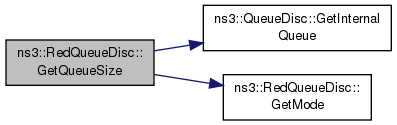

uint32_t GetQueueSize (void)
 Get the current value of the queue in bytes or packets. More...

void SetAredAlpha (double alpha)
 Set the alpha value to adapt m_curMaxP. More...

void SetAredBeta (double beta)
 Set the beta value to adapt m_curMaxP. More...

void SetFengAdaptiveA (double a)
 Set the alpha value to adapt m_curMaxP in Feng's Adaptive RED. More...

void SetFengAdaptiveB (double b)
 Set the beta value to adapt m_curMaxP in Feng's Adaptive RED. More...

void SetMode (QueueDiscMode mode)
 Set the operating mode of this queue disc. More...

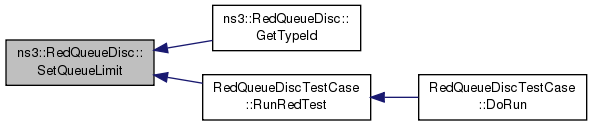

void SetQueueLimit (uint32_t lim)
 Set the limit of the queue. More...

void SetTh (double minTh, double maxTh)
 Set the thresh limits of RED. More...

- Public Member Functions inherited from ns3::QueueDisc
 QueueDisc ()

virtual ~QueueDisc ()

void AddInternalQueue (Ptr< InternalQueue > queue)
 Add an internal queue to the tail of the list of queues. More...

void AddPacketFilter (Ptr< PacketFilter > filter)
 Add a packet filter to the tail of the list of filters used to classify packets. More...

void AddQueueDiscClass (Ptr< QueueDiscClass > qdClass)
 Add a queue disc class to the tail of the list of classes. More...

int32_t Classify (Ptr< QueueDiscItem > item)
 Classify a packet by calling the packet filters, one at a time, until either a filter able to classify the packet is found or all the filters have been processed. More...

Ptr< QueueDiscItemDequeue (void)
 Request the queue discipline to extract a packet. More...

bool Enqueue (Ptr< QueueDiscItem > item)
 Pass a packet to store to the queue discipline. More...

Ptr< InternalQueueGetInternalQueue (uint32_t i) const
 Get the i-th internal queue. More...

uint32_t GetNBytes (void) const
 Get the amount of bytes stored by the queue disc. More...

Ptr< NetDeviceGetNetDevice (void) const
 Get the NetDevice on which this queue discipline is installed. More...

uint32_t GetNInternalQueues (void) const
 Get the number of internal queues. More...

uint32_t GetNPacketFilters (void) const
 Get the number of packet filters. More...

uint32_t GetNPackets (void) const
 Get the number of packets stored by the queue disc. More...

uint32_t GetNQueueDiscClasses (void) const
 Get the number of queue disc classes. More...

Ptr< PacketFilterGetPacketFilter (uint32_t i) const
 Get the i-th packet filter. More...

Ptr< QueueDiscClassGetQueueDiscClass (uint32_t i) const
 Get the i-th queue disc class. More...

virtual uint32_t GetQuota (void) const
 Get the maximum number of dequeue operations following a packet enqueue. More...

const StatsGetStats (void)
 Retrieve all the collected statistics. More...

virtual WakeMode GetWakeMode (void) const
 When setting up the wake callbacks on the netdevice queues, it is necessary to determine which queue disc (the root queue disc or one of its children) should be activated when the netdevice wakes one of its transmission queues. More...

Ptr< const QueueDiscItemPeek (void) const
 Get a copy of the next packet the queue discipline will extract, without actually extracting the packet. More...

void Run (void)
 Modelled after the Linux function __qdisc_run (net/sched/sch_generic.c) Dequeues multiple packets, until a quota is exceeded or sending a packet to the device failed. More...

void SetNetDevice (Ptr< NetDevice > device)
 Set the NetDevice on which this queue discipline is installed. More...

virtual void SetQuota (const uint32_t quota)
 Set the maximum number of dequeue operations following a packet enqueue. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

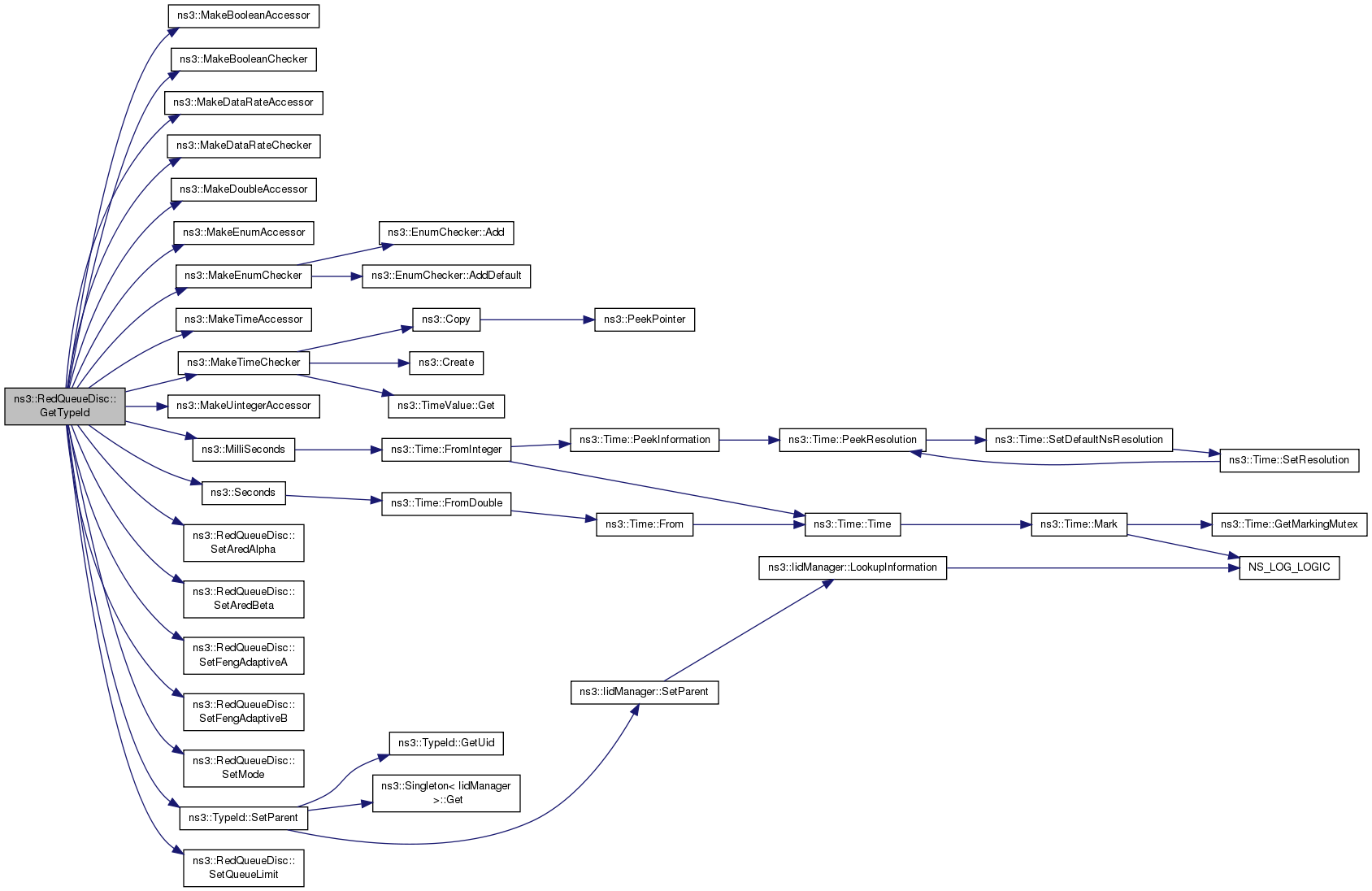

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::QueueDisc
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Static Public Attributes

static constexpr const char * FORCED_DROP = "Forced drop"
 Forced drops, m_qAvg > m_maxTh. More...

static constexpr const char * FORCED_MARK = "Forced mark"
 Forced marks, m_qAvg > m_maxTh. More...

static constexpr const char * UNFORCED_DROP = "Unforced drop"
 Early probability drops. More...

static constexpr const char * UNFORCED_MARK = "Unforced mark"
 Early probability marks. More...

- Static Public Attributes inherited from ns3::QueueDisc
static constexpr const char * CHILD_QUEUE_DISC_DROP = "(Dropped by child queue disc) "
 Packet dropped by a child queue disc. More...

static constexpr const char * INTERNAL_QUEUE_DROP = "Dropped by internal queue"
 Packet dropped by an internal queue. More...


Protected Member Functions

virtual void DoDispose (void)
 Dispose of the object. More...

- Protected Member Functions inherited from ns3::QueueDisc
void DoInitialize (void)
 Check whether the configuration is correct and initialize parameters. More...

void DropAfterDequeue (Ptr< const QueueDiscItem > item, const char *reason)
 Perform the actions required when the queue disc is notified of a packet dropped after dequeue. More...

void DropBeforeEnqueue (Ptr< const QueueDiscItem > item, const char *reason)
 Perform the actions required when the queue disc is notified of a packet dropped before enqueue. More...

bool Mark (Ptr< QueueDiscItem > item, const char *reason)
 Marks the given packet and, if successful, updates the counters associated with the given reason. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Member Functions

double CalculatePNew (void)
 Returns a probability using these function parameters for the DropEarly function. More...

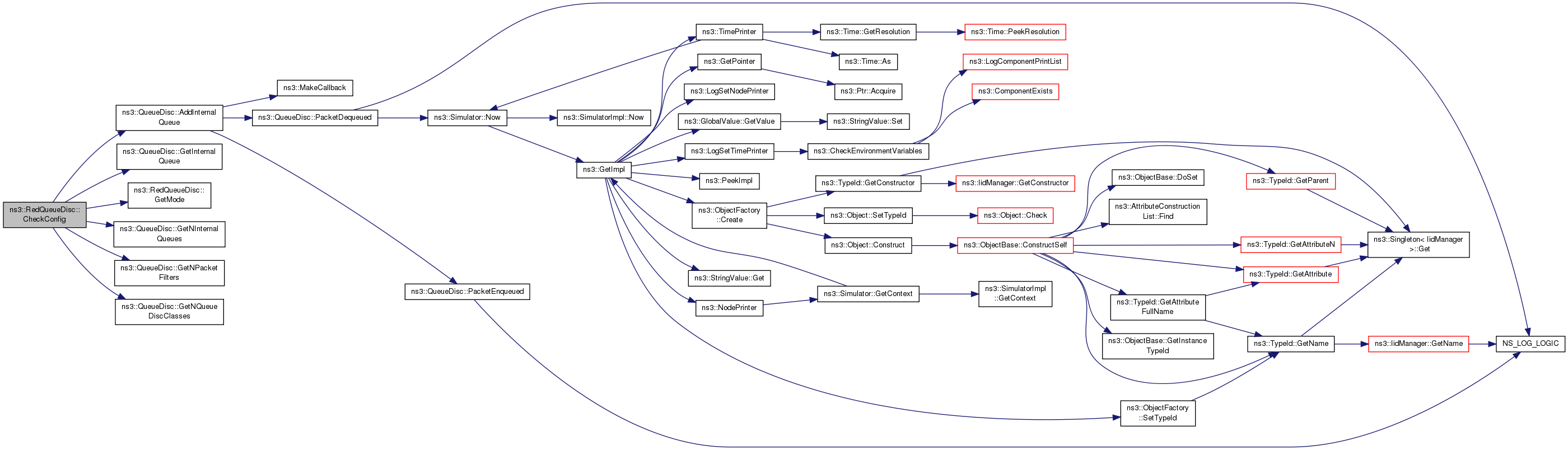

virtual bool CheckConfig (void)
 Check whether the current configuration is correct. More...

virtual Ptr< QueueDiscItemDoDequeue (void)
 This function actually extracts a packet from the queue disc. More...

virtual bool DoEnqueue (Ptr< QueueDiscItem > item)
 This function actually enqueues a packet into the queue disc. More...

virtual Ptr< const QueueDiscItemDoPeek (void) const
 This function returns a copy of the next packet the queue disc will extract. More...

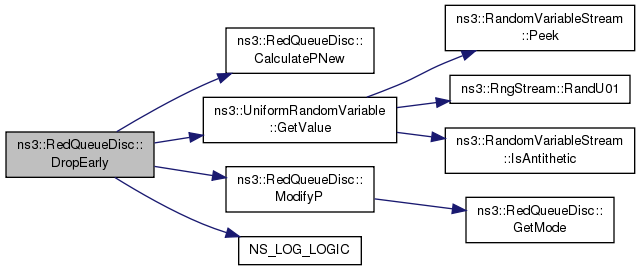

uint32_t DropEarly (Ptr< QueueDiscItem > item, uint32_t qSize)
 Check if a packet needs to be dropped due to probability mark. More...

double Estimator (uint32_t nQueued, uint32_t m, double qAvg, double qW)
 Compute the average queue size. More...

virtual void InitializeParams (void)
 Initialize the queue parameters. More...

double ModifyP (double p, uint32_t size)
 Returns a probability using these function parameters for the DropEarly function. More...

void UpdateMaxP (double newAve)
 Update m_curMaxP. More...

void UpdateMaxPFeng (double newAve)
 Update m_curMaxP based on Feng's Adaptive RED. More...


Private Attributes

double m_a
 Decrement parameter for m_curMaxP in Feng's Adaptive RED. More...

double m_alpha
 Increment parameter for m_curMaxP in ARED. More...

double m_b
 Increment parameter for m_curMaxP in Feng's Adaptive RED. More...

double m_beta
 Decrement parameter for m_curMaxP in ARED. More...

double m_bottom
 Lower bound for m_curMaxP in ARED. More...

uint32_t m_cautious
 0 for default RED 1 experimental (see red-queue-disc.cc) 2 experimental (see red-queue-disc.cc) 3 use Idle packet size in the ptc More...

uint32_t m_count
 Number of packets since last random number generation. More...

uint32_t m_countBytes
 Number of bytes since last drop. More...

double m_curMaxP
 Current max_p. More...

FengStatus m_fengStatus
 For use in Feng's Adaptive RED. More...

uint32_t m_idle
 0/1 idle status More...

uint32_t m_idlePktSize
 Avg pkt size used during idle times. More...

Time m_idleTime
 Start of current idle period. More...

Time m_interval
 Time interval to update m_curMaxP. More...

bool m_isAdaptMaxP
 True to adapt m_curMaxP. More...

bool m_isARED
 True to enable Adaptive RED. More...

bool m_isFengAdaptive
 True to enable Feng's Adaptive RED. More...

bool m_isGentle
 True to increase dropping prob. More...

bool m_isNonlinear
 True to enable Nonlinear RED. More...

bool m_isNs1Compat
 Ns-1 compatibility. More...

bool m_isWait
 True for waiting between dropped packets. More...

Time m_lastSet
 Last time m_curMaxP was updated. More...

DataRate m_linkBandwidth
 Link bandwidth. More...

Time m_linkDelay
 Link delay. More...

double m_lInterm
 The max probability of dropping a packet. More...

double m_maxTh
 Maximum threshold for m_qAvg (bytes or packets), should be >= 2 * m_minTh. More...

uint32_t m_meanPktSize
 Avg pkt size. More...

double m_minTh
 Minimum threshold for m_qAvg (bytes or packets) More...

QueueDiscMode m_mode
 Mode (Bytes or packets) More...

uint32_t m_old
 0 when average queue first exceeds threshold More...

double m_ptc
 packet time constant in packets/second More...

double m_qAvg
 Average queue length. More...

uint32_t m_queueLimit
 Queue limit in bytes / packets. More...

double m_qW
 Queue weight given to cur queue size sample. More...

Time m_rtt
 Rtt to be considered while automatically setting m_bottom in ARED. More...

Time m_targetDelay
 Target average queuing delay in ARED. More...

double m_top
 Upper bound for m_curMaxP in ARED. More...

bool m_useEcn
 True if ECN is used (packets are marked instead of being dropped) More...

bool m_useHardDrop
 True if packets are always dropped above max threshold. More...

Ptr< UniformRandomVariablem_uv
 rng stream More...

double m_vA
 1.0 / (m_maxTh - m_minTh) More...

double m_vB
 -m_minTh / (m_maxTh - m_minTh) More...

double m_vC
 (1.0 - m_curMaxP) / m_maxTh - used in "gentle" mode More...

double m_vD
 2.0 * m_curMaxP - 1.0 - used in "gentle" mode More...

double m_vProb
 Prob. More...


Additional Inherited Members

Detailed Description

A RED packet queue disc.

Introspection did not find any typical Config paths.


Attributes

  • Mode: Determines unit for QueueLimit
    • Set with class: ns3::EnumValue
    • Underlying type:
    • Initial value: QUEUE_DISC_MODE_PACKETS
    • Flags: construct write
  • MeanPktSize: Average of packet size
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 500
    • Flags: construct write read
  • IdlePktSize: Average packet size used during idle times. Used when m_cautions = 3
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write read
  • Wait: True for waiting between dropped packets
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • Gentle: True to increases dropping probability slowly when average queue exceeds maxthresh
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • ARED: True to enable ARED
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • AdaptMaxP: True to adapt m_curMaxP
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • FengAdaptive: True to enable Feng's Adaptive RED
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • NLRED: True to enable Nonlinear RED
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • MinTh: Minimum average length threshold in packets/bytes
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 5
    • Flags: construct write read
  • MaxTh: Maximum average length threshold in packets/bytes
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 15
    • Flags: construct write read
  • QueueLimit: Queue limit in bytes/packets
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 25
    • Flags: construct write
  • QW: Queue weight related to the exponential weighted moving average (EWMA)
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.002
    • Flags: construct write read
  • LInterm: The maximum probability of dropping a packet
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 50
    • Flags: construct write read
  • TargetDelay: Target average queuing delay in ARED
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +5000000.0ns
    • Flags: construct write read
  • Interval: Time interval to update m_curMaxP
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +500000000.0ns
    • Flags: construct write read
  • Top: Upper bound for m_curMaxP in ARED
    • Set with class: ns3::DoubleValue
    • Underlying type: double 0:1
    • Initial value: 0.5
    • Flags: construct write read
  • Bottom: Lower bound for m_curMaxP in ARED
    • Set with class: ns3::DoubleValue
    • Underlying type: double 0:1
    • Initial value: 0
    • Flags: construct write read
  • Alpha: Increment parameter for m_curMaxP in ARED
    • Set with class: ns3::DoubleValue
    • Underlying type: double 0:1
    • Initial value: 0.01
    • Flags: construct write
  • Beta: Decrement parameter for m_curMaxP in ARED
    • Set with class: ns3::DoubleValue
    • Underlying type: double 0:1
    • Initial value: 0.9
    • Flags: construct write
  • FengAlpha: Decrement parameter for m_curMaxP in Feng's Adaptive RED
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 3
    • Flags: construct write
  • FengBeta: Increment parameter for m_curMaxP in Feng's Adaptive RED
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 2
    • Flags: construct write
  • LastSet: Store the last time m_curMaxP was updated
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +0.0ns
    • Flags: construct write read
  • Rtt: Round Trip Time to be considered while automatically setting m_bottom
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +100000000.0ns
    • Flags: construct write read
  • Ns1Compat: NS-1 compatibility
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • LinkBandwidth: The RED link bandwidth
    • Set with class: DataRateValue
    • Underlying type: DataRate
    • Initial value: 1500000bps
    • Flags: construct write read
  • LinkDelay: The RED link delay
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +20000000.0ns
    • Flags: construct write read
  • UseEcn: True to use ECN (packets are marked instead of being dropped)
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • UseHardDrop: True to always drop packets above max threshold
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read

Attributes defined in parent class ns3::QueueDisc

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::QueueDisc

Size of this type is 1176 bytes (on a 64-bit architecture).

Definition at line 79 of file red-queue-disc.h.

Constructor & Destructor Documentation

ns3::RedQueueDisc::RedQueueDisc ( )

RedQueueDisc Constructor.

Create a RED queue disc

Definition at line 232 of file red-queue-disc.cc.

References m_uv, and NS_LOG_FUNCTION.

ns3::RedQueueDisc::~RedQueueDisc ( )
virtual

Destructor.

Destructor

Definition at line 239 of file red-queue-disc.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::RedQueueDisc::AssignStreams ( int64_t  stream)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Definition at line 359 of file red-queue-disc.cc.

References m_uv, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

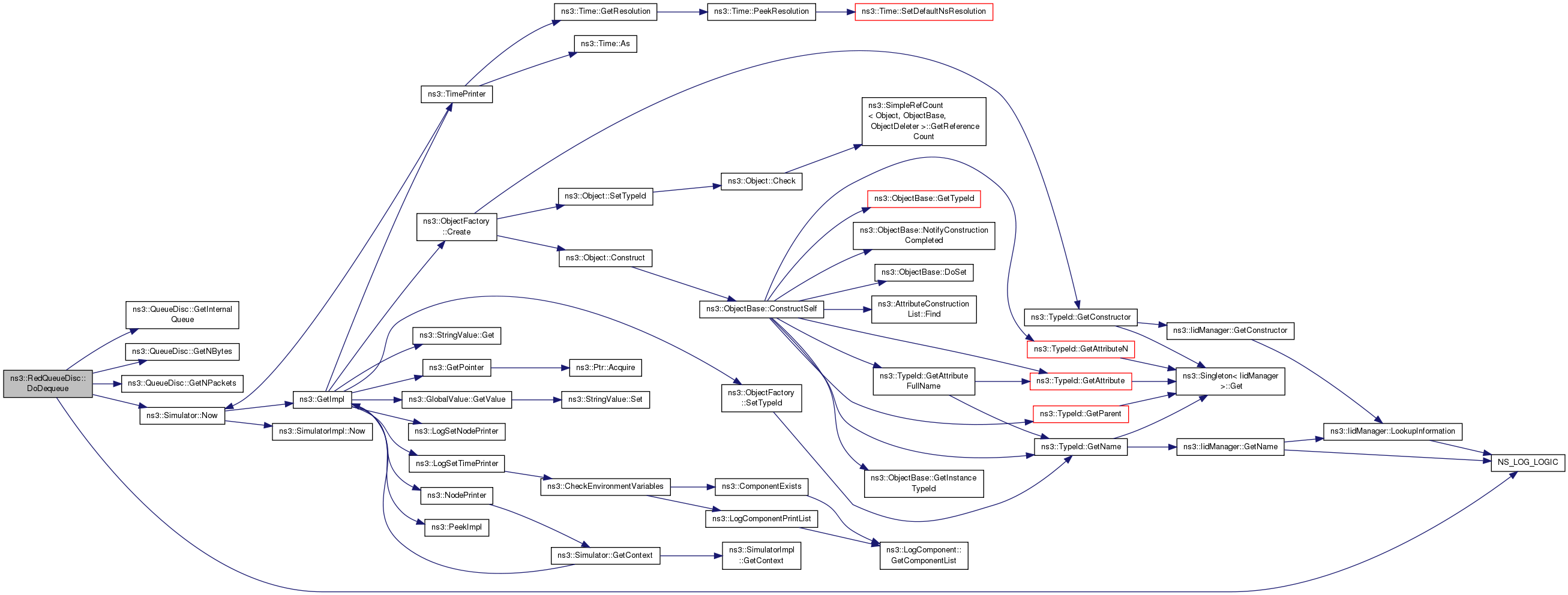

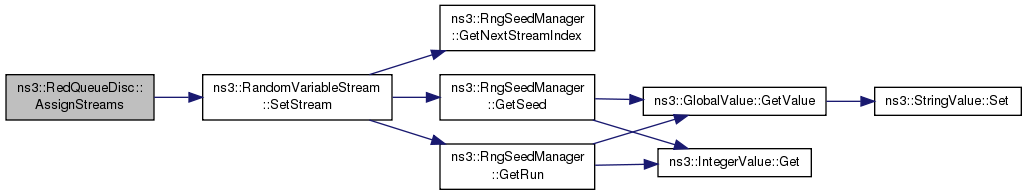

+ Here is the call graph for this function:

double ns3::RedQueueDisc::CalculatePNew ( void  )
private

Returns a probability using these function parameters for the DropEarly function.

Returns
Prob. of packet drop before "count"

Definition at line 752 of file red-queue-disc.cc.

References m_curMaxP, m_isGentle, m_isNonlinear, m_maxTh, m_qAvg, m_vA, m_vB, m_vC, m_vD, and NS_LOG_FUNCTION.

Referenced by DropEarly().

+ Here is the caller graph for this function:

bool ns3::RedQueueDisc::CheckConfig ( void  )
privatevirtual

Check whether the current configuration is correct.

Default objects (such as internal queues) might be created by this method to ensure the configuration is correct.

Returns
true if the configuration is correct, false otherwise

Implements ns3::QueueDisc.

Definition at line 912 of file red-queue-disc.cc.

References ns3::QueueDisc::AddInternalQueue(), ns3::QueueDisc::GetInternalQueue(), GetMode(), ns3::QueueDisc::GetNInternalQueues(), ns3::QueueDisc::GetNPacketFilters(), ns3::QueueDisc::GetNQueueDiscClasses(), m_isAdaptMaxP, m_isARED, m_isFengAdaptive, m_mode, m_queueLimit, NS_LOG_ERROR, NS_LOG_FUNCTION, QUEUE_DISC_MODE_BYTES, QUEUE_DISC_MODE_PACKETS, ns3::QueueBase::QUEUE_MODE_BYTES, and ns3::QueueBase::QUEUE_MODE_PACKETS.

+ Here is the call graph for this function:

Ptr< QueueDiscItem > ns3::RedQueueDisc::DoDequeue ( void  )
privatevirtual

This function actually extracts a packet from the queue disc.

Returns
0 if the operation was not successful; the item otherwise.

Implements ns3::QueueDisc.

Definition at line 867 of file red-queue-disc.cc.

References ns3::QueueDisc::GetInternalQueue(), ns3::QueueDisc::GetNBytes(), ns3::QueueDisc::GetNPackets(), m_idle, m_idleTime, ns3::Simulator::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC().

+ Here is the call graph for this function:

void ns3::RedQueueDisc::DoDispose ( void  )
protectedvirtual

Dispose of the object.

Reimplemented from ns3::QueueDisc.

Definition at line 245 of file red-queue-disc.cc.

References ns3::QueueDisc::DoDispose(), m_uv, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

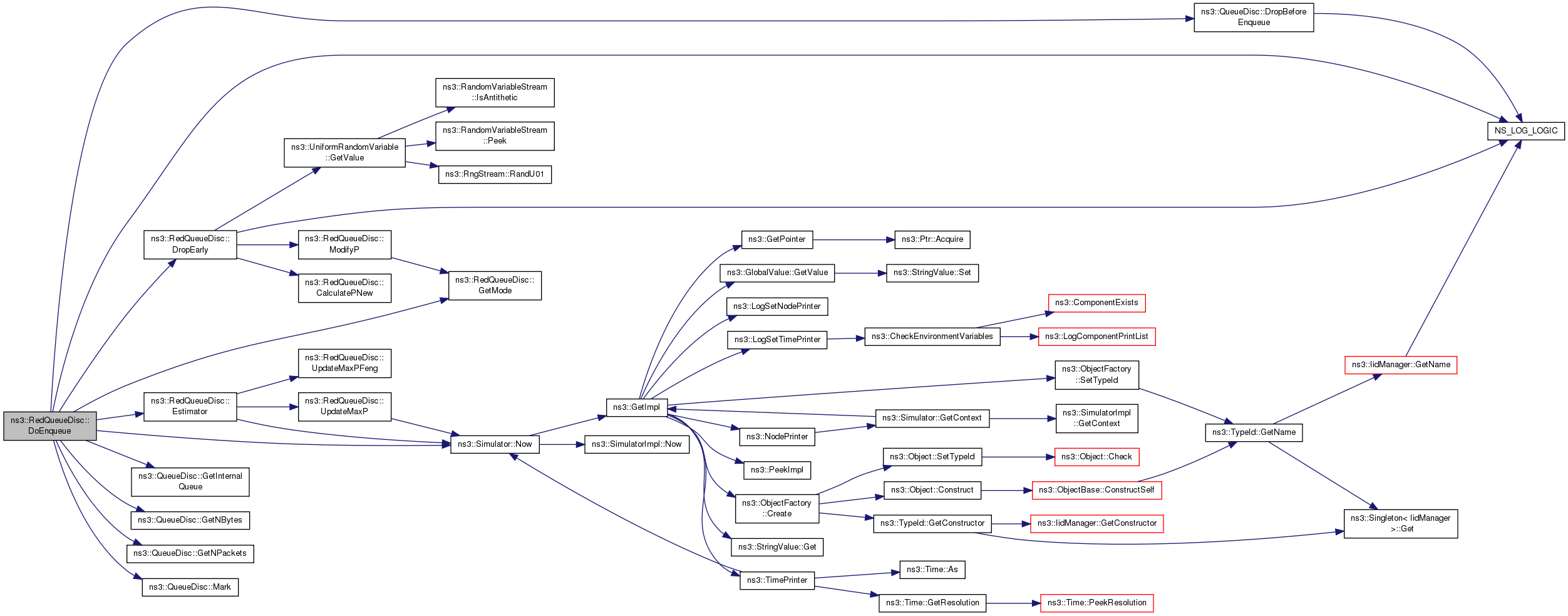

bool ns3::RedQueueDisc::DoEnqueue ( Ptr< QueueDiscItem item)
privatevirtual
Ptr< const QueueDiscItem > ns3::RedQueueDisc::DoPeek ( void  ) const
privatevirtual

This function returns a copy of the next packet the queue disc will extract.

Returns
0 if the operation was not successful; the packet otherwise.

Implements ns3::QueueDisc.

Definition at line 894 of file red-queue-disc.cc.

References ns3::QueueDisc::GetInternalQueue(), ns3::QueueDisc::GetNBytes(), ns3::QueueDisc::GetNPackets(), NS_LOG_FUNCTION, and NS_LOG_LOGIC().

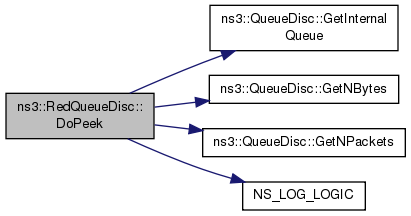

+ Here is the call graph for this function:

uint32_t ns3::RedQueueDisc::DropEarly ( Ptr< QueueDiscItem item,
uint32_t  qSize
)
private

Check if a packet needs to be dropped due to probability mark.

Parameters
itemqueue item
qSizequeue size
Returns
0 for no drop/mark, 1 for drop
Todo:
Implement set bit to mark

Definition at line 690 of file red-queue-disc.cc.

References CalculatePNew(), ns3::UniformRandomVariable::GetValue(), m_cautious, m_count, m_countBytes, m_ptc, m_qAvg, m_qW, m_uv, m_vProb, ModifyP(), NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Referenced by DoEnqueue().

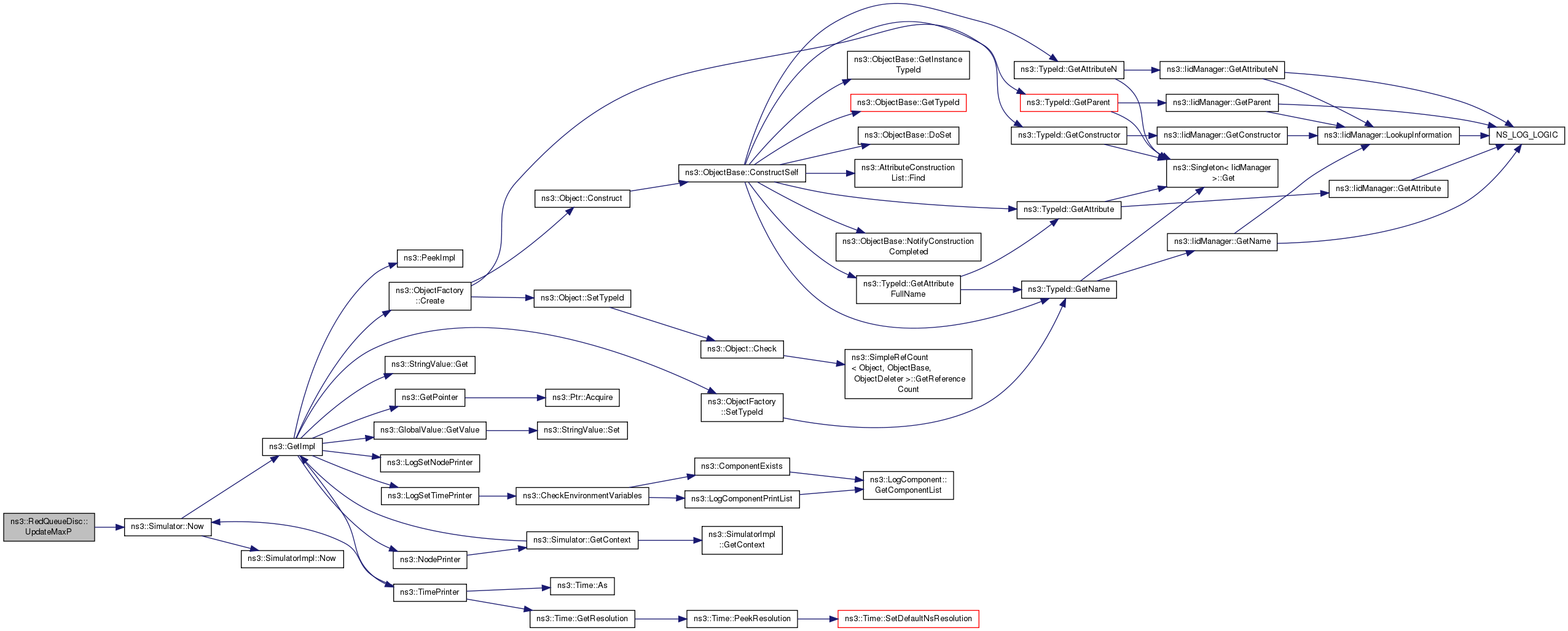

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::RedQueueDisc::Estimator ( uint32_t  nQueued,
uint32_t  m,
double  qAvg,
double  qW
)
private

Compute the average queue size.

Parameters
nQueuednumber of queued packets
msimulated number of packets arrival during idle period
qAvgaverage queue size
qWqueue weight given to cur q size sample
Returns
new average queue size

Definition at line 668 of file red-queue-disc.cc.

References m_interval, m_isAdaptMaxP, m_isFengAdaptive, m_lastSet, ns3::Simulator::Now(), NS_LOG_FUNCTION, UpdateMaxP(), and UpdateMaxPFeng().

Referenced by DoEnqueue().

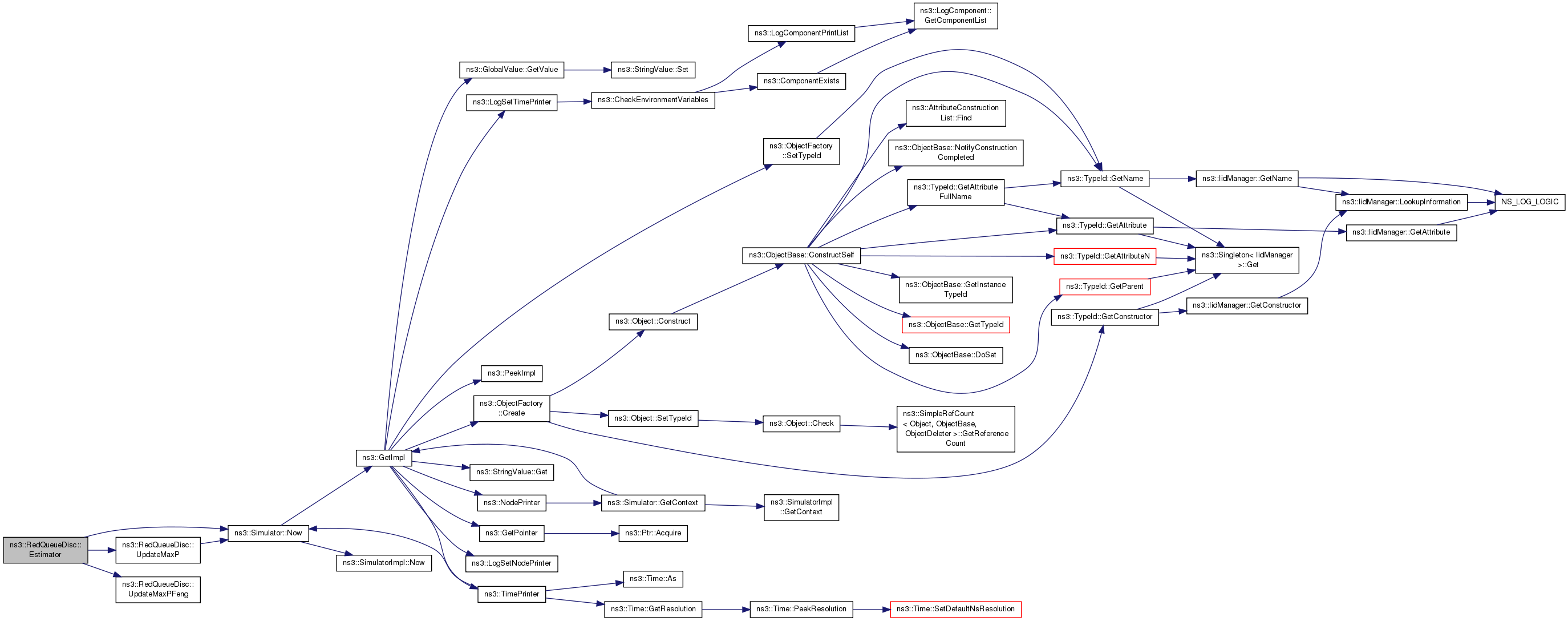

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::RedQueueDisc::GetAredAlpha ( void  )

Get the alpha value to adapt m_curMaxP.

Returns
The alpha value to adapt m_curMaxP.

Definition at line 279 of file red-queue-disc.cc.

References m_alpha, and NS_LOG_FUNCTION.

double ns3::RedQueueDisc::GetAredBeta ( void  )

Get the beta value to adapt m_curMaxP.

Returns
The beta value to adapt m_curMaxP.

Definition at line 298 of file red-queue-disc.cc.

References m_beta, and NS_LOG_FUNCTION.

double ns3::RedQueueDisc::GetFengAdaptiveA ( void  )

Get the alpha value to adapt m_curMaxP in Feng's Adaptive RED.

Returns
The alpha value to adapt m_curMaxP in Feng's Adaptive RED.

Definition at line 317 of file red-queue-disc.cc.

References m_a, and NS_LOG_FUNCTION.

double ns3::RedQueueDisc::GetFengAdaptiveB ( void  )

Get the beta value to adapt m_curMaxP in Feng's Adaptive RED.

Returns
The beta value to adapt m_curMaxP in Feng's Adaptive RED.

Definition at line 336 of file red-queue-disc.cc.

References m_b, and NS_LOG_FUNCTION.

RedQueueDisc::QueueDiscMode ns3::RedQueueDisc::GetMode ( void  )

Get the operating mode of this queue disc.

Returns
The operating mode of this queue disc.

Definition at line 260 of file red-queue-disc.cc.

References m_mode, and NS_LOG_FUNCTION.

Referenced by CheckConfig(), DoEnqueue(), GetQueueSize(), InitializeParams(), ModifyP(), AredQueueDiscTestCase::RunAredDiscTest(), and RedQueueDiscTestCase::RunRedTest().

+ Here is the caller graph for this function:

uint32_t ns3::RedQueueDisc::GetQueueSize ( void  )

Get the current value of the queue in bytes or packets.

Returns
The queue size in bytes or packets.

Definition at line 849 of file red-queue-disc.cc.

References ns3::QueueDisc::GetInternalQueue(), GetMode(), NS_ABORT_MSG, NS_LOG_FUNCTION, QUEUE_DISC_MODE_BYTES, and QUEUE_DISC_MODE_PACKETS.

Referenced by RedQueueDiscTestCase::RunRedTest().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RedQueueDisc::InitializeParams ( void  )
privatevirtual

Initialize the queue parameters.

Note: if the link bandwidth changes in the course of the simulation, the bandwidth-dependent RED parameters do not change. This should be fixed, but it would require some extra parameters, and didn't seem worth the trouble...

Implements ns3::QueueDisc.

Definition at line 491 of file red-queue-disc.cc.

References Above, ns3::DataRate::GetBitRate(), GetMode(), ns3::Time::GetSeconds(), m_bottom, m_cautious, m_count, m_countBytes, m_curMaxP, m_fengStatus, m_idle, m_idleTime, m_isAdaptMaxP, m_isARED, m_isFengAdaptive, m_isGentle, m_isWait, m_linkBandwidth, m_linkDelay, m_lInterm, m_maxTh, m_meanPktSize, m_minTh, m_old, m_ptc, m_qAvg, m_qW, m_rtt, m_targetDelay, m_vA, m_vB, m_vC, m_vD, ns3::NanoSeconds(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, and QUEUE_DISC_MODE_BYTES.

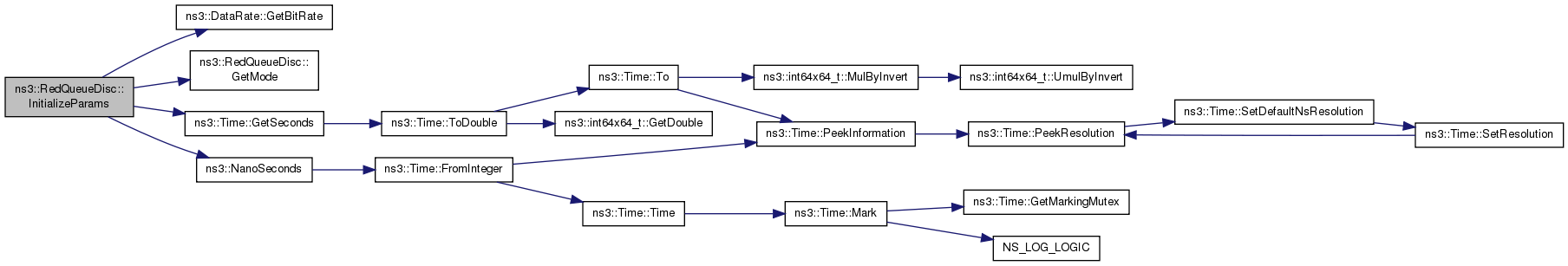

+ Here is the call graph for this function:

double ns3::RedQueueDisc::ModifyP ( double  p,
uint32_t  size
)
private

Returns a probability using these function parameters for the DropEarly function.

Parameters
pProb. of packet drop before "count"
sizepacket size
Returns
Prob. of packet drop

Definition at line 798 of file red-queue-disc.cc.

References GetMode(), m_count, m_countBytes, m_isWait, m_meanPktSize, NS_LOG_FUNCTION, and QUEUE_DISC_MODE_BYTES.

Referenced by DropEarly().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RedQueueDisc::SetAredAlpha ( double  alpha)

Set the alpha value to adapt m_curMaxP.

Parameters
alphaThe value of alpha to adapt m_curMaxP.

Definition at line 267 of file red-queue-disc.cc.

References m_alpha, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::RedQueueDisc::SetAredBeta ( double  beta)

Set the beta value to adapt m_curMaxP.

Parameters
betaThe value of beta to adapt m_curMaxP.

Definition at line 286 of file red-queue-disc.cc.

References m_beta, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::RedQueueDisc::SetFengAdaptiveA ( double  a)

Set the alpha value to adapt m_curMaxP in Feng's Adaptive RED.

Parameters
aThe value of alpha to adapt m_curMaxP in Feng's Adaptive RED.

Definition at line 305 of file red-queue-disc.cc.

References m_a, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::RedQueueDisc::SetFengAdaptiveB ( double  b)

Set the beta value to adapt m_curMaxP in Feng's Adaptive RED.

Parameters
bThe value of beta to adapt m_curMaxP in Feng's Adaptive RED.

Definition at line 324 of file red-queue-disc.cc.

References m_b, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::RedQueueDisc::SetMode ( QueueDiscMode  mode)

Set the operating mode of this queue disc.

Parameters
modeThe operating mode of this queue disc.

Definition at line 253 of file red-queue-disc.cc.

References m_mode, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::RedQueueDisc::SetQueueLimit ( uint32_t  lim)

Set the limit of the queue.

Parameters
limThe limit in bytes or packets.

Definition at line 343 of file red-queue-disc.cc.

References m_queueLimit, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), and RedQueueDiscTestCase::RunRedTest().

+ Here is the caller graph for this function:

void ns3::RedQueueDisc::SetTh ( double  minTh,
double  maxTh
)

Set the thresh limits of RED.

Parameters
minThMinimum thresh in bytes or packets.
maxThMaximum thresh in bytes or packets.

Definition at line 350 of file red-queue-disc.cc.

References m_maxTh, m_minTh, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by RedQueueDiscTestCase::RunRedTest().

+ Here is the caller graph for this function:

void ns3::RedQueueDisc::UpdateMaxP ( double  newAve)
private

Update m_curMaxP.

Parameters
newAvenew average queue length

Definition at line 640 of file red-queue-disc.cc.

References m_alpha, m_beta, m_bottom, m_curMaxP, m_lastSet, m_maxTh, m_minTh, m_top, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by Estimator().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RedQueueDisc::UpdateMaxPFeng ( double  newAve)
private

Update m_curMaxP based on Feng's Adaptive RED.

Parameters
newAvenew average queue length

Definition at line 618 of file red-queue-disc.cc.

References Above, Below, Between, m_a, m_b, m_curMaxP, m_fengStatus, m_maxTh, m_minTh, and NS_LOG_FUNCTION.

Referenced by Estimator().

+ Here is the caller graph for this function:

Member Data Documentation

constexpr const char* ns3::RedQueueDisc::FORCED_DROP = "Forced drop"
static

Forced drops, m_qAvg > m_maxTh.

Definition at line 235 of file red-queue-disc.h.

Referenced by DoEnqueue().

constexpr const char* ns3::RedQueueDisc::FORCED_MARK = "Forced mark"
static

Forced marks, m_qAvg > m_maxTh.

Definition at line 238 of file red-queue-disc.h.

Referenced by DoEnqueue().

double ns3::RedQueueDisc::m_a
private

Decrement parameter for m_curMaxP in Feng's Adaptive RED.

Definition at line 323 of file red-queue-disc.h.

Referenced by GetFengAdaptiveA(), SetFengAdaptiveA(), and UpdateMaxPFeng().

double ns3::RedQueueDisc::m_alpha
private

Increment parameter for m_curMaxP in ARED.

Definition at line 317 of file red-queue-disc.h.

Referenced by GetAredAlpha(), SetAredAlpha(), and UpdateMaxP().

double ns3::RedQueueDisc::m_b
private

Increment parameter for m_curMaxP in Feng's Adaptive RED.

Definition at line 322 of file red-queue-disc.h.

Referenced by GetFengAdaptiveB(), SetFengAdaptiveB(), and UpdateMaxPFeng().

double ns3::RedQueueDisc::m_beta
private

Decrement parameter for m_curMaxP in ARED.

Definition at line 318 of file red-queue-disc.h.

Referenced by GetAredBeta(), SetAredBeta(), and UpdateMaxP().

double ns3::RedQueueDisc::m_bottom
private

Lower bound for m_curMaxP in ARED.

Definition at line 316 of file red-queue-disc.h.

Referenced by GetTypeId(), InitializeParams(), and UpdateMaxP().

uint32_t ns3::RedQueueDisc::m_cautious
private

0 for default RED 1 experimental (see red-queue-disc.cc) 2 experimental (see red-queue-disc.cc) 3 use Idle packet size in the ptc

Definition at line 351 of file red-queue-disc.h.

Referenced by DoEnqueue(), DropEarly(), and InitializeParams().

uint32_t ns3::RedQueueDisc::m_count
private

Number of packets since last random number generation.

Definition at line 343 of file red-queue-disc.h.

Referenced by DoEnqueue(), DropEarly(), InitializeParams(), and ModifyP().

uint32_t ns3::RedQueueDisc::m_countBytes
private

Number of bytes since last drop.

Definition at line 338 of file red-queue-disc.h.

Referenced by DoEnqueue(), DropEarly(), InitializeParams(), and ModifyP().

double ns3::RedQueueDisc::m_curMaxP
private

Current max_p.

Definition at line 335 of file red-queue-disc.h.

Referenced by CalculatePNew(), InitializeParams(), UpdateMaxP(), and UpdateMaxPFeng().

FengStatus ns3::RedQueueDisc::m_fengStatus
private

For use in Feng's Adaptive RED.

Definition at line 344 of file red-queue-disc.h.

Referenced by InitializeParams(), and UpdateMaxPFeng().

uint32_t ns3::RedQueueDisc::m_idle
private

0/1 idle status

Definition at line 340 of file red-queue-disc.h.

Referenced by DoDequeue(), DoEnqueue(), and InitializeParams().

uint32_t ns3::RedQueueDisc::m_idlePktSize
private

Avg pkt size used during idle times.

Definition at line 303 of file red-queue-disc.h.

Referenced by DoEnqueue(), and GetTypeId().

Time ns3::RedQueueDisc::m_idleTime
private

Start of current idle period.

Definition at line 352 of file red-queue-disc.h.

Referenced by DoDequeue(), DoEnqueue(), and InitializeParams().

Time ns3::RedQueueDisc::m_interval
private

Time interval to update m_curMaxP.

Definition at line 314 of file red-queue-disc.h.

Referenced by Estimator(), and GetTypeId().

bool ns3::RedQueueDisc::m_isAdaptMaxP
private

True to adapt m_curMaxP.

Definition at line 307 of file red-queue-disc.h.

Referenced by CheckConfig(), Estimator(), GetTypeId(), and InitializeParams().

bool ns3::RedQueueDisc::m_isARED
private

True to enable Adaptive RED.

Definition at line 306 of file red-queue-disc.h.

Referenced by CheckConfig(), GetTypeId(), and InitializeParams().

bool ns3::RedQueueDisc::m_isFengAdaptive
private

True to enable Feng's Adaptive RED.

Definition at line 320 of file red-queue-disc.h.

Referenced by CheckConfig(), Estimator(), GetTypeId(), and InitializeParams().

bool ns3::RedQueueDisc::m_isGentle
private

True to increase dropping prob.

slowly when m_qAvg exceeds m_maxTh

Definition at line 305 of file red-queue-disc.h.

Referenced by CalculatePNew(), DoEnqueue(), GetTypeId(), and InitializeParams().

bool ns3::RedQueueDisc::m_isNonlinear
private

True to enable Nonlinear RED.

Definition at line 321 of file red-queue-disc.h.

Referenced by CalculatePNew(), and GetTypeId().

bool ns3::RedQueueDisc::m_isNs1Compat
private

Ns-1 compatibility.

Definition at line 324 of file red-queue-disc.h.

Referenced by DoEnqueue(), and GetTypeId().

bool ns3::RedQueueDisc::m_isWait
private

True for waiting between dropped packets.

Definition at line 304 of file red-queue-disc.h.

Referenced by GetTypeId(), InitializeParams(), and ModifyP().

Time ns3::RedQueueDisc::m_lastSet
private

Last time m_curMaxP was updated.

Definition at line 336 of file red-queue-disc.h.

Referenced by Estimator(), GetTypeId(), and UpdateMaxP().

DataRate ns3::RedQueueDisc::m_linkBandwidth
private

Link bandwidth.

Definition at line 325 of file red-queue-disc.h.

Referenced by GetTypeId(), and InitializeParams().

Time ns3::RedQueueDisc::m_linkDelay
private

Link delay.

Definition at line 326 of file red-queue-disc.h.

Referenced by GetTypeId(), and InitializeParams().

double ns3::RedQueueDisc::m_lInterm
private

The max probability of dropping a packet.

Definition at line 312 of file red-queue-disc.h.

Referenced by GetTypeId(), and InitializeParams().

double ns3::RedQueueDisc::m_maxTh
private

Maximum threshold for m_qAvg (bytes or packets), should be >= 2 * m_minTh.

Definition at line 309 of file red-queue-disc.h.

Referenced by CalculatePNew(), DoEnqueue(), GetTypeId(), InitializeParams(), SetTh(), UpdateMaxP(), and UpdateMaxPFeng().

uint32_t ns3::RedQueueDisc::m_meanPktSize
private

Avg pkt size.

Definition at line 302 of file red-queue-disc.h.

Referenced by DoEnqueue(), GetTypeId(), InitializeParams(), and ModifyP().

double ns3::RedQueueDisc::m_minTh
private

Minimum threshold for m_qAvg (bytes or packets)

Definition at line 308 of file red-queue-disc.h.

Referenced by DoEnqueue(), GetTypeId(), InitializeParams(), SetTh(), UpdateMaxP(), and UpdateMaxPFeng().

QueueDiscMode ns3::RedQueueDisc::m_mode
private

Mode (Bytes or packets)

Definition at line 301 of file red-queue-disc.h.

Referenced by CheckConfig(), GetMode(), and SetMode().

uint32_t ns3::RedQueueDisc::m_old
private

0 when average queue first exceeds threshold

Definition at line 339 of file red-queue-disc.h.

Referenced by DoEnqueue(), and InitializeParams().

double ns3::RedQueueDisc::m_ptc
private

packet time constant in packets/second

Definition at line 341 of file red-queue-disc.h.

Referenced by DoEnqueue(), DropEarly(), and InitializeParams().

double ns3::RedQueueDisc::m_qAvg
private

Average queue length.

Definition at line 342 of file red-queue-disc.h.

Referenced by CalculatePNew(), DoEnqueue(), DropEarly(), and InitializeParams().

uint32_t ns3::RedQueueDisc::m_queueLimit
private

Queue limit in bytes / packets.

Definition at line 310 of file red-queue-disc.h.

Referenced by CheckConfig(), and SetQueueLimit().

double ns3::RedQueueDisc::m_qW
private

Queue weight given to cur queue size sample.

Definition at line 311 of file red-queue-disc.h.

Referenced by DoEnqueue(), DropEarly(), GetTypeId(), and InitializeParams().

Time ns3::RedQueueDisc::m_rtt
private

Rtt to be considered while automatically setting m_bottom in ARED.

Definition at line 319 of file red-queue-disc.h.

Referenced by GetTypeId(), and InitializeParams().

Time ns3::RedQueueDisc::m_targetDelay
private

Target average queuing delay in ARED.

Definition at line 313 of file red-queue-disc.h.

Referenced by GetTypeId(), and InitializeParams().

double ns3::RedQueueDisc::m_top
private

Upper bound for m_curMaxP in ARED.

Definition at line 315 of file red-queue-disc.h.

Referenced by GetTypeId(), and UpdateMaxP().

bool ns3::RedQueueDisc::m_useEcn
private

True if ECN is used (packets are marked instead of being dropped)

Definition at line 327 of file red-queue-disc.h.

Referenced by DoEnqueue(), and GetTypeId().

bool ns3::RedQueueDisc::m_useHardDrop
private

True if packets are always dropped above max threshold.

Definition at line 328 of file red-queue-disc.h.

Referenced by DoEnqueue(), and GetTypeId().

Ptr<UniformRandomVariable> ns3::RedQueueDisc::m_uv
private

rng stream

Definition at line 354 of file red-queue-disc.h.

Referenced by AssignStreams(), DoDispose(), DropEarly(), and RedQueueDisc().

double ns3::RedQueueDisc::m_vA
private

1.0 / (m_maxTh - m_minTh)

Definition at line 331 of file red-queue-disc.h.

Referenced by CalculatePNew(), and InitializeParams().

double ns3::RedQueueDisc::m_vB
private

-m_minTh / (m_maxTh - m_minTh)

Definition at line 332 of file red-queue-disc.h.

Referenced by CalculatePNew(), and InitializeParams().

double ns3::RedQueueDisc::m_vC
private

(1.0 - m_curMaxP) / m_maxTh - used in "gentle" mode

Definition at line 333 of file red-queue-disc.h.

Referenced by CalculatePNew(), and InitializeParams().

double ns3::RedQueueDisc::m_vD
private

2.0 * m_curMaxP - 1.0 - used in "gentle" mode

Definition at line 334 of file red-queue-disc.h.

Referenced by CalculatePNew(), and InitializeParams().

double ns3::RedQueueDisc::m_vProb
private

Prob.

of packet drop

Definition at line 337 of file red-queue-disc.h.

Referenced by DoEnqueue(), and DropEarly().

constexpr const char* ns3::RedQueueDisc::UNFORCED_DROP = "Unforced drop"
static

Early probability drops.

Definition at line 234 of file red-queue-disc.h.

Referenced by DoEnqueue().

constexpr const char* ns3::RedQueueDisc::UNFORCED_MARK = "Unforced mark"
static

Early probability marks.

Definition at line 237 of file red-queue-disc.h.

Referenced by DoEnqueue().


The documentation for this class was generated from the following files:
