Traffic-control

The Traffic Control layer aims at introducing an equivalent of the Linux Traffic Control infrastructure into ns-3. More...

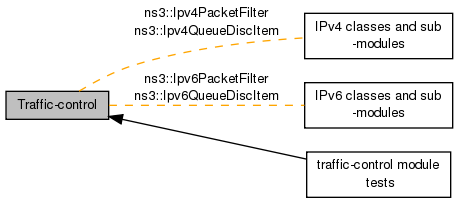

+ Collaboration diagram for Traffic-control:

Modules

 traffic-control module tests


Classes

class  ns3::CoDelQueueDisc
 A CoDel packet queue disc. More...

class  ns3::FqCoDelFlow
 A flow queue used by the FqCoDel queue disc. More...

class  ns3::FqCoDelQueueDisc
 A FqCoDel packet queue disc. More...

class  ns3::Ipv4PacketFilter
 Ipv4PacketFilter is the abstract base class for filters defined for IPv4 packets. More...

class  ns3::Ipv4QueueDiscItem
 Ipv4QueueDiscItem is a subclass of QueueDiscItem which stores IPv4 packets. More...

class  ns3::Ipv6PacketFilter
 Ipv6PacketFilter is the abstract base class for filters defined for IPv6 packets. More...

class  ns3::Ipv6QueueDiscItem
 Ipv6QueueDiscItem is a subclass of QueueDiscItem which stores IPv6 packets. More...

class  ns3::MqQueueDisc
 mq is a classful multi-queue aware dummy scheduler. More...

class  ns3::PacketFilter
 PacketFilter is the abstract base class for filters used by queue discs to classify packets. More...

class  ns3::PfifoFastQueueDisc
 Linux pfifo_fast is the default priority queue enabled on Linux systems. More...

class  ns3::PieQueueDisc
 Implements PIE Active Queue Management discipline. More...

class  ns3::QueueDisc
 QueueDisc is an abstract base class providing the interface and implementing the operations common to all the queueing disciplines. More...

class  ns3::QueueDiscClass
 QueueDiscClass is the base class for classes that are included in a queue disc. More...

class  ns3::QueueDiscContainer
 Holds a vector of ns3::QueueDisc pointers. More...

class  ns3::QueueDiscFactory
 This class stores object factories required to create a queue disc and all of its components (packet filters, internal queues, classes). More...

class  ns3::RedQueueDisc
 A RED packet queue disc. More...

struct  ns3::QueueDisc::Stats
 Structure that keeps the queue disc statistics. More...

class  ns3::TrafficControlHelper
 Build a set of QueueDisc objects. More...


Enumerations

enum  { ns3::RedQueueDisc::DTYPE_NONE, ns3::RedQueueDisc::DTYPE_FORCED, ns3::RedQueueDisc::DTYPE_UNFORCED }
 Drop types. More...

enum  ns3::PieQueueDisc::BurstStateT { ns3::PieQueueDisc::NO_BURST, ns3::PieQueueDisc::IN_BURST, ns3::PieQueueDisc::IN_BURST_PROTECTING }
 Burst types. More...

enum  ns3::RedQueueDisc::FengStatus { ns3::RedQueueDisc::Above, ns3::RedQueueDisc::Between, ns3::RedQueueDisc::Below }
 Used in Feng's Adaptive RED. More...

enum  ns3::FqCoDelFlow::FlowStatus { ns3::FqCoDelFlow::INACTIVE, ns3::FqCoDelFlow::NEW_FLOW, ns3::FqCoDelFlow::OLD_FLOW }
 Used to determine the status of this flow queue. More...

enum  ns3::CoDelQueueDisc::QueueDiscMode { ns3::CoDelQueueDisc::QUEUE_DISC_MODE_PACKETS, ns3::CoDelQueueDisc::QUEUE_DISC_MODE_BYTES }
 Enumeration of the modes supported in the class. More...

enum  ns3::PieQueueDisc::QueueDiscMode { ns3::PieQueueDisc::QUEUE_DISC_MODE_PACKETS, ns3::PieQueueDisc::QUEUE_DISC_MODE_BYTES }
 Enumeration of the modes supported in the class. More...

enum  ns3::RedQueueDisc::QueueDiscMode { ns3::RedQueueDisc::QUEUE_DISC_MODE_PACKETS, ns3::RedQueueDisc::QUEUE_DISC_MODE_BYTES }
 Enumeration of the modes supported in the class. More...

enum  ns3::QueueDisc::WakeMode { ns3::QueueDisc::WAKE_ROOT = 0x00, ns3::QueueDisc::WAKE_CHILD = 0x01 }
 Used to determine whether the queue disc itself or its children must be activated when a netdevice wakes a transmission queue. More...


Detailed Description

The Traffic Control layer aims at introducing an equivalent of the Linux Traffic Control infrastructure into ns-3.

The Traffic Control layer sits in between the NetDevices (L2) and any network protocol (e.g., IP). It is in charge of processing packets and performing actions on them: scheduling, dropping, marking, policing, etc.

Traffic control layer class

This object represents the main interface of the Traffic Control Module. Basically, we manage both IN and OUT directions (sometimes called RX and TX, respectively). The OUT direction is easy to follow, since it involves direct calls: upper layer (e.g. IP) calls the Send method on an instance of this class, which then calls the Enqueue method of the QueueDisc associated with the device. The Dequeue method of the QueueDisc finally calls the Send method of the NetDevice.

The IN direction uses a little trick to reduce dependencies between modules. In simple words, we use Callbacks to connect upper layer (which should register their Receive callback through RegisterProtocolHandler) and NetDevices.

An example of the IN connection between this layer and IP layer is the following:

Ptr<TrafficControlLayer> tc = m_node->GetObject<TrafficControlLayer> ();

NS_ASSERT (tc != 0);

m_node->RegisterProtocolHandler (MakeCallback (&TrafficControlLayer::Receive, tc),
                                 Ipv4L3Protocol::PROT_NUMBER, device);
m_node->RegisterProtocolHandler (MakeCallback (&TrafficControlLayer::Receive, tc),
                                 ArpL3Protocol::PROT_NUMBER, device);

tc->RegisterProtocolHandler (MakeCallback (&Ipv4L3Protocol::Receive, this),
                             Ipv4L3Protocol::PROT_NUMBER, device);
tc->RegisterProtocolHandler (MakeCallback (&ArpL3Protocol::Receive, PeekPointer (GetObject<ArpL3Protocol> ())),
                             ArpL3Protocol::PROT_NUMBER, device);

On the node, for IPv4 and ARP packet, is registered the TrafficControlLayer::Receive callback. At the same time, on the TrafficControlLayer object, is registered the callbacks associated to the upper layers (IPv4 or ARP).

When the node receives an IPv4 or ARP packet, it calls the Receive method on TrafficControlLayer, that calls the right upper-layer callback once it finishes the operations on the packet received.

Discrimination through callbacks (in other words: what is the right upper-layer callback for this packet?) is done through checks over the device and the protocol number.

Enumeration Type Documentation

anonymous enum

Drop types.

Enumerator
DTYPE_NONE

Ok, no drop.

DTYPE_FORCED

A "forced" drop.

DTYPE_UNFORCED

An "unforced" (random) drop.

Definition at line 114 of file red-queue-disc.h.

Burst types.

Enumerator
NO_BURST
IN_BURST
IN_BURST_PROTECTING

Definition at line 73 of file pie-queue-disc.h.

Used in Feng's Adaptive RED.

Enumerator
Above

When m_qAvg > m_maxTh.

Between

When m_maxTh < m_qAvg < m_minTh.

Below

When m_qAvg < m_minTh.

Definition at line 104 of file red-queue-disc.h.

Used to determine the status of this flow queue.

Enumerator
INACTIVE
NEW_FLOW
OLD_FLOW

Definition at line 56 of file fq-codel-queue-disc.h.

Enumeration of the modes supported in the class.

Enumerator
QUEUE_DISC_MODE_PACKETS

Use number of packets for maximum queue disc size.

QUEUE_DISC_MODE_BYTES

Use number of bytes for maximum queue disc size.

Definition at line 84 of file codel-queue-disc.h.

Enumeration of the modes supported in the class.

Enumerator
QUEUE_DISC_MODE_PACKETS

Use number of packets for maximum queue disc size.

QUEUE_DISC_MODE_BYTES

Use number of bytes for maximum queue disc size.

Definition at line 84 of file pie-queue-disc.h.

Enumeration of the modes supported in the class.

Enumerator
QUEUE_DISC_MODE_PACKETS

Use number of packets for maximum queue disc size.

QUEUE_DISC_MODE_BYTES

Use number of bytes for maximum queue disc size.

Definition at line 125 of file red-queue-disc.h.

Used to determine whether the queue disc itself or its children must be activated when a netdevice wakes a transmission queue.

Enumerator
WAKE_ROOT
WAKE_CHILD

Definition at line 402 of file queue-disc.h.
