Structure that keeps the queue disc statistics. More...

#include "queue-disc.h"

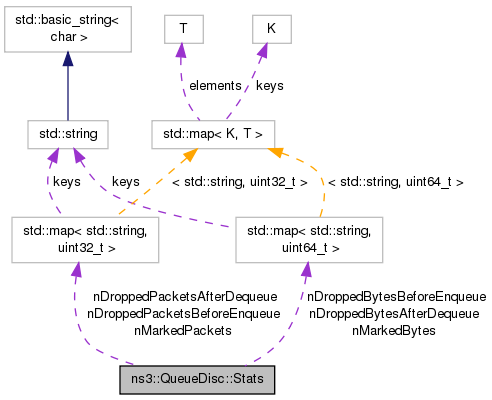

Collaboration diagram for ns3::QueueDisc::Stats:

Public Member Functions
	Stats ()
	constructor More...

uint64_t	GetNDroppedBytes (std::string reason) const
	Get the amount of bytes dropped for the given reason. More...

uint32_t	GetNDroppedPackets (std::string reason) const
	Get the number of packets dropped for the given reason. More...

uint64_t	GetNMarkedBytes (std::string reason) const
	Get the amount of bytes marked for the given reason. More...

uint32_t	GetNMarkedPackets (std::string reason) const
	Get the number of packets marked for the given reason. More...

void	Print (std::ostream &os) const
	Print the statistics. More...

Public Attributes
std::map< std::string, uint64_t >	nDroppedBytesAfterDequeue
	Bytes dropped after dequeue, for each reason. More...

std::map< std::string, uint64_t >	nDroppedBytesBeforeEnqueue
	Bytes dropped before enqueue, for each reason. More...

std::map< std::string, uint32_t >	nDroppedPacketsAfterDequeue
	Packets dropped after dequeue, for each reason. More...

std::map< std::string, uint32_t >	nDroppedPacketsBeforeEnqueue
	Packets dropped before enqueue, for each reason. More...

std::map< std::string, uint64_t >	nMarkedBytes
	Marked bytes, for each reason. More...

std::map< std::string, uint32_t >	nMarkedPackets
	Marked packets, for each reason. More...

uint64_t	nTotalDequeuedBytes
	Total dequeued bytes. More...

uint32_t	nTotalDequeuedPackets
	Total dequeued packets. More...

uint64_t	nTotalDroppedBytes
	Total dropped bytes. More...

uint64_t	nTotalDroppedBytesAfterDequeue
	Total bytes dropped after dequeue. More...

uint64_t	nTotalDroppedBytesBeforeEnqueue
	Total bytes dropped before enqueue. More...

uint32_t	nTotalDroppedPackets
	Total dropped packets. More...

uint32_t	nTotalDroppedPacketsAfterDequeue
	Total packets dropped after dequeue. More...

uint32_t	nTotalDroppedPacketsBeforeEnqueue
	Total packets dropped before enqueue. More...

uint64_t	nTotalEnqueuedBytes
	Total enqueued bytes. More...

uint32_t	nTotalEnqueuedPackets
	Total enqueued packets. More...

uint32_t	nTotalMarkedBytes
	Total marked bytes. More...

uint32_t	nTotalMarkedPackets
	Total marked packets. More...

uint64_t	nTotalReceivedBytes
	Total received bytes. More...

uint32_t	nTotalReceivedPackets
	Total received packets. More...

uint64_t	nTotalRequeuedBytes
	Total requeued bytes. More...

uint32_t	nTotalRequeuedPackets
	Total requeued packets. More...

uint64_t	nTotalSentBytes
	Total sent bytes – this value is not kept up to date, call GetStats first. More...

uint32_t	nTotalSentPackets
	Total sent packets – this value is not kept up to date, call GetStats first. More...

Detailed Description

Structure that keeps the queue disc statistics.

Definition at line 155 of file queue-disc.h.

Constructor & Destructor Documentation

ns3::QueueDisc::Stats::Stats ( )

constructor

Definition at line 90 of file queue-disc.cc.

Member Function Documentation

uint64_t ns3::QueueDisc::Stats::GetNDroppedBytes ( std::string reason ) const

Get the amount of bytes dropped for the given reason.

Parameters

reason the reason why packets were dropped

Returns: the amount of bytes dropped for the given reason

Definition at line 134 of file queue-disc.cc.

uint32_t ns3::QueueDisc::Stats::GetNDroppedPackets ( std::string reason ) const

Get the number of packets dropped for the given reason.

Parameters

reason the reason why packets were dropped

Returns: the number of packets dropped for the given reason

Definition at line 113 of file queue-disc.cc.

Referenced by CoDelQueueDiscBasicDrop::Dequeue(), CoDelQueueDiscBasicEnqueueDequeue::DoRun(), CoDelQueueDiscBasicOverflow::DoRun(), AredQueueDiscTestCase::RunAredDiscTest(), PieQueueDiscTestCase::RunPieTest(), and RedQueueDiscTestCase::RunRedTest().

Here is the caller graph for this function:

uint64_t ns3::QueueDisc::Stats::GetNMarkedBytes ( std::string reason ) const

Get the amount of bytes marked for the given reason.

Parameters

reason the reason why packets were marked

Returns: the amount of bytes marked for the given reason

Definition at line 168 of file queue-disc.cc.

uint32_t ns3::QueueDisc::Stats::GetNMarkedPackets ( std::string reason ) const

Get the number of packets marked for the given reason.

Parameters

reason the reason why packets were marked

Returns: the number of packets marked for the given reason

Definition at line 155 of file queue-disc.cc.

Referenced by RedQueueDiscTestCase::RunRedTest().

Here is the caller graph for this function:

void ns3::QueueDisc::Stats::Print ( std::ostream & os ) const

Print the statistics.

Parameters

os	output stream in which the data should be printed.

Definition at line 181 of file queue-disc.cc.

References NS_ASSERT.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

Member Data Documentation

std::map<std::string, uint64_t> ns3::QueueDisc::Stats::nDroppedBytesAfterDequeue

Bytes dropped after dequeue, for each reason.

Definition at line 192 of file queue-disc.h.

Referenced by ns3::QueueDisc::DropAfterDequeue().

std::map<std::string, uint64_t> ns3::QueueDisc::Stats::nDroppedBytesBeforeEnqueue

Bytes dropped before enqueue, for each reason.

Definition at line 188 of file queue-disc.h.

Referenced by ns3::QueueDisc::DropBeforeEnqueue().

std::map<std::string, uint32_t> ns3::QueueDisc::Stats::nDroppedPacketsAfterDequeue

Packets dropped after dequeue, for each reason.

Definition at line 182 of file queue-disc.h.

Referenced by ns3::QueueDisc::DropAfterDequeue().

std::map<std::string, uint32_t> ns3::QueueDisc::Stats::nDroppedPacketsBeforeEnqueue

Packets dropped before enqueue, for each reason.

Definition at line 178 of file queue-disc.h.

Referenced by ns3::QueueDisc::DropBeforeEnqueue().

std::map<std::string, uint64_t> ns3::QueueDisc::Stats::nMarkedBytes

Marked bytes, for each reason.

Definition at line 204 of file queue-disc.h.

Referenced by ns3::QueueDisc::Mark().

std::map<std::string, uint32_t> ns3::QueueDisc::Stats::nMarkedPackets

Marked packets, for each reason.

Definition at line 200 of file queue-disc.h.

Referenced by ns3::QueueDisc::Mark().

uint64_t ns3::QueueDisc::Stats::nTotalDequeuedBytes

Total dequeued bytes.

Definition at line 172 of file queue-disc.h.

Referenced by ns3::QueueDisc::Dequeue(), ns3::QueueDisc::GetStats(), and ns3::QueueDisc::PacketDequeued().

uint32_t ns3::QueueDisc::Stats::nTotalDequeuedPackets

Total dequeued packets.

Definition at line 170 of file queue-disc.h.

Referenced by ns3::QueueDisc::Dequeue(), ns3::QueueDisc::GetStats(), and ns3::QueueDisc::PacketDequeued().

uint64_t ns3::QueueDisc::Stats::nTotalDroppedBytes

Total dropped bytes.

Definition at line 184 of file queue-disc.h.

Referenced by ns3::QueueDisc::DropAfterDequeue(), ns3::QueueDisc::DropBeforeEnqueue(), and ns3::QueueDisc::GetStats().

uint64_t ns3::QueueDisc::Stats::nTotalDroppedBytesAfterDequeue

Total bytes dropped after dequeue.

Definition at line 190 of file queue-disc.h.

Referenced by ns3::QueueDisc::DropAfterDequeue(), and ns3::QueueDisc::GetStats().

uint64_t ns3::QueueDisc::Stats::nTotalDroppedBytesBeforeEnqueue

Total bytes dropped before enqueue.

Definition at line 186 of file queue-disc.h.

Referenced by ns3::QueueDisc::DropBeforeEnqueue(), ns3::QueueDisc::Enqueue(), and ns3::QueueDisc::GetStats().

uint32_t ns3::QueueDisc::Stats::nTotalDroppedPackets

Total dropped packets.

Definition at line 174 of file queue-disc.h.

Referenced by ns3::QueueDisc::DropAfterDequeue(), ns3::QueueDisc::DropBeforeEnqueue(), and ns3::QueueDisc::GetStats().

uint32_t ns3::QueueDisc::Stats::nTotalDroppedPacketsAfterDequeue

Total packets dropped after dequeue.

Definition at line 180 of file queue-disc.h.

Referenced by ns3::QueueDisc::DropAfterDequeue(), and ns3::QueueDisc::GetStats().

uint32_t ns3::QueueDisc::Stats::nTotalDroppedPacketsBeforeEnqueue

Total packets dropped before enqueue.

Definition at line 176 of file queue-disc.h.

Referenced by ns3::QueueDisc::DropBeforeEnqueue(), ns3::QueueDisc::Enqueue(), and ns3::QueueDisc::GetStats().

uint64_t ns3::QueueDisc::Stats::nTotalEnqueuedBytes

Total enqueued bytes.

Definition at line 168 of file queue-disc.h.

Referenced by ns3::QueueDisc::Dequeue(), ns3::QueueDisc::Enqueue(), and ns3::QueueDisc::PacketEnqueued().

uint32_t ns3::QueueDisc::Stats::nTotalEnqueuedPackets

Total enqueued packets.

Definition at line 166 of file queue-disc.h.

Referenced by ns3::QueueDisc::Dequeue(), ns3::QueueDisc::Enqueue(), and ns3::QueueDisc::PacketEnqueued().

uint32_t ns3::QueueDisc::Stats::nTotalMarkedBytes

Total marked bytes.

Definition at line 202 of file queue-disc.h.

Referenced by ns3::QueueDisc::Mark().

uint32_t ns3::QueueDisc::Stats::nTotalMarkedPackets

Total marked packets.

Definition at line 198 of file queue-disc.h.

Referenced by ns3::QueueDisc::Mark().

uint64_t ns3::QueueDisc::Stats::nTotalReceivedBytes

Total received bytes.

Definition at line 160 of file queue-disc.h.

Referenced by ns3::QueueDisc::Enqueue().

uint32_t ns3::QueueDisc::Stats::nTotalReceivedPackets

Total received packets.

Definition at line 158 of file queue-disc.h.

Referenced by ns3::QueueDisc::Enqueue().

uint64_t ns3::QueueDisc::Stats::nTotalRequeuedBytes

Total requeued bytes.

Definition at line 196 of file queue-disc.h.

Referenced by ns3::QueueDisc::Requeue().

uint32_t ns3::QueueDisc::Stats::nTotalRequeuedPackets

Total requeued packets.

Definition at line 194 of file queue-disc.h.

Referenced by ns3::QueueDisc::Requeue().

uint64_t ns3::QueueDisc::Stats::nTotalSentBytes

Total sent bytes – this value is not kept up to date, call GetStats first.

Definition at line 164 of file queue-disc.h.

Referenced by ns3::QueueDisc::GetStats().

uint32_t ns3::QueueDisc::Stats::nTotalSentPackets

Total sent packets – this value is not kept up to date, call GetStats first.

Definition at line 162 of file queue-disc.h.

Referenced by ns3::QueueDisc::GetStats().

The documentation for this struct was generated from the following files:

src/traffic-control/model/queue-disc.h
src/traffic-control/model/queue-disc.cc
