ns3::VhtWifiMacHelper Class Reference

create VHT-enabled MAC layers for a ns3::WifiNetDevice. More...

#include "vht-wifi-mac-helper.h"

Inheritance diagram for ns3::VhtWifiMacHelper:

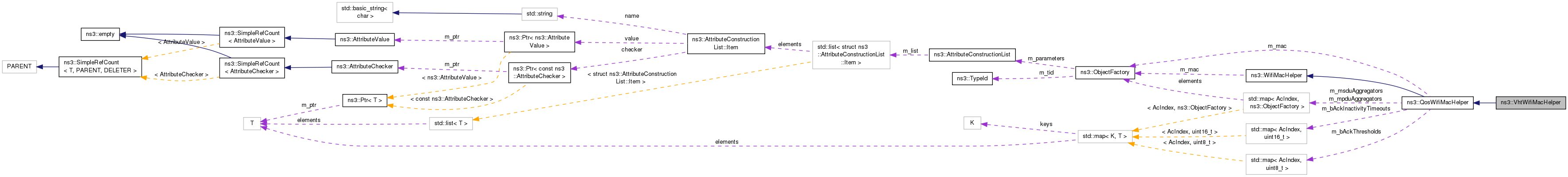

Collaboration diagram for ns3::VhtWifiMacHelper:

Public Member Functions
	VhtWifiMacHelper ()
	Create a VhtWifiMacHelper that is used to make life easier when working with Wifi devices using a QOS MAC layer. More...
virtual	~VhtWifiMacHelper ()
Public Member Functions inherited from ns3::QosWifiMacHelper
	QosWifiMacHelper ()
	Create a QosWifiMacHelper that is used to make life easier when working with Wifi devices using a QOS MAC layer. More...
virtual	~QosWifiMacHelper ()
	Destroy a QosWifiMacHelper. More...
void	SetBlockAckInactivityTimeoutForAc (enum AcIndex ac, uint16_t timeout)
	Sets value of block ack inactivity timeout for a specific access class. More...
void	SetBlockAckThresholdForAc (enum AcIndex ac, uint8_t threshold)
	This method sets value of block ack threshold for a specific access class. More...
void	SetMpduAggregatorForAc (enum AcIndex ac, std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue())
	Set the class, type and attributes for the Mpdu aggregator. More...
void	SetMsduAggregatorForAc (AcIndex ac, std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue())
	Set the class, type and attributes for the Msdu aggregator. More...
virtual void	SetType (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue(), std::string n8="", const AttributeValue &v8=EmptyAttributeValue(), std::string n9="", const AttributeValue &v9=EmptyAttributeValue(), std::string n10="", const AttributeValue &v10=EmptyAttributeValue())
	Set the underlying type of the MAC and its attributes. More...
Public Member Functions inherited from ns3::WifiMacHelper
	WifiMacHelper ()
	Create a WifiMacHelper to make life easier for people who want to work with Wifi MAC layers. More...
virtual	~WifiMacHelper ()
	Destroy a WifiMacHelper. More...

Static Public Member Functions
static StringValue	DataRateForMcs (int mcs)
	Converts a VHT MCS value into a DataRate value. More...
static VhtWifiMacHelper	Default (void)
	Create a mac helper in a default working state. More...
Static Public Member Functions inherited from ns3::QosWifiMacHelper
static QosWifiMacHelper	Default (void)
	Create a mac helper in a default working state. More...

Additional Inherited Members
Protected Attributes inherited from ns3::QosWifiMacHelper
ObjectFactory	m_mac
	MAC object. More...
Protected Attributes inherited from ns3::WifiMacHelper
ObjectFactory	m_mac
	MAC object factory. More...

Detailed Description

create VHT-enabled MAC layers for a ns3::WifiNetDevice.

This class can create MACs of type ns3::ApWifiMac, ns3::StaWifiMac, and, ns3::AdhocWifiMac, with QosSupported, HTSupported and VHTSupported attributes set to True

Deprecated:

This class deprecated and replaced by ns3::WifiMacHelper

Definition at line 41 of file vht-wifi-mac-helper.h.

Constructor & Destructor Documentation

ns3::VhtWifiMacHelper::VhtWifiMacHelper

(

)

Create a VhtWifiMacHelper that is used to make life easier when working with Wifi devices using a QOS MAC layer.

Definition at line 30 of file vht-wifi-mac-helper.cc.

ns3::VhtWifiMacHelper::~VhtWifiMacHelper ( )

virtual

Internal:

Destroy a VhtWifiMacHelper

Definition at line 34 of file vht-wifi-mac-helper.cc.

Member Function Documentation

StringValue ns3::VhtWifiMacHelper::DataRateForMcs ( int  mcs )

static

Converts a VHT MCS value into a DataRate value.

Parameters

mcs

MCS Value

Returns

data rate value (StringValue)

Definition at line 58 of file vht-wifi-mac-helper.cc.

VhtWifiMacHelper ns3::VhtWifiMacHelper::Default ( void  )

static

Create a mac helper in a default working state.

Returns

VhtWifiMacHelper

Definition at line 39 of file vht-wifi-mac-helper.cc.

References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, ns3::QosWifiMacHelper::SetMpduAggregatorForAc(), and ns3::QosWifiMacHelper::SetType().

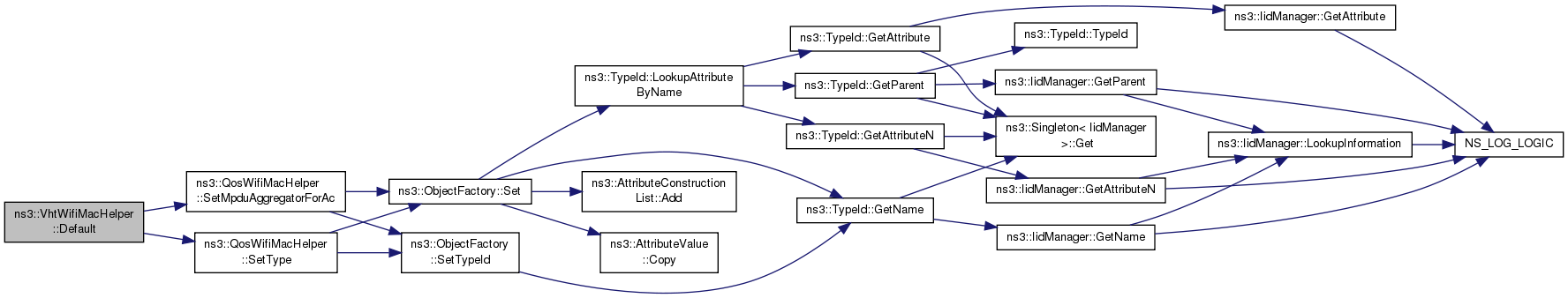

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/wifi/helper/vht-wifi-mac-helper.h
• src/wifi/helper/vht-wifi-mac-helper.cc
