A RED packet queue disc. More...

#include "red-queue-disc.h"

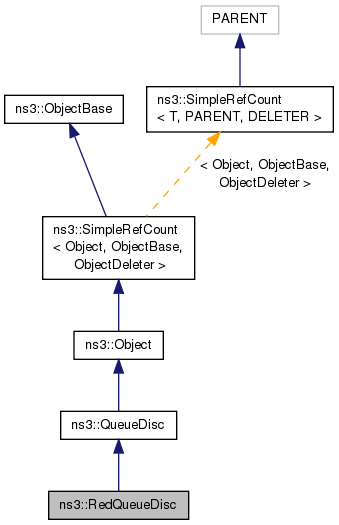

Inheritance diagram for ns3::RedQueueDisc:

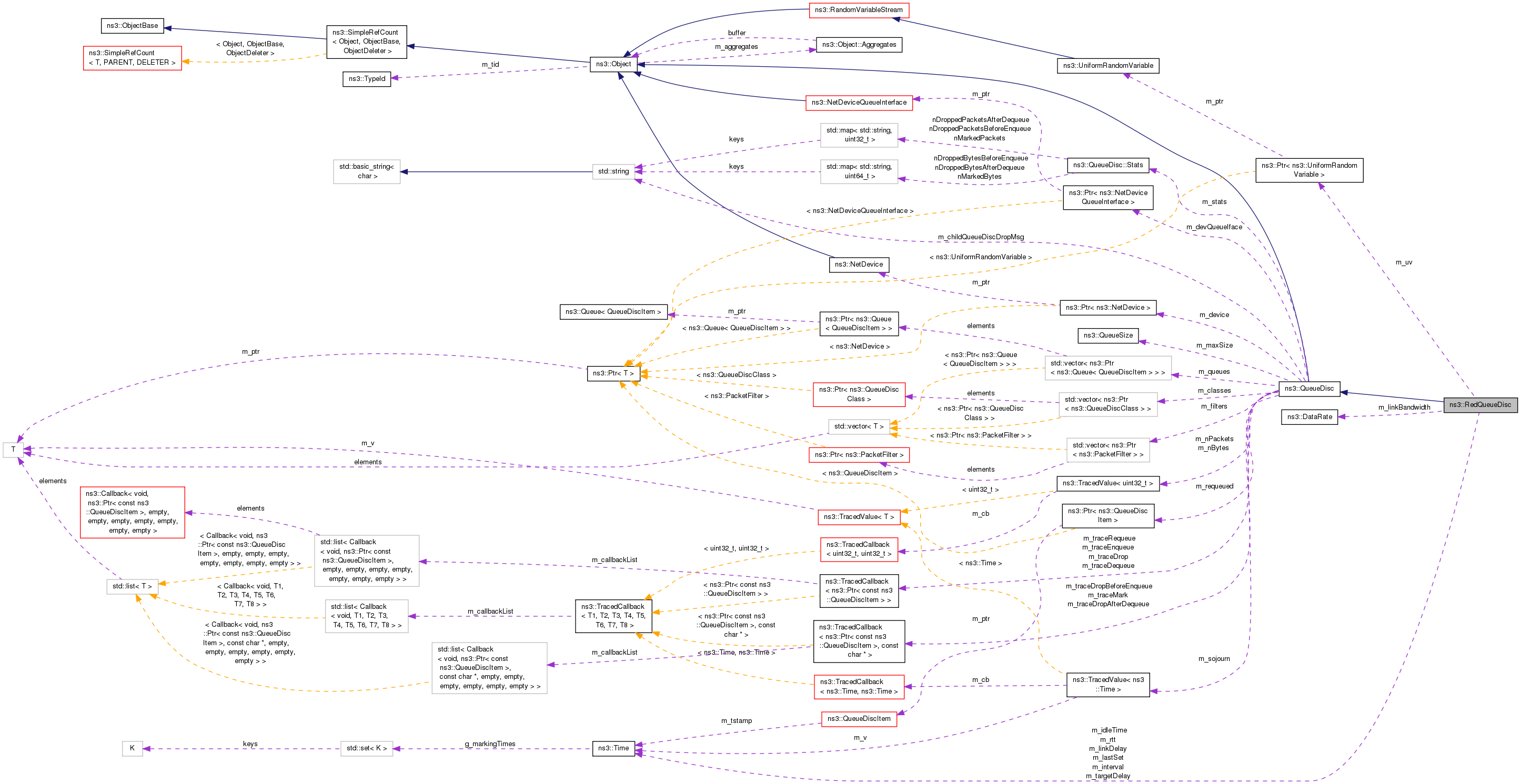

Collaboration diagram for ns3::RedQueueDisc:

Public Types
enum	{ DTYPE_NONE, DTYPE_FORCED, DTYPE_UNFORCED }
	Drop types. More...

enum	FengStatus { Above, Between, Below }
	Used in Feng's Adaptive RED. More...

enum	QueueDiscMode { QUEUE_DISC_MODE_PACKETS, QUEUE_DISC_MODE_BYTES }
	Enumeration of the modes supported in the class. More...

Public Types inherited from ns3::QueueDisc
typedef Queue< QueueDiscItem >	InternalQueue
	Internal queues store QueueDiscItem objects. More...

enum	WakeMode { WAKE_ROOT = 0x00, WAKE_CHILD = 0x01 }
	Used to determine whether the queue disc itself or its children must be activated when a netdevice wakes a transmission queue. More...

Public Member Functions
	RedQueueDisc ()
	RedQueueDisc Constructor. More...

virtual	~RedQueueDisc ()
	Destructor. More...

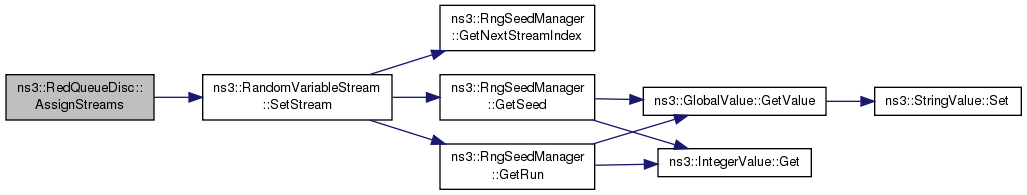

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

double	GetAredAlpha (void)
	Get the alpha value to adapt m_curMaxP. More...

double	GetAredBeta (void)
	Get the beta value to adapt m_curMaxP. More...

double	GetFengAdaptiveA (void)
	Get the alpha value to adapt m_curMaxP in Feng's Adaptive RED. More...

double	GetFengAdaptiveB (void)
	Get the beta value to adapt m_curMaxP in Feng's Adaptive RED. More...

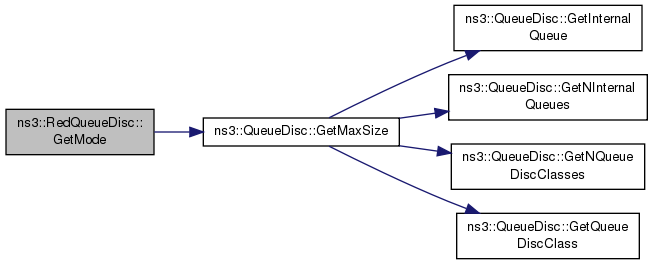

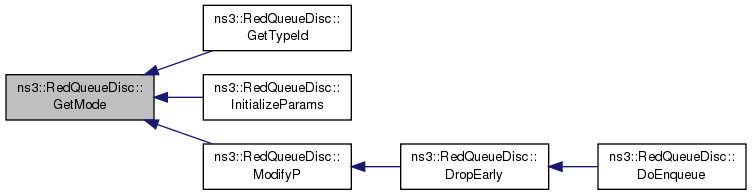

QueueDiscMode	GetMode (void) const
	Get the operating mode of this queue disc. More...

void	SetAredAlpha (double alpha)
	Set the alpha value to adapt m_curMaxP. More...

void	SetAredBeta (double beta)
	Set the beta value to adapt m_curMaxP. More...

void	SetFengAdaptiveA (double a)
	Set the alpha value to adapt m_curMaxP in Feng's Adaptive RED. More...

void	SetFengAdaptiveB (double b)
	Set the beta value to adapt m_curMaxP in Feng's Adaptive RED. More...

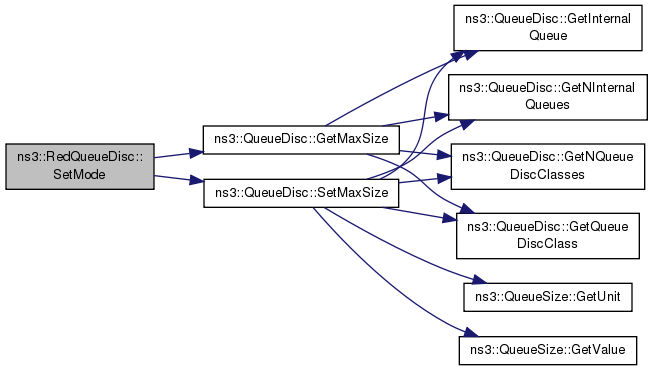

void	SetMode (QueueDiscMode mode)
	Set the operating mode of this queue disc. More...

void	SetQueueLimit (uint32_t lim)
	Set the limit of the queue. More...

void	SetTh (double minTh, double maxTh)
	Set the thresh limits of RED. More...

Public Member Functions inherited from ns3::QueueDisc
	QueueDisc (QueueDiscSizePolicy policy=QueueDiscSizePolicy::SINGLE_INTERNAL_QUEUE)
	Constructor. More...

	QueueDisc (QueueDiscSizePolicy policy, QueueSizeUnit unit)
	Constructor. More...

virtual	~QueueDisc ()

void	AddInternalQueue (Ptr< InternalQueue > queue)
	Add an internal queue to the tail of the list of queues. More...

void	AddPacketFilter (Ptr< PacketFilter > filter)
	Add a packet filter to the tail of the list of filters used to classify packets. More...

void	AddQueueDiscClass (Ptr< QueueDiscClass > qdClass)
	Add a queue disc class to the tail of the list of classes. More...

int32_t	Classify (Ptr< QueueDiscItem > item)
	Classify a packet by calling the packet filters, one at a time, until either a filter able to classify the packet is found or all the filters have been processed. More...

Ptr< QueueDiscItem >	Dequeue (void)
	Request the queue discipline to extract a packet. More...

Ptr< QueueDiscItem >	DequeuePeeked (void)
	Extract from the queue disc the packet that has been dequeued by calling PeekDequeued. More...

bool	Enqueue (Ptr< QueueDiscItem > item)
	Pass a packet to store to the queue discipline. More...

QueueSize	GetCurrentSize (void)
	Get the current size of the queue disc in bytes, if operating in bytes mode, or packets, otherwise. More...

Ptr< InternalQueue >	GetInternalQueue (uint32_t i) const
	Get the i-th internal queue. More...

QueueSize	GetMaxSize (void) const
	Get the maximum size of the queue disc. More...

uint32_t	GetNBytes (void) const
	Get the amount of bytes stored by the queue disc. More...

Ptr< NetDevice >	GetNetDevice (void) const
	Get the NetDevice on which this queue discipline is installed. More...

uint32_t	GetNInternalQueues (void) const
	Get the number of internal queues. More...

uint32_t	GetNPacketFilters (void) const
	Get the number of packet filters. More...

uint32_t	GetNPackets (void) const
	Get the number of packets stored by the queue disc. More...

uint32_t	GetNQueueDiscClasses (void) const
	Get the number of queue disc classes. More...

Ptr< PacketFilter >	GetPacketFilter (uint32_t i) const
	Get the i-th packet filter. More...

Ptr< QueueDiscClass >	GetQueueDiscClass (uint32_t i) const
	Get the i-th queue disc class. More...

virtual uint32_t	GetQuota (void) const
	Get the maximum number of dequeue operations following a packet enqueue. More...

const Stats &	GetStats (void)
	Retrieve all the collected statistics. More...

virtual WakeMode	GetWakeMode (void) const
	When setting up the wake callbacks on the netdevice queues, it is necessary to determine which queue disc (the root queue disc or one of its children) should be activated when the netdevice wakes one of its transmission queues. More...

Ptr< const QueueDiscItem >	Peek (void)
	Get a copy of the next packet the queue discipline will extract, without actually extracting the packet. More...

void	Run (void)
	Modelled after the Linux function __qdisc_run (net/sched/sch_generic.c) Dequeues multiple packets, until a quota is exceeded or sending a packet to the device failed. More...

bool	SetMaxSize (QueueSize size)
	Set the maximum size of the queue disc. More...

void	SetNetDevice (Ptr< NetDevice > device)
	Set the NetDevice on which this queue discipline is installed. More...

virtual void	SetQuota (const uint32_t quota)
	Set the maximum number of dequeue operations following a packet enqueue. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

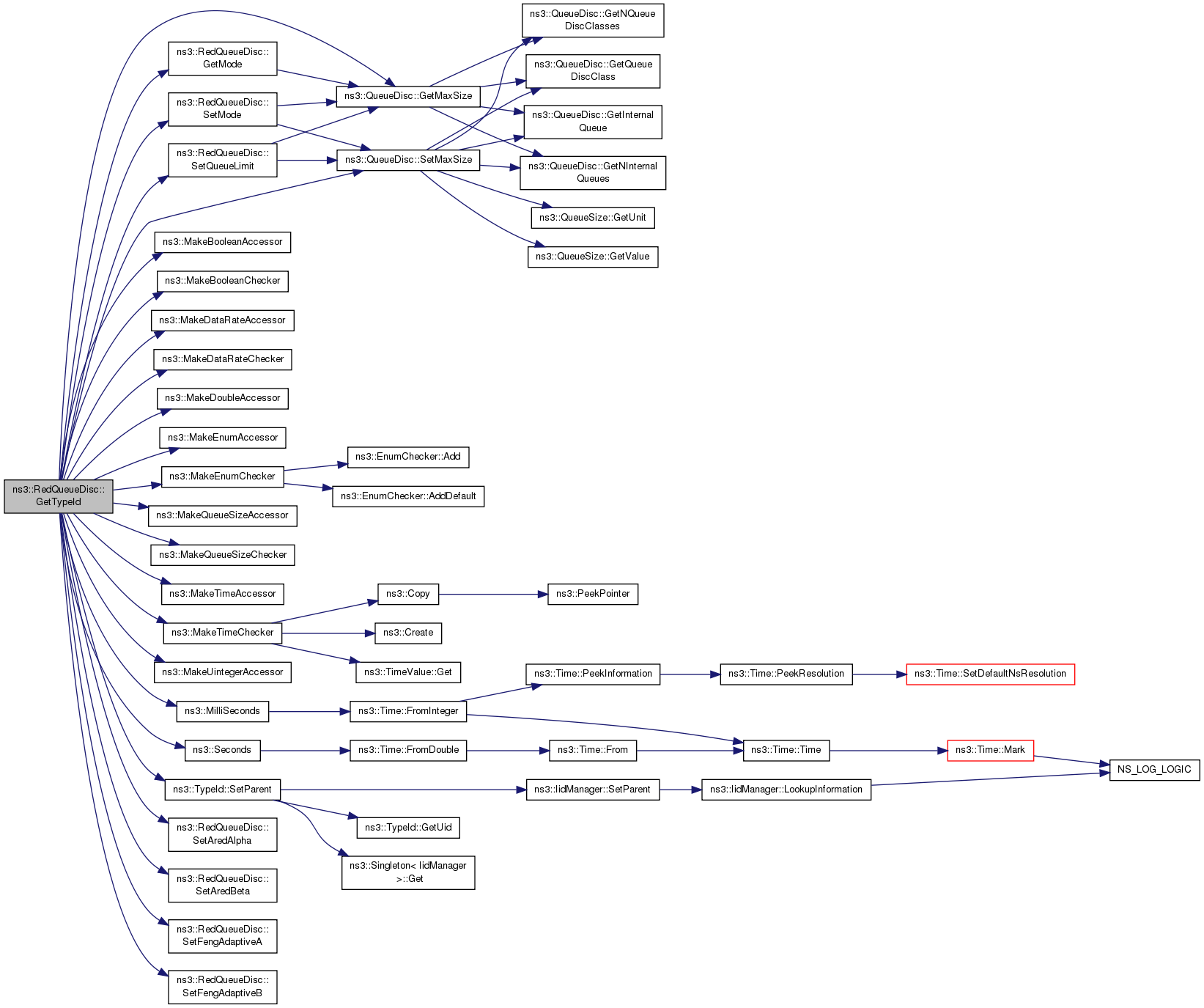

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::QueueDisc
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static constexpr const char *	FORCED_DROP = "Forced drop"
	Forced drops, m_qAvg > m_maxTh. More...

static constexpr const char *	FORCED_MARK = "Forced mark"
	Forced marks, m_qAvg > m_maxTh. More...

static constexpr const char *	UNFORCED_DROP = "Unforced drop"
	Early probability drops. More...

static constexpr const char *	UNFORCED_MARK = "Unforced mark"
	Early probability marks. More...

Static Public Attributes inherited from ns3::QueueDisc
static constexpr const char *	CHILD_QUEUE_DISC_DROP = "(Dropped by child queue disc) "
	Packet dropped by a child queue disc. More...

static constexpr const char *	INTERNAL_QUEUE_DROP = "Dropped by internal queue"
	Packet dropped by an internal queue. More...

Protected Member Functions
virtual void	DoDispose (void)
	Dispose of the object. More...

Protected Member Functions inherited from ns3::QueueDisc
void	DoInitialize (void)
	Check whether the configuration is correct and initialize parameters. More...

void	DropAfterDequeue (Ptr< const QueueDiscItem > item, const char *reason)
	Perform the actions required when the queue disc is notified of a packet dropped after dequeue. More...

void	DropBeforeEnqueue (Ptr< const QueueDiscItem > item, const char *reason)
	Perform the actions required when the queue disc is notified of a packet dropped before enqueue. More...

bool	Mark (Ptr< QueueDiscItem > item, const char *reason)
	Marks the given packet and, if successful, updates the counters associated with the given reason. More...

Ptr< const QueueDiscItem >	PeekDequeued (void)
	Dequeue a packet and retain it in the queue disc as a requeued packet. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
double	CalculatePNew (void)
	Returns a probability using these function parameters for the DropEarly function. More...

virtual bool	CheckConfig (void)
	Check whether the current configuration is correct. More...

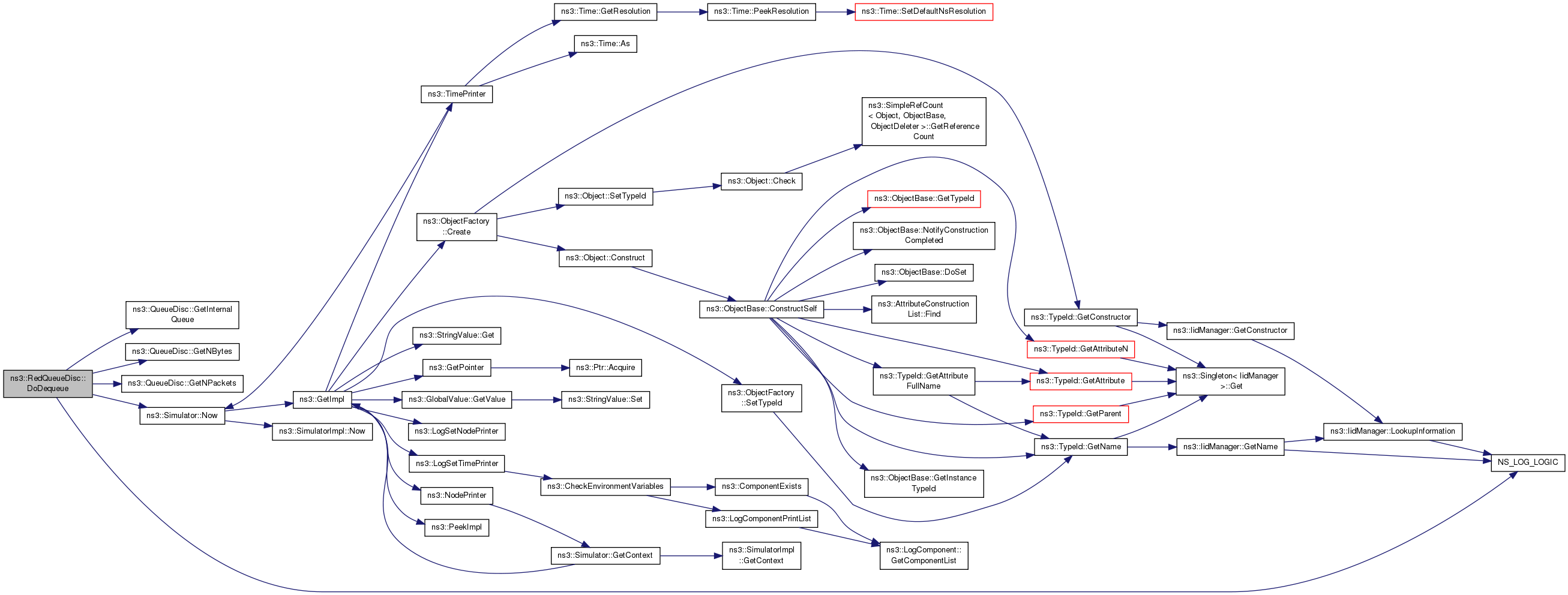

virtual Ptr< QueueDiscItem >	DoDequeue (void)
	This function actually extracts a packet from the queue disc. More...

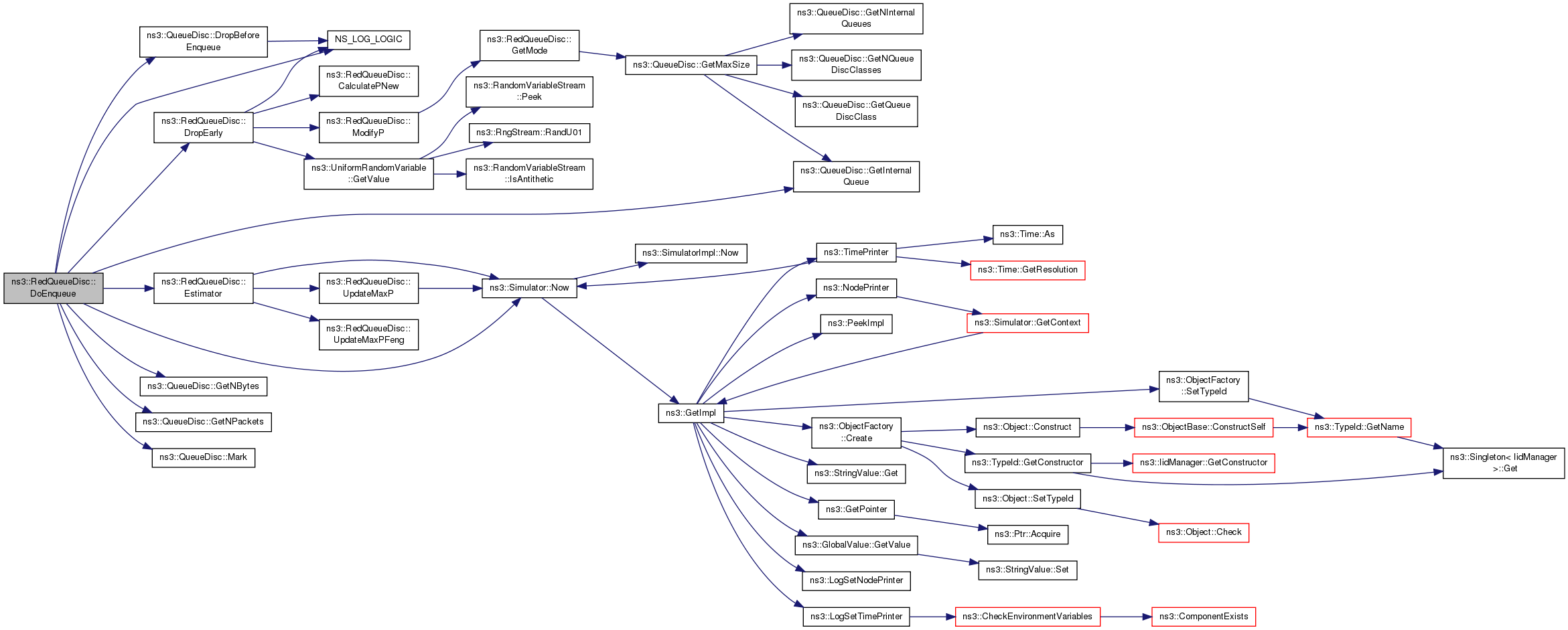

virtual bool	DoEnqueue (Ptr< QueueDiscItem > item)
	This function actually enqueues a packet into the queue disc. More...

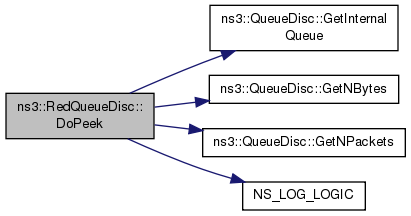

virtual Ptr< const QueueDiscItem >	DoPeek (void)
	This function returns a copy of the next packet the queue disc will extract. More...

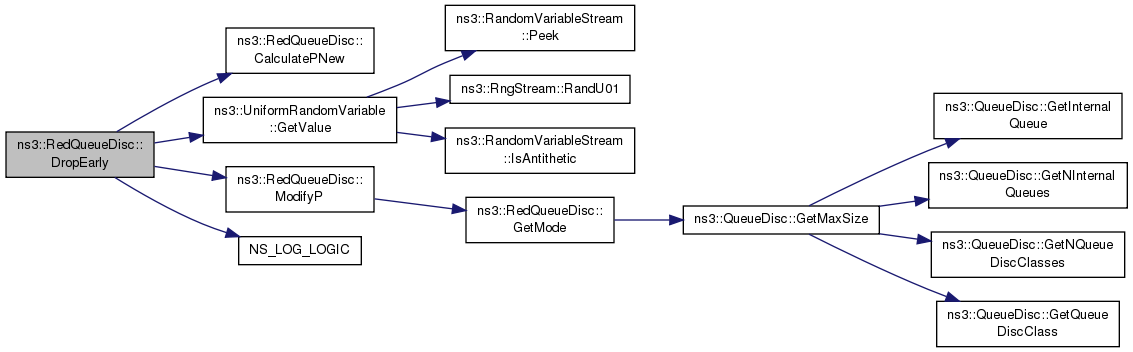

uint32_t	DropEarly (Ptr< QueueDiscItem > item, uint32_t qSize)
	Check if a packet needs to be dropped due to probability mark. More...

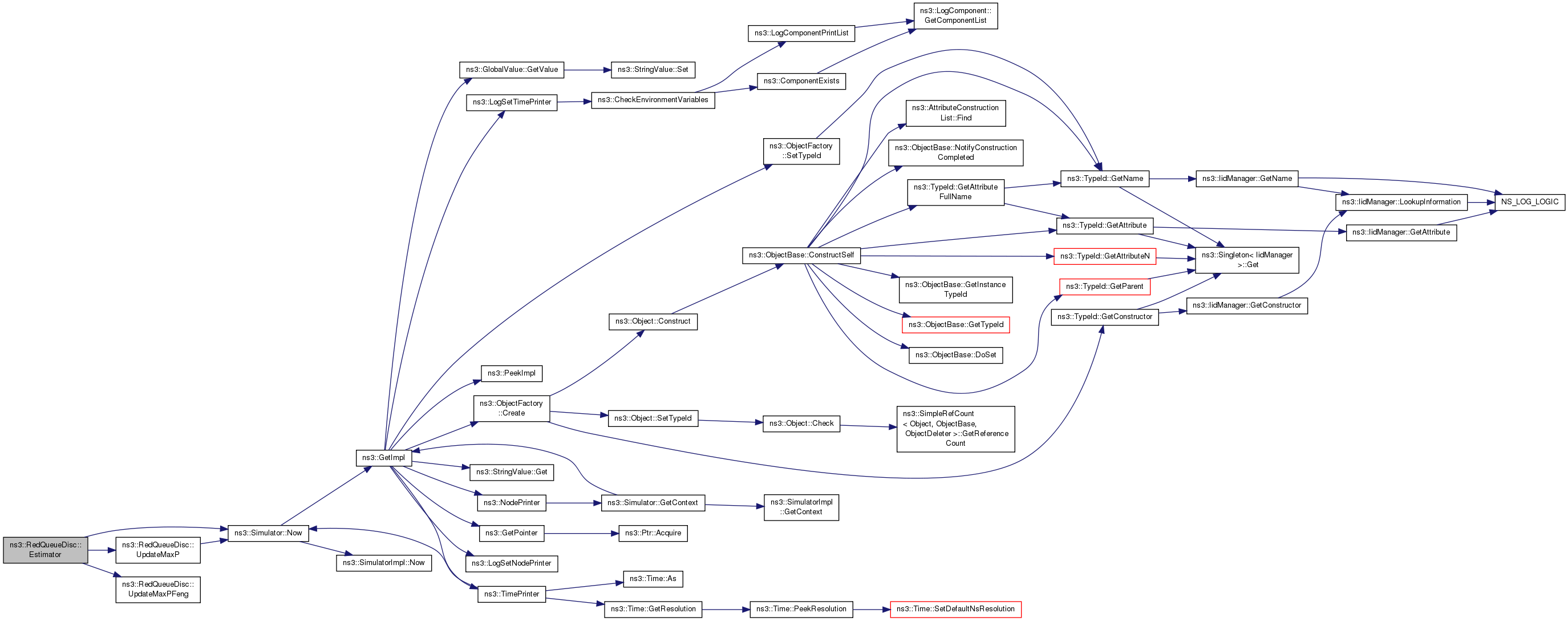

double	Estimator (uint32_t nQueued, uint32_t m, double qAvg, double qW)
	Compute the average queue size. More...

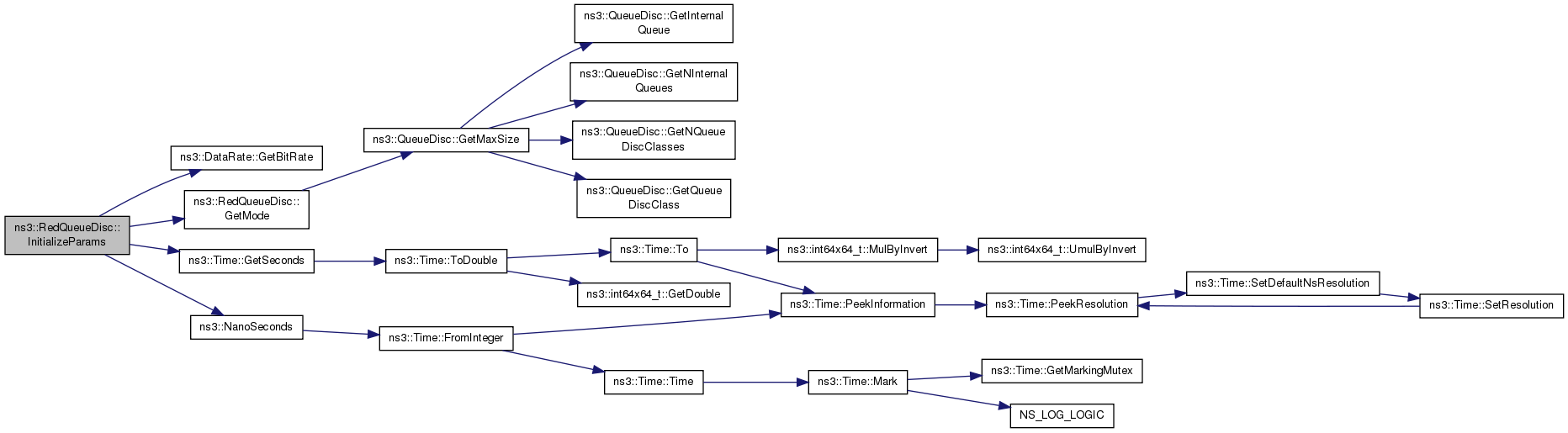

virtual void	InitializeParams (void)
	Initialize the queue parameters. More...

double	ModifyP (double p, uint32_t size)
	Returns a probability using these function parameters for the DropEarly function. More...

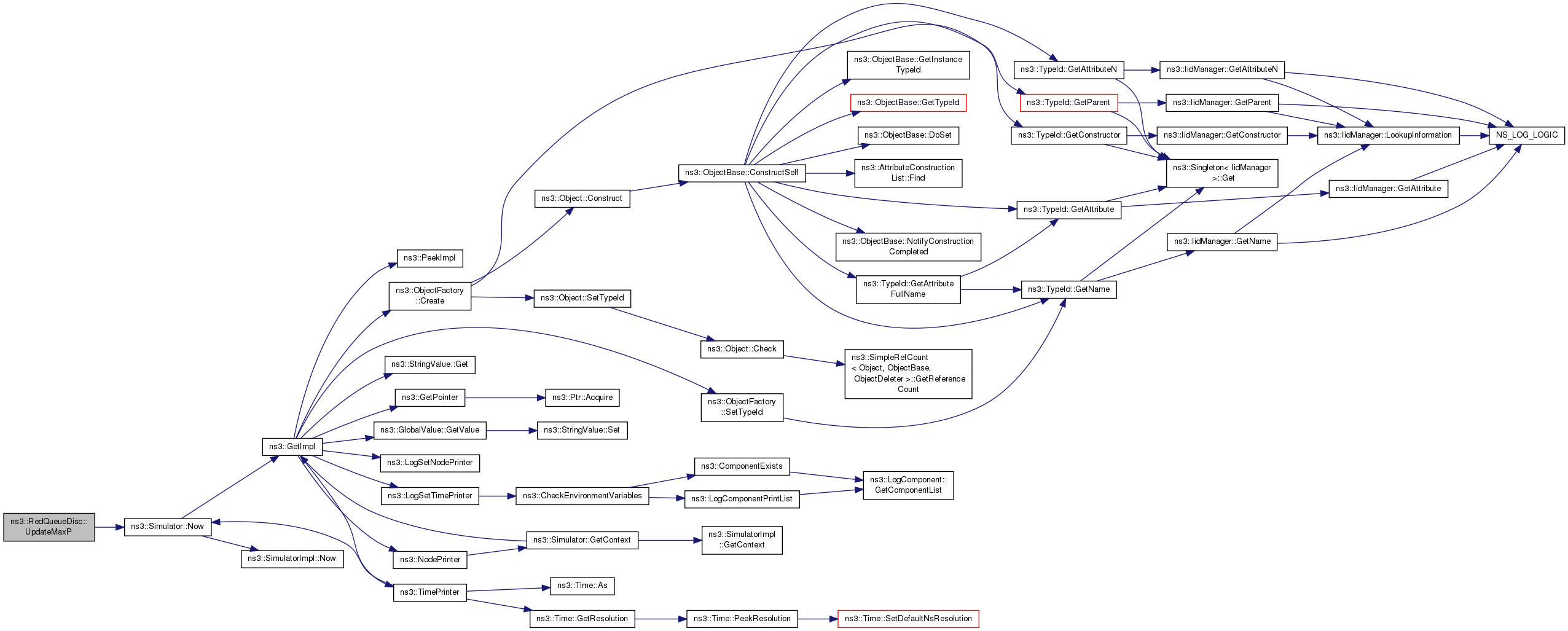

void	UpdateMaxP (double newAve)
	Update m_curMaxP. More...

void	UpdateMaxPFeng (double newAve)
	Update m_curMaxP based on Feng's Adaptive RED. More...

Private Attributes
double	m_a
	Decrement parameter for m_curMaxP in Feng's Adaptive RED. More...

double	m_alpha
	Increment parameter for m_curMaxP in ARED. More...

double	m_b
	Increment parameter for m_curMaxP in Feng's Adaptive RED. More...

double	m_beta
	Decrement parameter for m_curMaxP in ARED. More...

double	m_bottom
	Lower bound for m_curMaxP in ARED. More...

uint32_t	m_cautious
	0 for default RED 1 experimental (see red-queue-disc.cc) 2 experimental (see red-queue-disc.cc) 3 use Idle packet size in the ptc More...

uint32_t	m_count
	Number of packets since last random number generation. More...

uint32_t	m_countBytes
	Number of bytes since last drop. More...

double	m_curMaxP
	Current max_p. More...

FengStatus	m_fengStatus
	For use in Feng's Adaptive RED. More...

uint32_t	m_idle
	0/1 idle status More...

uint32_t	m_idlePktSize
	Avg pkt size used during idle times. More...

Time	m_idleTime
	Start of current idle period. More...

Time	m_interval
	Time interval to update m_curMaxP. More...

bool	m_isAdaptMaxP
	True to adapt m_curMaxP. More...

bool	m_isARED
	True to enable Adaptive RED. More...

bool	m_isFengAdaptive
	True to enable Feng's Adaptive RED. More...

bool	m_isGentle
	True to increase dropping prob. More...

bool	m_isNonlinear
	True to enable Nonlinear RED. More...

bool	m_isNs1Compat
	Ns-1 compatibility. More...

bool	m_isWait
	True for waiting between dropped packets. More...

Time	m_lastSet
	Last time m_curMaxP was updated. More...

DataRate	m_linkBandwidth
	Link bandwidth. More...

Time	m_linkDelay
	Link delay. More...

double	m_lInterm
	The max probability of dropping a packet. More...

double	m_maxTh
	Maximum threshold for m_qAvg (bytes or packets), should be >= 2 * m_minTh. More...

uint32_t	m_meanPktSize
	Avg pkt size. More...

double	m_minTh
	Minimum threshold for m_qAvg (bytes or packets) More...

uint32_t	m_old
	0 when average queue first exceeds threshold More...

double	m_ptc
	packet time constant in packets/second More...

double	m_qAvg
	Average queue length. More...

double	m_qW
	Queue weight given to cur queue size sample. More...

Time	m_rtt
	Rtt to be considered while automatically setting m_bottom in ARED. More...

Time	m_targetDelay
	Target average queuing delay in ARED. More...

double	m_top
	Upper bound for m_curMaxP in ARED. More...

bool	m_useEcn
	True if ECN is used (packets are marked instead of being dropped) More...

bool	m_useHardDrop
	True if packets are always dropped above max threshold. More...

Ptr< UniformRandomVariable >	m_uv
	rng stream More...

double	m_vA
	1.0 / (m_maxTh - m_minTh) More...

double	m_vB
	-m_minTh / (m_maxTh - m_minTh) More...

double	m_vC
	(1.0 - m_curMaxP) / m_maxTh - used in "gentle" mode More...

double	m_vD
	2.0 * m_curMaxP - 1.0 - used in "gentle" mode More...

double	m_vProb
	Prob. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A RED packet queue disc.

Introspection did not find any typical Config paths.

Attributes

Mode: Determines unit for QueueLimit
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: QUEUE_DISC_MODE_PACKETS
- Flags: construct write read
MeanPktSize: Average of packet size
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 500
- Flags: construct write read
IdlePktSize: Average packet size used during idle times. Used when m_cautions = 3
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
Wait: True for waiting between dropped packets
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
Gentle: True to increases dropping probability slowly when average queue exceeds maxthresh
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
ARED: True to enable ARED
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
AdaptMaxP: True to adapt m_curMaxP
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
FengAdaptive: True to enable Feng's Adaptive RED
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
NLRED: True to enable Nonlinear RED
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
MinTh: Minimum average length threshold in packets/bytes
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5
- Flags: construct write read
MaxTh: Maximum average length threshold in packets/bytes
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 15
- Flags: construct write read
QueueLimit: Queue limit in bytes/packets
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 25
- Flags: construct write
MaxSize: The maximum number of packets accepted by this queue disc
- Set with class: QueueSizeValue
- Underlying type: QueueSize
- Initial value: 0p
- Flags: construct write read
QW: Queue weight related to the exponential weighted moving average (EWMA)
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.002
- Flags: construct write read
LInterm: The maximum probability of dropping a packet
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 50
- Flags: construct write read
TargetDelay: Target average queuing delay in ARED
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +5000000.0ns
- Flags: construct write read
Interval: Time interval to update m_curMaxP
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read
Top: Upper bound for m_curMaxP in ARED
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1
- Initial value: 0.5
- Flags: construct write read
Bottom: Lower bound for m_curMaxP in ARED
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1
- Initial value: 0
- Flags: construct write read
Alpha: Increment parameter for m_curMaxP in ARED
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1
- Initial value: 0.01
- Flags: construct write
Beta: Decrement parameter for m_curMaxP in ARED
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1
- Initial value: 0.9
- Flags: construct write
FengAlpha: Decrement parameter for m_curMaxP in Feng's Adaptive RED
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3
- Flags: construct write
FengBeta: Increment parameter for m_curMaxP in Feng's Adaptive RED
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 2
- Flags: construct write
LastSet: Store the last time m_curMaxP was updated
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
Rtt: Round Trip Time to be considered while automatically setting m_bottom
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +100000000.0ns
- Flags: construct write read
Ns1Compat: NS-1 compatibility
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
LinkBandwidth: The RED link bandwidth
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 1500000bps
- Flags: construct write read
LinkDelay: The RED link delay
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +20000000.0ns
- Flags: construct write read
UseEcn: True to use ECN (packets are marked instead of being dropped)
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
UseHardDrop: True to always drop packets above max threshold
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

Attributes defined in parent class ns3::QueueDisc

Quota: The maximum number of packets dequeued in a qdisc run
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 64
- Flags: construct write read
InternalQueueList: The list of internal queues.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::Queue<QueueDiscItem>>
- Flags: read
PacketFilterList: The list of packet filters.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::PacketFilter>
- Flags: read
QueueDiscClassList: The list of queue disc classes.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::QueueDiscClass>
- Flags: read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::QueueDisc

Enqueue: Enqueue a packet in the queue disc
Callback signature: ns3::QueueDiscItem::TracedCallback
Dequeue: Dequeue a packet from the queue disc
Callback signature: ns3::QueueDiscItem::TracedCallback
Requeue: Requeue a packet in the queue disc
Callback signature: ns3::QueueDiscItem::TracedCallback
Drop: Drop a packet stored in the queue disc
Callback signature: ns3::QueueDiscItem::TracedCallback
DropBeforeEnqueue: Drop a packet before enqueue
Callback signature: ns3::QueueDiscItem::TracedCallback
DropAfterDequeue: Drop a packet after dequeue
Callback signature: ns3::QueueDiscItem::TracedCallback
Mark: Mark a packet stored in the queue disc
Callback signature: ns3::QueueDiscItem::TracedCallback
PacketsInQueue: Number of packets currently stored in the queue disc
Callback signature: ns3::TracedValueCallback::Uint32
BytesInQueue: Number of bytes currently stored in the queue disc
Callback signature: ns3::TracedValueCallback::Uint32
SojournTime: Sojourn time of the last packet dequeued from the queue disc
Callback signature: ns3::TracedValueCallback::Time

Size of this type is 1184 bytes (on a 64-bit architecture).

Definition at line 79 of file red-queue-disc.h.

Constructor & Destructor Documentation

ns3::RedQueueDisc::RedQueueDisc ( )

RedQueueDisc Constructor.

Create a RED queue disc

Definition at line 243 of file red-queue-disc.cc.

References m_uv, and NS_LOG_FUNCTION.

ns3::RedQueueDisc::~RedQueueDisc ( )

virtual

Destructor.

Destructor

Definition at line 250 of file red-queue-disc.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::RedQueueDisc::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 382 of file red-queue-disc.cc.

References m_uv, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

double ns3::RedQueueDisc::CalculatePNew ( void )

private

Returns a probability using these function parameters for the DropEarly function.

Returns: Prob. of packet drop before "count"

Definition at line 764 of file red-queue-disc.cc.

References m_curMaxP, m_isGentle, m_isNonlinear, m_maxTh, m_qAvg, m_vA, m_vB, m_vC, m_vD, and NS_LOG_FUNCTION.

Referenced by DropEarly().

Here is the caller graph for this function:

bool ns3::RedQueueDisc::CheckConfig ( void )

privatevirtual

Check whether the current configuration is correct.

Default objects (such as internal queues) might be created by this method to ensure the configuration is correct.

Returns: true if the configuration is correct, false otherwise

Implements ns3::QueueDisc.

Definition at line 906 of file red-queue-disc.cc.

References ns3::QueueDisc::AddInternalQueue(), ns3::CreateObjectWithAttributes(), ns3::QueueDisc::GetMaxSize(), ns3::QueueDisc::GetNInternalQueues(), ns3::QueueDisc::GetNPacketFilters(), ns3::QueueDisc::GetNQueueDiscClasses(), m_isAdaptMaxP, m_isARED, m_isFengAdaptive, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< QueueDiscItem > ns3::RedQueueDisc::DoDequeue ( void )

privatevirtual

This function actually extracts a packet from the queue disc.

Returns: 0 if the operation was not successful; the item otherwise.

Implements ns3::QueueDisc.

Definition at line 861 of file red-queue-disc.cc.

References ns3::QueueDisc::GetInternalQueue(), ns3::QueueDisc::GetNBytes(), ns3::QueueDisc::GetNPackets(), m_idle, m_idleTime, ns3::Simulator::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Here is the call graph for this function:

void ns3::RedQueueDisc::DoDispose ( void )

protectedvirtual

Dispose of the object.

Reimplemented from ns3::QueueDisc.

Definition at line 256 of file red-queue-disc.cc.

References ns3::QueueDisc::DoDispose(), m_uv, and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::RedQueueDisc::DoEnqueue ( Ptr< QueueDiscItem > item )

privatevirtual

This function actually enqueues a packet into the queue disc.

Parameters

item	item to enqueue

Returns: True if the operation was successful; false otherwise

Implements ns3::QueueDisc.

Definition at line 390 of file red-queue-disc.cc.

References ns3::QueueDisc::DropBeforeEnqueue(), DropEarly(), DTYPE_FORCED, DTYPE_NONE, DTYPE_UNFORCED, Estimator(), FORCED_DROP, FORCED_MARK, ns3::QueueDisc::GetInternalQueue(), ns3::QueueDisc::GetNBytes(), ns3::QueueDisc::GetNPackets(), m_cautious, m_count, m_countBytes, m_idle, m_idlePktSize, m_idleTime, m_isGentle, m_isNs1Compat, m_maxTh, m_meanPktSize, m_minTh, m_old, m_ptc, m_qAvg, m_qW, m_useEcn, m_useHardDrop, m_vProb, ns3::QueueDisc::Mark(), ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC(), UNFORCED_DROP, and UNFORCED_MARK.

Here is the call graph for this function:

Ptr< const QueueDiscItem > ns3::RedQueueDisc::DoPeek ( void )

privatevirtual

This function returns a copy of the next packet the queue disc will extract.

Returns: 0 if the operation was not successful; the packet otherwise.

Implements ns3::QueueDisc.

Definition at line 888 of file red-queue-disc.cc.

References ns3::QueueDisc::GetInternalQueue(), ns3::QueueDisc::GetNBytes(), ns3::QueueDisc::GetNPackets(), NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Here is the call graph for this function:

uint32_t ns3::RedQueueDisc::DropEarly	(	Ptr< QueueDiscItem >	item,
		uint32_t	qSize
	)

private

Check if a packet needs to be dropped due to probability mark.

Parameters

item	queue item
qSize	queue size

Returns: 0 for no drop/mark, 1 for drop

Todo:: Implement set bit to mark

Definition at line 702 of file red-queue-disc.cc.

References CalculatePNew(), ns3::UniformRandomVariable::GetValue(), m_cautious, m_count, m_countBytes, m_ptc, m_qAvg, m_qW, m_uv, m_vProb, ModifyP(), NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Referenced by DoEnqueue().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::RedQueueDisc::Estimator	(	uint32_t	nQueued,
		uint32_t	m,
		double	qAvg,
		double	qW
	)

private

Compute the average queue size.

Parameters

nQueued	number of queued packets
m	simulated number of packets arrival during idle period
qAvg	average queue size
qW	queue weight given to cur q size sample

Returns: new average queue size

Definition at line 680 of file red-queue-disc.cc.

References m_interval, m_isAdaptMaxP, m_isFengAdaptive, m_lastSet, ns3::Simulator::Now(), NS_LOG_FUNCTION, UpdateMaxP(), and UpdateMaxPFeng().

Referenced by DoEnqueue().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::RedQueueDisc::GetAredAlpha ( void )

Get the alpha value to adapt m_curMaxP.

Returns: The alpha value to adapt m_curMaxP.

Definition at line 302 of file red-queue-disc.cc.

References m_alpha, and NS_LOG_FUNCTION.

double ns3::RedQueueDisc::GetAredBeta ( void )

Get the beta value to adapt m_curMaxP.

Returns: The beta value to adapt m_curMaxP.

Definition at line 321 of file red-queue-disc.cc.

References m_beta, and NS_LOG_FUNCTION.

double ns3::RedQueueDisc::GetFengAdaptiveA ( void )

Get the alpha value to adapt m_curMaxP in Feng's Adaptive RED.

Returns: The alpha value to adapt m_curMaxP in Feng's Adaptive RED.

Definition at line 340 of file red-queue-disc.cc.

References m_a, and NS_LOG_FUNCTION.

double ns3::RedQueueDisc::GetFengAdaptiveB ( void )

Get the beta value to adapt m_curMaxP in Feng's Adaptive RED.

Returns: The beta value to adapt m_curMaxP in Feng's Adaptive RED.

Definition at line 359 of file red-queue-disc.cc.

References m_b, and NS_LOG_FUNCTION.

RedQueueDisc::QueueDiscMode ns3::RedQueueDisc::GetMode ( void ) const

Get the operating mode of this queue disc.

Returns: The operating mode of this queue disc.

Deprecated:: This method will go away in future versions of ns-3. See instead GetMaxSize()

Definition at line 283 of file red-queue-disc.cc.

References ns3::QueueDisc::GetMaxSize(), NS_LOG_FUNCTION, ns3::PACKETS, QUEUE_DISC_MODE_BYTES, and QUEUE_DISC_MODE_PACKETS.

Referenced by GetTypeId(), InitializeParams(), and ModifyP().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::RedQueueDisc::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 75 of file red-queue-disc.cc.

References ns3::TypeId::DEPRECATED, ns3::QueueDisc::GetMaxSize(), GetMode(), m_bottom, m_idlePktSize, m_interval, m_isAdaptMaxP, m_isARED, m_isFengAdaptive, m_isGentle, m_isNonlinear, m_isNs1Compat, m_isWait, m_lastSet, m_linkBandwidth, m_linkDelay, m_lInterm, m_maxTh, m_meanPktSize, m_minTh, m_qW, m_rtt, m_targetDelay, m_top, m_useEcn, m_useHardDrop, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeDataRateAccessor(), ns3::MakeDataRateChecker(), ns3::MakeDoubleAccessor(), ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeQueueSizeAccessor(), ns3::MakeQueueSizeChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::MilliSeconds(), QUEUE_DISC_MODE_BYTES, QUEUE_DISC_MODE_PACKETS, ns3::Seconds(), SetAredAlpha(), SetAredBeta(), SetFengAdaptiveA(), SetFengAdaptiveB(), ns3::QueueDisc::SetMaxSize(), SetMode(), ns3::TypeId::SetParent(), and SetQueueLimit().

Here is the call graph for this function:

void ns3::RedQueueDisc::InitializeParams ( void )

privatevirtual

Initialize the queue parameters.

Note: if the link bandwidth changes in the course of the simulation, the bandwidth-dependent RED parameters do not change. This should be fixed, but it would require some extra parameters, and didn't seem worth the trouble...

Implements ns3::QueueDisc.

Definition at line 503 of file red-queue-disc.cc.

References Above, ns3::DataRate::GetBitRate(), GetMode(), ns3::Time::GetSeconds(), m_bottom, m_cautious, m_count, m_countBytes, m_curMaxP, m_fengStatus, m_idle, m_idleTime, m_isAdaptMaxP, m_isARED, m_isFengAdaptive, m_isGentle, m_isWait, m_linkBandwidth, m_linkDelay, m_lInterm, m_maxTh, m_meanPktSize, m_minTh, m_old, m_ptc, m_qAvg, m_qW, m_rtt, m_targetDelay, m_vA, m_vB, m_vC, m_vD, ns3::NanoSeconds(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, and QUEUE_DISC_MODE_BYTES.

Here is the call graph for this function:

double ns3::RedQueueDisc::ModifyP	(	double	p,
		uint32_t	size
	)

private

Returns a probability using these function parameters for the DropEarly function.

Parameters

p	Prob. of packet drop before "count"
size	packet size

Returns: Prob. of packet drop

Definition at line 810 of file red-queue-disc.cc.

References GetMode(), m_count, m_countBytes, m_isWait, m_meanPktSize, NS_LOG_FUNCTION, and QUEUE_DISC_MODE_BYTES.

Referenced by DropEarly().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RedQueueDisc::SetAredAlpha ( double alpha )

Set the alpha value to adapt m_curMaxP.

Parameters

alpha The value of alpha to adapt m_curMaxP.

Definition at line 290 of file red-queue-disc.cc.

References m_alpha, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::RedQueueDisc::SetAredBeta ( double beta )

Set the beta value to adapt m_curMaxP.

Parameters

beta	The value of beta to adapt m_curMaxP.

Definition at line 309 of file red-queue-disc.cc.

References m_beta, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::RedQueueDisc::SetFengAdaptiveA ( double a )

Set the alpha value to adapt m_curMaxP in Feng's Adaptive RED.

Parameters

a	The value of alpha to adapt m_curMaxP in Feng's Adaptive RED.

Definition at line 328 of file red-queue-disc.cc.

References m_a, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::RedQueueDisc::SetFengAdaptiveB ( double b )

Set the beta value to adapt m_curMaxP in Feng's Adaptive RED.

Parameters

b	The value of beta to adapt m_curMaxP in Feng's Adaptive RED.

Definition at line 347 of file red-queue-disc.cc.

References m_b, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::RedQueueDisc::SetMode ( QueueDiscMode mode )

Set the operating mode of this queue disc.

Parameters

mode	The operating mode of this queue disc.

Deprecated:: This method will go away in future versions of ns-3. See instead SetMaxSize()

Definition at line 264 of file red-queue-disc.cc.

References ns3::BYTES, ns3::QueueDisc::GetMaxSize(), NS_ABORT_MSG, NS_LOG_FUNCTION, ns3::PACKETS, QUEUE_DISC_MODE_BYTES, QUEUE_DISC_MODE_PACKETS, and ns3::QueueDisc::SetMaxSize().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RedQueueDisc::SetQueueLimit ( uint32_t lim )

Set the limit of the queue.

Parameters

lim	The limit in bytes or packets.

Deprecated:: This method will go away in future versions of ns-3. See instead SetMaxSize()

Definition at line 366 of file red-queue-disc.cc.

References ns3::QueueDisc::GetMaxSize(), NS_LOG_FUNCTION, and ns3::QueueDisc::SetMaxSize().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RedQueueDisc::SetTh	(	double	minTh,
		double	maxTh
	)

Set the thresh limits of RED.

Parameters

minTh	Minimum thresh in bytes or packets.
maxTh	Maximum thresh in bytes or packets.

Definition at line 373 of file red-queue-disc.cc.

References m_maxTh, m_minTh, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by RedQueueDiscTestCase::RunRedTest().

Here is the caller graph for this function:

void ns3::RedQueueDisc::UpdateMaxP ( double newAve )

private

Update m_curMaxP.

Parameters

newAve new average queue length

Definition at line 652 of file red-queue-disc.cc.

References m_alpha, m_beta, m_bottom, m_curMaxP, m_lastSet, m_maxTh, m_minTh, m_top, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by Estimator().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RedQueueDisc::UpdateMaxPFeng ( double newAve )

private

Update m_curMaxP based on Feng's Adaptive RED.

Parameters

newAve new average queue length

Definition at line 630 of file red-queue-disc.cc.

References Above, Below, Between, m_a, m_b, m_curMaxP, m_fengStatus, m_maxTh, m_minTh, and NS_LOG_FUNCTION.

Referenced by Estimator().

Here is the caller graph for this function:

Member Data Documentation

constexpr const char* ns3::RedQueueDisc::FORCED_DROP = "Forced drop"

static

Forced drops, m_qAvg > m_maxTh.

Definition at line 235 of file red-queue-disc.h.

Referenced by DoEnqueue().

constexpr const char* ns3::RedQueueDisc::FORCED_MARK = "Forced mark"

static

Forced marks, m_qAvg > m_maxTh.

Definition at line 238 of file red-queue-disc.h.

Referenced by DoEnqueue().

double ns3::RedQueueDisc::m_a

private

Decrement parameter for m_curMaxP in Feng's Adaptive RED.

Definition at line 321 of file red-queue-disc.h.

Referenced by GetFengAdaptiveA(), SetFengAdaptiveA(), and UpdateMaxPFeng().

double ns3::RedQueueDisc::m_alpha

private

Increment parameter for m_curMaxP in ARED.

Definition at line 315 of file red-queue-disc.h.

Referenced by GetAredAlpha(), SetAredAlpha(), and UpdateMaxP().

double ns3::RedQueueDisc::m_b

private

Increment parameter for m_curMaxP in Feng's Adaptive RED.

Definition at line 320 of file red-queue-disc.h.

Referenced by GetFengAdaptiveB(), SetFengAdaptiveB(), and UpdateMaxPFeng().

double ns3::RedQueueDisc::m_beta

private

Decrement parameter for m_curMaxP in ARED.

Definition at line 316 of file red-queue-disc.h.

Referenced by GetAredBeta(), SetAredBeta(), and UpdateMaxP().

double ns3::RedQueueDisc::m_bottom

private

Lower bound for m_curMaxP in ARED.

Definition at line 314 of file red-queue-disc.h.

Referenced by GetTypeId(), InitializeParams(), and UpdateMaxP().

uint32_t ns3::RedQueueDisc::m_cautious

private

0 for default RED 1 experimental (see red-queue-disc.cc) 2 experimental (see red-queue-disc.cc) 3 use Idle packet size in the ptc

Definition at line 349 of file red-queue-disc.h.

Referenced by DoEnqueue(), DropEarly(), and InitializeParams().

uint32_t ns3::RedQueueDisc::m_count

private

Number of packets since last random number generation.

Definition at line 341 of file red-queue-disc.h.

Referenced by DoEnqueue(), DropEarly(), InitializeParams(), and ModifyP().

uint32_t ns3::RedQueueDisc::m_countBytes

private

Number of bytes since last drop.

Definition at line 336 of file red-queue-disc.h.

Referenced by DoEnqueue(), DropEarly(), InitializeParams(), and ModifyP().

double ns3::RedQueueDisc::m_curMaxP

private

Current max_p.

Definition at line 333 of file red-queue-disc.h.

Referenced by CalculatePNew(), InitializeParams(), UpdateMaxP(), and UpdateMaxPFeng().

FengStatus ns3::RedQueueDisc::m_fengStatus

private

For use in Feng's Adaptive RED.

Definition at line 342 of file red-queue-disc.h.

Referenced by InitializeParams(), and UpdateMaxPFeng().

uint32_t ns3::RedQueueDisc::m_idle

private

0/1 idle status

Definition at line 338 of file red-queue-disc.h.

Referenced by DoDequeue(), DoEnqueue(), and InitializeParams().

uint32_t ns3::RedQueueDisc::m_idlePktSize

private

Avg pkt size used during idle times.

Definition at line 302 of file red-queue-disc.h.

Referenced by DoEnqueue(), and GetTypeId().

Time ns3::RedQueueDisc::m_idleTime

private

Start of current idle period.

Definition at line 350 of file red-queue-disc.h.

Referenced by DoDequeue(), DoEnqueue(), and InitializeParams().

Time ns3::RedQueueDisc::m_interval

private

Time interval to update m_curMaxP.

Definition at line 312 of file red-queue-disc.h.

Referenced by Estimator(), and GetTypeId().

bool ns3::RedQueueDisc::m_isAdaptMaxP

private

True to adapt m_curMaxP.

Definition at line 306 of file red-queue-disc.h.

Referenced by CheckConfig(), Estimator(), GetTypeId(), and InitializeParams().

bool ns3::RedQueueDisc::m_isARED

private

True to enable Adaptive RED.

Definition at line 305 of file red-queue-disc.h.

Referenced by CheckConfig(), GetTypeId(), and InitializeParams().

bool ns3::RedQueueDisc::m_isFengAdaptive

private

True to enable Feng's Adaptive RED.

Definition at line 318 of file red-queue-disc.h.

Referenced by CheckConfig(), Estimator(), GetTypeId(), and InitializeParams().

bool ns3::RedQueueDisc::m_isGentle

private

True to increase dropping prob.

slowly when m_qAvg exceeds m_maxTh

Definition at line 304 of file red-queue-disc.h.

Referenced by CalculatePNew(), DoEnqueue(), GetTypeId(), and InitializeParams().

bool ns3::RedQueueDisc::m_isNonlinear

private

True to enable Nonlinear RED.

Definition at line 319 of file red-queue-disc.h.

Referenced by CalculatePNew(), and GetTypeId().

bool ns3::RedQueueDisc::m_isNs1Compat

private

Ns-1 compatibility.

Definition at line 322 of file red-queue-disc.h.

Referenced by DoEnqueue(), and GetTypeId().

bool ns3::RedQueueDisc::m_isWait

private

True for waiting between dropped packets.

Definition at line 303 of file red-queue-disc.h.

Referenced by GetTypeId(), InitializeParams(), and ModifyP().

Time ns3::RedQueueDisc::m_lastSet

private

Last time m_curMaxP was updated.

Definition at line 334 of file red-queue-disc.h.

Referenced by Estimator(), GetTypeId(), and UpdateMaxP().

DataRate ns3::RedQueueDisc::m_linkBandwidth

private

Link bandwidth.

Definition at line 323 of file red-queue-disc.h.

Referenced by GetTypeId(), and InitializeParams().

Time ns3::RedQueueDisc::m_linkDelay

private

Link delay.

Definition at line 324 of file red-queue-disc.h.

Referenced by GetTypeId(), and InitializeParams().

double ns3::RedQueueDisc::m_lInterm

private

The max probability of dropping a packet.

Definition at line 310 of file red-queue-disc.h.

Referenced by GetTypeId(), and InitializeParams().

double ns3::RedQueueDisc::m_maxTh

private

Maximum threshold for m_qAvg (bytes or packets), should be >= 2 * m_minTh.

Definition at line 308 of file red-queue-disc.h.

Referenced by CalculatePNew(), DoEnqueue(), GetTypeId(), InitializeParams(), SetTh(), UpdateMaxP(), and UpdateMaxPFeng().

uint32_t ns3::RedQueueDisc::m_meanPktSize

private

Avg pkt size.

Definition at line 301 of file red-queue-disc.h.

Referenced by DoEnqueue(), GetTypeId(), InitializeParams(), and ModifyP().

double ns3::RedQueueDisc::m_minTh

private

Minimum threshold for m_qAvg (bytes or packets)

Definition at line 307 of file red-queue-disc.h.

Referenced by DoEnqueue(), GetTypeId(), InitializeParams(), SetTh(), UpdateMaxP(), and UpdateMaxPFeng().

uint32_t ns3::RedQueueDisc::m_old

private

0 when average queue first exceeds threshold

Definition at line 337 of file red-queue-disc.h.

Referenced by DoEnqueue(), and InitializeParams().

double ns3::RedQueueDisc::m_ptc

private

packet time constant in packets/second

Definition at line 339 of file red-queue-disc.h.

Referenced by DoEnqueue(), DropEarly(), and InitializeParams().

double ns3::RedQueueDisc::m_qAvg

private

Average queue length.

Definition at line 340 of file red-queue-disc.h.

Referenced by CalculatePNew(), DoEnqueue(), DropEarly(), and InitializeParams().

double ns3::RedQueueDisc::m_qW

private

Queue weight given to cur queue size sample.

Definition at line 309 of file red-queue-disc.h.

Referenced by DoEnqueue(), DropEarly(), GetTypeId(), and InitializeParams().

Time ns3::RedQueueDisc::m_rtt

private

Rtt to be considered while automatically setting m_bottom in ARED.

Definition at line 317 of file red-queue-disc.h.

Referenced by GetTypeId(), and InitializeParams().

Time ns3::RedQueueDisc::m_targetDelay

private

Target average queuing delay in ARED.

Definition at line 311 of file red-queue-disc.h.

Referenced by GetTypeId(), and InitializeParams().

double ns3::RedQueueDisc::m_top

private

Upper bound for m_curMaxP in ARED.

Definition at line 313 of file red-queue-disc.h.

Referenced by GetTypeId(), and UpdateMaxP().

bool ns3::RedQueueDisc::m_useEcn

private

True if ECN is used (packets are marked instead of being dropped)

Definition at line 325 of file red-queue-disc.h.

Referenced by DoEnqueue(), and GetTypeId().

bool ns3::RedQueueDisc::m_useHardDrop

private

True if packets are always dropped above max threshold.

Definition at line 326 of file red-queue-disc.h.

Referenced by DoEnqueue(), and GetTypeId().

Ptr<UniformRandomVariable> ns3::RedQueueDisc::m_uv

private

rng stream

Definition at line 352 of file red-queue-disc.h.

Referenced by AssignStreams(), DoDispose(), DropEarly(), and RedQueueDisc().

double ns3::RedQueueDisc::m_vA

private

1.0 / (m_maxTh - m_minTh)

Definition at line 329 of file red-queue-disc.h.

Referenced by CalculatePNew(), and InitializeParams().

double ns3::RedQueueDisc::m_vB

private

-m_minTh / (m_maxTh - m_minTh)

Definition at line 330 of file red-queue-disc.h.

Referenced by CalculatePNew(), and InitializeParams().

double ns3::RedQueueDisc::m_vC

private

(1.0 - m_curMaxP) / m_maxTh - used in "gentle" mode

Definition at line 331 of file red-queue-disc.h.

Referenced by CalculatePNew(), and InitializeParams().

double ns3::RedQueueDisc::m_vD

private

2.0 * m_curMaxP - 1.0 - used in "gentle" mode

Definition at line 332 of file red-queue-disc.h.

Referenced by CalculatePNew(), and InitializeParams().

double ns3::RedQueueDisc::m_vProb

private

Prob.

of packet drop

Definition at line 335 of file red-queue-disc.h.

Referenced by DoEnqueue(), and DropEarly().

constexpr const char* ns3::RedQueueDisc::UNFORCED_DROP = "Unforced drop"

static

Early probability drops.

Definition at line 234 of file red-queue-disc.h.

Referenced by DoEnqueue().

constexpr const char* ns3::RedQueueDisc::UNFORCED_MARK = "Unforced mark"

static

Early probability marks.

Definition at line 237 of file red-queue-disc.h.

Referenced by DoEnqueue().

The documentation for this class was generated from the following files:

src/traffic-control/model/red-queue-disc.h
src/traffic-control/model/red-queue-disc.cc

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

Attributes defined in parent class ns3::QueueDisc

TraceSources defined in parent class ns3::QueueDisc

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
