This class is the subclass of MacLow to provide support for MAC extension (1) allows higher layer control data rate and tx power level. More...

#include "wave-mac-low.h"

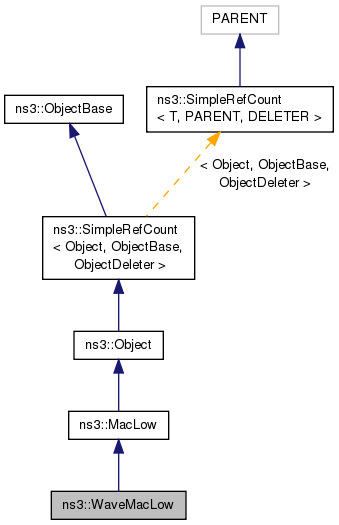

Inheritance diagram for ns3::WaveMacLow:

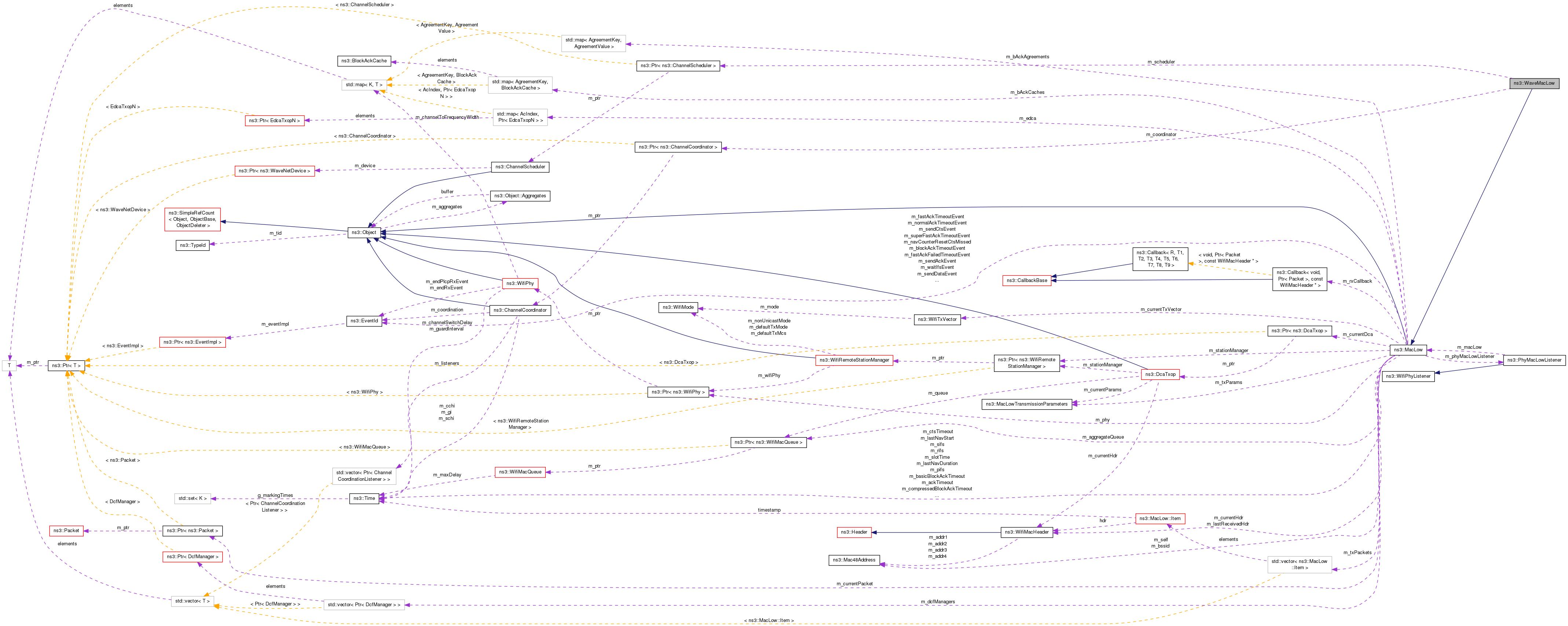

Collaboration diagram for ns3::WaveMacLow:

Public Member Functions
	WaveMacLow ()

virtual	~WaveMacLow ()

void	SetWaveNetDevice (Ptr< WaveNetDevice > device)

virtual void	StartTransmission (Ptr< const Packet > packet, const WifiMacHeader *hdr, MacLowTransmissionParameters parameters, Ptr< DcaTxop > dca)

Public Member Functions inherited from ns3::MacLow
	MacLow ()

virtual	~MacLow ()

Ptr< Packet >	AggregateToAmpdu (Ptr< const Packet > packet, const WifiMacHeader hdr)

Time	CalculateOverallTxTime (Ptr< const Packet > packet, const WifiMacHeader *hdr, const MacLowTransmissionParameters &params, uint32_t fragmentSize=0) const

Time	CalculateTransmissionTime (Ptr< const Packet > packet, const WifiMacHeader *hdr, const MacLowTransmissionParameters &parameters) const

void	CreateBlockAckAgreement (const MgtAddBaResponseHeader *respHdr, Mac48Address originator, uint16_t startingSeq)

void	DeaggregateAmpduAndReceive (Ptr< Packet > aggregatedPacket, double rxSnr, WifiTxVector txVector)

void	DestroyBlockAckAgreement (Mac48Address originator, uint8_t tid)

void	FlushAggregateQueue (uint8_t tid)
	This function is called to flush the aggregate queue, which is used for A-MPDU. More...

Time	GetAckTimeout (void) const
	Return ACK timeout of this MacLow. More...

Mac48Address	GetAddress (void) const
	Return the MAC address of this MacLow. More...

Time	GetBasicBlockAckTimeout () const
	Return Basic Block ACK timeout of this MacLow. More...

Mac48Address	GetBssid (void) const
	Return the Basic Service Set Identification. More...

Time	GetCompressedBlockAckTimeout () const
	Return Compressed Block ACK timeout of this MacLow. More...

Time	GetCtsTimeout (void) const
	Return CTS timeout of this MacLow. More...

bool	GetCtsToSelfSupported () const
	Return whether CTS-to-self capability is supported. More...

Ptr< WifiPhy >	GetPhy (void) const

Time	GetPifs (void) const
	Return PCF Interframe Space (PIFS) of this MacLow. More...

Time	GetRifs (void) const
	Return Reduced Interframe Space (RIFS) of this MacLow. More...

Time	GetSifs (void) const
	Return Short Interframe Space (SIFS) of this MacLow. More...

Time	GetSlotTime (void) const
	Return slot duration of this MacLow. More...

bool	IsPromisc (void) const
	Check if MacLow is operating in promiscuous mode. More...

void	NotifyOffNow (void)
	This method is typically invoked by the PhyMacLowListener to notify the MAC layer that the device has been put into off mode. More...

void	NotifySleepNow (void)
	This method is typically invoked by the PhyMacLowListener to notify the MAC layer that the device has been put into sleep mode. More...

void	NotifySwitchingStartNow (Time duration)

void	ReceiveError (Ptr< Packet > packet, double rxSnr)

void	ReceiveOk (Ptr< Packet > packet, double rxSnr, WifiTxVector txVector, bool ampduSubframe)

void	RegisterDcf (Ptr< DcfManager > dcf)

void	RegisterEdcaForAc (AcIndex ac, Ptr< EdcaTxopN > edca)

void	ResetPhy (void)
	Remove WifiPhy associated with this MacLow. More...

void	SetAckTimeout (Time ackTimeout)
	Set ACK timeout of this MacLow. More...

void	SetAddress (Mac48Address ad)
	Set MAC address of this MacLow. More...

void	SetBasicBlockAckTimeout (Time blockAckTimeout)
	Set Basic Block ACK timeout of this MacLow. More...

void	SetBssid (Mac48Address ad)
	Set the Basic Service Set Identification. More...

void	SetCompressedBlockAckTimeout (Time blockAckTimeout)
	Set Compressed Block ACK timeout of this MacLow. More...

void	SetCtsTimeout (Time ctsTimeout)
	Set CTS timeout of this MacLow. More...

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self capability. More...

void	SetPhy (const Ptr< WifiPhy > phy)
	Set up WifiPhy associated with this MacLow. More...

void	SetPifs (Time pifs)
	Set PCF Interframe Space (PIFS) of this MacLow. More...

void	SetPromisc (void)
	Enable promiscuous mode. More...

void	SetRifs (Time rifs)
	Set Reduced Interframe Space (RIFS) of this MacLow. More...

void	SetRxCallback (Callback< void, Ptr< Packet >, const WifiMacHeader * > callback)

void	SetSifs (Time sifs)
	Set Short Interframe Space (SIFS) of this MacLow. More...

void	SetSlotTime (Time slotTime)
	Set slot duration of this MacLow. More...

void	SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > manager)
	Set up WifiRemoteStationManager associated with this MacLow. More...

bool	StopMpduAggregation (Ptr< const Packet > peekedPacket, WifiMacHeader peekedHdr, Ptr< Packet > aggregatedPacket, uint16_t size) const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::MacLow
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual WifiTxVector	GetDataTxVector (Ptr< const Packet > packet, const WifiMacHeader *hdr) const
	Return a TXVECTOR for the DATA frame given the destination. More...

Private Attributes
Ptr< ChannelCoordinator >	m_coordinator
	the channel coordinator More...

Ptr< ChannelScheduler >	m_scheduler
	the channel scheduler More...

Additional Inherited Members
Public Types inherited from ns3::MacLow
typedef Callback< void, Ptr< Packet >, const WifiMacHeader * >	MacLowRxCallback
	typedef for a callback for MacLowRx More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class is the subclass of MacLow to provide support for MAC extension (1) allows higher layer control data rate and tx power level.

Introspection did not find any typical Config paths.

If higher layer does not set, they will be determined by WifiRemoteStationManager of MAC layer; If higher layer sets tx parameters in non-adaptable mode, the data rate and tx power level will be used for transmission;. If higher layer sets tx parameters in adaptable mode, the data rate will be lower bound for the actual data rate, and the power level will be upper bound for the actual transmit power. (2) implements the feature described in Annex C : avoid transmission at scheduled guard intervals However, the feature is extended further here that the required transmit time is determined by MAC layer itself rather than PHY layer, which contains RTS/CTS, DATA and ACK time.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 1064 bytes (on a 64-bit architecture).

Definition at line 45 of file wave-mac-low.h.

Constructor & Destructor Documentation

ns3::WaveMacLow::WaveMacLow ( )

Definition at line 42 of file wave-mac-low.cc.

References NS_LOG_FUNCTION.

ns3::WaveMacLow::~WaveMacLow ( )

virtual

Definition at line 46 of file wave-mac-low.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

WifiTxVector ns3::WaveMacLow::GetDataTxVector	(	Ptr< const Packet >	packet,
		const WifiMacHeader *	hdr
	)		const

privatevirtual

Return a TXVECTOR for the DATA frame given the destination.

The function consults WifiRemoteStationManager, which controls the rate to different destinations.

Parameters

packet	the packet being asked for TXVECTOR
hdr	the WifiMacHeader

Returns: TXVECTOR for the given packet

Reimplemented from ns3::MacLow.

Definition at line 60 of file wave-mac-low.cc.

References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::MacLow::GetDataTxVector(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetPreambleType(), ns3::WifiTxVector::GetTxPowerLevel(), ns3::HigherLayerTxVectorTag::GetTxVector(), ns3::HigherLayerTxVectorTag::IsAdaptable(), min, NS_LOG_FUNCTION, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetPreambleType(), and ns3::WifiTxVector::SetTxPowerLevel().

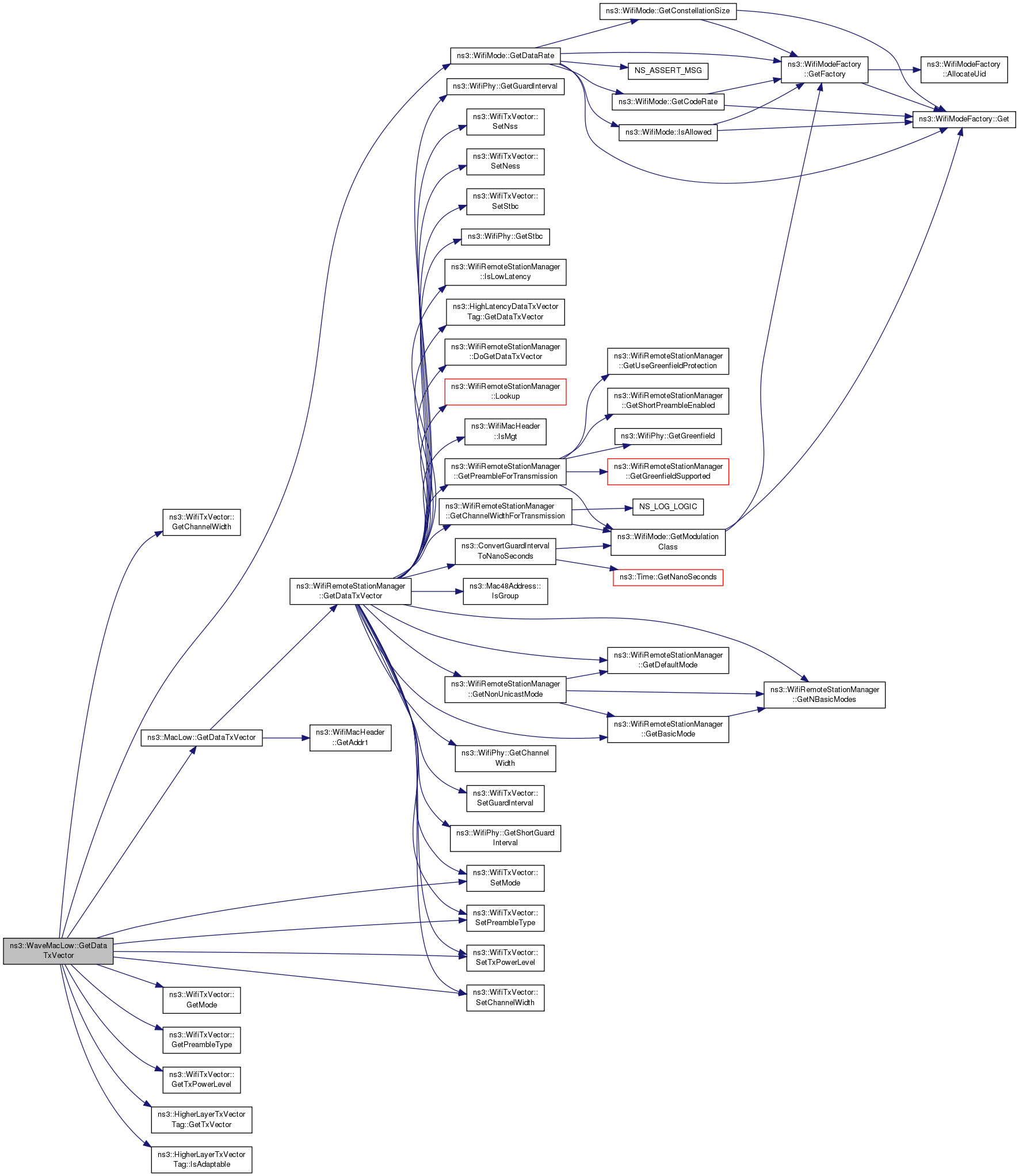

Here is the call graph for this function:

TypeId ns3::WaveMacLow::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 33 of file wave-mac-low.cc.

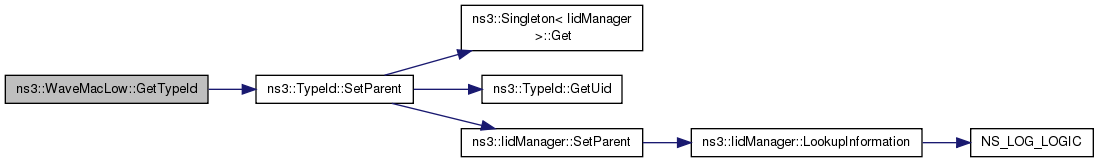

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::WaveMacLow::SetWaveNetDevice ( Ptr< WaveNetDevice > device )

Parameters

device WaveNetDevice associated with WaveMacLow

Definition at line 52 of file wave-mac-low.cc.

References ns3::WaveNetDevice::GetChannelCoordinator(), ns3::WaveNetDevice::GetChannelScheduler(), m_coordinator, m_scheduler, and NS_ASSERT.

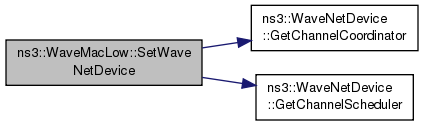

Here is the call graph for this function:

void ns3::WaveMacLow::StartTransmission	(	Ptr< const Packet >	packet,
		const WifiMacHeader *	hdr,
		MacLowTransmissionParameters	parameters,
		Ptr< DcaTxop >	dca
	)

virtual

Parameters

packet	packet to send
hdr	802.11 header for packet to send
parameters	the transmission parameters to use for this packet.
dca	pointer to the calling DcaTxop.

Start the transmission of the input packet and notify the listener of transmission events.

Reimplemented from ns3::MacLow.

Definition at line 106 of file wave-mac-low.cc.

References ns3::MacLow::CalculateTransmissionTime(), ns3::WifiPhy::GetChannelNumber(), ns3::Time::GetMilliSeconds(), ns3::MacLow::GetPhy(), m_coordinator, m_scheduler, ns3::ChannelCoordinator::NeedTimeToGuardInterval(), NS_LOG_DEBUG, NS_LOG_FUNCTION, third::phy, and ns3::MacLow::StartTransmission().

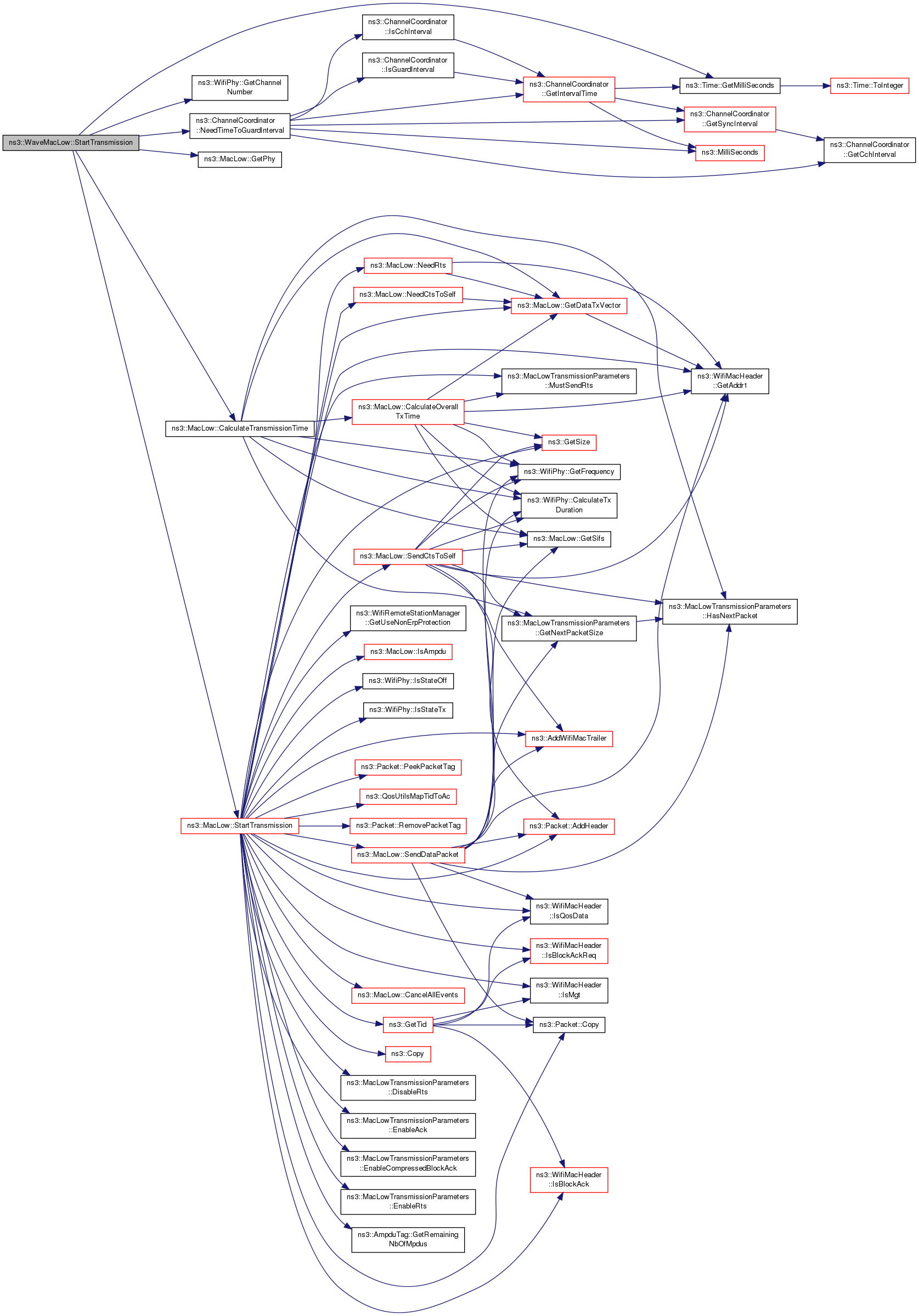

Here is the call graph for this function:

Member Data Documentation

Ptr<ChannelCoordinator> ns3::WaveMacLow::m_coordinator

private

the channel coordinator

Definition at line 87 of file wave-mac-low.h.

Referenced by SetWaveNetDevice(), and StartTransmission().

Ptr<ChannelScheduler> ns3::WaveMacLow::m_scheduler

private

the channel scheduler

Definition at line 86 of file wave-mac-low.h.

Referenced by SetWaveNetDevice(), and StartTransmission().

The documentation for this class was generated from the following files:

src/wave/model/wave-mac-low.h
src/wave/model/wave-mac-low.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
