InterferenceExperiment Class Reference

InterferenceExperiment. More...

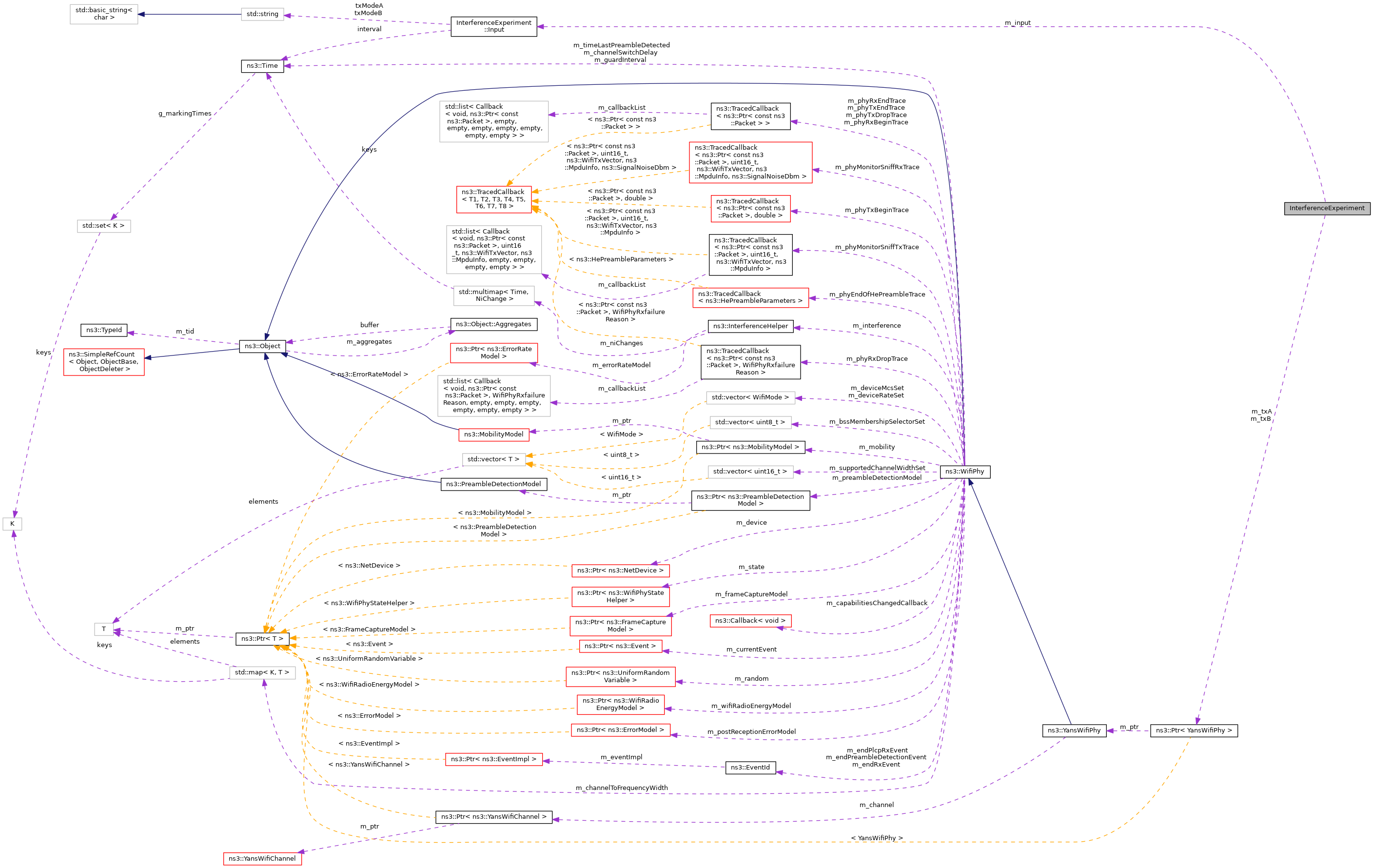

Collaboration diagram for InterferenceExperiment:

Classes
struct	Input
	Input atructure. More...

Public Member Functions
	InterferenceExperiment ()
void	Run (struct InterferenceExperiment::Input input)
	Run function. More...

Private Member Functions
void	PacketDropped (Ptr< const Packet > packet, WifiPhyRxfailureReason reason)
	Function triggered when a packet is dropped. More...
void	SendA (void) const
	Send A function. More...
void	SendB (void) const
	Send B function. More...

Private Attributes
bool	m_droppedA
	flag to indicate whether packet A has been dropped More...
bool	m_droppedB
	flag to indicate whether packet B has been dropped More...
struct Input	m_input
	input More...
Ptr< YansWifiPhy >	m_txA
	transmit A function More...
Ptr< YansWifiPhy >	m_txB
	transmit B function More...

Detailed Description

InterferenceExperiment.

Definition at line 75 of file test-interference-helper.cc.

Constructor & Destructor Documentation

InterferenceExperiment()

InterferenceExperiment::InterferenceExperiment

(

)

Definition at line 162 of file test-interference-helper.cc.

Member Function Documentation

PacketDropped()

void InterferenceExperiment::PacketDropped ( Ptr< const Packet >  packet, WifiPhyRxfailureReason  reason  )

private

Function triggered when a packet is dropped.

Parameters

packet	the packet that was dropped
reason	the reason why it was dropped

Definition at line 145 of file test-interference-helper.cc.

References ns3::Packet::GetUid(), and NS_LOG_ERROR.

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

Run()

void InterferenceExperiment::Run

(

struct InterferenceExperiment::Input

input

)

Run function.

Parameters

input

the interference experiment data

Definition at line 186 of file test-interference-helper.cc.

References InterferenceExperiment::Input::captureEnabled, InterferenceExperiment::Input::captureMargin, third::channel, checkResults, ns3::WifiPhy::ConfigureStandard(), ns3::Object::Dispose(), expectRxASuccessfull, expectRxBSuccessfull, InterferenceExperiment::Input::interval, m_droppedA, m_droppedB, m_input, m_txA, m_txB, ns3::MakeCallback(), max, NS_LOG_ERROR, PacketDropped(), ns3::Seconds(), SendA(), SendB(), ns3::YansWifiPhy::SetChannel(), ns3::Config::SetDefault(), ns3::WifiPhy::SetErrorRateModel(), ns3::WifiPhy::SetFrameCaptureModel(), ns3::SimpleFrameCaptureModel::SetMargin(), ns3::WifiPhy::SetMobility(), ns3::MobilityModel::SetPosition(), ns3::WifiPhy::SetTxPowerEnd(), ns3::WifiPhy::SetTxPowerStart(), InterferenceExperiment::Input::standard, ns3::ObjectBase::TraceConnectWithoutContext(), InterferenceExperiment::Input::txPowerLevelA, InterferenceExperiment::Input::txPowerLevelB, InterferenceExperiment::Input::xA, and InterferenceExperiment::Input::xB.

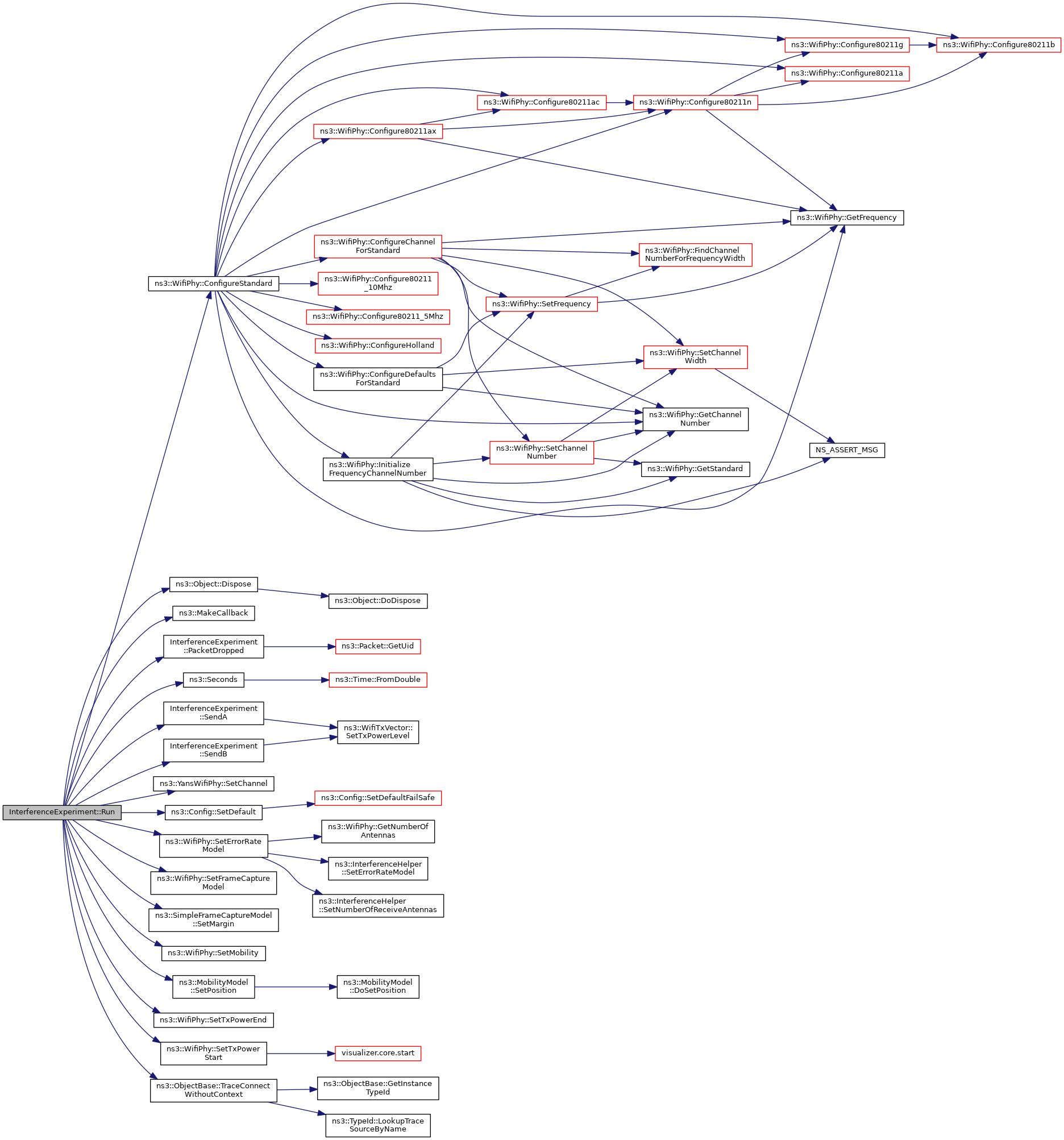

Here is the call graph for this function:

SendA()

void InterferenceExperiment::SendA ( void  ) const

private

Send A function.

Definition at line 123 of file test-interference-helper.cc.

References ns3::WifiTxVector::SetTxPowerLevel().

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

SendB()

void InterferenceExperiment::SendB ( void  ) const

private

Send B function.

Definition at line 134 of file test-interference-helper.cc.

References ns3::WifiTxVector::SetTxPowerLevel().

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_droppedA

bool InterferenceExperiment::m_droppedA

private

flag to indicate whether packet A has been dropped

Definition at line 118 of file test-interference-helper.cc.

Referenced by Run().

m_droppedB

bool InterferenceExperiment::m_droppedB

private

flag to indicate whether packet B has been dropped

Definition at line 119 of file test-interference-helper.cc.

Referenced by Run().

m_input

struct Input InterferenceExperiment::m_input

private

input

Definition at line 117 of file test-interference-helper.cc.

Referenced by Run().

m_txA

Ptr<YansWifiPhy> InterferenceExperiment::m_txA

private

transmit A function

Definition at line 115 of file test-interference-helper.cc.

Referenced by Run().

m_txB

Ptr<YansWifiPhy> InterferenceExperiment::m_txB

private

transmit B function

Definition at line 116 of file test-interference-helper.cc.

Referenced by Run().

---

The documentation for this class was generated from the following file:

• src/wifi/examples/test-interference-helper.cc
