802.11 PHY layer modelThis PHY implements a model of 802.11a. More...

#include "yans-wifi-phy.h"

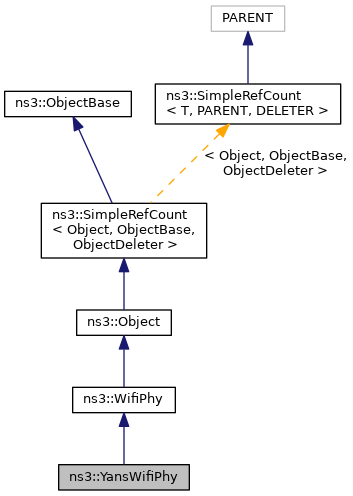

Inheritance diagram for ns3::YansWifiPhy:

Collaboration diagram for ns3::YansWifiPhy:

Public Member Functions
	YansWifiPhy ()

virtual	~YansWifiPhy ()

virtual Ptr< Channel >	GetChannel (void) const
	Return the Channel this WifiPhy is connected to. More...

void	SetChannel (const Ptr< YansWifiChannel > channel)
	Set the YansWifiChannel this YansWifiPhy is to be connected to. More...

void	StartTx (Ptr< Packet > packet, WifiTxVector txVector, Time txDuration)

Public Member Functions inherited from ns3::WifiPhy
	WifiPhy ()

virtual	~WifiPhy ()

void	AddSupportedChannelWidth (uint16_t channelwidth)

virtual int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

double	CalculateSnr (WifiTxVector txVector, double ber) const

Time	CalculateTxDuration (uint32_t size, WifiTxVector txVector, uint16_t frequency)

Time	CalculateTxDuration (uint32_t size, WifiTxVector txVector, uint16_t frequency, MpduType mpdutype, uint8_t incFlag)

virtual void	ConfigureStandard (WifiPhyStandard standard)
	Configure the PHY-level parameters for different Wi-Fi standard. More...

void	ContinueReceiveHeader (Ptr< Event > event)
	Continue receiving the PHY header of a packet (i.e. More...

bool	DefineChannelNumber (uint8_t channelNumber, WifiPhyStandard standard, uint16_t frequency, uint16_t channelWidth)
	Add a channel definition to the WifiPhy. More...

void	EndReceive (Ptr< Event > event)
	The last bit of the packet has arrived. More...

void	EndReceiveInterBss (void)
	For HE receptions only, check and possibly modify the transmit power restriction state at the end of PPDU reception. More...

uint8_t	GetBssMembershipSelector (uint8_t selector) const
	The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

double	GetCcaEdThreshold (void) const
	Return the CCA threshold (dBm). More...

uint8_t	GetChannelNumber (void) const
	Return current channel number. More...

Time	GetChannelSwitchDelay (void) const

uint16_t	GetChannelWidth (void) const

Time	GetDelayUntilIdle (void)

Ptr< NetDevice >	GetDevice (void) const
	Return the device this PHY is associated with. More...

uint16_t	GetFrequency (void) const

bool	GetGreenfield (void) const
	Return whether Greenfield is supported. More...

Time	GetGuardInterval (void) const

Time	GetLastRxStartTime (void) const
	Return the start time of the last received packet. More...

uint8_t	GetMaxSupportedRxSpatialStreams (void) const

uint8_t	GetMaxSupportedTxSpatialStreams (void) const

WifiMode	GetMcs (uint8_t mcs) const
	The WifiPhy::GetMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet. More...

Ptr< MobilityModel >	GetMobility (void) const
	Return the mobility model this PHY is associated with. More...

WifiMode	GetMode (uint8_t mode) const
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

uint8_t	GetNBssMembershipSelectors (void) const
	The WifiPhy::NBssMembershipSelectors() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

uint8_t	GetNMcs (void) const
	The WifiPhy::GetNMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet. More...

uint8_t	GetNModes (void) const
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

uint8_t	GetNTxPower (void) const
	Return the number of available transmission power levels. More...

uint8_t	GetNumberOfAntennas (void) const

Time	GetPayloadDuration (uint32_t size, WifiTxVector txVector, uint16_t frequency)

Time	GetPayloadDuration (uint32_t size, WifiTxVector txVector, uint16_t frequency, MpduType mpdutype, uint8_t incFlag)

double	GetPowerDbm (uint8_t power) const
	Get the power of the given power level in dBm. More...

double	GetRxGain (void) const
	Return the reception gain (dB). More...

double	GetRxSensitivity (void) const
	Return the receive sensitivity threshold (dBm). More...

bool	GetShortGuardInterval (void) const
	Return whether short guard interval is supported. More...

bool	GetShortPlcpPreambleSupported (void) const
	Return whether short PLCP preamble is supported. More...

WifiPhyStandard	GetStandard (void) const
	Get the configured Wi-Fi standard. More...

Ptr< WifiPhyStateHelper >	GetState (void) const
	Return the WifiPhyStateHelper of this PHY. More...

std::vector< uint16_t >	GetSupportedChannelWidthSet (void) const

double	GetTxGain (void) const
	Return the transmission gain (dB). More...

double	GetTxPowerEnd (void) const
	Return the maximum available transmission power level (dBm). More...

double	GetTxPowerForTransmission (WifiTxVector txVector) const
	Compute the transmit power (in dBm) for the next transmission. More...

double	GetTxPowerStart (void) const
	Return the minimum available transmission power level (dBm). More...

bool	IsMcsSupported (WifiMode mcs) const
	Check if the given WifiMode is supported by the PHY. More...

bool	IsModeSupported (WifiMode mode) const
	Check if the given WifiMode is supported by the PHY. More...

bool	IsStateCcaBusy (void) const

bool	IsStateIdle (void) const

bool	IsStateOff (void) const

bool	IsStateRx (void) const

bool	IsStateSleep (void) const

bool	IsStateSwitching (void) const

bool	IsStateTx (void) const

void	NotifyChannelAccessRequested (void)
	Notify the PHY that an access to the channel was requested. More...

void	NotifyEndOfHePreamble (HePreambleParameters params)
	Public method used to fire a EndOfHePreamble trace once both HE SIG fields have been received, as well as training fields. More...

void	NotifyMonitorSniffRx (Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, SignalNoiseDbm signalNoise, std::vector< bool > statusPerMpdu)
	Public method used to fire a MonitorSniffer trace for a wifi packet being received. More...

void	NotifyMonitorSniffTx (Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector)
	Public method used to fire a MonitorSniffer trace for a wifi packet being transmitted. More...

void	NotifyRxBegin (Ptr< const Packet > packet)
	Public method used to fire a PhyRxBegin trace. More...

void	NotifyRxDrop (Ptr< const Packet > packet, WifiPhyRxfailureReason reason)
	Public method used to fire a PhyRxDrop trace. More...

void	NotifyRxEnd (Ptr< const Packet > packet)
	Public method used to fire a PhyRxEnd trace. More...

void	NotifyTxBegin (Ptr< const Packet > packet, double txPowerW)
	Public method used to fire a PhyTxBegin trace. More...

void	NotifyTxDrop (Ptr< const Packet > packet)
	Public method used to fire a PhyTxDrop trace. More...

void	NotifyTxEnd (Ptr< const Packet > packet)
	Public method used to fire a PhyTxEnd trace. More...

void	RegisterListener (WifiPhyListener *listener)

void	ResetCca (bool powerRestricted, double txPowerMaxSiso=0, double txPowerMaxMimo=0)
	Reset PHY to IDLE, with some potential TX power restrictions for the next transmission. More...

void	ResumeFromOff (void)
	Resume from off mode. More...

void	ResumeFromSleep (void)
	Resume from sleep mode. More...

void	SendPacket (Ptr< const Packet > packet, WifiTxVector txVector)

void	SetCapabilitiesChangedCallback (Callback< void > callback)

void	SetCcaEdThreshold (double threshold)
	Sets the CCA threshold (dBm). More...

virtual void	SetChannelNumber (uint8_t id)
	Set channel number. More...

virtual void	SetChannelWidth (uint16_t channelwidth)

void	SetDevice (const Ptr< NetDevice > device)
	Sets the device this PHY is associated with. More...

void	SetEdThreshold (double threshold)
	Sets the energy detection threshold (dBm). More...

void	SetErrorRateModel (const Ptr< ErrorRateModel > rate)
	Sets the error rate model. More...

void	SetFrameCaptureModel (const Ptr< FrameCaptureModel > frameCaptureModel)
	Sets the frame capture model. More...

virtual void	SetFrequency (uint16_t freq)

void	SetGreenfield (bool greenfield)
	Enable or disable Greenfield support. More...

void	SetGuardInterval (Time guardInterval)

void	SetMaxSupportedRxSpatialStreams (uint8_t streams)

void	SetMaxSupportedTxSpatialStreams (uint8_t streams)

void	SetMobility (const Ptr< MobilityModel > mobility)
	assign a mobility model to this device More...

void	SetNTxPower (uint8_t n)
	Sets the number of transmission power levels available between the minimum level and the maximum level. More...

void	SetNumberOfAntennas (uint8_t antennas)

void	SetOffMode (void)
	Put in off mode. More...

void	SetPostReceptionErrorModel (const Ptr< ErrorModel > em)
	Attach a receive ErrorModel to the WifiPhy. More...

void	SetPreambleDetectionModel (const Ptr< PreambleDetectionModel > preambleDetectionModel)
	Sets the preamble detection model. More...

void	SetReceiveErrorCallback (RxErrorCallback callback)

void	SetReceiveOkCallback (RxOkCallback callback)

void	SetRxGain (double gain)
	Sets the reception gain (dB). More...

void	SetRxNoiseFigure (double noiseFigureDb)
	Sets the RX loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. More...

void	SetRxSensitivity (double threshold)
	Sets the receive sensitivity threshold (dBm). More...

void	SetShortGuardInterval (bool shortGuardInterval)
	Enable or disable support for HT/VHT short guard interval. More...

void	SetShortPlcpPreambleSupported (bool preamble)
	Enable or disable short PLCP preamble. More...

void	SetSleepMode (void)
	Put in sleep mode. More...

void	SetTxGain (double gain)
	Sets the transmission gain (dB). More...

void	SetTxPowerEnd (double end)
	Sets the maximum available transmission power level (dBm). More...

void	SetTxPowerStart (double start)
	Sets the minimum available transmission power level (dBm). More...

void	SetWifiRadioEnergyModel (const Ptr< WifiRadioEnergyModel > wifiRadioEnergyModel)
	Sets the wifi radio energy model. More...

void	StartReceiveHeader (Ptr< Event > event, Time rxDuration)
	Start receiving the PHY header of a packet (i.e. More...

void	StartReceivePayload (Ptr< Event > event)
	Start receiving the payload of a packet (i.e. More...

void	StartReceivePreamble (Ptr< Packet > packet, double rxPowerW, Time rxDuration)
	Start receiving the PHY preamble of a packet (i.e. More...

void	UnregisterListener (WifiPhyListener *listener)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiPhy
static Time	CalculatePlcpPreambleAndHeaderDuration (WifiTxVector txVector)

static WifiMode	GetDsssRate11Mbps ()
	Return a WifiMode for DSSS at 11Mbps. More...

static WifiMode	GetDsssRate1Mbps ()
	Return a WifiMode for DSSS at 1Mbps. More...

static WifiMode	GetDsssRate2Mbps ()
	Return a WifiMode for DSSS at 2Mbps. More...

static WifiMode	GetDsssRate5_5Mbps ()
	Return a WifiMode for DSSS at 5.5Mbps. More...

static WifiMode	GetErpOfdmRate12Mbps ()
	Return a WifiMode for ERP-OFDM at 12Mbps. More...

static WifiMode	GetErpOfdmRate18Mbps ()
	Return a WifiMode for ERP-OFDM at 18Mbps. More...

static WifiMode	GetErpOfdmRate24Mbps ()
	Return a WifiMode for ERP-OFDM at 24Mbps. More...

static WifiMode	GetErpOfdmRate36Mbps ()
	Return a WifiMode for ERP-OFDM at 36Mbps. More...

static WifiMode	GetErpOfdmRate48Mbps ()
	Return a WifiMode for ERP-OFDM at 48Mbps. More...

static WifiMode	GetErpOfdmRate54Mbps ()
	Return a WifiMode for ERP-OFDM at 54Mbps. More...

static WifiMode	GetErpOfdmRate6Mbps ()
	Return a WifiMode for ERP-OFDM at 6Mbps. More...

static WifiMode	GetErpOfdmRate9Mbps ()
	Return a WifiMode for ERP-OFDM at 9Mbps. More...

static WifiMode	GetHeMcs0 ()
	Return MCS 0 from HE MCS values. More...

static WifiMode	GetHeMcs1 ()
	Return MCS 1 from HE MCS values. More...

static WifiMode	GetHeMcs10 ()
	Return MCS 10 from HE MCS values. More...

static WifiMode	GetHeMcs11 ()
	Return MCS 11 from HE MCS values. More...

static WifiMode	GetHeMcs2 ()
	Return MCS 2 from HE MCS values. More...

static WifiMode	GetHeMcs3 ()
	Return MCS 3 from HE MCS values. More...

static WifiMode	GetHeMcs4 ()
	Return MCS 4 from HE MCS values. More...

static WifiMode	GetHeMcs5 ()
	Return MCS 5 from HE MCS values. More...

static WifiMode	GetHeMcs6 ()
	Return MCS 6 from HE MCS values. More...

static WifiMode	GetHeMcs7 ()
	Return MCS 7 from HE MCS values. More...

static WifiMode	GetHeMcs8 ()
	Return MCS 8 from HE MCS values. More...

static WifiMode	GetHeMcs9 ()
	Return MCS 9 from HE MCS values. More...

static WifiMode	GetHePlcpHeaderMode ()

static WifiMode	GetHtMcs0 ()
	Return MCS 0 from HT MCS values. More...

static WifiMode	GetHtMcs1 ()
	Return MCS 1 from HT MCS values. More...

static WifiMode	GetHtMcs10 ()
	Return MCS 10 from HT MCS values. More...

static WifiMode	GetHtMcs11 ()
	Return MCS 11 from HT MCS values. More...

static WifiMode	GetHtMcs12 ()
	Return MCS 12 from HT MCS values. More...

static WifiMode	GetHtMcs13 ()
	Return MCS 13 from HT MCS values. More...

static WifiMode	GetHtMcs14 ()
	Return MCS 14 from HT MCS values. More...

static WifiMode	GetHtMcs15 ()
	Return MCS 15 from HT MCS values. More...

static WifiMode	GetHtMcs16 ()
	Return MCS 16 from HT MCS values. More...

static WifiMode	GetHtMcs17 ()
	Return MCS 17 from HT MCS values. More...

static WifiMode	GetHtMcs18 ()
	Return MCS 18 from HT MCS values. More...

static WifiMode	GetHtMcs19 ()
	Return MCS 19 from HT MCS values. More...

static WifiMode	GetHtMcs2 ()
	Return MCS 2 from HT MCS values. More...

static WifiMode	GetHtMcs20 ()
	Return MCS 20 from HT MCS values. More...

static WifiMode	GetHtMcs21 ()
	Return MCS 21 from HT MCS values. More...

static WifiMode	GetHtMcs22 ()
	Return MCS 22 from HT MCS values. More...

static WifiMode	GetHtMcs23 ()
	Return MCS 23 from HT MCS values. More...

static WifiMode	GetHtMcs24 ()
	Return MCS 24 from HT MCS values. More...

static WifiMode	GetHtMcs25 ()
	Return MCS 25 from HT MCS values. More...

static WifiMode	GetHtMcs26 ()
	Return MCS 26 from HT MCS values. More...

static WifiMode	GetHtMcs27 ()
	Return MCS 27 from HT MCS values. More...

static WifiMode	GetHtMcs28 ()
	Return MCS 28 from HT MCS values. More...

static WifiMode	GetHtMcs29 ()
	Return MCS 29 from HT MCS values. More...

static WifiMode	GetHtMcs3 ()
	Return MCS 3 from HT MCS values. More...

static WifiMode	GetHtMcs30 ()
	Return MCS 30 from HT MCS values. More...

static WifiMode	GetHtMcs31 ()
	Return MCS 31 from HT MCS values. More...

static WifiMode	GetHtMcs4 ()
	Return MCS 4 from HT MCS values. More...

static WifiMode	GetHtMcs5 ()
	Return MCS 5 from HT MCS values. More...

static WifiMode	GetHtMcs6 ()
	Return MCS 6 from HT MCS values. More...

static WifiMode	GetHtMcs7 ()
	Return MCS 7 from HT MCS values. More...

static WifiMode	GetHtMcs8 ()
	Return MCS 8 from HT MCS values. More...

static WifiMode	GetHtMcs9 ()
	Return MCS 9 from HT MCS values. More...

static WifiMode	GetHtPlcpHeaderMode ()

static WifiMode	GetOfdmRate12Mbps ()
	Return a WifiMode for OFDM at 12Mbps. More...

static WifiMode	GetOfdmRate12MbpsBW10MHz ()
	Return a WifiMode for OFDM at 12Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate12MbpsBW5MHz ()
	Return a WifiMode for OFDM at 12Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate13_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 13.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate18Mbps ()
	Return a WifiMode for OFDM at 18Mbps. More...

static WifiMode	GetOfdmRate18MbpsBW10MHz ()
	Return a WifiMode for OFDM at 18Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate1_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 1.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate24Mbps ()
	Return a WifiMode for OFDM at 24Mbps. More...

static WifiMode	GetOfdmRate24MbpsBW10MHz ()
	Return a WifiMode for OFDM at 24Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate27MbpsBW10MHz ()
	Return a WifiMode for OFDM at 27Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate2_25MbpsBW5MHz ()
	Return a WifiMode for OFDM at 2.25Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate36Mbps ()
	Return a WifiMode for OFDM at 36Mbps. More...

static WifiMode	GetOfdmRate3MbpsBW10MHz ()
	Return a WifiMode for OFDM at 3Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate3MbpsBW5MHz ()
	Return a WifiMode for OFDM at 3Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate48Mbps ()
	Return a WifiMode for OFDM at 48Mbps. More...

static WifiMode	GetOfdmRate4_5MbpsBW10MHz ()
	Return a WifiMode for OFDM at 4.5Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate4_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 4.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate54Mbps ()
	Return a WifiMode for OFDM at 54Mbps. More...

static WifiMode	GetOfdmRate6Mbps ()
	Return a WifiMode for OFDM at 6Mbps. More...

static WifiMode	GetOfdmRate6MbpsBW10MHz ()
	Return a WifiMode for OFDM at 6Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate6MbpsBW5MHz ()
	Return a WifiMode for OFDM at 6Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate9Mbps ()
	Return a WifiMode for OFDM at 9Mbps. More...

static WifiMode	GetOfdmRate9MbpsBW10MHz ()
	Return a WifiMode for OFDM at 9Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate9MbpsBW5MHz ()
	Return a WifiMode for OFDM at 9Mbps with 5MHz channel spacing. More...

static Time	GetPlcpHeaderDuration (WifiTxVector txVector)

static WifiMode	GetPlcpHeaderMode (WifiTxVector txVector)

static Time	GetPlcpHtSigHeaderDuration (WifiPreamble preamble)

static Time	GetPlcpPreambleDuration (WifiTxVector txVector)

static Time	GetPlcpSigA1Duration (WifiPreamble preamble)

static Time	GetPlcpSigA2Duration (WifiPreamble preamble)

static Time	GetPlcpSigBDuration (WifiPreamble preamble)

static Time	GetPlcpTrainingSymbolDuration (WifiTxVector txVector)

static Time	GetPreambleDetectionDuration (void)

static Time	GetStartOfPacketDuration (WifiTxVector txVector)

static TypeId	GetTypeId (void)
	Get the type ID. More...

static WifiMode	GetVhtMcs0 ()
	Return MCS 0 from VHT MCS values. More...

static WifiMode	GetVhtMcs1 ()
	Return MCS 1 from VHT MCS values. More...

static WifiMode	GetVhtMcs2 ()
	Return MCS 2 from VHT MCS values. More...

static WifiMode	GetVhtMcs3 ()
	Return MCS 3 from VHT MCS values. More...

static WifiMode	GetVhtMcs4 ()
	Return MCS 4 from VHT MCS values. More...

static WifiMode	GetVhtMcs5 ()
	Return MCS 5 from VHT MCS values. More...

static WifiMode	GetVhtMcs6 ()
	Return MCS 6 from VHT MCS values. More...

static WifiMode	GetVhtMcs7 ()
	Return MCS 7 from VHT MCS values. More...

static WifiMode	GetVhtMcs8 ()
	Return MCS 8 from VHT MCS values. More...

static WifiMode	GetVhtMcs9 ()
	Return MCS 9 from VHT MCS values. More...

static WifiMode	GetVhtPlcpHeaderMode ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	Destructor implementation. More...

Protected Member Functions inherited from ns3::WifiPhy
bool	DoChannelSwitch (uint8_t id)
	The default implementation does nothing and returns true. More...

bool	DoFrequencySwitch (uint16_t frequency)
	The default implementation does nothing and returns true. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

void	SwitchMaybeToCcaBusy (void)
	Check if Phy state should move to CCA busy state based on current state of interference tracker. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Attributes
Ptr< YansWifiChannel >	m_channel
	YansWifiChannel that this YansWifiPhy is connected to. More...

Additional Inherited Members
Public Types inherited from ns3::WifiPhy
typedef std::pair< uint8_t, WifiPhyStandard >	ChannelNumberStandardPair
	A pair of a ChannelNumber and WifiPhyStandard. More...

typedef void(*	EndOfHePreambleCallback) (HePreambleParameters params)
	TracedCallback signature for end of HE-SIG-A events. More...

typedef std::pair< uint16_t, uint16_t >	FrequencyWidthPair
	A pair of a center Frequency and a ChannelWidth. More...

typedef void(*	MonitorSnifferRxCallback) (Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise)
	TracedCallback signature for monitor mode receive events. More...

typedef void(*	MonitorSnifferTxCallback) (const Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu)
	TracedCallback signature for monitor mode transmit events. More...

Protected Attributes inherited from ns3::WifiPhy
EventId	m_endPlcpRxEvent
	the end of PLCP receive event More...

EventId	m_endPreambleDetectionEvent
	the end of preamble detection event More...

EventId	m_endRxEvent
	the end of receive event More...

InterferenceHelper	m_interference
	Pointer to InterferenceHelper. More...

Ptr< UniformRandomVariable >	m_random
	Provides uniform random variables. More...

uint32_t	m_rxMpduReferenceNumber
	A-MPDU reference number to identify all received subframes belonging to the same received A-MPDU. More...

Ptr< WifiPhyStateHelper >	m_state
	Pointer to WifiPhyStateHelper. More...

uint32_t	m_txMpduReferenceNumber
	A-MPDU reference number to identify all transmitted subframes belonging to the same received A-MPDU. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

802.11 PHY layer model

This PHY implements a model of 802.11a.

The model implemented here is based on the model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf).

This PHY model depends on a channel loss and delay model as provided by the ns3::PropagationLossModel and ns3::PropagationDelayModel classes, both of which are members of the ns3::YansWifiChannel class.

Config Paths

ns3::YansWifiPhy is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/$ns3::YansWifiPhy"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/$ns3::YansWifiPhy"

No Attributes are defined for this type.

Attributes defined in parent class ns3::WifiPhy

Frequency: The operating center frequency (MHz)
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write read
ChannelWidth: Whether 5MHz, 10MHz, 20MHz, 22MHz, 40MHz, 80 MHz or 160 MHz.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 5:160
- Initial value: 20
- Flags: construct write read
ChannelNumber: If set to non-zero defined value, will control Frequency and ChannelWidth assignment
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:196
- Initial value: 0
- Flags: construct write read
EnergyDetectionThreshold: The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to detect the signal.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -101
- Flags: construct write
RxSensitivity: The energy of a received signal should be higher than this threshold (dBm) for the PHY to detect the signal.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -101
- Flags: construct write read
CcaEdThreshold: The energy of a non Wi-Fi received signal should be higher than this threshold (dbm) to allow the PHY layer to declare CCA BUSY state. This check is performed on the 20 MHz primary channel only.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -62
- Flags: construct write read
TxGain: Transmission gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
RxGain: Reception gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
TxPowerLevels: Number of transmission power levels available between TxPowerStart and TxPowerEnd included.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 1
- Flags: construct write read
TxPowerEnd: Maximum available transmission level (dbm).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 16.0206
- Flags: construct write read
TxPowerStart: Minimum available transmission level (dbm).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 16.0206
- Flags: construct write read
RxNoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0 (usually 290 K)".
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 7
- Flags: construct write
State: The state of the PHY layer.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiPhyStateHelper>
- Initial value: 0
- Flags: construct write read
ChannelSwitchDelay: Delay between two short frames transmitted on different frequencies.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +250000.0ns
- Flags: construct write read
Antennas: The number of antennas on the device.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:8
- Initial value: 1
- Flags: construct write read
MaxSupportedTxSpatialStreams: The maximum number of supported TX spatial streams.This parameter is only valuable for 802.11n/ac/ax STAs and APs.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:8
- Initial value: 1
- Flags: construct write read
MaxSupportedRxSpatialStreams: The maximum number of supported RX spatial streams.This parameter is only valuable for 802.11n/ac/ax STAs and APs.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:8
- Initial value: 1
- Flags: construct write read
ShortGuardEnabled: Whether or not short guard interval is enabled for HT/VHT transmissions.This parameter is only valuable for 802.11n/ac/ax STAs and APs.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
GuardInterval: Whether 800ns, 1600ns or 3200ns guard interval is used for HE transmissions.This parameter is only valuable for 802.11ax STAs and APs.
- Set with class: ns3::TimeValue
- Underlying type: Time +800.0ns:+3200.0ns
- Initial value: +3200.0ns
- Flags: construct write read
GreenfieldEnabled: Whether or not Greenfield is enabled.This parameter is only valuable for 802.11n STAs and APs.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
ShortPlcpPreambleSupported: Whether or not short PLCP preamble is supported.This parameter is only valuable for 802.11b STAs and APs.Note: 802.11g APs and STAs always support short PLCP preamble.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
FrameCaptureModel: Ptr to an object that implements the frame capture model
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::FrameCaptureModel>
- Initial value: 0
- Flags: construct write read
PreambleDetectionModel: Ptr to an object that implements the preamble detection model
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::PreambleDetectionModel>
- Initial value: 0
- Flags: construct write read
PostReceptionErrorModel: An optional packet error model can be added to the receive packet process after any propagation-based (SNR-based) error models have been applied. Typically this is used to force specific packet drops, for testing purposes.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ErrorModel>
- Initial value: 0
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiPhy

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
Callback signature: ns3::Packet::TracedCallback
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel. NOTE: the only official WifiPhy implementation available to this date never fires this trace source.
Callback signature: ns3::Packet::TracedCallback
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
Callback signature: ns3::Packet::TracedCallback
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
Callback signature: ns3::Packet::TracedCallback
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
Callback signature: ns3::Packet::TracedCallback
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
Callback signature: ns3::Packet::TracedCallback
MonitorSnifferRx: Trace source simulating a wifi device in monitor mode sniffing all received frames
Callback signature: ns3::WifiPhy::MonitorSnifferRxTracedCallback
MonitorSnifferTx: Trace source simulating the capability of a wifi device in monitor mode to sniff all frames being transmitted
Callback signature: ns3::WifiPhy::MonitorSnifferTxTracedCallback
EndOfHePreamble: Trace source indicating the end of the 802.11ax preamble (after training fields)
Callback signature: ns3::WifiPhy::EndOfHePreambleTracedCallback

Size of this type is 680 bytes (on a 64-bit architecture).

Definition at line 47 of file yans-wifi-phy.h.

Constructor & Destructor Documentation

◆ YansWifiPhy()

ns3::YansWifiPhy::YansWifiPhy ( )

Definition at line 45 of file yans-wifi-phy.cc.

References NS_LOG_FUNCTION.

◆ ~YansWifiPhy()

ns3::YansWifiPhy::~YansWifiPhy ( )

virtual

Definition at line 50 of file yans-wifi-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::YansWifiPhy::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::WifiPhy.

Definition at line 56 of file yans-wifi-phy.cc.

References ns3::WifiPhy::DoDispose(), m_channel, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetChannel()

Ptr< Channel > ns3::YansWifiPhy::GetChannel ( void ) const

virtual

Return the Channel this WifiPhy is connected to.

Returns: the Channel this WifiPhy is connected to

Implements ns3::WifiPhy.

Definition at line 64 of file yans-wifi-phy.cc.

References m_channel.

◆ GetTypeId()

TypeId ns3::YansWifiPhy::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 35 of file yans-wifi-phy.cc.

References ns3::TypeId::SetParent().

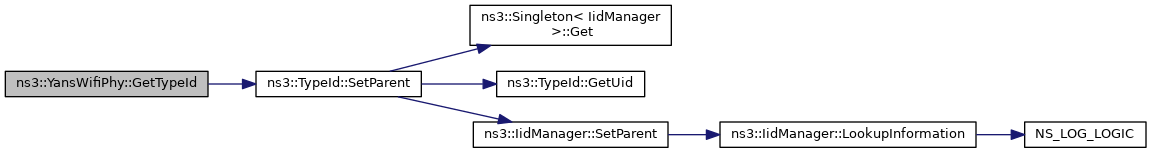

Here is the call graph for this function:

◆ SetChannel()

void ns3::YansWifiPhy::SetChannel ( const Ptr< YansWifiChannel > channel )

Set the YansWifiChannel this YansWifiPhy is to be connected to.

Parameters

channel the YansWifiChannel this YansWifiPhy is to be connected to

Definition at line 70 of file yans-wifi-phy.cc.

References third::channel, m_channel, and NS_LOG_FUNCTION.

Referenced by Bug2831TestCase::DoRun(), PsrExperiment::Run(), InterferenceExperiment::Run(), and CollisionExperiment::Run().

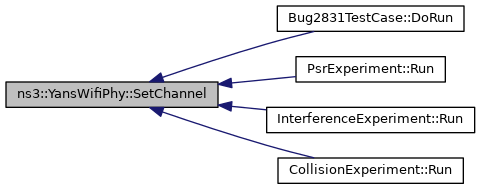

Here is the caller graph for this function:

◆ StartTx()

void ns3::YansWifiPhy::StartTx	(	Ptr< Packet >	packet,
		WifiTxVector	txVector,
		Time	txDuration
	)

virtual

Parameters

packet	the packet to send
txVector	the TXVECTOR that has tx parameters such as mode, the transmission mode to use to send this packet, and txPowerLevel, a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels
txDuration	duration of the transmission.

Implements ns3::WifiPhy.

Definition at line 78 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetPowerDbm(), ns3::WifiPhy::GetTxGain(), ns3::WifiPhy::GetTxPowerForTransmission(), ns3::WifiTxVector::GetTxPowerLevel(), m_channel, and NS_LOG_DEBUG.

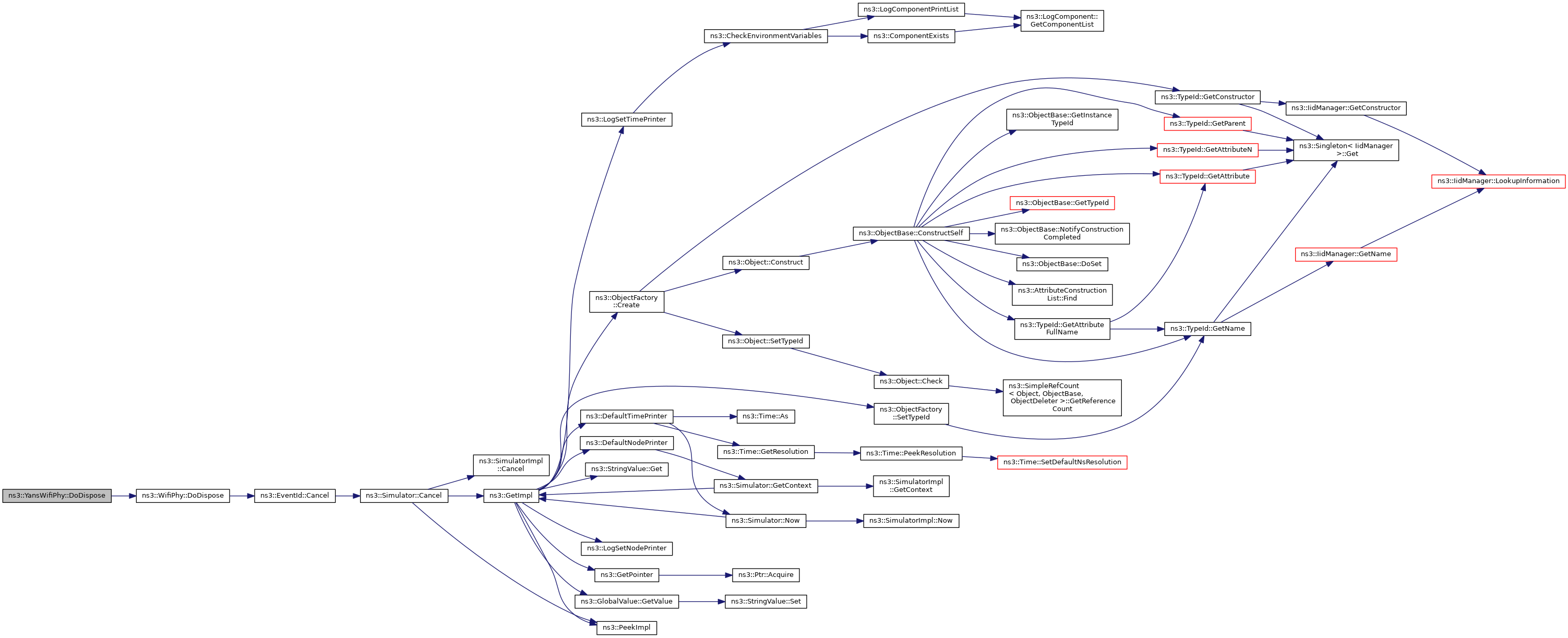

Here is the call graph for this function:

Member Data Documentation

◆ m_channel

Ptr<YansWifiChannel> ns3::YansWifiPhy::m_channel

private

YansWifiChannel that this YansWifiPhy is connected to.

Definition at line 84 of file yans-wifi-phy.h.

Referenced by DoDispose(), GetChannel(), SetChannel(), and StartTx().

The documentation for this class was generated from the following files:

src/wifi/model/yans-wifi-phy.h
src/wifi/model/yans-wifi-phy.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes defined in parent class ns3::WifiPhy

TraceSources defined in parent class ns3::WifiPhy

Constructor & Destructor Documentation

◆ YansWifiPhy()

◆ ~YansWifiPhy()

Member Function Documentation

◆ DoDispose()

◆ GetChannel()

◆ GetTypeId()

◆ SetChannel()

◆ StartTx()

Member Data Documentation

◆ m_channel
