ns3::BooleanValue Class Reference

AttributeValue implementation for Boolean. More...

#include "boolean.h"

Inheritance diagram for ns3::BooleanValue:

Collaboration diagram for ns3::BooleanValue:

Public Member Functions
	BooleanValue ()
	BooleanValue (bool value)
	Construct from an explicit value. More...
virtual Ptr< AttributeValue >	Copy (void) const
virtual bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)
bool	Get (void) const
	More...
template<typename T >
bool	GetAccessor (T &v) const
	Access the Boolean value as type T. More...
	operator bool () const
	Functor returning the value. More...
virtual std::string	SerializeToString (Ptr< const AttributeChecker > checker) const
void	Set (bool value)
	Set the value. More...
Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()
virtual	~AttributeValue ()
Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
bool	m_value
	The stored Boolean instance. More...

Detailed Description

AttributeValue implementation for Boolean.

See also

AttributeValue

Definition at line 36 of file boolean.h.

Constructor & Destructor Documentation

BooleanValue() [1/2]

ns3::BooleanValue::BooleanValue

(

)

Definition at line 34 of file boolean.cc.

References NS_LOG_FUNCTION.

BooleanValue() [2/2]

ns3::BooleanValue::BooleanValue

(

bool

value

)

Construct from an explicit value.

Parameters

[in]

value

The boolean value to begin with.

Definition at line 39 of file boolean.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Copy()

Ptr< AttributeValue > ns3::BooleanValue::Copy ( void  ) const

virtual

Returns

a deep copy of this class, wrapped into an Attribute object.

Implements ns3::AttributeValue.

Definition at line 75 of file boolean.cc.

References NS_LOG_FUNCTION.

DeserializeFromString()

bool ns3::BooleanValue::DeserializeFromString ( std::string  value, Ptr< const AttributeChecker >  checker  )

virtual

Parameters

[in]	value	A string representation of the value
[in]	checker	A pointer to the checker associated to the attribute.

Returns

true if the input string was correctly-formatted and could be successfully deserialized, false otherwise.

Upon return of this function, this AttributeValue instance contains the deserialized value. In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 96 of file boolean.cc.

References m_value, and NS_LOG_FUNCTION.

Get()

bool ns3::BooleanValue::Get

(

void

)

const

Returns

The Boolean value.

Definition at line 51 of file boolean.cc.

References m_value, and NS_LOG_FUNCTION.

Referenced by ns3::Node::ChecksumEnabled(), TcpBicDecrementTest::ExecuteTest(), ns3::WifiHelper::Install(), and ns3::operator<<().

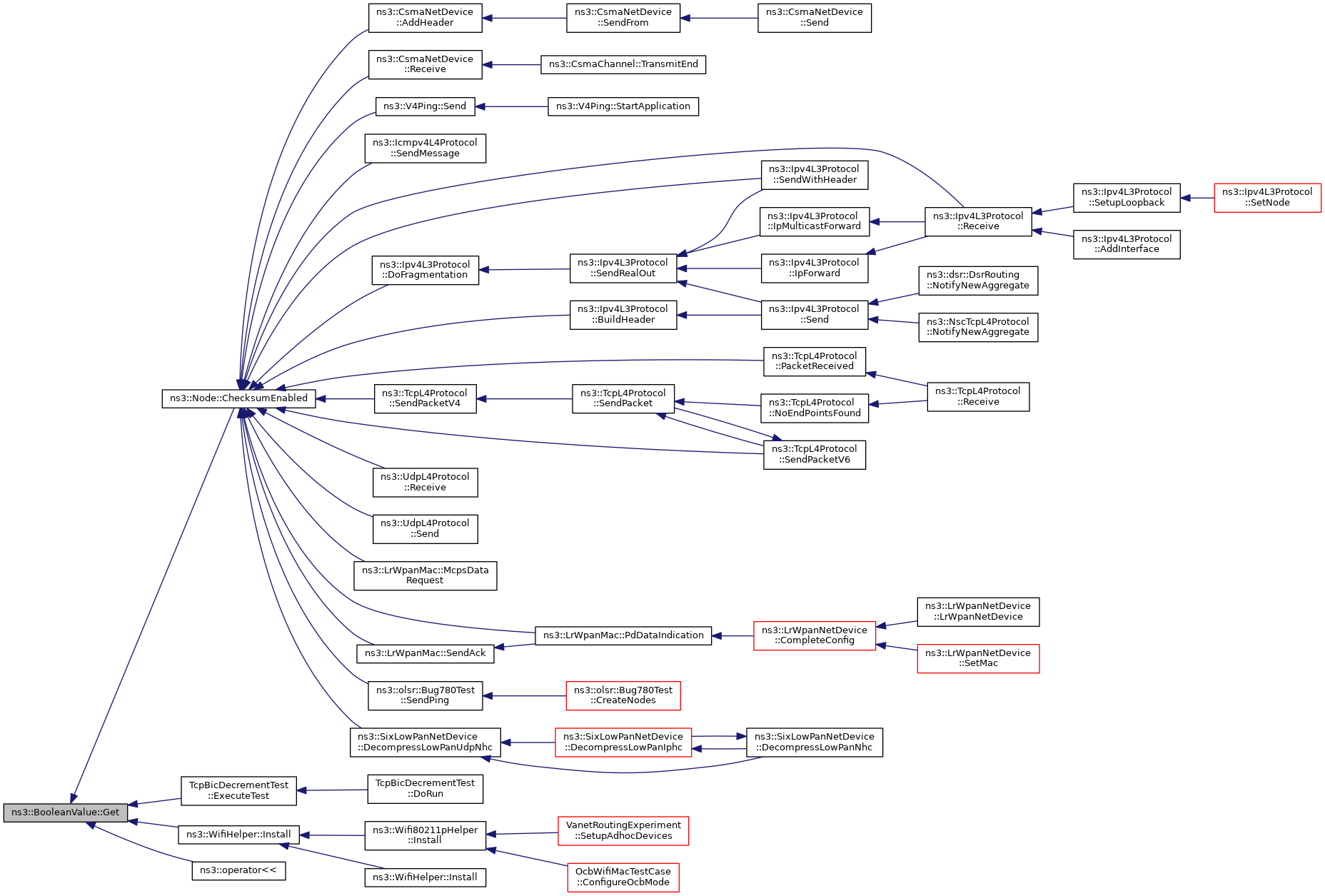

Here is the caller graph for this function:

GetAccessor()

template<typename T >

bool ns3::BooleanValue::GetAccessor

(

T &

value

)

const

Access the Boolean value as type T.

Template Parameters

T	[explicit] The type to cast to.

Parameters

[out]

value

The Boolean value, as type T.

Returns

true.

Definition at line 65 of file boolean.h.

References m_value.

operator bool()

ns3::BooleanValue::operator bool

(

)

const

Functor returning the value.

Returns

The value.

Definition at line 56 of file boolean.cc.

SerializeToString()

std::string ns3::BooleanValue::SerializeToString ( Ptr< const AttributeChecker >  checker ) const

virtual

Parameters

[in]

checker

The checker associated to the attribute

Returns

A string representation of this value.

In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 82 of file boolean.cc.

References m_value, and NS_LOG_FUNCTION.

Set()

void ns3::BooleanValue::Set

(

bool

value

)

Set the value.

Parameters

[in]

value

The value to adopt.

Definition at line 45 of file boolean.cc.

References m_value, and NS_LOG_FUNCTION.

Member Data Documentation

m_value

Boolean ns3::BooleanValue::m_value

private

The stored Boolean instance.

Definition at line 61 of file boolean.h.

Referenced by DeserializeFromString(), Get(), GetAccessor(), SerializeToString(), and Set().

---

The documentation for this class was generated from the following files:

• src/core/model/boolean.h
• doc/introspected-doxygen.h
• src/core/model/boolean.cc
