TCP Test - send string data from client to server and back. More...

Inheritance diagram for TcpTestCase:

Collaboration diagram for TcpTestCase:

Public Member Functions
	TcpTestCase (uint32_t totalStreamSize, uint32_t sourceWriteSize, uint32_t sourceReadSize, uint32_t serverWriteSize, uint32_t serverReadSize, bool useIpv6)
	Constructor. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
Ptr< SimpleNetDevice >	AddSimpleNetDevice (Ptr< Node > node, const char ipaddr, const char netmask)
	Add a SimpleNetDevice to a node (IPv4 version). More...

Ptr< SimpleNetDevice >	AddSimpleNetDevice6 (Ptr< Node > node, Ipv6Address ipaddr, Ipv6Prefix prefix)
	Add a SimpleNetDevice to a node (IPv6 version). More...

Ptr< Node >	CreateInternetNode (void)
	Create a node with the Internet stack (IPv4 version). More...

Ptr< Node >	CreateInternetNode6 (void)
	Create a node with the Internet stack (IPv6 version). More...

virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

virtual void	DoTeardown (void)
	Implementation to do any local setup required for this TestCase. More...

void	ServerHandleConnectionCreated (Ptr< Socket > s, const Address &addr)
	Server: Handle connection created. More...

void	ServerHandleRecv (Ptr< Socket > sock)
	Server: Receive data. More...

void	ServerHandleSend (Ptr< Socket > sock, uint32_t available)
	Server: Send data. More...

void	SetupDefaultSim (void)
	Setup the test (IPv4 version). More...

void	SetupDefaultSim6 (void)
	Setup the test (IPv6 version). More...

void	SourceHandleRecv (Ptr< Socket > sock)
	Client: Receive data. More...

void	SourceHandleSend (Ptr< Socket > sock, uint32_t available)
	Client: Send data. More...

Private Attributes
uint32_t	m_currentServerRxBytes
	Server Tx bytes. More...

uint32_t	m_currentServerTxBytes
	Server Rx bytes. More...

uint32_t	m_currentSourceRxBytes
	Client Rx bytes. More...

uint32_t	m_currentSourceTxBytes
	Client Tx bytes. More...

uint32_t	m_serverReadSize
	Server data size when receiving. More...

uint8_t *	m_serverRxPayload
	Server Rx payload. More...

uint32_t	m_serverWriteSize
	Server data size when sending. More...

uint32_t	m_sourceReadSize
	Client data size when receiving. More...

uint8_t *	m_sourceRxPayload
	Client Rx payload. More...

uint8_t *	m_sourceTxPayload
	Client Tx payload. More...

uint32_t	m_sourceWriteSize
	Client data size when sending. More...

uint32_t	m_totalBytes
	Total stream size (in bytes). More...

bool	m_useIpv6
	Use IPv6 instead of IPv4. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

TCP Test - send string data from client to server and back.

Definition at line 61 of file tcp-test.cc.

Constructor & Destructor Documentation

◆ TcpTestCase()

TcpTestCase::TcpTestCase	(	uint32_t	totalStreamSize,
		uint32_t	sourceWriteSize,
		uint32_t	sourceReadSize,
		uint32_t	serverWriteSize,
		uint32_t	serverReadSize,
		bool	useIpv6
	)

Constructor.

Parameters

totalStreamSize	Total stream size (in bytes).
sourceWriteSize	Client data size when sending.
sourceReadSize	Client data size when receiving.
serverWriteSize	Server data size when sending.
serverReadSize	Server data size when receiving.
useIpv6	Use IPv6 instead of IPv4.

Definition at line 187 of file tcp-test.cc.

Member Function Documentation

◆ AddSimpleNetDevice()

Ptr< SimpleNetDevice > TcpTestCase::AddSimpleNetDevice	(	Ptr< Node >	node,
		const char *	ipaddr,
		const char *	netmask
	)

private

Add a SimpleNetDevice to a node (IPv4 version).

Parameters

node	The target node.
ipaddr	the SimpleNetDevice IPv4 address.
netmask	the SimpleNetDevice IPv4 address netmask.

Returns: The new SimpleNetDevice.

Definition at line 373 of file tcp-test.cc.

References ns3::Ipv4::AddAddress(), ns3::Node::AddDevice(), ns3::Ipv4::AddInterface(), ns3::Object::GetObject(), ns3::SimpleNetDevice::SetAddress(), and ns3::Ipv4::SetUp().

Referenced by SetupDefaultSim().

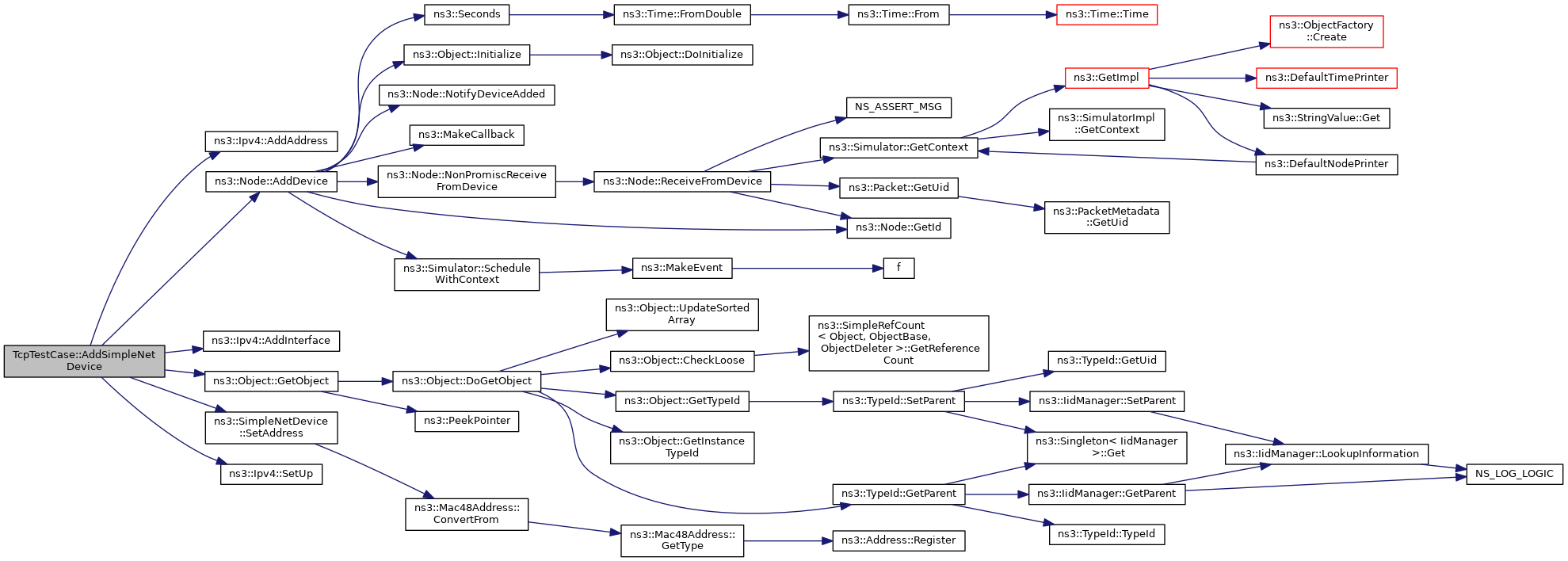

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddSimpleNetDevice6()

Ptr< SimpleNetDevice > TcpTestCase::AddSimpleNetDevice6	(	Ptr< Node >	node,
		Ipv6Address	ipaddr,
		Ipv6Prefix	prefix
	)

private

Add a SimpleNetDevice to a node (IPv6 version).

Parameters

node	The target node.
ipaddr	the SimpleNetDevice IPv6 address.
prefix	the SimpleNetDevice IP6 address prefix.

Returns: The new SimpleNetDevice.

Definition at line 509 of file tcp-test.cc.

References ns3::Ipv6::AddAddress(), ns3::Node::AddDevice(), ns3::Ipv6::AddInterface(), ns3::Object::GetObject(), ns3::SimpleNetDevice::SetAddress(), and ns3::Ipv6::SetUp().

Referenced by SetupDefaultSim6().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateInternetNode()

Ptr< Node > TcpTestCase::CreateInternetNode ( void )

private

Create a node with the Internet stack (IPv4 version).

Returns: The new node.

Definition at line 342 of file tcp-test.cc.

References ns3::Object::AggregateObject(), ns3::Ipv4L3Protocol::SetRoutingProtocol(), and ns3::ArpL3Protocol::SetTrafficControl().

Referenced by SetupDefaultSim().

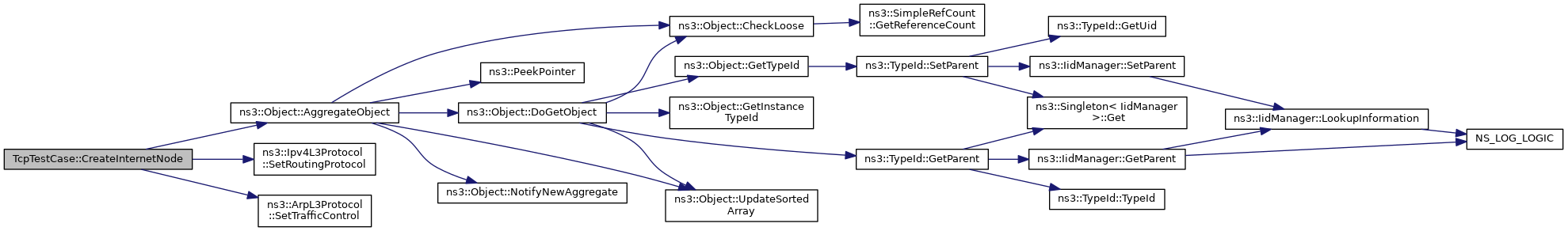

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateInternetNode6()

Ptr< Node > TcpTestCase::CreateInternetNode6 ( void )

private

Create a node with the Internet stack (IPv6 version).

Returns: The new node.

Definition at line 479 of file tcp-test.cc.

References ns3::Object::AggregateObject().

Referenced by SetupDefaultSim6().

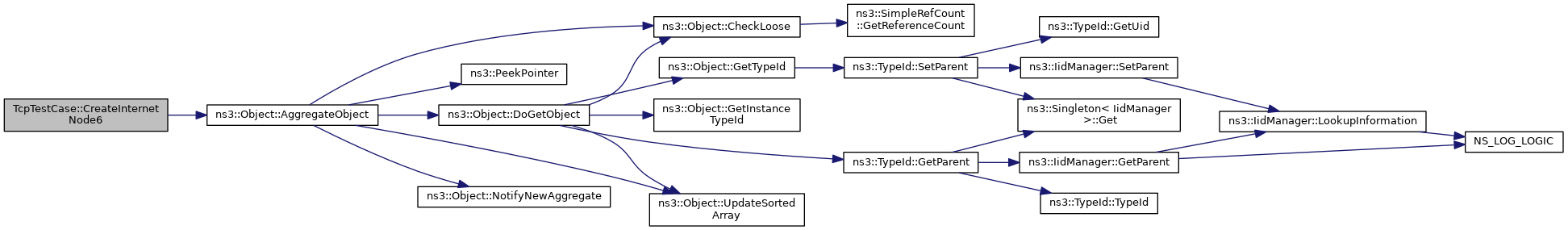

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRun()

void TcpTestCase::DoRun ( void )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 210 of file tcp-test.cc.

References m_currentServerRxBytes, m_currentServerTxBytes, m_currentSourceRxBytes, m_currentSourceTxBytes, m_serverRxPayload, m_sourceRxPayload, m_sourceTxPayload, m_totalBytes, m_useIpv6, NS_TEST_EXPECT_MSG_EQ, SetupDefaultSim(), and SetupDefaultSim6().

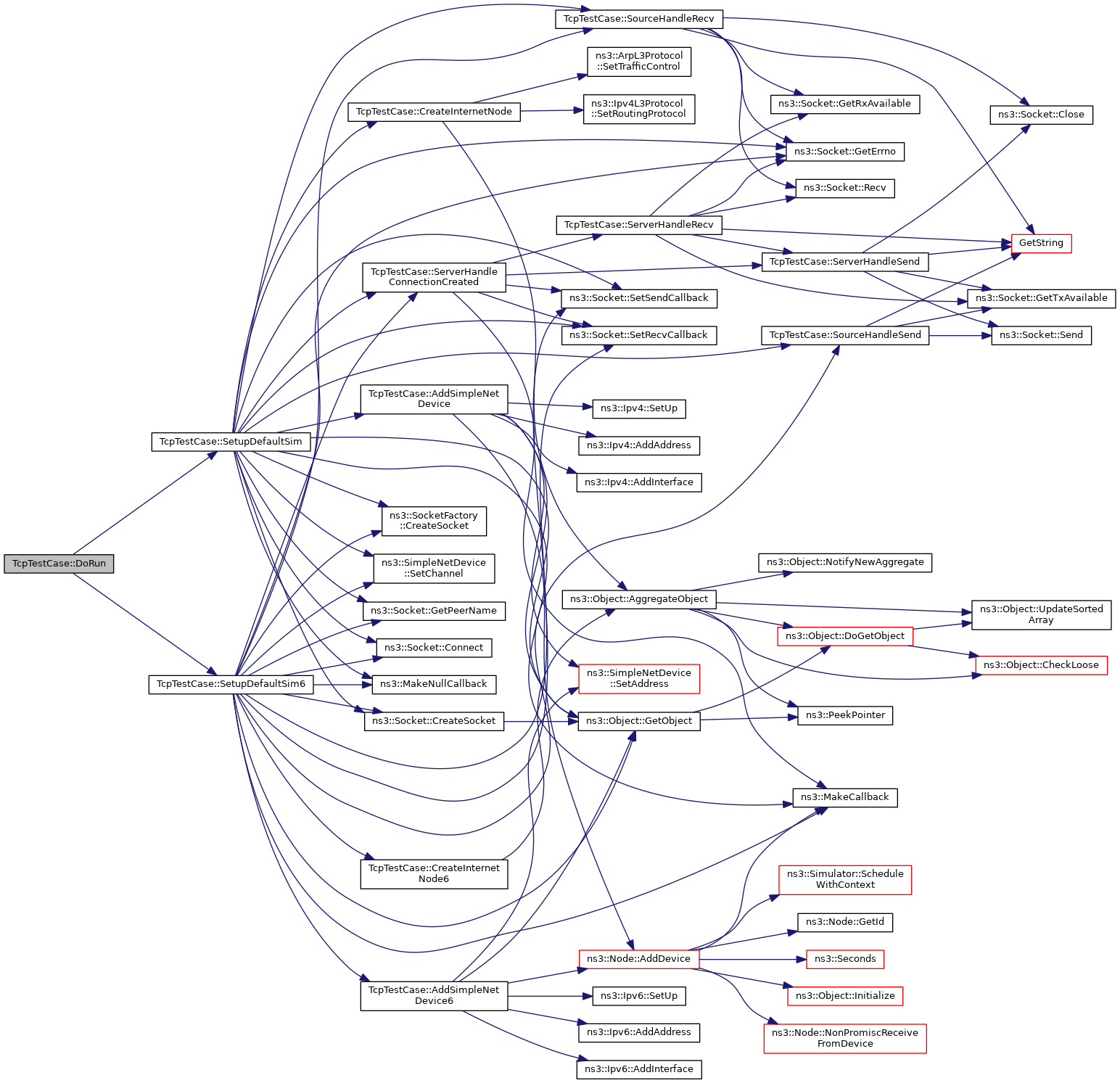

Here is the call graph for this function:

◆ DoTeardown()

void TcpTestCase::DoTeardown ( void )

privatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test teardown

Reimplemented from ns3::TestCase.

Definition at line 247 of file tcp-test.cc.

References m_serverRxPayload, m_sourceRxPayload, and m_sourceTxPayload.

◆ ServerHandleConnectionCreated()

void TcpTestCase::ServerHandleConnectionCreated	(	Ptr< Socket >	s,
		const Address &	addr
	)

private

Server: Handle connection created.

Parameters

s	The socket.
addr	The other party address.

Definition at line 256 of file tcp-test.cc.

References ns3::MakeCallback(), ServerHandleRecv(), ServerHandleSend(), ns3::Socket::SetRecvCallback(), and ns3::Socket::SetSendCallback().

Referenced by SetupDefaultSim(), and SetupDefaultSim6().

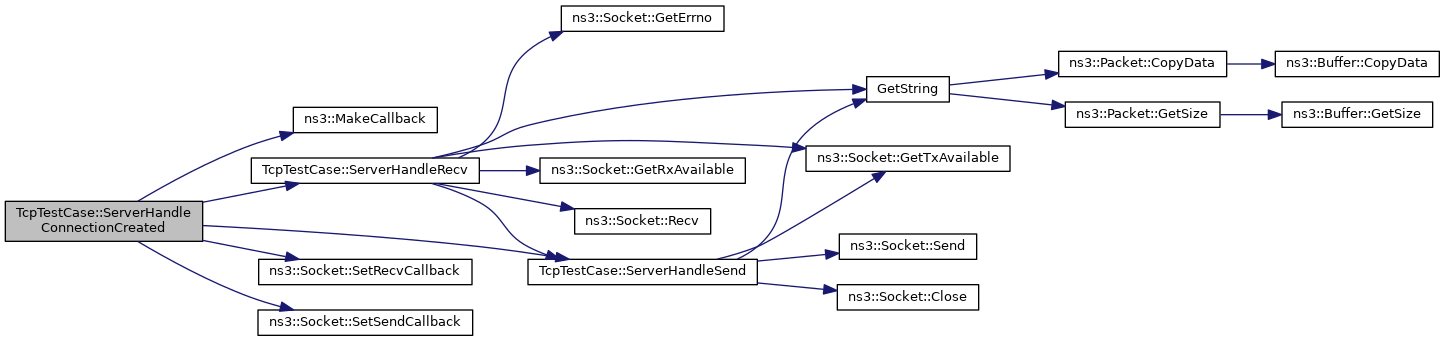

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ServerHandleRecv()

void TcpTestCase::ServerHandleRecv ( Ptr< Socket > sock )

private

Server: Receive data.

Parameters

sock	The socket.

Definition at line 263 of file tcp-test.cc.

References ns3::Socket::GetErrno(), ns3::Socket::GetRxAvailable(), GetString(), ns3::Socket::GetTxAvailable(), m_currentServerRxBytes, m_serverReadSize, m_serverRxPayload, m_totalBytes, min, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_TEST_EXPECT_MSG_EQ, ns3::Socket::Recv(), and ServerHandleSend().

Referenced by ServerHandleConnectionCreated().

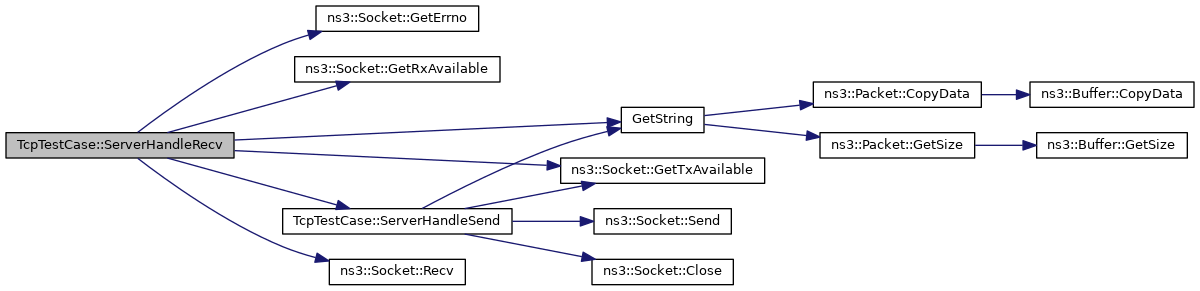

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ServerHandleSend()

void TcpTestCase::ServerHandleSend	(	Ptr< Socket >	sock,
		uint32_t	available
	)

private

Server: Send data.

Parameters

sock	The socket.
available	Unused in the test.

Definition at line 283 of file tcp-test.cc.

References ns3::Socket::Close(), GetString(), ns3::Socket::GetTxAvailable(), m_currentServerRxBytes, m_currentServerTxBytes, m_serverRxPayload, m_serverWriteSize, m_totalBytes, min, NS_LOG_DEBUG, NS_TEST_EXPECT_MSG_EQ, and ns3::Socket::Send().

Referenced by ServerHandleConnectionCreated(), and ServerHandleRecv().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupDefaultSim()

void TcpTestCase::SetupDefaultSim ( void )

private

Setup the test (IPv4 version).

Definition at line 387 of file tcp-test.cc.

References AddSimpleNetDevice(), third::channel, ns3::Socket::Connect(), CreateInternetNode(), ns3::SocketFactory::CreateSocket(), ns3::Socket::CreateSocket(), ns3::Socket::GetErrno(), ns3::Object::GetObject(), ns3::Socket::GetPeerName(), ns3::MakeCallback(), ns3::MakeNullCallback(), NS_TEST_EXPECT_MSG_EQ, port, ServerHandleConnectionCreated(), ns3::SimpleNetDevice::SetChannel(), ns3::Socket::SetRecvCallback(), ns3::Socket::SetSendCallback(), SourceHandleRecv(), and SourceHandleSend().

Referenced by DoRun().

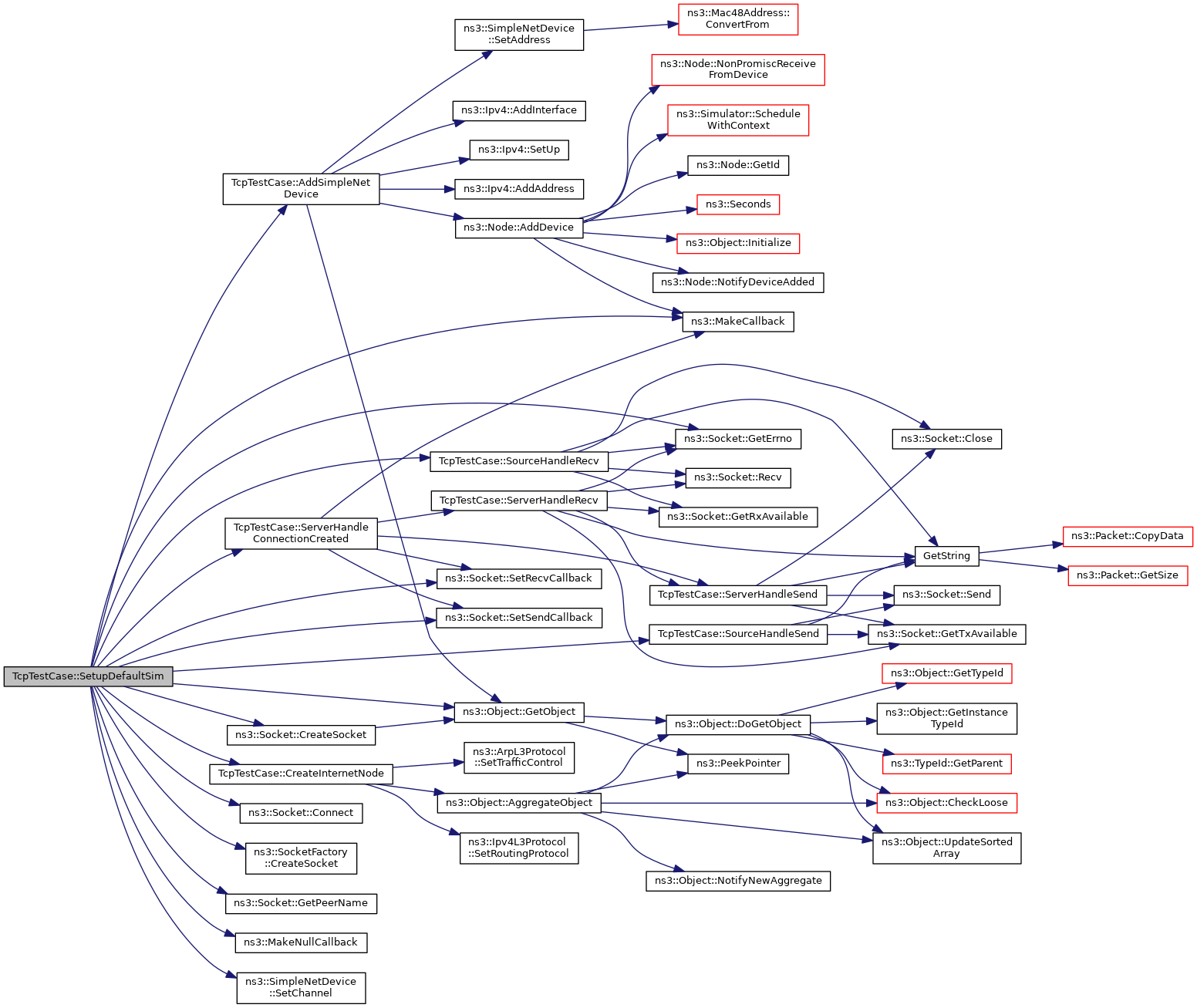

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupDefaultSim6()

void TcpTestCase::SetupDefaultSim6 ( void )

private

Setup the test (IPv6 version).

Definition at line 433 of file tcp-test.cc.

References AddSimpleNetDevice6(), third::channel, ns3::Socket::Connect(), CreateInternetNode6(), ns3::SocketFactory::CreateSocket(), ns3::Socket::CreateSocket(), ns3::Socket::GetErrno(), ns3::Object::GetObject(), ns3::Socket::GetPeerName(), ns3::MakeCallback(), ns3::MakeNullCallback(), NS_TEST_EXPECT_MSG_EQ, port, ServerHandleConnectionCreated(), ns3::SimpleNetDevice::SetChannel(), ns3::Socket::SetRecvCallback(), ns3::Socket::SetSendCallback(), SourceHandleRecv(), and SourceHandleSend().

Referenced by DoRun().

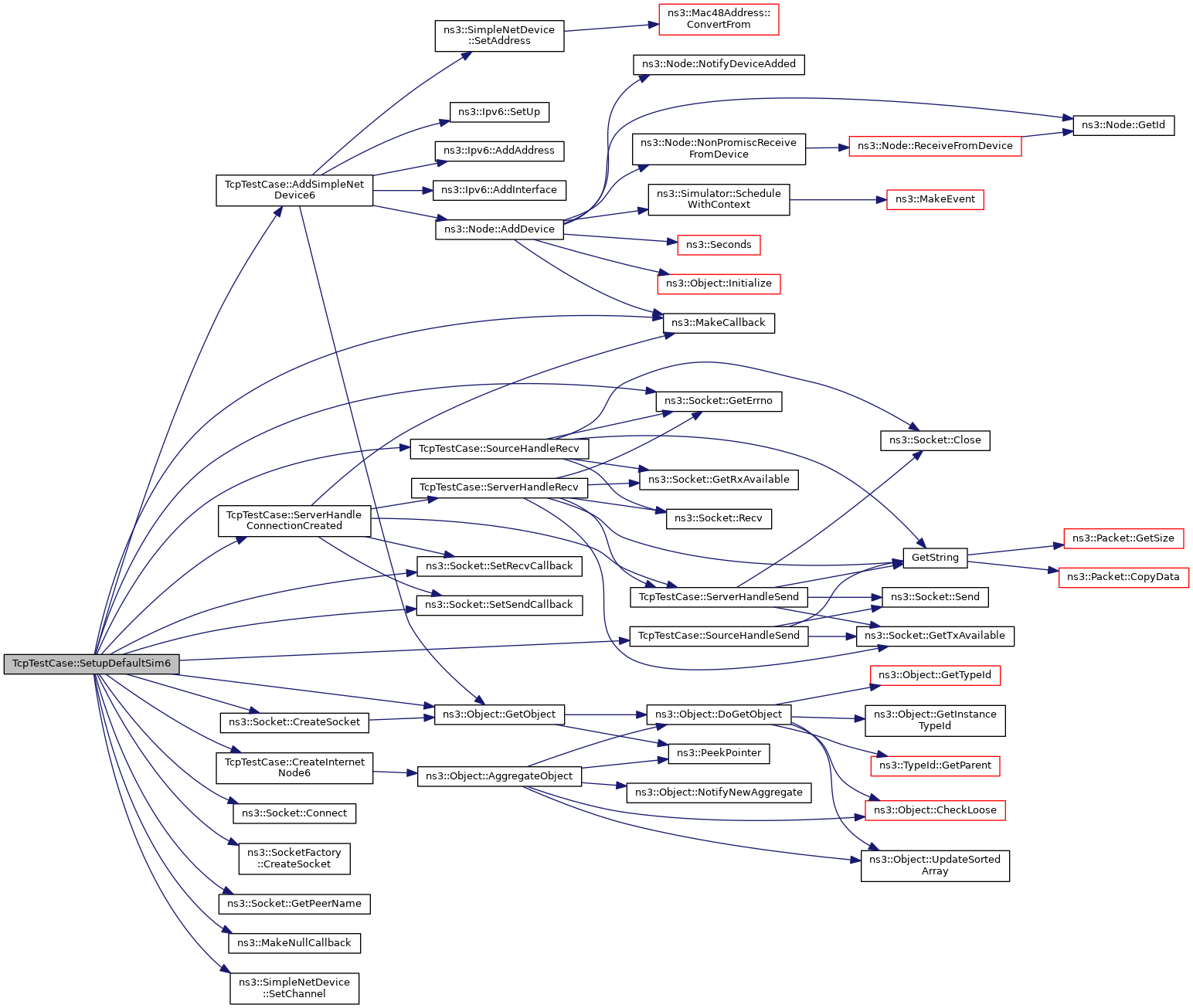

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SourceHandleRecv()

void TcpTestCase::SourceHandleRecv ( Ptr< Socket > sock )

private

Client: Receive data.

Parameters

sock	The socket.

Definition at line 319 of file tcp-test.cc.

References ns3::Socket::Close(), ns3::Socket::GetErrno(), ns3::Socket::GetRxAvailable(), GetString(), m_currentSourceRxBytes, m_sourceReadSize, m_sourceRxPayload, m_totalBytes, min, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_TEST_EXPECT_MSG_EQ, and ns3::Socket::Recv().

Referenced by SetupDefaultSim(), and SetupDefaultSim6().

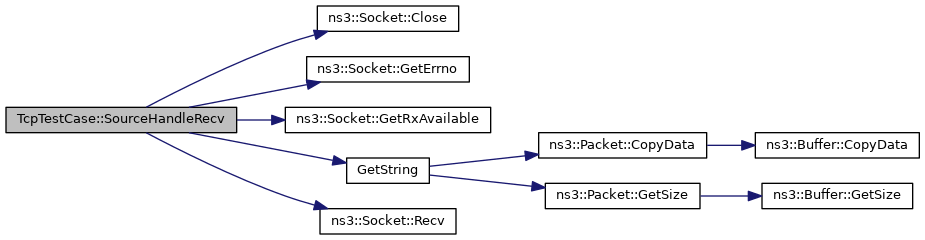

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SourceHandleSend()

void TcpTestCase::SourceHandleSend	(	Ptr< Socket >	sock,
		uint32_t	available
	)

private

Client: Send data.

Parameters

sock	The socket.
available	Unused in the test.

Definition at line 303 of file tcp-test.cc.

References GetString(), ns3::Socket::GetTxAvailable(), m_currentSourceTxBytes, m_sourceTxPayload, m_sourceWriteSize, m_totalBytes, min, NS_LOG_DEBUG, NS_TEST_EXPECT_MSG_EQ, and ns3::Socket::Send().

Referenced by SetupDefaultSim(), and SetupDefaultSim6().

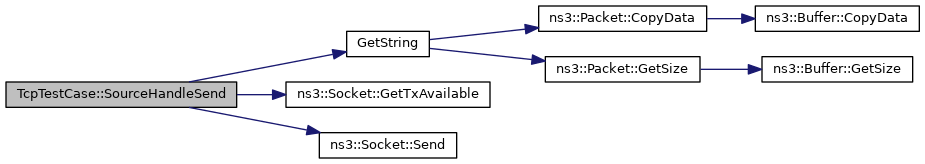

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_currentServerRxBytes

uint32_t TcpTestCase::m_currentServerRxBytes

private

Server Tx bytes.

Definition at line 157 of file tcp-test.cc.

Referenced by DoRun(), ServerHandleRecv(), and ServerHandleSend().

◆ m_currentServerTxBytes

uint32_t TcpTestCase::m_currentServerTxBytes

private

Server Rx bytes.

Definition at line 158 of file tcp-test.cc.

Referenced by DoRun(), and ServerHandleSend().

◆ m_currentSourceRxBytes

uint32_t TcpTestCase::m_currentSourceRxBytes

private

Client Rx bytes.

Definition at line 156 of file tcp-test.cc.

Referenced by DoRun(), and SourceHandleRecv().

◆ m_currentSourceTxBytes

uint32_t TcpTestCase::m_currentSourceTxBytes

private

Client Tx bytes.

Definition at line 155 of file tcp-test.cc.

Referenced by DoRun(), and SourceHandleSend().

◆ m_serverReadSize

uint32_t TcpTestCase::m_serverReadSize

private

Server data size when receiving.

Definition at line 154 of file tcp-test.cc.

Referenced by ServerHandleRecv().

◆ m_serverRxPayload

uint8_t* TcpTestCase::m_serverRxPayload

private

Server Rx payload.

Definition at line 161 of file tcp-test.cc.

Referenced by DoRun(), DoTeardown(), ServerHandleRecv(), and ServerHandleSend().

◆ m_serverWriteSize

uint32_t TcpTestCase::m_serverWriteSize

private

Server data size when sending.

Definition at line 153 of file tcp-test.cc.

Referenced by ServerHandleSend().

◆ m_sourceReadSize

uint32_t TcpTestCase::m_sourceReadSize

private

Client data size when receiving.

Definition at line 152 of file tcp-test.cc.

Referenced by SourceHandleRecv().

◆ m_sourceRxPayload

uint8_t* TcpTestCase::m_sourceRxPayload

private

Client Rx payload.

Definition at line 160 of file tcp-test.cc.

Referenced by DoRun(), DoTeardown(), and SourceHandleRecv().

◆ m_sourceTxPayload

uint8_t* TcpTestCase::m_sourceTxPayload

private

Client Tx payload.

Definition at line 159 of file tcp-test.cc.

Referenced by DoRun(), DoTeardown(), and SourceHandleSend().

◆ m_sourceWriteSize

uint32_t TcpTestCase::m_sourceWriteSize

private

Client data size when sending.

Definition at line 151 of file tcp-test.cc.

Referenced by SourceHandleSend().

◆ m_totalBytes

uint32_t TcpTestCase::m_totalBytes

private

Total stream size (in bytes).

Definition at line 150 of file tcp-test.cc.

Referenced by DoRun(), ServerHandleRecv(), ServerHandleSend(), SourceHandleRecv(), and SourceHandleSend().

◆ m_useIpv6

bool TcpTestCase::m_useIpv6

private

Use IPv6 instead of IPv4.

Definition at line 163 of file tcp-test.cc.

Referenced by DoRun().

The documentation for this class was generated from the following file:

src/internet/test/tcp-test.cc

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TcpTestCase()

Member Function Documentation

◆ AddSimpleNetDevice()

◆ AddSimpleNetDevice6()

◆ CreateInternetNode()

◆ CreateInternetNode6()

◆ DoRun()

◆ DoTeardown()

◆ ServerHandleConnectionCreated()

◆ ServerHandleRecv()

◆ ServerHandleSend()

◆ SetupDefaultSim()

◆ SetupDefaultSim6()

◆ SourceHandleRecv()

◆ SourceHandleSend()

Member Data Documentation

◆ m_currentServerRxBytes

◆ m_currentServerTxBytes

◆ m_currentSourceRxBytes

◆ m_currentSourceTxBytes

◆ m_serverReadSize

◆ m_serverRxPayload

◆ m_serverWriteSize

◆ m_sourceReadSize

◆ m_sourceRxPayload

◆ m_sourceTxPayload

◆ m_sourceWriteSize

◆ m_totalBytes

◆ m_useIpv6
