ns3::Ipv6Prefix Class Reference

Describes an IPv6 prefix. More...

#include "ipv6-address.h"

Public Member Functions

 Ipv6Prefix ()
 Default constructor. More...

 Ipv6Prefix (uint8_t prefix[16])
 Constructs an Ipv6Prefix by using the input 16 bytes. More...

 Ipv6Prefix (char const *prefix)
 Constructs an Ipv6Prefix by using the input string. More...

 Ipv6Prefix (uint8_t prefix)
 Constructs an Ipv6Prefix by using the input number of bits. More...

 Ipv6Prefix (Ipv6Prefix const &prefix)
 Copy constructor. More...

 Ipv6Prefix (Ipv6Prefix const *prefix)
 Copy constructor. More...

 ~Ipv6Prefix ()
 Destructor. More...

void GetBytes (uint8_t buf[16]) const
 Get the bytes corresponding to the prefix. More...

uint8_t GetPrefixLength () const
 Get prefix length. More...

bool IsEqual (const Ipv6Prefix &other) const
 Comparison operation between two Ipv6Prefix. More...

bool IsMatch (Ipv6Address a, Ipv6Address b) const
 If the Address match the type. More...

void Print (std::ostream &os) const
 Print this address to the given output stream. More...


Static Public Member Functions

static Ipv6Prefix GetLoopback ()
 Get the loopback prefix ( /128). More...

static Ipv6Prefix GetOnes ()
 Get the "all-1" IPv6 mask (ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff). More...

static Ipv6Prefix GetZero ()
 Get the zero prefix ( /0). More...


Private Attributes

uint8_t m_prefix [16]
 The prefix representation. More...


Friends

bool operator!= (Ipv6Prefix const &a, Ipv6Prefix const &b)
 Not equal to operator. More...

bool operator== (Ipv6Prefix const &a, Ipv6Prefix const &b)
 Equal to operator. More...


Detailed Description

Describes an IPv6 prefix.

It is just a bitmask like Ipv4Mask.

See also
Ipv6Address
Ipv6Prefix Attribute

Definition at line 428 of file ipv6-address.h.

Constructor & Destructor Documentation

◆ Ipv6Prefix() [1/6]

ns3::Ipv6Prefix::Ipv6Prefix ( )

Default constructor.

Definition at line 882 of file ipv6-address.cc.

References m_prefix, and NS_LOG_FUNCTION.

◆ Ipv6Prefix() [2/6]

ns3::Ipv6Prefix::Ipv6Prefix ( uint8_t  prefix[16])

Constructs an Ipv6Prefix by using the input 16 bytes.

Parameters
prefixthe 128-bit prefix

Definition at line 894 of file ipv6-address.cc.

References m_prefix, and NS_LOG_FUNCTION.

◆ Ipv6Prefix() [3/6]

ns3::Ipv6Prefix::Ipv6Prefix ( char const *  prefix)

Constructs an Ipv6Prefix by using the input string.

Parameters
prefixthe 128-bit prefix

Definition at line 888 of file ipv6-address.cc.

References ns3::AsciiToIpv6Host(), m_prefix, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ Ipv6Prefix() [4/6]

ns3::Ipv6Prefix::Ipv6Prefix ( uint8_t  prefix)

Constructs an Ipv6Prefix by using the input number of bits.

Parameters
prefixnumber of bits of the prefix (0 - 128)
Note
A valid number of bits is between 0 and 128).

Definition at line 900 of file ipv6-address.cc.

References m_prefix, NS_ASSERT, and NS_LOG_FUNCTION.

◆ Ipv6Prefix() [5/6]

ns3::Ipv6Prefix::Ipv6Prefix ( Ipv6Prefix const &  prefix)

Copy constructor.

Parameters
prefixIpv6Prefix object

Definition at line 935 of file ipv6-address.cc.

References m_prefix.

◆ Ipv6Prefix() [6/6]

ns3::Ipv6Prefix::Ipv6Prefix ( Ipv6Prefix const *  prefix)

Copy constructor.

Parameters
prefixIpv6Prefix pointer

Definition at line 940 of file ipv6-address.cc.

References m_prefix.

◆ ~Ipv6Prefix()

ns3::Ipv6Prefix::~Ipv6Prefix ( )

Destructor.

Definition at line 945 of file ipv6-address.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetBytes()

void ns3::Ipv6Prefix::GetBytes ( uint8_t  buf[16]) const

Get the bytes corresponding to the prefix.

Parameters
bufbuffer to store the data

Definition at line 1000 of file ipv6-address.cc.

References m_prefix, and NS_LOG_FUNCTION.

◆ GetLoopback()

Ipv6Prefix ns3::Ipv6Prefix::GetLoopback ( void  )
static

Get the loopback prefix ( /128).

Returns
a Ipv6Prefix corresponding to loopback prefix

Definition at line 979 of file ipv6-address.cc.

References NS_LOG_FUNCTION_NOARGS.

◆ GetOnes()

Ipv6Prefix ns3::Ipv6Prefix::GetOnes ( void  )
static

Get the "all-1" IPv6 mask (ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff).

Returns
/128 Ipv6Prefix representation

Definition at line 986 of file ipv6-address.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv6StaticRouting::AddHostRouteTo(), ns3::Ipv6RoutingTableEntry::CreateHostRouteTo(), and ns3::Ipv6RoutingTableEntry::IsHost().

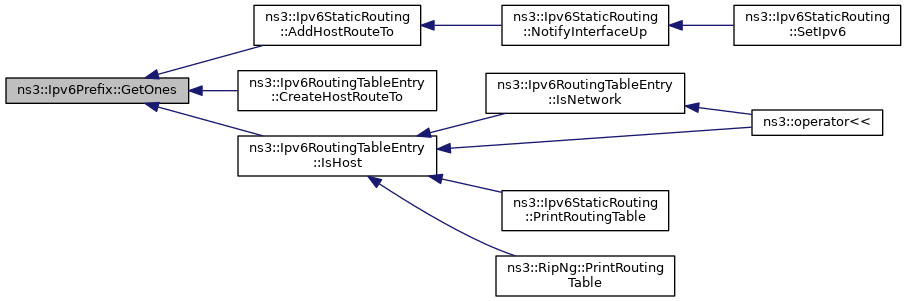

+ Here is the caller graph for this function:

◆ GetPrefixLength()

uint8_t ns3::Ipv6Prefix::GetPrefixLength ( void  ) const

◆ GetZero()

Ipv6Prefix ns3::Ipv6Prefix::GetZero ( void  )
static

Get the zero prefix ( /0).

Returns
an Ipv6Prefix

Definition at line 993 of file ipv6-address.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::RipNg::AddDefaultRouteTo(), ns3::RipNg::DoSendRouteUpdate(), ns3::RipNg::HandleRequests(), and ns3::Ipv6StaticRouting::SetDefaultRoute().

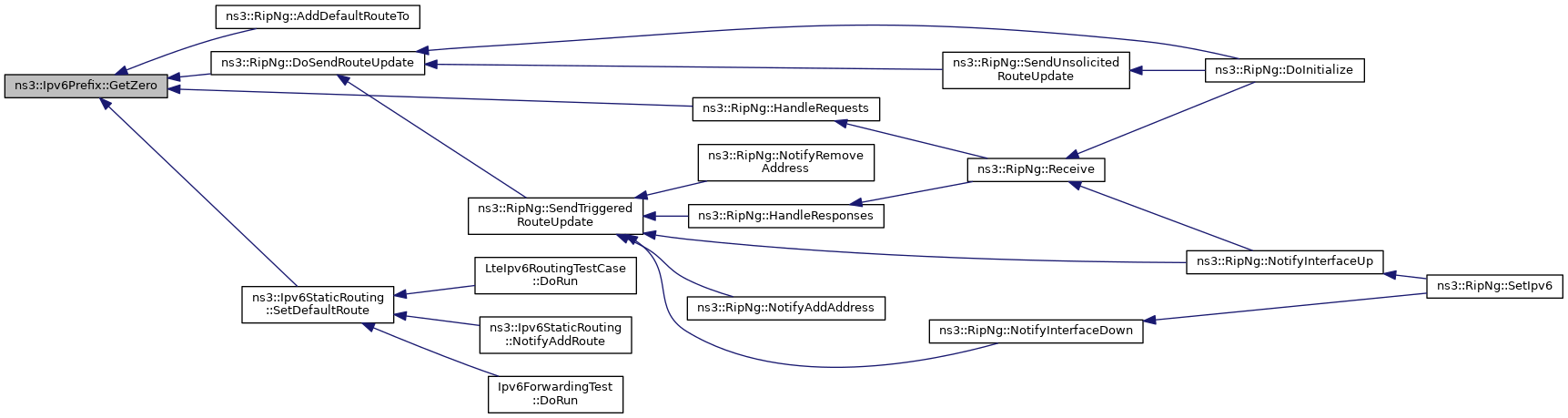

+ Here is the caller graph for this function:

◆ IsEqual()

bool ns3::Ipv6Prefix::IsEqual ( const Ipv6Prefix other) const

Comparison operation between two Ipv6Prefix.

Parameters
otherthe IPv6 prefix to which to compare this prefix
Returns
true if the prefixes are equal, false otherwise

Definition at line 1026 of file ipv6-address.cc.

References m_prefix.

Referenced by ns3::Ipv6RoutingTableEntry::IsHost().

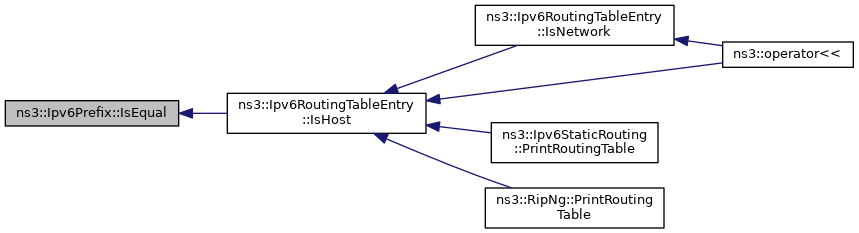

+ Here is the caller graph for this function:

◆ IsMatch()

bool ns3::Ipv6Prefix::IsMatch ( Ipv6Address  a,
Ipv6Address  b
) const

If the Address match the type.

Parameters
aa first address
ba second address
Returns
true if the type match, false otherwise

Definition at line 951 of file ipv6-address.cc.

References ns3::Ipv6Address::GetBytes(), m_prefix, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6Interface::GetAddressMatchingDestination(), ns3::Ipv6StaticRouting::HasNetworkDest(), ns3::RipNg::Lookup(), and ns3::Ipv6StaticRouting::LookupStatic().

+ Here is the call graph for this function:

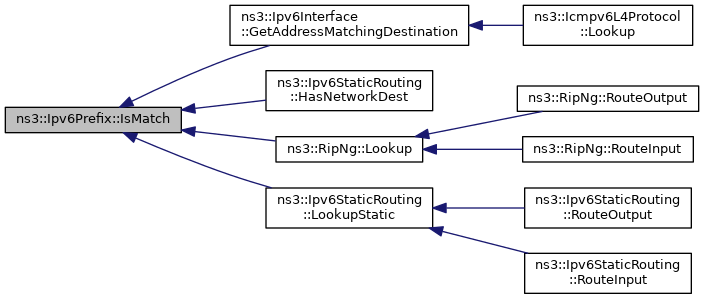

+ Here is the caller graph for this function:

◆ Print()

void ns3::Ipv6Prefix::Print ( std::ostream &  os) const

Print this address to the given output stream.

The print format is in the typical "2001:660:4701::1".

Parameters
osthe output stream to which this Ipv6Address is printed

Definition at line 972 of file ipv6-address.cc.

References GetPrefixLength(), and NS_LOG_FUNCTION.

Referenced by ns3::operator<<().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator!=

bool operator!= ( Ipv6Prefix const &  a,
Ipv6Prefix const &  b
)
friend

Not equal to operator.

Parameters
athe first operand
bthe first operand
Returns
true if the operands are not equal

Definition at line 609 of file ipv6-address.h.

◆ operator==

bool operator== ( Ipv6Prefix const &  a,
Ipv6Prefix const &  b
)
friend

Equal to operator.

Parameters
athe first operand
bthe first operand
Returns
true if the operands are equal

Definition at line 604 of file ipv6-address.h.

Member Data Documentation

◆ m_prefix

uint8_t ns3::Ipv6Prefix::m_prefix[16]
private

The prefix representation.

Definition at line 529 of file ipv6-address.h.

Referenced by GetBytes(), GetPrefixLength(), Ipv6Prefix(), IsEqual(), IsMatch(), ns3::operator!=(), and ns3::operator==().


The documentation for this class was generated from the following files:
