Interface with BRITE, the Boston university Representative Internet Topology gEnerator. More...

#include "brite-topology-helper.h"

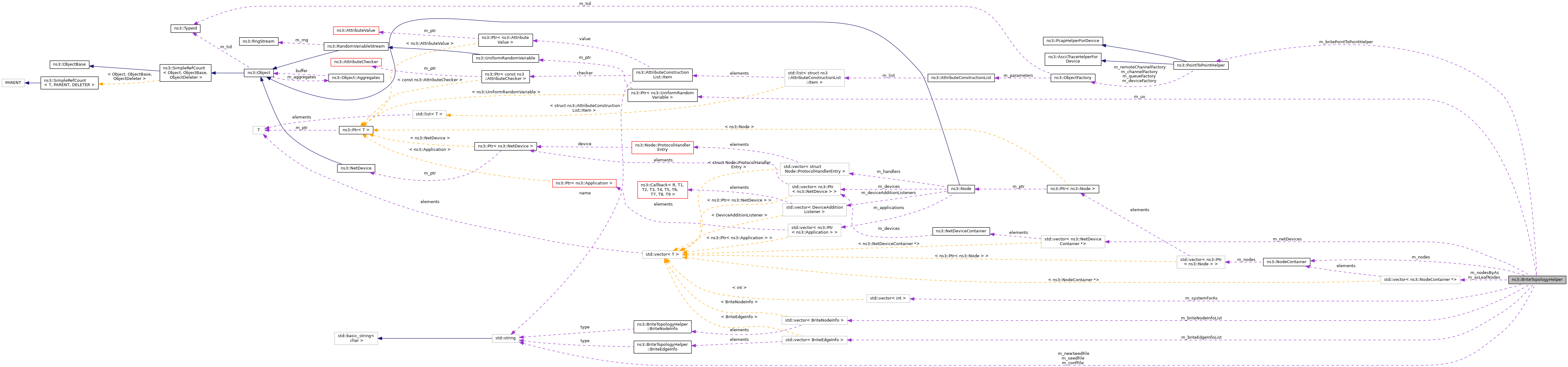

Collaboration diagram for ns3::BriteTopologyHelper:

Classes
struct	BriteEdgeInfo
	Edge information from BRITE. More...

struct	BriteNodeInfo
	Node information from BRITE. More...

Public Member Functions
	BriteTopologyHelper (std::string confFile, std::string seedFile, std::string newseedFile)
	Construct a BriteTopologyHelper. More...

	BriteTopologyHelper (std::string confFile)
	Construct a BriteTopologyHelper using NS3 to generate seed values need by BRITE. More...

	~BriteTopologyHelper ()

void	AssignIpv4Addresses (Ipv4AddressHelper &address)

void	AssignIpv6Addresses (Ipv6AddressHelper &address)

void	AssignStreams (int64_t streamNumber)
	Assigns stream number to UniformRandomVariable used to generate brite seed file. More...

void	BuildBriteTopology (InternetStackHelper &stack)
	Create NS3 topology using information generated from BRITE. More...

void	BuildBriteTopology (InternetStackHelper &stack, const uint32_t systemCount)
	Create NS3 topology using information generated from BRITE and configure topology for MPI use. More...

Ptr< Node >	GetLeafNodeForAs (uint32_t asNum, uint32_t leafNum)
	Returns a given router leaf node from a given AS. More...

uint32_t	GetNAs (void) const
	Returns the number of AS created in the topology. More...

uint32_t	GetNEdgesTopology () const
	Returns the number of edges created within the topology. More...

uint32_t	GetNLeafNodesForAs (uint32_t asNum)
	Returns the number of router leaf nodes for a given AS. More...

uint32_t	GetNNodesForAs (uint32_t asNum)
	Returns the total number of nodes for a given AS. More...

uint32_t	GetNNodesTopology () const
	Returns the number of nodes created within the topology. More...

Ptr< Node >	GetNodeForAs (uint32_t asNum, uint32_t nodeNum)
	Returns a given router node for a given AS. More...

uint32_t	GetSystemNumberForAs (uint32_t asNum) const
	Returns the system number for the MPI instance that this AS is assigned to. More...

Private Member Functions
void	BuildBriteEdgeInfoList (void)

void	BuildBriteNodeInfoList (void)

void	ConstructTopology (void)

void	GenerateBriteTopology (void)

Private Attributes
std::vector< NodeContainer * >	m_asLeafNodes
	stores the leaf router nodes for each AS More...

PointToPointHelper	m_britePointToPointHelper
	used to create the links within the topology More...

std::string	m_confFile
	brite configuration file to use More...

std::vector< NetDeviceContainer * >	m_netDevices
	stores the netdevices created for each AS More...

std::string	m_newSeedFile
	brite seed file to generate for next run More...

NodeContainer	m_nodes

std::vector< NodeContainer * >	m_nodesByAs
	stores all of the nodes in the brite topology by AS number More...

uint32_t	m_numAs
	stores the number of AS in the BRITE generated topology More...

uint32_t	m_numEdges
	stores the number of edges created in the BRITE topology More...

uint32_t	m_numNodes
	stores the number of nodes created in the BRITE topology More...

std::string	m_seedFile
	brite seed file to use More...

std::vector< int >	m_systemForAs
	stores the MPI system number each AS assigned to. All assigned to 0 if MPI not used. More...

brite::Topology *	m_topology
	the Brite topology More...

Ptr< UniformRandomVariable >	m_uv
	random variable stream for brite seed file More...

Static Private Attributes
static const int	mbpsToBps = 1000000

typedef std::vector< BriteNodeInfo >	BriteNodeInfoList
	The BRITE code generates multiple nodes and edges. More...

typedef std::vector< BriteEdgeInfo >	BriteEdgeInfoList
	The BRITE code generates multiple nodes and edges. More...

BriteNodeInfoList	m_briteNodeInfoList
	The BRITE code generates multiple nodes and edges. More...

BriteEdgeInfoList	m_briteEdgeInfoList
	The BRITE code generates multiple nodes and edges. More...

Detailed Description

Interface with BRITE, the Boston university Representative Internet Topology gEnerator.

This helper class creates an interface with BRITE and allows the user to easily create ns-3 topologies from BRITE generated graphs. This class accepts a BRITE configuration and seed file, much like the stand-alone BRITE software. Using these files, BRITE generates a graph which is stored herein. ns-3 examples can then grab the BRITE generated nodes and edges from this helper and create ns-3 specific topologies.

Definition at line 59 of file brite-topology-helper.h.

Member Typedef Documentation

◆ BriteEdgeInfoList

typedef std::vector<BriteEdgeInfo> ns3::BriteTopologyHelper::BriteEdgeInfoList

private

The BRITE code generates multiple nodes and edges.

Each node and edge is stored in a BriteNodeInfo or BriteEdgeInfo struct, and each instance is stored in a vector.

Definition at line 279 of file brite-topology-helper.h.

◆ BriteNodeInfoList

typedef std::vector<BriteNodeInfo> ns3::BriteTopologyHelper::BriteNodeInfoList

private

The BRITE code generates multiple nodes and edges.

Each node and edge is stored in a BriteNodeInfo or BriteEdgeInfo struct, and each instance is stored in a vector.

Definition at line 278 of file brite-topology-helper.h.

Constructor & Destructor Documentation

◆ BriteTopologyHelper() [1/2]

ns3::BriteTopologyHelper::BriteTopologyHelper	(	std::string	confFile,
		std::string	seedFile,
		std::string	newseedFile
	)

Construct a BriteTopologyHelper.

Parameters

confFile	a BRITE configuration file
seedFile	a BRITE seed file
newseedFile	a BRITE seed file with newly generated values

Definition at line 37 of file brite-topology-helper.cc.

References m_uv, and NS_LOG_FUNCTION.

◆ BriteTopologyHelper() [2/2]

ns3::BriteTopologyHelper::BriteTopologyHelper ( std::string confFile )

Construct a BriteTopologyHelper using NS3 to generate seed values need by BRITE.

Definition at line 54 of file brite-topology-helper.cc.

References m_uv, and NS_LOG_FUNCTION.

◆ ~BriteTopologyHelper()

ns3::BriteTopologyHelper::~BriteTopologyHelper ( )

Definition at line 67 of file brite-topology-helper.cc.

References m_asLeafNodes, m_netDevices, m_nodesByAs, m_topology, and NS_LOG_FUNCTION.

Member Function Documentation

◆ AssignIpv4Addresses()

void ns3::BriteTopologyHelper::AssignIpv4Addresses ( Ipv4AddressHelper & address )

Parameters

address an Ipv4AddressHelper which is used to install Ipv4 addresses on all the node interfaces in the topology

Definition at line 420 of file brite-topology-helper.cc.

References first::address, m_netDevices, and NS_LOG_FUNCTION.

Referenced by BriteTopologyFunctionTestCase::DoRun().

Here is the caller graph for this function:

◆ AssignIpv6Addresses()

void ns3::BriteTopologyHelper::AssignIpv6Addresses ( Ipv6AddressHelper & address )

Parameters

network	an IPv6 address representing the network portion of the IPv6 Address
prefix	the prefix length

Definition at line 432 of file brite-topology-helper.cc.

References first::address, m_netDevices, and NS_LOG_FUNCTION.

◆ AssignStreams()

void ns3::BriteTopologyHelper::AssignStreams ( int64_t streamNumber )

Assigns stream number to UniformRandomVariable used to generate brite seed file.

Parameters

streamNumber the stream number to assign

Definition at line 92 of file brite-topology-helper.cc.

References m_uv, and ns3::RandomVariableStream::SetStream().

Referenced by BriteTopologyStructureTestCase::DoRun().

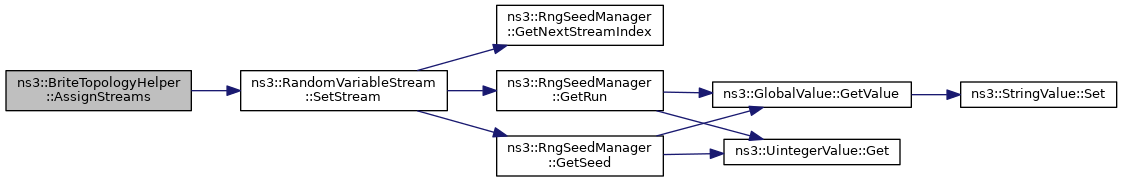

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildBriteEdgeInfoList()

void ns3::BriteTopologyHelper::BuildBriteEdgeInfoList ( void )

private

Definition at line 183 of file brite-topology-helper.cc.

Referenced by GenerateBriteTopology().

Here is the caller graph for this function:

◆ BuildBriteNodeInfoList()

void ns3::BriteTopologyHelper::BuildBriteNodeInfoList ( void )

private

Definition at line 98 of file brite-topology-helper.cc.

References ns3::BriteTopologyHelper::BriteNodeInfo::asId, ns3::BriteTopologyHelper::BriteNodeInfo::inDegree, m_briteNodeInfoList, m_numAs, m_topology, ns3::BriteTopologyHelper::BriteNodeInfo::nodeId, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::BriteTopologyHelper::BriteNodeInfo::outDegree, ns3::BriteTopologyHelper::BriteNodeInfo::type, ns3::BriteTopologyHelper::BriteNodeInfo::xCoordinate, and ns3::BriteTopologyHelper::BriteNodeInfo::yCoordinate.

Referenced by GenerateBriteTopology().

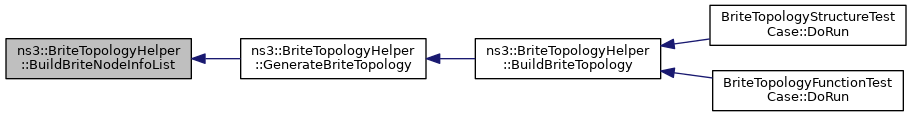

Here is the caller graph for this function:

◆ BuildBriteTopology() [1/2]

void ns3::BriteTopologyHelper::BuildBriteTopology ( InternetStackHelper & stack )

Create NS3 topology using information generated from BRITE.

Parameters

stack Internet stack to assign to nodes in topology

Definition at line 365 of file brite-topology-helper.cc.

References ConstructTopology(), ns3::NodeContainer::Create(), GenerateBriteTopology(), m_briteNodeInfoList, m_nodes, m_numAs, m_numNodes, m_systemForAs, NS_LOG_DEBUG, NS_LOG_FUNCTION, and first::stack.

Referenced by BriteTopologyStructureTestCase::DoRun(), and BriteTopologyFunctionTestCase::DoRun().

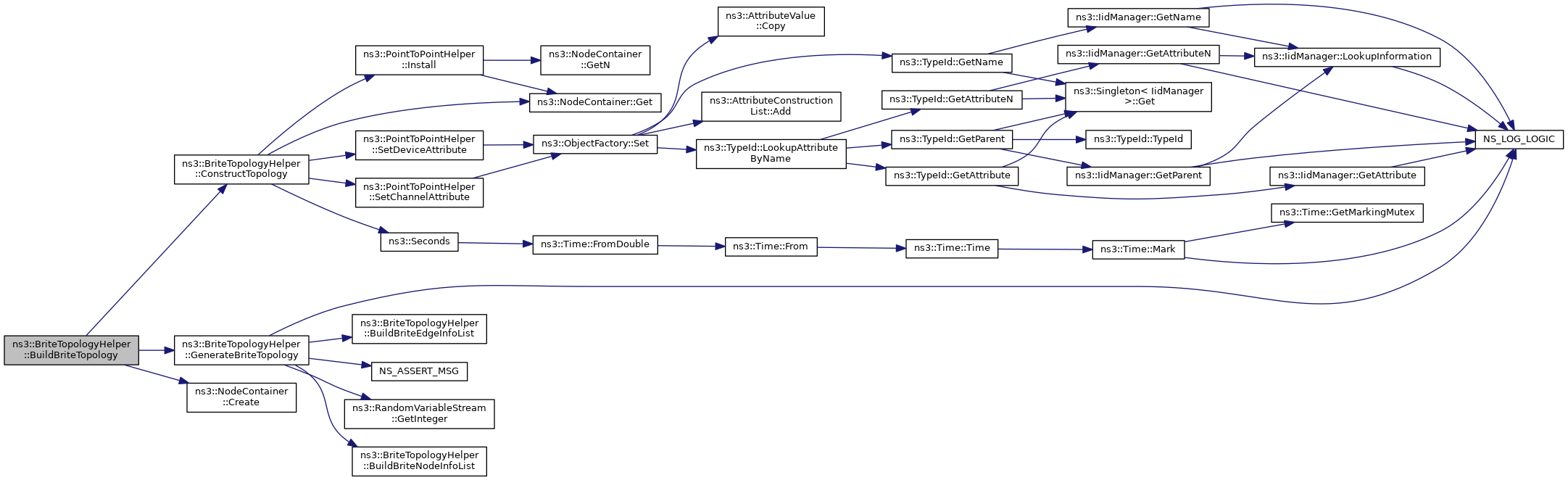

Here is the call graph for this function:

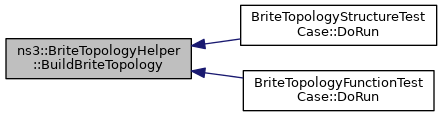

Here is the caller graph for this function:

◆ BuildBriteTopology() [2/2]

void ns3::BriteTopologyHelper::BuildBriteTopology	(	InternetStackHelper &	stack,
		const uint32_t	systemCount
	)

Create NS3 topology using information generated from BRITE and configure topology for MPI use.

Parameters

stack	Internet stack to assign to nodes in topology.
systemCount	The number of MPI instances to be used in the simulation.

Definition at line 390 of file brite-topology-helper.cc.

References ns3::NodeContainer::Add(), ConstructTopology(), GenerateBriteTopology(), GetSystemNumberForAs(), m_briteNodeInfoList, m_nodes, m_numAs, m_numNodes, m_systemForAs, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC(), and first::stack.

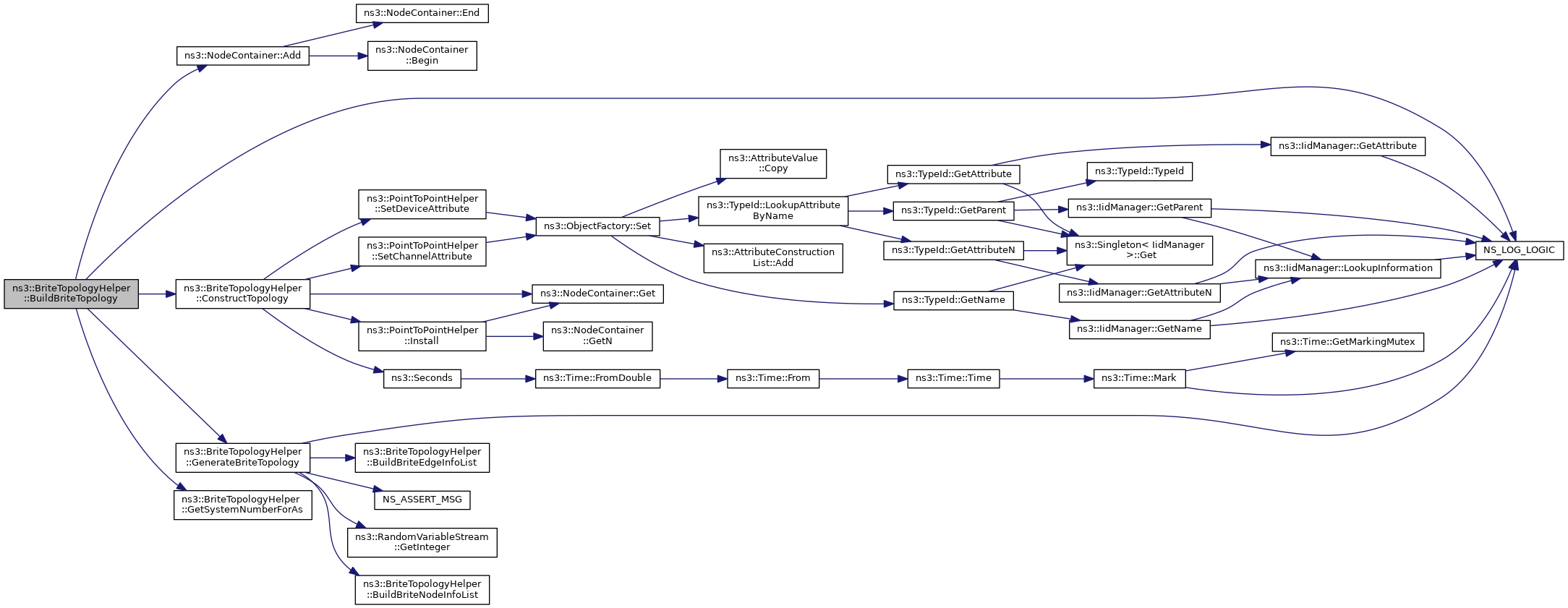

Here is the call graph for this function:

◆ ConstructTopology()

void ns3::BriteTopologyHelper::ConstructTopology ( void )

private

Definition at line 444 of file brite-topology-helper.cc.

References ns3::NodeContainer::Get(), ns3::PointToPointHelper::Install(), m_asLeafNodes, m_briteEdgeInfoList, m_briteNodeInfoList, m_britePointToPointHelper, m_netDevices, m_nodes, m_nodesByAs, m_numAs, m_numEdges, mbpsToBps, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::Seconds(), ns3::PointToPointHelper::SetChannelAttribute(), and ns3::PointToPointHelper::SetDeviceAttribute().

Referenced by BuildBriteTopology().

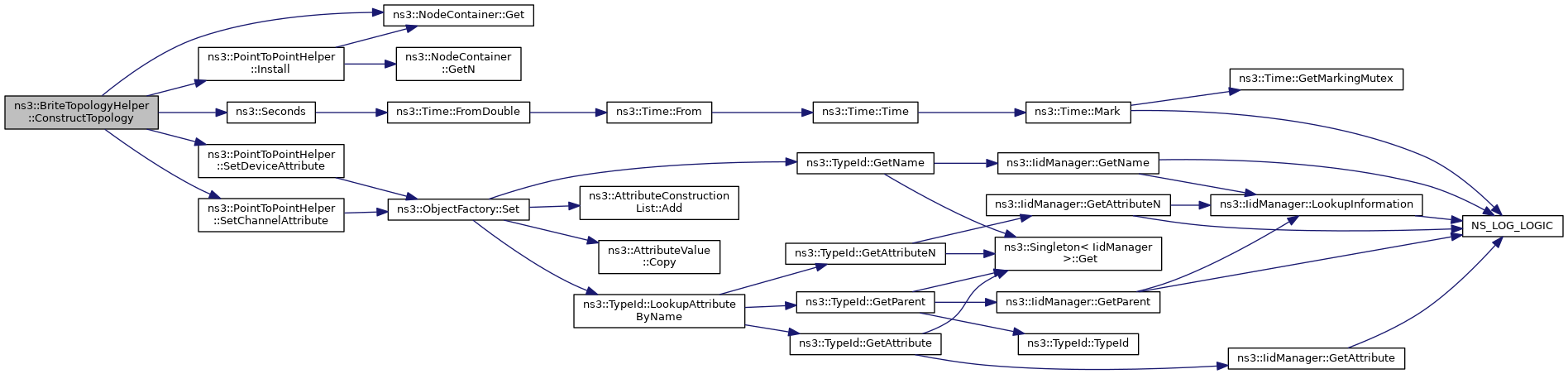

Here is the call graph for this function:

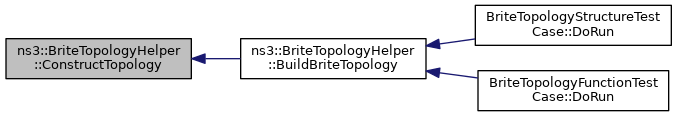

Here is the caller graph for this function:

◆ GenerateBriteTopology()

void ns3::BriteTopologyHelper::GenerateBriteTopology ( void )

private

Definition at line 318 of file brite-topology-helper.cc.

References BuildBriteEdgeInfoList(), BuildBriteNodeInfoList(), ns3::RandomVariableStream::GetInteger(), m_confFile, m_newSeedFile, m_seedFile, m_topology, m_uv, NS_ASSERT, NS_ASSERT_MSG(), and NS_LOG_LOGIC().

Referenced by BuildBriteTopology().

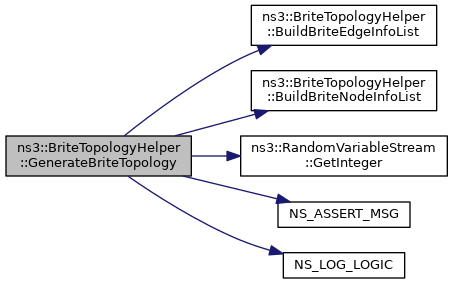

Here is the call graph for this function:

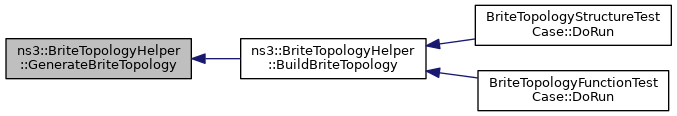

Here is the caller graph for this function:

◆ GetLeafNodeForAs()

Ptr< Node > ns3::BriteTopologyHelper::GetLeafNodeForAs	(	uint32_t	asNum,
		uint32_t	leafNum
	)

Returns a given router leaf node from a given AS.

Parameters

asNum	the AS number
leafNum	the leaf number

Returns: the specified node

Definition at line 271 of file brite-topology-helper.cc.

References m_asLeafNodes.

◆ GetNAs()

uint32_t ns3::BriteTopologyHelper::GetNAs ( void ) const

Returns the number of AS created in the topology.

Returns: the number of AS created in the topology

Definition at line 307 of file brite-topology-helper.cc.

References m_numAs.

Referenced by BriteTopologyStructureTestCase::DoRun().

Here is the caller graph for this function:

◆ GetNEdgesTopology()

uint32_t ns3::BriteTopologyHelper::GetNEdgesTopology ( ) const

Returns the number of edges created within the topology.

Returns: the total number of edges within the brite topology

Definition at line 301 of file brite-topology-helper.cc.

References m_numEdges.

Referenced by BriteTopologyStructureTestCase::DoRun().

Here is the caller graph for this function:

◆ GetNLeafNodesForAs()

uint32_t ns3::BriteTopologyHelper::GetNLeafNodesForAs ( uint32_t asNum )

Returns the number of router leaf nodes for a given AS.

Parameters

asNum the AS number

Returns: the number of leaf nodes in the specified AS

Definition at line 289 of file brite-topology-helper.cc.

References m_asLeafNodes.

Referenced by BriteTopologyStructureTestCase::DoRun().

Here is the caller graph for this function:

◆ GetNNodesForAs()

uint32_t ns3::BriteTopologyHelper::GetNNodesForAs ( uint32_t asNum )

Returns the total number of nodes for a given AS.

Parameters

asNum the AS number

Returns: the total number of nodes in the given AS

Definition at line 283 of file brite-topology-helper.cc.

References m_nodesByAs.

Referenced by BriteTopologyFunctionTestCase::DoRun().

Here is the caller graph for this function:

◆ GetNNodesTopology()

uint32_t ns3::BriteTopologyHelper::GetNNodesTopology ( ) const

Returns the number of nodes created within the topology.

Returns: the total number of nodes within the brite topology

Definition at line 295 of file brite-topology-helper.cc.

References m_numNodes.

Referenced by BriteTopologyStructureTestCase::DoRun().

Here is the caller graph for this function:

◆ GetNodeForAs()

Ptr< Node > ns3::BriteTopologyHelper::GetNodeForAs	(	uint32_t	asNum,
		uint32_t	nodeNum
	)

Returns a given router node for a given AS.

Parameters

asNum the AS number

Returns: the specified node

Definition at line 277 of file brite-topology-helper.cc.

References m_nodesByAs.

Referenced by BriteTopologyFunctionTestCase::DoRun().

Here is the caller graph for this function:

◆ GetSystemNumberForAs()

uint32_t ns3::BriteTopologyHelper::GetSystemNumberForAs ( uint32_t asNum ) const

Returns the system number for the MPI instance that this AS is assigned to.

Will always return 0 if MPI not used

Returns: The system number that the specified AS number belongs to

param asNum The AS Number

Definition at line 313 of file brite-topology-helper.cc.

References m_systemForAs.

Referenced by BuildBriteTopology().

Here is the caller graph for this function:

Member Data Documentation

◆ m_asLeafNodes

std::vector<NodeContainer*> ns3::BriteTopologyHelper::m_asLeafNodes

private

stores the leaf router nodes for each AS

Definition at line 255 of file brite-topology-helper.h.

Referenced by ConstructTopology(), GetLeafNodeForAs(), GetNLeafNodesForAs(), and ~BriteTopologyHelper().

◆ m_briteEdgeInfoList

BriteEdgeInfoList ns3::BriteTopologyHelper::m_briteEdgeInfoList

private

The BRITE code generates multiple nodes and edges.

Each node and edge is stored in a BriteNodeInfo or BriteEdgeInfo struct, and each instance is stored in a vector.

Definition at line 282 of file brite-topology-helper.h.

Referenced by BuildBriteEdgeInfoList(), and ConstructTopology().

◆ m_briteNodeInfoList

BriteNodeInfoList ns3::BriteTopologyHelper::m_briteNodeInfoList

private

The BRITE code generates multiple nodes and edges.

Each node and edge is stored in a BriteNodeInfo or BriteEdgeInfo struct, and each instance is stored in a vector.

Definition at line 281 of file brite-topology-helper.h.

Referenced by BuildBriteNodeInfoList(), BuildBriteTopology(), and ConstructTopology().

◆ m_britePointToPointHelper

PointToPointHelper ns3::BriteTopologyHelper::m_britePointToPointHelper

private

used to create the links within the topology

Definition at line 286 of file brite-topology-helper.h.

Referenced by ConstructTopology().

◆ m_confFile

std::string ns3::BriteTopologyHelper::m_confFile

private

brite configuration file to use

Definition at line 240 of file brite-topology-helper.h.

Referenced by GenerateBriteTopology().

◆ m_netDevices

std::vector<NetDeviceContainer*> ns3::BriteTopologyHelper::m_netDevices

private

stores the netdevices created for each AS

Definition at line 252 of file brite-topology-helper.h.

Referenced by AssignIpv4Addresses(), AssignIpv6Addresses(), ConstructTopology(), and ~BriteTopologyHelper().

◆ m_newSeedFile

std::string ns3::BriteTopologyHelper::m_newSeedFile

private

brite seed file to generate for next run

Definition at line 246 of file brite-topology-helper.h.

Referenced by GenerateBriteTopology().

◆ m_nodes

NodeContainer ns3::BriteTopologyHelper::m_nodes

private

Definition at line 232 of file brite-topology-helper.h.

Referenced by BuildBriteTopology(), and ConstructTopology().

◆ m_nodesByAs

std::vector<NodeContainer*> ns3::BriteTopologyHelper::m_nodesByAs

private

stores all of the nodes in the brite topology by AS number

Definition at line 258 of file brite-topology-helper.h.

Referenced by ConstructTopology(), GetNNodesForAs(), GetNodeForAs(), and ~BriteTopologyHelper().

◆ m_numAs

uint32_t ns3::BriteTopologyHelper::m_numAs

private

stores the number of AS in the BRITE generated topology

Definition at line 249 of file brite-topology-helper.h.

Referenced by BuildBriteNodeInfoList(), BuildBriteTopology(), ConstructTopology(), and GetNAs().

◆ m_numEdges

uint32_t ns3::BriteTopologyHelper::m_numEdges

private

stores the number of edges created in the BRITE topology

Definition at line 270 of file brite-topology-helper.h.

Referenced by ConstructTopology(), and GetNEdgesTopology().

◆ m_numNodes

uint32_t ns3::BriteTopologyHelper::m_numNodes

private

stores the number of nodes created in the BRITE topology

Definition at line 267 of file brite-topology-helper.h.

Referenced by BuildBriteTopology(), and GetNNodesTopology().

◆ m_seedFile

std::string ns3::BriteTopologyHelper::m_seedFile

private

brite seed file to use

Definition at line 243 of file brite-topology-helper.h.

Referenced by GenerateBriteTopology().

◆ m_systemForAs

std::vector<int> ns3::BriteTopologyHelper::m_systemForAs

private

stores the MPI system number each AS assigned to. All assigned to 0 if MPI not used.

Definition at line 261 of file brite-topology-helper.h.

Referenced by BuildBriteTopology(), and GetSystemNumberForAs().

◆ m_topology

brite::Topology* ns3::BriteTopologyHelper::m_topology

private

the Brite topology

Definition at line 264 of file brite-topology-helper.h.

Referenced by BuildBriteEdgeInfoList(), BuildBriteNodeInfoList(), GenerateBriteTopology(), and ~BriteTopologyHelper().

◆ m_uv

Ptr<UniformRandomVariable> ns3::BriteTopologyHelper::m_uv

private

random variable stream for brite seed file

Definition at line 289 of file brite-topology-helper.h.

Referenced by AssignStreams(), BriteTopologyHelper(), and GenerateBriteTopology().

◆ mbpsToBps

const int ns3::BriteTopologyHelper::mbpsToBps = 1000000

staticprivate

Definition at line 191 of file brite-topology-helper.h.

Referenced by ConstructTopology().

The documentation for this class was generated from the following files:

src/brite/helper/brite-topology-helper.h
src/brite/helper/brite-topology-helper.cc

Classes

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

◆ BriteEdgeInfoList

◆ BriteNodeInfoList

Constructor & Destructor Documentation

◆ BriteTopologyHelper() [1/2]

◆ BriteTopologyHelper() [2/2]

◆ ~BriteTopologyHelper()

Member Function Documentation

◆ AssignIpv4Addresses()

◆ AssignIpv6Addresses()

◆ AssignStreams()

◆ BuildBriteEdgeInfoList()

◆ BuildBriteNodeInfoList()

◆ BuildBriteTopology() [1/2]

◆ BuildBriteTopology() [2/2]

◆ ConstructTopology()

◆ GenerateBriteTopology()

◆ GetLeafNodeForAs()

◆ GetNAs()

◆ GetNEdgesTopology()

◆ GetNLeafNodesForAs()

◆ GetNNodesForAs()

◆ GetNNodesTopology()

◆ GetNodeForAs()

◆ GetSystemNumberForAs()

Member Data Documentation

◆ m_asLeafNodes

◆ m_briteEdgeInfoList

◆ m_briteNodeInfoList

◆ m_britePointToPointHelper

◆ m_confFile

◆ m_netDevices

◆ m_newSeedFile

◆ m_nodes

◆ m_nodesByAs

◆ m_numAs

◆ m_numEdges

◆ m_numNodes

◆ m_seedFile

◆ m_systemForAs

◆ m_topology

◆ m_uv

◆ mbpsToBps
