A Discrete-Event Network Simulator
API
ns3::DsdvHelper Class Reference

Helper class that adds DSDV routing to nodes. More...

#include "dsdv-helper.h"

+ Inheritance diagram for ns3::DsdvHelper:

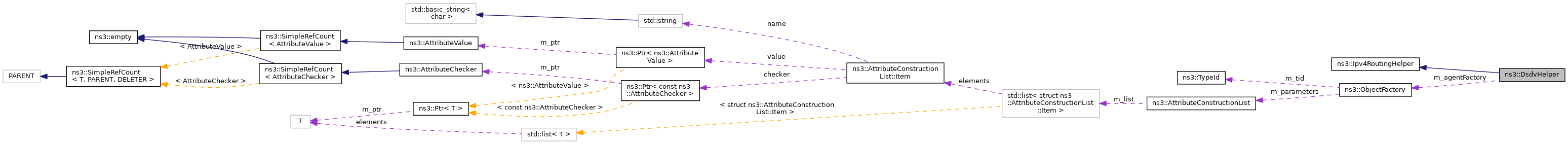

+ Collaboration diagram for ns3::DsdvHelper:

Public Member Functions

 DsdvHelper ()

 ~DsdvHelper ()

DsdvHelperCopy (void) const

virtual Ptr< Ipv4RoutingProtocolCreate (Ptr< Node > node) const

void Set (std::string name, const AttributeValue &value)

- Public Member Functions inherited from ns3::Ipv4RoutingHelper
virtual ~Ipv4RoutingHelper ()


Private Attributes

ObjectFactory m_agentFactory
 Object factory. More...


Additional Inherited Members

- Static Public Member Functions inherited from ns3::Ipv4RoutingHelper
template<class T >
static Ptr< T > GetRouting (Ptr< Ipv4RoutingProtocol > protocol)
 Request a specified routing protocol <T> from Ipv4RoutingProtocol protocol. More...

static void PrintNeighborCacheAllAt (Time printTime, Ptr< OutputStreamWrapper > stream)
 prints the neighbor cache of all nodes at a particular time. More...

static void PrintNeighborCacheAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream)
 prints the neighbor cache of all nodes at regular intervals specified by user. More...

static void PrintNeighborCacheAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
 prints the neighbor cache of a node at a particular time. More...

static void PrintNeighborCacheEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
 prints the neighbor cache of a node at regular intervals specified by user. More...

static void PrintRoutingTableAllAt (Time printTime, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the routing tables of all nodes at a particular time. More...

static void PrintRoutingTableAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the routing tables of all nodes at regular intervals specified by user. More...

static void PrintRoutingTableAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the routing tables of a node at a particular time. More...

static void PrintRoutingTableEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the routing tables of a node at regular intervals specified by user. More...


Detailed Description

Helper class that adds DSDV routing to nodes.

Definition at line 45 of file dsdv-helper.h.

Constructor & Destructor Documentation

◆ DsdvHelper()

ns3::DsdvHelper::DsdvHelper ( )

Definition at line 42 of file dsdv-helper.cc.

References m_agentFactory, and ns3::ObjectFactory::SetTypeId().

Referenced by Copy().

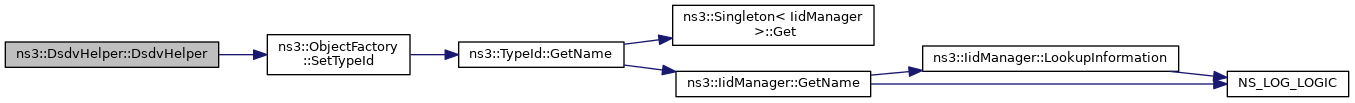

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ~DsdvHelper()

ns3::DsdvHelper::~DsdvHelper ( )

Definition at line 38 of file dsdv-helper.cc.

Member Function Documentation

◆ Copy()

DsdvHelper * ns3::DsdvHelper::Copy ( void  ) const
virtual
Returns
pointer to clone of this DsdvHelper

This method is mainly for internal use by the other helpers; clients are expected to free the dynamic memory allocated by this method

Implements ns3::Ipv4RoutingHelper.

Definition at line 48 of file dsdv-helper.cc.

References DsdvHelper().

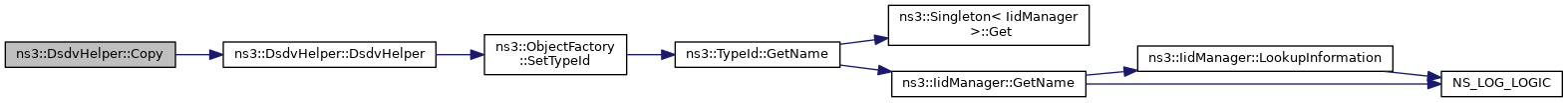

+ Here is the call graph for this function:

◆ Create()

Ptr< Ipv4RoutingProtocol > ns3::DsdvHelper::Create ( Ptr< Node node) const
virtual
Parameters
nodethe node on which the routing protocol will run
Returns
a newly-created routing protocol

This method will be called by ns3::InternetStackHelper::Install

Implements ns3::Ipv4RoutingHelper.

Definition at line 54 of file dsdv-helper.cc.

References ns3::Object::AggregateObject(), ns3::ObjectFactory::Create(), and m_agentFactory.

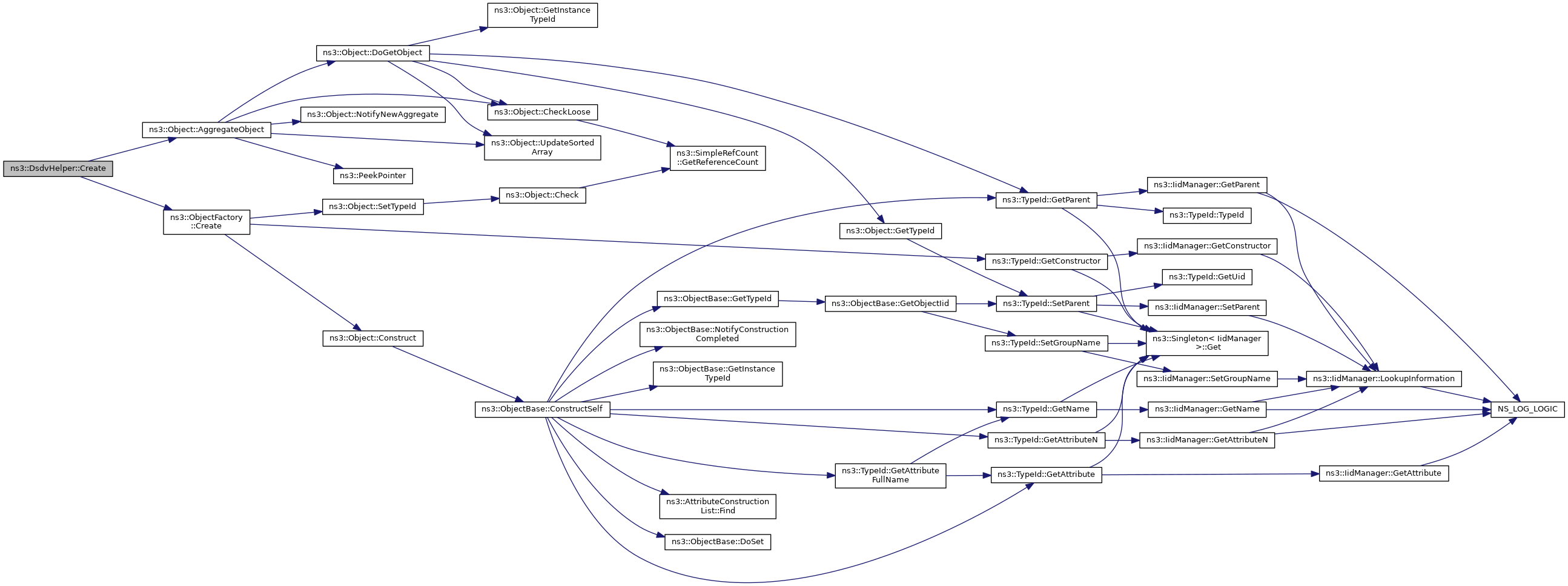

+ Here is the call graph for this function:

◆ Set()

void ns3::DsdvHelper::Set ( std::string  name,
const AttributeValue value
)
Parameters
namethe name of the attribute to set
valuethe value of the attribute to set.

This method controls the attributes of ns3::dsdv::RoutingProtocol

Definition at line 62 of file dsdv-helper.cc.

References m_agentFactory, and ns3::ObjectFactory::Set().

Referenced by DsdvManetExample::InstallInternetStack().

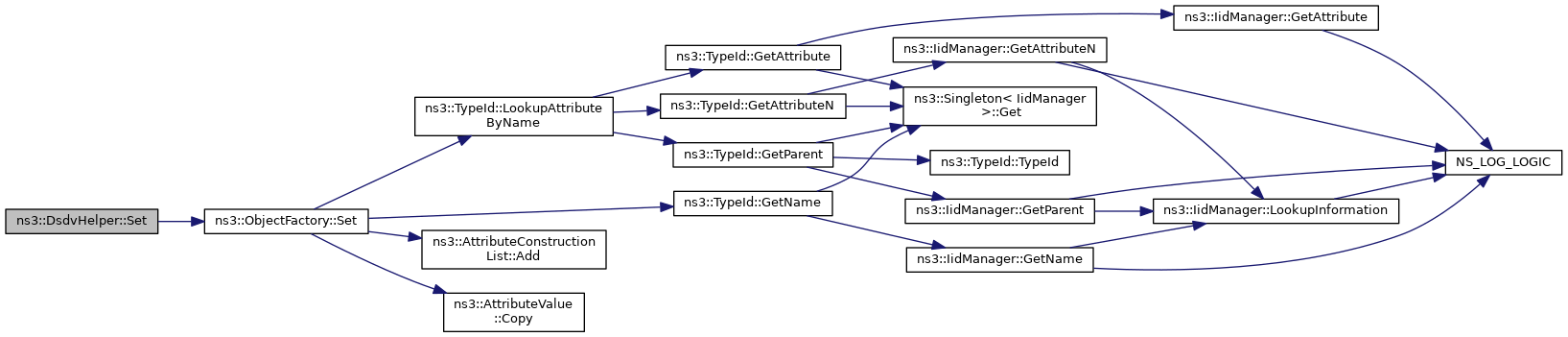

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_agentFactory

ObjectFactory ns3::DsdvHelper::m_agentFactory
private

Object factory.

Definition at line 75 of file dsdv-helper.h.

Referenced by Create(), DsdvHelper(), and Set().


The documentation for this class was generated from the following files:
