ns3::ObjectFactory Class Reference

Instantiate subclasses of ns3::Object. More...

#include "object-factory.h"

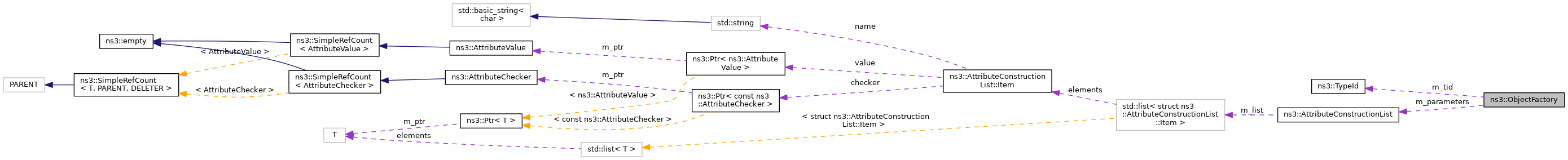

Collaboration diagram for ns3::ObjectFactory:

Public Member Functions
	ObjectFactory ()
	Default constructor. More...
	ObjectFactory (std::string typeId)
	Construct a factory for a specific TypeId by name. More...
Ptr< Object >	Create (void) const
	Create an Object instance of the configured TypeId. More...
template<typename T >
Ptr< T >	Create (void) const
	Create an Object instance of the requested type. More...
TypeId	GetTypeId (void) const
	Get the TypeId which will be created by this ObjectFactory. More...
bool	IsTypeIdSet (void) const
	Check if the ObjectFactory has been configured with a TypeId. More...
void	Set (std::string name, const AttributeValue &value)
	Set an attribute to be set during construction. More...
void	SetTypeId (TypeId tid)
	Set the TypeId of the Objects to be created by this factory. More...
void	SetTypeId (const char *tid)
	Set the TypeId of the Objects to be created by this factory. More...
void	SetTypeId (std::string tid)
	Set the TypeId of the Objects to be created by this factory. More...

Private Attributes
AttributeConstructionList	m_parameters
	The list of attributes and values to be used in constructing objects by this factory. More...
TypeId	m_tid
	The TypeId this factory will create. More...

Friends
std::ostream &	operator<< (std::ostream &os, const ObjectFactory &factory)
	Print the factory configuration on an output stream. More...
std::istream &	operator>> (std::istream &is, ObjectFactory &factory)
	Read a factory configuration from an input stream. More...

Detailed Description

Instantiate subclasses of ns3::Object.

This class can also hold a set of attributes to set automatically during the object construction.

See also

ObjectFactory Attribute

Definition at line 47 of file object-factory.h.

Constructor & Destructor Documentation

ObjectFactory() [1/2]

ns3::ObjectFactory::ObjectFactory

(

)

Default constructor.

This factory is not capable of constructing a real Object until it has at least a TypeId.

Definition at line 34 of file object-factory.cc.

References NS_LOG_FUNCTION.

ObjectFactory() [2/2]

ns3::ObjectFactory::ObjectFactory

(

std::string

typeId

)

Construct a factory for a specific TypeId by name.

Parameters

[in]

typeId

The name of the TypeId this factory should create.

Definition at line 39 of file object-factory.cc.

References NS_LOG_FUNCTION, and SetTypeId().

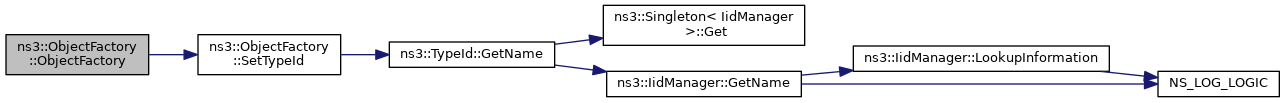

Here is the call graph for this function:

Member Function Documentation

Create() [1/2]

Ptr< Object > ns3::ObjectFactory::Create

(

void

)

const

Create an Object instance of the configured TypeId.

Returns

A new object instance.

Definition at line 104 of file object-factory.cc.

References ns3::Object::Construct(), ns3::TypeId::GetConstructor(), m_parameters, m_tid, NS_ASSERT, NS_LOG_FUNCTION, and ns3::Object::SetTypeId().

Referenced by ns3::GnuplotHelper::AddProbe(), ns3::FileHelper::AddProbe(), ns3::SpectrumChannelHelper::AddPropagationLoss(), ns3::SpectrumChannelHelper::AddSpectrumPropagationLoss(), ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), ns3::LteHelper::ChannelModelInitialization(), ns3::PfifoFastQueueDisc::CheckConfig(), ns3::PrioQueueDisc::CheckConfig(), ns3::TbfQueueDisc::CheckConfig(), PowerRateAdaptationTest::ConfigureNode(), ns3::AodvHelper::Create(), ns3::DsdvHelper::Create(), ns3::Ipv4NixVectorHelper::Create(), ns3::GridBuildingAllocator::Create(), ns3::RipHelper::Create(), ns3::RipNgHelper::Create(), ns3::SpectrumWifiPhyHelper::Create(), ns3::OlsrHelper::Create(), ns3::DsrHelper::Create(), ns3::WifiMacHelper::Create(), Create(), ns3::YansWifiChannelHelper::Create(), ns3::YansWifiPhyHelper::Create(), ns3::SpectrumChannelHelper::Create(), ns3::SpectrumPhyHelper::Create(), ns3::InternetStackHelper::CreateAndAggregateObjectFromTypeId(), ns3::MeshHelper::CreateInterface(), UanTest::CreateNode(), ns3::CreateObjectWithAttributes(), WifiTest::CreateOne(), InterferenceHelperSequenceTest::CreateOne(), ns3::TcpOption::CreateOption(), ns3::QueueDiscFactory::CreateQueueDisc(), ns3::TcpL4Protocol::CreateSocket(), ns3::TcpGeneralTest::CreateSocket(), ns3::FqCoDelQueueDisc::DoEnqueue(), ns3::RvBatteryModelHelper::DoInstall(), ns3::BasicEnergySourceHelper::DoInstall(), ns3::BasicEnergyHarvesterHelper::DoInstall(), ns3::LiIonEnergySourceHelper::DoInstall(), ns3::AcousticModemEnergyModelHelper::DoInstall(), ns3::WifiRadioEnergyModelHelper::DoInstall(), BasicEnergyHarvesterTestCase::DoRun(), SteadyStateRandomWaypointTest::DoRun(), AmpduAggregationTest::DoRun(), WaypointMobilityModelNotifyTest::DoRun(), WaypointMobilityModelAddWaypointTest::DoRun(), InterferenceHelperSequenceTest::DoRun(), TwoLevelAggregationTest::DoRun(), ns3::tests::ObjectFactoryTestCase::DoRun(), DcfImmediateAccessBroadcastTestCase::DoRun(), PointerAttributeTestCase::DoRun(), Bug2831TestCase::DoRun(), HeAggregationTest::DoRunSubTest(), ns3::GetImpl(), ns3::FlowMonitorHelper::GetMonitor(), ns3::BridgeHelper::Install(), ns3::Ping6Helper::Install(), ns3::UdpServerHelper::Install(), ns3::EnergyHarvesterHelper::Install(), ns3::EnergySourceHelper::Install(), ns3::TapBridgeHelper::Install(), ns3::SixLowPanHelper::Install(), ns3::RadvdHelper::Install(), ns3::CsmaHelper::Install(), ns3::PointToPointHelper::Install(), ns3::WaveformGeneratorHelper::Install(), ns3::TvSpectrumTransmitterHelper::Install(), ns3::AdhocAlohaNoackIdealPhyHelper::Install(), ns3::SpectrumAnalyzerHelper::Install(), ns3::SimpleNetDeviceHelper::Install(), ns3::UdpClientHelper::Install(), ns3::InternetStackHelper::Install(), ns3::MobilityHelper::Install(), ns3::UdpTraceClientHelper::Install(), ns3::WaveHelper::Install(), ns3::UanHelper::Install(), ns3::WifiHelper::Install(), ns3::TrafficControlHelper::Install(), ns3::TvSpectrumTransmitterHelper::InstallAdjacent(), ns3::DhcpHelper::InstallDhcpClientPriv(), ns3::DhcpHelper::InstallDhcpServer(), ns3::V4PingHelper::InstallPriv(), ns3::PacketSinkHelper::InstallPriv(), ns3::ThreeGppHttpClientHelper::InstallPriv(), ns3::UdpEchoServerHelper::InstallPriv(), ns3::FdNetDeviceHelper::InstallPriv(), ns3::BulkSendHelper::InstallPriv(), ns3::OnOffHelper::InstallPriv(), ns3::WaveBsmHelper::InstallPriv(), ns3::ThreeGppHttpServerHelper::InstallPriv(), ns3::SimpleNetDeviceHelper::InstallPriv(), ns3::CsmaHelper::InstallPriv(), ns3::UdpEchoClientHelper::InstallPriv(), ns3::LteSimpleHelper::InstallSingleEnbDevice(), ns3::LteHelper::InstallSingleEnbDevice(), ns3::LteSimpleHelper::InstallSingleUeDevice(), ns3::LteHelper::InstallSingleUeDevice(), ns3::VisualSimulatorImpl::NotifyConstructionCompleted(), RoutingExperiment::Run(), WifiTest::RunOne(), ns3::MobilityHelper::SetPositionAllocator(), ns3::NullMessageSimulatorImpl::SetScheduler(), ns3::DefaultSimulatorImpl::SetScheduler(), ns3::RealtimeSimulatorImpl::SetScheduler(), ns3::DistributedSimulatorImpl::SetScheduler(), ns3::MeshHelper::SetStackInstaller(), VanetRoutingExperiment::SetupAdhocMobilityNodes(), ns3::UeManager::SetupDataRadioBearer(), and DsdvManetExample::SetupMobility().

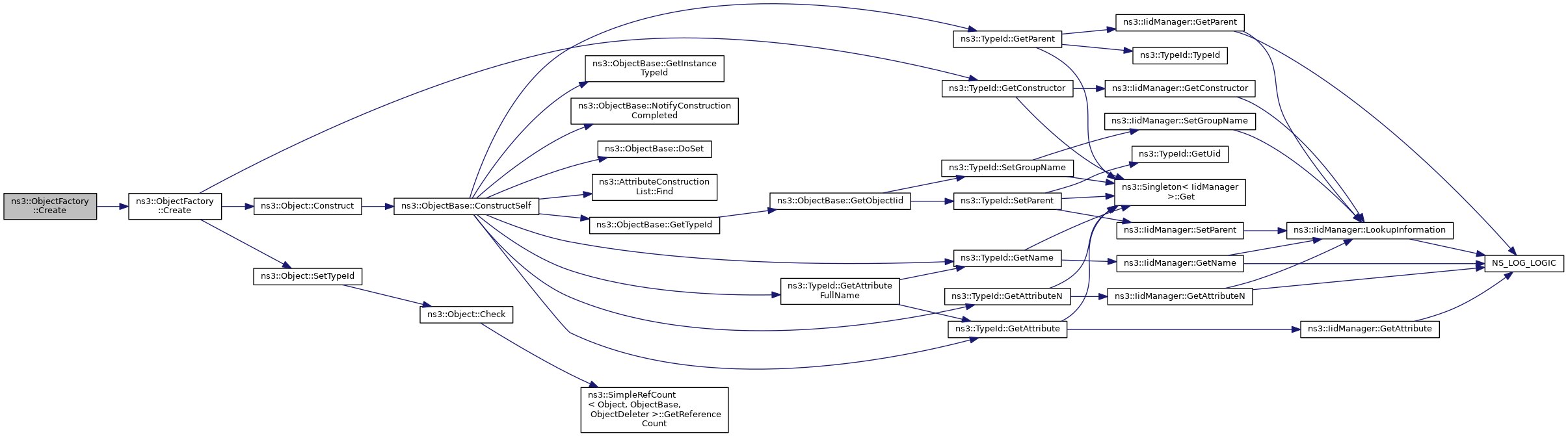

Here is the call graph for this function:

Create() [2/2]

template<typename T >

Ptr< T > ns3::ObjectFactory::Create

(

void

)

const

Create an Object instance of the requested type.

This method performs an extra call to ns3::Object::GetObject before returning a pointer of the requested type to the user. This method is really syntactical sugar.

Template Parameters

T	[explicit] The requested Object type.

Returns

A new object instance.

Definition at line 205 of file object-factory.h.

References Create().

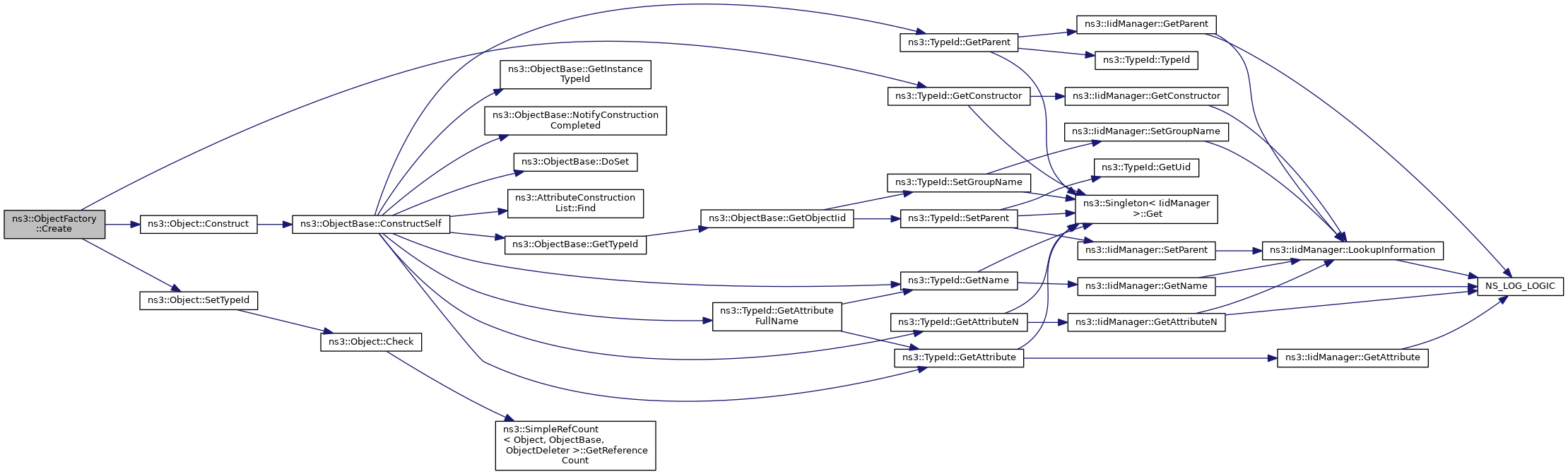

Here is the call graph for this function:

GetTypeId()

TypeId ns3::ObjectFactory::GetTypeId

(

void

)

const

Get the TypeId which will be created by this ObjectFactory.

Returns

The currently-selected TypeId.

Definition at line 97 of file object-factory.cc.

References m_tid, and NS_LOG_FUNCTION.

Referenced by ns3::WifiRadioEnergyModelHelper::DoInstall(), ns3::LteHelper::GetEnbComponentCarrierManagerType(), ns3::LteHelper::GetFfrAlgorithmType(), ns3::LteHelper::GetHandoverAlgorithmType(), ns3::MobilityHelper::GetMobilityModelType(), ns3::LteHelper::GetSchedulerType(), ns3::LteHelper::GetUeComponentCarrierManagerType(), ns3::MobilityHelper::Install(), and ns3::TrafficControlHelper::Install().

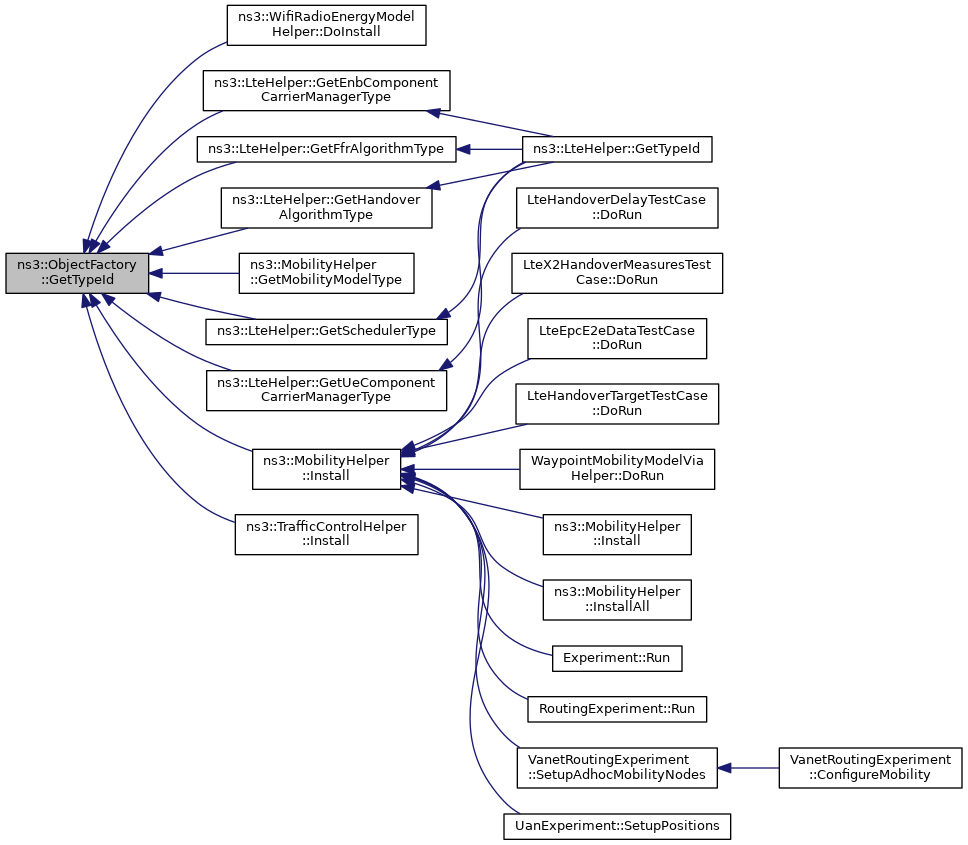

Here is the caller graph for this function:

IsTypeIdSet()

bool ns3::ObjectFactory::IsTypeIdSet

(

void

)

const

Check if the ObjectFactory has been configured with a TypeId.

Returns

true if a TypeId has been configured to the ObjectFactory

Definition at line 64 of file object-factory.cc.

References ns3::TypeId::GetUid(), and m_tid.

Referenced by ns3::SpectrumWifiPhyHelper::Create(), ns3::YansWifiPhyHelper::Create(), and ns3::WifiHelper::Install().

Here is the call graph for this function:

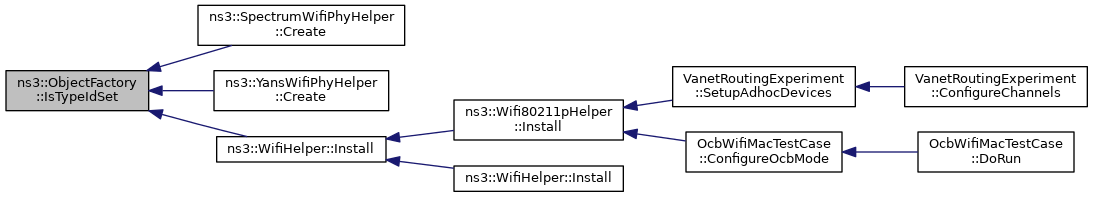

Here is the caller graph for this function:

Set()

void ns3::ObjectFactory::Set	(	std::string	name,
		const AttributeValue &	value
	)

Set an attribute to be set during construction.

Parameters

[in]	name	The name of the attribute to set.
[in]	value	The value of the attribute to set.

Definition at line 73 of file object-factory.cc.

References ns3::AttributeConstructionList::Add(), ns3::TypeId::AttributeInformation::checker, ns3::AttributeValue::Copy(), ns3::TypeId::GetName(), ns3::TypeId::LookupAttributeByName(), m_parameters, m_tid, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::TrafficControlHelper::AddInternalQueues(), ns3::YansWifiChannelHelper::AddPropagationLoss(), ns3::SpectrumChannelHelper::AddPropagationLoss(), ns3::SpectrumChannelHelper::AddSpectrumPropagationLoss(), ns3::BulkSendHelper::BulkSendHelper(), ns3::PfifoFastQueueDisc::CheckConfig(), ns3::GridBuildingAllocator::Create(), ns3::CreateObjectWithAttributes(), UanTest::DoPhyTests(), SteadyStateRandomWaypointTest::DoRun(), AmpduAggregationTest::DoRun(), WaypointMobilityModelNotifyTest::DoRun(), WaypointMobilityModelAddWaypointTest::DoRun(), TwoLevelAggregationTest::DoRun(), PointerAttributeTestCase::DoRun(), HeAggregationTest::DoRunSubTest(), ns3::FqCoDelQueueDisc::InitializeParams(), ns3::TapBridgeHelper::Install(), ns3::DhcpHelper::InstallDhcpServer(), ns3::OnOffHelper::OnOffHelper(), ns3::PacketSinkHelper::PacketSinkHelper(), RoutingExperiment::Run(), ns3::RvBatteryModelHelper::Set(), ns3::BasicEnergySourceHelper::Set(), ns3::BasicEnergyHarvesterHelper::Set(), ns3::LiIonEnergySourceHelper::Set(), ns3::WifiRadioEnergyModelHelper::Set(), ns3::AcousticModemEnergyModelHelper::Set(), ns3::AodvHelper::Set(), ns3::WifiPhyHelper::Set(), ns3::DsdvHelper::Set(), ns3::RipHelper::Set(), ns3::RipNgHelper::Set(), ns3::DsrHelper::Set(), ns3::OlsrHelper::Set(), ns3::SpectrumAnalyzerHelper::SetAntenna(), ns3::WaveformGeneratorHelper::SetAntenna(), ns3::AdhocAlohaNoackIdealPhyHelper::SetAntenna(), ns3::UdpEchoServerHelper::SetAttribute(), ns3::PacketSinkHelper::SetAttribute(), ns3::ThreeGppHttpClientHelper::SetAttribute(), ns3::WaveBsmHelper::SetAttribute(), ns3::UdpServerHelper::SetAttribute(), ns3::Ping6Helper::SetAttribute(), ns3::TapBridgeHelper::SetAttribute(), ns3::OnOffHelper::SetAttribute(), ns3::FdNetDeviceHelper::SetAttribute(), ns3::BulkSendHelper::SetAttribute(), ns3::V4PingHelper::SetAttribute(), ns3::RadvdHelper::SetAttribute(), ns3::TvSpectrumTransmitterHelper::SetAttribute(), ns3::ThreeGppHttpServerHelper::SetAttribute(), ns3::UdpClientHelper::SetAttribute(), ns3::UdpEchoClientHelper::SetAttribute(), ns3::UdpTraceClientHelper::SetAttribute(), ns3::GridBuildingAllocator::SetBuildingAttribute(), ns3::CcHelper::SetCcAttribute(), ns3::SpectrumChannelHelper::SetChannel(), ns3::SimpleNetDeviceHelper::SetChannel(), ns3::CsmaHelper::SetChannelAttribute(), ns3::PointToPointHelper::SetChannelAttribute(), ns3::SimpleNetDeviceHelper::SetChannelAttribute(), ns3::WaveHelper::SetChannelScheduler(), ns3::DhcpHelper::SetClientAttribute(), ns3::OnOffHelper::SetConstantRate(), ns3::BridgeHelper::SetDeviceAttribute(), ns3::SixLowPanHelper::SetDeviceAttribute(), ns3::SpectrumAnalyzerHelper::SetDeviceAttribute(), ns3::CsmaHelper::SetDeviceAttribute(), ns3::WaveformGeneratorHelper::SetDeviceAttribute(), ns3::PointToPointHelper::SetDeviceAttribute(), ns3::AdhocAlohaNoackIdealPhyHelper::SetDeviceAttribute(), ns3::SimpleNetDeviceHelper::SetDeviceAttribute(), ns3::LteHelper::SetEnbAntennaModelAttribute(), ns3::LteHelper::SetEnbComponentCarrierManagerAttribute(), ns3::LteHelper::SetEnbDeviceAttribute(), ns3::WifiPhyHelper::SetErrorRateModel(), ns3::LteHelper::SetFadingModelAttribute(), ns3::LteHelper::SetFfrAlgorithmAttribute(), ns3::WifiPhyHelper::SetFrameCaptureModel(), ns3::LteHelper::SetHandoverAlgorithmAttribute(), ns3::UanHelper::SetMac(), ns3::MeshHelper::SetMacType(), ns3::MobilityHelper::SetMobilityModel(), ns3::FlowMonitorHelper::SetMonitorAttribute(), ns3::WifiHelper::SetObssPdAlgorithm(), ns3::LteHelper::SetPathlossModelAttribute(), ns3::UanHelper::SetPhy(), ns3::SpectrumPhyHelper::SetPhy(), ns3::SpectrumAnalyzerHelper::SetPhyAttribute(), ns3::WaveformGeneratorHelper::SetPhyAttribute(), ns3::AdhocAlohaNoackIdealPhyHelper::SetPhyAttribute(), ns3::SpectrumPhyHelper::SetPhyAttribute(), ns3::MobilityHelper::SetPositionAllocator(), ns3::WifiPhyHelper::SetPreambleDetectionModel(), ns3::YansWifiChannelHelper::SetPropagationDelay(), ns3::SpectrumChannelHelper::SetPropagationDelay(), ns3::SimpleNetDeviceHelper::SetQueue(), ns3::CsmaHelper::SetQueue(), ns3::PointToPointHelper::SetQueue(), ns3::TrafficControlHelper::SetQueueLimits(), ns3::MeshHelper::SetRemoteStationManager(), ns3::WaveHelper::SetRemoteStationManager(), ns3::WifiHelper::SetRemoteStationManager(), ns3::LteHelper::SetSchedulerAttribute(), ns3::DhcpHelper::SetServerAttribute(), ns3::LteHelper::SetSpectrumChannelAttribute(), ns3::MeshHelper::SetStackInstaller(), ns3::InternetStackHelper::SetTcp(), ns3::UanHelper::SetTransducer(), ns3::WifiRadioEnergyModelHelper::SetTxCurrentModel(), ns3::WifiMacHelper::SetType(), ns3::LteHelper::SetUeAntennaModelAttribute(), ns3::LteHelper::SetUeComponentCarrierManagerAttribute(), ns3::LteHelper::SetUeDeviceAttribute(), VanetRoutingExperiment::SetupAdhocMobilityNodes(), DsdvManetExample::SetupMobility(), ns3::ThreeGppHttpClientHelper::ThreeGppHttpClientHelper(), ns3::ThreeGppHttpServerHelper::ThreeGppHttpServerHelper(), and ns3::V4PingHelper::V4PingHelper().

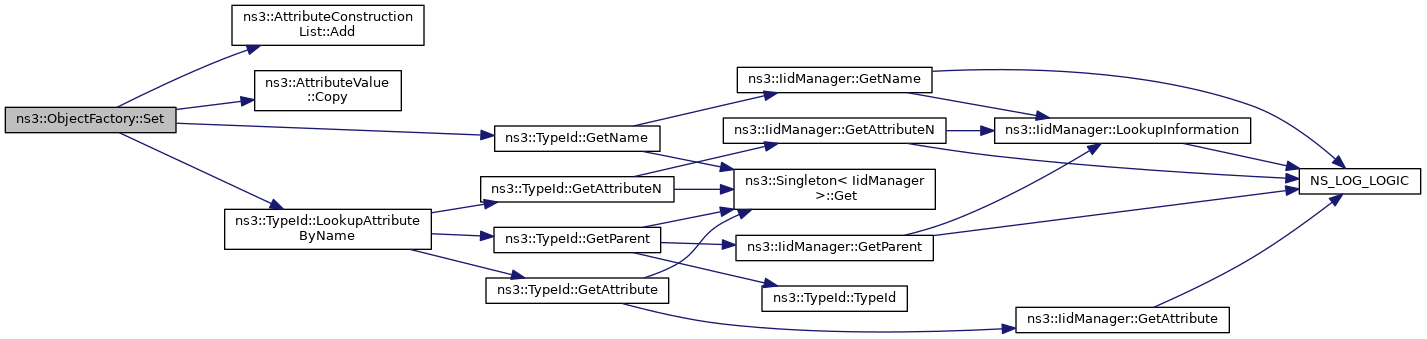

Here is the call graph for this function:

SetTypeId() [1/3]

void ns3::ObjectFactory::SetTypeId

(

TypeId

tid

)

Set the TypeId of the Objects to be created by this factory.

Parameters

[in]

tid

The TypeId of the object to instantiate.

Definition at line 46 of file object-factory.cc.

References ns3::TypeId::GetName(), m_tid, and NS_LOG_FUNCTION.

Referenced by ns3::AcousticModemEnergyModelHelper::AcousticModemEnergyModelHelper(), ns3::TrafficControlHelper::AddChildQueueDisc(), ns3::TrafficControlHelper::AddInternalQueues(), ns3::TrafficControlHelper::AddPacketFilter(), ns3::GnuplotHelper::AddProbe(), ns3::FileHelper::AddProbe(), ns3::YansWifiChannelHelper::AddPropagationLoss(), ns3::SpectrumChannelHelper::AddPropagationLoss(), ns3::TrafficControlHelper::AddQueueDiscClasses(), ns3::SpectrumChannelHelper::AddSpectrumPropagationLoss(), ns3::AdhocAlohaNoackIdealPhyHelper::AdhocAlohaNoackIdealPhyHelper(), ns3::AodvHelper::AodvHelper(), ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), ns3::BasicEnergyHarvesterHelper::BasicEnergyHarvesterHelper(), ns3::BasicEnergySourceHelper::BasicEnergySourceHelper(), ns3::BridgeHelper::BridgeHelper(), ns3::BulkSendHelper::BulkSendHelper(), ns3::CcHelper::CcHelper(), ns3::PfifoFastQueueDisc::CheckConfig(), ns3::PrioQueueDisc::CheckConfig(), ns3::TbfQueueDisc::CheckConfig(), ns3::InternetStackHelper::CreateAndAggregateObjectFromTypeId(), ns3::CreateObjectWithAttributes(), ns3::TcpOption::CreateOption(), ns3::TcpL4Protocol::CreateSocket(), ns3::TcpGeneralTest::CreateSocket(), ns3::CsmaHelper::CsmaHelper(), ns3::DhcpHelper::DhcpHelper(), ns3::WifiPhyHelper::DisablePreambleDetectionModel(), UanTest::DoPhyTests(), BasicEnergyHarvesterTestCase::DoRun(), SteadyStateRandomWaypointTest::DoRun(), AmpduAggregationTest::DoRun(), WaypointMobilityModelNotifyTest::DoRun(), WifiTest::DoRun(), WaypointMobilityModelAddWaypointTest::DoRun(), InterferenceHelperSequenceTest::DoRun(), TwoLevelAggregationTest::DoRun(), ns3::tests::ObjectFactoryTestCase::DoRun(), DcfImmediateAccessBroadcastTestCase::DoRun(), PointerAttributeTestCase::DoRun(), Bug2831TestCase::DoRun(), HeAggregationTest::DoRunSubTest(), ns3::DsdvHelper::DsdvHelper(), ns3::DsrHelper::DsrHelper(), ns3::FdNetDeviceHelper::FdNetDeviceHelper(), ns3::FlowMonitorHelper::FlowMonitorHelper(), anonymous_namespace{test-string-value-formatting.cc}::FormattingTestObjectHelper::FormattingTestObjectHelper(), ns3::anonymous_namespace{visual-simulator-impl.cc}::GetDefaultSimulatorImplFactory(), ns3::GetImpl(), ns3::GridBuildingAllocator::GridBuildingAllocator(), ns3::FqCoDelQueueDisc::InitializeParams(), ns3::EnergySourceHelper::Install(), ns3::EnergyHarvesterHelper::Install(), ns3::Ipv4NixVectorHelper::Ipv4NixVectorHelper(), ns3::LiIonEnergySourceHelper::LiIonEnergySourceHelper(), ns3::LteSimpleHelper::LteSimpleHelper(), ns3::MobilityHelper::MobilityHelper(), ObjectFactory(), ns3::OlsrHelper::OlsrHelper(), ns3::OnOffHelper::OnOffHelper(), ns3::operator>>(), ns3::PacketSinkHelper::PacketSinkHelper(), ns3::Ping6Helper::Ping6Helper(), ns3::PointToPointHelper::PointToPointHelper(), ns3::RadvdHelper::RadvdHelper(), ns3::RipHelper::RipHelper(), ns3::RipNgHelper::RipNgHelper(), RoutingExperiment::Run(), FifoQueueDiscTestCase::RunFifoTest(), ns3::RvBatteryModelHelper::RvBatteryModelHelper(), ns3::SpectrumAnalyzerHelper::SetAntenna(), ns3::WaveformGeneratorHelper::SetAntenna(), ns3::AdhocAlohaNoackIdealPhyHelper::SetAntenna(), ns3::SpectrumChannelHelper::SetChannel(), ns3::SimpleNetDeviceHelper::SetChannel(), ns3::WaveHelper::SetChannelScheduler(), ns3::LteHelper::SetEnbAntennaModelType(), ns3::LteHelper::SetEnbComponentCarrierManagerType(), ns3::WifiPhyHelper::SetErrorRateModel(), ns3::LteHelper::SetFadingModel(), ns3::LteHelper::SetFfrAlgorithmType(), ns3::WifiPhyHelper::SetFrameCaptureModel(), ns3::LteHelper::SetHandoverAlgorithmType(), ns3::Simulator::SetImplementation(), ns3::UanHelper::SetMac(), ns3::MeshHelper::SetMacType(), ns3::MobilityHelper::SetMobilityModel(), ns3::WifiHelper::SetObssPdAlgorithm(), ns3::LteHelper::SetPathlossModelType(), ns3::UanHelper::SetPhy(), ns3::SpectrumPhyHelper::SetPhy(), ns3::MobilityHelper::SetPositionAllocator(), ns3::WifiPhyHelper::SetPreambleDetectionModel(), ns3::YansWifiChannelHelper::SetPropagationDelay(), ns3::SpectrumChannelHelper::SetPropagationDelay(), ns3::SimpleNetDeviceHelper::SetQueue(), ns3::CsmaHelper::SetQueue(), ns3::PointToPointHelper::SetQueue(), ns3::TrafficControlHelper::SetQueueLimits(), ns3::MeshHelper::SetRemoteStationManager(), ns3::WaveHelper::SetRemoteStationManager(), ns3::WifiHelper::SetRemoteStationManager(), ns3::TrafficControlHelper::SetRootQueueDisc(), ns3::LteHelper::SetSchedulerType(), ns3::LteHelper::SetSpectrumChannelType(), ns3::MeshHelper::SetStackInstaller(), ns3::InternetStackHelper::SetTcp(), ns3::UanHelper::SetTransducer(), ns3::WifiRadioEnergyModelHelper::SetTxCurrentModel(), ns3::WifiMacHelper::SetType(), ns3::LteHelper::SetUeAntennaModelType(), ns3::LteHelper::SetUeComponentCarrierManagerType(), VanetRoutingExperiment::SetupAdhocMobilityNodes(), ns3::UeManager::SetupDataRadioBearer(), DsdvManetExample::SetupMobility(), ns3::SimpleNetDeviceHelper::SimpleNetDeviceHelper(), SimulatorTestSuite::SimulatorTestSuite(), ns3::SixLowPanHelper::SixLowPanHelper(), ns3::SpectrumAnalyzerHelper::SpectrumAnalyzerHelper(), ns3::SpectrumWifiPhyHelper::SpectrumWifiPhyHelper(), ns3::TapBridgeHelper::TapBridgeHelper(), PowerRateAdaptationTest::TestAparf(), PowerRateAdaptationTest::TestParf(), PowerRateAdaptationTest::TestRrpaa(), ThreadedSimulatorTestSuite::ThreadedSimulatorTestSuite(), ns3::ThreeGppHttpClientHelper::ThreeGppHttpClientHelper(), ns3::ThreeGppHttpServerHelper::ThreeGppHttpServerHelper(), ns3::TvSpectrumTransmitterHelper::TvSpectrumTransmitterHelper(), ns3::UanHelper::UanHelper(), ns3::UdpClientHelper::UdpClientHelper(), ns3::UdpEchoClientHelper::UdpEchoClientHelper(), ns3::UdpEchoServerHelper::UdpEchoServerHelper(), ns3::UdpServerHelper::UdpServerHelper(), ns3::UdpTraceClientHelper::UdpTraceClientHelper(), ns3::V4PingHelper::V4PingHelper(), ns3::WaveBsmHelper::WaveBsmHelper(), ns3::WaveformGeneratorHelper::WaveformGeneratorHelper(), ns3::WifiRadioEnergyModelHelper::WifiRadioEnergyModelHelper(), and ns3::YansWifiPhyHelper::YansWifiPhyHelper().

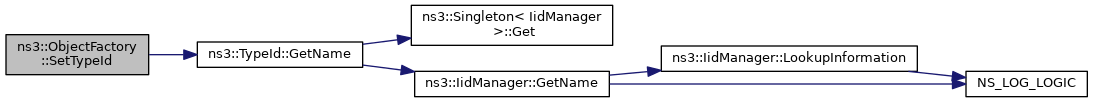

Here is the call graph for this function:

SetTypeId() [2/3]

void ns3::ObjectFactory::SetTypeId

(

const char *

tid

)

Set the TypeId of the Objects to be created by this factory.

Parameters

[in]

tid

The TypeId of the object to instantiate.

Definition at line 58 of file object-factory.cc.

References ns3::TypeId::LookupByName(), m_tid, and NS_LOG_FUNCTION.

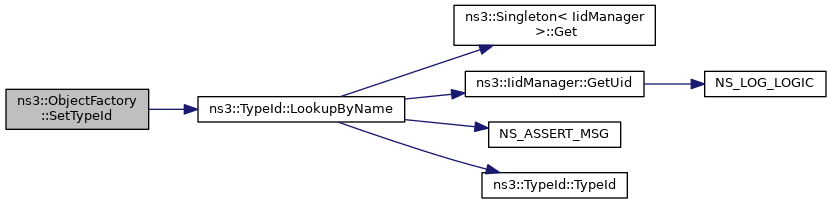

Here is the call graph for this function:

SetTypeId() [3/3]

void ns3::ObjectFactory::SetTypeId

(

std::string

tid

)

Set the TypeId of the Objects to be created by this factory.

Parameters

[in]

tid

The TypeId of the object to instantiate.

Definition at line 52 of file object-factory.cc.

References ns3::TypeId::LookupByName(), m_tid, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Friends And Related Function Documentation

operator<<

std::ostream& operator<< ( std::ostream &  os, const ObjectFactory &  factory  )

friend

Print the factory configuration on an output stream.

The configuration will be printed as a string with the form "<TypeId-name>[<attribute-name>=<attribute-value>|...]"

Parameters

[in,out]	os	The stream.
[in]	factory	The ObjectFactory.

Returns

The stream.

Definition at line 117 of file object-factory.cc.

operator>>

std::istream& operator>> ( std::istream &  is, ObjectFactory &  factory  )

friend

Read a factory configuration from an input stream.

The configuration should be in the form "<TypeId-name>[<attribute-name>=<attribute-value>|...]"

Parameters

[in,out]	is	The input stream.
[out]	factory	The factory to configure as described by the stream.

Returns

The stream.

Definition at line 132 of file object-factory.cc.

Member Data Documentation

m_parameters

AttributeConstructionList ns3::ObjectFactory::m_parameters

private

The list of attributes and values to be used in constructing objects by this factory.

Definition at line 145 of file object-factory.h.

Referenced by Create(), ns3::operator<<(), ns3::operator>>(), and Set().

m_tid

TypeId ns3::ObjectFactory::m_tid

private

The TypeId this factory will create.

Definition at line 140 of file object-factory.h.

Referenced by Create(), GetTypeId(), IsTypeIdSet(), ns3::operator<<(), ns3::operator>>(), Set(), and SetTypeId().

---

The documentation for this class was generated from the following files:

• src/core/model/object-factory.h
• src/core/model/object-factory.cc
