Base classes which provide memory management and object aggregation. More...

Collaboration diagram for Object:

Files
file	attribute-construction-list.cc
	ns3::AttributeConstructionList implementation.

file	attribute-construction-list.h
	ns3::AttributeConstructionList declaration.

file	object-base.cc
	ns3::ObjectBase class implementation.

file	object-base.h
	ns3::ObjectBase declaration and NS_OBJECT_ENSURE_REGISTERED() madro definition.

file	object-factory.cc
	ns3::ObjectFactory class implementation.

file	object-factory.h
	ns3::ObjectFactory class declaration.

file	object-test-suite.cc
	Object test suite.

file	object.cc
	ns3::Object class implementation.

file	object.h
	ns3::Object class declaration, which is the root of the Object hierarchy and Aggregation.

file	type-id.cc
	ns3::TypeId and ns3::IidManager implementations.

file	type-id.h
	ns3::TypeId declaration; inline and template implementations.

file	type-traits-test-suite.cc
	TypeTraits test suite.

file	type-traits.h
	ns3::TypeTraits introspection declaration and template implementation.

Classes
class	ns3::AttributeConstructionList
	List of Attribute name, value and checker triples used to construct Objects. More...

class	ns3::IidManager
	TypeId information manager. More...

class	ns3::Object
	A base class which provides memory management and object aggregation. More...

class	ns3::ObjectBase
	Anchor the ns-3 type and attribute system. More...

struct	ns3::ObjectDeleter
	Standard Object deleter, used by SimpleRefCount to delete an Object when the reference count drops to zero. More...

class	ns3::ObjectFactory
	Instantiate subclasses of ns3::Object. More...

class	ns3::TypeId
	a unique identifier for an interface. More...

struct	ns3::TypeTraits< T >
	Inspect a type to deduce its features. More...

Macros
#define	IID "IidManager"

#define	IIDL IID << ": "

#define	NS_OBJECT_ENSURE_REGISTERED(type)
	Register an Object subclass with the TypeId system. More...

#define	NS_OBJECT_TEMPLATE_CLASS_DEFINE(type, param)
	Explicitly instantiate a template class and register the resulting instance with the TypeId system. More...

Functions
template<typename T >
Ptr< T >	ns3::CreateObjectWithAttributes (std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue(), std::string n8="", const AttributeValue &v8=EmptyAttributeValue(), std::string n9="", const AttributeValue &v9=EmptyAttributeValue())
	Allocate an Object on the heap and initialize with a set of attributes. More...

template<typename T >
Ptr< T >	ns3::CreateObject (void)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 >
Ptr< T >	ns3::CreateObject (T1 a1)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 , typename T2 >
Ptr< T >	ns3::CreateObject (T1 a1, T2 a2)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 , typename T2 , typename T3 >
Ptr< T >	ns3::CreateObject (T1 a1, T2 a2, T3 a3)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 >
Ptr< T >	ns3::CreateObject (T1 a1, T2 a2, T3 a3, T4 a4)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
Ptr< T >	ns3::CreateObject (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
Ptr< T >	ns3::CreateObject (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >
Ptr< T >	ns3::CreateObject (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6, T7 a7)
	Create an object by type, with varying number of constructor parameters. More...

Detailed Description

Base classes which provide memory management and object aggregation.

Macro Definition Documentation

◆ IID

#define IID "IidManager"

Internal:: IidManager shorthand for use in NS_LOG

Definition at line 373 of file type-id.cc.

◆ IIDL

#define IIDL IID << ": "

◆ NS_OBJECT_ENSURE_REGISTERED

#define NS_OBJECT_ENSURE_REGISTERED ( type )

Value:

static struct Object ## type ## RegistrationClass     \
  {                                                     \
    Object ## type ## RegistrationClass () {            \
      ns3::TypeId tid = type::GetTypeId ();             \
      tid.SetSize (sizeof (type));                      \
      tid.GetParent ();                                 \
    }                                                   \
  } Object ## type ## RegistrationVariable

Register an Object subclass with the TypeId system.

This macro should be invoked once for every class which defines a new GetTypeId method.

If the class is in a namespace, then the macro call should also be in the namespace.

Definition at line 45 of file object-base.h.

◆ NS_OBJECT_TEMPLATE_CLASS_DEFINE

#define NS_OBJECT_TEMPLATE_CLASS_DEFINE	(	type,
		param
	)

Value:

template class type<param>;                                          \
  template <> std::string DoGetTypeParamName<type<param> > ()          \
  {                                                                    \
    return #param;                                                     \
  }                                                                    \
  static struct Object ## type ## param ## RegistrationClass           \
  {                                                                    \
    Object ## type ## param ## RegistrationClass () {                  \
      ns3::TypeId tid = type<param>::GetTypeId ();                     \
      tid.SetSize (sizeof (type<param>));                              \
      tid.GetParent ();                                                \
    }                                                                  \
  } Object ## type ## param ## RegistrationVariable

Explicitly instantiate a template class and register the resulting instance with the TypeId system.

This macro should be invoked once for every required instance of a template class which derives from the Object class and defines a new GetTypeId method.

If the template class is in a namespace, then the macro call should also be in the namespace.

Definition at line 67 of file object-base.h.

Function Documentation

◆ CreateObject() [1/8]

template<typename T >

Ptr<T> ns3::CreateObject ( void )

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	[explicit] The type of the derived object to construct.

Returns: The derived object.

Definition at line 528 of file object.h.

References ns3::CompleteConstruct().

Referenced by ns3::Ipv6L3Protocol::AddInterface(), ns3::Ipv4L3Protocol::AddInterface(), TestChildQueueDisc::CheckConfig(), Ipv4L3ProtocolTestCase::DoRun(), PointToPointTest::DoRun(), Ipv6L3ProtocolTestCase::DoRun(), ns3::Ipv4L3Protocol::SetupLoopback(), and ns3::Ipv6L3Protocol::SetupLoopback().

Here is the call graph for this function:

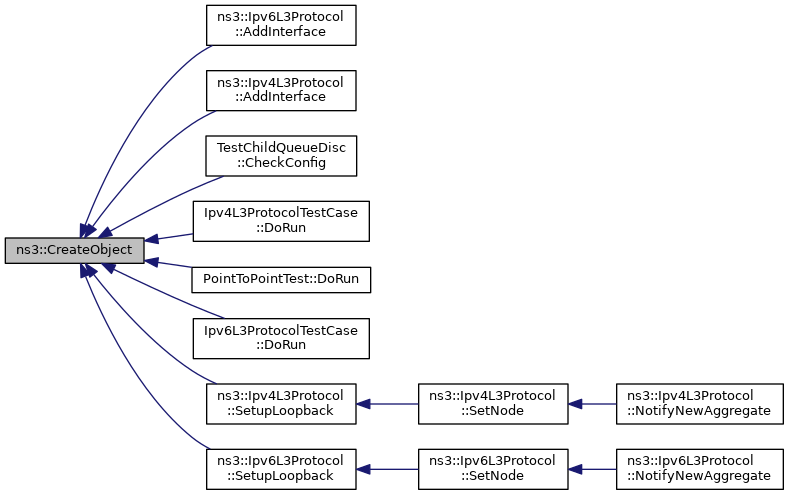

Here is the caller graph for this function:

◆ CreateObject() [2/8]

template<typename T , typename T1 >

Ptr<T> ns3::CreateObject ( T1 a1 )

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	[explicit] The type of the derived object to construct.
T1	[deduced] The type of the constructor argument.

Parameters

[in] a1 The constructor argument

Returns: The derived object.

Definition at line 540 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

◆ CreateObject() [3/8]

template<typename T , typename T1 , typename T2 >

Ptr<T> ns3::CreateObject	(	T1	a1,
		T2	a2
	)

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	[explicit] The type of the derived object to construct.
T1	[deduced] The type of the first constructor argument.
T2	[deduced] The type of the second constructor argument.

Parameters

[in]	a1	The constructor first argument
[in]	a2	The constructor second argument

Returns: The derived object.

Definition at line 555 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

◆ CreateObject() [4/8]

template<typename T , typename T1 , typename T2 , typename T3 >

Ptr<T> ns3::CreateObject	(	T1	a1,
		T2	a2,
		T3	a3
	)

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	[explicit] The type of the derived object to construct.
T1	[deduced] The type of the first constructor argument.
T2	[deduced] The type of the second constructor argument.
T3	[deduced] The type of the third constructor argument.

Parameters

[in]	a1	The constructor first argument
[in]	a2	The constructor second argument
[in]	a3	The constructor third argument

Returns: The derived object.

Definition at line 572 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

◆ CreateObject() [5/8]

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 >

Ptr<T> ns3::CreateObject	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4
	)

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	[explicit] The type of the derived object to construct.
T1	[deduced] The type of the first constructor argument.
T2	[deduced] The type of the second constructor argument.
T3	[deduced] The type of the third constructor argument.
T4	[deduced] The type of the fourth constructor argument.

Parameters

[in]	a1	The constructor first argument
[in]	a2	The constructor second argument
[in]	a3	The constructor third argument
[in]	a4	The constructor fourth argument

Returns: The derived object.

Definition at line 591 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

◆ CreateObject() [6/8]

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

Ptr<T> ns3::CreateObject	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5
	)

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	[explicit] The type of the derived object to construct.
T1	[deduced] The type of the first constructor argument.
T2	[deduced] The type of the second constructor argument.
T3	[deduced] The type of the third constructor argument.
T4	[deduced] The type of the fourth constructor argument.
T5	[deduced] The type of the fifth constructor argument.

Parameters

[in]	a1	The constructor first argument
[in]	a2	The constructor second argument
[in]	a3	The constructor third argument
[in]	a4	The constructor fourth argument
[in]	a5	The constructor fifth argument

Returns: The derived object.

Definition at line 612 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

◆ CreateObject() [7/8]

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

Ptr<T> ns3::CreateObject	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6
	)

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	[explicit] The type of the derived object to construct.
T1	[deduced] The type of the first constructor argument.
T2	[deduced] The type of the second constructor argument.
T3	[deduced] The type of the third constructor argument.
T4	[deduced] The type of the fourth constructor argument.
T5	[deduced] The type of the fifth constructor argument.
T6	[deduced] The type of the sixth constructor argument.

Parameters

[in]	a1	The constructor first argument
[in]	a2	The constructor second argument
[in]	a3	The constructor third argument
[in]	a4	The constructor fourth argument
[in]	a5	The constructor fifth argument
[in]	a6	The constructor sixth argument

Returns: The derived object.

Definition at line 635 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

◆ CreateObject() [8/8]

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

Ptr<T> ns3::CreateObject	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6,
		T7	a7
	)

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	[explicit] The type of the derived object to construct.
T1	[deduced] The type of the first constructor argument.
T2	[deduced] The type of the second constructor argument.
T3	[deduced] The type of the third constructor argument.
T4	[deduced] The type of the fourth constructor argument.
T5	[deduced] The type of the fifth constructor argument.
T6	[deduced] The type of the sixth constructor argument.
T7	[deduced] The type of the seventh constructor argument.

Parameters

[in]	a1	The constructor first argument
[in]	a2	The constructor second argument
[in]	a3	The constructor third argument
[in]	a4	The constructor fourth argument
[in]	a5	The constructor fifth argument
[in]	a6	The constructor sixth argument
[in]	a7	The constructor seventh argument

Returns: The derived object.

Definition at line 660 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

◆ CreateObjectWithAttributes()

template<typename T >

Ptr< T > ns3::CreateObjectWithAttributes	(	std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`,
		std::string	n8 = `""`,
		const AttributeValue &	v8 = `EmptyAttributeValue ()`,
		std::string	n9 = `""`,
		const AttributeValue &	v9 = `EmptyAttributeValue ()`
	)

Allocate an Object on the heap and initialize with a set of attributes.

Template Parameters

T	[explicit] The requested Object type.

Parameters

[in]	n1	Name of attribute
[in]	v1	Value of attribute
[in]	n2	Name of attribute
[in]	v2	Value of attribute
[in]	n3	Name of attribute
[in]	v3	Value of attribute
[in]	n4	Name of attribute
[in]	v4	Value of attribute
[in]	n5	Name of attribute
[in]	v5	Value of attribute
[in]	n6	Name of attribute
[in]	v6	Value of attribute
[in]	n7	Name of attribute
[in]	v7	Value of attribute
[in]	n8	Name of attribute
[in]	v8	Value of attribute
[in]	n9	Name of attribute
[in]	v9	Value of attribute

Returns: A pointer to a newly allocated object.

Definition at line 213 of file object-factory.h.

References ns3::ObjectFactory::Create(), ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by ns3::FifoQueueDisc::CheckConfig(), ns3::PieQueueDisc::CheckConfig(), ns3::CoDelQueueDisc::CheckConfig(), ns3::CobaltQueueDisc::CheckConfig(), and ns3::RedQueueDisc::CheckConfig().

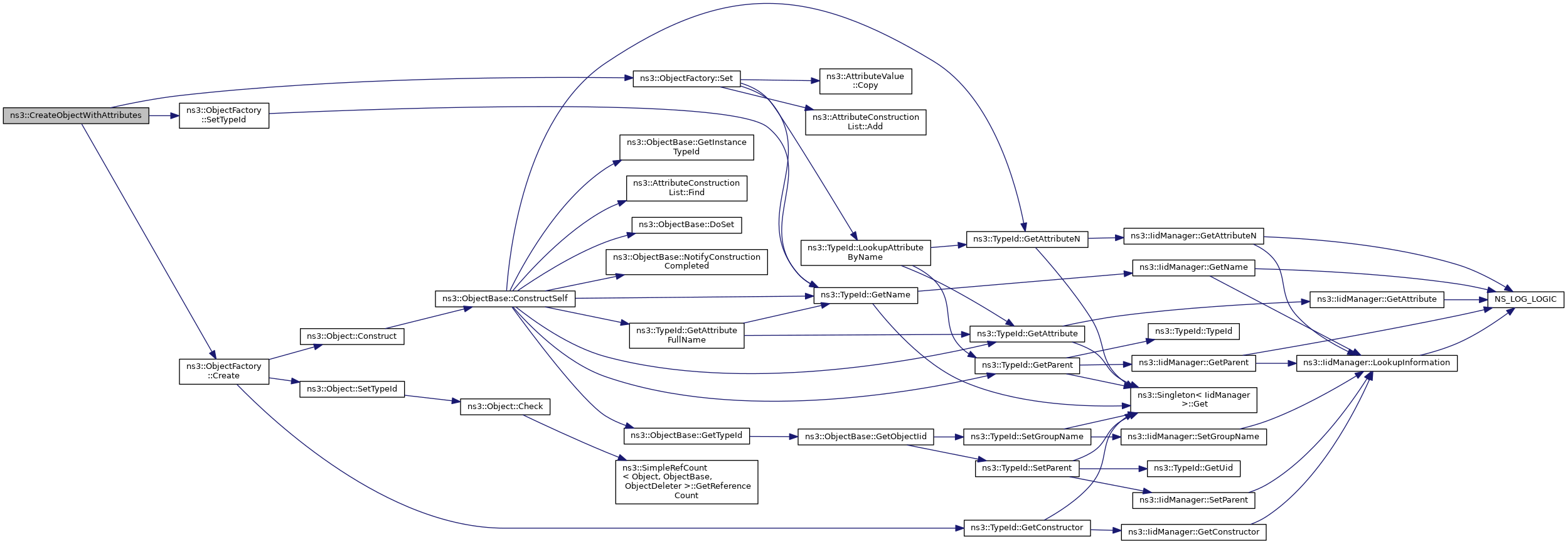

Here is the call graph for this function:

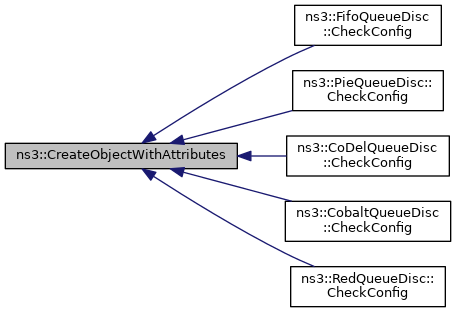

Here is the caller graph for this function:

Files

Classes

Macros

Functions

Detailed Description

Macro Definition Documentation

◆ IID

◆ IIDL

◆ NS_OBJECT_ENSURE_REGISTERED

◆ NS_OBJECT_TEMPLATE_CLASS_DEFINE

Function Documentation

◆ CreateObject() [1/8]

◆ CreateObject() [2/8]

◆ CreateObject() [3/8]

◆ CreateObject() [4/8]

◆ CreateObject() [5/8]

◆ CreateObject() [6/8]

◆ CreateObject() [7/8]

◆ CreateObject() [8/8]

◆ CreateObjectWithAttributes()
