ns3::Ipv4NixVectorHelper Class Reference

Helper class that adds Nix-vector routing to nodes. More...

#include "ipv4-nix-vector-helper.h"

+ Inheritance diagram for ns3::Ipv4NixVectorHelper:
+ Collaboration diagram for ns3::Ipv4NixVectorHelper:

Public Member Functions

 Ipv4NixVectorHelper ()
 Construct an Ipv4NixVectorHelper to make life easier while adding Nix-vector routing to nodes. More...

 Ipv4NixVectorHelper (const Ipv4NixVectorHelper &)
 Construct an Ipv4NixVectorHelper from another previously initialized instance (Copy Constructor). More...

Ipv4NixVectorHelperCopy (void) const

virtual Ptr< Ipv4RoutingProtocolCreate (Ptr< Node > node) const

- Public Member Functions inherited from ns3::Ipv4RoutingHelper
virtual ~Ipv4RoutingHelper ()


Private Member Functions

Ipv4NixVectorHelperoperator= (const Ipv4NixVectorHelper &)
 Assignment operator declared private and not implemented to disallow assignment and prevent the compiler from happily inserting its own. More...


Private Attributes

ObjectFactory m_agentFactory
 Object factory. More...


Additional Inherited Members

- Static Public Member Functions inherited from ns3::Ipv4RoutingHelper
template<class T >
static Ptr< T > GetRouting (Ptr< Ipv4RoutingProtocol > protocol)
 Request a specified routing protocol <T> from Ipv4RoutingProtocol protocol. More...

static void PrintNeighborCacheAllAt (Time printTime, Ptr< OutputStreamWrapper > stream)
 prints the neighbor cache of all nodes at a particular time. More...

static void PrintNeighborCacheAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream)
 prints the neighbor cache of all nodes at regular intervals specified by user. More...

static void PrintNeighborCacheAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
 prints the neighbor cache of a node at a particular time. More...

static void PrintNeighborCacheEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
 prints the neighbor cache of a node at regular intervals specified by user. More...

static void PrintRoutingTableAllAt (Time printTime, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the routing tables of all nodes at a particular time. More...

static void PrintRoutingTableAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the routing tables of all nodes at regular intervals specified by user. More...

static void PrintRoutingTableAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the routing tables of a node at a particular time. More...

static void PrintRoutingTableEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the routing tables of a node at regular intervals specified by user. More...


Detailed Description

Helper class that adds Nix-vector routing to nodes.

This class is expected to be used in conjunction with ns3::InternetStackHelper::SetRoutingHelper

Definition at line 38 of file ipv4-nix-vector-helper.h.

Constructor & Destructor Documentation

◆ Ipv4NixVectorHelper() [1/2]

ns3::Ipv4NixVectorHelper::Ipv4NixVectorHelper ( )

Construct an Ipv4NixVectorHelper to make life easier while adding Nix-vector routing to nodes.

Definition at line 26 of file ipv4-nix-vector-helper.cc.

References m_agentFactory, and ns3::ObjectFactory::SetTypeId().

Referenced by Copy().

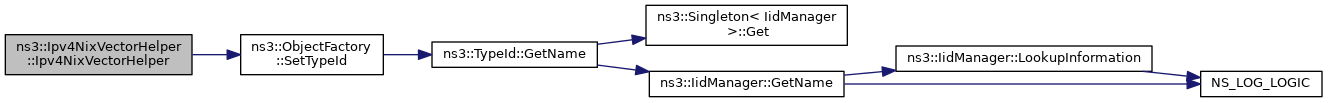

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Ipv4NixVectorHelper() [2/2]

ns3::Ipv4NixVectorHelper::Ipv4NixVectorHelper ( const Ipv4NixVectorHelper o)

Construct an Ipv4NixVectorHelper from another previously initialized instance (Copy Constructor).

Definition at line 31 of file ipv4-nix-vector-helper.cc.

Member Function Documentation

◆ Copy()

Ipv4NixVectorHelper * ns3::Ipv4NixVectorHelper::Copy ( void  ) const
virtual
Returns
pointer to clone of this Ipv4NixVectorHelper

This method is mainly for internal use by the other helpers; clients are expected to free the dynamic memory allocated by this method

Implements ns3::Ipv4RoutingHelper.

Definition at line 37 of file ipv4-nix-vector-helper.cc.

References Ipv4NixVectorHelper().

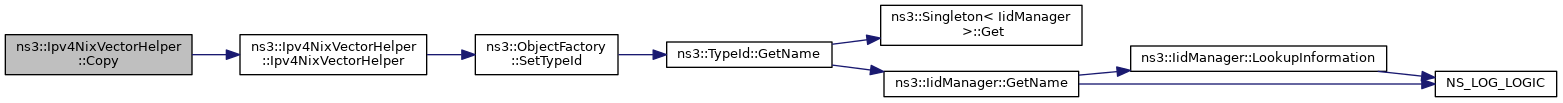

+ Here is the call graph for this function:

◆ Create()

Ptr< Ipv4RoutingProtocol > ns3::Ipv4NixVectorHelper::Create ( Ptr< Node node) const
virtual
Parameters
nodethe node on which the routing protocol will run
Returns
a newly-created routing protocol

This method will be called by ns3::InternetStackHelper::Install

Implements ns3::Ipv4RoutingHelper.

Definition at line 43 of file ipv4-nix-vector-helper.cc.

References ns3::Object::AggregateObject(), ns3::ObjectFactory::Create(), and m_agentFactory.

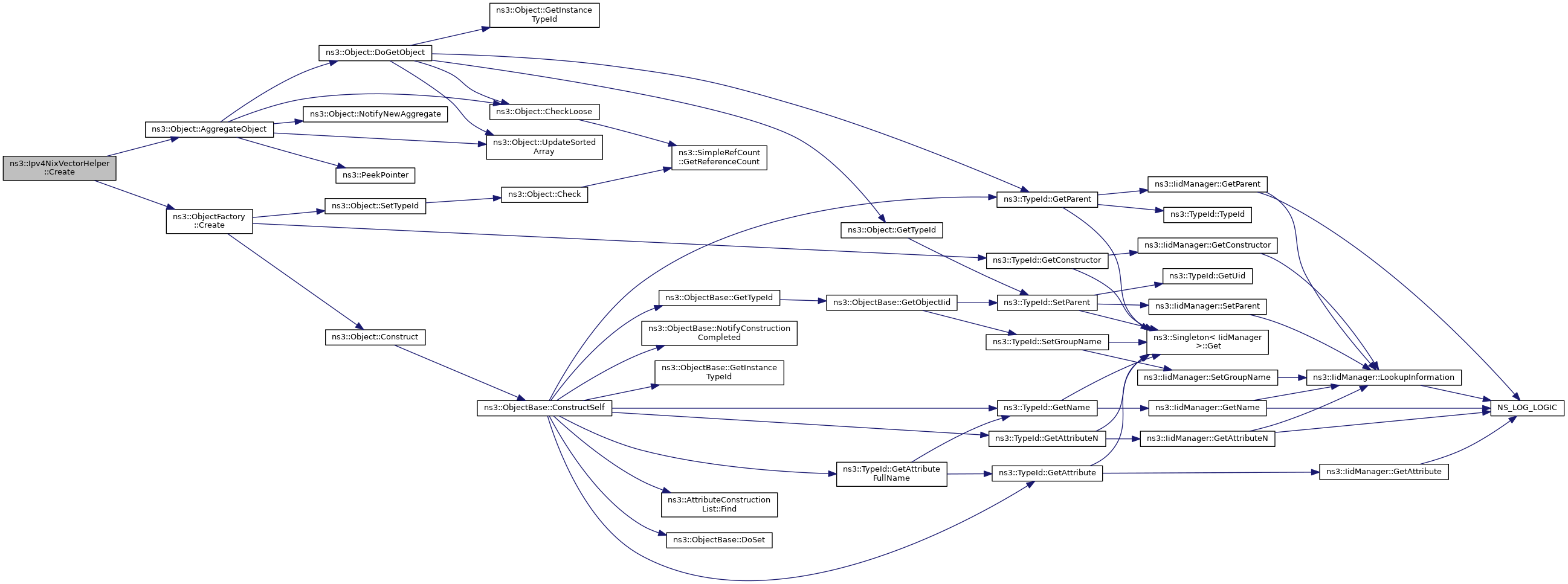

+ Here is the call graph for this function:

◆ operator=()

Ipv4NixVectorHelper& ns3::Ipv4NixVectorHelper::operator= ( const Ipv4NixVectorHelper )
private

Assignment operator declared private and not implemented to disallow assignment and prevent the compiler from happily inserting its own.

Returns
Nothing useful.

Member Data Documentation

◆ m_agentFactory

ObjectFactory ns3::Ipv4NixVectorHelper::m_agentFactory
private

Object factory.

Definition at line 77 of file ipv4-nix-vector-helper.h.

Referenced by Create(), and Ipv4NixVectorHelper().


The documentation for this class was generated from the following files:
