ns3::LenaDeactivateBearerTestCase Class Reference

Test case that for testing the deactivation of the bearer functionality. More...

#include "lte-test-deactivate-bearer.h"

Inheritance diagram for ns3::LenaDeactivateBearerTestCase:

Collaboration diagram for ns3::LenaDeactivateBearerTestCase:

Public Member Functions
	LenaDeactivateBearerTestCase (std::vector< uint16_t > dist, std::vector< uint32_t > estThrPssDl, std::vector< uint16_t > packetSize, uint16_t interval, bool errorModelEnabled, bool useIdealRrc)
	Constructor. More...
virtual	~LenaDeactivateBearerTestCase ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Static Private Member Functions
static std::string	BuildNameString (uint16_t nUser, std::vector< uint16_t > dist)
	Build name string function. More...

Private Attributes
std::vector< uint16_t >	m_dist
	distance between the nodes More...
bool	m_errorModelEnabled
	error mode enabled? More...
std::vector< uint32_t >	m_estThrPssDl
	estimated threshold PSS DL More...
uint16_t	m_interval
	interval time in ms More...
uint16_t	m_nUser
	number of UE nodes More...
std::vector< uint16_t >	m_packetSize
	packet size in bytes More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test case that for testing the deactivation of the bearer functionality.

The test consist in deactivating the bearer and checking if some traffic will appear afterwards on the given bearer. If some traffic is detected the test will fail. Firs the de-activation is performed by using Simulator::Schedule() method which will initiate bearer de-activation after deActivateTime that is specified as the test parameter. Additionally, test instantiate de-activation in sequence.

Definition at line 25 of file lte-test-deactivate-bearer.h.

Constructor & Destructor Documentation

LenaDeactivateBearerTestCase()

ns3::LenaDeactivateBearerTestCase::LenaDeactivateBearerTestCase	(	std::vector< uint16_t >	dist,
		std::vector< uint32_t >	estThrPssDl,
		std::vector< uint16_t >	packetSize,
		uint16_t	interval,
		bool	errorModelEnabled,
		bool	useIdealRrc
	)

Constructor.

Parameters

dist	distance between the nodes
estThrPssDl	estimated throughput PSS DL
packetSize	packet size in bytes
interval	interval time in ms
errorModelEnabled	whether the error model is enabled
useIdealRrc	whether to use ideal RRC

Definition at line 113 of file lte-test-deactivate-bearer.cc.

~LenaDeactivateBearerTestCase()

ns3::LenaDeactivateBearerTestCase::~LenaDeactivateBearerTestCase ( )

virtual

Definition at line 124 of file lte-test-deactivate-bearer.cc.

Member Function Documentation

BuildNameString()

std::string ns3::LenaDeactivateBearerTestCase::BuildNameString ( uint16_t  nUser, std::vector< uint16_t >  dist  )

staticprivate

Build name string function.

Parameters

nUser	number of UE nodes
dist	distance between nodes

Returns

name string

Definition at line 101 of file lte-test-deactivate-bearer.cc.

DoRun()

void ns3::LenaDeactivateBearerTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 129 of file lte-test-deactivate-bearer.cc.

References ns3::LteHelper::ActivateDedicatedEpsBearer(), ns3::EpsBearer::arp, ns3::Ipv4AddressHelper::Assign(), ns3::LteHelper::Attach(), first::clientApps, ns3::NodeContainer::Create(), ns3::LteHelper::DeActivateDedicatedEpsBearer(), ns3::EpcTft::Default(), ns3::Simulator::Destroy(), ns3::LteHelper::EnableRlcTraces(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::GbrQosInformation::gbrDl, ns3::GbrQosInformation::gbrUl, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Ipv4Address::GetAny(), ns3::NodeContainer::GetN(), ns3::Object::GetObject(), ns3::LteEnbNetDevice::GetPhy(), ns3::LteHelper::GetRlcStats(), ns3::Ipv4StaticRoutingHelper::GetStaticRouting(), ns3::PacketSinkHelper::Install(), ns3::PointToPointHelper::Install(), ns3::UdpClientHelper::Install(), ns3::InternetStackHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_dist, m_errorModelEnabled, m_estThrPssDl, m_interval, m_nUser, m_packetSize, ns3::GbrQosInformation::mbrDl, ns3::GbrQosInformation::mbrUl, ns3::MilliSeconds(), third::mobility, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::AllocationRetentionPriority::preemptionCapability, ns3::AllocationRetentionPriority::preemptionVulnerability, ns3::AllocationRetentionPriority::priorityLevel, ns3::Simulator::Run(), ns3::Simulator::Schedule(), ns3::Seconds(), first::serverApps, ns3::UdpClientHelper::SetAttribute(), ns3::ObjectBase::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), ns3::PointToPointHelper::SetChannelAttribute(), ns3::Config::SetDefault(), ns3::PointToPointHelper::SetDeviceAttribute(), ns3::LteHelper::SetEpcHelper(), ns3::LteHelper::SetSchedulerType(), and ns3::Simulator::Stop().

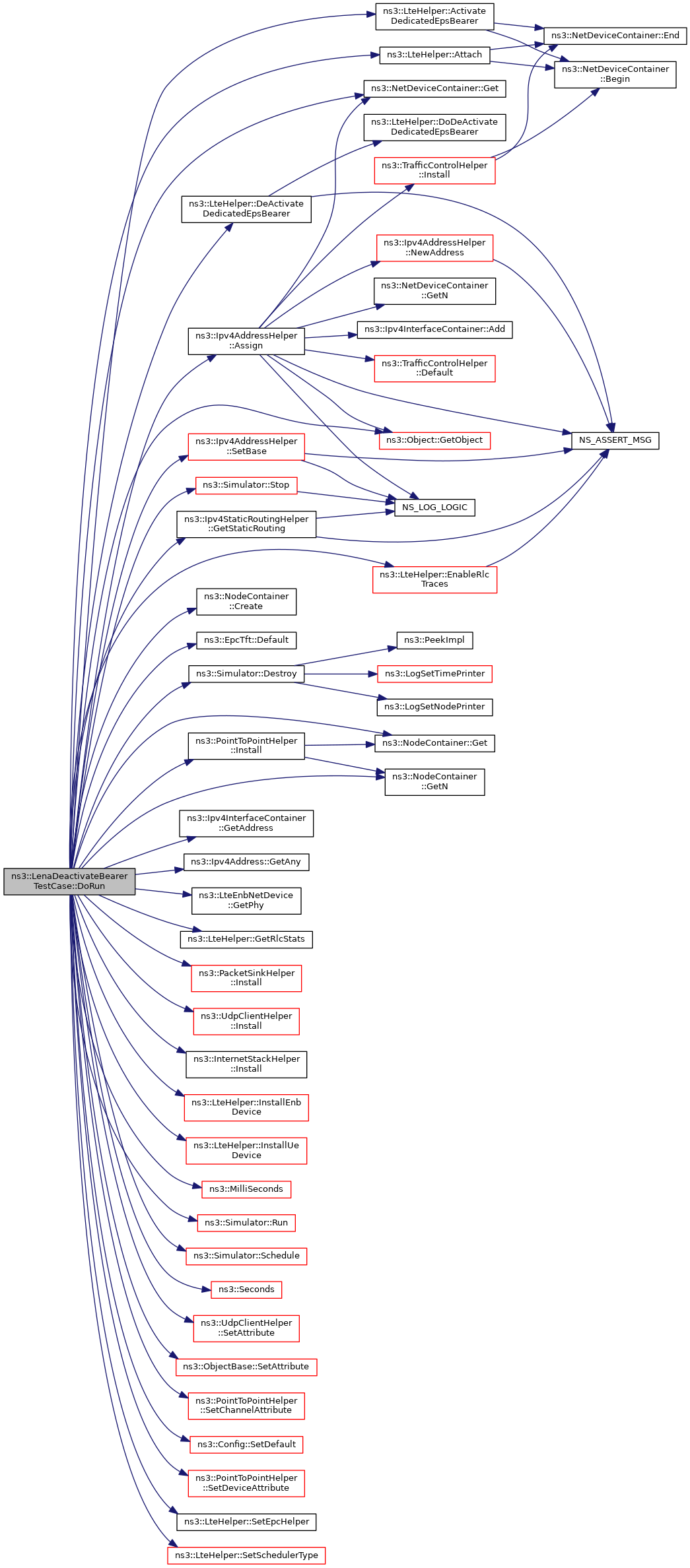

Here is the call graph for this function:

Member Data Documentation

m_dist

std::vector<uint16_t> ns3::LenaDeactivateBearerTestCase::m_dist

private

distance between the nodes

Definition at line 52 of file lte-test-deactivate-bearer.h.

Referenced by DoRun().

m_errorModelEnabled

bool ns3::LenaDeactivateBearerTestCase::m_errorModelEnabled

private

error mode enabled?

Definition at line 56 of file lte-test-deactivate-bearer.h.

Referenced by DoRun().

m_estThrPssDl

std::vector<uint32_t> ns3::LenaDeactivateBearerTestCase::m_estThrPssDl

private

estimated threshold PSS DL

Definition at line 55 of file lte-test-deactivate-bearer.h.

Referenced by DoRun().

m_interval

uint16_t ns3::LenaDeactivateBearerTestCase::m_interval

private

interval time in ms

Definition at line 54 of file lte-test-deactivate-bearer.h.

Referenced by DoRun().

m_nUser

uint16_t ns3::LenaDeactivateBearerTestCase::m_nUser

private

number of UE nodes

Definition at line 51 of file lte-test-deactivate-bearer.h.

Referenced by DoRun().

m_packetSize

std::vector<uint16_t> ns3::LenaDeactivateBearerTestCase::m_packetSize

private

packet size in bytes

Definition at line 53 of file lte-test-deactivate-bearer.h.

Referenced by DoRun().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-deactivate-bearer.h
• src/lte/test/lte-test-deactivate-bearer.cc
