ns3::Simulator Class Reference

Control the scheduling of simulation events. More...

#include "simulator.h"

Public Types
enum	: uint32_t { NO_CONTEXT = 0xffffffff }
	Context enum values. More...

Static Public Member Functions

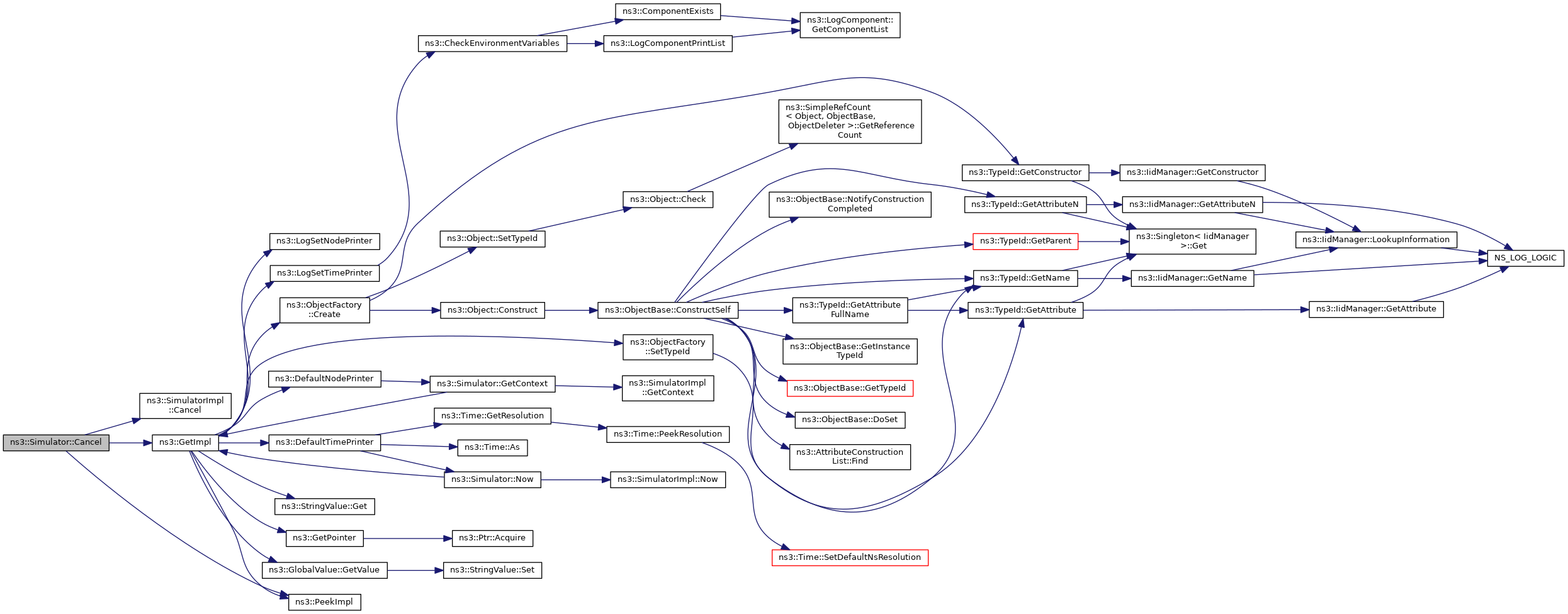

static void	Cancel (const EventId &id)
	Set the cancel bit on this event: the event's associated function will not be invoked when it expires. More...

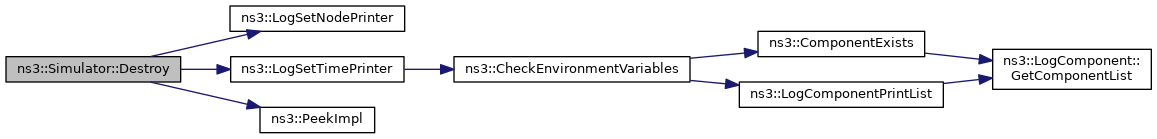

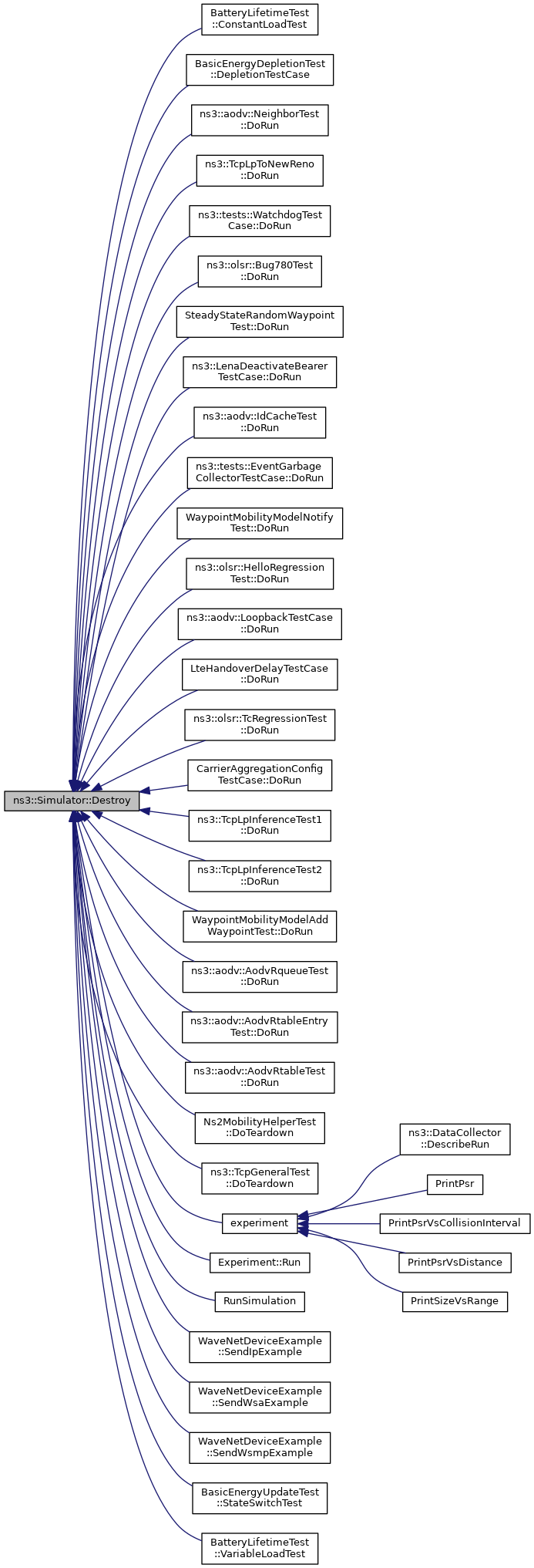

static void	Destroy (void)
	Execute the events scheduled with ScheduleDestroy(). More...

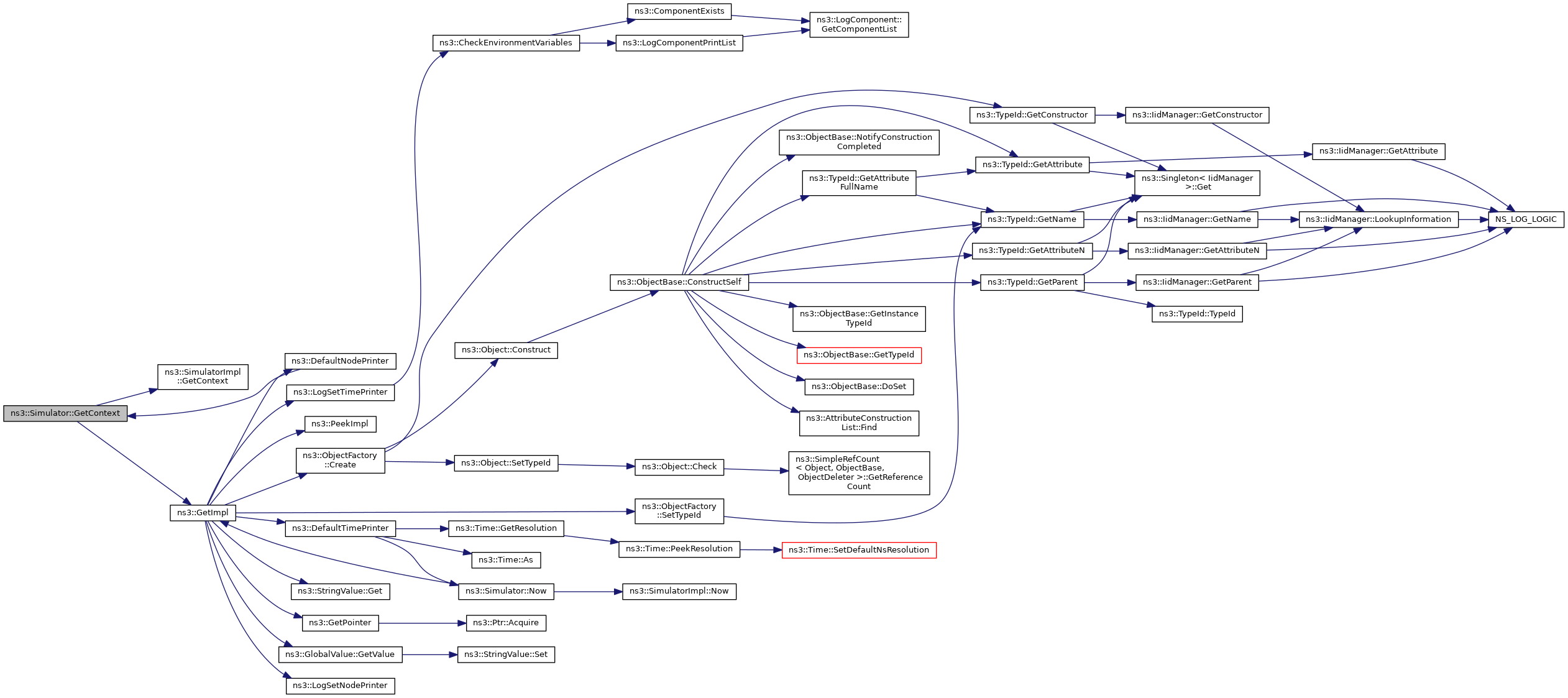

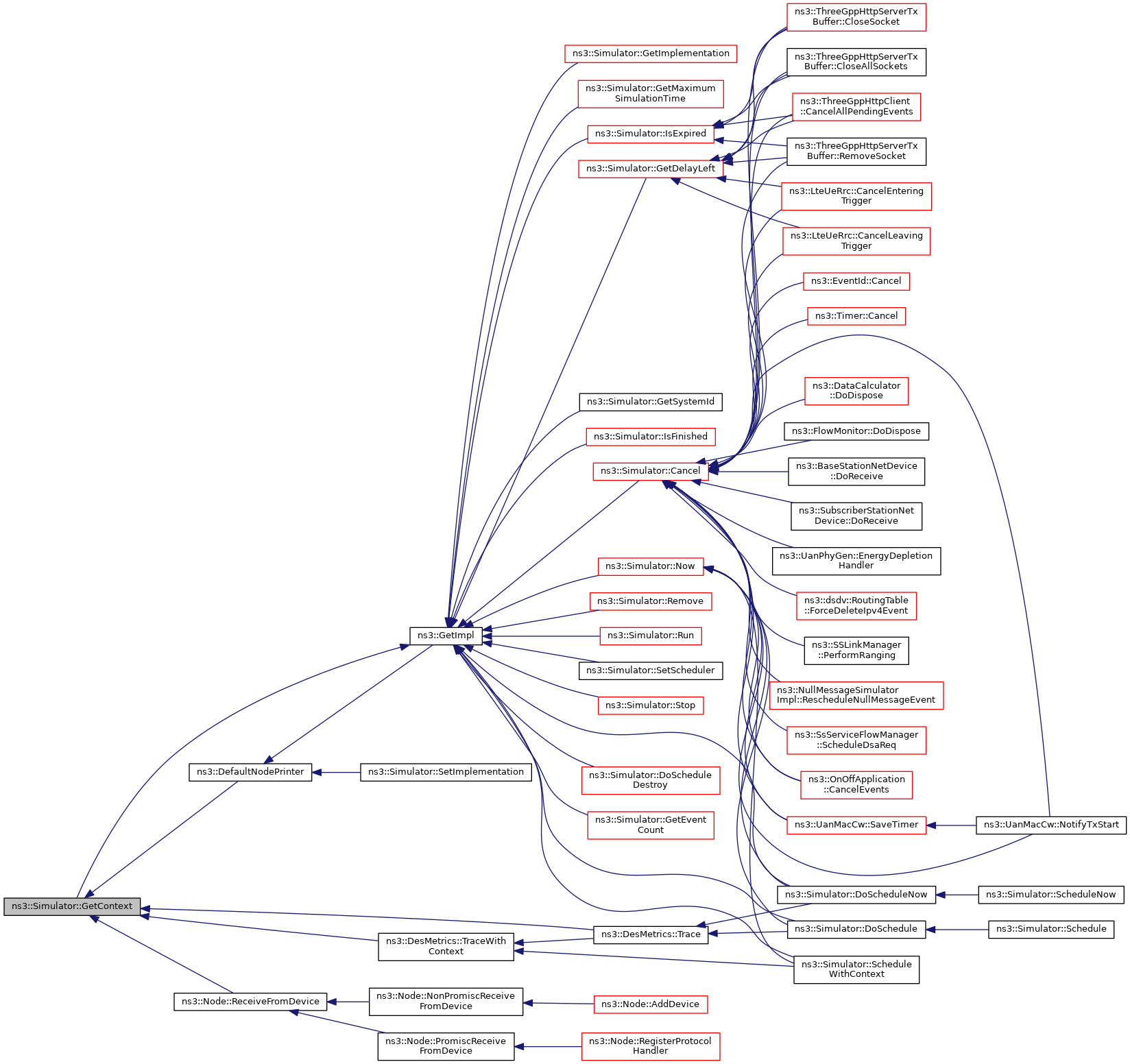

static uint32_t	GetContext (void)
	Get the current simulation context. More...

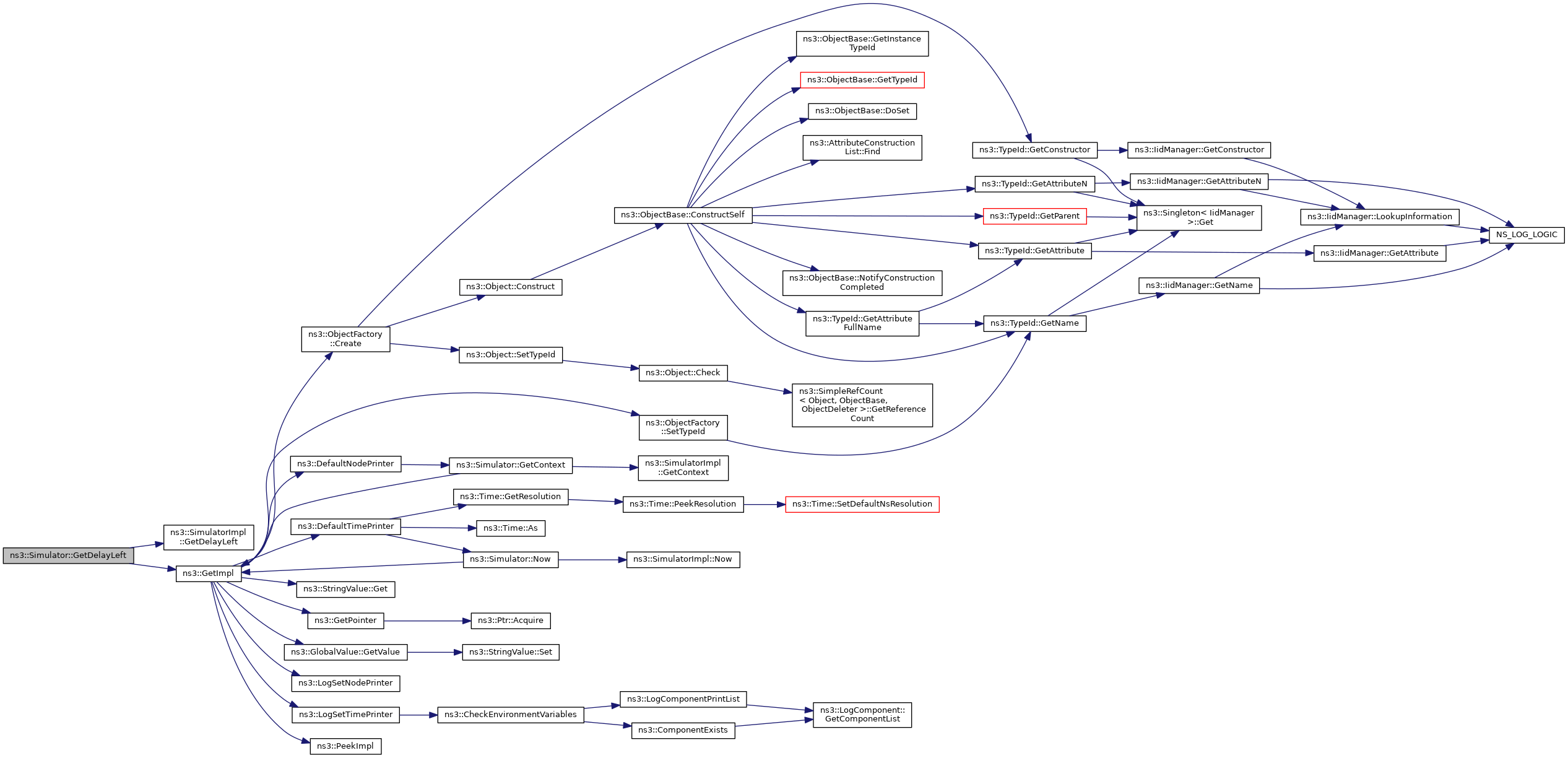

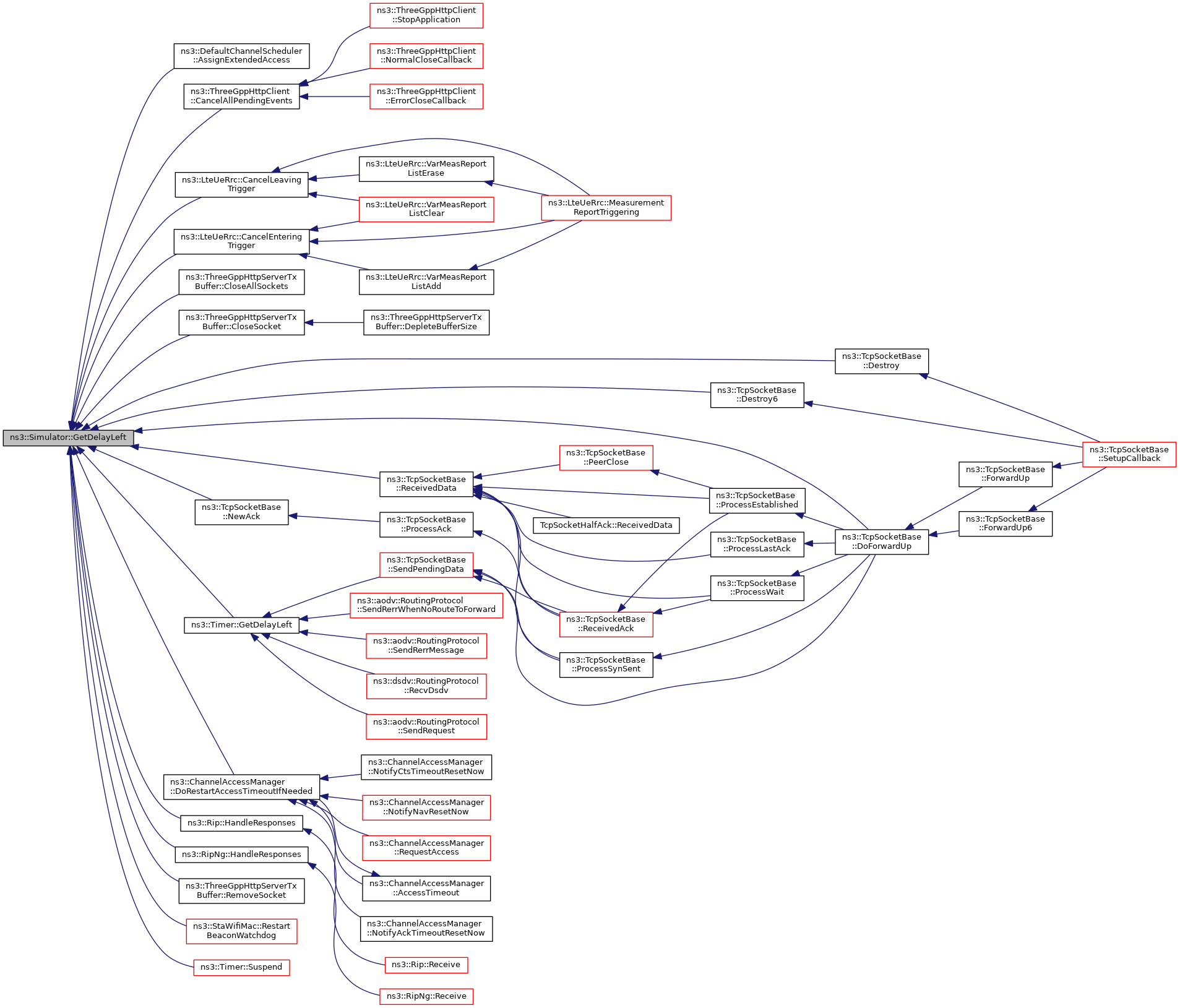

static Time	GetDelayLeft (const EventId &id)
	Get the remaining time until this event will execute. More...

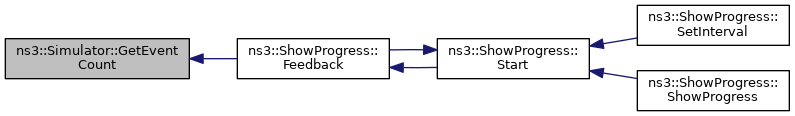

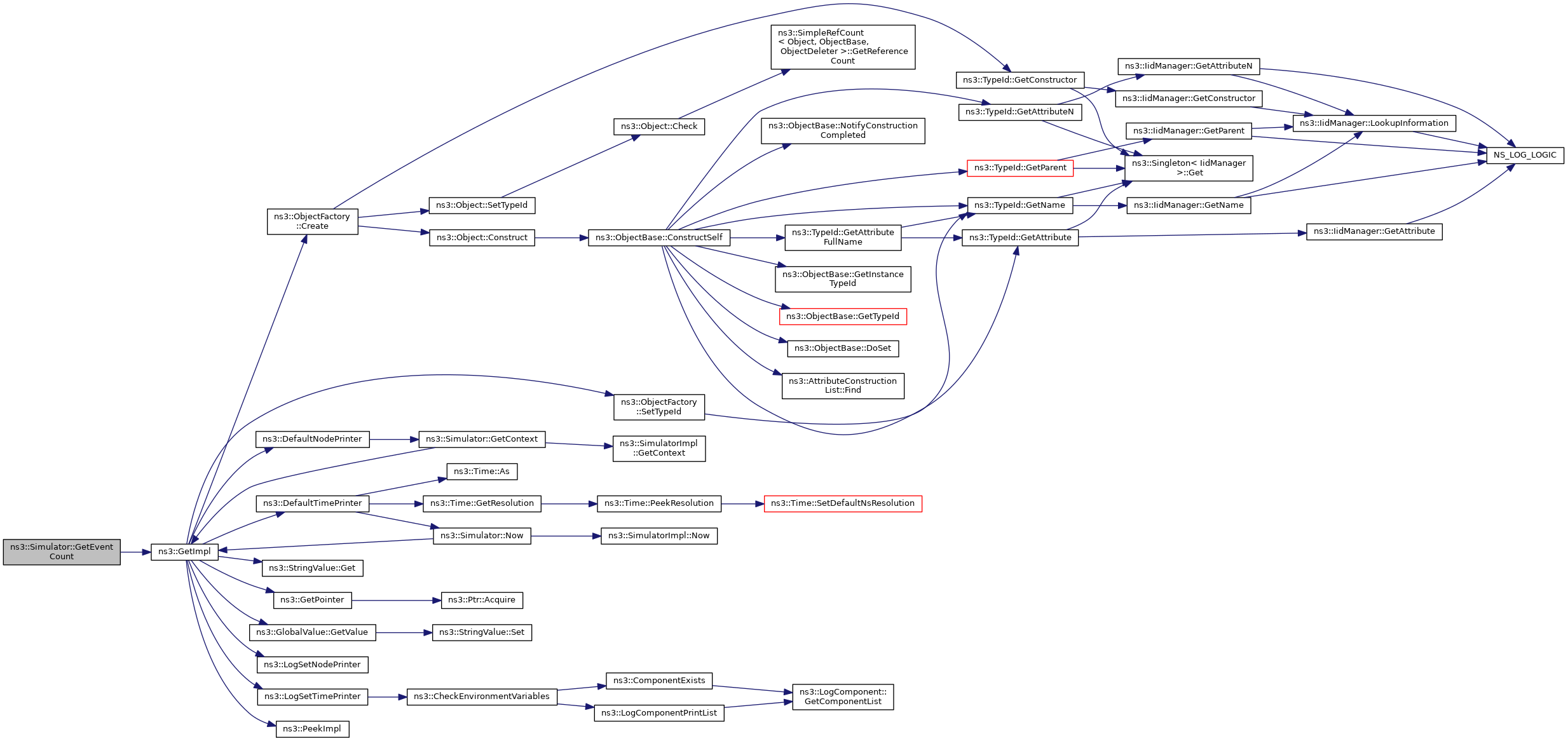

static uint64_t	GetEventCount (void)
	Get the number of events executed. More...

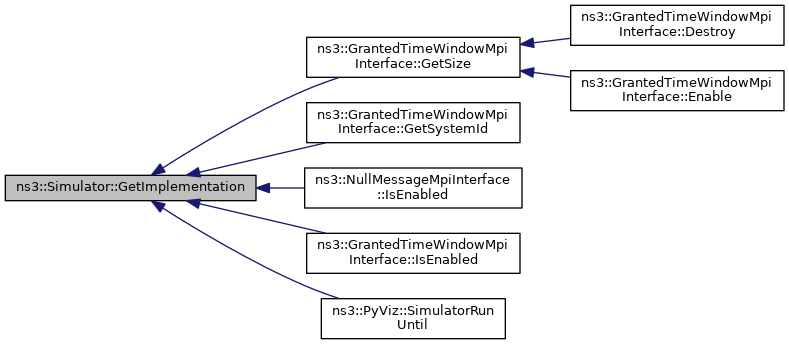

static Ptr< SimulatorImpl >	GetImplementation (void)
	Get the SimulatorImpl singleton. More...

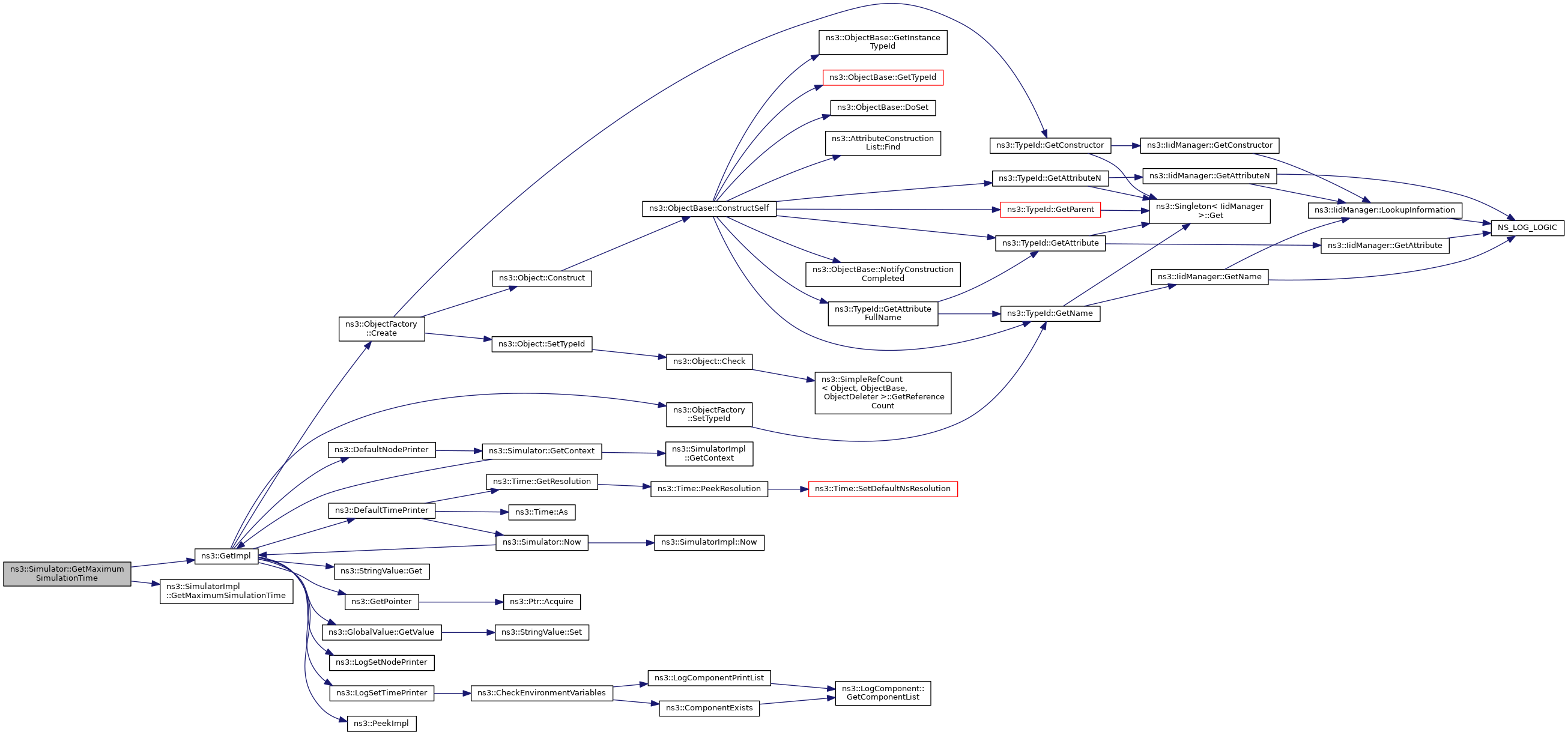

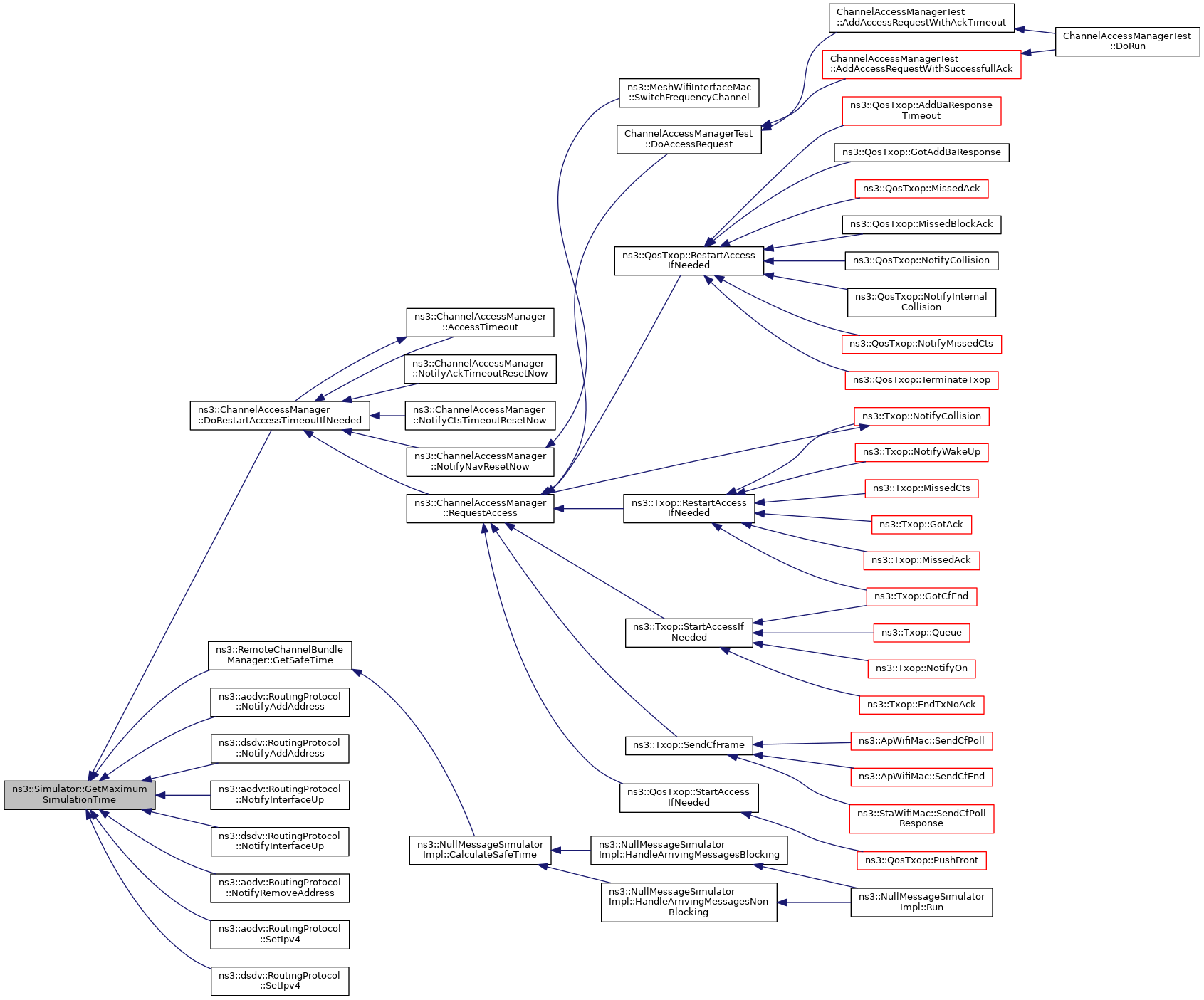

static Time	GetMaximumSimulationTime (void)
	Get the maximum representable simulation time. More...

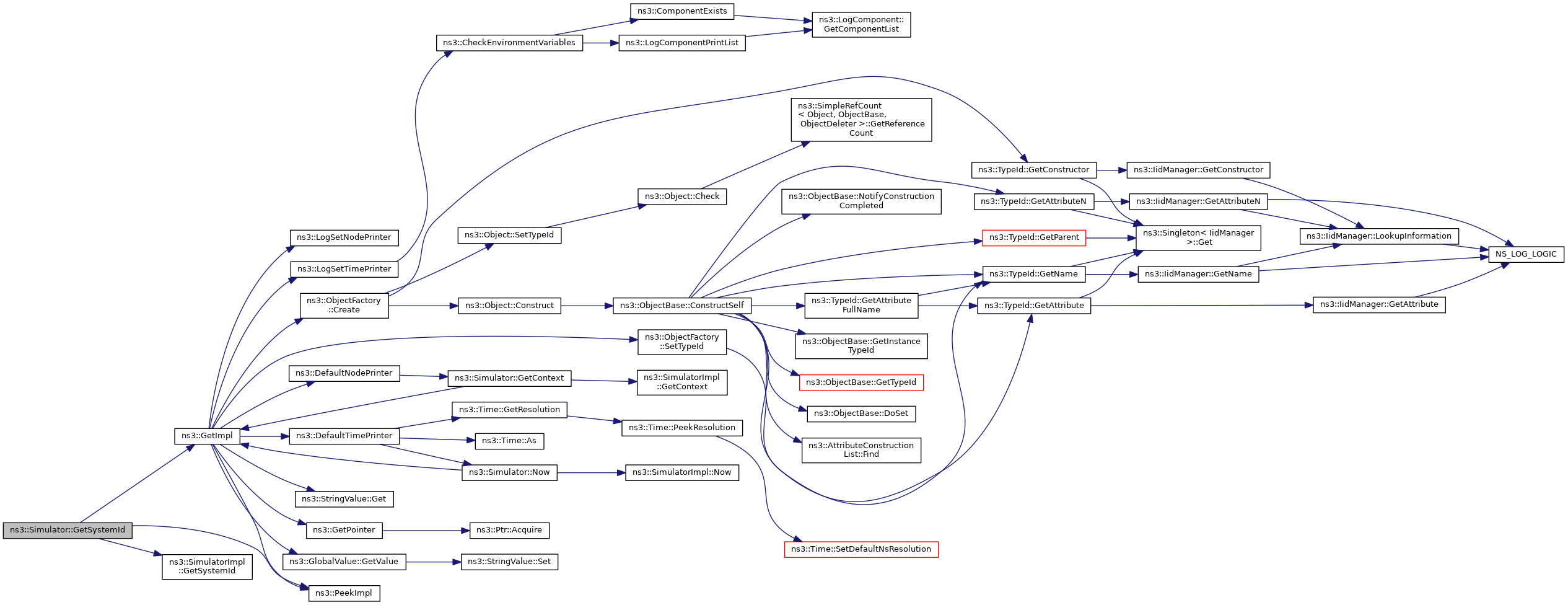

static uint32_t	GetSystemId (void)
	Get the system id of this simulator. More...

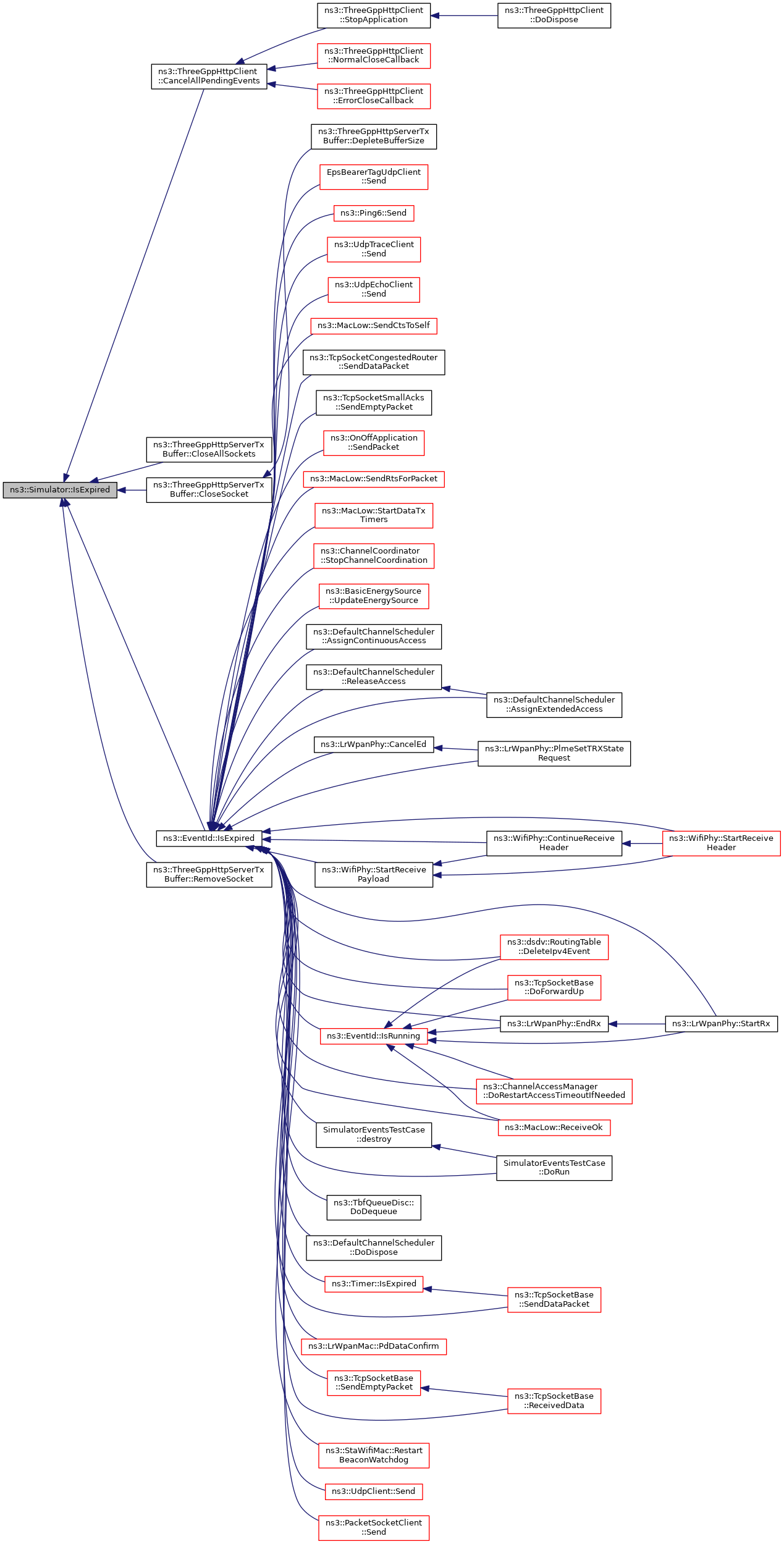

static bool	IsExpired (const EventId &id)
	Check if an event has already run or been cancelled. More...

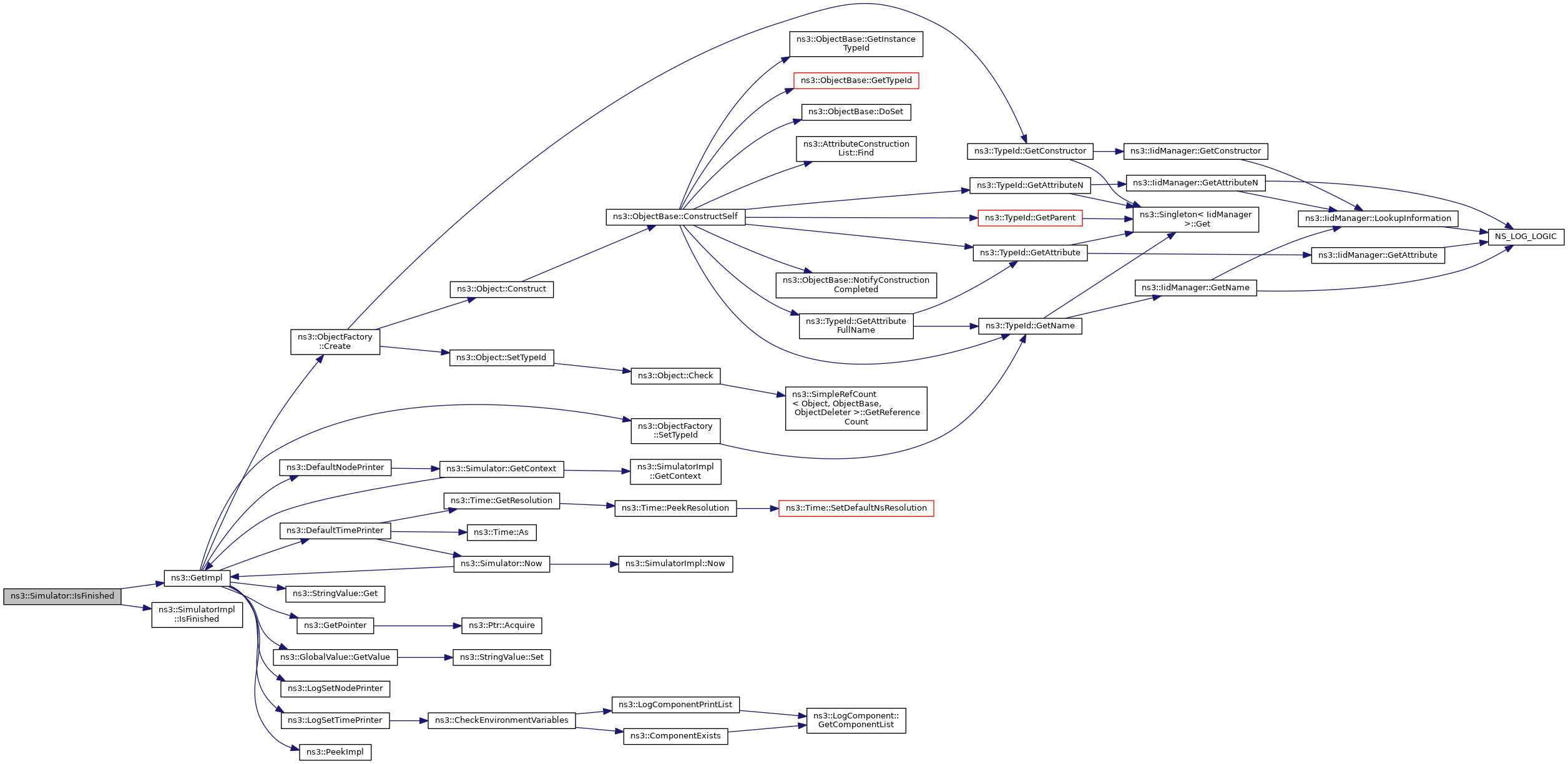

static bool	IsFinished (void)
	Check if the simulation should finish. More...

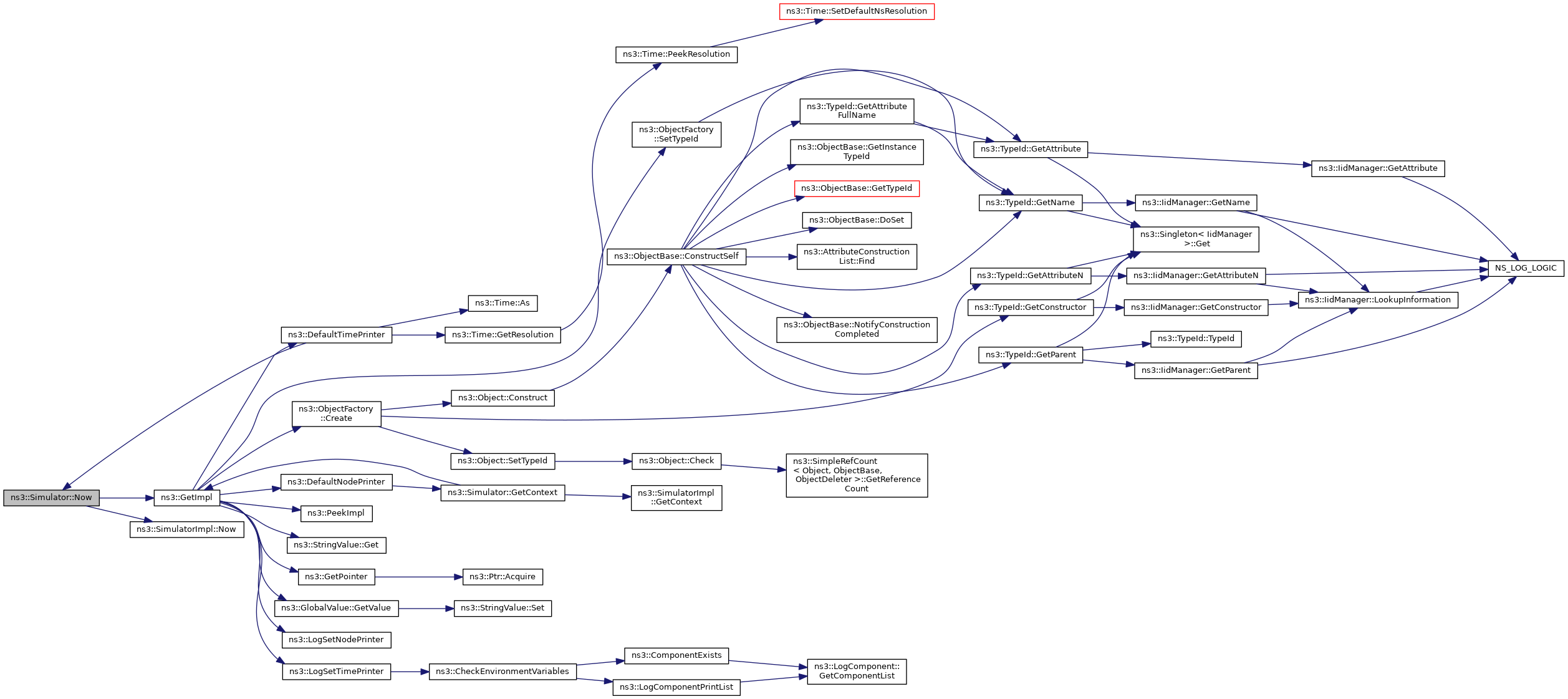

static Time	Now (void)
	Return the current simulation virtual time. More...
static void	Remove (const EventId &id)
	Remove an event from the event list. More...

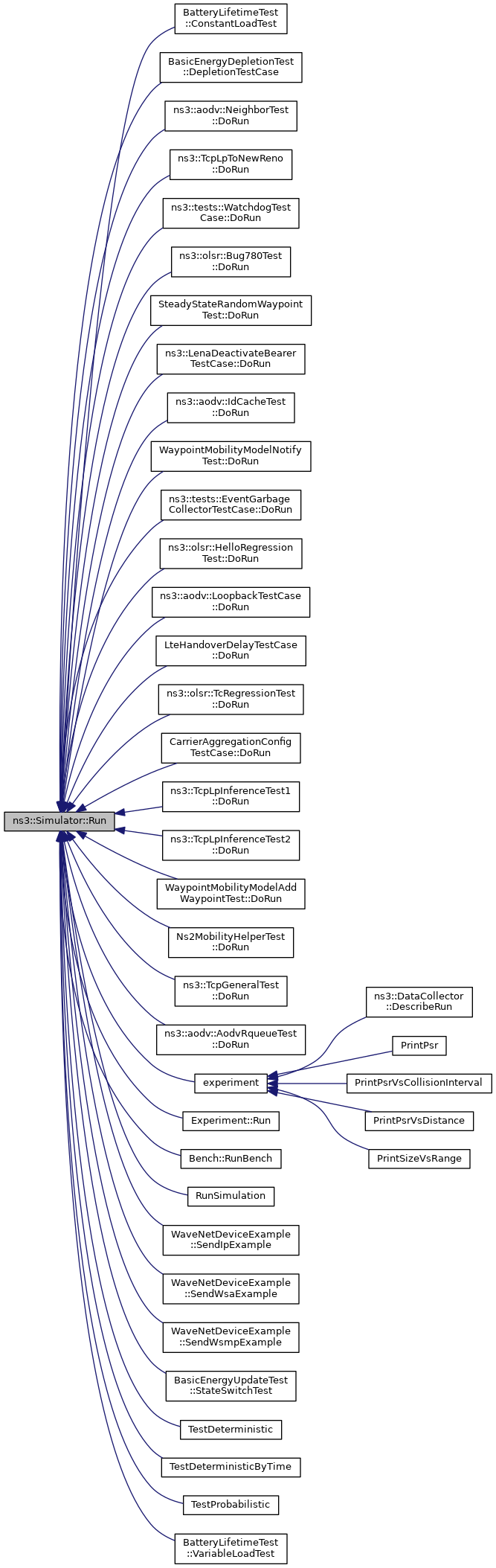

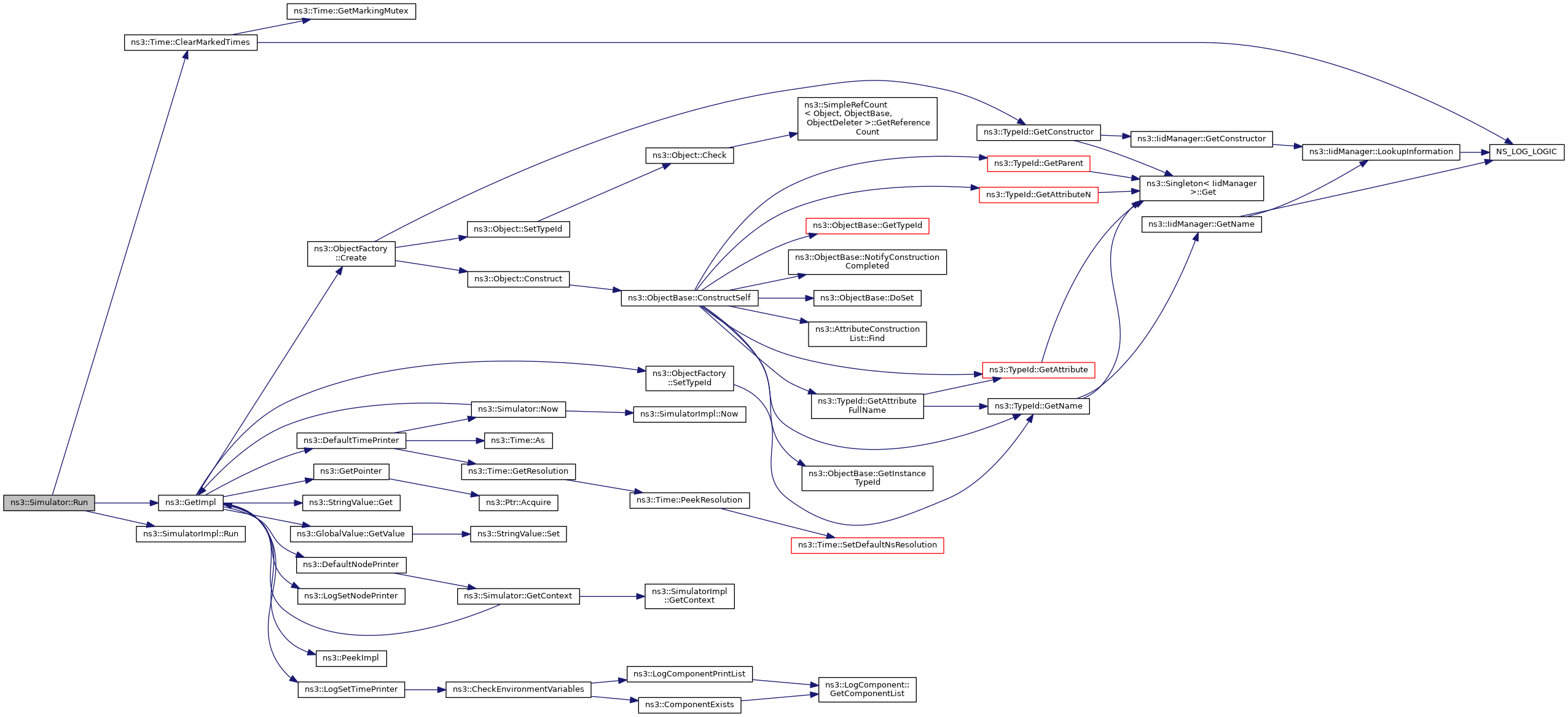

static void	Run (void)
	Run the simulation. More...

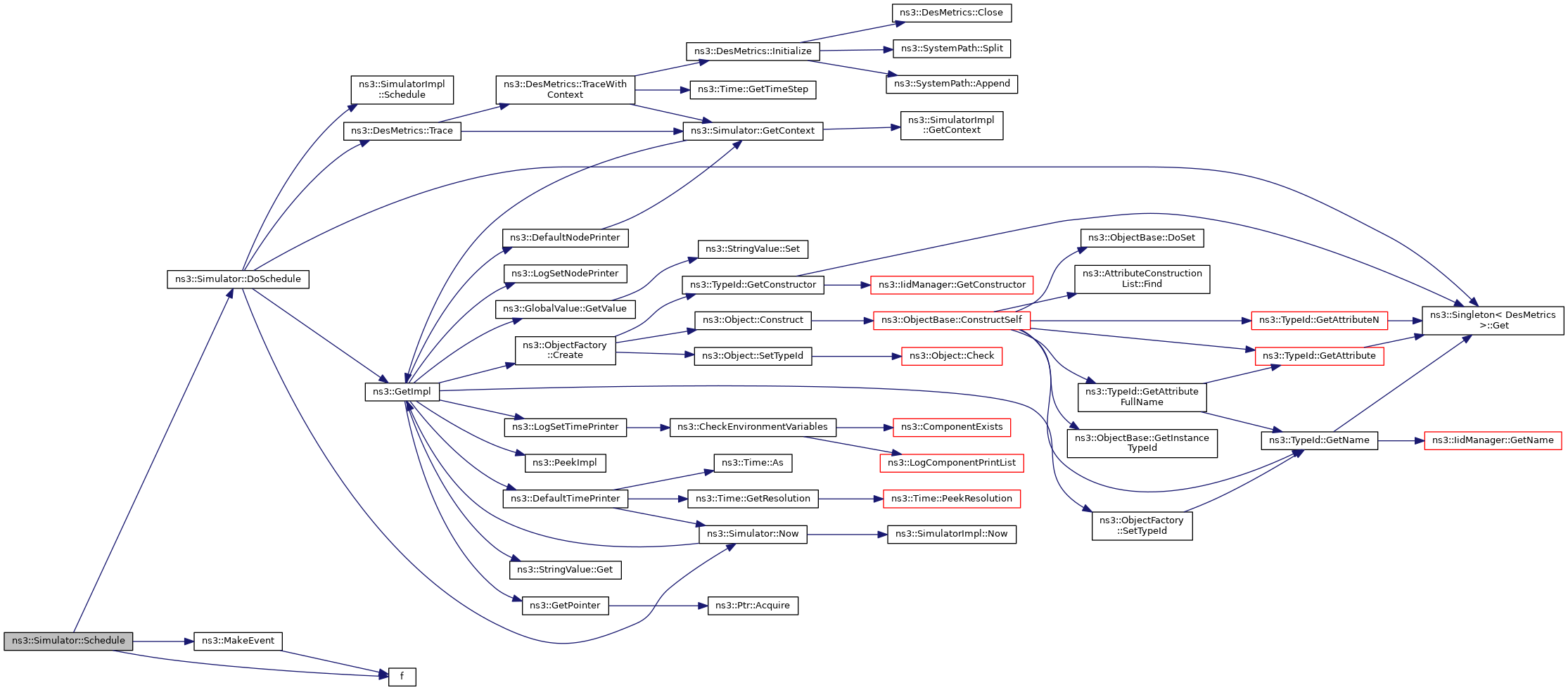

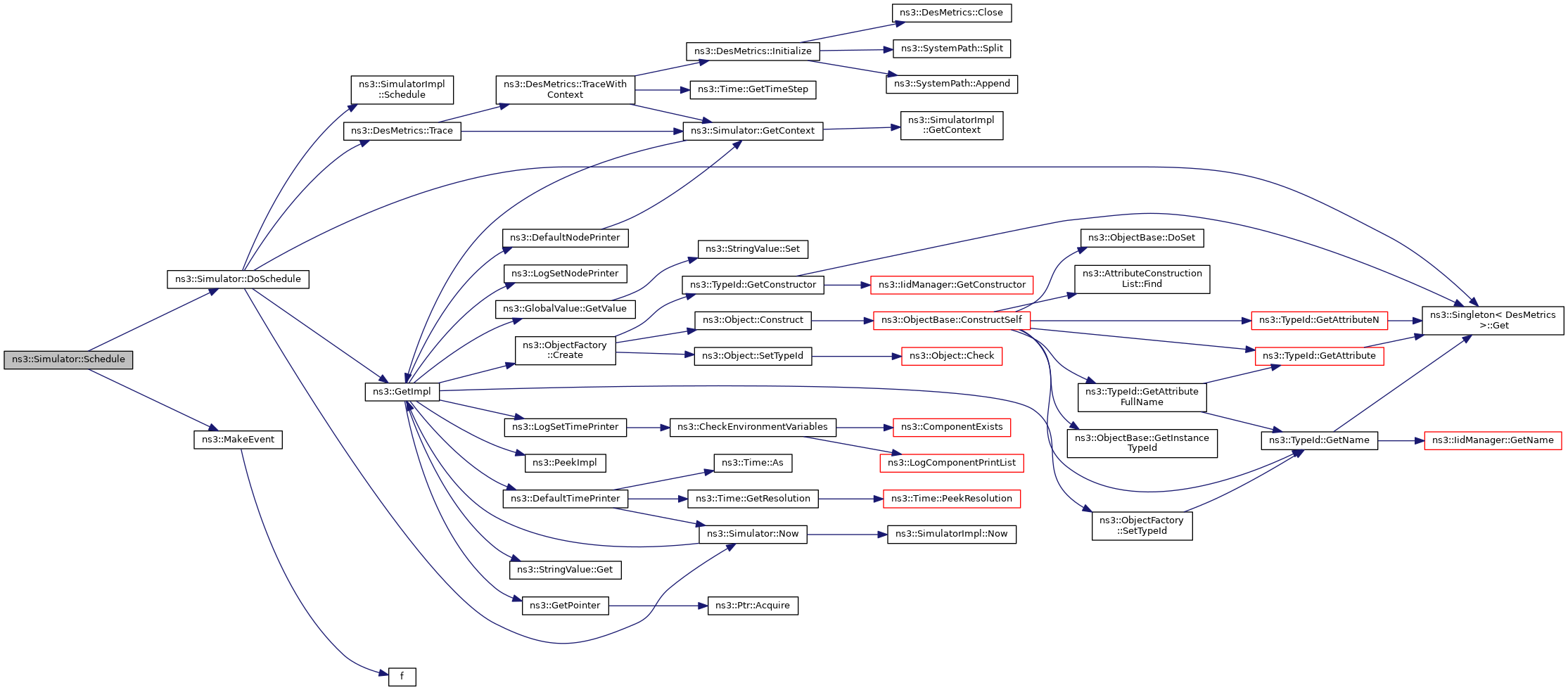

static EventId	Schedule (const Time &delay, const Ptr< EventImpl > &event)
	Schedule a future event execution (in the same context). More...

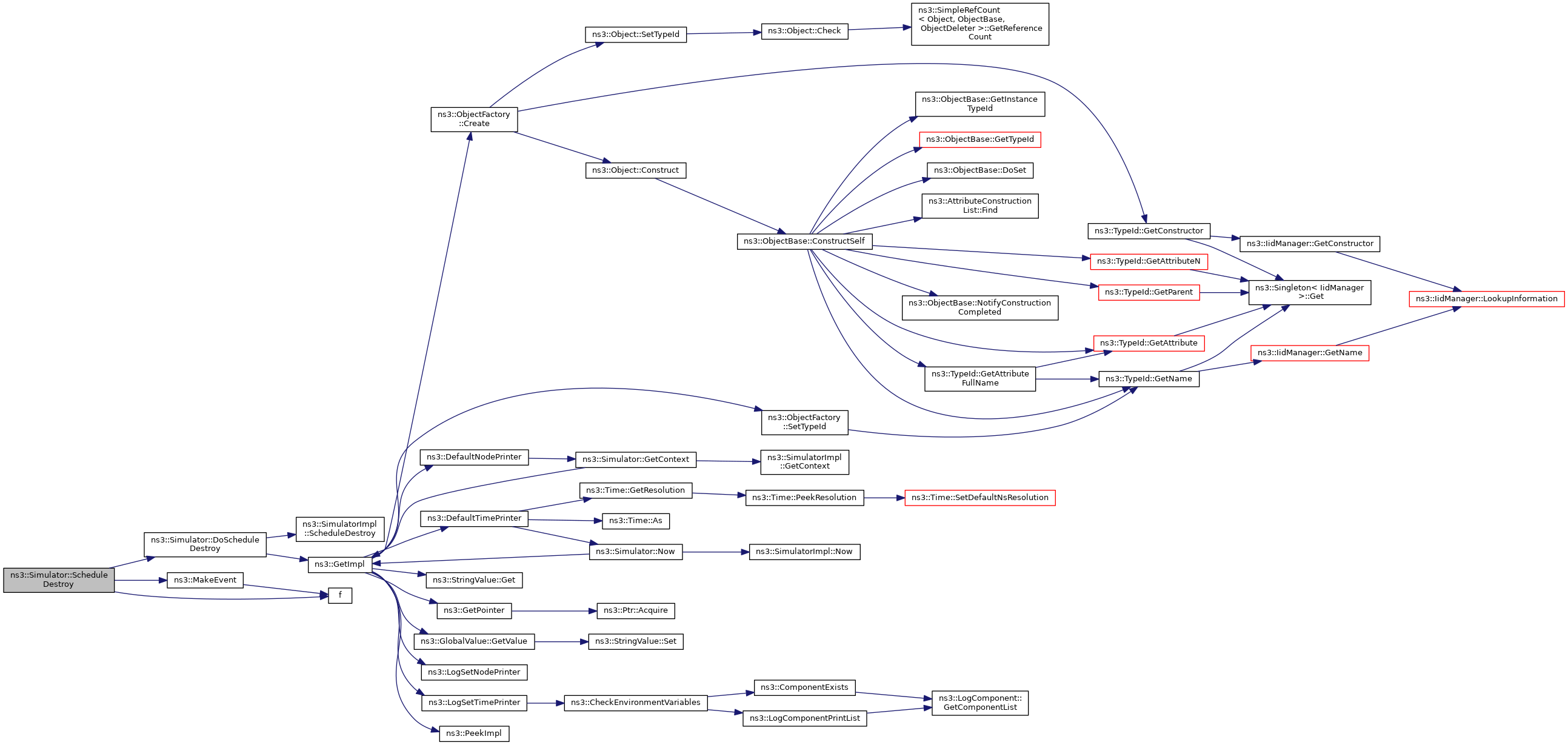

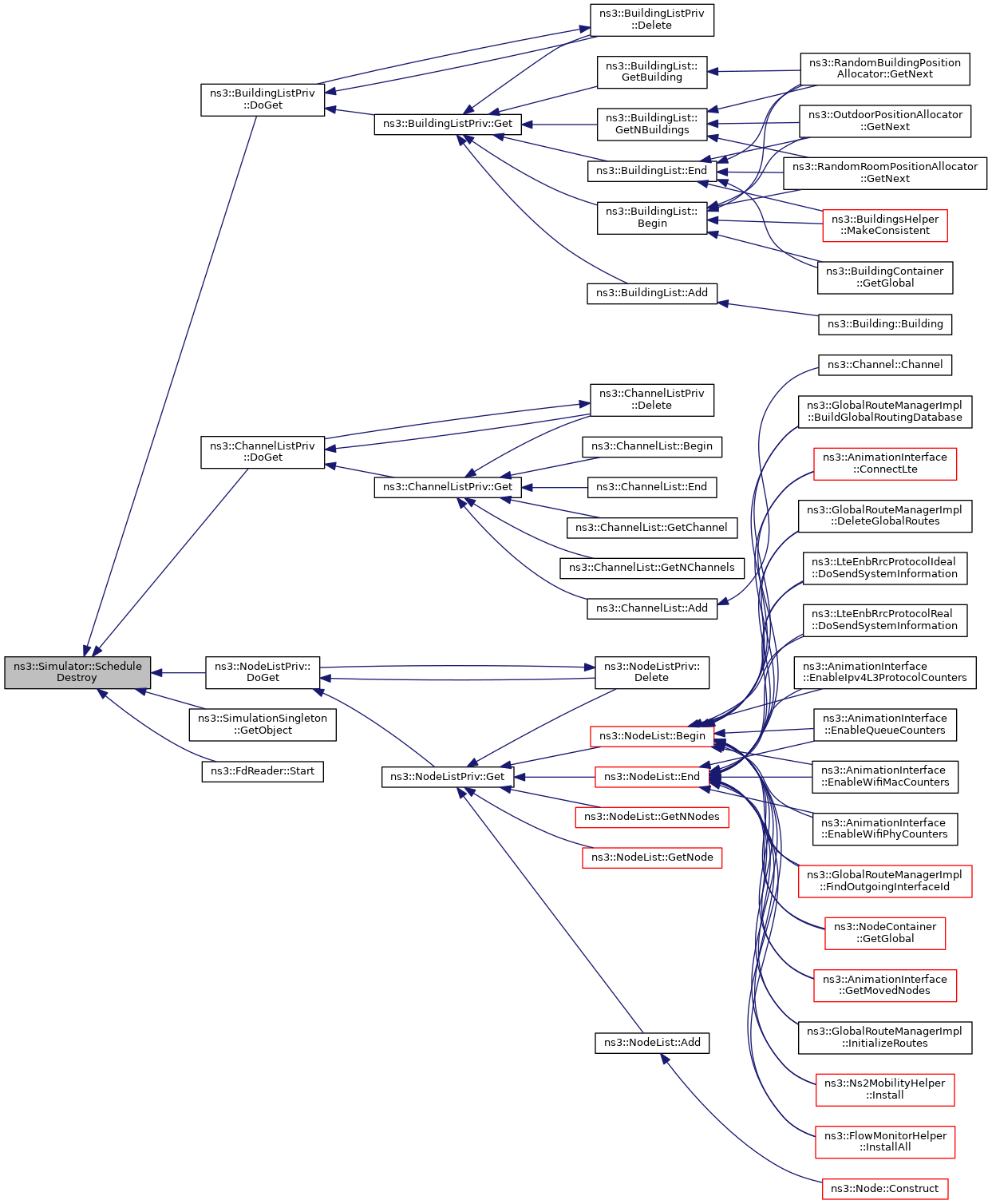

static EventId	ScheduleDestroy (const Ptr< EventImpl > &event)
	Schedule an event to run at the end of the simulation, after the Stop() time or condition has been reached. More...

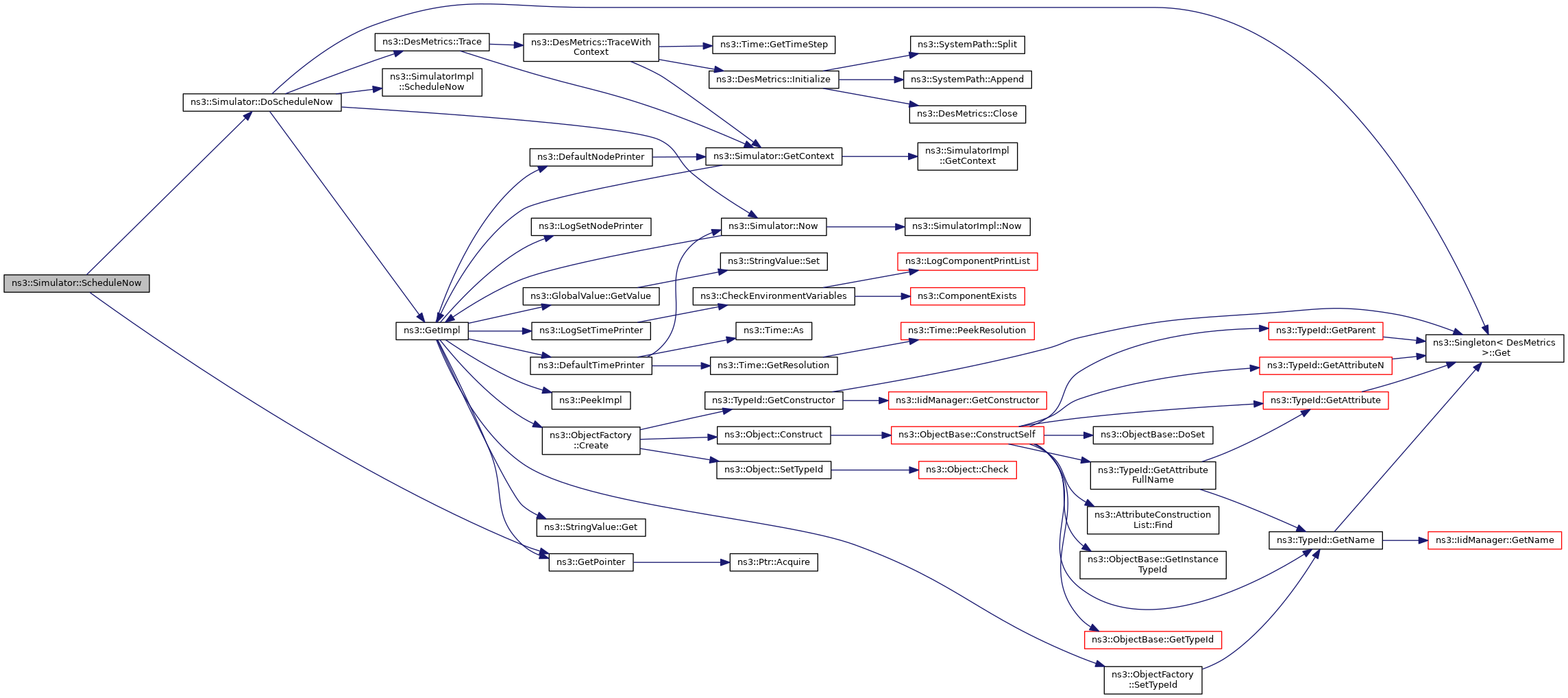

static EventId	ScheduleNow (const Ptr< EventImpl > &event)
	Schedule an event to run at the current virtual time. More...

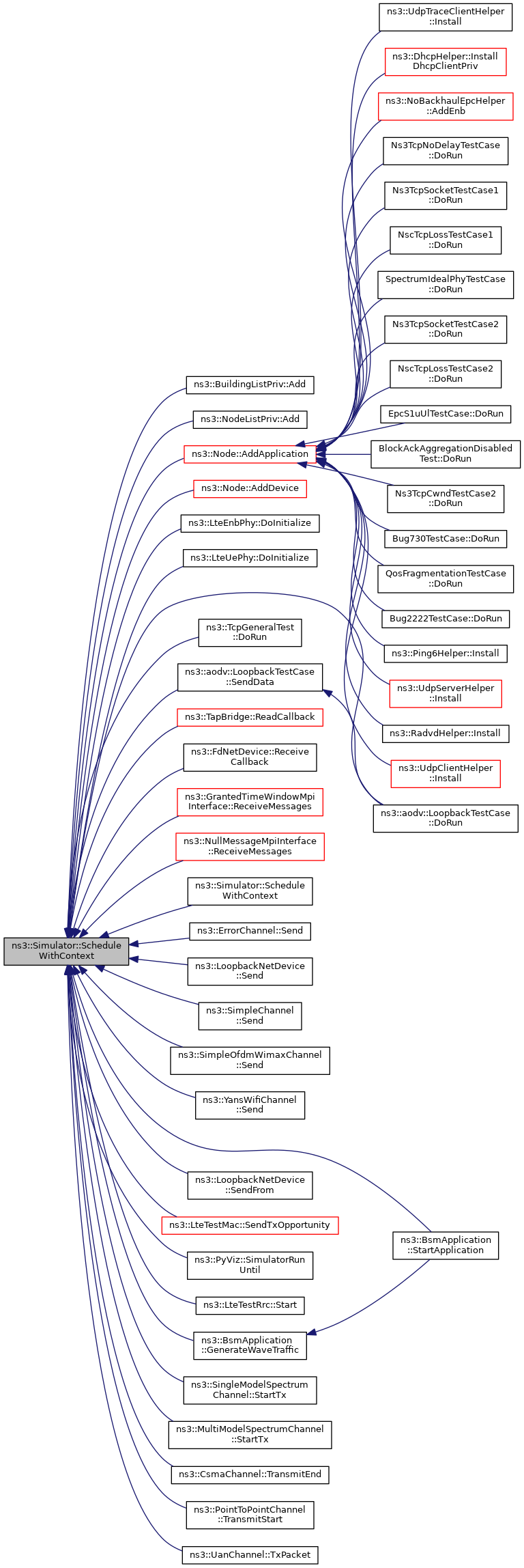

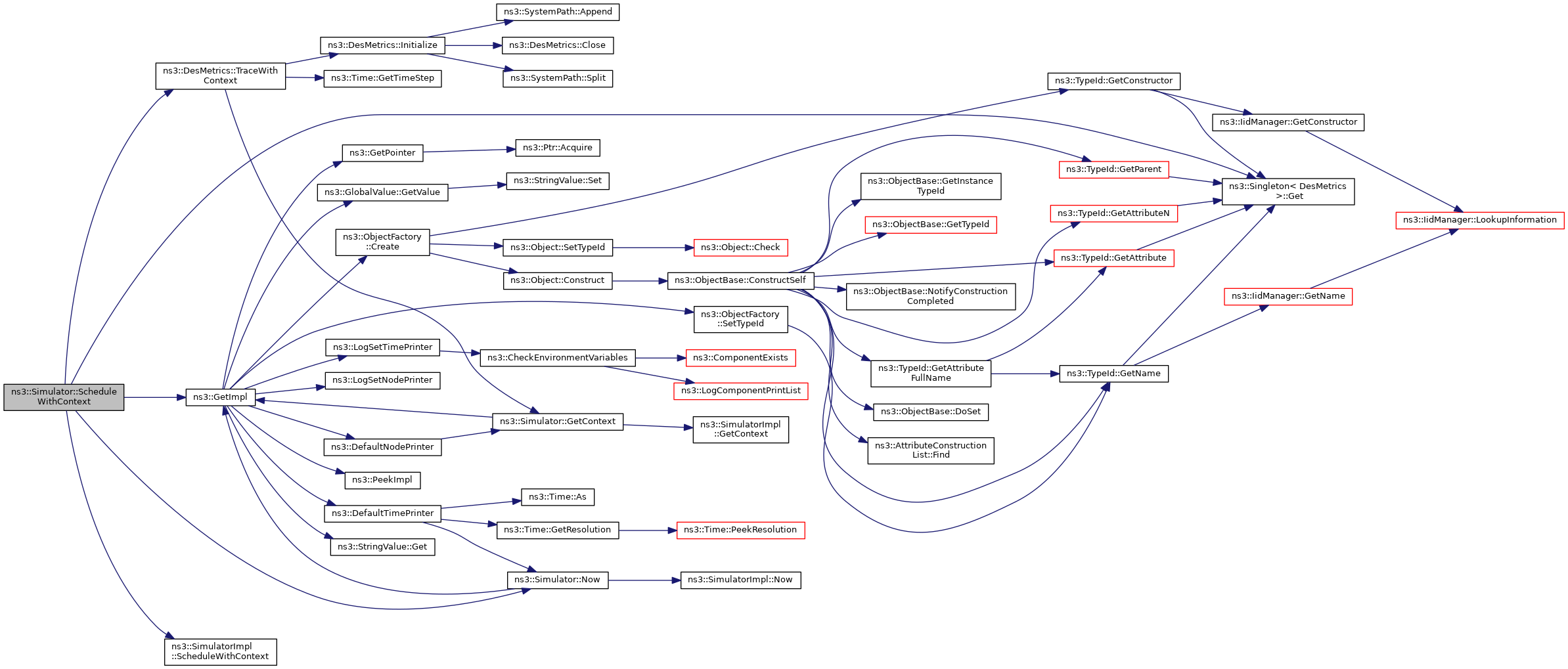

static void	ScheduleWithContext (uint32_t context, const Time &delay, EventImpl *event)
	Schedule a future event execution (in a different context). More...

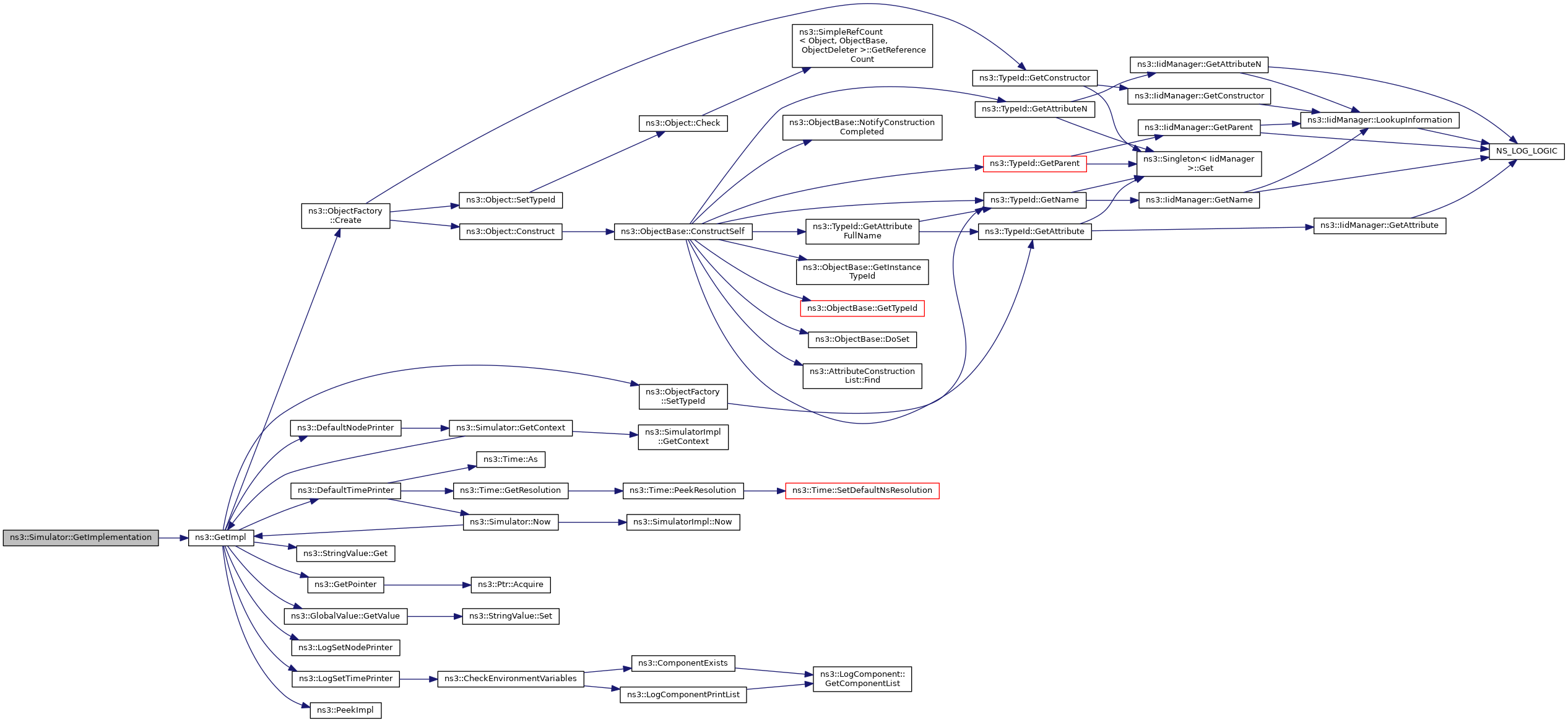

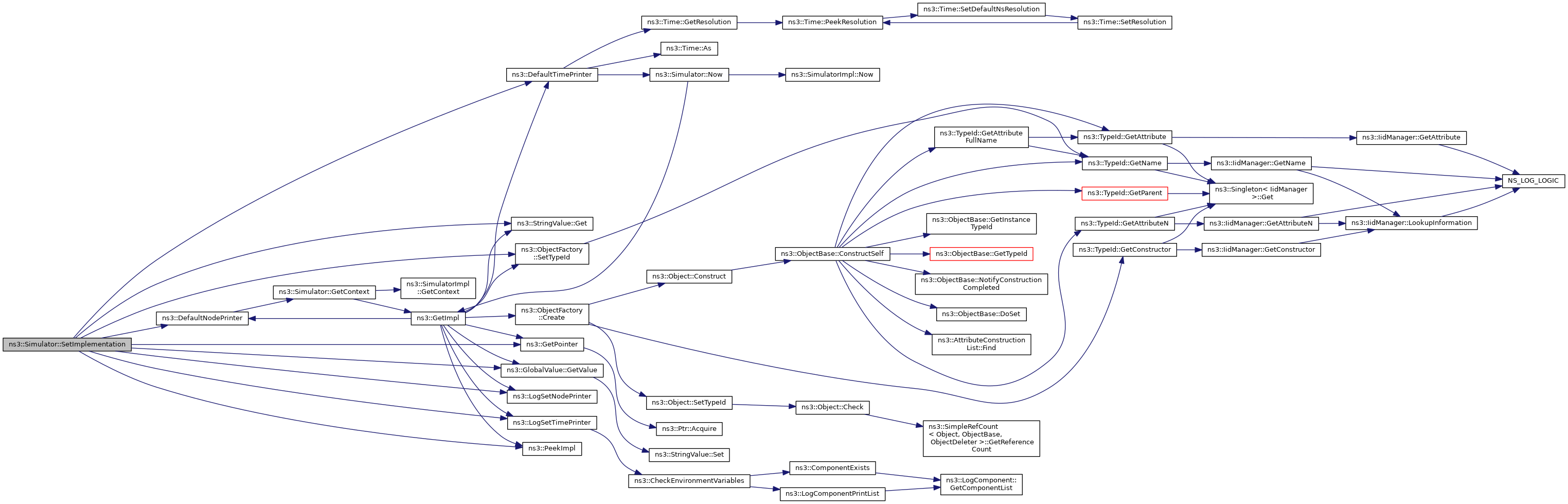

static void	SetImplementation (Ptr< SimulatorImpl > impl)
static void	SetScheduler (ObjectFactory schedulerFactory)
	Set the scheduler type with an ObjectFactory. More...

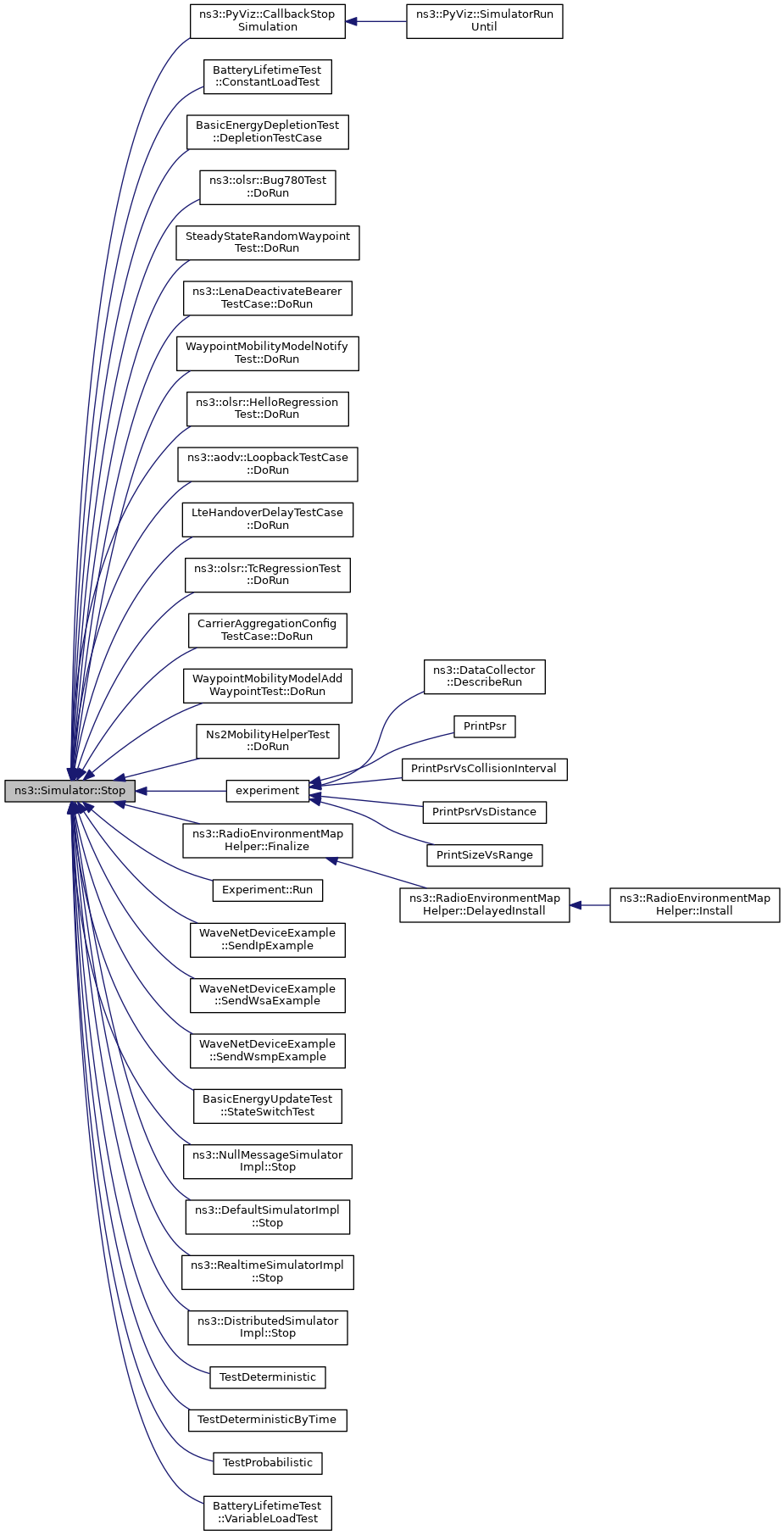

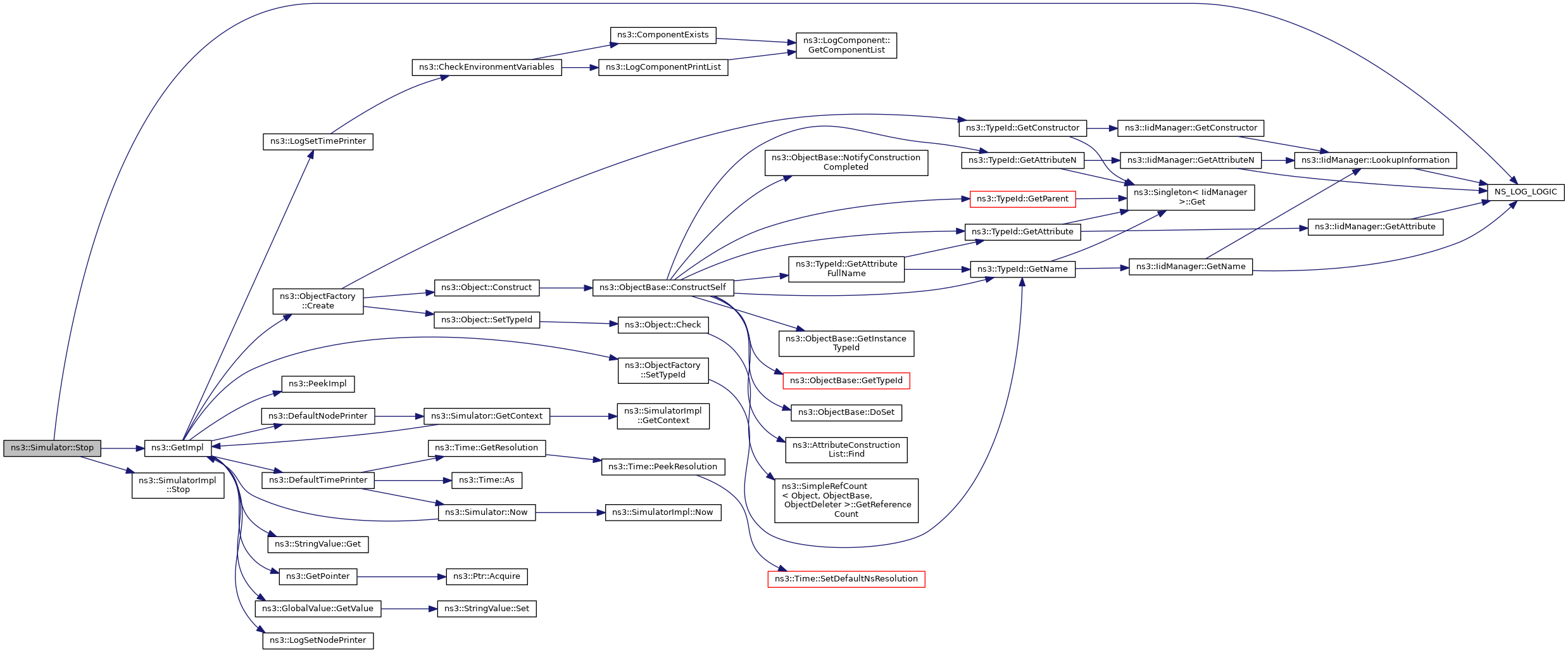

static void	Stop (void)
	Tell the Simulator the calling event should be the last one executed. More...
static void	Stop (const Time &delay)
	Schedule the time delay until the Simulator should stop. More...
Schedule events (in the same context) to run at a future time.
template<typename MEM , typename OBJ >
static EventId	Schedule (Time const &delay, MEM mem_ptr, OBJ obj)
	Schedule an event to expire after delay. More...
template<typename MEM , typename OBJ , typename T1 >
static EventId	Schedule (Time const &delay, MEM mem_ptr, OBJ obj, T1 a1)
template<typename MEM , typename OBJ , typename T1 , typename T2 >
static EventId	Schedule (Time const &delay, MEM mem_ptr, OBJ obj, T1 a1, T2 a2)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >
static EventId	Schedule (Time const &delay, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >
static EventId	Schedule (Time const &delay, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static EventId	Schedule (Time const &delay, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
static EventId	Schedule (Time const &time, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)
static EventId	Schedule (Time const &delay, void(*f)(void))
	Schedule an event to expire after delay. More...
template<typename U1 , typename T1 >
static EventId	Schedule (Time const &delay, void(*f)(U1), T1 a1)
template<typename U1 , typename U2 , typename T1 , typename T2 >
static EventId	Schedule (Time const &delay, void(*f)(U1, U2), T1 a1, T2 a2)
template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >
static EventId	Schedule (Time const &delay, void(*f)(U1, U2, U3), T1 a1, T2 a2, T3 a3)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >
static EventId	Schedule (Time const &delay, void(*f)(U1, U2, U3, U4), T1 a1, T2 a2, T3 a3, T4 a4)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static EventId	Schedule (Time const &delay, void(*f)(U1, U2, U3, U4, U5), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename U6 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
static EventId	Schedule (Time const &time, void(*f)(U1, U2, U3, U4, U5, U6), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)
Schedule events (in a different context) to run now or at a future time.
See main-test-sync.cc for example usage.
template<typename MEM , typename OBJ >
static void	ScheduleWithContext (uint32_t context, Time const &delay, MEM mem_ptr, OBJ obj)
	Schedule an event with the given context. More...
template<typename MEM , typename OBJ , typename T1 >
static void	ScheduleWithContext (uint32_t context, Time const &delay, MEM mem_ptr, OBJ obj, T1 a1)
template<typename MEM , typename OBJ , typename T1 , typename T2 >
static void	ScheduleWithContext (uint32_t context, Time const &delay, MEM mem_ptr, OBJ obj, T1 a1, T2 a2)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >
static void	ScheduleWithContext (uint32_t context, Time const &delay, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >
static void	ScheduleWithContext (uint32_t context, Time const &delay, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static void	ScheduleWithContext (uint32_t context, Time const &delay, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
static void	ScheduleWithContext (uint32_t context, Time const &time, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)
	This method is thread-safe: it can be called from any thread. More...
static void	ScheduleWithContext (uint32_t context, Time const &delay, void(*f)(void))
	Schedule an event with the given context. More...
template<typename U1 , typename T1 >
static void	ScheduleWithContext (uint32_t context, Time const &delay, void(*f)(U1), T1 a1)
template<typename U1 , typename U2 , typename T1 , typename T2 >
static void	ScheduleWithContext (uint32_t context, Time const &delay, void(*f)(U1, U2), T1 a1, T2 a2)
template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >
static void	ScheduleWithContext (uint32_t context, Time const &delay, void(*f)(U1, U2, U3), T1 a1, T2 a2, T3 a3)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >
static void	ScheduleWithContext (uint32_t context, Time const &delay, void(*f)(U1, U2, U3, U4), T1 a1, T2 a2, T3 a3, T4 a4)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static void	ScheduleWithContext (uint32_t context, Time const &delay, void(*f)(U1, U2, U3, U4, U5), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename U6 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
static void	ScheduleWithContext (uint32_t context, Time const &time, void(*f)(U1, U2, U3, U4, U5, U6), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)
	This method is thread-safe: it can be called from any thread. More...
Schedule events (in the same context) to run now.
template<typename MEM , typename OBJ >
static EventId	ScheduleNow (MEM mem_ptr, OBJ obj)
	Schedule an event to expire Now. More...
template<typename MEM , typename OBJ , typename T1 >
static EventId	ScheduleNow (MEM mem_ptr, OBJ obj, T1 a1)
template<typename MEM , typename OBJ , typename T1 , typename T2 >
static EventId	ScheduleNow (MEM mem_ptr, OBJ obj, T1 a1, T2 a2)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >
static EventId	ScheduleNow (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >
static EventId	ScheduleNow (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static EventId	ScheduleNow (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
static EventId	ScheduleNow (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)
static EventId	ScheduleNow (void(*f)(void))
	Schedule an event to expire Now. More...
template<typename U1 , typename T1 >
static EventId	ScheduleNow (void(*f)(U1), T1 a1)
template<typename U1 , typename U2 , typename T1 , typename T2 >
static EventId	ScheduleNow (void(*f)(U1, U2), T1 a1, T2 a2)
template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >
static EventId	ScheduleNow (void(*f)(U1, U2, U3), T1 a1, T2 a2, T3 a3)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >
static EventId	ScheduleNow (void(*f)(U1, U2, U3, U4), T1 a1, T2 a2, T3 a3, T4 a4)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static EventId	ScheduleNow (void(*f)(U1, U2, U3, U4, U5), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename U6 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
static EventId	ScheduleNow (void(*f)(U1, U2, U3, U4, U5, U6), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)
Schedule events to run at the end of the simulation, when Simulator:Destroy() is called.
template<typename MEM , typename OBJ >
static EventId	ScheduleDestroy (MEM mem_ptr, OBJ obj)
	Schedule an event to expire when Simulator::Destroy is called. More...
template<typename MEM , typename OBJ , typename T1 >
static EventId	ScheduleDestroy (MEM mem_ptr, OBJ obj, T1 a1)
template<typename MEM , typename OBJ , typename T1 , typename T2 >
static EventId	ScheduleDestroy (MEM mem_ptr, OBJ obj, T1 a1, T2 a2)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >
static EventId	ScheduleDestroy (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >
static EventId	ScheduleDestroy (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static EventId	ScheduleDestroy (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
static EventId	ScheduleDestroy (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)

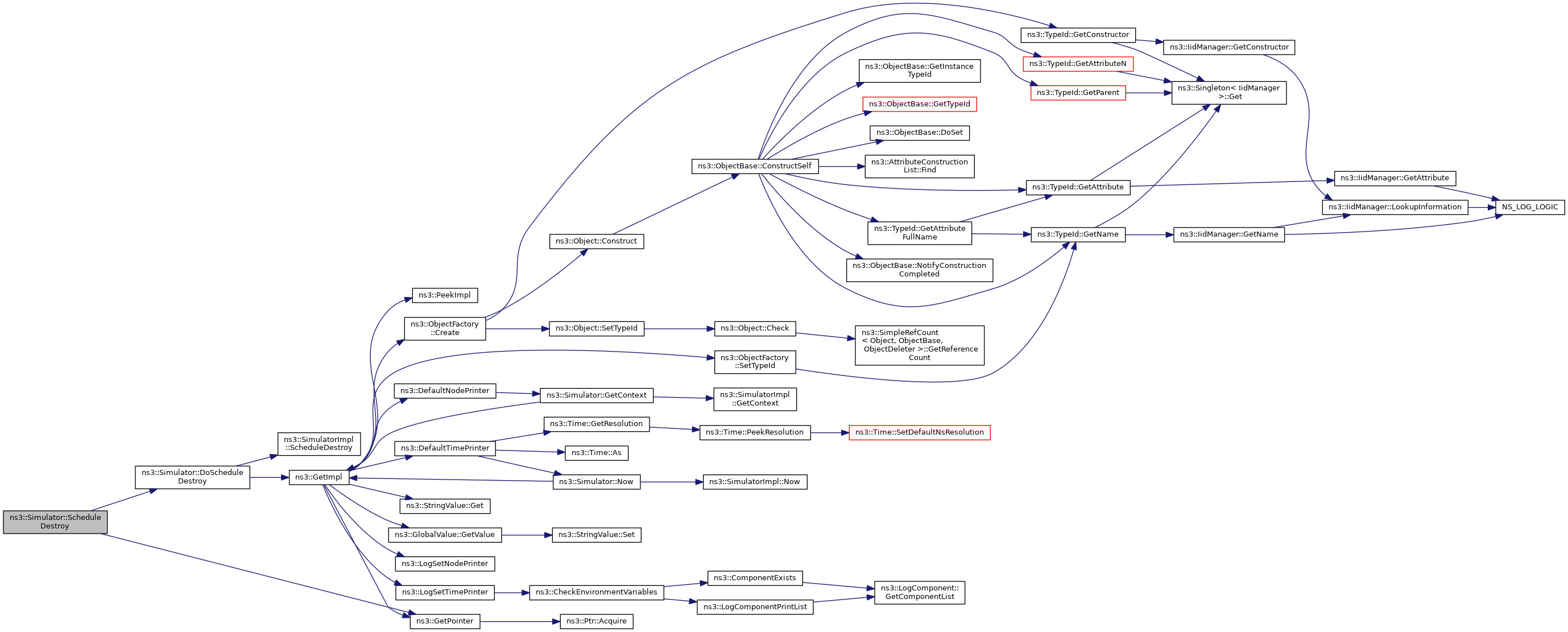

static EventId	ScheduleDestroy (void(*f)(void))
	Schedule an event to expire when Simulator::Destroy is called. When Simulator::Destroy() is called, the function will be invoked with any supplied arguments. More...
template<typename U1 , typename T1 >
static EventId	ScheduleDestroy (void(*f)(U1), T1 a1)
template<typename U1 , typename U2 , typename T1 , typename T2 >
static EventId	ScheduleDestroy (void(*f)(U1, U2), T1 a1, T2 a2)
template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >
static EventId	ScheduleDestroy (void(*f)(U1, U2, U3), T1 a1, T2 a2, T3 a3)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >
static EventId	ScheduleDestroy (void(*f)(U1, U2, U3, U4), T1 a1, T2 a2, T3 a3, T4 a4)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static EventId	ScheduleDestroy (void(*f)(U1, U2, U3, U4, U5), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename U6 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
static EventId	ScheduleDestroy (void(*f)(U1, U2, U3, U4, U5, U6), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)

Private Member Functions
	Simulator ()
	Default constructor. More...
	~Simulator ()
	Destructor. More...

Static Private Member Functions

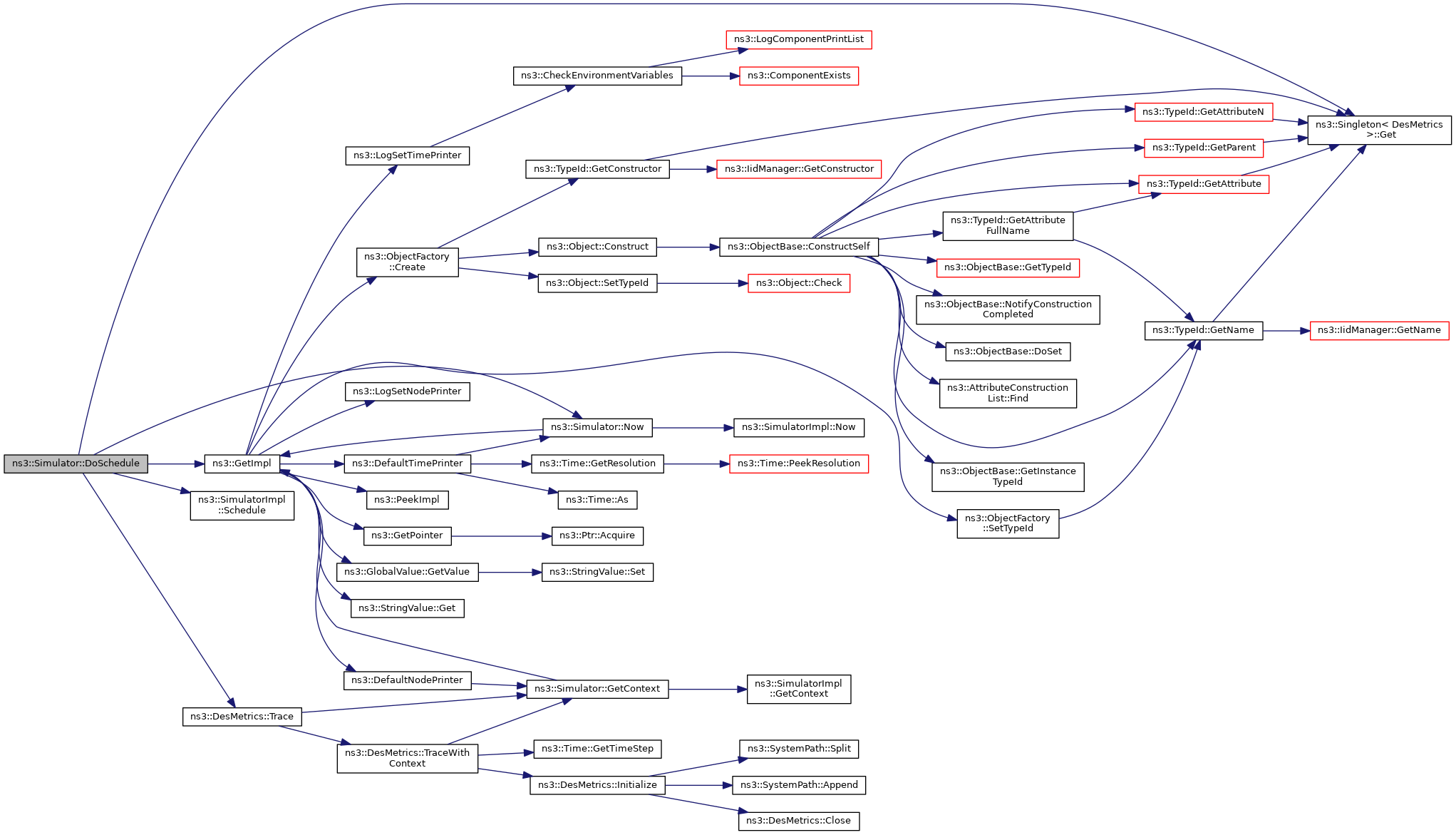

static EventId	DoSchedule (Time const &delay, EventImpl *event)
	Implementation of the various Schedule methods. More...

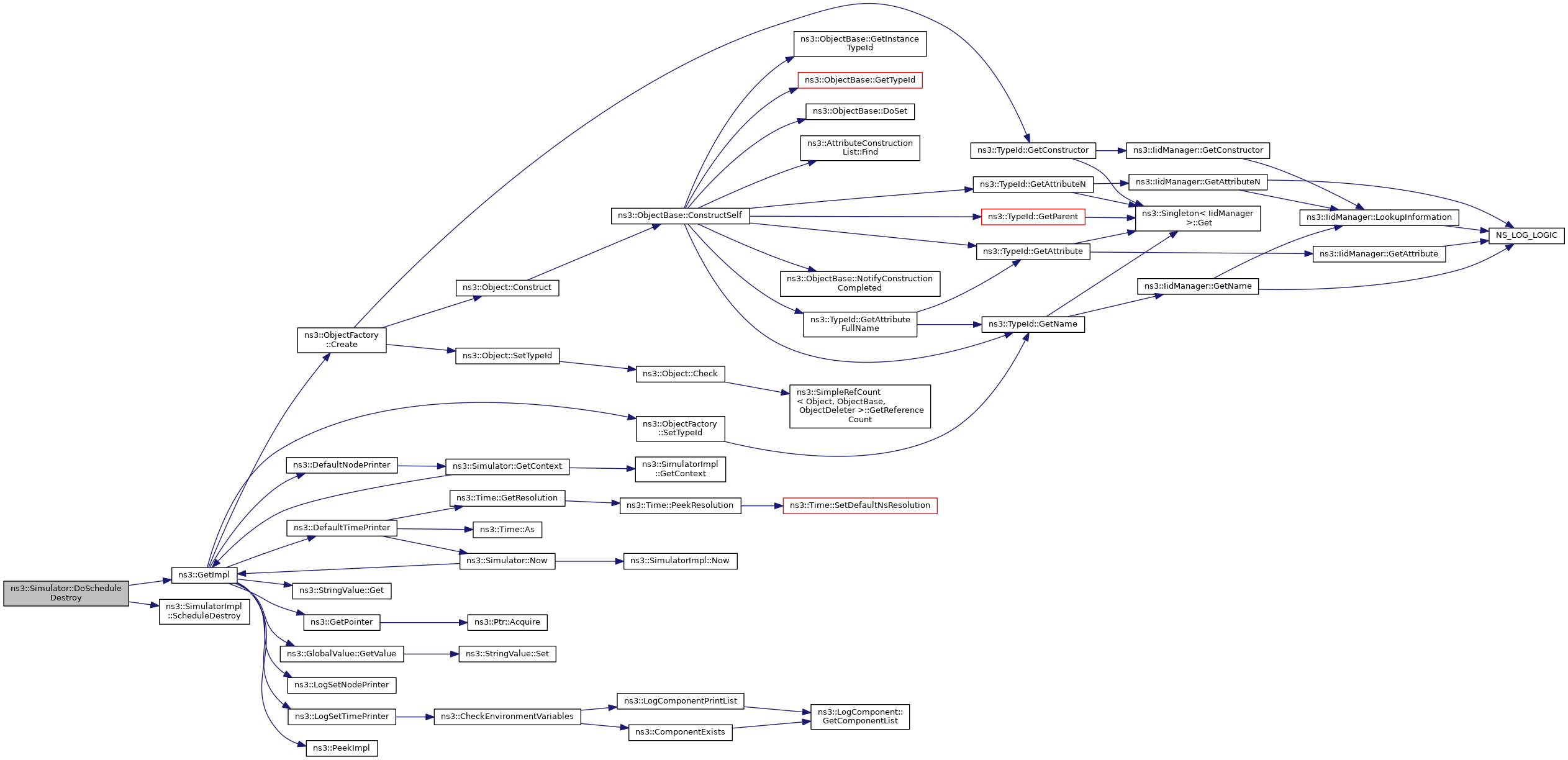

static EventId	DoScheduleDestroy (EventImpl *event)
	Implementation of the various ScheduleDestroy methods. More...

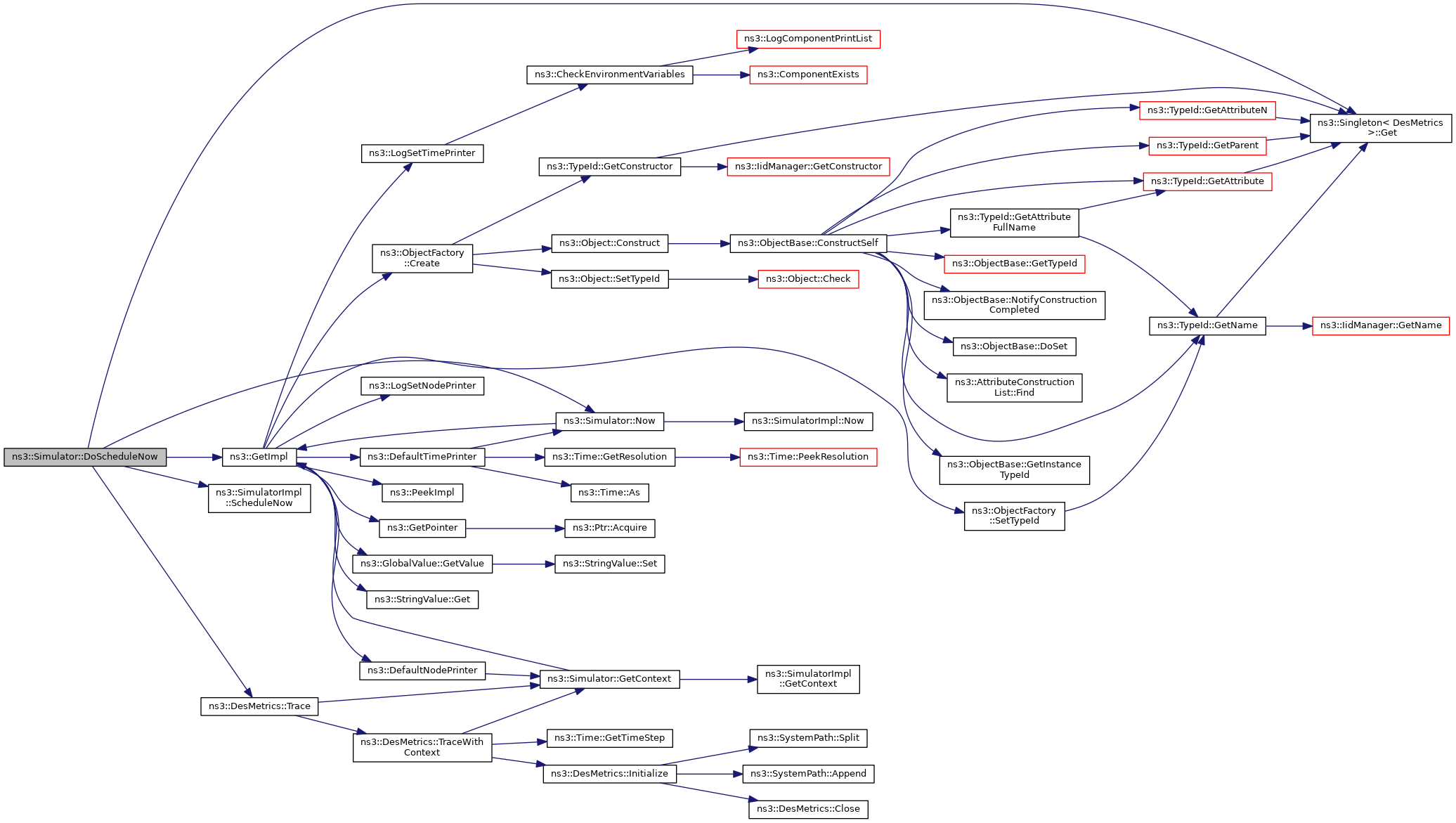

static EventId	DoScheduleNow (EventImpl *event)
	Implementation of the various ScheduleNow methods. More...

Detailed Description

Control the scheduling of simulation events.

The internal simulation clock is maintained as a 64-bit integer in a unit specified by the user through the Time::SetResolution function. This means that it is not possible to specify event expiration times with anything better than this user-specified accuracy. Events whose expiration time is the same modulo this accuracy are scheduled in FIFO order: the first event inserted in the scheduling queue is scheduled to expire first.

A simple example of how to use the Simulator class to schedule events is shown in sample-simulator.cc:

/* -*- Mode:C++; c-file-style:"gnu"; indent-tabs-mode:nil; -*- */
/*
 * Copyright (c) 2010 INRIA
 *
 * This program is free software; you can redistribute it and/or modify
 * it under the terms of the GNU General Public License version 2 as
 * published by the Free Software Foundation;
 *
 * This program is distributed in the hope that it will be useful,
 * but WITHOUT ANY WARRANTY; without even the implied warranty of
 * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
 * GNU General Public License for more details.
 *
 * You should have received a copy of the GNU General Public License
 * along with this program; if not, write to the Free Software
 * Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
 *
 * Authors: Mathieu Lacage <mathieu.lacage@sophia.inria.fr>
 */

#include <iostream>
#include "ns3/simulator.h"
#include "ns3/nstime.h"
#include "ns3/command-line.h"
#include "ns3/double.h"
#include "ns3/random-variable-stream.h"

using namespace ns3;

namespace {

class MyModel
{
public:
  void Start (void);
private:
  void HandleEvent (double eventValue);
};

void
MyModel::Start (void)
{
  Simulator::Schedule (Seconds (10.0),
                       &MyModel::HandleEvent,
                       this, Simulator::Now ().GetSeconds ());
}
void
MyModel::HandleEvent (double value)
{
  std::cout << "Member method received event at "
            << Simulator::Now ().GetSeconds ()
            << "s started at " << value << "s" << std::endl;
}

static void
ExampleFunction (MyModel *model)
{
  std::cout << "ExampleFunction received event at "
            << Simulator::Now ().GetSeconds () << "s" << std::endl;
  model->Start ();
}

static void
RandomFunction (void)
{
  std::cout << "RandomFunction received event at "
            << Simulator::Now ().GetSeconds () << "s" << std::endl;
}

static void
CancelledEvent (void)
{
  std::cout << "I should never be called... " << std::endl;
}

}  // unnamed namespace


int main (int argc, char *argv[])
{
  CommandLine cmd;
  cmd.Parse (argc, argv);

  MyModel model;
  Ptr<UniformRandomVariable> v = CreateObject<UniformRandomVariable> ();
  v->SetAttribute ("Min", DoubleValue (10));
  v->SetAttribute ("Max", DoubleValue (20));

  Simulator::Schedule (Seconds (10.0), &ExampleFunction, &model);

  Simulator::Schedule (Seconds (v->GetValue ()), &RandomFunction);

  EventId id = Simulator::Schedule (Seconds (30.0), &CancelledEvent);
  Simulator::Cancel (id);

  Simulator::Run ();

  Simulator::Destroy ();
}

Definition at line 68 of file simulator.h.

Member Enumeration Documentation

anonymous enum

anonymous enum : uint32_t

Context enum values.

Internal:

This enum type is fixed to match the representation size of simulation context.

Enumerator
NO_CONTEXT	Flag for events not associated with any particular context.

Definition at line 194 of file simulator.h.

Constructor & Destructor Documentation

Simulator()

ns3::Simulator::Simulator ( )

private

Default constructor.

~Simulator()

ns3::Simulator::~Simulator ( )

private

Destructor.

Member Function Documentation

Cancel()

void ns3::Simulator::Cancel ( const EventId &  id )

static

Set the cancel bit on this event: the event's associated function will not be invoked when it expires.

This method has the same visible effect as the ns3::Simulator::Remove method but its algorithmic complexity is much lower: it has O(1) complexity. This method has the exact same semantics as ns3::EventId::Cancel. Note that it is not possible to cancel events which were scheduled for the "destroy" time. Doing so will result in a program error (crash).

Parameters

[in]

id

the event to cancel

Definition at line 290 of file simulator.cc.

References ns3::SimulatorImpl::Cancel(), ns3::GetImpl(), and ns3::PeekImpl().

Referenced by ns3::EventId::Cancel(), ns3::Timer::Cancel(), ns3::ThreeGppHttpClient::CancelAllPendingEvents(), ns3::LteUeRrc::CancelEnteringTrigger(), ns3::OnOffApplication::CancelEvents(), ns3::LteUeRrc::CancelLeavingTrigger(), ns3::ThreeGppHttpServerTxBuffer::CloseAllSockets(), ns3::ThreeGppHttpServerTxBuffer::CloseSocket(), ns3::DataCalculator::DoDispose(), ns3::FlowMonitor::DoDispose(), ns3::BaseStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::UanPhyGen::EnergyDepletionHandler(), ns3::dsdv::RoutingTable::ForceDeleteIpv4Event(), ns3::UanMacCw::NotifyTxStart(), ns3::SSLinkManager::PerformRanging(), ns3::ThreeGppHttpServerTxBuffer::RemoveSocket(), ns3::NullMessageSimulatorImpl::RescheduleNullMessageEvent(), ns3::UanMacCw::SaveTimer(), ns3::SsServiceFlowManager::ScheduleDsaReq(), ns3::BsServiceFlowManager::ScheduleDsaRsp(), ns3::ShowProgress::SetInterval(), ns3::SubscriberStationNetDevice::SetTimer(), ns3::MeshWifiInterfaceMac::ShiftTbtt(), ns3::FdNetDevice::Start(), ns3::FlowMonitor::Start(), ns3::TapBridge::Start(), Sender::StartApplication(), ns3::SimpleOfdmWimaxPhy::StartReceive(), ns3::FdNetDevice::Stop(), ns3::FlowMonitor::Stop(), ns3::TapBridge::Stop(), Sender::StopApplication(), ns3::UdpClient::StopApplication(), ns3::PacketSocketClient::StopApplication(), ns3::Ping6::StopApplication(), ns3::Radvd::StopApplication(), ns3::UdpTraceClient::StopApplication(), ns3::UdpEchoClient::StopApplication(), and ns3::EventGarbageCollector::~EventGarbageCollector().

Here is the call graph for this function:

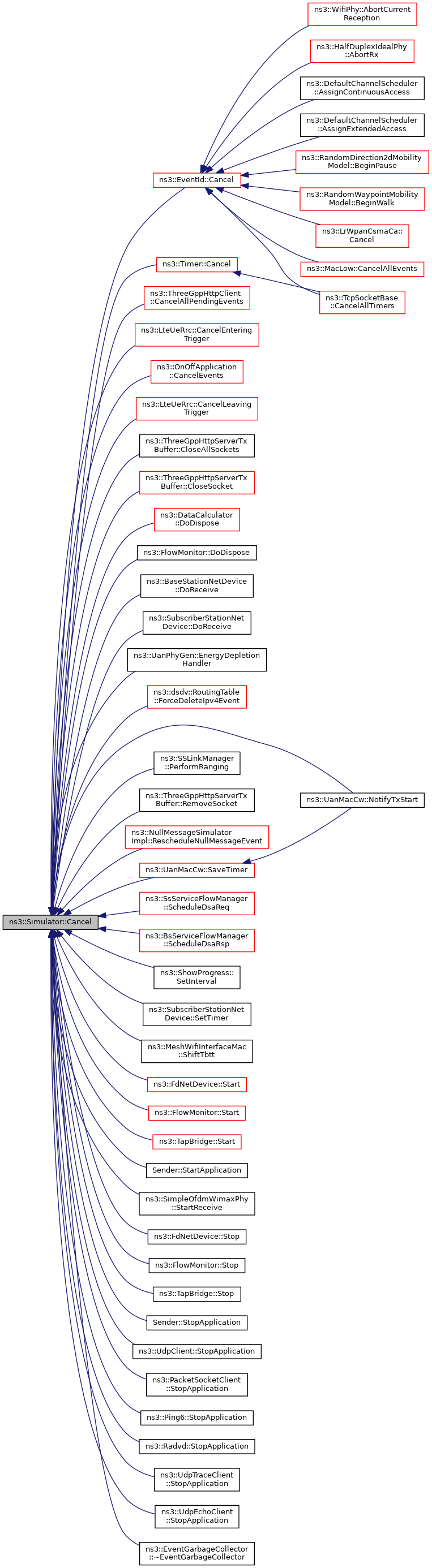

Here is the caller graph for this function:

Destroy()

void ns3::Simulator::Destroy ( void  )

static

Execute the events scheduled with ScheduleDestroy().

This method is typically invoked at the end of a simulation to avoid false-positive reports by a leak checker. After this method has been invoked, it is actually possible to restart a new simulation with a set of calls to Simulator::Run, Simulator::Schedule and Simulator::ScheduleWithContext.

Definition at line 134 of file simulator.cc.

References ns3::LogSetNodePrinter(), ns3::LogSetTimePrinter(), NS_LOG_FUNCTION_NOARGS, and ns3::PeekImpl().

Referenced by BatteryLifetimeTest::ConstantLoadTest(), BasicEnergyDepletionTest::DepletionTestCase(), ns3::aodv::NeighborTest::DoRun(), ns3::TcpLpToNewReno::DoRun(), ns3::tests::WatchdogTestCase::DoRun(), ns3::olsr::Bug780Test::DoRun(), SteadyStateRandomWaypointTest::DoRun(), ns3::LenaDeactivateBearerTestCase::DoRun(), ns3::aodv::IdCacheTest::DoRun(), ns3::tests::EventGarbageCollectorTestCase::DoRun(), WaypointMobilityModelNotifyTest::DoRun(), ns3::olsr::HelloRegressionTest::DoRun(), ns3::aodv::LoopbackTestCase::DoRun(), LteHandoverDelayTestCase::DoRun(), ns3::olsr::TcRegressionTest::DoRun(), CarrierAggregationConfigTestCase::DoRun(), ns3::TcpLpInferenceTest1::DoRun(), ns3::TcpLpInferenceTest2::DoRun(), WaypointMobilityModelAddWaypointTest::DoRun(), ns3::aodv::AodvRqueueTest::DoRun(), ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), Ns2MobilityHelperTest::DoTeardown(), ns3::TcpGeneralTest::DoTeardown(), experiment(), Experiment::Run(), RunSimulation(), WaveNetDeviceExample::SendIpExample(), WaveNetDeviceExample::SendWsaExample(), WaveNetDeviceExample::SendWsmpExample(), BasicEnergyUpdateTest::StateSwitchTest(), and BatteryLifetimeTest::VariableLoadTest().

Here is the call graph for this function:

Here is the caller graph for this function:

DoSchedule()

EventId ns3::Simulator::DoSchedule ( Time const &  delay, EventImpl *  event  )

staticprivate

Implementation of the various Schedule methods.

Parameters

[in]	delay	Delay until the event should execute.
[in]	event	The event to execute.

Returns

The EventId.

Definition at line 233 of file simulator.cc.

References ns3::Singleton< DesMetrics >::Get(), ns3::GetImpl(), Now(), ns3::SimulatorImpl::Schedule(), and ns3::DesMetrics::Trace().

Referenced by Schedule().

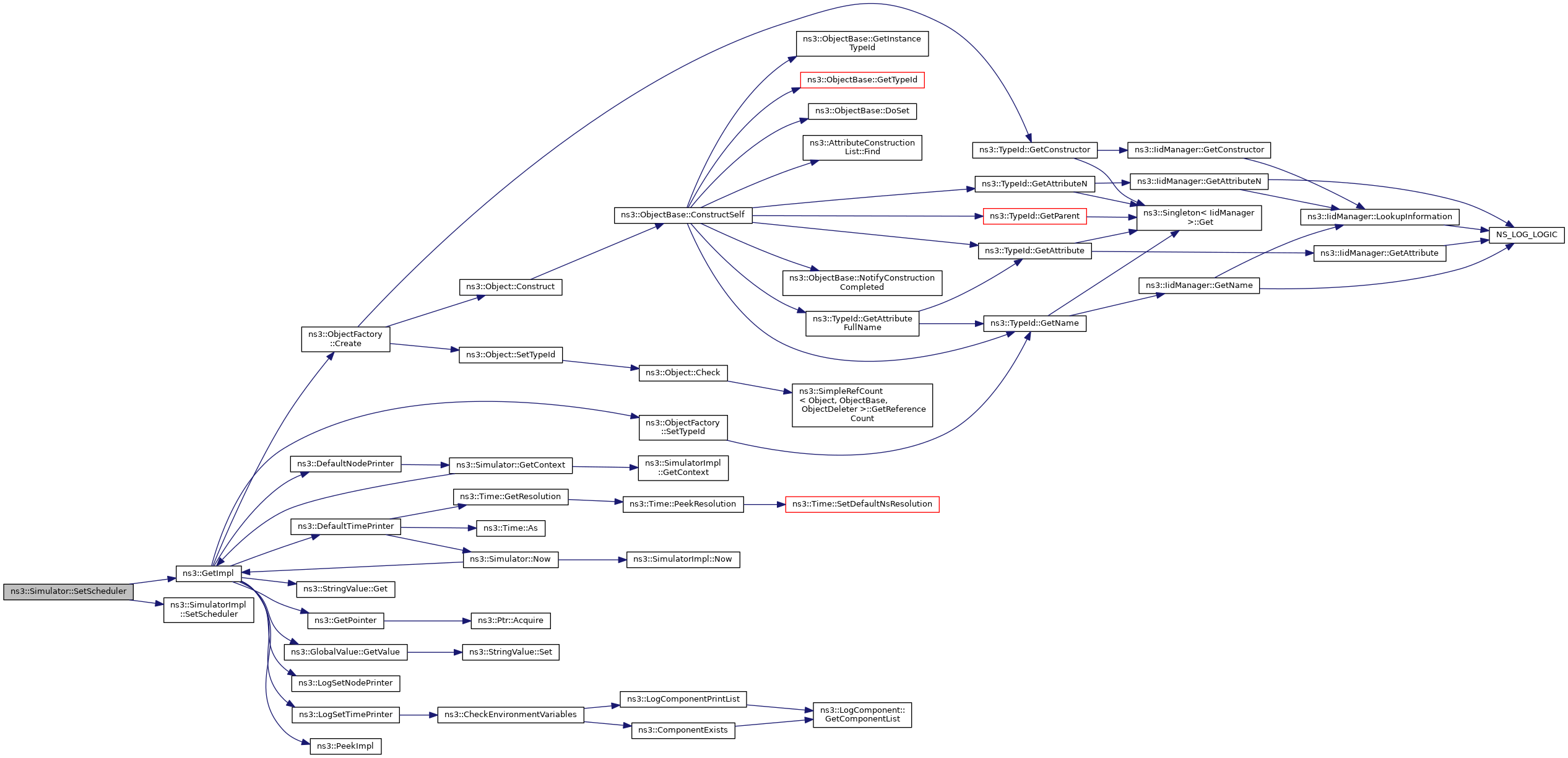

Here is the call graph for this function:

Here is the caller graph for this function:

DoScheduleDestroy()

EventId ns3::Simulator::DoScheduleDestroy ( EventImpl *  event )

staticprivate

Implementation of the various ScheduleDestroy methods.

Parameters

[in]

event

The event to execute.

Returns

The EventId.

Definition at line 249 of file simulator.cc.

References ns3::GetImpl(), and ns3::SimulatorImpl::ScheduleDestroy().

Referenced by ScheduleDestroy().

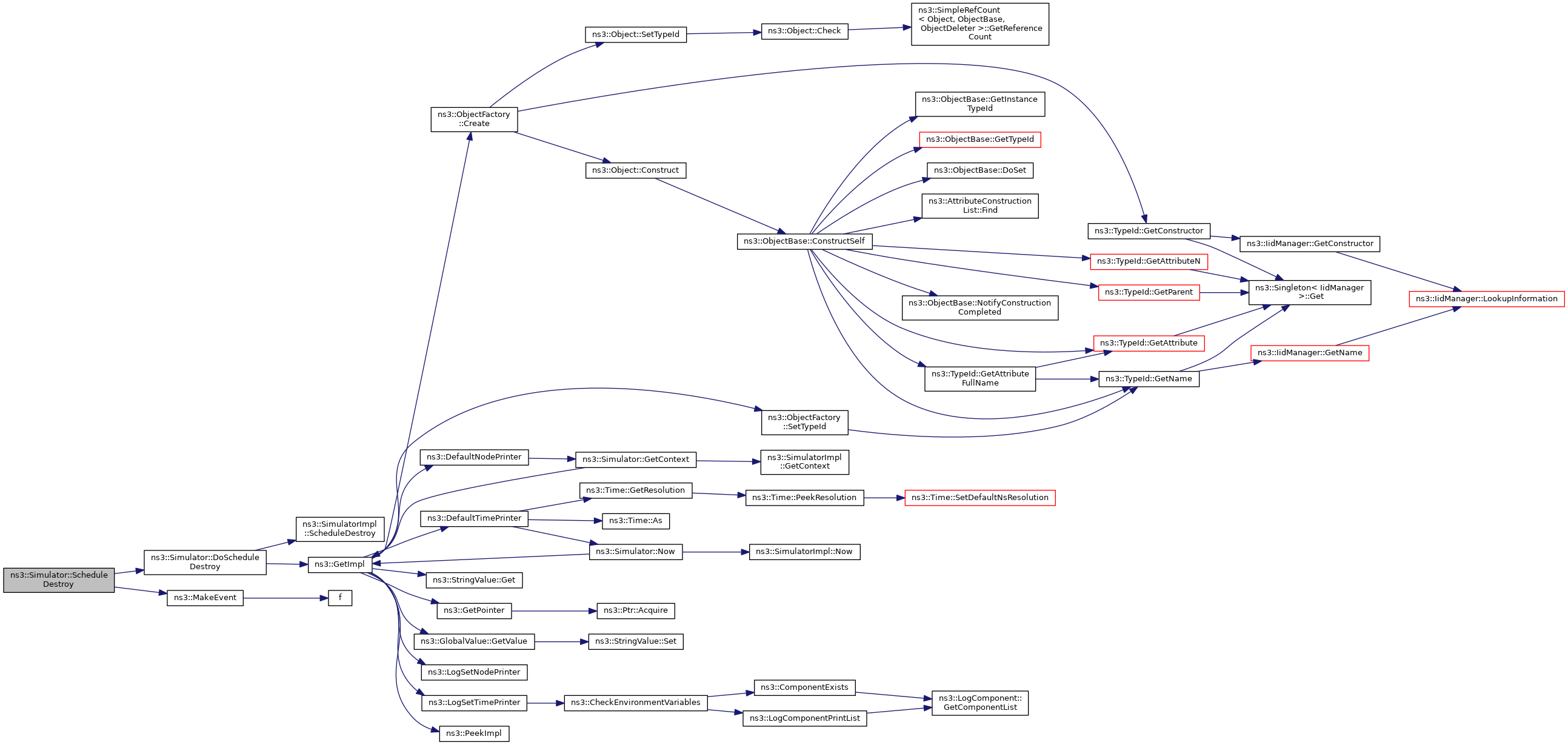

Here is the call graph for this function:

Here is the caller graph for this function:

DoScheduleNow()

EventId ns3::Simulator::DoScheduleNow ( EventImpl *  event )

staticprivate

Implementation of the various ScheduleNow methods.

Parameters

[in]

event

The event to execute.

Returns

The EventId.

Definition at line 241 of file simulator.cc.

References ns3::Singleton< DesMetrics >::Get(), ns3::GetImpl(), Now(), ns3::SimulatorImpl::ScheduleNow(), and ns3::DesMetrics::Trace().

Referenced by ScheduleNow().

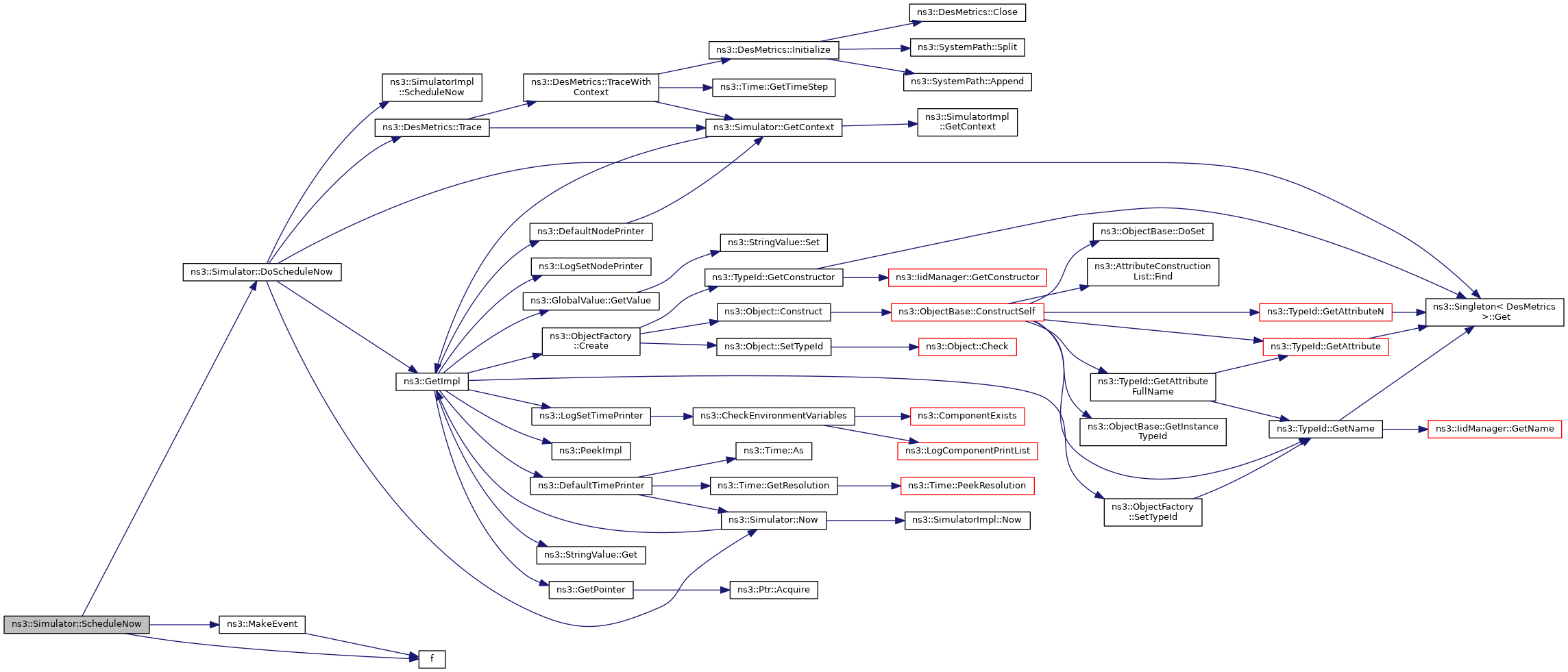

Here is the call graph for this function:

Here is the caller graph for this function:

GetContext()

uint32_t ns3::Simulator::GetContext ( void  )

static

Get the current simulation context.

The simulation context is the ns-3 notion of a Logical Process. Events in a single context should only modify state associated with that context. Events for objects in other contexts should be scheduled with ScheduleWithContext() to track the context switches. In other words, events in different contexts should be mutually thread safe, by not modify overlapping model state.

In circumstances where the context can't be determined, such as during object initialization, the enum value NO_CONTEXT should be used.

Returns

The current simulation context

Definition at line 322 of file simulator.cc.

References ns3::SimulatorImpl::GetContext(), and ns3::GetImpl().

Referenced by ns3::DefaultNodePrinter(), ns3::Node::ReceiveFromDevice(), ns3::DesMetrics::Trace(), and ns3::DesMetrics::TraceWithContext().

Here is the call graph for this function:

Here is the caller graph for this function:

GetDelayLeft()

Time ns3::Simulator::GetDelayLeft ( const EventId &  id )

static

Get the remaining time until this event will execute.

Parameters

[in]

id

The event id to analyse.

Returns

The delay left until the input event id expires. if the event is not running, this method returns zero.

Definition at line 202 of file simulator.cc.

References ns3::SimulatorImpl::GetDelayLeft(), ns3::GetImpl(), and NS_LOG_FUNCTION.

Referenced by ns3::DefaultChannelScheduler::AssignExtendedAccess(), ns3::ThreeGppHttpClient::CancelAllPendingEvents(), ns3::LteUeRrc::CancelEnteringTrigger(), ns3::LteUeRrc::CancelLeavingTrigger(), ns3::ThreeGppHttpServerTxBuffer::CloseAllSockets(), ns3::ThreeGppHttpServerTxBuffer::CloseSocket(), ns3::TcpSocketBase::Destroy(), ns3::TcpSocketBase::Destroy6(), ns3::TcpSocketBase::DoForwardUp(), ns3::ChannelAccessManager::DoRestartAccessTimeoutIfNeeded(), ns3::Timer::GetDelayLeft(), ns3::Rip::HandleResponses(), ns3::RipNg::HandleResponses(), ns3::TcpSocketBase::NewAck(), ns3::TcpSocketBase::ReceivedData(), ns3::ThreeGppHttpServerTxBuffer::RemoveSocket(), ns3::StaWifiMac::RestartBeaconWatchdog(), and ns3::Timer::Suspend().

Here is the call graph for this function:

Here is the caller graph for this function:

GetEventCount()

uint64_t ns3::Simulator::GetEventCount ( void  )

static

Get the number of events executed.

Returns

The total number of events executed.

Definition at line 328 of file simulator.cc.

References ns3::GetImpl().

Referenced by ns3::ShowProgress::Feedback().

Here is the call graph for this function:

Here is the caller graph for this function:

GetImplementation()

Ptr< SimulatorImpl > ns3::Simulator::GetImplementation ( void  )

static

Get the SimulatorImpl singleton.

Internal:

If the SimulatorImpl singleton hasn't been created yet, this function does so. At the same time it also creates the Scheduler. Both of these respect the global values which may have been set from the command line or through the Config system.

As a side effect we also call LogSetTimePrinter() and LogSetNodePrinter() with the default implementations since we can't really do any logging until we have a SimulatorImpl and Scheduler.

Returns

The SimulatorImpl singleton.

Definition at line 375 of file simulator.cc.

References ns3::GetImpl(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::GrantedTimeWindowMpiInterface::GetSize(), ns3::GrantedTimeWindowMpiInterface::GetSystemId(), ns3::NullMessageMpiInterface::IsEnabled(), ns3::GrantedTimeWindowMpiInterface::IsEnabled(), and ns3::PyViz::SimulatorRunUntil().

Here is the call graph for this function:

Here is the caller graph for this function:

GetMaximumSimulationTime()

Time ns3::Simulator::GetMaximumSimulationTime ( void  )

static

Get the maximum representable simulation time.

Returns

The maximum simulation time at which an event can be scheduled.

The returned value will always be bigger than or equal to Simulator::Now.

Definition at line 315 of file simulator.cc.

References ns3::GetImpl(), ns3::SimulatorImpl::GetMaximumSimulationTime(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::ChannelAccessManager::DoRestartAccessTimeoutIfNeeded(), ns3::RemoteChannelBundleManager::GetSafeTime(), ns3::aodv::RoutingProtocol::NotifyAddAddress(), ns3::dsdv::RoutingProtocol::NotifyAddAddress(), ns3::aodv::RoutingProtocol::NotifyInterfaceUp(), ns3::dsdv::RoutingProtocol::NotifyInterfaceUp(), ns3::aodv::RoutingProtocol::NotifyRemoveAddress(), ns3::aodv::RoutingProtocol::SetIpv4(), and ns3::dsdv::RoutingProtocol::SetIpv4().

Here is the call graph for this function:

Here is the caller graph for this function:

GetSystemId()

uint32_t ns3::Simulator::GetSystemId ( void  )

static

Get the system id of this simulator.

The system id is the identifier for this simulator instance in a distributed simulation. For MPI this is the MPI rank.

Returns

The system id for this simulator.

Definition at line 334 of file simulator.cc.

References ns3::GetImpl(), ns3::SimulatorImpl::GetSystemId(), NS_LOG_FUNCTION_NOARGS, and ns3::PeekImpl().

Here is the call graph for this function:

IsExpired()

bool ns3::Simulator::IsExpired ( const EventId &  id )

static

Check if an event has already run or been cancelled.

This method has O(1) complexity. Note that it is not possible to test for the expiration of events which were scheduled for the "destroy" time. Doing so will result in a program error (crash). An event is said to "expire" when it starts being scheduled which means that if the code executed by the event calls this function, it will get true.

Parameters

[in]

id

The event to test for expiration.

Returns

true if the event has expired, false otherwise.

Definition at line 300 of file simulator.cc.

References ns3::GetImpl(), ns3::SimulatorImpl::IsExpired(), and ns3::PeekImpl().

Referenced by ns3::ThreeGppHttpClient::CancelAllPendingEvents(), ns3::ThreeGppHttpServerTxBuffer::CloseAllSockets(), ns3::ThreeGppHttpServerTxBuffer::CloseSocket(), ns3::EventId::IsExpired(), and ns3::ThreeGppHttpServerTxBuffer::RemoveSocket().

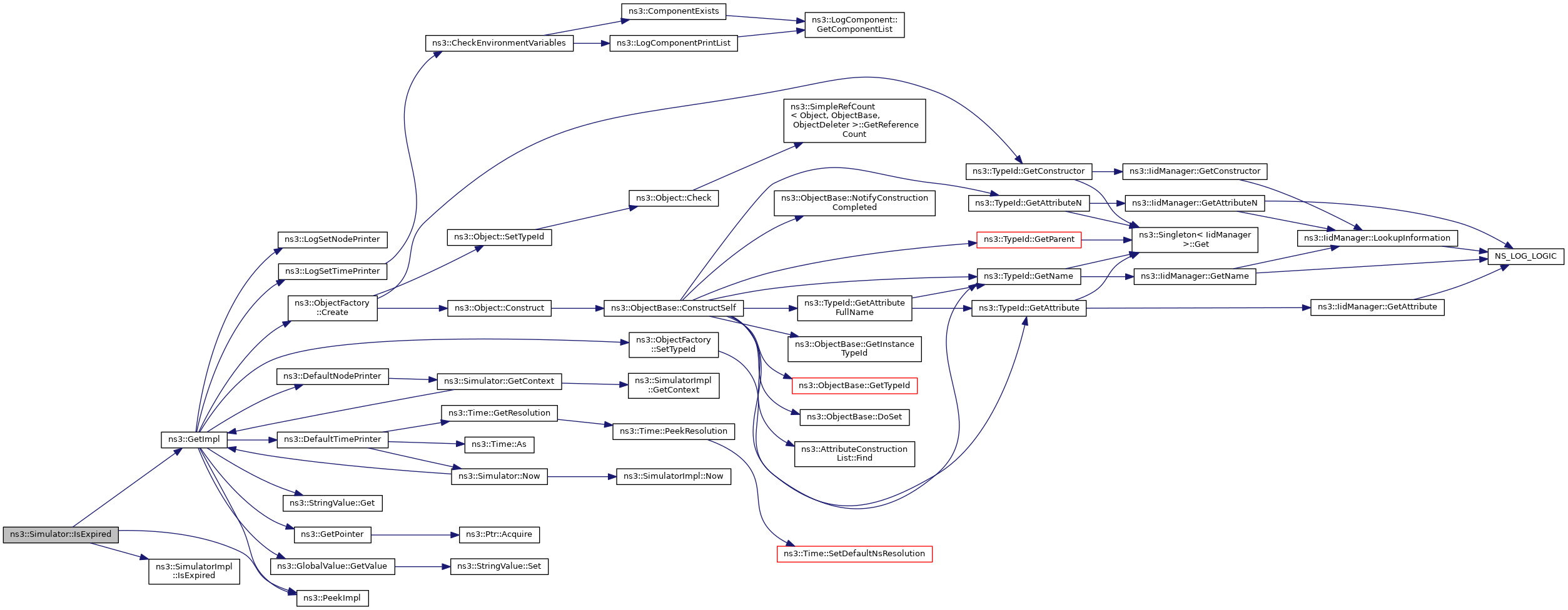

Here is the call graph for this function:

Here is the caller graph for this function:

IsFinished()

bool ns3::Simulator::IsFinished ( void  )

static

Check if the simulation should finish.

Reasons to finish are because there are no more events lefts to be scheduled, or if simulation time has already reached the "stop time" (see Simulator::Stop()).

Returns

true if no more events or stop time reached.

Definition at line 163 of file simulator.cc.

References ns3::GetImpl(), ns3::SimulatorImpl::IsFinished(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::ThreeGppHttpServer::DoDispose(), ns3::ThreeGppHttpClient::DoDispose(), ns3::AnimationInterface::MobilityAutoCheck(), PrintCellInfo(), ns3::RvBatteryModel::UpdateEnergySource(), ns3::LiIonEnergySource::UpdateEnergySource(), and ns3::BasicEnergyHarvester::UpdateHarvestedPower().

Here is the call graph for this function:

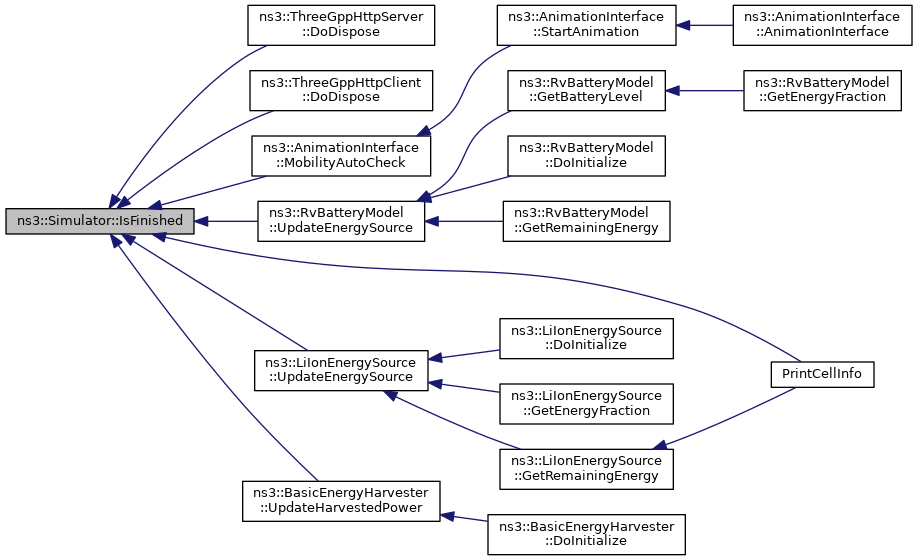

Here is the caller graph for this function:

Now()

Time ns3::Simulator::Now ( void  )

static

Return the current simulation virtual time.

Returns

The current virtual time.

Definition at line 193 of file simulator.cc.

References ns3::GetImpl(), and ns3::SimulatorImpl::Now().

Referenced by ns3::dsr::DsrRouteCache::AddNeighbor(), ns3::flame::FlameRtable::AddPath(), ns3::dot11s::HwmpRtable::AddPrecursor(), ns3::dot11s::HwmpRtable::AddProactivePath(), ns3::dot11s::HwmpRtable::AddReactivePath(), ns3::LteEnbRrc::AddUeMeasReportConfig(), ns3::WaypointMobilityModel::AddWaypoint(), NodeStatistics::AdvancePosition(), ns3::UplinkSchedulerSimple::AllocateInitialRangingInterval(), ns3::UplinkSchedulerMBQoS::AllocateInitialRangingInterval(), ns3::UplinkSchedulerRtps::AllocateInitialRangingInterval(), ns3::AsciiLrWpanMacTransmitSinkWithContext(), ns3::AsciiLrWpanMacTransmitSinkWithoutContext(), ns3::AsciiPhyReceiveSinkWithContext(), ns3::AsciiPhyReceiveSinkWithoutContext(), ns3::AsciiPhyRxOkEvent(), ns3::AsciiPhyTransmitSinkWithContext(), ns3::AsciiPhyTransmitSinkWithoutContext(), ns3::AsciiPhyTxEvent(), ns3::WimaxHelper::AsciiRxEvent(), ns3::WimaxHelper::AsciiTxEvent(), ns3::UanMacRc::Associate(), ns3::UanMacRc::AssociateTimeout(), ns3::olsr::RoutingProtocol::AssociationTupleTimerExpire(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerUGSConnection(), BytesInQueueTrace(), ns3::UanPhyCalcSinrDual::CalcSinrDb(), ns3::BandwidthManager::CalculateAllocationSize(), ns3::WifiRemoteStationInfo::CalculateAveragingCoefficient(), ns3::BasicEnergyHarvester::CalculateHarvestedPower(), ns3::InterferenceHelper::CalculateNoiseInterferenceW(), ns3::BasicEnergySource::CalculateRemainingEnergy(), ns3::LiIonEnergySource::CalculateRemainingEnergy(), CalculateThroughput(), ns3::PyViz::CallbackStopSimulation(), ns3::dsr::DsrRouting::CallCancelPacketTimer(), ns3::OnOffApplication::CancelEvents(), Bench::Cb(), ChangeSignalAndReportRate(), ns3::AcousticModemEnergyModel::ChangeState(), ns3::WifiRadioEnergyModel::ChangeState(), ns3::LrWpanPhy::ChangeTrxState(), ns3::UplinkSchedulerMBQoS::CheckDeadline(), ns3::FlowMonitor::CheckForLostPackets(), ns3::LrWpanPhy::CheckInterference(), CheckQueueDiscSize(), CheckQueueSize(), ns3::dsr::DsrRouting::CheckSendBuffer(), NodeStatistics::CheckStatistics(), ns3::RraaWifiManager::CheckTimeout(), ns3::RrpaaWifiManager::CheckTimeout(), ns3::dsr::DsrNetworkQueue::Cleanup(), ns3::ServiceFlow::CleanUpQueue(), ns3::CobaltQueueDisc::CobaltShouldDrop(), ns3::CoDelGetTime(), ns3::DynamicQueueLimits::Completed(), ns3::TcpTxBuffer::CopyFromSequence(), Emitter::Count(), ns3::UplinkSchedulerMBQoS::CountSymbolsJobs(), CourseChange(), Ns2MobilityHelperTest::CourseChange(), WaypointMobilityModelNotifyTest::CourseChangeCallback(), WaypointMobilityModelAddWaypointTest::CourseChangeCallback(), ns3::MobilityHelper::CourseChanged(), ns3::BlockAckManager::CreateAgreement(), ns3::LteUePhy::CreateDlCqiFeedbackMessage(), ns3::AnimationInterface::CsmaPhyRxEndTrace(), ns3::AnimationInterface::CsmaPhyTxBeginTrace(), ns3::AnimationInterface::CsmaPhyTxEndTrace(), CwndTrace(), CwndTracer(), ns3::AsciiTraceHelper::DefaultDequeueSinkWithContext(), ns3::AsciiTraceHelper::DefaultDequeueSinkWithoutContext(), ns3::AsciiTraceHelper::DefaultDropSinkWithContext(), ns3::AsciiTraceHelper::DefaultDropSinkWithoutContext(), ns3::AsciiTraceHelper::DefaultEnqueueSinkWithContext(), ns3::AsciiTraceHelper::DefaultEnqueueSinkWithoutContext(), ns3::AsciiTraceHelper::DefaultReceiveSinkWithContext(), ns3::AsciiTraceHelper::DefaultReceiveSinkWithoutContext(), ns3::PcapHelper::DefaultSink(), ns3::DefaultTimePrinter(), ns3::dot11s::HwmpRtable::DeleteProactivePath(), ns3::TcpSocketBase::Destroy(), ns3::TcpSocketBase::Destroy6(), ns3::AnimationInterface::DevTxTrace(), ns3::RadioBearerStatsCalculator::DlRxPdu(), ns3::MacStatsCalculator::DlScheduling(), ns3::RadioBearerStatsCalculator::DlTxPdu(), ns3::LteEnbMac::DoAllocateNcRaPreamble(), ns3::TraceFadingLossModel::DoCalcRxPowerSpectralDensity(), ns3::AmrrWifiManager::DoCreateStation(), ns3::OnoeWifiManager::DoCreateStation(), ns3::MinstrelHtWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoCreateStation(), ns3::TdBetFfMacScheduler::DoCschedLcConfigReq(), ns3::FdBetFfMacScheduler::DoCschedLcConfigReq(), ns3::PfFfMacScheduler::DoCschedLcConfigReq(), ns3::TdTbfqFfMacScheduler::DoCschedLcConfigReq(), ns3::CqaFfMacScheduler::DoCschedLcConfigReq(), ns3::PssFfMacScheduler::DoCschedLcConfigReq(), ns3::FdTbfqFfMacScheduler::DoCschedLcConfigReq(), ns3::PieQueueDisc::DoDequeue(), ns3::TbfQueueDisc::DoDequeue(), ns3::RedQueueDisc::DoDequeue(), ns3::RedQueueDisc::DoEnqueue(), ns3::TcpSocketBase::DoForwardUp(), ns3::ConstantAccelerationMobilityModel::DoGetPosition(), ns3::ConstantAccelerationMobilityModel::DoGetVelocity(), ns3::ChannelAccessManager::DoGrantDcfAccess(), ns3::BasicEnergyHarvester::DoInitialize(), ns3::MeshWifiInterfaceMac::DoInitialize(), ns3::MacLow::DoNavResetNow(), ns3::MacLow::DoNavStartNow(), ns3::LteRlcUm::DoNotifyTxOpportunity(), ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::LteRlcSm::DoNotifyTxOpportunity(), ns3::PyViz::DoPause(), ns3::LteTestRrc::DoReceivePdcpSdu(), ns3::LteRlcUm::DoReceivePdu(), ns3::LteRlcAm::DoReceivePdu(), ns3::LtePdcp::DoReceivePdu(), ns3::LteRlcSm::DoReceivePdu(), ns3::MinstrelHtWifiManager::DoReportAmpduTxStatus(), ns3::LteRlcTm::DoReportBufferStatus(), ns3::LteRlcUm::DoReportBufferStatus(), ns3::LteRlcAm::DoReportBufferStatus(), ns3::MinstrelHtWifiManager::DoReportDataOk(), ns3::MinstrelHtWifiManager::DoReportFinalDataFailed(), ns3::LteUePhy::DoReset(), ns3::ChannelAccessManager::DoRestartAccessTimeoutIfNeeded(), ns3::tests::EventGarbageCollectorTestCase::DoRun(), ns3::FdTbfqFfMacScheduler::DoSchedDlTriggerReq(), DoSchedule(), DoScheduleNow(), ns3::ConstantAccelerationMobilityModel::DoSetPosition(), ns3::WaypointMobilityModel::DoSetPosition(), ns3::LteEnbPhy::DoSetSrsConfigurationIndex(), ns3::LteUePhy::DoSetSrsConfigurationIndex(), ns3::LteUeMac::DoSubframeIndication(), ns3::WifiPhyStateHelper::DoSwitchFromRx(), ns3::LteRlcUm::DoTransmitPdcpPdu(), ns3::LteRlcAm::DoTransmitPdcpPdu(), ns3::LteRlcTm::DoTransmitPdcpPdu(), ns3::LtePdcp::DoTransmitPdcpSdu(), DroppingStateTracer(), ns3::olsr::RoutingProtocol::Dump(), ns3::olsr::RoutingProtocol::DupTupleTimerExpire(), ns3::TcpOptionTS::ElapsedTimeFromTsValue(), Emitter::Emit(), LteHandoverDelayTestCase::EnbHandoverEndOkCallback(), LteHandoverDelayTestCase::EnbHandoverStartCallback(), EnbRrcTimeout(), ns3::UanMacRcGw::EndCycle(), ns3::LrWpanPhy::EndEd(), ns3::LteEnbPhy::EndFrame(), ns3::WifiPhy::EndReceive(), ns3::LrWpanPhy::EndRx(), ns3::LteSpectrumPhy::EndRxData(), ns3::LteEnbPhy::EndSubFrame(), ns3::UanMacCw::EndTx(), ns3::MacLow::EndTxNoAck(), ns3::UanMacAloha::Enqueue(), ns3::WimaxMacQueue::Enqueue(), ns3::UanMacCw::Enqueue(), ns3::dsr::DsrNetworkQueue::Enqueue(), ns3::QueueDisc::Enqueue(), ns3::TcpSocketBase::EstimateRtt(), ns3::RedQueueDisc::Estimator(), anonymous_namespace{sample-show-progress.cc}::Hold::Event(), EveryDropTracer(), anonymous_namespace{sample-simulator.cc}::ExampleFunction(), ns3::tests::WatchdogTestCase::Expire(), ns3::Watchdog::Expire(), ns3::dsr::DsrGraReply::FindAndUpdate(), ns3::dsr::DsrRreqTable::FindAndUpdate(), ns3::UanMacRcGw::FindOptA(), ns3::ArpCache::Flush(), ns3::olsr::RoutingProtocol::ForwardDefault(), ns3::MacLow::ForwardDown(), ns3::dsr::DsrRouting::ForwardErrPacket(), ns3::LteUePhy::GenerateCqiRsrpRsrq(), ns3::LteEnbPhy::GenerateCtrlCqiReport(), GenerateTraffic(), ns3::AnimationInterface::GenericWirelessRxTrace(), ns3::AnimationInterface::GenericWirelessTxTrace(), ns3::ChannelAccessManager::GetAccessGrantStart(), ns3::UplinkSchedulerSimple::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerRtps::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerMBQoS::GetChannelDescriptorsToUpdate(), ns3::WifiPhyStateHelper::GetDelayUntilIdle(), ns3::InterferenceHelper::GetEnergyDuration(), ns3::aodv::Neighbors::GetExpireTime(), ns3::dsr::DsrSendBuffEntry::GetExpireTime(), ns3::dsr::DsrErrorBuffEntry::GetExpireTime(), ns3::aodv::QueueEntry::GetExpireTime(), ns3::dsdv::QueueEntry::GetExpireTime(), ns3::dsr::DsrReceivedRreqEntry::GetExpireTime(), ns3::dsr::DsrPassiveBuffEntry::GetExpireTime(), ns3::dsr::DsrRouteCacheEntry::GetExpireTime(), ns3::dsr::DsrMaintainBuffEntry::GetExpireTime(), ns3::dsr::DsrRouteCache::GetExpireTime(), ns3::BridgeNetDevice::GetLearnedState(), ns3::dsdv::RoutingTableEntry::GetLifeTime(), ns3::aodv::RoutingTableEntry::GetLifeTime(), ns3::dsr::DsrLinkStab::GetLinkStability(), ns3::Node::GetLocalTime(), ns3::dsr::DsrNodeStab::GetNodeStability(), ns3::PyViz::GetPauseMessages(), ns3::dot11s::HwmpRtable::GetPrecursors(), ns3::WifiPhyHelper::GetRadiotapHeader(), ns3::MacLow::GetRemainingCfpDuration(), GetSetTRXStateConfirm(), ns3::TcpHtcp::GetSsThresh(), ns3::WifiPhyStateHelper::GetState(), ns3::NscTcpL4Protocol::gettime(), ns3::SubscriberStationNetDevice::GetTimeToAllocation(), ns3::SimpleDeviceEnergyModel::GetTotalEnergyConsumption(), ns3::WifiRadioEnergyModel::GetTotalEnergyConsumption(), ns3::QosTxop::GetTxopRemaining(), GoodputSampling(), anonymous_namespace{sample-simulator.cc}::MyModel::HandleEvent(), ns3::UdpEchoServer::HandleRead(), ns3::PacketSocketServer::HandleRead(), ns3::UdpServer::HandleRead(), ns3::PacketSink::HandleRead(), ns3::Radvd::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::ArpCache::HandleWaitReplyTimeout(), HarvestedPower(), ns3::aodv::RoutingProtocol::HelloTimerExpire(), ns3::olsr::RoutingProtocol::IfaceAssocTupleTimerExpire(), InFlightTracer(), ns3::aodv::RoutingTableEntry::Invalidate(), ns3::dsr::DsrRouteCacheEntry::Invalidate(), ns3::Ipv4L3ProtocolDropSinkWithContext(), ns3::Ipv4L3ProtocolDropSinkWithoutContext(), ns3::Ipv4L3ProtocolRxSinkWithContext(), ns3::Ipv4L3ProtocolRxSinkWithoutContext(), ns3::Ipv4L3ProtocolRxTxSink(), ns3::Ipv4L3ProtocolTxSinkWithContext(), ns3::Ipv4L3ProtocolTxSinkWithoutContext(), ns3::Ipv6L3ProtocolDropSinkWithContext(), ns3::Ipv6L3ProtocolDropSinkWithoutContext(), ns3::Ipv6L3ProtocolRxSinkWithContext(), ns3::Ipv6L3ProtocolRxSinkWithoutContext(), ns3::Ipv6L3ProtocolRxTxSink(), ns3::Ipv6L3ProtocolTxSinkWithContext(), ns3::Ipv6L3ProtocolTxSinkWithoutContext(), ns3::ChannelAccessManager::IsBusy(), ns3::aodv::IdCache::IsDuplicate(), ns3::Probe::IsEnabled(), ns3::ArpCache::Entry::IsExpired(), ns3::FrameCaptureModel::IsInCaptureWindow(), ns3::AnimationInterface::IsInTimeWindow(), ns3::MacLow::IsNavZero(), ns3::ChannelAccessManager::IsWithinAifs(), ns3::BridgeNetDevice::Learn(), LimitsTrace(), ns3::olsr::RoutingProtocol::LinkSensing(), ns3::DhcpClient::LinkStateHandler(), ns3::olsr::RoutingProtocol::LinkTupleAdded(), ns3::olsr::RoutingProtocol::LinkTupleTimerExpire(), ns3::olsr::RoutingProtocol::LinkTupleUpdated(), ns3::TraceFadingLossModel::LoadTrace(), ns3::WifiPhyStateHelper::LogPreviousIdleAndCcaBusyStates(), ns3::flame::FlameRtable::Lookup(), ns3::dot11s::HwmpRtable::LookupProactive(), ns3::dot11s::HwmpRtable::LookupProactiveExpired(), ns3::dot11s::HwmpRtable::LookupReactive(), ns3::dot11s::HwmpRtable::LookupReactiveExpired(), ns3::AnimationInterface::LrWpanPhyRxBeginTrace(), ns3::AnimationInterface::LrWpanPhyTxBeginTrace(), ns3::AnimationInterface::LteSpectrumPhyRxStart(), ns3::AnimationInterface::LteSpectrumPhyTxStart(), ns3::LteUePhy::LteUePhy(), ns3::dsr::DsrRreqTable::MarkLinkAsUnidirectional(), ns3::StaWifiMac::MissedBeacons(), modify(), ns3::olsr::RoutingProtocol::MprSelTupleTimerExpire(), ns3::olsr::RoutingProtocol::Nb2hopTupleTimerExpire(), ns3::olsr::RoutingProtocol::NeighborLoss(), ns3::TcpSocketBase::NewAck(), NextRxTracer(), NextTxTracer(), ns3::QosTxop::NotifyAccessGranted(), ns3::ChannelAccessManager::NotifyAckTimeoutResetNow(), ns3::ChannelAccessManager::NotifyAckTimeoutStartNow(), ns3::Ipv4GlobalRouting::NotifyAddAddress(), ns3::BlockAckManager::NotifyAgreementEstablished(), ns3::BlockAckManager::NotifyAgreementNoReply(), ns3::BlockAckManager::NotifyAgreementRejected(), ns3::BlockAckManager::NotifyAgreementReset(), ns3::dot11s::PeerManagementProtocol::NotifyBeaconSent(), ns3::UanMacCw::NotifyCcaEnd(), ns3::UanMacCw::NotifyCcaStart(), NotifyConnectionEstablishedEnb(), NotifyConnectionEstablishedUe(), NotifyConnectionReleaseAtEnodeB(), NotifyConnectionTimeoutUe(), ns3::ChannelAccessManager::NotifyCtsTimeoutResetNow(), ns3::ChannelAccessManager::NotifyCtsTimeoutStartNow(), NotifyHandoverEndOkEnb(), NotifyHandoverEndOkUe(), NotifyHandoverStartEnb(), NotifyHandoverStartUe(), ns3::Ipv4GlobalRouting::NotifyInterfaceDown(), ns3::Ipv4GlobalRouting::NotifyInterfaceUp(), ns3::ChannelAccessManager::NotifyMaybeCcaBusyStartNow(), ns3::MacLow::NotifyNav(), ns3::ChannelAccessManager::NotifyNavResetNow(), ns3::ChannelAccessManager::NotifyNavStartNow(), ns3::MacLow::NotifyOffNow(), ns3::ChannelAccessManager::NotifyOnNow(), NotifyRandomAccessErrorUe(), NotifyRaResponseTimeoutUe(), ns3::Ipv4GlobalRouting::NotifyRemoveAddress(), ns3::InterferenceHelper::NotifyRxEnd(), ns3::UanMacCw::NotifyRxEndError(), ns3::ChannelAccessManager::NotifyRxEndErrorNow(), ns3::UanMacCw::NotifyRxEndOk(), ns3::ChannelAccessManager::NotifyRxEndOkNow(), ns3::UanMacCw::NotifyRxStart(), ns3::ChannelAccessManager::NotifyRxStartNow(), ns3::MacLow::NotifySleepNow(), ns3::ChannelAccessManager::NotifySwitchingStartNow(), ns3::MacLow::NotifySwitchingStartNow(), ns3::UanMacCw::NotifyTxStart(), ns3::ChannelAccessManager::NotifyTxStartNow(), ns3::ChannelAccessManager::NotifyWakeupNow(), ns3::Now(), ns3::TcpOptionTS::NowToTsValue(), ns3::CoDelQueueDisc::OkToDrop(), ns3::aodv::IdCache::IsExpired::operator()(), ns3::aodv::CloseNeighbor::operator()(), ns3::dsr::DsrGraReply::IsExpired::operator()(), ns3::dsr::DsrRreqTable::IsExpired::operator()(), ns3::dsr::CloseNeighbor::operator()(), ns3::QueueDisc::PacketDequeued(), ns3::dsr::DsrRouting::PacketNewRoute(), ns3::PcapSniffLrWpan(), ns3::WifiPhyHelper::PcapSniffRxEvent(), ns3::WifiPhyHelper::PcapSniffTxEvent(), ns3::PcapSniffTxRxEvent(), ns3::WifiMacQueue::Peek(), ns3::WifiMacQueue::PeekByAddress(), ns3::WifiMacQueue::PeekByTid(), ns3::WifiMacQueue::PeekByTidAndAddress(), ns3::WifiMacQueue::PeekFirstAvailable(), ns3::TcpSocketBase::PersistTimeout(), PhyStateTrace(), PhySyncDetection(), ns3::Watchdog::Ping(), ns3::TcpLp::PktsAcked(), ns3::TcpHtcp::PktsAcked(), ns3::LrWpanPhy::PlmeEdRequest(), ns3::olsr::RoutingProtocol::PopulateMprSelectorSet(), ns3::olsr::RoutingProtocol::PopulateTwoHopNeighborSet(), PowerCallback(), ns3::WifiMacQueueItem::Print(), ns3::dsdv::RoutingTableEntry::Print(), ns3::dsr::DsrRouteCacheEntry::Print(), ns3::aodv::RoutingTableEntry::Print(), ns3::Ipv4RoutingHelper::PrintArpCache(), ns3::Ipv4RoutingHelper::PrintArpCacheEvery(), PrintCellInfo(), IpAddressHelper::PrintIpAddresses(), ns3::Ipv6RoutingHelper::PrintNdiscCache(), ns3::Ipv6RoutingHelper::PrintNdiscCacheEvery(), PrintReceivedPacket(), UanExperiment::PrintReceivedPacket(), ns3::UanMacRc::ProcessAck(), ns3::UplinkSchedulerMBQoS::ProcessBandwidthRequest(), ns3::Ipv4L3Protocol::ProcessFragment(), ns3::SixLowPanNetDevice::ProcessFragment(), ns3::olsr::RoutingProtocol::ProcessHello(), ns3::olsr::RoutingProtocol::ProcessHna(), ns3::olsr::RoutingProtocol::ProcessMid(), ns3::BSLinkManager::ProcessRangingRequest(), ns3::olsr::RoutingProtocol::ProcessTc(), ns3::dsr::DsrRouting::PromiscReceive(), ns3::AnimationInterface::PurgePendingPackets(), RadioLinkFailure(), anonymous_namespace{sample-simulator.cc}::RandomFunction(), ns3::BaseStationNetDevice::RangingOppStart(), RateCallback(), ns3::dot11s::HwmpProtocol::ReactivePathResolved(), ns3::UanTransducerHd::Receive(), ns3::V4Ping::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::StaWifiMac::Receive(), ns3::dot11s::PeerManagementProtocol::ReceiveBeacon(), ns3::TcpSocketBase::ReceivedData(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), ns3::ThreeGppHttpClient::ReceiveEmbeddedObject(), ns3::LteUePhy::ReceiveLteControlMessageList(), ns3::ThreeGppHttpClient::ReceiveMainObject(), ns3::GrantedTimeWindowMpiInterface::ReceiveMessages(), ns3::NullMessageMpiInterface::ReceiveMessages(), ns3::MacLow::ReceiveOk(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::UanMacRcGw::ReceivePacket(), ReceivePdDataIndication(), ns3::DelayJitterEstimation::RecordRx(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::olsr::RoutingProtocol::RecvOlsr(), ns3::aodv::RoutingProtocol::RecvRequest(), RemainingEnergy(), RemainingEnergyTrace(), ns3::olsr::RoutingProtocol::RemoveLinkTuple(), ns3::flame::FlameProtocol::RemoveRoutingStuff(), anonymous_namespace{sample-log-time-format.cc}::ReplacementTimePrinter(), ns3::MeshHelper::Report(), ns3::PhyStatsCalculator::ReportCurrentCellRsrpSinr(), ns3::FlowMonitor::ReportFirstTx(), ns3::FlowMonitor::ReportForwarding(), ns3::PhyStatsCalculator::ReportInterference(), ns3::FlowMonitor::ReportLastRx(), ns3::LteUePhy::ReportUeMeasurements(), ns3::PhyStatsCalculator::ReportUeSinr(), ns3::ChannelAccessManager::RequestAccess(), ns3::ThreeGppHttpClient::RequestEmbeddedObject(), ns3::ThreeGppHttpClient::RequestMainObject(), ns3::flame::FlameProtocol::RequestRoute(), SampleEmitter::Reschedule(), ns3::RadioBearerStatsCalculator::RescheduleEndEpoch(), ns3::DynamicQueueLimits::Reset(), ns3::WifiPhy::ResetCca(), ns3::RraaWifiManager::ResetCountersBasic(), ns3::RrpaaWifiManager::ResetCountersBasic(), ns3::StaWifiMac::RestartBeaconWatchdog(), ns3::dot11s::HwmpProtocol::RetryPathDiscovery(), ns3::TcpSocketBase::ReTxTimeout(), ns3::LteUePhy::RlfDetection(), ns3::olsr::RoutingProtocol::RoutingTableComputation(), RtoTracer(), ns3::UanMacRc::RtsTimeout(), RttTracer(), ns3::RvBatteryModel::RvBatteryModel(), ns3::UanPhyDual::RxOkFromSubPhy(), ns3::UanMacAloha::RxPacketError(), ns3::dsr::DsrRouting::SalvagePacket(), ns3::LteUeRrc::SaveScellUeMeasurements(), ns3::UanMacCw::SaveTimer(), ns3::LteUeRrc::SaveUeMeasurements(), ns3::RealtimeSimulatorImpl::Schedule(), ns3::UplinkSchedulerMBQoS::Schedule(), ns3::UanMacRc::ScheduleData(), ScheduleWithContext(), ns3::BSSchedulerSimple::SelectConnection(), ns3::SSScheduler::SelectConnection(), ns3::UdpClient::Send(), ns3::V4Ping::Send(), ns3::PacketSocketClient::Send(), ns3::Radvd::Send(), ns3::UdpEchoClient::Send(), ns3::dsr::DsrRouting::Send(), ns3::dsr::DsrRouting::SendAck(), ns3::BulkSendApplication::SendData(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), ns3::TcpSocketBase::SendEmptyPacket(), ns3::dsr::DsrRouting::SendGratuitousReply(), ns3::olsr::RoutingProtocol::SendHello(), Sender::SendPacket(), ns3::UanPhyDual::SendPacket(), ns3::OnOffApplication::SendPacket(), ns3::UanMacCw::SendPacket(), ns3::UanMacRcGw::SendPacket(), ns3::UanMacRc::SendPacket(), ns3::dsr::DsrRouting::SendPacket(), ns3::dsr::DsrRouting::SendPacketFromBuffer(), ns3::olsr::Bug780Test::SendPing(), ns3::dsr::DsrRouting::SendReply(), ns3::aodv::RoutingProtocol::SendRequest(), ns3::dsr::DsrRouting::SendRequest(), ns3::aodv::RoutingProtocol::SendRerrMessage(), ns3::aodv::RoutingProtocol::SendRerrWhenNoRouteToForward(), ns3::UanMacRc::SendRts(), UanExperiment::SendSinglePacket(), ns3::dsr::DsrRouting::SendUnreachError(), ns3::MgtProbeResponseHeader::Serialize(), ns3::ThreeGppHttpServer::ServeFromTxBuffer(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes(), ns3::UplinkSchedulerSimple::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerMBQoS::ServiceUnsolicitedGrants(), ns3::SimpleDeviceEnergyModel::SetCurrentA(), ns3::dsr::DsrSendBuffEntry::SetExpireTime(), ns3::dsr::DsrErrorBuffEntry::SetExpireTime(), ns3::aodv::QueueEntry::SetExpireTime(), ns3::dsdv::QueueEntry::SetExpireTime(), ns3::dsr::DsrReceivedRreqEntry::SetExpireTime(), ns3::dsr::DsrPassiveBuffEntry::SetExpireTime(), ns3::dsr::DsrRouteCacheEntry::SetExpireTime(), ns3::dsr::DsrMaintainBuffEntry::SetExpireTime(), ns3::RemoteChannelBundle::SetGuaranteeTime(), ns3::aodv::RoutingTableEntry::SetLifeTime(), ns3::dsr::DsrLinkStab::SetLinkStability(), ns3::AcousticModemEnergyModel::SetMicroModemState(), ns3::dsr::DsrNodeStab::SetNodeStability(), ns3::ConstantVelocityHelper::SetPosition(), ns3::DhcpHeader::SetTime(), ns3::ConstantVelocityHelper::SetVelocity(), ns3::ConstantAccelerationMobilityModel::SetVelocityAndAcceleration(), ns3::WifiRadioEnergyModel::SetWifiRadioState(), ns3::MeshWifiInterfaceMac::ShiftTbtt(), ns3::dot11s::HwmpProtocol::ShouldSendPreq(), showPosition(), ns3::PyViz::SimulatorRunUntil(), ns3::PcapHelper::SinkWithHeader(), SocketPrinter(), SsThreshTracer(), anonymous_namespace{sample-simulator.cc}::MyModel::Start(), ns3::LteTestRrc::Start(), ns3::V4Ping::StartApplication(), ns3::Txop::StartBackoffNow(), ns3::UanMacRcGw::StartCycle(), ns3::BaseStationNetDevice::StartDlSubFrame(), StartFlow(), ns3::BaseStationNetDevice::StartFrame(), ns3::NdiscCache::Entry::StartReachableTimer(), ns3::WifiPhy::StartReceiveHeader(), ns3::WifiPhy::StartReceivePreamble(), ns3::LrWpanPhy::StartRx(), ns3::LteSpectrumPhy::StartRxData(), ns3::LteSpectrumPhy::StartRxDlCtrl(), ns3::UanPhyGen::StartRxPacket(), ns3::LteSpectrumPhy::StartRxUlSrs(), ns3::OnOffApplication::StartSending(), ns3::LteEnbPhy::StartSubFrame(), ns3::UanMacCw::StartTimer(), ns3::BaseStationNetDevice::StartUlSubFrame(), ns3::ArpCache::StartWaitReplyTimer(), ns3::V4Ping::StopApplication(), ns3::LteUePhy::SubframeIndication(), ns3::WifiPhyStateHelper::SwitchFromOff(), ns3::WifiPhyStateHelper::SwitchFromRxEndError(), ns3::WifiPhyStateHelper::SwitchFromRxEndOk(), ns3::WifiPhyStateHelper::SwitchFromSleep(), ns3::WifiPhyStateHelper::SwitchMaybeToCcaBusy(), ns3::WifiPhyStateHelper::SwitchToChannelSwitching(), ns3::WifiPhyStateHelper::SwitchToOff(), ns3::WifiPhyStateHelper::SwitchToRx(), ns3::WifiPhyStateHelper::SwitchToSleep(), ns3::WifiPhyStateHelper::SwitchToTx(), ns3::QosTxop::TerminateTxop(), TestDeterministicByTime(), Throughput(), ns3::olsr::RoutingProtocol::TopologyTupleTimerExpire(), TotalEnergy(), TotalEnergyHarvested(), ns3::PyViz::TraceDevQueueDrop(), ns3::PyViz::TraceNetDevRxCommon(), ns3::PyViz::TraceNetDevTxCommon(), ns3::TimeSeriesAdaptor::TraceSinkDouble(), ns3::AnimationInterface::TrackIpv4L3ProtocolCounters(), ns3::AnimationInterface::TrackIpv4Route(), ns3::AnimationInterface::TrackQueueCounters(), ns3::AnimationInterface::TrackWifiMacCounters(), ns3::AnimationInterface::TrackWifiPhyCounters(), ns3::UanTransducerHd::Transmit(), ns3::PointToPointRemoteChannel::TransmitStart(), ns3::WifiMacQueue::TtlExceeded(), LteHandoverDelayTestCase::UeHandoverEndOkCallback(), LteHandoverDelayTestCase::UeHandoverStartCallback(), UeStateTransition(), ns3::RadioBearerStatsCalculator::UlRxPdu(), ns3::MacStatsCalculator::UlScheduling(), ns3::RadioBearerStatsCalculator::UlTxPdu(), ns3::ConstantVelocityHelper::Update(), ns3::aodv::Neighbors::Update(), ns3::TcpBic::Update(), ns3::WaypointMobilityModel::Update(), ns3::BlockAckManager::UpdateAgreement(), ns3::TcpHtcp::UpdateAlpha(), ns3::ChannelAccessManager::UpdateBackoff(), ns3::TcpLedbat::UpdateBaseDelay(), ns3::BasicEnergySource::UpdateEnergySource(), ns3::RvBatteryModel::UpdateEnergySource(), ns3::LiIonEnergySource::UpdateEnergySource(), ns3::BasicEnergyHarvester::UpdateHarvestedPower(), ns3::RedQueueDisc::UpdateMaxP(), ns3::AmrrWifiManager::UpdateMode(), ns3::OnoeWifiManager::UpdateMode(), ns3::dsr::DsrRouteCache::UpdateNeighbor(), ns3::NdiscCache::Entry::UpdateReachableTimer(), ns3::TcpSocketBase::UpdateRttHistory(), ns3::ArpCache::Entry::UpdateSeen(), ns3::MinstrelWifiManager::UpdateStats(), ns3::MinstrelHtWifiManager::UpdateStats(), ns3::BaseStationNetDevice::UplinkAllocationEnd(), ns3::BaseStationNetDevice::UplinkAllocationStart(), ns3::UplinkSchedulerRtps::UplinkSchedulerRtps(), ns3::UplinkSchedulerSimple::UplinkSchedulerSimple(), ns3::UplinkSchedulerMBQoS::UplinkSchedWindowTimer(), ns3::AnimationInterface::WavePhyRxBeginTrace(), ns3::AnimationInterface::WifiPhyRxBeginTrace(), ns3::AnimationInterface::WriteXmlRouting(), ns3::AnimationInterface::WriteXmlRp(), ns3::AnimationInterface::WriteXmlUpdateLink(), ns3::AnimationInterface::WriteXmlUpdateNodeColor(), ns3::AnimationInterface::WriteXmlUpdateNodeCounter(), ns3::AnimationInterface::WriteXmlUpdateNodeDescription(), ns3::AnimationInterface::WriteXmlUpdateNodeImage(), ns3::AnimationInterface::WriteXmlUpdateNodePosition(), and ns3::AnimationInterface::WriteXmlUpdateNodeSize().

Here is the call graph for this function:

Remove()

void ns3::Simulator::Remove ( const EventId &  id )

static

Remove an event from the event list.

This method has the same visible effect as the ns3::EventId::Cancel method but its algorithmic complexity is much higher: it has often O(log(n)) complexity, sometimes O(n), sometimes worse. Note that it is not possible to remove events which were scheduled for the "destroy" time. Doing so will result in a program error (crash).

Parameters

[in]

id

The event to remove from the list of scheduled events.

Definition at line 280 of file simulator.cc.

References ns3::GetImpl(), ns3::PeekImpl(), and ns3::SimulatorImpl::Remove().

Referenced by ns3::DhcpClient::AcceptAck(), ns3::PieQueueDisc::DoDispose(), ns3::ArpCache::DoDispose(), ns3::RandomWaypointMobilityModel::DoSetPosition(), ns3::RandomDirection2dMobilityModel::DoSetPosition(), ns3::RandomWalk2dMobilityModel::DoSetPosition(), ns3::SteadyStateRandomWaypointMobilityModel::DoSetPosition(), ns3::GaussMarkovMobilityModel::DoSetPosition(), ns3::DhcpClient::LinkStateHandler(), ns3::DhcpClient::NetHandler(), ns3::DhcpClient::OfferHandler(), ns3::Timer::Remove(), ns3::DhcpClient::RemoveAndStart(), ns3::DhcpServer::StopApplication(), ns3::DhcpClient::StopApplication(), ns3::Timer::Suspend(), ns3::UanTransducerHd::Transmit(), and ns3::Timer::~Timer().

Here is the call graph for this function:

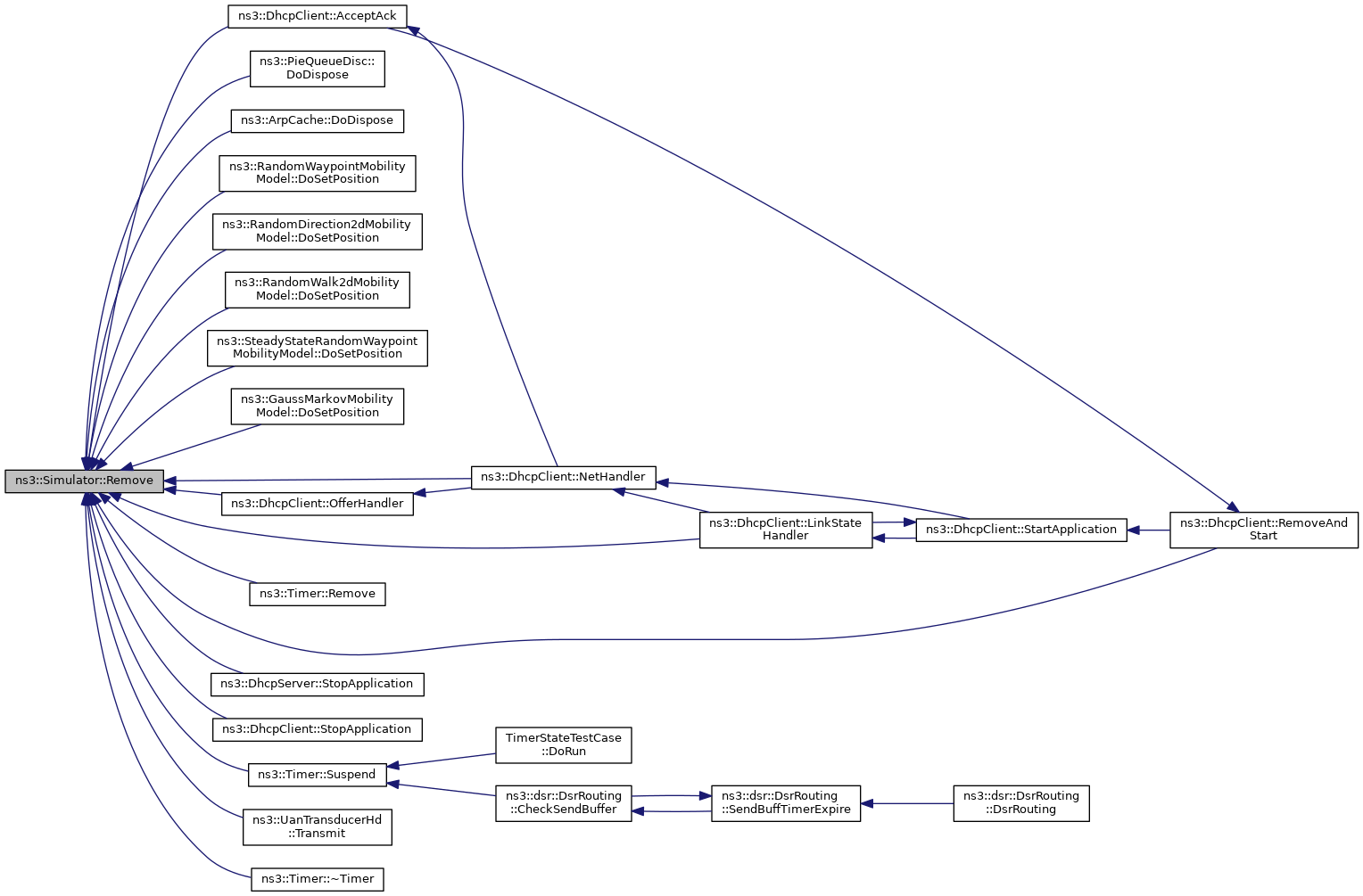

Here is the caller graph for this function:

Run()

void ns3::Simulator::Run ( void  )

static

Run the simulation.

The simulation will run until one of:

• No events are present anymore
• The user called Simulator::Stop
• The user called Simulator::Stop with a stop time and the expiration time of the next event to be processed is greater than or equal to the stop time.

Definition at line 170 of file simulator.cc.

References ns3::Time::ClearMarkedTimes(), ns3::GetImpl(), NS_LOG_FUNCTION_NOARGS, and ns3::SimulatorImpl::Run().

Referenced by BatteryLifetimeTest::ConstantLoadTest(), BasicEnergyDepletionTest::DepletionTestCase(), ns3::aodv::NeighborTest::DoRun(), ns3::TcpLpToNewReno::DoRun(), ns3::tests::WatchdogTestCase::DoRun(), ns3::olsr::Bug780Test::DoRun(), SteadyStateRandomWaypointTest::DoRun(), ns3::LenaDeactivateBearerTestCase::DoRun(), ns3::aodv::IdCacheTest::DoRun(), WaypointMobilityModelNotifyTest::DoRun(), ns3::tests::EventGarbageCollectorTestCase::DoRun(), ns3::olsr::HelloRegressionTest::DoRun(), ns3::aodv::LoopbackTestCase::DoRun(), LteHandoverDelayTestCase::DoRun(), ns3::olsr::TcRegressionTest::DoRun(), CarrierAggregationConfigTestCase::DoRun(), ns3::TcpLpInferenceTest1::DoRun(), ns3::TcpLpInferenceTest2::DoRun(), WaypointMobilityModelAddWaypointTest::DoRun(), Ns2MobilityHelperTest::DoRun(), ns3::TcpGeneralTest::DoRun(), ns3::aodv::AodvRqueueTest::DoRun(), experiment(), Experiment::Run(), Bench::RunBench(), RunSimulation(), WaveNetDeviceExample::SendIpExample(), WaveNetDeviceExample::SendWsaExample(), WaveNetDeviceExample::SendWsmpExample(), BasicEnergyUpdateTest::StateSwitchTest(), TestDeterministic(), TestDeterministicByTime(), TestProbabilistic(), and BatteryLifetimeTest::VariableLoadTest().

Here is the call graph for this function:

Here is the caller graph for this function:

Schedule() [1/15]

template<typename MEM , typename OBJ >

EventId ns3::Simulator::Schedule ( Time const &  delay, MEM  mem_ptr, OBJ  obj  )

static

Schedule an event to expire after delay.

This can be thought of as scheduling an event for the current simulation time plus the delay passed as a parameter.

When the event expires (when it becomes due to be run), the input method will be invoked on the input object.

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.

Parameters

[in]	delay	The relative expiration time of the event.
[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method

Returns

The id for the scheduled event.

Definition at line 1389 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Referenced by ns3::DhcpClient::AcceptAck(), ns3::Ipv6Interface::AddAddress(), ns3::QosTxop::AddBaResponseTimeout(), ns3::SpectrumInterference::AddSignal(), ns3::LteInterference::AddSignal(), ns3::WaypointMobilityModel::AddWaypoint(), AdvancePosition(), NodeStatistics::AdvancePosition(), ns3::DefaultChannelScheduler::AssignContinuousAccess(), ns3::DefaultChannelScheduler::AssignExtendedAccess(), ns3::UanMacRc::Associate(), ns3::UanMacRc::AssociateTimeout(), ns3::olsr::RoutingProtocol::AssociationTupleTimerExpire(), ns3::RandomDirection2dMobilityModel::BeginPause(), ns3::RandomWaypointMobilityModel::BeginWalk(), ns3::SteadyStateRandomWaypointMobilityModel::BeginWalk(), ns3::DhcpClient::Boot(), ns3::LteFfrDistributedAlgorithm::Calculate(), ns3::PieQueueDisc::CalculateP(), CalculateThroughput(), ns3::dsr::DsrRouting::CancelPacketTimerNextHop(), ns3::LrWpanCsmaCa::CanProceed(), Bench::Cb(), ChangeSignalAndReportRate(), ns3::WifiRadioEnergyModel::ChangeState(), CheckQueueDiscSize(), CheckQueueSize(), ns3::dsr::DsrRouting::CheckSendBuffer(), NodeStatistics::CheckStatistics(), ns3::LteEnbRrc::ConfigureCell(), ns3::WifiPhy::ContinueReceiveHeader(), Emitter::Count(), ns3::MacLow::CreateBlockAckAgreement(), ns3::olsr::Bug780Test::CreateNodes(), ns3::MacLow::DeaggregateAmpduAndReceive(), ns3::RadioEnvironmentMapHelper::DelayedInstall(), ns3::WifiPhy::DoChannelSwitch(), ns3::Icmpv6L4Protocol::DoDAD(), ns3::TbfQueueDisc::DoDequeue(), ns3::TcpSocketBase::DoForwardUp(), ns3::WifiPhy::DoFrequencySwitch(), Emitter::DoInitialize(), ns3::UeManager::DoInitialize(), ns3::Application::DoInitialize(), ns3::dot11s::HwmpProtocol::DoInitialize(), ns3::MeshWifiInterfaceMac::DoInitialize(), ns3::Rip::DoInitialize(), ns3::RipNg::DoInitialize(), ns3::ApWifiMac::DoInitialize(), ns3::RandomWaypointMobilityModel::DoInitializePrivate(), ns3::SteadyStateRandomWaypointMobilityModel::DoInitializePrivate(), ns3::LteUeRrc::DoNotifyOutOfSync(), ns3::LteUeRrc::DoNotifyRandomAccessSuccessful(), ns3::LteRlcUm::DoNotifyTxOpportunity(), ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::LteRlcTm::DoNotifyTxOpportunity(), ns3::TcpSocketBase::DoPeerClose(), ns3::LteRlcUm::DoReceivePdu(), ns3::LteRlcAm::DoReceivePdu(), ns3::VsaManager::DoRepeat(), ns3::LteTestMac::DoReportBufferStatus(), ns3::ChannelAccessManager::DoRestartAccessTimeoutIfNeeded(), ns3::aodv::NeighborTest::DoRun(), ns3::TcpLpToNewReno::DoRun(), ns3::tests::WatchdogTestCase::DoRun(), SteadyStateRandomWaypointTest::DoRun(), ns3::LenaDeactivateBearerTestCase::DoRun(), ns3::aodv::IdCacheTest::DoRun(), ns3::tests::EventGarbageCollectorTestCase::DoRun(), WaypointMobilityModelNotifyTest::DoRun(), ns3::TcpLpInferenceTest1::DoRun(), ns3::TcpLpInferenceTest2::DoRun(), WaypointMobilityModelAddWaypointTest::DoRun(), ns3::TcpGeneralTest::DoRun(), ns3::aodv::AodvRqueueTest::DoRun(), ns3::LteUeRrcProtocolIdeal::DoSendIdealUeContextRemoveRequest(), ns3::LteUeRrcProtocolReal::DoSendIdealUeContextRemoveRequest(), ns3::LteUeRrcProtocolIdeal::DoSendMeasurementReport(), ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReconfiguration(), ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReconfigurationCompleted(), ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReestablishment(), ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReestablishmentComplete(), ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReestablishmentReject(), ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReestablishmentRequest(), ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReject(), ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionRelease(), ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionRequest(), ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionSetup(), ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionSetupCompleted(), ns3::LteEnbRrcProtocolIdeal::DoSendSystemInformation(), ns3::LteEnbRrcProtocolReal::DoSendSystemInformation(), ns3::VsaManager::DoSendVsa(), ns3::LteRlcAm::DoTransmitPdcpPdu(), ns3::LteTestMac::DoTransmitPdu(), ns3::RandomWalk2dMobilityModel::DoWalk(), ns3::GaussMarkovMobilityModel::DoWalk(), ns3::olsr::RoutingProtocol::DupTupleTimerExpire(), Emitter::Emit(), ns3::AnimationInterface::EnableIpv4L3ProtocolCounters(), ns3::AnimationInterface::EnableIpv4RouteTracking(), ns3::AnimationInterface::EnableQueueCounters(), ns3::AnimationInterface::EnableWifiMacCounters(), ns3::AnimationInterface::EnableWifiPhyCounters(), ns3::UanMacRcGw::EndCycle(), ns3::BaseStationNetDevice::EndDlSubFrame(), ns3::RadioBearerStatsCalculator::EndEpoch(), ns3::SimpleOfdmWimaxPhy::EndReceiveFecBlock(), ns3::BaseStationNetDevice::EndUlSubFrame(), ns3::ThreeGppHttpClient::EnterParsingTime(), ns3::ThreeGppHttpClient::EnterReadingTime(), anonymous_namespace{sample-show-progress.cc}::Hold::Event(), experiment(), ns3::Watchdog::Expire(), ns3::LteRlcUm::ExpireRbsTimer(), ns3::LteRlcTm::ExpireRbsTimer(), ns3::LteRlcAm::ExpireRbsTimer(), ns3::LteRlcUm::ExpireReorderingTimer(), ns3::LteRlcAm::ExpireReorderingTimer(), ns3::olsr::RoutingProtocol::ForwardDefault(), ns3::MacLow::ForwardDown(), ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::SpectrumAnalyzer::GenerateReport(), GenerateTraffic(), ns3::WaveformGenerator::GenerateWaveform(), GoodputSampling(), ns3::QosTxop::GotAck(), ns3::WifiRadioEnergyModel::HandleEnergyChanged(), ns3::Radvd::HandleRead(), ns3::Rip::HandleResponses(), ns3::RipNg::HandleResponses(), ns3::ArpCache::HandleWaitReplyTimeout(), ns3::LteHelper::HandoverRequest(), ns3::olsr::RoutingProtocol::IfaceAssocTupleTimerExpire(), ns3::RadioEnvironmentMapHelper::Install(), ns3::Rip::InvalidateRoute(), ns3::RipNg::InvalidateRoute(), ns3::olsr::RoutingProtocol::LinkSensing(), ns3::olsr::RoutingProtocol::LinkTupleTimerExpire(), ns3::ArpL3Protocol::Lookup(), ns3::LteUePhy::LteUePhy(), ns3::MakeTimerImpl(), ns3::BaseStationNetDevice::MarkRangingOppStart(), ns3::BaseStationNetDevice::MarkUplinkAllocationEnd(), ns3::BaseStationNetDevice::MarkUplinkAllocationStart(), ns3::LteUeRrc::MeasurementReportTriggering(), ns3::QosTxop::MissedAck(), ns3::StaWifiMac::MissedBeacons(), ns3::QosTxop::MissedBlockAck(), ns3::AnimationInterface::MobilityAutoCheck(), modify(), ns3::olsr::RoutingProtocol::MprSelTupleTimerExpire(), ns3::olsr::RoutingProtocol::Nb2hopTupleTimerExpire(), ns3::TcpSocketBase::NewAck(), ns3::dot11s::PeerManagementProtocol::NotifyBeaconSent(), ns3::ChannelCoordinator::NotifyCchSlot(), ns3::FlowMonitor::NotifyConstructionCompleted(), ns3::BlockAckManager::NotifyGotBlockAck(), ns3::ChannelCoordinator::NotifyGuardSlot(), ns3::WifiRadioEnergyModelPhyListener::NotifyMaybeCcaBusyStart(), ns3::MacLow::NotifyNav(), ns3::ChannelCoordinator::NotifySchSlot(), ns3::WifiRadioEnergyModelPhyListener::NotifySwitchingStart(), ns3::UanMacCw::NotifyTxStart(), ns3::WifiRadioEnergyModelPhyListener::NotifyTxStart(), ns3::DhcpClient::OfferHandler(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanPhy::PdDataRequest(), ns3::SSLinkManager::PerformBackoff(), ns3::FlowMonitor::PeriodicCheckForLostPackets(), ns3::TcpSocketBase::PersistTimeout(), ns3::PieQueueDisc::PieQueueDisc(), ns3::Watchdog::Ping(), ns3::TcpWestwood::PktsAcked(), ns3::LrWpanPhy::PlmeCcaRequest(), ns3::LrWpanPhy::PlmeEdRequest(), ns3::LrWpanPhy::PlmeSetTRXStateRequest(), ns3::olsr::RoutingProtocol::PopulateMprSelectorSet(), ns3::olsr::RoutingProtocol::PopulateTwoHopNeighborSet(), ns3::Ipv4RoutingHelper::PrintArpCacheEvery(), PrintCellInfo(), ns3::Ipv4RoutingHelper::PrintEvery(), ns3::Ipv6RoutingHelper::PrintEvery(), ns3::Ipv6RoutingHelper::PrintNdiscCacheEvery(), ns3::Ipv4RoutingHelper::PrintNeighborCacheAllAt(), ns3::Ipv6RoutingHelper::PrintNeighborCacheAllAt(), ns3::Ipv4RoutingHelper::PrintNeighborCacheAllEvery(), ns3::Ipv6RoutingHelper::PrintNeighborCacheAllEvery(), ns3::Ipv4RoutingHelper::PrintNeighborCacheAt(), ns3::Ipv6RoutingHelper::PrintNeighborCacheAt(), ns3::Ipv4RoutingHelper::PrintNeighborCacheEvery(), ns3::Ipv6RoutingHelper::PrintNeighborCacheEvery(), ns3::Ipv4RoutingHelper::PrintRoutingTableAllAt(), ns3::Ipv6RoutingHelper::PrintRoutingTableAllAt(), ns3::Ipv4RoutingHelper::PrintRoutingTableAllEvery(), ns3::Ipv6RoutingHelper::PrintRoutingTableAllEvery(), ns3::Ipv4RoutingHelper::PrintRoutingTableAt(), ns3::Ipv6RoutingHelper::PrintRoutingTableAt(), ns3::Ipv4RoutingHelper::PrintRoutingTableEvery(), ns3::Ipv6RoutingHelper::PrintRoutingTableEvery(), ns3::dsr::DsrRouting::PriorityScheduler(), ns3::Ipv6ExtensionFragment::Process(), ns3::Ipv4L3Protocol::ProcessFragment(), ns3::SixLowPanNetDevice::ProcessFragment(), ns3::olsr::RoutingProtocol::ProcessHna(), ns3::olsr::RoutingProtocol::ProcessMid(), ns3::olsr::RoutingProtocol::ProcessTc(), ns3::SubscriberStationNetDevice::ProcessUlMap(), Progress(), ns3::LrWpanCsmaCa::RandomBackoffDelay(), ns3::UanTransducerHd::Receive(), ns3::TcpSocketBase::ReceivedData(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), ns3::MacLow::ReceiveOk(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::UeManager::RecvHandoverRequestAck(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::UeManager::RecvRrcConnectionRequest(), ns3::LteUePhy::ReportUeMeasurements(), ns3::DhcpClient::Request(), ns3::ChannelAccessManager::RequestAccess(), SampleEmitter::Reschedule(), ns3::RadioBearerStatsCalculator::RescheduleEndEpoch(), ns3::NullMessageSimulatorImpl::RescheduleNullMessageEvent(), ns3::MacLow::ResetBlockAckInactivityTimerIfNeeded(), ns3::WifiPhy::ResetCca(), ns3::StaWifiMac::RestartBeaconWatchdog(), ns3::dot11s::HwmpProtocol::RetryPathDiscovery(), ns3::dsdv::RoutingProtocol::RouteOutput(), ns3::UanMacRc::RtsTimeout(), Bench::RunBench(), ns3::RadioEnvironmentMapHelper::RunOneIteration(), ns3::dsr::DsrRouting::ScheduleCachedReply(), ns3::UanMacRc::ScheduleData(), ns3::SsServiceFlowManager::ScheduleDsaReq(), ns3::BsServiceFlowManager::ScheduleDsaRsp(), ns3::dsr::DsrRouting::ScheduleInterRequest(), ns3::MeshWifiInterfaceMac::ScheduleNextBeacon(), ns3::OnOffApplication::ScheduleNextTx(), ns3::NullMessageSimulatorImpl::ScheduleNullMessageEvent(), ns3::SSLinkManager::ScheduleScanningRestart(), ns3::OnOffApplication::ScheduleStartEvent(), ns3::OnOffApplication::ScheduleStopEvent(), ns3::Ping6::ScheduleTransmit(), ns3::UdpEchoClient::ScheduleTransmit(), ns3::UdpClient::Send(), ns3::V4Ping::Send(), ns3::PacketSocketClient::Send(), ns3::UdpTraceClient::Send(), ns3::Radvd::Send(), ns3::dsr::DsrRouting::Send(), ns3::TcpSocketBase::Send(), ns3::StaWifiMac::SendAssociationRequest(), ns3::BaseStationNetDevice::SendBursts(), ns3::MacLow::SendCtsToSelf(), ns3::LteTestRrc::SendData(), ns3::LteTestPdcp::SendData(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), ns3::TcpSocketBase::SendEmptyPacket(), ns3::SimpleNetDevice::SendFrom(), ns3::aodv::RoutingProtocol::SendHello(), WaveNetDeviceExample::SendIpExample(), ns3::LteUeRrc::SendMeasurementReport(), ns3::dot11s::HwmpProtocolMac::SendMyPerr(), ns3::dot11s::HwmpProtocolMac::SendMyPreq(), ns3::Icmpv6L4Protocol::SendNS(), ns3::ApWifiMac::SendOneBeacon(), Sender::SendPacket(), SendPacket(), ns3::UanPhyGen::SendPacket(), ns3::TcpGeneralTest::SendPacket(), ns3::dsr::DsrRouting::SendPacketFromBuffer(), ns3::dsdv::RoutingProtocol::SendPacketFromQueue(), UanExperiment::SendPackets(), ns3::olsr::Bug780Test::SendPing(), ns3::dot11s::HwmpProtocol::SendProactivePreq(), ns3::SSLinkManager::SendRangingRequest(), ns3::LteUeMac::SendRaPreamble(), ns3::aodv::RoutingProtocol::SendRequest(), ns3::aodv::RoutingProtocol::SendRerrMessage(), ns3::Icmpv6L4Protocol::SendRS(), ns3::UanMacRc::SendRts(), ns3::MacLow::SendRtsForPacket(), ns3::LteEnbRrc::SendSystemInformation(), ns3::Rip::SendTriggeredRouteUpdate(), ns3::RipNg::SendTriggeredRouteUpdate(), ns3::LteTestMac::SendTxOpportunity(), ns3::Rip::SendUnsolicitedRouteUpdate(), ns3::RipNg::SendUnsolicitedRouteUpdate(), ns3::VsaManager::SendVsa(), WaveNetDeviceExample::SendWsaExample(), WaveNetDeviceExample::SendWsmpExample(), ns3::dot11s::PeerLink::SetBeaconInformation(), ns3::dot11s::PeerLink::SetConfirmTimer(), ns3::RandomDirection2dMobilityModel::SetDirectionAndSpeed(), ns3::WifiRadioEnergyModel::SetEnergySource(), ns3::dot11s::PeerLink::SetHoldingTimer(), ns3::SetMovement(), ns3::Ipv6PmtuCache::SetPmtu(), ns3::dot11s::PeerLink::SetRetryTimer(), ns3::SetSchedPosition(), ns3::WifiPhy::SetSleepMode(), ns3::MeshWifiInterfaceMac::ShiftTbtt(), ns3::dot11s::HwmpProtocol::ShouldSendPreq(), showPosition(), anonymous_namespace{sample-simulator.cc}::MyModel::Start(), ns3::LteTestRrc::Start(), ns3::SteadyStateRandomWaypointMobilityModel::Start(), ns3::SpectrumAnalyzer::Start(), ns3::ShowProgress::Start(), ns3::TvSpectrumTransmitter::Start(), ns3::FdNetDevice::Start(), ns3::FlowMonitor::Start(), ns3::DataCalculator::Start(), ns3::TapBridge::Start(), ns3::LrWpanCsmaCa::Start(), ns3::AnimationInterface::StartAnimation(), ns3::UdpClient::StartApplication(), ns3::DhcpServer::StartApplication(), ns3::Radvd::StartApplication(), ns3::UdpTraceClient::StartApplication(), ns3::UanMacRcGw::StartCycle(), ns3::MacLow::StartDataTxTimers(), ns3::BaseStationNetDevice::StartDlSubFrame(), ns3::SimpleOfdmWimaxPhy::StartReceive(), ns3::WifiPhy::StartReceiveHeader(), ns3::WifiPhy::StartReceivePayload(), ns3::SpectrumAnalyzer::StartRx(), ns3::HalfDuplexIdealPhy::StartRx(), ns3::LrWpanPhy::StartRx(), ns3::WifiPhy::StartRx(), ns3::LteSpectrumPhy::StartRxData(), ns3::LteSpectrumPhy::StartRxDlCtrl(), ns3::UanPhyGen::StartRxPacket(), ns3::LteSpectrumPhy::StartRxUlSrs(), ns3::StaWifiMac::StartScanning(), ns3::WimaxPhy::StartScanning(), ns3::SimpleOfdmWimaxPhy::StartSendDummyFecBlock(), ns3::LteEnbPhy::StartSubFrame(), ns3::SSLinkManager::StartSynchronizing(), ns3::UanMacCw::StartTimer(), ns3::SingleModelSpectrumChannel::StartTx(), ns3::MultiModelSpectrumChannel::StartTx(), ns3::HalfDuplexIdealPhy::StartTx(), ns3::LteSpectrumPhy::StartTxDataFrame(), ns3::LteSpectrumPhy::StartTxDlCtrlFrame(), ns3::LteSpectrumPhy::StartTxUlSrsFrame(), ns3::BaseStationNetDevice::StartUlSubFrame(), ns3::ArpCache::StartWaitReplyTimer(), BasicEnergyUpdateTest::StateSwitchTest(), ns3::SteadyStateRandomWaypointMobilityModel::SteadyStateBeginWalk(), ns3::NullMessageSimulatorImpl::Stop(), ns3::DefaultSimulatorImpl::Stop(), ns3::RealtimeSimulatorImpl::Stop(), ns3::DistributedSimulatorImpl::Stop(), ns3::FdNetDevice::Stop(), ns3::FlowMonitor::Stop(), ns3::DataCalculator::Stop(), ns3::TapBridge::Stop(), ns3::LteUePhy::SubframeIndication(), Throughput(), ns3::DhcpServer::TimerHandler(), ns3::TcpSocketBase::TimeWait(), ns3::olsr::RoutingProtocol::TopologyTupleTimerExpire(), ns3::AnimationInterface::TrackIpv4L3ProtocolCounters(), ns3::AnimationInterface::TrackIpv4Route(), ns3::AnimationInterface::TrackQueueCounters(), ns3::AnimationInterface::TrackWifiMacCounters(), ns3::AnimationInterface::TrackWifiPhyCounters(), ns3::UanTransducerHd::Transmit(), ns3::SimpleNetDevice::TransmitComplete(), ns3::CsmaNetDevice::TransmitCompleteEvent(), ns3::CsmaChannel::TransmitEnd(), ns3::PointToPointNetDevice::TransmitStart(), ns3::CsmaNetDevice::TransmitStart(), ns3::BlockAckManager::UpdateAgreement(), ns3::BasicEnergySource::UpdateEnergySource(), ns3::RvBatteryModel::UpdateEnergySource(), ns3::LiIonEnergySource::UpdateEnergySource(), ns3::BasicEnergyHarvester::UpdateHarvestedPower(), ns3::UplinkSchedulerMBQoS::UplinkSchedWindowTimer(), BatteryLifetimeTest::VariableLoadTest(), ns3::LteUeRrc::VarMeasReportListAdd(), and ns3::AthstatsWifiTraceSink::WriteStats().

Here is the call graph for this function:

Schedule() [2/15]

template<typename MEM , typename OBJ , typename T1 >

EventId ns3::Simulator::Schedule ( Time const &  delay, MEM  mem_ptr, OBJ  obj, T1  a1  )

static

See also

Schedule(const Time&,MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.

Parameters

[in]	delay	The relative expiration time of the event.
[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method

Returns

The id for the scheduled event.

Definition at line 1397 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

Schedule() [3/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 >

EventId ns3::Simulator::Schedule ( Time const &  delay, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2  )

static

See also

Schedule(const Time&,MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.

Parameters

[in]	delay	The relative expiration time of the event.
[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method

Returns

The id for the scheduled event.

Definition at line 1404 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

Schedule() [4/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >

EventId ns3::Simulator::Schedule ( Time const &  delay, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3  )

static

See also

Schedule(const Time&,MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.
T3	[deduced] Type of third argument.

Parameters

[in]	delay	The relative expiration time of the event.
[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method
[in]	a3	The third argument to pass to the invoked method

Returns

The id for the scheduled event.

Definition at line 1411 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

Schedule() [5/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >

EventId ns3::Simulator::Schedule ( Time const &  delay, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4  )

static

See also

Schedule(const Time&,MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.
T3	[deduced] Type of third argument.
T4	[deduced] Type of fourth argument.

Parameters

[in]	delay	The relative expiration time of the event.
[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method
[in]	a3	The third argument to pass to the invoked method
[in]	a4	The fourth argument to pass to the invoked method

Returns

The id for the scheduled event.

Definition at line 1418 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

Schedule() [6/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventId ns3::Simulator::Schedule ( Time const &  delay, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

See also

Schedule(const Time&,MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.
T3	[deduced] Type of third argument.
T4	[deduced] Type of fourth argument.
T5	[deduced] Type of fifth argument.

Parameters

[in]	delay	The relative expiration time of the event.
[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method
[in]	a3	The third argument to pass to the invoked method
[in]	a4	The fourth argument to pass to the invoked method
[in]	a5	The fifth argument to pass to the invoked method

Returns

The id for the scheduled event.

Definition at line 1425 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

Schedule() [7/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

EventId ns3::Simulator::Schedule ( Time const &  time, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5, T6  a6  )

static

Parameters

time	the relative expiration time of the event.
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method
a4	the fourth argument to pass to the invoked method
a5	the fifth argument to pass to the invoked method
a6	the sixth argument to pass to the invoked method

Returns

an id for the scheduled event.

Definition at line 1433 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

Schedule() [8/15]

EventId ns3::Simulator::Schedule ( Time const &  delay, void(*)(void)  f  )

static

Schedule an event to expire after delay.

This can be thought of as scheduling an event for the current simulation time plus the delay passed as a parameter.

When the event expires (when it becomes due to be run), the function will be invoked with any supplied arguments.

Parameters

[in]	delay	The relative expiration time of the event.
[in]	f	The function to invoke

Returns

The id for the scheduled event.

Definition at line 256 of file simulator.cc.

References DoSchedule(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

Schedule() [9/15]

template<typename U1 , typename T1 >

EventId ns3::Simulator::Schedule ( Time const &  delay, void(*)(U1)  f, T1  a1  )

static

See also

Schedule(const Time&,(*)())

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
T1	[deduced] Actual type of the first argument.

Parameters

[in]	delay	The relative expiration time of the event.
[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke.

Returns

The id for the scheduled event.

Definition at line 1441 of file simulator.h.

References DoSchedule(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

Schedule() [10/15]

template<typename U1 , typename U2 , typename T1 , typename T2 >

EventId ns3::Simulator::Schedule ( Time const &  delay, void(*)(U1, U2)  f, T1  a1, T2  a2  )

static

See also

Schedule(const Time&,(*)())

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.

Parameters

[in]	delay	The relative expiration time of the event.
[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke

Returns

The id for the scheduled event.

Definition at line 1448 of file simulator.h.

References DoSchedule(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

Schedule() [11/15]

template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >

EventId ns3::Simulator::Schedule ( Time const &  delay, void(*)(U1, U2, U3)  f, T1  a1, T2  a2, T3  a3  )

static

See also

Schedule(const Time&,void(*)())

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.
T3	[deduced] Actual type of the third argument.

Parameters

[in]	delay	The relative expiration time of the event.
[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke
[in]	a3	The third argument to pass to the function to invoke

Returns

The id for the scheduled event.

Definition at line 1455 of file simulator.h.

References DoSchedule(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

Schedule() [12/15]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >

EventId ns3::Simulator::Schedule ( Time const &  delay, void(*)(U1, U2, U3, U4)  f, T1  a1, T2  a2, T3  a3, T4  a4  )

static

See also

Schedule(const Time&,(*)(void))

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
U4	[deduced] Formal type of the fourth argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.
T3	[deduced] Actual type of the third argument.
T4	[deduced] Actual type of the fourth argument.

Parameters

[in]	delay	The relative expiration time of the event.
[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke
[in]	a3	The third argument to pass to the function to invoke
[in]	a4	The fourth argument to pass to the function to invoke

Returns

The id for the scheduled event.

Definition at line 1462 of file simulator.h.

References DoSchedule(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

Schedule() [13/15]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventId ns3::Simulator::Schedule ( Time const &  delay, void(*)(U1, U2, U3, U4, U5)  f, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

See also

Schedule(const Time&,void(*)(void))

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
U4	[deduced] Formal type of the fourth argument to the function.
U5	[deduced] Formal type of the fifth argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.
T3	[deduced] Actual type of the third argument.
T4	[deduced] Actual type of the fourth argument.
T5	[deduced] Actual type of the fifth argument.

Parameters

[in]	delay	The relative expiration time of the event.
[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke
[in]	a3	The third argument to pass to the function to invoke
[in]	a4	The fourth argument to pass to the function to invoke
[in]	a5	The fifth argument to pass to the function to invoke

Returns

The id for the scheduled event.

Definition at line 1469 of file simulator.h.

References DoSchedule(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

Schedule() [14/15]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename U6 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

EventId ns3::Simulator::Schedule ( Time const &  time, void(*)(U1, U2, U3, U4, U5, U6)  f, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5, T6  a6  )

static

Parameters

time	the relative expiration time of the event.
f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke
a4	the fourth argument to pass to the function to invoke
a5	the fifth argument to pass to the function to invoke
a6	the sixth argument to pass to the function to invoke

Returns

an id for the scheduled event.

Definition at line 1476 of file simulator.h.

References DoSchedule(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

Schedule() [15/15]

EventId ns3::Simulator::Schedule ( const Time &  delay, const Ptr< EventImpl > &  event  )

static

Schedule a future event execution (in the same context).

Parameters

[in]	delay	Delay until the event expires.
[in]	event	The event to schedule.

Returns

A unique identifier for the newly-scheduled event.

Definition at line 209 of file simulator.cc.

References DoSchedule(), and ns3::GetPointer().

Here is the call graph for this function:

ScheduleDestroy() [1/15]

template<typename MEM , typename OBJ >

EventId ns3::Simulator::ScheduleDestroy ( MEM  mem_ptr, OBJ  obj  )

static

Schedule an event to expire when Simulator::Destroy is called.

All events scheduled to expire at "Destroy" time are scheduled FIFO, after all normal events have expired and only when Simulator::Destroy is invoked.

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.

Parameters

[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method

Returns

The EventId of the scheduled event.

Definition at line 1685 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Referenced by ns3::BuildingListPriv::DoGet(), ns3::ChannelListPriv::DoGet(), ns3::NodeListPriv::DoGet(), ns3::SimulationSingleton< T >::GetObject(), and ns3::FdReader::Start().

Here is the call graph for this function:

Here is the caller graph for this function:

ScheduleDestroy() [2/15]

template<typename MEM , typename OBJ , typename T1 >

EventId ns3::Simulator::ScheduleDestroy ( MEM  mem_ptr, OBJ  obj, T1  a1  )

static

See also

ScheduleDestroy(MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.

Parameters

[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1694 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleDestroy() [3/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 >

EventId ns3::Simulator::ScheduleDestroy ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2  )

static

See also

ScheduleDestroy(MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.

Parameters

[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1702 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleDestroy() [4/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >

EventId ns3::Simulator::ScheduleDestroy ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3  )

static

See also

ScheduleDestroy(MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.
T3	[deduced] Type of third argument.

Parameters

[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method
[in]	a3	The third argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1710 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleDestroy() [5/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >

EventId ns3::Simulator::ScheduleDestroy ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4  )

static

See also

ScheduleDestroy(MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.
T3	[deduced] Type of third argument.
T4	[deduced] Type of fourth argument.

Parameters

[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method
[in]	a3	The third argument to pass to the invoked method
[in]	a4	The fourth argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1718 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleDestroy() [6/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventId ns3::Simulator::ScheduleDestroy ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

See also

ScheduleDestroy(MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.
T3	[deduced] Type of third argument.
T4	[deduced] Type of fourth argument.
T5	[deduced] Type of fifth argument.

Parameters

[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method
[in]	a3	The third argument to pass to the invoked method
[in]	a4	The fourth argument to pass to the invoked method
[in]	a5	The fifth argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1726 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleDestroy() [7/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

EventId ns3::Simulator::ScheduleDestroy ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5, T6  a6  )

static

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method
a4	the fourth argument to pass to the invoked method
a5	the fifth argument to pass to the invoked method
a6	the sixth argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1735 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleDestroy() [8/15]

EventId ns3::Simulator::ScheduleDestroy ( void(*)(void)  f )

static

Schedule an event to expire when Simulator::Destroy is called. When Simulator::Destroy() is called, the function will be invoked with any supplied arguments.

Parameters

[in]

f

The function to invoke

Returns

The EventId of the scheduled event.

Definition at line 274 of file simulator.cc.

References DoScheduleDestroy(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleDestroy() [9/15]

template<typename U1 , typename T1 >

EventId ns3::Simulator::ScheduleDestroy ( void(*)(U1)  f, T1  a1  )

static

See also

ScheduleDestory((*)())

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
T1	[deduced] Actual type of the first argument.

Parameters

[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1744 of file simulator.h.

References DoScheduleDestroy(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleDestroy() [10/15]

template<typename U1 , typename U2 , typename T1 , typename T2 >

EventId ns3::Simulator::ScheduleDestroy ( void(*)(U1, U2)  f, T1  a1, T2  a2  )

static

See also

ScheduleDestory((*)())

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.

Parameters

[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1752 of file simulator.h.

References DoScheduleDestroy(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleDestroy() [11/15]

template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >

EventId ns3::Simulator::ScheduleDestroy ( void(*)(U1, U2, U3)  f, T1  a1, T2  a2, T3  a3  )

static

See also

ScheduleDestory((*)())

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.
T3	[deduced] Actual type of the third argument.

Parameters

[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke
[in]	a3	The third argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1760 of file simulator.h.

References DoScheduleDestroy(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleDestroy() [12/15]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >

EventId ns3::Simulator::ScheduleDestroy ( void(*)(U1, U2, U3, U4)  f, T1  a1, T2  a2, T3  a3, T4  a4  )

static

See also

ScheduleDestory((*)())

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
U4	[deduced] Formal type of the fourth argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.
T3	[deduced] Actual type of the third argument.
T4	[deduced] Actual type of the fourth argument.

Parameters

[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke
[in]	a3	The third argument to pass to the function to invoke
[in]	a4	The fourth argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1768 of file simulator.h.

References DoScheduleDestroy(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleDestroy() [13/15]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventId ns3::Simulator::ScheduleDestroy ( void(*)(U1, U2, U3, U4, U5)  f, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

See also

ScheduleDestory((*)())

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
U4	[deduced] Formal type of the fourth argument to the function.
U5	[deduced] Formal type of the fifth argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.
T3	[deduced] Actual type of the third argument.
T4	[deduced] Actual type of the fourth argument.
T5	[deduced] Actual type of the fifth argument.

Parameters

[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke
[in]	a3	The third argument to pass to the function to invoke
[in]	a4	The fourth argument to pass to the function to invoke
[in]	a5	The fifth argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1776 of file simulator.h.

References DoScheduleDestroy(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleDestroy() [14/15]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename U6 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

EventId ns3::Simulator::ScheduleDestroy ( void(*)(U1, U2, U3, U4, U5, U6)  f, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5, T6  a6  )

static

Parameters

f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke
a4	the fourth argument to pass to the function to invoke
a5	the fifth argument to pass to the function to invoke
a6	the sixth argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1784 of file simulator.h.

References DoScheduleDestroy(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleDestroy() [15/15]

EventId ns3::Simulator::ScheduleDestroy ( const Ptr< EventImpl > &  event )

static

Schedule an event to run at the end of the simulation, after the Stop() time or condition has been reached.

Parameters

[in]

event

The event to schedule.

Returns

A unique identifier for the newly-scheduled event.

Definition at line 228 of file simulator.cc.

References DoScheduleDestroy(), and ns3::GetPointer().

Here is the call graph for this function:

ScheduleNow() [1/15]

template<typename MEM , typename OBJ >

EventId ns3::Simulator::ScheduleNow ( MEM  mem_ptr, OBJ  obj  )

static

Schedule an event to expire Now.

All events scheduled to to expire "Now" are scheduled FIFO, after all normal events have expired.

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.

Parameters

[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method

Returns

The EventId of the scheduled event.

Definition at line 1578 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Referenced by ns3::NscTcpSocketImpl::Accept(), ns3::AthstatsWifiTraceSink::AthstatsWifiTraceSink(), ns3::LrWpanMac::CheckQueue(), ns3::ThreeGppHttpClient::ConnectionSucceededCallback(), ns3::NoBackhaulEpcHelper::DoActivateEpsBearerForUe(), ns3::LteFfrDistributedAlgorithm::DoInitialize(), ns3::ApWifiMac::DoInitialize(), ns3::SteadyStateRandomWaypointMobilityModel::DoInitializePrivate(), ns3::EpcUeNas::DoNotifyConnectionFailed(), ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration(), ns3::RandomWaypointMobilityModel::DoSetPosition(), ns3::RandomDirection2dMobilityModel::DoSetPosition(), ns3::RandomWalk2dMobilityModel::DoSetPosition(), ns3::SteadyStateRandomWaypointMobilityModel::DoSetPosition(), ns3::GaussMarkovMobilityModel::DoSetPosition(), ns3::LteEnbPhy::EndFrame(), ns3::LteEnbPhy::EndSubFrame(), experiment(), ns3::GaussMarkovMobilityModel::GaussMarkovMobilityModel(), ns3::LteTestPdcp::LteTestPdcp(), ns3::dsr::DsrRouting::NotifyNewAggregate(), ns3::AlohaNoackNetDevice::NotifyTransmissionEnd(), ns3::NetDeviceQueue::NotifyTransmittedBytes(), ns3::NscTcpSocketImpl::NSCWakeup(), ns3::ThreeGppHttpClient::ParseMainObject(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanCsmaCa::PlmeCcaConfirm(), ns3::TcpSocketBase::ProcessListen(), ns3::TcpSocketBase::ProcessSynSent(), ns3::ThreeGppHttpClient::ReceiveEmbeddedObject(), ns3::MemberLteEnbRrcSapProvider< C >::RecvIdealUeContextRemoveRequest(), ns3::MemberLteEnbRrcSapProvider< C >::RecvMeasurementReport(), ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionReconfiguration(), ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReconfigurationCompleted(), ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionReestablishment(), ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReestablishmentComplete(), ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionReestablishmentReject(), ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReestablishmentRequest(), ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionReject(), ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionRelease(), ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionRequest(), ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionSetup(), ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionSetupCompleted(), ns3::MemberLteUeRrcSapProvider< C >::RecvSystemInformation(), ns3::dsr::DsrRouting::ScheduleInitialReply(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::TcpSocketBase::SendDataPacket(), ns3::NscTcpSocketImpl::SendPendingData(), ns3::ApWifiMac::SetBeaconGeneration(), ns3::aodv::RoutingProtocol::SetIpv4(), ns3::dsdv::RoutingProtocol::SetIpv4(), ns3::NscTcpL4Protocol::SetNode(), ns3::WaveformGenerator::Start(), ns3::LrWpanCsmaCa::Start(), ns3::BaseStationNetDevice::Start(), ns3::SubscriberStationNetDevice::Start(), Sender::StartApplication(), ns3::PacketSocketClient::StartApplication(), and ns3::NetDeviceQueue::Wake().

Here is the call graph for this function:

ScheduleNow() [2/15]

template<typename MEM , typename OBJ , typename T1 >

EventId ns3::Simulator::ScheduleNow ( MEM  mem_ptr, OBJ  obj, T1  a1  )

static

See also

ScheduleNow(MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.

Parameters

[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1587 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleNow() [3/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 >

EventId ns3::Simulator::ScheduleNow ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2  )

static

See also

ScheduleNow(MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.

Parameters

[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1595 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleNow() [4/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >

EventId ns3::Simulator::ScheduleNow ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3  )

static

See also

ScheduleNow(MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.
T3	[deduced] Type of third argument.

Parameters

[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method
[in]	a3	The third argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1603 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleNow() [5/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >

EventId ns3::Simulator::ScheduleNow ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4  )

static

See also

ScheduleNow(MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.
T3	[deduced] Type of third argument.
T4	[deduced] Type of fourth argument.

Parameters

[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method
[in]	a3	The third argument to pass to the invoked method
[in]	a4	The fourth argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1611 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleNow() [6/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventId ns3::Simulator::ScheduleNow ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

See also

ScheduleNow(MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.
T3	[deduced] Type of third argument.
T4	[deduced] Type of fourth argument.
T5	[deduced] Type of fifth argument.

Parameters

[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method
[in]	a3	The third argument to pass to the invoked method
[in]	a4	The fourth argument to pass to the invoked method
[in]	a5	The fifth argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1619 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleNow() [7/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

EventId ns3::Simulator::ScheduleNow ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5, T6  a6  )

static

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method
a4	the fourth argument to pass to the invoked method
a5	the fifth argument to pass to the invoked method
a6	the sixth argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1628 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleNow() [8/15]

EventId ns3::Simulator::ScheduleNow ( void(*)(void)  f )

static

Schedule an event to expire Now.

When the event expires (when it becomes due to be run), the function will be invoked with any supplied arguments.

Parameters

[in]

f

The function to invoke

Returns

The EventId of the scheduled event.

Definition at line 268 of file simulator.cc.

References DoScheduleNow(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleNow() [9/15]

template<typename U1 , typename T1 >

EventId ns3::Simulator::ScheduleNow ( void(*)(U1)  f, T1  a1  )

static

See also

ScheduleNow(*)

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
T1	[deduced] Actual type of the first argument.

Parameters

[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1637 of file simulator.h.

References DoScheduleNow(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleNow() [10/15]

template<typename U1 , typename U2 , typename T1 , typename T2 >

EventId ns3::Simulator::ScheduleNow ( void(*)(U1, U2)  f, T1  a1, T2  a2  )

static

See also

ScheduleNow(*)

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.

Parameters

[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1645 of file simulator.h.

References DoScheduleNow(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleNow() [11/15]

template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >

EventId ns3::Simulator::ScheduleNow ( void(*)(U1, U2, U3)  f, T1  a1, T2  a2, T3  a3  )

static

See also

ScheduleNow(*)

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.
T3	[deduced] Actual type of the third argument.

Parameters

[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke
[in]	a3	The third argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1653 of file simulator.h.

References DoScheduleNow(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleNow() [12/15]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >

EventId ns3::Simulator::ScheduleNow ( void(*)(U1, U2, U3, U4)  f, T1  a1, T2  a2, T3  a3, T4  a4  )

static

See also

ScheduleNow(*)

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
U4	[deduced] Formal type of the fourth argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.
T3	[deduced] Actual type of the third argument.
T4	[deduced] Actual type of the fourth argument.

Parameters

[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke
[in]	a3	The third argument to pass to the function to invoke
[in]	a4	The fourth argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1661 of file simulator.h.

References DoScheduleNow(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleNow() [13/15]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventId ns3::Simulator::ScheduleNow ( void(*)(U1, U2, U3, U4, U5)  f, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

See also

ScheduleNow(*)

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
U4	[deduced] Formal type of the fourth argument to the function.
U5	[deduced] Formal type of the fifth argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.
T3	[deduced] Actual type of the third argument.
T4	[deduced] Actual type of the fourth argument.
T5	[deduced] Actual type of the fifth argument.

Parameters

[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke
[in]	a3	The third argument to pass to the function to invoke
[in]	a4	The fourth argument to pass to the function to invoke
[in]	a5	The fifth argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1669 of file simulator.h.

References DoScheduleNow(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleNow() [14/15]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename U6 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

EventId ns3::Simulator::ScheduleNow ( void(*)(U1, U2, U3, U4, U5, U6)  f, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5, T6  a6  )

static

Parameters

f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke
a4	the fourth argument to pass to the function to invoke
a5	the fifth argument to pass to the function to invoke
a6	the sixth argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1677 of file simulator.h.

References DoScheduleNow(), f(), and ns3::MakeEvent().

Here is the call graph for this function:

ScheduleNow() [15/15]

EventId ns3::Simulator::ScheduleNow ( const Ptr< EventImpl > &  event )

static

Schedule an event to run at the current virtual time.

Parameters

[in]

event

The event to schedule.

Returns

A unique identifier for the newly-scheduled event.

Definition at line 215 of file simulator.cc.

References DoScheduleNow(), and ns3::GetPointer().

Here is the call graph for this function:

ScheduleWithContext() [1/15]

template<typename MEM , typename OBJ >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  delay, MEM  mem_ptr, OBJ  obj  )

static

Schedule an event with the given context.

A context of 0xffffffff means no context is specified. This method is thread-safe: it can be called from any thread.

See also

Schedule(const Time&,MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.

Parameters

[in]	context	User-specified context parameter
[in]	delay	The relative expiration time of the event.
[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method

Definition at line 1483 of file simulator.h.

References ns3::MakeEvent().

Referenced by ns3::BuildingListPriv::Add(), ns3::NodeListPriv::Add(), ns3::Node::AddApplication(), ns3::Node::AddDevice(), ns3::LteEnbPhy::DoInitialize(), ns3::LteUePhy::DoInitialize(), ns3::aodv::LoopbackTestCase::DoRun(), ns3::TcpGeneralTest::DoRun(), ns3::BsmApplication::GenerateWaveTraffic(), ns3::TapBridge::ReadCallback(), ns3::FdNetDevice::ReceiveCallback(), ns3::GrantedTimeWindowMpiInterface::ReceiveMessages(), ns3::NullMessageMpiInterface::ReceiveMessages(), ScheduleWithContext(), ns3::ErrorChannel::Send(), ns3::LoopbackNetDevice::Send(), ns3::SimpleChannel::Send(), ns3::SimpleOfdmWimaxChannel::Send(), ns3::YansWifiChannel::Send(), ns3::aodv::LoopbackTestCase::SendData(), ns3::LoopbackNetDevice::SendFrom(), ns3::LteTestMac::SendTxOpportunity(), ns3::PyViz::SimulatorRunUntil(), ns3::LteTestRrc::Start(), ns3::BsmApplication::StartApplication(), ns3::SingleModelSpectrumChannel::StartTx(), ns3::MultiModelSpectrumChannel::StartTx(), ns3::CsmaChannel::TransmitEnd(), ns3::PointToPointChannel::TransmitStart(), and ns3::UanChannel::TxPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

ScheduleWithContext() [2/15]

template<typename MEM , typename OBJ , typename T1 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  delay, MEM  mem_ptr, OBJ  obj, T1  a1  )

static

See also

ScheduleWithContext(uint32_t,const Time&,MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.

Parameters

[in]	context	User-specified context parameter
[in]	delay	The relative expiration time of the event.
[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method

Definition at line 1491 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

ScheduleWithContext() [3/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  delay, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2  )

static

See also

ScheduleWithContext(uint32_t,const Time&,MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.

Parameters

[in]	context	User-specified context parameter
[in]	delay	The relative expiration time of the event.
[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method

Definition at line 1498 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

ScheduleWithContext() [4/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  delay, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3  )

static

See also

ScheduleWithContext(uint32_t,const Time&,MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.
T3	[deduced] Type of third argument.

Parameters

[in]	context	User-specified context parameter
[in]	delay	The relative expiration time of the event.
[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method
[in]	a3	The third argument to pass to the invoked method

Definition at line 1505 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

ScheduleWithContext() [5/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  delay, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4  )

static

See also

ScheduleWithContext(uint32_t,const Time&,MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.
T3	[deduced] Type of third argument.
T4	[deduced] Type of fourth argument.

Parameters

[in]	context	User-specified context parameter
[in]	delay	The relative expiration time of the event.
[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method
[in]	a3	The third argument to pass to the invoked method
[in]	a4	The fourth argument to pass to the invoked method

Definition at line 1512 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

ScheduleWithContext() [6/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  delay, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

See also

ScheduleWithContext(uint32_t,const Time&,MEM,OBJ)

Template Parameters

MEM	[deduced] Class method function signature type.
OBJ	[deduced] Class type of the object.
T1	[deduced] Type of first argument.
T2	[deduced] Type of second argument.
T3	[deduced] Type of third argument.
T4	[deduced] Type of fourth argument.
T5	[deduced] Type of fifth argument.

Parameters

[in]	context	User-specified context parameter
[in]	delay	The relative expiration time of the event.
[in]	mem_ptr	Member method pointer to invoke
[in]	obj	The object on which to invoke the member method
[in]	a1	The first argument to pass to the invoked method
[in]	a2	The second argument to pass to the invoked method
[in]	a3	The third argument to pass to the invoked method
[in]	a4	The fourth argument to pass to the invoked method
[in]	a5	The fifth argument to pass to the invoked method

Definition at line 1519 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

ScheduleWithContext() [7/15]

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5, T6  a6  )

static

This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method
a4	the fourth argument to pass to the invoked method
a5	the fifth argument to pass to the invoked method
a6	the sixth argument to pass to the invoked method

Definition at line 1527 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

ScheduleWithContext() [8/15]

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  delay, void(*)(void)  f  )

static

Schedule an event with the given context.

A context of 0xffffffff means no context is specified. This method is thread-safe: it can be called from any thread.

When the event expires (when it becomes due to be run), the function will be invoked with any supplied arguments.

This method is thread-safe: it can be called from any thread.

Parameters

[in]	context	User-specified context parameter
[in]	delay	The relative expiration time of the event.
[in]	f	The function to invoke

Definition at line 262 of file simulator.cc.

References f(), ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

ScheduleWithContext() [9/15]

template<typename U1 , typename T1 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  delay, void(*)(U1)  f, T1  a1  )

static

See also

ScheduleWithContext(uint32_t,const Time&,(*)())

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
T1	[deduced] Actual type of the first argument.

Parameters

[in]	context	User-specified context parameter
[in]	delay	The relative expiration time of the event.
[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke

Definition at line 1535 of file simulator.h.

References f(), ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

ScheduleWithContext() [10/15]

template<typename U1 , typename U2 , typename T1 , typename T2 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  delay, void(*)(U1, U2)  f, T1  a1, T2  a2  )

static

See also

ScheduleWithContext(uint32_t,const Time&,(*)())

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.

Parameters

[in]	context	User-specified context parameter
[in]	delay	The relative expiration time of the event.
[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke

Definition at line 1542 of file simulator.h.

References f(), ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

ScheduleWithContext() [11/15]

template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  delay, void(*)(U1, U2, U3)  f, T1  a1, T2  a2, T3  a3  )

static

See also

ScheduleWithContext(uint32_t,const Time&,(*)())

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.
T3	[deduced] Actual type of the third argument.

Parameters

[in]	context	User-specified context parameter
[in]	delay	The relative expiration time of the event.
[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke
[in]	a3	The third argument to pass to the function to invoke

Definition at line 1549 of file simulator.h.

References f(), ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

ScheduleWithContext() [12/15]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  delay, void(*)(U1, U2, U3, U4)  f, T1  a1, T2  a2, T3  a3, T4  a4  )

static

See also

ScheduleWithContext(uint32_t,const Time&,(*)())

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
U4	[deduced] Formal type of the fourth argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.
T3	[deduced] Actual type of the third argument.
T4	[deduced] Actual type of the fourth argument.

Parameters

[in]	context	User-specified context parameter
[in]	delay	The relative expiration time of the event.
[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke
[in]	a3	The third argument to pass to the function to invoke
[in]	a4	The fourth argument to pass to the function to invoke

Definition at line 1556 of file simulator.h.

References f(), ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

ScheduleWithContext() [13/15]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  delay, void(*)(U1, U2, U3, U4, U5)  f, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

See also

ScheduleWithContext(uint32_t,const Time&,(*)())

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
U4	[deduced] Formal type of the fourth argument to the function.
U5	[deduced] Formal type of the fifth argument to the function.
T1	[deduced] Actual type of the first argument.
T2	[deduced] Actual type of the second argument.
T3	[deduced] Actual type of the third argument.
T4	[deduced] Actual type of the fourth argument.
T5	[deduced] Actual type of the fifth argument.

Parameters

[in]	context	User-specified context parameter
[in]	delay	The relative expiration time of the event.
[in]	f	The function to invoke
[in]	a1	The first argument to pass to the function to invoke
[in]	a2	The second argument to pass to the function to invoke
[in]	a3	The third argument to pass to the function to invoke
[in]	a4	The fourth argument to pass to the function to invoke
[in]	a5	The fifth argument to pass to the function to invoke

Definition at line 1563 of file simulator.h.

References f(), ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

ScheduleWithContext() [14/15]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename U6 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, void(*)(U1, U2, U3, U4, U5, U6)  f, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5, T6  a6  )

static

This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke
a4	the fourth argument to pass to the function to invoke
a5	the fifth argument to pass to the function to invoke
a6	the sixth argument to pass to the function to invoke

Definition at line 1570 of file simulator.h.

References f(), ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

ScheduleWithContext() [15/15]

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, const Time &  delay, EventImpl *  event  )

static

Schedule a future event execution (in a different context).

This method is thread-safe: it can be called from any thread.

Parameters

[in]	delay	Delay until the event expires.
[in]	context	Event context.
[in]	event	The event to schedule.

Returns

A unique identifier for the newly-scheduled event.

Definition at line 220 of file simulator.cc.

References ns3::Singleton< DesMetrics >::Get(), ns3::GetImpl(), Now(), ns3::SimulatorImpl::ScheduleWithContext(), and ns3::DesMetrics::TraceWithContext().

Here is the call graph for this function:

SetImplementation()

void ns3::Simulator::SetImplementation ( Ptr< SimulatorImpl >  impl )

static

Parameters

[in]

impl

A new simulator implementation.

The simulator provides a mechanism to swap out different implementations. For example, the default implementation is a single-threaded simulator that performs no realtime synchronization. By calling this method, you can substitute in a new simulator implementation that might be multi- threaded and synchronize events to a realtime clock.

The simulator implementation can be set when the simulator is not running.

Definition at line 349 of file simulator.cc.

References ns3::DefaultNodePrinter(), ns3::DefaultTimePrinter(), ns3::g_schedTypeImpl, ns3::StringValue::Get(), ns3::GetPointer(), ns3::GlobalValue::GetValue(), ns3::LogSetNodePrinter(), ns3::LogSetTimePrinter(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::PeekImpl(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

SetScheduler()

void ns3::Simulator::SetScheduler ( ObjectFactory  schedulerFactory )

static

Set the scheduler type with an ObjectFactory.

Parameters

[in]

schedulerFactory

The configured ObjectFactory.

The event scheduler can be set at any time: the events scheduled in the previous scheduler will be transferred to the new scheduler before we start to use it.

Definition at line 156 of file simulator.cc.

References ns3::GetImpl(), NS_LOG_FUNCTION, and ns3::SimulatorImpl::SetScheduler().

Here is the call graph for this function:

Stop() [1/2]

void ns3::Simulator::Stop ( void  )

static

Tell the Simulator the calling event should be the last one executed.

If a running event invokes this method, it will be the last event executed by the Simulator::Run method before returning to the caller.

Definition at line 178 of file simulator.cc.

References ns3::GetImpl(), NS_LOG_FUNCTION_NOARGS, NS_LOG_LOGIC(), and ns3::SimulatorImpl::Stop().

Referenced by ns3::PyViz::CallbackStopSimulation(), BatteryLifetimeTest::ConstantLoadTest(), BasicEnergyDepletionTest::DepletionTestCase(), ns3::olsr::Bug780Test::DoRun(), SteadyStateRandomWaypointTest::DoRun(), ns3::LenaDeactivateBearerTestCase::DoRun(), WaypointMobilityModelNotifyTest::DoRun(), ns3::olsr::HelloRegressionTest::DoRun(), ns3::aodv::LoopbackTestCase::DoRun(), LteHandoverDelayTestCase::DoRun(), ns3::olsr::TcRegressionTest::DoRun(), CarrierAggregationConfigTestCase::DoRun(), WaypointMobilityModelAddWaypointTest::DoRun(), Ns2MobilityHelperTest::DoRun(), experiment(), ns3::RadioEnvironmentMapHelper::Finalize(), Experiment::Run(), WaveNetDeviceExample::SendIpExample(), WaveNetDeviceExample::SendWsaExample(), WaveNetDeviceExample::SendWsmpExample(), BasicEnergyUpdateTest::StateSwitchTest(), ns3::NullMessageSimulatorImpl::Stop(), ns3::DefaultSimulatorImpl::Stop(), ns3::RealtimeSimulatorImpl::Stop(), ns3::DistributedSimulatorImpl::Stop(), TestDeterministic(), TestDeterministicByTime(), TestProbabilistic(), and BatteryLifetimeTest::VariableLoadTest().

Here is the call graph for this function:

Here is the caller graph for this function:

Stop() [2/2]

void ns3::Simulator::Stop ( const Time &  delay )

static

Schedule the time delay until the Simulator should stop.

Force the Simulator::Run method to return to the caller when the expiration time of the next event to be processed is greater than or equal to the stop time. The stop time is relative to the current simulation time.

Parameters

[in]

delay

The stop time, relative to the current time.

Definition at line 186 of file simulator.cc.

References ns3::GetImpl(), NS_LOG_FUNCTION, and ns3::SimulatorImpl::Stop().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/core/model/simulator.h
• src/core/model/simulator.cc
