a std::list event scheduler More...
#include "list-scheduler.h"

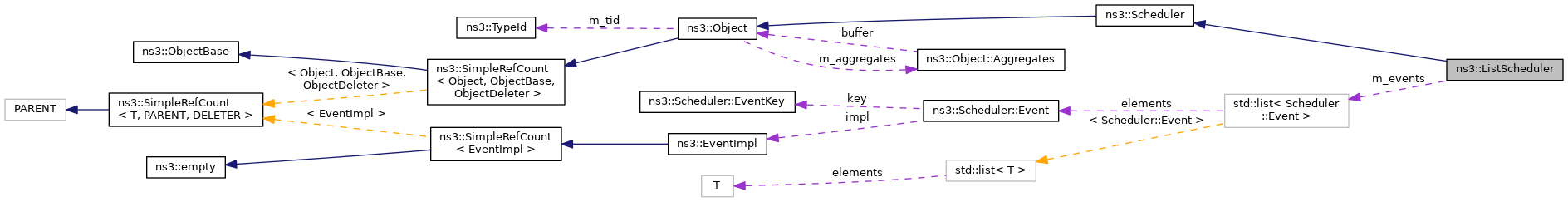

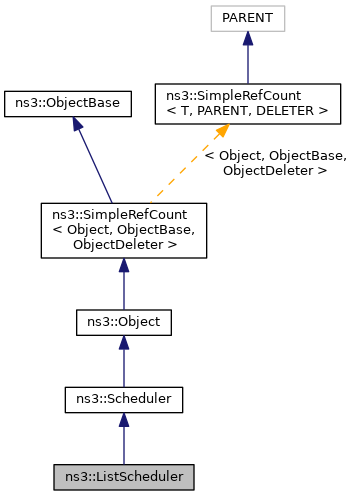

Inheritance diagram for ns3::ListScheduler: Collaboration diagram for ns3::ListScheduler:Public Member Functions | |
| ListScheduler () | |
| Constructor. More... | |
| virtual | ~ListScheduler () |
| Destructor. More... | |
| virtual void | Insert (const Scheduler::Event &ev) |
| Insert a new Event in the schedule. More... | |
| virtual bool | IsEmpty (void) const |
| Test if the schedule is empty. More... | |
| virtual Scheduler::Event | PeekNext (void) const |
| Get a pointer to the next event. More... | |
| virtual void | Remove (const Scheduler::Event &ev) |
| Remove a specific event from the event list. More... | |
| virtual Scheduler::Event | RemoveNext (void) |
| Remove the earliest event from the event list. More... | |
| Public Member Functions inherited from ns3::Scheduler | |
| virtual | ~Scheduler ()=0 |
| Destructor. More... | |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. More... | |
| virtual | ~Object () |
| Destructor. More... | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. More... | |
| void | Dispose (void) |
| Dispose of this Object. More... | |
| AggregateIterator | GetAggregateIterator (void) const |
| Get an iterator to the Objects aggregated to this one. More... | |
| virtual TypeId | GetInstanceTypeId (void) const |
| Get the most derived TypeId for this Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| Get a pointer to the requested aggregated Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object by TypeId. More... | |
| void | Initialize (void) |
| Invoke DoInitialize on all Objects aggregated to this one. More... | |
| bool | IsInitialized (void) const |
| Check if the object has been initialized. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Default constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment operator. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising erros. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::Scheduler | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Private Types | |
| typedef std::list< Scheduler::Event > | Events |
| Event list type: a simple list of Events. More... | |
| typedef std::list< Scheduler::Event >::iterator | EventsI |
| Events iterator. More... | |
Private Attributes | |
| Events | m_events |
| The event list. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. More... | |
| virtual void | DoDispose (void) |
| Destructor implementation. More... | |
| virtual void | DoInitialize (void) |
| Initialize() implementation. More... | |
| virtual void | NotifyNewAggregate (void) |
| Notify all Objects aggregated to this one of a new Object being aggregated. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted (void) |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid (void) |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
a std::list event scheduler
Introspection did not find any typical Config paths.
This class implements an event scheduler using an std::list data structure, that is, a double linked-list.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).
Definition at line 46 of file list-scheduler.h.
|
private |
Event list type: a simple list of Events.
Definition at line 69 of file list-scheduler.h.
|
private |
Events iterator.
Definition at line 71 of file list-scheduler.h.
| ns3::ListScheduler::ListScheduler | ( | ) |
|
virtual |
Destructor.
Definition at line 55 of file list-scheduler.cc.
|
static |
Register this type.
Definition at line 41 of file list-scheduler.cc.
References ns3::TypeId::SetParent().

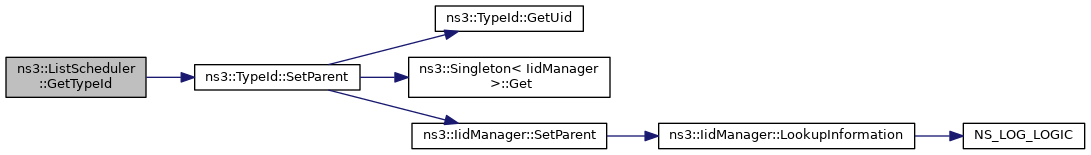

Here is the call graph for this function:
|
virtual |
Insert a new Event in the schedule.
| [in] | ev | Event to store in the event list |
Implements ns3::Scheduler.
Definition at line 60 of file list-scheduler.cc.
References ns3::Scheduler::Event::key, m_events, and NS_LOG_FUNCTION.
|
virtual |
Test if the schedule is empty.
true if the event list is empty and false otherwise. Implements ns3::Scheduler.
Definition at line 74 of file list-scheduler.cc.
References m_events, and NS_LOG_FUNCTION.
|
virtual |
Get a pointer to the next event.
This method cannot be invoked if the list is empty.
Implements ns3::Scheduler.
Definition at line 80 of file list-scheduler.cc.
References m_events, and NS_LOG_FUNCTION.
|
virtual |
Remove a specific event from the event list.
This method cannot be invoked if the list is empty.
| [in] | ev | The event to remove |
Implements ns3::Scheduler.
Definition at line 96 of file list-scheduler.cc.
References ns3::Scheduler::Event::impl, ns3::Scheduler::Event::key, m_events, ns3::Scheduler::EventKey::m_uid, NS_ASSERT, and NS_LOG_FUNCTION.
|
virtual |
Remove the earliest event from the event list.
This method cannot be invoked if the list is empty.
Implements ns3::Scheduler.
Definition at line 87 of file list-scheduler.cc.
References m_events, and NS_LOG_FUNCTION.
|
private |
The event list.
Definition at line 74 of file list-scheduler.h.
Referenced by Insert(), IsEmpty(), PeekNext(), Remove(), and RemoveNext().
