helps to manage and create IEEE 802.15.4 NetDevice objects More...

#include "lr-wpan-helper.h"

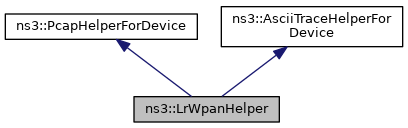

Inheritance diagram for ns3::LrWpanHelper:

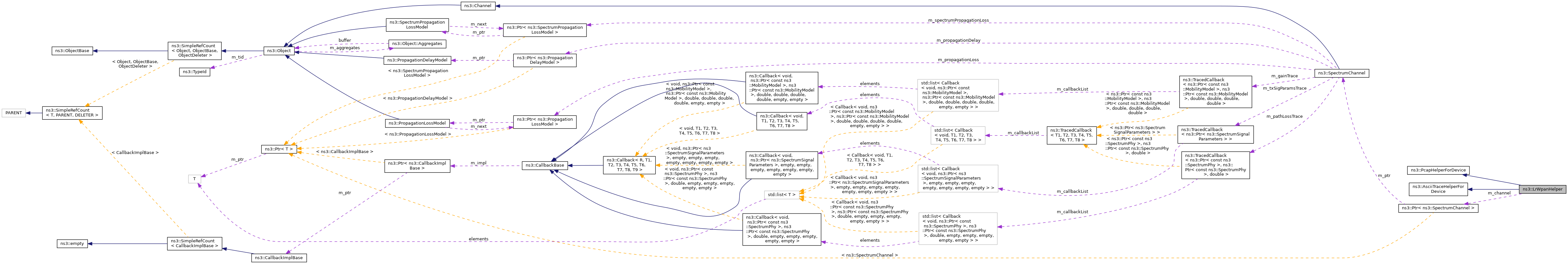

Collaboration diagram for ns3::LrWpanHelper:

Public Member Functions
	LrWpanHelper (void)
	Create a LrWpan helper in an empty state. More...

	LrWpanHelper (bool useMultiModelSpectrumChannel)
	Create a LrWpan helper in an empty state with either a SingleModelSpectrumChannel or a MultiModelSpectrumChannel. More...

virtual	~LrWpanHelper (void)

void	AddMobility (Ptr< LrWpanPhy > phy, Ptr< MobilityModel > m)
	Add mobility model to a physical device. More...

int64_t	AssignStreams (NetDeviceContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	AssociateToPan (NetDeviceContainer c, uint16_t panId)
	Associate the nodes to the same PAN. More...

void	EnableLogComponents (void)
	Helper to enable all LrWpan log components with one statement. More...

Ptr< SpectrumChannel >	GetChannel (void)
	Get the channel associated to this helper. More...

NetDeviceContainer	Install (NodeContainer c)
	Install a LrWpanNetDevice and the associated structures (e.g., channel) in the nodes. More...

void	SetChannel (Ptr< SpectrumChannel > channel)
	Set the channel associated to this helper. More...

void	SetChannel (std::string channelName)
	Set the channel associated to this helper. More...

Public Member Functions inherited from ns3::PcapHelperForDevice
	PcapHelperForDevice ()
	Construct a PcapHelperForDevice. More...

virtual	~PcapHelperForDevice ()
	Destroy a PcapHelperForDevice. More...

void	EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device. More...

void	EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
	Enable pcap output on each device in the container which is of the appropriate type. More...

void	EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
	Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnablePcapAll (std::string prefix, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
	AsciiTraceHelperForDevice ()
	Construct an AsciiTraceHelperForDevice. More...

virtual	~AsciiTraceHelperForDevice ()
	Destroy an AsciiTraceHelperForDevice. More...

void	EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (std::string prefix, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (std::string prefix, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAsciiAll (std::string prefix)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

void	EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Static Public Member Functions
static std::string	LrWpanMacStatePrinter (LrWpanMacState e)
	Transform the LrWpanMacState enumeration into a printable string. More...

static std::string	LrWpanPhyEnumerationPrinter (LrWpanPhyEnumeration e)
	Transform the LrWpanPhyEnumeration enumeration into a printable string. More...

Private Member Functions
	LrWpanHelper (LrWpanHelper const &)
	Copy constructor - defined and not implemented. More...

virtual void	EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename)
	Enable ascii trace output on the indicated net device. More...

virtual void	EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename)
	Enable pcap output on the indicated net device. More...

LrWpanHelper &	operator= (LrWpanHelper const &)
	Copy constructor - defined and not implemented. More...

Private Attributes
Ptr< SpectrumChannel >	m_channel
	channel to be used for the devices More...

Detailed Description

helps to manage and create IEEE 802.15.4 NetDevice objects

This class can help to create IEEE 802.15.4 NetDevice objects and to configure their attributes during creation. It also contains additional helper functions used by client code.

Only one channel is created, and all devices attached to it. If multiple channels are needed, multiple helper objects must be used, or else the channel object must be replaced.

Definition at line 49 of file lr-wpan-helper.h.

Constructor & Destructor Documentation

◆ LrWpanHelper() [1/3]

ns3::LrWpanHelper::LrWpanHelper ( void )

Create a LrWpan helper in an empty state.

By default, a SingleModelSpectrumChannel is created, with a LogDistancePropagationLossModel and a ConstantSpeedPropagationDelayModel.

To change the channel type, loss model, or delay model, the Get/Set Channel methods may be used.

Definition at line 66 of file lr-wpan-helper.cc.

References m_channel.

◆ LrWpanHelper() [2/3]

ns3::LrWpanHelper::LrWpanHelper ( bool useMultiModelSpectrumChannel )

Create a LrWpan helper in an empty state with either a SingleModelSpectrumChannel or a MultiModelSpectrumChannel.

Parameters

useMultiModelSpectrumChannel use a MultiModelSpectrumChannel if true, a SingleModelSpectrumChannel otherwise

A LogDistancePropagationLossModel and a ConstantSpeedPropagationDelayModel are added to the channel.

Definition at line 77 of file lr-wpan-helper.cc.

References m_channel.

◆ ~LrWpanHelper()

ns3::LrWpanHelper::~LrWpanHelper ( void )

virtual

Definition at line 94 of file lr-wpan-helper.cc.

References m_channel.

◆ LrWpanHelper() [3/3]

ns3::LrWpanHelper::LrWpanHelper ( LrWpanHelper const & )

private

Copy constructor - defined and not implemented.

Member Function Documentation

◆ AddMobility()

void ns3::LrWpanHelper::AddMobility	(	Ptr< LrWpanPhy >	phy,
		Ptr< MobilityModel >	m
	)

Add mobility model to a physical device.

Parameters

phy	the physical device
m	the mobility model

Definition at line 170 of file lr-wpan-helper.cc.

References third::phy.

◆ AssignStreams()

int64_t ns3::LrWpanHelper::AssignStreams	(	NetDeviceContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams that have been assigned. The Install() method should have previously been called by the user.

Parameters

c	NetDeviceContainer of the set of net devices for which the CsmaNetDevice should be modified to use a fixed stream
stream	first stream index to use

Returns: the number of stream indices assigned by this helper

Definition at line 216 of file lr-wpan-helper.cc.

References ns3::NetDeviceContainer::Begin(), and ns3::NetDeviceContainer::End().

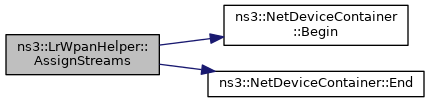

Here is the call graph for this function:

◆ AssociateToPan()

void ns3::LrWpanHelper::AssociateToPan	(	NetDeviceContainer	c,
		uint16_t	panId
	)

Associate the nodes to the same PAN.

Parameters

c	a set of nodes
panId	the PAN Id

Definition at line 233 of file lr-wpan-helper.cc.

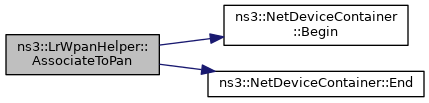

References first::address, ns3::NetDeviceContainer::Begin(), first::devices, and ns3::NetDeviceContainer::End().

Here is the call graph for this function:

◆ EnableAsciiInternal()

void ns3::LrWpanHelper::EnableAsciiInternal	(	Ptr< OutputStreamWrapper >	stream,
		std::string	prefix,
		Ptr< NetDevice >	nd,
		bool	explicitFilename
	)

privatevirtual

Enable ascii trace output on the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

stream	The output stream object to use when logging ascii traces.
prefix	Filename prefix to use for ascii trace files.
nd	Net device for which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::AsciiTraceHelperForDevice.

Definition at line 316 of file lr-wpan-helper.cc.

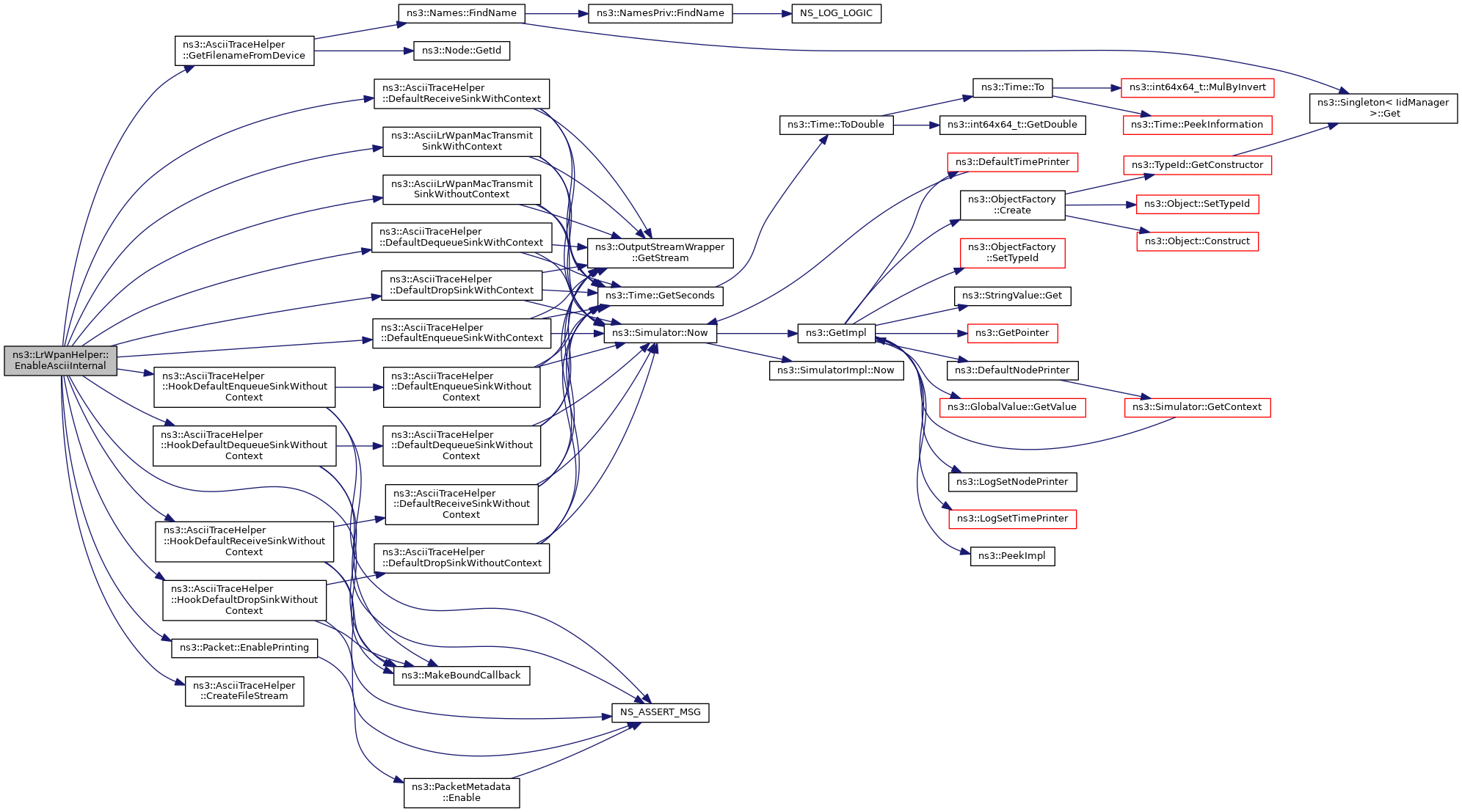

Here is the call graph for this function:

◆ EnableLogComponents()

void ns3::LrWpanHelper::EnableLogComponents ( void )

Helper to enable all LrWpan log components with one statement.

Definition at line 101 of file lr-wpan-helper.cc.

References ns3::LOG_LEVEL_ALL, ns3::LOG_PREFIX_FUNC, ns3::LOG_PREFIX_TIME, ns3::LogComponentEnable(), and ns3::LogComponentEnableAll().

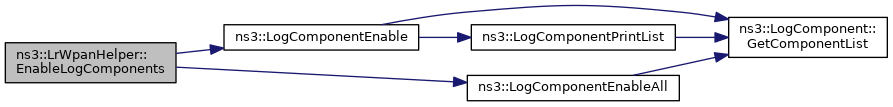

Here is the call graph for this function:

◆ EnablePcapInternal()

void ns3::LrWpanHelper::EnablePcapInternal	(	std::string	prefix,
		Ptr< NetDevice >	nd,
		bool	promiscuous,
		bool	explicitFilename
	)

privatevirtual

Enable pcap output on the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

prefix	Filename prefix to use for pcap files.
nd	Net device for which you want to enable tracing.
promiscuous	If true capture all possible packets available at the device.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::PcapHelperForDevice.

Definition at line 269 of file lr-wpan-helper.cc.

References ns3::PcapHelper::CreateFile(), ns3::PcapHelper::DLT_IEEE802_15_4, anonymous_namespace{print-introspected-doxygen.cc}::file, ns3::PcapHelper::GetFilenameFromDevice(), ns3::MakeBoundCallback(), NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::PcapSniffLrWpan().

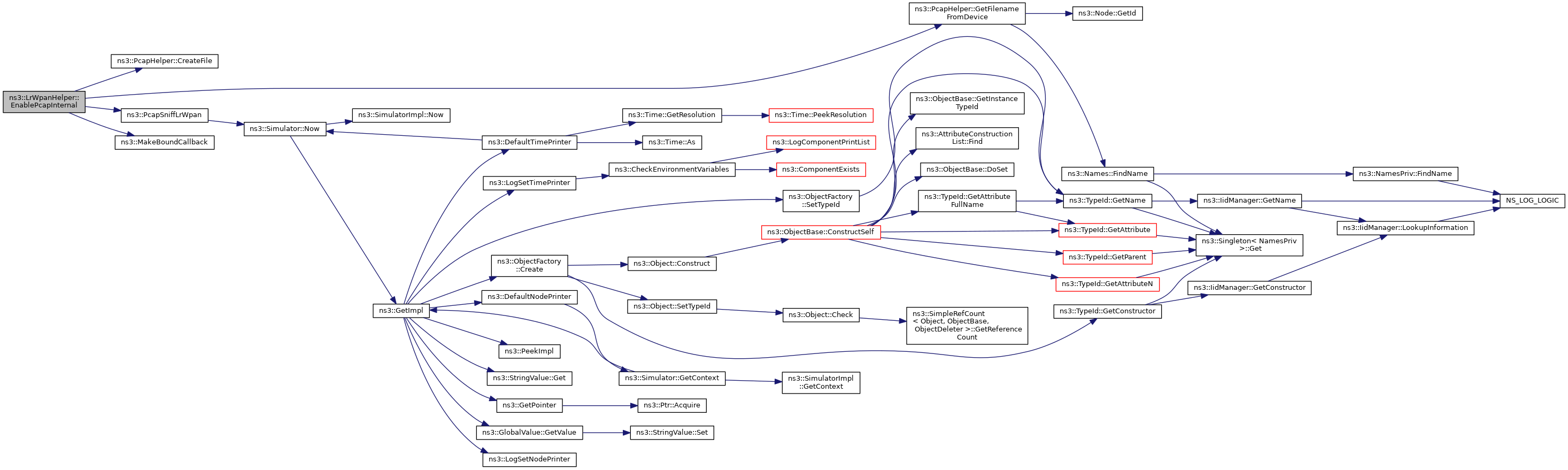

Here is the call graph for this function:

◆ GetChannel()

Ptr< SpectrumChannel > ns3::LrWpanHelper::GetChannel ( void )

Get the channel associated to this helper.

Returns: the channel

Definition at line 196 of file lr-wpan-helper.cc.

References m_channel.

◆ Install()

NetDeviceContainer ns3::LrWpanHelper::Install ( NodeContainer c )

Install a LrWpanNetDevice and the associated structures (e.g., channel) in the nodes.

Parameters

c	a set of nodes

Returns: A container holding the added net devices.

Definition at line 176 of file lr-wpan-helper.cc.

References ns3::Node::AddDevice(), ns3::NodeContainer::Begin(), first::devices, ns3::NodeContainer::End(), and m_channel.

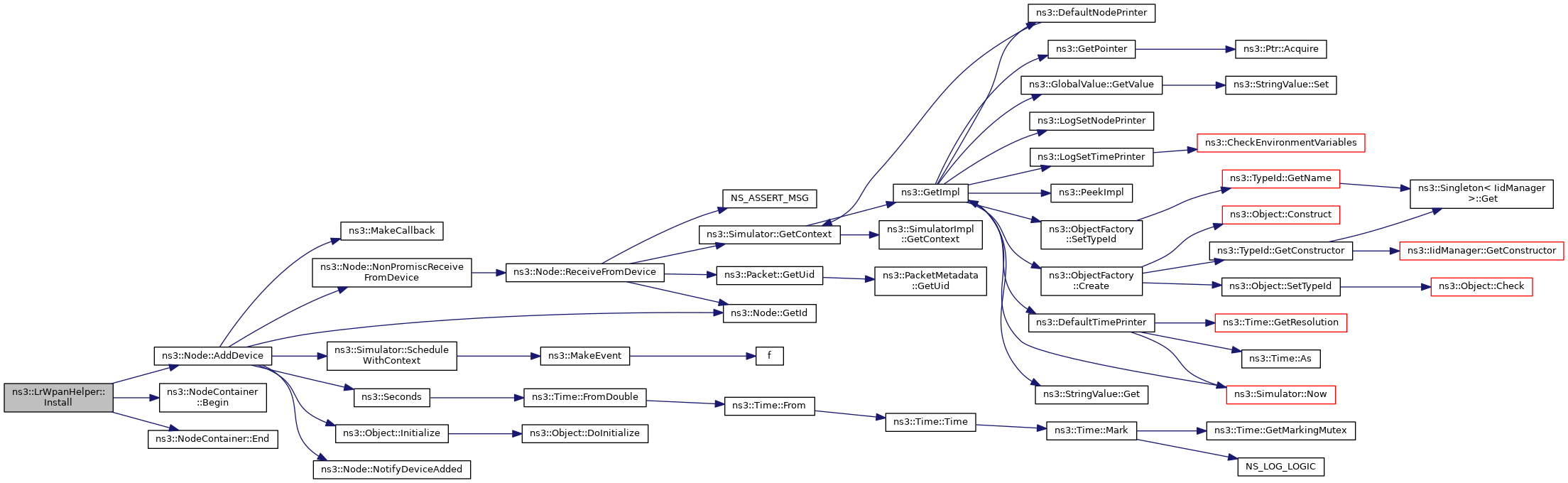

Here is the call graph for this function:

◆ LrWpanMacStatePrinter()

std::string ns3::LrWpanHelper::LrWpanMacStatePrinter ( LrWpanMacState e )

static

Transform the LrWpanMacState enumeration into a printable string.

Parameters

e	the LrWpanMacState

Returns: a string

Definition at line 152 of file lr-wpan-helper.cc.

References ns3::CHANNEL_ACCESS_FAILURE, ns3::CHANNEL_IDLE, ns3::MAC_IDLE, and ns3::SET_PHY_TX_ON.

◆ LrWpanPhyEnumerationPrinter()

std::string ns3::LrWpanHelper::LrWpanPhyEnumerationPrinter ( LrWpanPhyEnumeration e )

static

Transform the LrWpanPhyEnumeration enumeration into a printable string.

Parameters

e	the LrWpanPhyEnumeration

Returns: a string

Definition at line 116 of file lr-wpan-helper.cc.

References ns3::IEEE_802_15_4_PHY_BUSY, ns3::IEEE_802_15_4_PHY_BUSY_RX, ns3::IEEE_802_15_4_PHY_BUSY_TX, ns3::IEEE_802_15_4_PHY_FORCE_TRX_OFF, ns3::IEEE_802_15_4_PHY_IDLE, ns3::IEEE_802_15_4_PHY_INVALID_PARAMETER, ns3::IEEE_802_15_4_PHY_READ_ONLY, ns3::IEEE_802_15_4_PHY_RX_ON, ns3::IEEE_802_15_4_PHY_SUCCESS, ns3::IEEE_802_15_4_PHY_TRX_OFF, ns3::IEEE_802_15_4_PHY_TX_ON, ns3::IEEE_802_15_4_PHY_UNSPECIFIED, and ns3::IEEE_802_15_4_PHY_UNSUPPORTED_ATTRIBUTE.

Referenced by StateChangeNotification().

Here is the caller graph for this function:

◆ operator=()

LrWpanHelper& ns3::LrWpanHelper::operator= ( LrWpanHelper const & )

private

Copy constructor - defined and not implemented.

Returns

◆ SetChannel() [1/2]

void ns3::LrWpanHelper::SetChannel ( Ptr< SpectrumChannel > channel )

Set the channel associated to this helper.

Parameters

channel the channel

Definition at line 202 of file lr-wpan-helper.cc.

References third::channel, and m_channel.

◆ SetChannel() [2/2]

void ns3::LrWpanHelper::SetChannel ( std::string channelName )

Set the channel associated to this helper.

Parameters

channelName the channel name

Definition at line 208 of file lr-wpan-helper.cc.

References third::channel, and m_channel.

Member Data Documentation

◆ m_channel

Ptr<SpectrumChannel> ns3::LrWpanHelper::m_channel

private

channel to be used for the devices

Definition at line 188 of file lr-wpan-helper.h.

Referenced by GetChannel(), Install(), LrWpanHelper(), SetChannel(), and ~LrWpanHelper().

The documentation for this class was generated from the following files:

src/lr-wpan/helper/lr-wpan-helper.h
src/lr-wpan/helper/lr-wpan-helper.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ LrWpanHelper() [1/3]

◆ LrWpanHelper() [2/3]

◆ ~LrWpanHelper()

◆ LrWpanHelper() [3/3]

Member Function Documentation

◆ AddMobility()

◆ AssignStreams()

◆ AssociateToPan()

◆ EnableAsciiInternal()

◆ EnableLogComponents()

◆ EnablePcapInternal()

◆ GetChannel()

◆ Install()

◆ LrWpanMacStatePrinter()

◆ LrWpanPhyEnumerationPrinter()

◆ operator=()

◆ SetChannel() [1/2]

◆ SetChannel() [2/2]

Member Data Documentation

◆ m_channel
