ns3::RvBatteryModelHelper Class Reference

Creates a RvBatteryModel object. More...

#include "rv-battery-model-helper.h"

+ Inheritance diagram for ns3::RvBatteryModelHelper:

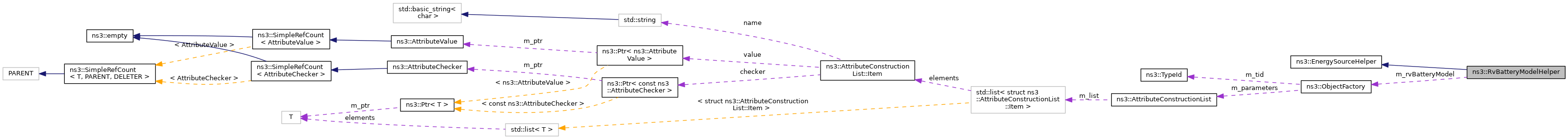

+ Collaboration diagram for ns3::RvBatteryModelHelper:

Public Member Functions

 RvBatteryModelHelper ()

 ~RvBatteryModelHelper ()

void Set (std::string name, const AttributeValue &v)

- Public Member Functions inherited from ns3::EnergySourceHelper
virtual ~EnergySourceHelper ()

EnergySourceContainer Install (Ptr< Node > node) const

EnergySourceContainer Install (NodeContainer c) const

EnergySourceContainer Install (std::string nodeName) const

EnergySourceContainer InstallAll (void) const
 This function installs an EnergySource on all nodes in simulation. More...


Private Member Functions

virtual Ptr< EnergySourceDoInstall (Ptr< Node > node) const


Private Attributes

ObjectFactory m_rvBatteryModel


Detailed Description

Creates a RvBatteryModel object.

Definition at line 34 of file rv-battery-model-helper.h.

Constructor & Destructor Documentation

◆ RvBatteryModelHelper()

ns3::RvBatteryModelHelper::RvBatteryModelHelper ( )

Definition at line 26 of file rv-battery-model-helper.cc.

References m_rvBatteryModel, and ns3::ObjectFactory::SetTypeId().

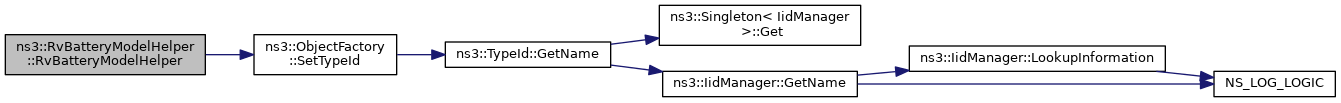

+ Here is the call graph for this function:

◆ ~RvBatteryModelHelper()

ns3::RvBatteryModelHelper::~RvBatteryModelHelper ( )

Definition at line 31 of file rv-battery-model-helper.cc.

Member Function Documentation

◆ DoInstall()

Ptr< EnergySource > ns3::RvBatteryModelHelper::DoInstall ( Ptr< Node node) const
privatevirtual
Parameters
nodePointer to node where the energy source is to be installed.
Returns
Pointer to the created EnergySource.

Child classes of EnergySourceHelper only have to implement this function, to create and aggregate an EnergySource object onto a single node. Rest of the installation process (eg. installing EnergySource on set of nodes) is implemented in the EnergySourceHelper base class.

Implements ns3::EnergySourceHelper.

Definition at line 42 of file rv-battery-model-helper.cc.

References ns3::ObjectFactory::Create(), m_rvBatteryModel, and NS_ASSERT.

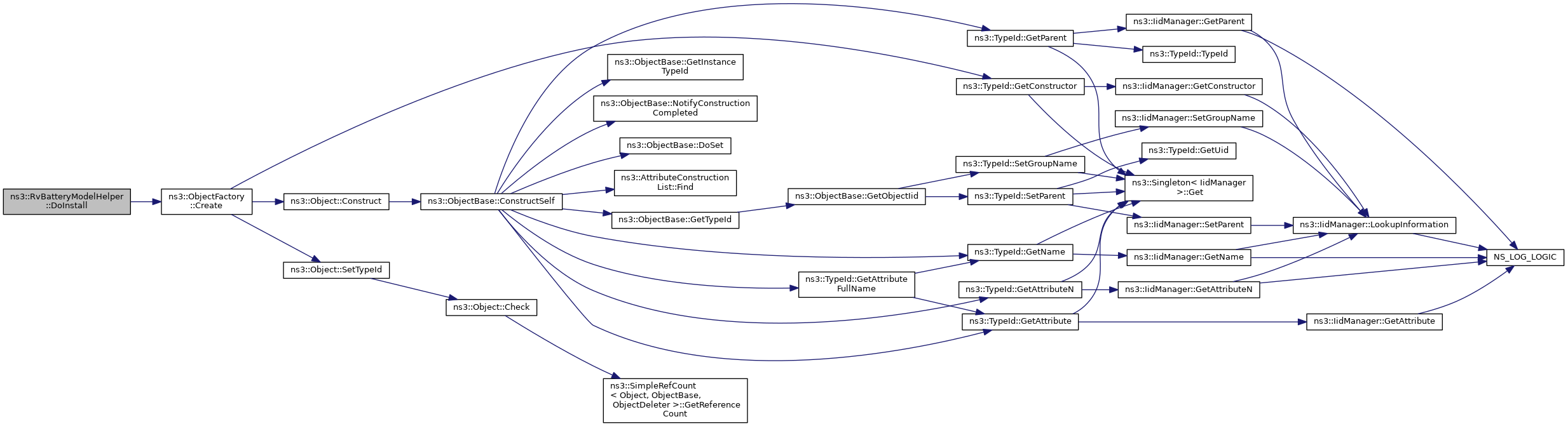

+ Here is the call graph for this function:

◆ Set()

void ns3::RvBatteryModelHelper::Set ( std::string  name,
const AttributeValue v
)
virtual
Parameters
nameName of attribute to set.
vValue of the attribute.

Sets one of the attributes of underlying EnergySource.

Implements ns3::EnergySourceHelper.

Definition at line 36 of file rv-battery-model-helper.cc.

References m_rvBatteryModel, and ns3::ObjectFactory::Set().

Referenced by BatteryLifetimeTest::ConstantLoadTest(), and BatteryLifetimeTest::VariableLoadTest().

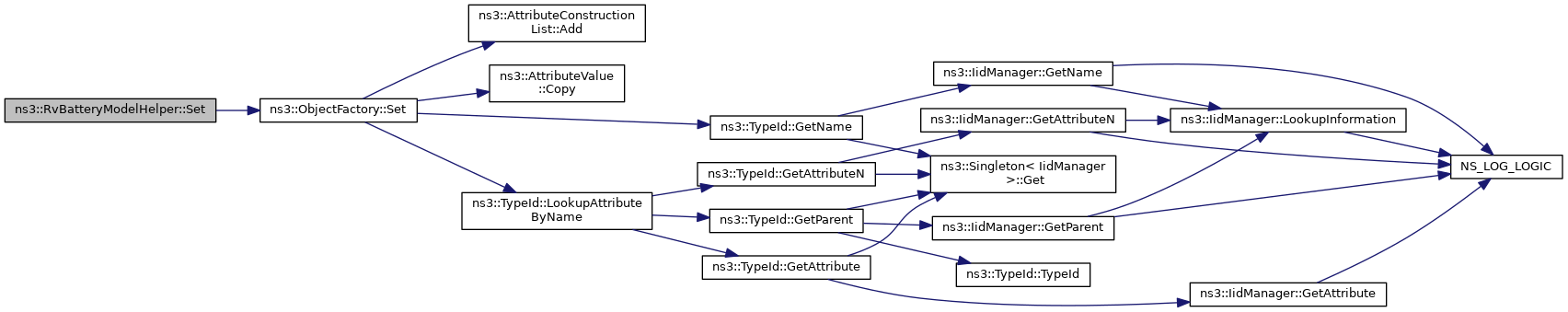

+ Here is the call graph for this function:

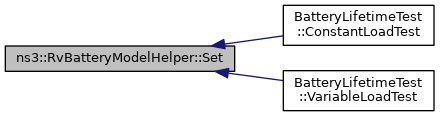

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_rvBatteryModel

ObjectFactory ns3::RvBatteryModelHelper::m_rvBatteryModel
private

Definition at line 46 of file rv-battery-model-helper.h.

Referenced by DoInstall(), RvBatteryModelHelper(), and Set().


The documentation for this class was generated from the following files:
