ns3::TbfQueueDisc Class Reference

A TBF packet queue disc. More...

#include "tbf-queue-disc.h"

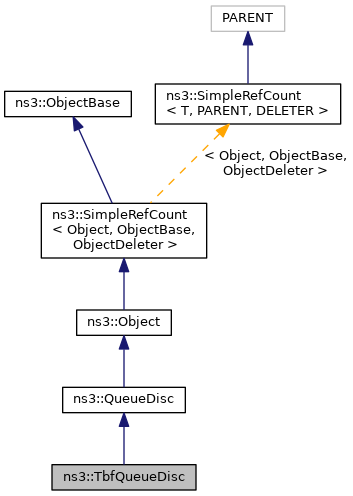

+ Inheritance diagram for ns3::TbfQueueDisc:

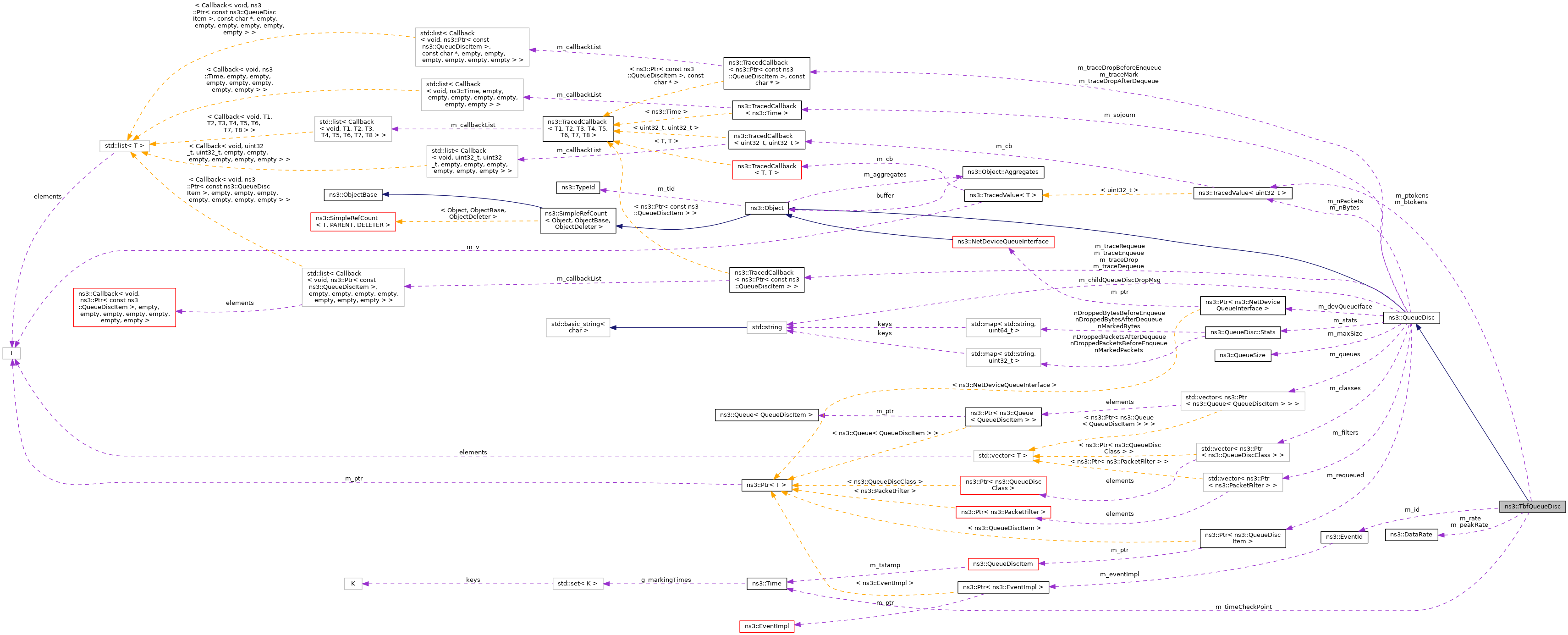

+ Collaboration diagram for ns3::TbfQueueDisc:

Public Member Functions

 TbfQueueDisc ()
 TbfQueueDisc Constructor. More...

virtual ~TbfQueueDisc ()
 Destructor. More...

uint32_t GetBurst (void) const
 Get the size of the first bucket in bytes. More...

uint32_t GetFirstBucketTokens (void) const
 Get the current number of tokens inside the first bucket in bytes. More...

uint32_t GetMtu (void) const
 Get the size of the second bucket in bytes. More...

DataRate GetPeakRate (void) const
 Get the rate of the tokens entering the second bucket. More...

DataRate GetRate (void) const
 Get the rate of the tokens entering the first bucket. More...

uint32_t GetSecondBucketTokens (void) const
 Get the current number of tokens inside the second bucket in bytes. More...

void SetBurst (uint32_t burst)
 Set the size of the first bucket in bytes. More...

void SetMtu (uint32_t mtu)
 Set the size of the second bucket in bytes. More...

void SetPeakRate (DataRate peakRate)
 Set the rate of the tokens entering the second bucket. More...

void SetRate (DataRate rate)
 Set the rate of the tokens entering the first bucket. More...

- Public Member Functions inherited from ns3::QueueDisc
 QueueDisc (QueueDiscSizePolicy policy=QueueDiscSizePolicy::SINGLE_INTERNAL_QUEUE)
 Constructor. More...

 QueueDisc (QueueDiscSizePolicy policy, QueueSizeUnit unit)
 Constructor. More...

virtual ~QueueDisc ()

void AddInternalQueue (Ptr< InternalQueue > queue)
 Add an internal queue to the tail of the list of queues. More...

void AddPacketFilter (Ptr< PacketFilter > filter)
 Add a packet filter to the tail of the list of filters used to classify packets. More...

void AddQueueDiscClass (Ptr< QueueDiscClass > qdClass)
 Add a queue disc class to the tail of the list of classes. More...

int32_t Classify (Ptr< QueueDiscItem > item)
 Classify a packet by calling the packet filters, one at a time, until either a filter able to classify the packet is found or all the filters have been processed. More...

Ptr< QueueDiscItemDequeue (void)
 Extract from the queue disc the packet that has been dequeued by calling Peek, if any, or call the private DoDequeue method (which must be implemented by derived classes) to dequeue a packet, otherwise. More...

bool Enqueue (Ptr< QueueDiscItem > item)
 Pass a packet to store to the queue discipline. More...

QueueSize GetCurrentSize (void)
 Get the current size of the queue disc in bytes, if operating in bytes mode, or packets, otherwise. More...

Ptr< InternalQueueGetInternalQueue (std::size_t i) const
 Get the i-th internal queue. More...

QueueSize GetMaxSize (void) const
 Get the maximum size of the queue disc. More...

uint32_t GetNBytes (void) const
 Get the amount of bytes stored by the queue disc. More...

Ptr< NetDeviceQueueInterfaceGetNetDeviceQueueInterface (void) const

std::size_t GetNInternalQueues (void) const
 Get the number of internal queues. More...

std::size_t GetNPacketFilters (void) const
 Get the number of packet filters. More...

uint32_t GetNPackets (void) const
 Get the number of packets stored by the queue disc. More...

std::size_t GetNQueueDiscClasses (void) const
 Get the number of queue disc classes. More...

Ptr< PacketFilterGetPacketFilter (std::size_t i) const
 Get the i-th packet filter. More...

Ptr< QueueDiscClassGetQueueDiscClass (std::size_t i) const
 Get the i-th queue disc class. More...

virtual uint32_t GetQuota (void) const
 Get the maximum number of dequeue operations following a packet enqueue. More...

SendCallback GetSendCallback (void) const

const StatsGetStats (void)
 Retrieve all the collected statistics. More...

virtual WakeMode GetWakeMode (void) const
 When setting up the wake callbacks on the netdevice queues, it is necessary to determine which queue disc (the root queue disc or one of its children) should be activated when the netdevice wakes one of its transmission queues. More...

Ptr< const QueueDiscItemPeek (void)
 Get a copy of the next packet the queue discipline will extract. More...

void Run (void)
 Modelled after the Linux function __qdisc_run (net/sched/sch_generic.c) Dequeues multiple packets, until a quota is exceeded or sending a packet to the device failed. More...

bool SetMaxSize (QueueSize size)
 Set the maximum size of the queue disc. More...

void SetNetDeviceQueueInterface (Ptr< NetDeviceQueueInterface > ndqi)

virtual void SetQuota (const uint32_t quota)
 Set the maximum number of dequeue operations following a packet enqueue. More...

void SetSendCallback (SendCallback func)

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

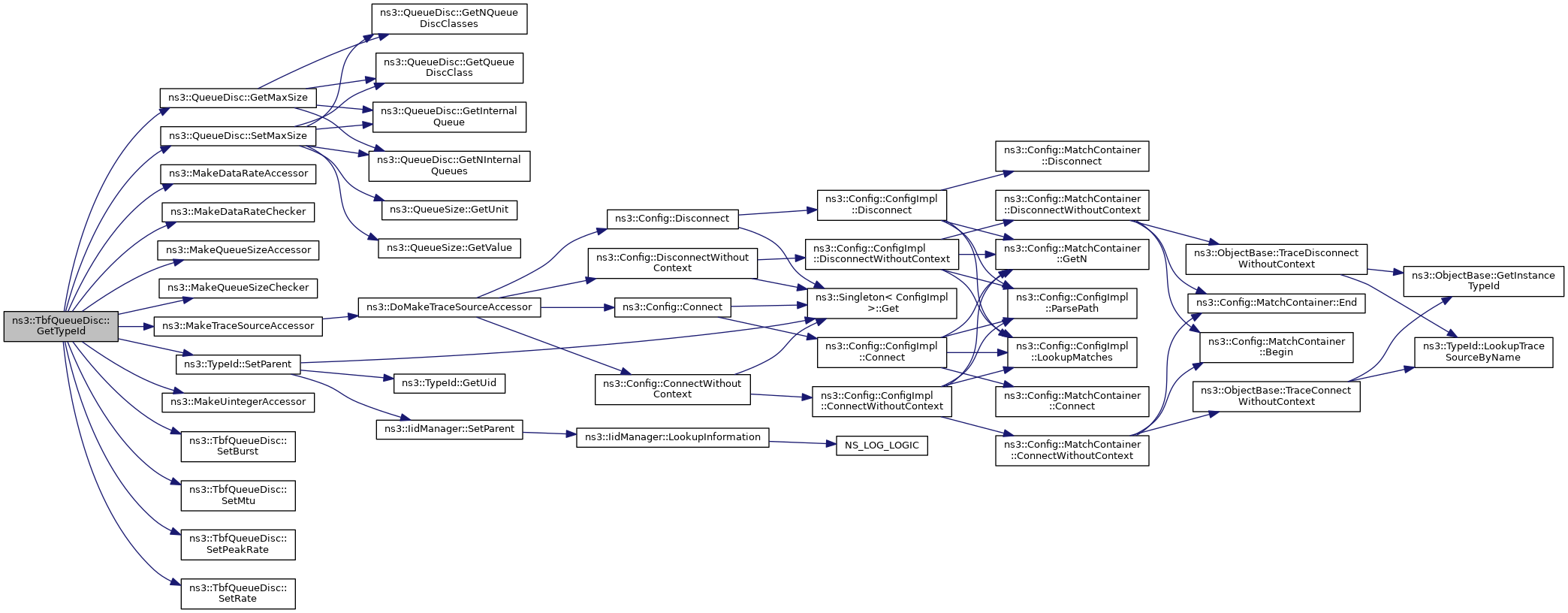

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::QueueDisc
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoDispose (void)
 Dispose of the object. More...

- Protected Member Functions inherited from ns3::QueueDisc
void DoInitialize (void)
 Check whether the configuration is correct and initialize parameters. More...

void DropAfterDequeue (Ptr< const QueueDiscItem > item, const char *reason)
 Perform the actions required when the queue disc is notified of a packet dropped after dequeue. More...

void DropBeforeEnqueue (Ptr< const QueueDiscItem > item, const char *reason)
 Perform the actions required when the queue disc is notified of a packet dropped before enqueue. More...

bool Mark (Ptr< QueueDiscItem > item, const char *reason)
 Marks the given packet and, if successful, updates the counters associated with the given reason. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Member Functions

virtual bool CheckConfig (void)
 Check whether the current configuration is correct. More...

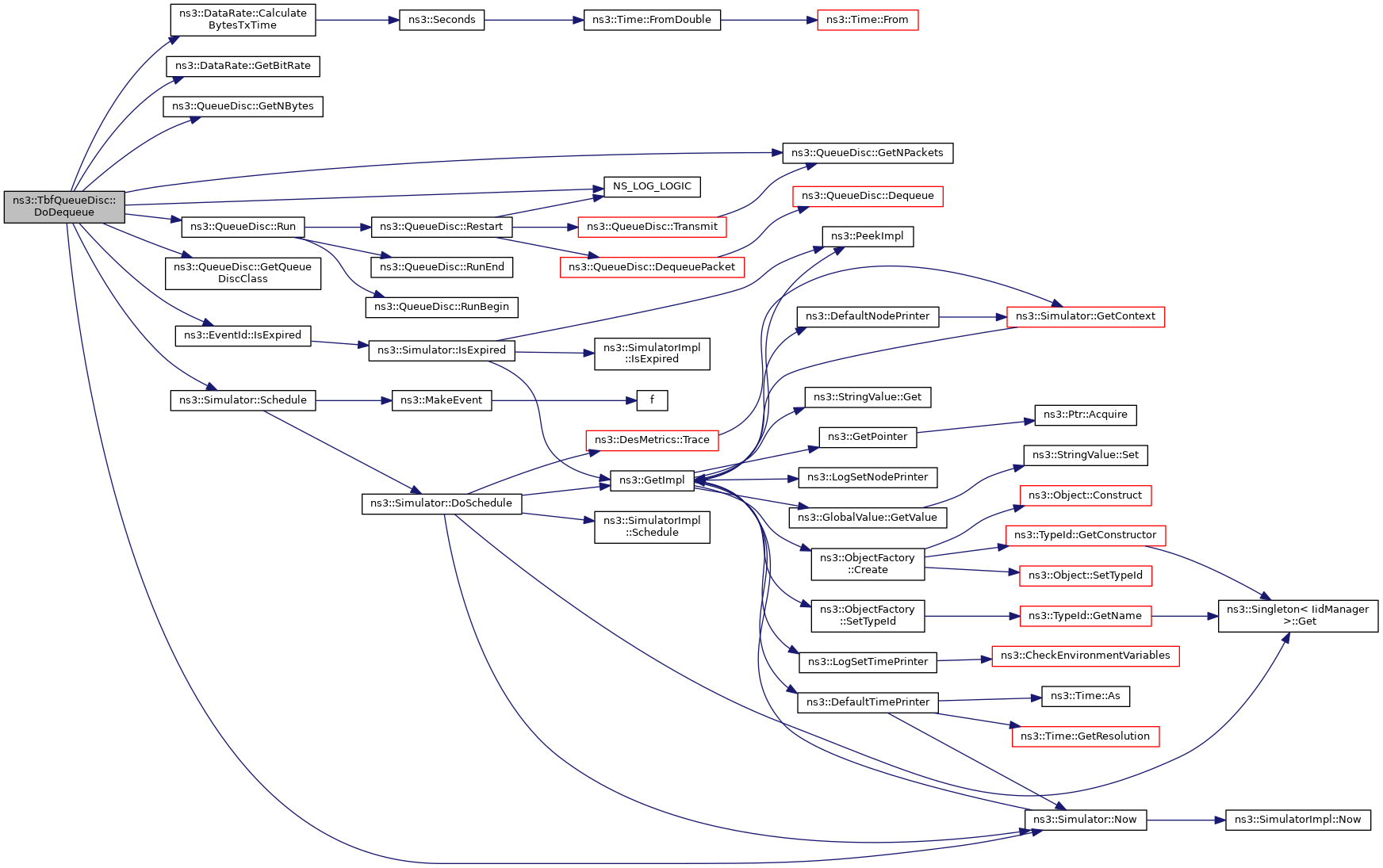

virtual Ptr< QueueDiscItemDoDequeue (void)
 This function actually extracts a packet from the queue disc. More...

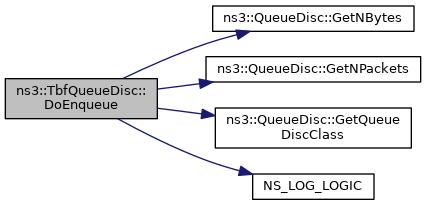

virtual bool DoEnqueue (Ptr< QueueDiscItem > item)
 This function actually enqueues a packet into the queue disc. More...

virtual void InitializeParams (void)
 Initialize parameters (if any) before the first packet is enqueued. More...


Private Attributes

TracedValue< uint32_t > m_btokens
 Current number of tokens in first bucket. More...

uint32_t m_burst
 Size of first bucket in bytes. More...

EventId m_id
 EventId of the scheduled queue waking event when enough tokens are available. More...

uint32_t m_mtu
 Size of second bucket in bytes. More...

DataRate m_peakRate
 Rate at which tokens enter the second bucket. More...

TracedValue< uint32_t > m_ptokens
 Current number of tokens in second bucket. More...

DataRate m_rate
 Rate at which tokens enter the first bucket. More...

Time m_timeCheckPoint
 Time check-point. More...


Additional Inherited Members

- Public Types inherited from ns3::QueueDisc
typedef Queue< QueueDiscItemInternalQueue
 Internal queues store QueueDiscItem objects. More...

typedef std::function< void(Ptr< QueueDiscItem >)> SendCallback
 Callback invoked to send a packet to the receiving object when Run is called. More...

enum  WakeMode { WAKE_ROOT = 0x00, WAKE_CHILD = 0x01 }
 Used to determine whether the queue disc itself or its children must be activated when a netdevice wakes a transmission queue. More...

- Static Public Attributes inherited from ns3::QueueDisc
static constexpr const char * CHILD_QUEUE_DISC_DROP = "(Dropped by child queue disc) "
 Packet dropped by a child queue disc. More...

static constexpr const char * INTERNAL_QUEUE_DROP = "Dropped by internal queue"
 Packet dropped by an internal queue. More...


Detailed Description

A TBF packet queue disc.


Introspection did not find any typical Config paths.


Attributes

  • MaxSize: The max queue size
  • Burst: Size of the first bucket in bytes
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 125000
    • Flags: construct write
  • Mtu: Size of the second bucket in bytes. If null, it is initialized to the MTU of the receiving NetDevice (if any)
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write
  • Rate: Rate at which tokens enter the first bucket in bps or Bps.
    • Set with class: DataRateValue
    • Underlying type: DataRate
    • Initial value: 1000000bps
    • Flags: construct write
  • PeakRate: Rate at which tokens enter the second bucket in bps or Bps.If null, there is no second bucket

Attributes defined in parent class ns3::QueueDisc

TraceSources

TraceSources defined in parent class ns3::QueueDisc

Size of this type is 1032 bytes (on a 64-bit architecture).

Definition at line 48 of file tbf-queue-disc.h.

Constructor & Destructor Documentation

◆ TbfQueueDisc()

ns3::TbfQueueDisc::TbfQueueDisc ( )

TbfQueueDisc Constructor.

Create a TBF queue disc

Definition at line 93 of file tbf-queue-disc.cc.

References NS_LOG_FUNCTION.

◆ ~TbfQueueDisc()

ns3::TbfQueueDisc::~TbfQueueDisc ( )
virtual

Destructor.

Destructor

Definition at line 99 of file tbf-queue-disc.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ CheckConfig()

bool ns3::TbfQueueDisc::CheckConfig ( void  )
privatevirtual

Check whether the current configuration is correct.

Default objects (such as internal queues) might be created by this method to ensure the configuration is correct.

Returns
true if the configuration is correct, false otherwise

Implements ns3::QueueDisc.

Definition at line 273 of file tbf-queue-disc.cc.

References ns3::QueueDisc::AddQueueDiscClass(), ns3::ObjectFactory::Create(), ns3::QueueDisc::GetMaxSize(), ns3::QueueDisc::GetNetDeviceQueueInterface(), ns3::QueueDisc::GetNInternalQueues(), ns3::QueueDisc::GetNPacketFilters(), ns3::QueueDisc::GetNQueueDiscClasses(), ns3::Object::Initialize(), m_burst, m_mtu, m_peakRate, m_rate, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_WARN, ns3::QueueDisc::SetMaxSize(), and ns3::ObjectFactory::SetTypeId().

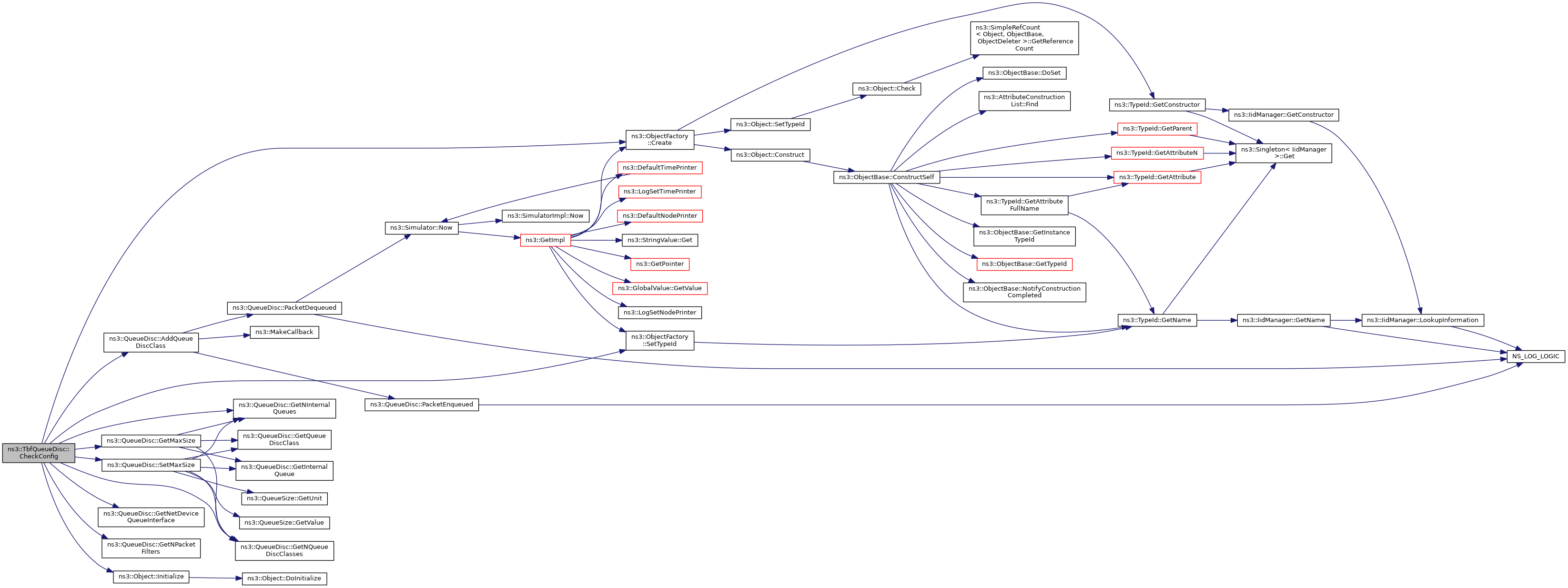

+ Here is the call graph for this function:

◆ DoDequeue()

Ptr< QueueDiscItem > ns3::TbfQueueDisc::DoDequeue ( void  )
privatevirtual

This function actually extracts a packet from the queue disc.

Returns
0 if the operation was not successful; the item otherwise.

Implements ns3::QueueDisc.

Definition at line 197 of file tbf-queue-disc.cc.

References ns3::DataRate::CalculateBytesTxTime(), ns3::DataRate::GetBitRate(), ns3::QueueDisc::GetNBytes(), ns3::QueueDisc::GetNPackets(), ns3::QueueDisc::GetQueueDiscClass(), ns3::EventId::IsExpired(), m_btokens, m_burst, m_id, m_mtu, m_peakRate, m_ptokens, m_rate, m_timeCheckPoint, max, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC(), ns3::QueueDisc::Run(), and ns3::Simulator::Schedule().

+ Here is the call graph for this function:

◆ DoDispose()

void ns3::TbfQueueDisc::DoDispose ( void  )
protectedvirtual

Dispose of the object.

Reimplemented from ns3::QueueDisc.

Definition at line 105 of file tbf-queue-disc.cc.

References ns3::QueueDisc::DoDispose(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ DoEnqueue()

bool ns3::TbfQueueDisc::DoEnqueue ( Ptr< QueueDiscItem item)
privatevirtual

This function actually enqueues a packet into the queue disc.

Parameters
itemitem to enqueue
Returns
True if the operation was successful; false otherwise

Implements ns3::QueueDisc.

Definition at line 182 of file tbf-queue-disc.cc.

References ns3::QueueDisc::GetNBytes(), ns3::QueueDisc::GetNPackets(), ns3::QueueDisc::GetQueueDiscClass(), NS_LOG_FUNCTION, and NS_LOG_LOGIC().

+ Here is the call graph for this function:

◆ GetBurst()

uint32_t ns3::TbfQueueDisc::GetBurst ( void  ) const

Get the size of the first bucket in bytes.

Returns
The size of the first bucket in bytes.

Definition at line 119 of file tbf-queue-disc.cc.

References m_burst, and NS_LOG_FUNCTION.

◆ GetFirstBucketTokens()

uint32_t ns3::TbfQueueDisc::GetFirstBucketTokens ( void  ) const

Get the current number of tokens inside the first bucket in bytes.

Returns
The number of first bucket tokens in bytes.

Definition at line 168 of file tbf-queue-disc.cc.

References m_btokens, and NS_LOG_FUNCTION.

Referenced by TbfQueueDiscTestCase::RunTbfTest().

+ Here is the caller graph for this function:

◆ GetMtu()

uint32_t ns3::TbfQueueDisc::GetMtu ( void  ) const

Get the size of the second bucket in bytes.

Returns
The size of the second bucket in bytes.

Definition at line 133 of file tbf-queue-disc.cc.

References m_mtu, and NS_LOG_FUNCTION.

◆ GetPeakRate()

DataRate ns3::TbfQueueDisc::GetPeakRate ( void  ) const

Get the rate of the tokens entering the second bucket.

Returns
The rate of second bucket tokens.

Definition at line 161 of file tbf-queue-disc.cc.

References m_peakRate, and NS_LOG_FUNCTION.

◆ GetRate()

DataRate ns3::TbfQueueDisc::GetRate ( void  ) const

Get the rate of the tokens entering the first bucket.

Returns
The rate of first bucket tokens.

Definition at line 147 of file tbf-queue-disc.cc.

References m_rate, and NS_LOG_FUNCTION.

◆ GetSecondBucketTokens()

uint32_t ns3::TbfQueueDisc::GetSecondBucketTokens ( void  ) const

Get the current number of tokens inside the second bucket in bytes.

Returns
The number of second bucket tokens in bytes.

Definition at line 175 of file tbf-queue-disc.cc.

References m_ptokens, and NS_LOG_FUNCTION.

◆ GetTypeId()

◆ InitializeParams()

void ns3::TbfQueueDisc::InitializeParams ( void  )
privatevirtual

Initialize parameters (if any) before the first packet is enqueued.

Implements ns3::QueueDisc.

Definition at line 347 of file tbf-queue-disc.cc.

References m_btokens, m_burst, m_id, m_mtu, m_ptokens, m_timeCheckPoint, NS_LOG_FUNCTION, and ns3::Seconds().

+ Here is the call graph for this function:

◆ SetBurst()

void ns3::TbfQueueDisc::SetBurst ( uint32_t  burst)

Set the size of the first bucket in bytes.

Parameters
burstThe size of first bucket in bytes.

Definition at line 112 of file tbf-queue-disc.cc.

References m_burst, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ SetMtu()

void ns3::TbfQueueDisc::SetMtu ( uint32_t  mtu)

Set the size of the second bucket in bytes.

Parameters
mtuThe size of second bucket in bytes.

Definition at line 126 of file tbf-queue-disc.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ SetPeakRate()

void ns3::TbfQueueDisc::SetPeakRate ( DataRate  peakRate)

Set the rate of the tokens entering the second bucket.

Parameters
peakRateThe rate of second bucket tokens.

Definition at line 154 of file tbf-queue-disc.cc.

References m_peakRate, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ SetRate()

void ns3::TbfQueueDisc::SetRate ( DataRate  rate)

Set the rate of the tokens entering the first bucket.

Parameters
rateThe rate of first bucket tokens.

Definition at line 140 of file tbf-queue-disc.cc.

References m_rate, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_btokens

TracedValue<uint32_t> ns3::TbfQueueDisc::m_btokens
private

Current number of tokens in first bucket.

Definition at line 162 of file tbf-queue-disc.h.

Referenced by DoDequeue(), GetFirstBucketTokens(), GetTypeId(), and InitializeParams().

◆ m_burst

uint32_t ns3::TbfQueueDisc::m_burst
private

Size of first bucket in bytes.

Definition at line 156 of file tbf-queue-disc.h.

Referenced by CheckConfig(), DoDequeue(), GetBurst(), InitializeParams(), and SetBurst().

◆ m_id

EventId ns3::TbfQueueDisc::m_id
private

EventId of the scheduled queue waking event when enough tokens are available.

Definition at line 165 of file tbf-queue-disc.h.

Referenced by DoDequeue(), and InitializeParams().

◆ m_mtu

uint32_t ns3::TbfQueueDisc::m_mtu
private

Size of second bucket in bytes.

Definition at line 157 of file tbf-queue-disc.h.

Referenced by CheckConfig(), DoDequeue(), GetMtu(), InitializeParams(), and SetMtu().

◆ m_peakRate

DataRate ns3::TbfQueueDisc::m_peakRate
private

Rate at which tokens enter the second bucket.

Definition at line 159 of file tbf-queue-disc.h.

Referenced by CheckConfig(), DoDequeue(), GetPeakRate(), and SetPeakRate().

◆ m_ptokens

TracedValue<uint32_t> ns3::TbfQueueDisc::m_ptokens
private

Current number of tokens in second bucket.

Definition at line 163 of file tbf-queue-disc.h.

Referenced by DoDequeue(), GetSecondBucketTokens(), GetTypeId(), and InitializeParams().

◆ m_rate

DataRate ns3::TbfQueueDisc::m_rate
private

Rate at which tokens enter the first bucket.

Definition at line 158 of file tbf-queue-disc.h.

Referenced by CheckConfig(), DoDequeue(), GetRate(), and SetRate().

◆ m_timeCheckPoint

Time ns3::TbfQueueDisc::m_timeCheckPoint
private

Time check-point.

Definition at line 164 of file tbf-queue-disc.h.

Referenced by DoDequeue(), and InitializeParams().


The documentation for this class was generated from the following files:
