Build a set of QueueDisc objects. More...

#include "traffic-control-helper.h"

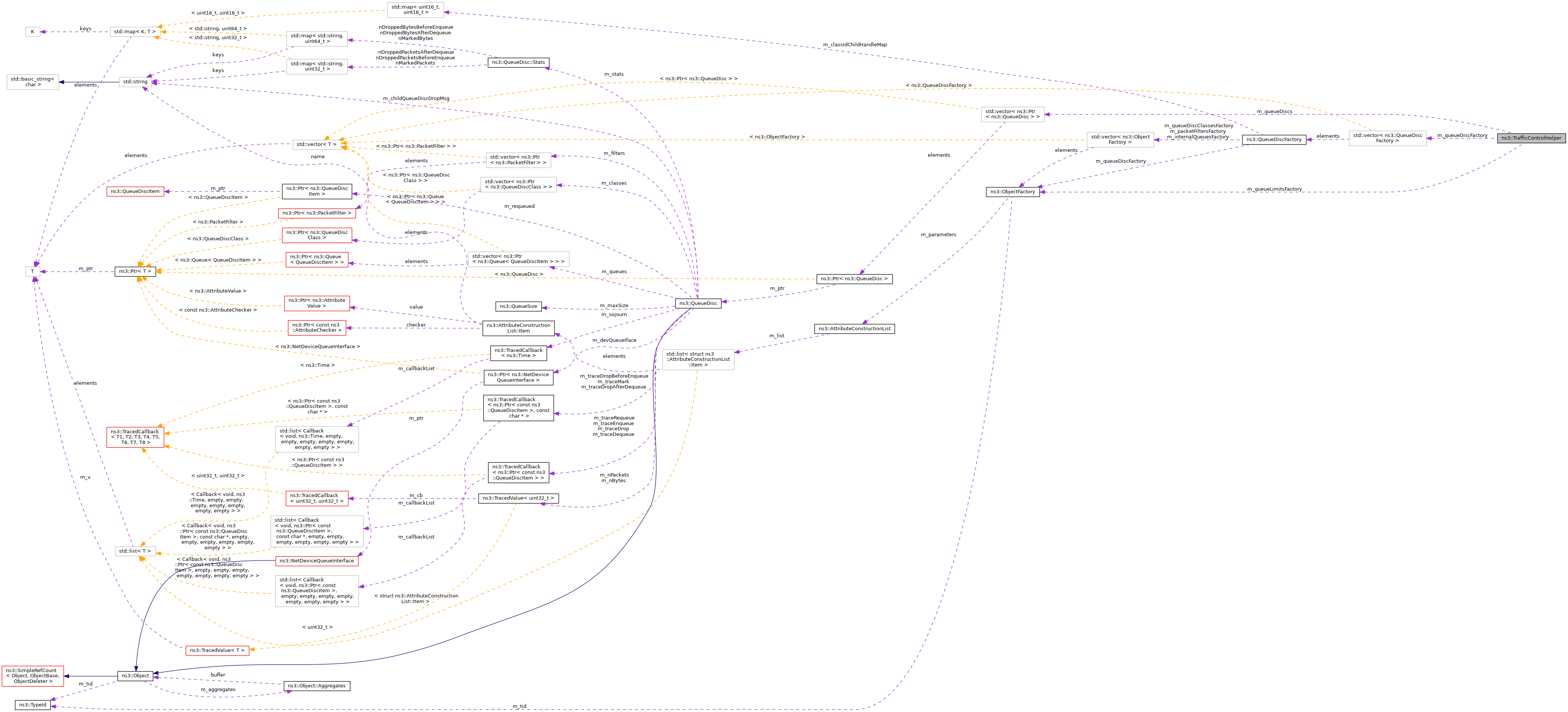

Collaboration diagram for ns3::TrafficControlHelper:

Public Types
typedef std::vector< uint16_t >	ClassIdList
	Container type for Class IDs. More...

typedef std::vector< uint16_t >	HandleList
	Container type for Handlers. More...

Public Member Functions
	TrafficControlHelper ()
	Create a TrafficControlHelper to make life easier when creating QueueDisc objects. More...

virtual	~TrafficControlHelper ()

uint16_t	AddChildQueueDisc (uint16_t handle, uint16_t classId, std::string type, std::string n01="", const AttributeValue &v01=EmptyAttributeValue(), std::string n02="", const AttributeValue &v02=EmptyAttributeValue(), std::string n03="", const AttributeValue &v03=EmptyAttributeValue(), std::string n04="", const AttributeValue &v04=EmptyAttributeValue(), std::string n05="", const AttributeValue &v05=EmptyAttributeValue(), std::string n06="", const AttributeValue &v06=EmptyAttributeValue(), std::string n07="", const AttributeValue &v07=EmptyAttributeValue(), std::string n08="", const AttributeValue &v08=EmptyAttributeValue(), std::string n09="", const AttributeValue &v09=EmptyAttributeValue(), std::string n10="", const AttributeValue &v10=EmptyAttributeValue(), std::string n11="", const AttributeValue &v11=EmptyAttributeValue(), std::string n12="", const AttributeValue &v12=EmptyAttributeValue(), std::string n13="", const AttributeValue &v13=EmptyAttributeValue(), std::string n14="", const AttributeValue &v14=EmptyAttributeValue(), std::string n15="", const AttributeValue &v15=EmptyAttributeValue())
	Helper function used to attach a child queue disc (of the given type and with the given attributes) to a given class (included in the queue disc having the given handle). More...

HandleList	AddChildQueueDiscs (uint16_t handle, const ClassIdList &classes, std::string type, std::string n01="", const AttributeValue &v01=EmptyAttributeValue(), std::string n02="", const AttributeValue &v02=EmptyAttributeValue(), std::string n03="", const AttributeValue &v03=EmptyAttributeValue(), std::string n04="", const AttributeValue &v04=EmptyAttributeValue(), std::string n05="", const AttributeValue &v05=EmptyAttributeValue(), std::string n06="", const AttributeValue &v06=EmptyAttributeValue(), std::string n07="", const AttributeValue &v07=EmptyAttributeValue(), std::string n08="", const AttributeValue &v08=EmptyAttributeValue(), std::string n09="", const AttributeValue &v09=EmptyAttributeValue(), std::string n10="", const AttributeValue &v10=EmptyAttributeValue(), std::string n11="", const AttributeValue &v11=EmptyAttributeValue(), std::string n12="", const AttributeValue &v12=EmptyAttributeValue(), std::string n13="", const AttributeValue &v13=EmptyAttributeValue(), std::string n14="", const AttributeValue &v14=EmptyAttributeValue(), std::string n15="", const AttributeValue &v15=EmptyAttributeValue())
	Helper function used to attach a child queue disc (of the given type and with the given attributes) to each of the given classes (included in the queue disc having the given handle). More...

void	AddInternalQueues (uint16_t handle, uint16_t count, std::string type, std::string n01="", const AttributeValue &v01=EmptyAttributeValue(), std::string n02="", const AttributeValue &v02=EmptyAttributeValue(), std::string n03="", const AttributeValue &v03=EmptyAttributeValue(), std::string n04="", const AttributeValue &v04=EmptyAttributeValue(), std::string n05="", const AttributeValue &v05=EmptyAttributeValue(), std::string n06="", const AttributeValue &v06=EmptyAttributeValue(), std::string n07="", const AttributeValue &v07=EmptyAttributeValue(), std::string n08="", const AttributeValue &v08=EmptyAttributeValue())
	Helper function used to add the given number of internal queues (of the given type and with the given attributes) to the queue disc having the given handle. More...

void	AddPacketFilter (uint16_t handle, std::string type, std::string n01="", const AttributeValue &v01=EmptyAttributeValue(), std::string n02="", const AttributeValue &v02=EmptyAttributeValue(), std::string n03="", const AttributeValue &v03=EmptyAttributeValue(), std::string n04="", const AttributeValue &v04=EmptyAttributeValue(), std::string n05="", const AttributeValue &v05=EmptyAttributeValue(), std::string n06="", const AttributeValue &v06=EmptyAttributeValue(), std::string n07="", const AttributeValue &v07=EmptyAttributeValue(), std::string n08="", const AttributeValue &v08=EmptyAttributeValue())
	Helper function used to add a packet filter (of the given type and with the given attributes) to the queue disc having the given handle. More...

ClassIdList	AddQueueDiscClasses (uint16_t handle, uint16_t count, std::string type, std::string n01="", const AttributeValue &v01=EmptyAttributeValue(), std::string n02="", const AttributeValue &v02=EmptyAttributeValue(), std::string n03="", const AttributeValue &v03=EmptyAttributeValue(), std::string n04="", const AttributeValue &v04=EmptyAttributeValue(), std::string n05="", const AttributeValue &v05=EmptyAttributeValue(), std::string n06="", const AttributeValue &v06=EmptyAttributeValue(), std::string n07="", const AttributeValue &v07=EmptyAttributeValue(), std::string n08="", const AttributeValue &v08=EmptyAttributeValue())
	Helper function used to add the given number of queue disc classes (of the given type and with the given attributes) to the queue disc having the given handle. More...

QueueDiscContainer	Install (NetDeviceContainer c)

QueueDiscContainer	Install (Ptr< NetDevice > d)

void	SetQueueLimits (std::string type, std::string n01="", const AttributeValue &v01=EmptyAttributeValue(), std::string n02="", const AttributeValue &v02=EmptyAttributeValue(), std::string n03="", const AttributeValue &v03=EmptyAttributeValue(), std::string n04="", const AttributeValue &v04=EmptyAttributeValue(), std::string n05="", const AttributeValue &v05=EmptyAttributeValue(), std::string n06="", const AttributeValue &v06=EmptyAttributeValue(), std::string n07="", const AttributeValue &v07=EmptyAttributeValue(), std::string n08="", const AttributeValue &v08=EmptyAttributeValue())
	Helper function used to add a queue limits object to the transmission queues of the devices. More...

uint16_t	SetRootQueueDisc (std::string type, std::string n01="", const AttributeValue &v01=EmptyAttributeValue(), std::string n02="", const AttributeValue &v02=EmptyAttributeValue(), std::string n03="", const AttributeValue &v03=EmptyAttributeValue(), std::string n04="", const AttributeValue &v04=EmptyAttributeValue(), std::string n05="", const AttributeValue &v05=EmptyAttributeValue(), std::string n06="", const AttributeValue &v06=EmptyAttributeValue(), std::string n07="", const AttributeValue &v07=EmptyAttributeValue(), std::string n08="", const AttributeValue &v08=EmptyAttributeValue(), std::string n09="", const AttributeValue &v09=EmptyAttributeValue(), std::string n10="", const AttributeValue &v10=EmptyAttributeValue(), std::string n11="", const AttributeValue &v11=EmptyAttributeValue(), std::string n12="", const AttributeValue &v12=EmptyAttributeValue(), std::string n13="", const AttributeValue &v13=EmptyAttributeValue(), std::string n14="", const AttributeValue &v14=EmptyAttributeValue(), std::string n15="", const AttributeValue &v15=EmptyAttributeValue())
	Helper function used to set a root queue disc of the given type and with the given attributes. More...

void	Uninstall (NetDeviceContainer c)

void	Uninstall (Ptr< NetDevice > d)

Static Public Member Functions
static TrafficControlHelper	Default (std::size_t nTxQueues=1)

Private Attributes
std::vector< QueueDiscFactory >	m_queueDiscFactory
	QueueDisc factory, stores the configuration of all the queue discs. More...

std::vector< Ptr< QueueDisc > >	m_queueDiscs
	Vector of all the created queue discs. More...

ObjectFactory	m_queueLimitsFactory
	Factory to create a queue limits object. More...

Detailed Description

Build a set of QueueDisc objects.

This class can help to create QueueDisc objects and map them to the corresponding devices. This map is stored at the Traffic Control layer.

Definition at line 118 of file traffic-control-helper.h.

Member Typedef Documentation

◆ ClassIdList

typedef std::vector<uint16_t> ns3::TrafficControlHelper::ClassIdList

Container type for Class IDs.

Definition at line 262 of file traffic-control-helper.h.

◆ HandleList

typedef std::vector<uint16_t> ns3::TrafficControlHelper::HandleList

Container type for Handlers.

Definition at line 359 of file traffic-control-helper.h.

Constructor & Destructor Documentation

◆ TrafficControlHelper()

ns3::TrafficControlHelper::TrafficControlHelper ( )

Create a TrafficControlHelper to make life easier when creating QueueDisc objects.

Definition at line 106 of file traffic-control-helper.cc.

◆ ~TrafficControlHelper()

virtual ns3::TrafficControlHelper::~TrafficControlHelper ( )

inlinevirtual

Definition at line 126 of file traffic-control-helper.h.

Member Function Documentation

◆ AddChildQueueDisc()

uint16_t ns3::TrafficControlHelper::AddChildQueueDisc	(	uint16_t	handle,
		uint16_t	classId,
		std::string	type,
		std::string	n01 = `""`,
		const AttributeValue &	v01 = `EmptyAttributeValue ()`,
		std::string	n02 = `""`,
		const AttributeValue &	v02 = `EmptyAttributeValue ()`,
		std::string	n03 = `""`,
		const AttributeValue &	v03 = `EmptyAttributeValue ()`,
		std::string	n04 = `""`,
		const AttributeValue &	v04 = `EmptyAttributeValue ()`,
		std::string	n05 = `""`,
		const AttributeValue &	v05 = `EmptyAttributeValue ()`,
		std::string	n06 = `""`,
		const AttributeValue &	v06 = `EmptyAttributeValue ()`,
		std::string	n07 = `""`,
		const AttributeValue &	v07 = `EmptyAttributeValue ()`,
		std::string	n08 = `""`,
		const AttributeValue &	v08 = `EmptyAttributeValue ()`,
		std::string	n09 = `""`,
		const AttributeValue &	v09 = `EmptyAttributeValue ()`,
		std::string	n10 = `""`,
		const AttributeValue &	v10 = `EmptyAttributeValue ()`,
		std::string	n11 = `""`,
		const AttributeValue &	v11 = `EmptyAttributeValue ()`,
		std::string	n12 = `""`,
		const AttributeValue &	v12 = `EmptyAttributeValue ()`,
		std::string	n13 = `""`,
		const AttributeValue &	v13 = `EmptyAttributeValue ()`,
		std::string	n14 = `""`,
		const AttributeValue &	v14 = `EmptyAttributeValue ()`,
		std::string	n15 = `""`,
		const AttributeValue &	v15 = `EmptyAttributeValue ()`
	)

Helper function used to attach a child queue disc (of the given type and with the given attributes) to a given class (included in the queue disc having the given handle).

Parameters

handle	the handle of the parent queue disc
classId	the class ID of the class to attach the queue disc to
type	the type of queue disc
n01	the name of the attribute to set on the queue disc
v01	the value of the attribute to set on the queue disc
n02	the name of the attribute to set on the queue disc
v02	the value of the attribute to set on the queue disc
n03	the name of the attribute to set on the queue disc
v03	the value of the attribute to set on the queue disc
n04	the name of the attribute to set on the queue disc
v04	the value of the attribute to set on the queue disc
n05	the name of the attribute to set on the queue disc
v05	the value of the attribute to set on the queue disc
n06	the name of the attribute to set on the queue disc
v06	the value of the attribute to set on the queue disc
n07	the name of the attribute to set on the queue disc
v07	the value of the attribute to set on the queue disc
n08	the name of the attribute to set on the queue disc
v08	the value of the attribute to set on the queue disc
n09	the name of the attribute to set on the queue disc
v09	the value of the attribute to set on the queue disc
n10	the name of the attribute to set on the queue disc
v10	the value of the attribute to set on the queue disc
n11	the name of the attribute to set on the queue disc
v11	the value of the attribute to set on the queue disc
n12	the name of the attribute to set on the queue disc
v12	the value of the attribute to set on the queue disc
n13	the name of the attribute to set on the queue disc
v13	the value of the attribute to set on the queue disc
n14	the name of the attribute to set on the queue disc
v14	the value of the attribute to set on the queue disc
n15	the name of the attribute to set on the queue disc
v15	the value of the attribute to set on the queue disc

Returns: the handle of the created child queue disc

Definition at line 270 of file traffic-control-helper.cc.

References m_queueDiscFactory, NS_ABORT_MSG_IF, and ns3::ObjectFactory::SetTypeId().

Referenced by AddChildQueueDiscs().

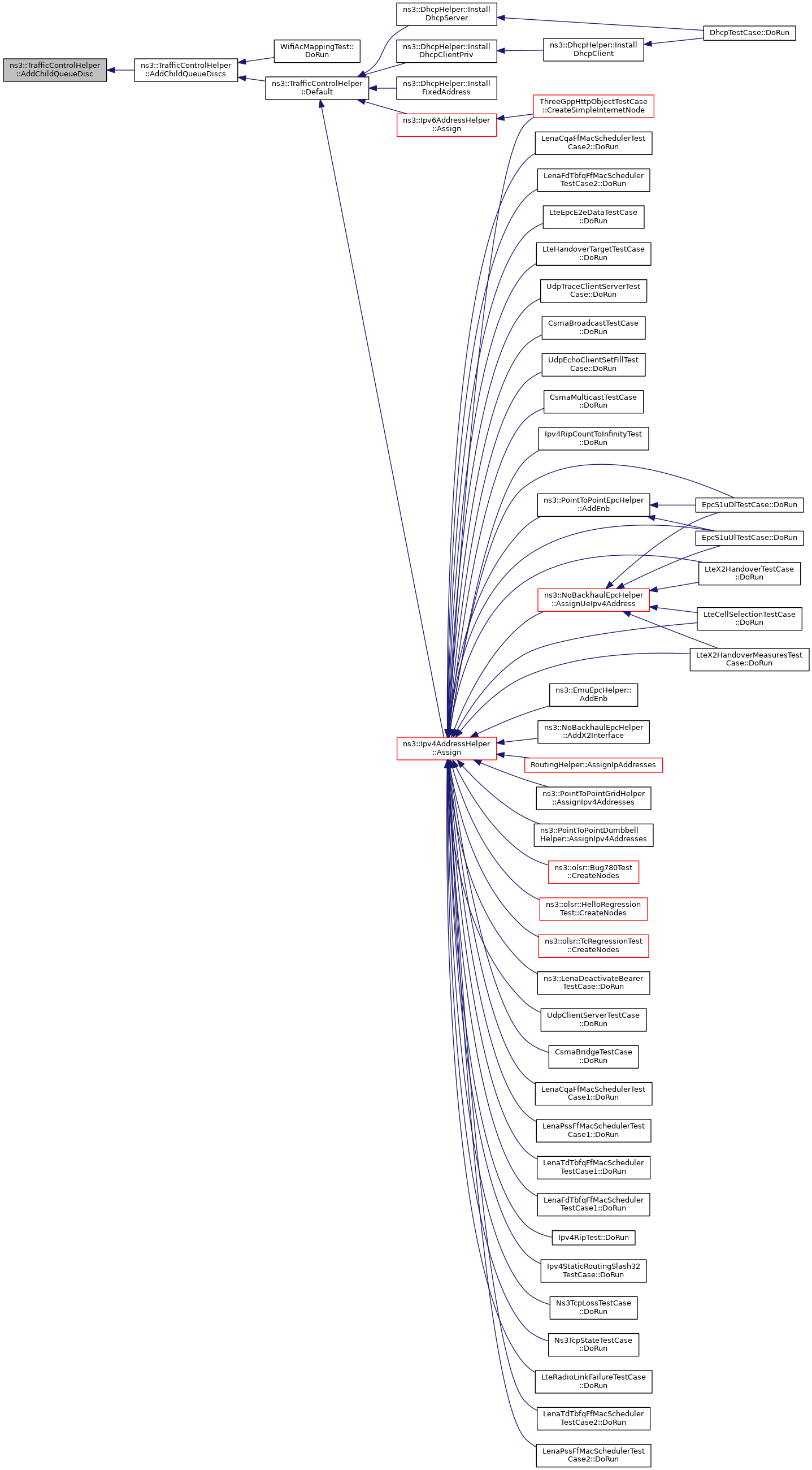

Here is the call graph for this function:

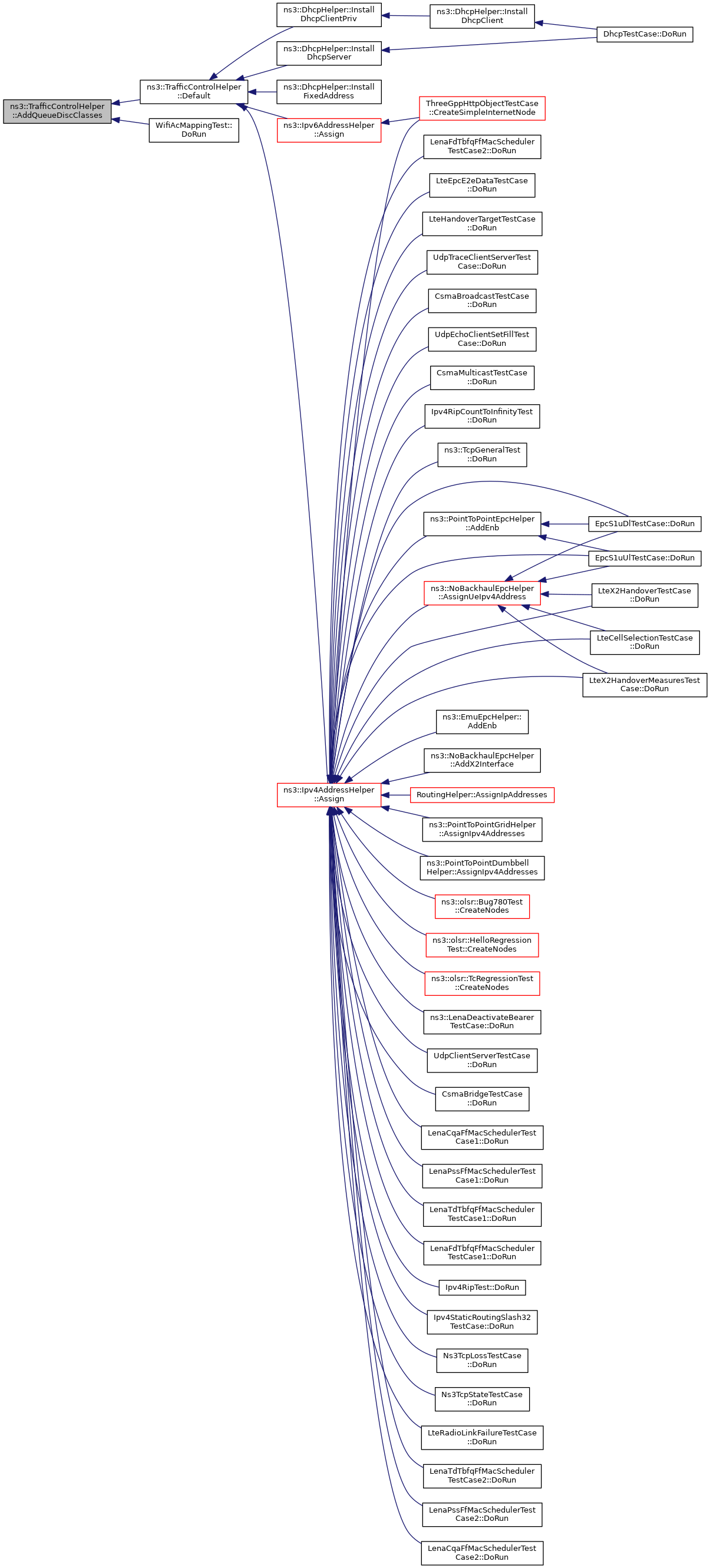

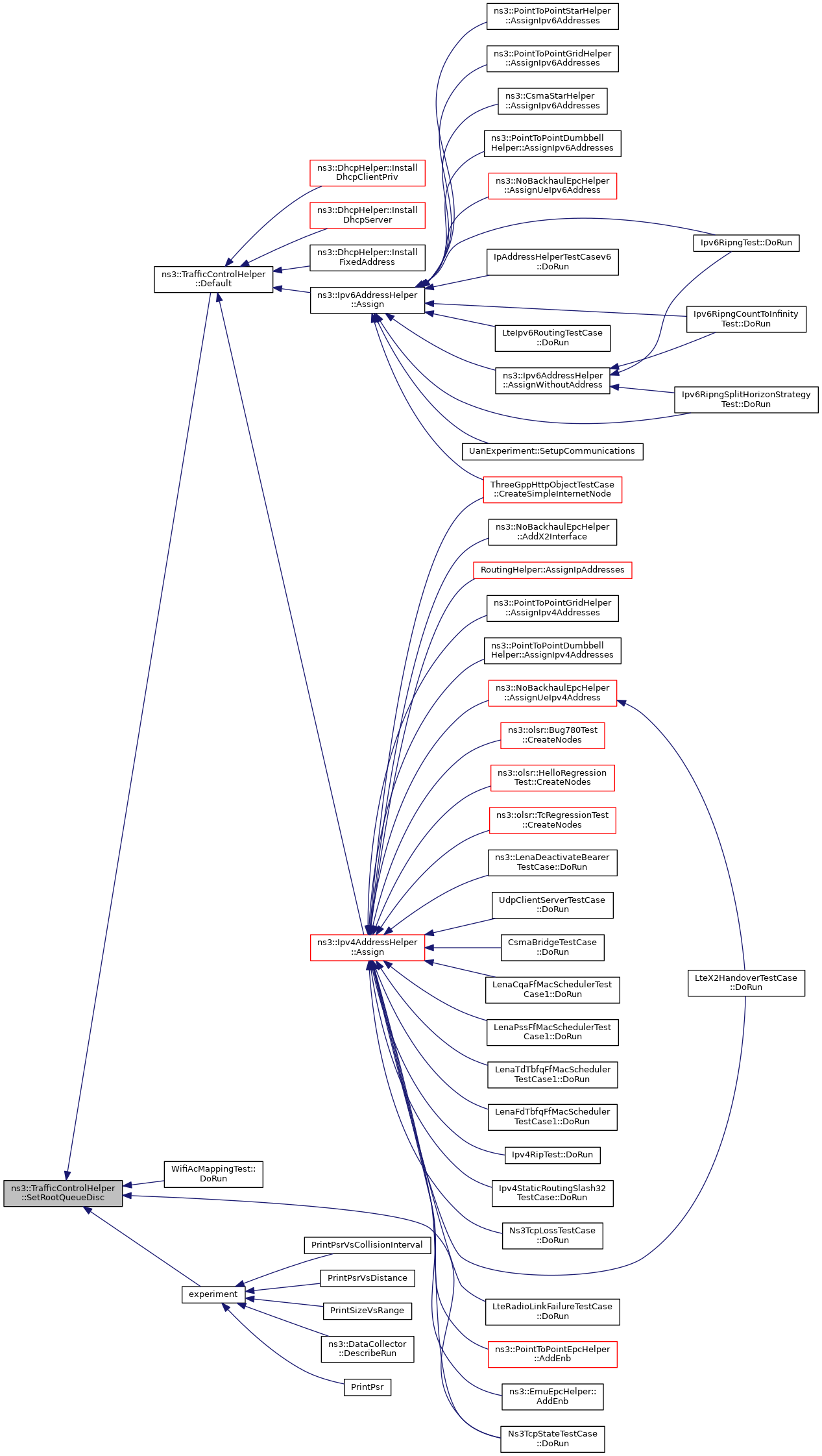

Here is the caller graph for this function:

◆ AddChildQueueDiscs()

TrafficControlHelper::HandleList ns3::TrafficControlHelper::AddChildQueueDiscs	(	uint16_t	handle,
		const ClassIdList &	classes,
		std::string	type,
		std::string	n01 = `""`,
		const AttributeValue &	v01 = `EmptyAttributeValue ()`,
		std::string	n02 = `""`,
		const AttributeValue &	v02 = `EmptyAttributeValue ()`,
		std::string	n03 = `""`,
		const AttributeValue &	v03 = `EmptyAttributeValue ()`,
		std::string	n04 = `""`,
		const AttributeValue &	v04 = `EmptyAttributeValue ()`,
		std::string	n05 = `""`,
		const AttributeValue &	v05 = `EmptyAttributeValue ()`,
		std::string	n06 = `""`,
		const AttributeValue &	v06 = `EmptyAttributeValue ()`,
		std::string	n07 = `""`,
		const AttributeValue &	v07 = `EmptyAttributeValue ()`,
		std::string	n08 = `""`,
		const AttributeValue &	v08 = `EmptyAttributeValue ()`,
		std::string	n09 = `""`,
		const AttributeValue &	v09 = `EmptyAttributeValue ()`,
		std::string	n10 = `""`,
		const AttributeValue &	v10 = `EmptyAttributeValue ()`,
		std::string	n11 = `""`,
		const AttributeValue &	v11 = `EmptyAttributeValue ()`,
		std::string	n12 = `""`,
		const AttributeValue &	v12 = `EmptyAttributeValue ()`,
		std::string	n13 = `""`,
		const AttributeValue &	v13 = `EmptyAttributeValue ()`,
		std::string	n14 = `""`,
		const AttributeValue &	v14 = `EmptyAttributeValue ()`,
		std::string	n15 = `""`,
		const AttributeValue &	v15 = `EmptyAttributeValue ()`
	)

Helper function used to attach a child queue disc (of the given type and with the given attributes) to each of the given classes (included in the queue disc having the given handle).

Parameters

handle	the handle of the parent queue disc
classes	the class IDs of the classes to attach a queue disc to
type	the type of queue disc
n01	the name of the attribute to set on the queue disc
v01	the value of the attribute to set on the queue disc
n02	the name of the attribute to set on the queue disc
v02	the value of the attribute to set on the queue disc
n03	the name of the attribute to set on the queue disc
v03	the value of the attribute to set on the queue disc
n04	the name of the attribute to set on the queue disc
v04	the value of the attribute to set on the queue disc
n05	the name of the attribute to set on the queue disc
v05	the value of the attribute to set on the queue disc
n06	the name of the attribute to set on the queue disc
v06	the value of the attribute to set on the queue disc
n07	the name of the attribute to set on the queue disc
v07	the value of the attribute to set on the queue disc
n08	the name of the attribute to set on the queue disc
v08	the value of the attribute to set on the queue disc
n09	the name of the attribute to set on the queue disc
v09	the value of the attribute to set on the queue disc
n10	the name of the attribute to set on the queue disc
v10	the value of the attribute to set on the queue disc
n11	the name of the attribute to set on the queue disc
v11	the value of the attribute to set on the queue disc
n12	the name of the attribute to set on the queue disc
v12	the value of the attribute to set on the queue disc
n13	the name of the attribute to set on the queue disc
v13	the value of the attribute to set on the queue disc
n14	the name of the attribute to set on the queue disc
v14	the value of the attribute to set on the queue disc
n15	the name of the attribute to set on the queue disc
v15	the value of the attribute to set on the queue disc

Returns: the list of handles of the created child queue discs

Definition at line 316 of file traffic-control-helper.cc.

References AddChildQueueDisc(), and list.

Referenced by Default(), and WifiAcMappingTest::DoRun().

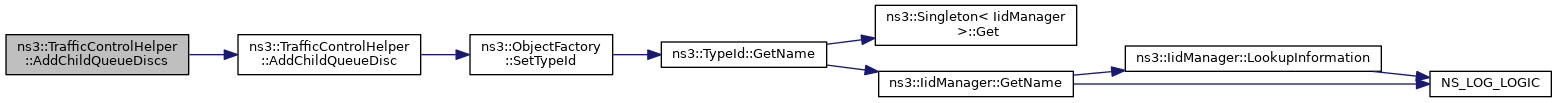

Here is the call graph for this function:

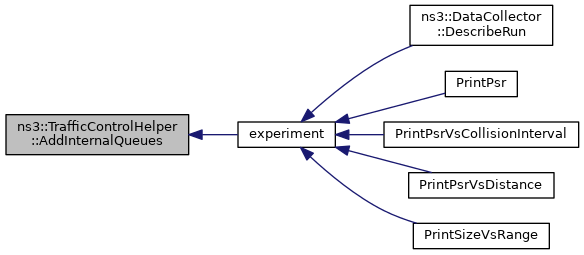

Here is the caller graph for this function:

◆ AddInternalQueues()

void ns3::TrafficControlHelper::AddInternalQueues	(	uint16_t	handle,
		uint16_t	count,
		std::string	type,
		std::string	n01 = `""`,
		const AttributeValue &	v01 = `EmptyAttributeValue ()`,
		std::string	n02 = `""`,
		const AttributeValue &	v02 = `EmptyAttributeValue ()`,
		std::string	n03 = `""`,
		const AttributeValue &	v03 = `EmptyAttributeValue ()`,
		std::string	n04 = `""`,
		const AttributeValue &	v04 = `EmptyAttributeValue ()`,
		std::string	n05 = `""`,
		const AttributeValue &	v05 = `EmptyAttributeValue ()`,
		std::string	n06 = `""`,
		const AttributeValue &	v06 = `EmptyAttributeValue ()`,
		std::string	n07 = `""`,
		const AttributeValue &	v07 = `EmptyAttributeValue ()`,
		std::string	n08 = `""`,
		const AttributeValue &	v08 = `EmptyAttributeValue ()`
	)

Helper function used to add the given number of internal queues (of the given type and with the given attributes) to the queue disc having the given handle.

Parameters

handle	the handle of the parent queue disc
count	the number of queues to add
type	the type of queue
n01	the name of the attribute to set on the queue
v01	the value of the attribute to set on the queue
n02	the name of the attribute to set on the queue
v02	the value of the attribute to set on the queue
n03	the name of the attribute to set on the queue
v03	the value of the attribute to set on the queue
n04	the name of the attribute to set on the queue
v04	the value of the attribute to set on the queue
n05	the name of the attribute to set on the queue
v05	the value of the attribute to set on the queue
n06	the name of the attribute to set on the queue
v06	the value of the attribute to set on the queue
n07	the name of the attribute to set on the queue
v07	the value of the attribute to set on the queue
n08	the name of the attribute to set on the queue
v08	the value of the attribute to set on the queue

Definition at line 173 of file traffic-control-helper.cc.

References ns3::QueueBase::AppendItemTypeIfNotPresent(), m_queueDiscFactory, NS_ABORT_MSG_IF, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by experiment().

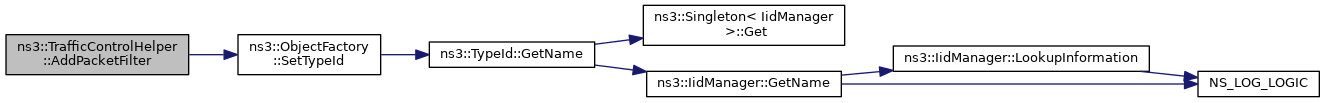

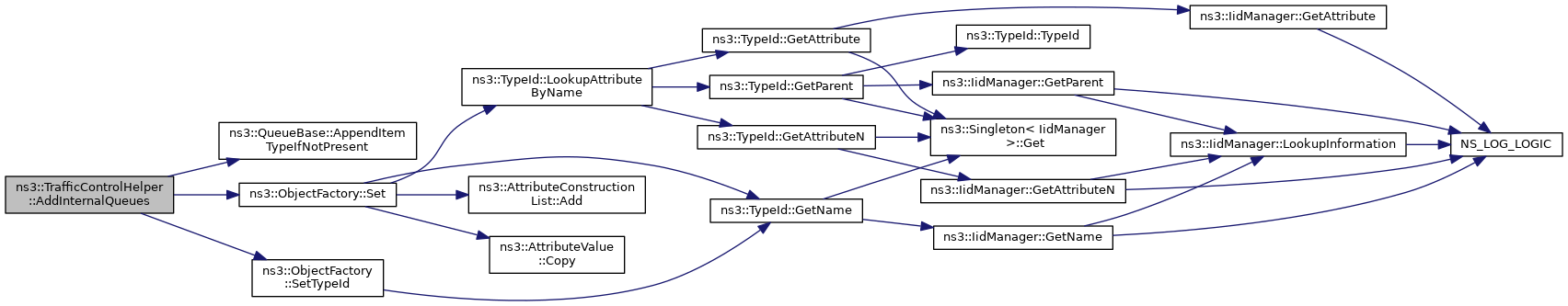

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddPacketFilter()

void ns3::TrafficControlHelper::AddPacketFilter	(	uint16_t	handle,
		std::string	type,
		std::string	n01 = `""`,
		const AttributeValue &	v01 = `EmptyAttributeValue ()`,
		std::string	n02 = `""`,
		const AttributeValue &	v02 = `EmptyAttributeValue ()`,
		std::string	n03 = `""`,
		const AttributeValue &	v03 = `EmptyAttributeValue ()`,
		std::string	n04 = `""`,
		const AttributeValue &	v04 = `EmptyAttributeValue ()`,
		std::string	n05 = `""`,
		const AttributeValue &	v05 = `EmptyAttributeValue ()`,
		std::string	n06 = `""`,
		const AttributeValue &	v06 = `EmptyAttributeValue ()`,
		std::string	n07 = `""`,
		const AttributeValue &	v07 = `EmptyAttributeValue ()`,
		std::string	n08 = `""`,
		const AttributeValue &	v08 = `EmptyAttributeValue ()`
	)

Helper function used to add a packet filter (of the given type and with the given attributes) to the queue disc having the given handle.

Parameters

handle	the handle of the parent queue disc
type	the type of packet filter
n01	the name of the attribute to set on the packet filter
v01	the value of the attribute to set on the packet filter
n02	the name of the attribute to set on the packet filter
v02	the value of the attribute to set on the packet filter
n03	the name of the attribute to set on the packet filter
v03	the value of the attribute to set on the packet filter
n04	the name of the attribute to set on the packet filter
v04	the value of the attribute to set on the packet filter
n05	the name of the attribute to set on the packet filter
v05	the value of the attribute to set on the packet filter
n06	the name of the attribute to set on the packet filter
v06	the value of the attribute to set on the packet filter
n07	the name of the attribute to set on the packet filter
v07	the value of the attribute to set on the packet filter
n08	the name of the attribute to set on the packet filter
v08	the value of the attribute to set on the packet filter

Definition at line 206 of file traffic-control-helper.cc.

References m_queueDiscFactory, NS_ABORT_MSG_IF, and ns3::ObjectFactory::SetTypeId().

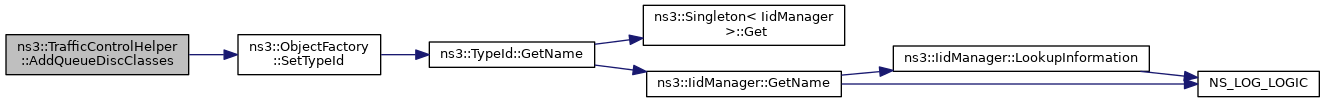

Here is the call graph for this function:

◆ AddQueueDiscClasses()

TrafficControlHelper::ClassIdList ns3::TrafficControlHelper::AddQueueDiscClasses	(	uint16_t	handle,
		uint16_t	count,
		std::string	type,
		std::string	n01 = `""`,
		const AttributeValue &	v01 = `EmptyAttributeValue ()`,
		std::string	n02 = `""`,
		const AttributeValue &	v02 = `EmptyAttributeValue ()`,
		std::string	n03 = `""`,
		const AttributeValue &	v03 = `EmptyAttributeValue ()`,
		std::string	n04 = `""`,
		const AttributeValue &	v04 = `EmptyAttributeValue ()`,
		std::string	n05 = `""`,
		const AttributeValue &	v05 = `EmptyAttributeValue ()`,
		std::string	n06 = `""`,
		const AttributeValue &	v06 = `EmptyAttributeValue ()`,
		std::string	n07 = `""`,
		const AttributeValue &	v07 = `EmptyAttributeValue ()`,
		std::string	n08 = `""`,
		const AttributeValue &	v08 = `EmptyAttributeValue ()`
	)

Helper function used to add the given number of queue disc classes (of the given type and with the given attributes) to the queue disc having the given handle.

Parameters

handle	the handle of the parent queue disc
count	the number of queue disc classes to add
type	the type of queue disc class
n01	the name of the attribute to set on the queue disc class
v01	the value of the attribute to set on the queue disc class
n02	the name of the attribute to set on the queue disc class
v02	the value of the attribute to set on the queue disc class
n03	the name of the attribute to set on the queue disc class
v03	the value of the attribute to set on the queue disc class
n04	the name of the attribute to set on the queue disc class
v04	the value of the attribute to set on the queue disc class
n05	the name of the attribute to set on the queue disc class
v05	the value of the attribute to set on the queue disc class
n06	the name of the attribute to set on the queue disc class
v06	the value of the attribute to set on the queue disc class
n07	the name of the attribute to set on the queue disc class
v07	the value of the attribute to set on the queue disc class
n08	the name of the attribute to set on the queue disc class
v08	the value of the attribute to set on the queue disc class

Returns: the list of class IDs

Definition at line 234 of file traffic-control-helper.cc.

References list, m_queueDiscFactory, NS_ABORT_MSG_IF, and ns3::ObjectFactory::SetTypeId().

Referenced by Default(), and WifiAcMappingTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Default()

TrafficControlHelper ns3::TrafficControlHelper::Default ( std::size_t nTxQueues = 1 )

static

Returns: a new TrafficControlHelper with a default configuration

The default configuration is an FqCoDelQueueDisc, if the device has a single queue, or an MqQueueDisc with as many FqCoDelQueueDiscs as the number of device queues, otherwise.

Definition at line 111 of file traffic-control-helper.cc.

References AddChildQueueDiscs(), AddQueueDiscClasses(), NS_ABORT_MSG_IF, NS_LOG_FUNCTION, and SetRootQueueDisc().

Referenced by ns3::Ipv6AddressHelper::Assign(), ns3::Ipv4AddressHelper::Assign(), ns3::DhcpHelper::InstallDhcpClientPriv(), ns3::DhcpHelper::InstallDhcpServer(), and ns3::DhcpHelper::InstallFixedAddress().

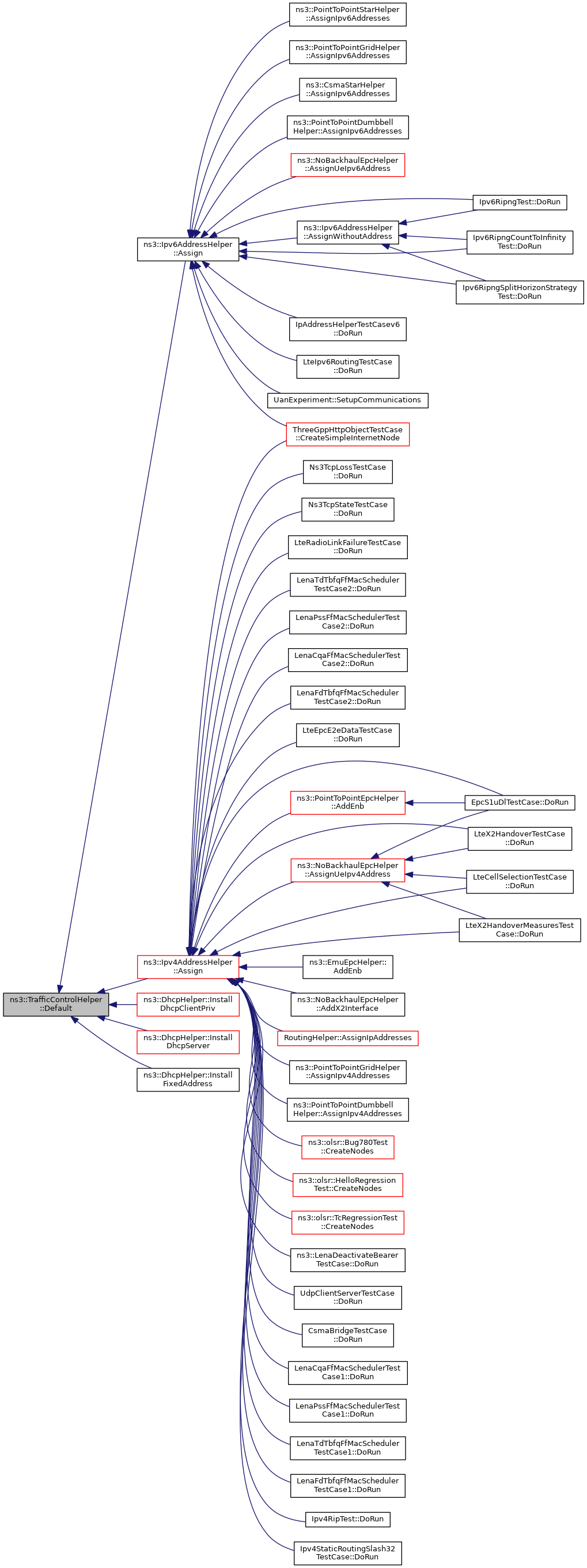

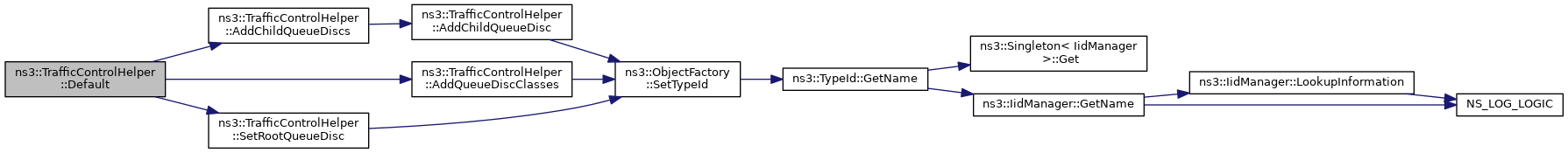

Here is the call graph for this function:

Here is the caller graph for this function:

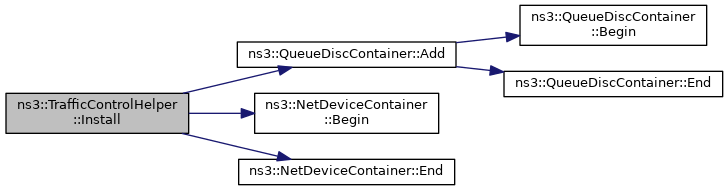

◆ Install() [1/2]

QueueDiscContainer ns3::TrafficControlHelper::Install ( NetDeviceContainer c )

Parameters

c	set of devices

Returns: a QueueDisc container with the root queue discs installed on the devices

This method creates a QueueDisc object of the type and with the attributes configured by TrafficControlHelper::SetQueueDisc for each device in the container. Then, stores the mapping between a device and the associated queue disc into the traffic control layer of the corresponding node. This method creates the queue discs (along with their packet filters, internal queues, classes) configured with the methods provided by this class and installs them on each device in the given container. Additionally, if configured, a queue limits object is installed on each transmission queue of the devices.

Definition at line 413 of file traffic-control-helper.cc.

References ns3::QueueDiscContainer::Add(), ns3::NetDeviceContainer::Begin(), and ns3::NetDeviceContainer::End().

Referenced by ns3::Ipv6AddressHelper::Assign(), ns3::Ipv4AddressHelper::Assign(), WifiAcMappingTest::DoRun(), Ns3TcpStateTestCase::DoRun(), TcFlowControlTestCase::DoRun(), UdpSocketImplTest::DoRun(), experiment(), ns3::DhcpHelper::InstallDhcpClientPriv(), ns3::DhcpHelper::InstallDhcpServer(), and ns3::DhcpHelper::InstallFixedAddress().

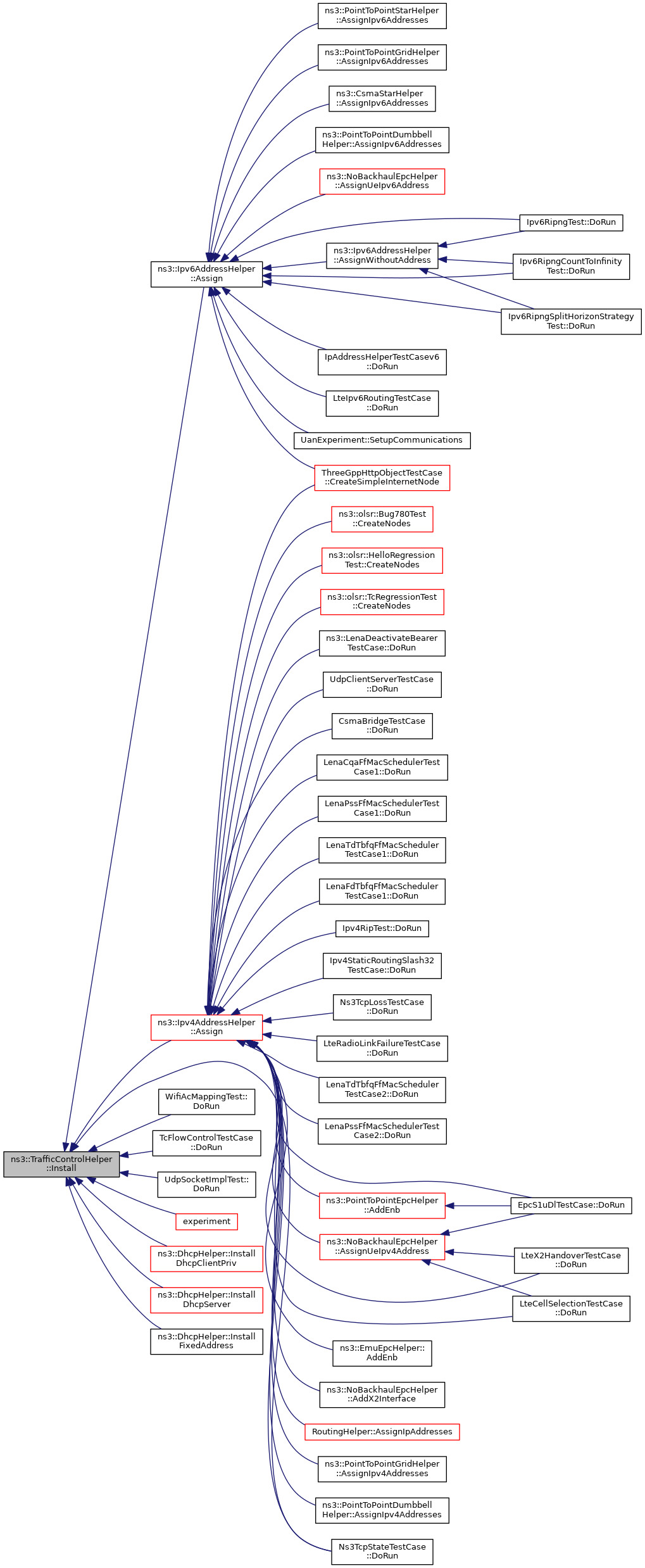

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Install() [2/2]

QueueDiscContainer ns3::TrafficControlHelper::Install ( Ptr< NetDevice > d )

Parameters

d device

Returns: a QueueDisc container with the root queue disc installed on the device

This method creates the queue discs (along with their packet filters, internal queues, classes) configured with the methods provided by this class and installs them on the given device. Additionally, if configured, a queue limits object is installed on each transmission queue of the device.

Definition at line 368 of file traffic-control-helper.cc.

References ns3::QueueDiscContainer::Add(), ns3::ObjectFactory::Create(), ns3::ObjectFactory::GetTypeId(), ns3::TypeId::GetUid(), m_queueDiscFactory, m_queueDiscs, m_queueLimitsFactory, NS_ABORT_MSG_IF, and NS_ASSERT.

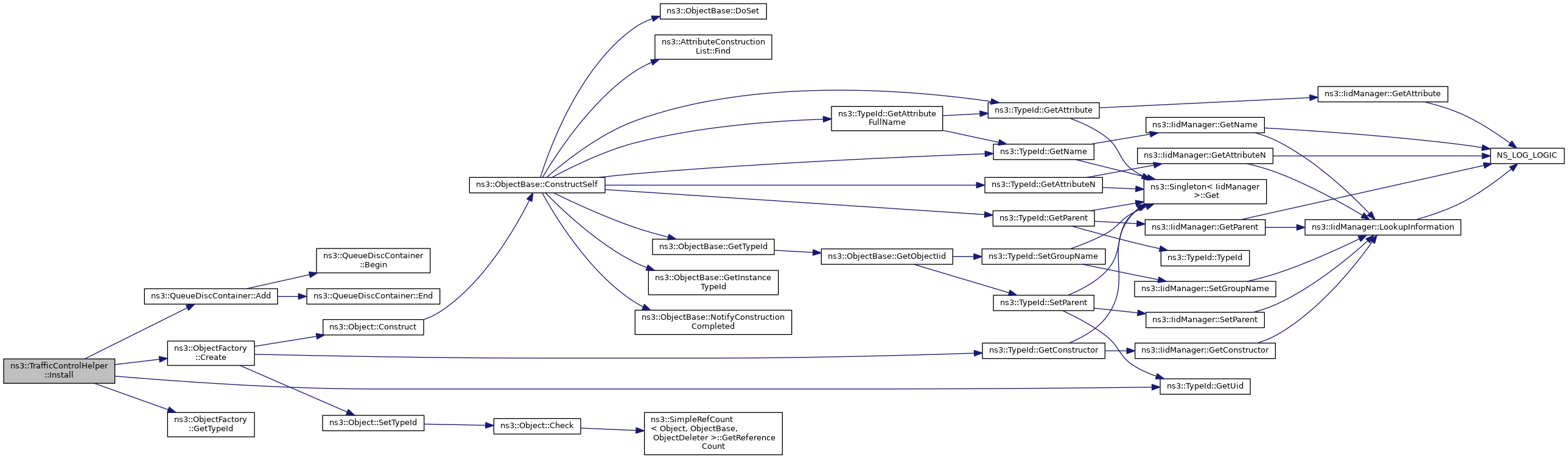

Here is the call graph for this function:

◆ SetQueueLimits()

void ns3::TrafficControlHelper::SetQueueLimits	(	std::string	type,
		std::string	n01 = `""`,
		const AttributeValue &	v01 = `EmptyAttributeValue ()`,
		std::string	n02 = `""`,
		const AttributeValue &	v02 = `EmptyAttributeValue ()`,
		std::string	n03 = `""`,
		const AttributeValue &	v03 = `EmptyAttributeValue ()`,
		std::string	n04 = `""`,
		const AttributeValue &	v04 = `EmptyAttributeValue ()`,
		std::string	n05 = `""`,
		const AttributeValue &	v05 = `EmptyAttributeValue ()`,
		std::string	n06 = `""`,
		const AttributeValue &	v06 = `EmptyAttributeValue ()`,
		std::string	n07 = `""`,
		const AttributeValue &	v07 = `EmptyAttributeValue ()`,
		std::string	n08 = `""`,
		const AttributeValue &	v08 = `EmptyAttributeValue ()`
	)

Helper function used to add a queue limits object to the transmission queues of the devices.

Parameters

type	the type of queue
n01	the name of the attribute to set on the queue limits object
v01	the value of the attribute to set on the queue limits object
n02	the name of the attribute to set on the queue limits object
v02	the value of the attribute to set on the queue limits object
n03	the name of the attribute to set on the queue limits object
v03	the value of the attribute to set on the queue limits object
n04	the name of the attribute to set on the queue limits object
v04	the value of the attribute to set on the queue limits object
n05	the name of the attribute to set on the queue limits object
v05	the value of the attribute to set on the queue limits object
n06	the name of the attribute to set on the queue limits object
v06	the value of the attribute to set on the queue limits object
n07	the name of the attribute to set on the queue limits object
v07	the value of the attribute to set on the queue limits object
n08	the name of the attribute to set on the queue limits object
v08	the value of the attribute to set on the queue limits object

Definition at line 346 of file traffic-control-helper.cc.

References m_queueLimitsFactory, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

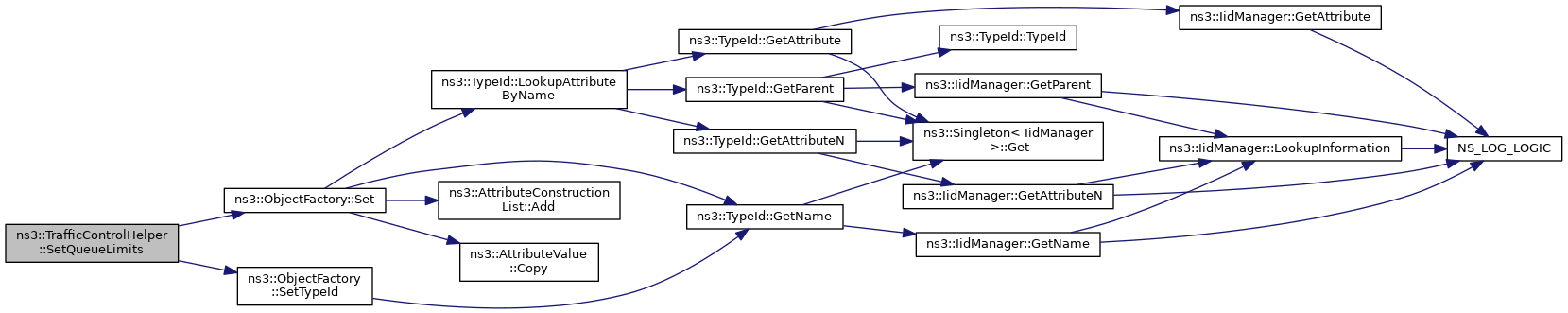

Here is the call graph for this function:

◆ SetRootQueueDisc()

uint16_t ns3::TrafficControlHelper::SetRootQueueDisc	(	std::string	type,
		std::string	n01 = `""`,
		const AttributeValue &	v01 = `EmptyAttributeValue ()`,
		std::string	n02 = `""`,
		const AttributeValue &	v02 = `EmptyAttributeValue ()`,
		std::string	n03 = `""`,
		const AttributeValue &	v03 = `EmptyAttributeValue ()`,
		std::string	n04 = `""`,
		const AttributeValue &	v04 = `EmptyAttributeValue ()`,
		std::string	n05 = `""`,
		const AttributeValue &	v05 = `EmptyAttributeValue ()`,
		std::string	n06 = `""`,
		const AttributeValue &	v06 = `EmptyAttributeValue ()`,
		std::string	n07 = `""`,
		const AttributeValue &	v07 = `EmptyAttributeValue ()`,
		std::string	n08 = `""`,
		const AttributeValue &	v08 = `EmptyAttributeValue ()`,
		std::string	n09 = `""`,
		const AttributeValue &	v09 = `EmptyAttributeValue ()`,
		std::string	n10 = `""`,
		const AttributeValue &	v10 = `EmptyAttributeValue ()`,
		std::string	n11 = `""`,
		const AttributeValue &	v11 = `EmptyAttributeValue ()`,
		std::string	n12 = `""`,
		const AttributeValue &	v12 = `EmptyAttributeValue ()`,
		std::string	n13 = `""`,
		const AttributeValue &	v13 = `EmptyAttributeValue ()`,
		std::string	n14 = `""`,
		const AttributeValue &	v14 = `EmptyAttributeValue ()`,
		std::string	n15 = `""`,
		const AttributeValue &	v15 = `EmptyAttributeValue ()`
	)

Helper function used to set a root queue disc of the given type and with the given attributes.

To set the InternalQueueList, PacketFilterList and ChildQueueDiscList attributes, use the AddInternalQueue, AddPacketFilter and AddChildQueueDisc methods.

Parameters

type	the type of queue disc
n01	the name of the attribute to set on the queue disc
v01	the value of the attribute to set on the queue disc
n02	the name of the attribute to set on the queue disc
v02	the value of the attribute to set on the queue disc
n03	the name of the attribute to set on the queue disc
v03	the value of the attribute to set on the queue disc
n04	the name of the attribute to set on the queue disc
v04	the value of the attribute to set on the queue disc
n05	the name of the attribute to set on the queue disc
v05	the value of the attribute to set on the queue disc
n06	the name of the attribute to set on the queue disc
v06	the value of the attribute to set on the queue disc
n07	the name of the attribute to set on the queue disc
v07	the value of the attribute to set on the queue disc
n08	the name of the attribute to set on the queue disc
v08	the value of the attribute to set on the queue disc
n09	the name of the attribute to set on the queue disc
v09	the value of the attribute to set on the queue disc
n10	the name of the attribute to set on the queue disc
v10	the value of the attribute to set on the queue disc
n11	the name of the attribute to set on the queue disc
v11	the value of the attribute to set on the queue disc
n12	the name of the attribute to set on the queue disc
v12	the value of the attribute to set on the queue disc
n13	the name of the attribute to set on the queue disc
v13	the value of the attribute to set on the queue disc
n14	the name of the attribute to set on the queue disc
v14	the value of the attribute to set on the queue disc
n15	the name of the attribute to set on the queue disc
v15	the value of the attribute to set on the queue disc

Returns: the handle of the root queue disc (zero)

Definition at line 131 of file traffic-control-helper.cc.

References m_queueDiscFactory, NS_ABORT_MSG_UNLESS, and ns3::ObjectFactory::SetTypeId().

Referenced by Default(), WifiAcMappingTest::DoRun(), Ns3TcpStateTestCase::DoRun(), and experiment().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Uninstall() [1/2]

void ns3::TrafficControlHelper::Uninstall ( NetDeviceContainer c )

Parameters

c	set of devices

This method removes the root queue discs (and associated filters, classes and queues) installed on the given devices.

Definition at line 444 of file traffic-control-helper.cc.

References ns3::NetDeviceContainer::Begin(), and ns3::NetDeviceContainer::End().

Referenced by Ns3TcpCwndTestCase2::DoRun().

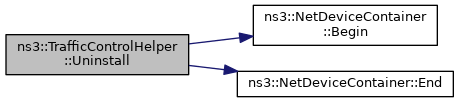

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Uninstall() [2/2]

void ns3::TrafficControlHelper::Uninstall ( Ptr< NetDevice > d )

Parameters

d device

This method removes the root queue disc (and associated filters, classes and queues) installed on the given device.

Definition at line 426 of file traffic-control-helper.cc.

References NS_ASSERT.

Member Data Documentation

◆ m_queueDiscFactory

std::vector<QueueDiscFactory> ns3::TrafficControlHelper::m_queueDiscFactory

private

QueueDisc factory, stores the configuration of all the queue discs.

Definition at line 496 of file traffic-control-helper.h.

Referenced by AddChildQueueDisc(), AddInternalQueues(), AddPacketFilter(), AddQueueDiscClasses(), Install(), and SetRootQueueDisc().

◆ m_queueDiscs

std::vector<Ptr<QueueDisc> > ns3::TrafficControlHelper::m_queueDiscs

private

Vector of all the created queue discs.

Definition at line 498 of file traffic-control-helper.h.

Referenced by Install().

◆ m_queueLimitsFactory

ObjectFactory ns3::TrafficControlHelper::m_queueLimitsFactory

private

Factory to create a queue limits object.

Definition at line 500 of file traffic-control-helper.h.

Referenced by Install(), and SetQueueLimits().

The documentation for this class was generated from the following files:

src/traffic-control/helper/traffic-control-helper.h
src/traffic-control/helper/traffic-control-helper.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ClassIdList

◆ HandleList

Constructor & Destructor Documentation

◆ TrafficControlHelper()

◆ ~TrafficControlHelper()

Member Function Documentation

◆ AddChildQueueDisc()

◆ AddChildQueueDiscs()

◆ AddInternalQueues()

◆ AddPacketFilter()

◆ AddQueueDiscClasses()

◆ Default()

◆ Install() [1/2]

◆ Install() [2/2]

◆ SetQueueLimits()

◆ SetRootQueueDisc()

◆ Uninstall() [1/2]

◆ Uninstall() [2/2]

Member Data Documentation

◆ m_queueDiscFactory

◆ m_queueDiscs

◆ m_queueLimitsFactory
