Hold together all Wifi-related objects. More...

#include "wifi-net-device.h"

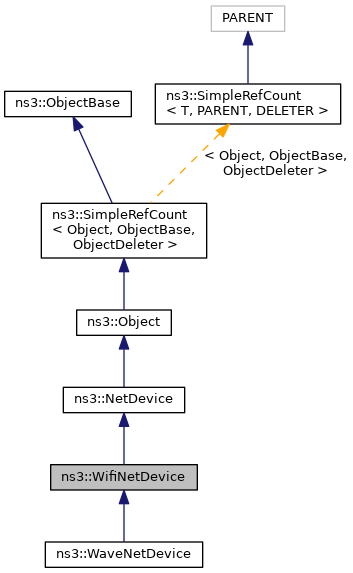

Inheritance diagram for ns3::WifiNetDevice:

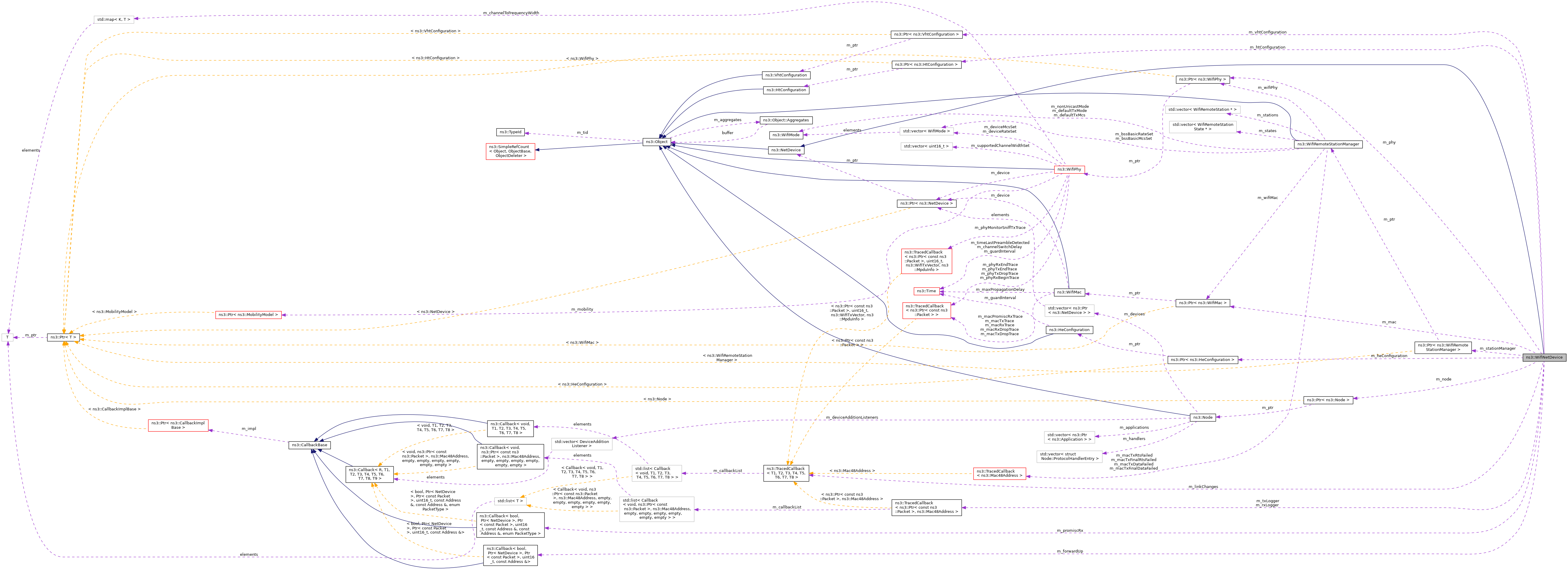

Collaboration diagram for ns3::WifiNetDevice:

Public Member Functions
	WifiNetDevice ()

virtual	~WifiNetDevice ()

void	AddLinkChangeCallback (Callback< void > callback)

Address	GetAddress (void) const

Address	GetBroadcast (void) const

Ptr< Channel >	GetChannel (void) const

Ptr< HeConfiguration >	GetHeConfiguration (void) const

Ptr< HtConfiguration >	GetHtConfiguration (void) const

uint32_t	GetIfIndex (void) const

Ptr< WifiMac >	GetMac (void) const

uint16_t	GetMtu (void) const

Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...

Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

Ptr< Node >	GetNode (void) const

Ptr< WifiPhy >	GetPhy (void) const

Ptr< WifiRemoteStationManager >	GetRemoteStationManager (void) const

Ptr< VhtConfiguration >	GetVhtConfiguration (void) const

bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...

bool	IsBroadcast (void) const

bool	IsLinkUp (void) const

bool	IsMulticast (void) const

bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...

bool	NeedsArp (void) const

bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

void	SetAddress (Address address)
	Set the address of this interface. More...

void	SetHeConfiguration (Ptr< HeConfiguration > heConfiguration)

void	SetHtConfiguration (Ptr< HtConfiguration > htConfiguration)

void	SetIfIndex (const uint32_t index)

void	SetMac (const Ptr< WifiMac > mac)

bool	SetMtu (const uint16_t mtu)

void	SetNode (const Ptr< Node > node)

void	SetPhy (const Ptr< WifiPhy > phy)

void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

void	SetRemoteStationManager (const Ptr< WifiRemoteStationManager > manager)

void	SetVhtConfiguration (Ptr< VhtConfiguration > vhtConfiguration)

bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
void	DoDispose (void)
	Destructor implementation. More...

void	DoInitialize (void)
	Initialize() implementation. More...

void	ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
	Receive a packet from the lower layer and pass the packet up the stack. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
	WifiNetDevice (const WifiNetDevice &o)
	Copy constructor. More...

void	CompleteConfig (void)
	Complete the configuration of this Wi-Fi device by connecting all lower components (e.g. More...

void	LinkDown (void)
	Set that the link is down (i.e. More...

void	LinkUp (void)
	Set that the link is up. More...

WifiNetDevice &	operator= (const WifiNetDevice &o)
	Assignment operator. More...

Private Attributes
bool	m_configComplete
	configuration complete More...

NetDevice::ReceiveCallback	m_forwardUp
	forward up callback More...

Ptr< HeConfiguration >	m_heConfiguration
	the HeConfiguration More...

Ptr< HtConfiguration >	m_htConfiguration
	the HtConfiguration More...

uint32_t	m_ifIndex
	IF index. More...

TracedCallback	m_linkChanges
	link change callback More...

bool	m_linkUp
	link up More...

Ptr< WifiMac >	m_mac
	the MAC More...

uint16_t	m_mtu
	MTU. More...

Ptr< Node >	m_node
	the node More...

Ptr< WifiPhy >	m_phy
	the phy More...

NetDevice::PromiscReceiveCallback	m_promiscRx
	promiscious receive callback More...

TracedCallback< Ptr< const Packet >, Mac48Address >	m_rxLogger
	receive trace callback More...

Ptr< WifiRemoteStationManager >	m_stationManager
	the station manager More...

TracedCallback< Ptr< const Packet >, Mac48Address >	m_txLogger
	transmit trace callback More...

Ptr< VhtConfiguration >	m_vhtConfiguration
	the VhtConfiguration More...

Additional Inherited Members
Public Types inherited from ns3::NetDevice
typedef void(*	LinkChangeTracedCallback) (void)
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &>	ReceiveCallback

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Hold together all Wifi-related objects.

This class holds together ns3::Channel, ns3::WifiPhy, ns3::WifiMac, and, ns3::WifiRemoteStationManager.

Config Paths

ns3::WifiNetDevice is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice"

Attributes

Mtu: The MAC-level Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 1:2296
- Initial value: 2296
- Flags: construct write read
Channel: The channel attached to this device
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Channel>
- Flags: read
Phy: The PHY layer attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiPhy>
- Initial value: 0
- Flags: construct write read
Mac: The MAC layer attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiMac>
- Initial value: 0
- Flags: construct write read
RemoteStationManager: The station manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiRemoteStationManager>
- Initial value: 0
- Flags: construct write read
HtConfiguration: The HtConfiguration object.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::HtConfiguration>
- Flags: read
VhtConfiguration: The VhtConfiguration object.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::VhtConfiguration>
- Flags: read
HeConfiguration: The HeConfiguration object.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::HeConfiguration>
- Flags: read

No TraceSources are defined for this type.
Size of this type is 168 bytes (on a 64-bit architecture).

Definition at line 53 of file wifi-net-device.h.

Constructor & Destructor Documentation

◆ WifiNetDevice() [1/2]

ns3::WifiNetDevice::WifiNetDevice ( )

Definition at line 90 of file wifi-net-device.cc.

References NS_LOG_FUNCTION_NOARGS.

◆ ~WifiNetDevice()

ns3::WifiNetDevice::~WifiNetDevice ( )

virtual

Definition at line 96 of file wifi-net-device.cc.

References NS_LOG_FUNCTION_NOARGS.

◆ WifiNetDevice() [2/2]

ns3::WifiNetDevice::WifiNetDevice ( const WifiNetDevice & o )

private

Copy constructor.

Parameters

o	object to copy

Defined and unimplemented to avoid misuse

Member Function Documentation

◆ AddLinkChangeCallback()

void ns3::WifiNetDevice::AddLinkChangeCallback ( Callback< void > callback )

virtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 263 of file wifi-net-device.cc.

References ns3::TracedCallback< T1, T2, T3, T4, T5, T6, T7, T8 >::ConnectWithoutContext(), and m_linkChanges.

Here is the call graph for this function:

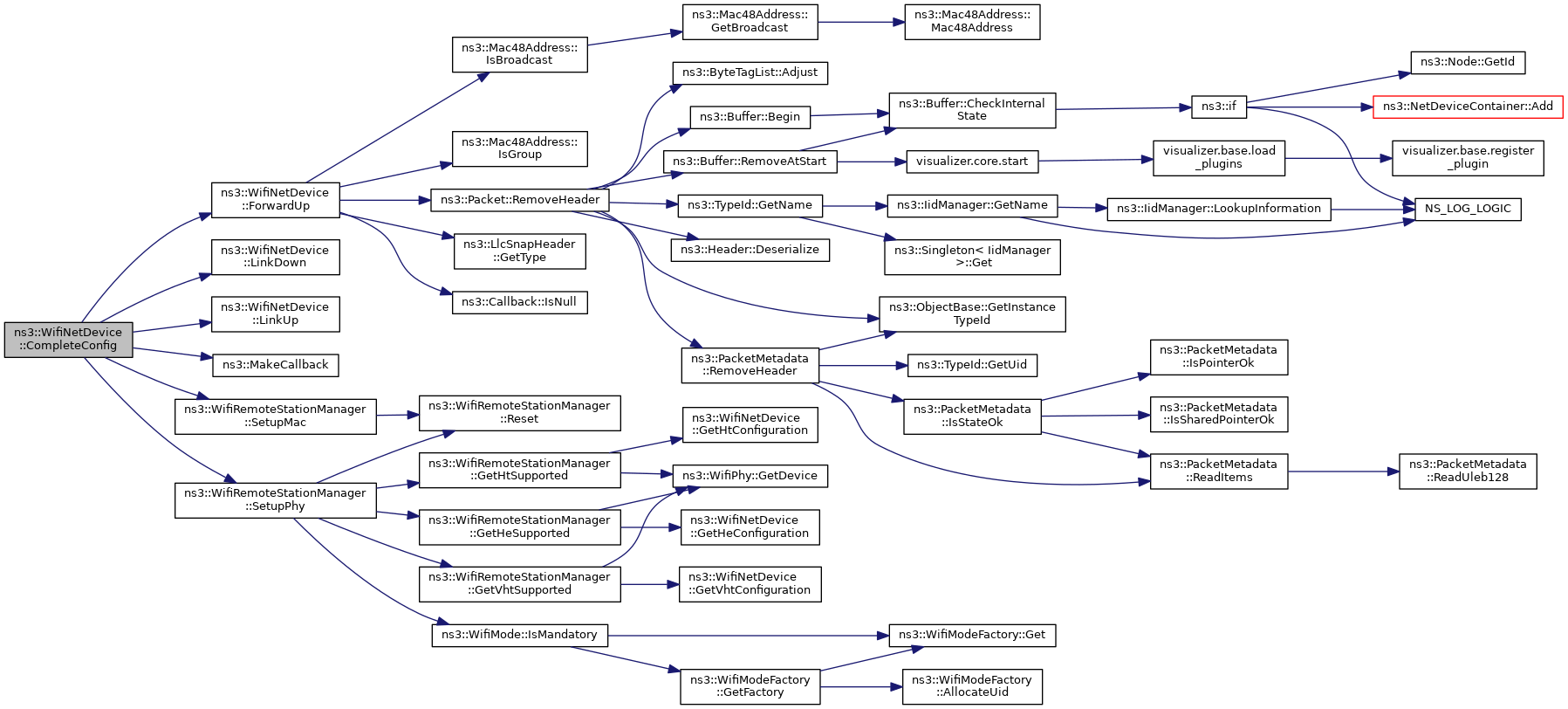

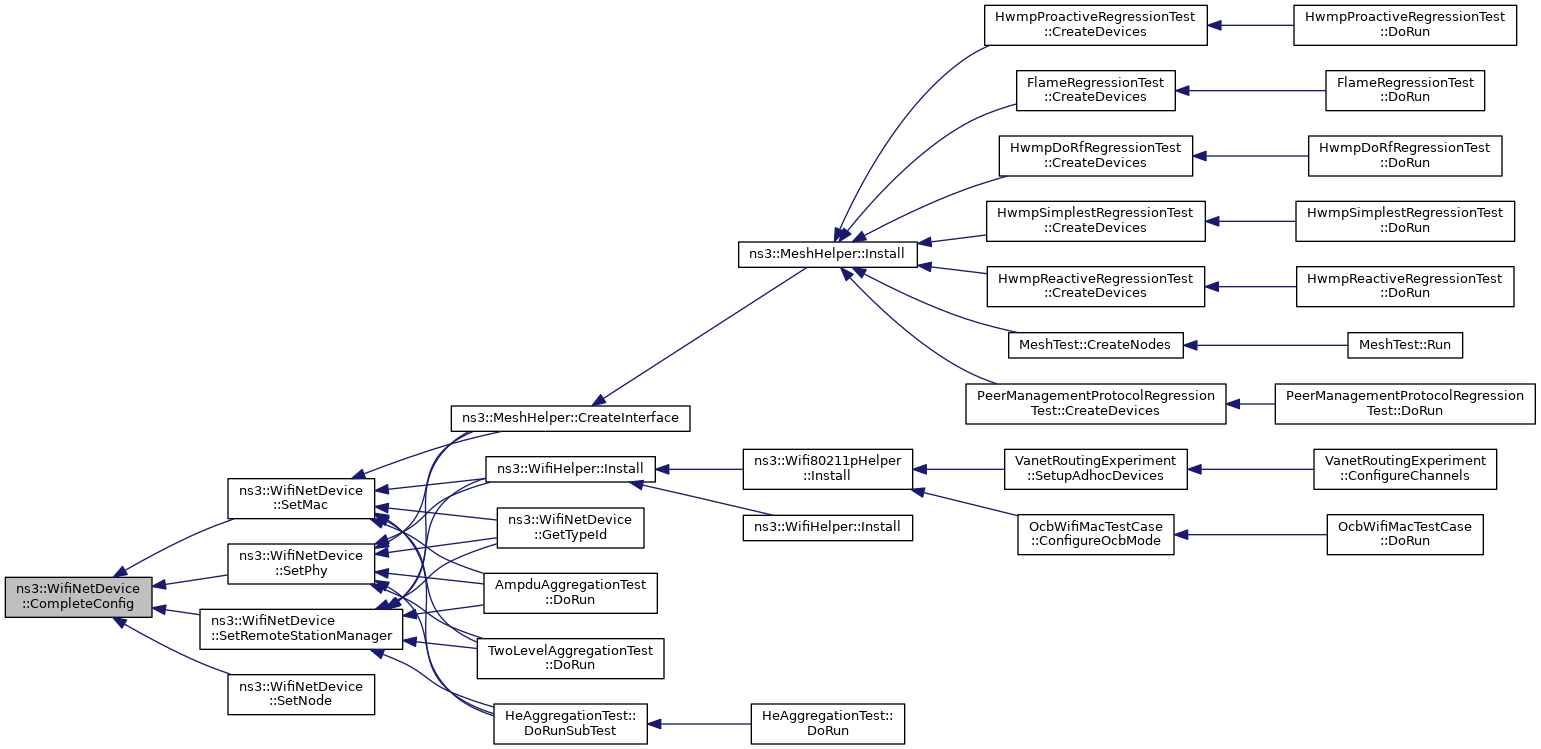

◆ CompleteConfig()

void ns3::WifiNetDevice::CompleteConfig ( void )

private

Complete the configuration of this Wi-Fi device by connecting all lower components (e.g.

MAC, WifiRemoteStation) together.

Definition at line 150 of file wifi-net-device.cc.

References ForwardUp(), LinkDown(), LinkUp(), m_configComplete, m_mac, m_node, m_phy, m_stationManager, ns3::MakeCallback(), ns3::WifiRemoteStationManager::SetupMac(), and ns3::WifiRemoteStationManager::SetupPhy().

Referenced by SetMac(), SetNode(), SetPhy(), and SetRemoteStationManager().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::WifiNetDevice::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 102 of file wifi-net-device.cc.

References ns3::Object::Dispose(), ns3::Object::DoDispose(), m_heConfiguration, m_htConfiguration, m_mac, m_node, m_phy, m_stationManager, m_vhtConfiguration, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

◆ DoInitialize()

void ns3::WifiNetDevice::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 140 of file wifi-net-device.cc.

References ns3::Object::DoInitialize(), ns3::Object::Initialize(), m_mac, m_phy, m_stationManager, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

◆ ForwardUp()

void ns3::WifiNetDevice::ForwardUp	(	Ptr< Packet >	packet,
		Mac48Address	from,
		Mac48Address	to
	)

protected

Receive a packet from the lower layer and pass the packet up the stack.

Parameters

packet
from
to

Definition at line 352 of file wifi-net-device.cc.

References ns3::LlcSnapHeader::GetType(), ns3::Mac48Address::IsBroadcast(), ns3::Mac48Address::IsGroup(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_forwardUp, m_mac, m_promiscRx, NS_LOG_FUNCTION, ns3::NetDevice::PACKET_BROADCAST, ns3::NetDevice::PACKET_HOST, ns3::NetDevice::PACKET_MULTICAST, ns3::NetDevice::PACKET_OTHERHOST, and ns3::Packet::RemoveHeader().

Referenced by CompleteConfig().

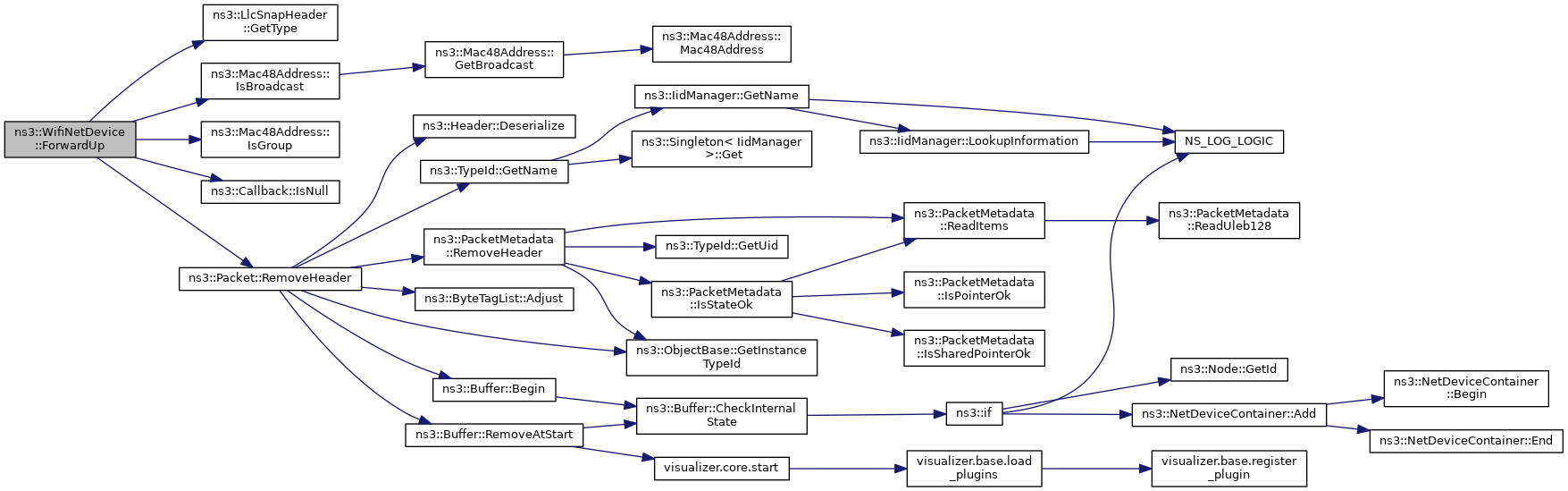

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAddress()

Address ns3::WifiNetDevice::GetAddress ( void ) const

virtual

Returns: the current Address of this interface.

Implements ns3::NetDevice.

Definition at line 234 of file wifi-net-device.cc.

References m_mac.

Referenced by BlockAckAggregationDisabledTest::DoRun(), Bug730TestCase::DoRun(), QosFragmentationTestCase::DoRun(), OcbWifiMacTestCase::PostDeviceConfiguration(), and TestInterBssConstantObssPdAlgo::SendOnePacket().

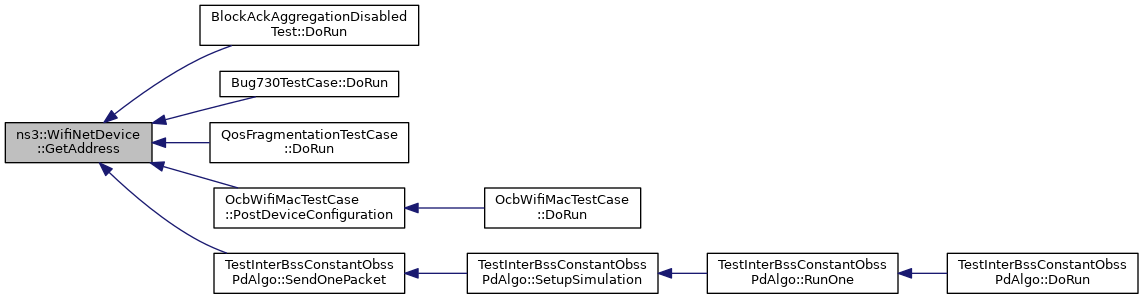

Here is the caller graph for this function:

◆ GetBroadcast()

Address ns3::WifiNetDevice::GetBroadcast ( void ) const

virtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 275 of file wifi-net-device.cc.

References ns3::Mac48Address::GetBroadcast().

Referenced by WifiTest::SendOnePacket(), InterferenceHelperSequenceTest::SendOnePacket(), and DcfImmediateAccessBroadcastTestCase::SendOnePacket().

Here is the call graph for this function:

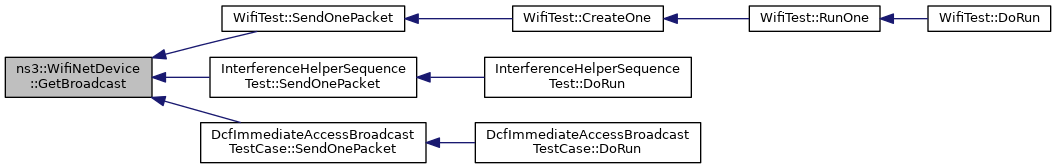

Here is the caller graph for this function:

◆ GetChannel()

Ptr< Channel > ns3::WifiNetDevice::GetChannel ( void ) const

virtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 222 of file wifi-net-device.cc.

References ns3::WifiPhy::GetChannel(), and m_phy.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHeConfiguration()

Ptr< HeConfiguration > ns3::WifiNetDevice::GetHeConfiguration ( void ) const

Returns: pointer to HeConfiguration if it exists

Definition at line 470 of file wifi-net-device.cc.

References m_heConfiguration.

Referenced by ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiRemoteStationManager::GetDataTxVector(), ns3::WifiRemoteStationManager::GetGuardInterval(), ns3::WifiPhy::GetGuardInterval(), ns3::WifiMac::GetHeConfiguration(), ns3::WifiRemoteStationManager::GetHeSupported(), GetTypeId(), ns3::ConstantObssPdAlgorithm::ReceiveHeSig(), ns3::ObssPdAlgorithm::ResetPhy(), TestInterBssConstantObssPdAlgo::RunOne(), and ns3::WifiPhy::SetGuardInterval().

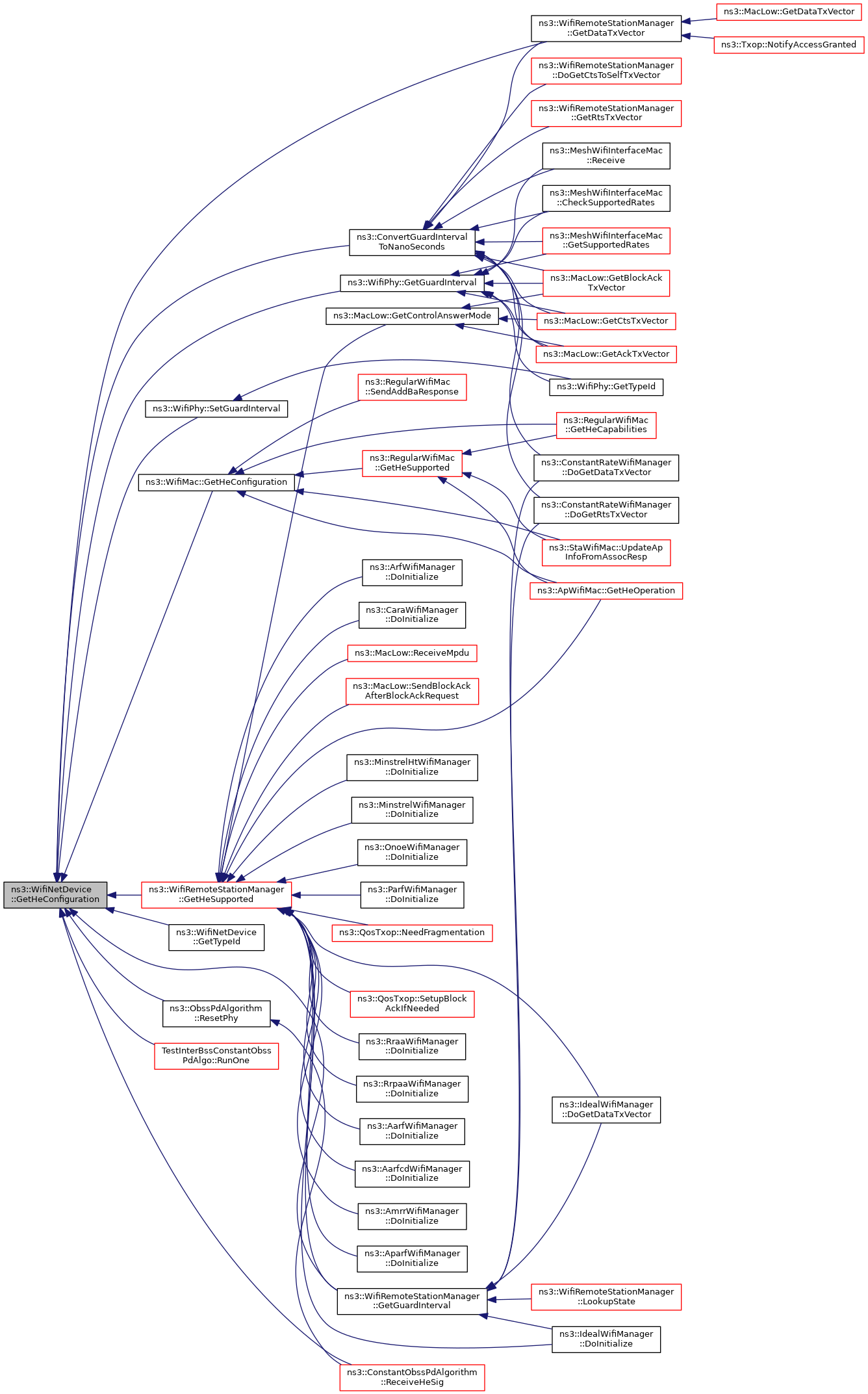

Here is the caller graph for this function:

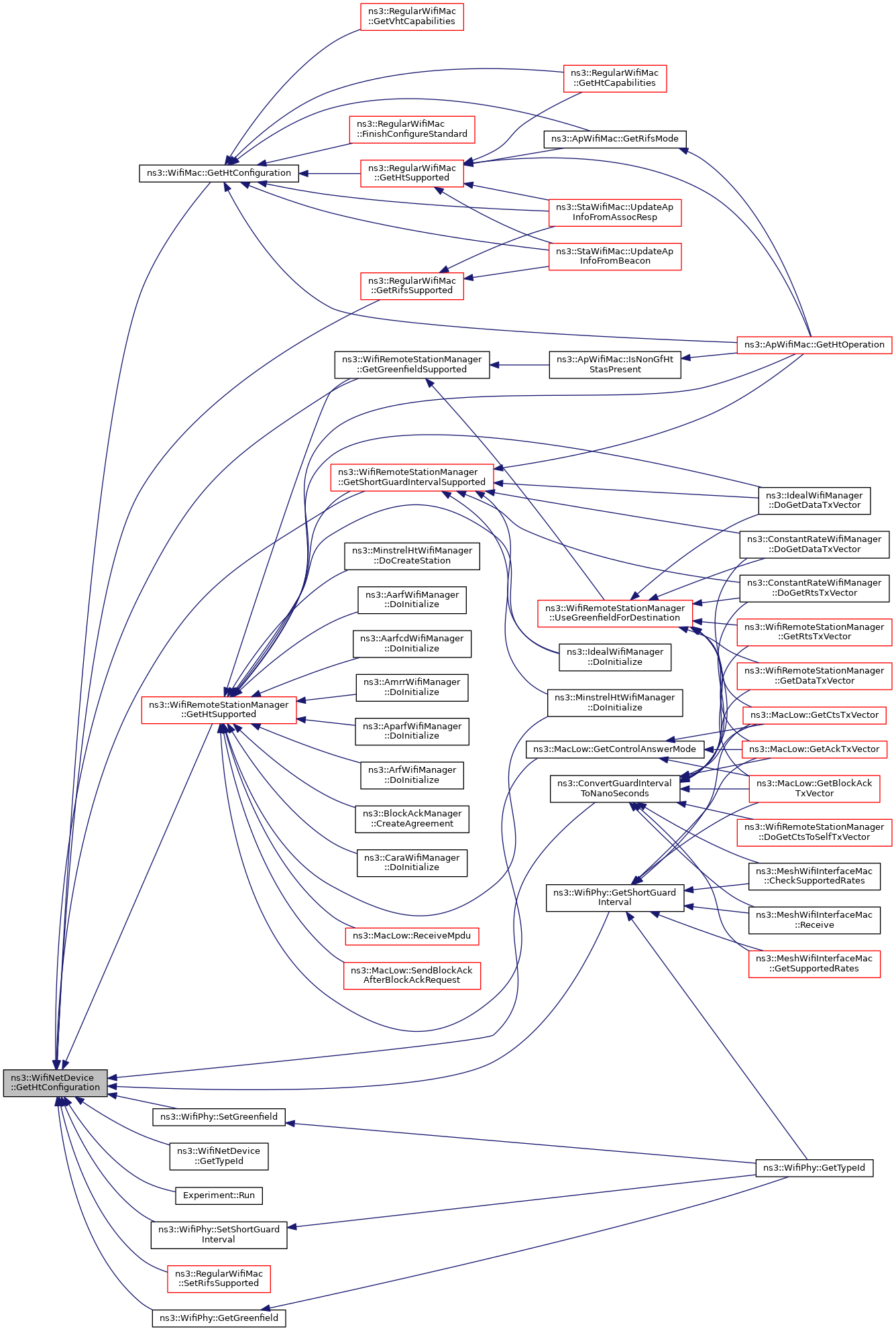

◆ GetHtConfiguration()

Ptr< HtConfiguration > ns3::WifiNetDevice::GetHtConfiguration ( void ) const

Returns: pointer to HtConfiguration if it exists

Definition at line 446 of file wifi-net-device.cc.

References m_htConfiguration.

Referenced by ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiPhy::GetGreenfield(), ns3::WifiRemoteStationManager::GetGreenfieldSupported(), ns3::WifiMac::GetHtConfiguration(), ns3::WifiRemoteStationManager::GetHtSupported(), ns3::RegularWifiMac::GetRifsSupported(), ns3::WifiPhy::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetShortGuardIntervalSupported(), GetTypeId(), Experiment::Run(), ns3::WifiPhy::SetGreenfield(), ns3::RegularWifiMac::SetRifsSupported(), and ns3::WifiPhy::SetShortGuardInterval().

Here is the caller graph for this function:

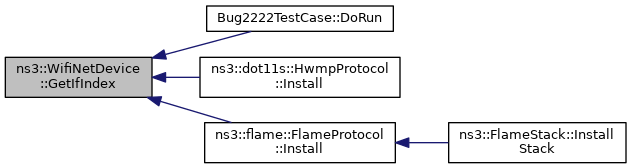

◆ GetIfIndex()

uint32_t ns3::WifiNetDevice::GetIfIndex ( void ) const

virtual

Returns: index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 216 of file wifi-net-device.cc.

References m_ifIndex.

Referenced by Bug2222TestCase::DoRun(), ns3::dot11s::HwmpProtocol::Install(), and ns3::flame::FlameProtocol::Install().

Here is the caller graph for this function:

◆ GetMac()

Ptr< WifiMac > ns3::WifiNetDevice::GetMac ( void ) const

Returns: the mac we are currently using.

Definition at line 192 of file wifi-net-device.cc.

References m_mac.

Referenced by ns3::MeshPointDevice::AddInterface(), ns3::WaveNetDevice::CancelTx(), BlockAckAggregationDisabledTest::DoRun(), ns3::WaveNetDevice::ForwardUp(), ns3::AnimationInterface::GenericWirelessTxTrace(), ns3::WaveNetDevice::GetAddress(), ns3::MpduAggregator::GetMaxAmpduSize(), ns3::MsduAggregator::GetMaxAmsduSize(), GetTypeId(), ns3::dot11s::PeerManagementProtocol::Install(), ns3::dot11s::HwmpProtocol::Install(), ns3::flame::FlameProtocol::Install(), NodeStatistics::NodeStatistics(), OcbWifiMacTestCase::PostDeviceConfiguration(), ns3::ConstantObssPdAlgorithm::ReceiveHeSig(), ns3::Dot11sStack::Report(), ns3::Dot11sStack::ResetStats(), Experiment::Run(), ns3::WaveNetDevice::Send(), ns3::WaveNetDevice::SendX(), ns3::WaveNetDevice::SupportsSendFrom(), and StaWifiMacScanningTestCase::TurnBeaconGenerationOn().

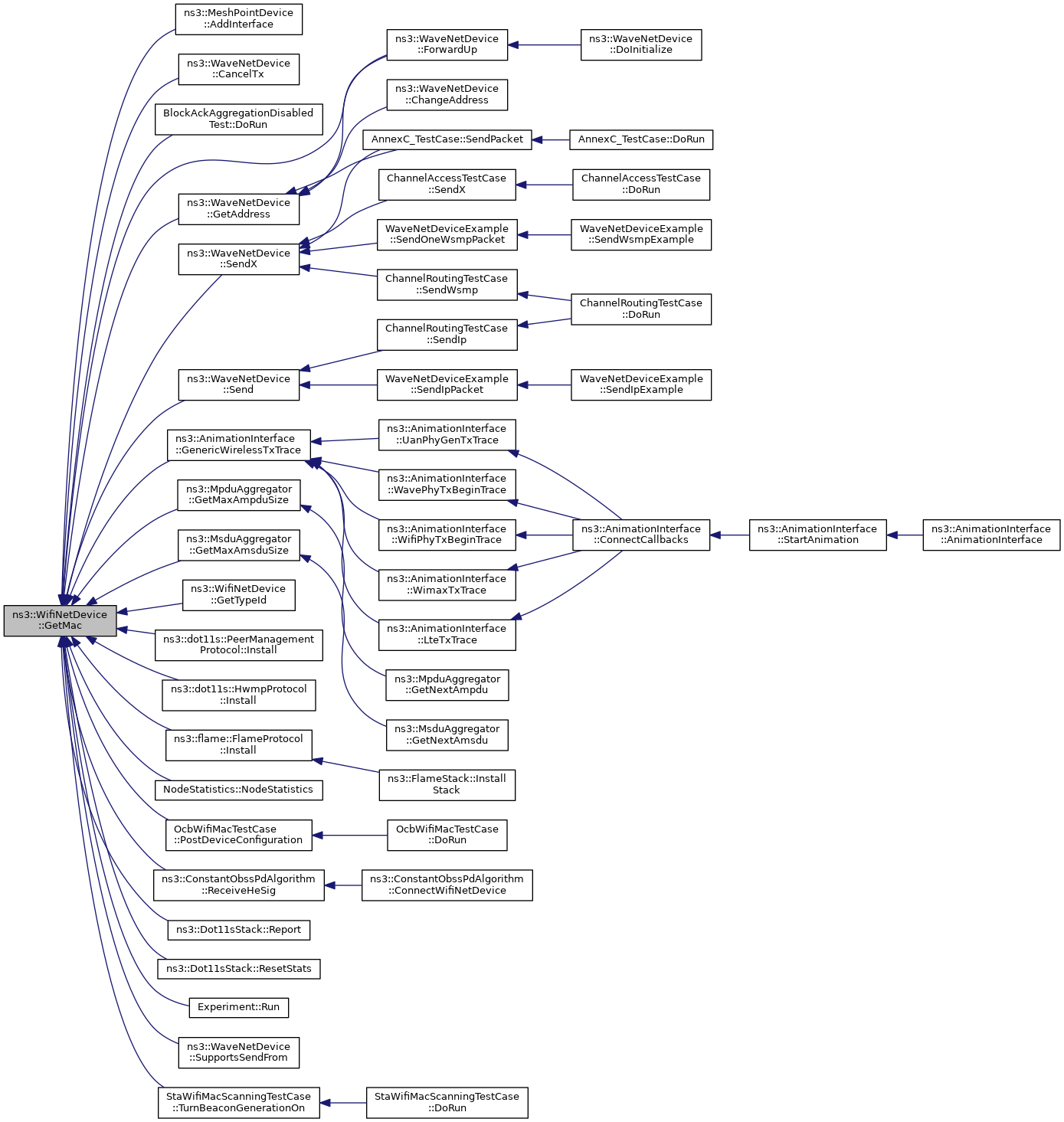

Here is the caller graph for this function:

◆ GetMtu()

uint16_t ns3::WifiNetDevice::GetMtu ( void ) const

virtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 251 of file wifi-net-device.cc.

References m_mtu.

Referenced by GetTypeId().

Here is the caller graph for this function:

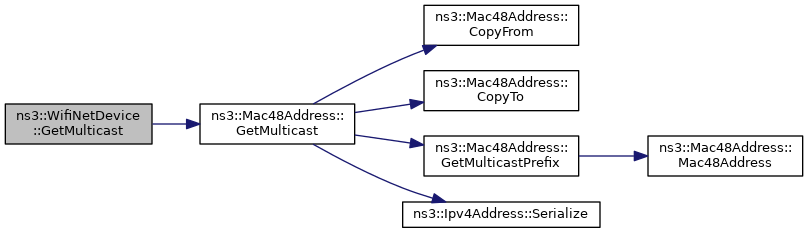

◆ GetMulticast() [1/2]

Address ns3::WifiNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

virtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See also: IsMulticast()

Implements ns3::NetDevice.

Definition at line 287 of file wifi-net-device.cc.

References ns3::Mac48Address::GetMulticast().

Here is the call graph for this function:

◆ GetMulticast() [2/2]

Address ns3::WifiNetDevice::GetMulticast ( Ipv6Address addr ) const

virtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 292 of file wifi-net-device.cc.

References ns3::Mac48Address::GetMulticast().

Here is the call graph for this function:

◆ GetNode()

Ptr< Node > ns3::WifiNetDevice::GetNode ( void ) const

virtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 327 of file wifi-net-device.cc.

References m_node.

Referenced by ns3::AnimationInterface::GenericWirelessTxTrace().

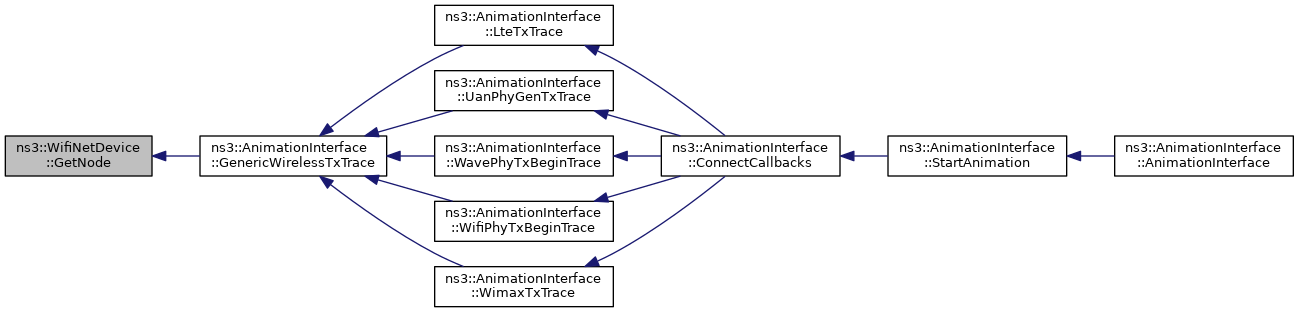

Here is the caller graph for this function:

◆ GetPhy()

Ptr< WifiPhy > ns3::WifiNetDevice::GetPhy ( void ) const

Returns: the phy we are currently using.

Definition at line 198 of file wifi-net-device.cc.

References m_phy.

Referenced by TestInterBssConstantObssPdAlgo::CheckPhyState(), ns3::ConstantObssPdAlgorithm::ConnectWifiNetDevice(), ns3::WifiRadioEnergyModelHelper::DoInstall(), ns3::WifiPhyHelper::EnablePcapInternal(), ns3::WaveNetDevice::GetChannel(), GetTypeId(), GetYansWifiPhyPtr(), SetChannelFrequencyTest::GetYansWifiPhyPtr(), NodeStatistics::NodeStatistics(), ns3::ObssPdAlgorithm::ResetPhy(), InterferenceHelperSequenceTest::SwitchCh(), and StaWifiMacScanningTestCase::TurnApOff().

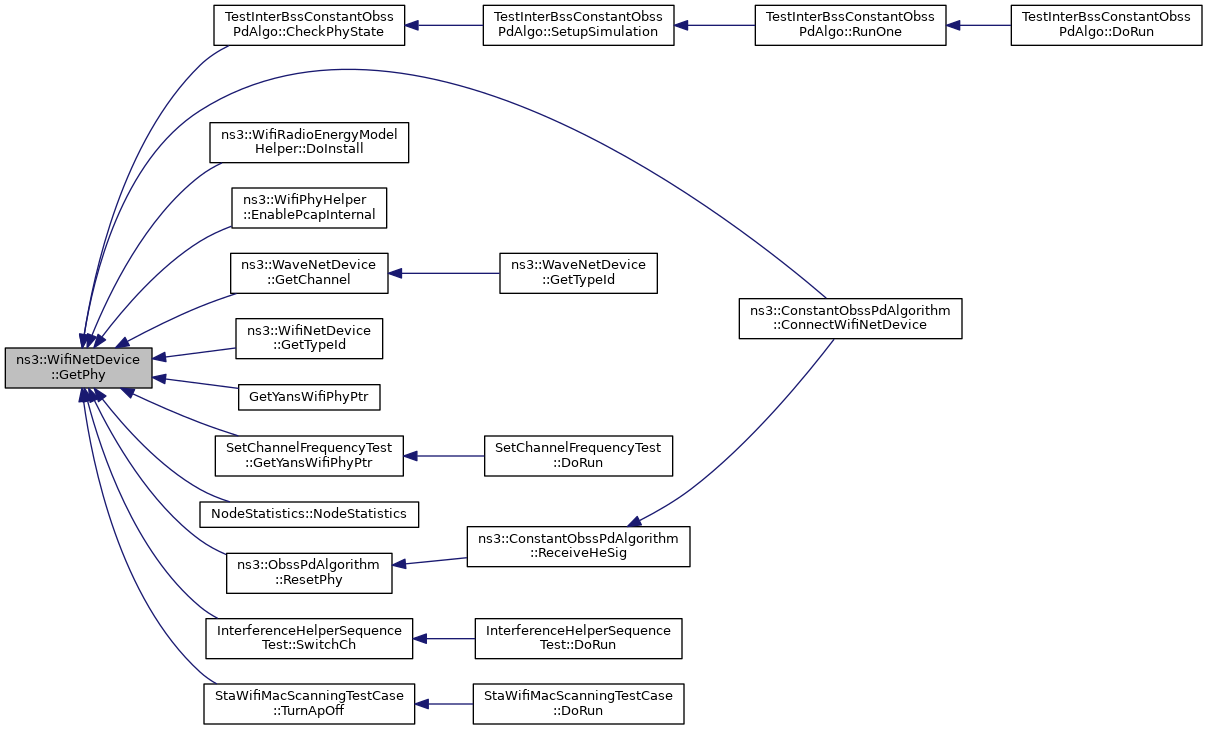

Here is the caller graph for this function:

◆ GetRemoteStationManager()

Ptr< WifiRemoteStationManager > ns3::WifiNetDevice::GetRemoteStationManager ( void ) const

Returns: the remote station manager we are currently using.

Definition at line 204 of file wifi-net-device.cc.

References m_stationManager.

Referenced by ns3::MpduAggregator::GetMaxAmpduSize(), ns3::MsduAggregator::GetMaxAmsduSize(), GetTypeId(), PowerRateAdaptationTest::TestAparf(), PowerRateAdaptationTest::TestParf(), and PowerRateAdaptationTest::TestRrpaa().

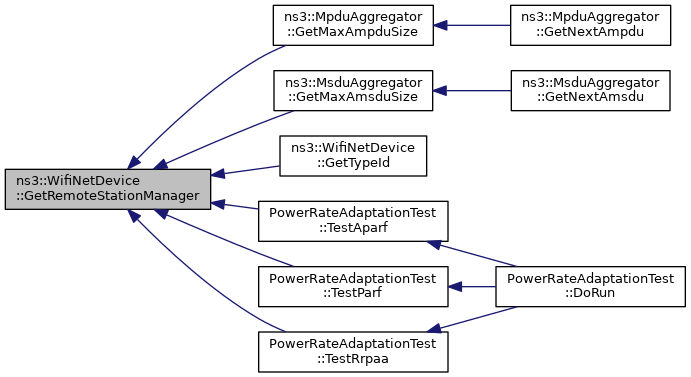

Here is the caller graph for this function:

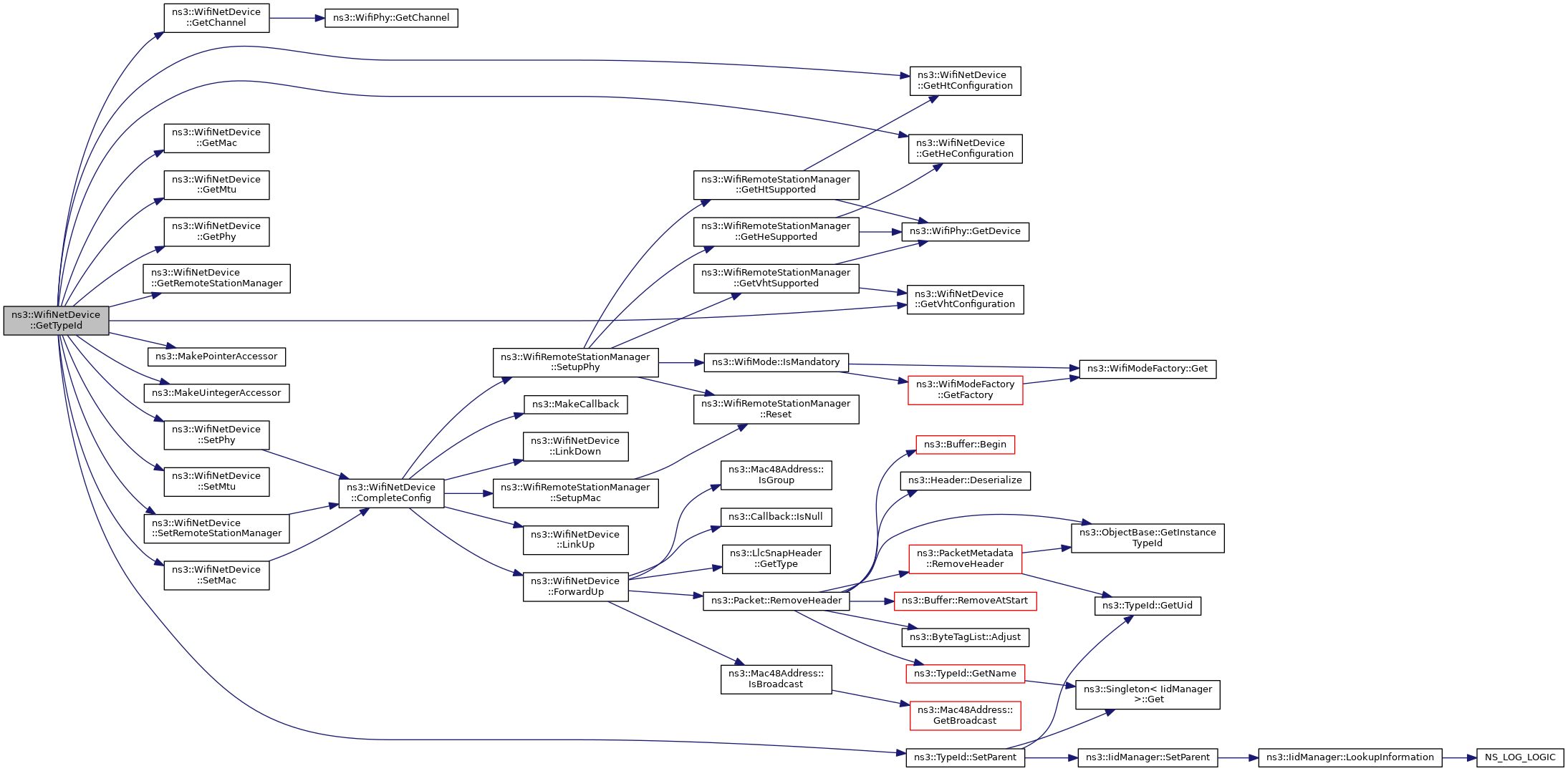

◆ GetTypeId()

TypeId ns3::WifiNetDevice::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 41 of file wifi-net-device.cc.

References GetChannel(), GetHeConfiguration(), GetHtConfiguration(), GetMac(), GetMtu(), GetPhy(), GetRemoteStationManager(), GetVhtConfiguration(), ns3::LLC_SNAP_HEADER_LENGTH, ns3::MakePointerAccessor(), ns3::MakeUintegerAccessor(), ns3::MAX_MSDU_SIZE, SetMac(), SetMtu(), ns3::TypeId::SetParent(), SetPhy(), and SetRemoteStationManager().

Here is the call graph for this function:

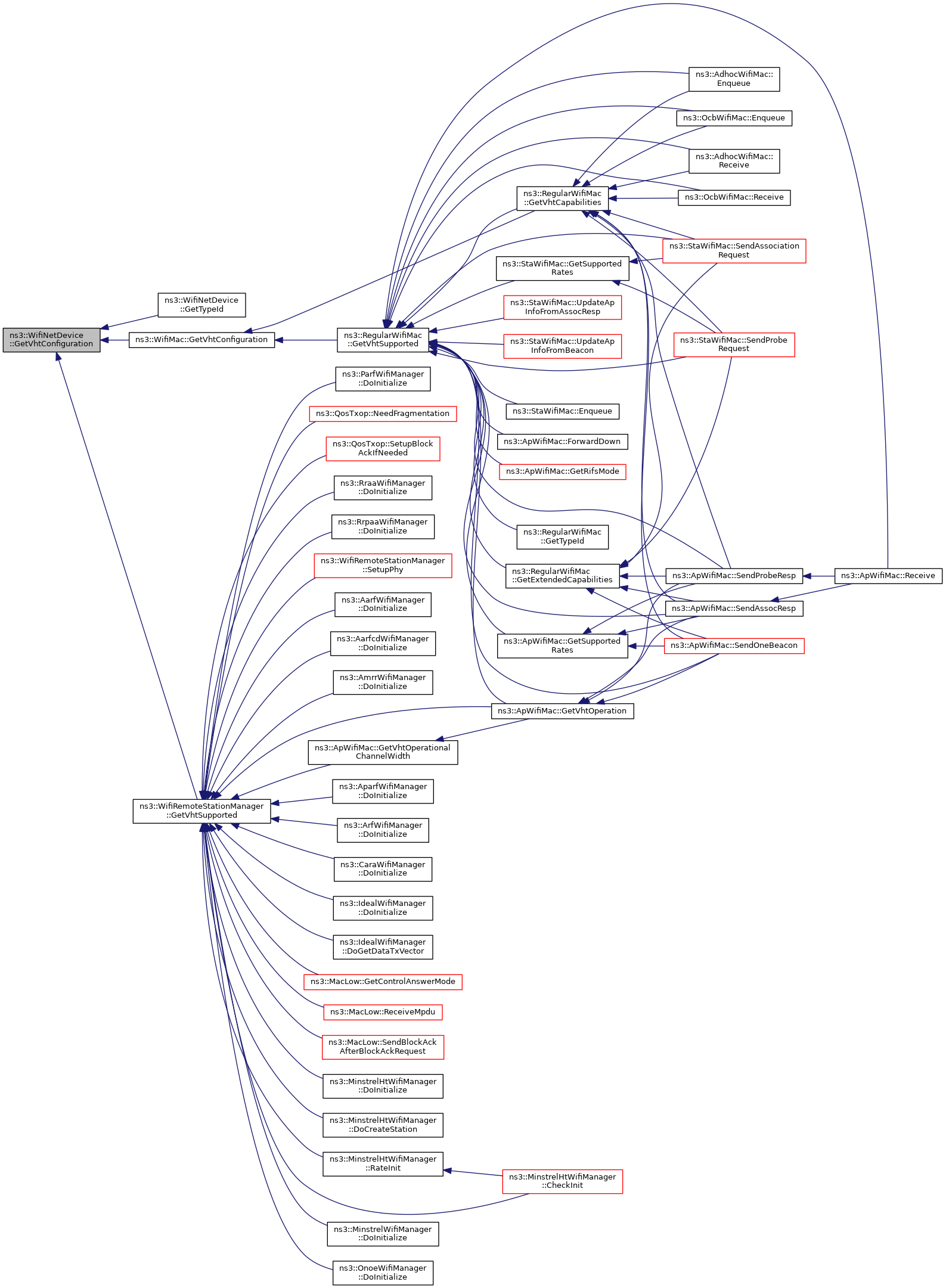

◆ GetVhtConfiguration()

Ptr< VhtConfiguration > ns3::WifiNetDevice::GetVhtConfiguration ( void ) const

Returns: pointer to VhtConfiguration if it exists

Definition at line 458 of file wifi-net-device.cc.

References m_vhtConfiguration.

Referenced by GetTypeId(), ns3::WifiMac::GetVhtConfiguration(), and ns3::WifiRemoteStationManager::GetVhtSupported().

Here is the caller graph for this function:

◆ IsBridge()

bool ns3::WifiNetDevice::IsBridge ( void ) const

virtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 304 of file wifi-net-device.cc.

◆ IsBroadcast()

bool ns3::WifiNetDevice::IsBroadcast ( void ) const

virtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 269 of file wifi-net-device.cc.

◆ IsLinkUp()

bool ns3::WifiNetDevice::IsLinkUp ( void ) const

virtual

Returns: true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 257 of file wifi-net-device.cc.

References m_linkUp, and m_phy.

◆ IsMulticast()

bool ns3::WifiNetDevice::IsMulticast ( void ) const

virtual

Returns: value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 281 of file wifi-net-device.cc.

◆ IsPointToPoint()

bool ns3::WifiNetDevice::IsPointToPoint ( void ) const

virtual

Return true if the net device is on a point-to-point link.

Returns: value of m_isPointToPoint flag

Implements ns3::NetDevice.

Definition at line 298 of file wifi-net-device.cc.

◆ LinkDown()

void ns3::WifiNetDevice::LinkDown ( void )

private

Set that the link is down (i.e.

STA is not associated).

Definition at line 400 of file wifi-net-device.cc.

References m_linkChanges, and m_linkUp.

Referenced by CompleteConfig().

Here is the caller graph for this function:

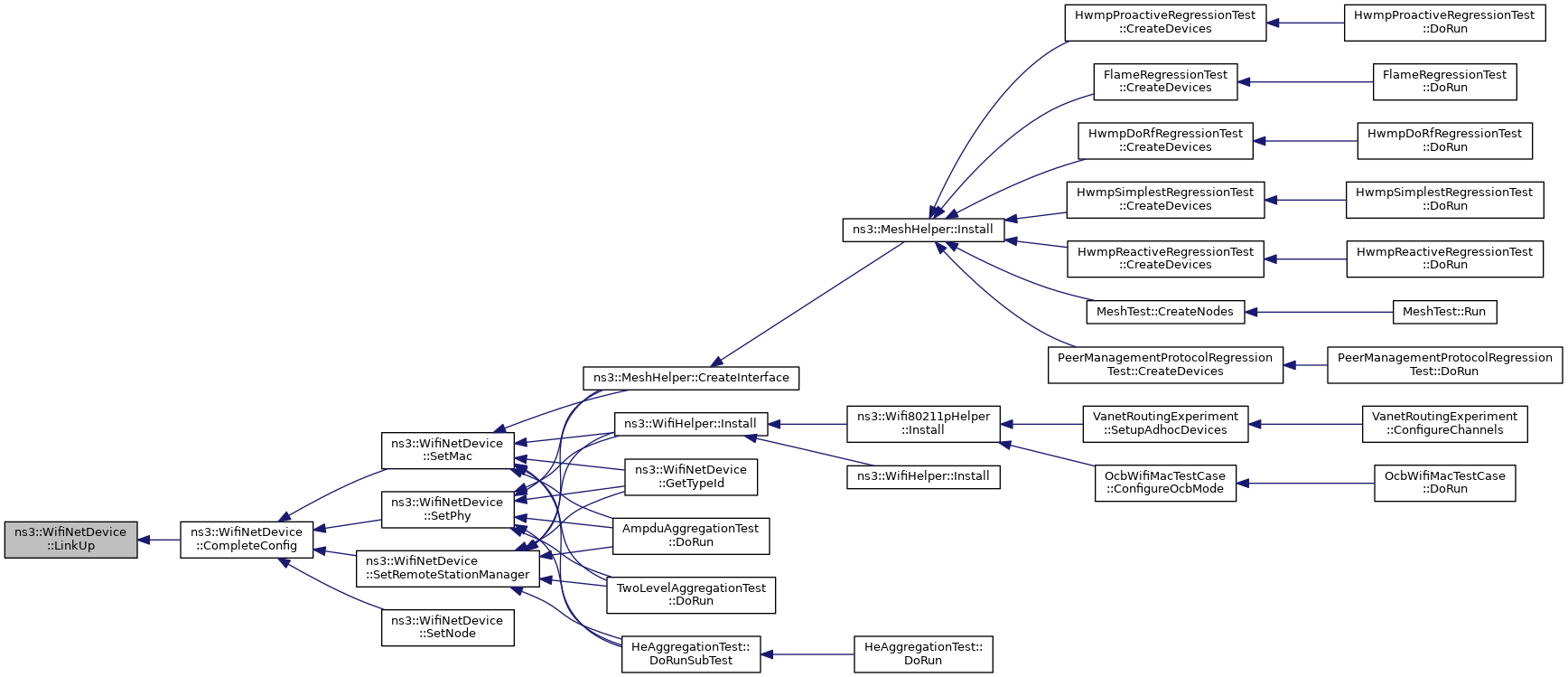

◆ LinkUp()

void ns3::WifiNetDevice::LinkUp ( void )

private

Set that the link is up.

A link is always up in ad-hoc mode. For a STA, a link is up when the STA is associated with an AP.

Definition at line 393 of file wifi-net-device.cc.

References m_linkChanges, and m_linkUp.

Referenced by CompleteConfig().

Here is the caller graph for this function:

◆ NeedsArp()

bool ns3::WifiNetDevice::NeedsArp ( void ) const

virtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 340 of file wifi-net-device.cc.

◆ operator=()

WifiNetDevice& ns3::WifiNetDevice::operator= ( const WifiNetDevice & o )

private

Assignment operator.

Parameters

o	object to copy

Returns: the copied object

Defined and unimplemented to avoid misuse

◆ Send()

bool ns3::WifiNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 310 of file wifi-net-device.cc.

References ns3::Packet::AddHeader(), ns3::Mac48Address::ConvertFrom(), ns3::Mac48Address::IsMatchingType(), m_mac, NS_ASSERT, NS_LOG_FUNCTION, and ns3::LlcSnapHeader::SetType().

Referenced by TestInterBssConstantObssPdAlgo::SendOnePacket(), WifiTest::SendOnePacket(), InterferenceHelperSequenceTest::SendOnePacket(), DcfImmediateAccessBroadcastTestCase::SendOnePacket(), PowerRateAdaptationTest::TestAparf(), PowerRateAdaptationTest::TestParf(), and PowerRateAdaptationTest::TestRrpaa().

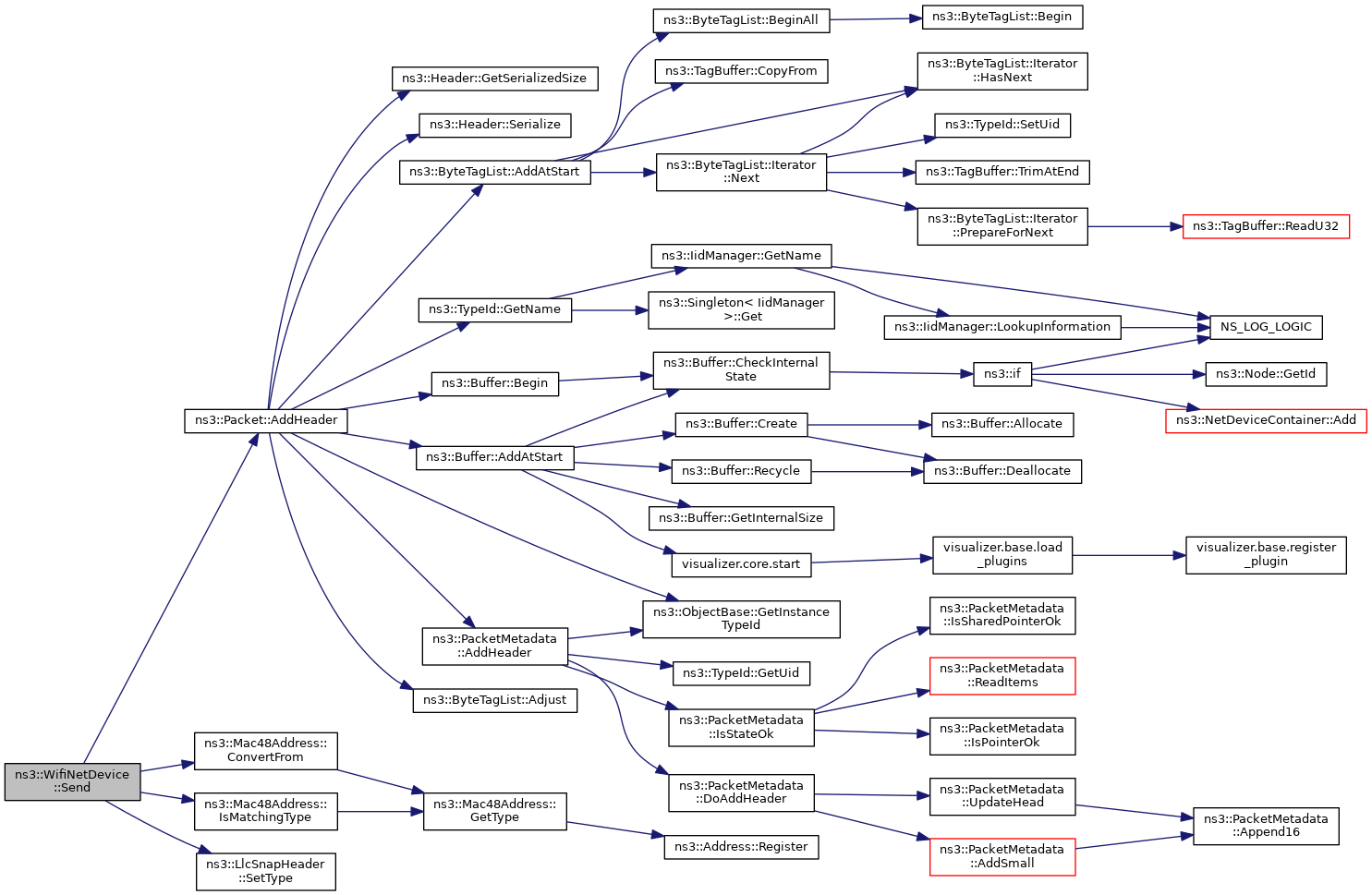

Here is the call graph for this function:

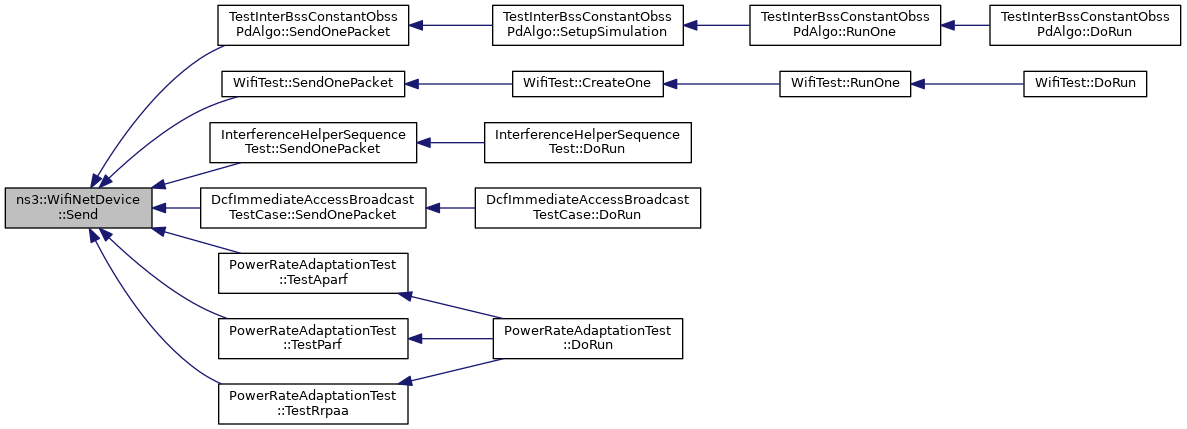

Here is the caller graph for this function:

◆ SendFrom()

bool ns3::WifiNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 407 of file wifi-net-device.cc.

References ns3::Packet::AddHeader(), ns3::Mac48Address::ConvertFrom(), ns3::Mac48Address::IsMatchingType(), m_mac, NS_ASSERT, NS_LOG_FUNCTION, and ns3::LlcSnapHeader::SetType().

Here is the call graph for this function:

◆ SetAddress()

void ns3::WifiNetDevice::SetAddress ( Address address )

virtual

Set the address of this interface.

Parameters

address address to set

Implements ns3::NetDevice.

Definition at line 228 of file wifi-net-device.cc.

References first::address, ns3::Mac48Address::ConvertFrom(), and m_mac.

Here is the call graph for this function:

◆ SetHeConfiguration()

void ns3::WifiNetDevice::SetHeConfiguration ( Ptr< HeConfiguration > heConfiguration )

Parameters

heConfiguration pointer to HeConfiguration

Definition at line 464 of file wifi-net-device.cc.

References m_heConfiguration.

Referenced by HeAggregationTest::DoRunSubTest(), and ns3::WifiHelper::Install().

Here is the caller graph for this function:

◆ SetHtConfiguration()

void ns3::WifiNetDevice::SetHtConfiguration ( Ptr< HtConfiguration > htConfiguration )

Parameters

htConfiguration pointer to HtConfiguration

Definition at line 440 of file wifi-net-device.cc.

References m_htConfiguration.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), and ns3::WifiHelper::Install().

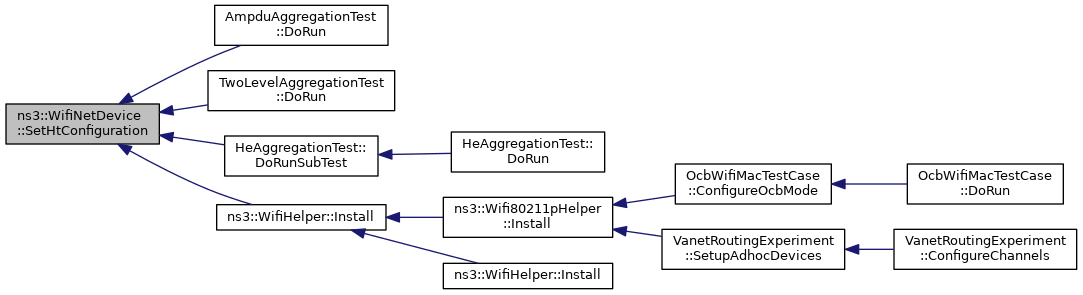

Here is the caller graph for this function:

◆ SetIfIndex()

void ns3::WifiNetDevice::SetIfIndex ( const uint32_t index )

virtual

Parameters

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 210 of file wifi-net-device.cc.

References m_ifIndex.

◆ SetMac()

void ns3::WifiNetDevice::SetMac ( const Ptr< WifiMac > mac )

Parameters

mac	the mac layer to use.

Definition at line 171 of file wifi-net-device.cc.

References CompleteConfig(), m_mac, and third::mac.

Referenced by ns3::MeshHelper::CreateInterface(), AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), GetTypeId(), and ns3::WifiHelper::Install().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetMtu()

bool ns3::WifiNetDevice::SetMtu ( const uint16_t mtu )

virtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 240 of file wifi-net-device.cc.

References ns3::LLC_SNAP_HEADER_LENGTH, m_mtu, and ns3::MAX_MSDU_SIZE.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetNode()

void ns3::WifiNetDevice::SetNode ( const Ptr< Node > node )

virtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 333 of file wifi-net-device.cc.

References CompleteConfig(), and m_node.

Here is the call graph for this function:

◆ SetPhy()

void ns3::WifiNetDevice::SetPhy ( const Ptr< WifiPhy > phy )

Parameters

phy	the phy layer to use.

Definition at line 178 of file wifi-net-device.cc.

References CompleteConfig(), m_phy, and third::phy.

Referenced by ns3::MeshHelper::CreateInterface(), AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), GetTypeId(), and ns3::WifiHelper::Install().

Here is the call graph for this function:

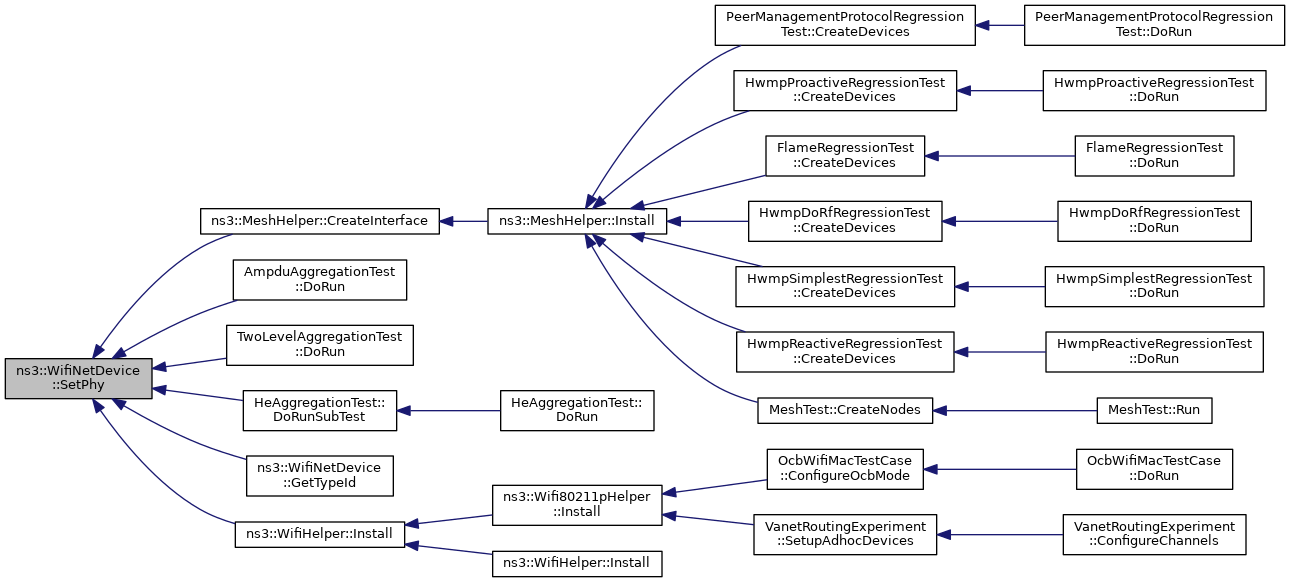

Here is the caller graph for this function:

◆ SetPromiscReceiveCallback()

void ns3::WifiNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 427 of file wifi-net-device.cc.

References m_mac, and m_promiscRx.

◆ SetReceiveCallback()

void ns3::WifiNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Set the callback to be used to notify higher layers when a packet has been received.

Implements ns3::NetDevice.

Definition at line 346 of file wifi-net-device.cc.

References m_forwardUp.

◆ SetRemoteStationManager()

void ns3::WifiNetDevice::SetRemoteStationManager ( const Ptr< WifiRemoteStationManager > manager )

Parameters

manager the manager to use.

Definition at line 185 of file wifi-net-device.cc.

References CompleteConfig(), and m_stationManager.

Referenced by ns3::MeshHelper::CreateInterface(), AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), GetTypeId(), and ns3::WifiHelper::Install().

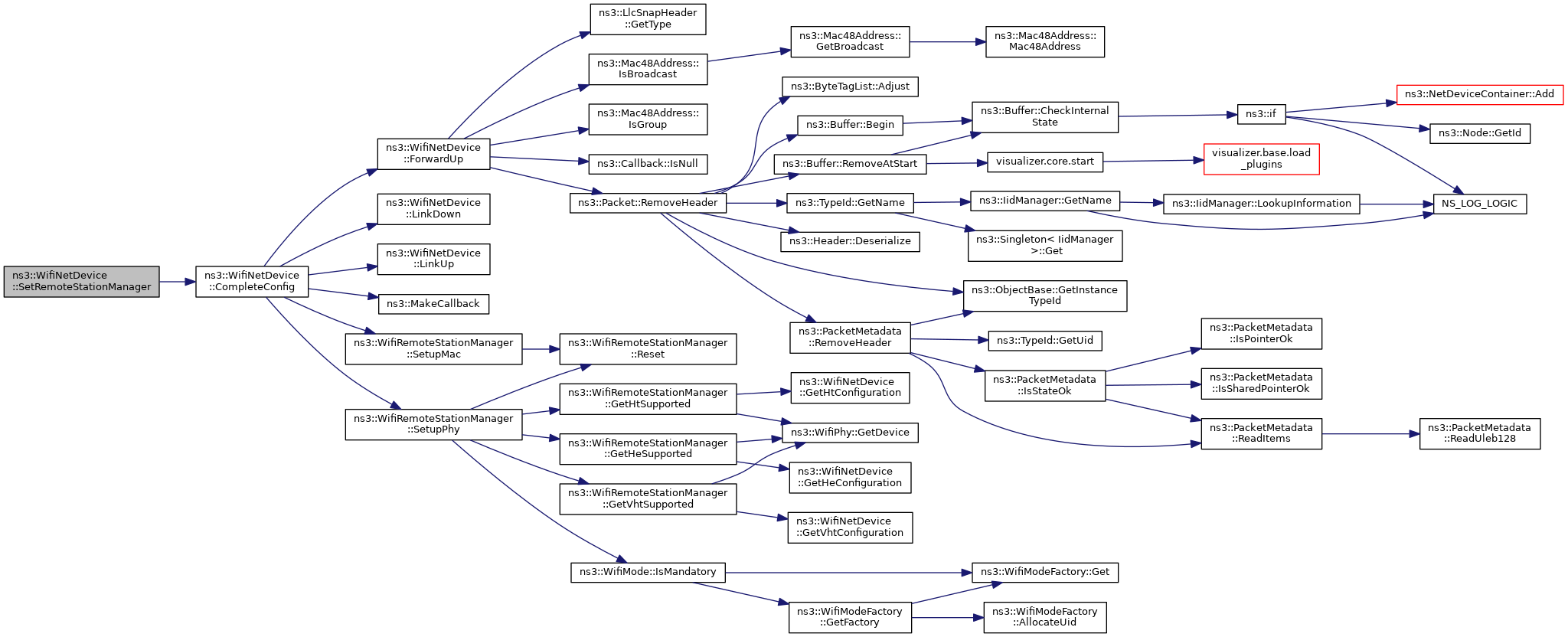

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetVhtConfiguration()

void ns3::WifiNetDevice::SetVhtConfiguration ( Ptr< VhtConfiguration > vhtConfiguration )

Parameters

vhtConfiguration pointer to VhtConfiguration

Definition at line 452 of file wifi-net-device.cc.

References m_vhtConfiguration.

Referenced by HeAggregationTest::DoRunSubTest(), and ns3::WifiHelper::Install().

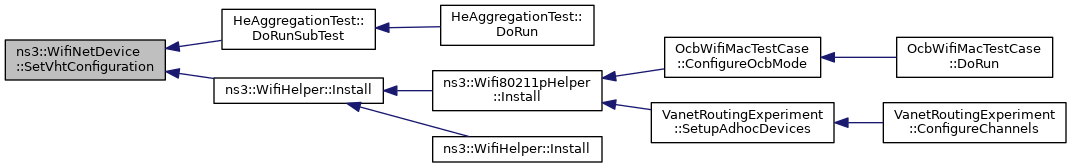

Here is the caller graph for this function:

◆ SupportsSendFrom()

bool ns3::WifiNetDevice::SupportsSendFrom ( void ) const

virtual

Returns: true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

Definition at line 434 of file wifi-net-device.cc.

References m_mac.

Member Data Documentation

◆ m_configComplete

bool ns3::WifiNetDevice::m_configComplete

private

configuration complete

Definition at line 206 of file wifi-net-device.h.

Referenced by CompleteConfig().

◆ m_forwardUp

NetDevice::ReceiveCallback ns3::WifiNetDevice::m_forwardUp

private

forward up callback

Definition at line 196 of file wifi-net-device.h.

Referenced by ForwardUp(), and SetReceiveCallback().

◆ m_heConfiguration

Ptr<HeConfiguration> ns3::WifiNetDevice::m_heConfiguration

private

the HeConfiguration

Definition at line 195 of file wifi-net-device.h.

Referenced by DoDispose(), GetHeConfiguration(), and SetHeConfiguration().

◆ m_htConfiguration

Ptr<HtConfiguration> ns3::WifiNetDevice::m_htConfiguration

private

the HtConfiguration

Definition at line 193 of file wifi-net-device.h.

Referenced by DoDispose(), GetHtConfiguration(), and SetHtConfiguration().

◆ m_ifIndex

uint32_t ns3::WifiNetDevice::m_ifIndex

private

IF index.

Definition at line 202 of file wifi-net-device.h.

Referenced by GetIfIndex(), and SetIfIndex().

◆ m_linkChanges

TracedCallback ns3::WifiNetDevice::m_linkChanges

private

link change callback

Definition at line 204 of file wifi-net-device.h.

Referenced by AddLinkChangeCallback(), LinkDown(), and LinkUp().

◆ m_linkUp

bool ns3::WifiNetDevice::m_linkUp

private

link up

Definition at line 203 of file wifi-net-device.h.

Referenced by IsLinkUp(), LinkDown(), and LinkUp().

◆ m_mac

Ptr<WifiMac> ns3::WifiNetDevice::m_mac

private

the MAC

Definition at line 191 of file wifi-net-device.h.

Referenced by CompleteConfig(), DoDispose(), DoInitialize(), ForwardUp(), GetAddress(), GetMac(), Send(), SendFrom(), SetAddress(), SetMac(), SetPromiscReceiveCallback(), and SupportsSendFrom().

◆ m_mtu

uint16_t ns3::WifiNetDevice::m_mtu

mutableprivate

MTU.

Definition at line 205 of file wifi-net-device.h.

Referenced by GetMtu(), and SetMtu().

◆ m_node

Ptr<Node> ns3::WifiNetDevice::m_node

private

the node

Definition at line 189 of file wifi-net-device.h.

Referenced by CompleteConfig(), DoDispose(), GetNode(), and SetNode().

◆ m_phy

Ptr<WifiPhy> ns3::WifiNetDevice::m_phy

private

the phy

Definition at line 190 of file wifi-net-device.h.

Referenced by CompleteConfig(), DoDispose(), DoInitialize(), GetChannel(), GetPhy(), IsLinkUp(), and SetPhy().

◆ m_promiscRx

NetDevice::PromiscReceiveCallback ns3::WifiNetDevice::m_promiscRx

private

promiscious receive callback

Definition at line 197 of file wifi-net-device.h.

Referenced by ForwardUp(), and SetPromiscReceiveCallback().

◆ m_rxLogger

TracedCallback<Ptr<const Packet>, Mac48Address> ns3::WifiNetDevice::m_rxLogger

private

receive trace callback

Definition at line 199 of file wifi-net-device.h.

◆ m_stationManager

Ptr<WifiRemoteStationManager> ns3::WifiNetDevice::m_stationManager

private

the station manager

Definition at line 192 of file wifi-net-device.h.

Referenced by CompleteConfig(), DoDispose(), DoInitialize(), GetRemoteStationManager(), and SetRemoteStationManager().

◆ m_txLogger

TracedCallback<Ptr<const Packet>, Mac48Address> ns3::WifiNetDevice::m_txLogger

private

transmit trace callback

Definition at line 200 of file wifi-net-device.h.

◆ m_vhtConfiguration

Ptr<VhtConfiguration> ns3::WifiNetDevice::m_vhtConfiguration

private

the VhtConfiguration

Definition at line 194 of file wifi-net-device.h.

Referenced by DoDispose(), GetVhtConfiguration(), and SetVhtConfiguration().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-net-device.h
src/wifi/model/wifi-net-device.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Constructor & Destructor Documentation

◆ WifiNetDevice() [1/2]

◆ ~WifiNetDevice()

◆ WifiNetDevice() [2/2]

Member Function Documentation

◆ AddLinkChangeCallback()

◆ CompleteConfig()

◆ DoDispose()

◆ DoInitialize()

◆ ForwardUp()

◆ GetAddress()

◆ GetBroadcast()

◆ GetChannel()

◆ GetHeConfiguration()

◆ GetHtConfiguration()

◆ GetIfIndex()

◆ GetMac()

◆ GetMtu()

◆ GetMulticast() [1/2]

◆ GetMulticast() [2/2]

◆ GetNode()

◆ GetPhy()

◆ GetRemoteStationManager()

◆ GetTypeId()

◆ GetVhtConfiguration()

◆ IsBridge()

◆ IsBroadcast()

◆ IsLinkUp()

◆ IsMulticast()

◆ IsPointToPoint()

◆ LinkDown()

◆ LinkUp()

◆ NeedsArp()

◆ operator=()

◆ Send()

◆ SendFrom()

◆ SetAddress()

◆ SetHeConfiguration()

◆ SetHtConfiguration()

◆ SetIfIndex()

◆ SetMac()

◆ SetMtu()

◆ SetNode()

◆ SetPhy()

◆ SetPromiscReceiveCallback()

◆ SetReceiveCallback()

◆ SetRemoteStationManager()

◆ SetVhtConfiguration()

◆ SupportsSendFrom()

Member Data Documentation

◆ m_configComplete

◆ m_forwardUp

◆ m_heConfiguration

◆ m_htConfiguration

◆ m_ifIndex

◆ m_linkChanges

◆ m_linkUp

◆ m_mac

◆ m_mtu

◆ m_node

◆ m_phy

◆ m_promiscRx

◆ m_rxLogger

◆ m_stationManager

◆ m_txLogger

◆ m_vhtConfiguration
