The zeta distribution Random Number Generator (RNG) that allows stream numbers to be set deterministically. More...

#include "random-variable-stream.h"

Inheritance diagram for ns3::ZetaRandomVariable:

Collaboration diagram for ns3::ZetaRandomVariable:

Public Member Functions
	ZetaRandomVariable ()
	Creates a zeta distribution RNG with the default value for alpha. More...

double	GetAlpha (void) const
	Returns the alpha value for the zeta distribution returned by this RNG stream. More...

uint32_t	GetInteger (uint32_t alpha)
	Returns a random unsigned integer from a zeta distribution with the specified alpha. More...

virtual uint32_t	GetInteger (void)
	Returns a random unsigned integer from a zeta distribution with the current alpha. More...

double	GetValue (double alpha)
	Returns a random double from a zeta distribution with the specified alpha. More...

virtual double	GetValue (void)
	Returns a random double from a zeta distribution with the current alpha. More...

Public Member Functions inherited from ns3::RandomVariableStream
	RandomVariableStream ()
	Default constructor. More...

virtual	~RandomVariableStream ()
	Destructor. More...

int64_t	GetStream (void) const
	Returns the stream number for the RngStream. More...

bool	IsAntithetic (void) const
	Check if antithetic values will be generated. More...

void	SetAntithetic (bool isAntithetic)
	Specify whether antithetic values should be generated. More...

void	SetStream (int64_t stream)
	Specifies the stream number for the RngStream. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::RandomVariableStream
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
double	m_alpha
	The alpha value for the zeta distribution returned by this RNG stream. More...

double	m_b
	Just for calculus simplifications. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::RandomVariableStream
RngStream *	Peek (void) const
	Get the pointer to the underlying RngStream. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The zeta distribution Random Number Generator (RNG) that allows stream numbers to be set deterministically.

This class supports the creation of objects that return random numbers from a fixed zeta distribution. It also supports the generation of single random numbers from various zeta distributions.

The Zeta distribution is closely related to Zipf distribution when N goes to infinity.

Zeta distribution has one parameter, alpha, $\alpha > 1$ (real). Probability Mass Function is $f(k; \alpha) = k^{-\alpha}/\zeta(\alpha)$ where $\zeta(\alpha)$ is the Riemann zeta function ( $\sum_{n=1}^\infty n^{-\alpha} )$

Here is an example of how to use this class:

double alpha = 2.0;
Ptr<ZetaRandomVariable> x = CreateObject<ZetaRandomVariable> ();
x->SetAttribute ("Alpha", DoubleValue (alpha));
// The expected value for the mean of the values returned by a
// zetaly distributed random variable is equal to
//
//                   zeta(alpha - 1)
//     E[value]  =  ---------------   for alpha > 2 ,
//                     zeta(alpha)
//
// where zeta(alpha) is the Riemann zeta function.
//
// There are no simple analytic forms for the Riemann zeta
// function, which is the reason the known mean of the values
// cannot be calculated in this example.
//
double value = x->GetValue ();

Config Paths

ns3::ZetaRandomVariable is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ZetaRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ZetaRandomVariable"
"/NodeList/[i]/ApplicationList/[i]/$ns3::DhcpClient/Transactions/$ns3::ZetaRandomVariable"
"/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OnTime/$ns3::ZetaRandomVariable"
"/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OffTime/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanVelocity/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanDirection/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanPitch/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Speed/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Pause/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Direction/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Speed/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Speed/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Pause/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/X/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/Y/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/X/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Y/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Z/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Theta/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Rho/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/X/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/Y/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/Z/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::ArpL3Protocol/RequestJitter/$ns3::ZetaRandomVariable"
"/NodeList/[i]/$ns3::Icmpv6L4Protocol/SolicitationJitter/$ns3::ZetaRandomVariable"
"/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ZetaRandomVariable"
"/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ZetaRandomVariable"
"/ChannelList/[i]/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::ZetaRandomVariable"

Attributes

Alpha: The alpha value for the zeta distribution returned by this RNG stream.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3.14
- Flags: construct write read

Attributes defined in parent class ns3::RandomVariableStream

Stream: The stream number for this RNG stream. -1 means "allocate a stream automatically". Note that if -1 is set, Get will return -1 so that it is not possible to know which value was automatically allocated.
- Set with class: ns3::IntegerValue
- Underlying type: int64_t -9223372036854775808:9223372036854775807
- Initial value: -1
- Flags: construct write read
Antithetic: Set this RNG stream to generate antithetic values
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 2240 of file random-variable-stream.h.

Constructor & Destructor Documentation

◆ ZetaRandomVariable()

ns3::ZetaRandomVariable::ZetaRandomVariable ( )

Creates a zeta distribution RNG with the default value for alpha.

Definition at line 1392 of file random-variable-stream.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetAlpha()

double ns3::ZetaRandomVariable::GetAlpha ( void ) const

Returns the alpha value for the zeta distribution returned by this RNG stream.

Returns: The alpha value for the zeta distribution returned by this RNG stream.

Definition at line 1399 of file random-variable-stream.cc.

References m_alpha, and NS_LOG_FUNCTION.

◆ GetInteger() [1/2]

uint32_t ns3::ZetaRandomVariable::GetInteger ( uint32_t alpha )

Returns a random unsigned integer from a zeta distribution with the specified alpha.

Parameters

[in] alpha Alpha value for the zeta distribution.

Returns: A random unsigned integer value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and $x$ is a value that would be returned normally, then $(1 - u$ ) is the distance that $u$ would be from $1$ . The value returned in the antithetic case, $x'$ , uses (1-u), which is the distance $u$ is from the 1.

Definition at line 1441 of file random-variable-stream.cc.

References sample-rng-plot::alpha, GetValue(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetInteger() [2/2]

uint32_t ns3::ZetaRandomVariable::GetInteger ( void )

virtual

Returns a random unsigned integer from a zeta distribution with the current alpha.

Returns: A random unsigned integer value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and $x$ is a value that would be returned normally, then $(1 - u$ ) is the distance that $u$ would be from $1$ . The value returned in the antithetic case, $x'$ , uses (1-u), which is the distance $u$ is from the 1.

Implements ns3::RandomVariableStream.

Definition at line 1454 of file random-variable-stream.cc.

References GetValue(), m_alpha, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::ZetaRandomVariable::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 1379 of file random-variable-stream.cc.

References m_alpha, ns3::MakeDoubleAccessor(), and ns3::TypeId::SetParent().

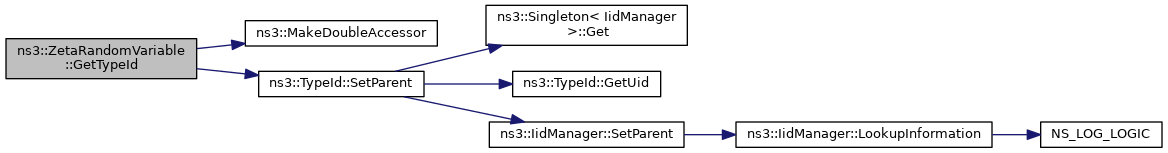

Here is the call graph for this function:

◆ GetValue() [1/2]

double ns3::ZetaRandomVariable::GetValue ( double alpha )

Returns a random double from a zeta distribution with the specified alpha.

Parameters

[in] alpha Alpha value for the zeta distribution.

Returns: A floating point random value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and $x$ is a value that would be returned normally, then $(1 - u$ ) is the distance that $u$ would be from $1$ . The value returned in the antithetic case, $x'$ , uses (1-u), which is the distance $u$ is from the 1.

Definition at line 1406 of file random-variable-stream.cc.

References sample-rng-plot::alpha, m_b, and NS_LOG_FUNCTION.

◆ GetValue() [2/2]

double ns3::ZetaRandomVariable::GetValue ( void )

virtual

Returns a random double from a zeta distribution with the current alpha.

Returns: A floating point random value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and $x$ is a value that would be returned normally, then $(1 - u$ ) is the distance that $u$ would be from $1$ . The value returned in the antithetic case, $x'$ , uses (1-u), which is the distance $u$ is from the 1.

Note that we have to re-implement this method here because the method is overloaded above for the two-argument variant and the c++ name resolution rules don't work well with overloads split between parent and child classes.

Implements ns3::RandomVariableStream.

Definition at line 1448 of file random-variable-stream.cc.

References m_alpha, and NS_LOG_FUNCTION.

Referenced by GetInteger().

Here is the caller graph for this function:

Member Data Documentation

◆ m_alpha

double ns3::ZetaRandomVariable::m_alpha

private

The alpha value for the zeta distribution returned by this RNG stream.

Definition at line 2322 of file random-variable-stream.h.

Referenced by GetAlpha(), GetInteger(), GetTypeId(), and GetValue().

◆ m_b

double ns3::ZetaRandomVariable::m_b

private

Just for calculus simplifications.

Definition at line 2325 of file random-variable-stream.h.

Referenced by GetValue().

The documentation for this class was generated from the following files:

src/core/model/random-variable-stream.h
src/core/model/random-variable-stream.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::RandomVariableStream

Constructor & Destructor Documentation

◆ ZetaRandomVariable()

Member Function Documentation

◆ GetAlpha()

◆ GetInteger() [1/2]

◆ GetInteger() [2/2]

◆ GetTypeId()

◆ GetValue() [1/2]

◆ GetValue() [2/2]

Member Data Documentation

◆ m_alpha

◆ m_b
