ns3::dot11s::IeBeaconTiming Class Reference

See 7.3.2.89 of 802.11s draft 2.07. More...

#include "ie-dot11s-beacon-timing.h"

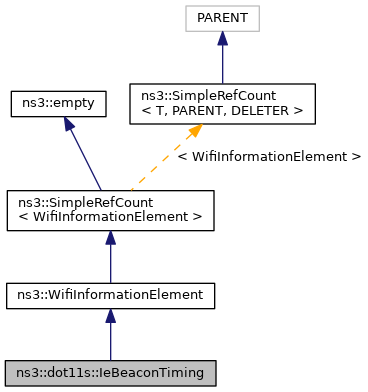

+ Inheritance diagram for ns3::dot11s::IeBeaconTiming:

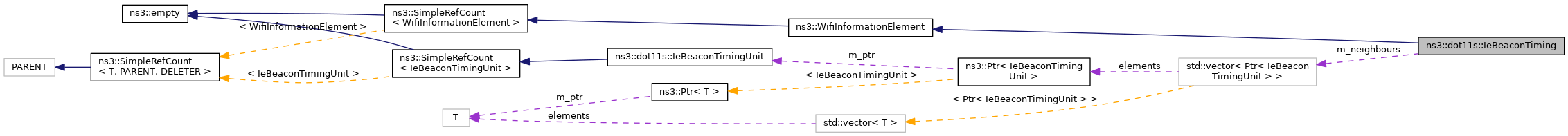

+ Collaboration diagram for ns3::dot11s::IeBeaconTiming:

Public Types

typedef std::vector< Ptr< IeBeaconTimingUnit > > NeighboursTimingUnitsList
 This type is a list of timing elements obtained from neighbours with their beacons: More...


Public Member Functions

 IeBeaconTiming ()

void AddNeighboursTimingElementUnit (uint16_t aid, Time last_beacon, Time beacon_interval)
 Add neighbors timing element unit. More...

void ClearTimingElement ()
 Clear timing element. More...

void DelNeighboursTimingElementUnit (uint16_t aid, Time last_beacon, Time beacon_interval)
 Delete neighbors timing element unit. More...

virtual uint8_t DeserializeInformationField (Buffer::Iterator i, uint8_t length)
 Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

virtual WifiInformationElementId ElementId () const

virtual uint8_t GetInformationFieldSize () const
 Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

NeighboursTimingUnitsList GetNeighboursTimingElementsList ()
 This methods are needed for beacon collision avoidance module: More...

bool operator== (WifiInformationElement const &a) const
 equality operator More...

virtual void Print (std::ostream &os) const
 Generate human-readable form of IE. More...

virtual void SerializeInformationField (Buffer::Iterator i) const
 Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

- Public Member Functions inherited from ns3::WifiInformationElement
virtual ~WifiInformationElement ()

Buffer::Iterator Deserialize (Buffer::Iterator i)
 Deserialize entire IE, which must be present. More...

Buffer::Iterator DeserializeIfPresent (Buffer::Iterator i)
 Deserialize entire IE if it is present. More...

virtual WifiInformationElementId ElementIdExt () const

uint16_t GetSerializedSize () const
 Get the size of the serialized IE including Element ID and length fields. More...

Buffer::Iterator Serialize (Buffer::Iterator i) const
 Serialize entire IE including Element ID and length fields. More...

- Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...


Static Private Member Functions

static uint8_t AidToU8 (uint16_t x)
 Aid to U8 function. More...

static uint16_t BeaconIntervalToU16 (Time x)
 Beacon interval to U16 function. More...

static uint16_t TimestampToU16 (Time x)
 Timestamp to U16 function. More...


Private Attributes

NeighboursTimingUnitsList m_neighbours
 the neighbors More...

uint16_t m_numOfUnits
 Timing element parameters: More...


Detailed Description

See 7.3.2.89 of 802.11s draft 2.07.

Definition at line 91 of file ie-dot11s-beacon-timing.h.

Constructor & Destructor Documentation

◆ IeBeaconTiming()

ns3::dot11s::IeBeaconTiming::IeBeaconTiming ( )

Definition at line 70 of file ie-dot11s-beacon-timing.cc.

Member Function Documentation

◆ AddNeighboursTimingElementUnit()

void ns3::dot11s::IeBeaconTiming::AddNeighboursTimingElementUnit ( uint16_t  aid,
Time  last_beacon,
Time  beacon_interval
)

Add neighbors timing element unit.

Parameters
aidthe AID
last_beaconthe last beacon time
beacon_intervalthe beacon interval

Definition at line 80 of file ie-dot11s-beacon-timing.cc.

References AidToU8(), BeaconIntervalToU16(), m_neighbours, m_numOfUnits, ns3::dot11s::IeBeaconTimingUnit::SetAid(), ns3::dot11s::IeBeaconTimingUnit::SetBeaconInterval(), ns3::dot11s::IeBeaconTimingUnit::SetLastBeacon(), and TimestampToU16().

Referenced by MeshInformationElementVectorBist::DoRun().

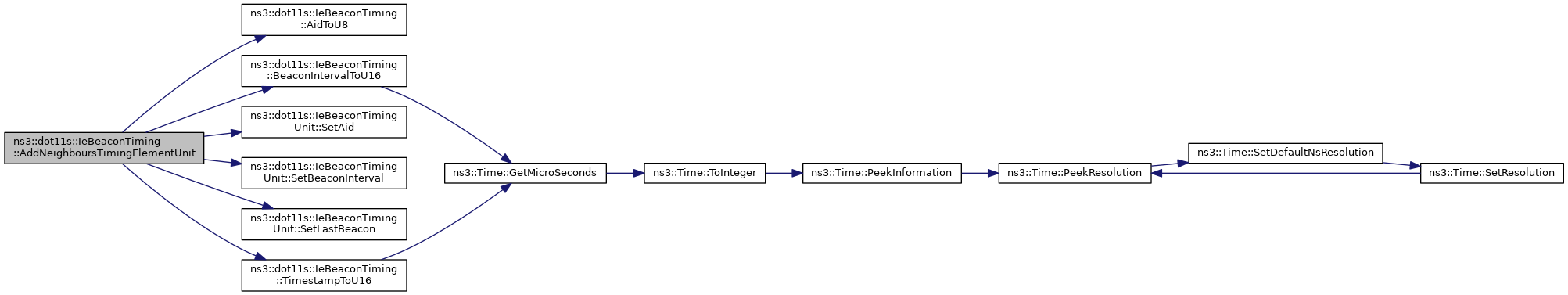

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ AidToU8()

uint8_t ns3::dot11s::IeBeaconTiming::AidToU8 ( uint16_t  x)
staticprivate

Aid to U8 function.

Parameters
xthe U16
Returns
the AID

Definition at line 180 of file ie-dot11s-beacon-timing.cc.

References sample-rng-plot::x.

Referenced by AddNeighboursTimingElementUnit(), and DelNeighboursTimingElementUnit().

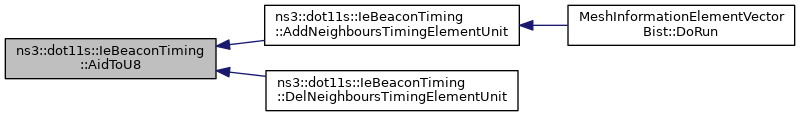

+ Here is the caller graph for this function:

◆ BeaconIntervalToU16()

uint16_t ns3::dot11s::IeBeaconTiming::BeaconIntervalToU16 ( Time  x)
staticprivate

Beacon interval to U16 function.

Parameters
xthe beacon interval
Returns
the U16

Definition at line 175 of file ie-dot11s-beacon-timing.cc.

References ns3::Time::GetMicroSeconds().

Referenced by AddNeighboursTimingElementUnit(), and DelNeighboursTimingElementUnit().

+ Here is the call graph for this function:

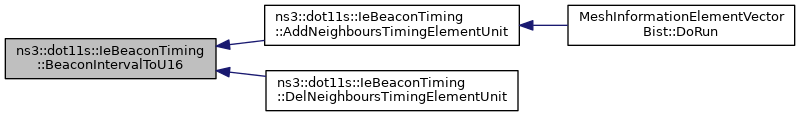

+ Here is the caller graph for this function:

◆ ClearTimingElement()

void ns3::dot11s::IeBeaconTiming::ClearTimingElement ( )

Clear timing element.

Definition at line 117 of file ie-dot11s-beacon-timing.cc.

References m_neighbours.

Referenced by ns3::dot11s::PeerLink::DoDispose().

+ Here is the caller graph for this function:

◆ DelNeighboursTimingElementUnit()

void ns3::dot11s::IeBeaconTiming::DelNeighboursTimingElementUnit ( uint16_t  aid,
Time  last_beacon,
Time  beacon_interval
)

Delete neighbors timing element unit.

Parameters
aidthe AID
last_beaconthe last beacon time
beacon_intervalthe beacon interval

Definition at line 103 of file ie-dot11s-beacon-timing.cc.

References AidToU8(), BeaconIntervalToU16(), m_neighbours, m_numOfUnits, and TimestampToU16().

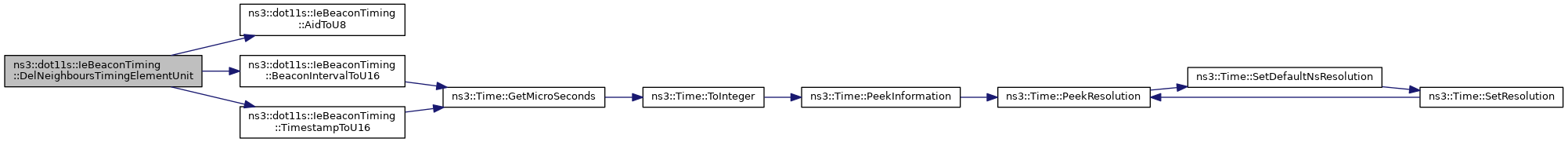

+ Here is the call graph for this function:

◆ DeserializeInformationField()

uint8_t ns3::dot11s::IeBeaconTiming::DeserializeInformationField ( Buffer::Iterator  start,
uint8_t  length
)
virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.
length
Returns
the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 152 of file ie-dot11s-beacon-timing.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_neighbours, m_numOfUnits, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), ns3::dot11s::IeBeaconTimingUnit::SetAid(), ns3::dot11s::IeBeaconTimingUnit::SetBeaconInterval(), ns3::dot11s::IeBeaconTimingUnit::SetLastBeacon(), and visualizer.core::start().

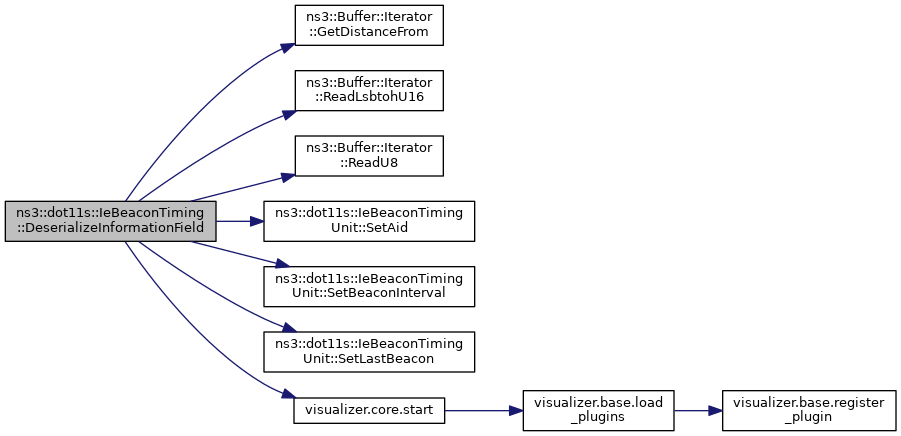

+ Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::dot11s::IeBeaconTiming::ElementId ( ) const
virtual
Returns
Own unique Element ID

Implements ns3::WifiInformationElement.

Definition at line 66 of file ie-dot11s-beacon-timing.cc.

References IE_BEACON_TIMING.

◆ GetInformationFieldSize()

uint8_t ns3::dot11s::IeBeaconTiming::GetInformationFieldSize ( ) const
virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns
the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 126 of file ie-dot11s-beacon-timing.cc.

References m_numOfUnits.

◆ GetNeighboursTimingElementsList()

IeBeaconTiming::NeighboursTimingUnitsList ns3::dot11s::IeBeaconTiming::GetNeighboursTimingElementsList ( )

This methods are needed for beacon collision avoidance module:

Returns
the neighbor timing elements list

Definition at line 75 of file ie-dot11s-beacon-timing.cc.

References m_neighbours.

◆ operator==()

bool ns3::dot11s::IeBeaconTiming::operator== ( WifiInformationElement const &  a) const
virtual

equality operator

Parameters
alhs
Returns
true if equal

Reimplemented from ns3::WifiInformationElement.

Definition at line 191 of file ie-dot11s-beacon-timing.cc.

References m_neighbours, m_numOfUnits, and ns3::PeekPointer().

+ Here is the call graph for this function:

◆ Print()

void ns3::dot11s::IeBeaconTiming::Print ( std::ostream &  os) const
virtual

Generate human-readable form of IE.

Parameters
osoutput stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 131 of file ie-dot11s-beacon-timing.cc.

References m_neighbours, and m_numOfUnits.

Referenced by ns3::dot11s::operator<<().

+ Here is the caller graph for this function:

◆ SerializeInformationField()

void ns3::dot11s::IeBeaconTiming::SerializeInformationField ( Buffer::Iterator  start) const
virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 142 of file ie-dot11s-beacon-timing.cc.

References m_neighbours, ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteU8().

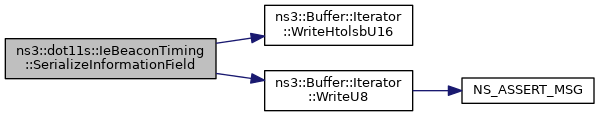

+ Here is the call graph for this function:

◆ TimestampToU16()

uint16_t ns3::dot11s::IeBeaconTiming::TimestampToU16 ( Time  x)
staticprivate

Timestamp to U16 function.

Parameters
xthe timestamp
Returns
the U16

Definition at line 168 of file ie-dot11s-beacon-timing.cc.

References ns3::Time::GetMicroSeconds().

Referenced by AddNeighboursTimingElementUnit(), and DelNeighboursTimingElementUnit().

+ Here is the call graph for this function:

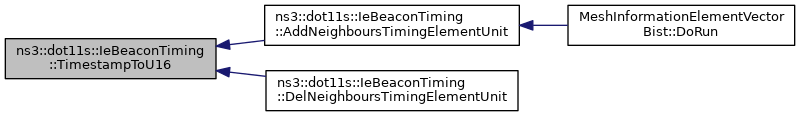

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_neighbours

◆ m_numOfUnits

uint16_t ns3::dot11s::IeBeaconTiming::m_numOfUnits
private
