Heap memory management. More...

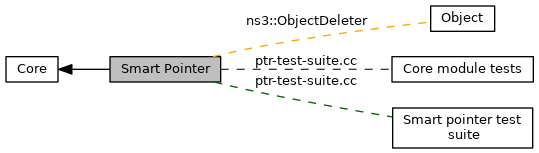

Collaboration diagram for Smart Pointer:

Files
file	default-deleter.h
	ns3::DefaultDeleter declaration and template implementation, for reference-counted smart pointers.

file	ptr-test-suite.cc
	Smart pointer test suite.

file	ptr.h
	ns3::Ptr smart pointer declaration and implementation.

file	ref-count-base.cc
	ns3::RefCountBase implementation.

file	ref-count-base.h
	ns3::RefCountBase declaration.

file	simple-ref-count.h
	ns3::SimpleRefCount declaration and template implementation.

Classes
struct	ns3::DefaultDeleter< T >
	A template used to delete objects by the ns3::SimpleRefCount templates when the last reference to an object they manage disappears. More...

struct	ns3::ObjectDeleter
	Standard Object deleter, used by SimpleRefCount to delete an Object when the reference count drops to zero. More...

class	ns3::Ptr< T >
	Smart pointer class similar to `boost::intrusive_ptr`. More...

class	ns3::SimpleRefCount< T, PARENT, DELETER >
	A template-based reference counting class. More...

Functions
template<typename T >
Ptr< T >	ns3::Create (void)
	Create class instances by constructors with varying numbers of arguments and return them by Ptr. More...

template<typename T , typename T1 >
Ptr< T >	ns3::Create (T1 a1)

template<typename T , typename T1 , typename T2 >
Ptr< T >	ns3::Create (T1 a1, T2 a2)

template<typename T , typename T1 , typename T2 , typename T3 >
Ptr< T >	ns3::Create (T1 a1, T2 a2, T3 a3)

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 >
Ptr< T >	ns3::Create (T1 a1, T2 a2, T3 a3, T4 a4)

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
Ptr< T >	ns3::Create (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
Ptr< T >	ns3::Create (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >
Ptr< T >	ns3::Create (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6, T7 a7)

template<typename T >
std::ostream &	ns3::operator<< (std::ostream &os, const Ptr< T > &p)
	Output streamer. More...

template<typename T1 , typename T2 >
bool	ns3::operator== (Ptr< T1 > const &lhs, T2 const *rhs)
	Equality operator. More...

template<typename T1 , typename T2 >
bool	ns3::operator== (T1 const *lhs, Ptr< T2 > &rhs)
	Equality operator. More...

template<typename T1 , typename T2 >
bool	ns3::operator== (Ptr< T1 > const &lhs, Ptr< T2 > const &rhs)
	Equality operator. More...

template<typename T1 , typename T2 >
bool	ns3::operator!= (Ptr< T1 > const &lhs, T2 const *rhs)
	Inequality operator. More...

template<typename T1 , typename T2 >
bool	ns3::operator!= (T1 const *lhs, Ptr< T2 > &rhs)
	Inequality operator. More...

template<typename T1 , typename T2 >
bool	ns3::operator!= (Ptr< T1 > const &lhs, Ptr< T2 > const &rhs)
	Inequality operator. More...

template<typename T >
bool	ns3::operator< (const Ptr< T > &lhs, const Ptr< T > &rhs)
	Comparison operator applied to the underlying pointers. More...

template<typename T >
bool	ns3::operator<= (const Ptr< T > &lhs, const Ptr< T > &rhs)
	Comparison operator applied to the underlying pointers. More...

template<typename T >
bool	ns3::operator> (const Ptr< T > &lhs, const Ptr< T > &rhs)
	Comparison operator applied to the underlying pointers. More...

template<typename T >
bool	ns3::operator>= (const Ptr< T > &lhs, const Ptr< T > &rhs)
	Comparison operator applied to the underlying pointers. More...

Detailed Description

Heap memory management.

See ns3::Ptr for implementation details.

See main-ptr.cc for example usage.

Function Documentation

◆ Create() [1/8]

template<typename T >

Ptr< T > ns3::Create ( void )

Create class instances by constructors with varying numbers of arguments and return them by Ptr.

These methods work for any class T.

See also: CreateObject for methods to create derivatives of ns3::Object

Template Parameters

T	[explicit] The type of class object to create.

Returns: A Ptr to the newly created T.

Definition at line 516 of file ptr.h.

Referenced by ns3::internal::MakeDoubleChecker(), ns3::internal::MakeIntegerChecker(), ns3::MakeSimpleAttributeChecker(), ns3::MakeTimeChecker(), and ns3::internal::MakeUintegerChecker().

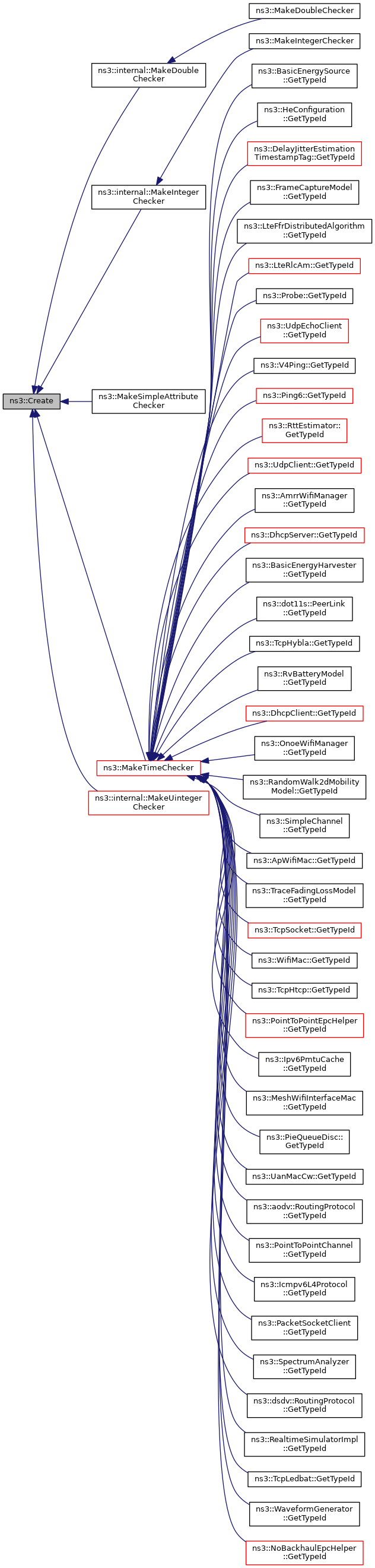

Here is the caller graph for this function:

◆ Create() [2/8]

template<typename T , typename T1 >

Ptr< T > ns3::Create ( T1 a1 )

Template Parameters

T	[explicit] The type of class object to create.
T1	[deduced] The type of the first constructor argument.

Parameters

[in] a1 The first constructor argument.

Returns: A Ptr to the newly created T.

Definition at line 522 of file ptr.h.

◆ Create() [3/8]

template<typename T , typename T1 , typename T2 >

Ptr< T > ns3::Create	(	T1	a1,
		T2	a2
	)

Template Parameters

T	[explicit] The type of class object to create.
T1	[deduced] The type of the first constructor argument.
T2	[deduced] The type of the second constructor argument.

Parameters

[in]	a1	The first constructor argument.
[in]	a2	The second constructor argument.

Returns: A Ptr to the newly created T.

Definition at line 528 of file ptr.h.

◆ Create() [4/8]

template<typename T , typename T1 , typename T2 , typename T3 >

Ptr< T > ns3::Create	(	T1	a1,
		T2	a2,
		T3	a3
	)

Template Parameters

T	[explicit] The type of class object to create.
T1	[deduced] The type of the first constructor argument.
T2	[deduced] The type of the second constructor argument.
T3	[deduced] The type of the third constructor argument.

Parameters

[in]	a1	The first constructor argument.
[in]	a2	The second constructor argument.
[in]	a3	The third constructor argument.

Returns: A Ptr to the newly created T.

Definition at line 534 of file ptr.h.

◆ Create() [5/8]

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 >

Ptr< T > ns3::Create	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4
	)

Template Parameters

T	[explicit] The type of class object to create.
T1	[deduced] The type of the first constructor argument.
T2	[deduced] The type of the second constructor argument.
T3	[deduced] The type of the third constructor argument.
T4	[deduced] The type of the fourth constructor argument.

Parameters

[in]	a1	The first constructor argument.
[in]	a2	The second constructor argument.
[in]	a3	The third constructor argument.
[in]	a4	The fourth constructor argument.

Returns: A Ptr to the newly created T.

Definition at line 540 of file ptr.h.

◆ Create() [6/8]

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

Ptr< T > ns3::Create	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5
	)

Template Parameters

T	[explicit] The type of class object to create.
T1	[deduced] The type of the first constructor argument.
T2	[deduced] The type of the second constructor argument.
T3	[deduced] The type of the third constructor argument.
T4	[deduced] The type of the fourth constructor argument.
T5	[deduced] The type of the fifth constructor argument.

Parameters

[in]	a1	The first constructor argument.
[in]	a2	The second constructor argument.
[in]	a3	The third constructor argument.
[in]	a4	The fourth constructor argument.
[in]	a5	The fifth constructor argument.

Returns: A Ptr to the newly created T.

Definition at line 546 of file ptr.h.

◆ Create() [7/8]

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

Ptr< T > ns3::Create	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6
	)

Template Parameters

T	[explicit] The type of class object to create.
T1	[deduced] The type of the first constructor argument.
T2	[deduced] The type of the second constructor argument.
T3	[deduced] The type of the third constructor argument.
T4	[deduced] The type of the fourth constructor argument.
T5	[deduced] The type of the fifth constructor argument.
T6	[deduced] The type of the sixth constructor argument.

Parameters

[in]	a1	The first constructor argument.
[in]	a2	The second constructor argument.
[in]	a3	The third constructor argument.
[in]	a4	The fourth constructor argument.
[in]	a5	The fifth constructor argument.
[in]	a6	The sixth constructor argument.

Returns: A Ptr to the newly created T.

Definition at line 552 of file ptr.h.

◆ Create() [8/8]

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

Ptr< T > ns3::Create	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6,
		T7	a7
	)

Template Parameters

T	[explicit] The type of class object to create.
T1	[deduced] The type of the first constructor argument.
T2	[deduced] The type of the second constructor argument.
T3	[deduced] The type of the third constructor argument.
T4	[deduced] The type of the fourth constructor argument.
T5	[deduced] The type of the fifth constructor argument.
T6	[deduced] The type of the sixth constructor argument.
T7	[deduced] The type of the seventh constructor argument.

Parameters

[in]	a1	The first constructor argument.
[in]	a2	The second constructor argument.
[in]	a3	The third constructor argument.
[in]	a4	The fourth constructor argument.
[in]	a5	The fifth constructor argument.
[in]	a6	The sixth constructor argument.
[in]	a7	The seventh constructor argument.

Returns: A Ptr to the newly created T.

Definition at line 558 of file ptr.h.

◆ operator!=() [1/3]

template<typename T1 , typename T2 >

bool ns3::operator!=	(	Ptr< T1 > const &	lhs,
		T2 const *	rhs
	)

Inequality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p != q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 599 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator!=() [2/3]

template<typename T1 , typename T2 >

bool ns3::operator!=	(	T1 const *	lhs,
		Ptr< T2 > &	rhs
	)

Inequality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p != q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 606 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator!=() [3/3]

template<typename T1 , typename T2 >

bool ns3::operator!=	(	Ptr< T1 > const &	lhs,
		Ptr< T2 > const &	rhs
	)

Inequality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p != q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 620 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator<()

template<typename T >

bool ns3::operator<	(	const Ptr< T > &	lhs,
		const Ptr< T > &	rhs
	)

Comparison operator applied to the underlying pointers.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: The comparison on the underlying pointers.

Definition at line 626 of file ptr.h.

◆ operator<<()

template<typename T >

std::ostream & ns3::operator<<	(	std::ostream &	os,
		const Ptr< T > &	p
	)

Output streamer.

Parameters

[in,out]	os	The output stream.
[in]	p	The Ptr.

Returns: The stream.

Definition at line 577 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator<=()

template<typename T >

bool ns3::operator<=	(	const Ptr< T > &	lhs,
		const Ptr< T > &	rhs
	)

Comparison operator applied to the underlying pointers.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: The comparison on the underlying pointers.

Definition at line 632 of file ptr.h.

◆ operator==() [1/3]

template<typename T1 , typename T2 >

bool ns3::operator==	(	Ptr< T1 > const &	lhs,
		T2 const *	rhs
	)

Equality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p == q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 585 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator==() [2/3]

template<typename T1 , typename T2 >

bool ns3::operator==	(	T1 const *	lhs,
		Ptr< T2 > &	rhs
	)

Equality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p == q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 592 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator==() [3/3]

template<typename T1 , typename T2 >

bool ns3::operator==	(	Ptr< T1 > const &	lhs,
		Ptr< T2 > const &	rhs
	)

Equality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p == q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 613 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator>()

template<typename T >

bool ns3::operator>	(	const Ptr< T > &	lhs,
		const Ptr< T > &	rhs
	)

Comparison operator applied to the underlying pointers.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: The comparison on the underlying pointers.

Definition at line 638 of file ptr.h.

◆ operator>=()

template<typename T >

bool ns3::operator>=	(	const Ptr< T > &	lhs,
		const Ptr< T > &	rhs
	)

Comparison operator applied to the underlying pointers.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: The comparison on the underlying pointers.

Definition at line 644 of file ptr.h.

Files

Classes

Functions

Detailed Description

Function Documentation

◆ Create() [1/8]

◆ Create() [2/8]

◆ Create() [3/8]

◆ Create() [4/8]

◆ Create() [5/8]

◆ Create() [6/8]

◆ Create() [7/8]

◆ Create() [8/8]

◆ operator!=() [1/3]

◆ operator!=() [2/3]

◆ operator!=() [3/3]

◆ operator<()

◆ operator<<()

◆ operator<=()

◆ operator==() [1/3]

◆ operator==() [2/3]

◆ operator==() [3/3]

◆ operator>()

◆ operator>=()
