#include <fstream>
#include <iostream>
#include "ns3/core-module.h"
#include "ns3/network-module.h"
#include "ns3/internet-module.h"
#include "ns3/mobility-module.h"
#include "ns3/aodv-module.h"
#include "ns3/olsr-module.h"
#include "ns3/dsdv-module.h"
#include "ns3/dsr-module.h"
#include "ns3/applications-module.h"
#include "ns3/itu-r-1411-los-propagation-loss-model.h"
#include "ns3/ocb-wifi-mac.h"
#include "ns3/wifi-80211p-helper.h"
#include "ns3/wave-mac-helper.h"
#include "ns3/flow-monitor-module.h"
#include "ns3/config-store-module.h"
#include "ns3/integer.h"
#include "ns3/wave-bsm-helper.h"
#include "ns3/wave-helper.h"
#include "ns3/yans-wifi-helper.h"

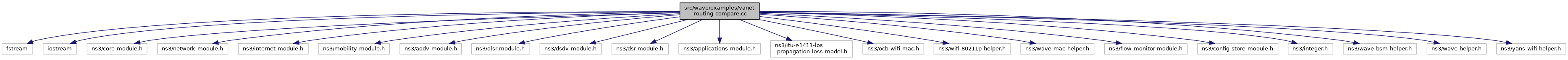

Include dependency graph for vanet-routing-compare.cc:

Classes
class	ConfigStoreHelper
	The ConfigStoreHelper class simplifies config-store raw text load and save. More...

class	RoutingHelper
	The RoutingHelper class generates routing data between nodes (vehicles) and uses the RoutingStats class to collect statistics on routing data (application-data packet and byte counts). More...

class	RoutingStats
	The RoutingStats class manages collects statistics on routing data (application-data packet and byte counts) for the vehicular network. More...

class	VanetRoutingExperiment
	The VanetRoutingExperiment class implements a wifi app that allows VANET routing experiments to be simulated. More...

class	WifiApp
	The WifiApp class enforces program flow for ns-3 wifi applications. More...

class	WifiPhyStats
	The WifiPhyStats class collects Wifi MAC/PHY statistics. More...

Functions
static std::string	PrintReceivedRoutingPacket (Ptr< Socket > socket, Ptr< Packet > packet, Address srcAddress)

Variables
static ns3::GlobalValue	g_80211mode ("VRC80211mode", "802.11 mode (0=802.11a;1=802.11p)", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_asciiTrace ("VRCasciiTrace", "Dump ASCII trace 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_CSVfileName ("VRCCSVfileName", "CSV filename (for time series data)", ns3::StringValue("vanet-routing.output.csv"), ns3::MakeStringChecker())

static ns3::GlobalValue	g_CSVfileName2 ("VRCCSVfileName2", "CSV filename 2 (for overall simulation scenario results)", ns3::StringValue("vanet-routing.output2.csv"), ns3::MakeStringChecker())

static ns3::GlobalValue	g_cumulativeBsmCaptureStart ("VRCcumulativeBsmCaptureStart", "Simulation starte time for capturing cumulative BSM", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_fading ("VRCfading", "Fast Fading Model", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_gpsAccuracyNs ("VRCgpsAccuracyNs", "GPS sync accuracy (ns)", ns3::DoubleValue(40), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_logFile ("VRClogFile", "Log filename", ns3::StringValue("low99-ct-unterstrass-1day.filt.7.adj.log"), ns3::MakeStringChecker())

static ns3::GlobalValue	g_lossModel ("VRClossModel", "Propagation Loss Model", ns3::UintegerValue(3), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_mobility ("VRCmobility", "Mobility mode 0=random waypoint;1=mobility trace file", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_nNodes ("VRCnNodes", "Number of nodes (vehicles)", ns3::UintegerValue(156), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_nodePause ("VRCnodePause", "Node pause time (s) for RWP model", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_nodeSpeed ("VRCnodeSpeed", "Node speed (m/s) for RWP model", ns3::UintegerValue(20), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_nSinks ("VRCnSinks", "Number of sink nodes for routing non-BSM traffic", ns3::UintegerValue(10), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_pcap ("VRCpcap", "Generate PCAP files 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_phyMode ("VRCphyMode", "PHY mode (802.11p)", ns3::StringValue("OfdmRate6MbpsBW10MHz"), ns3::MakeStringChecker())

static ns3::GlobalValue	g_phyModeB ("VRCphyModeB", "PHY mode (802.11a)", ns3::StringValue("DsssRate11Mbps"), ns3::MakeStringChecker())

static ns3::GlobalValue	g_port ("VRCport", "Port", ns3::UintegerValue(9), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_protocol ("VRCprotocol", "Routing protocol", ns3::UintegerValue(2), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_rate ("VRCrate", "Data rate", ns3::StringValue("2048bps"), ns3::MakeStringChecker())

static ns3::GlobalValue	g_routingTables ("VRCroutingTables", "Dump routing tables at t=5 seconds 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_scenario ("VRCscenario", "Scenario", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_totalTime ("VRCtotalTime", "Total simulation time (s)", ns3::DoubleValue(300.01), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_traceFile ("VRCtraceFile", "Mobility trace filename", ns3::StringValue("./src/wave/examples/low99-ct-unterstrass-1day.filt.7.adj.mob"), ns3::MakeStringChecker())

static ns3::GlobalValue	g_traceMobility ("VRCtraceMobility", "Trace mobility 1=yes;0=no", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_trName ("VRCtrName", "Trace name", ns3::StringValue("vanet-routing-compare"), ns3::MakeStringChecker())

static ns3::GlobalValue	g_txMaxDelayMs ("VRCtxMaxDelayMs", "Tx May Delay (ms)", ns3::DoubleValue(10), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_txp ("VRCtxp", "Transmission power dBm", ns3::DoubleValue(7.5), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_txSafetyRange1 ("VRCtxSafetyRange1", "BSM range for PDR inclusion", ns3::DoubleValue(50.0), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_txSafetyRange10 ("VRCtxSafetyRange10", "BSM range for PDR inclusion", ns3::DoubleValue(500.0), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_txSafetyRange2 ("VRCtxSafetyRange2", "BSM range for PDR inclusion", ns3::DoubleValue(100.0), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_txSafetyRange3 ("VRCtxSafetyRange3", "BSM range for PDR inclusion", ns3::DoubleValue(150.0), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_txSafetyRange4 ("VRCtxSafetyRange4", "BSM range for PDR inclusion", ns3::DoubleValue(200.0), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_txSafetyRange5 ("VRCtxSafetyRange5", "BSM range for PDR inclusion", ns3::DoubleValue(250.0), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_txSafetyRange6 ("VRCtxSafetyRange6", "BSM range for PDR inclusion", ns3::DoubleValue(300.0), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_txSafetyRange7 ("VRCtxSafetyRange7", "BSM range for PDR inclusion", ns3::DoubleValue(350.0), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_txSafetyRange8 ("VRCtxSafetyRange8", "BSM range for PDR inclusion", ns3::DoubleValue(400.0), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_txSafetyRange9 ("VRCtxSafetyRange9", "BSM range for PDR inclusion", ns3::DoubleValue(450.0), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_verbose ("VRCverbose", "Verbose 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static ns3::GlobalValue	g_waveInterval ("VRCwaveInterval", "Interval (s) between WAVE BSMs", ns3::DoubleValue(0.1), ns3::MakeDoubleChecker< double >())

static ns3::GlobalValue	g_wavePacketSize ("VRCwavePacketSize", "Size in bytes of WAVE BSM", ns3::UintegerValue(200), ns3::MakeUintegerChecker< uint32_t >())

Function Documentation

◆ PrintReceivedRoutingPacket()

static std::string PrintReceivedRoutingPacket	(	Ptr< Socket >	socket,
		Ptr< Packet >	packet,
		Address	srcAddress
	)

inlinestatic

Definition at line 663 of file vanet-routing-compare.cc.

References ns3::Node::GetId(), ns3::InetSocketAddress::GetIpv4(), ns3::Socket::GetNode(), ns3::Time::GetSeconds(), and ns3::Now().

Referenced by RoutingHelper::ReceiveRoutingPacket().

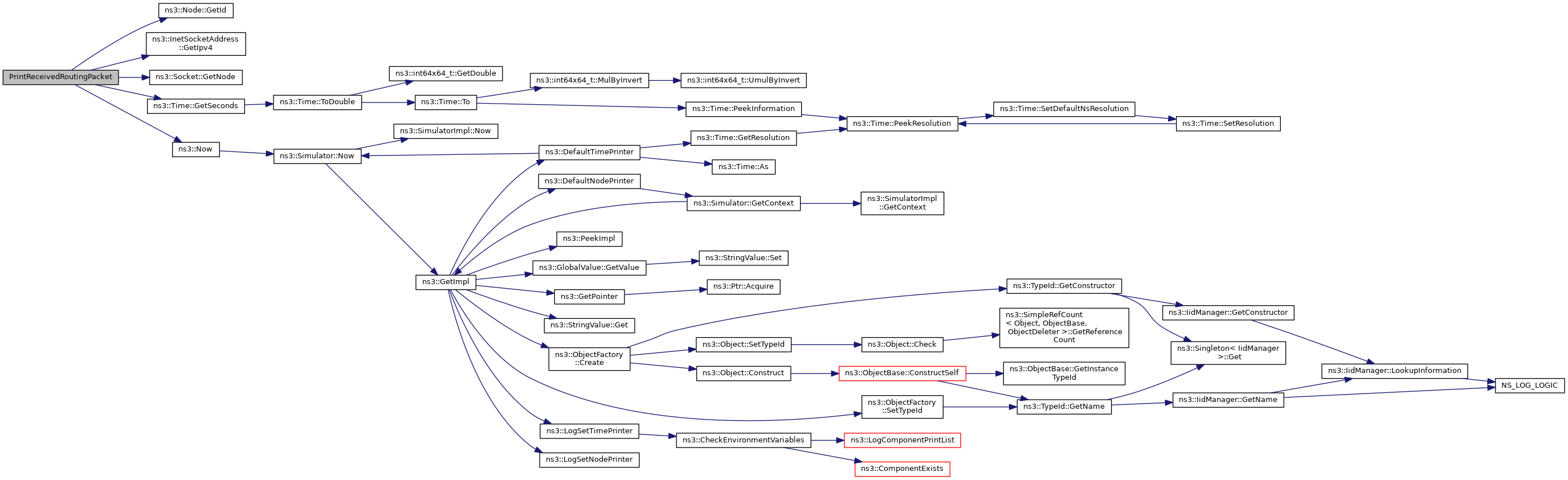

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ g_80211mode

ns3::GlobalValue g_80211mode("VRC80211mode", "802.11 mode (0=802.11a;1=802.11p)", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_asciiTrace

ns3::GlobalValue g_asciiTrace("VRCasciiTrace", "Dump ASCII trace 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_CSVfileName

ns3::GlobalValue g_CSVfileName("VRCCSVfileName", "CSV filename (for time series data)", ns3::StringValue("vanet-routing.output.csv"), ns3::MakeStringChecker())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_CSVfileName2

ns3::GlobalValue g_CSVfileName2("VRCCSVfileName2", "CSV filename 2 (for overall simulation scenario results)", ns3::StringValue("vanet-routing.output2.csv"), ns3::MakeStringChecker())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_cumulativeBsmCaptureStart

ns3::GlobalValue g_cumulativeBsmCaptureStart("VRCcumulativeBsmCaptureStart", "Simulation starte time for capturing cumulative BSM", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_fading

ns3::GlobalValue g_fading("VRCfading", "Fast Fading Model", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_gpsAccuracyNs

ns3::GlobalValue g_gpsAccuracyNs("VRCgpsAccuracyNs", "GPS sync accuracy (ns)", ns3::DoubleValue(40), ns3::MakeDoubleChecker< double >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_logFile

ns3::GlobalValue g_logFile("VRClogFile", "Log filename", ns3::StringValue("low99-ct-unterstrass-1day.filt.7.adj.log"), ns3::MakeStringChecker())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_lossModel

ns3::GlobalValue g_lossModel("VRClossModel", "Propagation Loss Model", ns3::UintegerValue(3), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_mobility

ns3::GlobalValue g_mobility("VRCmobility", "Mobility mode 0=random waypoint;1=mobility trace file", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_nNodes

ns3::GlobalValue g_nNodes("VRCnNodes", "Number of nodes (vehicles)", ns3::UintegerValue(156), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_nodePause

ns3::GlobalValue g_nodePause("VRCnodePause", "Node pause time (s) for RWP model", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_nodeSpeed

ns3::GlobalValue g_nodeSpeed("VRCnodeSpeed", "Node speed (m/s) for RWP model", ns3::UintegerValue(20), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_nSinks

ns3::GlobalValue g_nSinks("VRCnSinks", "Number of sink nodes for routing non-BSM traffic", ns3::UintegerValue(10), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_pcap

ns3::GlobalValue g_pcap("VRCpcap", "Generate PCAP files 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_phyMode

ns3::GlobalValue g_phyMode("VRCphyMode", "PHY mode (802.11p)", ns3::StringValue("OfdmRate6MbpsBW10MHz"), ns3::MakeStringChecker())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_phyModeB

ns3::GlobalValue g_phyModeB("VRCphyModeB", "PHY mode (802.11a)", ns3::StringValue("DsssRate11Mbps"), ns3::MakeStringChecker())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_port

ns3::GlobalValue g_port("VRCport", "Port", ns3::UintegerValue(9), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_protocol

ns3::GlobalValue g_protocol("VRCprotocol", "Routing protocol", ns3::UintegerValue(2), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_rate

ns3::GlobalValue g_rate("VRCrate", "Data rate", ns3::StringValue("2048bps"), ns3::MakeStringChecker())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_routingTables

ns3::GlobalValue g_routingTables("VRCroutingTables", "Dump routing tables at t=5 seconds 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_scenario

ns3::GlobalValue g_scenario("VRCscenario", "Scenario", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_totalTime

ns3::GlobalValue g_totalTime("VRCtotalTime", "Total simulation time (s)", ns3::DoubleValue(300.01), ns3::MakeDoubleChecker< double >())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_traceFile

ns3::GlobalValue g_traceFile("VRCtraceFile", "Mobility trace filename", ns3::StringValue("./src/wave/examples/low99-ct-unterstrass-1day.filt.7.adj.mob"), ns3::MakeStringChecker())

static

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().
