ns3::Event Class Reference

handles interference calculations More...

#include "interference-helper.h"

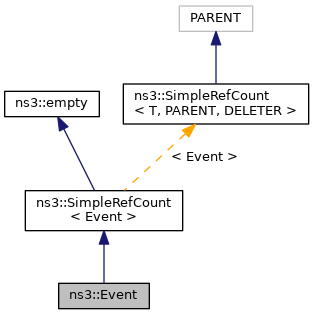

Inheritance diagram for ns3::Event:

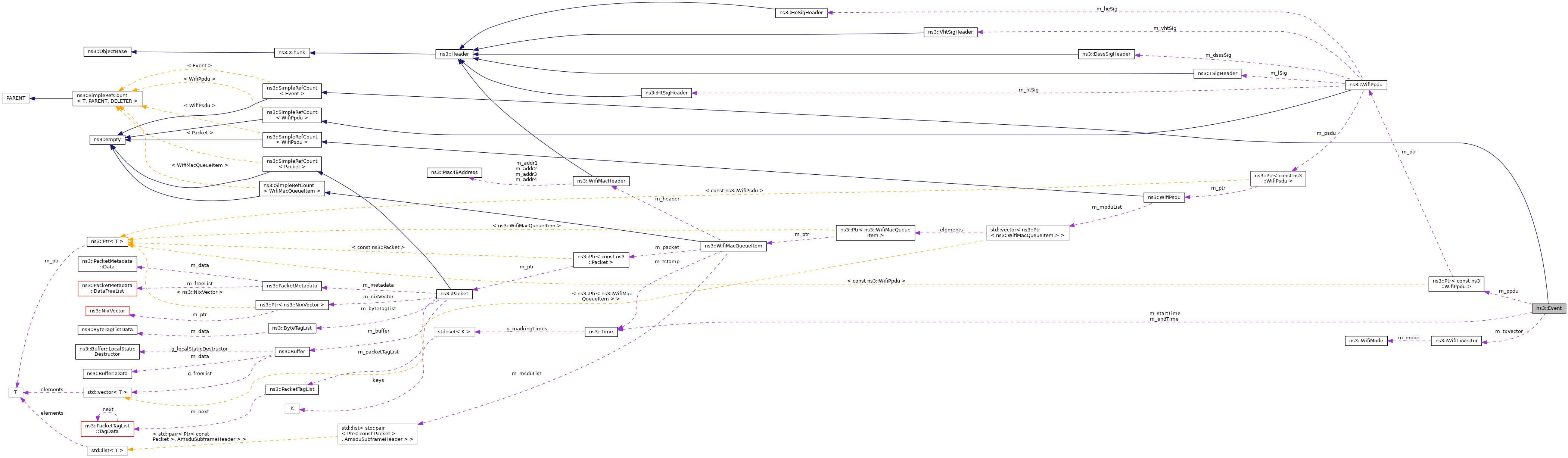

Collaboration diagram for ns3::Event:

Public Member Functions
	Event (Ptr< const WifiPpdu > ppdu, WifiTxVector txVector, Time duration, double rxPower)
	Create an Event with the given parameters. More...
	~Event ()
Time	GetDuration (void) const
	Return the duration of the signal. More...
Time	GetEndTime (void) const
	Return the end time of the signal. More...
Ptr< const WifiPpdu >	GetPpdu (void) const
	Return the PPDU. More...
Ptr< const WifiPsdu >	GetPsdu (void) const
	Return the PSDU in the PPDU. More...
double	GetRxPowerW (void) const
	Return the received power (w). More...
Time	GetStartTime (void) const
	Return the start time of the signal. More...
WifiTxVector	GetTxVector (void) const
	Return the TXVECTOR of the PPDU. More...
Public Member Functions inherited from ns3::SimpleRefCount< Event >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
Time	m_endTime
	end time More...
Ptr< const WifiPpdu >	m_ppdu
	PPDU. More...
double	m_rxPowerW
	received power in watts More...
Time	m_startTime
	start time More...
WifiTxVector	m_txVector
	TXVECTOR. More...

Detailed Description

handles interference calculations

signal event for a PPDU.

Definition at line 39 of file interference-helper.h.

Constructor & Destructor Documentation

Event()

ns3::Event::Event	(	Ptr< const WifiPpdu >	ppdu,
		WifiTxVector	txVector,
		Time	duration,
		double	rxPower
	)

Create an Event with the given parameters.

Parameters

ppdu	the PPDU
txVector	the TXVECTOR
duration	duration of the PPDU
rxPower	the received power (w)

Definition at line 40 of file interference-helper.cc.

~Event()

ns3::Event::~Event

(

)

Definition at line 49 of file interference-helper.cc.

Member Function Documentation

GetDuration()

Time ns3::Event::GetDuration

(

void

)

const

Return the duration of the signal.

Returns

the duration of the signal

Definition at line 78 of file interference-helper.cc.

References m_endTime, and m_startTime.

GetEndTime()

Time ns3::Event::GetEndTime

(

void

)

const

Return the end time of the signal.

Returns

the end time of the signal

Definition at line 72 of file interference-helper.cc.

References m_endTime.

GetPpdu()

Ptr< const WifiPpdu > ns3::Event::GetPpdu

(

void

)

const

Return the PPDU.

Returns

the PPDU

Definition at line 60 of file interference-helper.cc.

References m_ppdu.

GetPsdu()

Ptr< const WifiPsdu > ns3::Event::GetPsdu

(

void

)

const

Return the PSDU in the PPDU.

Returns

the PSDU in the PPDU

Definition at line 54 of file interference-helper.cc.

References m_ppdu.

GetRxPowerW()

double ns3::Event::GetRxPowerW

(

void

)

const

Return the received power (w).

Returns

the received power (w)

Definition at line 84 of file interference-helper.cc.

References m_rxPowerW.

GetStartTime()

Time ns3::Event::GetStartTime

(

void

)

const

Return the start time of the signal.

Returns

the start time of the signal

Definition at line 66 of file interference-helper.cc.

References m_startTime.

GetTxVector()

WifiTxVector ns3::Event::GetTxVector

(

void

)

const

Return the TXVECTOR of the PPDU.

Returns

the TXVECTOR of the PPDU

Definition at line 90 of file interference-helper.cc.

References m_txVector.

Member Data Documentation

m_endTime

Time ns3::Event::m_endTime

private

end time

Definition at line 101 of file interference-helper.h.

Referenced by GetDuration(), and GetEndTime().

m_ppdu

Ptr<const WifiPpdu> ns3::Event::m_ppdu

private

PPDU.

Definition at line 98 of file interference-helper.h.

Referenced by GetPpdu(), and GetPsdu().

m_rxPowerW

double ns3::Event::m_rxPowerW

private

received power in watts

Definition at line 102 of file interference-helper.h.

Referenced by GetRxPowerW().

m_startTime

Time ns3::Event::m_startTime

private

start time

Definition at line 100 of file interference-helper.h.

Referenced by GetDuration(), and GetStartTime().

m_txVector

WifiTxVector ns3::Event::m_txVector

private

TXVECTOR.

Definition at line 99 of file interference-helper.h.

Referenced by GetTxVector().

---

The documentation for this class was generated from the following files:

• src/wifi/model/interference-helper.h
• src/wifi/model/interference-helper.cc
