Make sure that Ideal rate manager is able to handle non best-effort traffic. More...

Inheritance diagram for Issue169TestCase:

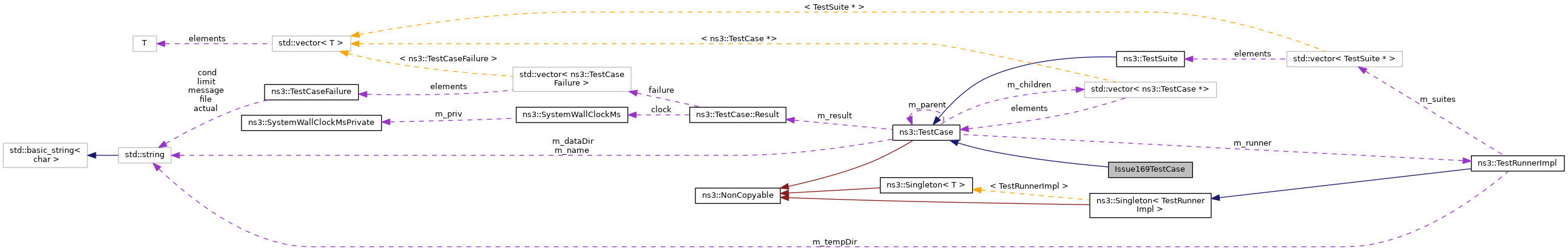

Collaboration diagram for Issue169TestCase:

Public Member Functions
	Issue169TestCase ()

virtual	~Issue169TestCase ()

virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
void	SendPackets (uint8_t numPackets, Ptr< NetDevice > sourceDevice, Address &destination, uint8_t priority)
	Triggers the transmission of a 1000 Byte-long data packet from the source device. More...

void	TxCallback (std::string context, Ptr< const WifiPsdu > psdu, WifiTxVector txVector, double txPowerW)
	Callback that indicates a PSDU is being transmitted. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Make sure that Ideal rate manager is able to handle non best-effort traffic.

The scenario considers an access point and a fixed station. The station first sends a best-effort packet to the access point, for which Ideal rate manager should select a VHT rate. Then, the station sends a non best-effort (voice) packet to the access point, and since SNR is unchanged, the same VHT rate should be used.

See {169}

Definition at line 2410 of file wifi-test.cc.

Constructor & Destructor Documentation

◆ Issue169TestCase()

Issue169TestCase::Issue169TestCase ( )

Definition at line 2437 of file wifi-test.cc.

◆ ~Issue169TestCase()

Issue169TestCase::~Issue169TestCase ( )

virtual

Definition at line 2442 of file wifi-test.cc.

Member Function Documentation

◆ DoRun()

void Issue169TestCase::DoRun ( void )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 2469 of file wifi-test.cc.

References ns3::ListPositionAllocator::Add(), third::channel, ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), third::mac, ns3::MakeCallback(), third::mobility, third::phy, ns3::Seconds(), SendPackets(), TxCallback(), third::wifi, ns3::WIFI_STANDARD_80211ac, and third::wifiApNode.

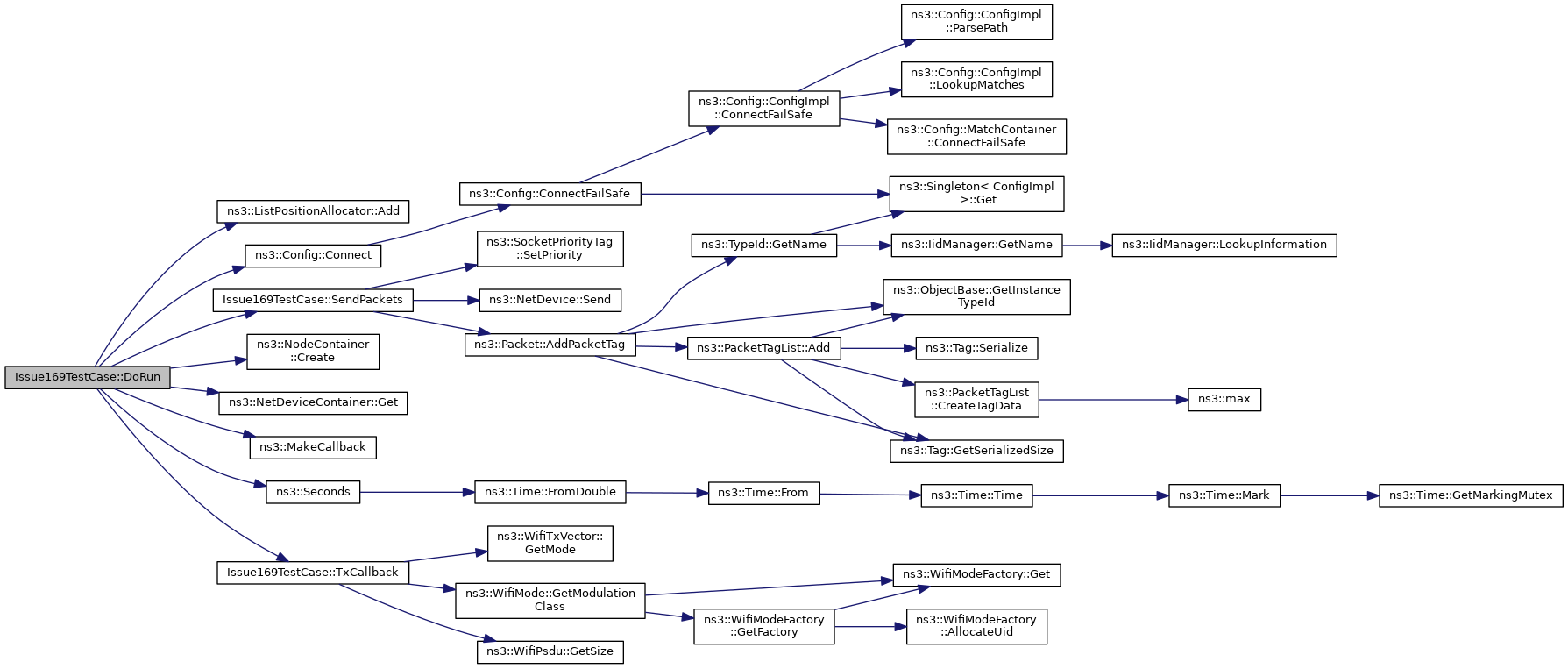

Here is the call graph for this function:

◆ SendPackets()

void Issue169TestCase::SendPackets	(	uint8_t	numPackets,
		Ptr< NetDevice >	sourceDevice,
		Address &	destination,
		uint8_t	priority
	)

private

Triggers the transmission of a 1000 Byte-long data packet from the source device.

Parameters

numPackets	number of packets in burst
sourceDevice	pointer to the source NetDevice
destination	address of the destination device
priority	the priority of the packets to send

Definition at line 2447 of file wifi-test.cc.

References ns3::Packet::AddPacketTag(), ns3::NetDevice::Send(), and ns3::SocketPriorityTag::SetPriority().

Referenced by DoRun().

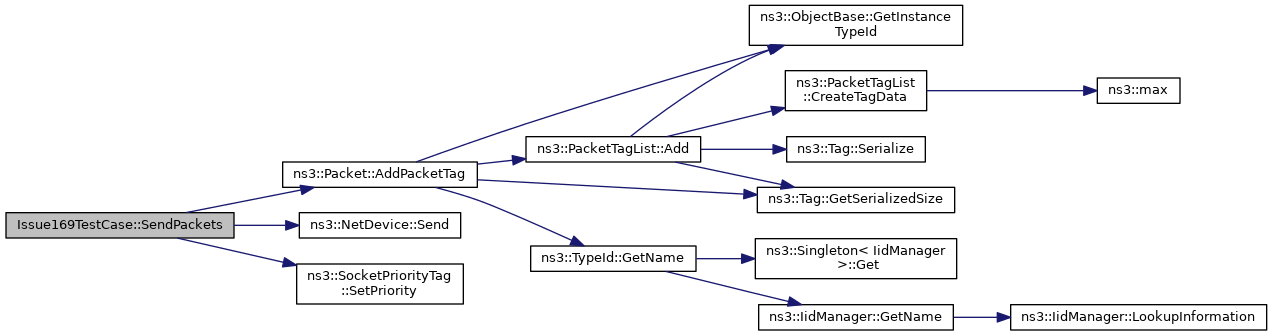

Here is the call graph for this function:
