Tag used to allow a fast identification of the packet. More...

Inheritance diagram for ns3::Ipv4FlowProbeTag:

Collaboration diagram for ns3::Ipv4FlowProbeTag:

Public Member Functions
	Ipv4FlowProbeTag ()

	Ipv4FlowProbeTag (uint32_t flowId, uint32_t packetId, uint32_t packetSize, Ipv4Address src, Ipv4Address dst)
	Consructor. More...

virtual void	Deserialize (TagBuffer buf)

uint32_t	GetFlowId (void) const
	Set the flow identifier. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

uint32_t	GetPacketId (void) const
	Set the packet identifier. More...

uint32_t	GetPacketSize (void) const
	Get the packet size. More...

virtual uint32_t	GetSerializedSize (void) const

bool	IsSrcDstValid (Ipv4Address src, Ipv4Address dst) const
	Checks if the addresses stored in tag are matching the arguments. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (TagBuffer buf) const

void	SetFlowId (uint32_t flowId)
	Set the flow identifier. More...

void	SetPacketId (uint32_t packetId)
	Set the packet identifier. More...

void	SetPacketSize (uint32_t packetSize)
	Set the packet size. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ipv4Address	m_dst
	IP destination. More...

uint32_t	m_flowId
	flow identifier More...

uint32_t	m_packetId
	packet identifier More...

uint32_t	m_packetSize
	packet size More...

Ipv4Address	m_src
	IP source. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Tag used to allow a fast identification of the packet.

This tag is added by FlowMonitor when a packet is seen for the first time, and it is then used to classify the packet in the following hops.

Definition at line 48 of file ipv4-flow-probe.cc.

Constructor & Destructor Documentation

◆ Ipv4FlowProbeTag() [1/2]

ns3::Ipv4FlowProbeTag::Ipv4FlowProbeTag ( )

Definition at line 173 of file ipv4-flow-probe.cc.

◆ Ipv4FlowProbeTag() [2/2]

ns3::Ipv4FlowProbeTag::Ipv4FlowProbeTag	(	uint32_t	flowId,
		uint32_t	packetId,
		uint32_t	packetSize,
		Ipv4Address	src,
		Ipv4Address	dst
	)

Consructor.

Parameters

flowId	the flow identifier
packetId	the packet identifier
packetSize	the packet size
src	packet source address
dst	packet destination address

Definition at line 178 of file ipv4-flow-probe.cc.

Member Function Documentation

◆ Deserialize()

void ns3::Ipv4FlowProbeTag::Deserialize ( TagBuffer i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 154 of file ipv4-flow-probe.cc.

References ns3::Ipv4Address::Deserialize(), m_dst, m_flowId, m_packetId, m_packetSize, m_src, ns3::TagBuffer::Read(), and ns3::TagBuffer::ReadU32().

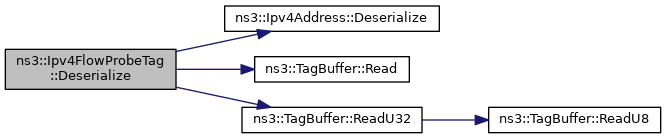

Here is the call graph for this function:

◆ GetFlowId()

uint32_t ns3::Ipv4FlowProbeTag::GetFlowId ( void ) const

Set the flow identifier.

Returns: the flow identifier

Definition at line 199 of file ipv4-flow-probe.cc.

References m_flowId.

Referenced by ns3::Ipv4FlowProbe::DropLogger(), ns3::Ipv4FlowProbe::ForwardLogger(), ns3::Ipv4FlowProbe::ForwardUpLogger(), ns3::Ipv4FlowProbe::QueueDiscDropLogger(), and ns3::Ipv4FlowProbe::QueueDropLogger().

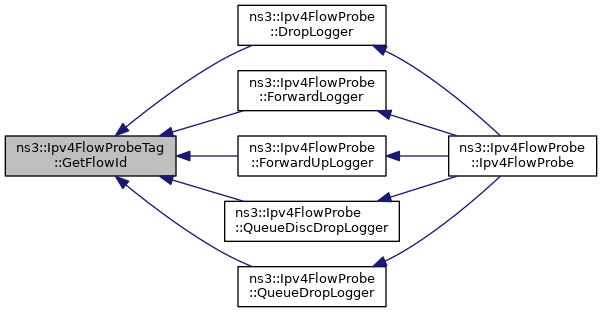

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::Ipv4FlowProbeTag::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 131 of file ipv4-flow-probe.cc.

References GetTypeId().

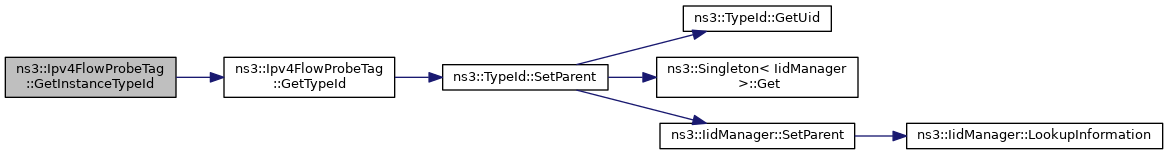

Here is the call graph for this function:

◆ GetPacketId()

uint32_t ns3::Ipv4FlowProbeTag::GetPacketId ( void ) const

Set the packet identifier.

Returns: the packet identifier

Definition at line 204 of file ipv4-flow-probe.cc.

References m_packetId.

Referenced by ns3::Ipv4FlowProbe::DropLogger(), ns3::Ipv4FlowProbe::ForwardLogger(), ns3::Ipv4FlowProbe::ForwardUpLogger(), ns3::Ipv4FlowProbe::QueueDiscDropLogger(), and ns3::Ipv4FlowProbe::QueueDropLogger().

Here is the caller graph for this function:

◆ GetPacketSize()

uint32_t ns3::Ipv4FlowProbeTag::GetPacketSize ( void ) const

Get the packet size.

Returns: the packet size

Definition at line 209 of file ipv4-flow-probe.cc.

References m_packetSize.

Referenced by ns3::Ipv4FlowProbe::QueueDiscDropLogger(), and ns3::Ipv4FlowProbe::QueueDropLogger().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::Ipv4FlowProbeTag::GetSerializedSize ( void ) const

virtual

Returns: the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 136 of file ipv4-flow-probe.cc.

◆ GetTypeId()

TypeId ns3::Ipv4FlowProbeTag::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 121 of file ipv4-flow-probe.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsSrcDstValid()

bool ns3::Ipv4FlowProbeTag::IsSrcDstValid	(	Ipv4Address	src,
		Ipv4Address	dst
	)		const

Checks if the addresses stored in tag are matching the arguments.

This check is important for IP over IP encapsulation.

Parameters

src	Source address.
dst	Destination address.

Returns: True if the addresses are matching.

Definition at line 214 of file ipv4-flow-probe.cc.

References m_dst, and m_src.

Referenced by ns3::Ipv4FlowProbe::ForwardLogger(), and ns3::Ipv4FlowProbe::ForwardUpLogger().

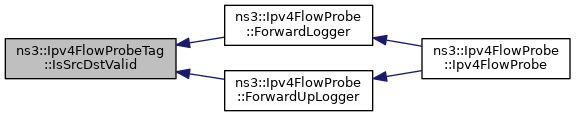

Here is the caller graph for this function:

◆ Print()

void ns3::Ipv4FlowProbeTag::Print ( std::ostream & os ) const

virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 167 of file ipv4-flow-probe.cc.

References m_flowId, m_packetId, and m_packetSize.

◆ Serialize()

void ns3::Ipv4FlowProbeTag::Serialize ( TagBuffer i ) const

virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 141 of file ipv4-flow-probe.cc.

References m_dst, m_flowId, m_packetId, m_packetSize, m_src, ns3::Ipv4Address::Serialize(), ns3::TagBuffer::Write(), and ns3::TagBuffer::WriteU32().

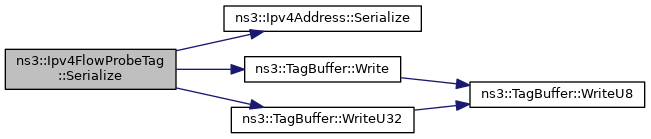

Here is the call graph for this function:

◆ SetFlowId()

void ns3::Ipv4FlowProbeTag::SetFlowId ( uint32_t flowId )

Set the flow identifier.

Parameters

flowId the flow identifier

Definition at line 184 of file ipv4-flow-probe.cc.

References m_flowId.

◆ SetPacketId()

void ns3::Ipv4FlowProbeTag::SetPacketId ( uint32_t packetId )

Set the packet identifier.

Parameters

packetId the packet identifier

Definition at line 189 of file ipv4-flow-probe.cc.

References m_packetId.

◆ SetPacketSize()

void ns3::Ipv4FlowProbeTag::SetPacketSize ( uint32_t packetSize )

Set the packet size.

Parameters

packetSize the packet size

Definition at line 194 of file ipv4-flow-probe.cc.

References m_packetSize.

Member Data Documentation

◆ m_dst

Ipv4Address ns3::Ipv4FlowProbeTag::m_dst

private

IP destination.

Definition at line 117 of file ipv4-flow-probe.cc.

Referenced by Deserialize(), IsSrcDstValid(), and Serialize().

◆ m_flowId

uint32_t ns3::Ipv4FlowProbeTag::m_flowId

private

flow identifier

Definition at line 113 of file ipv4-flow-probe.cc.

Referenced by Deserialize(), GetFlowId(), Print(), Serialize(), and SetFlowId().

◆ m_packetId

uint32_t ns3::Ipv4FlowProbeTag::m_packetId

private

packet identifier

Definition at line 114 of file ipv4-flow-probe.cc.

Referenced by Deserialize(), GetPacketId(), Print(), Serialize(), and SetPacketId().

◆ m_packetSize

uint32_t ns3::Ipv4FlowProbeTag::m_packetSize

private

packet size

Definition at line 115 of file ipv4-flow-probe.cc.

Referenced by Deserialize(), GetPacketSize(), Print(), Serialize(), and SetPacketSize().

◆ m_src

Ipv4Address ns3::Ipv4FlowProbeTag::m_src

private

IP source.

Definition at line 116 of file ipv4-flow-probe.cc.

Referenced by Deserialize(), IsSrcDstValid(), and Serialize().

The documentation for this class was generated from the following file:

src/flow-monitor/model/ipv4-flow-probe.cc
