Aggregator used to construct A-MSDUs. More...

#include "msdu-aggregator.h"

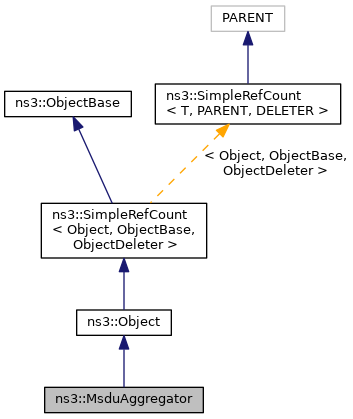

Inheritance diagram for ns3::MsduAggregator:

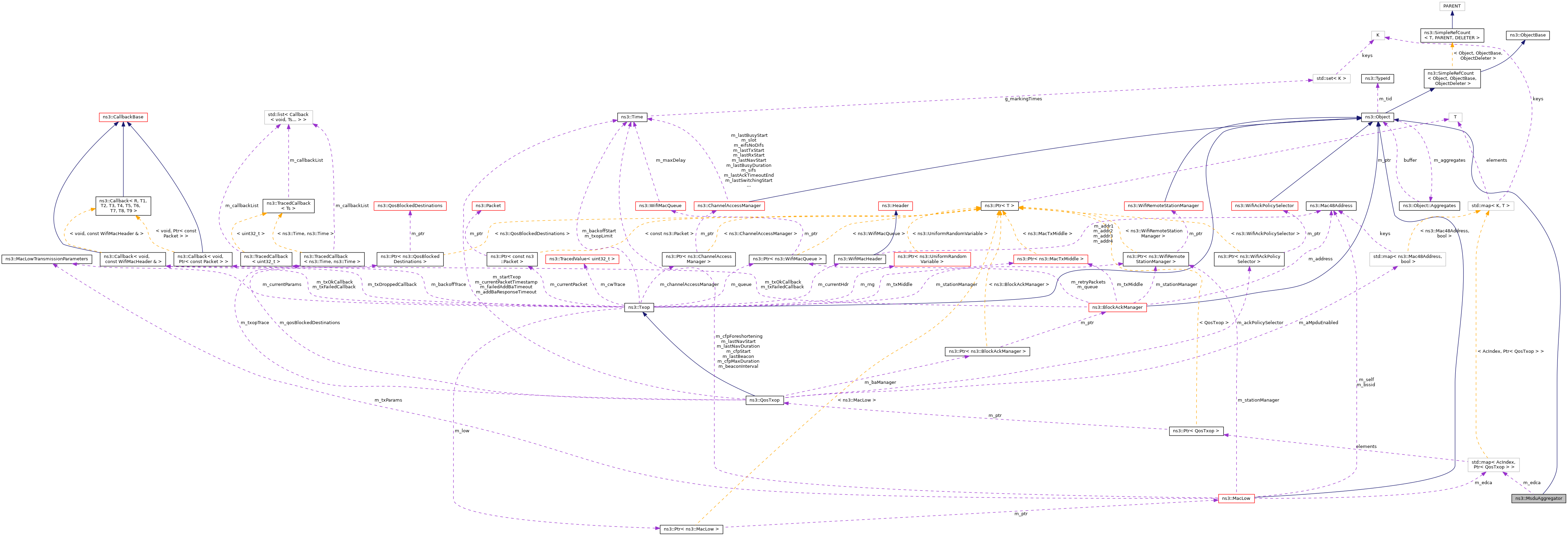

Collaboration diagram for ns3::MsduAggregator:

Public Types
typedef std::list< std::pair< Ptr< const Packet >, AmsduSubframeHeader > >	DeaggregatedMsdus
	DeaggregatedMsdus typedef. More...

typedef std::list< std::pair< Ptr< const Packet >, AmsduSubframeHeader > >::const_iterator	DeaggregatedMsdusCI
	DeaggregatedMsdusCI typedef. More...

typedef std::map< AcIndex, Ptr< QosTxop > >	EdcaQueues
	EDCA queues typedef. More...

Public Member Functions
	MsduAggregator ()

virtual	~MsduAggregator ()

uint16_t	GetMaxAmsduSize (Mac48Address recipient, uint8_t tid, WifiModulationClass modulation) const
	Determine the maximum size for an A-MSDU of the given TID that can be sent to the given receiver when using the given modulation class. More...

Ptr< WifiMacQueueItem >	GetNextAmsdu (Mac48Address recipient, uint8_t tid, WifiTxVector txVector, uint32_t ampduSize=0, Time ppduDurationLimit=Time::Min()) const
	Dequeue MSDUs to be transmitted to a given station and belonging to a given TID from the corresponding EDCA queue and aggregate them to form an A-MSDU that meets the following constraints: More...

void	SetEdcaQueues (EdcaQueues map)
	Set the map of EDCA queues. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const

template<>
Ptr< Object >	GetObject (TypeId tid) const

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static uint8_t	CalculatePadding (uint16_t amsduSize)
	Calculate how much padding must be added to the end of an A-MSDU of the given size if a new MSDU is added. More...

static DeaggregatedMsdus	Deaggregate (Ptr< Packet > aggregatedPacket)

static uint16_t	GetSizeIfAggregated (uint16_t msduSize, uint16_t amsduSize)
	Compute the size of the A-MSDU resulting from the aggregation of an MSDU of size msduSize and an A-MSDU of size amsduSize. More...

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
EdcaQueues	m_edca
	the map of EDCA queues More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Aggregator used to construct A-MSDUs.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 80 bytes (on a 64-bit architecture).

Definition at line 42 of file msdu-aggregator.h.

Member Typedef Documentation

◆ DeaggregatedMsdus

typedef std::list<std::pair<Ptr<const Packet>, AmsduSubframeHeader> > ns3::MsduAggregator::DeaggregatedMsdus

DeaggregatedMsdus typedef.

Definition at line 46 of file msdu-aggregator.h.

◆ DeaggregatedMsdusCI

typedef std::list<std::pair<Ptr<const Packet>, AmsduSubframeHeader> >::const_iterator ns3::MsduAggregator::DeaggregatedMsdusCI

DeaggregatedMsdusCI typedef.

Definition at line 48 of file msdu-aggregator.h.

◆ EdcaQueues

typedef std::map<AcIndex, Ptr<QosTxop> > ns3::MsduAggregator::EdcaQueues

EDCA queues typedef.

Definition at line 50 of file msdu-aggregator.h.

Constructor & Destructor Documentation

◆ MsduAggregator()

ns3::MsduAggregator::MsduAggregator ( )

Definition at line 55 of file msdu-aggregator.cc.

◆ ~MsduAggregator()

ns3::MsduAggregator::~MsduAggregator ( )

virtual

Definition at line 59 of file msdu-aggregator.cc.

Member Function Documentation

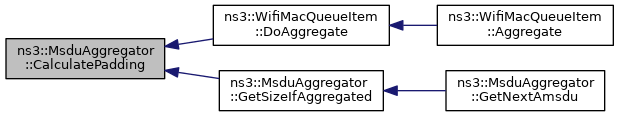

◆ CalculatePadding()

uint8_t ns3::MsduAggregator::CalculatePadding ( uint16_t amsduSize )

static

Calculate how much padding must be added to the end of an A-MSDU of the given size if a new MSDU is added.

Each A-MSDU subframe is padded so that its length is multiple of 4 octets.

Parameters

amsduSize the size of the A-MSDU

Returns: the number of octets required for padding

Definition at line 181 of file msdu-aggregator.cc.

Referenced by ns3::WifiMacQueueItem::DoAggregate(), and GetSizeIfAggregated().

Here is the caller graph for this function:

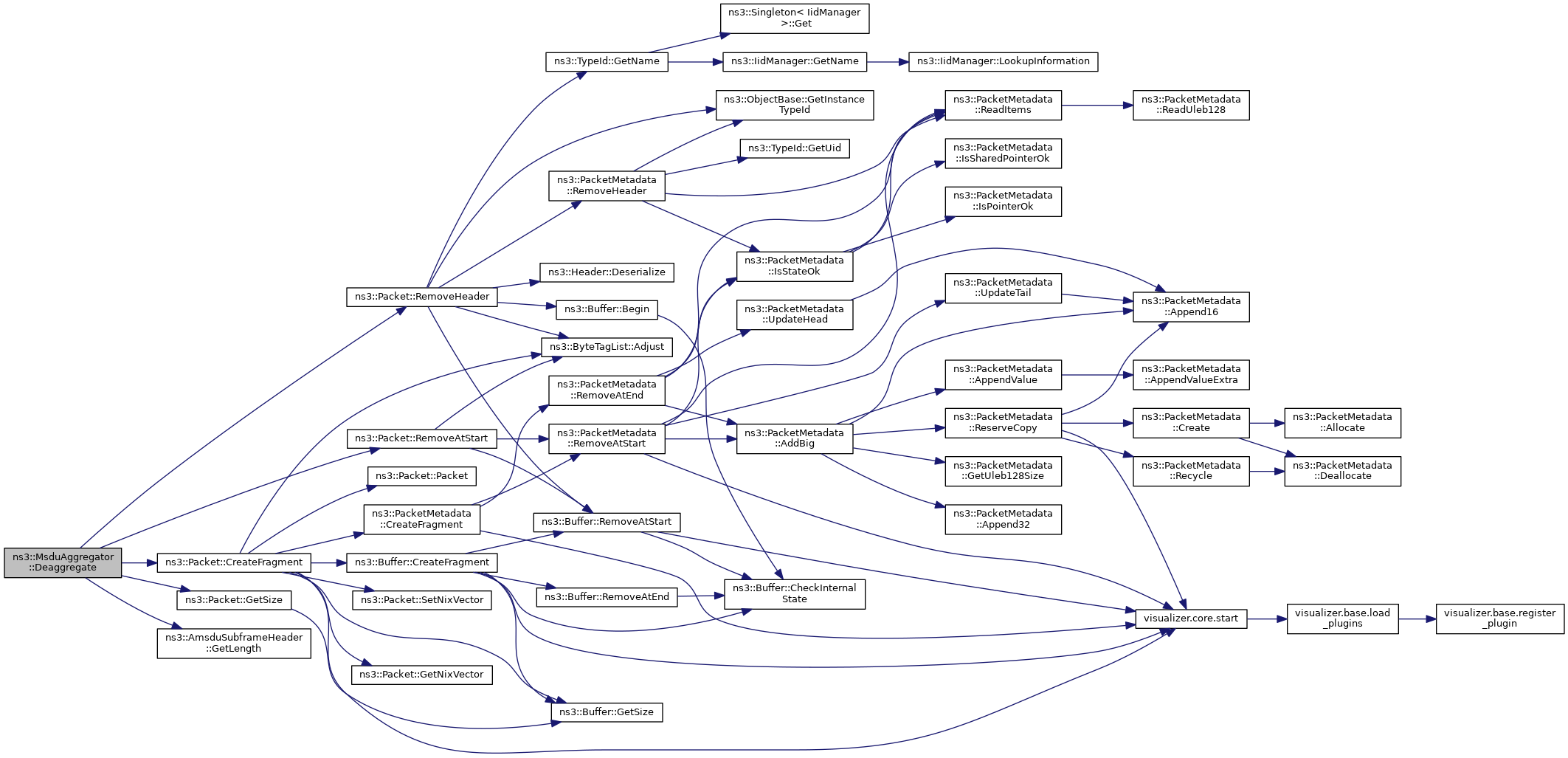

◆ Deaggregate()

MsduAggregator::DeaggregatedMsdus ns3::MsduAggregator::Deaggregate ( Ptr< Packet > aggregatedPacket )

static

Parameters

aggregatedPacket the aggregated packet.

Returns: DeaggregatedMsdus.

Definition at line 275 of file msdu-aggregator.cc.

References ns3::Packet::CreateFragment(), ns3::AmsduSubframeHeader::GetLength(), ns3::Packet::GetSize(), NS_LOG_FUNCTION_NOARGS, NS_LOG_INFO, ns3::Packet::RemoveAtStart(), and ns3::Packet::RemoveHeader().

Referenced by ns3::WifiMacQueueItem::WifiMacQueueItem().

Here is the call graph for this function:

Here is the caller graph for this function:

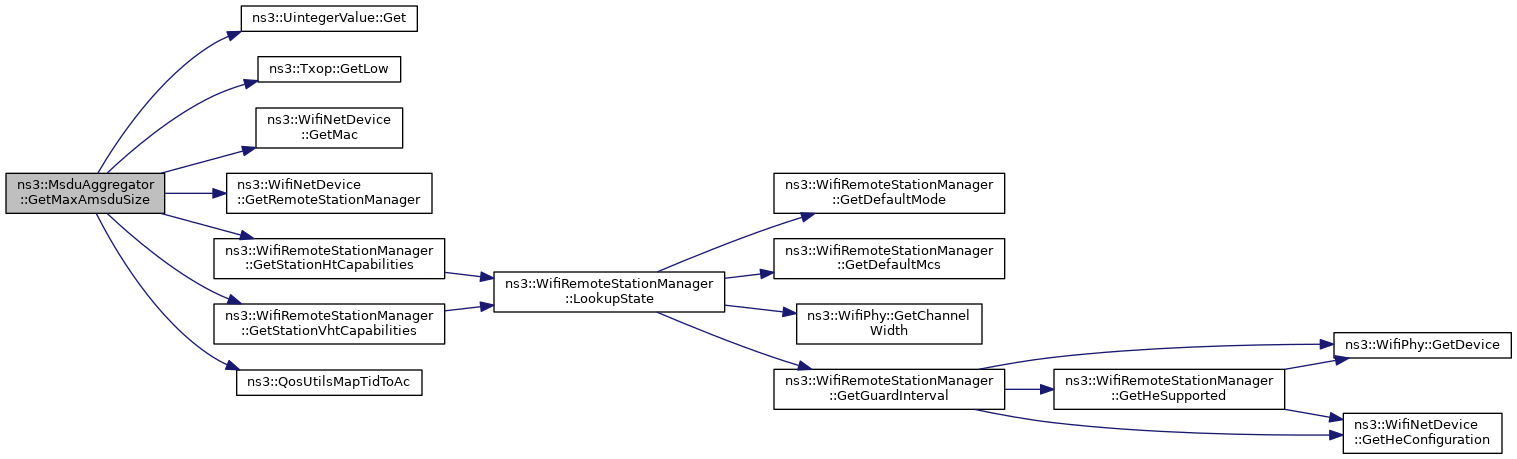

◆ GetMaxAmsduSize()

uint16_t ns3::MsduAggregator::GetMaxAmsduSize	(	Mac48Address	recipient,
		uint8_t	tid,
		WifiModulationClass	modulation
	)		const

Determine the maximum size for an A-MSDU of the given TID that can be sent to the given receiver when using the given modulation class.

Parameters

recipient	the receiver station address.
tid	the TID.
modulation	the modulation class.

Returns: the maximum A-MSDU size in bytes.

Definition at line 187 of file msdu-aggregator.cc.

References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, ns3::UintegerValue::Get(), ns3::Txop::GetLow(), ns3::WifiNetDevice::GetMac(), ns3::WifiNetDevice::GetRemoteStationManager(), ns3::WifiRemoteStationManager::GetStationHtCapabilities(), ns3::WifiRemoteStationManager::GetStationVhtCapabilities(), m_edca, min, NS_ABORT_MSG, NS_ABORT_MSG_IF, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by GetNextAmsdu().

Here is the call graph for this function:

Here is the caller graph for this function:

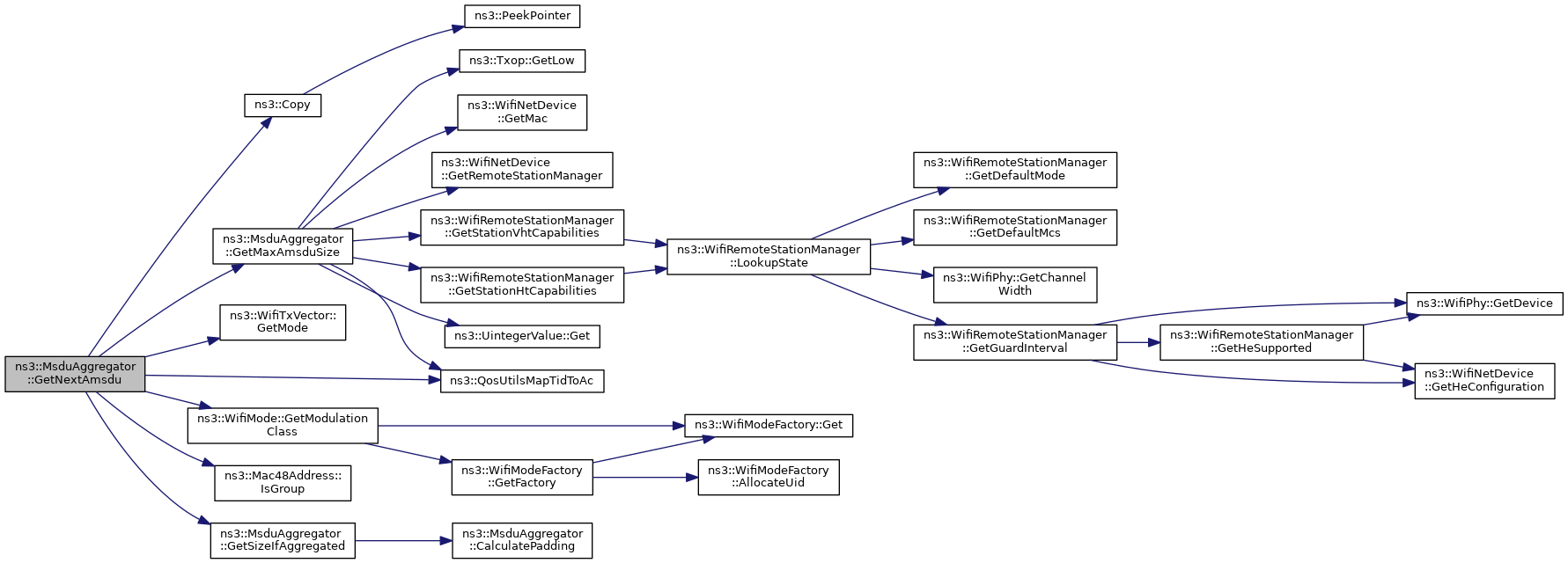

◆ GetNextAmsdu()

Ptr< WifiMacQueueItem > ns3::MsduAggregator::GetNextAmsdu	(	Mac48Address	recipient,
		uint8_t	tid,
		WifiTxVector	txVector,
		uint32_t	ampduSize = `0`,
		Time	ppduDurationLimit = `Time::Min ()`
	)		const

Dequeue MSDUs to be transmitted to a given station and belonging to a given TID from the corresponding EDCA queue and aggregate them to form an A-MSDU that meets the following constraints:

the A-MSDU size does not exceed the maximum A-MSDU size as determined for the modulation class indicated by the given TxVector
the size of the A-MPDU resulting from the aggregation of the MPDU in which the A-MSDU will be embedded and an existing A-MPDU of the given size (possibly null) does not exceed the maximum A-MPDU size as determined for the modulation class indicated by the given TxVector
the time to transmit the resulting PPDU, according to the given TxVector, does not exceed both the maximum PPDU duration allowed by the corresponding modulation class (if any) and the given PPDU duration limit (if distinct from Time::Min ())

If it is not possible to aggregate at least two MSDUs, no MSDU is dequeued from the EDCA queue and a null pointer is returned.

Parameters

recipient	the receiver station address.
tid	the TID.
txVector	the TxVector used to transmit the frame
ampduSize	the size of the existing A-MPDU in bytes
ppduDurationLimit	the limit on the PPDU duration

Returns: the resulting A-MSDU, if aggregation is possible, 0 otherwise.

Definition at line 79 of file msdu-aggregator.cc.

References ns3::Copy(), GetMaxAmsduSize(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), GetSizeIfAggregated(), ns3::Mac48Address::IsGroup(), m_edca, NS_ABORT_MSG_IF, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), and ns3::WIFI_MAC_FCS_LENGTH.

Here is the call graph for this function:

◆ GetSizeIfAggregated()

uint16_t ns3::MsduAggregator::GetSizeIfAggregated	(	uint16_t	msduSize,
		uint16_t	amsduSize
	)

static

Compute the size of the A-MSDU resulting from the aggregation of an MSDU of size msduSize and an A-MSDU of size amsduSize.

Note that only the basic A-MSDU subframe format (section 9.3.2.2.2 of IEEE 802.11-2016) is supported.

Parameters

msduSize	the MSDU size in bytes.
amsduSize	the A-MSDU size in bytes.

Returns: the size of the resulting A-MSDU in bytes.

Definition at line 70 of file msdu-aggregator.cc.

References CalculatePadding(), and NS_LOG_FUNCTION.

Referenced by GetNextAmsdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::MsduAggregator::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 45 of file msdu-aggregator.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ SetEdcaQueues()

void ns3::MsduAggregator::SetEdcaQueues ( EdcaQueues map )

Set the map of EDCA queues.

Parameters

map	the map of EDCA queues.

Definition at line 64 of file msdu-aggregator.cc.

References m_edca.

Member Data Documentation

◆ m_edca

EdcaQueues ns3::MsduAggregator::m_edca

private

the map of EDCA queues

Definition at line 143 of file msdu-aggregator.h.

Referenced by GetMaxAmsduSize(), GetNextAmsdu(), and SetEdcaQueues().

The documentation for this class was generated from the following files:

src/wifi/model/msdu-aggregator.h
src/wifi/model/msdu-aggregator.cc
