WifiMacQueueItem stores (const) packets along with their Wifi MAC headers and the time when they were enqueued. More...

#include "wifi-mac-queue-item.h"

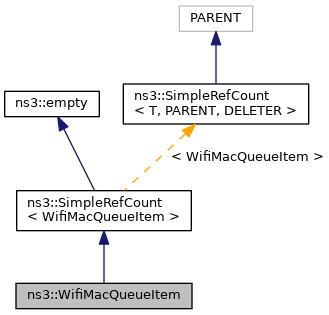

Inheritance diagram for ns3::WifiMacQueueItem:

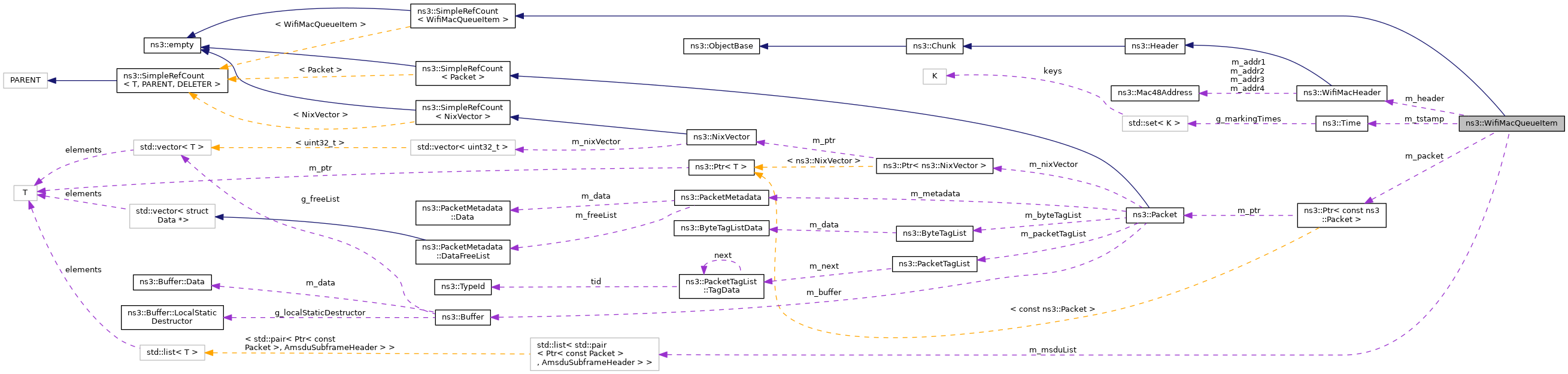

Collaboration diagram for ns3::WifiMacQueueItem:

Public Member Functions
	WifiMacQueueItem (Ptr< const Packet > p, const WifiMacHeader &header)
	Create a Wifi MAC queue item containing a packet and a Wifi MAC header. More...

	WifiMacQueueItem (Ptr< const Packet > p, const WifiMacHeader &header, Time tstamp)
	Create a Wifi MAC queue item containing a packet and a Wifi MAC header. More...

virtual	~WifiMacQueueItem ()

void	Aggregate (Ptr< const WifiMacQueueItem > msdu)
	Aggregate the MSDU contained in the given MPDU to this MPDU (thus constituting an A-MSDU). More...

MsduAggregator::DeaggregatedMsdusCI	begin (void)
	Get a constant iterator pointing to the first MSDU in the list of aggregated MSDUs. More...

MsduAggregator::DeaggregatedMsdusCI	end (void)
	Get a constant iterator indicating past-the-last MSDU in the list of aggregated MSDUs. More...

Mac48Address	GetDestinationAddress (void) const
	Return the destination address present in the header. More...

const WifiMacHeader &	GetHeader (void) const
	Get the header stored in this item. More...

WifiMacHeader &	GetHeader (void)
	Get the header stored in this item. More...

Ptr< const Packet >	GetPacket (void) const
	Get the packet stored in this item. More...

Ptr< Packet >	GetProtocolDataUnit (void) const
	Get the MAC protocol data unit (MPDU) corresponding to this item (i.e. More...

uint32_t	GetSize (void) const
	Return the size of the packet stored by this item, including header size and trailer size. More...

Time	GetTimeStamp (void) const
	Get the timestamp included in this item. More...

virtual void	Print (std::ostream &os) const
	Print the item contents. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiMacQueueItem >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
void	DoAggregate (Ptr< const WifiMacQueueItem > msdu)
	Aggregate the MSDU contained in the given MPDU to this MPDU (thus constituting an A-MSDU). More...

Private Attributes
WifiMacHeader	m_header
	Wifi MAC header associated with the packet. More...

MsduAggregator::DeaggregatedMsdus	m_msduList
	The list of aggregated MSDUs included in this MPDU. More...

Ptr< const Packet >	m_packet
	The packet (MSDU or A-MSDU) contained in this queue item. More...

Time	m_tstamp
	timestamp when the packet arrived at the queue More...

Detailed Description

WifiMacQueueItem stores (const) packets along with their Wifi MAC headers and the time when they were enqueued.

Definition at line 43 of file wifi-mac-queue-item.h.

Constructor & Destructor Documentation

◆ WifiMacQueueItem() [1/2]

ns3::WifiMacQueueItem::WifiMacQueueItem	(	Ptr< const Packet >	p,
		const WifiMacHeader &	header
	)

Create a Wifi MAC queue item containing a packet and a Wifi MAC header.

Parameters

p	the const packet included in the created item.
header	the Wifi MAC header included in the created item.

Definition at line 35 of file wifi-mac-queue-item.cc.

◆ WifiMacQueueItem() [2/2]

ns3::WifiMacQueueItem::WifiMacQueueItem	(	Ptr< const Packet >	p,
		const WifiMacHeader &	header,
		Time	tstamp
	)

Create a Wifi MAC queue item containing a packet and a Wifi MAC header.

Parameters

p	the const packet included in the created item.
header	the Wifi MAC header included in the created item.
tstamp	the timestamp associated with the created item.

Definition at line 40 of file wifi-mac-queue-item.cc.

References ns3::Packet::Copy(), ns3::MsduAggregator::Deaggregate(), ns3::WifiMacHeader::IsQosAmsdu(), ns3::WifiMacHeader::IsQosData(), and m_msduList.

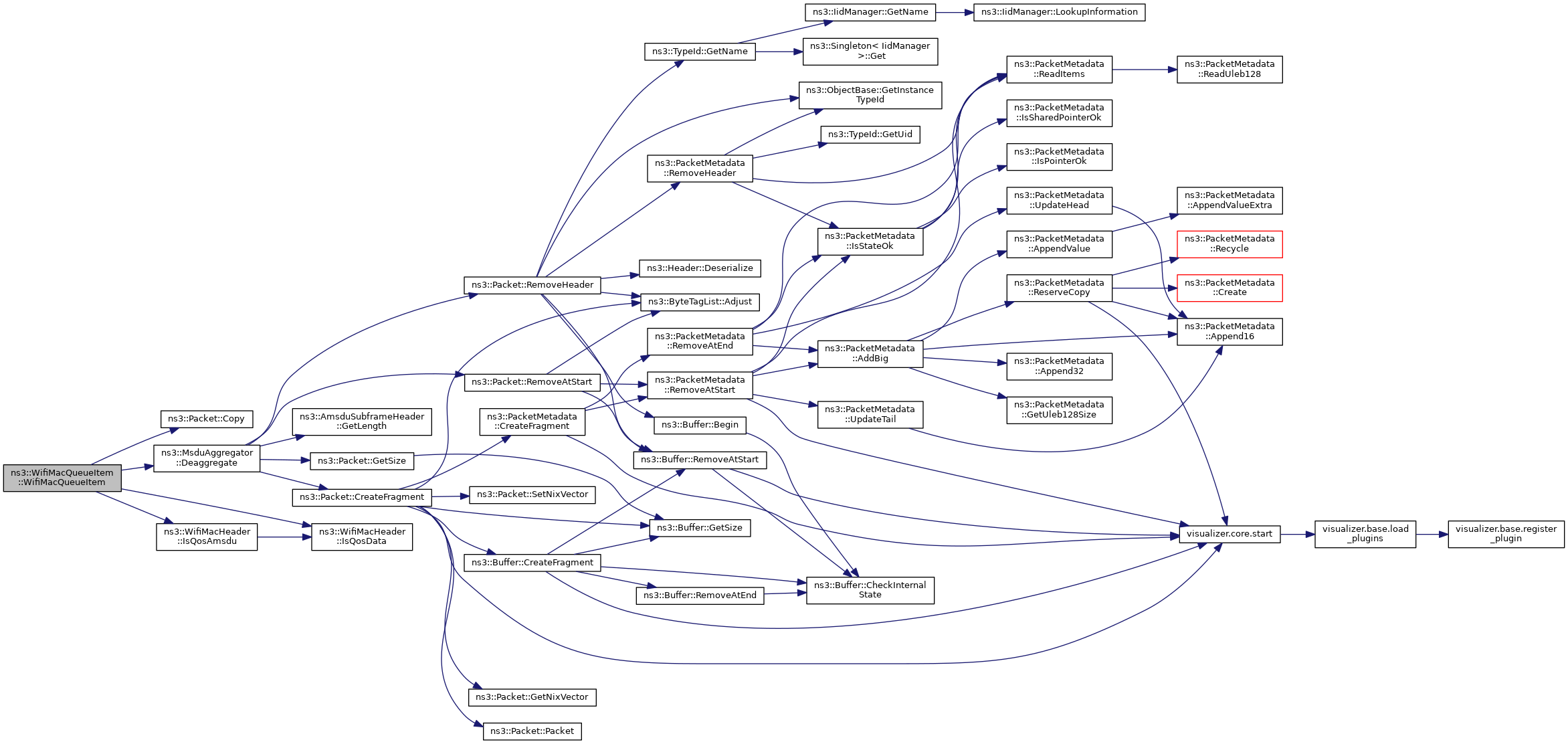

Here is the call graph for this function:

◆ ~WifiMacQueueItem()

ns3::WifiMacQueueItem::~WifiMacQueueItem ( )

virtual

Definition at line 51 of file wifi-mac-queue-item.cc.

Member Function Documentation

◆ Aggregate()

void ns3::WifiMacQueueItem::Aggregate ( Ptr< const WifiMacQueueItem > msdu )

Aggregate the MSDU contained in the given MPDU to this MPDU (thus constituting an A-MSDU).

Note that the given MPDU cannot contain an A-MSDU.

Parameters

msdu	the MPDU containing the MSDU to aggregate

Definition at line 101 of file wifi-mac-queue-item.cc.

References DoAggregate(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::IsFromDs(), ns3::WifiMacHeader::IsToDs(), m_header, m_msduList, m_packet, NS_ABORT_MSG_IF, NS_ASSERT, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetAddr3(), and ns3::WifiMacHeader::SetQosAmsdu().

Here is the call graph for this function:

◆ begin()

MsduAggregator::DeaggregatedMsdusCI ns3::WifiMacQueueItem::begin ( void )

Get a constant iterator pointing to the first MSDU in the list of aggregated MSDUs.

Returns: a constant iterator pointing to the first MSDU in the list of aggregated MSDUs

Definition at line 191 of file wifi-mac-queue-item.cc.

References m_msduList.

◆ DoAggregate()

void ns3::WifiMacQueueItem::DoAggregate ( Ptr< const WifiMacQueueItem > msdu )

private

Aggregate the MSDU contained in the given MPDU to this MPDU (thus constituting an A-MSDU).

Note that the given MPDU cannot contain an A-MSDU.

Parameters

msdu	the MPDU containing the MSDU to aggregate

Definition at line 135 of file wifi-mac-queue-item.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddHeader(), ns3::MsduAggregator::CalculatePadding(), ns3::Packet::Copy(), ns3::Packet::GetSize(), m_msduList, m_packet, m_tstamp, ns3::Max(), NS_ASSERT, NS_LOG_FUNCTION, ns3::AmsduSubframeHeader::SetDestinationAddr(), ns3::AmsduSubframeHeader::SetLength(), and ns3::AmsduSubframeHeader::SetSourceAddr().

Referenced by Aggregate().

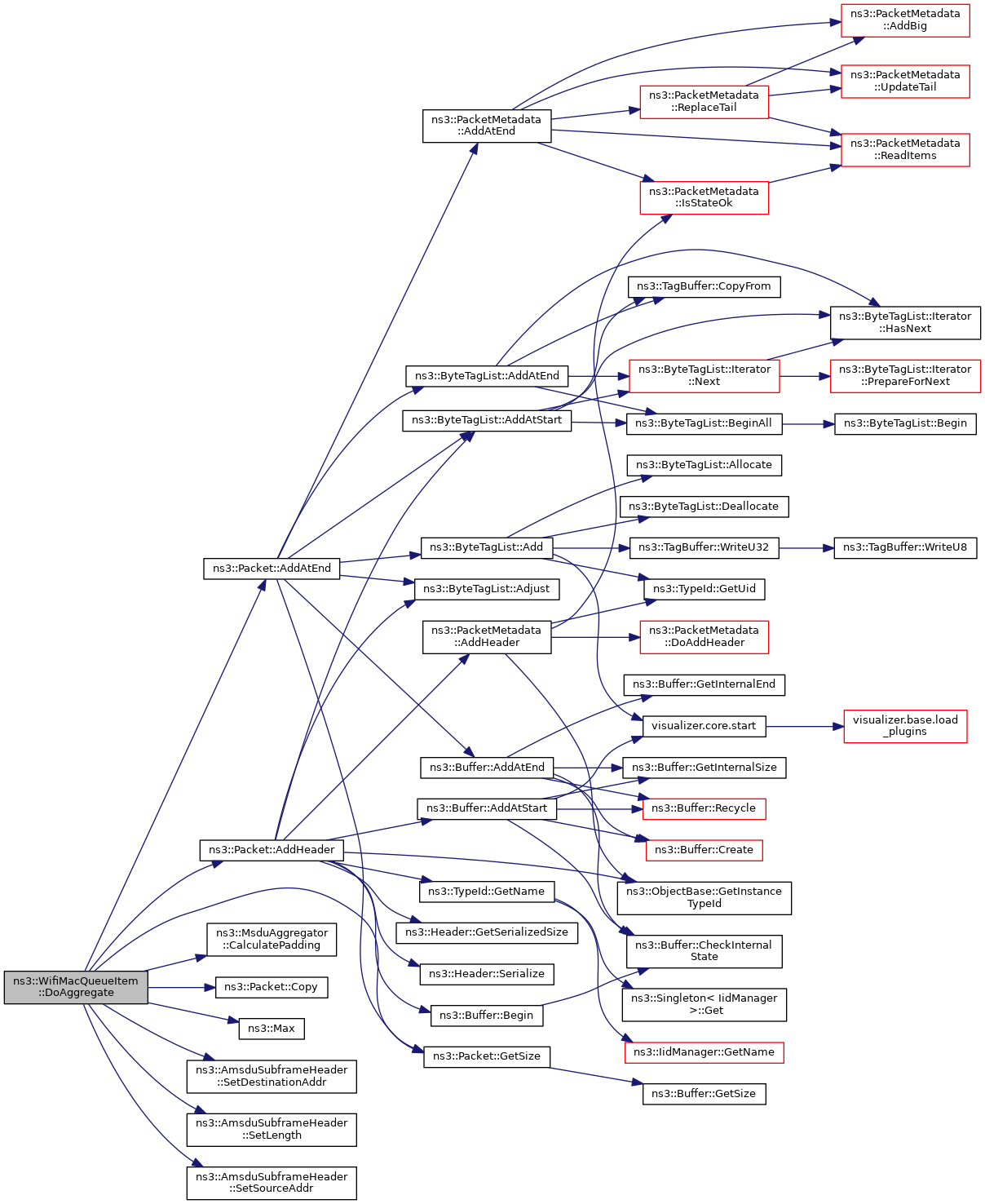

Here is the call graph for this function:

Here is the caller graph for this function:

◆ end()

MsduAggregator::DeaggregatedMsdusCI ns3::WifiMacQueueItem::end ( void )

Get a constant iterator indicating past-the-last MSDU in the list of aggregated MSDUs.

Returns: a constant iterator indicating past-the-last MSDU in the list of aggregated MSDUs

Definition at line 197 of file wifi-mac-queue-item.cc.

References m_msduList.

◆ GetDestinationAddress()

Mac48Address ns3::WifiMacQueueItem::GetDestinationAddress ( void ) const

Return the destination address present in the header.

Returns: the destination address

Definition at line 74 of file wifi-mac-queue-item.cc.

References ns3::WifiMacHeader::GetAddr1(), and m_header.

Here is the call graph for this function:

◆ GetHeader() [1/2]

const WifiMacHeader & ns3::WifiMacQueueItem::GetHeader ( void ) const

Get the header stored in this item.

Returns: the header stored in this item.

Definition at line 62 of file wifi-mac-queue-item.cc.

References m_header.

Referenced by OriginatorBlockAckWindowTest::DoRun().

Here is the caller graph for this function:

◆ GetHeader() [2/2]

WifiMacHeader & ns3::WifiMacQueueItem::GetHeader ( void )

Get the header stored in this item.

Returns: the header stored in this item.

Definition at line 68 of file wifi-mac-queue-item.cc.

References m_header.

◆ GetPacket()

Ptr< const Packet > ns3::WifiMacQueueItem::GetPacket ( void ) const

Get the packet stored in this item.

Returns: the packet stored in this item.

Definition at line 56 of file wifi-mac-queue-item.cc.

References m_packet.

Referenced by TwoLevelAggregationTest::DoRun(), and WifiAcMappingTest::PacketEnqueuedInWifiMacQueue().

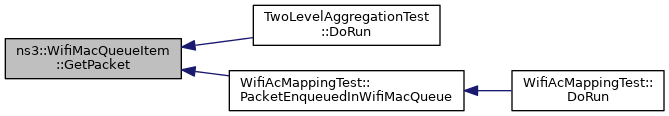

Here is the caller graph for this function:

◆ GetProtocolDataUnit()

Ptr< Packet > ns3::WifiMacQueueItem::GetProtocolDataUnit ( void ) const

Get the MAC protocol data unit (MPDU) corresponding to this item (i.e.

a copy of the packet stored in this item wrapped with MAC header and trailer)

Returns: the MAC protocol data unit corresponding to this item.

Definition at line 92 of file wifi-mac-queue-item.cc.

References ns3::Packet::AddHeader(), ns3::AddWifiMacTrailer(), ns3::Packet::Copy(), m_header, and m_packet.

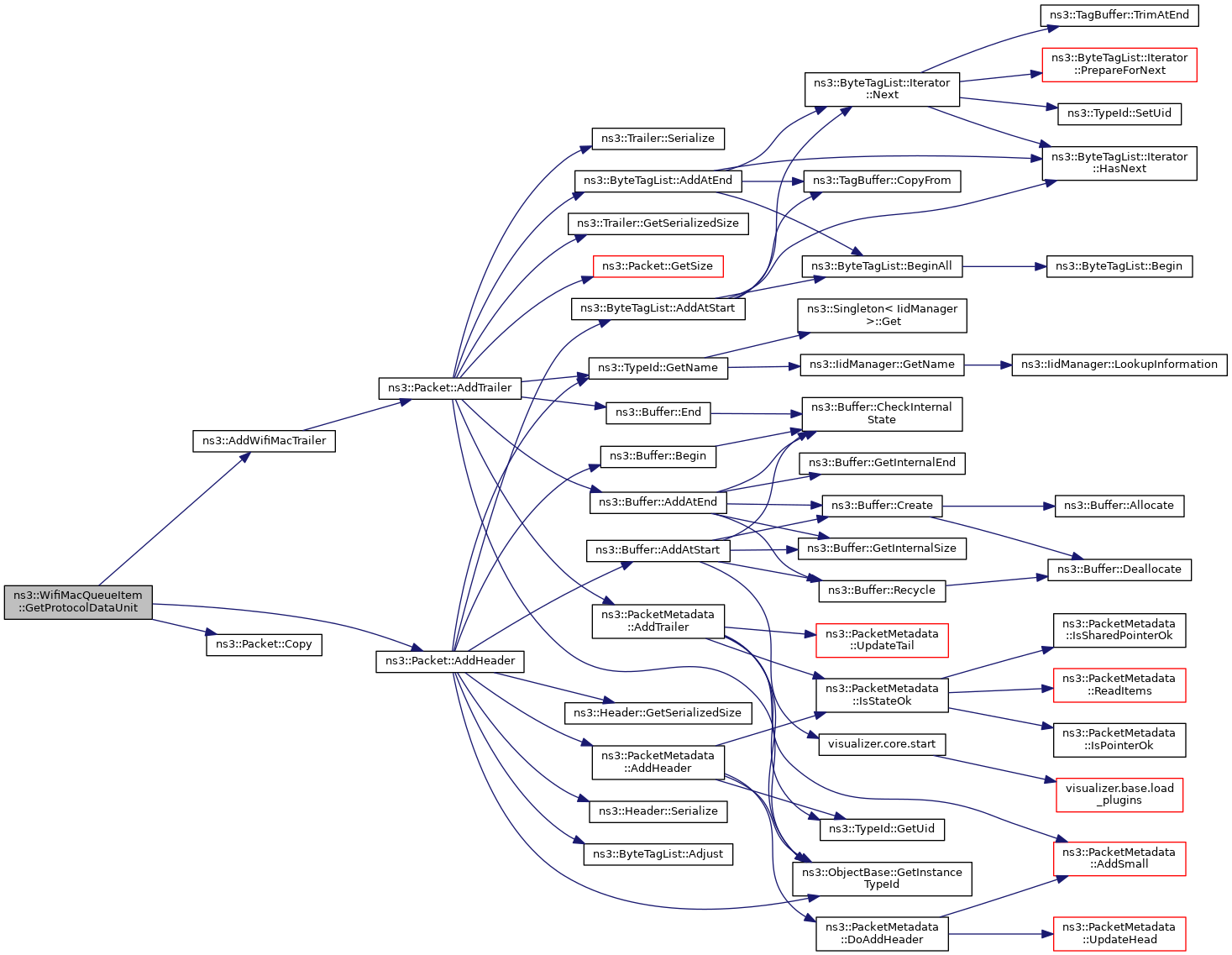

Here is the call graph for this function:

◆ GetSize()

uint32_t ns3::WifiMacQueueItem::GetSize ( void ) const

Return the size of the packet stored by this item, including header size and trailer size.

Returns: the size of the packet stored by this item in bytes.

Definition at line 86 of file wifi-mac-queue-item.cc.

References ns3::WifiMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_header, m_packet, and ns3::WIFI_MAC_FCS_LENGTH.

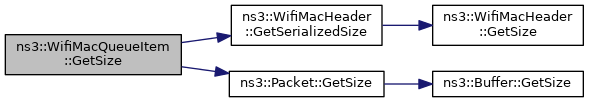

Here is the call graph for this function:

◆ GetTimeStamp()

Time ns3::WifiMacQueueItem::GetTimeStamp ( void ) const

Get the timestamp included in this item.

Returns: the timestamp included in this item.

Definition at line 80 of file wifi-mac-queue-item.cc.

References m_tstamp.

◆ Print()

void ns3::WifiMacQueueItem::Print ( std::ostream & os ) const

virtual

Print the item contents.

Parameters

os	output stream in which the data should be printed.

Definition at line 203 of file wifi-mac-queue-item.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::Packet::GetSize(), ns3::WifiMacHeader::IsQosAck(), ns3::WifiMacHeader::IsQosBlockAck(), ns3::WifiMacHeader::IsQosData(), ns3::WifiMacHeader::IsQosNoAck(), m_header, m_packet, m_tstamp, and ns3::Simulator::Now().

Referenced by ns3::operator<<().

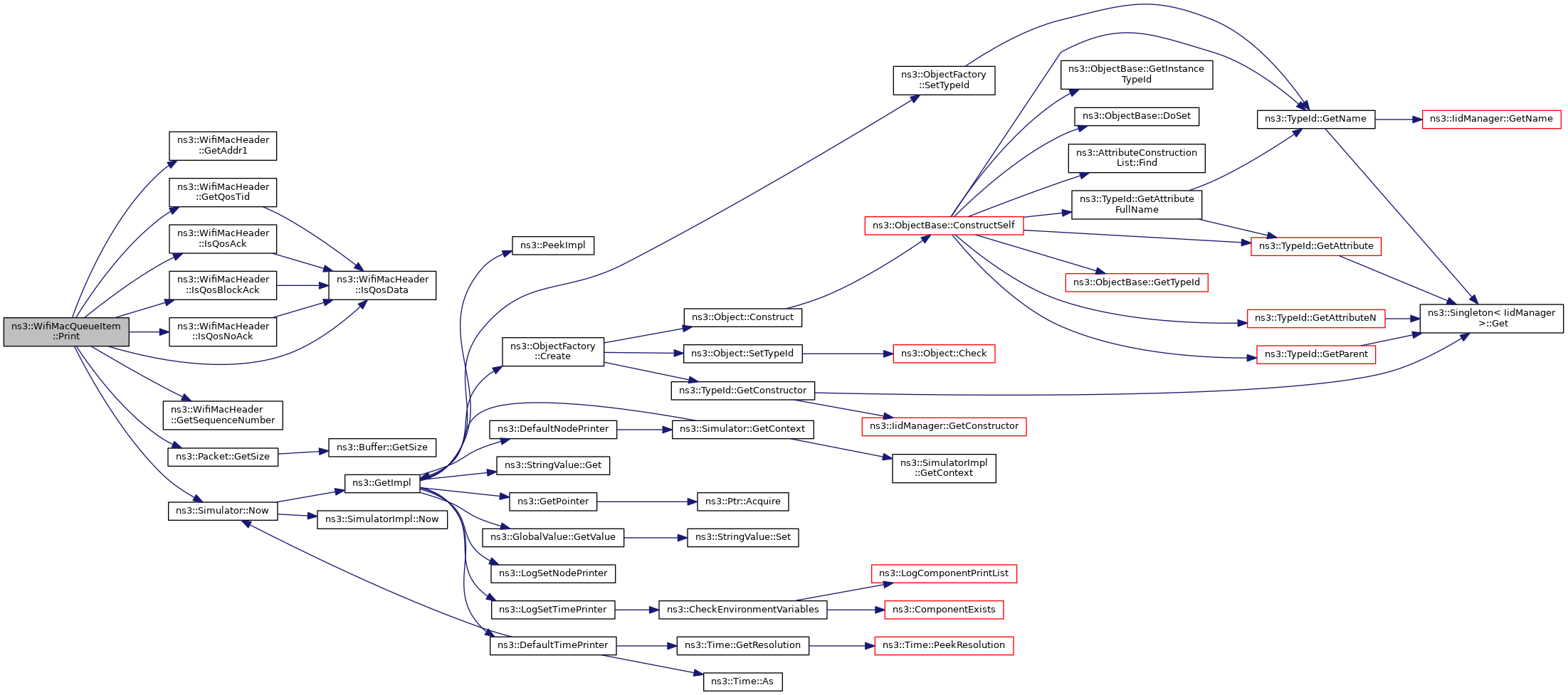

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_header

WifiMacHeader ns3::WifiMacQueueItem::m_header

private

Wifi MAC header associated with the packet.

Definition at line 146 of file wifi-mac-queue-item.h.

Referenced by Aggregate(), GetDestinationAddress(), GetHeader(), GetProtocolDataUnit(), GetSize(), and Print().

◆ m_msduList

MsduAggregator::DeaggregatedMsdus ns3::WifiMacQueueItem::m_msduList

private

The list of aggregated MSDUs included in this MPDU.

Definition at line 148 of file wifi-mac-queue-item.h.

Referenced by Aggregate(), begin(), DoAggregate(), end(), and WifiMacQueueItem().

◆ m_packet

Ptr<const Packet> ns3::WifiMacQueueItem::m_packet

private

The packet (MSDU or A-MSDU) contained in this queue item.

Definition at line 145 of file wifi-mac-queue-item.h.

Referenced by Aggregate(), DoAggregate(), GetPacket(), GetProtocolDataUnit(), GetSize(), and Print().

◆ m_tstamp

Time ns3::WifiMacQueueItem::m_tstamp

private

timestamp when the packet arrived at the queue

Definition at line 147 of file wifi-mac-queue-item.h.

Referenced by DoAggregate(), GetTimeStamp(), and Print().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-mac-queue-item.h
src/wifi/model/wifi-mac-queue-item.cc
